Improving Requirements Engineering through Goal-oriented Models

and Tools: Feedback from a Large Industrial Deployment

Christophe Ponsard

and Robert Darimont

CETIC Research Centre, Gosselies, Belgium

Respect-IT SA, Louvain-la-Neuve, Belgium

Keywords:

Requirements Engineering, Model-driven Engineering, Speciﬁcation by Example, Case Study, Toolchain

Integration.

Abstract:

Nowadays, mastering the requirements phase is still challenging for companies of any size and often impacts

the quality, delay or cost of the delivered software system. While smaller companies may suffer from matu-

rity, resource or tooling problems, larger companies have to cope with the larger size, complexity and cross-

dependencies between their projects. This paper reports about the work carried out over the past three years to

address such challenges within Huawei, a very large Chinese company active worldwide in the high-tech and

telecommunication sectors, with the help of experts from the requirements engineering community. We show

how goal-oriented requirements engineering (GORE) is able to provide a strong foundation to support the

evolution of requirements engineering practices and also in connection with related processes such as business

analysis, technical speciﬁcation and testing. We also report about our experience in developing adequate tool

support to achieve successful industrial adoption and address team-work, scalability and toolchain integration

needs. Although anchored in a speciﬁc case, most of the reported issues are shared by many companies in

many domains. To further abstract away from our case, we also formulate some ”Chinese wisdom” learned,

identify useful strategies for successful technology transfer and point further research challenges.

1 INTRODUCTION

It is an established fact that software development

projects are difﬁcult to lead to success, i.e. ﬁnish

within time, budget and scope. Regular surveys con-

ducted over the past 20 years by the Standish Group

have constantly shown that about half of the projects

are challenged on at least one of those dimensions

(Group, 2015). Although projects failure rate is lower

than in the past, it is still the case for 1 project out

of 5. Another fact is that those failures happen in ev-

ery country and regardless of the company size (small

vs large), its kind of activity (commercial, nonproﬁt,

governmental), and to its status or reputation. Such

surveys have also been replicated and consolidated by

others with similar observations (Hughes et al., 2015;

Majchrowski et al., 2015).

A recurring observation in such surveys is that re-

quirements related problems consistently rank among

the top 3 reasons of project failure. More speciﬁc

cause mainly relate to the requirements completeness,

the lack of customer involvement, unrealistic require-

ments and requirements change management. The

difﬁculty to master Requirements Engineering (RE)

is because it is intrinsically a difﬁcult task which re-

quires to cope with multiple stakeholders, explore the

informal problem world to produce a structured con-

sistent set of requirements, deal with implicit or hid-

den need and assumptions, deal with different levels

of granularity, priorities, etc (van Lamsweerde, 2009).

Huawei makes no exception to this rule and has

started an RE improvement process in 2013. The ﬁrst

step was to get in touch with the international require-

ments engineering community in the context of the

annual conference which was taking place in Brasil. It

quickly became apparent that Goal-Oriented Require-

ments Engineering (GORE) could bring many bene-

ﬁts to many of Huawei’s needs: progressively reﬁning

requirements, structuring them, keeping a clear ratio-

nale as the requirements are transferred across teams,

identifying clear acceptance criteria, etc. Another key

point for the company in the selection of a method

was the availability of tool support meeting high in-

dustry requirements in terms of maturity, scalability

and tool-chain integration. This led to the combined

use of the KAOS methods (Dardenne et al., 1993; van

372

Ponsard, C. and Darimont, R.

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment.

DOI: 10.5220/0006462503720381

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 372-381

ISBN: 978-989-758-262-2

Lamsweerde, 2009) together with the Objectiver tool

(Respect-IT, 2005).

This paper is structured as follows. Section 2 gives

some background on the company, its requirements

practices and some challenges, both at the method and

tool levels. It also highlights the value-base drivers

underlying all process improvement. Section 3 de-

tails the rationale and expected beneﬁt related to the

choice of a GORE strategy. Sections 4 and 5 detail

how GORE was deployed, respectively at the method

and tool levels. Section 6 draws some lessons learned

that can be useful for other companies having simi-

lar needs. It also highlights some research challenges

for the research community. Finally, Section 7 con-

cludes and also highlights some next steps in the RE

improvement roadmap.

2 COMPANY BACKGROUND

AND ANALYSIS PRACTICES

Enriching Life Through Communication

- Huawei’s motto

2.1 Company Presentation

Huawei Technologies Co. Ltd. is a Chinese multi-

national company active in networking and telecom-

munication equipment. It is headquartered in Shen-

zhen, Guangdong. The company was founded in 1987

and started by manufacturing phone switches. It has

since then expanded its business to telecommunica-

tions networks and communications devices for the

consumer market (e.g. smartphones). It is also pro-

viding operational and consulting services to enter-

prises both inside and outside of China. Since 2012,

it is the largest telecommunications equipment manu-

facturer in the world. Its products and services have

been deployed in more than 140 countries and it cur-

rently serves 45 of the world’s 50 largest telecom op-

erators. The company is constantly growing from

22,000 employees in 2002, 40,000 in 2006 to more

than 170,000 nowadays.

The company invests over 10 percent of its annual

sales revenue into R&D and more than 45 percent of

its employees are engaged in R&D activities. Huawei

cooperates with global innovators through its 16 R&D

centres and 36 Joint Innovation Centres around the

world, including the US, Germany, Sweden, the UK,

Belgium, France, Italy, Russia, India and China. This

strategy pays off: in the past few years, Huawei has

regularly ranked within the most innovative compa-

nies (Fast Company, 2016).

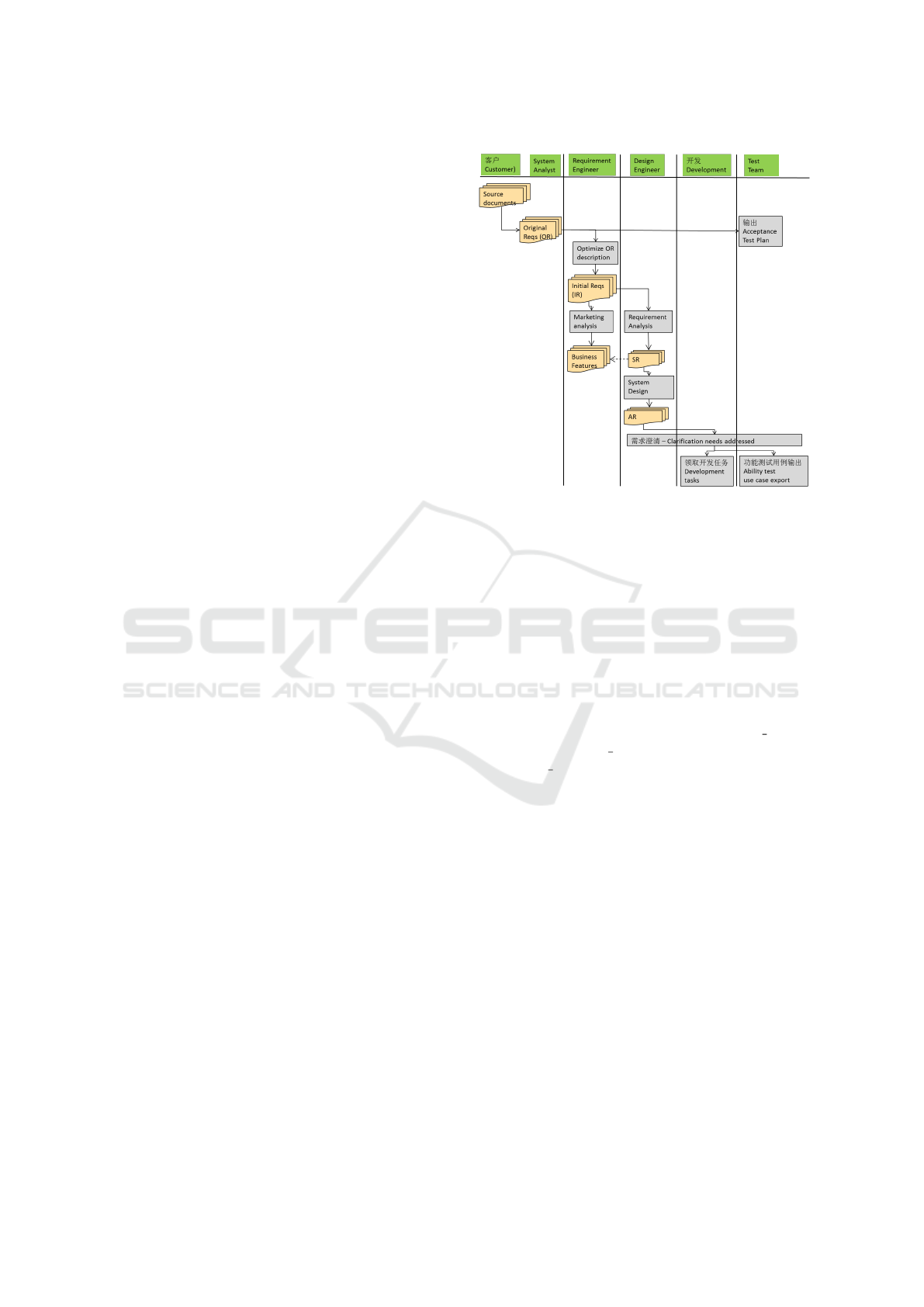

Figure 1: Overview of the RE Process at Huawei.

2.2 Requirements Engineering Process

Huawei’s requirements engineering practices are

based on domain modelling, analysis of the current

solution (i.e. existing product), use case analysis and

UML modelling. The global process is depicted in

Figure 1 and is composed of the following steps:

• Elicitation: The business department collects

all the requirements from the customer. User

stories (Cohn, 2004) are used as practical

means at this stage “As a <customer type>,

I need <some feature> in order to reach

<some goal>”. Those requirements are called

”Original Requirements” (ORs for short in the rest

of this paper). They usually target a whole system

or a complete solution design. The identiﬁcation

of a satisfaction criteria is also very important for

the later acceptance.

• Analysis: Together with the business department,

the product team reviews and reﬁnes the ORs.

They are categorised both at the functional and

non-functional levels. There is also some align-

ment with requirements shared across products

(product line perspective). Those reﬁned require-

ments are called ”Initial Requirements” (IRs).

They are also prioritized and form the baseline to

develop the product speciﬁcation.

• Speciﬁcation: IRs are transferred to the relevant

R&D department. This department is in charge of

analysing the IRs from a technical point of view

and produce the System Requirements document

(SR). Before introducing new methods, this phase

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment

373

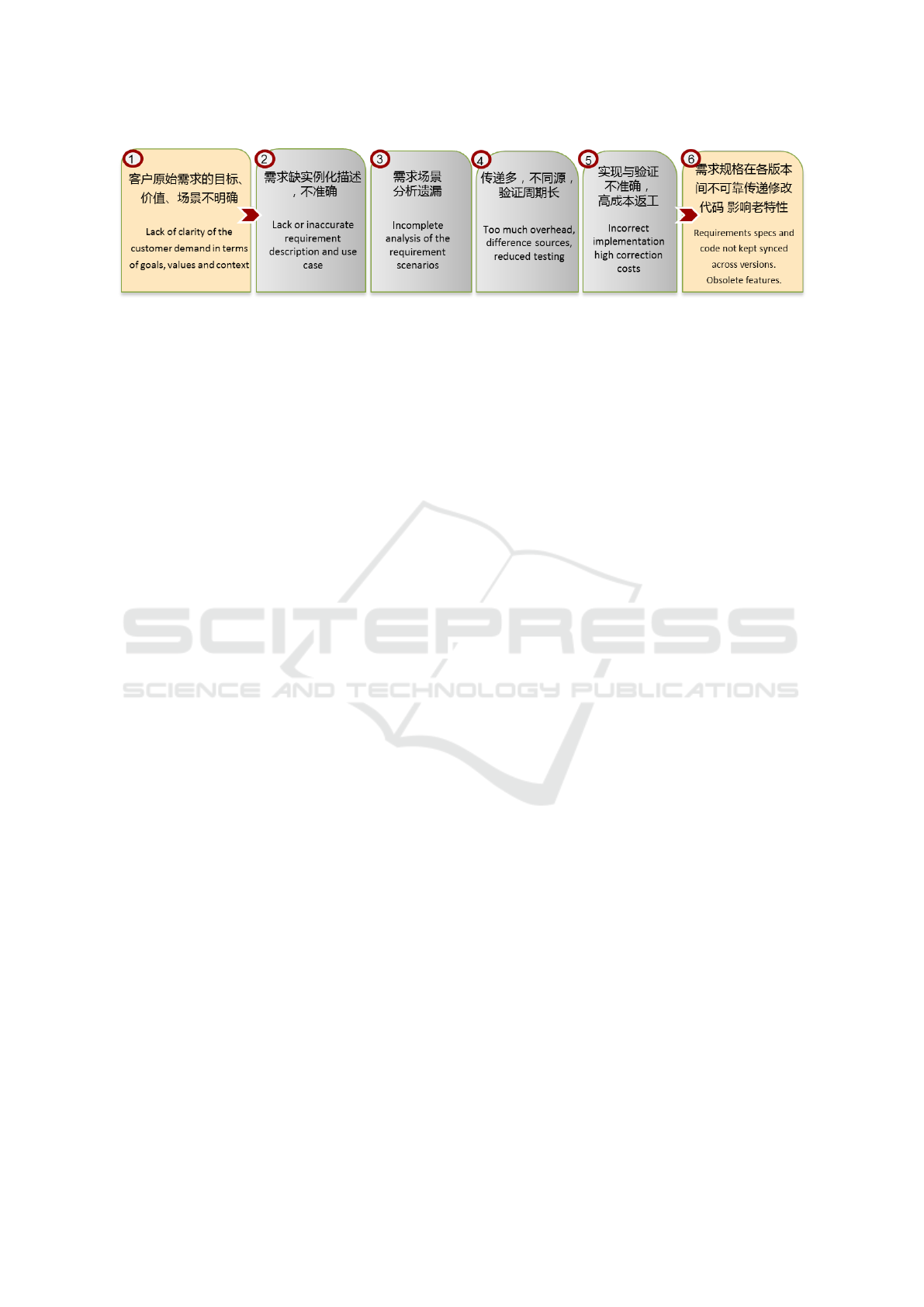

Figure 2: Identiﬁcation and articulation of main RE challenges.

mainly relied on domain analysis and use cases.

• Business Marketing: In parallel with the spec-

iﬁcation, marketing and design team still work

on the IRs and detail them in terms of feature

properties. This phase is conducted in interaction

with customers and target business issues. The

properties that are selling points for customers are

clearly identiﬁed as well as how they can be con-

trolled. Traceability between SR at feature level

is maintained for this.

• Design: Based on the SR, the development de-

partment produces a detailed design including al-

location of functions to modules and clear speci-

ﬁcation of their interface. The resulting require-

ments are called ”Allocated requirements” (AR).

Those are implemented.

• Acceptance Test: ORs are also transferred to the

test team for the production of acceptance tests

plans. Later on, the test team will also receive the

detailed AR to test.

2.3 Main Requirements Engineering

Challenges

Trying to diagnose why projects fail to fulﬁl their re-

quirements at the expected level of satisfaction is dif-

ﬁcult. Typically, there is no unique cause but rather

an accumulation of ﬂaws and those tend to only sur-

face when the code is produced. Figure 2 shows

a typical chain reported by Huawei but encountered

in many projects: it starts by customers having un-

clear demand, then requirements are kept too vague

with a lack of supporting use cases, the validation

becomes then difﬁcult and results in high correction

costs. Huawei is addressing RE challenges in the

scope of a value-chain approach of the whole soft-

ware engineering lifecycle. RE plays an important

role because it helps to understand the problem and

where the value will be generated. High quality re-

quirements will also result in easier testing and ac-

ceptance. We detail hereafter those two key aspects.

Improving the RE Process Effectiveness. The

current process supports synchronisation points be-

tween successive roles of the development chain to

get some reﬁned requirements (from marketing) or to

ask for clariﬁcation (at developer level). However the

global process is quite heavyweight and does not cope

easily with agile development for different reasons:

the application domain requires quite rigorous testing

and cannot cope with the delivery of partial products

on which iterations can be carried out. The team size

and the possible geographic distribution also do not

favour using such methods. Of course, agile is not

ruled out but the main requirement is to be able to

raise and keep the quality of the requirements along

the whole chain and detect ﬂaws as early as possible.

While improving the process, it is also important to

avoid introducing over-complexity and match it with

the Huawei context in order to reduce the training ef-

fort, have a good learning curve and do not overload

people with too advanced concepts. This can be sum-

marised by the following method requirements:

• Better structuring mechanisms to organise re-

quirements

• Support for speciﬁc categories deﬁned at Huawei

• Guidance and diagnostics about requirements

quality

• Limit the complexity of the method

Improving the RE process Efﬁciency. It is also

important to get the most out of the effort invested

in the requirements activities by more systematically

and more automatically exploiting the resulting re-

quirements artefacts in other software development

steps. For example, for testing, tests plans can be

generated from the requirements by relying on do-

main speciﬁc languages like Gherkins under the form

of “Given-When-Then” and can also directly refer

to User Stories (Wynne and Hellesoy, 2012; Adzic,

2011). A crucial enabler for this is the availability of

strong tooling with key characteristics such as:

• Efﬁcient support for large speciﬁcations

• Ability to cope with multiple concurrent users

• Navigation across multiple versions

• Very good usability (visual feedback, shortcuts,...)

ICSOFT 2017 - 12th International Conference on Software Technologies

374

• Requirements import, export and transformation

• Flexible toolchain integration though web-

services

• Reduced installation and maintenance effort (e.g.

SaaS)

3 WHY INTRODUCING GOALS?

Flowers in a mirror and the moon in water

(Chinese proverb)

3.1 GORE vs Other Methods

Requirements Engineering is concerned with the elic-

itation, speciﬁcation, documentation, validation and

management of the objectives, functionalities, quali-

ties, and constraints a software-based system should

meet within some organizational or physical setting.

From the needs identiﬁed in the previous section, the

focus is on the speciﬁcation phase while providing

good connections with the other phases. Different

methodologies can be considered:

• Simple template-based methods such as the Vol-

ere template (Atlantic Guild, 2014) or use-cases

(Cockburn, 2000). Such templates provide a

sound structure mostly for capturing and docu-

menting requirements. They guide the user in

the systematic documentation of each require-

ment (including originating stakeholders, pur-

pose, agents, scenarios description, satisfaction

criteria, etc). They also provide some sound struc-

ture to present requirements both at functional and

non-functional levels. Although limited to struc-

tured text, they can be combined with some mod-

elling notations. Although the templates provide

some means to detect incompleteness, they have

limited structuring mechanisms able to relate re-

quirements and provide deeper quality checks.

• Methods based on standard modelling paradigms

such as UML or SysML (OMG, 2011; OMG,

2012). Such methods rely on semi-formal mod-

els and are essentially design-oriented but do offer

some support for requirements through speciﬁc

diagrams such as the Use Case diagram (which

should be associated with a use case template)

and sequence diagrams (to capture detailed) sce-

narios. SysML also provides some tree-structured

requirements diagrams that can be seen as a very

simpliﬁed version of goal models.

• Goal-oriented methodologies such as KAOS

(Dardenne et al., 1993), i*(Yu and Mylopoulos,

1997), URN/GRL (International Telecommunica-

tion Union, 2012; Amyot and Mussbacher, 2011).

Such methods rely on the central notion of goal

which is an objective the system under considera-

tion should achieve. Goal formulations thus refer

to intended properties to be ensured. Goals can be

of functional or non-functional nature and may be

formulated at different levels of abstraction, rang-

ing from high-level, strategic concerns (such as

“Provide ubiquitous communication” for a smart-

phone ) to lower-level, technical concerns (such

as “Support 4G communication protocol”). They

can be reﬁned from higher level to lower levels

using AND-OR graphs. An AND-reﬁnement link

relates a goal to a set of subgoals called reﬁnement

and meaning that the parent goal can be satisﬁed

by satisfying all subgoals in the reﬁnement. A

goal node can be OR-reﬁned into multiple AND-

reﬁnements, each of them forms a different alter-

native (or variant) for achieving the parent goal

(van Lamsweerde, 2001; van Lamsweerde, 2009).

Table 1 provides a high-level comparison of those

three main classes of methods against the different RE

phases while considering the level of tool support that

can be achieved and the complexity to use the method.

Table 1: Comparison of some RE methods.

Needs Templates UML/SysML GORE

Elicitation Static cat-

egories

Use-case

based

Goal-driven

(top-down,

bottom-up)

Structuring Structured

text

Use Case,

Req. trees

Goal models

Validation Template,

check-list

Simple

checks

Deeper seman-

tic checks

Documen-

tation

Document

based

Model ex-

port

report gen-

eration

Powerful gen-

eration (docu-

ment, spread-

sheets)

Toolchain

integration

Document

based

Simple ex-

port

Service

integration

Complexity Simple

structure

Standard

Modelling

skills

Speciﬁc Mod-

elling

GORE meets the needs to a best level despite a

bigger complexity that needs to be addresses ade-

quately in terms of method adaptation and deploy-

ment. GORE is rather complementary than a pure al-

ternative: e.g., templates can be used both for elicita-

tion and documents generation and modelling is used

as part of the structuring process.

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment

375

3.2 GORE Method Integration

GORE is no silver bullet, but it is being considered in

a larger perspective that goes beyond the pure require-

ments phase. The main synergies considered with

other activities are the following:

• Traceability to Source Documents. This phase

is performed quite informally using text doc-

uments based on different company templates.

Identifying goals and requirements in such docu-

ments cannot be automated but requires to iden-

tify and encode them manually in the RE tool.

In order to ease that work, it is convenient to be

able to “tag” the concept directly from the require-

ments document and automate its creation inside

the goal model. In addition, a traceability link can

be kept both inside the document and the model,

so any change can be detected. It also eases the

navigation between the source documents and the

model.

• Illustrating Goals with Speciﬁcation by Exam-

ple. Goals are statements that can be rather

abstract. In conjunction with goal, Huawei

is also considering “Speciﬁcation by Example”

(SBE), a collaborative approach for deﬁning re-

quirements and business-oriented functional tests

(Adzic, 2011). This approach is generally applied

in the context of agile projects with a behavioural-

driven development (BDD).

• Behavioural Driven Development and Testing.

BDD is a software development process which

relies on Test-Driven Development (TDD) but

which complements it with a better connection

with the problem domain (i.e. linking them with

the goals). It is thus able to better cope with ac-

ceptance testing. BDD relies on the use of a sim-

ple domain speciﬁc language (DSL) using natu-

ral language constructs. In the scope of Huawei,

Gerkins is used (Cresswell, 2011). The language

supports both user stories (including stakeholder,

functionality and goal) and scenarios speciﬁed us-

ing ”Given-When-Then” constructs. BDD is usu-

ally supported by speciﬁc tooling frameworks,

like Cucumber (Wynne and Hellesoy, 2012) en-

abling to automate the testing.

4 HOW TO DEPLOY A GORE

METHODOLOGY?

A journey of a thousand miles begins with a single step.

(Chinese proverb)

4.1 Time Schedule

Introducing a GORE was fostered and led by the tool

technology department together with the R&D tools

and test platform design department. This team is

in charge of conducting the change management ap-

proach company wide. The global timeline and mile-

stones are the following:

• July 2013-November 2013: Initial contact at

RE’13, two-day workshop in Belgium for in depth

review of KAOS method and tool support. Visit of

the business unit and R&D units.

• December 2013 - October 2014: Methodology in-

troduction and positioning within the company:

training sessions in R&D sites across China, test

of the method and tool by trained users.

• October 2014 - March 2015: First adaptation and

integration round. Minor additions to the KAOS

meta-model were introduced and the tool was

coupled to an existing web-based RE tool.

• April 2015 - July 2015: Second adaptation and in-

tegration round. Introduction of Huawei speciﬁc

concepts, support for the SBE method and con-

nection with the new BDD-based platform.

• August-October 2015: Third integration step: in-

text identiﬁcation and traceability from upstream

document

• November 2015-June 2016: Fourth deployment

phase: web-based collaborative version of the

tooling and more powerful integration within the

Huawei toolchain

• July 2016-December 2016: Improving scalability

and achieving high-availability.

4.2 Introducing GORE

Introducing GORE within Huawei was carried out

based on the following means:

• Reference material: books, tutorials (e-learning),

exercises

• On-site training sessions using a complex case

study

• Deeper training of the core team (training the

trainers)

• Speciﬁcation of a small-sized pilot case study

4.3 Method Adaptation

The complete KAOS meta-model is very complete

and is actually composed of four sub-models shown

in Figure 3

ICSOFT 2017 - 12th International Conference on Software Technologies

376

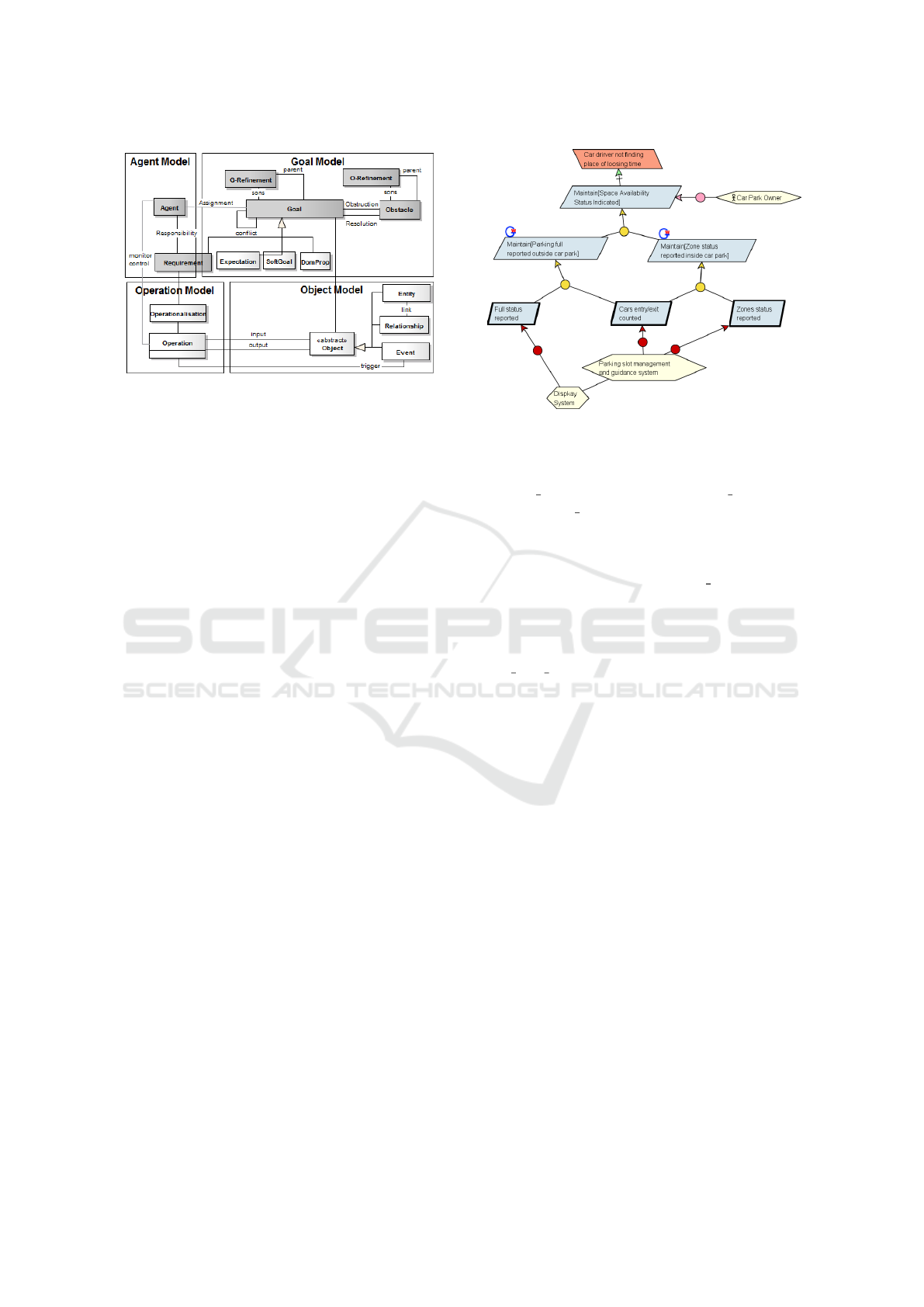

Figure 3: KAOS Meta-Model (simpliﬁed in grey).

• The goal model captures goals reﬁnement struc-

ture (and possibly related obstacles and their re-

ﬁnement too)

• The object model describes the relevant domain

vocabulary to express the goals

• The agent model takes care of assigning require-

ments to agents in a realisable way

• The operation model details the work an agent has

to perform to reach the goals under its responsibil-

ity

After the ﬁrst experiments within the company, it

quickly appeared that deploying the standard GORE

modelling was not the most effective way to proceed

because:

• The full meta-model is rather complex and it is

important to focus on the core parts on which the

requirements engineer have to focus, i.e. goals

and responsibilities.

• Object modelling is redundant with domain mod-

elling techniques already used.

• KAOS operation modelling is actually not re-

quired as speciﬁcation are detailed at a later SR

step with SBE.

• some Additions were also needed for specialised

Huawei requirements types, e.g. OR, IR, AR.

Globally this resulted in the simpler meta-model

highlighted in grey in Figure 3. This also reduces the

training effort and softens the learning curve.

4.4 Method Integration with SBE

Speciﬁcation by Example speciﬁcations are used to

describe goals in a structured way, using Gerkins syn-

tax (Cresswell, 2011). The description is composed

of a user story and scenarios that consistently relate

with the information provided in the goal model.

Figure 4: Availability sub-goal for a car park.

The User Story Part is formulated under the

following form: “As a <stakeholder>, I need

<current goal> in order to <some rationale>”.

The <current goal> corresponds to the goal

to which the description is attached. For

example, Figure 5 corresponds to the goal

Maintain[ZoneStatusReportedinsideCarPark]

shown in Figure 4. The <some rationale> part

can refer to a higher level goal or obstacle. In our

example, it refers to an obstacle that the goal is

avoiding, i.e. the car driver not ﬁnding any place or

having problems to locate it. Finally the stakeholder

<car park owner> can also be associated to its goal

in the diagram.

The Scenario Part is composed of one or several

scenarios expressed using a Given-When-Then form

that is close to KAOS notion of Pre-/Trigger-/Post-

conditions used in KAOS operation but with a struc-

tured text syntax. In this case, we speciﬁed two sce-

narios corresponding to the two status of a zone: full

or not. The precondition in both scenarios is that the

zones are under monitoring by a speciﬁc agent able

to count the spaces. The action trigger is the status

change (car leaving or entering) that will result in dis-

playing the number of free spaces or telling the zone

is full.

5 HOW TO PROVIDE EFFICIENT

GORE TOOL SUPPORT ?

A needle is not sharp at both ends

(Chinese proverb)

Providing efﬁcient tool support is a major success fac-

tor for deploying GORE. It is reﬂected by the im-

portance of the successive integration steps described

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment

377

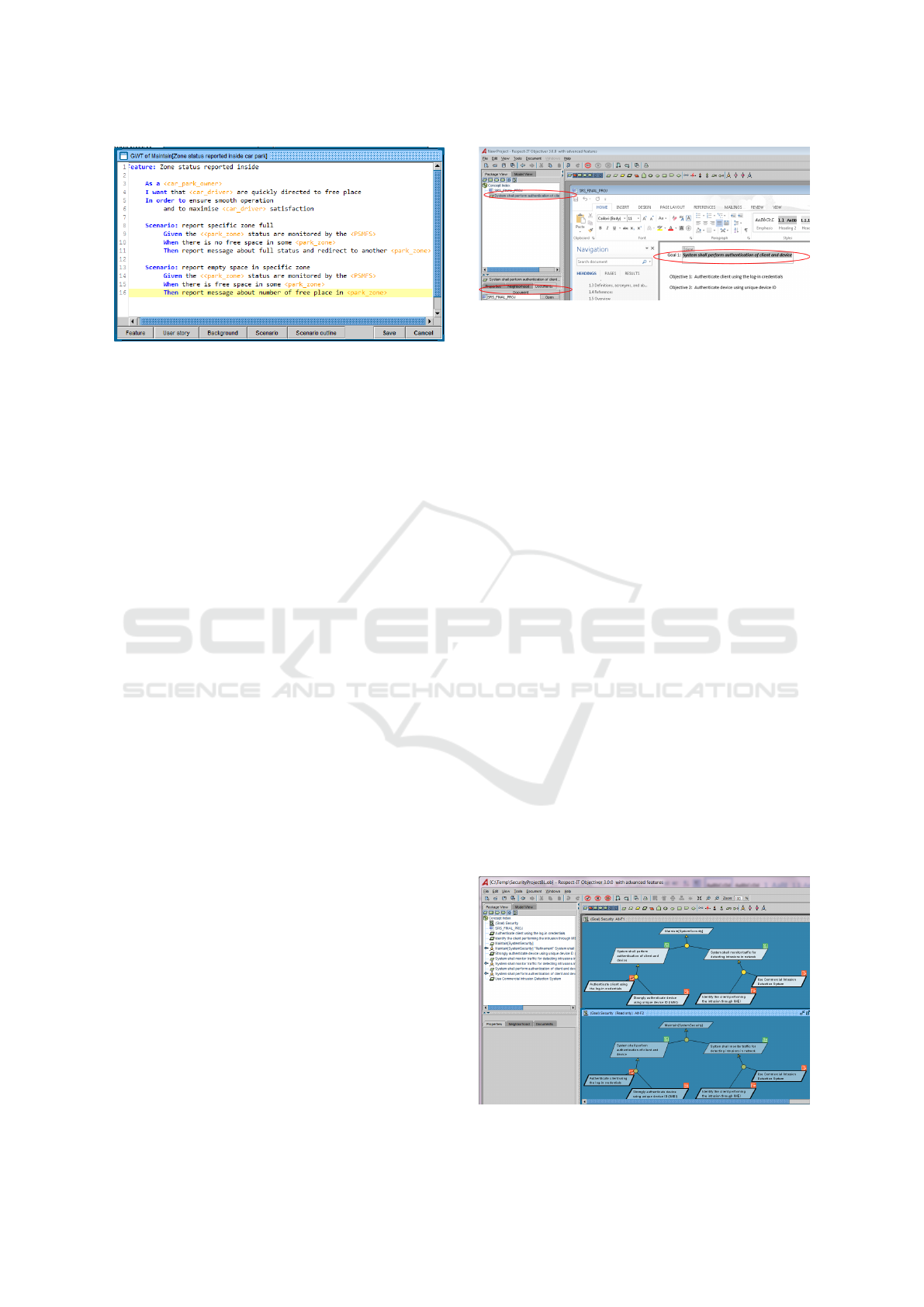

Figure 5: GWT speciﬁcation for availability in a car park.

in the previous sections that progressively covered a

full set of industrial requirements described in more

details in this section. Besides ensuring functional

GORE support, there are many non-functional tooling

requirements that play a key role in industrial adop-

tion such as usability, team work, versioning, scala-

bility, and seamless integration. The rest of this sec-

tion summarises the main tool development steps of

the developed GORE support.

5.1 Coping with Method Adaptation

Implementing meta-model changes is not a big issue

if we can rely on a meta-model based tool. In early

stages, we relied on the Desktop version of the tool.

It easily supports the evolution of its meta-model be-

cause it is actually a meta-case tool. In a later stage,

the underlying database was evolved towards a more

scalable technology based on the Eclipse Modelling

Framework (EMF) (Steinberg et al., 2009). This

also supports meta-model extension although existing

projects have not the capability to automatically adapt

to a new proposed meta-model.

5.2 Tight Integration with Text Editor

In order to cope with integration with text-based doc-

ument, it was necessary to strengthen the support,

especially by supporting commercial text proces-

sor (Microsoft Word) in addition to the pre-existing

Open/Libre Ofﬁce support. In order to support a fully

ﬂexible and usable integration of text processor with

GORE modelling, we developed some innovative fea-

tures such as ability to tag concepts from the text doc-

ument, to locate them in the model from the document

and even to rename them, as shown in Figure 6. The

document is considered as part of the model but can

also be exported and reimported while preserving the

existing links.

Figure 6: Integration with text processor (Desktop Edition).

5.3 Versioning Management

Model versioning is an important feature in order to

keep track of the model evolution. The implemen-

tation evolved from a simple database supporting a

single baseline to a fully historised model supporting

multiple baselines. Access to concepts history can be

useful in order to undo some changes in its own ses-

sion or to understand possible interactions with other

users as the current collaboration model was left op-

portunistic. Baseline are more important steps in the

work as they deﬁne milestones in the work, possibly

agreed amongst the analysis team. In order to ease the

work, a powerful model comparison feature is avail-

able both in the Desktop and SaaS editions of the tool.

5.4 Usability Issues

Usability is a very important issue for adoption. In ad-

dition to the state-of-the art layout proposed for mod-

ellers, a few important features were speciﬁcally in-

troduced for the Huawei deployment such as visual

decorators on the goal tree enabling to quickly visu-

alise important requirements attributes like Huawei

categories and GWT markers. The later decorator

also plays the role of shortcut for editing it. In ad-

dition the support of the Chinese character set and the

internationalisation of the user interface for Chinese

was of course considered.

Figure 7: Version comparison feature (Desktop Edition).

ICSOFT 2017 - 12th International Conference on Software Technologies

378

5.5 Scalability

Scalability is an important requirement. Given the

size of the company, the load may grow to several

hundreds of users although there are only currently

less than 30 active users. This motivated the move to

a robust database back-end. Moreover, the applica-

tion can easily be distributed across different servers

based on project pools as projects are not expected to

host large number of concurrent users.

5.6 Ease of Integration

Toolchain integration has started from simple export

mechanisms and then evolved towards tight integra-

tion with speciﬁc software such as text processors as

described in a previous section. A more fundamental

evolution was to present the GORE tool as a series of

services available for use over the company intra-net.

This comes at two different levels.

First, at the model level, a clean REST

API is directly available to perform CRUD (Cre-

ate/Read/Update/Delete) operations both on the

model elements and on model representations inside

diagrams, baselines, etc. This allows third-party tools

to directly push or query requirements inside the tool

while previous import and export actions had to be

initiated from the tool. This greatly helps to automate

the requirements workﬂow described in Figure 1.

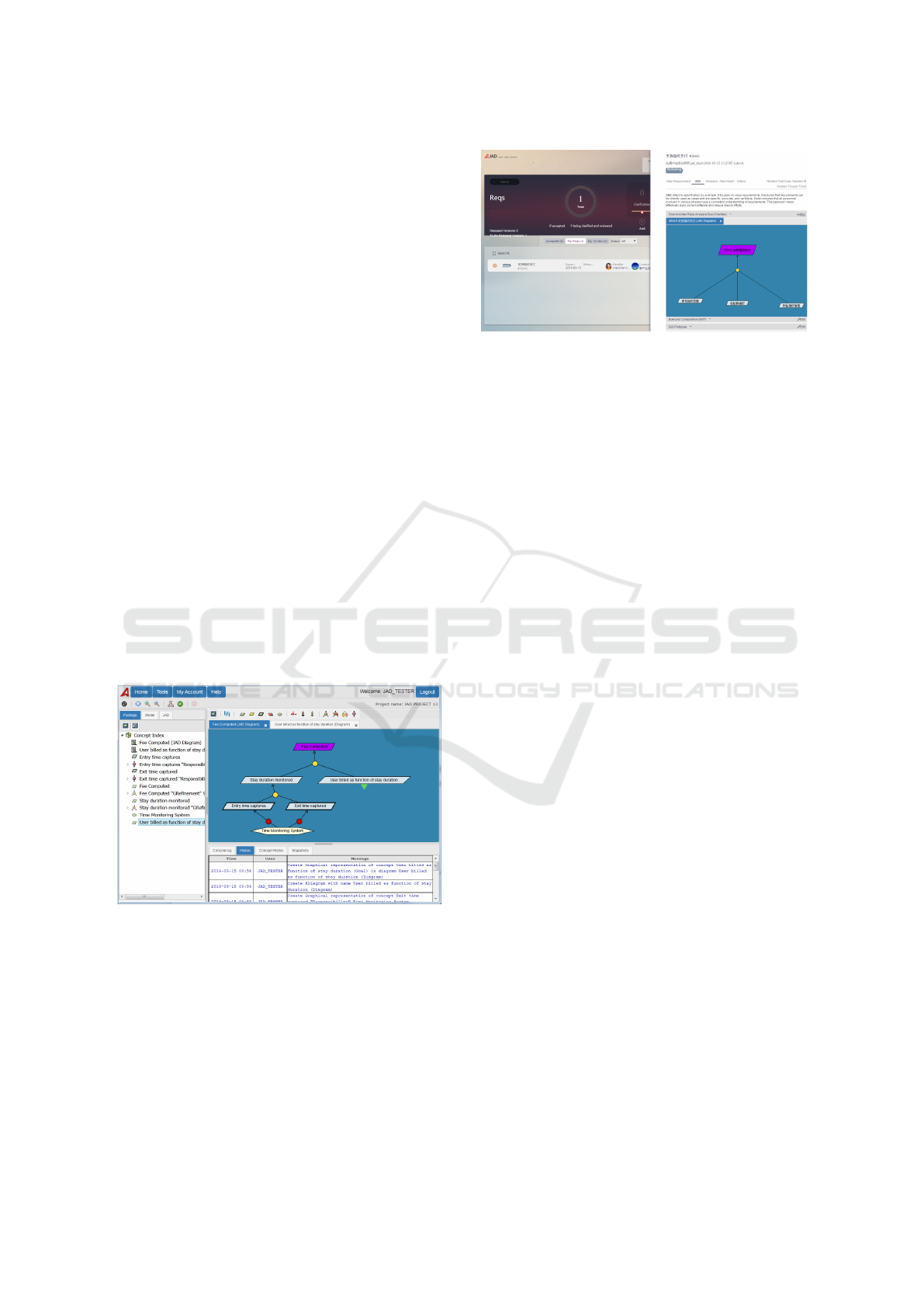

Figure 8: Modular web-based user interface.

Second, at the user interface level, the tool is avail-

able as a modular web-client. It can be used quite the

same way as a standard modelling tool but, besides

this, speciﬁc components can also easily be embedded

inside project management platforms and dashboards,

possibly limited to read-only mode. Those two kinds

of interfaces are respectively depicted in Figure 8 and

Figure 9: Sample of GORE component integration within a

third party tool interface.

6 KEY GUIDING PRINCIPLES

To know the road ahead, ask those coming back.

(Chinese proverb)

Yet anchored in the Huawei context, we were atten-

tive to formulate our feedback independently of the

speciﬁc ﬂavour of the GORE method and tooling sup-

port. Hence it has already a good potential of reuse by

other companies having similar needs. In this section,

we take an additional step back to formulate a series

of useful guidelines and principles summarising the

followed approach.

“One Method does not ﬁt all Needs” is an im-

portant lesson learned. Rather than trying to rely on

a complex goal model potentially overlapping with

other notations, like the SBE speciﬁcation and the

KAOS operation models, we decided to use a sim-

pliﬁed goal focusing on key GORE concepts which is

easier to introduce and which can be integrated with

more speciﬁc methods such as Behaviour Driven De-

velopment in our case.

The “Keep It Simple Stupid” principle was of-

ten a major driver. Both to keep the method and tool

complexity low. This guided us to ﬁnd our way across

challenging problems mixing different features such

as multiple users, concurrent editing, versioning sup-

port. However, simple does not mean over-simplistic:

the idea is always to deﬁne a path that can cope with

many wished features at short term and not exclude

more at longer term. With respect to this, we were

also careful selecting mature and evolvable underly-

ing components, e.g. the model repository.

Combining RE Practices and Agile Tool Devel-

opment. The global collaboration is based on def-

inition of clear objectives, ﬁrst at business level (as

values to achieve) and in terms of method and tool-

ing requirements to cover. A GORE approach was

used for setting up the global set of prioritised require-

ments and deﬁne a roadmap, typically on a bi-annual

basis and is also generally organised as a one week

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment

379

intensive physical workshop. This forms the backlog

forms on which an agile tool development approach

is then carried out based on teams both in Europe and

China. Important milestones are typically set every

month and the common sprint duration is one week.

Open and Evolutive Solutions. Chinese compa-

nies are fast paced with constant tooling evolution.

In any long term project, the software environment

will change for sure and it is thus important to build

on solutions that have a big adaptation capability. At

some point, it may also be necessary to consider start-

ing on new grounds and let a past solution aside. In

our case, at some point we moved from a desktop-

centric tooling to a web-based tooling because desk-

top centric tooling could not cope with key needs

of scalability, ﬂexible multi-user and ease of deploy-

ment/integration/maintenance. A major improvement

in the process was the deﬁnition of powerful integra-

tion interfaces for third party tools.

Paying Attention to Usability was a major con-

cern. Software engineering tools should pay great at-

tention about an efﬁcient way to communicate all rel-

evant information to the user. They should also pro-

vide efﬁcient ways to conduct frequent operations by

minimising the number of steps to trigger them and

enable some form of batch processing.

7 CONCLUSION

In this paper, we reported on the ongoing process at

Huawei to deploy Goal-Oriented Requirements En-

gineering in cooperation with other methods with

an important focus on building a globally efﬁcient

and effective toolchain. This joint work is a cross-

fertilisation at different levels. It was a meeting

point between industrial needs and researchers views,

as well as a transcontinental cooperation between

Westerners and Easterners who could gather differ-

ent views on requirements engineering and the whole

software development process. This rich collabora-

tion was the source of many innovative work, often

triggered by the need to provide simple yet powerful

tools based on sound methodological grounds. So, we

believe the reported work can be valuable both for the

industrial point of view and for triggering more ap-

plied research as we tried to abstract away from the

speciﬁc case and identify different areas of concern

both at the method and tool levels.

Based on the work achieved, strong foundations

are available, most of work ahead related to complet-

ing integration with speciﬁc tools, support speciﬁc in-

teroperability standard but also less technical yet very

important tasks such as the preparation of model tem-

plates, tutorials, guidelines that will ease the transi-

tion to the new platform and foster its adoption by

users. So far, the approach has been applied on a few

pilots. Hence, it is not yet possible to quantify the

gain in quality and productivity of introducing GORE

at a large scale. The deployment phase is expected to

progressively roll out across this year and will offer

the opportunity to gather valuable material about the

beneﬁts and limits of the approach.

ACKNOWLEDGEMENT

Warm thanks to Zhang Wei, Liu Zhipeng, Yang Yang

(Davin), Lin Zhi Qiang (James), Wang Jianan (John)

for their great support for the method and tool de-

ployment at Huawei Limited in Shenzhen and across

China.

REFERENCES

Adzic, G. (2011). Speciﬁcation by Example: How Success-

ful Teams Deliver the Right Software. Manning Pub-

lications Co., Greenwich, CT, USA, 1st edition.

Amyot, D. and Mussbacher, G. (2011). User requirements

notation: The ﬁrst ten years, the next ten years. JSW,

6(5):747–768.

Atlantic Guild (2014). Volere Requirements Speciﬁca-

tion Template - Edition 17. http://www.volere.co.

uk/template.htm.

Cockburn, A. (2000). Writing Effective Use Cases.

Addison-Wesley Longman Publishing Co., Inc.,

Boston, MA, USA, 1st edition.

Cohn, M. (2004). User Stories Applied: For Agile Software

Development. Addison Wesley Longman Publishing

Co., Inc., Redwood City, CA, USA.

Cresswell, J. (2011). Gherkins. https://github.com/ cucum-

ber/cucumber/wiki/Gherkin.

Dardenne, A., van Lamsweerde, A., and Fickas, S. (1993).

Goal-directed requirements acquisition. Sci. Comput.

Program., 20(1-2):3–50.

Fast Company (2016). Huawei Ranked Among

the World’s 50 Most Innovative Companies.

http://www.fastcompany.com/company/huawei.

Group, S. (2015). 2015 CHAOS Report. http://www. stan-

dishgroup.com.

Hughes, D. L. et al. (2015). Success and Failure of IS/IT

Projects: A State of the Art Analysis and Future Di-

rections. Springer Int. Publishing.

International Telecommunication Union (2012). Recom-

mendation Z.151 (10/12), User Requirements Nota-

tion (URN) Language Def.

Majchrowski, A., Ponsard, C., Saadaoui, S., Flamand, J.,

and Deprez, J.-C. (2015). Software Development

Practices in Small Entities : an ISO29110-based Sur-

vey. In Proc. EuroAsiaSPI 2015.

ICSOFT 2017 - 12th International Conference on Software Technologies

380

OMG (2011). Uniﬁed Modelling Languages. http://www.

omg.org/spec/UML.

OMG (2012). SysML. http://www.omgsysml.org/.

Respect-IT (2005). The Objectiver Goal-Oriented Require-

ments Engineering Tool. http://www.objectiver.com.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

van Lamsweerde, A. (2001). Goal-oriented requirements

engineering: A guided tour. In Proc. of the Fifth IEEE

Int. Symposium on Req. Eng. IEEE Computer Society.

van Lamsweerde, A. (2009). Requirements Engineering:

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

Wynne, M. and Hellesoy, A. (2012). The cucumber book.

The pragmatic programmers. Dallas, Tex. Pragmatic

Bookshelf.

Yu, E. S. K. and Mylopoulos, J. (1997). Enterprise mod-

elling for business redesign: The i* framework. SIG-

GROUP Bull., 18(1):59–63.

Improving Requirements Engineering through Goal-oriented Models and Tools: Feedback from a Large Industrial Deployment

381
