ChronoGraph

Versioning Support for OLTP TinkerPop Graphs

Martin Haeusler, Thomas Trojer, Johannes Kessler, Matthias Farwick, Emmanuel Nowakowski

and Ruth Breu

Institute for Computer Science, Technikerstraße 21a, 6020 Innsbruck, Austria

Keywords:

Graph Databases, Versioning, TinkerPop, Gremlin.

Abstract:

In recent years, techniques for system-time versioning of database content are becoming more sophisticated

and powerful, due to the demands of business-critical applications that require traceability of changes, auditing

capabilities or historical data analysis. The essence of these techniques was standardized in 2011 when it was

introduced as a part of the SQL standard. However, in NoSQL databases and in particular in the emerging

graph technologies, these aspects are so far being neglected by database providers. In this paper, we present

ChronoGraph

, the ﬁrst TinkerPop graph database implementation that offers comprehensive support for

content versioning and analysis, designed for Online Transaction Processing (OLTP). This paper offers two key

contributions: the addition of our novel versioning concepts to the state of the art in graph databases, as well

as their implementation as an open-source project. We demonstrate the feasibility of our proposed solution

through controlled experiments.

This work was partially funded by the research project “txtureSA” (FWF-Project P 29022).

1 INTRODUCTION

Graph databases offer a powerful alternative to tradi-

tional relational databases, especially in cases where

most information value is found in relationships be-

tween elements, rather than their properties. Partic-

ularly with the popular and commercially succesful

graph database Neo4j

, the concept of graph databases

has reached a wider audience and has inspired many

other implementations, such as Titan DB

and Orient

Much like SQL for relational databases, the prop-

erty graph model (Rodriguez and Neubauer, 2011)

Apache TinkerPop

(alongside the traversal language

Gremlin) is the de-facto standard interface for graph

databases, allowing to exchange the actual database

implementation without altering the application. As

these technologies mature over time, they are faced

with new demands for features. Among them is the

demand for system-time content versioning, primarily

for the purpose of maintaining traceability of changes,

https://neo4j.com/

http://titan.thinkaurelius.com/

http://orientdb.com/

https://tinkerpop.apache.org/

providing extensive auditing capabilities, legal compli-

ance or historical data analysis of the graph contents

(e.g. trend analysis).

The concept of versioning database content is

an old topic. Early work dates back to 1986 when

Richard Snodgrass published his article Temporal

Databases (Snodgrass, 1986). In the following years,

several different approaches were discussed (Easton,

1986; Lomet and Salzberg, 1989; Jensen et al., 1998;

Nascimento et al., 1996; Becker et al., 1996), with

many of them focusing on a relational environment

and SQL (e.g. Oracle’s Flashback technology (Hart

and Jesse, 2004), Temporal Tables in DB2 (Saracco

et al., 2012) or ImmortalDB for SQL Server (Lomet

et al., 2006; Lomet et al., 2008)).

Versioning for graph databases is a more recent

topic (Castelltort and Laurent, 2013; Taentzer et al.,

2014; Tanase et al., 2014). Castelltort et al. and

Taentzer et al. have shown clearly that achieving

full-featured graph versioning within a given non-

versioned general purpose graph database is a chal-

lenging task. It often leads to a sharp increase of

complexity in the graph structure and consequently

causes issues regarding scalability, comprehensibility

and performance of queries operating on the graph.

Haeusler, M., Nowakowski, E., Farwick, M., Breu, R., Kessler, J. and Trojer, T.

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs.

DOI: 10.5220/0006465400870097

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 87-97

ISBN: 978-989-758-255-4

With ChronoGraph

, the ﬁrst versioned TinkerPop

implementation, we propose a novel solution that re-

tains the simplicity and ease of use of graph queries

on a non-versioned graph by handling the versioning

process in an entirely transparent way. We are also

going to showcase scenarios where versioning pro-

vides advantages in the execution of regular graph

database features. As our system is already being used

in practice, achieving a high performance alongside

new versioning features is important. We demonstrate

this through a controlled experiment.

The remainder of this paper is structured as follows:

In Section 2 we present the individual requirements

which we considered for our solution. In Section 3 we

focus on the solution details and architecture, which

is discussed in depth and compared with related work

in Section 4. Section 5 presents an evaluation of our

approach through experiments. Finally, Section 6 out-

lines our future work and Section 7 concludes the

paper with a summary.

2 REQUIREMENTS

Based on our previous work with graph databases (Tro-

jer et al., 2015) and versioning systems (Haeusler,

2016), as well as by translating versioning features

in SQL (Lomet et al., 2006; Lomet et al., 2008; Hart

and Jesse, 2004; Saracco et al., 2012) to their graph

counterparts, we synthesized the following key require-

ments for a versioned graph database:

• R1: Any Query on any Timestamp

In order to provide effective comparisons between

individual graph versions, the essential underlying

capability is to execute any given Gremlin query on

any desired timestamp, without altering the query.

In this way, comparisons between version

and

can invoke query

and

separately, and the

query results can be compared directly.

• R2: Efﬁcient “Time Travel”

The ability to request the graph state at a given

timestamp in the past is referred to as “Time

Travel”. This operation needs to be implemented

in an efﬁcient way in order to support requirement

[R1]

. Speciﬁcally, we demand that the query re-

sponse time is independent of the request times-

tamp. In other words, requests on timestamps far

in the past should not perform inherently worse

than requests on recent timestamps.

• R3: History Analysis for Vertices & Edges

The capability to list the timestamps at which a

http://tinyurl.com/chronograph-github

Graph Structure Mgmt

Gremlin Processor

ChronoGraph

ChronoDB

Temporal Key-Value Store

Application

Ext. TinkerPop API

Time-Key-Value

time

keys

0 1 2 3 4 5 6 7

...

ε ε ε ε ε ε ε ε

ε ε ε ε ε ε ε

ε ε ε ε εε

ε ε ε ε ε ε

ε ε ε ε ε ε ε ε

ε ε ε ε ε ε ε

ChronoDB Matrix Formalization

a) b)

Graph Transaction Mgmt

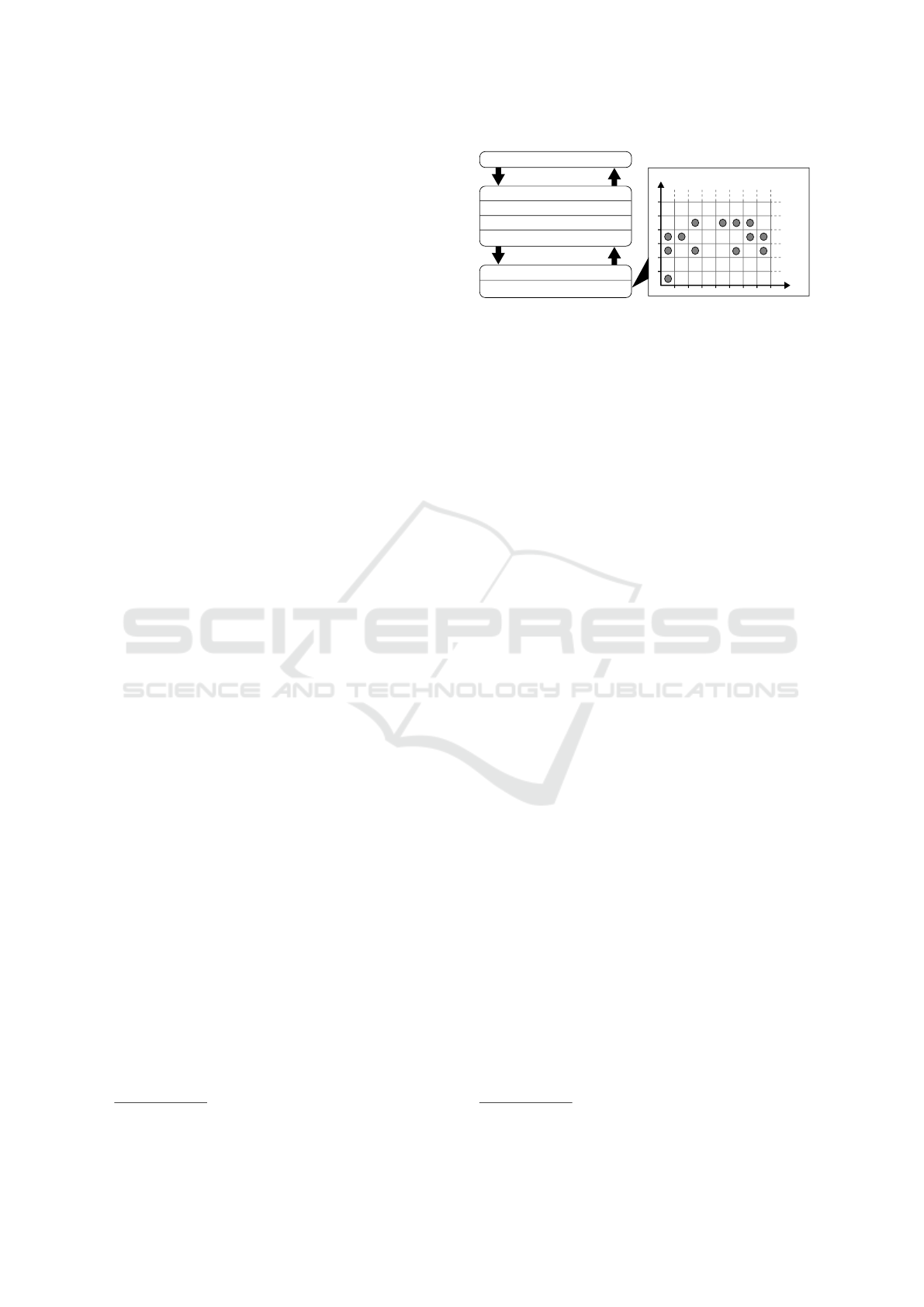

Figure 1: ChronoGraph Architecture.

given vertex or edge was changed is essential for

analyzing the history of the element. At these

timestamps, the analysis query in question can be

repeated for comparison purposes.

• R4: Listing Change Timestamps

A versioned graph database should be capable of

listing all changed elements in a given time range

and their corresponding change timestamps, e.g.

for calculating deltas. This list is not restricted to

any particular element, therefore this requirement

is orthogonal to requirement [R3].

3 PROPOSED SOLUTION

In this section, we present our novel versioning con-

cepts for TinkerPop Online Transaction Processing

(OLTP) graphs. We give an overview over the archi-

tecture of ChronoGraph, outline how graph data is

mapped to the underlying versioned key–value store,

and how the versioning concepts affect this process.

3.1 ChronoGraph Architecture

Our open-source project ChronoGraph provides a fully

TinkerPop-compliant graph database implementation

with additional versioning capabilities. In order to

achieve this goal, we employ a layered architecture

as outlined in Figure 1 a). In the remainder of this

section, we provide an overview of this architecture in

a bottom-up fashion.

The bottom layer of the architecture is a temporal

key-value store, i.e. a system capable of working with

time–key–value tuples as opposed to plain key–value

pairs in regular key-value stores. For the implementa-

tion of ChronoGraph, we have chosen to use our own

implementation called ChronoDB

. Figure 1 b) shows

the matrix formalization of the store, which we have

presented in our previous work (Haeusler, 2016). We

refer the interested reader to our previous work, where

http://tinyurl.com/chronodb-github

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

we provide the details of all relevant operations and

data structures. In the context of this paper, it is sufﬁ-

cient to know that ChronoDB is a versioned key-value

store that is based on a B

-Tree structure (Salzberg,

1988) that allows to perform temporal lookups efﬁ-

ciently with time complexity O(log n) [R1, R2].

ChronoGraph itself consists of three major com-

ponents. The ﬁrst component is the graph structure

managment. It is responsible for managing the indi-

vidual vertices and edges that form the graph, as well

as their referential integrity. As the underlying stor-

age mechanism is a key-value store, the graph struc-

ture management layer also performs the partitioning

of the graph into key-value pairs and the conversion

between the two formats. We present the technical

details of this format in Section 3.2. The second

component is the transaction management. The key

concept here is that each graph transaction is associ-

ated with a timestamp on which it operates. Inside

a transaction, any read request for graph content will

be executed on the underlying storage with the trans-

action timestamp. ChronoGraph supports full ACID

transactions with the highest possible isolation level

(“serializable”, also known as “snapshot isolation”,

as deﬁned in the SQL Standard (ISO, 2011)). The

underlying versioning system acts as an enabling tech-

nology for this highest level of transaction isolation,

because any given version of the graph, once written

to disk, is effectively immutable. All mutating opera-

tions are stored in the transaction until it is committed,

which in turn produces a new version of the graph,

with a new timestamp associated to it. Due to this

mode of operation, we do not only achieve repeatable

reads, but also provide effective protection from phan-

tom reads, which is a common problem in concurrent

graph computing. As the graph transaction manage-

ment is heavily relying on the transactional capabilities

of ChronoDB, we refer the interested reader to our pre-

vious work (Haeusler, 2016) for further details. The

third and ﬁnal component is the query processor itself

which accepts and executes Gremlin queries on the

graph system. As each graph transaction is bound to

a timestamp, the query language (Gremlin) remains

timestamp-agnostic, which allows the execution of any

query on any desired timestamp [R1].

The application communicates with ChronoGraph

by using the regular TinkerPop API, with additional

extensions speciﬁc to versioning. The versioning it-

self is entirely transparent to the application to the

extent where ChronoGraph can be used as a drop-in

replacement for any other TinkerPop 3.x compliant

implementation. The application is able to make use

of the versioning capabilities via additional methods

(c.f. Section 3.4), but their usage is entirely optional

Table 1: TinkerPop API to Record Mapping.

TinkerPop Record Record Contents

Vertex VertexRecord

id, label,

PropertyKey → PropertyRecord

In: EdgeLabel → EdgeTargetRecord

Out: EdgeLabel → EdgeTargetRecord

Edge EdgeRecord

id, label,

PropertyKey → PropertyRecord

id of InVertex, id of OutVertex

Property PropertyRecord

PropertyKey, PropertyValue

— EdgeTargetRecord

id of edge, id of other end Vertex

and not required during regular operation that does not

involve history analysis.

3.2 Data Layout

In order to store graph data in our versioned Key–Value

Store, we need to transform the graph structure into

the key–value format. For each vertex, we consider

the direct neighborhood, and replace neighboring ver-

tices by their IDs. This produces a graph fragment

centered around the vertex. In contrast to the mutable

TinkerPop API, these fragments need to be immutable

in order to be suitable for versioning. We call such

immutable representations Records, and there is one

record type for each TinkerPop element (see Table 1).

Since edges are duplicated in the lists of their incom-

ing and outgoing vertices, we introduce the additional

concept of a EdgeTargetRecord. It contains the ID of

the other-end vertex, but no edge properties. These

are stored in the EdgeRecord itself. This allows us

to perform navigations along edges with only one ID

resolution (i.e. disk access) per step. At the same time,

we minimize information duplication for the edges

while still allowing to iterate over all edges in a graph.

The drawback is that we need to perform two ID reso-

lutions in navigation queries that have a condition on

the edge properties (c.f. Figure 2).

3.3 Versioning Concept

When discussing the mapping from the TinkerPop

structure to the underlying key–value store in Sec-

tion 3.2, we did not touch the topic of versioning. This

is due to the fact that our key–value store ChronoDB

is performing the versioning on its own. The graph

structure does not need to be aware of this process.

We still achieve a fully versioned graph, an immutable

history and a very high degree of sharing of common

(unchanged) data between revisions. This is accom-

plished by attaching a ﬁxed timestamp to every graph

transaction. This timestamp is always the same as in

the underlying ChronoDB transaction. When reading

graph data, at some point in the resolution process we

perform a get(. . . ) call in the underlying key–value

store, resolving an element (e.g. a vertex) by ID. At

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs

version resolution step

edge / navigation step

a b

p = x

v1 v2

transaction at t = 1234

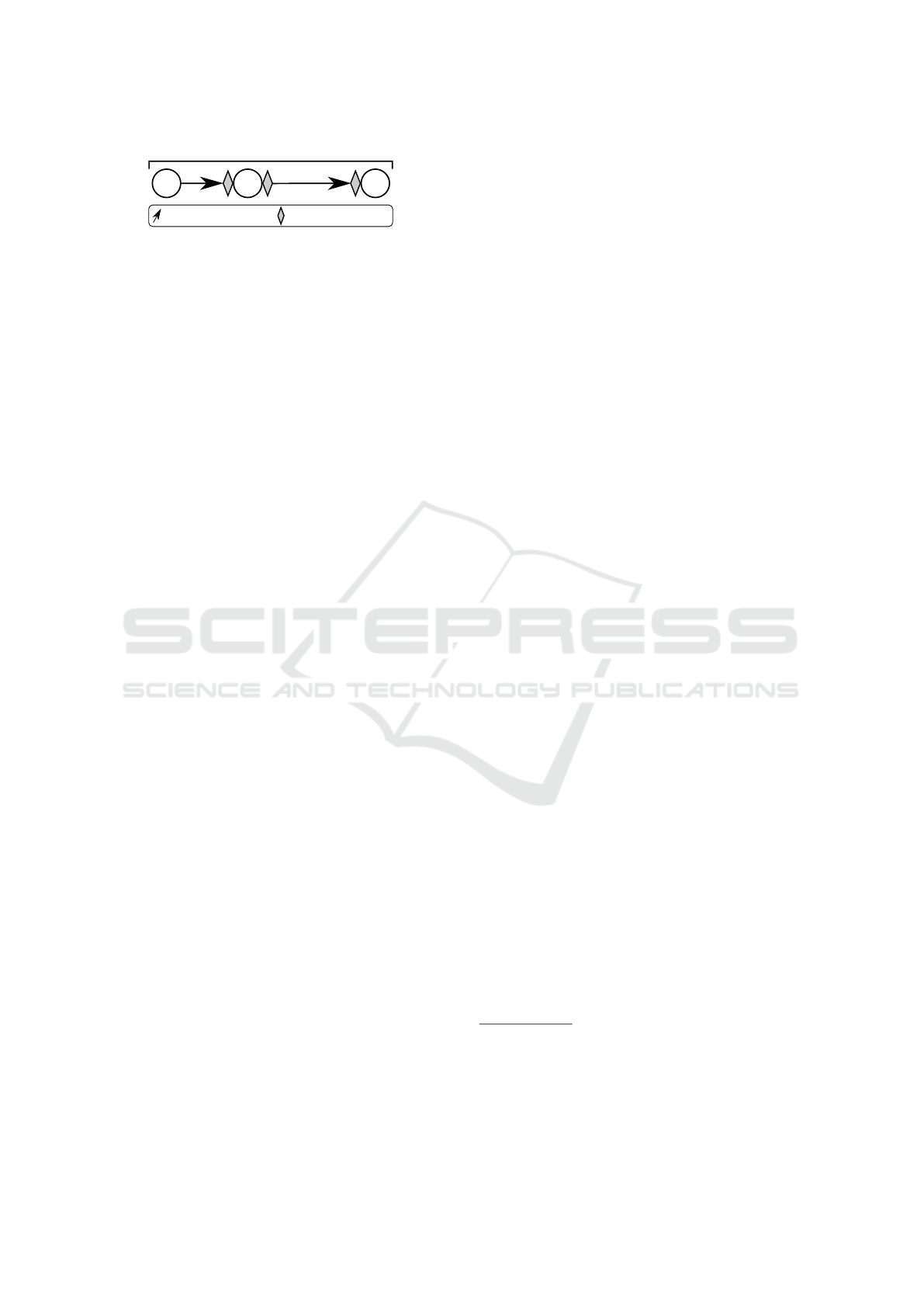

Figure 2: Example: Navigation in a Graph Version.

this point, ChronoDB uses the timestamp attached

to the transaction to perform the temporal resolution.

This will return the value of the given key, at the speci-

ﬁed timestamp. We refer the interested reader to our

previous work for details (Haeusler, 2016).

In order to illustrate this process, we consider

the example in Figure 2. We open a transaction at

timestamp 1234 and execute the following Gremlin

query:

V(v0).out("a").outE("b").has("p","x").inV()

Starting from vertex v0, we navigate along the

outgoing edge labelled as a to the other-end vertex.

Since this edge is stored in the vertex as an EdgeTar-

getRecord, we resolve the target vertex v1 by ID from

the key–value store. At this moment, the resolution of

the correct version of v1 is taking place, requesting v1

at the transaction timestamp, which is 1234. Navigat-

ing from v1 to v2 via edge b requires two resolutions,

because we have an additional condition on a property

p of the edge. This forces us to ﬁrst resolve the edge at

timestamp 1234, evaluate the condition on it, and then

resolve the target vertex if the condition matches the

edge. We would like to emphasize that similar loading

strategies are applied by most popular graph databases;

the essential difference is that the underlying storage

of ChronoGraph is in addition taking care of resolving

the correct version of the requested element.

The key observation here is that we automatically

receive the correct version of the element without im-

plementing any speciﬁc functionality in the mapping

process. Since ChronoDB provides a consistent view

on the entire database content for any given timestamp,

the temporal resolution logic not only applies when

loading a graph element by ID, but also when navi-

gating from one element to another. We will always

receive the element in the state it was at the times-

tamp attached to our transaction. This is a major step

towards fulﬁlling requirement

[R1]

. As ChronoDB

offers logarithmic access time to any key-value pair on

any version, this is also in line with requirement

[R2]

3.4 TinkerPop Compatibility

The Apache TinkerPop API is the de-facto standard in-

terface between graph databases and applications built

on top of them. We therefore want ChronoGraph to

implement and be fully compliant to this interface as

well. However, in order to provide our additional func-

tionality, we need to extend the default API at several

points. There are two parts to this challenge. The ﬁrst

part is compliance with the existing TinkerPop API,

the second part is the extension of this API in order

to allow access to new functionality. In the following

sections, we will discuss these points in more detail.

3.4.1 TinkerPop API Compliance

As we described in Sections 3.2 and 3.3, our version-

ing approach is entirely transparent to the user. This

eases the achievement of compliance to the default

TinkerPop API. The key aspect that we need to ensure

is that every transaction receives a proper timestamp

when the regular

g.tx().open()

method is invoked

(see Listing

). In a non-versioned database, there is

no decision to make at this point, because there is only

one graph in a single state. The logical choice for a ver-

sioned graph database is to return a transaction on the

current head revision, i.e. the timestamp of the transac-

tion is set to the timestamp of the latest commit. This

aligns well with the default TinkerPop transaction se-

mantics — a new transaction

should see all changes

performed by other transactions that were committed

before

was opened. When a commit occurs, the

changes are always applied to the head revision, re-

gardless of the timestamp at hand, because history

states are immutable in our implementation in order to

preserve traceability of changes. As the remainder of

our graph database, in particular the implementation of

the query language Gremlin, is unaware of the version-

ing process, there is no need for further specialized

efforts to align versioning with the TinkerPop API.

We employ the TinkerPop Structure Standard Suite,

consisting of more than 700 automated JUnit tests, in

order to assert compliance with the TinkerPop API

itself. This test suite is set up to scan the declared

Graph Features (i.e. optional parts of the API), and

enable or disable individual tests based on these fea-

tures. With the exception of Multi-Properties

and the

Graph Computer

, we currently support all optional

TinkerPop API features, which results in 533 tests to

be executed. We had to manually disable 8 of those

remaining test cases due to problems within the test

suite, primarily due to I/O errors related to illegal ﬁle

names on our Windows-based development system.

We do not support multi-valued properties directly as in-

tended by TinkerPop. However, we do support regular

properties of List or Set types.

The Graph Computer is the entry point to the Online Ana-

lytics Processing (OLAP) API. Support for this feature may

be added in future versions of ChronoGraph.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

The remaining 525 tests all pass on our API implemen-

tation.

3.4.2 TinkerPop Extensions

Having asserted conformance to the TinkerPop API,

we created custom extensions that give access to the

features unique to ChronoGraph. As the query lan-

guage Gremlin itself remains completely untouched

in our case, and the graph structure (e.g.

Vertex

and

Edge

classes) is unaware of the versioning process (as

indicated in Section 3.3), we are left with one possible

extension point, which is the

Graph

interface itself. In

order to fulﬁll requirements

[R1]

and

[R2]

, we need to

add a method to open a transaction on a user-provided

timestamp. By default, a transaction in TinkerPop on

Graph

instance

is opened via one of the following

methods:

1 // V ar ian t A: Th re ad - bo un d t ra n sa c tio n

2 g . tx () . op en () ;

3 // V ar ian t B: Unbo un d t ran sac t io n

4 G rap h tx Gr a ph = g . tx () . c re a t eT h r ea d edT x () ;

Listing 1: Opening TinkerPop Transactions.

We expanded the

Transaction

class by adding

two new overrides to the

open(...)

and

createThreadedTx(...) methods:

1 D at e us e rD a te = . .. ; l on g us e rT i me = . .. ;

2 // V ar ian t A:

3 g rap h . tx () . open ( us e rD ate ) ;

4 g rap h . tx () . open ( us e rT ime ) ;

5 // V ar ian t B:

6 G rap h tx1 = g . tx () . c r eat e Thr e ad e d Tx ( u se rDa te ) ;

7 G rap h tx2 = g . tx () . c r eat e Thr e ad e d Tx ( u se rTi me ) ;

Listing 2: Opening ChronoGraph Transactions.

Using these additional overrides, the user can de-

cide the

java.util.Date

java.lang.Long

times-

tamp on which the transaction should be based. This

small change of adding an additional time argument

is all it takes for the user to make full use of the time

travel feature, the entire remainder of the TinkerPop

API, including the structure elements and the Grem-

lin query language, behave as deﬁned in the standard.

With these additional methods, together with the de-

tails presented in the previous sections, we fully cover

requirements [R1] and [R2].

We added the following methods to provide access

to the history of a single Vertex or Edge:

1 Ver tex v = . .. ; Ed ge e = ... ;

2 I te ra to r <Long > it1 = g ra ph . g et V ert e xHi s to r y ( v);

3 I te ra to r <Long > it2 = g ra ph . get E dg e H is t ory ( e ) ;

Listing 3: Accessing Graph Element History.

These methods allow access to the history of any

given edge or vertex. The history is expressed by

Iterator

over the change timestamps of the el-

ement in question, i.e. whenever a commit changed

the element, its timestamp will appear in the values

returned by the iterator. The user of the API can

then use any of these timestamps as an argument to

g.tx().open(...)

in order to retrieve the state of

the element at the desired point in time. The implemen-

tation of the history methods delegate the call directly

to the underlying ChronoDB, which retrieves the his-

tory of the key–value pair associated with the ID of the

given graph element. This history is extracted from the

primary index, which is ﬁrst sorted by key (which is

known in both scenarios) and then by timestamp. This

ordering allows the two history operations to be very

efﬁcient as only element ID requires a lookup in loga-

rithmic time, followed by backwards iteration over the

primary index (i.e. iteration over change timestamps)

until a different ID is encountered.

In order to meet requirement

[R4]

, we added the

following methods:

1 l on g from = .. . ; lon g to = .. . ;

2 I te ra to r < Te mp ora lK ey > it1 = gr ap h .

get V e rt e x M od i f ica t i ons B e tw e e n ( from , to ) ;

3 I te ra to r < Te mp ora lK ey > it 2 = g ra ph .

get E d ge M o dif i c ati o n sB e t wee n ( fr om , to );

Listing 4: Listing Changes within a Time Range.

These methods grant access to iterators that re-

turn TemporalKeys. These keys are pairs of actual

element identiﬁers and change timestamps. Just as

their element-speciﬁc counterparts, it is intended that

these timestamps are used for opening transactions on

them in order to inspect the graph state. Combined

calls to

next()

it1

and

it2

will yield the complete

list of changes upon iterator exhaustion, fulﬁlling re-

quirement

[R4]

. Analoguous to their element-speciﬁc

siblings, these methods redirect directly to the underly-

ing ChronoDB instance, where a secondary temporal

index is maintained that is ﬁrst ordered by timestamp

and then by key. This secondary index is constructed

per keyspace. Since vertices and edges reside in dis-

joint keyspaces, these two operations do not require

further ﬁltering and can make direct use of the sec-

ondary temporal index.

3.4.3 Transaction Semantics

When we implemented ChronoDB, we envisioned it

to be a system suitable for storing data for analysis

purposes, therefore the consistency of a view and the

contained data is paramount. As all stored versions

are effectively immutable, we chose to implement a

full ACID transaction model in ChronoDB with the

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs

highest possible isolation level (“Serializable” (ISO,

2011)). As ChronoGraph is based on ChronoDB, it

follows the same transaction model. To the best of

our knowledge, ChronoGraph is currently the only im-

plementation of the TinkerPop API v3.x that is full

ACID in the strict sense, as many others opt for repeat-

able reads isolation (e.g. OrientDB, Titan Berkeley)

while ChronoGraph supports snapshot isolation. A

proposal for snapshot isolation for Neo4j was pub-

lished recently (Pati

no Mart

ınez et al., 2016), but it is

not part of the ofﬁcial version. Graph databases with-

out ACID transactions and snapshot isolation often

suffer from issues like Ghost Vertices

or Half Edges

which can cause inconsistent query results and are very

difﬁcult to deal with as an application developer. These

artefacts are negative side-effects of improper transac-

tion isolation, and application developers have to em-

ploy techniques such as soft deletes (i.e. the addition

of “deleted” ﬂags instead of true element deletions) in

order to avoid them. As ChronoGraph adheres to the

ACID properties, these inconsistencies can not appear

by design.

4 RELATED WORK

The idea to have a versioned graph database is

well-known. Several authors proposed different ap-

proaches (Castelltort and Laurent, 2013; Semertzidis

and Pitoura, 2016a; Semertzidis and Pitoura, 2016b)

which also highlights the importance of the problem.

However, our solution is different from existing solu-

tions in one key aspect: In contrast to other authors,

we do not propose to implement the versioning ca-

pabilities within a graph itself, but rather on a lower

level. This section is dedicated to a discussion of the

resulting advantages and disadvantages of this design

choice.

4.1 Functionality

Implementing versioning of a graph within an existing

graph database is a tempting idea, given that a con-

siderable implementation and quality assurance effort

has been put into modern graph databases like Neo4j.

Early works date back to 2013 when Castelltort and

Laurent published their work on this topic (Castelltort

Vertices that have been deleted by transaction t1 while being

modiﬁed concurrently by transaction t2 do not disappear

from the graph; they remain as Ghosts.

Half Edges refer to the situation where an edge is only

traversable and visible in one direction, i.e. the out-vertex

lists the edge as outgoing, but the in-vertex does not list it

as incoming, or vice versa.

and Laurent, 2013). Further work in the same vein was

published recently by Taentzer et al. (Taentzer et al.,

2014). However, as Castelltort’s and Laurent’s paper

clearly shows, the versioned “meta-graph” structure

can become very complex even for small examples.

Changes in vertex properties are easy to represent by

maintaining several copies of the vertex and linking

them together by “predecessor” edges, but structural

changes (addition or removal of edges) are difﬁcult to

represent within a graph structure itself. Due to this

added complexity in structure, the resulting queries

need to become more sophisticated as well. This

can be mitigated by implementing a query transla-

tion mechanism that takes a regular graph query and

a timestamp as input and transforms it into a query

on the meta-graph. Aside from the inherent complex-

ity of this mapping, the performance of the resulting

transformed query will suffer inevitably, as the over-

all graph structure is much larger than a single graph

version would be. In the common case where a query

should be executed on one particular timestamp, the

amount of irrelevant data (i.e. the number of graph

elements that do not belong to the requested revision)

in the graph increases linearly with every commit. A

non-versioned general purpose graph database such as

Neo4j, being unaware of the semantics of versioning

by deﬁnition, has no access to any means for react-

ing to and/or devising a countermeasure against this

problem.

Other related approaches e.g. by Semertzidis and

Pitoura (Semertzidis and Pitoura, 2016b; Semertzidis

and Pitoura, 2016a) or by Han et al. (Han et al., 2014),

assume the existence of a series of graph snapshots as

input to their solutions. These approaches do not aim

for online transaction processing (OLTP) capabilities

and focus on the analysis of a series of static graphs.

A direct comparison to our work is therefore not fea-

sible. However, the data managed by ChronoGraph

may serve as an input to those tools, as each graph re-

vision can be extracted individually and consequently

be treated as a series of snapshots.

Our implementation is a stark contrast to existing

solutions. We implement the versioning process at

a lower level, in a generic versioned key–value store

called ChronoDB. This store is aware of the semantics

of the versioning process, and is capable of solving the

problem of long histories (Haeusler and Breu, 2017),

unlike the previously mentioned solutions.

To the end user, the versioning process is com-

pletely transparent, as our implementation is fully

compliant with the standard TinkerPop API for non-

versioned graphs. There is no need for translating one

graph query into another in order to run it on a different

graph version. A developer familiar with the TinkerPop

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

API can start using ChronoGraph without any par-

ticular knowledge about the versioned nature of the

graph. By offering additional methods, which are

very much in line with the intentions of the TinkerPop

API, we grant access to the temporal features. Addi-

tionally, ChronoGraph is fully ACID compliant with

snapshot isolation for concurrent transactions, prevent-

ing common artefacts that arise in other, non-ACID

graph databases, such as ghost vertices and half edges.

Our solution is strongly based on immutability of ex-

isting versions, which aids in preserving traceability

of changes and allows extensive sharing of data that

remained unchanged between revisions.

4.2 Limitations

Our approach is tailored towards the use case of having

a versioned graph (as opposed to a temporal graph),

which entails that queries on a single timestamp are

the prevalent form of read access. Even though we

support additional auxiliary methods for traversing

the history of a single vertex or edge, and listing all

changes within a given time range, our approach is

far less suitable for use cases with an emphasis on

temporal analysis that require time range queries, or

detection of patterns on the time axis (as in graph

stream analysis (McGregor, 2014; Pign

e et al., 2008)).

For example, answering the question “Which elements

often change together?”, while possible in our solu-

tion, can not be implemented without linear scanning

through the commit logs. Another example would be

the query “List all vertices that have ever been adja-

cent to a given one”, which would again involve linear

iteration.

We are currently also not offering any means for

distributing the graph among multiple machines (see

Section 6 for details). This limits the scale of our graph

to sizes manageable within the physical memory and

computing resource restrictions of a single machine.

Currently, the largest ChronoGraph instance used in

practice that we are aware of has about 500.000 ele-

ments (vertices plus edges) in the head revision.

5 EVALUATION

Table 2 shows a very high-level look at the most rele-

vant TinkerPop implementations in practice and com-

pares them to ChronoGraph. Titan, Neo4j and Chrono-

Graph are supporting the new 3.x versions of Tinker-

Pop, while OrientDB is still using the 2.x version. The

remainder of the table can be divided into two parts.

On the one hand there are distributed systems that are

intended for deployment on multiple machines, and on

the other hand there are systems deployed locally on

one machine. In the distributed domain, the BASE

approach is prevalent due to its weaker consistency

guarantees. For local deployments, all graph databases

in the list follow the ACID principles. However, they

all implement them in different ways. In particular

the Isolation property allows for a certain degree of

freedom in interpretation. Most local graph databases

listed in Table 2 have Read Committed isolation, which

is the second weakest of the four levels identiﬁed in

the SQL 2011 Standard (ISO, 2011).ChronoGraph is

the only implementation that provides true Snapshot

isolation, which is the highest possible isolation level.

We assert the conformance to the TinkerPop stan-

dard in ChronoGraph via the automated test suite pro-

vided by TinkerPop which encompasses around 700

test cases. We furthermore assert the correctness of our

additional functionality by adding another 1400 auto-

mated test cases, achieving a total statement coverage

of approximately 70%. In order to demonstrate that the

impact on performance of these new features does not

harm the overall applicability of our graph database,

we conducted a comparative experiment with the top

three major TinkerPop implementations, alongside a

second experiment that demonstrates the versioning

capabilities of ChronoGraph.

5.1 Controlled Experiments

This section presents two experiments with their re-

spective setups and results. The comparative per-

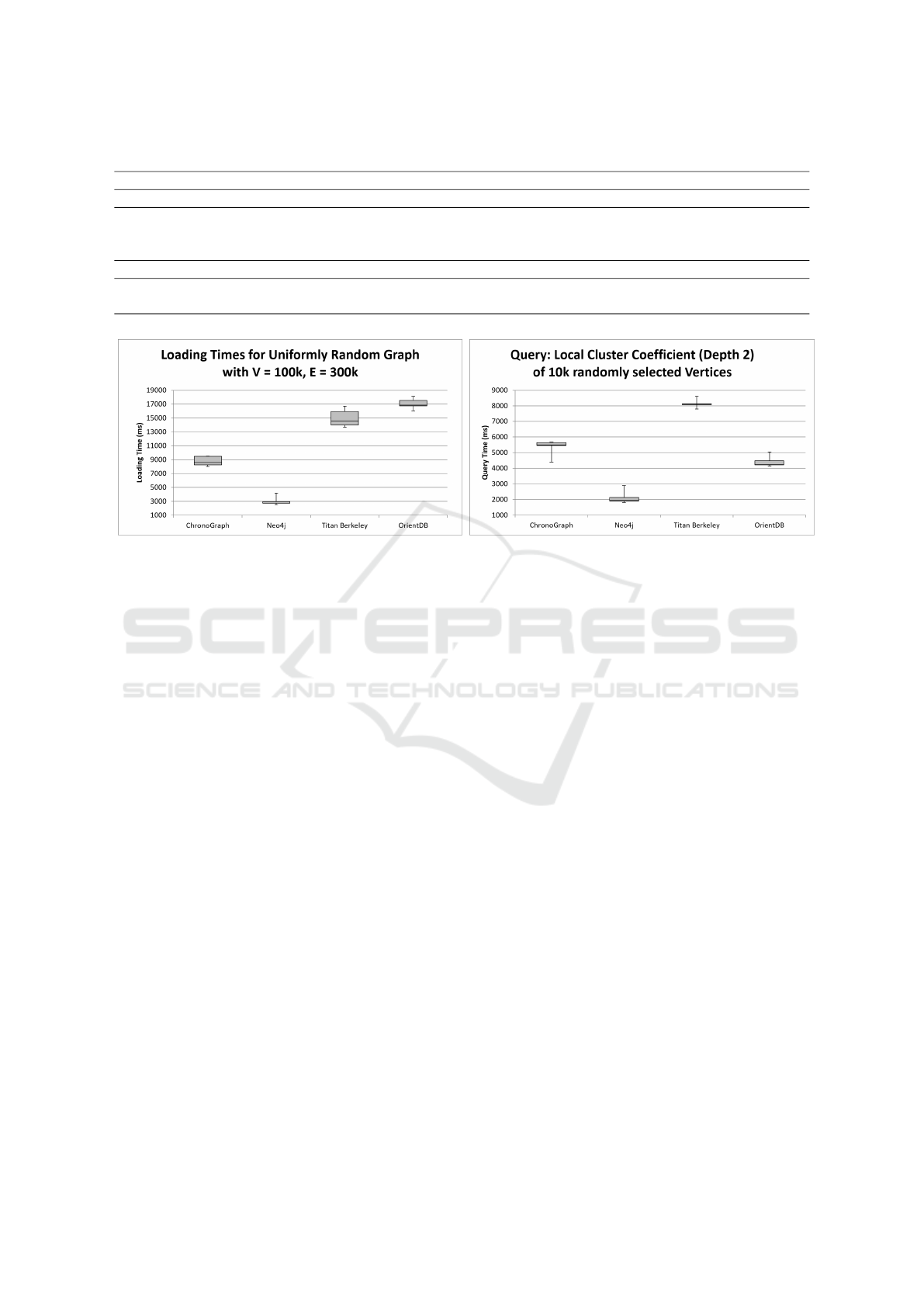

formance experiment evaluates ChronoGraph against

other popular graph databases, while the version his-

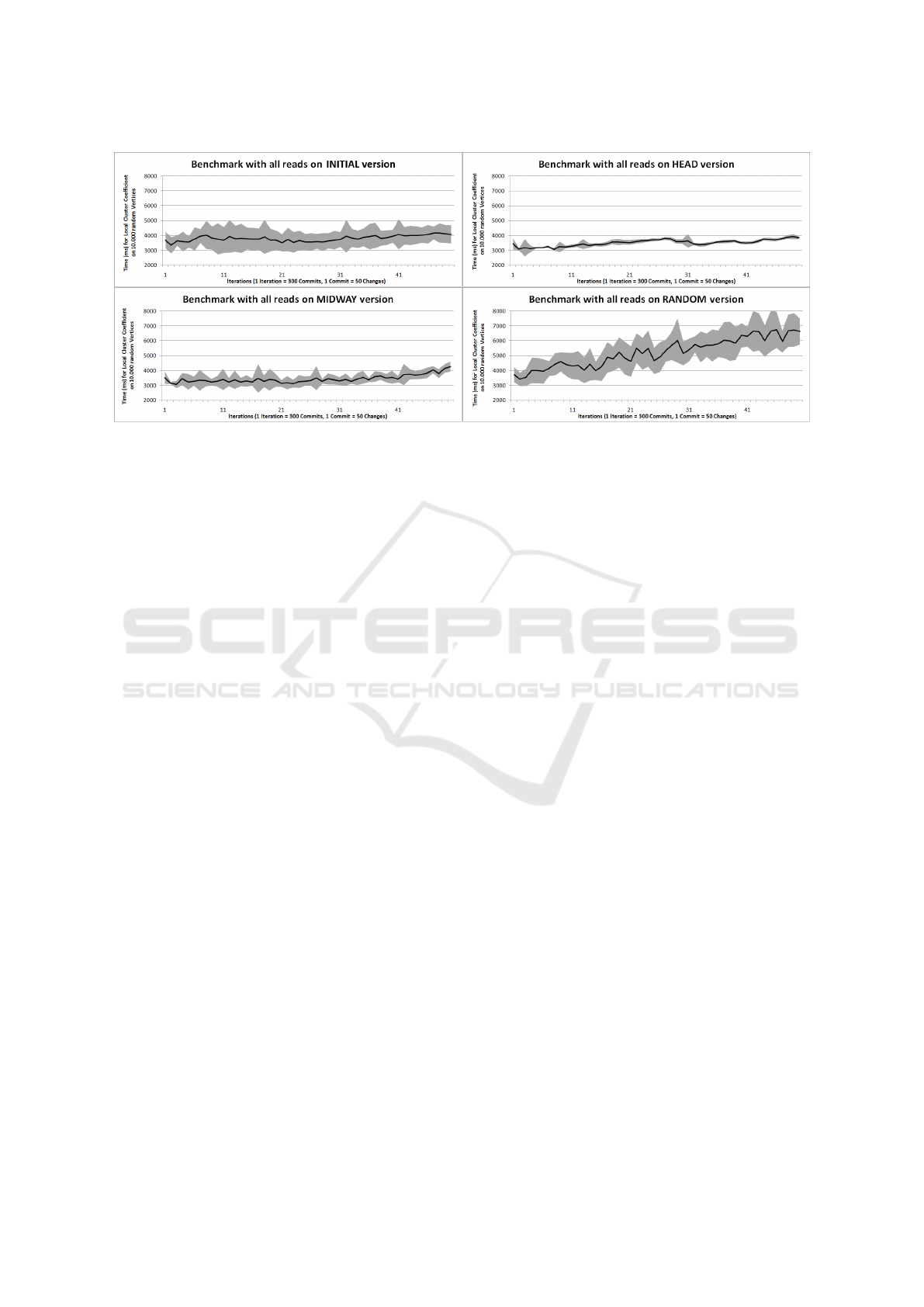

tory growth experiment focuses on the versioning capa-

bilities of ChronoGraph and demonstrates the impact

on performance as more revisions are being added.

All benchmarks were executed with 1.5GB (com-

parative experiment) or 3.0GB (history growth ex-

periment) of RAM available to the JVM on an Intel

Core i7-5820K processor with 3.30GHz and a Crucial

CT500MX200 SSD.

5.1.1 Comparative Performance

We generated a uniformly random graph with 100.000

vertices and 300.000 edges. We then selected a ran-

dom subset of 10.000 vertices. In order to assert the

reproducibility of the experiment, we persisted both

the adjacency list and the identiﬁers of the vertex sub-

set in a plain text ﬁle. Using the graph database under

test (GUT), we loaded the text ﬁle, created the corre-

sponding TinkerPop structure and persisted it as a new

graph in the GUT. In order to have a common baseline,

Basically Available, Soft State, Eventual Consistency

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs

Table 2: Comparison of TinkerPop Implementations.

Graph-Database TinkerPop Version Deployment Paradigm Max. Isolation Level

ChronoGraph 3.x Local ACID Snapshot

Titan on BerkeleyDB 3.x Local ACID Read Committed

on Cassandra 3.x Distributed BASE n/a

on HBase 3.x Distributed BASE n/a

Neo4j 3.x Distributed BASE / ACID Read Committed

OrientDB Local Mode 2.x Local ACID Repeatable Reads

Distributed Mode 2.x Distributed ACID Read Committed

(a) Graph Loading Times. (b) Query Response Times.

Figure 3: Performance of TinkerPop graph creation and querying.

we did not make use of vendor-speciﬁc batch-loading

capabilities. The time it takes to perform this task is

shown in Figure 3 a). The displayed box plot shows

the results over 10 runs.

After importing the graph, we loaded the list of

10.000 random vertex IDs from the text ﬁle. For each

vertex ID, we fetched the corresponding vertex from

the GUT and calculated its local cluster coefﬁcient,

which is a two-step neighborhood query, as presented

by Ciglan et al. (Ciglan et al., 2012). This experi-

ment covers two of the primary capabilities of graph

databases, which are random access and neighborhood

navigation. Figure 3 b) shows the results of this bench-

mark, accumulated over 10 runs.

As Figure 3 clearly indicates, Neo4j is the fastest

competitor in both loading and querying the graph by

a wide margin. We would like to emphasize that we

included Neo4j in this benchmark for reference pur-

poses due to its popularity; its feature set is hardly

comparable to the other databases in the benchmark as

it primarily follows the BASE principle which allows

for a wide range of optimizations that would not be

possible in an ACID environment. Our ChronoGraph

implementation takes second place in loading speed.

OrientDB ﬁrst needs to convert the graph elements into

its internal document representation, while Titan is lim-

ited by the insertion speed of the underlying Berkeley

DB. In terms of read access speed, ChronoGraph is the

middle ground between OrientDB and Titan Berkeley

in this benchmark. Here, we only deal with a sin-

gle graph version, therefore a comparable speed to

non-versioned graph databases is to be expected. We

still suffer from a slight overhead in calculation due

to the present versioning engine, which is the reason

why OrientDB performs better. The main use case of

Titan is in distributed environments, which explains

why restricting it to a single Berkeley DB instance

(the only ofﬁcially supported ACID backend) causes a

degradation in performance.

5.1.2 Version History Growth

In a second experiment we analyze the performance

impact as an increasing amount of versions are added

to the system via regular commits. For this experi-

ment, we assume frequent small-scale changes. Even

though ChronoGraph supports versioning for vertex

and/or edge property values, in this experiment we

only consider changes that alter the graph topology.

We use the same local cluster coefﬁcient calculation

query as in the previous experiment on a graph with

an increasing number of versions. To eliminate the

impact of an increase in graph size, we choose the

modiﬁcations randomly from a probability distribution

which is designed on the ﬂy to increase the graph size

if too many deletions have occurred, and to reduce

it again if too many elements have been added. All

operations preserve the uniform randomness of the

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

Figure 4: Query Performance with increasing number of versions.

graph structure. The four distinct events are vertex ad-

dition, vertex removal, edge addition and edge removal.

The removal operations pick their target element at

random. When adding a vertex, we also connect it to

another, randomly chosen existing vertex via a new

edge. A commit can contain any combination of these

operations. In this experiment, each commit consists

of 50 such structural changes. As in the previous ex-

periment, the initial graph is uniformly random and

has 100.000 vertices and 300.000 edges. The modiﬁ-

cations in the commits alter these values. We use the

random distribution of changes as a tool to keep the

graph from becoming too large or too small, as we

are only interested in the impact of a growing history

and want to eliminate the inﬂuence of a growing or

shrinking graph structure. Both the number of vertices

and the number of edges is bounded within

of the

original numbers. The probability distribution for the

change events is recalculated after every modiﬁcation.

The experiment algorithm operates in iterations. In

each iteration, it performs 300 commits, each of them

containing 50 operations as outlined above. Then, a

timestamp is picked on which a graph transaction is

opened, and the local cluster coefﬁcient query from

the ﬁrst experiment is calculated for 10.000 randomly

selected vertices. We measure the accumulated time of

these queries and repeat each measurement 10 times

(keeping the timestamp constant, but selecting a differ-

ent, random set of vertices each time). We would like

to emphasize that the time for opening a transaction is

independent of the chosen timestamp, i.e. opening a

transaction on the head revision is equally fast as open-

ing a transaction on the initial revision. The timestamp

selection is done in four different ways, which gives

rise to the four different graphs in Figure 4:

• INITIAL uses the timestamp of the initial commit.

• HEAD uses the timestamp of the latest commit.

•

MIDWAY uses the timestamp at the arithmetic mean

of the initial and latest commit timestamps.

•

RANDOM chooses a timestamp randomly between

the initial and latest commit (inclusive).

We granted 3GB of RAM to the JVM in this ex-

periment (even though the benchmark program can be

successfully executed with less memory) in order to

prevent excessive garbage collection overhead. Com-

pared to the ﬁrst experiment, we are faced with much

larger volumes of data in this case, and the test code

itself has to manage a considerable amount of meta-

data, e.g. in order to assert the correct calculation of

the probability distributions.

Figure 4 showcases a number of interesting prop-

erties of ChronoGraph. Given a graph that retains an

almost constant size over time, the number of versions

has a very minor effect on the query performance if

the INITIAL or HEAD revisions are requested. The

present increase is due to the larger number of elements

in the underlying B

-Tree structure in ChronoDB. The

INITIAL version has a notably higher standard de-

viation than the HEAD version. This is due to the

experiment setup. As new changes are committed,

they are written through our versioning-aware cache.

The HEAD case can take full advantage of this fact.

However, for the INITIAL case, the write through

eliminates older entries from the Least-Recently-Used

cache which have to be fetched again to answer the

queries on the initial commit timestamp.

The MIDWAY version suffers from a similar prob-

lem as the INITIAL version, however to a lesser extent

because the request timestamp is closer to the latest

commit than in the INITIAL case. We would like to

emphasize that, while the underlying store offers the

same performance for any version, the temporal cache

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs

is limited in size and cannot hold all entries in the

experiment. Therefore, choosing a timestamp that is

closer to the latest commit causes an improvement in

performance due to the write-through mechanics of

our commit operations.

Finally, the worst case scenario is the RANDOM

variant of our experiment. Here, each read batch

chooses a different timestamp at random from the

range of valid timestamps. This causes a consider-

able number of cache misses, increasing the standard

deviation and query response time. As the underlying

data structure in our store is a B

-Tree that contains

all revisions, which is the reason for the resulting loga-

rithmic curve in Figure 4.

At this point, it is important to note that the ver-

sioning engine is faced with considerable volumes of

changes in this experiment. After 50 iterations, the

version history consists of 15,001 individual graph re-

visions with 50 modiﬁcations each. This translates

into 750.000 high-level changes in addition to the ini-

tial version. Considering that a graph structure change

translates into several key-value pair changes (e.g. a

vertex delete cascades into the deletion of all connected

edges, which cascades into adjacency list changes in

the vertices at the other end), the number of atomic

changes is even higher. Each of these atomic changes

must be tracked in order to allow for per-element his-

tory queries. If we assume that each high-level graph

change on average entails 3 changes in the underlying

key–value store, this results in a store that has more

than ﬁve times the number of elements compared to the

initial graph. As Figure 4 shows, this increase in data

volume does not entail an equivalent increase query

response times, which demonstrates the scalability of

our approach with a high number of revisions [R2].

6 FUTURE WORK

The existing versioning capabilities are based on the

underlying assumption that the history of each element

is immutable, i.e. the past does not change. This prin-

ciple will considerably ease the distribution of the ver-

sioned graph data among multiple machines, as newly

incoming commits can only alter the database contents

in the head revision. These commits are furthermore

restricted to operate in an append-only fashion. This

allows for highly effective caching and data replication

without risking to ever encounter stale data. We plan

on implementing such capabilities in ChronoGraph in

the future.

Another feature which we intend to support in up-

coming releases is the TinkerPop

GraphComputer

in-

terface. It is a generalized interface for computation

on distributed graphs, geared towards online analytics

processing (OLAP) by utilizing map–reduce patterns

and message passing. Thanks to the abstraction layer

provided by Gremlin, this will also allow our users

to run queries in a variety of languages on our graph,

including SPARQL

(Barbieri et al., 2010).

Finally, we are also applying ChronoGraph in an

industrial context in the IT Landscape Documentation

tool Txture

. In this collaboration, we have success-

fully connected high-level modeling techniques with

our versioned graph database. Txture assists data cen-

ters in the management of their IT assets, and in par-

ticular their interdependencies. At its core, Txture is a

repository for these asset models, and ChronoGraph

acts as the database of this repository, providing the

required query evaluation, persistence and versioning

capabilities. Txture is currently in use by several indus-

trial customers, including the data center Allgemeines

Rechenzentrum (ARZ) and a globally operating semi-

conductor manufacturer. We will publish a case study

on the role of ChronoGraph within Txture in the near

future.

7 SUMMARY

In this paper, we presented our concepts for support-

ing transparent system time versioning in TinkerPop

OLTP graphs. We provided an overview over the core

concepts, the persistence format and the underlying

versioning engine of our open source proof-of-concept

implementation called ChronoGraph. We presented

our vendor-speciﬁc extensions to the TinkerPop API

that grant access to the versioning capabilities and

demonstrated that this design aligns very well with the

standard TinkerPop API. In the related work section,

we also presented a comparison to existing efforts and

technologies and outlined the underlying principles of

ChronoGraph as a novel approach to the graph ver-

sioning problem. This discussion and the following

evaluation section show that ChronoGraph improves

on the state-of-the-art as a new member of the Tinker-

Pop OLTP family by introducing new versioning and

querying capabilities, strict adherence to the ACID

principles, as well as providing snapshot-level transac-

tion isolation, without severely compromising perfor-

mance in comparison to other popular graph databases.

Overall, we made two key contributions in this

paper. The ﬁrst contribution is the introduction of

our novel versioning concepts into the world of graph

databases, which additionally allow for snapshot-level

https://www.w3.org/TR/sparql11-query/

www.txture.io

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

transaction isolation and conformance to all ACID

properties. The second contribution is the Chrono-

Graph implementation itself, which is a full-featured

and thoroughly tested TinkerPop 3.x implementation

that is freely available under an open source license.

Our experiments have shown the competitive perfor-

mance of this implementation.

REFERENCES

Barbieri, D. F., Braga, D., Ceri, S., Valle, E. D., and Gross-

niklaus, M. (2010). C-SPARQL: a continuous query

language for RDF data streams. Int. J. Semantic Com-

puting, 4(1):3–25.

Becker, B., Gschwind, S., Ohler, T., Seeger, B., and Wid-

mayer, P. (1996). An asymptotically optimal multiver-

sion b-tree. The VLDB Journal, 5(4):264–275.

Castelltort, A. and Laurent, A. (2013). Representing history

in graph-oriented NoSQL databases: A versioning sys-

tem. In Eighth International Conference on Digital

Information Management (ICDIM 2013), Islamabad,

Pakistan, September 10-12, 2013, pages 228–234.

Ciglan, M., Averbuch, A., and Hluchy, L. (2012). Bench-

marking traversal operations over graph databases. In

Data Engineering Workshops (ICDEW), 2012 IEEE

28th International Conference on, pages 186–189.

IEEE.

Easton, M. C. (1986). Key-sequence data sets on indelible

storage. IBM Journal of Research and Development,

30(3):230–241.

Haeusler, M. (2016). Scalable versioning for key-value

stores. In DATA 2016 - Proceedings of 5th Interna-

tional Conference on Data Management Technologies

and Applications, Lisbon, Portugal, 24-26 July, 2016.,

pages 79–86.

Haeusler, M. and Breu, R. (2017). Sustainable management

of versioned data. In Proceedings of the 24th PhD

Mini-Symposium. Budapest University of Technology

and Economics.

Han, W., Miao, Y., Li, K., Wu, M., Yang, F., Zhou, L., Prab-

hakaran, V., Chen, W., and Chen, E. (2014). Chronos:

a graph engine for temporal graph analysis. In Proceed-

ings of the Ninth European Conference on Computer

Systems, page 1. ACM.

Hart, M. and Jesse, S. (2004). Oracle Database 10G

High Availability with RAC, Flashback & Data Guard.

McGraw-Hill, Inc., New York, NY, USA, 1 edition.

ISO (2011). SQL Standard 2011 (ISO/IEC 9075:2011).

Jensen, C. S., Dyreson, C. E., B

ohlen, M., Clifford, J.,

Elmasri, R., Gadia, S. K., et al. (1998). Tempo-

ral Databases: Research and Practice, chapter The

consensus glossary of temporal database concepts —

February 1998 version, pages 367–405. Springer

Berlin Heidelberg, Berlin, Heidelberg.

Lomet, D., Barga, R., Mokbel, M., and Shegalov, G. (2006).

Transaction time support inside a database engine. In

Proceedings of the 22nd ICDE, pages 35–35.

Lomet, D., Hong, M., Nehme, R., and Zhang, R. (2008).

Transaction time indexing with version compression.

Proceedings of the VLDB Endowment, 1(1):870–881.

Lomet, D. and Salzberg, B. (1989). Access Methods for

Multiversion Data. SIGMOD Rec., 18(2):315–324.

McGregor, A. (2014). Graph stream algorithms: a survey.

SIGMOD Record, 43(1):9–20.

Nascimento, M., Dunham, M., and Elmasri, R. (1996). M-

IVTT: An index for bitemporal databases. In Wagner,

R. and Thoma, H., editors, Database and Expert Sys-

tems Applications, volume 1134 of Lecture Notes in

Computer Science, pages 779–790. Springer Berlin

Heidelberg.

Pati

no Mart

ınez, M., Sancho, D., Jim

enez Peris, R.,

Brondino, I., Vianello, V., and Dhamane, R. (2016).

Snapshot isolation for neo4j. In Advances in Database

Technology (EDBT). OpenProceedings. org.

Pign

e, Y., Dutot, A., Guinand, F., and Olivier, D. (2008).

GraphStream: A tool for bridging the gap between

Complex Systems and Dynamic Graphs. In Emer-

gent Properties in Natural and Artiﬁcial Complex Sys-

tems. Satellite Conference within the 4th European

Conference on Complex Systems (ECCS’2007), vol-

ume abs/0803.2.

Rodriguez, M. A. and Neubauer, P. (2011). The graph traver-

sal pattern. In Graph Data Management: Techniques

and Applications., pages 29–46.

Salzberg, B. (1988). File Structures: An Analytic Approach.

Prentice-Hall, Inc., Upper Saddle River, NJ, USA.

Saracco, C., Nicola, M., and Gandhi, L. (2012). A matter

of time: Temporal data management in DB2 10. IBM

developerWorks.

Semertzidis, K. and Pitoura, E. (2016a). Durable graph

pattern queries on historical graphs. In Proc. IEEE

ICDE.

Semertzidis, K. and Pitoura, E. (2016b). Time Traveling in

Graphs using a Graph Database. In Proceedings of the

Workshops of the (EDBT/ICDT).

Snodgrass, R. T. (1986). Temporal databases. IEEE Com-

puter, 19:35–42.

Taentzer, G., Ermel, C., Langer, P., and Wimmer, M. (2014).

A fundamental approach to model versioning based on

graph modiﬁcations: from theory to implementation.

Software and System Modeling, 13(1):239–272.

Tanase, I., Xia, Y., et al. (2014). A highly efﬁcient runtime

and graph library for large scale graph analytics. In

Proceedings of Workshop on GRAph Data Manage-

ment Experiences and Systems, GRADES’14, pages

10:1–10:6, New York, NY, USA. ACM.

Trojer, T., Farwick, M., H

ausler, M., and Breu, R. (2015).

Living Models of IT Architectures: Challenges and

Solutions. Software, Services and Systems, 8950:458–

474.

ChronoGraph - Versioning Support for OLTP TinkerPop Graphs
