Program Understanding Models: An Historical Overview and a

Classification

Eric Harth and Philippe Dugerdil

Geneva School of Business Administration, HES-SO, Tambourine 17, 1227 Carouge, Switzerland

Keywords: Program Comprehension, Comprehension Models, Understanding Strategies.

Abstract: During the last three decades several hundred papers have been published on the broad topic of “program

comprehension”. The goal was always the same: to develop models and tools to help developers with program

understanding during program maintenance. However few authors targeted the more fundamental question:

“what is program understanding” or, other words, proposed a model of program understanding. Then we

reviewed the proposed program understanding models. We found the papers to be classifiable in three period

of time in accordance with the following three subtopics: the process, the tools and the goals. Interestingly,

studying the fundamental goal came after the tools. We conclude by highlighting that it is required to go back

to the fundamental question to have any chance to develop effective tools to help with program understanding

which is the most costly part of program maintenance.

1 INTRODUCTION

As more and more source-code is inherited from the

past, often still used in production environment, and

since a high turn-over is common in the software

development industry, program maintenance is often

done at a very high cost (Tilley, 1997). Trying to

understand programs written by others involves many

different skills, the knowledge of several domains, as

well as dedicated strategies and integrated processes

in order to analyse and discover the original

programmer’s intent. During the past few decades,

many studies have been undertaken to identify what

mental models were used when writing the programs

and how these models can be recovered by reading

the source code by studying the program document-

tation or by analysing the program’s behaviour.

In this paper we intend to summarize the most

common models identified by the research commu-

nity during the last three decades as well as the

strategies and techniques used while understanding

legacy programs. The referenced research works will

be classified into different time periods since we

realized that their authors targeted different aspects of

program understanding over time. The contributions

of this paper is first to propose a synthesis of more

than 30 years of research in this field. Second, it is the

identification of three periods of time among which

the research works can be classified. Last, it is to

summarize the perspectives under which “program

understanding” has historically been studied and to

identify the remaining questions to be solved. Finally,

the referenced models we present in this work are

formatted using a common graphical modelling

syntax allowing to compare the models with each

other’s.

2 DOCUMENT STRUCTURE

In section 3 we present the five most common

understanding strategies identified during the last

three decades. Section 4 provides an explanation of

the three main periods we observed with respect to

the topic addressed by the researchers in program

understanding. The following sections 5, 6 and 7

present some of the emblematic work in each of the

periods. Section 8 contains a discussion of the

perspectives under which “program understanding”

has been studied over the years and the remaining

questions to be answered. Section 9 concludes the

paper.

3 UNDERSTANDING

STRATEGIES

As proposed by Exton (Exton, 2002) comprehension

strategies may roughly be categorized into five

402

Harth, E. and Dugerdil, P.

Program Understanding Models: An Historical Overview and a Classiﬁcation.

DOI: 10.5220/0006465504020413

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 402-413

ISBN: 978-989-758-262-2

generic approaches addressing different needs and

involving different representation techniques. All

strategies are derived from the “Constructivism

Learning Theory” which states that learner is the

central part of the learning process, not the studied

material (Hein, 1991). This theory also suggests that

the learning process, considered a heuristic procedure

acquired through individual experiences, cannot be

standardized since each individual learns differently

at a different pace. Yet, the author noted that some

recurring understanding strategies were commonly

involved in all these disparate learning processes,

especially within the software domain.

3.1 Bottom-up Strategy

This is the simplest approach used when a developer

is not familiar with the analysed software. This

strategy starts by reading the source code statement

by statement, grouping information together

(chunking) to form more abstract information.

Grouping again and recursively these chunks into

more abstract chunks gives, at the end, an abstract

overview of what the software does in very generic

terms. This strategy is qualified as “bottom-up” since

the abstraction process start from low-level items (the

source-code) up to a global description of what the

software does and why it is written so.

3.2 Top-down Strategy

When a developer has already some prior knowledge

of a specific domain, he can make high-level

assumption about the program, even without reading

a single line of code. Starting from the GUI, the

program’s name or the documentation, he can

generate hypotheses about the program’s purpose and

validate or refine them by reading some code

fragments. With a recursive descent he will make

hypotheses on more specific features, down to

concrete source code items. This strategy is qualified

as “top-down” since the strategy starts from very

generic assumptions down to more specific ones,

until code fragments are matched.

3.3 Hybrid Strategy

This approach – originally named knowledge-based

strategy by Exton (Exton, 2002) – borrows ideas from

bottom-up and top-down strategies and mixes them

according to contextual and opportunistic needs. If

the developers are already familiar with some of the

business concepts manipulated in the code, they will

select a top-down strategies. But sometimes they will

encounter unfamiliar code structures requiring

bottom-up strategies. This opportunistic strategy is

called hybrid since it merges the two previous

strategies into a single one.

3.4 As-Needed vs Systematic Strategy

When the analysed software is large, developers

usually do not try to understand the whole system.

Rather, they will limit the time spent on a single

maintenance session by focusing their efforts to a few

part of the code only (as needed strategy). Alternati-

vely, if time is not limited, or if the intent is to

understand all the software details (for migration

purpose for instance), the developers will study the

code thoroughly so as to systematically discover the

purpose and meaning of all the code artefacts. These

dual strategies may also be applied to specific part of

the software like the components. Indeed, a buggy

component may be systematically analysed, whereas

the application may only be partially scanned to get

the contextual use of the component.

3.5 Integrated Strategy

The integrated strategy considers that the

understanding process involve several levels of

abstraction simultaneously and opportunistically. For

example, each comprehension task may launch sub-

processes with the same or another strategy among

those identified above. This approach is called an

integrated strategy since the tasks and models are

jointly participating in a more complex analysis

process.

4 UNDERSTANDING MODELS

During the last three decades, the research

community proposed several models of the mental

processes associated with code understanding. At the

same time, the software development and

methodologies have deeply evolved as well as the

programming languages and environments. In this

study we propose to review the most prominent

understanding models referred to by the program

understanding community since the 70s. In our

research, we have identified three major periods

whose models targeted different scopes and purposes,

generally driven by evolution of the technology:

 The Classical Period (before 2000). In this period

the software understanding problem was mainly

questioned by psychologists interested in software

Program Understanding Models: An Historical Overview and a Classiﬁcation

403

creation and learning. All the major strategies

have been identified during this period;

 The Optimistic Period (between 2000 and 2010).

In this period, the researchers became interested

in the software understanding process, with the

intent to provide tools and techniques to enhance,

if possible automate, software development and

maintenance;

 The Pragmatic Period, (after 2010). In this

period the researchers seemed to return to the

genuine program understanding problem with

reduced ambitions on the theoretical side. They

focus on techniques to ease program maintenance.

5 CLASSICAL PERIOD

This period covers all studies conducted roughly

before the year 2000. The five most common

strategies involved in software comprehension

(Section 3) have been proposed during this very

period. Indeed, research was focused on the study of

the human behaviour and the associated knowledge

models since only limited tools, mainly text editors

and debuggers, existed at that time.

5.1 Brooks

Brooks (Brooks, 1983) defines the program

comprehension process as the reconstruction of the

mappings between the problem domain, possibly

through several intermediate levels, and the

programming domain (Figure 2). The author argues

that this mapping is built iteratively through (1)

assumptions made about the program purpose and (2)

beacons found in source code or documentation.

More precisely, he suggests that the programmer first

builds expectations about the program purpose and

the corresponding implementation details. From there

he identifies which knowledge elements should be

included in the mental model to match these

expectations. Before inclusion, these hypotheses are

validated, refined or rejected against facts found in

code or against constraints already present in the

current program’s model. In other words, the author

suggests that the understanding process starts by

creating an initial coarse guess about the generic

program’s purpose through a simple inference made

on its name (a beacon). This assumption is then

validated against other beacons found in code and

accepted, rejected or refined, if relevant. When more

beacons are discovered, new intermediate concepts

and sub-assumptions are made and the mental model

is modified accordingly. The process goes deeper and

deeper until the lowest abstraction level is reached, in

particular the most technical and code oriented

concepts.

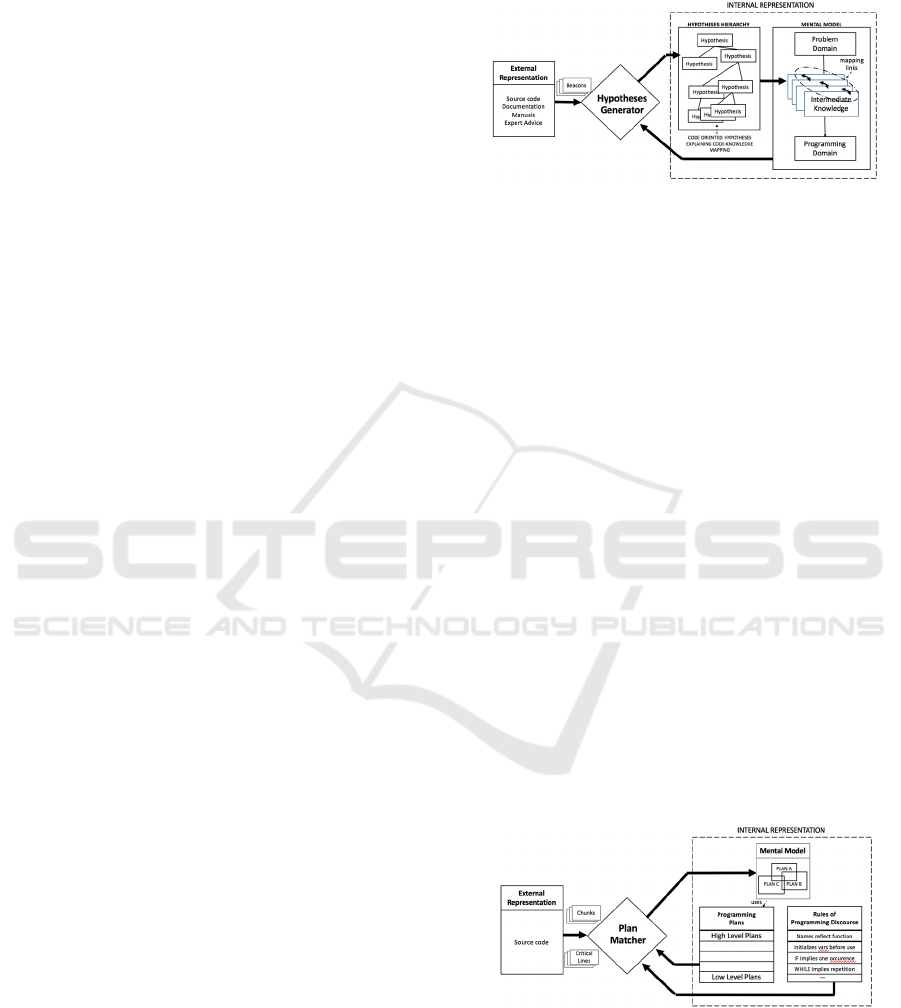

Figure 2: Brooks model, adapted from (Brooks, 1983).

The understanding process is completed when all

the beacons found have been matched against multi-

level hypotheses, thus explaining the source code

through high level description and justification. Since

the hypothesis generation process requires a large

knowledge base and a wide experience in beacons

recognition, this theory suggests that only expert

programmers are likely to generate relevant

hypotheses and validate them against the proper

beacons. In accordance with Exton’s classification (§

3), this model is considered a top-down strategy since

high-level hypothesis are generated down to more

specific ones, until reaching beacons and

implementation structures.

5.2 Soloway and Ehrlich

Soloway and Erhlich (Soloway, 1984) propose to use

text comprehension theories to explain how

developers understand existing programs from a

linguistic point of view. Based on the these theories,

they suggest that the programmers use “plan

knowledge” and “rules of discourse” (i.e.

programming convention) to extract semantic

information while analysing source code (Figure 3).

Figure 3: Soloway and Ehrlich model, adapted from

(Soloway, 1984).

Plan knowledge, or programming plans, are generic

pattern of statements dedicated to reach some specific

goal (solve some specific problem). Each plan is

labelled with the expected goal. For example, the

ICSOFT 2017 - 12th International Conference on Software Technologies

404

search-loop-plan would be associated with the

recurrent statements used by programmers to find an

item within an array or a collection. So, it will be

stored in memory as a strategical plan associated to

the search-loop label. Thereby, while reading source

code, programmers use predefined programming

convention and programming plans to shape a

compact, goal oriented, program representation in

their memory without including too much

information details. The authors also found that the

plan identification may not use all the statements

associated to the plan, but only a part of them called

the critical lines. This leads the understanding process

to be much faster and efficient. Furthermore, through

experiments with novice and expert programmers, the

authors also showed that unplan-like programs break

programmer expectations and are more difficult to

understand for novices. This is true even if the

program respects programming conventions. This

might explain why the expert programmers are more

efficient at identifying functionalities and code

purpose, even without reading thoroughly the source

code. They can better predict which plans are

implemented in the code and what the original

programmer intend was. In accordance with Exton’s

classification (§ 3), this model is considered a top-

down strategy, since programming convention and

programming plans are pre-defined knowledge that

programmers use to recognize code structures.

5.3 Letovsky

Based on experiments conducted with four

professional programmers and two novices, Letovsky

(Letovsky, 1987) observes that the understanding

process can be viewed as an investigation process

where the subjects are making small inquiries about

the studied program (Figure 4). He suggests that the

developers, while analysing code, shape questions

about specific fragments of code, make plausible

assumptions about them (called conjectures) and

evaluate their validity through evidences found in

source code. As each conjecture is validated, the

programmer’s mental model is stepwisely built in

memory: new elements are added or removed and

relationships between objects are updated. For the

author, the mental model of the program is not a

uniform network of objects, but rather a layered

structure split into three kinds of information:

 The specification layer, defining the detailed

goals and purposes carried out by the program;

 The implementation layer, representing the code

structure and statements in subject’s memory;

 A set of connections, called annotations, linking

the specification items to the implementation

items. These links “explain” the program’s

purposes in term of its implementation.

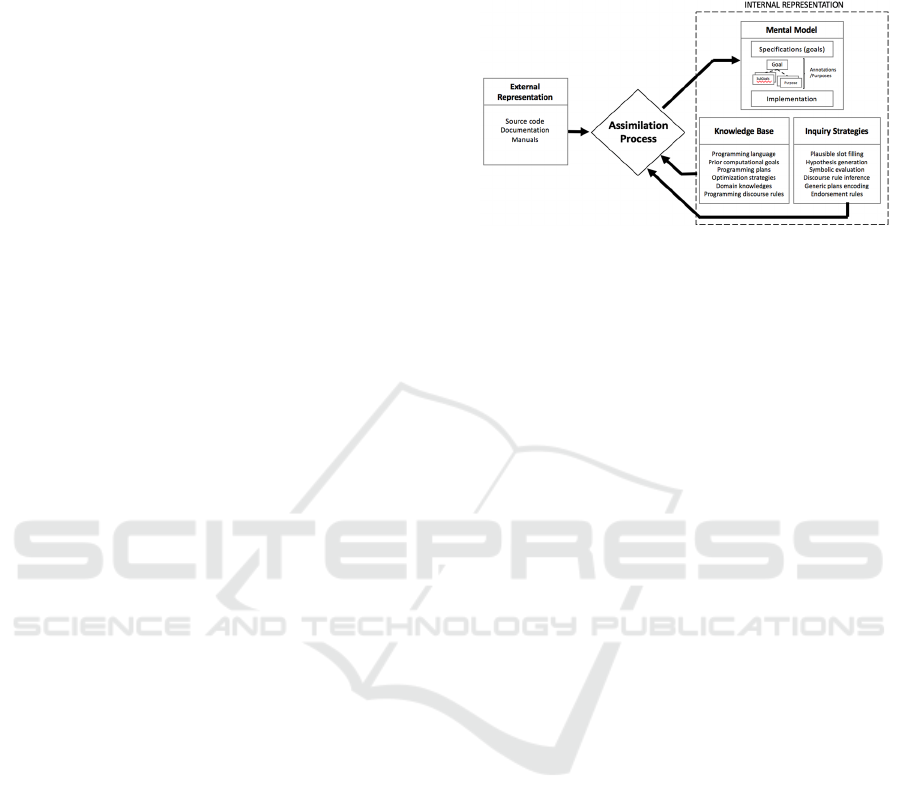

Figure 4: Letovsky model, adapted from (Letovsky, 1987).

The understanding process, viewed as an inquiry

process, is called by the author the “assimilation

process” (Figure 4). The programmers formulate

questions (what, why, how and whether) about the

code fragments and make small conjectures about

plausible answers. Each question then raises bottom-

up or top-down inquiries, and highlights some

relationships among concrete and abstract

components of the mental model. Then, through

annotations, the programmers update their mental

model accordingly. When the mental model is

incomplete, before the analysed program is entirely

understood, the links from goals to implementations

may be tangled. Indeed, some goals may be linked to

more than one implementation items and some

implementation item be associated to multiple goals.

Hence the author suggests that the developer, viewed

as an opportunistic processor, will use a dual strategy

to partially solve conflicting interpretations and

delegate full understanding in later stage, when the

mental model will have been built more thoroughly.

The author acknowledges that many different kinds

of knowledge sources are required when doing

inquiries and generating plausible assumptions about

the code purpose. These are applied in different

conditions for different goals: plausibility prediction,

hypothesis generation, plan identification, endorse-

ment rules, symbolic simulation and so forth, in order

to finally link specifications goals to concrete

program implementation. In accordance with Exton’s

classification (§ 3), this model is considered a hybrid

strategy, since a mix of top-down and bottom-up

approaches are involved through inquiries.

5.4 Pennington

Also based upon text comprehension theories,

Pennington (Pennington, 1987) suggests that the

developers use more than one single mental model to

Program Understanding Models: An Historical Overview and a Classiﬁcation

405

represent knowledge extracted from source code

(Figure 5). The key hypothesis is that at least two

models are involved in the comprehension process.

The first one is dedicated to the textual program

representation, the program model, representing the

textbase features of the program.

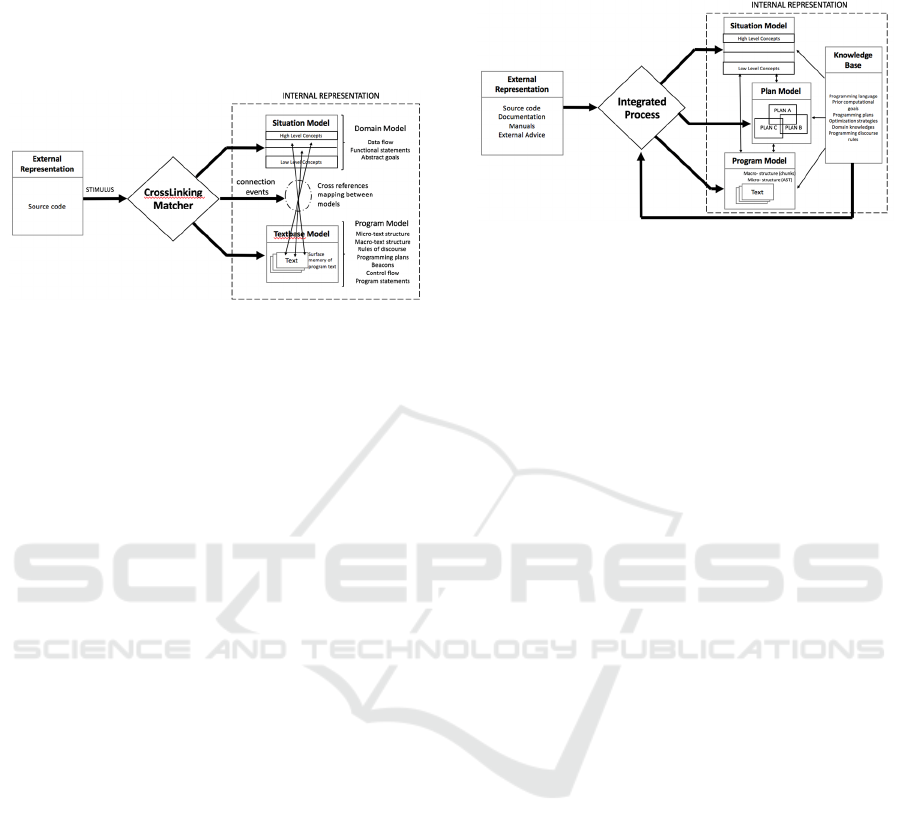

Figure 5: Pennington model, adapted from (Pennington,

1987).

The second one, the situation model, represents what

the programmer intended to implement, i.e. the

functional features in terms of domain model. The

author observes that the programmers, using

statements, sequences, data transformation and states,

build the program model before the situation model

and once done, the latter is shaped by applying proper

programming plans justifying the text based structures.

Furthermore, the author also suggests that, while these

models are being built, specific events, dedicated to

crosslinking the elements from both models, are

generated. These events, called connection-events,

help the developers assign contextual (situation model-

based) meaning to code logic represented in the

program model. These type of events are triggered

sporadically, while the program model is currently

being shaped. Surprisingly though, these events seem

only to be triggered during code simulation or plan

identifica-tion strategies. Experiments clearly showed

that if connection-events are missing, or triggered too

frequently, the understanding process is deeply

disturbed and becomes much less efficient. At the end

of an understanding session, the most efficient deve-

lopers are able to describe program features and functi-

onalities through a balanced set of items distributed

among both models. In accordance with Exton’s

classification (§ 3), this model is considered a bottom-

up strategy, since the situation model is built once the

textbase model has been identified from source-code.

5.5 Mayrhauser and Vans

Mayrhauser and Vans (Mayrhauser, 1995) propose to

merge the Pennington model (§ 5.4) implementing a

bottom-up strategy, with the Soloway and Ehrlich

model (§ 5.2) implementing a top-down strategy, to

form an integrated model using multiple-strategies

(Figure 6).

Figure 6: Mayrhauser and Vans model, adapted from

(Mayrhauser, 1995).

The resulting model presents three different

perspectives or aspects on the same program:

 The text representation through microstructures

(abstract syntax tree) and macrostructures

(procedural relationship) forming the Program

model;

 The functional features based on the domain

model (Situation model);

 The multileveled plan hierarchy structure (Plan

model).

Each part of the model is associated with a specific

process. These processes jointly build the whole

mental representations in memory. At any time one

process can be suspended and another one may take

over to address more specific aspects of the

understanding process. Each model has different roles

and uses specific information related to the program

representation:

 The program model (text-based representation of

the code) is build when unfamiliar code is

encountered or when a programmer needs to

identify precisely what the program is concretely

doing;

 The plan model is build when beacons are

identified in the code suggesting that a specific

function is implemented. This model is goal

oriented in the sense that it assigns goals and

purpose to the program model elements through

meaningful crosslinks between both models;

 The situation model is the most abstract

representation of the program. It describes the

purpose of the code in functional terms. This

knowledge is acquired bottom-up, starting from

the program model, or top-down starting from the

plan model.

The complete model presented by the authors is the

most complex among all models proposed before

2000 and sums up all the strategies into a single and

consistent model.

ICSOFT 2017 - 12th International Conference on Software Technologies

406

In accordance with Exton’s classification (§ 3), this

model is considered an integrated strategy, since it

involves, at the same time, several understanding

approaches.

6 OPTIMISIC PERIOD

This period covers the first decade of the 2000s,

object oriented programming became widely used in

industry. As this new paradigm changed radically the

way software was designed, the research community

got more interested in discovering new tools and

techniques to help with program understanding and

maintenance.

6.1 Rajlich and Wilde

Rajlich and Wilde (Rajlich, 2002) suggests that

program comprehension be viewed as a learning

process. Their approach is presented through the

constructivism theories of learning. Based upon the

Piaget’s work (Piaget, 1954, Wadsworth, 1996), the

authors propose that the assimilation and

accommodation theory be applied to the program

understanding problem. Indeed, when reading a

program, the author argues that developers learn new

facts using the Piaget’s absorption strategy:

 Assimilation: when a new fact fits to the pre-

existing knowledge in memory, it is simply added

to this knowledge without modifying existing

structure;

 Adaptation: (called accommodation by Piaget)

when a new fact does not fit the pre-existing

knowledge in memory, the learner must

reorganize his existing knowledge to make it

compatible with the new fact.

The authors suggest that the programming knowledge

be expressed through the explicit representation of

concepts structured as a hierarchical tree (the

“conceptual map” presented on the right part of

Figure 7). This structure is incrementally built while

reading the source code. In this approach, “The

Concept Assignment Problem” coined by

(Biggerstaff, 1993), i.e. the identification of domain

concepts referenced in the code, is a strong

prerequisite to code understanding. Then, the authors

propose to use the “Software Reconnaissance”

techniques, identified by Wilde and Scully (Wilde,

1995), to build a representation of concepts from the

code. By analysing runtime traces generated with/

without specific features, the programmers can

identify the code involved while activating a specific

feature. Therefore, with concepts identification and

features reconnaissance, the programmers

incrementally build a conceptual map through

assimilation and adaptation strategies describing the

original program’s purpose.

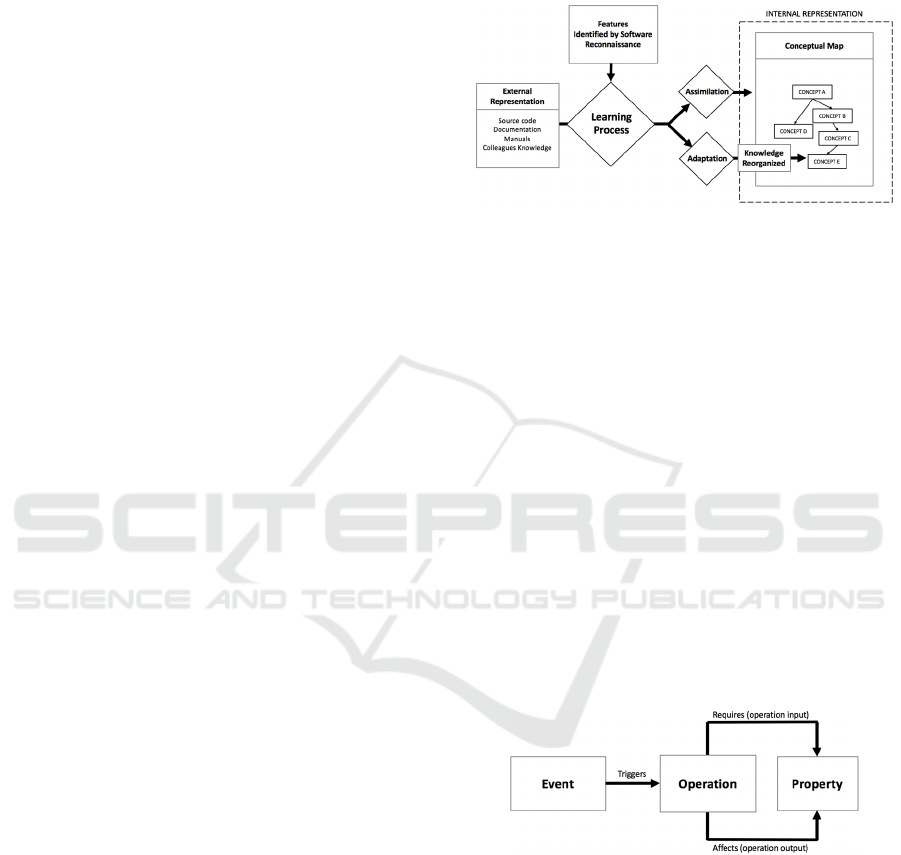

Figure 7: Rajlich and Wilde model, adapted from Rajlich,

2002).

Interestingly, this model uses both a dynamic

approach based on the runtime analysis of the

execution trace and a static analysis approach with

assimilation and accommodation strategies. In

accordance with Exton’s classification (§ 3), this

model is considered a hybrid strategy, since the

feature reconnaissance involves a top-down strategy

starting from the features and the assimilation-

accommodation phase which is a bottom-up strategy.

6.2 Kelson

Kelson (Kelson, 2004) proposes a generic meta-

model named EOP (for Event, Operation, Property)

to represent all the information gathered during

software understanding sessions: the static and the

dynamic behaviour of the programs under

investigation (Figure 8).

Figure 8: Kelsen meta-model, adapted from (Kelson, 2004).

More specifically, the EOP meta-model is composed

of three kinds of elements:

 Operations: these represent the actions taken by

the system to modify the system’s state. They are

abstractions of the methods, functions and

procedures;

 Events: represent the occurrences of data items

that activate the operations;

 Properties: represent the data items used/

produced by the operations.

Program Understanding Models: An Historical Overview and a Classiﬁcation

407

To model a specific software’s behaviour, the

developer needs to instantiate the EOP meta-model to

produce a new model, which conforms to UML

diagrams, called the EOP-model. The latter describes

the dynamic aspects of a specific program in terms of

events, operations and properties. Depending on the

needed granularity level, the model may also contain

several levels of abstraction represented as different

layers, with relationships between these layers.

In accordance with Exton’s classification (§ 3), this

model is considered a bottom-up strategy, since all

items (operations, events, properties) are first

identified manually in the source-code then later

abstracted in the EOP-Model.

6.3 Murray and Lethbridge

Based on the design patterns, first introduced by the

Gang of Four (Gamma, 1994), Murray and

Lethbridge (Murray, 2005) propose to reuse a similar

approach in the context of the mental activities

involved in software comprehension. First, they

defined a cognitive pattern as a “structured textual

description of a solution to a recurring cognitive

problem in a specific context”. Like a software design

pattern which captures an effective technique for

solving a design problem, a cognitive pattern captures

a mental operation used by practitioners when trying

to understand a program. Generalizing this idea, the

authors propose a set of seven high-level cognitive

patterns to organize all the mental activities

performed during software analysis and

investigations (Figure 9). They call it the micro-

theory of understanding.

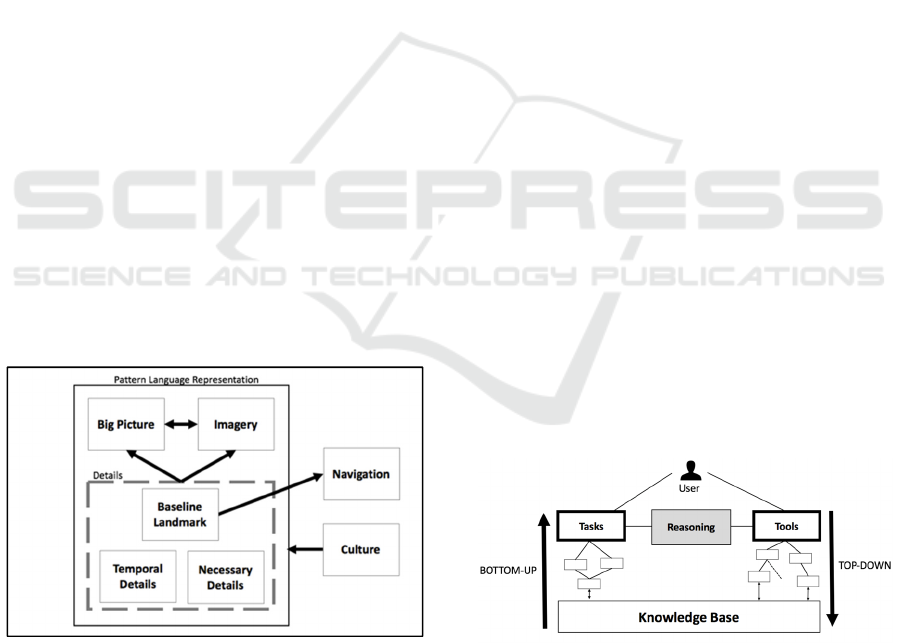

Figure 9: Micro-theory of understanding, adapted from

(Murray, 2005).

The arrows in the figure represent the relation

“required activity for”. The high-level cognitive

patterns are themselves composed of more

specialized sub-patterns dedicated to specific tasks

and purposes. Here are the seven cognitive patterns as

identified by the authors:

 Big Picture: identifies, at a high level of

abstraction, the main purpose of the software;

 Imagery: builds a visual representation, through

diagrams and symbols, expressing static and

dynamic aspects of the software;

 Baseline Landmark: identifies the invariants,

acquired by experience, allowing the engineers to

recognize software components and structures

through code navigation;

 Necessary Detail: assesses the relevance of a

selected strategy (required depth vs inappropriate

depth, temporal quality, boundaries and

information representation);

 Temporal Details: manages the mental models

over the time through multiple views and the

dynamic aspect of understanding;

 Navigation: provides several strategies to analyse

code and to build representations.;

 Culture: acquires knowledge about software

habits, preferred architecture, the constraint and

components naming or the documentation

techniques.

The authors believe their Pattern Language

(Alexander, 1977) to provide a handbook of practices

and processes which represents common solutions to

recurrent problems encountered during understanding

sessions. However, the process of software

understanding using these patterns is not precisely

formalized. Therefore, we cannot assess it using the

Exton’s classification (§ 3).

6.4 Rilling et al.

To formalize the comprehension tasks and the

resources involved while understanding software,

Rilling et al. (Rilling, 2006) propose a very high level

model of the understanding process (Figure 10).

Figure 10: Rilling et al. comprehensive model, adapted

from (Rilling, 2006).

The bottom-up process represents the abstraction of

high-level information from code. The top-down

process consist in mapping this abstract information

to concrete code fragments using some understanding

tools. The whole process is driven by reasoning rules

ICSOFT 2017 - 12th International Conference on Software Technologies

408

on the information already gathered (current state or

prior knowledge). However, these rules are not

explicit in their paper. Through an ontological model,

the authors propose a unique and standard

representation of all the tasks and resources used by

the developer (Figure 11). Since the model is

expressed in OWL-DL (Ontology Web Language

Description Logics) it can be queried by the user or

by some automated tools. Moreover, the authors

describe some scenarios where the elements of this

ontology are leveraged during the understanding

sessions. This is formalized using a story-metaphor

represented as a UML sequence diagram that

describes the manipulation of the tasks, artefacts and

tools carry out by the developer. This is called the

story-manager, which is also represented in the

ontological model (Figure 11).

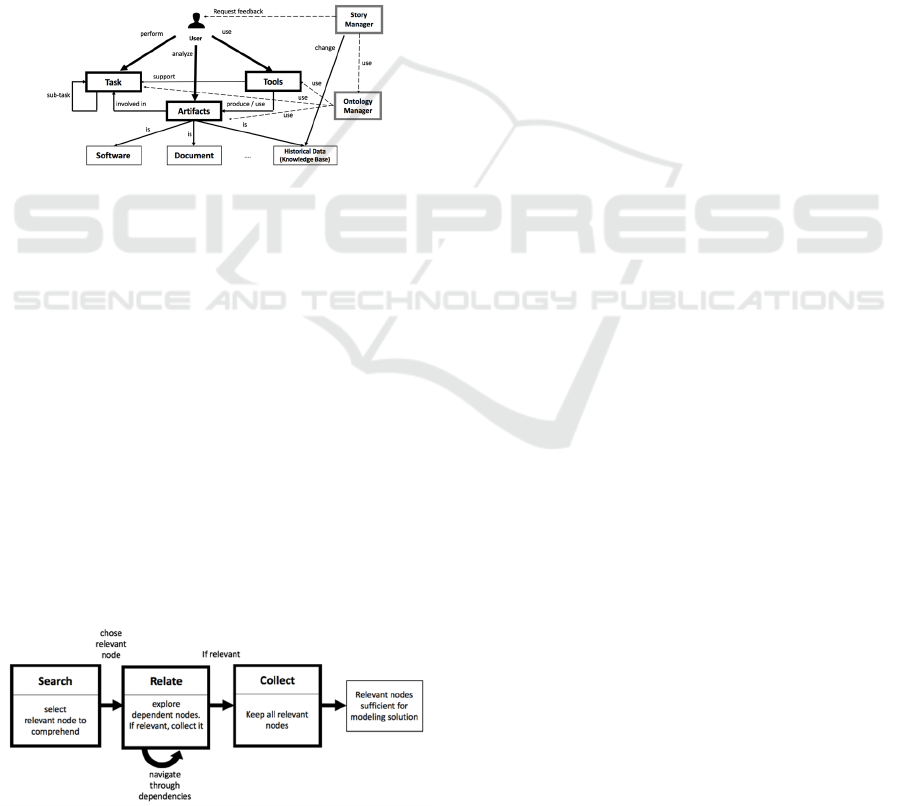

Figure 11: Rilling et al. ontological model, adapted from

(Rilling, 2006).

In accordance with Exton’s classification (§ 3) this

approach is obviously a hybrid strategy.

6.5 Ko Et Al.

Based on a study conducted by Murphy et al.

(Murphy, 2005) about the use of some integrated

development environment (IDE) when seeking the

features of a software, Ko et al. (Ko, 2006) investigate

the strategies and practices used by the developers to

carry out the maintenance tasks. Applying the

Information Foraging Theory (Pirolli, 2009), the

authors propose a new understanding model based on

the strategies performed to maximize the retrieval of

valuable information per unit of effort while reading

source code (Figure 12).

Figure 12: Ko et al. model, adapted from (Ko, 2006).

Similar to an animal’s primitive behaviour to retrieve

food, the authors suggest that engineers are

“foraging” information contained in code and adapt

their strategy to minimize the effort spent while

retrieving relevant information. Hence they identified

a generic search-relate-collect task that processes a

graph representing the source-code and its document-

tation. In this graph, the nodes represent simple pieces

of information and the edges the relationship between

them (i.e. call, uses, declares, defines, etc.).

The

generic tasks can be described as follows:

 Search: the developer starts by identifying a

relevant node in the graph;

 Relate: the developer uses clues and document-

ation to identify all relevant relationship to

dependent nodes. For each one, he recursively

applies the search and relate tasks again;

 Collect: as the search and relate tasks unfolds, the

developer gathers the nodes that are necessary for

completing the understanding task.

If, at any point in time, the developer believes that the

nodes that have been collected are sufficient for the

task, the developer quits the process. In the end, the

authors suggest that all the collected nodes and their

relationships represent the actual mental model

persisted within the developer’s mind. Fundamen-

tally, this theory proposes a low-level generic

understanding process, driven by clues found in the

code or the documentation. The authors claim their

approach to be compatible with all the classical

understanding process presented in section 3. For

instance, the hypothesis-based strategy (§ 5.1) and the

inquiry-oriented strategy (§ 5.3) correspond to the

seeking phase in Ko et al model. Therefore, in

accordance with Exton’s classification (§ 3) this

approach supports them all.

7 PRAGMATIC PERIOD

This period essentially covers research made after

2010, where researchers returned to the core question:

what is really code comprehension? Indeed, all the

previous works dealt more with the understanding

process (how comprehension is reached) than with

the comprehension itself. Then, several researchers

investigated new measurement techniques, but these

works did not lead to new comprehension models.

Here are some examples of these works:

comprehension measurements (Heitlager, 2007),

comprehension simulation (Johnson, 2015), brain

activity experiments (Sigmund, 2012 and 2014), and

eye-tracking observation (Yusuf, 2007). However

other researcher focused on the comprehension itself.

Program Understanding Models: An Historical Overview and a Classiﬁcation

409

7.1 Belmonte et al.

Belmonte et al. (Belmonte 2014) noted that the kind

of information represented in the code is distinct from

the information about the purpose or the goal of the

program. The high level information describing the

program’s goal or purpose takes its origin in the

business domain while the source-code represent only

low-level operations. Hence the source code alone is

unable to convey the purpose of the program.

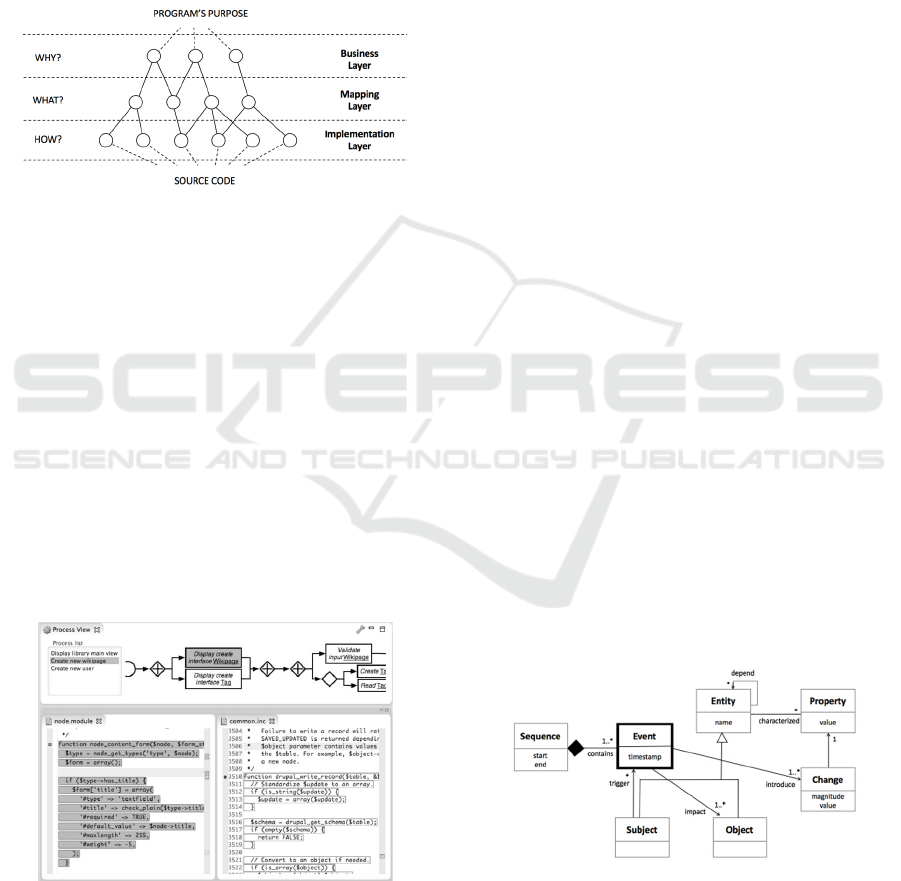

Figure 13: Belmonte et al. model, adapted from (Belmonte

2014).

The authors propose to build an intermediate

information layer, the “mapping layer”, to link the

high-level business functions to the source code

methods (Figure 13). Hence, they define the

understanding process as the process of

reconstructing this intermediate layer. Their model is

therefore made of three distinct layers:

 Top Layer: describes the program’s purpose or

functionalities through a sequence of business-

oriented information manipulations.

 Bottom Layer: low level implementation layer

representing the source code methods ;

 Middle Layer: mapping layer from the purpose

of the program to its implementation. This is

considered the “understanding layer”.

Figure 14: Belmonte et al. example (Belmonte, 2014).

Business-oriented information (top-layer) is repre-

sented as a pair of concepts: an action-concept and a

domain–concept. This pair represent a single atomic

information manipulation task and allows all business

workflow to be represented as a sequence of manipu-

lations. Then, the authors propose an original tool to

show the potential mappings based on two heuristics:

one to retrieve the action-concepts from the code

statements and another to identify domain-concepts

in the code using a generic pattern matcher on

program identifiers. The result is quite elegant, as

both business-view and implementation view are

display simultaneously (Figure 14). In accordance

with Exton’s classification (§ 3), this model is

considered a top-down strategy, since high level

concepts taken from the first layer are used to search

the source-code for possible mappings.

7.2 Benomar et al.

Benomar et al. (Benomar, 2015) noted that research

on software comprehension was generally split in two

distinct areas: program design understanding and

program evolution understanding. Hence they

propose a unified model encompassing the time-

dimension to address both areas: the dynamic aspects

of software execution and the evolution over time of

the software (Figure 15). In this unified model, the

“sequence” is considered the main element for

software comprehension. It represents a period of

time, with a start time, an end time, and a set of

events. An event is an action that occurs periodically

in time. It has a time stamp, is triggered by a subject,

and has an impact on some objects. Subjects and

objects constitute the two entity types involved in the

comprehension process. Entities are characterized by

properties that are modiﬁed by changes introduced

over time by the events. This approach allows

describing the changes that occur during the

execution of the program (during the runtime) as well

as the changes to the software itself during its

evolution (maintenance).

Figure 15: Benomar et al. model, adapted from (Benomar,

2015).

Furthermore, the authors suggest that phases could be

identified with respect to the software changes,

leading to a partition of the sequence of events into

ICSOFT 2017 - 12th International Conference on Software Technologies

410

several sub-sequences. Each phase (sub-sequence of

events) must satisfy two specific properties, an

internal cohesion property and an external coupling

property. Phases are then the main abstraction

mechanism through which to understand the software

and its evolution, since the authors propose to map

high level business events to each of the phases. In

addition, the authors also noted that software

understanding was drastically impacted by the

identification of the collaborations between the

entities over time. To illustrate this point, they

propose a way to aggregate the entities invocation to

later visualize them through a “heat map metaphor”.

Hence when comparing different maps produced by

different execution scenarios, we can clearly observe

which classes are really involved in the discriminant

feature. Since this model focuses on the low-level

description of a running program, it cannot be

classified in Exton’s classification (§ 3).

7.3 Nosal and et al.

Nosal et al. (Nosal, 2015) observed through

controlled experiments that the whole understanding

process is hypothesis-based and consists in matching

elements found in source-code (solution domain) to

the software requirements (problem domain). The

authors claim that the understander’s current

knowledge and prior experiences about the problem

and the solution domains is the base on which

mapping hypotheses are constructed to recover the

mental model used by the original developers. Hence,

they proposed to extend the Belmonte et al. model (§

7.1), with a four-layer model to represent the

knowledge involved in the comprehension process

(Figure 16):

 The first layer expresses some generic and

abstract knowledge about the purpose of the

software to understand;

 The second layer is a decomposition of the first

layer into atomic features and business concepts;

 The third layer represents beacons and plans that

suggest how such features may be implemented;

 The fourth layer consist in a simplified

representation of the source code.

The beacons are recognizable static features in code

(naming convention, patterns, programming style),

while plans are specific algorithms or processes

(sorting, parsing, etc.) implemented in code. In the

proposed framework, the core comprehension

problem is to map beacons/plans to features/concepts

in order to link low-level concepts from the solution

domain to high-level concepts from the problem

domain. Through speak-aloud session, they observed

that all engineers started first by playing with the

application to catch the general idea and main

purpose of the application before delving into the

code. These sessions confirmed several assumptions:

 The mapping between the layers is constructed

iteratively;

 Software understanding is hypothesis-based;

 If the code is unfamiliar, the hypotheses are based

on the interpretation of the identifiers in the

program (bottom-up strategy);

 If the code is familiar, a top-down strategy is

applied. But the actual technique depends on the

engineer’s past experience

 If an unexpected identifier is encountered this

triggers a systematic analysis code details,

otherwise the as-needed strategy is generally

preferred.

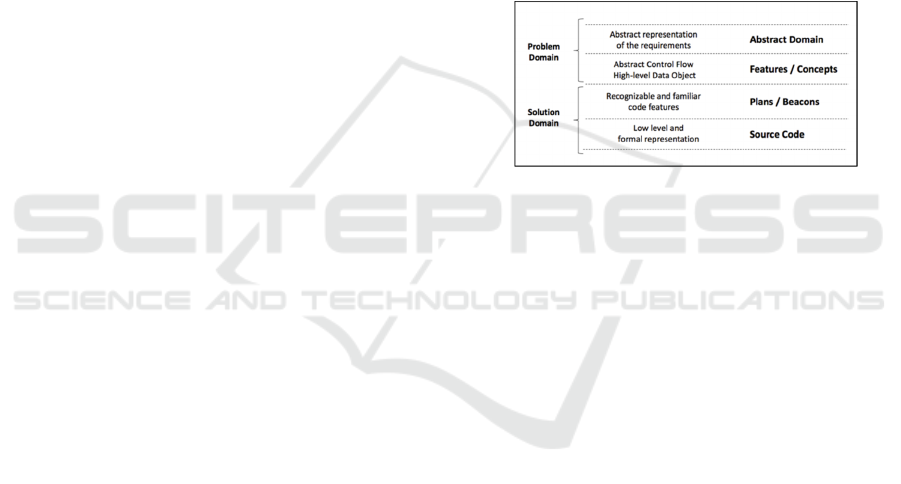

Figure 16: Nosal and Poruban model, adapted from (Nosal,

2015).

The model proposed by the authors is quite simple

and practical. It also seems compatible with most of

the software understanding process previously

identified by researchers. In accordance with Exton’s

classification (§ 3), this model allows all strategies to

be potentially useable.

8 DISCUSSION

This research work is based on the papers addressing

only understanding models. From the 155 papers we

analysed which referenced such models, we noted

that 37% were published before 2000, 43% between

2000 and 2010, and only 20% after 2010. This clearly

indicates that the interest in modelling understanding

reached a peak at the beginning of the 2000s. Besides,

it also shows that most studies related to software

understanding models closely followed the evolution

of the techniques and tools in software design. Before

the year 2000, most of the tools used by practitioners

were text-oriented (text editors, text debuggers and

text interfaces). However, in the first decade of 2000,

much richer and interactive environments (IDE),

graphical debuggers and visual editors were adopted.

From the mid 90’s, the OO paradigm, pioneered by

Program Understanding Models: An Historical Overview and a Classiﬁcation

411

Simula 67 (Hills, 1972) and Smalltalk 80 (Goldberg,

1983), finally reached the mainstream development

market through the C++ (Stroustrup, 1997) and Java

(Gosling, 1996) languages ecosystems. These

technological trends had obviously a strong influence

on the research works on software understanding

processes. We found that most of the models addressed

the techniques and strategies used by the developers

when analysing software. In other words, they focus

more on the process of understanding: what the

developers do to understand a program. But very few

papers addressed the more fundamental question:

“what does it really mean to understand a program”?

This distinction was already made by Storey (Storey,

2005) several years ago. Some people may claim that

“everyone knows what understanding mean”. But we

do not share this statement. We believe that the actual

task of “understanding” a piece of code has not been

studied enough to let engineers design useful tools. An

informal proof of this is the well documented finding

that most of the tools intended to “help with program

understanding” are generally underutilized by

developers (Lanza, 2003) (LaToza, 2006) (Pacionne,

2004) (Roehm, 2012). In our survey we observed the

following facts. During the classical period the authors

proposed internal models (i.e. in the mind) of the

knowledge required for a developer to understand

code, and the process to build them. During the

optimistic period that followed, the authors addressed

the understanding process from which they propose

tools to offer alternative representations of source

code. The latter were based on some visual metaphor

and aimed at helping developers to navigate the code.

During the last decade, the research community

became less active on the topic of code understanding

models. This may be due to the slow progress made

toward the fundamental goal. However, a few

researchers started back from the key question: what is

really understanding code? The answer they proposed

is based on the idea of mapping representations of the

business concepts to the code through different levels

of abstraction. But such a mapping is not

straightforward. Belmonte et al. (Belmonte, 2014)

proposed a three layers’ model while the one of Nosal

et al. (Nosal, 2015) rested on four layers. Yet, the latter

can be considered as complementary to all the

understanding process models that have been proposed

during the classical period.

9 CONCLUSION

This paper presents a review of the last 30 years of

publications on the topic of program understanding

models. We proposed a classification of the works in

three periods, since we found the papers to address

three different perspectives on the topic along time:

the process, the tools and the goal. The general

conclusion is that the fundamental question “what is

code understanding” was only recently addressed by

the research community. This is surprising since tools

have been developed without a clear view on what

“understanding code” means. Another finding is that

the number of papers on the topic decreased radically

during the last decade. We suppose this to be due to

the lack of progress toward the fundamental question.

For example, the papers in the early 2000s focused on

the development of program understandings tools.

But these tools are showed to be largely underutilized

by the developers. We suggest that the fundamental

question must still be thoroughly investigated before

going any further in the implementation of tools. In

fact, our team is now working on this very question

since we believe the code understanding problem (i.e.

its cost) to be ever more acute today.

REFERENCES

Alexander, C., 1977. A Pattern Language, Towns, Buildings,

Construction, New York, Oxford University Press.

Belmonte C., Dugerdil, A., Agrawal, A., 2014, A Three-

Layer Model of Source Code Comprehension,

Proceedings of the 7th India Software Engineering

Conference, Article no. 10.

Benomar, O., Sahraoui, H. Poulin, P., 2015. A unified

framework for the comprehension of software’s time

dimension, 37th International Conference on Software

Engineering vol. 2, pp. 603-606.

Biegel, B., Baltes, S., Poulin, P., Scarpellini , I., Diehl, S.,

2015. CodeBasket: Making Developers’Mental Model

Visible and Explorable, IEEE/ACM 2nd IWCSD 2015.

Biggerstaff, T.J., Mitbander, D.G., 1993, The Concept

Assignment Problem in Program Understanding, ICSE

'93 Proceedings of the 15th International conference on

Software Engineering, pp 482-498.

Brooks, R., 1983, Towards a theory of the comprehension of

computer programs, International Journal of Man-

Machine Studies, vol. 18, no. 5, pp. 543-554.

Exton, C., 2002, Constructivism and Program Comprehen-

sion Strategies, IWPC'02 Proceedings of the 10th Inter-

national Workshop on Program Comprehension, p. 281.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1994,

Design Patterns, Elements of Reusable Object-Oriented

Software, Addison-Wesley Professional Computing

Series.

Goldberg, A., Robson, D., 1983, Smalltalk 80, the language

and its implementation, Addison-Wesley Publishing

Company, Xerox Palo Alto Research Center.

Gosling, J., Joy, B., Steele, G., 1996, The Java Language

Specification, Addison-Wesley Publishing Company.

Hein, G. E., 1991, Constructivist Learning Theory, CECA

ICSOFT 2017 - 12th International Conference on Software Technologies

412

Conference, Jerusalem Israel, 15-22 Oct 1991.

Heitlager, I., Kuipers, T., Visser, J., 2007, A Practical Model

for Measuring Maintainability, QUATIC’07, 6th

International Conference on Quality of Information and

Communications Technology, pp. 30-39.

Hills, R., 1972, Simula 67, an introduction, Robin Hills Ltd,

Presto Print, Reading.

Johnson, P., Ekstedt, M., 2015, Exploring Theory of

Cognition for General Theory of Software Engineering,

4th SEMAT Workshop on a General Theory of Software

Engineering.

Kelson, P., 2004, A Simple Static Model for Understanding

the Dynamic Behavior of Programs, 12th IEEE

International Workshop on Program Comprehension

(IWPC’04).

Ko, A.J., Myers, B.A., Coblenz, M.J., 2006, An Exploratory

Study of How Developers Seek, Relate, and Collect

Relevant Information during Software Maintenance

Tasks, IEEE Transactions on Software Engineering, vol.

32, no. 12.

Lanza, M., Ducasse, S., 2003, Polymetric Views – A light-

weight Visual Approach to Reverse Engineering, IEEE

Transactions on Software Engineering, Vol. 29, p. 9.

LaToza, T.D., Venolia, G., DeLine, R., 2006, Maintaining

Mental Models: A Study of Developer Work Habits,

ICSE’06, Shanghai, China.

Letovsky, S., 1987, Cognitive process in program

comprehension, Journal of Systems and Software, vol. 7,

no. 4, pp. 325-339.

Mayrhauser, von A., Vans, A.-M., 1995, Program Compre-

hension During Software Maintenance and Evolution,

IEEE Journal Computer, vol. 28, no. 8, pp. 44-55.

Muchalintamolee, V., 2012, Measuring Granularity of Web

Services with Semantic Annotation, AIJSTPME, vol. 5,

no. 3, pp. 41-48.

Murphy, G.C., Kersten, M., Robillard, M.P., Cubranic, D.,

2005, The Emergent Structure of Development Tasks,

ECOOP’05 Proceedings of the 19th European

conference on OOP, pp 33-48.

Murray, A., Lethbridge, T.C., 2005, Presenting Micro-

Theories of Program Comprehension in Pattern Form,

ECOOP’05 Program Comprehension, IWPC 2005, 13th

International Workshop on Program Comprehension.

Nosal, M., Poruban, J., 2015, Program Comprehension with

Four-layered Mental Model, 13th International

Conference on Engineering of Modern Electric Systems.

Pacione, M.J., Roper, M. Wood, M., 2004, A Novel Software

Visualisation Model to Support Software

Comprehension, 11

Working Conference on Reverse

Engineering 2004.

Pennington, N., 1987, Empirical studies of programmers:

second workshop, Ablex Publishing Corp. Norwood, NJ,

pp. 100-113.

Pennington, N., 1987, Stimulus structures and mental

representations in expert comprehension of computer

programs, Cognitive Psychology, vol. 19, no. 3, pp. 295-

341.

Piaget, J., 1996, Piaget's theory of cognitive and affective

development: Foundations of constructivism, 5th reedit.

Wadsworth, Barry J., White Plains, NY, England.

Piaget, J., 1954, The construction of reality in the child:

Foundations of constructivism, Basic Books, New York.

Pirolli, P., 2009, An Elementary Social Information Foraging

Model, CHI 2009, Proceedings of the SIGCHI

Conference on Human Factors in Computing Systems,

pp. 605-614.

Rajlich V., 2002, Program Comprehension as a Learning

Process, IEEE International Conference on Cognitive

Informatics, p. 369.

Rajlich V., Wilde, N., 2002, The Role of Concepts in

Program Comprehension, 10th International Workshop

on Program Comprehension 2002, pp. 271 - 278.

Rilling, J., Mudur, S., Charland, P., Witte, R., Meng, W.J.,

Zhang, Y., 2006, A Context-Driven Software

Comprehension Process Model, IEEE International

Workshop on Software Evolvability, pp. 50-55.

Roehm, T., Tiarks, R., Koschke, R., Maalej, W., 2012, How

Do Professionnal Developers Comprehend Software?,

ICSE 2012, Zürich, Switzerland, 2012.

Shneiderman, B. Mayer, R., 1979, Syntactic/semantic

interactions in programmer behavior: A model and

experimental results, Journal of Computer and

Information Science, vol. 8, pp. 219.

Sigmund, J., 2012, Framework for Measuring Program

Comprehension, PHD Dissertation, Otto-von-Guericke-

Universität Magdeburg.

Sigmund, J., Kastner, C., Apel, S., Parnin, C., Bethmann, A.,

Leich, T., Saake, G., Brechmann, A., 2014,

Understanding Understanding Source Code with

Functional Magnetic Resonance Imaging, ICSE’14,

Hyderabad, India.

Smith, D., Thomas, B., Tilley, S., 2001, Documentation for

Software Engineers: What is Needed to Aid System

Understanding, SIGDOC 2001, Santa Fe, New Mexico,

USA.

Soloway, E., Ehrlich, K., 1984, Empirical Studies of

Programming Knowledge, IEEE Transactions on

Software Engineering, vol. 10, no. 5, pp. 595-609.

Storey, M.A., 2005, Theories methods and tools in program

comprehension: past present and future, IWPC 2005, pp.

181-191.

Stroustrup, B., 1997, The C++ Programming Language,

ATandT Labs, Addison-Wesley.

Tilley, S.R., Smith, D.B., 1996, Coming Attractions in

Program Understanding, Software Engineering

Institute, Carnegie Mellon University.

Wadsworth, B.J., 1996, Piaget's theory of cognitive and

affective development: Foundations of constructivism,

5th ed. xi, 1996.

Walenstein, A., 2002, Theory-based Analysis of Cognitive

Support in Software Comprehension Tools, IWPC’02

IEEE.

Warintarawj, P., Laurent, A., Huchard, M., Lafourcade, M.

Pompidor, P., 2013, Software understanding: automatic

classification of software identifiers, Intelligent Data

Analysis, IOS Press, vol 19, no 4, pp. 761-778.

Wilde, N., Scully, M.C., 1995, Software reconnaissance:

mapping program features to code, Journal of Software

Maintenance, vol. 7, no. 1.

Yusuf, S., Kagdi, H., Maletic, J. 2007, Assessing the

Comprehension of UML Class Diagrams via Eye

Tracking, 15th IEEE International Conference on

Program Comprehension.

Program Understanding Models: An Historical Overview and a Classiﬁcation

413
