Should We Place the License Plate Tracking System in the Cloud?

Razib Iqbal, Matthew Kenney and Jamil Saquer

Department of Computer Science, Missouri State University, Springfield, Missouri, U.S.A.

Keywords: Video Surveillance, Parallel Processing, Apache Storm, Microsoft Azure, Google Cloud, HDInsight.

Abstract: We developed a software system to extract and track vehicle license plate numbers from real-time

surveillance cameras and crowd sourced video streams. The system can also calculate the probable routes of

a vehicle over a range of dates based on the geographical coordinates. In this paper, we present both of our

linear and parallel processing implementation schemes and analyze the performance based on evaluation

results. Our results show that while cloud based parallel processing can address the scalability needs,

performance outweighs the cost only when the real-time streaming data becomes increasingly large.

1 INTRODUCTION

The ubiquitous nature of Internet of Things (IoT)

and crowd sourcing provide a greater opportunity to

city authorities and law enforcement agencies to

monitor the state of the urban environment in real-

time (Khan, 2015). However, increased data volume

and real-time monitoring requirements also increases

the data processing and visualization cost and

complexity. In this respect, we present a license

plate tracking system (LPTS) and compare its

performance in various scenarios like linear and

parallel processing in local and cloud platforms to

analyze the rational of using cloud platforms for

real-time processing of big data.

From our literature review, it is evident that

license plate detection and recognition has attracted

lots of research interests recently. In (Li, 2016), a

combination of deep learning and recurrent neural

networks are used to recognize the plate and plate

characters. Support vector machines is another class

of machine learning technique that has been applied

(Parasuraman, 2010) to address the problem of real

time plate detection by skipping the character

segmentation stage. Other recent research initiatives

include a detection scheme in low resolution images

(Kumar, 2016), license plate localization with

Marckov Chain Monte Carlo process (Cao, 2014),

and a deep convolutional neural network based

method (Jain, 2016). Irrespective of the schemes,

improvements in accuracy and speed come with a

trade-off in computation power. While lots of data

are available to initially train the systems,

computationally complex systems might be

expensive to deploy and maintain. Our motivation

for LPTS is based on the initiatives for human

identification and tagging in a multi-camera video

surveillance system (Moctezuma, 2015). LPTS not

only detects the plate numbers but also can track

them in non-overlapping cameras including crowd

sourced videos. It extracts the plate numbers from

static/crowd sourced video feeds and stores them in

a database. LPTS can generate the routes of vehicles

on demand and plot them on a visible map based on

the previously acquired coordinates.

LPTS uses both classes of big data processing,

static and streaming (Eskandari, 2016), where live

video streams pass through license plate detection

and number extraction module, and then it enables

the users to query the license plates and generate

their routes over a range of dates. In order to process

high volume of static data offline, Hadoop

(hadoop.apache.org), an open source

implementation of MapReduce was introduced

(Dean, 2004). However, Hadoop is not suitable for

real-time streaming data where batch processing

approaches cannot be used. To address this

drawback, a number of new frameworks have been

proposed (Heinze, 2014). Apache Spark

(spark.apache.org) implements stream processing as

a chain of batch processing at an interval of one

second. Therefore, the processing of Spark is slower

than pure stream processing. Apache Storm

(storm.apache.org) was introduced for real-time,

distributed, scalable and reliable framework for

stream processing. An application in the Storm is

called a topology, which consists of a number of

Iqbal, R., Kenney, M. and Saquer, J.

Should We Place the License Plate Tracking System in the Cloud?.

DOI: 10.5220/0006470000770080

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 5: SIGMAP, pages 77-80

ISBN: 978-989-758-260-8

tasks. We initially implemented the LPTS system to

be run linearly at a local server, however, the

aforementioned features of LPTS along with

heterogeneous video adaptation, data bursts,

fluctuating data transfer rates make resource

allocation critical. Therefore, we explored the cloud

platforms and adapted LPTS to utilize the Apache

Storm framework for on-the-fly resource scalability.

We deployed our system in both Microsoft Azure

and Google Cloud platforms. Based on our

evaluation results, we conclude that cloud based

parallel processing is only beneficial when the

scalability needs and performance outweighs the

cost of the deployment.

2 LICENSE PLATE TRACKING

SYSTEM (LPTS)

Our LPTS consists of two subsystems - License

plate recognition and License plate search. All the

operations involved in these subsystems are

performed in a pipelined synchronous manner. We

utilized OpenCV (opencv.org) for frame

preprocessing and Openalpr (github.com/openalpr)

to detect the license plate characters. LPTS accepts

video feeds from stationary cameras as well as

crowd sourced videos, and adapts it for

preprocessing in the license stream module. To

reduce the overall computation load, we perform

temporal homogeneous video adaptation to achieve

a lower frame rate, e.g. 5fps. License plate detection

module also processes the frames (resizing and gray

scaling) and passes it to a function to find all of the

contours in a given frame. Contours can be

explained as a set of points bounding a region that

has the same color or intensity. We eliminate the bad

contours by drawing a rectangle bounding every

contour and matching it against a range of expected

width and height ratio. For character recognition, we

rely on the Openalpr function. We finally save the

character outputs (if any), in a database along with

its timestamp, coordinates, and picture id of the

frame.

In response to a search query, LPTS returns the

waypoint objects sorted by the timestamps. The

program is written in JavaScript and uses Google

API to generate a map of all the routes that a vehicle

has taken over a specified time period. The creation

of the visual map is broken into four stages:

Waypoint object creation, Route creation and

addition to wrapper object, Map route creation, and

Listener event creation. A waypoint object of a

license plate number found in the database consists

of a timestamp, latitude and longitude information

and a video frame. An array of waypoint objects is

then used to create the routes. Route end points are

determined based on the difference between a

waypoint’s time stamp and the time stamp of the

waypoint ahead of it. If the difference is greater than

a specified amount, e.g. 30minutes, then the current

waypoint becomes the last waypoint in that route’s

array. Therefore, each route is an array of JSON

objects and is stored in a wrapper JSON object

which holds all of the routes. The routes in the map

are represented by colored lines connecting similar

colored nodes showing the coordinates and the

routes. Each route is given its own separate

directions renderer object on the map so that it can

be toggled on and off. The renderer object sets the

line color and also puts the route on the map. For the

markers, since a stop point is seen as the start point

of the next route and shares a marker with that route,

if an earlier route is toggled off then the next route

keeps that marker visible on the map until it is

toggled off as well. Stop points are shown in red

while the rest of the markers match the route’s

polyline color. The node may be “clicked” by the

user which creates a Bootstrap modal containing a

snapshot of the vehicle at the time of video capture.

A map is shown in Figure 1 for illustration purpose.

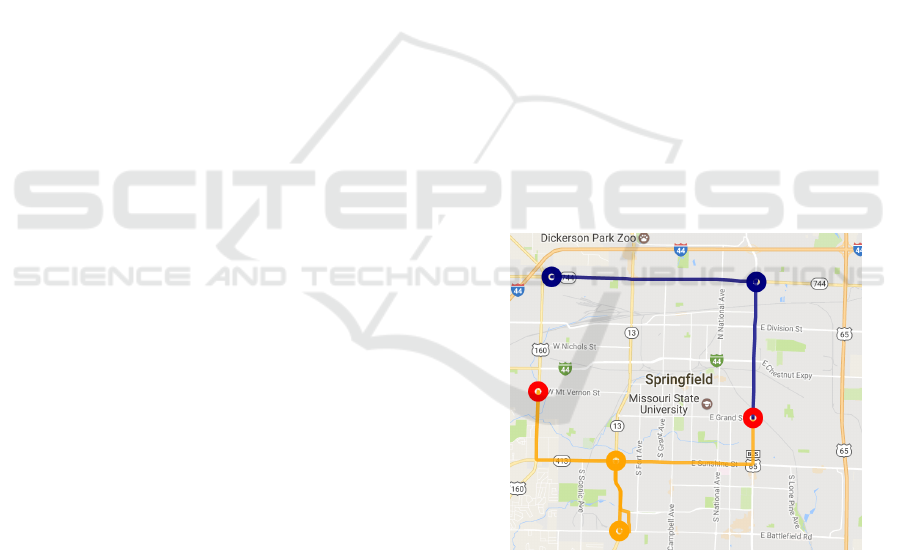

Figure 1: Map generated by LPTS for a vehicle.

3 TOPOLOGY FOR PARALLEL

PROCESSING

In this section, we present our scheme for scheduling

the executors across the nodes in a Storm cluster.

We utilized HDInsight (2016), which is a cloud

distribution on Microsoft Azure for big data

analysis. HDInsight has provisions to create a storm

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications

cluster in order to implement a topology and submit

it to the cluster.

An Apache Storm cluster consists of three

distinct types of nodes. The Nimbus node performs

many responsibilities that are expected from a

master node, e.g. distributing the code, assigning

tasks, and monitoring failures. Usually, a Storm

cluster will have two Nimbus nodes to provide fault

tolerance. The Zookeeper nodes simply pass

messages between the worker nodes and the

Nimbus. Zookeeper nodes monitor the health of

worker nodes and communicate failures to the

Nimbus. The worker nodes run a daemon called,

Supervisor, which starts and stops tasks while

waiting for assignments from the Zookeepers.

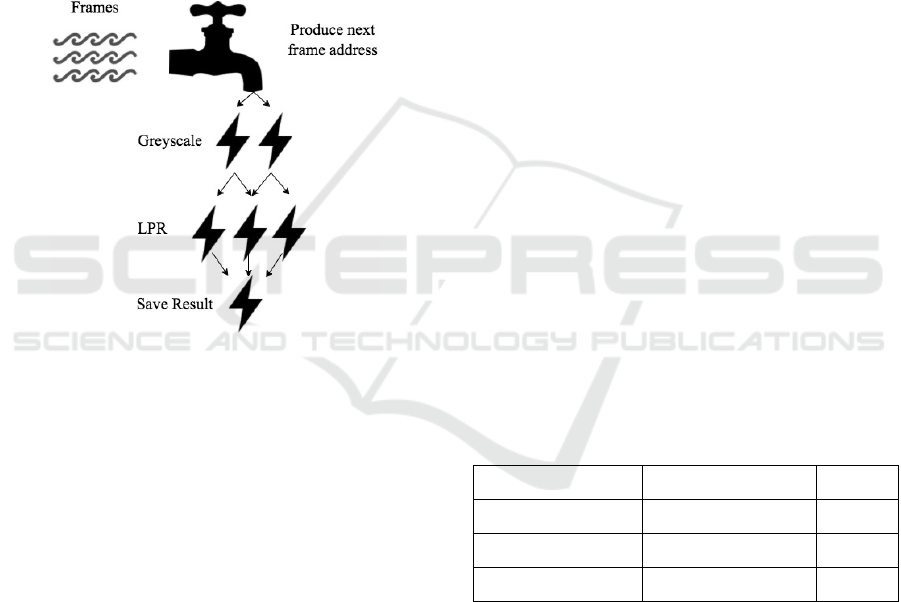

Figure 2: Storm topology for LPTS.

In order to utilize a Storm cluster, we

implemented a Storm topology. We used Java for

our implementation and applied the Maven build

automation to help us with the packaging

dependencies. A topology consists of three

components - stream, spout, and bolts. Stream is an

abstraction of the input to be processed by the

cluster. Our stream consists of the video frames that

are being stored on a public file server. Stream is

then transformed using spout and bolts. Spout starts

by performing the initial preparation of the stream

by packaging it into separate tuples and emitting the

tuples so that they can be processed by the bolts. The

spout in our topology repeatedly produces and emits

the next frame to be processed by the bolts. Each

bolt has specific processes that are to be performed

on the tuples they receive. The topology specifies in

what order the bolt processes should be performed

on the tuples. In our experimental setup, topology

has three bolts. First, the greyscale bolt downloads

the image using the frame address from the spout.

The bolt uses a method provided by OpenCV to

produce a greyscaled version of the frame and emits

it as a byte array. Next, the byte array is received by

the License Plate Recognition (LPR) bolt and the

modified Openalpr recognize function is used to

retrieve the license plate number from the frame.

Finally, if a license plate is detected in the frame,

then the results are emitted to the save bolt. The save

bolt connects to a cloud Microsoft SQL Server and

inserts a record containing the results it received

from the LPR bolt. Figure 2 models our specific

implementation of the topology.

4 EXPERIMENTAL RESULTS

For parallel processing, we used HDInsight 3.5 with

Apache Storm 1.0.1 installed on Ubuntu 16.04. We

performed our experiments on a Storm cluster with

two Nimbus nodes, three ZooKeeper nodes and a

varying number of Supervisor nodes, where each

node has four cores (Intel Xeon E5 2.2 Ghz, 8GB

ram). When a Supervisor node is created, a script is

ran that installs OpenALPR and its dependencies.

We compare our Storm cluster with a linear

implementation of the LPTS running on two

different systems: a local four core machine running

Ubuntu 14.04 (Intel i7 3Ghz, 8GB ram), and a cloud

four core virtual machine running Ubuntu 16.04

(Intel Xeon E5 2.6 Ghz, 8GB ram) created using the

Google Compute Engine (GCE) platform. We

analyze the performance based on the average

frames processed per second and cost per hour of

each cloud deployment.

Table 1: Different platform performance comparison.

Platforms Time per frame FPS

Local Linear 145.6 ms 6.88

GCE Linear 167.35 ms 5.97

Azure HDInsight 209.2 ms 19.16

In the test video inputs, around 30% frames had

a license plate. In Table 1, we show the average

processing time per frame to perform license plate

recognition (using single core) along with the total

frames per second (FPS) the system achieved (using

all four cores for Azure) over a two-hour period.

From the results, we can see that the local machine

achieved the fastest processing time utilizing a

single core but it had a slower overall FPS than the

Storm cluster (i.e. Azure HDInsight). The GCE

Linear deployment with a single core utilization had

a slightly slower processing speed than the Local

Should We Place the License Plate Tracking System in the Cloud?

Linear deployment which also resulted in a lower

FPS. The Azure Storm cluster’s single core had the

slowest processing time yet had the highest FPS due

to our parallel processing scheme. These results

demonstrate that given a linear implementation, the

processing speed will have a direct impact on the

overall speed of the LPTS. However, we can get a

higher FPS with parallel processing even though

each core might exhibit a slower processing power.

In the previous experiment, a GCE virtual

machine costs $0.19 per hour whereas the cost of the

Storm cluster with a single Supervisor node is $2.22

per hour. In our next experiment, we looked at the

cost of scaling the Storm cluster versus adding more

Google cloud virtual machines. We used data points

gathered from performing tests on a four node Storm

cluster while scaling it by a single node at a time up

to seven nodes in the cluster. Similarly, in GCE

Linear implementation, we manually added new

virtual machines to handle the increased loads. From

Figure 3, we can see that at 55 FPS and above, the

Storm cluster is a more cost-efficient option than the

GCE linear implementation. Therefore, we can

conclude that scalability and performance only

outweighs the cost when the number of real-time

streaming data becomes increasingly large.

Otherwise, a local linear implementation and

deployment might be sufficient.

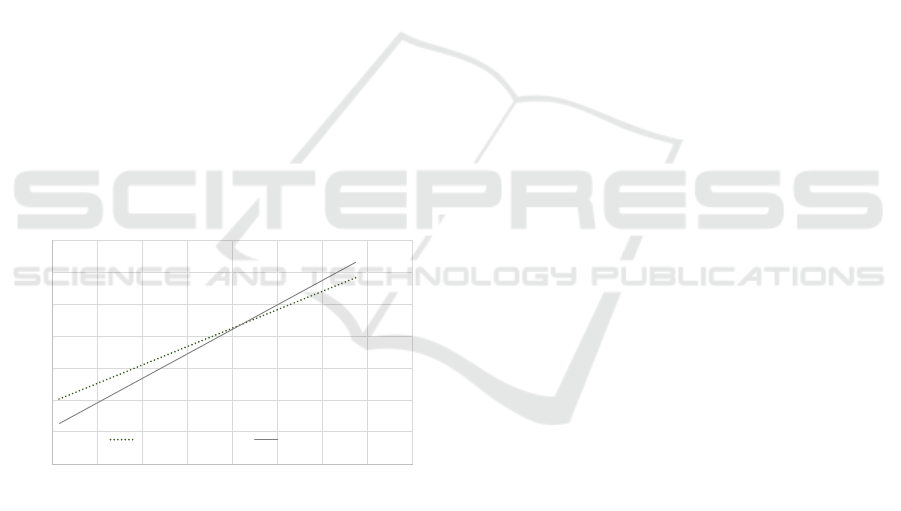

Figure 3: Cost per hour vs Performance comparison of

Azure HDInsight and Google Compute Engine.

5 CONCLUSIONS

In this paper, we presented a linear and parallel

implementation of our license plate tracking system,

and the respective performance results. From the

experimental results, we found that – a) Local linear

deployment offers the fastest computation time

however it is not dynamically scalable compared to

the cloud deployment; b) Storm cluster running on

the Microsoft Azure platform becomes more cost

efficient than the linear implementation on the

Google Compute Engine platform only when the

work load exceeds a certain threshold. Therefore,

parallel computing scheme in Azure makes it the

best choice for scalability and higher workloads.

As future work, we plan to parallelize the

license plate recognition steps as well as improve the

routes prediction process.

REFERENCES

Khan, Z., Anjum, A., Soomro, K. and Tahir, M. A., 2015.

Towards cloud based big data analytics for smart

future cities. In Journal of Cloud Computing, 4(1).

Moctezuma, D., Conde, C., de Diego, I. M., and Cabello,

E., 2015. Soft-biometrics evaluation for people re-

identification in uncontrolled multi-camera

environments. In EURASIP Journal of Image and

Video Processing, 2015:28.

Eskandari, L., Huang, Z., and Eyers, D. 2016. P-

Scheduler: adaptive hierarchical scheduling in apache

storm. In Proceedings of Australasian Computer

Science Week Multiconference (ACSW '16).

Dean, J. and Ghemawat, S. 2004. MapReduce: simplified

data processing on large clusters. In Proceedings of

6th conference on Symposium on Operating Systems

Design & Implementation (OSDI'04).

Heinze, T., Aniello, L., Querzoni, L., and Jerzak, Z., 2014.

Cloud-based data stream processing. In Proceedings of

8th ACM International Conference on Distributed

Event-Based Systems (DEBS '14).

Kumar, T., Gupta, S., and Kushwaha, D. S., 2016. An

Efficient Approach for Automatic Number Plate

Recognition for Low Resolution Images. In

Proceedings of 5th International Conference on

Network, Communication & Computing (ICNCC '16).

Cao, L., Zhang, X., Chen, W., and Huang, K., 2014.

License Plate Localization with Efficient Markov

Chain Monte Carlo. In Proceedings of International

Conference on Internet Multimedia Computing and

Service (ICIMCS '14).

Jain, V., et al., 2016. Deep automatic license plate

recognition system. In Proceedings of 10th Indian

Conference on Computer Vision, Graphics and Image

Processing (ICVGIP '16).

Li, H. and Shen, C., 2016. Reading Car License Plates

Using Deep Convolutional Neural Networks and

LSTMs. arXiv preprint arXiv:1601.05610.

Parasuraman, K. and Subin, P.S., 2010. SVM based

license plate recognition system. In Proceedings of the

IEEE International Conference on Computational

Intelligence and Computing Research.

2016, An introduction to the Hadoop ecosystem on Azure

HDInsight, viewed 23 April 2017, < https://docs.

microsoft.com/en-us/azure/hdinsight/hdinsight-hadoop

-introduction >

15 25 35 45 55 65 75 85 95

Azure HDInsight GCE Linear

Frames per Se

ond

Cost per Hour in $

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications
