Modelling and Optimization of the Operation of a Multiple Tank Water

Pumping System

Roberto Sanchis and Ignacio Pe

narrocha

D. Enginyeria de Sistemes Industrials i Disseny, University Jaume I, Castell

o, Spain

Keywords:

Pumping Optimization, Electric Tariff, Pumping Scheduling.

Abstract:

This paper studies the optimization of the operation of a water supply pumping system by means of standard

solvers. The system consists of several tanks that supply the water to several districts in a town. Each tank can

be ﬁlled from several wells through a hydraulic system that can be reconﬁgured by means of several valves.

The automatic operation of the system tries to determine which valves and pumps must be active at each

instant in order to minimise the operation cost, taking into account the tariff periods. The main constraints

are the maximum and minimum volumes of the tanks. A mathematical model of the problem is proposed in

order to formulate, in matrix form, the cost index and the constraints, to be able to use standard solvers as

Mosek. A basic optimization problem is proposed, that only imposes the constraints of the ﬁnite volume of

the tanks. The result of this basic problem tends to produce a large number of pump and valve commutations,

that is not adequate in practice. To solve this problem, two alternatives are proposed: to include the number

of commutations in the cost index, and to add as a constraint the maximum number of commutations. Both

approaches lead to an adequate result, but the second one is easier to use, as the number of commutations can

be ﬁxed in an explicit way. An example of a real water supply system is analysed to demonstrate the validity

of the approach, using Yalmip as parser and Mosek as solver.

1 INTRODUCTION

An important cost in the operation of water supply

systems are the energetic cost associated to the pump-

ing system. Water consumers receive the water from

supply tanks that are ﬁlled up from wells. The opera-

tion cost depends on the instants during the day when

the pumps are working, since the electric tariff varies

along the day, following predeﬁned tarifﬁng periods.

The work (Ormsbee and Lansey, 1994) presents

a review of different approaches to the optimization

of water pumping systems, that depend on the con-

ﬁguration of the system and the mathematical models

used. For the problem of ﬁlling the main tanks, that is

the objective of this paper, the most commonly used

model is the mass-balance one. In most of the works,

the cost function takes into account the energy con-

sumed, but not the tarifﬁng periods when that energy

is consumed. On the other hand, the decision vari-

ables are usually the fraction of operation time of each

pump in some predeﬁned intervals. Other indirect de-

cision variables have also been proposed (as the tank

volumes), but the relation to the cost index and to the

ﬁnal decision (the pumps and valves commands) is

too complex for the case we are studying.

In a more recent work, (Bunn and Reynolds,

2009), different approaches are reviewed, focusing

on real-time dynamic optimization technologies and

data-mining techniques to improve energy efﬁciency.

This work describes a commercial optimization soft-

ware for water distribution systems that can solve the

problem we are facing in this paper and other more

complex ones, but the details about the algorithms

used are not given.

Most of the recent works, as (Savic et al., 1997),

(Powell and McCormick, 2004), (Martinez et al.,

2007) , (Sotelo et al., 2002) or (Wegley et al., 2000)

use complex models of the hydraulic systems, and

are based on complex optimization algorithms, as ge-

netic algorithms, particle swarm or simulated anneal-

ing. Those approaches have a high computer cost,

especially for large systems.

In this paper a simple model is used in order to

formulate an optimization problem that can be solved

with standard solvers, with a low computer cost.

In (Pasha and Lansey, 2009), a linear program-

ming approach is used for the optimization of the

pumps operation, but is only applicable for a single

144

Sanchis, R. and Peñarrocha, I.

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System.

DOI: 10.5220/0006471501440154

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 1, pages 144-154

ISBN: 978-989-758-263-9

tank system. In (Fang et al., 2010), the problem of op-

timization of pumps operation in a multi tank system

is studied using complex genetic algorithms.

In (Ormsbee et al., 2009) three different explicit

formulations of the optimal pump scheduling problem

are presented. It takes into account the electric tar-

iff, but the decision variables deﬁne the start and stop

times of the different pumps in the system. The result-

ing optimization problem needs to be solved by non

linear algorithms, genetic algorithms, or semi heuris-

tic ad-hoc algorithms. This discrete explicit formula-

tion is not directly applicable if the system has some

valves that can reconﬁgure the network. In that case

is not sufﬁcient to decide which pumps are started

or stopped at which time, but also the switching of

the valves, that changes the resulting inlet ﬂow to the

tanks for a given pumps state. Furthermore, our ob-

jective is to use standard solvers to deal with the op-

timization problem. For that reason, in this paper, the

decision variables are explicit, but consist of the com-

bination of pumps and valves that must be active at

each instant, from the set of possible combinations.

The mathematical formulation proposed allows to use

standard parsers (as Yalmip) and solvers (as Mosek or

CBC), to solve the optimization problem.

In section II the problem of pumping system opti-

mal operation is described. In section III the mathe-

matical model of the problem is developed. In section

IV the basic optimization problem, derived from the

mathematical problem, is formulated. A more com-

plex optimization problem is formulated in section V

to reach more practical solutions, with a reduced num-

ber of pump commutations. Section VI shows the ap-

plication to a real pumping system and section VII

summarizes the main conclusions.

2 DESCRIPTION OF THE

PROBLEM

This paper deals with the problem of optimizing the

operation of a water pumping system a predeﬁned

structure, with several wells and pumps, several tanks

and several ducts and valves. The objective of the

optimization is the minimization of the overall op-

erational cost. This cost is related to the individual

pumping energetic cost of each well (kWh per cubic

meter) and, especially, to the electric tariff that es-

tablish a different price depending on the time. The

automatic control system must decide which valves

and which pumps should be operated at every time

along the day to minimize the cost while fulﬁlling

some constraints.

The main constraint is to serve from each tank the

required daily water ﬂow. This ﬂow is time varying

and uncertain, but it can be predicted because it fol-

lows an approximate daily pattern. The other impor-

tant constraint is due to the size of the tanks, each one

having a maximum and minimum level that should

not be violated.

Other secondary constraints that may apply in-

clude a maximum number of daily starts and stops of

each pump, or a minimum running time once a pump

is switched on. Other more complex restrictions could

be related to the concentration of some pollutants in

the different wells. For example, the nitrate concen-

tration may be too high in a given well, so that, that

water must be mixed with the one from another well

to fulﬁl a concentration requirement. The constraint

could then be a minimum mixing ratio. This last con-

straint could be time varying, as the concentration of

the wells may change with time.

3 MATHEMATICAL

MODELLING OF THE

PROBLEM

First of all, the pumping system is assumed to have N

pumps (one in each well), N

tanks and N

valves. The

valves are used to connect or disconnect the pumps to

the tanks. The total number of possible combinations

is 2

, but not all the combinations are possible

in a given system. Let us deﬁne as N

the number

of valid combinations of valves and pumps. In or-

der to formulate mathematically the problem, a bi-

nary matrix, M

, of size N

× (N

+ N

), is deﬁned,

where each row represents one of the valid combina-

tions, and where the corresponding elements take the

value 1 or 0 depending on the active or inactive state

of the valves and the pumps in that combination.

Along the paper, a simple example will be used

to illustrate the proposed approach. The considered

pumping system has N

= 2 wells (pumps), N

= 1

valve and N

= 2 tanks. The tank 1 can be ﬁlled from

pump 1, no matter the state of the valve (with a ﬂow

of 200 m

/h), and from pump 2 if the valve 2 is open

(with an additional ﬂow of 100 m

/h), while the tank

2 can only be ﬁlled from pump 2 if the valve is closed

(with a ﬂow of 80 m

/h).

Taking into account the physical limitations de-

scribed above, the matrix that deﬁnes de N

= 6 valid

combinations of pumps and valves in this example is

shown in table 1. The value X means that the resulting

ﬂows are the same if the valve is closed (0) or open

(1).

For each combination of valves and pumps, there

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System

145

Table 1: Possible combinations of simple example.

Comb V P

0 X 0 0

1 X 1 0

2 0 0 1

3 1 0 1

4 0 1 1

5 1 1 1

is a resulting outlet ﬂow of each pump, and a resulting

inlet ﬂow for each tank. This can be expressed by a

matrix of pump ﬂows, F

, that has as many columns

as combinations, and one row per pump and a matrix

of tank inlet ﬂows, F

, that has as many columns as

combinations, and one row per tank, i.e. the size of

matrices F

and F

are (N

×N

) and (N

×N

). In the

proposed example, the resulting ﬂow matrices could

be (in m

/h):



0 200 0 0 200 200

0 0 80 100 80 100



(1)



0 200 0 100 200 300

0 0 80 0 80 0



(2)

For each combination there is a matrix that relates

the pump ﬂows to the tank ﬂows. For example, for

combination 5, the tank ﬂows can be expressed as a

function of pump ﬂows as

= M



1 1

0 0



200

100





300



(3)

The matrix that relates the ﬂows is different for each

combination of pumps and valves. In the example the

matrices are:

= M



1 0

0 1



= M



1 1

0 0



Following the same procedure, a matrix P can be

formed with the electric power consumption of each

pump for each combination. The matrix has as many

columns as combinations, and one row per pump, i.e.

the size of matrix P is (N

× N

). In the proposed

example, the power matrix (in kW) is:

P =



0 20 0 0 20 20

0 0 10 12 10 12



(4)

In order to operate the water supply facility, the

automatic management system must decide which

one of those N

combinations has to be applied at each

instant of time. The natural objective is to minimize

the overall operation cost. In order to be able to for-

mulate the optimization problem, a variable taking in-

teger values from 0 to N

could be deﬁned. However,

in order to formulate more easily the objective func-

tion as well as the constraints, a binary vector is pro-

posed to deﬁne the applied combination as a function

of time:

δ(t) ∈ {δ

,. .., δ

} (5)

with

= [0 ··· 0

| {z }

i−1

1 0· ··0]

(6)

Therefore, the elements of δ(t) can only be 0 or 1,

and only one of the elements can be different from

zero (i.e. the sum of the elements is 1).

With these deﬁnitions, the vector that gathers the

inlet ﬂows of the tanks at a given instant is simply the

product

(t) = F

δ(t),

the vector of output ﬂow of the pumps is

(t) = F

δ(t),

while the vector of power consumptions of the pumps

p(t) = Pδ(t)

The matrix that relates the pump ﬂows and the

tank ﬂows can be expressed as a function of δ:

M(δ) =







0 ·· · 0

0 δ

0 ·· · 0 δ







×N







(1,:)

(2,:)

,:)







×N

(7)

With that deﬁnition,

(t) = M(δ(t)) f

(t) (8)

In order to compute the overall cost, the elec-

tric tariff must be taken into account. The tariff can

be expressed as a function that deﬁnes the price in

euro/kW h as a function of time, T

(t). Each pump

could have a different tariff, hence, we deﬁne a row

vector as:

T (t) =



(t) ·· · T

(t)



(9)

With this, the overall cost in a period of time can

be expressed (in euros ) as:

J =

3600

T (t)Pδ(t)dt (10)

The equation of the tanks can be expressed as:

= f

T, j

(t) − f o

(t) (11)

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

146

where f

T, j

(t) and f o

(t) are the inlet and outlet ﬂow

of tank j respectively. The equations of all the tanks

can be joined in matrix form

V =





···









T,1

(t)

···

f i

T,N





−





f o

(t)

···

f o





= f

(t) − f o(t)

(12)

If the future output ﬂow of each tank, f o(t), were

known, then the volume could be calculated accu-

rately. However, the future output ﬂow is unknown

and, hence, a prediction

f o(t) must be used. On the

other hand, the input ﬂow can be expressed as a fun-

cion of δ(t), therefore, the equation used to estimate

the evolution of the volume of the tanks (in m

/s) is

V =

3600



δ(t) −

f o(t)



(13)

where the ﬂows are in m

/h.

In order to obtain a tractable formulation of the

problem, the continuous time equations must be dis-

cretized. If we choose a constant discretizing period

h, the vector funcions T (t) and δ(t) would then be

changed by vectors of discrete signals T [k] = T (t =

kh) and δ[k] = δ(t = kh). δ(t) is assumed to maintain

a constant value during interval h, i.e. δ(t) = δ[k] for

k h <= t < (k + 1)h. Taking into account the units of

the variables, the cost index (in euros) could be ex-

pressed as:

J =

3600

∑

T [k]Pδ[k] (14)

The continuous time equation of the tanks must

also be discretized at period h. The discretized equa-

tion can be expressed as:

V [k + 1] = V [k] +

3600



δ[k] −

f o[k]



(15)

where V [k] = V (t = k h) and

f o[k] =

(k+1)h

f o(t)dt.

The main constraints are the maximum and min-

imum limits of the tank volums, therefore, the con-

straints can be formulated as

i,min

≤ V

[k] ≤ V

i,max

, i = 1,··· ,N

(16)

or in matrix form

min

≤ V[k] ≤ V

max

(17)

4 BASIC OPTIMIZATION

PROBLEM

The basic optimization problem consists of minimiz-

ing the cost of the energy while fulﬁlling the main

constraints of maintaining the volumes of all the tanks

inside their admissible range (between their minimum

and maximum values). An additional constraint must

be added in order to guarantee that the tanks ﬁnish the

day with the same volume they have started. Other-

wise, the solution will always ﬁnish the day with the

tanks completely empty.

Taking into account the equations introduced in

the previous sections, with the deﬁnition of vectors

δ[k], T [k], V [k] and

[k], and taking a minimization

horizon, t

= k

h, the minimization problem can be

formulated as:

min

3600

∑

k=1

T [k]Pδ[k]

s.t. V

min

≤ V (0)+

3600

∑

j=1



δ[ j] −

[ j]



≤ V

max

∑

j=1



δ[ j] −

[ j]



≥ 0

kδ[k]k = 1, δ[k] ∈ {0, 1}

k = 1,.. . ,k

(18)

This problem can be expressed in matrix form in a

more compact way by joining vectors δ[k] and T [k]

in some matrices of adequate sizes (∆

×1)

and

(1×k

)

), and deﬁning the following vectors and ma-

trices:

∆ =







δ[1]

δ[k

]







×1

(19)

T =

3600



T [1] · ·· T [k

]



1×k

(20)

P =







P 0 ·· · 0

0 P

0 ·· · 0 P







×k

(21)



·· · F

| {z }

0 ·· · 0



×k

(22)



0 ·· · 0

| {z }

(k−1)N

1 ·· · 1

| {z }

0 ·· · 0



(23)

[k] =

∑

j=1

[ j] (24)

Using these deﬁnitions, the minimization problem

can be formulated as:

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System

147

min

∆

TP∆ (25)

s.t.

∆ ≥ 3600

min

−V (0)

[k], k = 1, ..., k

∆ ≤ 3600

max

−V (0)

[k], k = 1, ..., k

∆ ≥

]

∆ = 1, k = 1,. .. ,k

∆[ j] ∈ {0, 1} j = 1,·· · ,k

The optimization problem (25) is a mixed inte-

ger one, where the decision variables are the elements

of vector ∆ that can only take values 0 or 1. The

number of decision variables is N

, and the num-

ber of constraints is (2N

+ 2N

+ 1)k

+ N

. For a

normal prediction horizon of 1 day, if a discretiz-

ing period of 1 minute is taken, the number of vari-

ables is 1440N

, and the number of constraints is

1440(2N

+ 2N

+ 1)+ N

, that can be very large even

for quite simple systems. Even if a longer perid of,

for example, 5 minutes is chosen, the number of vari-

ables is still large (288N

). Furthermore, the mixed

integer optimization is highly demanding in computer

resources, and the optimization should be run fre-

quently (not only once a day), to use the most up

to date output ﬂow estimations. Therefore, in order

to reduce the complexity, we propose to use two dis-

cretizing periods, a short one for the ﬁrst hours, h, and

a coarser one for the rest of the day, h

= Lh. Deﬁn-

ing the shorter time horizon as t

= k

h, and the total

time horizon t

= t

+(k

−k

)Lh, the optimization

problem could be expressed as:

min

∆

3600

∑

k=1

T [k]Pδ[k] +

3600

∑

i=k

T [i]Pδ[i]

s.t. V

min

≤ V (0)+

3600

∑

j=1



δ[ j] −

[ j]



≤ V

max

k = 1,.. . ,k

min

≤ V (k

) +

3600

∑

i=k



δ[i] −

[i]



≤ V

max

k = k

+ 1,. .. , k

kδ[k]k = 1, δ[k] ∈ {0, 1}

k = 1,.. . ,k

(26)

where the size of matrix ∆ is now (k

) × N

, and

where

T [k] =



T (t = kh) i f k ≤ k

T (t = k

h +(k − k

)Lh) i f k

< k ≤ k

(27)

and where

f o[k] =

(

(k+1)h

f o(t)dt i f k ≤ k

h+(k+1−k

)Lh

h+(k−k

)Lh

f o(t)dt i f k

< k ≤ k

(28)

Using the same vectors and matrices deﬁned previ-

ously (∆, P, I

), but of ﬁze k

instead k

, and re-

deﬁning matrix T as

T =

3600



T [1] · ··T [k

] T [k

+ 1]L· · · T[k



1×k

(29)

and redeﬁning matrix F

and

[k] for k > k



··· F

| {z }

··· LF

| {z }

k−k

0 ··· 0



×k

(30)

[k] =

∑

j=1

[ j] + L

∑

j=k

[ j] (31)

the optimization problem can be formulated as:

min

∆

TP∆

s.t.

∆ ≥ 3600

min

−V (0)

[k], k = 1, .. .,k

∆ ≤ 3600

max

−V (0)

[k], k = 1, .. .,k

∆ ≥

]

∆ = 1, k = 1,.. . ,k

∆[ j] ∈ {0, 1} j = 1, ·· · ,k

(32)

The number of decision variables in problem (32)

is N

, and the number os constraints is (2N

+ 1)k

+ N

. For example, choosing a short dis-

cretizing period h = 5 minutes, k

= 36 (equivalent

to 3 hours), and a long period Lh = 20 minutes, with

= 99 (equivalent to 1 day total horizon), for a sys-

tem with N

= 10, and N

= 3, the number of variables

is 990, while the number of constraints is 2676.

The optimization problem (32) depends on the

prediction of the future ﬂow demand

f o[k], that is un-

certain. The prediction can be improved for the short

term as the output ﬂow is measured on line. There-

fore, in order to obtain more accurate results, the op-

timization must be run periodically, so that, a less un-

certain ﬂow prediction is used. For example, it could

be run every hour. In that case, only the values of

δ[k] obtained for the ﬁrst hour would be applied, dis-

carding the rest. This is a usual strategy in predictive

control.

As we are enforcing a ﬁnal volume equal than

the initial one, the result of the optimization depends

on the initial condition of the tanks, and the instant

of time during the day when the optimization is car-

ried out. In order to set a framework for compar-

ison purposes, the optimization will be assumed to

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

148

be carried out at the instant when the cheapest pe-

riod ends, and the initial volumes are assumed to be

V (0) = 0.95V

max

, i.e. near the maximum. This con-

ditions reinforce the idea of maximizing water avail-

ability in case a problem occurs with any pump.

One drawback of this simple optimization is that it

tends to produce a large number of pumps and valves

commutations.

5 ADVANCED OPTIMIZATION

PROBLEM

The main drawback of the basic optimization problem

(32) is that the optimal solution tends to imply a large

amount of commutations, i.e. the pumps and valves

would be stopping and starting every few minutes.

This is a serious problem, since every start and stop

implies an energy waste and a reduction in the work-

ing life of hydraulic components. Therefore, the opti-

mization problem must be modiﬁed to achieve a low

number of commutations for the proposal to be use-

ful. There are two approaches for limiting the number

of commutations:

• To include in the cost index a term that depends on

the number of commutations. There are two dif-

ﬁculties: the formulation of the number of com-

mutations, and to decide the weight of this term

relative to the main cost index.

• To add some constraints to limit the number of

commutations. The constraints could relate to the

number of combination changes, or the number of

commutations in each pump or in each valve.

5.1 Formulation of Number of

Commutations

If we consider the number of commutations as the

number of changes in δ[k] along the optimization pe-

riod, we need an equation that expresses that number

of changes as a function of matrix ∆. If the following

matrices are deﬁned:







z }| {

0 ·· · 0 1 0 ·· · 0

·· ·

1 0

0 ·· · ··· ··· 0 1







−1)N×k

−







1 0 · ·· · ·· ··· 0

0 1

0 ·· · 0 1 0 ··· 0

| {z }







−1)N×k

= I

− I

−

The number of changes in δ[k] can be expressed as:

∆

∆ = sum(abs(Y

∆)) (33)

Another possibility is to consider the number of

commutations of the pumps. In order to obtain the ex-

pression of number of pump commutations, let us de-

ﬁne matrix S

as a matrix with 1 or 0 deﬁning which

pumps are active at each combination. In the case of

our example this matrix would be:



0 1 0 0 1 1

0 0 1 1 1 1



(34)

such that S

δ[k] is a vector with values 1 or 0 depend-

ing on the state of each pump. Deﬁning matrix S as

S =







0 ··· 0

0 S

0 ··· 0

0 ·· · 0 S







×N

(35)

The overall number of pump commutations is

∆

S∆ = sum(abs(Y

S∆)) (36)

5.2 Modiﬁcation of Cost Index

The ﬁrst alternative to reduce the number of commu-

tations is to include the number of changes in the cost

index. In this case the optimization problem can be

formulated as:

min

∆

TP∆ + α∆

Y∆ (37)

s.t.

∆ ≥ 3600

min

−V (0)

[k], k = 1, ..., k

∆ ≤ 3600

max

−V (0)

[k], k = 1, ..., k

∆ ≥

]

∆ = 1, k = 1,... ,k

∆[ j] ∈ {0, 1} j = 1,··· ,k

where Y = Y

if the number of changes in δ[k] is to

be minimized, and Y = Y

S if the number of pump

commutations is to be considered. The weighting fac-

tor α must be chosen carefully to ﬁnd a compromise

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System

149

between minimization of the cost and the number of

commutations.

In order to add the expression of the number of

changes to the cost index in Yalmip, such that the

solvers can deal with it, instead of ∆

Y ∆, the

equivalent expression sum(abs(Y∆)) is used.

5.3 Adding Constraints

The drawback of the previous approach is that the

result is highly dependent on the weighting factor α

used, and is not easy to predict the result in terms of

number of commutations as a function of α. The sec-

ond alternative tries to overcome this drawback. It

consists of adding new constraints to limit the number

of changes. The optimization problem would then be:

min

∆

TP∆ (38)

s.t.

∆ ≥ 3600

min

−V (0)

[k], k = 1, ..., k

∆ ≤ 3600

max

−V (0)

[k], k = 1, ..., k

∆ ≥

]

∆

Y ∆ ≤ c

max

∆ = 1, k = 1,... ,k

∆[ j] ∈ {0, 1} j = 1,··· ,k

where again Y = Y

if the number of changes in δ[k]

is to be minimized, and Y = Y

S if the number of

pump commutations is to be considered. The constant

max

represents the maximum number of changes or

pump commutations in the overall optimization pe-

riod.

Again, in order to add the expression of the num-

ber of changes to the constraints in Yalmip, instead of

∆

Y ∆, the equivalent expression sum(abs(Y ∆))

is used.

6 APPLICATION EXAMPLE

A real application example, obtained from a real wa-

ter supply facility, will be used to illustrate the pro-

posed approach. The considered pumping system has

= 3 wells (pumps), N

= 2 valves and N

= 3 tanks.

The tank 3 can be ﬁlled from pump 1, no matter the

state of the valves, or from pump 2, if the valve 2 is

open, or from pump 3, also if the valve 2 is open. The

tank 2 can only be ﬁlled from pump3 if the valve 2 is

closed and the valve 1 open. Finally, the tank 1 can

only be ﬁlled from pump 3 if both valves are closed.

The pump 1 and 3 can work simultaneously, but pump

2 can only operate if the other two are stopped.

Taking into account the physical limitations de-

scribed above, the matrix that deﬁnes de N

= 10 valid

combinations of pumps and valves is shown in table

2. Again, the X value represents that the ﬂows do not

depend on the state of the valve.

Table 2: Valid combinations in the application example.

Comb V

0 X X 0 0 0

1 0 0 0 0 1

2 1 0 0 0 1

3 X 1 0 0 1

4 X 1 0 1 0

5 X X 1 0 0

6 0 0 1 0 1

7 1 0 1 0 1

8 X 1 1 0 1

9 X 1 1 1 0

For each combination of valves and pumps, there is

a resulting outlet ﬂow of each pump, and a resulting

inlet ﬂow for each tank, deﬁned by the respective ma-

trices. The resulting ﬂow matrices are (in m

/h):







0 0 0

0 0 80

0 0 100

0 0 120

0 100 0

200 0 0

200 0 80

200 0 100

200 0 120

200 100 0







(39)







0 0 0

80 0 0

0 100 0

0 0 120

0 0 100

0 0 200

80 0 200

0 100 200

0 0 320

0 0 300







(40)

For each combination there is a matrix that relates

the pump ﬂows to the tank ﬂows. For example, for

combination 6, the tank ﬂows can be expressed as a

function of pump ﬂows as

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

150

= M





0 0 1

0 0 0

1 0 0









200









200





(41)

The matrix that relates the ﬂows is different for

each combination of pumps and valves. In the exam-

ple the matrices are:





0 0 0





= M





0 0 1

0 0 0

1 0 0





= M





0 0 0

0 0 1

1 0 0





= M





0 0 0

1 1 1





The matrix P deﬁnes the electric power consump-

tion of each pump for each combination. The matrix

has as many columns as combinations, and one row

per pump, i.e. the size of matrix P is (N

×N

). In the

proposed example, the power matrix (in kW) is:

P =







0 0 0

0 0 13

0 0 11

0 0 7

0 5 0

12 0 0

12 0 13

12 0 11

12 0 7

12 5 0







(42)

In order to perform the calculations, the outlet

ﬂow of the tanks is estimated through a Fourier se-

ries from real data. The ﬁgure 1 shows the ouput ﬂow

of the three tanks for one day, starting at 8 a.m.

The simple optimization problem (32) has been

solved with Matlab, using Yalmip as parser and

Mosek solver.

As we are enforcing a ﬁnal volume equal than

the initial one, the result of the optimization depends

on the initial condition of the tanks, and the instant

of time during the day when the optimization is car-

ried out. In order to set a framework for compar-

ison purposes, the optimization will be assumed to

be carried out at the instant when the cheapest pe-

riod ends, and the initial volumes are assumed to be

0 200 400 600 800 1000 1200 1400

100

120

140

160

180

200

Estimated outlet flow of tanks 1, 2 and 3

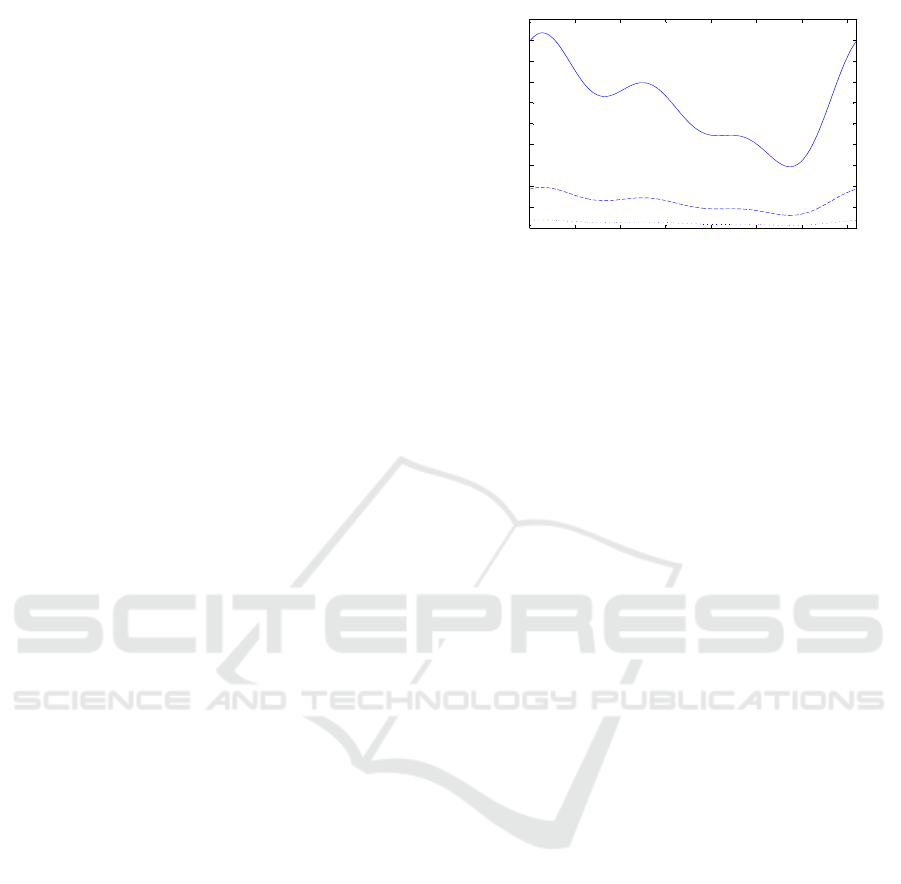

Figure 1: Estimated outlet ﬂow of tanks 1,2 and 3, in m

/h.

V (0) = 0.95V

max

, i.e. near the maximum. This con-

ditions reinforce the idea of maximizing water avail-

ability in case a problem occurs with any pump.

The ﬁgure 2 shows the result of the optimization

with h = 5 minutes, L = 4, k

= 60 and k

= 117, i.e.

5 hours at a period of 5 minutes, and 19 hour at a pe-

riod of 20 minutes. The optimum value is J = 17.22.

The ﬁgure shows the volumes in percentage, the ﬂow

of the three pumps (with the timely price of the asso-

ciated tariff), and the state of the valves. The draw-

back of this approach is that the number of commuta-

tions in the day is quite high (56 pump commutations

and 28 valve commutations). The commutations are

especially frequent during the ﬁrst 5 hours when the

period of discretization is smaller. If a period of h = 5

minutes is used for all the day, the number of com-

mutations is 120 for the pumps and 68 for the valves,

while the cost index is slightly lower J = 17.04.

If the number of changes in δ is considered in the

cost index, with a weighting factor α = 0.02, the re-

sult of the optimization (37) is shown in ﬁgure 3. The

number of pump commutations is 31, and the number

of valve changes is 14. The cost index is only slightly

higher then the case where the number of changes is

not included in the cost index, J = 17.26 (only the

energy cost).

The result of the optimization with α = 0.05 is

shown in ﬁgure 4. The cost is similar, J = 17.23, but

there are only 15 pump and 8 valve commutations.

With α = 0.1, the result is a higher cost (J = 17.54),

but a really small number of commutations (10 pumps

and 6 valves).

The resulting number of commutations is highly

dependent on the weighting factor α. In order to ﬁx a

desired value, the second approach consists of adding

as a constraint the number of commutations. The ﬁg-

ure 5 shows the result of the optimization (38) when

the number of changes in δ is constraint to 20. The

cost index is J = 17.12 and the pump and valve com-

mutations 18 and 9, respectively.

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System

151

0 200 400 600 800 1000 1200 1400

100

Volumes (in %)

0 200 400 600 800 1000 1200 1400

100

200

Flow of pump 1

0 200 400 600 800 1000 1200 1400

100

Flow of pump 2

0 200 400 600 800 1000 1200 1400

100

Flow of pump 3

0 200 400 600 800 1000 1200 1400

0.5

1.5

Valves

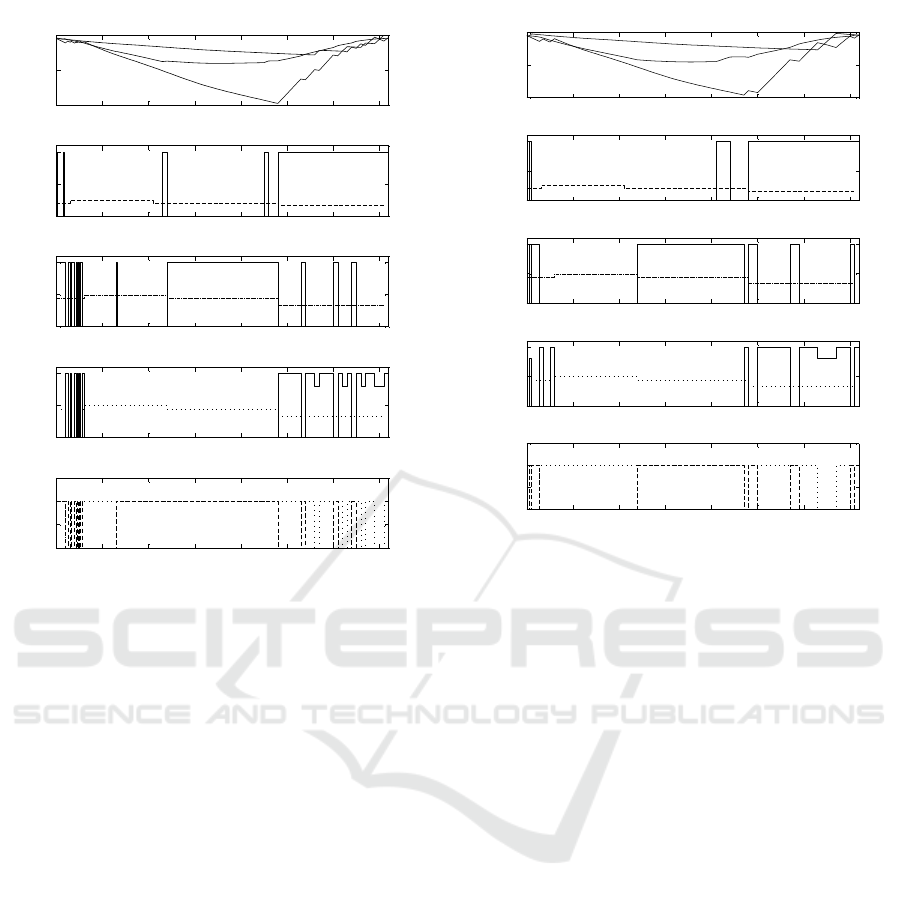

Figure 2: Optimization result for period=5 minutes, L=4.

Volumes (in percentage), ﬂow of pump 1, 2 and 3, and state

of valves.

The ﬁgure 6 shows the result of the optimization

when the number of changes in δ is constraint to 16.

The cost index is J = 17.1 and the pump and valve

commutations 15 and 9, respectively.

The results are similar to those obtained with the

previous approach (in terms of cost index), but the

constraint in the number of commutations is explicit.

7 CONCLUSIONS

In this paper we have studied the optimization of the

operation of a water supply pumping system by means

of standard solvers. The automatic operation of the

system tries to determine which valves and pumps

must be active at each instant of time in order to min-

imise the operation cost, taking into account the tar-

iff periods. The main constraints are the maximum

and minimum volumes of the tanks. A mathematical

model of the problem is proposed in order to formu-

late, in matrix form, the cost index and the constraints,

to be able to use standard solvers as Mosek or CBC. A

basic optimization problem is proposed, that only im-

poses the constraints of the ﬁnite volume of the tanks.

0 200 400 600 800 1000 1200 1400

100

Volumes (in %)

0 200 400 600 800 1000 1200 1400

100

200

Flow of pump 1

0 200 400 600 800 1000 1200 1400

100

Flow of pump 2

0 200 400 600 800 1000 1200 1400

100

Flow of pump 3

0 200 400 600 800 1000 1200 1400

0.5

1.5

Valves

Figure 3: Optimization result for period=5 minutes, L=4.

Volumes (in percentage), ﬂow of pump 1, 2 and 3, and state

of valves. Cost index with number of changes, α = 0.02.

The result of this basic problem tends to produce a

large number of pump and valve commutations, that

is not adequate in practice. To solve this problem, two

alternatives are proposed: to include the number of

commutations in the cost index, and to add as a con-

straint the maximum number of commutations. Both

approaches lead to an adequate result, but the second

one is easier to use, as the number of commutations

can be ﬁxed in an explicit way, while in the other ap-

proach the ﬁnal number of commutations depends on

the weighting factor applied to the number of commu-

tations in the cost index. An example of a real water

supply system with 3 tanks, 3 pumps and 2 valves is

analysed to demonstrate the validity of the approach,

using Yalmip as parser and Mosek as solver. The ba-

sic optimization problem leads to a high number of

commutations, as expected. Including the number of

commutations in the cost index, or adding as a con-

straint the maximum number of commutations lead

to a slight increase in the cost while the number of

changes in the actuator states is maintained under a

reasonable level.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

152

0 200 400 600 800 1000 1200 1400

100

Volumes (in %)

0 200 400 600 800 1000 1200 1400

100

200

Flow of pump 1

0 200 400 600 800 1000 1200 1400

100

Flow of pump 2

0 200 400 600 800 1000 1200 1400

100

Flow of pump 3

0 200 400 600 800 1000 1200 1400

0.5

1.5

Valves

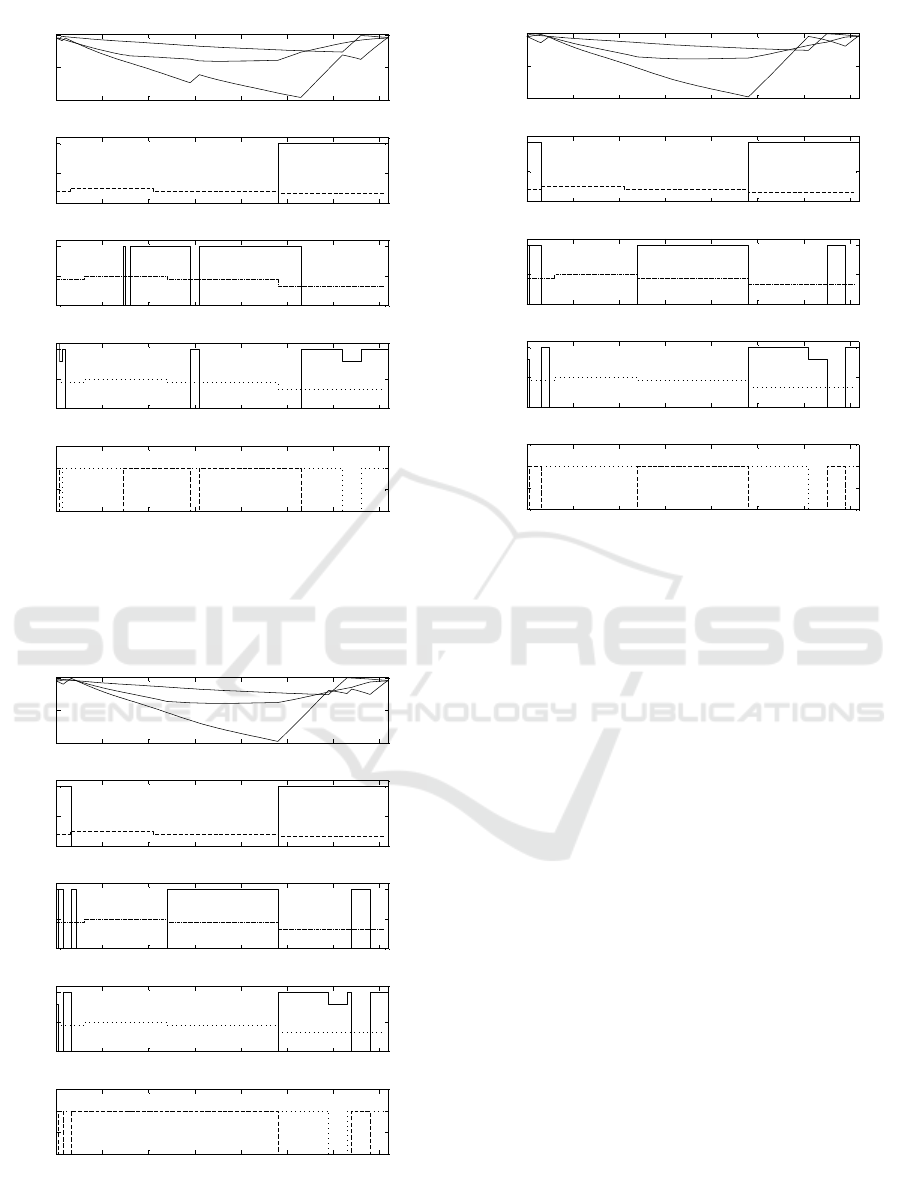

Figure 4: Optimization result for period=5 minutes, L=4.

Volumes (in percentage), ﬂow of pump 1, 2 and 3, and state

of valves. Cost index with number of changes, α = 0.05.

0 200 400 600 800 1000 1200 1400

100

Volumes (in %)

0 200 400 600 800 1000 1200 1400

100

200

Flow of pump 1

0 200 400 600 800 1000 1200 1400

100

Flow of pump 2

0 200 400 600 800 1000 1200 1400

100

Flow of pump 3

0 200 400 600 800 1000 1200 1400

0.5

1.5

Valves

Figure 5: Optimization result for period=5 minutes, L=4.

Volumes (in percentage), ﬂow of pump 1, 2 and 3, and state

of valves. Constraint in the number of changes, 20.

0 200 400 600 800 1000 1200 1400

100

Volumes (in %)

0 200 400 600 800 1000 1200 1400

100

200

Flow of pump 1

0 200 400 600 800 1000 1200 1400

100

Flow of pump 2

0 200 400 600 800 1000 1200 1400

100

Flow of pump 3

0 200 400 600 800 1000 1200 1400

0.5

1.5

Valves

Figure 6: Optimization result for period=5 minutes, L=4.

Volumes (in percentage), ﬂow of pump 1, 2 and 3, and state

of valves. Constraint in the number of changes, 16.

ACKNOWLEDGEMENTS

This work has been supported by MICINN project

number TEC2015-69155-R from the Spanish govern-

ment.

REFERENCES

Bunn, S. and Reynolds, L. (2009). The energy-

efﬁciency beneﬁts of pump scheduling optimiza-

tion for potable water supplies. IBM Jour-

nal of Research and Development, 53:5:1 – 5:13.

DOI:10.1147/JRD.2009.5429018.

Fang, H., Zhang, J., and liang Gao, J. (2010).

Optimal operation of multi-storage tank multi-

source system based on storage policy. Jour-

nal of Zhejiang University-SCIENCE A, 11:571–579.

DOI:10.1631/jzus.A0900784.

Martinez, F., Hernandez, V., Alonso, J., Rao, Z., and Alvisi,

S. (2007). Optimising the Operation of the Valencia

Water-Distribution Network. Journal of Hydroinfor-

matics, 9(1):6578.

Ormsbee, L., Lingireddy, S., and Chase, D. (2009). Optimal

Pump Scheduling For Water Distribution Systems. In

Proceedings of the 4

Multidisciplinary International

Conference on Scheduling : Theory and Applications

Modelling and Optimization of the Operation of a Multiple Tank Water Pumping System

153

(MISTA 2009), 10-12 August 2009, Dublin, Ireland,

pages 341–356.

Ormsbee, L. E. and Lansey, K. E. (1994). OPTIMAL CON-

TROL OF WATER SUPPLY PUMPING SYSTEMS.

Journal of Water Resources Planning and Manage-

ment, 120:237–252. ISSN:0733-9496/94/0002- 0237.

Pasha, M. F. K. and Lansey, K. (2009). Optimal Pump

Scheduling by Linear Programming. In Proceedings

of the 4

World Environmental and Water Resources

Congress 2009 May 17-21, 2009 — Kansas City, Mis-

souri, United States, pages 341–356.

Powell, R. S. and McCormick, G. (2004). Derivation of

NearOptimal Pump Schedules for Water Distribution

by Simulated Annealing. J. Operational Res. Soc,

55:728736.

Savic, D. A., Walters, G. A., and Schwab, M. (1997). Multi-

objective Genetic Algorithms for Pump Scheduling in

Water Supply. Springer-Verlag, London.

Sotelo, A., L

ucken, C., and Bar

an, B. (2002). Multi-

objective Evolutionary Algorithms in Pump Schedul-

ing Optimization. In Proceedings of the Third Inter-

national Conference on Engineering Computational

Technology, Stirling, Scotland., page 175176.

Wegley, C., Eusuff, M., and Lansey, K. E. (2000). Deter-

mining Pump Operations Using Particle Swarm Op-

timization. In Proceedings of the Joint Conference

on Water Resources Engineering and Water Resources

Planning and Management, Minneapolis, 2000.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

154
