Employing Linked Data in Building a Trace Links Taxonomy

Nasser Mustafa and Yvan Labiche

Department of Systems and Computer Engineering, Carleton University, 1125 Colonel By Dr, Ottawa, Canada

Keywords: Traceability, Trace Links, Semantics, Taxonomy, Requirement Engineering, Systems Engineering, Model

Driven Engineering, Linked Data, Resource Description Factor, Open Service for Lifecycle Collaboration.

Abstract: Software traceability provides a means for capturing the relationship between artifacts at all phases of

software and systems development. The relationships between the artifacts that are generated during

systems development can provide valuable information for software and systems Engineers. It can be used

for change impact analysis, systems verification and validation, among other things. However, there is no

consensus among researchers about the syntax or semantics of trace links across multiple domains.

Moreover, existing trace links classifications do not consider a unified method for combining all trace links

types in one taxonomy that can be utilized in Requirement Engineering, Model Driven Engineering and

Systems Engineering. This paper is one step towards solving this issue. We first present requirements that a

trace links taxonomy should satisfy. Second, we present a technique to build a trace links taxonomy that has

well-defined semantics. We implemented the taxonomy by employing the Link data and the Resource

Description Framework (RDF). The taxonomy can be configured with traceability models using Open

Service for Lifecycle Collaboration (OSLC) in order to capture traceability information among different

artifacts and at different levels of granularity. In addition, the taxonomy offers reasoning and quantitative

and qualitative analysis about trace links. We presented validation criteria for validating the taxonomy

requirements and validate the solution through an example.

1 INTRODUCTION

Software traceability provides a means for capturing

the relationship between software artifacts at

different levels of abstractions and across multiple

domains. Software artifacts can be produced during

Requirement Engineering (RE), Model Driven

Engineering (MDE), and Systems Engineering (SE).

They are heterogeneous in nature since they are

produced by different tools, and for different system

disciplines. Establishing relationships between these

artifacts requires different types of trace links with

precise semantics. Unfortunately, there is a lack of

consensus among software practitioners for defining

precise trace links semantics. This is an issue since

using different, either overlapping or conflicting

semantics for trace links can have adverse effect on

product quality (Ramesh, B. and M. Jarke, 2011).

Our aim is to build a trace links taxonomy which

has well-defined semantics and that encompasses

various types of trace links in the RE, MDE, and SE

disciplines. This is important for many reasons.

First, in RE, many artifacts are produced during

requirements elicitation, analysis, and validation,

hence, require different types of trace links with

different semantics. Second, in MDE, which permits

model transformations, a large number of trace links

is required to link artifacts in source and target

models, some of which are generated automatically

while others require manual generation; relating

these artifacts requires well-defined semantics for

trace links, which are slightly different from what

one can define in RE or SE. Third, in SE, the

development of a complex system involves the

generation of heterogeneous artifacts as a result of

using different modeling tools for modeling different

aspects of the system, from different disciplines

(e.g., electrical, software). Fourth, comprehending

the rationale for creating different types of trace

links among artifacts at different levels of

granularity requires well-defined trace links

semantics. Fifth, there are situations that require

many types of trace links in the same domain but for

different purposes. For instance, when linking two

requirements, a requirement derived from another

requires a different trace link than a requirement

clarified by another. Sixth, the meaning of a trace

186

Mustafa, N. and Labiche, Y.

Employing Linked Data in Building a Trace Links Taxonomy.

DOI: 10.5220/0006471701860198

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 186-198

ISBN: 978-989-758-262-2

link can be viewed differently by different

stakeholders. For instance, a trace link between a

requirement and a design element may be viewed by

a designer as a constraint the requirement imposes

on the design element, while an end user might view

the same link as a design element produced by the

requirement (Ramesh, B. and M. Jarke, 2011).

Finally, with the various types of modeling tools

across different domains, it is a necessity to have a

trace links taxonomy that can be integrated with

other API’s. In other words, we need a portable

taxonomy that can be integrated easily with other

tools.

In an effort to have more insight about trace links

and their classifications we conducted a systematic

literature review about traceability aspect in which

trace links is among them (Nasser Mustafa and Yvan

Labiche, 2017). The review covers the published

papers between the years 2000-2016 in five major

computing libraries (i.e., IEEE Xplore, ACM,

Google Scholar, Science Direct, and Springer). We

specified the following search string in order to

extract the traceability publications in RE, MDE,

and Systems Engineering: Traceability AND

(Heterogeneous OR Modeling OR Models OR MDE

OR Model Driven OR Trace Link OR Requirement

Engineering OR Systems Engineering OR Software

Engineering). Based on our review, we identified

some research papers that define traceability and

traceability relations (Ramesh, B. and M. Jarke,

2011; Spanoudakis, G. and A. Zisman, 2005; Gotel,

O. and A. Finkelstein, 1994; Nasser Mustafa, Yvan

Labiche, 2015; Mason, P., et al., 2003; IEEE, 1990;

Cleland-Huang, et al., 2014; Gotel, O., et al., 2012;

Ramesh, B. and M. Edwards, 1993; Aizenbud-

Reshef, N., et al., 2006; Nasser Mustafa, Yvan

Labiche, 2015), other papers that classify or identify

some types of trace links (Ramesh, B. and M. Jarke,

2011; Spanoudakis, G. and A. Zisman, 2005; Gotel,

O. and A. Finkelstein, 1994; Spanoudakis, G., et al.,

2004; Xu, P. and B. Ramesh, 2002; Pohl, K., 1996;

Alexander, I., 2003; Riebisch, M. and I. Philippow,

2001; Mason, P., et al., 2003; Cleland-Huang, J., et

al., 2014; Gotel, O., et al., , 2012; Paige, F., et al.,

2008; Mohan, K. and B. Ramesh, 2002; Maletic, J.

I., et al., 2003; Gotel, O. and A. Finkelstein, 1995;

Constantopoulos P., et al., 1993; Pinheiro, F. A. C.

and J. A. Goguen, 1996; Grammel, B., 2014; Olsen,

G. K. and J. Oldevik, 2007; Paige, R. F., et al.,

2011), and some papers that discuss the need for

trace links semantics (Paige, R. F., et al., 2011;

Letelier, P., 2002; Dick, J., 2002; Lucia, A. D., et al.,

2007; Rummler, A., 2007). Although these papers

provide valuable information on traceability

definitions and classifications, we couldn't find any

paper that suggests a technique for building a trace

links taxonomy that combines trace links from all

domains. Most of these studies are confined to

defining trace links and their semantics only for a

specific problem or domain, i.e., solutions are

problem or domain specific. For instance, there is a

great deal of effort on classifying traceability links

and their usage in RE (Ramesh, B. and M. Jarke,

2011; Spanoudakis, G. and A. Zisman, 2005),

though classifications only apply to RE.

The contribution of this paper includes the

followings. First, we propose requirements for trace

links taxonomy. Second, we offer a technique to

build a trace links taxonomy which has well-defined

semantics and that can accommodate the

classification of trace links in RE, MDE, and SE.

The taxonomy employs the Open Service for

Lifecycle Collaboration (OSLC), and the Resource

Description Framework (RDF) (W3C, 2016(a)) for

defining a set of properties and their values for each

trace link. Third, we validate the taxonomy through

a case study that requires heterogeneous artifacts

from multiple domains.

This paper is structured as follows. Section 0

discusses an example that will help us illustrate the

motivation behind this work. Section 0 presents

related work on trace links and their limitations.

Section 0 highlights the requirements for trace links

taxonomy and introduces the RDF technique.

Section 0 shows our proposed taxonomy

requirements. Section 0 describes the benefit of

using RDF in building the trace links taxonomy.

Section 0 shows our design decisions and the

taxonomy implementation using the RDF technique

on a case study. Section 7 concludes the paper.

2 A SIMPLE, MOTIVATING

EXAMPLE

The heterogeneity of artifacts that are involved in

the development of a complex system requires

various types of trace links. The variations between

RE, MDE, and SE domains require different types of

trace links to relate their artifacts. There are

situations in which ambiguity exists in capturing

traceability information among artifacts as a result of

the absence of a reference model that describes the

various types of trace links and their exact purposes.

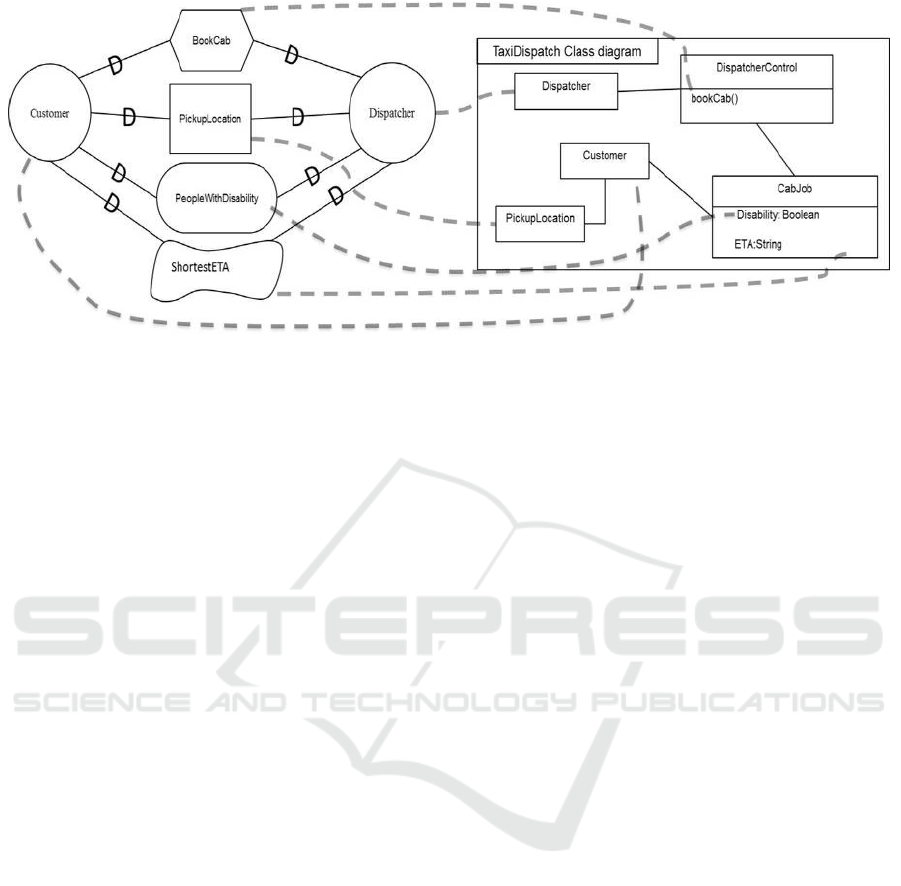

We discuss the example for relating the i*

metamodel artifacts, which capture early-phase

requirements, and the UML Class metamodel which

Employing Linked Data in Building a Trace Links Taxonomy

187

captures late-phase requirements (Filho, G. C., et

al., 2003). It involves different types of artifacts that

require certain types of trace links. The i*

metamodel contains the meta-classes: Actor,

Resource, softGoal, HardGoal, and Task. The UML-

Class metamodel has the meta-classes: Class,

Attribute, and Operation. Actor and Resource in the

i* metamodel are mapped to the Class metaclass in

the UML metamodel. Also, the SoftGoal and

HardGoal in the i* metamodel are mapped to the

Attribute in the UML metamodel. Finally, a Task in

the i* metamodel is mapped to the Operation in the

UML metamodel. Determining the relationship

between instances from the two metamodels

depends on users’ needs: two different users might

need two different types of trace links. For instance,

a user might use the Consistent-with trace link

between instances of the Actor class and the Class

class since each Actor instance in the i* model must

have a corresponding Class instance in the UML

model. A second user might be interested in a high

level view for the two metamodel instances, so the

generic model-to-model or static trace links can be

used. In this example, different users require trace

links at different levels of granularity. This scenario

and others encouraged us to build a trace links

taxonomy that combines all trace links across

different domains and shows their relationships.

3 RELATED WORK

This section elucidates important aspects about our

review of traceability in RE, MDE, and SE. Section

3.1 discusses traceability and trace links definitions

while section 0 discusses existing trace links

classifications in RE, MDE, and SE. The review in

this section is extensive since it will be used as a

core for our work in order to collect all trace links

types for building the taxonomy.

3.1 Traceability Definitions

Traceability is defined by the IEEE (IEEE, 1990) as

“the degree to which a relationship can be

established between two or more products of the

development process, especially products having a

predecessor-successor or master-subordinate rela-

tionship to one another”. This definition applies to

traceability in RE, MDE, and SE as well. The IEEE

definition is extended to include other types and

subtypes of relationships. Cleland-Huang and

colleagues (2014) describe trace link semantics and

types. A trace link semantics refers to the purpose or

meaning of the relationship between associated

artifacts. A trace link type refers to the

characterization of all trace links that have a similar

structure (syntax) and/or purpose (semantics). The

description of a trace link type encapsulates the

definition of a trace link semantics since it is

explained based on the link’s semantic role, and may

include other properties such as the rationale for

creating a trace link. For instance, all trace links that

relate two artifacts where one artifact is derived

from another have the trace link type “derived

from”. The derived represents the meaning of the

relation between such artifacts. Therefore, we might

have similar or extended types of trace links among

the RE, MDE, and SE domains. Readers should note

that we use a trace link and relation interchangeably,

however, there is a difference between both terms

since the latter refers to all trace links created

between two sets of trace artifact types (Cleland-

Huang, J., 2014).

In RE, several types of trace links are introduced

as a result of traceability definitions. Gotel and

colleagues (1994) defined traceability as the ability

to describe and follow the life of a requirement in

both forward and backward directions. In this

context, a pre-requirement specification refers to the

aspects of a requirement's life prior to its inclusion in

the requirement specification, and a post-

requirement specification refers to the aspects of a

requirement’s life that result from its inclusion in the

requirement specification (Gotel, O., et al., 2012).

Also, there are the notions of vertical and horizontal

traceability (Spanoudakis, G. and A. Zisman, 2005;

Cleland-Huang, J., 2014; Ramesh, B. and M.

Edwards, 1993; LindVall, M. and K. Sandahl, 1996).

Horizontal traceability refers to tracing artifacts

created in the same system lifecycle phase, or at the

same level of abstraction. For instance, tracing two

requirements based on the ‘derived from’

relationship is horizontal. Vertical traceability refers

to tracing artifacts created in different phases or at

different levels of abstraction, such as tracing a

requirement in the requirement specification phase

to a test case in the testing phase.

In MDE, Aizenbud-Reshef and colleagues

(2006) defined traceability as “any relationship that

exists between artifacts involved in the software-

engineering life cycle”. This definition is broader

than the RE definition since it assumes other types

of trace links such as explicit links which can be

generated during model transformation, implicit

links which are computed based on existing

information, and statistical links that can be inferred

based on history.

ICSOFT 2017 - 12th International Conference on Software Technologies

188

In SE, Mason (Mason, P., et al., 2003) extended

the notions of vertical and horizontal traceability by

introducing the terms: Micro, Macro, Inter, and

Intra. The Micro and Macro terms are introduced to

differentiate traceability within and across

decomposition levels. The Intra and Inter terms are

introduced to differentiate traceability within and

across system descriptions (i.e., interactions between

systems). For instance, the Inter-Micro-Horizontal

traceability refers to the ability to describe and

navigate relationships across system descriptions,

within a decomposition level, between development

or assessment artifacts of the same type.

3.2 Traceability Classifications

In general, relations between artifacts are classified

based on the development phase or the abstraction

level (i.e., horizontal and vertical). However, other

classifications are introduced to fit the RE, MDE,

and SE needs. The trace links classifications which

we found are either problem oriented, i.e., tailored to

special cases and are not applicable within a general

context (e.g., between requirement and source code),

or target one domain only (e.g., RE or MDE). This

section summarizes our effort in collecting and

organizing these classifications in order to build a

trace links taxonomy.

In RE, relationship between artifacts are

discussed extensively (Ramesh, B. and M. Jarke,

2011; Spanoudakis, G. and A. Zisman, 2005; Gotel,

O. and A. Finkelstein, 1994; Spanoudakis, G., et al.,

2004; Xu, P. and B. Ramesh, 2002; Pohl, K., 1996;

Alexander, I., 2003; Riebisch, M. and I. Philippow,

2001; Cleland-Huang, J., et al., 2014; Gotel, O., et

al., , 2012; Paige, F., et al., 2008; Mohan, K. and B.

Ramesh, 2002; Maletic, J. I., et al., 2003; Gotel, O.

and A. Finkelstein, 1995; Constantopoulos P., et al.,

1993; Pinheiro, F. A. C. and J. A. Goguen, 1996;

Kozlenkov, A. and A. Zisman, 2002); among these

papers, we found two papers that discuss trace links

classifications (Ramesh, B. and M. Jarke, 2011;

Spanoudakis, G. and A. Zisman, 2005). Spanoudakis

and Zisman classified requirement traceability links

into eight categories which include various link

types based on their support to certain software

activities such as analysis, validation, or supporting

stakeholders decisions. These links include the

following types:

 The dependency links which relate artifacts in

which the existence of one artifact relies on the

existence of the other. This type can be used to

relate requirements to each other, or

requirements and design elements (artifacts)

such as decision objects. Dependency relations

are one of the most widely used in RE and have

different uses and forms (Spanoudakis, G. and

A. Zisman, 2005). For instance, Xu and

Ramesh (Xu, P. and B. Ramesh, 2002) use

dependency relations in workflow management

systems between business process objects,

decision objects, and workflow system objects.

Dependency relations are used in product and

service families (Mohan, K. and B. Ramesh,

2002) to support the management of

variability, i.e., ensuring that the changed

artifacts reflect the intended system

functionality. Knethen and colleagues

(Knethen, 2002) suggested their use between

documentation entities such as requirements

and use cases, and logical entities such as

functions for fine grained impact analysis. Pohl

and Alexander (Pohl, K., 1996; Alexander, I.,

2003) use them to link requirement scenarios

and code, and Riebisch and Philippow (2001)

use them to support the design and

implementation of product lines. Other forms

of dependency links are suggested in the

literature. For instance, Spanoudakis and

colleagues (Spanoudakis, G., et al., 2004) refer

to them as requires-feature-in relations, as they

link parts of use case specifications to customer

requirements specifications. Also, they are

called causal conformance by Maletic et al.

(Maletic, J. I., et al., 2003) who use them to

link documents that represent an implied

ordering (e.g., bug reports cannot be produced

before implementation report). Gotel and

colleagues (Gotel, O. and A. Finkelstein, 1995)

referred to them as developmental relations

which are used to trace requirements to other

artifacts in another phase of the development

lifecycle. Finally, they are referred by

Constantopoulos et al. (1993) as

correspondence relations which link

requirements, design, and code artifacts.

 The evolutionary relations are used to link

requirements in which one requirement

replaces another. This category contains the

replace, based-on, formalize, and elaborate

trace links. Pinheiro (Pinheiro, F. A. C. and J.

A. Goguen, 1996) showed the use of replace

and abandon trace links during requirements

evolution. A requirement is replaced by

another if a mistake is discovered, the original

requirement will be abandoned. Gotel (Gotel,

O. and A. Finkelstein, 1995) called the

evolution relations temporal relations which

Employing Linked Data in Building a Trace Links Taxonomy

189

Table 1: Trace links classifications in RE, MDE, and SE.

Ref. Requirement Engineering Classifications

Ramesh, B.

and M. Jarke,

2011

Product- related Process –related

Evolution Rationale Dependency Satisfaction

Derive,

Elaborate,

Depend-on

Select,

Affect

Is-a, Part-of,

Contain, Used-

by, Performed-

Define, Allocate-to, Depend-on, Created-by, Verify, Generate

Spanoudakis,

G. and A.

Zisman, 2005

Dependency

Evolution

Generalize/

Refine

Satisfaction

Overlap

Conflict

Rationale

Contribution

Replace, Based-on,

Formalize, Elaborate

Based-on, Affect,

Resolve, Generate

Other RE References (using the same name or a different names)

Gotel, O. and

A. Finkelstein

1994

Spanoudakis,

G., et al.,

2004

Requires-

feature-in

Xu, P. and B.

Ramesh,

2002

X X

Pohl, K.,

1996

Alexander, I.,

2003

Riebisch, M.

and I.

Philippow,

2001

Maletic, J. I.,

et al., 2003

Causal-

dependency

conformance

Non-causal conformance

Pinheiro, F.

A. C. and J.

A. Goguen,

1996

Satisfy

Derive

Refine

Gotel, O. and

A. Finkelstein

1995

Developmental

Temporal

Containment

Adopt

Constanto-

poulos P.,

et al., 1996

Correspondence

Letelier, P.,

2002

Dick, J., 2002

Satisfy

Establish

Contribute

Knethen,

2002

Inconsistency

Filho, G. C.,

et al., 2003

ICSOFT 2017 - 12th International Conference on Software Technologies

190

Table 1: Trace links classifications in RE, MDE, and SE (cont.).

Ref. Model Driven Engineering Classifications

Paige, F.,

et al., 2008

Implicit Explicit

Model-to-model Model-to-artifact

Static Dynamic

Satisfy, Allocated-to, Explain, Perform,

Support

Consistent-with Dependency

Call, Notify,

Generate

Export, Usage,

Is-a, has-a, Part-

of, Import Refine

Systems Engineering Classifications

Mason, P.,

et al., 2003

Temporal Directional

Vertical Horizontal

Micro Macro Micro Macro

Inter

Intra

Inter

Intra

Inter

Intra

which refer to linking requirements in terms of

their historical order. Maleic and colleagues

(Maletic, J. I., et al., 2003) called the

evolution relations as non-causal conformance

relations to link documents which conform to

each other.

 The generalization/refinement relations show

how complex system components can be

divided into other artifacts, or how one artifact

can be refined by another. In Ramesh and

Jarke’s classification (Ramesh, B. and M.

Jarke, 2011) generalization/refinement is

considered a dependency abstraction link.

Gotel (Gotel, O. and A. Finkelstein, 1995)

refers to them as containment relations since

they are used to link composite artifacts and

their components.

 The satisfiability relations link artifacts that

are constrained by each other, e.g., a

requirement that complies with the conditions

of another requirement. This type is classified

as a product-related trace link to relate

requirements to design artifacts (Ramesh, B.

and M. Jarke, 2011). Satisfiability has sub-

types such as the establish (cardinality 1-1

between two artifacts) and contribute

(cardinality 1-m between artifacts) relations

(Dick, J., 2002). Pinheiro (1996) defined

satisfiability based on derivation, e.g., if a

requirement is satisfied then its derivation is

satisfied, and refinement, i.e., if a requirement

refines another requirement, then satisfying

the first requirement, implies satisfying the

second. between artifacts of common features

(e.g., linking a goal specification in an i*

model and a use case in a UML model) (Filho,

G. C., et al., 2003). Spanoudakis et al.,

(Spanoudakis, G., et al., 2004) use the overlap

relations in an analysis model between use

cases and classes. Gotel and Finkelstein

(1995) called them adopts relations; they are

used between artifacts in which a target

artifact embeds information of the source

artifact.

 The conflict relations link two artifacts that

have a conflict, such as two requirements that

are conflicting with each other (Ramesh, B.

and M. Jarke, 2011). Special types of conflict

relations such as based-on, affect, resolve, and

generate are used to provide conflicts

resolution between conflicting artifacts.

Kozlenkov and Zisman (2002) referred to

conflict relations as inconsistency relations.

For instance, inconsistency relations are

established when two similar goals in a

specification or different specifications cannot

be achieved.

 The rationalization relations link two artifacts

in which one of them captures the rationale

behind the creation or evolution of the other.

Letelier (2002) used this type to relate

rationale specification artifacts (e.g.,

decisions, assumptions) to software

specifications at different levels of granularity

(e.g., document or part of a document,

diagram, or a model). Rationalization relations

are used also to relate design rationales to

design artifacts (Xu, P. and B. Ramesh, 2002).

 The Contribution relations relate requirements

and their stakeholders (Gotel, O. and A.

Finkelstein, 1994), for instance to link

requirements to the stakeholders who

contributed them.

Another classification for trace links in RE is

introduced by Ramesh and Jarke (2011). Their

Employing Linked Data in Building a Trace Links Taxonomy

191

classification is based on a study about the use of

trace links by different organizations that involve

high-end and low-end users with respect to their

traceability practices. They classified traceability

links into two main categories: process-related and

product-related links. The process-related links can

be discovered by observing the history of operations

performed in a process. The product-related links

describe the relationships between artifacts

independent of their creation. Furthermore, the

authors identified sub-categories of these two main

categories. The process-related category is divided

further into evolution links and rationale links,

which we described earlier. On the other hand, the

product-related links are decomposed into two main

types: satisfaction links and dependency links, which

we described earlier. The authors deduced other

types of relations from the abovementioned

categories based on the use of low-end and high-end

users. For instance, with respect to low-end users’,

the original or derived requirements can be

allocated-to system components that interface-with

external systems. Also, requirements can be

developed-for compliance-verification-procedures

(e.g., test, simulation, and prototype). Compliance-

verification-procedures generate change proposal or

used-by resources. With respect to high-end users,

traceable artifacts (e.g., requirements, components,

designs) are based-on a rationale. Decisions

depends-on assumptions, or select or evaluate

alternatives. Also, decisions may affect

requirements, and arguments oppose or support

alternatives.

In MDE trace links are generated explicitly by

adding additional code into the transformation, or

implicitly through the transformation tool (Olsen, G.

K. and J. Oldevik, 2007). Paige and colleagues

(2008) classified MDE trace links into implicit and

explicit trace links. The implicit trace links are

classified based on query, transformation,

composition (merging), update, deletion and

creation, model-to-text, and sequences operations.

The explicit trace links are classified as model-to-

model links which relate MDE artifacts with each

other, and model-to-artifact which relate MDE

artifacts with non-MDE artifacts such as linking a

UML model to its requirement(s). The model-to-

model links are further classified into static and

dynamic links. A static link represents a relationship

that stays the same over time between models

elements such as consistent-with (e.g., two models

remain consistent with each other), and dependency

in which the structure and meaning of one model

depend on another model. This type is further

classified into the following trace links is-a (sub-

typing), has-a (e.g., references), part-of, import,

export, usage, and refinement. A dynamic link

represents a relationship that might evolve over

time. This category has several types of links such as

calls (e.g., a model calls the behaviors provided by

another), notifies (e.g., changed artifacts that need

intervention), and generates (e.g., links two models

where one model produces the other).

The model-to-artifact category contains the

satisfies trace link which indicate that an artifact

such as a requirement is satisfied by a model,

allocated-to which relates information in a non-

model artifact to a model that represents that

information, performs which relates a task to a

model that carries the task, explains and supports

trace links which are used when a model is

explained by a non-model artifact. In SE, Mason et

al. (2003) introduced a traceability taxonomy that

includes the directional and temporal traceability.

They extended the definitions of vertical and

horizontal traceability by introducing the terms

micro, macro, inter, and intra. Micro and macro

differentiate traceability within and across

decomposition levels. Intra and inter differentiate

traceability within and across system descriptions

(i.e., interactions between systems). For instance, the

inter-micro-horizontal traceability refers to the

ability to describe and navigate relationships across

system descriptions, within a decomposition level,

between development or assessment artifacts of the

same type. Temporal traceability represents the links

between synchronized artifacts, for instance, linking

an artifact and its subsequent revised one in a model

that based on an event. We summarize the trace

links classifications in Table 1.

As evidenced by the above discussion, existing

classifications of trace links have the following

drawbacks:

 Each classification is either problem specific

or domain specific.

 Classifications are inconsistent with respect to

their interpretations of link semantics. They

often refer to the same semantics with

different names. We conjecture this is a side

effect of the first drawback. For instance,

Spanoudakis and Zisman (2005) classified is-a

as an evolution link, while Paige and

colleagues (2008) classify it as dependency

link.

 Classifications are redundant, which we

conjecture is also a side effect of the first

drawback. For instance, the rationale trace

ICSOFT 2017 - 12th International Conference on Software Technologies

192

links appear in RE, MDE, and SE

classifications.

 Classifications don’t integrate all usages of a

trace link across different domains. In other

words, the purpose of a certain trace link does

not necessarily appear in all classifications to

be used in all domains.

 There is no tool support for these

classifications that would allow a user to

navigate or to query about certain links across

different domains.

4 TAXONOMY REQUIREMENTS

The abovementioned limitations encouraged us to

think about a new method for integrating all trace

links classifications into a taxonomy that would

provide the relationship between different trace

links. In the light of the previous discussion, the new

taxonomy shall have the following characteristics, or

taxonomy requirements (TRQ):

TRQ 1: the taxonomy shall provide semantic

specifications for trace links that relate various

artifact types in different domains and at different

levels of granularity.

TRQ 2: the taxonomy shall catch the need for

different types of users (e.g., analysts, designers,

programmers, testers), and therefore different

domains.

TRQ 3: the taxonomy shall allow the

specification of a trace link only once and relate it to

different domains without duplications.

TRQ 4: the taxonomy shall be flexible to allow

users to add new properties of trace links without

changing the existing structure of the taxonomy.

TRQ 5: the taxonomy shall be portable enough

to allow easy access for local users (i.e., connected

to a private network) or global users (i.e., connected

to the Internet). (This will facilitate tool integration.)

TRQ 6: the taxonomy shall have a universal

format that is not tailored to a specific environment

or application.

5 EMPLOYING THE RDF IN

BUILDING THE TAXONOMY

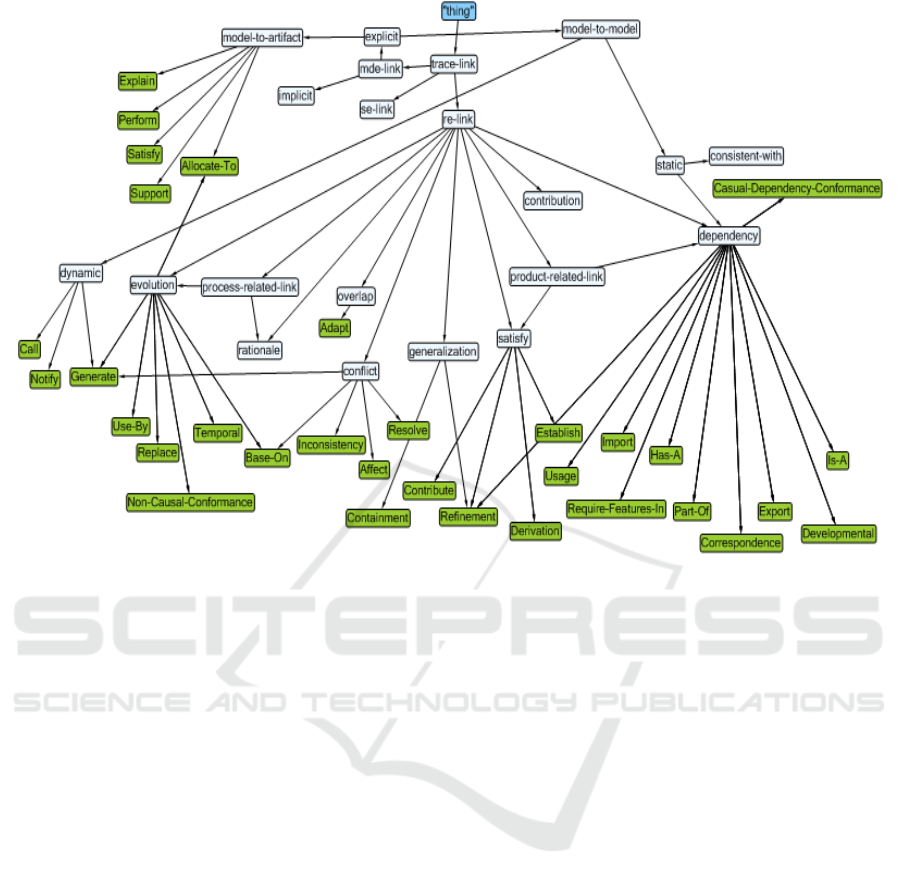

We propose a trace link taxonomy that integrates all

existing trace link classifications into a structure to

satisfy the requirements proposed in Section 0. The

taxonomy utilizes the OSLC and the RDF (W3C,

2016(a)) for relating all trace links. This idea is

borrowed from the semantic web technology in

which arbitrary data are linked in a flat structure

using the RDF, and referenced by the Uniform

Resource Identifier (URI). The proposed structure is

a non-hierarchical network of identifiable resources

that can be referenced or browsed using the URI. A

URI can reference any resource or element such as

documents, images, services, a UML diagram, or a

group of other resources by assigning it a unique

reference.

The RDF has three components: the subject

(resource), the predicate (property), and the object

(property value). The subject is the element that

needs to be described with an assigned unique

identifier, the predicate represents the characteristic

or feature of that element, and an object is the value

of that feature. The object in turns can be a subject

that has other properties, which form nested

subjects. RDF files are written using the RDF/XML

format which is a common format on the web.

The rationale for employing RDF in creating a

trace links taxonomy is manifold:

 The RDF eliminates trace links redundancy

among different domains, which means

resources can be described only once and

referenced as many times as we need.

 The RDF supports multiple inheritance in

situations in which a trace link is classified

under more than one category.

 The RDF data is portable, it can be

transformed into many formats such as XML,

HTML, and OWL.

 The RDF data can be visualized graphically as

a directed graph, an undirected graph, or a

tree.

 Using the RDF, the taxonomy can be built by

referencing trace links from local repositories

or external resources such as the Internet.

 The RDF provides the reusability of the same

data by different users, which adheres to the

principle of open linked data.

 The use of the non-hierarchical RDF structure

can provide an easy navigation; a user can

reference any trace link in the hierarchy

without having any knowledge about its

parent(s) or siblings.

• Using the RDF is a step toward

standardization and providing semantics for

trace links in Software Engineering and

Systems Engineering.

Employing Linked Data in Building a Trace Links Taxonomy

193

Figure 1: The trace links taxonomy (excerpt).

• The RDF data provides simplicity of access

since it is machine-readable data that can be

shared with others.

• Using the RDF, it is easy to reason (e.g., what,

who) about any trace link in the taxonomy.

• Using the RDF, it is easy to query a taxonomy

using query services such as SPARQL (W3C,

2016(c)); the query can be customized based

on a user’s needs.

6 TAXONOMY DESIGN AND

IMPLEMENTATION

There are two essential components that should exist

in order to build our trace links taxonomy: (a)

provide a set of controlled vocabulary (Metadata),

the controlled vocabulary is a collection of terms

that have well-defined descriptions across contexts,

and (b) identify the relationships between these

terms, which constitute the taxonomy. A taxonomy

or Ontology in a broader context is the knowledge

domain which is represented by the collection of

terms and the relationships between them. An

Ontology can be defined using the Web Ontology

Language (OWL) (W3C, 2016(b)) which is an

extension of RDF. Many organizations standardized

their controlled vocabulary and made it available

freely for use on the net such as the Friend of a

Friend (FOAF) (Miller, L. and D. Brickley, 2016)

which has standard vocabulary/Ontology for social

networks across the web, and the Description of a

Project (DOAP) ( Dumbill, E., 2016) for describing

open source software projects.

6.1 Taxonomy Design

Our design method relies on our systematic literature

review to collect all the terms that refer to trace links

types and process them according to the followings:

 Identify all articles that discuss trace links

classification in RE, MDE, and SE.

 Identify the terms that describe general types

of trace links. Usually, these are nouns or

adjectives that describe the relationship

between artifacts such as dependency,

evolution, and vertical.

 Identify all terms that describe the relationship

between specific types of artifacts. These

relationships are identified by the role name of

the association between artifacts. They are

usually represented as verbs such as perform,

generate, and depend-on.

ICSOFT 2017 - 12th International Conference on Software Technologies

194

Figure 2: Traceability Example: I* (excerpt) model (left), UML (excerpt) class diagram (right), traceability links (greyed

dashed lines) (Ramesh, B. and M. Jarke, , 2001).

 We consider the terms that represent general

types as classes, and the terms that represent

relationships between specific artifacts as

instances or leaves in our taxonomy. For

instance, evolution is a class that represents a

general type of a relationship; derive,

elaborate, and depend-on are instances of this

class.

 Provide a naming convention for the general

types and the relationships. We have done that

by screening all the conjugations that refer to

the same type or a relation and give it a unique

name. For instance, we considered the

evolution and evolutionary terms as identical

terms that refer to a general type (i.e., class),

we choose to call it evolution. Moreover, we

considered the terms perform, performs, and

performed as identical terms that refer to a

specific relationship (i.e., instance) and we

call it to perform.

 We also provide a set of properties for

instances. Each instance must have unique

values that differentiate it from other

instances. We limit the properties to include:

Id, name, usage, type, and definition, however,

other properties can be added. The name

represents the instance name, and the type

represents the Class name.

6.2 Taxonomy Implementation

We build the taxonomy by following the previous

steps and employing the RDF. We used the Fluent

editor application (Cognitum, 2015) for coding the

rules of the taxonomy. The editor provides features

for authoring complex ontologies that use controlled

English as a language for knowledge modeling. It

allows users to import and export the knowledge

model into different formats such as RDF, XML,

and OWL. In addition, it supports building and

visualizing ontologies as interactive diagrams or

trees. Finally, the application allows for integrating

ontologies with the R Language (R. Foundation,

2017), in which quantitative and qualitative analysis

can be performed.

The taxonomy provides a global view for all

trace links across the RE, MDE, and SE domains. It

shows the relationships between all trace links in

these domains. The diagram in Figure 1 depicts an

excerpt of the taxonomy, it shows partial

classification of the RE and MDE trace links; we

could not provide the complete taxonomy here since

it occupies a big space and it is very hard to

visualize all the trace links connections. On the top

centre of the diagram, we can see the root of all

elements in the taxonomy which is represented by

the word “thing” which in turn is connected to a

trace-link Class. A trace-link is a general type that

has three sub-types i.e., re-link, mde-link, and se-link

for the respective RE, MDE and SE domains.

Following the path of any type, we reach the leaves

which represent the links between artifacts. Each

trace link has a set of values, not shown, that define

its semantic.

We should mention that any trace link is defined

once in the taxonomy but it might belong to two or

more classes or domains. For instance, at the top left

corner of the diagram, the Allocate-to trace link

belongs to model-to-artifact and to evolution

categories. This design eliminates trace links

redundancy.

Employing Linked Data in Building a Trace Links Taxonomy

195

6.3 Taxonomy Validation

The taxonomy can be validated by (a) ensuring that

it satisfies the taxonomy requirements that we

proposed in section 0 in order to resolve the issues

about existing classifications, and (b) it can

accommodate any traceability problem.

Regarding part (a) we proposed the following

validation criteria in order to ensure that all

requirements can be met:

 TaxCr 1. Trace Links redundancy. This

criterion validates whether a trace link exists

more than once in the taxonomy. It should

only appear once.

 TaxCr 2. The capability of the taxonomy to

accommodate the classification of trace links

related to RE, MDE, and SE.

 TaxCr 3. Consistency. This Criterion validates

whether a trace link has only one definition.

This can be validated also by

 TaxCr 1.

 TaxCr 4. Extensibility and maintainability.

This criterion validates how easy a trace link

or a property can be added to the taxonomy

without changing the existing design.

 TaxCr 5. Tool Support. This criterion

validates whether the taxonomy data can be

saved, exported to other formats or

applications, or performing queries about it.

We found out that all requirements are

satisfied.

With respect to part (b), we validate the taxonomy

using the example stated in section 0 and depicted in

Figure 2. However, the validation will not be

complete since the purpose of the taxonomy is to be

configured with a traceability model, for instance

(Nasser Mustafa and Yvan Labiche, 2015). The links

between the instances of i* and UML-Class

metamodels can have different semantics based on

the type of the traced artifacts, consequently, the

trace links can have different classifications based

on the following scenarios:

1) Identify the instances (artifacts) in the two

metamodels that relate early-phase requirements

to late-phase requirements.

2) Identify the instances in the i* metamodel that

capture the (why) and relate them to the

corresponding instances in the UML-Class

metamodel.

3) Identify the instances of the two metamodels

that must have identical names.

4) Identify the instances of the i* metamodel that

must be mapped to Classes in the UML-Class

metamodel.

5) Identify the Tasks in the i* metamodel that must

have a correspondence method in the UML-

Class metamodel.

6) Identify the instances of the i* metamodel that

are satisfied by the instances of the UML-Class

metamodel.

We have shown in Table 2 some instances from both

metamodels. Based on the generated artifacts, we

have shown the trace link type as configured by our

taxonomy.

Table 2: Configuring trace links between instances of the

i* Actor and UML Class Metaclasses.

No i* artifacts

(source)

UML artifacts

(target)

Trace link

1 i* model UML-Class

model

re-link

2 Actor :Dispatcher Class: Dispatcher rationale

3 Actor: Customer Class: Customer Consistent-

with

4 Resource:

PickupLocation

Class:

PickupLocation

Consistent-

with

5 Task: BookCab Method:

bookCab

Realize

6 HardGoal:

PeopleWithDisab

ility

Attribute:

Disability

Satisfy

7 CONCLUSION AND FUTURE

WORK

We have proposed a trace link taxonomy that can be

used as part of a traceability framework to capture

traceability information among artifacts. The

taxonomy is built be linking local and external

resources (taxonomy elements) to form a flat

hierarchical structure. We implemented the

taxonomy using the RDF technique, which allows

for referencing elements using their URI. This

technique provides many advantages over other

classical techniques such as relational or hierarchical

structures. It offers interoperability and portability of

data among different platforms. Moreover, data are

readable by human and machines as well, and it can

be transformed into several textual and graphical

formats.

As a future work, this taxonomy can be extended

by adding more trace link properties and trace links

types, though we believe that thanks to our

ICSOFT 2017 - 12th International Conference on Software Technologies

196

systematic literature review, we likely have collected

and integrated most of that information. Researchers

in software engineering and traceability are invited

to build upon this taxonomy. Trace links data then

can be filtered and edited. We believe this taxonomy

can be used as a base for standardizing trace links

semantics. Future work should, of course, consider

using our taxonomy so increase our confidence that

it addresses needs as planned.

REFERENCES

Ramesh, B. and M. Jarke, Toward Reference Models for

Requirements Traceability. IEEE Trans. Softw. Eng.,

2011. 27(1): p. 58-93.

Spanoudakis, G. and A. Zisman, Software Traceability:

A road map, in Handbook of Software Engineering

and Knowledge Engineering, S.K. Chang, Editor.

2005. p. 395-428.

Gotel, O. and A. Finkelstein. An Analysis of the

Requirements Traceability Problem. in 1st

International Conference on Requirements

Engineering. 1994. Utrecht, The Netherlands.

Spanoudakis, G., et al., Rule-Based Generation of

Requirements Traceability Relations Systems and

Software, 2004. 72(2): p. 105-127.

Xu, P. and B. Ramesh, Supporting Workflow Management

Systems with traceability. in 35th Annual Hawaii

International Conference on System Sciences. 2002.

Hawaii: IEEE.

Pohl, K. PRO-ART: Enabling Requirements Pre-

Traceability. in 2nd IEEE International. Conference

on Requirements Engineering 1996: IEEE Computer

Society.

Alexander, I., Semi Automatic Tracing of Requirement

Versions to Use Cases – Experience and Challenges.

in 2nd International Workshop on Traceability in

Emerging Forms of Software Engineering 2003.

Canada.

Nasser Mustafa, Yvan Labiche, “The Need for

Traceability in Heterogeneous Systems: A systematic

literature review”. (Accepted), IEEE COMPSAC,

Italy, 2017.

Riebisch, M. and I. Philippow, Evolution of Product Lines

Using Traceability. in Workshop on Engineering

Complex Object-Oriented Systems for Evolution.

2001. Florida.

Nasser Mustafa, Yvan Labiche, “Modeling Traceability

for Heterogeneous Systems”, ICSOFT. 10

international joint conference on Software

Technologies. Colmar, Alsace, France, 2015.

Mason, P., et al., Meta-Modelling Approach to

Traceability for Avionics: A Framework for Managing

the Engineering of Computer Based Aerospace

Systems. in 10th IEEE International Conference on

Engineering of Computer-Based Systems 2003.

Huntsville, AL, USA: IEEE.

IEEE, IEEE Standard Glossary of Software Engineering

Terminology, in IEEE Standard Glossary of Software

Engineering Terminology, I.s. board, Editor. 1990:

New York.

Cleland-Huang, J., O. Gotel, and A. Zisman, eds. Software

and Systems Traceability. ed. Z. A. 2014, Springer.

Gotel, O., et al., Traceability Fundamentals. Software and

Systems Traceability 2012.

Ramesh, B. and M. Edwards, Issues in the Development of

a Requirements Traceability Model. in IEEE

International Symposium on Requirements

Engineering. 1993.

Aizenbud-Reshef, N., et al., Model traceability. IBM

Systems Journal - Model-driven software

development, 2006. 45(3): p. 515-526.

Nasser Mustafa, Yvan Labiche, “Towards Traceability

Modeling for the Engineering of Heterogeneous

Systems”, Model-Driven Engineering and Software

Development (MODELSWARD), France, 2015.

Paige, F., et al., Building Model-Driven Engineering

Traceability Classifications. in European Conference

on Model Driven Architecture - Traceability

Workshop 2008. Berlin, Germany.

Mohan, K. and B. Ramesh, Managing Variability with

Traceability in Product and Service Families. in 35th

Annual Hawaii International Conference on System

Sciences 2002. Hawaii: IEEE.

Maletic, J. I., et al. Using a Hypertext Model for

Traceability Link Conformance Analysis in 2nd

International Workshop on Traceability for Emerging

Forms of Software Engineering 2003. Canada.

Gotel, O. and A. Finkelstein, Contribution Structures. in

2nd International Symposium on Requirements

Engineering. 1995: IEEE.

Constantopoulos P, J. M., Mylopoulos Y., Vassiliou Y., "

The Software Information Base: A Server for Reuse.

The International Journal on Very Large Data Bases,

1993. 4(1): p. 1-43.

Pinheiro, F. A. C. and J. A. Goguen, An Object-Oriented

Tool for Tracing Requirements. IEEE Software 1996.

13(2): p. 52-64.

Grammel, B., Automatic Generation of Trace Links in

Model-driven Software Development, in Fakultät

Informatik. 2014, Technische Universität Dresden.

Olsen, G. K. and J. Oldevik, Scenarios of Traceability in

Model to Text Transformations. in 3rd European

conference on Model driven architecture-foundations

and applications. 2007. Haifa-Israel: Springer-Verlag.

Paige, R. F., et al., Rigorous identification and encoding of

trace-links in model-driven engineering. Software &

Systems Modeling, 2011. 10(4): p. 469-487.

Letelier, P., A Framework for Requirements Traceability

in UML-based Projects. in 1st Intl. Workshop on

Traceability in Emerging Forms of Softw. Eng. 2002.

Dick, J., Rich Traceability in 1st International Workshop

on Traceability for Emerging forms of Software

Engineering 2002.

Lucia, A. D., F. Fasano, and R. Oliveto, Recovering

Traceability Links in Software Artifact Management

Systems using Information Retrieval Methods. ACM

Employing Linked Data in Building a Trace Links Taxonomy

197

Transactions on Software Engineering and

Methodology, 2007. 16(4).

Rummler, A., B. Grammel, and C. Pohl, Improving

Traceability in Model-Driven Development of

Business Applications in European Conference on

Model Driven Architecture - Traceability Workshop

2007.

OMG, O.M.G. Open Services for Lifecycle Collaboration.

2017 [cited 2017 Feb 20]; Available from:

https://open-services.net/.

W3C, Resource Description Framework. 2016 (a)

[cited 2016 Oct 15]; Available from:

https://www.w3.org/RDF/.

Knethen, A.v. Automatic Change Support Based on a

Trace Model. in 1st International Workshop on

Traceability in Emerging Forms of Software

Engineering . 2002. Edinburgh.

Filho, G. C., A. Zisman, and G. Spanoudakis,

Traceability approach for i* and UML models. in

International Workshop on Software Engineering for

Large-Scale Multi-Agent Systems. 2003. Portland.

LindVall, M. and K. Sandahl, Practical Implications of

Traceability. Software Practice & Experience, 1996.

26(10): p. 1161-1180.

Kozlenkov, A. and A. Zisman, Are their Design

Specifications Consistent with our Requirements? in

IEEE Joint International Conference on Requirements

Engineering. 2002: IEEE.

W3C, Web Ontology Language. 2016 (b) [cited 2016 Nov

3rd]; Available from: https://www.w3.org/TR/owl-

features/.

W3C, SPARQL Query Language for RDF. 2016 (c) [cited

2016 Nov 3rd]; Available from: https://www.w3.org/

2001/sw/DataAccess/rq23/.

Miller, L. and D. Brickley, FOAF. 2016 [cited 2016 Nov

3rd ]; Available from: http://www.foaf-project.org/.

Dumbill, E., Description of a Project. 2016 [cited 2016

Nov 3rd]; Available from: http://lov.okfn.org/dataset/

lov/vocabs/doap.

Cognitum, Fluent Editor 2015. 2017 [cited 2017 Feb 2];

Available from: http://www.cognitum.eu/semantics

FluentEditor/.

R. Foundation, The R project for statistical computing.

2017 [cited 2017 Feb 2]; Available from:

https://www.r-project.org/.

ICSOFT 2017 - 12th International Conference on Software Technologies

198
