Analyzing and Validating Virtual Network Requests

Jorge López

, Natalia Kushik

, Nina Yevtushenko

and Djamal Zeghlache

SAMOVAR, CNRS, Télécom SudParis, Université Paris-Saclay, 9 rue Charles Fourier 91011 Évry, France

Department of Information Technologies, Tomsk State University, Lenin str. 36, Tomsk, Russia

Keywords: Network Virtualization Platforms, Validation, User Request Analysis, Scalable Representations.

Abstract: In this paper, we address platforms developed to provide and configure virtual networks according to user’s

request and needs. User requests are, however, not always accurate and can contain a number of

inconsistencies. The requests need to be thoroughly analyzed and verified before being applied to such

platforms. We consequently identify some important properties for the verification and classify them into

three groups: a) functional or logic issues, b) resource allocation/dependency issues, and c) security issues.

For each group, we propose an effective way to check the request consistency. The issues of the first group

are checked with the use of scalable Boolean matrix operations. The properties of the second group can be

verified through the use of an appropriate system of logic implications. When checking the issues of the third

group, the corresponding string analysis can be utilized. All the techniques discussed in the paper are followed

by a number of illustrating examples.

1 INTRODUCTION

Virtual networks are growing in usage and popularity

along with the progress being achieved in the area of

communication technologies. At the same time,

virtual networks represent one of the main concepts

of the future generation networks, such as 5G (ETSI,

2013). Therefore, the software and hardware

components of such systems need to be thoroughly

tested and verified.

Virtualization mechanisms open up the

possibilities to provide any types of networks ‘on-

demand’. Network services and their service chains

can thus be provided to users according to their

preferences. Users request (virtual) networks with

specific nodes and service function chains from

service providers that host the desired virtual

network. One of the platforms for providing such

network services was developed in our previous

works (Mechtri et al., 2016). This platform is a

service function chain orchestrator capable of

provisioning, hosting resources, deploying and

instantiating the user’s requested service chains (and

virtual network).

As the requests for providing network services are

written by users (or tenants), they can contain

inconsistencies as well as semantic errors. In the

platform selected for this study, the requests are

expressed in the Topology and Orchestration

Specification for Cloud Applications (TOSCA)

language (Palma et al., 2016). In a well formatted

TOSCA request (correct syntax, i.e., parsed

successfully), a number of semantic inconsistencies

can be present. If an inconsistent user request (a

virtual network) that for example, contains

contradicting declarations, is deployed in the

platform, unexpected or undesirable results might

occur. Different constraints might be violated, such as

for example service level agreements. As the

consistency of the system is compromised by such

requests, in one way or another the request is not

properly implemented or it can even threaten the

security and safety of the whole system. This is the

reason why tenant requests should be carefully

verified prior to their implementation.

We note that some of the requests can contain

specific dependencies between the parameters of the

virtual machines being requested and the tasks

(services) assigned for these machines together with

the order of their execution (invocation).

In this paper, we discuss how the consistency of a

user request can be checked before the platform

executes such a request. In this paper, we identify

three possible groups issues, which can occur in the

requests, i.e., functional or logic issues, resource

allocation/dependency issues, and security issues. For

López, J., Kushik, N., Yevtushenko, N. and Zeghlache, D.

Analyzing and Validating Virtual Network Requests.

DOI: 10.5220/0006472304410446

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 441-446

ISBN: 978-989-758-262-2

441

the first two groups, we propose the validation

techniques based on effective Boolean operations.

The third group concerns security issues in user

requests and it covers on one hand, the appropriate

access control and on the other, potential attacks of

the platform. The first problem can be solved through

the usage of the security/access control mechanisms

for example (Idrees et al., 2015), while the second

needs to be considered separately, starting from

classical SQL injections and finishing with specific

attacks for network virtualization platforms.

Similar work was performed for checking the

requests using cloud environments (Huang et al.,

2015). However, some of the properties that we have

identified cannot be expressed with their

configuration predicate language; this partially

motivates the current work presented in this paper.

Our main contributions are the identification of

the properties to validate, the design and method for

integration of a new module into the platform for

network services, namely, a user-request-validator

for checking logical, resource allocation/dependency

and security related request inconsistencies.

We note that since the proposed techniques are

generic, platform providers can always add other

properties apart from those considered in the paper.

Methods and techniques for each group are

demonstrated using the user requests written in

TOSCA language as it is done for the platform

developed and utilized as our case study.

The structure of the paper is as follows. Section 2

has a brief description of the user requests and it also

enumerates their potential inconsistencies. Section 3

describes the techniques for the request validation,

while Section 4 concludes the paper.

2 ANALYSIS OF ISSUES IN

VIRTUAL NETWORK

REQUESTS

A tenant request is a structured string, which belongs

to the TOSCA language. According to the platform

description (Mechtri et al., 2016), each user request

can be parsed into three main parts.

One part is concerned about the virtual resources

from the virtual devices according to available

capacities, ports and other parameters while another

part of the request contains a so-called network

connectivity topology (network connectivity graph).

In this graph, Virtual Network Function (VNF) pairs

are connected according to the desired topology of

neighboring nodes (Fig. 1a). In the third part of the

request, Service Function Chains (SFCs) define a

sequence (or sequences) of service functions (or

VNFs), which are applied to packets or a sequence of

packets and should be implemented using the

connections of the connectivity graph.

A service function chain defines a (partial) order

relation (Nadeau and Quinn, 2015) over a subset of

the nodes of the network connectivity graph.

Typically, this order relation is given in a graphical

form, for example, as depicted in Figure 1b.

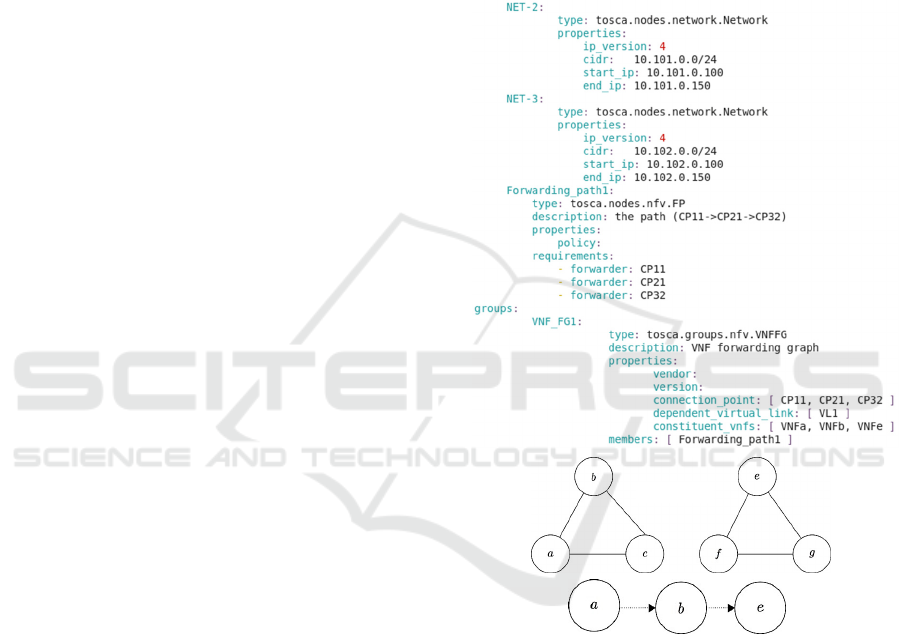

Figure 1: Network connectivity topology graph and

network function chain without underlying connectivity.

2.1 Analysis of Properties and Issues

As mentioned above, the network virtualization

platform processes virtual network requests

expressed by users (or tenants). Based on a

vulnerability assessment performed against our

network virtualization platform, we have identified

three possible groups of inconsistencies, which can

occur in the requests: a) functional or logic issues, b)

resource/dependency issues, and c) security issues.

A. Functional / Logic Related Inconsistencies

Functional or logic related issues arise as the result of

misconfigurations. Below we expose some of these

ICSOFT 2017 - 12th International Conference on Software Technologies

442

issues and the corresponding configuration properties

that should hold.

A1. A Chain must not have Loops. A service

chain as defined in Section 2 is a partial order, and

thus, no loops are allowed in the chain. However, a

request compliant with the TOSCA’s syntax might

contain such issues. Consider the following snippet of

code and its corresponding chain representation:

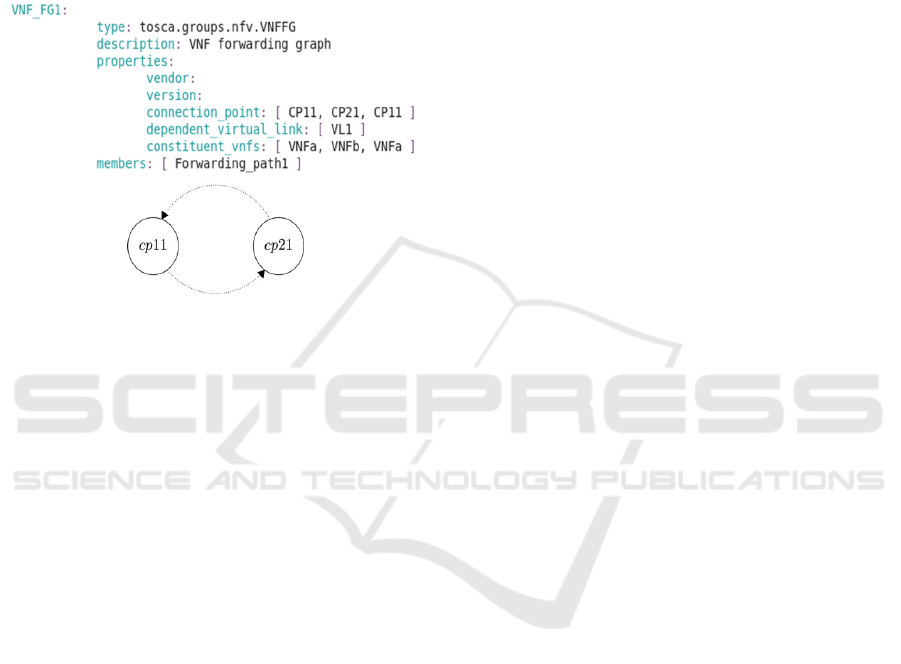

Figure 2: Network function chain with a loop.

As can be seen the chain is formed with a loop.

The behavior of the service function chain with a loop

might be risky, it can potentially flood the virtual

network by infinitely sending the network packets

back and forth from / to the different VNFs at the

different connection points (CPs).

A2. A Chain can only be implemented if the

undelaying connectivity Graph allows it. A service

function chain forwards network packets to the

respective service functions at each connection point.

However, it cannot be possible if the connections

points are not logically connected. Consider the

snippet of TOSCA code and corresponding network

connectivity graph and service function chain

described in the Fig. 1.

The service function chain logically connects

packets coming from a node at the network called

‘NET-2’ to a node at the network called ‘NET-3’. The

problem is that forwarding traffic from one to the

other violates the virtual network isolation. If the

traffic is not forwarded, then the chain is not

respected.

A3. Some Chains must have a

“Complementary” reverse Chain. The majority of

communication protocols rely on some form of

bilateral communication, even if just for

acknowledging the reception of data. For that reason,

having a reverse chain for each chain at least from the

‘last’ to the ‘first’ connectivity point might be

desirable. In the previous two examples, none of the

chains depicts a reverse chain. These declarations

might be candidates to trigger warnings. Considering

the case in Fig. 1, if two chains CP11→CP21 and

CP21→CP11 are implemented, this request is

considered as valid.

B. Resource / Dependency Issues

Network service functions are implemented as

running software which has resource requirements.

Moreover, each service function runs on a

computational device, and the service intrinsically

impose restrictions on the devices executing it.

B1. Restrictions on the VNF Neighboring

Connections. Certain VNFs might require specific

configurations. For example, if a VNF is of the type

‘HTTP Cache’ it is necessary that such VNF is

connected to an ‘HTTP Server’ VNF. The reason is

that any HTTP cache needs an origin HTTP server

from which it takes the data to cache. Furthermore,

they must be connected through a service function

chain.

B2. Restrictions on the Resources used by

VNFs. A VNF might be known to be resource

intensive. As an example, consider a deep packet

inspection (DPI). The corresponding VNF requires

fast processing of the data packets if the DPI is

performed on-line. Therefore, the associated Virtual

Machine (VM) needs to have an appropriate number

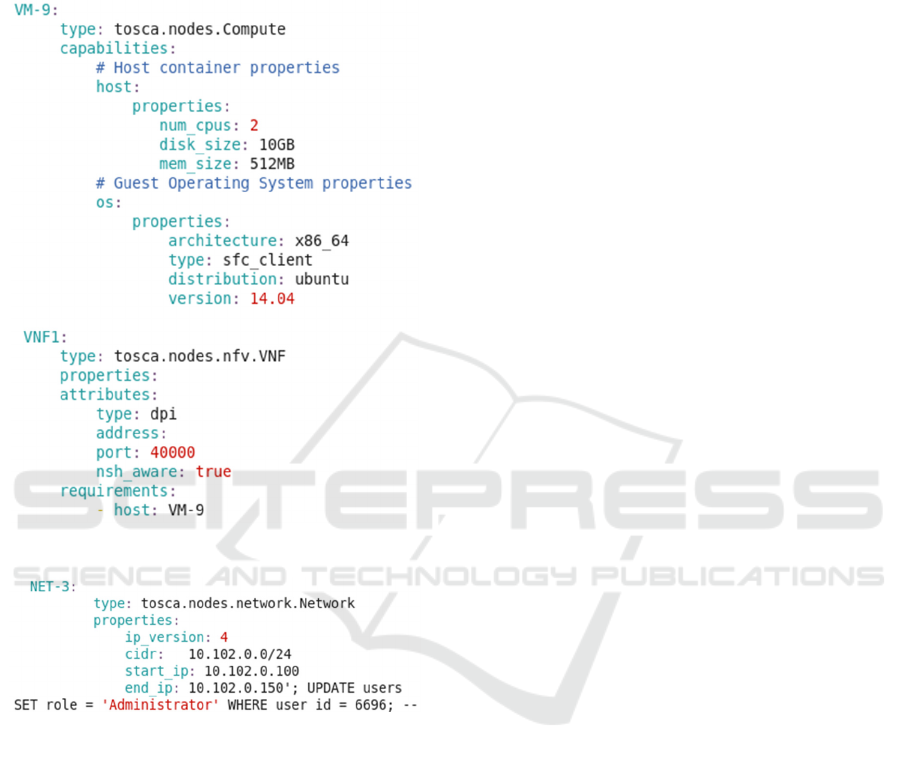

of CPUs, for example least 4 CPUs. Fig. 3 depicts an

invalid configuration for the DPI VNF.

B3. Resource Capacity Dependencies.

Dependencies across different properties of the

(TOSCA) nodes might be implied. For instance, the

outbound bandwidth of a node in a SFC must be less

or equal than the inbound node which follows it.

Another interesting issue is the node resource

interdependency, i.e., the dependencies that each

node imposes according to a specific declared

resource. For example, consider a VNF which is CPU

intensive with enough CPU capacity. However, if the

inbound bandwidth is very high the possessed CPU is

not sufficient. There exist a large number of resource

implications inside a user specification. However,

due to space constraints in this publication, we list a

few of them, and omit several others, which might be

more trivial. For example, the implications of a

unique resource assignation as a port or an IP address.

C. Security Related Issues

As any application that processes complex user

requests, the virtualization platform might be

potentially vulnerable to certain inputs. In the

following, we analyze some possibilities.

C1. Code Injection Issues. As the request is

passed via a text format, the platform might use

Analyzing and Validating Virtual Network Requests

443

certain values found in the original text of the request

to process the request itself. For example, it could use

the value found in the IP address range for setting

some value(s) in the database. In Fig. 4, we illustrate

an SQL injection attack in the request.

Figure 3: Invalid configuration of the DPI VNF.

Figure 4: SQLi attack on TOSCA specification.

Other types of attacks are possible as well. For

instance, an attacker might inject a cross-site scripting

code to steal the cookies of the platform administrator

in order to obtain super user privileges. Given the fact

that the platform might use open source software,

verifying the absence of such attacks in the requests

is crucial.

C2. Denial of Service (DoS) Issues. Generally

speaking, any platform which is open for requests is

susceptible to DoS attacks. Not considering all the

network DoS or delayed data sending DoS, which are

assumed to be handled by other system components,

there exist certain types of DoS attacks, for which a

processed request might be used. For that reason, we

mind their implications. In fact, a sequence of

requests which are similar in a short period of time

might prevent the whole system to execute any

further actions. Furthermore, the requests can also be

not valid, or partially non-valid.

3 REQUEST VALIDATION

Different mathematical models can be applied for

verifying the request consistency. For checking the

properties of type A, we use Boolean matrices for the

graph representation and operators over them. A

network connectivity topology is an undirected graph

G = (V, E) where the set V = {VNF

, …, VNF

} of

nodes represents network devices while edges of the

graph (the set E) are pairs (VNF

, NNF

), VNF

VNF

∈ V; edges represent connections between two

nodes. As mentioned above, in virtual networks a

chain is considered as a (partial) order (Fig. 1b). A

Service Function Chain (SFC) defines a strict

(partial) order relation on the set of service functions

(or VNFs); this relation can be represented as a list of

corresponding VNF pairs or as a directed graph.

Given an SFC over the set V of VNFs, VNF

is a direct

successor of VNF

j-1

if the relation has a pair (VNF

j-1

VNF

), written VNF

j-1

→ VNF

, while VNF

is a

successor of VNF

, written VNF

↦ VNF

, if the order

relation has pairs VNF

→

VNF

t + 1

→ … → VNF

. An

SFC is an acyclic directed graph and thus, Boolean

adjacency matrices can be used for representing the

network connectivity graph as well as the set of SFCs.

If the matrix G represents a directed or an undirected

graph then the matrix G

i.e., the product of n

matrices G, represents the set of nodes which are

connected via a path of length n.

Checking the A1 Property. To check that a

given set of VNF pairs is a partial order, i.e., an SFC,

the relation is represented by a Boolean matrix F of a

corresponding directed graph and then the problem

reduces to checking if the graph has no cycles. The

matrix F

is derived up to appropriate n. Once some

diagonal item of F

becomes non-zero, the graph is

not acyclic. Otherwise, the given set represents a

partial order relation.

As an example, consider the request in Fig. 1 and

a corresponding Boolean matrix F = 

. The

matrix F

=

and 



=1, i.e., the requested

SFC is not a partial order.

Checking the A2 Property. If the network

connectivity graph and a requested SFC are

represented as Boolean matrices G and F

correspondingly, then it is enough to check that each

ICSOFT 2017 - 12th International Conference on Software Technologies

444

row of F is contained in the corresponding row of G.

If the SFC is represented as a list of pairs then it is

enough to check that for each pair VNF

→ VNF

When reachability problems for the connectivity

graph G are investigated it is natural to consider the

Boolean matrix F while representing a chain as an

adjacency list. Then for each pair VNF

→ VNF

of the

chain where we check whether the (i, j) cell of G

equals 1. If not then the chain cannot be implemented

by the connectivity graph G.

Checking the A3 Property. As mentioned

above, each VNF must respect possible predecessors

and successors and such example is given when

describing the A3 property. If the list of direct

successors is given as a list of pairs then it is enough

to check that no SFC contains such pairs. If any

successors are considered then it is better to represent

an SFC as a Boolean matrix F and check whether a

‘forbidden’ pair induces ‘1’ at the corresponding cell

of the matrix F

For checking the properties of type B, we use

systems of logical implications which can be

represented as a CNF that is the product of disjunctive

clauses. Given a request, if CNF is not equal to ‘1’

then the well-known SAT problem can be used for

verifying an inconsistent request.

Checking the B1 Property. The property of SFC

to have a reverse chain can be described by a logical

implication that can be later converted to a CNF. For

example, if there is an SFC α = VNF

→ VNF

→

VNF

for which there should exist a reverse chain

such that VNF

↦VNF

then there are logic

expressions for the following

implication: 

(





→



)

∧

(





→





)



(





↦



)

. The above

expression can be represented by the

following CNF:

(





→



)



∨

(





→



)



∨(



↦



) (a).

If the CNF is not equal to ‘1” then there is no chain

such that (VNF

↦ VNF

Checking the B2 Property. The property states

that certain VNFs might have resource limitations.

Assume that the example shown in Fig. 3 applies for

VNFs of the ‘dpi’ and ‘fw’ types (as the FW type of

VNF is also resource consuming), then the associated

logic expression (implication) is the

following:

(





.=""

)

∨

(





.=""

)





.≥4.

The above expression can be represented by the

following CNF:





.="")



∨

(





.≥4

)

∧





.="")



∨

(





.≥4

)

 (b).

Checking the B3 Property. There are two

examples stated for property B3. The first example

states that in an SFC, the outbound bandwidth of a

given VNF should be less or equal than the inbound

bandwidth of the subsequent VNF. This property can

be described by the following

implication: 



→







.≥





..

The above expression can be represented by the

following CNF: 



→







∨(



.≥





.) (c).

The second example for B3 states that certain

characteristics of the virtual machines are inter-

dependent. For example, the CPU depends on the

inbound bandwidth. For the scope of this paper, we

assume the dependency is linear and the lower bound

on the minimal demanding bandwidth is a constant.

However, thorough investigation of this correlation is

necessary. Assume that the lower bound is 100MB/s.

In this case, the associated logical implication can be

described by the following implication:



(





. ≥ 100/

)





.>2∗





..

The above expression can be represented by the

following CNF:

(





. ≥ 100/

)



∨

(



.>2∗



.) (d).

In this paper, we do not discuss trivial

inconsistencies of a tenant, e.g., inconsistent

requested capacities (for example, requested memory

exceeds the maximal physical limits), etc. All such

inconsistencies can be checked simply enough using

arithmetic rules (mostly inequalities) such as





.≤_.

There can be more examples of logic implications

when consistency rules are extended for applied

requests. However, as it can be seen there is a system

of logic implications which can be written as a CNF.

This CNF is in fact the conjunction of all previously

depicted CNFs, i.e., ∧∧∧.

According to the CNF, a request is resource

consistent if the CNF result equals to ‘1’. Using CNFs

opens more possibilities. For example, if the CNF

equals 0 for a given request we could solve a

corresponding SAT problem in order to find a

solution that is the closest to the request data.

For checking properties of the C group, we

propose the use of different methods, which are

known to be good for detecting the corresponding

security threats.

Checking the C1 Property. In order to check that

the request is safe with respect to code injection

attacks, different approaches have been proposed.

Nonetheless, among all these methods, anomaly

Analyzing and Validating Virtual Network Requests

445

detection using supervised machine learning

techniques have proven to be highly

effective (Watson et al., 2016). For example, a

training set with negative labels for strings containing

ill-formatted strings could report a SQL injection as

an invalid request. Another possibility is to avoid the

verification and directly transform the input into a

‘safe’ one through the string analysis. In this case, the

request can be sanitized in order to be consistent

(Alkhalaf, 2014).

Checking the C2 Property. In order to avoid the

DoS attacks, many approaches have been proposed as

well (Zargar et al., 2013). Depending on the type of

an application that processes the request, different

approaches have been proven to be effective. In our

studies, the majority of virtualization platform

orchestrators are implemented in any form of a web

service or web application. For that reason, such

platforms are susceptible to a number of DoS

including the attacks that exploit slow

request/response or fragmentation attacks. One

possibility to avoid these threats is to make use of

anomaly detection methods applied to the users’

behavior.

We note that the properties of types A-C

described above form just a small subset of the issues

that can appear in user requests. However, the

scalable solutions discussed above can be applied to

other types of inconsistencies.

4 CONCLUSIONS

In this paper, we addressed the problem of the

verification and validation of user requests for

systems providing network services.

We discussed the possibilities of checking three

types of request issues, namely functional/logical

issues, resource allocation or parameter dependency

issues, and finally security issues. We also proposed

a number of scalable techniques for solving the

problems listed above and illustrated these techniques

by a number of examples of user requests.

As for the future work, we first plan to implement

the proposed request-validator solution and then

perform experimental evaluation in order to prove its

effectiveness. As one of existing platforms providing

virtual networks and service function chains has been

developed in our previous works, we plan to use it as

a case study.

Finally, we plan to study other non-functional

issues that can be added to the verification/validation

process of the user request.

ACKNOWLEDGEMENTS

The results in this work were partially funded by the

Celtic-Plus European project SENDATE, ID

C2015/3-1; French National project CARP (FUI 19);

Bilateral contracts with Orange Labs; Russian

Science Foundation (RSF), project № 16-49-03012.

REFERENCES

European Telecommunications Standards Institute (ETSI),

2013. Network Functions Virtualisation (NFV); Use

Cases, NFV-MAN V1.1.1, ETSI Standard.

Mechtri, M., Benyahia, I. G., Zeghlache, D., 2016. Agile

service manager for 5G, in the proceedings of the

IEEE/IFIP Network Operations and Management

Symposium (NOMS), Istanbul, Turkey, pp. 1285-1290.

Nadeau, T., Quinn, P., 2015. Problem Statement for Service

Function Chaining, Internet Engineering Task Force

(IETF) Request for Comments (RFC) 7498.

Palma, D., Rutkowski, M., Spatzier, T, 2016. TOSCA

Simple Profile in YAML Version 1.0. OASIS

Committee Specification 01.

Huang, P., Bolosky, W. J., Singh, A., Zhou, Y., 2015.

ConfValley: a systematic configuration validation

framework for cloud services, in the proceedings of the

Tenth European Conference on Computer Systems

(EuroSys '15). New York, USA, pp. 19:1-19:16.

Watson, M. R., Shirazi, N.-u.-h., Marnerides, A. K.,

Mauthe, A., Hutchison, D., 2016. Malware Detection in

Cloud Computing Infrastructures, IEEE Transactions

on Dependable and Secure Computing, vol. 13, no. 2,

pp. 192–205.

Zargar, S. T., Joshi, J. Tipper, D., 2013. A Survey of

Defense Mechanisms Against Distributed Denial of

Service (DDoS) Flooding Attacks, IEEE

Communications Surveys & Tutorials, vol. 15, no. 4,

pp. 2046-2069.

Idrees, M. S., Ayed, S., Cuppens-Boulahia, N. and

Cuppens, F., 2015. Dynamic Security Policies

Enforcement and Adaptation Using Aspects, in the

preceedings of the IEEE Trustcom/BigDataSE/ISPA,

pp. 1374-1379.

Alkhalaf, M. A., 2014. Automatic Detection and Repair of

Input Validation and Sanitization Bugs. PhD thesis,

University of California, Santa Barbara.

ICSOFT 2017 - 12th International Conference on Software Technologies

446
