The Ability of Cloud Computing Performance Benchmarks to

Measure Dependability

Eduardo Carvalho

, Raul Barbosa

and Jorge Bernardino

1,2

ISEC, Polytechnic of Coimbra, Rua Pedro Nunes, Coimbra, Portugal

CISUC - Centre for Informatics and Systems of the University of Coimbra, Coimbra, Portugal

Keywords: Cloud Benchmarking, Dependability, Fault Tolerance, Cloud Computing.

Abstract: Current benchmarks focus on evaluating performance with little efforts made to evaluate the dependability

characteristics of the cloud. Cloud computing has several advantages like scalability, elasticity and cost

reduction, this led companies to move their applications to the cloud. The availability of applications and

consequently businesses are then dependant on the cloud’s efforts to keep its services running. To guarantee

reliability and trust, benchmarking dependability is a challenging task because of the cloud layered model

which makes it difficult to predict the root of faults as higher layers are dependant of lower layers. By

integrating dependability in benchmarks as a metric, we can evaluate how well does the cloud handle itself

when faults occur, prevent those faults and check not only raw performance but also trust. In this paper, we

study the following cloud benchmarks: Spec IaaS 2016, TPCx-V, YCSB, Perfkit Benchmarker,

CloudBench, DS-Bench/D-Cloud, and evaluate if they are suitable for benchmarking dependability.

1 INTRODUCTION

Cloud computing offers on-demand dynamically

scalable resources such as computing, storage and

networking (Vazquez et al., 2014). These resources

come as a service to the user and are priced per

usage. The reduction in cost combined with the

cloud’s “infinite resources” illusion, made this

paradigm very appellative to companies who wanted

to grow fast without the risk of investing in

superfluous resources. Benchmarking these systems

to compare the services that providers offered

became mandatory, before choosing what service to

acquire and what provider presented the best

solution. In the last years, emerged cloud

benchmarks that envisaged the cloud as a paid

service and benchmarked more than database

performance (Abramova et al., 2014) (Neves et al.,

2016). The new generations of cloud benchmarks

tend to evaluate the characteristics of the cloud not

only separately but also as a cooperative scheme

because they affect each other (Neves and

Bernardino, 2015) (Oppenheimer et al., 2002).

Cloud computing is complex and large-scale,

which makes it hard to benchmark and prone to

faults. When managing these systems, faults are easy

to occur which may lead to errors and consequently

unpredicted failures (Guan et al., 2012). A failure

makes services unable to accomplish their function,

since these services are being contracted, this can

lead to loss of money and consumers trust.

Dependability is then an important aspect of the

cloud and crucial for building reliable cloud

services. Providers are focused on availability and

performance so the existing benchmarks mainly

evaluate those characteristics. Dependability is hard

to benchmark in cloud computing because of its

complexity and dynamic changes overtime. The lack

of redundancy caused by the monopolization of the

cloud, affected the cloud’s self-healing ability and

providers began to experience outages and this led to

the interest in measuring dependability.

In this paper, we study the following cloud

benchmarks: Spec IaaS 2016, TPCx-V, YCSB,

Perfkit Benchmarker, CloudBench, DS-Bench/D-

Cloud, and evaluate if they are suitable for

benchmarking dependability.

The rest of the paper is organized as follows. In

Section 2 we describe dependability and faults. In

Section 3 we present existing benchmarking tools

describing them and assessing dependability

characteristics. In Section 4 we summarize the

dependability attributes benchmarking. Finally,

Section 5 concludes the paper and propose future

work.

Carvalho, E., Barbosa, R. and Bernardino, J.

The Ability of Cloud Computing Performance Benchmarks to Measure Dependability.

DOI: 10.5220/0006472404470452

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 447-452

ISBN: 978-989-758-262-2

447

2 DEPENDABILITY

Dependability can be defined as the ability to

guarantee that a service will accomplish its

functions. Dependability emphasizes trust and

reliability, for a cloud to be dependable it must

guarantee its services are always available and allow

consumers to operate without having problems. To

benchmark dependability, we must ensure its

attributes are respected (Avizienis et al., 2004):

• Availability: readiness for correct service;

• Reliability: continuity of correct service;

• Safety: absence of catastrophic consequences on

the user(s) and the environment;

• Integrity: absence of improper system

alterations;

• Maintainability: ability to undergo modifications

and repairs.

The main goal of dependability is to mitigate the

chain of faults that may lead to errors that can

propagate and lead to failures which can cause more

faults. To do that the system must have (Gainaru and

Cappello, 2015):

• Fault prevention: be able to prevent faults from

happening, be robust;

• Fault tolerance: be able to avoid or mitigate

service failures in the presence of faults;

• Fault removal: be able to recover from faults

reducing then the number of faults present in the

system;

• Fault forecasting: be monitored to detect existing

faults, be able to map when similar faults happen

and estimate the consequence of those faults.

Dependability is hard to measure and compare

because each system has different failure modes and

faults are difficult to inject due to security of

privileged layers of the cloud. However, there are

ways to inject faults in the virtualization and

hardware layer. Fault tolerance and fault removal

can then be evaluated by benchmarks with the help

of proper metrics such as impact on performance

and time to recover. To achieve fault prevention and

forecasting, the system should be monitoring the

existing faults for analysts to understand the root of

the faults and how they propagate between layers.

Failure monitoring becomes, then, an important part

of the process of evaluating dependability, if a

failure happens it means that faults couldn’t be

contained and the above standards are not being

respected. A failure detection metric is suggested in

(Guan et al., 2012), it consists in measuring

Precision (Number of correctly detected failures per

Total number of failures); Sensitivity (Number of

correctly detected failures per Total number of

detected failures); Specification (Number of

correctly detected normal records per Total number

of normal records) and Accuracy (Total number of

correct detections per Total number of data records).

In the following section, we present benchmarking

tools for performance evaluation that together with

new metrics such as the ones presented above, could

be used to measure dependability.

3 BENCHMARKING TOOLS

We selected some of the most used benchmarks for

cloud computing to evaluate if they cover

dependability. In this section, we present how each

benchmark works, the metrics they use and more

important, the answer to the question “can they be

used to benchmark dependability?”.

3.1 Spec IaaS 2016

Spec IaaS 2016 benchmark was designed by SPEC

to measure the performance of public, private or

hybrid IaaS clouds using a representative real-

workload (https://www.spec.org/cloud_iaas2016/).

For this purpose, Spec uses YCSB with Cassandra

and K-Means implementation from HiBench as the

benchmark workloads. These workloads are

managed by a benchmark harness, Cloud Bench

(cbtool), this harness is responsible for creating and

destroying instances, initiate application instances

(which are a set of instances) and collect

measurements and data points as well as computing

the scores for each submission. SPEC uses YCSB

for I/O intensive testing, in more detail YCSB

workload D (95% read, 5% insert) to simulate social

network user’s activities. Apache Cassandra is the

NoSQL database used. For compute-intensive

workload SPEC uses one of the nine Hadoop

workloads, K-Means. SPEC reports eight metrics:

Elasticity, Scalability, Mean Instance Provisioning

Time, AI Provisioning Success, AI Run Success,

Total Instances, Elasticity Start Time and Elasticity

End Time. Elasticity is the average of the elasticity

measured by YCSB and K-Means, the performance

of N applications in the elasticity+scalability phase

must be similar to the elasticity in the baseline phase

where the load is constant. Scalability measures the

contribute of N applications instances compared to

the contribute of one application instance for a

successful cloud it should scale linearly. Mean

instance provisioning time measures the time it takes

ICSOFT 2017 - 12th International Conference on Software Technologies

448

the system under test to provision valid application

instances. The AI Provisioning Success measures the

amount of successfully provisioned AIs in

percentage. AI Run Success measures the percentage

of successful runs. Elasticity Start and End time

indicate when the elasticity starts and ends

respectively. Total instances indicate the number of

instances provisioned during the benchmark. This

benchmark covers mostly performance and

availability presenting no means to evaluate safety,

integrity and maintainability.

3.2 TPCx-V

TPC Express Benchmark™ V (TPC Express

Benchmark™ V - Specification, Revision 1.0.1,

2016) is one of TPC’s benchmarks for databases

running in a virtualized environment. Its

benchmarking kit is public-available in

(http://www.tpc.org/tpcx-v/default.asp). This

benchmark measures the performance of the

hypervisor, hardware, storage and networking of a

server running virtualized databases, but it

differentiates itself because it is able to model many

cloud proprieties, such as running VMs with

different load demands and varied load fluctuations

thus testing scalability and elasticity. The workload

consists of On Line Transaction Processing and

Decision Support Systems and the transaction mix

can be found in (TPC Express Benchmark™ V -

Specification, Revision 1.0.1, 2016). The primary

metrics of TPCx-V are the Reported Throughput

expressed in number of valid transactions per

second, it then takes the total 3-year pricing and

divides it by the reported throughput for a

price/performance metric. Like TPC-W it enforces

ACID transactions and has integrity rules, such as

Referential Integrity (TPC Express Benchmark™ V

- Specification, Revision 1.0.12016). To measure

elasticity, the CPU usage is measured while running

the transactions and compared with a run where

elasticity isn’t configured. It also measures

maintainability by running a Data-Maintenance

Transaction and checking how many transactions are

done in a certain response time.

3.3 YCSB – Yahoo! Cloud Serving

Benchmark

Yahoo! Cloud Serving Benchmark (Cooper et al.,

2010) is an open source framework designed to

evaluate NoSQL databases. This benchmark

provides a data generator and a set of tests that

perform specific of operations over the databases,

called workloads (Abramova et al, 2014). The

standard operations are: create, read, update and

delete. To execute the YCSB benchmark there is a

tool called YCSB Client which offers extensibility

so that we can create different workloads. This

benchmark can be used to evaluate performance and

scalability of cloud systems’ NoSQL databases, it

can do so by injecting read/write heavy workloads.

The YSCB has six pre-defined workloads

(https://github.com/brianfrankcooper/YCSB):

 Workload A: 50% reads, 50% updates.

 Workload B: 95% reads, 5% updates.

 Workload C: 100% reads.

 Workload D: 95% reads, 5% inserts.

 Workload E: 95% scans, 5% inserts.

 Workload F: Read-Modify-Write.

These loads are driven by four different distributions

which chose what record to read or write and what

operation to perform: Uniform, Zipfian, Latest,

Multinomial. The metrics used by YCSB are:

latency vs throughput for performance; for scaling it

uses a scale up and elastic speedup metric, as the

load increases the performance should remain the

same, if the system has a good scale up, for the

elastic speedup as the same workload is running one

or more servers are added and the performance

should increase; For availability YCSB measures the

impact on performance as a server is killed while the

workload is running; Replication, this tier of

evaluation measures the impact of replication on

performance and availability. Replication can be

synchronous or asynchronous, the first prevents data

loss when replicating for example in case of a

failover, the second may cause loss of data if a

failure happens before the replication is scheduled

but improves performance.

3.4 Perfkit Benchmarker

PerfKit Benchmarker is an open-source

benchmarking tool used to measure and compare

cloud offerings According to its website

(http://googlecloudplatform.github.io/PerfKitBench

marker/) it is a community effort involving over 500

participants including researchers, academic

institutions and companies together with the

originator, Google. Perfkit values for its simplicity

as it can run tests to any SSH able machine just by

installing the benchmark, its requisites and running a

set of commands or config file. The code to Perfikit

is on Github.com which is a way of showing the

public that the code can be trusted and doesn’t

favour any cloud provider, for example Google who

The Ability of Cloud Computing Performance Benchmarks to Measure Dependability

449

developed the benchmark. The benchmark can

initiate virtual machines with the selected

benchmarks in the selected cloud provider or run the

benchmarks in a local machine. Perfkit uses YCSB’s

Aerospike, Cassandra, Hadoop Terasort, HBase,

MongoDB and Redis, these are NoSQL databases

very often used in the cloud. For high performance

computing, it uses HPCC (High Performance

Computing Cluster). As for simulation workload, it

uses OLDIsim to measure the scaling capability of

the system. Then it has some minor benchmarks that

evaluate the hardware: for CPU it has Coremark and

Spec cpu 2006, for disk it has Bonnie++, Copy, Fio,

Synthetic Storage and for network it has Iperf,

Mesh, Network, Netperf and Ping. It has Unixbench

and Clusterboot as system benchmarks to evaluate

the performance of software and hardware working

together. The main metric of Perfkit Benchmark is

end-to-end time to provision which consist of

measuring the time of the following phases (Filho,

2015): Setup, Warm up, Pre-execute, Execute, Post-

Execute, Clean-up and Publish results. Setup and

Warm up is the time that the cloud provider will take

to provide the VM’s and install the benchmarks. Pre-

execute is the time it takes to load the data for the

benchmarks, execute is the time it takes to run the

benchmarks. Post-Execute is data analyses; Clean-

up is the time it takes to stop all the services

deployed by the cloud, because leaving the

benchmark accidentally running could get very

expensive and finally publishing the results that can

be viewed in Perfkit Explorer. The end-to-end time

to provision metric is complemented by the metrics

reported by the benchmarks Perfkit uses. Cloud

Harmony is also a framework like Perfkit which

allows the users to launch various test on cloud

provider, however it doesn’t have a metric of its own

and it is not open-source.

3.5 Cloud Bench

Cloud Bench (Silva et al., 2013) is an open-source

framework that runs benchmarks in the cloud

through the deployment of complex applications. It

can run experiments in multiple clouds across

various regions using a single interface. The

application deployment is automated and occurs in

this order: VM creation, application configuration,

controlled execution, data collection and VM

termination. This benchmark can only be used if the

cloud is capable of doing this task without human

interaction. CloudBench uses Virtual Applications

or VApps as workloads which can be managed by it

and can run the benchmark in multiple VMs. A

VApp is defined by type, topology, configuration

steps and load behaviour. The type is the benchmark

to be run, the topology is the amount of VMs needed

for it, the configuration steps are the scripts run in in

each VM to setup the benchmark and the load

behaviour is the variation of the load to be applied to

the VApp. While the VApps run, a number of data is

collected and reported as metrics such as VM

provisioning time, failure and time to recover, time

to scale and adapt to load increased/decreases and

standard runtime metrics such as measuring

throughput, latency and bandwidth.

3.6 DS-Bench/D-Cloud

DS-Bench/D-Cloud (Ishikawa et al., 2012) is a

benchmark designed to execute dependability

evaluations in virtualized and physical environments

by measuring availability, reliability performance

and power consumption under an anomaly situation.

These anomaly situations can be hardware faults,

software faults or human errors. D-Cloud is a tool to

test the system by managing resources. This

benchmark is easy to use and comes with a GUI

where we can create a benchmark scenario and build

a script for the anomaly scenario as well. This

benchmark works with two controllers DS-Bench

controller and D-Cloud controller, the DS-Bench

controller receives the benchmark configurations

and communicates them to D-Cloud who then starts

the benchmarking process by requesting the cloud to

setup the VMs with the selected benchmarks (see

Figure 1).

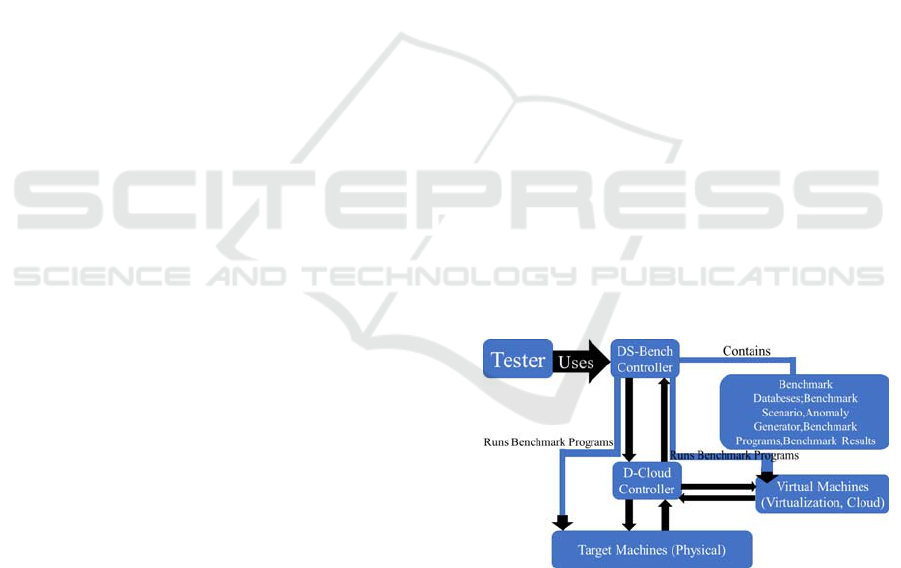

Figure 1: DS-Bench/D-Cloud setup example. Adapted

from (Ishikawa et al., 2012).

4 DEPENDABILITY ANALYSES

COMPARISON

In this section, we discuss the results of our research

by summarizing the dependability characteristics of

ICSOFT 2017 - 12th International Conference on Software Technologies

450

the benchmarks presented before. Cloud computing

is a very complex set of hardware and software and

in this type of system failures are common.

It is of extreme importance to prevent and

recover from failures quickly, as there are many

services depending on the proper functioning of the

cloud, and to do this we need to study and

understand how they occur in the cloud

environment. A failure in the cloud can mean a

significant profit loss not only to the provider but

more importantly to the users. A failure can take

catastrophic proportions, such as denial of service to

clients, which can bring harm to the user. For

example, if the user is in a self-driven car that uses

cloud services for guidance, and that is why when

benchmarking the cloud, the benchmarks should

measure not only fault tolerance but also fault

prediction and recovery. To predict faults, we can

have a set of metrics that calculate based on the

pattern of software and hardware faults, when the

next fault will possibly happen.

Performance benchmarks like the ones we

present, fit in the category of microbenchmarks

referenced in (Oppenheimer et al., 2002) because

they assess some of the dependability characteristics

individually and not the end-to-end dependability of

the system. To evaluate dependability as a

macrobenchmark, the benchmark should possess an

integrated fault load and fault load injection tool to

be deployed as we run performance benchmarks as

workloads. The fault load should be realistic and

representative of real world hardware, software and

human made faults. Cloud is a large system, where

many fault scenarios can happen which makes it

difficult for a benchmark to analyse them all and

also be able to repeat them in other cloud systems.

According to Oppenheimer et al. (2002) the studies

on Internet services, large servers, and the public

telephone network indicate that human error is the

largest single cause of service unavailability.

However, having a fault simulator of human made

faults is essential but given the differences from

cloud to cloud it is very difficult to create a generic

script that covers all human made faults and

replicate them in different cloud systems. Another

concern is keeping the benchmark valid as some

cloud systems may detect they are under test and try

to trick the results by preventing the benchmark

induced faults. For this reason fault selection must

be studied and changed overtime which invalidates

previous benchmark tests and those have to be done

again. Running a dependability dedicated

benchmark in a production environment with

frequency becomes expensive because the

benchmark takes a long time and most of the time

requires human interaction to select and inject faults.

Therefore one of the solutions is benchmarking

attributes of dependability to reduce costs.

Most of the presented benchmarks lack a fault

load and evaluate only some aspects of

dependability. Availability and reliability are given

characteristics measured by the benchmarks because

most of them have a price vs performance metric.

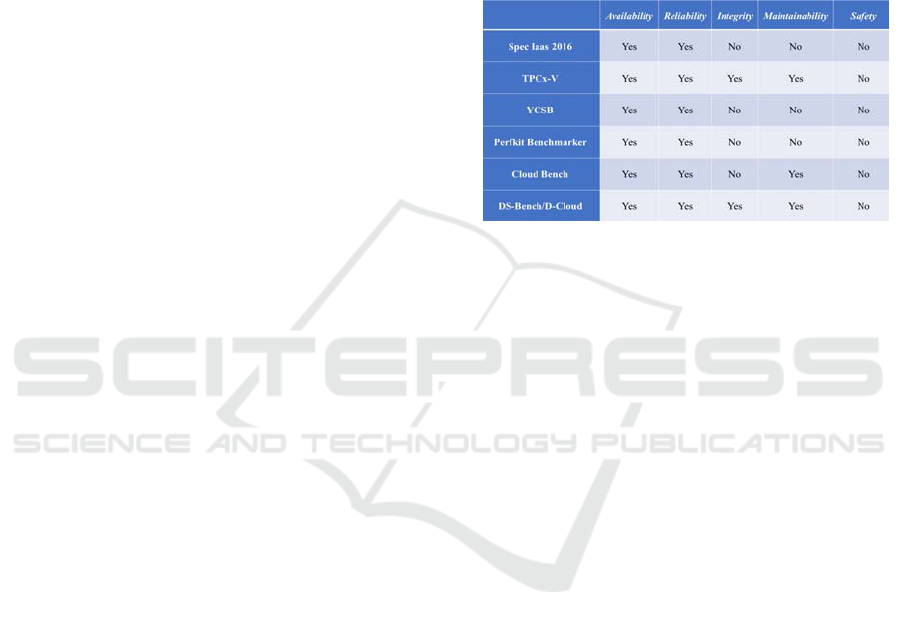

Table 1: Comparison between benchmarks.

Table 1 presents these characteristics for all the

presented benchmarks. Under normal conditions,

Availability and Reliability exists in the systems

because the performance is not null. However, it

should be tested under a fault load to measure the

impact of failures in the system.

Integrity however is only measured by DS-

Bench/D-Cloud by checking the hard-disk for errors

and if the received data contains errors. This is a

very important characteristic to evaluate as some

applications may not be able to function if data is

corrupt, leading to system alterations and

malfunction. Maintainability is only evaluated by

some benchmarks and it’s also an important

characteristic as it guarantees the system

functionality. To measure maintainability DS-

Bench/D-Cloud and CloudBench run benchmarks

while a fault load is injected. However TPCx-V uses

a data-maintenance transaction and measures how

many transactions are done in a given time interval.

Metrics like time to recover and throughput vs

latency should be applied by benchmarks while the

system is under the influence of a fault load.

Safety is not evaluated by any of the benchmarks

and despite not being of interest now it can become

one in a near future. As self-driven cars are already

getting their system running in the cloud and a

failure could indeed cause harm to the user or the

environment. As future work, we want to use the

benchmarks to generate workload and complement

them with new metrics to measure dependability

while running a fault load during the benchmark.

The Ability of Cloud Computing Performance Benchmarks to Measure Dependability

451

5 CONCLUSIONS AND FUTURE

WORK

With companies that depend on cloud computing to

sustain their business it is critical to have a

benchmark that can help the decision makers

evaluate if the cloud provider they are choosing can

meet their requirements.

In this paper, we have presented a variety of

benchmarks and the metrics they use when

evaluating the cloud. We can conclude from our

study that the existing benchmarks for cloud

computing focus on measuring performance and

availability comparing the results with the monetary

cost and do not have strong metrics to measure all of

the dependability characteristics.

Most of the benchmarks lack fault simulation or

injection because they do not possess a fault load or

metrics to do so, which would allow to measure

maintainability. Integrity is also not measured by

benchmarks as they focus on measuring I/O disk

operations and database interactions per second and

lack a metric to measure data integrity.

Although TPCx-V provides integrity by

enforcing ACID transactions and integrity rules.

Safety is not contemplated at all by the benchmarks

as it is not yet an important characteristic to be

considered in cloud environments as the cloud’s

malfunction does not have a serious impact on the

environment or user.

As future work, we propose to integrate a fault

load and new metrics so that dependability becomes

a part of the new generation of benchmarks for cloud

systems to help providers and consumers evaluate

the impact of possible failures.

REFERENCES

Abramova, V., Bernardino J., Furtado P., 2014.Testing

Cloud Benchmark Scalability with Cassandra. In IEEE

World Congress on Services, Anchorage, AK, 2014,

pp. 434-441.

Abramova V., Bernardino J., Furtado P., 2014. Evaluating

Cassandra Scalability with YCSB. In Decker H.,

Lhotská L., Link S., Spies M., Wagner R.R. (eds)

Database and Expert Systems Applications. DEXA

2014. Lecture Notes in Computer Science, vol 8645.

Springer, Cham.

Avizienis, A., Laprie, J., Randell, B., Landwehr, C., 2004.

Basic Concepts and Taxonomy of Dependable and

Secure Computing. In IEEE Transactions on

Dependable and Secure Computing.

Cooper, B., Silberstein, A., Tam, E., Ramakrishnan, R.,

Sears, R., 2010. Benchmarking Cloud Serving

Systems with YCSB. In SoCC ’10 Proceedings of the

1st ACM symposium on Cloud computing, pp. 143-154.

Filho, I., 2015. PerfKit Benchmarking the Cloud. In

CouchBase Connect.

Gainaru A., Cappello F., 2015. “Fault and failures”.

Chapter 2 of Fault-Tolerance Techniques for High-

Performance Computing, Springer Book, Computer

Communications and Networks series, Editors:

Thomas Herault and Yves Robert.

Guan, Q., Chiu, C., Fu, S., 2012. CDA: A Cloud

Dependability Analysis Framework for Characterizing

System Dependability in Cloud Computing

Infrastructures. In IEEE 18th Pacific Rim

International Symposium on Dependable Computing.

Ishikawa, Y., Sato, M., Hanwa, T., Fujita, H., Banzai, T.,

Koizumi, H., Miura, S., 2012. DS-Bench/D-Cloud:

Dependability Measurement and Evaluation Tool. In

42nd IEEE/IFIP International Conference on

Dependable Systems and Networks (DSN 2012).

Khan M.,6 April 2017, Yahoo! Cloud Serving

Benchmark(YCSB), Available from: https://github.

com/brianfrankcooper/YCSB, (20 May 2017).

Neves, P., Bernardino, J., 2015. Big Data in the Cloud: A

Survey. In Open Journal of Big Data (OJBD), 1(2),

Pages 1-18, RonPub. [Permalink]: http://www.ronpub.

com/publications/ojbd/OJBD_2015v1i2n02_Neves.html.

Neves, P., Schmerl, B., Cámara, J., Bernardino, J., 2016.

Big Data in Cloud Computing: Features and Issues. In

Proceedings of the International Conference on

Internet of Things and Big Data – Volume 1: IoTBD,

ISBN 978-989-758-183-0, pages 307-314.

Oppenheimer, D., Brown, A., Traupman, J., Broadwell, P.,

Patterson, D., 2002. Practical issues in dependability

benchmarking. In Workshop on Evaluating and

Architecting System dependability (EASY '02).

Perfkit Benchmarker Authors, 2016, PerfkitBenchmarker,

Available from: http://googlecloudplatform.github.io/

PerfKitBenchmarker/, (25 May 2017).

Standard Performance Evaluation Corporation, 3 January

2017, SPEC Cloud

™

IaaS 2016, Available from:

https://www.spec.org/cloud_iaas2016/, (17 May

2017).

Silva, M., Hines, M., Gallo, D., Liu, Q., Ryu, K., Silva,

D., 2013. CloudBench: Experiment Automation for

Cloud Environments. In IEEE International

Conference on Cloud Engineering.

Transaction Processing Performance Council, 2017,

TPCx-V, Available from: http://www.tpc.org/tpcx-

v/default.asp, (15 May 2017).

Transaction Processing Performance Council, 2016, TPC

Express Benchmark™ V - Specification, Revision

1.0.1.

Vazquez, C., Krishnan, R., John, E., 2014. Cloud

Computing Benchmarking: A Survey. In International

Conference on Grid & Cloud Computing and

applications.

ICSOFT 2017 - 12th International Conference on Software Technologies

452
