Information Flows at OS Level Unmask Sophisticated Android Malware

Val

erie Viet Triem Tong

, Aur

elien Trulla

, Mourad Leslous

and Jean-Franc¸ois Lalande

EPI CIDRE, CentraleSupelec, Inria, Universit

e de Rennes 1, CNRS, IRISA UMR 6074, F-35065 Rennes, France

INSA Centre Val de Loire, Univ. Orl

eans, LIFO EA 4022, F-18020 Bourges, France

Keywords:

Android, Malware, System Flow Graph.

Abstract:

The detection of new Android malware is far from being a relaxing job. Indeed, each day new Android

malware appear in the market and it remains difﬁcult to quickly identify them. Unfortunately users still pay

the lack of real efﬁcient tools able to detect zero day malware that have no known signature. The difﬁculty is

that most of the existing approaches rely on static analysis coupled with the ability of malware to hide their

malicious code. Thus, we believe that it should be easier to study what malware do instead of what they

contain. In this article, we propose to unmask Android malware hidden among benign applications using the

observed information ﬂows at the OS level. For achieving such a goal, we introduce a simple characterization

of all the accountable information ﬂows of a standard benign application. With such a model for benign

apps, we lead some experiments evidencing that malware present some deviations from the expected normal

behavior. Experiments show that our model recognizes most of the 3206 tested benign applications and spots

most of the tested sophisticated malware (ransomware, rootkits, bootkit).

1 INTRODUCTION

Once Android has became the most popular mobile

platform, it has also became the mobile operating sys-

tem most heavily targeted by malware. The main goal

of these malware is to make money thanks to the user

and unbeknownst to the user. In the same time, app

store providers try to prevent malicious apps from en-

tering ofﬁcial market or to remove them once entered.

For that purpose, these providers can resort to auto-

mated security analysis or manual reviews of security

experts. The automated approaches are mainly based

on static program analysis that tries to statically detect

if applications are responsible of sending messages

to premium services, or exﬁltrating personal private

data.

In 2012, Zhou et al. claim that current market-

places are functional and relatively healthy since they

have discovered less than 0.5% of infection rate (Zhou

et al., 2012). We believe that this result has two dif-

ferent interpretations: either the tools used to keep

the markets clean are very efﬁcient, or malware are

more clever and succeed to evade detection engines.

A deeper study of this work reveals that existing tools

are efﬁcient to detect only simple malware that mainly

try to send text messages to premium phone numbers.

Moreover, the range of more sophisticated malware is

not included in the study of Zhou et al. For in-

stance, they do not study ransomware, the malware

that requests an amount of money from the user while

promising to release a hijacked resource in exchange.

In the same way, malware that erase user’s data from

the device and turn it into part of a hacker botnet, as

done by the malware Mazar

, are not included in the

study. We believe that any malware will succeed to

defeat classical program analysis by relying on obfus-

cation, dynamic code loading or ciphering. We claim

here that trying to clean the market by resorting only

to classical static program analysis is a lost cause.

In this paper, we propose a different approach that

aims to explore ﬁrst how a benign Android appli-

cation and its created processes should interact with

other elements of the operating system. The original-

ity of this approach is that we do not care about the na-

ture of the executed code but we focus on how appli-

cations disseminate information in the operating sys-

tem during one execution. More precisely, we study

which operations a non-malicious application is able

to perform: we translate these operations in terms

of information ﬂows between ﬁles, sockets and pro-

cesses of the operating system. We explain each infor-

mation ﬂow and this way, we build a generic graph of

https://heimdalsecurity.com/blog/security-alert-mazar-

bot-active-attacks-android-malware/

578

Tong, V., Trulla, A., Leslous, M. and Lalande, J-F.

Information Flows at OS Level Unmask Sophisticated Android Malware.

DOI: 10.5220/0006476705780585

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 578-585

ISBN: 978-989-758-259-2

all allowed information ﬂows in the operating system

due to the execution of an Android application. We

put this generic graph to the proof: we executed more

than 3206 applications attested as benign by anti-virus

software used by Virustotal

. We verify that these be-

nign executions are conformed to the expected normal

pattern.

Finally, we claim that an attack of a sophisticated

malware induces behaviors that deviate from the le-

gitimate one, from the operating system point of view.

To evaluate the effectiveness of our approach, we led

experiments on nine sophisticated malware such as

rootkits, bootkits, and ransomware extracted from the

Kharon dataset (Kiss et al., 2016). We show that these

experiments easily spot malware since they exhibit

graphs out of the expected pattern.

In the rest of this article, after reviewing the state

of the art in Section 2, we develop this idea and we

introduce in Section 3 how an Android application in-

teracts with the system environment. We represent all

existing information ﬂows between ﬁles, sockets and

processes in the Android system generated by the ex-

ecuted application under review. We also show, using

two examples, the difference between a benign ap-

plication and a malware. Then, Section 4 introduces

formally the characterization model of a normal ap-

plication execution. Finally, Section 5 veriﬁes the ac-

curacy of the approach on a dataset of 3206 goodware

and Section 6 evaluates the efﬁciency of the approach

on a collection of malware.

2 STATE OF THE ART

To build reliable detection solutions, researchers have

worked on collecting relevant features characterizing

malware. Such features can be collected statically or

dynamically. Most of the proposed frameworks use

static analysis in order to build signature detection

tools or to help dynamic analysis. Works that dy-

namically analyze applications use dynamic features

to build HIDS or NIDS algorithms.

One of the ﬁrst papers that worked on dynamic

Android malware detection have been proposed by

Schmidt et al. in 2008 (Schmidt et al., 2008). They

implemented a live monitoring solution that collects

system observables such as ﬁlesystem access, net-

work events or Java features of the application. This

ﬁrst proposal has been improved and exploited in

AASandBox (Blasing et al., 2010), which provides

a full environment for executing a malware and ex-

tracting both kernel events (such as syscalls) and Java

https://www.virustotal.com

events such as Runtime.Exec(). Advanced techniques

characterizing calls at thread level give good classiﬁ-

cation results (Lin et al., 2013).

Researchers have investigated a wide set of pos-

sible features to extract (Wu et al., 2012; Shabtai

et al., 2012; Afonso et al., 2014). In one of these ﬁrst

works (Shabtai et al., 2012), authors have proposed

Andromaly, a framework that collects CPU and en-

ergy consumption, network statistics and the number

of running processes. Then, a lot of classiﬁcation al-

gorithms have been investigated and compared with

different parameters such as the setup of the training

set of applications or the impact of the use of dif-

ferent devices. In 2014, Neuner et al. proposed a

comparison of most known platforms (Neuner et al.,

2014) in order to show the features used by dynamic

analysis tools. All the proposals use very similar fea-

tures. Many papers use tainting techniques (Enck

et al., 2010), similarly to this paper, but they mainly

use it to monitor access to private data.

Without a real user in charge of running applica-

tions manually, it is a challenge to execute correctly

a malware and observe it. Recent approaches have

proposed solutions to target the suspicious code and

then to stimulate the executed malware. In (Zheng

et al., 2012), a static analysis of the bytecode helps to

trigger automatically the applications’ UI. In (Abra-

ham et al., 2015), authors proposed to modify the ap-

plication control ﬂow to reach the suspicious code.

In (Wong and Lie, 2016), authors compute the set

of inputs that trigger the suspicious code using static

analysis. All these techniques help to automatize the

execution of Android malware. Combined with taint-

ing techniques, information ﬂows generated from an

execution can be obtained automatically for a collec-

tion of malware.

Compared to previous approaches, this paper is

the ﬁrst to use information ﬂow graphs to build an An-

droid malware detection technique. We believe that a

simple formalism of legitimate information ﬂows can

easily spot sophisticated malware that would reveal

their behavior at the OS level. In the next section,

we describe more formally the graph representation

of these ﬂows before moving in Section 4 to the char-

acterization of ﬂows of a benign application.

3 OS INTERACTIONS OF APPS

On Android operating systems, third party applica-

tions can be downloaded from ofﬁcial and non ofﬁcial

markets, or manually installed. All of them are in-

stalled on the device by deploying an archive with the

extension .apk. The installation process ﬁrst consists

Information Flows at OS Level Unmask Sophisticated Android Malware

579

in decompressing this archive. Usually, it contains the

compiled code of the application (classes.dex) and

a ﬁle AndroidManifest.xml that describes the appli-

cation (activities, permissions, . . . ). Lastly, an .apk

archive also contains all resources (i.e. images, .xml

conﬁg ﬁles, databases) needed by the application.

To build our detection methodology, we need to

describe how an Android application contaminates

the operating system during its execution. In par-

ticular, we do not care about the nature of the ex-

ecuted code but we are more interested to discover

which ﬁles have been accessed, which processes were

created, which IP addresses the application has con-

tacted, and recursively how these contaminated ob-

jects have themselves inﬂuenced the operating sys-

tem. For this purpose, we propose to capture all the

information ﬂows inside the operating system caused

by the execution of an application. We represent these

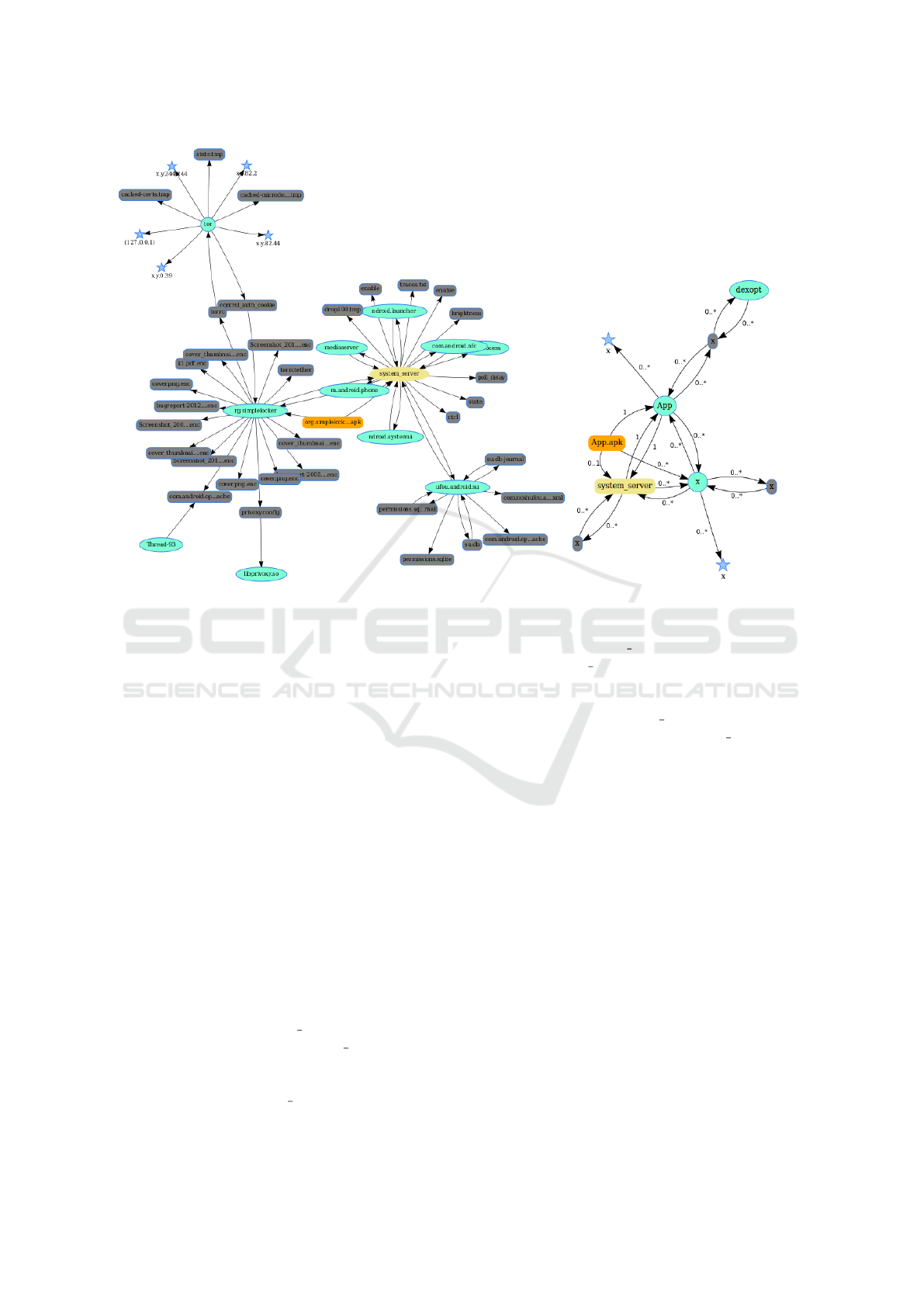

information ﬂows on a particular graph called System

Flow Graph (or SFG for short) (Andriatsimandeﬁtra

and Viet Triem Tong, 2014). Examples of SFG issued

from malware observations and used latter in this pa-

per can be found in the Kharon dataset (Kiss et al.,

2016) available at kharon.gforge.inria.fr/dataset. For-

mally, a SFG is a pair (V , E) where V is a set of

vertices and E is a set of edges. A vertex v in V de-

notes objects that contain information in the operating

system as ﬁles, sockets or processes. An edge be-

tween two vertices denotes an information ﬂow from

a source to a destination.

In practice, we construct these SFGs using An-

droBlare, an information ﬂow monitor at the operat-

ing system level combined with GroddDroid (Abra-

ham et al., 2015), a framework to automatically exe-

cute applications and force suspicious code execution

when needed. AndroBlare attaches a ﬁrst mark to a

particular content of an information container. Af-

terward, each time a marked object accesses a non

marked one, the mark is propagated to the non marked

object. The mark transits in the system through ex-

tended attributes of ﬁles and on processes. Each ob-

served ﬂow is logged and the whole log is transformed

into a SFG. GroddDroid (Abraham et al., 2015) au-

tomatizes the execution of applications by stimulating

the graphical interface and monitors the execution.

In the remainder of this paper, the presented

graphs are computed from observing a single execu-

tion of an Android application where only one piece

of information is initially marked: the APK ﬁle that

has been downloaded on the device. Indeed, the

archive is the original information that we want to

monitor the dissemination.

Figure 1 gives an example of an SFG that results

from monitoring an Android application. Files are

represented by (gray) rounded boxes, processes are

represented by (green) ellipses, and sockets are rep-

resented by (blue) stars. This application is a virtual

piano installed from the initial node, the orange one

whose name is com.als.grandpiano.free.apk.

We have analyzed it on VirusTotal and none of

the 54 anti-viruses have detected a malware in

it. The graph tells us which ﬁles and pro-

cesses are modiﬁed or inﬂuenced by the archive

com.als.grandpiano.free.apk. In particular we

can focus on the process named grandpiano.free

that executes the application. The neighborhood of

this node is the direct resources of the application. In

our ﬁgure, we learn that the application uses database

ﬁles (.db), sounds ﬁles (.sf2) and a compiled C li-

brary (.so). The graph also shows a particular pro-

cess system server, colored in yellow, which inter-

acts with many other processes. System server is

a particular process used to deliver Android services

to other applications. This process ﬁrstly veriﬁes if

the application has the right permission to access the

requested service and secondly accesses the service.

In a benign application’s graph, such as the vir-

tual piano’s one, interactions with the objects of the

Android operating system can be explained: an appli-

cation is allowed to create ﬁles to make persistent data

and can request services through system server. On

the contrary, malware graphs present interactions that

cannot be explained easily and correspond to abnor-

mal behaviors. For example, the graph of the Sim-

pleLocker malware (Kiss et al., 2016) (malware that

encrypts the user’s ﬁles and exacts a ransom from

him), which is depicted in Figure 2, presents inter-

esting variations. Similarly to the graph of virtual

piano, the graph presents the same normal pattern:

the original APK ﬁle in orange, the process executing

the application that creates ﬁles in its neighborhood

and the requests to services through system server.

Additionally, a precise observation shows that the ap-

plication has created an encrypted version of all me-

dia ﬁles belonging to the users (.enc ﬁles). Never-

theless, we consider these interactions as normal be-

cause these ﬁle nodes are in the neighborhood of the

rg.simplelocker process. We also observed a pro-

cess named Tor and some interactions between it and

remote IP addresses. Tor was not installed on the

device before the execution of SimpleLocker which

means that the application has installed it. This part

of the graph has no explanation for a non malicious

application: a normal one should not dialog with a

remote server through Tor. We lead some extra re-

search on this sample: these IP addresses were Tor

relay nodes and the malware was anonymously com-

municating with the attacker in order to verify that the

SECRYPT 2017 - 14th International Conference on Security and Cryptography

580

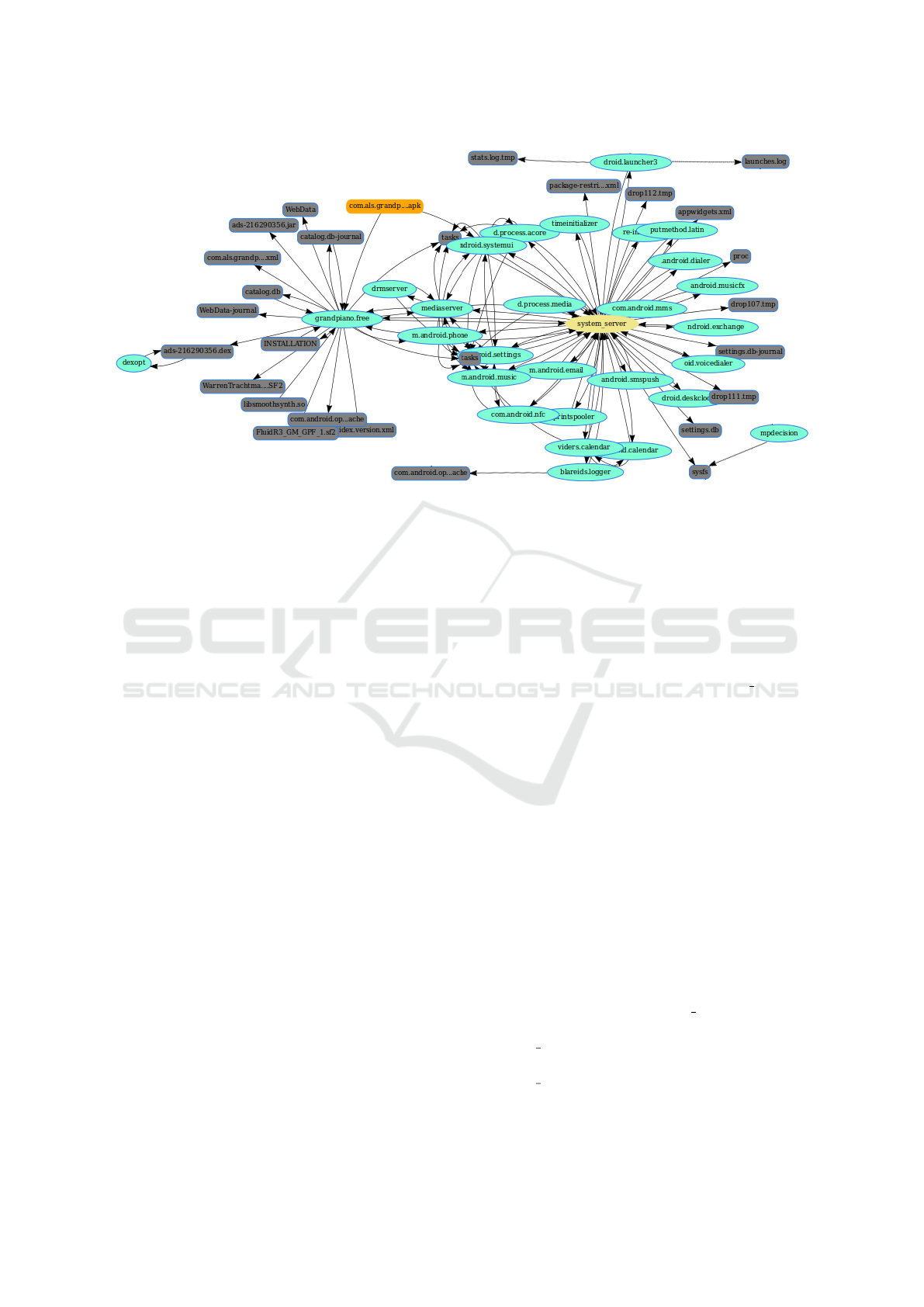

Figure 1: System Flow Graph of virtual piano application.

user has paid the ransom before deciphering his ﬁles.

The question explored in this article is thus the

following: can we compute a set of characteristics

over system ﬂow graphs that allows to distinguish be-

nign Android applications from malicious ones? In-

tuitively, the expected answer is Yes, we can. We will

show in the following that benign applications always

exhibit graphs where only expected and identiﬁed pat-

terns appear, and malicious applications exhibit addi-

tional isolated patterns.

4 NORMAL BEHAVIORS

In this section, we formally deﬁne what is an expected

normal behavior of an observed SFG graph. Such a

”normal behavior” describes the expected interactions

between the application and the operating system dur-

ing its execution.

Since we focus on interactions between processes

and sockets or ﬁles, we have to deﬁne the behavior of

an Android application from this point of view. For

that purpose we introduce the following terminology.

An information ﬂow from an object A towards an ob-

ject B means that the content of B has been inﬂuenced

by the content of A. A ﬂow from A to B is denoted

by A → B. Moreover, when we introduce the nota-

tion A →

B to denote that an information ﬂow from

A to B that is mandatory. In the same way the notation

A →

B indicates that a ﬂow from A to B may exist.

Lastly, we write X →

0...?

Y to denote that information

ﬂows from an object of type X towards an object of

type Y may appear one or several times.

We also introduce a terminology for objects. As

we install a malware using an .apk archive (its code

and resources), this archive is the unique source

of information that we want to monitor, we intro-

duce the notation Apk for this ﬁle. Then, the par-

ticular object that corresponds to the process exe-

cuting the code of the application is denoted App.

Objects of the Android operating system are de-

noted by their system name (as system server,

android.browser, media server, ...). Lastly,

file (resp. process, socket) is used to denote a

variable object of type ﬁle (resp. process, socket).

Using this terminology, we are now able to

formalize an application behavior in terms of in-

formation ﬂows. To do this, we turn back to the

Android permissions list. We translate each permis-

sion in terms of information ﬂows involved in the

operating system. For instance, to access the device

camera, an application must declare the CAMERA

permission in its manifest. To use it, the developer

can use the android.hardware.camera2 package

that provides an interface to individual cameras

connected to the Android device. The execution

of this package’s methods implies a veriﬁcation of

the permissions granted to the application and the

effective camera access. This access is indeed relayed

by the particular process system server. Such an

access will induced information ﬂows App →

system server → android.camera2

for the access and android.camera2 →

system server → App due to the data sent by

the camera. This short example illustrates how we

have studied all possible operations of an application

Information Flows at OS Level Unmask Sophisticated Android Malware

581

Figure 2: System Flow Graph of the malware SimpleLocker. Figure 3: Generic pattern of a benign

application.

and how we have translated these operations in terms

of information ﬂows. Thus, we describe the expected

behavior of an application in ﬁve main parts.

1) The process running the application is issued

from the archive: in terms of information ﬂow it

simply means that any information ﬂow on the form

Apk →

App is accountable and mandatory. Other-

wise, it means that running the application has failed.

2) Interactions with own resources: each applica-

tion is allowed to make some computation by itself

and to use the resources contained in its own archive.

In terms of information ﬂow it means that the process

running the application (the App object) can be a des-

tination of ﬂows: file →

0...?

App. Dually to these

operations, the process running the application can be

a source of ﬂows towards its own external resources

(such as conﬁguration, sound and scores ﬁles). In

terms of information ﬂows, it means that ﬂows of the

form App →

0...?

file are allowed and accountable.

All these ﬂows are allowed but not mandatory.

3) Requests to Android services: informa-

tion ﬂows between system server and App are

considered normal. As system server dele-

gates service requests to other processes (for ex-

ample for audio, contacts, etc.), any ﬂow that

comes out from system server is thus legit-

imate. It means that information ﬂows of the

form App → system server →

0...?

file and

App → system server →

0...?

process →

0...?

file are allowed and accountable: these ﬂows hap-

pen because of a service request. The reciprocal

ﬂows file →

0...?

system server → App and

file →

0...?

process →

0...?

system server →

App ) are allowed and accountable. Flows of these

forms are allowed but not mandatory.

4) Internet or network connection: Android appli-

cations are allowed to request access to remote servers

if they have the right permission. They can also del-

egate this access to the web browser. This induce

ﬂows of the form App →

0...?

socket, App →

0...?

android.browser →

0...?

socket.

5) Dynamic code loading: an Android appli-

cation can use a class loader that loads classes

from .jar and .apk ﬁles. Tod o so, the pro-

cess dexopt optimizes the archive and deploys the

dex output in writable directories. This dynamic

code loading is represented by the following ﬂows:

App →

0...?

file →

0...?

dexopt and file →

0...?

dexopt →

0...?

App. These ﬂows are allowed, ac-

countable but not mandatory. For example, on the left

side of Figure 1, we can observe that the application

has created a java archive ads-216290356.jar then

translated in ads-216290356.dex by dexopt.

Table 1 sums up this study by giving a generic ex-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

582

Table 1: Allowed and accountable information ﬂows.

GENERIC EXPRESSION OF ALLOWED INFORMATION FLOWS Mandatory

Application installation

Apk → App yes

Interaction with own resources

file →

0...?

App no

App →

0...?

files no

Services requests

App → system server →

0...?

file no

file →

0...?

process →

0...?

system server → App no

Services responses

file → system server →

0...?

App no

App → system server →

0...?

process →

0...?

file no

Remote connections

App →

0...?

socket no

App →

0...?

android.browser →

0...?

socket no

Package installation

App →

0...?

file →

0...?

dexopt no

file →

0...?

dexopt →

0...?

App no

pression of all allowed and accountable ﬂows of an

Android application. In the same way, Figure 3 gives

a representation of a generic benign SFG. We claim

here that any information ﬂow appearing in the SFG

of a benign application should be in one of the cate-

gories listed above. Other information ﬂows have no

explanation and are symptoms of malicious activities.

5 GOODWARE EXPERIMENTS

This section aims to verify that the previous generic

representation succeeds effectively to capture normal

behaviors. For that purpose we lead experiments on

a collection of 3206 Android applications from the

Google Play store.

First, we submitted our 3206 applications to

VirusTotal to conﬁrm that none of them are malware

or even suspicious. Then, we automatically execute

these applications on a real smartphone using Grod-

dDroid (Abraham et al., 2015). More precisely, Grod-

dDroid triggers elements of the user interface, like

button and combo box, and discovers the different

activities. Before every application’s analysis we re-

store a clean image of the device. Each execution is

monitored and represented by one system ﬂow graph.

This part of the experiments has required more than

11 days of computation and generated 3206 graphs.

For each of these graphs, we lead the following

experiments: for each edge from A to B in the appli-

Table 2: Experiments on goodware behaviors.

MIN AVG

90TH 95th MAX

%ILE %ile

INITIAL SFG OF AN ANDROID APPLICATION

NB of nodes in

17 106 123 127 538

the initial SFG

NB of edges in

75 251 288 298 661

the initial SFG

SUB-SFG NOT INCLUDED IN THE EXPECTED BEHAVIOR

NB of nodes out

0 1 2 2 46the expected

normal behavior

NB of edges out

0 0.4 0 0.2 76the expected

normal behavior

Table 3: Experiments on malware behaviors.

MIN AVG

90TH 95th MAX

%ILE %ile

INITIAL SFG OF AN ANDROID APPLICATION

NB of nodes in

68 172 352 373 387

the initial SFG

NB of edges in

93 240 489 512 539

the initial SFG

SUB-SFG NOT INCLUDED IN THE EXPECTED BEHAVIOR

NB of nodes out

1 69 223 239 263the expected

normal behavior

NB of edges out

0 123 351 407 498the expected

normal behavior

cation’s graph, if A → B does not match any generic

edge in the generic form of a normal behavior then

this edge is considered out of the normal behavior. We

claim that if our generic form of a normal behavior is

complete then we would have almost no edges out of

the normal behavior. We obtained that 95% of these

goodware have less than one edge out of the expected

normal behavior (95th percentile value) which repre-

sented less than 0.2 percent of edges in their initial

graph. We have also observed extreme values where

46 nodes and 76 edges are out of the expected behav-

ior. A manual review of this extreme case reveals that

the graph was ill-formed because of an error in the

monitoring. Table 2 details all these results.

6 CAN MALWARE MIMIC

BENIGN APPS?

Before concluding, we study the efﬁciency of our ap-

proach to detect sophisticated malware.

As stated before we do not care about simple mal-

ware that earn money by calling or sending text mes-

sages to premium numbers. Moreover, malware that

simply send text messages or call premium numbers

Information Flows at OS Level Unmask Sophisticated Android Malware

583

Table 4: Experiments on malware from the Kharon dataset (Kiss et al., 2016).

Nodes Edges Nodes out of Edges out of Length Detection

Nature of

in the in the the expected the expected of the result

the attack

SFG SFG normal behavior normal behavior maximal path

MobiDash 421 689 0 0 0 no

Adware

SimpleLocker 61 73 19 27 2 yes

Ransomware

Badnews 120 200 18 15 1 yes

App installer

WipeLocker 73 168 15 14 2 partially

DataEraser

DroidKungFu 96 167 20 26 4 yes

App installer

Cajino 82 182 22 9 2 yes

Spyware

SaveMe 28 58 6 8 3 yes

Spyware

Mazar 62 111 22 36 2 yes

Rootkit

Poison Cake 320 543 17 16 3 yes

Bootkit

exhibit a normal behavior for this approach: they ask

for a service for which they have requested the per-

mission. Thus, we focus on more sophisticated mal-

ware i.e. those that need to exploit a vulnerability

on the phone, make themselves persistent, ransom the

user or obey to a remote server. We claim that these

malware have a behavior that differs from the previ-

ous normal behavior. To evaluate this idea we led ex-

periments on a dataset (Kiss et al., 2016) containing

a ransomware (Simplelocker), an aggressive adware

(MobiDash), two spyware (Cajino and SaveMe), a

rootkit (Mazar), a data eraser (WipeLocker), a bootkit

(PoisonCake) and lastly two malware that install un-

desired applications (Badnews and DroidKungFu).

We applied exactly the same algorithm to check

if there exists a part of a malware graph out of the

expected normal behavior. Then we reviewed all the

remaining sub-graphs to verify if they reveal a ma-

licious symptom. These results, detailed in Table 4,

show that this method allows to point out sophisti-

cated malware as ransomware, rootkit or data eraser.

Indeed, these malware deviate from the normal ex-

pected behavior once they gain administrator privi-

leges, or install an application unbeknownst to the

user. For example, Figure 4 shows the part of the

graph out of the expected normal behavior for the

Mazar malware. The most interesting thing in this re-

maining graph is that it exhibits a connection to a re-

mote server through the anonymous network Tor (IP

addresses are anonymized). Additionally, we report

in Table 4 that we partially capture a behavior if we

can only observed that the malware has gained admin-

istrator privileges.

On the other side, this approach fails to spot ag-

gressive Adware (MobiDash) because displaying ads

can be considered as a normal behavior. Nevertheless

the graph of MobiDash has a huge amount of remote

connections in the graph even if each of them is part of

the expected behavior. Thus, we plan to enhance our

approach by taking into account the maximal number

of remote IP an application is authorized to contact.

Figure 4: Mazar’s graph out of the normal behavior.

We then tested this approach on 102 random mal-

ware whose behavior is less documented, extracted

from the website http://koodous.com. The results are

summarized in Table 3. This experiment conﬁrms that

malware have behaviors that differ from the expected

normal behavior. More precisely, 95% of these mal-

ware have more than 407 edges out of the generic pat-

tern described in Figure 3. Only one malware (1%)

has a graph very close to this normal behavior, with 1

node and 0 edge in its ﬁnal graph out of the expected

normal behavior.

All the material that was used for the ex-

periments described above are available on

http://kharon.gforge.inria.fr/goodware.html.

7 CONCLUSION

In this paper, we tackled the challenge of precisely

deﬁning the normal behavior of Android applica-

tions at the operating system level. To this end, we

proposed the idea of deﬁning this normal behavior

through information ﬂows between ﬁles, processes

and sockets observed during the execution of an ap-

plication. This way, we introduced the ﬁrst model of a

SECRYPT 2017 - 14th International Conference on Security and Cryptography

584

normal behavior at system level for an Android appli-

cation. To verify if this model is complete enough to

capture the real behavior of benign Android applica-

tions we compared it with a large corpus of executions

obtained from benign applications. In a second part,

we led experiments on malicious applications and

showed that this approach easily spot sophisticated

malware such as ransomware, rootkits, data erasers,

app installers or random chosen malware.

ACKNOWLEDGEMENTS

This work has received a French government sup-

port granted to the COMIN Labs excellence labora-

tory and managed by the National Research Agency

in the ”Investing for the Future” program under refer-

ence ANR-10-LABX-07-01.

REFERENCES

Abraham, A., Andriatsimandeﬁtra, R., Brunelat, A., La-

lande, J.-F., and Viet Triem Tong, V. (2015). Grod-

dDroid: a Gorilla for Triggering Malicious Behaviors.

In 10th International Conference on Malicious and

Unwanted Software, pages 119–127, Fajardo, Puerto

Rico. IEEE Computer Society.

Afonso, V. M., de Amorim, M. F., Gr

egio, A. R. A., Jun-

quera, G. B., and de Geus, P. L. (2014). Identify-

ing Android malware using dynamically obtained fea-

tures. Journal of Computer Virology and Hacking

Techniques.

Andriatsimandeﬁtra, R. and Viet Triem Tong, V. (2014).

Capturing Android Malware Behaviour using System

Flow Graph. In The 8th International Conference on

Network and System Security, Xi’an, China.

Blasing, T., Batyuk, L., Schmidt, A.-D., Camtepe, S. A.,

and Albayrak, S. (2010). An Android Application

Sandbox system for suspicious software detection. In

5th International Conference on Malicious and Un-

wanted Software, pages 55–62. IEEE Computer Soci-

ety.

Enck, W., Gilbert, P., Chun, B.-G., Cox, L. P., Jung, J., Mc-

Daniel, P., and Sheth, A. N. (2010). Taintdroid: An

information-ﬂow tracking system for realtime privacy

monitoring on smartphones. In Proceedings of the

9th USENIX Conference on Operating Systems De-

sign and Implementation, OSDI’10, pages 393–407,

Berkeley, CA, USA. USENIX Association.

Kiss, N., Lalande, J.-F., Leslous, M., and Viet Triem Tong,

V. (2016). Kharon dataset: Android malware under

a microscope. In The Learning from Authoritative Se-

curity Experiment Results workshop, San Jose, United

States. The USENIX Association.

Lin, Y.-D., Lai, Y.-C., Chen, C.-H., and Tsai, H.-C. (2013).

Identifying android malicious repackaged applica-

tions by thread-grained system call sequences. Com-

puters & Security, 39:340–350.

Neuner, S., Veen, V. V. D., and Lindorfer, M. (2014). En-

ter Sandbox: Android Sandbox Comparison. In 3rd

IEEE Mobile Security Technologies Workshop, San

Jose, CA.

Schmidt, A.-d., Schmidt, H.-g., Clausen, J., Camtepe, A.,

and Albayrak, S. (2008). Enhancing Security of

Linux-based Android Devices. In 15th International

Linux Kongress.

Shabtai, A., Kanonov, U., Elovici, Y., Glezer, C., and Weiss,

Y. (2012). ”Andromaly”: A behavioral malware de-

tection framework for android devices. Journal of In-

telligent Information Systems, 38(1):161–190.

Wong, M. Y. and Lie, D. (2016). IntelliDroid: A Targeted

Input Generator for the Dynamic Analysis of Android

Malware. In The Network and Distributed System

Security Symposium, number February, pages 21–24,

San Diego, USA. The Internet Society.

Wu, D.-J., Mao, C.-H., Wei, T.-E., Lee, H.-M., and Wu,

K.-P. (2012). DroidMat: Android Malware Detection

through Manifest and API Calls Tracing. Seventh Asia

Joint Conference on Information Security, pages 62–

69.

Zheng, C., Zhu, S., Dai, S., Gu, G., Gong, X., Han, X., and

Zou, W. (2012). SmartDroid: an automatic system for

revealing UI-based trigger conditions in android ap-

plications. In Second ACM workshop on Security and

privacy in smartphones and mobile devices, page 93,

Raleigh, NC, USA. ACM Press.

Zhou, Y., Wang, Z., Zhou, W., and Jiang, X. (2012). Hey,

you, get off of my market: Detecting malicious apps

in ofﬁcial and alternative android markets. In NDSS,

volume 25, pages 50–52.

Information Flows at OS Level Unmask Sophisticated Android Malware

585
