Software Centric Innovative Methodology for Ontology Development

Santhosh John

, Nazaraf Shah

, Craig Stewart

and Leon Samlov

Training Unit, Middle East College, Knowledge Oasis Muscat, Sultanate of Oman

School of Computing, Engineering and Mathematics, Coventry University, U.K.

Keywords: Hybrid Methodology, Ontology Development, Stages, Workflows, Activities, Ontology Development Life

Cycle.

Abstract: Ontologies are mainly used to establish ontological agreements explicitly which serves as the basis for

communication between either humans or software agents. In the aspect of knowledge representation,

knowledge base starts where ontology ends. Ontology Engineering, a branch of knowledge engineering

derived exclusively for the methods, methodologies, techniques and technologies used for the design,

development and maintenance of ontologies. Though ontology engineering and software engineering are two

complementary engineering branches, there exists a significant gap between them in terms of maturity level

and popularity. Absence of effective methodologies eligible to claim the tag ‘standardized’ aimed at

supporting the development of large scale ontologies is one of the reasons behind the gap. This paper attempts

to bridge this gap by proposing a software centric innovative methodology (SCIM) for ontology development

by extending the process models of software engineering with a defined ontology development life cycle

(ODLC).The proposed methodology defines the stages, workflows, activities and techniques for the

development of an ontology regardless of domain in a systematic manner for the practitioners to follow.

1 INTRODUCTION

Linked data supports the evolution of web where both

data and documents are linked using the structural

model of Semantic Web (Linkeddata.org, 2017).

Ontologies, in particular, fulfil the requirements for

knowledge representation for the Semantic web.

Semantic web technologies based on ontology have

emerged as an appropriate engineering solution to the

problems of developing systems that ensure the

integration of data from different sources with high

level of interoperability to provide seamless services

to web users.

Ontology is a broad term used for various

purposes such as natural language processing,

information extraction, intelligent search engines,

digital libraries and business process modeling etc. It

is mainly used to establish ontological agreements

explicitly to serve as the basis for communication

between both human and software entities. Therefore,

it is mandatory to reduce the language ambiguity and

differences in knowledge between parties involved to

avoid confusions, errors and inefficiency (Blanco et

al., 2011).Ontology engineering, the branch of

knowledge engineering mainly deals with the formal

principles to build and maintain ontology. This

includes the processes such as development,

management, analysis and reuse of ontologies. The

mentioned processes covers the aspects of methods,

methodologies and the diverse set of tools used for

designing, visualizing, developing, editing and

maintaining ontologies.

Development of an ontology exhibits both

structural and logical complexity comparable to the

development of software systems. However, onto-

logy development is more complex compared to any

kind of software development due to various factors

such as the necessity of diverse tools support, the

requirement of higher learning curve, compatibility

among heterogeneous platforms, dynamic changes in

business needs, lack of performance engineering, and

low failure tolerance etc. Unlike software

engineering, absence of effective and standardized

ontology development methodologies restricts the

development of large scale high quality ontologies

regardless of the domain concerned. Though a few

methodologies provide an engineering approach with

adequate details, most of the available methodologies

lack sufficient details of techniques and activities

employed in them (Iqbal et al., 2013)

John S., Shah N., Stewart C. and Samlov L.

Software Centric Innovative Methodology for Ontology Development.

DOI: 10.5220/0006482901390146

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KEOD 2017), pages 139-146

ISBN: 978-989-758-272-1

The main contribution of this paper is to explicate

the derivation of a Software Centric Innovative

Methodology (SCIM) for ontology development.

Both philosophical and engineering aspects of the

proposed methodology have been defined inline with

the existing approaches. The proposed methodology

is hybrid in nature in terms of its underpinning

philosophy. The components of hybrid model have

been extended from well proven software engineering

process models/methodologies. In Section 2, we

describe necessity of a novel methodology for

ontology development. The engineering aspects,

background and overview of the proposed

methodology are discussed in Section 3. Section 4

discusses the defined ontology development life cycle

with the stages, workflows, activities and techniques.

The final section concludes the paper and highlights

some future research directions.

2 NEED OF AN INNOVATIVE

ONTOLOGY DEVELOPMENT

METHODOLOGY

A methodology in ontology engineering is composed

of methods, techniques, processes and activities and

may follow several approaches for the development

of ontology. It has been observed from the literatures

that, most of the methodologies proposed in ontology

engineering in the past, lacking the details of

techniques and activities employed in them with

appropriate mapping of underpinning philosophy and

approaches (Fernández-López and Gómez-Pérez,

2002) (N.Foy, 2001) Few of the available

methodologies are influenced by software

engineering (SE) methodologies but failed to map

fully with SE. Since 1995, methodologies such as

KEM, TOVE etc. were proposed by practitioners for

ontology development. However, they are focused

more on the problem or the domain concerned. Unlike

the predecessors, a methodology called

METHONTOLOGY was proposed by Foundation

for Intelligent Physical Agents (FIPA) with the

inclusion of activities and techniques to build domain

ontologies from scratch (Fernandez, 1997). However,

this methodology does not propose any techniques to

carry out the activities in a formal manner.

A software engineering approach, Unified Process for

Ontology (UPON) (De Nicola, Missikoff and

Navigli, 2009) has been proposed for ontology

development based on a rich set of resemblances

between software engineering and ontology

engineering. One of the weaknesses of the UPON

methodology is that it does not target the

development of generic ontologies. It focuses on

ontologies that serve its specific consumers and

automated systems. Moreover, UPON fails to provide

comprehensive details for collaborative ontology

construction aspect (Iqbal et al., 2013). eXtreme

Programming of Knowledge-based systems (XP.K)

(An Agile Development Methodology for

Knowledge-Based Systems Including a Java

Framework for Knowledge Modeling and

Appropriate Tool Support, 2002) has been proposed

as a lightweight agile methodology for the

development of knowledge base systems extended

from Extreme Programming (XP). It follows the

values of XP but generalises the value of

communication to community. Collaborative

ontology development has been highly encouraged by

this methodology as its emphasizes humility. Few of

the additional practices applied to XP.K are Joint

ontology design and pair modeling, round trip-

engineering, testing and constraint testing XP.K is

suitable for the development of ontologies for

knowledge base systems as the additional practices

supports collaborative ontology development.

However, a defined ontology development life cycle

is missing in XP.K. The summary of a review among

major existing ontology development methodologies

based on relevant criterion is presented in Table 1.

The first four parameters used for the review are

reflecting the higher level aspects of concerned

methodology whereas the last four parameters are

specific and technical ones.

Based on the analysis, it has been observed that

most of the existing methodologies failed to provide

adequate details for the techniques employed in them

with a defined ontology development life cycle

(ODLC). Notion of reusability is limited to few

development methodologies. Since ontology

development faces higher learning curve as one of the

obstacles against its growth, we see the scope of an

innovative software centric approach which assists

software practitioners for ontology development can

make a significant difference in large scale ontology

development. The ODLC of proposed methodology

has been defined in such a way to reduce the learning

curve significantly to software practitioners.

Therefore we propose a hybrid methodology

extended from well proven software engineering

process models with a defined ODLC. The proposed

methodology is inclusive of a complete coverage of

employed methods and activities.

3 OVERVIEW OF SCIM

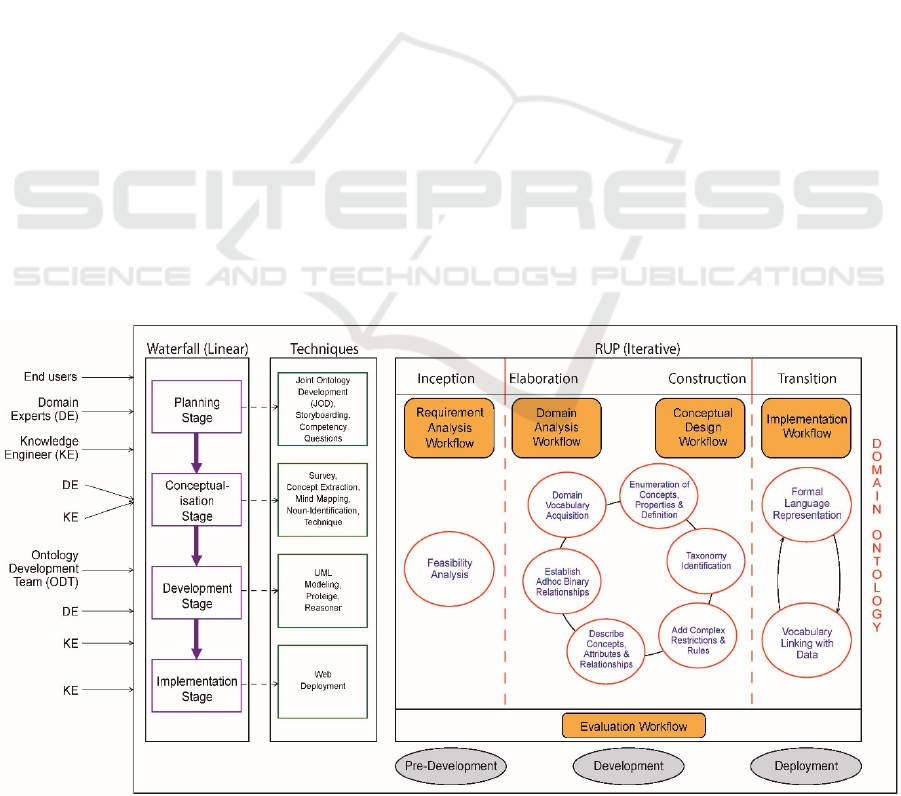

The underpinning philosophy of SCIM is the software

centric approach. This has been embedded in a hybrid

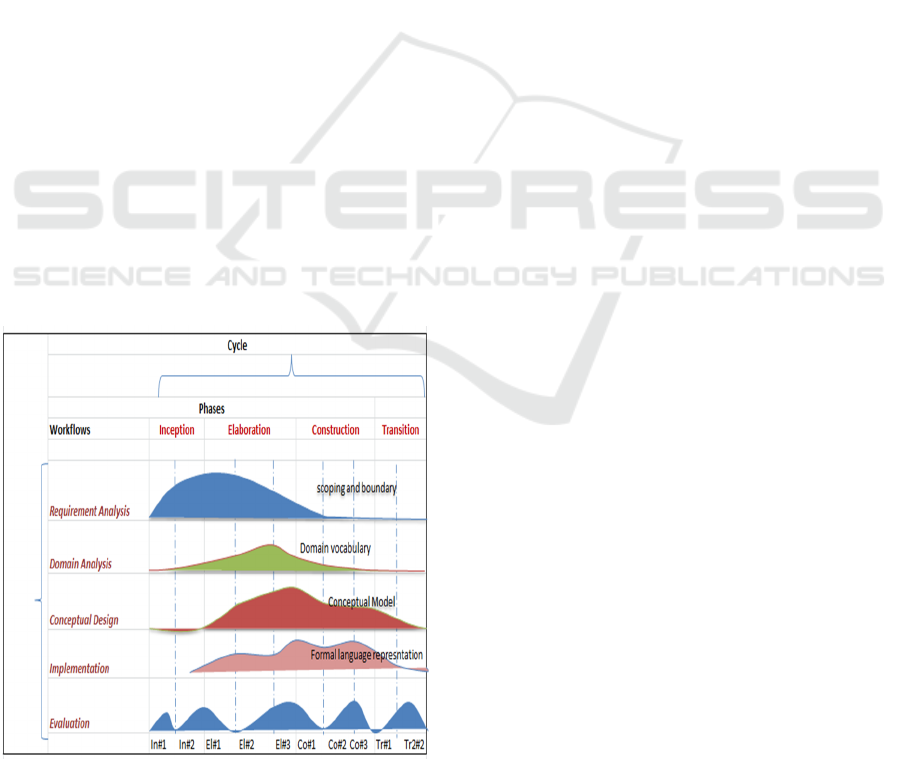

model of linear waterfall and iterative Rational

Unified Process (RUP).

Process models have been extended from

software engineering. The engineering aspects of the

Table 1: Review of existing methodologies.

Name of

Methodo-

logy

Mode of

develop-

ment

Support

for

collabora-

tive

ontology

develop-

ment

Support

for

reusabi-

lity

Support

for inter-

operabi-

lity

Extent of

Applica-

tion

dependency

Ontology

Life Cycle

support

Coverage of

employed

methods and

activities

Ushold and

King (KEM)

Stage based No No No

Application

dependent

Limited

coverage

available for

purpose

identification,

ontology

building and

evaluation.

Gruninger

and Fox

(TOVE)

Stage based No Yes No

Application

Semi-

independent

Limited

coverage

available for

informal

specification,

formulation of

competency

question…

METHONTO

LOGY

Evolutionar

y prototype

No Yes No

Application

independent

Yes

Abstract level

coverage for

ontology

building stages

Ontoligua

Modular

development

No Yes Yes

Application

independent

Limited

coverage on

ontology

development

and integration.

On-To-

Knowledge

Evolutionary

prototype

No No No

Application

dependent

Yes

Limited

coverage on

ontology design

and

development

UPON

Evolutionary

prototype

No Yes No

Application

independent

Yes

Limited

coverage on

ontology design

and

development

XP.K

Evolutionary

prototype

Yes No No

Application

independent

Limited

coverage on

ontology

development

SCIM have been synchronized with existing

methodologies and standards with software

representations for model elements. The engineering

behind the SCIM is the intermediate representation of

ontology milestone deliverables in terms of model

elements. More of software engineering approach has

been applied in the selection of model elements and

techniques. For e.g, conceptual model is represented

in Unified Modeling Language (UML). Formal

model of ontology will be implemented in formal

representation language (e.g. RDF, OWL). The

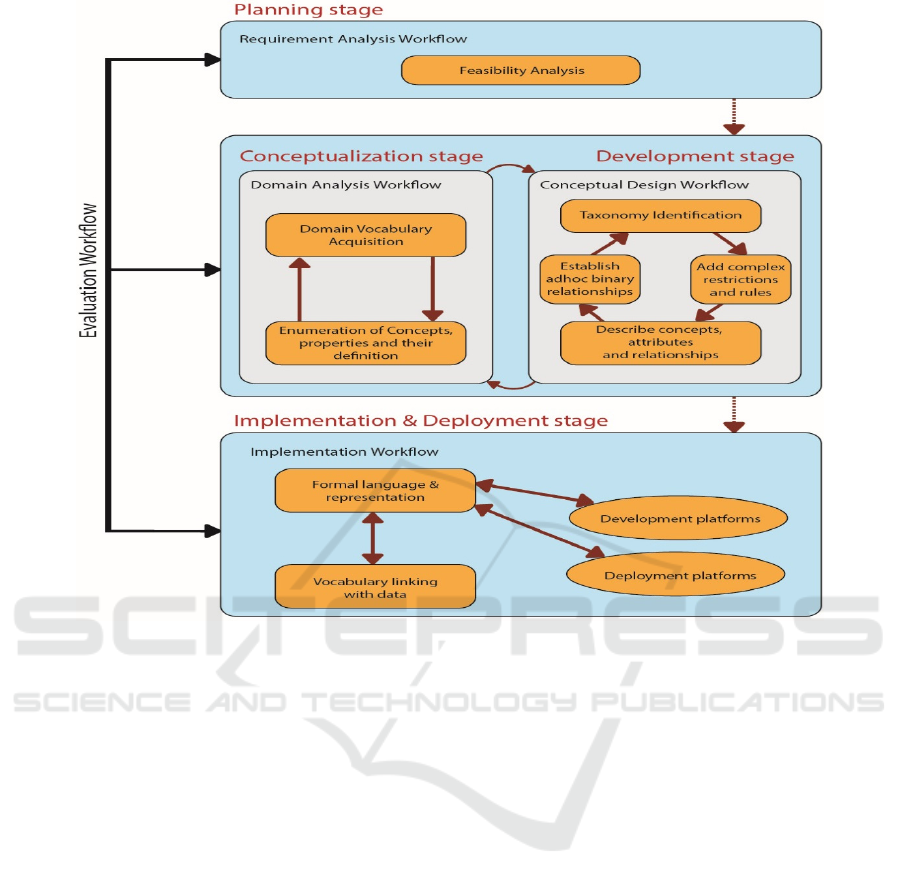

hierarchy followed in SCIM methodology is stages,

workflows, activities and techniques. Incremental

approach has been applied among the stages and

iterative approach is applied among the activities

within specific workflows. Unlike other software

engineering centric ontology development

methodology such as UPON, SCIM focuses generic

domain ontology development.

SCIM classifies the core ontology development

process into four stages such as Planning,

Conceptualization, Development followed by

Implementation and deployment. SCIM uses UML

to represent the conceptual model in intermediate

representation. This will be an added benefit for

software designers and practitioners who intend to

develop ontology. SCIM follows the approaches of

RUP (Kruchten, 2003) such as Cycles, Iterations,

Phases and Workflows in workflow modeling.

However activities and techniques under each

workflow have been customized for ontology

development.

Figure.1: SCIM workflows and deliverables per phase.

The customized five workflows of SCIM have

been mapped against that of RUP are requirement

analysis, domain analysis, conceptual design,

implementation and evaluation. Initial phase is

focusing more on the pre development whereas the

remaining phases focuses on the development and

post development of ontology respectively.Figure1

represents the customized framework of SCIM with

an abstract level indication of deliverables per phase.

4 ONTOLOGY DEVELOPMENT

LIFE CYCLE

Unlike Software Engineering Methodologies, most of

the existing ontology development methodologies

failed to define ontology development life cycle

(ODLC) with the detailed coverage of employed

techniques and methods. The order of execution of

the ontology development activities are realized in the

ODLC which specifies the set of activities for

ontology development.

SCIM treats stages as the base for the sequence of

workflows. In SCIM iterative approach has been

proposed for the activities within the workflows. Nine

software engineering related disciplines of RUP have

been mapped to five exclusive ontology development

workflows. These workflows were placed within the

respective stages and subsequently activities are

embedded within the workflows. Guidelines for

various techniques to be applied in each activity

mentioned as part of the ODLC. Since deliverables

against milestones are measurable entities, details of

deliverables are proposed against each workflow.

Figure 2 illustrates the abstract view of the ODLC of

SCIM.

4.1 Planning Stage

The ultimate goal of planning stage is to produce a

semi-formal, formal or a mixed mode Ontology

Requirement Specification (ORS). The extent of

formalism varies as per the techniques applied for the

preparation of ORS. In SCIM, a systemized approach

with efficient agile techniques has been proposed for

ORS preparation. Requirement analysis workflow is

embedded in this stage with feasibility analysis as the

sole activity. Unlike other development

methodologies, SCIM proposes agile techniques to

complete the activity embedded.

Figure 2: Abstract view of the ODLC of SCIM.

Requirements Analysis Workflow

Feasibility analysis is the core activity integrated to

this workflow. Feasibility analysis activity covers

requirement analysis by specifying the semantic

requirements of the ontology users. The scope of this

activity includes the identification of scope, purpose,

boundary, intended users and ontology requirements.

The techniques applied in this activity define the

degree of formality of the Ontology Requirement

Specification (ORS). Variation of agile technique

followed by light weight software methodologies

such as Joint Ontology Development (JOD) sessions

will be conducted among users and Domain Expert

(DE) to fulfil the requirements of this activity. Other

agile techniques followed to complete the activity are

storyboarding, usage of competency questions and

modeling of the analysis use cases. Functional and

non- functional requirements of intended domain

ontology are defined during the JOD sessions.

Functional requirements are the domain specific and

they are ones referred to knowledge represented in the

ontology whereas non-functional requirements are

the generic referred to the aspects not specific to the

domain concerned, but should have been satisfied by

the ontology in its realization.

Scope and boundary definition includes the

identification of first level key concepts. Defining

business purpose of the ontology finalizes the

categories of ontology users. During storyboarding,

DE sketches the outline of sequential activities

belonging to a scenario. Usage of competency

questions ensures the availability of aspects that

ontology must answer at its conceptual level. The

competency questions can be used for the evaluation

of this workflow at evaluation stage.

4.2 Conceptualization Stage

Conceptualization stage focusses on the identification

of the domain concepts with their properties and the

relationships. The goal of the conceptualization stage

is to produce a conceptual model. This can be

delivered in the form of a domain vocabulary in its

minimal form. Domain analysis workflow has been

mapped to this stage. The activities embedded in this

workflow are domain vocabulary acquisition and the

enumeration of concepts, properties and their

definition. The deliverable against the completion of

this stage will eventually be a glossary with clear

definition of all the concepts with the details of

properties belonging to them. Techniques proposed

for the activities are survey, extraction of concepts

from documents, concept mapping.

Domain Analysis Workflow

The development of an ontology starts from the

definition of concepts related to the scope of the

domain concerned. The activities embedded are

domain vocabulary acquisition and enumeration of

concepts, properties and their definitions. This

workflow refines the requirements finalized in the

requirements analysis workflow. A more generic

domain vocabulary which includes a finer list of

domain concepts along with the list of properties will

be delivered by this workflow against the completion

of activities embedded in it. The deliverable

mentioned will eventually turns to the final glossary

with the clear definition of concepts.

Domain Vocabulary Acquisition

Classes are the key elements of domain ontologies

which are derived from the domain concepts after

refinement. These classes are derived as a result of

this activity. DE plays a vital role in this activity

based on his/her best knowledge in the domain

concerned. Domain vocabulary is built after detailed

identification of domain specific concepts (classes).

UML representation of design level classes with

attributes is a kind of representation of concept

structure. The more refined domain vocabulary

eventually extending to a domain glossary is built on

top of the concepts extracted from existing domain

specific documents such as reports, policies,

procedures and standards.

Enumeration of Concepts, Properties &

Their Definition

This activity lists the concepts/classes and the

properties of the concepts included in the refined

glossary developed in the previous activity.

Properties are the ones which provide structure to the

concepts and this activity enumerates them which can

be represented as atomic and complex. In formal

representation languages, properties are of two major

categories. They are data properties and object

properties. Data properties describe the property with

its value whereas object properties link an instance of

the concept to another instance. This activity leads to

the derivation of both data properties and object

properties. In a nutshell, the completion of embedded

activities will deliver a well refined glossary on the

domain concerned for the usage of remaining

workflows.

4.3 Development Stage

This stage is related to the conceptualization stage

and therefore they are interconnected in SCIM

framework. The goal of the development stage is the

transformation of conceptual model defined into to a

semi-formal model. The conceptual design workflow

is mapped to the development stage. The core

activities embedded in this workflow are taxonomy

identification, establish adhoc binary relationship,

add complex restrictions and rules followed by

describe concepts, attributes and relationships. The

activities stated above are generic in nature and they

are applied to the development of domain ontology

regardless of the domain concerned. UML modeling

has been suggested as a technique for the semi model.

As part of conceptual model development, this

stage emphasize on the core elements of ontology

such as concepts, relations, attributes, instances,

constants, axioms and rules. While completing the

activity of taxonomy identification, an ontological

structure to be built among the concepts is identified

as the activity sets a concept hierarchy. The

conceptual model development is not possible to

realize in a sequential manner completely. However,

it needs an order to work with for model

representation.

Conceptual Design Workflow

This workflow is associated with the development of

a conceptual model as its deliverable. Taxonomy

Identification, add complex restrictions and rules,

describe concepts, attributes and relationships and

establish adhoc binary relationships are the core

activities in this workflow.

Taxonomy Identification

Once after the glossary of terms gets a reasonable set

of refined concepts, Knowledge Engineer (KE) shall

to work on this activity. It defines the concept

hierarchies of the ontology by building concept

taxonomy. During this activity, concepts are

organized into a hierarchical taxonomy based on the

taxonomic relationships. Hence an ontological

structure is set to refined vocabulary/glossary derived

in the previous workflow. Concepts from the

vocabulary/glossary are organized into hierarchical

structure based on four formal relationships in SCIM.

The four relationships used in this activity are

Subclass Of, Disjoint-Decomposition, Exhaustive-

Decomposition and Partition.

Add Complex Restrictions and Rules

This activity identifies the formal axioms required in

the ontology and describes them explicitly. In this

activity, property constraints can be set which limits

the set of possible values for a property. These

include the value types, its allowed values, and the

number of values that can/must have (cardinality).

Domain and range for a property can be specified

by explicitly stating the possible value or enumerated

values. Besides this, this activity identifies the rules

required in the ontology. The instrument rule table

has been used to record the credentials of rule applied.

Establish Adhoc Binary Relationships

This activity establishes the appropriate

semantic/structural relationships between identified

concepts with respect to the domain concerned.

During this activity, the binary relationship targets to

establish adhoc relationship between the same or

different concepts from the conceptual model

produced in the previous workflow. The adhoc binary

relationships include inverse, transitive, symmetric

and reflexive relationships between the concept

taxonomy. For every adhoc binary relationship, KE

must specify the name of relationship, between the

source and target concepts with cardinality.

4.4 Implementation & Deployment

Stage

This stage of SCIM suggests the usage of an

appropriate ontology development environment

(ODE). The selected ODE should support the formal

language representation as the deliverable of this

stage is the well evaluated formal language coded

ontology. Therefore SCIM recommends an ODE

with formal language code generation facility against

the conceptual model. To ensure the correctness of

the aspects applied in ontology development, ODE

uses the reasoner. Implementation workflow has been

mapped against this stage with necessary activities.

Formal language representation and vocabulary

linking with data are the activities integrated with the

Implementation stage.

A sequential flow among stages has been proposed

for SCIM has been defined in the life cycle. Set of

workflows defined briefed in the next session with

integrated activities.

Implementation Workflow

The implementation of ontology requires an ontology

development environment with the capability of

formal language code generation. Protégé has been

proposed by SCIM. During this workflow, encoding

of the ontology with formal language takes place.

Formal language representation and vocabulary

linking with data are the two activities associated with

the workflow mentioned. The expressive power and

Figure 3: Final framework of SCIM.

computational complexity of the associated reasoning

method and the level of acceptance are the core

parameters being considered for choosing the formal

language. Web Ontology Language (OWL)(Steffen

Staab, 2010) is one of the best available formal

languages to encode an ontology even in semantic

web context. KEs are the key role players in this

workflow as implementation delivers a physical

model of the ontology as its output.

The final framework of SCIM illustrates the

consolidation of stages, workflows, activities and

techniques along with indication of the ontology

development team representation. The framework is

illustrated in Figure 3.

5 FINAL REMARKS

We propose a new methodology for ontology

development with the complete coverage of methods

and activities embedded in it. A well-defined ODLC

has been proposed with the details of milestone and

deliverables. Detailed literature review and analysis

of exiting methodologies have been carried out to

assess their limitations. This research attempts to

address these limitations by proposing a novel

methodology. Therefore, the proposed methodology

supports state of the art technology to improve large

scale ontology development. Further to that a

validation will be carried to assess the accuracy and

applicability of the methodology.

REFERENCES

Linkeddata.org. (2017). IJSWIS Special Issue on Linked

Data: Call for Papers. [online] Available at:

http://linkeddata.org/docs/ijswis-special-issue

[Accessed 16 Apr 2017].

Blanco, C., Lasheras, J., Fernández-Medina, E., Valencia-

García, R. and Toval, A. (2011). Basis for an integrated

security ontology according to a systematic review of

existing proposals. Computer Standards & Interfaces,

33(4), pp.372-388.

Iqbal, R., AzmiMurad, M.A., Mustapha, A. and Mohd

Sharef, N. (2013) 'An Analysis of Ontology

Engineering Methodologies: A Literature Review',

Research Journal of Applied Sciences, Engineering and

Technology, 16(6). pp. 2993-3000.

Gómez-Pérez, A. and Suárez-Figueroa, M.C., 2008. NeOn

methodology: scenarios for building networks of

ontologies. Poster and Demo, p.43.

Fernández-López, M. and Gómez-Pérez, A. (2002).

Overview and analysis of methodologies for building

ontologies. The Knowledge Engineering Review,

17(02), pp.4-1-4-13.

Natalya F. Noy and Deborah L. McGuinness (2001).

Ontology Development 101: A Guide to Creating Your

First Ontology. [online] Available at:

http://protege.stanford.edu/publications/ontology_deve

lopment/ontology101.pdf [Accessed 3 May 2016].

Fernandez, M., Gomez-Perez, A. and juristo, N. (1997)

METHONTOLOGY, From Ontological Art Towards

Ontological Engineering.

De Nicola, A., Missikoff, M. and Navigli, R. (2009).A

software engineering approach to ontology building.

Information Systems, 34(2), pp.258-275.

An Agile Development Methodology for Knowledge-

Based Systems Including a Java Framework for

Knowledge Modeling and Appropriate Tool Support.

(2002). Ph.D. Universität Ulm, Fakultät für Informatik,

Abteilung Programmiermethodik und Compilerbau.

Kruchten, P. (2003). The Rational Unified Process: An

Introduction. 3rd ed. Boston, USA: Addison-Wesley

Longman Publishinh Comp.

Steffen Staab, R. (2010). Handbook on Ontologies.1st ed.

Springer Berlin Heidelberg.
