An Open Source System for Big Data Warehousing

Nunziato Cassavia

1,2

, Elio Masciari

and Domenico Sacc

2,3

ICAR-CNR, Rende, Italy

DIMES UNICAL, Rende Italy

Centro di Competenza ICT-SUD, Rende, Italy

Keywords:

Big Data Warehousing, NoSQL and Mondrian.

Abstract:

The pervasive diffusion of new data generation devices has recently caused the generation of massive data

ﬂows containing heterogeneous information generated at different rates and having different formats. These

data are referred as Big Data and require new storage and analysis approaches to be investigated for managing

them. In this paper we will describe a system for dealing with massive big data stores. We deﬁned an open

source tool that exploits a NoSQL approach for data warehousing in order to offer user am intuitive way to

easily query data that could be quite hard to be understood otherwise.

1 INTRODUCTION

The increasing availability of huge amounts of data

from heterogeneous sources, calls for the deﬁnition

of new paradigms for their management – this prob-

lem is known with the name Big Data (Nature, 2008;

Economist, 2010; Economist, 2011; Agrawal et al.,

2012; Lohr, 2012; Manyika et al., 2011; Noguchi,

2011a; Noguchi, 2011b; Labrinidis and Jagadish,

2012). As a consequence of new perspective on data,

many traditional approaches to data analysis result

inadequate both for their limited effectiveness and

for the inefﬁciency in the management of the huge

amount of available information. Therefore, it is nec-

essary to rethink both the storage and access patterns

to big data as well the design of new tools for data

presentation and analysis. In particular, On Line An-

alytical Processing (OLAP) tools require suitable ad-

justments in order to work for big data processing ef-

fectively. Indeed, it is crucial, during the construction

and analysis of a data warehouse, to exploit ad-hoc

tools that allow an easy and fast search of data stored

in several nodes distributed over the storage layer.

More in detail, while building a data warehouse

for Big Data, the key to a successful analysis (i.e. a

fast and effective one) is the availability of good in-

dexing mechanisms. Therefore, an additional cost in

terms of storage space consumption needed for stor-

ing the appropriate indices is to be taken into account.

It is worth noticing that the problem of fast ac-

cessing relevant pieces of information arises in sev-

eral scenarios such as world wide web search, e-

commerce systems, mobile systems and social net-

works analysis to cite a few.

Successful analyses for all the application con-

texts rely on the availability of effective and efﬁcient

tools for browsing data so that users may eventually

extract new knowledge which s/he was not interested

initially.

In this paper, we describe the architecture of an

open source system for big data OLAP, capable to

deal with Big Data and offering the chance to “nav-

igate through” the data in a simpliﬁed manner, while

keeping traditional operators available in an OLAP

based system such as roll-up, drill-down, slice and

dice. Our system is based on the reliable and widely

used MonetDB NOSQL data store and the Mondrian

analysis tool (thus we named it MonOLAP) as will be

described in next sections.

2 MonOLAP HIGH LEVEL

SYSTEM DESIGN

In this section, we will describe our system design. As

our goal is the development of an Open Source tool

that takes advantage of both Mondrian and MonetDB

systems, we leverage the abstraction features offered

by Mondrian and the data storage layer functionali-

ties of MonetDB. Our system assumes that the tar-

get data could be stored on some external relational

306

Cassavia, N., Masciari, E. and Saccà, D.

An Open Source System for Big Data Warehousing.

DOI: 10.5220/0006485703060313

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 306-313

ISBN: 978-989-758-255-4

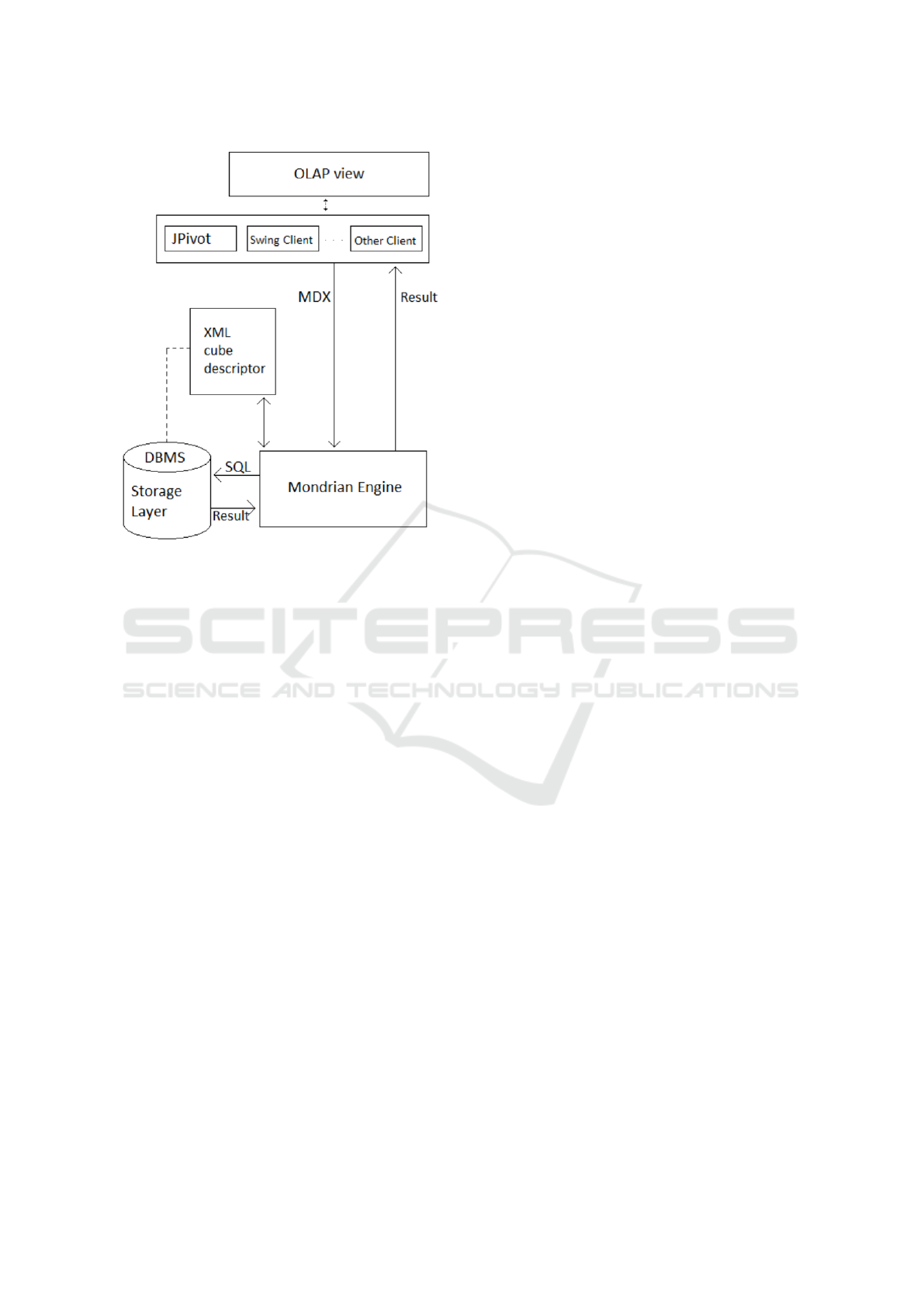

Figure 1: Mondrian Architecture.

DBMS. Thus, the system allows the user to select her

own interesting data from relational datasources and

the possibility to create, from the selected data, her

custom multidimensional datacubes.

In order to load the data into the MonetDB repos-

itory, it is mandatory to perform a transformation and

migration step. Moreover, the deﬁnition of multi-

dimensional datacube will be tailored to support the

same multidimensional view on MonetDB own data

structures. The transformation of the original data

affects the materialization of the datacube as well as

data ﬂattening. The latter step involves the denormal-

ization of the OLAP schema fact table, i.e., we add to

the fact table the attributes related to the measure of

interest declared in the OLAP schema.

The outcome of this preliminary operation is a

performance improvement, as the increase in the

number of attributes in the fact table will perfectly

ﬁt the MonetDB column management strategy. The

performance improvement obtained by this synergy

between the two systems will be clearer from the ex-

perimental evaluation shown in next sections. Figure

1 shows the block diagram of the architecture of Mon-

drian OLAP system.

We brieﬂy summarize here the main Mondrian

features we exploited in our prototype implementa-

tion:

• the system allows data cube querying using MDX

language by a simple user interface. In order to

properly perform the queries, the deﬁnition of an

XML ﬁle representing the datacube and its dimen-

sions, hierarchies and measures, is mandatory;

• the MDX query is forwarded to the OLAP engine

that perform the transformation to SQL and exe-

cute the queries to the repository containing the

data;

• the query result is sent to Mondrian for user de-

ﬁned processing and then sent to the user interface

which displays the results in a multidimensional

way using interfacing-dependent mechanisms.

In Figure 2 we report the overall architecture of

our MonOLAP engine. It contains several modules

that have been used to exploit MonetDB features to

create a high-performance still reliable system. More

in detail, two modules plays a crucial role in the sys-

tem architecture, namely the ETL tool and the DBMS

MonetDB which are responsible respectively for ma-

nipulating the data and storing the data in ﬂattened

form.

The ETL tool deals with:

• extracting data from the data source (that we recall

could be an external DBMS);

• materializing the OLAP cube;

• transforming the cube by ﬂattening it;

• transferring the data to the MonetDB storage

layer.

It is worth noticing that, the conﬁguration ﬁle that

deﬁnes the cube dimensions, measures, and layers

(that refers to the original DBMS) has to be built ac-

cording to the warehouse architect speciﬁcation for

the domain being analyzed. The obtained XML ﬁle,

deﬁned as Adapted Cube Descriptor, is the result of

a transformation that takes into account the new ﬂat-

tened schema for data materialization.

For the sake of completeness, we report in Figure

3 the workﬂow for OLAP cube deﬁnition that is per-

formed by user using the Schema Workbench tool.

3 MonOLAP MODULES

DESCRIPTION

As explained above, our system is an integrated en-

vironment for supporting OLAP data analysis for Big

Data. The novelty of our approach mainly consists

in its easy features for data manipulation and their

transfer to/from any Relational DBMS selected by the

user. However, after an extensive set of experiments,

we found that optimal performances can be obtained

by leveraging MonetDB. We also manage the data

mapping phase in order to leave the multidimensional

An Open Source System for Big Data Warehousing

307

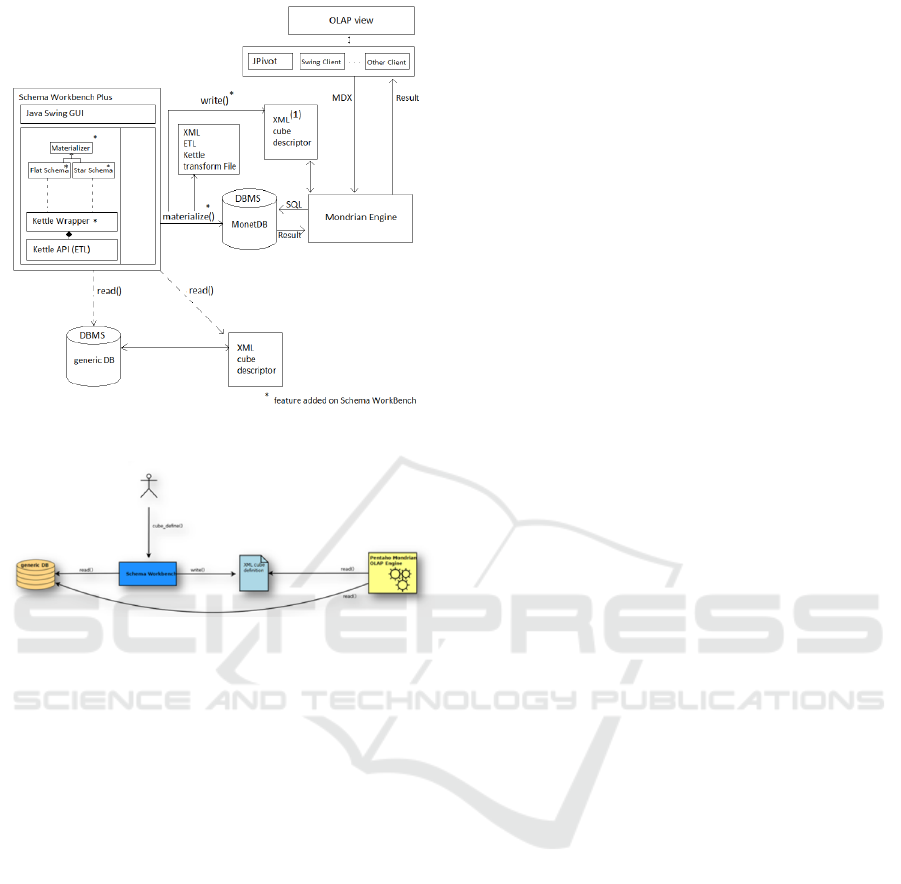

Figure 2: MonOLAP Engine Architecture.

Figure 3: OLAP cube deﬁnition by Schema Workbench.

view unchanged while using the MonetDB data struc-

tures. This results in a high performance gain due to

the fact that MonetDB is extremely efﬁcient in man-

aging tables with a large number of attributes. Based

on this preliminary observation, the name MonOLAP

was chosen to recall its peculiar features deriving

from the integration of Mondrian with MonetDB for

OLAP analysis ((Mon)drian + (Mon)etDB for OLAP

= MonOLAP).

As introduced in the high level description of the

system, the MonOLAP System consists of 3 software

modules:

• MonetDB;

• Mondrian;

• Schema Workbench Plus.

While MonetDB and Mondrian are respectively

the Storage Layer and OLAP Server of the system,

the last module, Schema Workbench Plus, can be de-

ﬁned as a cube designer tailored for date cube deﬁni-

tion and several forms of materialization through ETL

mechanisms.

More in detail, the main features of the above

mentioned modules, that have been extensively used

can be summarized as follows:

• Schema Workbench Plus.

Creation or loading of the XML schema rep-

resenting a cube: after deﬁning the connection to

the source DBMS, the user can create and vali-

date an XML schema for a given cube or alterna-

tively can also update an existing schema. The

validation of the schema is performed by inter-

acting with the data repository (by checking the

match of the fact table and dimensions with the

input data sources);

Materialization of data cube on the storage

layer: the user, after selecting one of the cubes

of the schema, can perform the materialization on

the storage layer. The system offers the user the

possibility to choose, depending on her needs, the

type of materialization.

• Mondrian.

After conﬁguring Mondrian conﬁguration

parameters, i.e. the connection to the DBMS and

the XML schema path, the user can query the data

cube in graphical mode and then obtain a multidi-

mensional view of the data. Schema Workbench

Plus plays a crucial role at this stage, since it is

completely transparent to the user who is able to

generate a XML scheme of the materialized cube

which allows the query engine to answer to the

same MDX queries of the original data cube.

The cube data description is stored by Schema

Workbench Plus in XML format. The materialization

of the cube causes the execution of two operations:

• the materialization on the storage layer, which can

be of two types, ﬂattened or starred;

• the generation of the XML schema for the materi-

alized cube.

4 MATERIALIZATION

ALGORITHM

In this section we will explore the implemented mate-

rialization techniques.

4.1 Flat Schema

Algorithm 1 illustrates the materialization algorithm

for a Flat Schema. The algorithm takes as input two

parameters, i.e., the data cube to be materialized (C)

and the table for materializing the datacube (F).

The materialization step requires a preliminary

check on the type of table of the data cube. When

deﬁning an OLAP data cube, user has to specify the

fact table for measure computation. The peculiarity

KomIS 2017 - Special Session on Knowledge Discovery meets Information Systems: Applications of Big Data Analytics and BI -

methodologies, techniques and tools

308

Algorithm 1 Flat Schema Algorithm.

1: procedure FLAT SCHEMA

2: C ← selected cube

3: F ← ﬂatten table

4: if C. f actTable is a View then

5: calculate fact table from SQL expression

6: calculate fact attribute from SQL expression

7: else

8: get fact table from cube

9: for m in C.measure do

10: if m is SQL Expression then

11: Calculate Attribute

12: Add Attribute to Flatten Table

13: else

14: Add Attribute to Flatten Table

15: for d in C.dimension do

16: Select d attributes from dimension table

17: F• join(fact table, dimension table)

of this table relies on the fact that it can be either a

table on the database or a multi-table view. In the

case of a multi-table view, we need to extrapolate the

fact table by keeping track of the attributes to be se-

lected because they will then be routed to the ﬂatten

table. Once the fact table has been deﬁned, we need

to check how the user deﬁned the cube dimensions.

Measures on a given cube may refer to a speciﬁc col-

umn of the fact table or it may be the result of an SQL

expression that involves multiple columns in the fact

table. Then, before adding the attribute measure to

the ﬂatten table, it is necessary to compute the SQL

expression . Finally, it is necessary to tweak all the

dimensions of the data cube by performing the join

operation between the fact table and the dimension

table in order to update the ﬂatten table with all the

columns that affect the chosen dimensions.

4.1.1 Star Schema

Star schema materialization can be performed by ap-

plying ﬂat materialization to each dimension. In Al-

gorithm 2, we report the preudo code of this algo-

rithm.

As in the previous case, the key operation to be

performed is fact table and measures identiﬁcation,

and then the partial materialization can take place as

he fact table that contains all measures and all external

reference keys to the dimension tables. A new table

is created for each dimension, which contains all the

attributes of interest for the dimension being materi-

alized.

Algorithm 2 Star Schema Algorithm.

1: procedure STAR SCHEMA

2: C ← selected cube

3: T ← fact table

4: if T is a View then

5: calculate fact table from SQL expression

6: calculate fact attribute from SQL expression

7: add all foreign keys to fact table

8: materialize fact table

9: else

10: get fact table from cube

11: add all foreign keys to fact table

12: materialize fact table

13: for m in C.measure do

14: if m is SQL Expression then

15: Calculate Attribute

16: Add Attribute to Fact Table

17: else

18: Add Attribute to Fact Table

19: for d in C.dimension do

20: Select d attributes from dimension table

21: Create new table D

22: D• join(fact table, dimension table)

5 EXPERIMENTAL EVALUATION

ON TETRA NETWORK

In this section, we describe the results we obtained

by running MonOLAP on TETRA network data

log. TETRA (TErrestrial Trunked RAdio, originally

Trans-European Trunked RAdio) is a commercial ra-

dio waveform standard with mobile and portable sys-

tems used mainly by public security, military agen-

cies and emergency services as well as by private civil

services. TETRA is a set of standards for private

telecommunication systems targeted to a professional

user, but also for service providers interested in hav-

ing their own radio network.

TETRA is the ﬁrst open standard for profes-

sional digital radio systems and its services are pro-

vided with a whole range of NE elements (Network

Elements) that supply the management system and

support real-time operation and maintenance, neces-

sary to guarantee the daily operation of the system.

TETRA provides a communication system for several

usage scenarios. A call log is generated for each gen-

erated call within the TETRA Network. This call log

provides call details, including the parties involved in

the call, their location, call duration, and resource us-

age. For many activities, the full log of a call is built

by a set of small call logs that are generated by the var-

ious Control Nodes within network. A context log is

An Open Source System for Big Data Warehousing

309

generated for each data packet that can provide infor-

mation about activating and deactivating a data packet

and the amount of data packets that are transferred in

both directions between the mobile and the Control

Node.

5.1 Call Logs Database on TETRA

Network

The database contain the real logs generated on

TETRA network in the Emilia Romagna region. This

database is a relational database of more than 30GB

size containing multiple information on each teth-

ered call. The database was built using the Firebird

RDBMS and has the following features:

• 124 tables;

• 2000 attributes ;

• 20 tables for storing log information;

• 70 attributes for each log table (on average);

• 30 Gigabytes of data, of disk occupation;

• 132.165.089 tuples.

We have ﬁrst identiﬁed a fact of interest in order

to deﬁne a Data Mart for OLAP analysis. We have

chosen to locate logs for calls that generated alerts,

that is, those for which the call was interrupted or dis-

connected for external cause.

5.2 Logical Model of the OLAP Cube

The source database is very heterogeneous and con-

tains many unnecessary data for the analysis to be

carried out. For this reason, it was crucial, through

ETL procedures, to extract the data log of interest. In

order to perform these transformations, it is necessary

to deﬁne in the measures of interest, dimensions and

hierarchies that we want to analyze. The conceptual

model used to represent the information schema is the

Dimensional Fact Model, due to some privacy con-

straints, we limited our analysis to number of calls

measures.

As regards the analysis dimensions, we identiﬁed

the following:

• CALL END REASON (cardinality 23). Indi-

cates the reason for call ending, this type of

information is already classiﬁed in the original

database in a table that lists 23 reasons why a

TETRA network call may end;

• DISCONNECT CAUSE (cardinality 203). in-

dicates the reason why an user has been discon-

nected from the network, differently from the rea-

son for ending a call, this dimension states why it

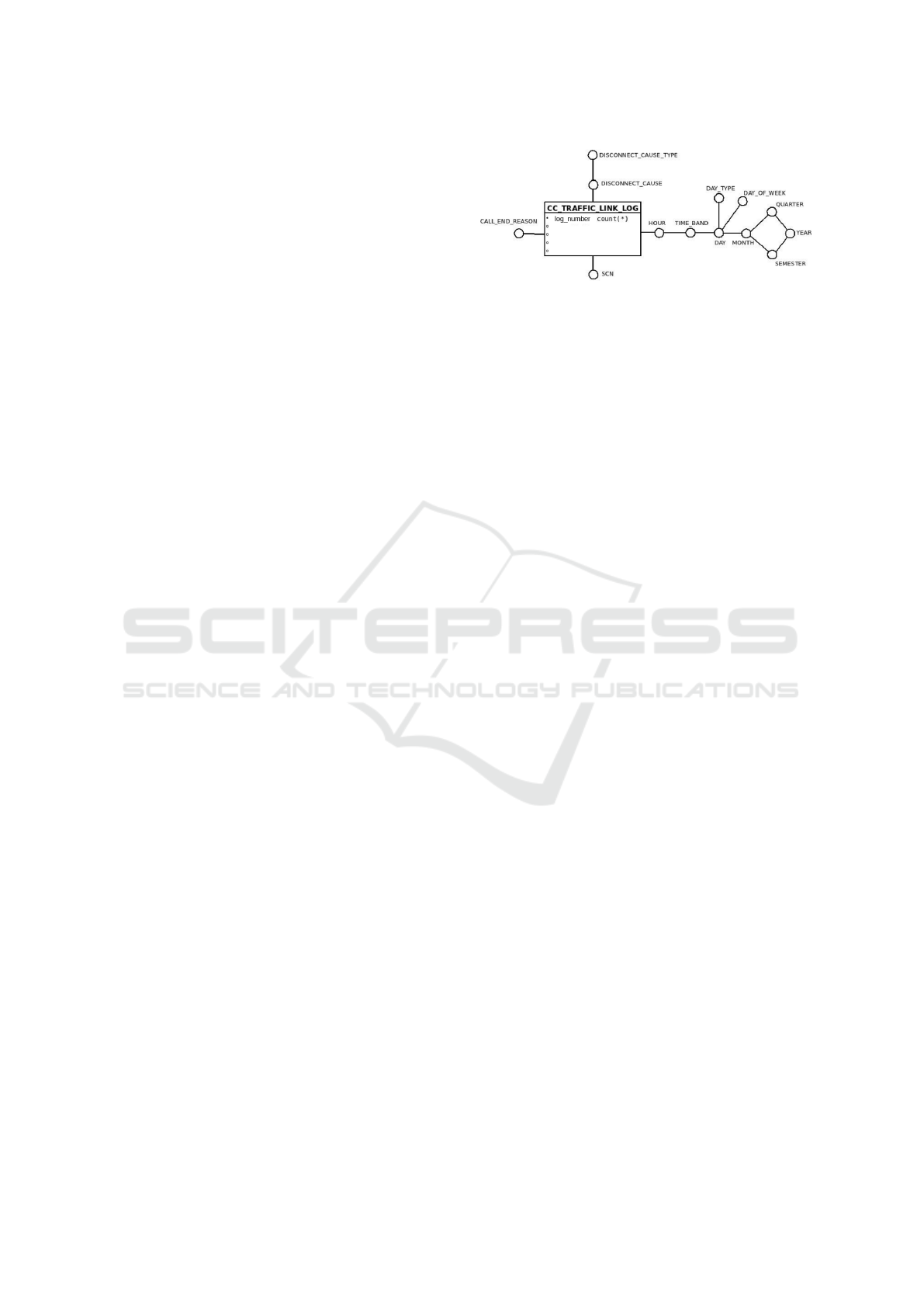

Figure 4: Dimensional Fact Model for OLAP Analisys on

Tetra Network.

is disconnected from the TETRA network, it con-

tains 203 causes of disconnection;

• SCN (cardinality 2). as the data comes from a

log database on TETRA Network of Emilia Ro-

magna, there is no reason to have a territorial di-

mension, except for the SCN to which the inter-

rupted call refers. Analysis of the source database

we found that all data refers only to two SCNs:

one located in the municipality of Bologna and

one in the municipality of Faenza;

• TEMPORARY DIMENSION (cardinality 8760

as this number refers to the hours in one year).

logs are stored in detail per millisecond, but there

is no practical need to aggregate the data till such

ﬁner granularity then we decided to support the

analysis of the temporal dimension hierarchically

by hours, days and months. The year does not

make sense in our experimental analysis as the

data refer to 2010. Also we want to be able to ag-

gregate for: days in week and weekend, day of the

week, time zone and day type. By analyzing the

data based on this model we will be able to under-

stand on which days network problems occurred,

for what reasons user have been disconnected, for

what reasons the calls have been terminated and

on what SCN, for which time slot, for which days

of the week and so on.

The Dimensional Fact Model referring to the data

model for this OLAP analysis is shown in 4.

Using ETL procedures, the table of facts and di-

mensions was extracted from the original database

and uploaded also to MySQL DBMS for the sake of

comparison. The Star Schema, representing the DFM

for TETRA logs on MySQL, is shown in 5

5.2.1 Experimental Settings

Using MonOLAP, with the Schema Workbench

PLUS component on the schema described in Figure

5, the following schemes are obtained:

• Star Schema on MySQL

• Flat Schema on MonetDB

KomIS 2017 - Special Session on Knowledge Discovery meets Information Systems: Applications of Big Data Analytics and BI -

methodologies, techniques and tools

310

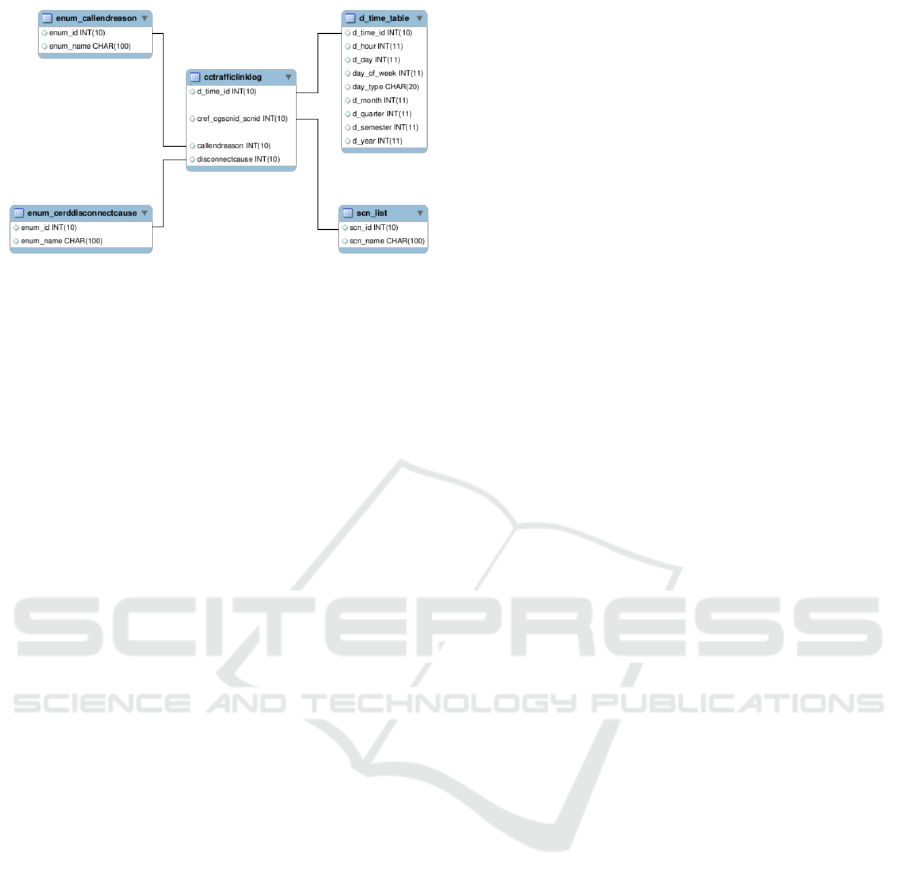

Figure 5: Star Schema for OLAP Analisys on Tetra Net-

work.

• Star Schema on MonetDB

• Flat Schema on MySQL

Our test bench is composed by the following

queries:

• Query 1. Drill Down on SCN dimension

• Query 2. Drill Down on dimensions SCN and

CALL END REASON

• Query 3. Drill Down on dimensions CALL END

REASONS and DISCONNECT CAUSE

• Query 4. Drill Down on TIME dimension

• Query 5. Drill Down on dimensions TIME and

DISCONNECT CAUSE

• Query 6. Drill Down on SCN and TIME dimen-

sions

In the following, we report the queries on the

OLAP cube expressed in MDX Language:

Query 1.

select {[Measures].[numerolog]}

ON COLUMNS,

Crossjoin

(Hierarchize(Union({[scn].[all]},

[scn].[all].Children)),

{([callendreason].[all],

[disconnectcause].[all],

[time.tempo_standard].[all])})

ON ROWS

from [traffic]

Query 2.

select {[Measures].[numerolog]}

ON COLUMNS,

Crossjoin

(Hierarchize

(Union(Union(Crossjoin({[scn].[all]},

{[callendreason].[all]}),

Crossjoin({[scn].[all]},

[callendreason].[all].Children)),

Union(Crossjoin([scn].[all].Children,

{[callendreason].[all]}),

Crossjoin([scn].[all].Children,

[callendreason].[all].Children)))),

{([disconnectcause].[all],

[time.tempo_standard].[all])})

ON ROWS

from [traffic]

Query 3.

select {[Measures].[numerolog]}

ON COLUMNS,

Hierarchize(Union(Crossjoin({[scn].[all]},

Union(Crossjoin({[callendreason].[all]},

{([disconnectcause].[all],

[time.tempo_standard].[all])}),

Crossjoin({[callendreason].[all]},

Crossjoin([disconnectcause].[all].Children,

{[time.tempo_standard].[all]})))),

Crossjoin({[scn].[all]},

Crossjoin([callendreason].[all].Children,

{([disconnectcause].[all],

[time.tempo_standard].[all])}))))

ON ROWS

from [traffic]

Query 4.

select {[Measures].[numerolog]}

ON COLUMNS,

Hierarchize

(Crossjoin({[scn].[all]},

Crossjoin({[callendreason].[all]},

Union(Crossjoin({[disconnectcause].[all]},

{[time.tempo_standard].[all]}),

Crossjoin({[disconnectcause].[all]},

[time.tempo_standard].[all].Children)))))

ON ROWS

from [traffic]

Query 5.

select {[Measures].[numerolog]}

ON COLUMNS,

Hierarchize

(Crossjoin({[scn].[all]},

Union(Crossjoin({[callendreason].[all]},

Union(Crossjoin({[disconnectcause].[all]},

{[time.tempo_standard].[all]}),

Crossjoin({[disconnectcause].[all]},

[time.tempo_standard].[all].Children))),

Crossjoin({[callendreason].[all]},

Union(Crossjoin([disconnectcause].[all].

Children,{[time.tempo_standard].[all]}),

Crossjoin([disconnectcause].[all].Children,

An Open Source System for Big Data Warehousing

311

[time.tempo_standard].[all].Children))))))

ON ROWS

from [traffic]

Query 6.

select {[Measures].[numerolog]}

ON COLUMNS,

Hierarchize

(Union(Crossjoin({[scn].[all]},

Crossjoin({[callendreason].[all]},

Union(Crossjoin({[disconnectcause].[all]},

{[time.tempo_standard].[all]}),

Crossjoin({[disconnectcause].[all]},

[time.tempo_standard].[all].Children)))),

Crossjoin([scn].[all].Children,

Crossjoin({[callendreason].[all]},

Union(Crossjoin({[disconnectcause].[all]},

{[time.tempo_standard].[all]}),

Crossjoin({[disconnectcause].[all]},

[time.tempo_standard].[all].Children))))))

ON ROWS

from [traffic]

5.2.2 Experimental Results

The execution of the queries described above had dif-

ferent execution times depending on the execution

schema as reported in Figure 6 (each cell represents

the execution time of the query in milliseconds).

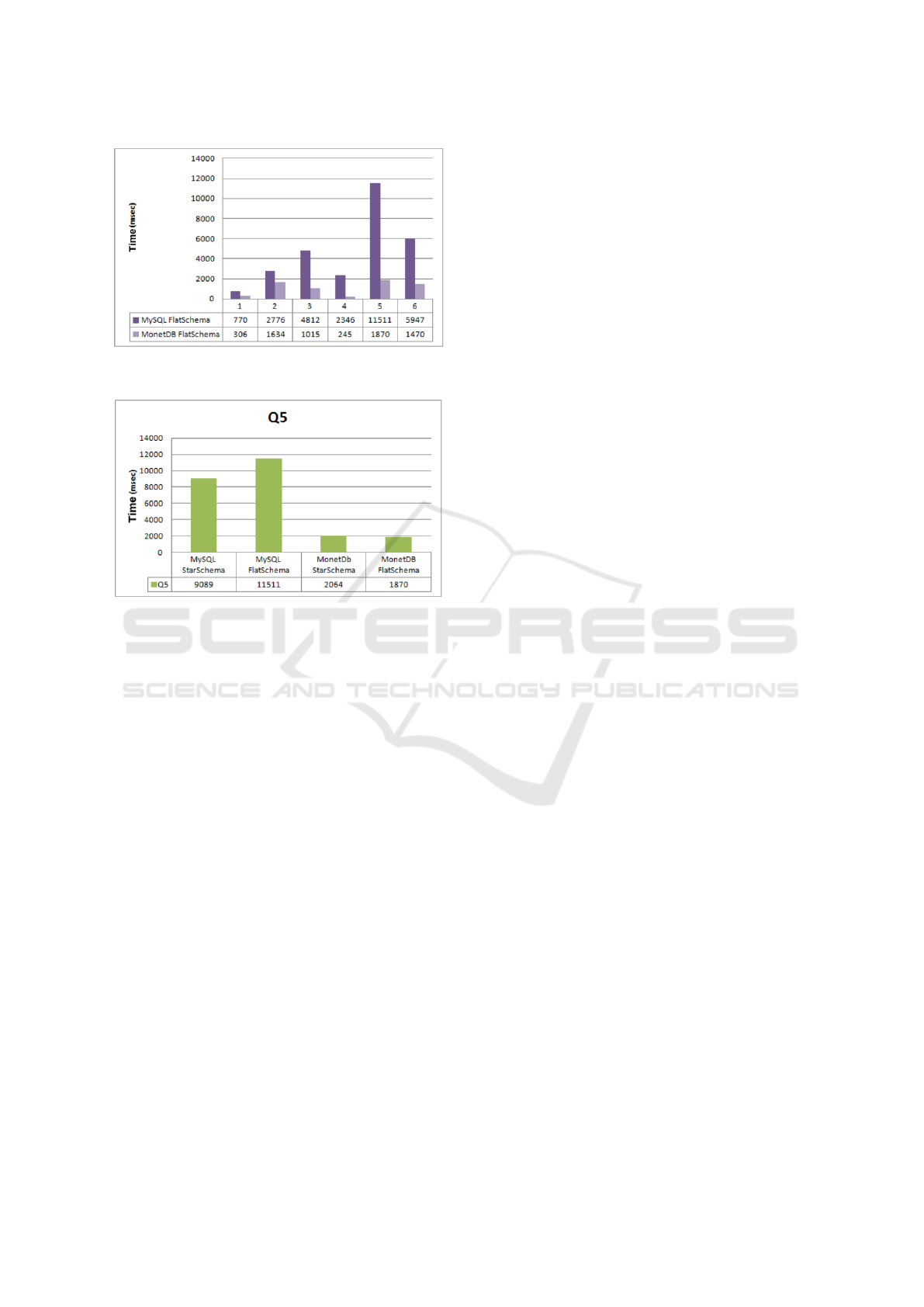

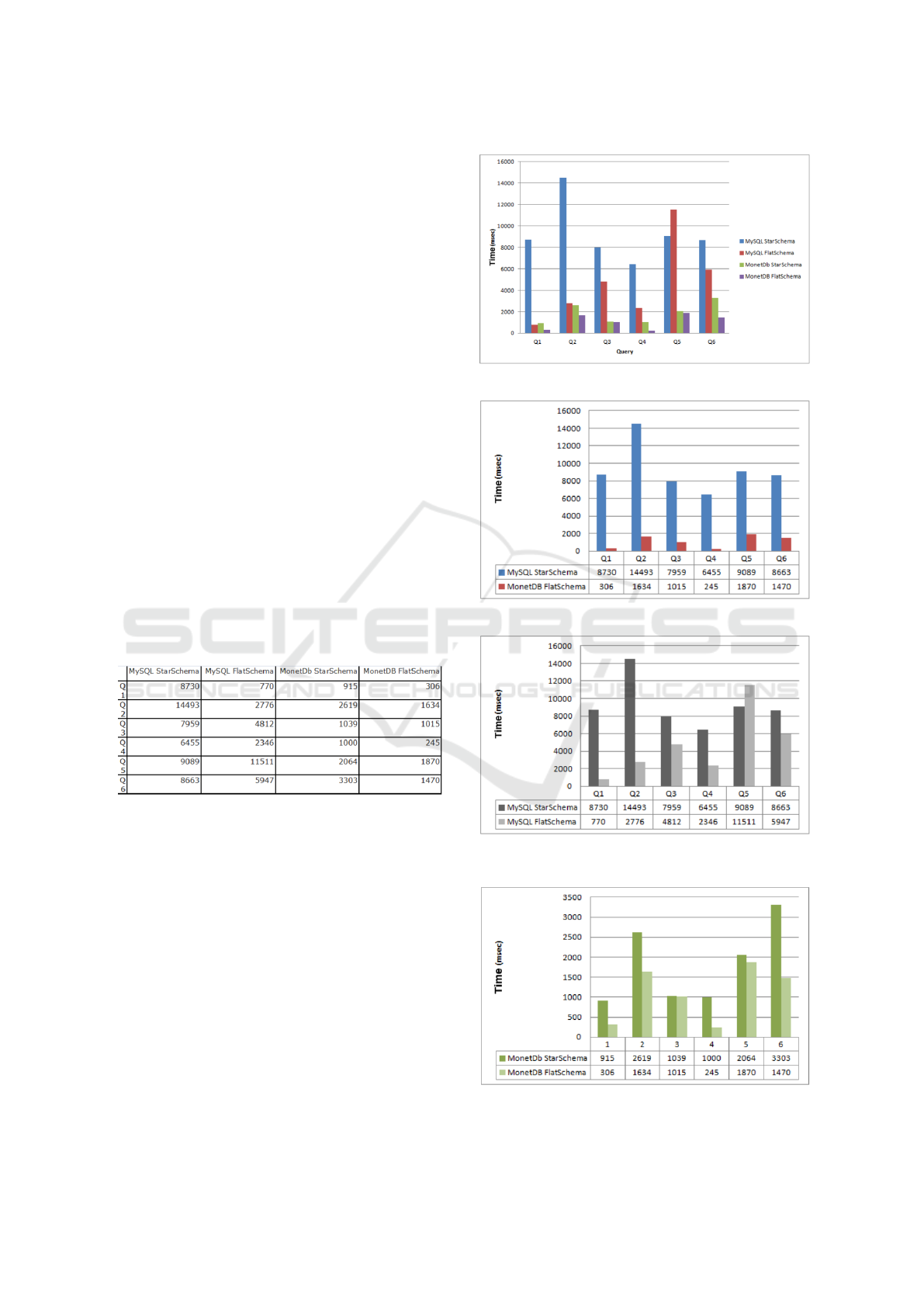

Figure 6: Query Execution Times.

The highest performance gap has been obtained

when comparing MySQL Star Schema and MonetDB

Flat Schema as reported in Figure 7.

The above mentioned difference is even more ac-

centuated when considering the results shown in Fig-

ure 8.

The denormalization process, which causes Mon-

etDB on a ﬂatten schema to have better performance,

does not lead to the same results when using MySQL.

Indeed, we can observe that MySQL does not always

take advantage of the denormalization performed. In

Figure 9, it is easy to see that the MySQL execu-

tion times increase despite the denormalization on

Query5.

On MonetDB, the ﬂattening process guarantees

the best experimental performances, this is due to

Figure 7: All Queries Result Times on different Schemes.

Figure 8: MySQL Star Schema vs MonetDB Flat Schema.

Figure 9: Comparison between MySQL Star Schema and

MySQL Flat Schema.

Figure 10: Comparison between MonetDB Star Schema

and MonetDB Flat Schema.

KomIS 2017 - Special Session on Knowledge Discovery meets Information Systems: Applications of Big Data Analytics and BI -

methodologies, techniques and tools

312

Figure 11: Comparison Flat Schema between MySQL and

MonetDB.

Figure 12: Query 5 an all scheme execution times.

MonetDB’s internal operation, as can be seen from

Figure 10. MonetDB with the same denormalized

schema offers, compared to MySQL, better perfor-

mance, as shown in Figure 11. This peculiarity is

most relevant when comparing the results on the same

query. Figure 12 takes into consideration the Query 5

which involves join operations with high cardinality.

6 CONCLUSION

Big data analysis is a challenging task as we need

to take into account the velocity, variety and volume

of information to be analyzed. Indeed, such features

heavily inﬂuence the design of a system for big data

warehousing. In this respect, we analyzed several de-

sign options in order to implement a prototype for

Big Data Warehousing. Our MonOLAP prototype has

been used for TETRA net analysis. Results on the

efﬁciency of the system were quite satisfactory. We

are now gathering real data from other public sources

in order to perform a detailed analysis of the accu-

racy and effectiveness we can obtain by leveraging

our prototype.

ACKNOWLEDGEMENTS

This work was supported by MIUR Cybersecurity

project. We also thank Gaetano Fabiano for its con-

tribution to system implementation.

REFERENCES

Agrawal et al., D. (2012). Challenges and opportunities

with big data. A community white paper developed

by leading researchers across the United States.

Economist (2010). Data, data everywhere. The Economist.

Economist (2011). Drowning in numbers - digital data will

ﬂood the planet - and help us understand it better. The

Economist.

Labrinidis, A. and Jagadish, H. V. (2012). Challenges and

opportunities with big data. PVLDB, 5(12):2032–

2033.

Lohr, S. (2012). The age of big data. nytimes.com.

Manyika, J., Chui, M., Brown, B., Bughin, J., Dobbs, R.,

Roxburgh, C., and Byers, A. H. (2011). Big data: The

next frontier for innovation, competition, and produc-

tivity. McKinsey Global Institute.

Nature (2008). Big data. Nature.

Noguchi, Y. (2011a). Following digital breadcrumbs to big

data gold. National Public Radio.

Noguchi, Y. (2011b). The search for analysts to make sense

of big data. National Public Radio.

An Open Source System for Big Data Warehousing

313
