Towards a Complex Interaction Scenario in Worker-cobot

Reconfigurable Collaborative Manufacturing via Reactive Agent

Ontology

Case-study: Two Workers in Cooperation with One Cobot

Ahmed R. Sadik

1,2

and Bodo Urban

1,2

University of Rostock, Universitätsplatz 1, 18055, Rostock, Germany

Fraunhofer Institute for Computer Graphic Research IGD, Joachim-Jungius-Str. 11, 18059, Rostock, Germany

Keywords: Ontology-based Communication, Collaborative Robotics, Reconfigurable Manufacturing System, Holonic

Control Architecture, Autonomous Reactive Agent, Multi-Agent System.

Abstract: Close Human-Robot Interaction (HRI) has been a great focus of research for the last decades. The outcomes

of this focus is a new field in industrial robotics called collaborative robotics. A collaborative robot (cobot) is

usually an industrial robot designed to operate safely in a shared work environment with the human worker.

This in contrast to conventional Industrial Robots (IRs) which are operating in isolation from the worker

workspace, the cobot is changing the concept of automation from fully automated operations to semi-

autonomous operations, where the decisions of the worker will influence the actions of the cobot and vice-

versa. Therefore, a communication and information control framework must exist to connect the worker and

the cobot together to fulfil this semi-autonomous paradigm. This framework should be able to provide a

method to represent the common knowledge which can support the collaborative manufacturing between the

worker and the cobot. During this research we are proposing an ontology-based Holonic Control Architecture

(HCA) as a proper solution to share and communicate the knowledge needed to achieve complex interaction

scenarios between the worker and the cobot.

1 INTRODUCTION

There is no doubt that the collaborative robotics is an

innovative solution for the Reconfigurable

Manufacturing System (RMS). An RMS is by

definition a system where production components

and functions can be modified, rearranged and/or

interchanged in a timely and cost-effective manner to

quickly respond to production requirements (Koren et

al., 1999). Three important factors are usually

defining the reconfigurability of an RMS, these

factors are the production line structure, the product

building plans, and the shop floor resources functions.

Adding the close physical interaction between the

worker and the cobot, is definitely a new important

factor in the RMS which we should put more focus of

study on it. The RMS concept stands between the

Dedicated Manufacturing System (DMS) and the

Flexible Manufacturing System (FMS) as shown in

Figure 1. Mass production method is applied in the

DMS where a high rate of production can be

achieved.

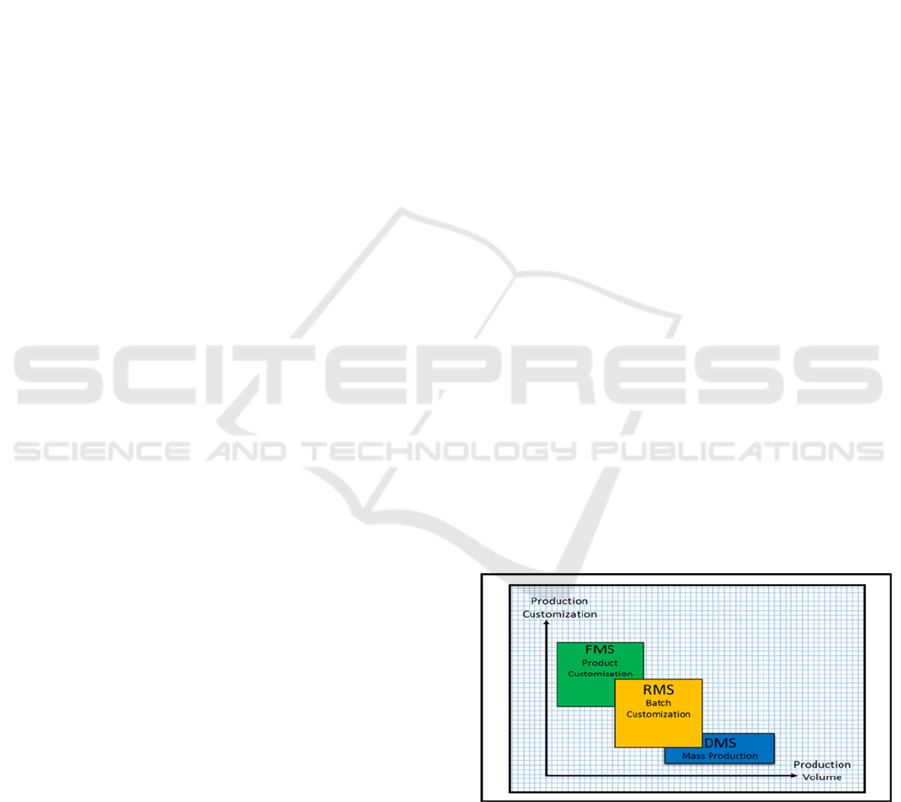

Figure 1: Comparison between DMS, RMS and FMS.

Mass production is using a static pre-planned

schedule to manage the production operations,

therefore the customization level is very low or

impossible. Mass production method is cost efficient

only in case of high market demand, which is not a

feature of nowadays market (Elmaraghy, 2005). The

Sadik A. and Urban B.

Towards a Complex Interaction Scenario in Worker-cobot Reconﬁgurable Collaborative Manufacturing via Reactive Agent Ontology - Case-study: Two Workers in Cooperation with One

Cobot.

DOI: 10.5220/0006487200270038

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KEOD 2017), pages 27-38

ISBN: 978-989-758-272-1

FMS applies the product customization concept

where very highly customized products can be

manufactured in small quantities. The cost of the

FMS is relatively high due to using expensive

machines and sophisticated software. Therefore the

production rate and capacity of an FMS is very low

compared with a DMS, which makes the FMS fails in

the most of the cases to efficiently respond to the

market demands (Kruger, 2015). Batch customization

production method is used in the RMS where the

production of several distinct versions of the same

product over the same production line is possible.

Batch customization method offers less

customizability than product customization, therefore

a higher production rate and capacity can be obtained.

That makes the RMS a compromised solution

between the DMS and the FMS.

The rest of this article is structured as follows. In

section 2 we address the challenges in the complex

worker-cobot interaction under the umbrella of

reconfigurable manufacturing. Autonomous reactive

agent will be discussed in details in section 3, we will

focus in particular on agent communication via

ontology as it will be the ground of building the

solution concept in section 4. Furthermore, section 5

shows a case-study implementation of this concept.

Finally, section 6 will wrap up the work summary

with the conclusion and the future research.

2 COMPLEX INTERACTION

CHALLENGES

The cooperation between the worker and the cobot in

a reconfigurable manufacturing context can be seen

as a complex information interaction system for the

following reasons (Sadik and Urban, 2017):

 In contrast to a simple interaction scenario which

uses basic data types such as Strings, Boolean, or

Integers, a complex interaction scenario not only

needs to exchange information in form of objects,

but also needs to express the relations between

these objects.

 In a worker-cobot complex interaction scenario, it

is needed to provide the meta-data required for

this cooperation. Descriptive meta-data is needed

to give a meaning of the tasks and the operations

which can be done during the cooperation.

Structural meta-data is required to indicate how to

compound new objects from existing objects.

Finally, administrative meta-data is required to

control the task assignment and the cooperation

planning, management, and execution.

 In contrast to object serialization convention

which translates the data structure into a stream of

bytes to be transferred and stored, a worker-cobot

complex interaction scenario requires a human

readable representation language to perform the

same purpose of serialization. In other words, a

language which can be understood by both the

worker and the cobot should be used to describe

the shared work environment.

 The variation in the required production

customization level and rate must be

comprehended by the communication and

information control system. As the complex

interaction between the worker and the cobot will

be build based on this comprehension.

 In case of one cobot is in cooperation with two

workers, the cobot is considered to be a shared

operational resources. Considering the fact that

the required time from the worker to finish a

specific task is always varying, this means that the

interaction should be able to tolerate this time

variation.

Therefore during this article we focus on explaining

the possible approach and technology which is able to

overcome the above challenges.

3 AUTONOMOUS AGENT

ONTOLOGY

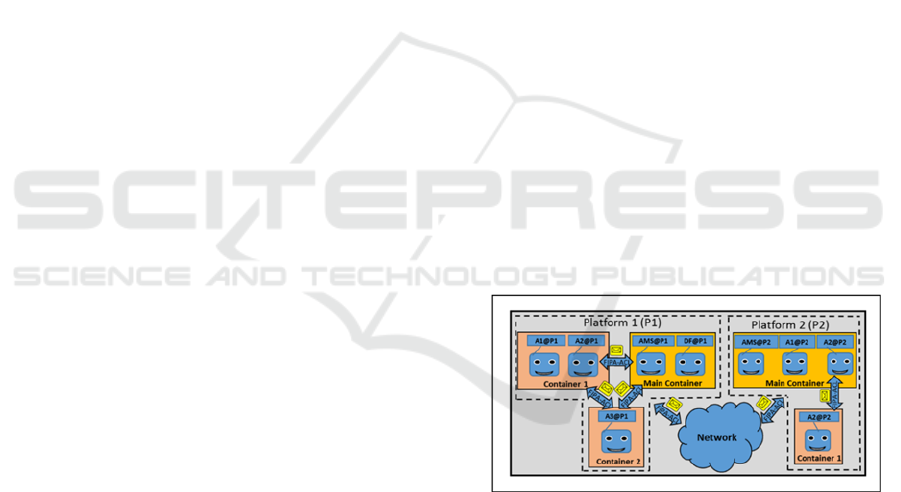

Figure 2: JAVA Agent Development.

A software agent is a computer system situated in a

specific environment that is capable of performing

autonomous actions in this environment in order to

meet its design objective (Jennings and Wooldridge,

1998). An agent is autonomous by nature. It means

that an agent operates without a direct intervention of

the humans, and has a high degree of controlling its

actions and internal states. In order to achieve this

autonomy, an agent must be able to fulfil the

following characteristics:

 Responsive: an agent is capable of perceiving its

environment and respond in a timely fashion to

the changes occurring in it.

 Pro-active: an agent is able to exhibit

opportunistic, goal directed behaviour and take

initiative.

 Social: an agent can interact with other artificial

agents or humans within its environment in order

to solve a problem.

Conceptually, an agent is a computing machine which

is given a specific problem to solve (Shen et al.,

2006). Therefore, it chooses certain set of actions and

formulates the proper plans to accomplish the

assigned task. The set of actions which are available

to be performed by the agent are called a behaviour.

The agent behaviours are mainly created by the agent

programmer. An agent can execute one or more

behaviour to reach its target. The selection of an

execution behaviour among others would be based on

a certain criteria defined by the agent programmer.

Building an execution plan is highly depending on the

information which the agent infers from its

environment including the other agents. A Multi-

Agent System (MAS) is a collective system

composed of a group of artificial agents, teaming

together in a flexible distributed topology, to solve a

problem beyond the capabilities of a single agent.

JAVA Agent Development Environment (JADE)

is a distributed MAS middleware framework as it is

shown in Figure 2 (JADE, n.d.). Each JADE instance

is an independent thread which contains a set of

containers. A container is a group of agents run under

the same JADE runtime instance. Every platform

must contain a main container. A main container

contains two necessary agents which are: an Agent

Management System (AMS) and a Directory

Facilitator (DF). AMS provides a unique ID for every

agent under its platform to be used as an agent

communication address. While the DF announces the

services which agents can offer under its platform, to

facilitate the agent services exchange, so that every

agent can obtain its specific goal (Teahan, 2010).

JADE applies the reactive agent architecture which

complies with the Foundation for Intelligent Physical

Agent (FIPA) specifications, and provides a graphical

interface to deploy and debug a MAS (Bellifemine et

al., 2007). FIPA is an IEEE Computer Society

standards organization that promotes agent-based

technology and the interoperability of its standards

with other technologies (FIPA, n.d.). JADE agents

use FIPA-Agent Communication Language (FIPA-

ACL) to exchange messages either inside its own

platform or with another platform in a distributed

MAS as shown in Figure 2 and Figure 3.

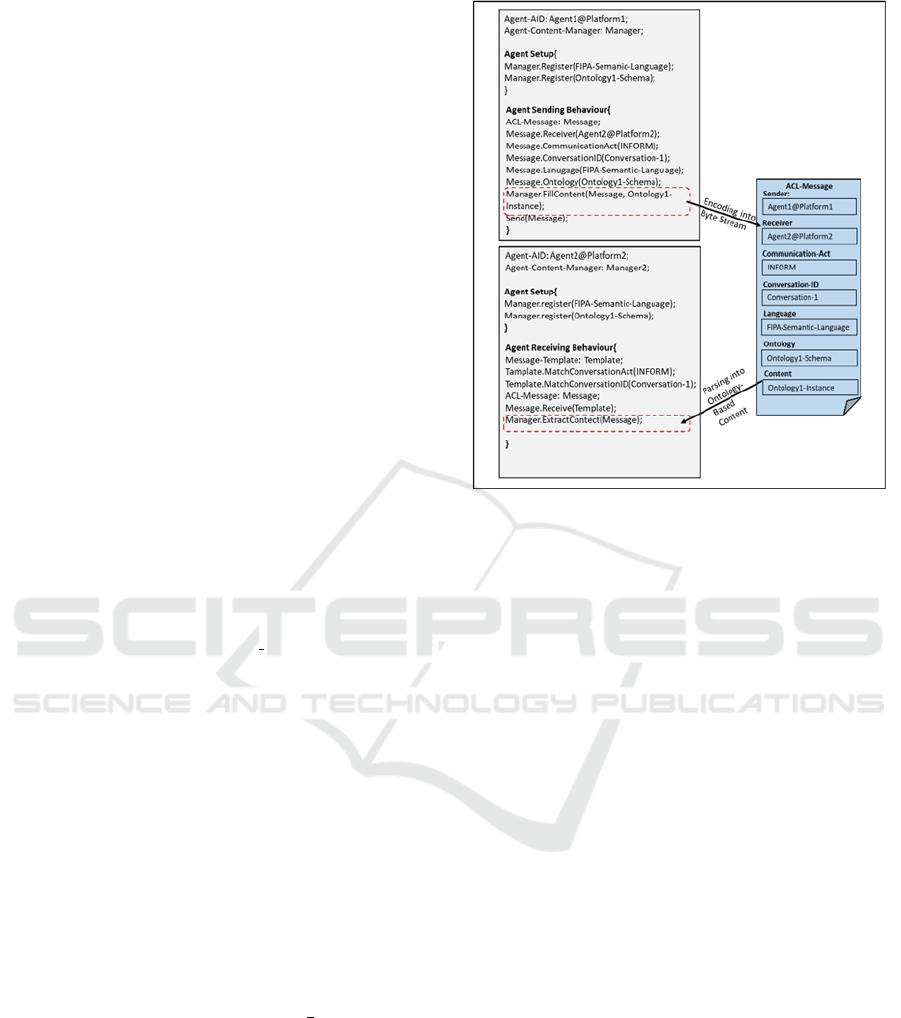

Figure 3: JADE Agents Communication via FIPA-

Ontology.

The interaction mechanism for sending and

receiving an ontology-based ACL-message between

two JADE agents is illustrated in Figure 3. Every

JADE agent must have an Agent Identification (AID).

The AID is composed of a unique name for the agent

over a specific platform, and it is used as an address

for the agent to send or receive a message (Poslad,

2007). Also every agent must have a setup method.

The setup method is automatically triggered after the

agent creation. The main function of the setup method

is to initialize the required parameters and behaviours

needed for the agent to perform its tasks. In order to

complete a communication process between two

agents, one agent must have a behaviour which is

responsible for constructing and sending an ACL-

message, the other agent must have a behaviour

which is responsible for receiving the ACL-message.

An ACL-message is composed from variety of fields,

and it must have at least a Sender and a Receiver

AIDs. Other fields such as the Communication-Act

and the Conversation-ID are necessary to distinguish

the message at the receiver side. The

Communication-Acts are defining the ACL-message

in terms of standard FIPA actions or functions, for

instance a communication-act field can contain

INFORM, REQUEST, CONFIRM, etc. The

Conversation-ID parameter can be any unique string

to distinguish or record a specific conversation topic

or thread among the agents.

The content field of an ACL-message contains a

String data type in case of simple agent conversation.

However in a complex agent conversation, an

ontology-based content will be the proper

conversation method. In order to communicate via

agent ontologies, every agent must deploy a content-

manager. The content-manager registers a common

language of conversation between the agents (Caire,

2009). The FIPA Semantic Language (FIPA-SL) is

not mandatory but preferable in a complex JADE

conversation. FIPA-SL is a human readable language

which defines the syntactic rules needed to parse or

encode an ontology-based content. Also the content-

manger registers the common ontology schemas. The

ontology schema is defining the abstract structure

pattern and the semantics needed to construct or

interpret an ontology-based ACL-message. At the

sender agent side, the content-manager checks the

semantics of the sent ACL-message based on a

common ontology schema, and decodes that message

into a stream of Bytes via FIPA-SL. At the receiver

side, the content-manager parses the received ACL-

message into a human readable content via FIPA-SL,

and structures it based on a common ontology

schema.

4 SOLUTION CONCEPT

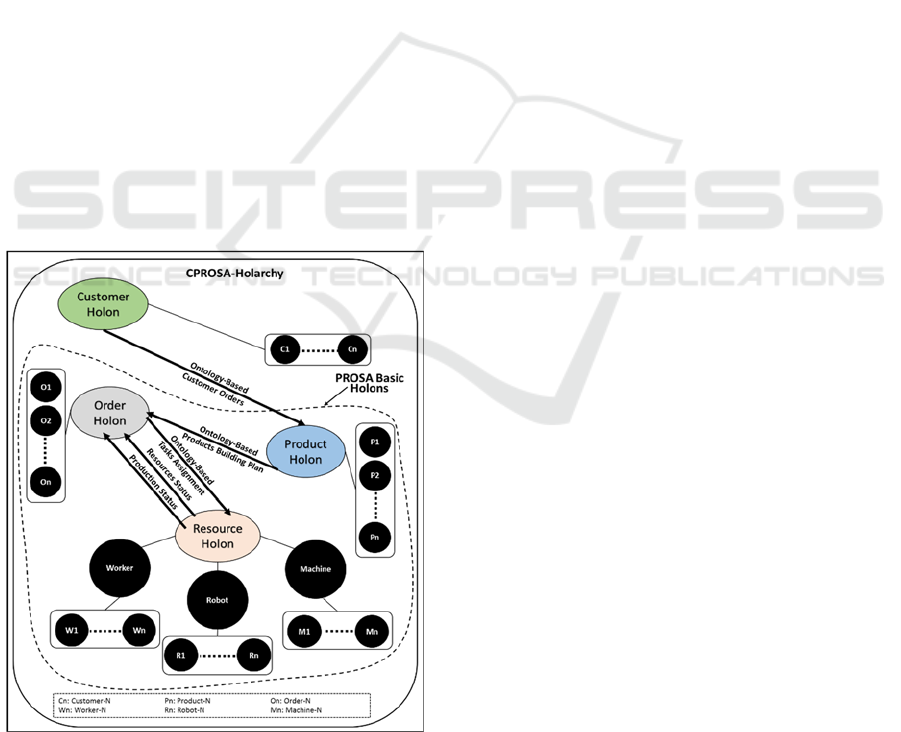

Figure 4: CPROSA-holarchy.

In the late sixties, the term holon has been introduced

for the first time by philosopher Koestler (Koestler,

1967). Koestler developed the term as a basic unit in

his explanation of the evolution of the biological and

social structures. Based on his observations that

organisms (e.g., biological cells) are autonomous

self-reliance units, which have a certain degree of

independent control of their actions, yet they still

subject to higher level of control instructions. His

conclusion was that any organism is a whole “holos”

and a part “on” in the same time, which derived the

term holon (Botti and Giret, 2008). The concept of

holon has been adopted in the early nineties by the

intelligent manufacturing systems (IMS) consortium,

to define a new paradigm for the factory of the future.

The following terminologies has been defined by the

IMS to provide a better understanding of the Holonic

Control Architecture (HCA):

 Holon: an autonomous cooperative building block

of the manufacturing system that can be used to

transform, transport, store and/or validate the

information and the physical signals (Babiceanu

and Chen, 2006).

 Autonomy: the capability of the holon to create

and control the execution of its own plans and/or

strategies.

 Cooperation: a process whereby a set of holons

develop mutually acceptable plans and execute

these plans together.

 Holarchy: a system of holons which cooperate to

achieve a goal or objective. The holarchy deﬁnes

the basic rules for cooperation of the holons and

thereby limits their autonomy.

The HCA is basically a distributed control and

communication topology which divides the

manufacturing process tasks and responsibilities over

different holon categories. Product-Resource-Order-

Staff-Architecture (PROSA) is the most known HCA

model (Van Brussel et al, 2003). The PROSA model

defines three basic holons which can be seen in Figure

4. The PROSA holons are as following:

 Product Holon (PH): is responsible for processing

and storing the different production plans required

to insure the correct manufacturing of a certain

product.

 Order Holon (OH): is responsible for composing,

managing the production orders. Furthermore, in

a small scale enterprise, it should assign the tasks

to the existing operating resources and monitor

the execution status of the assigned tasks.

 Operational Resource Holon (ORH): is a physical

entity within the manufacturing system, it can

represent a robot, machine, worker, etc. The ORH

is usually composed of two components. The first

component is the physical component which

represents the physical input/output (I/O) of a

resource. The second component is the

communication component which is responsible

for translating the I/O events into information and

conducting them to the other holons and vice-

versa.

Another extra holon can exist in the PROSA model

which is the Supervisor Holon (SH). The SH will be

implemented in a large scale enterprise as its main

function is to coordinate with the other SHs for

scaling and expanding the manufacturing system. In

the context of reconfigurable manufacturing we

found that it is necessary to modify the PROSA model

(Sadik and Urban, 2016). Therefore, a new holon is

introduced by this research which is the Customer

Holon (CH). A CH is deployed on the customer

platform to provide a User Interface (UI) for the

customer to select and customize the product order.

Furthermore, it interacts with the PH to trigger a new

production order. Therefore, we are going to refer to

our PROSA modified holarchy as CPROSA.

While the HCA is a conceptual model focuses on

the holons functionalities and responsibilities, it does

not specify a certain technology to apply that concept.

On the other hand, artificial agent technology is a

general purpose solution which can apply the HCA.

Thus, during this research, JADE agent framework

has been used to implement the HCA. JADE

empowers the object oriented concepts such as

abstraction and inheritance, which makes it very

suitable for applying the HCA. For example, a

Worker Holon (WH) can have many different

instances originate from it, yet every WH instance can

act differently than the others. Figure 4 illustrates the

main concept to implement a reconfigurable

cooperative manufacturing workcell, which can

contain different workers and cobots as operational

resources, the manufacturing workcell can

simultaneously process different customized orders

from variety of customers.

Using JADE to implement the reconfigurable

cooperative manufacturing workcell empowers

another very strong concept which is the agent

communication via ontology (Alsafi and Vyatkin,

2010). As it has been discussed earlier, HCA is a

practical solution for the reconfigurable cooperative

manufacturing workcell (Balakirsky, 2015). The

HCA implementation includes many different

objects. This is not only obligating the agents to send

or receive objects, but also it obligates them to

express relations between these objects and perform

actions over them (Fiorini et al., 2015), which brings

us to use the concept of ontology to communicate

between the agents. Examples of these

communication can be seen in Figure 5.

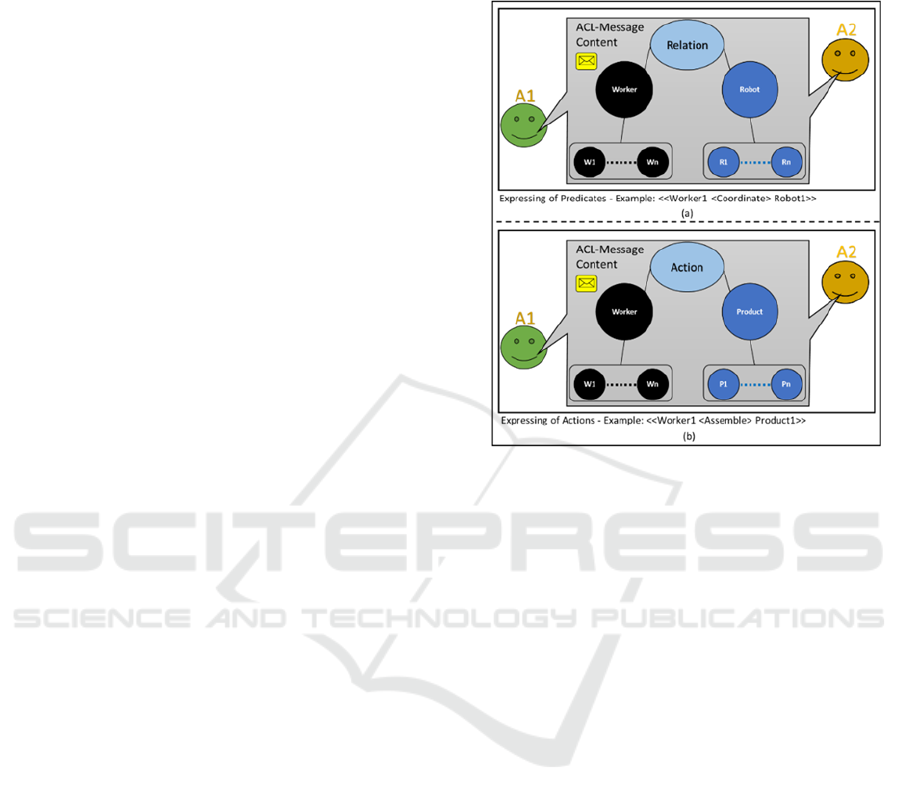

Figure 5: Agents Communication via Ontology.

The term ontology can be considered sometimes

vague and not precise, therefore we state below the

most suitable definitions of ontologies for our

research (Rodrigues, 2012).

 An ontology defines the basic terms and relations

comprising the vocabulary of a topic area as well

the rules for combining terms and relations to

define extensions for this vocabulary (Neches et

al., 1991).

 An ontology is a formal, explicit specification of

a shared conceptualization (Gruber, 1995).

 An ontology is a logical theory accounting for the

intended meaning of a formal vocabulary (Wang

et al., 2012). i.e. “it is a commitment to a

particular conceptualization of the world”.

 An ontology provides the meta-information to

describe the data semantics, represent knowledge,

and communicate with various types of entities

(e.g. software agents and humans) (Fensel, 2004).

 An ontology can be described as “means of

enabling communication and knowledge sharing

by capturing a shared understanding of terms that

can be used both by humans and machine

software” (Lai, 2007).

All the previous definitions lead to the complete

understanding of the meaning of ontology in the

context of our research. Thus an ontology is a

conceptual tool to represent and create a common

understanding for the manufacturing workcell entities

(i.e., holons). Furthermore this common

understanding would enable to exchange, reuse and

extend the manufacturing knowledge. JADE supports

the ontology-based MAS by defining three different

types of schemas (Leitao et al., 1991):

 Terms: expressions that indicate entities (abstract

or concrete) that exist in the MAS and that agents

may reason about. Terms can be seen as

primitives which are atomic data types such as

strings or integers, and concepts which are

complex structure such as objects.

 Predicates: expressions that describe the status of

the world such as the relationships between the

concepts.

 Actions: expressions that describe mechanisms or

operations that can be executed by an agent.

5 CASE-STUDY

5.1 Case-study Description

During this research we selected a specific case-study

where two workers are in cooperation with one cobot.

The goal of the case-study is to implement the

solution concept. The CPROSA holarchy deployment

can be seen in Figure 6-a, JADE framework contains

four containers which present the previously

described CPROSA holons. Two CHs can be found

in this case-study as it can be seen in Figure 6-b. Both

the CHs have a similar UI. The UI of the CH is

providing a tool for ordering a specific product with

certain features (i.e., parts). The customer selects the

very basic features and identifies the needed amount

of the product then sends the order to the PH.

Two products can be manufactured in this case-

study, the first is a centrifugal pump and the second is

a screw compressor. The UIs of the pump and the

compressor holons can be seen in Figure 6-c. The two

products share some features such as the casing and

the electrical motor. The pump has two unique

features which are the impeller and the shaft, while

the compressor has other two unique features which

are the male-rotor and the female-rotor. When a PH

receives a product order from the CH, it constructs the

building plans for this product order as it will be

discussed later in details. The PH also has the ability

to rearrange the orders or modify them before sending

them to the OH.

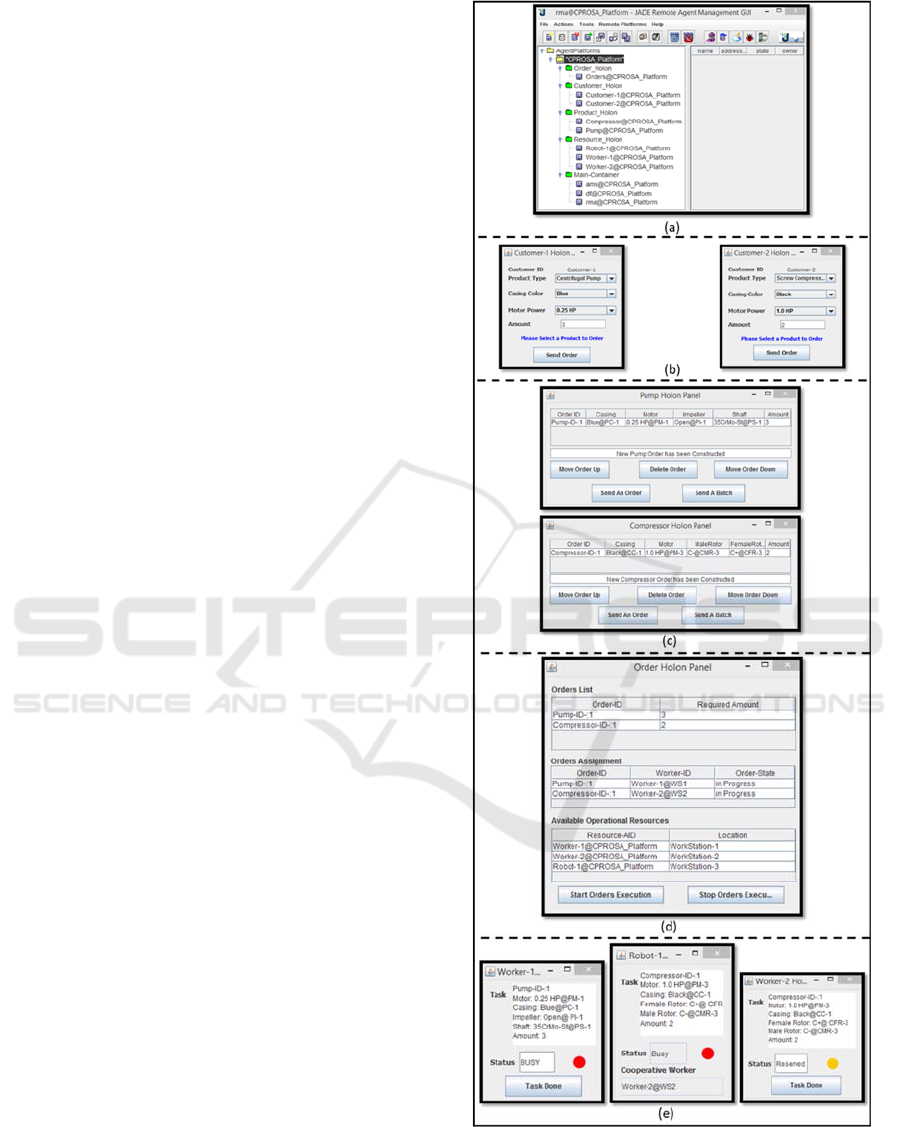

Figure 6: (a) CPROSA Model Implementation – (b)

Customers Holons UI – (c) Products Holons UI – (d) Order

Holon UI – (e) Operation Resources Holons UI.

The OH is responsible for collecting the product

orders from all the other PHs as it is shown in Figure

6-d. Simultaneously the OH discovers the existence

of the operation resources. Furthermore, it starts and

stops the production process. Two WHs (W1H,

W2H) and one Robot Holon (RH) are the operation

resources in this implementation as it is shown in

Figure 6-e. The function of the workers within this

case-study is to perform an assembly operation for the

customized product orders, while the function of the

cobot is to pick and place the customized features of

every production order to the worker workstation.

As we do not have a robot hardware during this

implementation, we assumed that the cobot will

always take two seconds to pick and place one

product. Therefore the RH will multiply the number

of products by two to obtain the overall time needed

for the whole pick and place operations. Accordingly

the RH can have two statuses, either busy or free.

Another status is required for the WH which is the

reserve status. In the reserve status the WH is waiting

the cobot to load at least one product to the worker,

therefore the worker can start the assembly operation

and subsequently the WH status turns to be busy. The

WH stays in the busy status till the worker presses the

task-done button, then the WH status would be free.

5.2 Interaction Ontologies

5.2.1 Building-Operations-Ontology

As has been discussed earlier at the solution concept.

JADE is using three different types of schemas to

construct its ontology. Figure 7-a shows the required

schemas to build a product order from a customer-

order. The first set of JADE schemas which can be

seen in the figure are the terms (i.e., concepts and

primitives):

 Compressor-Customer-Order: a schema which

encapsulates some attributes such as the required

compressor color, the needed hydraulic power,

and the required amount. Also it contains an AID

as every customer- order is a life agent which

needs a unique ID.

 Pump-Customer-Order: a schema which

encapsulates some attributes such as the required

pump color, the needed hydraulic power, and the

required amount. Also it contains an AID as every

customer-order is a life agent which needs a

unique ID.

 Casing: a shared feature between the pump and

the compressor. The casing schema contains two

attributes which are the casing color and position

at the features workspace or storage.

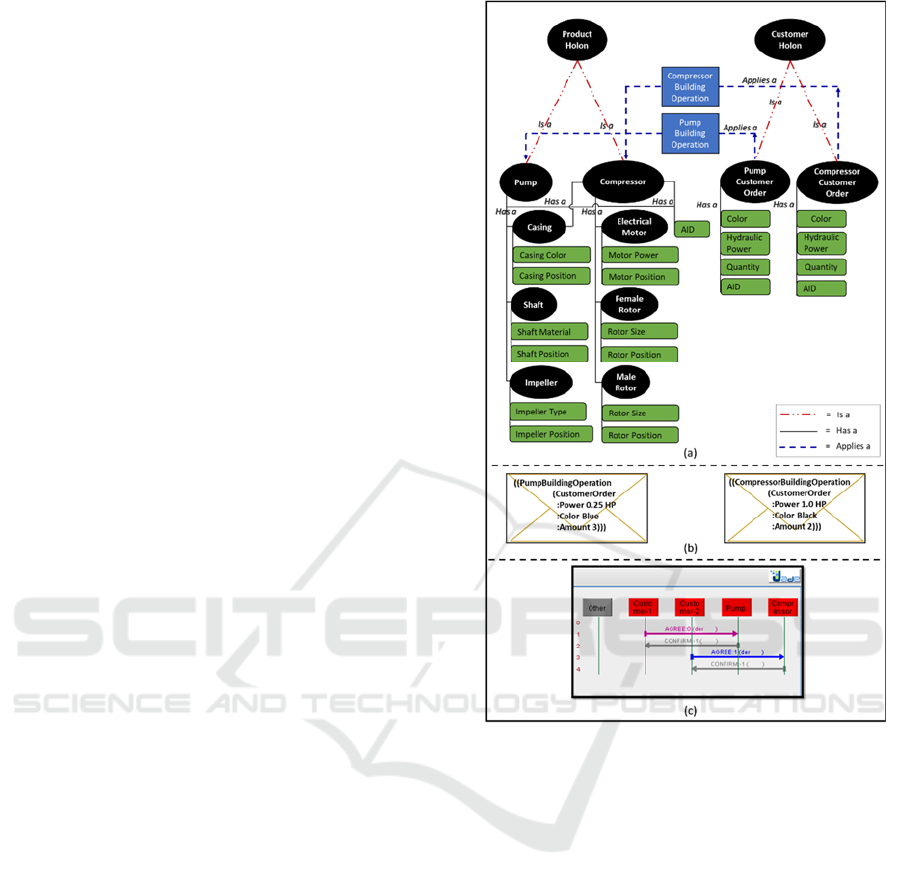

Figure 7: (a) Building-Operations-Ontology – (b) ACL-

message Content for the Building-Operations-Ontology –

Products Holons.

 Electrical-Motor: a shared feature between the

pump and the compressor. The motor schema

contains two attributes which are the motor

electrical power, and position at the features

workspace or storage.

 Shaft: a unique feature of the pump. The shaft

schema contains two attributes which are the shaft

material, and position at the features workspace or

storage.

 Impeller: a unique feature of the pump. The

impeller schema contains two attributes which are

the impeller type, and position at the features

workspace or storage.

 Female-Rotor: a unique feature of the compressor.

The female-rotor schema contains two attributes

which are the rotor size, and position at the

features workspace or storage.

 Male-Rotor: a unique feature of the compressor.

The male-rotor schema contains two attributes

which are the rotor size, and position at the

features workspace or storage.

 Compressor: a concept schema which

encapsulates many other schemas under it, those

schemas are the casing, electrical-motor, female-

rotor, and male-rotor. Every compressor is a life

agent, therefore it must contain an AID attribute

as well.

 Pump: a concept schema which encapsulates

many other schemas under it, those schemas are

the casing, electrical-motor, shaft, and impeller.

Every pump is a life agent, therefore it must

contain an AID attribute as well.

The second set of JADE predicate schemas that have

been used in this implementation can be addressed as

the following:

 (concept-x) <Is-a> (concept-y): usually a relation

between two concept schemas. This relation is

similar to the object oriented abstraction. Thus,

this predicate expression has been used to express

the parent-child relationship between the

concepts.

 (concept-x) <Has-a> (attribute-x): usually a

relation between a concept and an attribute, an

attribute can be a concept schema or a primitive.

This relation is similar to object oriented

inheritance. Thus, this predicate expression has

been used to form sophisticated objects from

simpler ones.

 (agent-x) <Applies-a> (action-x): usually a

relation between a concept and an action schema.

A concept uses this predicate expression to trigger

one or more than one actions at the same time. The

action schemas will be discussed below in details.

The third set of JADE action schemas that have been

used in this implementation can be addressed as the

following:

 Compressor-Building-Operation: this action

schema expects a Compressor-Customer-Order

concept as an input, and it can be deployed by

either customer-1 or customer-2 agents. An

example of this operation can be seen at the ACL-

message content in at the right side of Figure 7-b.

 Pump-Building-Operation: this action schema

expects a Pump-Customer-Order concept as an

input, and it can be deployed by either customer-

1 or customer-2 agents. An example of this

operation can be seen at the ACL-message at the

left side of Figure 7-b.

Figure 7-c shows JADE interaction scenario between

the CHs (i.e., customer-1 agent and customer-2 agent)

and the PHs (i.e., pump agent and compressor agent).

In this scenario, customer-1 agent sends an ACL-

message with an AGREE communicative act. The

AGREE-message contains a Pump-Building-

Operation and a Pump-Customer-Order. The

AGREE-message is received by the pump agent.

Therefore, the pump agent confirms the receiving by

sending back a CONFIRM-message to customer-1

agent. Simultaneously the pump agent constructs a

pump instance based on the incoming customer-

order. The same building mechanism is used between

cusomter-2 agent and the compressor agent to

construct a new instance of a compressor associated

with a customer-2 order.

5.2.2 Planning-Operations-Ontology

Figure 8-a shows the required schemas to construct

the production planning from a product orders.

Similar to the building-operations-ontology, the

planning-operations-ontology contains three different

kinds of schemas. The concept schemas are as

following:

 Compressor-Order: a schema which extends the

compressor schema by adding the required

amount of compressor units.

 Pump-Order: a schema which extends the pump

schema by adding the required amount of pump

units.

 Operations-List: a schema which includes a list of

operations which can be used to manufacture

either a pump or a compressor. The schema can be

used to manufacture a product which needs three

operations or less.

 Compressor-Manufacturing-Order: a schema

which combines a Compressor-Order schema and

an Operations-List schema. Also it has an AID

attribute as it acts as an agent.

 Pump-Manufacturing-Order: a schema which

combines a Pump-Order schema and an

Operations-List schema. Also it has an AID

attribute as it acts as an agent.

The predicate schemas which has been used in this

part of the implementation are exactly the same to the

ones that has been used in the building-operations-

ontology. While the action schemas are as following:

 Compressor-Manufacturing-Operation: this

action schema expects a Compressor-Order and a

Compressor-Operations-List concept schema as

an input, and it is deployed by the compressor

agent. A detailed example of this operation can be

seen at the ACL-message at the right side of

Figure 8-b.

 Pump-Manufacturing-Operation: this action

schema expects a Pump-Order and a Pump-

Operations-List concept schema as an input, and

it is deployed by the pump agent. A detailed

example of this operation can be seen at the ACL-

message content in Figure 8-b at the left.

Figure 8-c shows JADE interaction scenario between

the PHs (i.e. pump agent and compressor agent) and

the OH. This interaction is following the same

mechanism used in the building-operations-ontology.

Except that we changed the AGREE-messages with a

PROPAGATE-messages.

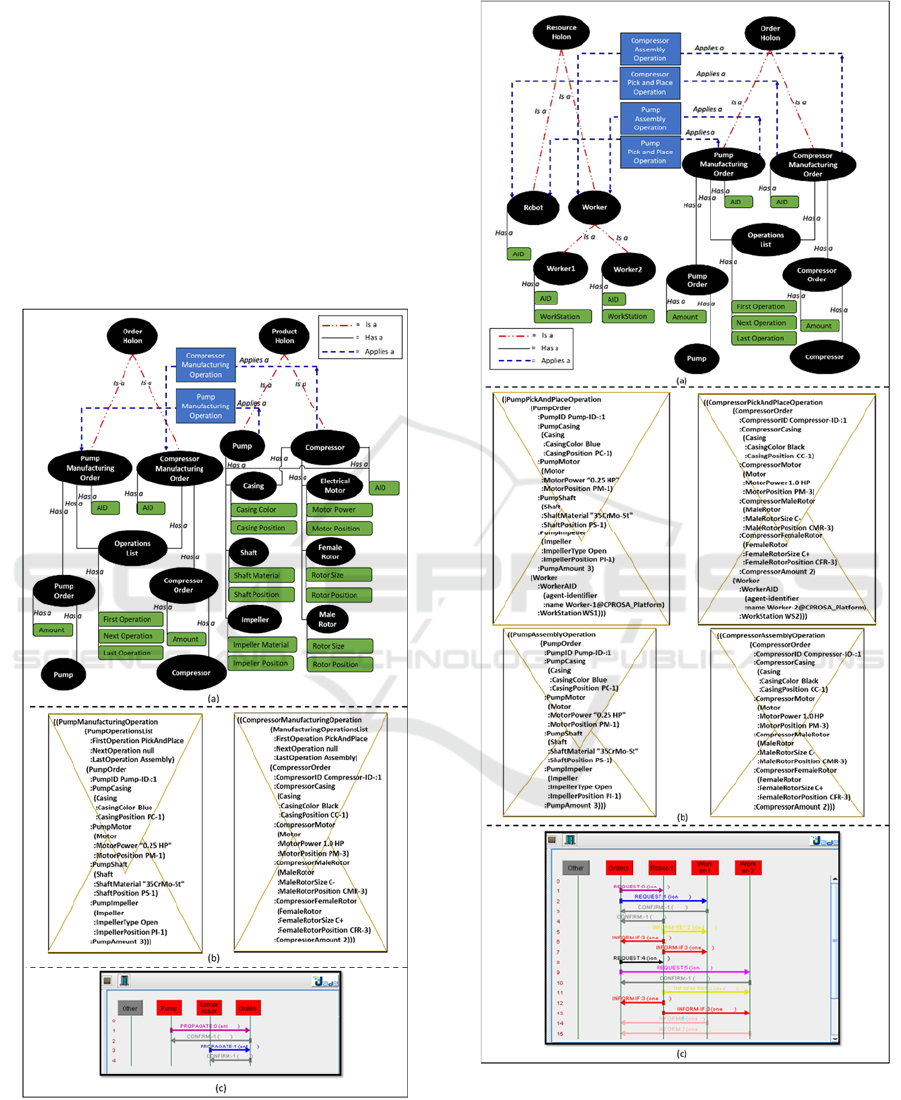

Figure 8: (a) Planning-Operations-Ontology – (b) ACL-

message Content for the Planning-Operations-Ontology –

Holon.

5.2.3 Manufacturing-Operations-Ontology

Figure 9: (a) Manufacturing-Operations-Ontology – (b)

ACL-message Content for the Manufacturing-Operations-

Ontology – (c) JADE Interaction between Order Holon and

Resources Holons.

Figure 9-a shows the required schemas to execute the

manufacturing operations from the production plans.

Similar to the building-operations-ontology and the

planning-operations-ontology, the manufacturing-

operations-ontology contains three different kinds of

schemas. The concept schemas are as following:

 Worker: a schema which contains two attributes,

the first one is the worker AID as it acts as a life

agent, and the second is the worker location

within the workcell (i.e., workstation). The

worker agent is providing an UI for the worker for

providing the assigned task and inquiring the task

done event (see Figure 6-e). Two instances of the

worker agent exist in this case-study scenario. As

has been mentioned before in section 5.1, the

worker can have three statuses. A free status when

there is no product orders or the production is not

started. A reserve status when the worker is

waiting the first product unit to be placed by the

cobot. A busy status while the cobot is still

handling the orders and till the worker triggers the

task-done button.

 Robot: a schema which contains one attribute,

which is the robot AID as it acts as a life agent.

The robot schema does not have a workstation

attribute because in this specific case-study, we

have one cobot which is responsible for the pick

and place. Therefore the location of the cobot is

not necessary required, however in case of more

than one cobot this attribute could be important.

The robot agent is providing an UI to show the

assigned task and the status of the cobot (see

Figure 6-e). As has been mentioned before in

section 5.1, the cobot can have two statuses. A

free status when there is no product orders or the

production is not started. A busy status when the

cobot is picking and placing the production

orders. A timer of two second has been assigned

to every pick and place operation.

The predicate schemas which has been used in this

part of the implementation is exactly the same to the

ones that has been used in the building-operations-

ontology and planning-operations-ontology. While

the action schemas are as following:

 Compressor-Pick-And-Place-Operation: this

action schema expects two concept schema

inputs; the first concept schema input is the

Compressor-Order which contains the detailed

specifications of the compressor. Therefore, the

cobot can use these information especially the

compressor features positions to perform the pick

operation. The second concept schema input is the

target worker. Therefore, the cobot can use the

worker workstation location to place the

compressor features at this location. This action

schema is deployed by the orders agent to interact

with the robot agent. A detailed example of this

operation can be seen at the ACL-message content

at the top right of Figure 9-b.

 Pump-Pick-And-Place-Operation: this action

schema expects two concept schema inputs; the

first concept schema input is the Pump-Order

which contains the detailed specifications of the

pump. Therefore, the cobot can use this

information especially the pump features

positions to perform the pick operation. The

second concept schema input is the target worker.

Therefore, the cobot can use the worker

workstation location to place the pump features at

this location. This action schema is deployed by

the orders agent to assign a task to the robot agent.

A detailed example of this operation can be seen

at the ACL-message content at the top left of

Figure 9-b.

 Compressor-Assembly-Operation: this action

schema expects one concept schema input which

is the Compressor-Order. This operation is

beneficial for the worker to provide him with the

required features to build a customized

compressor. Moreover, it provides the amount of

required units. This action schema is deployed by

the orders agent to assign a task to any of the

worker agents based on their status. A detailed

example of this operation can be seen at the ACL-

message content at the bottom right of Figure 9-b.

 Pump-Assembly-Operation: this action schema

expects one concept schema input which is the

Pump-Order. This operation is beneficial for the

worker to provide him with the required features

to build a customized pump. Moreover, it

provides the amount of required units. This action

schema is deployed by the orders agent to assign

a task to any of the worker agents based on their

status. A detailed example of this operation can be

seen at the ACL-message content at the bottom

left of Figure 9-b.

Figure 9-c shows JADE interaction scenario among

the OH and the ORHs (i.e., worker1 agent, worker2

agent, and robot agent). During this interaction, the

manufacturing operations are assigned to the

operational resources based on their status. As it can

be seen in lines1, 2, 3, and 4 of Figure 9-c, the orders

agent sends two REQUEST-messages which are

replied by two CONFIRM-messages. The first

REQUEST-message assigns a Pump-Pick-And-

Place-Operation to the robot agent. The second

REQUEST-message assigns a Pump-Assembly-

Operation to worker1 agent. The reason that the

pump-order has been processed first by the orders

agent is that it is the first product order at the order

list (refer to Figure 6-d). In line 5 of Figure 9-c, the

robot agent sends an INFORM-REF-message to

worker1 agent to tell that it placed the first pump unit.

Then, the robot agent sends two INFORM-IF-

messages to the orders agent and worker1 agent to tell

that it finished handling all the required pump

amounts (i.e., three pump units by referring to Figure

6). The two INFORM-IF-messages can be seen in

lines 6, and 7 of Figure 9-c. The same interaction

mechanism can be seen in lines 9,10,11,12, and 13 to

assign the compressor-order manufacturing

operations to the worker2 agent and the robot agent.

Lines 14, and 15 of Figure 9-c shows the INFORM-

messages to express done-signal which is generated

from worker1 and worker2 agents to the orders agent.

6 SUMMARY, CONCLUSION

AND FUTURE WORK

During this research, we introduced the collaboration

between the worker and the cobot as a new flexible

trend in the reconfigurable manufacturing. As this

subject has many different perspectives, we focused

our research attention on the complex information

interaction between the worker and the cobot. The

challenges in this interaction are getting more

sophisticated when we put it under the reconfigurable

manufacturing umbrella.

CPROSA holarchy has been proposed as a

solution for this dilemma. It is a modified version of

PROSA model which adds the customer as a new

basic holon in the HCA. Furthermore, our CPROSA

is not only describing the interaction among the basic

holons in order to accomplish the worker-cobot

collaboration, but also it uses the powerful concept of

ontology to create a shared understanding of the

entities within the collaborative manufacturing

environment. Furthermore, this shared understanding

is used to achieve the complex interaction scenarios.

JADE framework has been used to implement the

CPROSA solution model and the case-study scenario.

During the case-study we proposed a simple scenario

where two customers customize two different orders.

The first order is three units of a customised

centrifugal pump, and the second order is two units of

a customized screw compressor. Moreover, we

assumed that we have two workers in cooperation

with one cobot. The products orders should be

processed by the OH and then assigned to the ORHs

based on their status. The reason for selecting this

scenario is to show how much complex the

interaction can be - even in a simple case-study.

During the implementation of the case-study we

showed three connected ontologies. The first

ontology was responsible for building the product

plans from the customer-orders, the second ontology

was responsible for planning the manufacturing

process, and the third ontology was responsible for

executing the manufacturing operations.

The privileges of using the ontology concept were

so influential in this implementation. For instance, the

conceptualization and the modularity were very clear

when at the concepts, predicates, and actions

schemas. The object oriented abstraction can be seen

in the parent-child relationships between the concept

schemas. The inheritance can be implemented from

one concept to another using Has-a predicate. All the

predicate schemas have been reused at the different

parts of the implementation which guarantees the

reusability of the research concept. The extensibility

was clear when extending one concept schema to

another more complicated schemas, or when using

many different ontologies to work together in the

same interaction context.

Regardless the simplicity of the case-study, the

solution concept shows that it is totally able to solve

the addressed research challenges. However during

the future work, we intend to implement the CPROSA

model over more collaborative operational resources.

Even it would be a very hard to demonstrate this kind

of research in a single article. Other technologies such

as XML and industrial web-services could be a good

approach to solve this research challenges, which

could be a focus in our future research. Also during

the future research we will use a real hardware for the

robot instead of the UI only.

REFERENCES

Alsafi, Y. and Vyatkin, V., 2010. Ontology-based

reconfiguration agent for intelligent mechatronic

systems in flexible manufacturing. Robotics and

Computer-Integrated Manufacturing, Vol. 26, Issue 4,

pp.381-391.

Babiceanu, R. and Chen, F. (2006). Development and

Applications of Holonic Manufacturing Systems: A

Survey. Journal of Intelligent Manufacturing, Vol. 17,

Issue 1, pp.111-131.

Balakirsky, S., 2015. Ontology based action planning and

verification for agile manufacturing. Robotics and

Computer-Integrated Manufacturing, Vol. 33, pp.21-

28.

Bellifemine, F., Caire, G., Greenwood, D., Developing

Multi-Agent Systems with JADE, Vol. 7 ed. John Wiley

& Sons, 2007.

Botti, V., Giret, A., Holonic Manufacturing Systems,

ANEMONA - A Multi-agent Methodology for Holonic

Manufacturing Systems, Springer Series in Advanced

Manufacturing, pp. 7-20, 2008.

Caire, I., JADE Tutorial: JADE Programming for

Beginners, TILAB & West Sussex, 2009.

Elmaraghy, Hoda A., Flexible and reconﬁgurable

manufacturing systems paradigms, International

Journal of Flexible Manufacturing Systems, Vol. 17,

Issue 4, pp 261-276, October 2005.

Fensel, D., 2004. Ontologies. 1st ed. Berlin, Heidelberg:

Springer Berlin Heidelberg.

Gruber, T., 1995. Toward principles for the design of

ontologies used for knowledge sharing, International

Journal of Human-Computer Studies, Vol. 43, Issue 5,

pp.907-928.

Fiorini, S., Carbonera, J., Gonçalves, P., Jorge, V., Rey, V.,

Haidegger, T., Abel, M., Redfield, S., Balakirsky, S.,

Ragavan, V., Li, H., Schlenoff, C. and Prestes, E., 2015.

Extensions to the core ontology for robotics and

automation. Robotics and Computer-Integrated

Manufacturing, Vol. 33, pp.3-11.

FIPA, Fipa.org, 2016. [Online]. Available:

http://www.fipa.org/. [Accessed: 06- Oct- 2016].

JADE | Java Agent DEvelopment Framework,

Jade.tilab.com. [Online]. Available:

http://jade.tilab.com/. [Accessed: 1- Oct- 2016].

Jennings, N.R., Wooldridge, M.J., Applications of

intelligent agents, Agent Technology: Foundations,

Applications, and Markets, Springer, pp. 3–28, 1998.

Koestler, A., The Ghost in the Machine, Hutchinson, 1967.

Koren, Y., Heisel, U., Jovane, F., Moriwaki, T., Pritschow,

G., Ulsoy, G., Brussel H., 1999, Reconfigurable

Manufacturing Systems, CIRP Annals, Vol. 48, pp.

527-540.

Kruger, K., Basson, A., 2015, Implementation of an Erlang-

Based Resource Holon for a Holonic Manufacturing

Cell, Studies in Computational Intelligence, Vol. 594,

pp. 49-58.

Lai, L., 2007. A knowledge engineering approach to

knowledge management. Information Sciences, Vol.

177, Issue 19, pp.4072-4094.

Leitao, P., Rodrigues, N., Turrin, C., Pagani, A., Petrali, P.,

2012. GRACE ontology integrating process and quality

control, IECON 2012 - 38th Annual Conference on

IEEE Industrial Electronics Society.

Neches, R., Fikes, R., Finin, T., Gruber, T., Patil, R.,

Senator, T., Swartout, W., 1991. Enabling Technology

for Knowledge Sharing, Al Mag., Vol. 12, pp.36-56.

Poslad, S., Specifying Protocols for Multi-Agent Systems

Interaction, 2007. ACM Transactions on Autonomous

and Adaptive Systems, Vol. 2.

Rodrigues, N., 2012. Development of an Ontology for a

Multi-Agent System Controlling a Production Line,

MSc thesis, Instituto Politécnico de Bragança.

Sadik A.R., Urban B., 2016, A Novel Implementation

Approach for Resource Holons in Reconfigurable

Product Manufacturing Cell, Proceedings of the 13th

International Conference on Informatics in Control,

Automation and Robotics, pp. 130-139.

Sadik A.R., Urban B., 2017, Applying the PROSA

Reference Architecture to Enable the Interaction

between the Worker and the Industrial Robot - Case

Study: One Worker Interaction with a Dual-Arm

Industrial Robot, Proceedings of the 9th International

Conference on Agents and Artificial Intelligence -

ICAART, Vol 1, pp. 190-199.

Shen, W., Hao Q., Yoon, H. J., Norrie, D. H., 2006.

Applications of agent - based systems in intelligent

manufacturing: An updated review, Advanced

Engineering Informatics, Vol. 20, pp. 415-431.

Teahan, W., Artificial Intelligence – Agent Behaviour,

BookBoon, 2010.

Van Brussel, H., Wyns, J., Valckenaers, P., Bongaerts, L.,

Petters, P. Reference Architecture for Holonic

Manufacturing Systems: PROSA. Computers in

Industry, Vol. 37, pp. 95–108, 2003.

Wang, H., Gibbins, N., Payne, T. and Redavid, D., 2012. A

formal model of the Semantic Web Service Ontology

(WSMO). Information Systems, Vol. 37, Issue 1,

pp.33-60.
