User-to-User Recommendation using the Concept of Movement Patterns:

A Study using a Dating Social Network

Mohammed Al-Zeyadi, Frans Coenen and Alexei Lisitsa

Department of Computer Science, University of Liverpool, Ashton Building, Ashton Street, Liverpool L69 3BX, U.K.

Keywords:

Movement Pattern Mining, Social Networks, Recommender Systems.

Abstract:

Dating Social Networks (DSN) have become a popular platform for people to look for potential romantic

partners. However, the main challenge is the size of the dating network in terms of the number of registered

users, which makes it impossible for users to conduct extensive searches. DSN systems thus make recommen-

dations, typically based on user proﬁles, preferences and behaviours. The provision of effective User-to-User

recommendation systems have thus become an essential part of successful dating networks. To date the most

commonly used recommendation technique is founded on the concept of collaborative ﬁltering. In this paper

an alternative approach, founded on the concept of Movement Patterns, is presented. A movement pattern

is a three-part pattern that captures the “trafﬁc” (messaging) between vertices (users) in a DSN. The idea is

that these capture the behaviour of users within a DSN while at the same time capturing the associated proﬁle

and preference data. The idea has been built into a User-to-User recommender system, the RecoMP system.

The system has been evaluated, by comparing its operation with a collaborative ﬁltering systems (the RecoCF

system), using a data set from the Chinese Jiayuan.com DSN comprising 548, 395 vertices. The reported

evaluation demonstrates that very successful results can be produced, a best average F-score value of 0.961.

1 INTRODUCTION

Dating Social Networks (DSNs) have become an im-

potent platform for people looking for potential part-

ners online. According to a recent survey

, conducted

in the USA, more than 49 million single people (out

of 54 million) have used DSNs such as eHarmony

and Match.com. Moreover, according to the same

survey, 20% of current committed relationships be-

gan online. In global terms, Badoo

has become the

world’s largest dating network with more than 346

million registered users and about 350 million mes-

sages sent per day. In a large dating network ﬁnd-

ing potential partners is time consuming, therefore

many DSNs give compatible partner suggestions; in

the same manner as more general recommender sys-

tems, see for example (Resnick and Varian, 1997).

Recommender systems have been found to provide

signiﬁcant impact with respect to improving user sat-

isfaction in online retail settings (Sohail et al., 2013;

Wang and Wang, 2014). In contrast, developing a

recommender system for a DSN is more challeng-

see http://www.statisticbrain.com/online-dating-statis

tics/

https://team.badoo.com

ing because the recommender system must satisfy the

preferences of pairs of users (Pizzato et al., 2010) as

opposed to single users. In this paper, we propose a

recommendation system based on the concept of fre-

quently occurring Movement Patterns (MPs).

The MP concept was ﬁrst proposed in (Al-Zeyadi

et al., 2016). An MP is a three part pattern, extracted

from a graph, comprising a descriptions of: a “from

vertex”, a “to vertex” and a connecting edge. The idea

was originally proposed in the context of analysing

“trafﬁc movement” (real or virtual) in networks, such

as freight distribution networks, social networks and

computer networks, where the edges represent trafﬁc.

The idea being to model “trafﬁc movement” within a

network using the idea of frequently occurring MPs

and then to use these models to predict future move-

ments. This paper makes the observation that the MP

concept can equally well be applied in the context

of recommender systems, more speciﬁcally recom-

mender systems embedded into DSNs. If we conceive

of a DSN as a collection of vertices, each representing

an individual, the interchange of messages between

vertices can then be considered to represent the trafﬁc

(edges) between vertices. Frequently occurring MPs

can then be extracted and used to generate recommen-

Al-Zeyadi M., Coenen F. and Lisitsa A.

User-to-User Recommendation using the Concept of Movement Patterns: A Study using a Dating Social Network.

DOI: 10.5220/0006494601730180

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KDIR 2017), pages 173-180

ISBN: 978-989-758-271-4

dations (to existing users and new users).

Given the above, the main contribution of this pa-

per is an analysis of the usage of the MP concept in

the context of recommender systems. More specif-

ically an algorithm, the RecoMP algorithm, is pro-

posed whereby, given a candidate user, a set of “rec-

ommendations” can be made using extracted MPs.

The utility of the mechanism is illustrated in the con-

text of a DSN where the requirement is that the rec-

ommendations most focus on pairs of users (rather

than single users as is the case of more standard

recommender systems). RecoMP was evaluated us-

ing a real-world DSN dataset comprised of 344, 552

males and 203, 843 female users (thus 548,395 ver-

tices in total), and around 3.5 million edges. The

evaluation was conducted by comparing the proposed

MP based RecoMP algorithm with a benchmark algo-

rithm founded on the concept of collaborative ﬁltering

(Schafer et al., 2007). The results demonstrated that

the proposed approach produced much better recom-

mendations than the RecoCF comparator algorithm,

total average precision, recall and FI values of 0.93,

1.00 and 0.96 were recorded, compared to 0.32, 0.74

and 0.39.

2 LITERATURE REVIEW

In the era of big data the prevalence of social networks

of all kinds has grown dramatically, which in turn has

led to signiﬁcant user information overload. Coin-

ciding with this growth is a corresponding desire to

analyse (mine) such networks, typically with a view

to some social and/or economic gain. Typical tasks

are the identiﬁcation of interacting communities (Oh

et al., 2014), and the identiﬁcation of “inﬂuencers”

and “followers” (Li et al., 2014). In the context of the

work presented in this paper the monitoring of traf-

ﬁc in dynamic networks is of relevance (Al-Zeyadi

et al., 2016; Al-Zeyadi et al., 2017). The idea is to

predict the future behaviour of a related network (or

the same network) according to the current behaviour

exempliﬁed in the network being considered. In (Al-

Zeyadi et al., 2016) the concept of Movement Patterns

(MPs) was proposed, as already introduced in the pre-

vious section. In (Al-Zeyadi et al., 2017) the MP con-

cept was used to analyse the databases associated with

the UKs Cattle Tracking System managed by the UKs

Department for Environment, Food and Rural Affairs

(DEFRA). The database records the movement of all

cattle between pairs of locations in GB. These loca-

tions were viewed as vertices in a network, and the

cattle movements as edges between vertex pairs. The

database was used to generate a collection of time

stamped networks where, for each network, the ver-

tices represented cattle holding areas and the edges

occurrences of cattle movement (trafﬁc). The evalua-

tion reported on in (Al-Zeyadi et al., 2017) indicated

that MPs could be effectively used to predict trafﬁc

movement in previously unseen networks.

Information overload is also of concern in online

retail applications where the user is unable to assim-

ilate the wide range of information available con-

cerning products and services. As a consequence

the solution adopted by the online retail industry is

to make recommendations using what are known as

recommendation or recommender systems (Resnick

and Varian, 1997). Broadly, recommendation sys-

tems can be categorised as being either: Item-to-

Item or User-to-User. The main different being that

User-to-User recommendation systems need to make

reciprocal recommendations (Pizzato et al., 2013).

Well known examples of Item-to-Item recommenda-

tion systems are those embedded in Amazon, Netﬂix

and Spotify; we are all familiar with the “users who

bought X also bought Y” mantra. Well known ex-

amples of User-to-User recommendation systems are

those embedded in Facebook and Linkedin; the “peo-

ple you might know” mantra. Another example ap-

plication domain where User-to-User recommender

systems are used is Dating Social Networks (DSNs).

Dating Networks have become an impotent tool used

by people looking for potential romantic partners on-

line; for example, as already noted above, the Badoo

DSN has over 340 million registered users.

There has been much work directed at User-to-

User recommendation. Of key concern is the quality

of the recommended matches; poor quality matching

will result in people looking elsewhere. In the con-

text of DSNs Matching is typically done using either:

(i) user proﬁles, (ii) expressed preferences or (iii) user

behaviour. For example in (Kunegis et al., 2012) the

authors propose a way of modelling both the dual-

ity of users similar to each other and preferences to-

wards other users, by using split-complex numbers.

The authors demonstrated ﬁrstly that their uniﬁed rep-

resentation was capable of modelling both notions of

relations between users in a joint expression and sec-

ondly that their system could be applied in the context

of recommending potential partners. In (Xia et al.,

2016) the authors introduced a recommendation sys-

tem that made use of proﬁles and references, and pro-

vided a list of recommendations that a user might

be compatible with by computing a reciprocal score

that measured the compatibility between a user and

each potential dating candidate. In (Tu et al., 2014),

the authors proposed a DSN recommendation frame-

work founded on a Latent Dirichlet Allocation (LDA)

model that learns user preferences from observed user

messaging behaviour and user proﬁle features. How-

ever, the majority of User-to-User DSN recommenda-

tion systems are founded on (graph based) Collabora-

tive Filtering (CF) algorithms (Tu et al., 2014; Krzy-

wicki et al., 2014) that focuses on user behaviour. The

intuition is that user behaviour is a much better indi-

cator for recommendations than user proﬁles or ex-

pressed preferences (Krzywicki et al., 2014). Exam-

ples where CF ﬁltering has been used in the context of

DSNs can be found in (Cai et al., 2010; Kutty et al.,

2014). Given the popularity, and claimed beneﬁts, of

the CF approach this is the approach with which the

proposed MP based RecoMP algorithm is compared.

For the purpose of the evaluation the authors devel-

oped a bespoke CF based DSN recommendation algo-

rithm called RecoCF, this is described in further detail

in Section 5.

The distinguishing feature between the above

DSN recommender systems and the DM based sys-

tem proposed in this paper is the MP concept. To

the best of the authors’ knowledge there has been no

work directed at user-to-user recommendation using

MPs as presented in this paper. There has of course

been plenty of work directed at ﬁnding patterns in

data. The earliest examples are the Frequent Pattern

Mining (FPM) algorithms proposed in the early 1990s

(Agrawal et al., 1994). The main objective being to

discover sets of attribute-value pairings that occur fre-

quently which can then be used to formulate what are

known as association rules which in turn have been

used for recommendation purposes, examples can be

found in (Sandvig et al., 2007; Lin et al., 2002). A fre-

quently quoted disadvantage of FPM is the signiﬁcant

computation time required to generate large numbers

of patterns (many of which may not even be relevant).

The MP Mining (MPM) concept presented in this pa-

per shares some similarities with the concept of FPM.

However, the distinction between movement patterns

and traditional frequent patterns is that movement pat-

terns are more prescriptive, as will become apparent

from the following section. Note also that the move-

ment patterns of interest with respect to this paper are

trafﬁc movement patterns and not the patterns asso-

ciated with the video surveillance of individuals, ani-

mals or road trafﬁc; a domain where the term “move-

ment pattern” is also sometimes used.

3 SYSTEM OVERVIEW

An overview of the proposed MP based DSN recom-

mendation systems is presented in this section. The

section commences, Sub-section 3.1, with a review

of the basic operation of DSN systems. A formalism

for the MP concept is then presented in Sub-section

3.2, followed by a formal deﬁnition of the problem

domain and a problem statement in Section 3.3.

3.1 DSN Application Framework

The basic operation of DSNs (see Figure 1), regard-

less of the adopted recommendation system used, is

as follows.

1. Joining the Network. When a new user joins

a DSN a new user proﬁle is created using infor-

mation provide by the new user; information such

as: age, gender, location, job, education, income,

smoking, drinking, religion, hobbies, and so on.

2. Browsing. After the creation of the proﬁle the

new user can browse the proﬁles of existing users

(as can existing users).

3. One Sides Match. While browsing, users may

send messages to other users.

4. Reciprocal Match. On receipt of a massage a

user can return a message (reciprocate). Where

this happens an edge is established in the DSN.

The strength of an edge can be deﬁned in terms of

the quantity and/or duration of the messages. A

degradation factor can also be applied to take into

account the temporal nature of the network.

Given the large number of users, browsing is unlikely

to be successful, hence DSN systems also provide rec-

ommendations. Recommendations can be made when

a new user joins the network and periodically for ex-

isting users. As already noted, the most commonly

adopted techniques for making recommendations are

founded on some form of Collaborative Filtering.

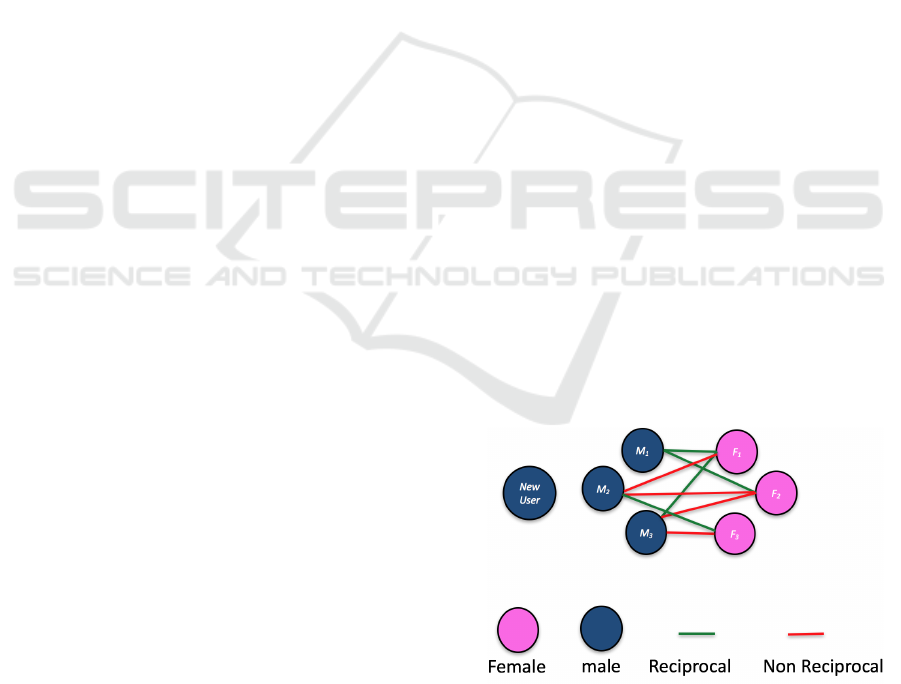

Figure 1: Example Dating Network.

3.2 Movement Pattern Formalism

From the foregoing we are interested in building a rec-

ommender system for a DSN system founded on the

concept of MPs. In the introduction to this paper it

was noted that a MP is a three-part pattern. More for-

mally a MP comprises a tuple of the form:

hF, E, T i (1)

where F, E and T are sets of attribute values. More

speciﬁcally the attribute value set F represents a

“From” (sender) vertex, T a “To” (receiver) vertex,

and E an “Edge” connecting the two vertices describ-

ing the nature of the trafﬁc (details of movement) be-

tween them. We refer to a tuple of this type using the

acronym FET. The minimum number of attribute val-

ues in each part (set) must be at least one. The maxi-

mum number of values depends on the size of the at-

tribute sets to which F, E and T subscribe, an MP can

only feature a maximum of one value per subscribed

attribute. The attribute set to which F and T subscribe

is given by A

= {φ

, φ

, . . .}, whilst the attribute set

for E is given by A

= {ε

, ε

, . . .}. Note that F and

T subscribe to the same attribute set because they are

both movement network vertices, and every vertex (at

least potentially) can be a “from” or a “to” vertex in

the context of MPM. Each attribute in A

and A

also

has a value domain associated with it.

Any given network can also be represented as a

set of tuples of the form hF, E, T i (Equation 1). In

other words a given network can be encapsulated in

the form of a dataset D = {F

, F

, . . .}, where each

∈ D is a FET. An MP is then a FET that occurs

frequently in D, where frequency is deﬁned in terms

of a frequency threshold σ, a percentage value be-

tween 0.0 and 100.0 indicating the proportion of the

number of occurrences of a particular MP with re-

spect to the total number of records (edges) in the

data set, or data set segment, under consideration.

In the context of DSNs the sets F and T represent

DSN user proﬁles, while the set E represents the na-

ture of the reciprocal messaging between users. A MP

is then a frequently occurring FET that encompasses

a pair of user proﬁles and reciprocal messaging be-

haviour. Further details concerning MPs and FETs

can be found in found in (Al-Zeyadi et al., 2016) and

(Al-Zeyadi et al., 2017).

3.3 Problem Statement

In the context of the work presented in this paper a

dating network G is deﬁned in terms of a tuple of the

form hV, Ei, where V is a set of vertices representing

the users of the DSN and E is the set of edges rep-

resenting reciprocal communication between users.

Each vertex v

∈ V is deﬁned by a set of attribute val-

ues representing the proﬁle of the user. In the case

of the dataset used for the evaluation purposes, as re-

ported on later in this paper, 25 different attribute val-

ues were used to describe users proﬁles. Each edge

∈ E is then deﬁned by a another set of attribute val-

ues describing the nature of the communication. For

the evaluation considered later in this paper only two

edge attribute was considered, “communication type”

and “number of messages sent”, the ﬁrst had two po-

tential values: Reciprocal and Non reciprocal. The

second had a range of values.

4 RECOMMENDATION SYSTEM

BASED ON MOVEMENT

PATTERNS (RecoMP)

In this section the proposed MP based DSN recom-

mendation algorithm is presented, the RecoMP algo-

rithm. Recall that the idea is to use knowledge of ex-

isting frequently occurring MPs in the DSN to make

recommendations. A particular challenge of ﬁnding

frequently occurring MPs in DSNs is the size of the

networks to be considered. The exemplar dataset used

for the evaluation reported on later in this paper com-

prised 548,395 vertices and some 3.5 million edges.

In other words we cannot mine and maintain all the

MPs that might feature in the data set. Note that al-

though the number of MPs generated can be reduced

by using a high σ threshold this is undesirable as we

need to use a low σ threshold so as to ensure no sig-

niﬁcant MPs are missed (the most appropriate value

for σ will be considered in Section 6). The solution

is to mine MPs as required with respect to a speciﬁc

user and to consequently generate recommendations

with respect to that speciﬁc user. Users would be con-

sidered in turn, but recommendations would be made

periodically. It would therefore not be necessary to

consider all DSN users in one processing run. In ad-

dition, by mining MPs on a required basis, the con-

tinuously evolving (dynamic) nature of DSNs can be

taken into account.

The pseudo code for the RecoMP process is pre-

sented in Algorithm 1. The inputs are: (i) a given user

proﬁle u

new

, (ii) the set of all user proﬁles U, (iii) the

DSN represented as a dataset D comprised of a set

of FETs (as described above), and (iv) a desired sup-

port threshold σ. Note that for illustrative purposes,

in Algorithm 1, we have assumed a new user, but this

could equally well be an existing user for whom a new

set of recommendations is to be generated. The out-

put is a set R of recommended users (matches). In-

spection of the algorithm indicates that it comprises

two sub-processes: (i) Mining (lines 7 to 21) and (i)

Recommendation (lines 22 to 28).

Input:

1 u

new

= new joined user proﬁle vector

2 U = Collection of all user proﬁle vectors

3 D = Collection of FETs {r1, r2, ...}

describing network G

4 σ = Support threshold

Output:

5 R = Set of recommended users

6 Start:

7 Mining Part:

8 M =

9 D

new

= Pruning D by looping through D and

considering only FET

where F or T similar

to u

new

10 S hapeSet = the set of possible shapes

{shape

, shape

, . . .}

11 forall shape

∈ ShapeSet do

12 forall r

∈ D

new

13 if r

matches shape

then

14 MP

= MP extracted from r

15 if MP

in M then increment support

16 else M = M

, 1

17 end

18 end

19 forall MP

∈ M do

20 if count for MP

< σ then remove MP

from M

21 end

22 Recommendation Part:

23 forall u

∈ U do

24 forall MP

∈ M do

25 if u

⊆ MP

and u

* R then

26 R = R

27 end

28 end

Algorithm 1: The RecoMPA Algorithm.

The mining sub-process is where the relevant

MPs are generated. MPs are stored in a set M =

{hMP

, count

i, hMP

, count

i, . . .}. On start up (line

8) M is set to the empty set

0. The sub-process com-

mences (line 8) by pruning D to create D

new

⊂

D) so that we are left with a set of FETs where either

the From and/or the To part correspond (are similar)

to u

new

. This beneﬁt of this pruning is that it results in

a signiﬁcantly reduced search space. Similarity mea-

surement was conducted using the well known Co-

sine similarity metric calculated as shown in Equation

2 where A and B are the set of attribute values of a

newly joined user, and a selected user in the network,

respectively.

Similarity = cos(Θ) =

∑

i=1

A.B

∑

i=1

∑

i=1

(2)

Next (line 9) a “shape set” is generated to support MP

extraction. A shape is a MP template (prototype) with

a particular conﬁguration of attributes taking from the

attribute sets A

and A

without considering the as-

sociated attribute values. Once generated shapes can

be populated with attribute values to give candidate

MPs. The idea is to enhance the efﬁciency of cal-

culating MPs by considering potential MPs in terms

of the attributes they might contain, as oppose to the

individual attribute values they might contain, given

that size of the set of attributes will be less than the

size of the concatenated set of attribute values. The

maximum number of shapes that can exist in D

new

given by Equation 3, where |A

| and |A

| are the num-

ber of vertex and edge attributes that feature in D

new

− 1) × (2

− 1) (3)

Returning to algorithm 1 the next step is to popu-

late the set of generated shapes (lines 11 to 18). For

each shape shape

in the shape set, and for each FET

(record) r

in D

new

, if r

matches shape

it is tem-

porarily stored in a variable MP

. Note that a record

matches a shape

if the attributes featured in the

shape also feature in r

. If MP

is already contained in

M we increment the associated count (line 15), other

wise we add MP

to M with a count of 1. Once all

shapes have been processed we loop through M (lines

19 to 20) and remove all MPs whose support count is

less than σ.

When the set of frequently occurring MPs has

been generated the recommender sub-process is com-

menced (line 22). For each MP MP

in M, and each

user proﬁle (vertex) u

in U, if u

is a subset of either

the From or To part of MP

, and has not previously

been recorded in R, u

is appended to R (line 26). In

this manner a set of recommended users is generated.

Note that shape based approach to MP min-

ing described above lends itself to parallelisation.

Each shape can be populated and the various re-

sulting MP instances counted on a separate process-

ing unit without requiring any messaging between

units. Technologies such as Map Reduce (MR) on

a top of Hadoop (Dean and Ghemawat, 2008) or the

well known Massage Passing Interface (MPI) (Gropp

et al., 1999) would be appropriate here as discussed

in (Al-Zeyadi et al., 2017).

5 RECOMMENDATION SYSTEM

BASED ON COLLABORATIVE

FILTERING (RecoCF)

To evaluate the proposed RecoMPA algorithm de-

scribed above a benchmark algorithm was required.

As noted in Section 3, the majority of User-to-User

DSN recommendation systems are founded on (graph

based) Collaborative Filtering (CF) approaches (Tu

et al., 2014; Krzywicki et al., 2014). A benchmark

CF based DSN recommendation algorithm was there-

fore developed, the RecoCF algorithm. The general

methodology of Collaborative Filtering, for any sys-

tem, can be described in two steps:

1. Identify users who share the same vector pattern

with the service user (the user whom the predic-

tion is for).

2. Use the preferences of those users founded in step

1 to create a prediction (recommendation) for the

service user.

The same methodology was adopted with respect

to the purpose built CF based DSN recommendation

RecoCF algorithm. The pseudo code for the RecoCF

algorithm is presented in Algorithm 2. As in the case

of RecoMP algorithm, the RecoCF algorithm takes

the same input except there is no need for a σ thresh-

old. The output, as before, is a set of recommended

users R. The algorithm commences (line 6), as in

the case of the RecoMP algorithm, by pruning the

dataset D to give D

new

. Then for all records (FETs)

in D

new

the From and To attribute value sets are

extracted (lines 8 and 9), the sets From

and To

. If

From

is a subset of u

new

(the new user proﬁle) the

user proﬁle associated with From

is added to R if it

has no already been included. Similarly if To

is a

subset of u

new

the user proﬁle associated with To

added to R, again provided if has not already been in-

Input:

1 u

new

= new joined user proﬁle vector

2 U = Collection of all user proﬁle vectors

3 D = Collection of FETs {r1, r2, ...}

describing network G

Output:

4 R = Set of recommended users

5 Start:

6 D

new

= Pruning D by looping through D and

considering only FET

where F or T similar

to u

new

7 forall D

∈ D

new

8 From

= return From part from D

9 To

= return To part from D

10 if From

⊆ u

new

and From

* R then

11 R = R

12 else if To

⊆ u

new

and To

* R then

13 R = R

From

14 end

Algorithm 2: The RecoCF Algorithm.

cluded. The result is a set R of recommended users

(matches).

6 EVALUATION

This section reports on the evaluation conducted with

respect to the proposed RecoMP algorithm. The eval-

uation was conducted using a FET database extracted

from a dataset obtained from the Jiayuan.com DSN.

The objectives of the evaluation were to compare the

operation of the proposed MP based RecoMP algo-

rithm in comparison with standard Collaborative Fil-

tering (the RecoCF algorithm from Section 5). The

metrics used for the evaluation were: (i) Recall (R),

(ii) Precision and (iii) F-score (F).

Table 1: TCV results using the RecoMP algorithm.

Tenth

RecoMP

P R F

# 1 0.938 1.000 0.978

# 2 0.908 1.000 0.949

# 3 0.917 1.000 0.956

# 4 0.948 1.000 0.972

# 5 0.948 1.000 0.972

# 6 0.948 1.000 0.972

# 7 0.928 1.000 0.961

# 8 0.928 1.000 0.961

# 9 0.952 1.000 0.974

# 10 0.867 1.000 0.917

Avarage 0.928 1.000 0.961

SD 0.02 0.00 0.02

Table 2: TCV results using the RecoCF algorithm.

Tenth

RecoCF

P R F

# 1 0.217 0.764 0.298

# 2 0.369 0.831 0.470

# 3 0.325 0.760 0.416

# 4 0.305 0.722 0.364

# 5 0.305 0.722 0.364

# 6 0.305 0.722 0.364

# 7 0.333 0.756 0.424

# 8 0.354 0.763 0.416

# 9 0.265 0.683 0.361

# 10 0.446 0.717 0.439

Avarage 0.322 0.744 0.392

SD 0.058 0.038 0.048

6.1 Data Sets

For the conducted evaluation reported on in this pa-

per a dataset was obtained from Jiayuan.com

. Ji-

ayuan.com is the most popular DSN in China; in 2011

http://www.jiayuan.com

~100 ~600 ~1200 ~1800 ~2400 ~3100 ~3700 ~4300 ~5100

100

200

300

400

500

600

700

800

900

1000

1100

1200

1300

1400

1500

1600

1700

1800

1900

2000

Number of messages sent bins

Number of users

Male

Female

Figure 2: Male and Female Normal Distribution.

it was reported t have 40.2 million subscribers (users),

and 4.7 million active monthly subscribers. The data

obtained comprised 548, 395 users (344,552 men and

203, 843 women) and details concerning whether a

user had messaged another (no information quantify-

ing the messaging activity was available). Each user

had a proﬁle and a set of preferences associated with

it. Unlike European or US DSNs, Jiayuan.com, in line

with other Chinese DSNs, is directed at the (hetero-

sexual) marriage market rather than the shorter term

relationship market, and thus user proﬁles tend to re-

ﬂect this; proﬁles comprise: age, height, education,

location, occupation, place of work, income, home

ownership, car ownership and so on. Preferences in-

clude things like: age range, height range, education

and location. The data set was processed ﬁrstly so

that each user was deﬁned by a set of 25 (proﬁle and

preference) attributes, thus |A

| = 25. It was then

processed again so as to generate a network where

the vertices represented users. Edges where included

wherever two users had messaged each other, in other

words the messaging was reciprocal, thus |A

| = 1

with only a single value. Unfortunately the nature of

the data set was such that we could not extract a more

comprehensive edge attribute set. Converting this net-

work into a FET database resulted in a database com-

prising 3, 311, 076 records. The normal distribution

of the users’ activity, in terms of the number of mes-

sages sent, is presented in Figure 2. From the ﬁgure

it can be seen that the majority of users sent 100 mes-

sages over the considered time frame. Given a new

user (or an existing user for whom we wish to make

a recommendation), if we ﬁnd a frequent MP within

the existing network where either the From or To part

matches the description (proﬁle) of the new user we

recommend the associated existing users to the new

user.

6.2 Performance Effectiveness of

RecoMP with Respect to RecoCF

To determine the effectiveness of the proposed Re-

coMP algorithm, in comparison with RecoCF, two

sets of experiments were conducted. The comparison

was conducted using a variation of Ten Cross Vali-

dation (TCV) whereby the entire Jiayuan.com FET

database was divided into tenths and the process run

ten times with a different tenth used for testing. More

speciﬁcally for each run a random sample of ten users

was extracted from the testing tenth and used for the

evaluation. In this manner the process of TCV could

be conducted without processing all 548,395 vertices

represented in the database. For both sets of experi-

ments a threshold value of σ = 1.0 was used.

The results are given in Tables 1 and 2, Table 1

gives the results using the RecoMP algorithm while

Table 2 gives the results using the RecoCF algorithm.

The tables give the average Precision (P), Recall (R)

and F-score (F) for each tenth, and a total average and

Standard Deviation (SD).

From the above it can clearly be seen that the

recommendations made using the RecoMP algorithm

are better than those generated using Collaborative

Filtering (the RecoCF algorithm). The total aver-

age recall, precision and F-score using RecoMP were

0.928, 1.000 and 0.961; compared to total average

recall, precision and F-score values of 0.322, 0.744

and 0.392 using RecoCF with small SD values were

recorded. It is also interesting to note that the total

average precision using RecoMP, as before, was fre-

quently 1.000; meaning we often make all the correct

recommendations and no incorrect recommendations.

7 CONCLUSION

In this paper, the authors have proposed a recommen-

dation system, directed at Dating Social Networks

(DSN), founded on the concept of Movement Pat-

terns (MP), patterns that capture the nature of traf-

ﬁc movement between vertices in networks. The

idea is to extract frequently occurring MPs from a

current network and use these to inform a User-to-

User recommender DSN system. The idea was built

into an algorithm, the RecoMP algorithm, and tested

by comparing the operation of this algorithm with a

Collaborative Filtering approach, RecoCF algorithm.

For the evaluation a large network, extracted from Ji-

ayuan.com DSN system, comprising 3,311,076 ver-

tices (users) was used. Excellent results were pro-

duced, a best total average F-score value of 0.961 was

obtained using the RecoMP algorithm compared to a

value of 0.392 using the RecCF algorithm. However,

for general applicability to large DSN, the efﬁciency

of the approach needs to be improved. A potential

avenue for future work is thus to investigate the po-

tential for using some form of parallel processing, for

example using the well known Massage Pass Inter-

face (MPI) or Hadoop/MapReduce. One of the advan-

tages offered by the “Shape” based approach to min-

ing MPs, as proposed in this paper, is that it lends it-

self to parallelisation, potentially each possible shape

can be processed using a separate processing unit.

ACKNOWLEDGEMENTS

The authors would like to thank the China University

of Science and Technology, and the School of Statis-

tics at the Renmin University of China Statistical Cen-

tre, for providing the jiayuan.com dataset used for

evaluation purposes in this paper. Also, the ﬁrst au-

thor would like to thank the Iraqi Ministry of Higher

Education and Scientiﬁc Research, and University of

Al-Qadisiyah, for funding this research.

REFERENCES

Agrawal, R., Srikant, R., et al. (1994). Fast algorithms for

mining association rules. In Proc. 20th int. conf. very

large data bases, VLDB, volume 1215, pages 487–

499.

Al-Zeyadi, M., Coenen, F., and Lisitsa, A. (2016). Min-

ing frequent movement patterns in large networks: A

parallel approach using shapes. In Research and De-

velopment in Intelligent Systems XXXIII: Incorporat-

ing Applications and Innovations in Intelligent Sys-

tems XXIV 33, pages 53–67. Springer.

Al-Zeyadi, M., Coenen, F., and Lisitsa, A. (2017). On

the mining and usage of movement patterns in large

trafﬁc networks. In Big Data and Smart Computing

(BigComp), 2017 IEEE International Conference on,

pages 135–142. IEEE.

Cai, X., Bain, M., Krzywicki, A., Wobcke, W., Kim, Y. S.,

Compton, P., and Mahidadia, A. (2010). Learning

collaborative ﬁltering and its application to people to

people recommendation in social networks. In Data

Mining (ICDM), 2010 IEEE 10th International Con-

ference on, pages 743–748. IEEE.

Dean, J. and Ghemawat, S. (2008). Mapreduce: simpliﬁed

data processing on large clusters. Communications of

the ACM, 51(1):107–113.

Gropp, W., Lusk, E., and Skjellum, A. (1999). Using MPI:

portable parallel programming with the message-

passing interface, volume 1. MIT press.

Krzywicki, A., Wobcke, W., Kim, Y. S., Cai, X., Bain, M.,

Compton, P., and Mahidadia, A. (2014). Evaluation

and deployment of a people-to-people recommender

in online dating. In AAAI, pages 2914–2921.

Kunegis, J., Gr

oner, G., and Gottron, T. (2012). Online dat-

ing recommender systems: The split-complex num-

ber approach. In Proceedings of the 4th ACM Rec-

Sys workshop on Recommender systems and the social

web, pages 37–44. ACM.

Kutty, S., Nayak, R., and Chen, L. (2014). A people-

to-people matching system using graph mining tech-

niques. World Wide Web, 17(3):311–349.

Li, J., Peng, W., Li, T., Sun, T., Li, Q., and Xu, J. (2014).

Social network user inﬂuence sense-making and dy-

namics prediction. Expert Systems with Applications,

41(11):5115–5124.

Lin, W., Alvarez, S. A., and Ruiz, C. (2002). Efﬁcient

adaptive-support association rule mining for recom-

mender systems. Data Mining and Knowledge Dis-

covery, 6(1):83–105.

Oh, H. J., Ozkaya, E., and LaRose, R. (2014). How does

online social networking enhance life satisfaction? the

relationships among online supportive interaction, af-

fect, perceived social support, sense of community,

and life satisfaction. Computers in Human Behavior,

30:69–78.

Pizzato, L., Rej, T., Akehurst, J., Koprinska, I., Yacef, K.,

and Kay, J. (2013). Recommending people to peo-

ple: the nature of reciprocal recommenders with a

case study in online dating. User Modeling and User-

Adapted Interaction, 23(5):447–488.

Pizzato, L., Rej, T., Chung, T., Koprinska, I., and Kay, J.

(2010). Recon: a reciprocal recommender for online

dating. In Proceedings of the fourth ACM conference

on Recommender systems, pages 207–214. ACM.

Resnick, P. and Varian, H. R. (1997). Recommender sys-

tems. Communications of the ACM, 40(3):56–58.

Sandvig, J. J., Mobasher, B., and Burke, R. (2007). Ro-

bustness of collaborative recommendation based on

association rule mining. In Proceedings of the 2007

ACM Conference on Recommender Systems, RecSys

’07, pages 105–112, New York, NY, USA. ACM.

Schafer, J., Frankowski, D., Herlocker, J., and Sen, S.

(2007). Collaborative ﬁltering recommender systems.

The adaptive web, pages 291–324.

Sohail, S. S., Siddiqui, J., and Ali, R. (2013). Book recom-

mendation system using opinion mining technique. In

Advances in Computing, Communications and Infor-

matics (ICACCI), 2013 International Conference on,

pages 1609–1614. IEEE.

Tu, K., Ribeiro, B., Jensen, D., Towsley, D., Liu, B., Jiang,

H., and Wang, X. (2014). Online dating recommenda-

tions: matching markets and learning preferences. In

Proceedings of the 23rd International Conference on

World Wide Web, pages 787–792. ACM.

Wang, X. and Wang, Y. (2014). Improving content-based

and hybrid music recommendation using deep learn-

ing. In Proceedings of the 22nd ACM international

conference on Multimedia, pages 627–636. ACM.

Xia, P., Zhai, S., Liu, B., Sun, Y., and Chen, C. (2016). De-

sign of reciprocal recommendation systems for online

dating. Social Network Analysis and Mining, 6(1):1–

16.
