Entity Search/Match in Relational Databases

Minlue Wang, Valeriia Haberland, Andrew Martin, John Howroyd and John Mark Bishop

The Centre for Intelligent Data Analytics (TCIDA), Goldsmiths, University of London, SE14 6NW, London, U.K.

Keywords:

Entity Search, Relational Databases, Query Annotation, Semantic Search.

Abstract:

We study an entity search/match problem that requires retrieved tuples match to an input entity query. We

assume the input queries are of the same type as the tuples in a materialised relational table. Existing keyword

search over relational databases focuses on assembling tuples from a variety of relational tables in order to

respond to a keyword query. The entity queries in this work differ from the keyword queries in two ways: (i)

an entity query roughly refers to an entity that contains a number of attribute values, i.e. a product entity or

an address entity; (ii) there might be redundant or incorrect information in the entity queries that could lead to

misinterpretations of the queries. In this paper, we propose a transformation that ﬁrst converts an unstructured

entity query into a multi-valued structured query, and two retrieval methods are proposed to generate a set

of candidate tuples from the database. The retrieval methods essentially formulate SQL queries against the

database given the multi-valued structured query. The results of a comprehensive evaluation of a large-scale

database (more than 29 millions tuples) and two real-world datasets showed that our methods have a good

trade-off between generating correct candidates and the retrieval time compared to baseline approaches.

1 INTRODUCTION

Unstructured queries became important with the in-

vention of the World Wide Web. Users that are un-

aware of the underlying data structure may request in-

formation, expressed in their own words. Then these

queries have to be interpreted and associated with

available information which is often structured (e.g.

relational databases) or semi-structured (e.g. XML-

documents) (Simitsis et al., 2008).

In keyword search over relational databases

(RDBs) (Yu et al., 2010), the “best” answer usually

needs to assemble tuples from a variety of relations.

However, most of the query models of the keyword

search can only handle short queries with AND/OR

semantics. The AND semantics of the query (Hristidis

and Papakonstantinou, 2002; Agrawal et al., 2002) re-

quires the candidate answers to contain all keywords,

which assumes every keyword from the queries can be

found in the database. In contrast, OR semantic of the

query (Hristidis et al., 2003; Liu et al., 2006; Golen-

berg et al., 2008) requires the candidate answers to

contain at least one keyword, which would be inefﬁ-

cient when searching over a large-scale database.

Entity-Oriented Search (EOS) (Balog et al.,

2012), on the other hand, requires the answers to be

entities. There are two main research directions in

EOS: one is to identify entities in the query, e.g. ex-

tracting Wikipedia entities from the queries (Ferrag-

ina and Scaiella, 2010); the other is to design entity-

based ranking/scoring strategies (Blanco et al., 2011)

so that the entities can be retrieved and ranked.

In this work, we focus on entity search over RDBs,

where each tuple on the database corresponds to a

real-world entity. Furthermore, the retrieved tuples

need to match to the same entity as the input text

query. In other words, we assume the scenario where

an user, who is familiar with the domain, but has no

knowledge of the schema of the database. Note that

matching two records is referred as Entity Resolution

or Record Linkage (Talburt, 2011) in literature.

To further motivate the problem, we start with a

running example. Table 1 shows a sample list of UK

addresses

, and each tuple refers to an address en-

tity. Given an entity query “5 Oxford Street London

Englad”, we would like to ﬁnd tuples in the Table 1

that refer to the same entity as the input query. Tu-

ple a3 is the best answer and should be returned. If

the input query is treated as a set of keywords, AND

semantic of the query would fail to return any tuples

from the Table 1, because the keyword “Englad” is

misspelled and cannot be found anywhere in the table;

on the other hand, OR semantic of the query could po-

tentially return all tuples from Table 1, because each

Street is a postal town in the county of Somerset, UK.

Wang M., Haberland V., Martin A., Howroyd J. and Bishop J.

Entity Search/Match in Relational Databases.

DOI: 10.5220/0006498701980205

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KDIR 2017), pages 198-205

ISBN: 978-989-758-271-4

Table 1: An example list of UK addresses in a materialised relational table. The columns are sub-building number, building

number, street name, postal town, country and primary ID respectively.

Sb Nb Bu Nb Street Postal Town Country ID

5 7 High Street Oxford England a1

1 6 High Street Oxford England a2

null 5 Oxford Street London England a3

null 4 Bond Street London England a4

Flat 4 null Anthony Road Street England a5

tuple has at least one matching keyword, which would

be inefﬁcient when aplied to large-scaled tables. The

approach in this paper tries to make a good trade-off

between returning matching tuples and retrieval time.

In Table 1, text values that are sub-strings of the

input query are marked with bold. The main issue

is how to combine the columns with multiple values

so that all the tuples from the table that are matched

to the input query can be returned. This is achieved

in two stages: an attribute extraction process (Section

4) that converts a free-text entity query into a multi-

valued structured query, which still maintains multi-

ple interpretations of the query; a retrieval model that

can construct SQL queries dynamically based on the

structured query.

The reminder of the paper is organized as follows.

Section 2 describes several related works. Section 3

discusses the problem of entity search/match in rela-

tional databases. Section 4 shows a method to convert

a free-text query into a multi-valued structured query.

In Section 5 we discuss how to construct SQL from

the converted query in order to generate candidate tu-

ples from the database. We conducted extensive ex-

periments using a large-scale database and two real-

world datasets and the results are shown in Section 6.

Finally, we conclude our work in Section 7.

2 RELATED WORK

Much research (Hristidis and Papakonstantinou,

2002; Agrawal et al., 2002; Hristidis et al., 2003;

Liu et al., 2006; Golenberg et al., 2008) has been

conducted for keyword search over RDBs where text

queries are often presented as a bag of words con-

nected through AND and/or OR logical operators, and

the answers usually combine tuples from multiple re-

lational tables. The goal of the work in this paper

has a rather different focus from a traditional keyword

search as it tries to identify tuples from a single table

that match to the same entity as the input query. We

do not focus on the exploration of the interconnected

tuple structure as in keyword search over RDBs, in-

stead, we assume that the tables have been joined into

one materialised view and argue that a single large-

scale table is already a complex problem in the con-

text of entity search/match.

Kim et al. (Kim et al., 2009) presents an anno-

tation method to assign each query keyword into a

table column with a probability, which is computed

as the number of occurrences of the keyword in the

column divided by the total number of terms in the

column. The mapping probability is then used as a

weight in their retrieval model. However, they implic-

itly assume AND semantic of the keywords. When

a term is mapped 100% to an incorrect column (or

columns), no result would be returned. For example,

when searching over a residential address database,

consider an address query that mistakenly includes

a recipient name. Suppose the tokens of the name

are mapped to a column for building name, AND se-

mantic of the query is not able to return any valid

address where building name equals to the recipient

name along with some other correct information.

The queries we consider in this work are more

similar to web queries, where users seek informa-

tion in the open world and issue queries without prior

knowledge of the data source (Sarkas et al., 2010).

The work in (Sarkas et al., 2010) considers mapping

query terms to a list of structured tables and their at-

tributes, the challenge is about intent disambiguation:

given a list of the tables, which table best describes a

web user’s intent of the query. The work in this pa-

per does not focus on intent disambiguation, i.e. the

input queries always have the same intended type as

the tuples in the table, but focus on how to retrieve

candidates from the table effectively and efﬁciently.

Commercial relational database management sys-

tems (RDBMSs) provide free-text search using state-

of-the-art information retrieval (IR) relevance rank-

ing strategies, such as the SQL predicate contain (at-

tribute,keyword). However, it requires queries specify

the exact column against which keywords are to be

matched. An user with no prior knowledge about the

schema of the database and the representation of the

data would not be able to construct such queries.

3 PROBLEM DEFINITION

We use R to denote a relational entity table that con-

tains collections of heterogeneous data with non-ID

columns C = {c

,... ,c

}. Column and attribute

are used interchangeably in this paper. Each column

can take a text value v from a domain denoted as

range(c

), and we use range(R) to represent the set

of all duplicate-free values of the table R, which is

also referred as the Closed Language Model of the

table R, i.e. CL M(R) (Sarkas et al., 2010). Values

that are not from CLM are denoted as Open language

model (OLM). A text value will have at least one

word, which is deﬁned as a sequence of characters not

including white space. Note that numerical attributes

are also treated as categorical attributes in this work

and we do not assume the ranges of the columns are

mutually exclusive. Each tuple from the entity table

R can be viewed as an entity with k attributes and an

attribute value of an entity could be empty, i.e. null

values as in the Table 1.

Deﬁnition 3.1. Given a relational entity table R, the

problem of entity search/match over R is to ﬁnd all

tuples in R that refer to the same entity denoted by the

free-text input query q, which is represented as a list

of words (w

,. .. w

The assumption here is that the entity denoted by

the input query is of the same type as the tuple in R.

According to Pound et al. (Pound et al., 2010), the in-

put query in this work can be categorised as an Entity

Query , where the intention of the query is to ﬁnd a

particular entity in an Ad-hoc Object Retrieval (AOR)

task.

There are three main challenges for the entity

search/match over RDBs:

• The heterogeneity of the data means there could

be many representations even for the same en-

tity, and each attribute value could also have a

varieties of forms. The complexity of the entity

query grows exponentially to the number of the

attributes of the entity.

• Two different attributes could have a large over-

lap of values, which means the same word or

words from the query could be mapped to multi-

ple attributes at the same time. This characteristic

has also been discussed in (Kim et al., 2009).

• A real-world entity query might contain redun-

dant or incorrect information, that results in mis-

interpretation of the query.

For example, given a product database where each

tuple refers to a product entity, consider two in-

put queries “iphone 7” and “iphone 7 cover”. First

query refers to a “phone” with product name equal to

“iphone 7”. The second query refers to a “cover” that

is used with an “iphone 7”. Thus, the value “iphone

7” in the ﬁrst query should be mapped to a ‘product

name’ attribute, and the same value “iphone 7” in the

second query should be mapped to an ‘applicable’ at-

tribute. In this paper, we argue and exploit the fact

that mapping between values and attributes are not in-

dependent of each other.

4 ATTRIBUTE EXTRACTIONS

In this section, we show how to perform a simple but

effective attribute value extraction for an input entity

query. We start by reviewing the query annotation

model in (Sarkas et al., 2010).

Deﬁnition 4.1. An annotated value of a query q for

a table R is a pair AV = (v,c) of a value v from q and

a column c in R, such that v ∈ range(c). Note that a

value v could be a single word w

or a sequence of the

words (w

,. .. ,w

) from the query.

In the example of Table 1, consider the input

query “5 Oxford Street London Englad”, the anno-

tated value AV=(Oxford Street, Street) denotes that

“Oxford Street” is a possible value for the column

“Street”. Intuitively, an annotated value AV decides

which column a value should be mapped to.

Sarkas et al. proceed to deﬁne a segmentation of

the query as a sequence of non-overlapping values

that cover the entire query, and a structured annota-

tion of the query is a set of annotated values such that

the values from a segmentation of the query. When a

word w from the query does not belong to the range

of the database, i.e. w /∈ range(R), AV = (w, OLM)

can be used to denote the word is from the OLM. For

example, there are 4 different structured annotations

for the input query “5 Oxford Street London Englad”,

which are shown as follows:

=((5, Sb Nb), (Oxford Street, Street), (London,

Postal Town), (Englad, OLM))

=((5, Sb Nb), (Oxford, Postal Town), (Street,

Postal Town), (London, Postal Town), (Englad,

OLM))

=((5, Bu Nb), (Oxford Street, Street), (London,

Postal Town),(Englad, OLM))

=((5, Bu Nb), (Oxford, Postal Town), (Street,

Postal Town), (London, Postal Town), (Englad,

OLM))

Intuitively, each structured annotation of the query

is a possible interpretation of the query and every

word from the query is mapped to a single column

in the database. For the running example, structured

Table 2: Transformed Multi-Valued Structured Query ˆq.

Sb Nb Bu Nb Street Postal Town

5 5 Oxford Street Oxford,

Street,

London

annotation S

is the “correct” interpretation of the

query, because the word “5” in this case belongs to the

building number, “Oxford Street” is the street name

and “London” is the postal town. Note that some

columns could have multiple values, such as column

“Postal Town” in S

and S

, this is because each word

is mapped to the best column independently.

However, there are two major drawbacks for the

structured annotation method: (i) the number of the

possible structured annotations is exponential to the

number of the words in the query; (ii) there is an im-

plicit assumption that the “true” interpretation of the

query comes from the set of all possible structured

annotations, which is not always the case.

In this work, instead of selecting the best struc-

tured annotation, we consider all possible annotated

values at the same time. For the running example,

there are only 5 different annotated values, i.e. (5,

SB Nb), (5, Bu Nb), (Oxford Street, Street), (Ox-

ford, Postal Town), (Street, Postal Town) and (Lon-

don, Postal Town). The process of generating all an-

notated values is a fast lookup process as each column

can be kept in a hash table. All annotated values now

can be arranged into a multi-valued structured query

ˆq, which is shown in Table 2.

The structured query now has three possible val-

ues for the column Postal Town: {“Oxford”, “Street”,

“London”} and one possible value for the column

Street: {”Oxford Street”}. The token “5” is mapped

to both columns Sb Nb or Bu Nb because of the over-

lapping content. This extraction process can be seen

as converting an unstructured query q into a multi-

valued structured query ˆq with overlapping values.

The transformed structured query ˆq still has a lot

of ambiguities: (i) there could be more than one value

for the same column, such as three possible values in

the Postal Town; (ii) there could be overlapping val-

ues between columns, such as token “5” mapped to

both columns Sb and Bu Nb and the token “Oxford”

appearing in both columns Street and Postal Town.

The terms that are not in the range of the database

will not be found in the structured query ˆq. We are

not aiming to ﬁnd the best annotation for the query

in this process, but rather to generate possible values

for each attribute and consider how to formulate SQL

queries from ambiguous queries in order to effectively

and efﬁciently perform entity search/match over the

relational databases.

5 CANDIDATES GENERATION

In this section, we present two retrieval models that

can effectively and efﬁciently generate candidates

given an input query q and a converted structured

query ˆq. There are two competing goals for the candi-

date generation process: one is Completeness, which

measures whether the returned set of the tuples con-

tains all matched tuples; the other one is average num-

ber of retrieved tuples, which measures the efﬁciency

of the method.

Given a multi-valued query ˆq (as in Table 2), for

each multi-valued column c, a predicate in is sufﬁ-

cient to retrieve all records with the value in c match-

ing to one of the values. We then show two naive

algorithms using AND/OR semantic s to combine the

columns in a structured multi-valued query ˆq. Using

the OR operator this results in the SQL-query:

SELECT * FROM R WHERE

Sb_Nb in (’5’) OR Bu_Nb in (’5’)

OR Street in (’Oxford Street’)

OR Postal_Town

in (’Oxford’, ’Street’, ’London’)

This returns all the tuples with at least one match-

ing value in any of the mentioned columns, i.e., all

the addresses with the sub-building number “5”, all

the addresses with the building number “5”, all the

addresses with the street name “Oxford street” and all

the addresses in the three different postal towns. Al-

though a high completeness can be achieved, it simply

returns too many unnecessary candidate tuples for the

input query.

The same query but connected with AND returns

the records, which have at least one matching value

in every mentioned column, i.e., all the addresses in

three different postal towns with sub-building num-

ber and building number “5”, and street name “Ox-

ford street”. The query is actually a Conjunctive

Normal Form (CNF): Sb Nb=“5”∧ Bu Nb=“5’ ∧

Street=“Oxford Street”∧ (Postal Town =“Oxford”∨

Postal Town=“Street”∨ Postal Town=“London”).

The CNF above returns an empty set because

there is no such tuple from Table 1 that satisﬁes this

condition. There are two main reasons why using

AND operator to combine all corresponding columns

could impose too many constraints to retrieve candi-

dates. Firstly, some columns from the database might

have many overlapping values, when transforming

an unstructured query into a multi-valued query, the

shared values are likely to be used to populate both

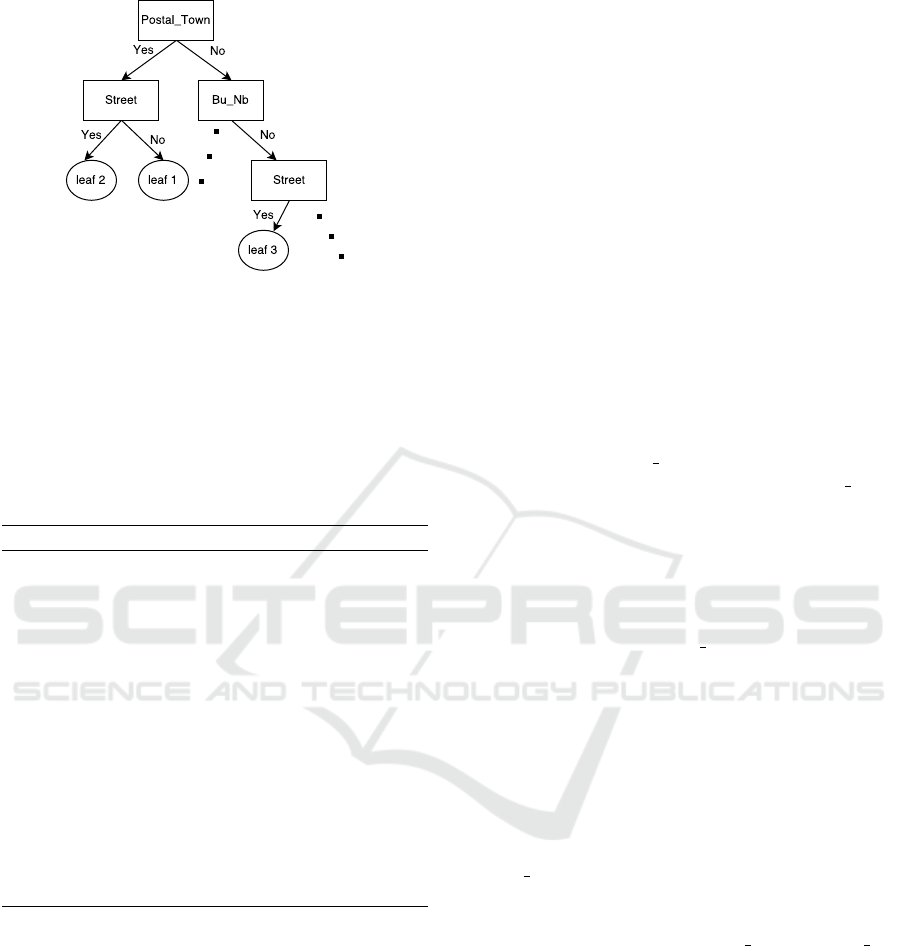

Figure 1: A toy example of search tree. Non-leaf nodes

correspond to the columns in the database. Leaf nodes are

clusters of the input queries.

columns. The second reason is that some columns

from a database might have a much wider range of

the values compared to others so that they are more

likely to get populated (possible incorrectly). Both

naive solutions are the baselines in the experiment.

Algorithm 1: Recursive Learning A Search Tree.

1: INPUT: Training Data D, Visited Columns VC

and a database R;

2: OUTPUT: SearchTreeNode nd

3: function LEARNTREE(D, VC, R)

4: if AveNumCand(D,VC, R) ≤ α then

5: Return null

6: BestC = argmax

c∈C\VC

Comp(D, c∪VC,R)

7: if Comp(D, BestColumn∪VC,R) ≥ β then

8: TreeNode nd = Node(BestColumn)

9: D

← containValues(D,BestC,R)

10: D

← D \ D

 Unmatched Set

11: nd.left = learnTree(D

, BestC ∪VC,R)

12: nd.right = learnTree(D

, BestC ∪VC,R)

13: else Return null

14: Return nd

Since a CNF of all columns is too aggressive, we

present two algorithms that can retrieve candidates

more dynamically compared to the naive AND ap-

proach. The idea is that some attributes are more

likely to have the correct values compared to other

attributes, e.g.

homogeneous attribute values, it is better to ﬁrstly re-

trieve candidates based on reliable attributes rather

than try to generate all candidates from a single SQL

query.

A Search Tree Algorithm

Instead of constructing a CNF from all populated

columns for each query, we try to learn a hierarchical

search tree that can form a CNF with the best combi-

nations of the columns accordingly.

Deﬁnition 5.1. A Search Tree ST = (N,L,E) for a

relational entity table R is composed of a binary tree

with the non-leaf nodes N, leaf nodes L and edges E.

Each non-leaf node n ∈ N corresponds to a column c

in R. A left or right edge of the non-leaf node n de-

notes whether the node should be used to construct the

CNF or not. Given a multi-valued query ˆq, it travels

from a root node to a leaf node l ∈ L, and all the leaf

node’s ancestor nodes with left edges are considered

for the ﬁnal CNF.

Now let us consider how to traverse in a search

tree. Given a tabular query, it travels to the left edge

of a node n only when the CNF of the node and all its

ancestor nodes with left edges can retrieve a positive

number of candidates from the database. For instance,

Figure 1 shows an example of a search tree. Suppose a

structured multi-valued query ˆq has at least one value

in the column Postal Town, then it will deﬁnitely

travel to the left edge of the root node Postal Town,

because there is no other ancestor nodes at this stage.

If the query ˆq does not have any value in the column

Street, it then travels to the right edge of the node

Street (leaf node 1); if the query ˆq does have some

values for the column Street, it travels to the left edge

of the node Street (leaf node 2) only when the combi-

nation of the column Postal Town and Street returns

a non-empty set of the candidates, otherwise, it also

travels to the right edge of the node Street. This is to

make sure the ﬁnal CNF can always return a positive

number of the candidates even when some values are

not correctly populated.

Intuitively, each leaf node from the search tree

corresponds to a set of queries with the same choices

of the columns to form the CNF, for example,

queries that terminate at leaf 1 will only use column

Postal Town to retrieve candidates, while queries in

leaf 3 will only use column Street to retrieve can-

didates, because there is no matching values for the

other two ancestor nodes Postal Town and Bu Nb.

One thing worth noting here is that the maximum

depth of the search tree is the total number of the

columns in the database.

Now we present a recursive greedy algorithm

(shown in Alg 1) to learn a search tree from a set

of labelled queries. Each query in the training set

is labelled with a set of candidates that refer to the

same entity as the input query. The current best col-

umn is selected to maximise the completeness (line

6). There are two termination conditions of the node

expansion before it reaches the maximum depth of

the search tree, one is when the average number of

candidates (AveNumCand) is less than a pre-deﬁned

threshold α (line 4), because there is no need to per-

form node expansion when the average number of

candidates is already quite small; the other is when

the current best column has a completeness score less

than another pre-deﬁned threshold β (line 7) so that a

minimal completeness can be guaranteed at each step

of node expansion. If none of the early termination

conditions is satisﬁed, the current training data D is

then split into two separate sets depending on how the

queries follow the edges as we explained before.

Back to our running example in Section 3, given

the search tree in Figure 1, the query ˆq in Table

2 will ﬁrst travel to the left edge of the root node

Postal Town because it has three possible values for

the column Postal Town. After constructing a SQL

query with both Postal Town and Street:

SELECT * FROM R WHERE

AND Street in (’Oxford Street’)

AND Postal_Town

in (’Oxford’, ’Street’, ’London’)

it returns the third record as the ﬁnal result.

A MaxMatched Algorithm

We present another effective and efﬁcient retrieval al-

gorithm, MaxMatched, that can retrieve candidates

that match to the input queries. Instead of choosing

a number of columns to form a CNF query as shown

before, the idea of the MaxMatched is to ﬁnd the best

column to generate a list of candidates and then cal-

culate a similarity between each candidate tuple and

the original input query q.

The complete MaxMatched algorithm is shown in

Alg 2. An unstructured query q and the transformed

structured query ˆq are both required as input for the

MaxMatched algorithm.

We ﬁrst generate an ordered list of the columns of

the database based on the completeness score from

the training data (line 4) using the same function

Comp as in line 6 of Alg 1. Out of all populated

columns, we choose the one with the best complete-

ness (highest rank) in line 5 to retrieve the ﬁrst set of

the candidates from the database. The second step is

to calculate the similarity score between all retrieved

records and the unstructured query q.

The degree of similarity between the query q and a

candidate tuple is calculated by counting the number

of values from the tuple that can be found in the un-

structured query (line 9-16). Note that the maximum

number of the matching values is the total number of

the columns in the table. The whole process can be

seen as a two-stage algorithm , where the best-rank

column generate candidates at the ﬁrst stage and the

tuples with maximum number of matching values are

returned at the second stage.

Algorithm 2: MaxMatched Algorithm.

1: INPUT: A free-form query q, a tabular query ˆq,

a database R and training data D;

2: OUTPUT: Candidates T

3: function MAXMATCHED(q, ˆq, R, D)

4: OC = OrderedColumns(R, D), T =

5: BestC = FirstColumnNotEmpty(OC, ˆq, R)

6: if BestC 6= null then

7: maxMatched ← 0

8: for each r ∈ R and r.BestC ∈ ˆq.BestC do

9: numMatched ← countMatched(r,q)

10: if numMatched > maxMatched then

11: Empty T

12: maxM ← numMatched

13: T = T ∪ r  Add current record r

14: else if numMatched=maxM then

15: T ← T ∪ r

16: Return T

17: else Return

As for the example query “5 Oxford Street Lon-

don Englad”, we assume that the column Postal town

from Table 2 has the best completeness score so that it

is used to retrieve the ﬁrst set of the candidates, which

are all ﬁve of them. Out of all tuples from Table 2,

the third record will then be returned as the ﬁnal out-

put, because there are three values from the third tuple

that can be exactly found in the input query, i.e., “5”,

“Oxford Street” and “London”. The tuple a

has only

two values, i.e., “5” and “Oxford”, that can be found

in the query, while the tuples a

, a

and a

only have

one value that can be found in the query, namely “Ox-

ford”, “London” and “Street” respectively.

The MaxMatched algorithm is more ﬂexible than

choosing a ﬁxed number of columns as in the

SearchTree algorithm, however, it relies on the best

ranked column to retrieve the ﬁrst set of the candi-

dates.

6 EXPERIMENTS

We tested effectiveness and efﬁciency of our sys-

tem on an ofﬁcial UK address database called Post-

code Address File (PAF, 2017) provided by the UK

Royal Mail. The PAF database maintains over 29

million residential and commercial addresses, where

there are 12 columns in the main table. Column

co name is used to store company names, and the rest

of the columns are responsible for addresses. Three

columns pc

dist (ﬁrst part of post code), pc sffx (sec-

ond part of post code) and dp sffx (deliver point) form

an unique ID for each address. Columns, such as

road name Rd Nm and sub-road name Sb Rd, share

Table 3: Number of tokens and free tokens per query.

Datasets # of Tokens # of Free Tokens

YellowPage 13.82 4.35

Company 12.13 3.68

a large vocabulary, more speciﬁcally, most of the val-

ues from the column Sb Rd can be found in the col-

umn Rd Nm. Another thing worth noting is that col-

umn building name Bu Nm has a much wider range

of values compared to the other address columns, i.e.,

the number of distinct values of the column Bu Nm

is 1,048,576 while the second largest column Rd Nm

has only 320,017 distinct values.

Two real-world datasets, each of which contains

a list of UK company records, are used as the input

entity queries. One contains 100 furniture company

records extracted from the UK Yellow Pages web-

site (YellowPage, 2017) and the other is a Company

dataset which contains 200 UK company records

from a private company database. The datasets are

split equally into training and test sets. The goal is to

search for the tuples in the PAF database that refer to

the same entity as the input query.

As shown in Table 3, the average numbers of to-

kens per query for our entity search/match evaluation

are signiﬁcantly larger compared to the ones in key-

word search literature (usually less than 6). Also web

and commercial data is often not standardised and

will differ in structure when compared to reference

sources such the PAF dataset. Table 3 shows nearly

a quarter of the tokens for each query could not be

mapped to any of the columns in the database.

As said in Section 5, the effectiveness of the algo-

rithm is measured by completeness, which determines

whether the returned set of the tuples T cover all cor-

rect tuples T

∗

, which is manually decided by our do-

main expert. For each query, the completeness is 1 if

∗

⊂ T . We then computed the fraction of queries that

have full completeness. The efﬁciency is measured by

the average number of returned tuples.

There are three main baseline approaches used

here. As explained in Section 4, the structured an-

notation method ﬁrst converts a text query into many

structured queries, where each structured query has

non-overlapping values that cover the entire input

query. Each structured query is then connected with

OR semantic. On the other hand, NaiveAnd and

NaiveOr methods, which are described in Section 5,

rely on a single structured query with potentially over-

lapping values between columns.

The comparison results of different methods are

shown in Tables 4 and 5. For the SearchTree algo-

rithm, the two hyper-parameters α and β are set to

Table 4: Comparison results for the Yellow Pages dataset.

Completeness #Cand

NaiveAnd 0 0

NaiveOr 1.0 491694

Structured Annotation 0.24 1.07

SearchTree 0.92 9

MaxMatched 1.0 7

Table 5: Comparison results for the company dataset.

Completeness #Cand

NaiveAnd 0 0

NaiveOr 0.91 54953

Structured Annotation 0.29 1.6

SearchTree 0.83 285

MaxMatched 0.87 287

be 30 and 0.85 respectively, which shows good per-

formance for both datasets. The NaiveAnd method

returns an empty set for both datasets, which shows

that it is too restrictive to consider all columns from

the structured queries. The NaiveOr method, on the

other hand, achieved the best completeness for both

datasets, but also returned a large number of can-

didates. As shown in Table 4, the average num-

ber of candidates of the NaiveOr method is hun-

dreds of thousands for the Yellow Pages dataset, but

the SearchTree and MaxMatched methods only re-

turn less than 10 candidates per query. The com-

pleteness rates of the structured annotation method

are only 24% and 29% for the two datasets, which

are signiﬁcantly smaller compared to the SearchTree

and MaxMatched algorithms. This is due to the fact

that some tokens from the query are wrongly mapped

to the columns, resulting in none of the structured an-

notations of the query being a possible interpretation

of the query.

There are more candidates generated per query

for the Yellow Pages dataset compared to the com-

pany dataset when applying the NaiveOr method, be-

cause the data from the Yellow Pages has much less

noise than the company dataset, which means more

matching values appear in the structured queries. In

summary, both SearchTree and MaxMatched meth-

ods dramatically reduce the number of candidates as

compared to NaiveOr approach while still maintain-

ing a competitive completeness.

As the columns pc dist and pc sffx are part of the

unique identiﬁer for an address entity, we also tested

our methods without considering these two ID-like

columns. Table 6 shows that a much larger number of

candidates were returned and completeness was re-

Table 6: Results without columns pc dist and pc sffx.

Completeness #Cand

YellowPage

SearchTree (NoPC) 0.81 2763

MaxMatched (NoPC) 0.87 2876

Company

SearchTree (NoPC) 0.67 4512

MaxMatched (NoPC) 0.73 1962

Table 7: Average Execution time.

Yellow Page (s) Company (s)

NaiveAnd 0.11 0.28

NaiveeOr 239.36 300.57

SA 13.7 1.05

SearchTree 2.51 4.67

MaxMatched 0.82 0.68

duced compared to the case where all columns are

considered.

Finally, the average execution times per query for

the different algorithms are shown in Table 7. As

expected, NaiveOr has the largest retrieval time be-

cause of the large number of possible candidates. The

SearchTree method generally takes more time to re-

trieve candidates than the MaxMatched, because it

has to decide which branch to follow at each non-

leaf node by checking whether the current combina-

tion of the ancestor nodes can generate a non-empty

set, while the MaxMatched method only has to enu-

merate all candidates constrained by the best column.

7 CONCLUSIONS

We have presented an effective and efﬁcient approach

to address the problem of entity search/match over

RDBs. We showed that structured annotation of the

query is not suitable when there is redundant infor-

mation in the input queries that could mislead the

interpretations. Two supervised retrieval methods

were proposed to retrieve candidate tuples based on a

multi-valued structured query. The results of the com-

prehensive evaluation for the large-scale database and

two real-world datasets showed that our methods can

achieve a good trade-off between generating correctly

matching candidate and the retrieval time.

REFERENCES

Agrawal, S., Chaudhuri, S., and Das, G. (2002). DBX-

plorer: A System for Keyword-Based Search over Re-

lational Databases. In Proceedings of the 18th Inter-

national Conference on Data Engineering.

Balog, K., de Vries, A. P., Serdyukov, P., and Wen, J.-R.

(2012). The ﬁrst international workshop on entity-

oriented search (eos). In ACM SIGIR Forum, vol-

ume 45, pages 43–50. ACM.

Blanco, R., Mika, P., and Vigna, S. (2011). Effective and

Efﬁcient Entity Search in RDF data. In Proceedings

of International Semantic Web Conference.

Ferragina, P. and Scaiella, U. (2010). TAGME: On-the-ﬂy

Annotation of Short Text Fragments (by Wikipedia

Entities). In Proceedings of the 19th ACM interna-

tional conference on Information and knowledge man-

agement. ACM.

Golenberg, K., Kimelfeld, B., and Sagiv, Y. (2008). Key-

word Proximity Search in Complex Data Graphs. In

Proceedings of the SIGMOD international conference

on Management of Data. ACM.

Hristidis, V., Gravano, L., and Papakonstantinou, Y. (2003).

Efﬁcient IR-style keyword search over relational

databases. In Proceedings of the 29th International

Conference on Very Large Data Bases.

Hristidis, V. and Papakonstantinou, Y. (2002). Discover:

Keyword search in relational databases. In Proceed-

ings of the 28th International Conference on Very

Large Data Bases, VLDB ’02. VLDB Endowment.

Kim, J., Xue, X., and Croft, W. B. (2009). A Probabilistic

Retrieval Model for Semistructured Data. In Euro-

pean Conference on Information Retrieval. Springer.

Liu, F., Yu, C., Meng, W., and Chowdhury, A. (2006). Ef-

fective Keyword Search in Relational Databases. In

Proceedings of the International Conference on Man-

agement of Data. ACM.

PAF (2017). Royal mail postcode address ﬁle.

https://www.poweredbypaf.com/.

Pound, J., Mika, P., and Zaragoza, H. (2010). Ad-hoc Ob-

ject Retrieval in the Web of Data. In Proceedings of

the 19th international conference on World Wide Web.

Sarkas, N., Paparizos, S., and Tsaparas, P. (2010). Struc-

tured Annotations of Web Queries. In Proceedings of

the International Conference on Management of data.

ACM.

Simitsis, A., Koutrika, G., and Ioannidis, Y. (2008). Pr

ecis:

From unstructured keywords as queries to structured

databases as answers. The VLDB Journal, 17(1).

Talburt, J. R. (2011). Entity Resolution and Information

Quality. Elsevier.

YellowPage (2017). UK yellow page website.

https://www.yell.com/.

Yu, J. X., Qin, L., and Chang, L. (2010). Keyword Search

in Relational Databases: A Survey. IEEE Data Engi-

neering Bulletin, 33(1).
