FPGA Implementation of the Huber-Braun Neuron Model

Marcel Beuler

, Alexander Krum

, Werner Bonath

and Hartmut Hillmer

Department of Electrical Engineering and Computer Science, University of Kassel,

Wilhelmsh¨oher Allee 71-73, D-34121 Kassel, Germany

School of Computer Science and Engineering, University of New South Wales, NSW 2052, Sydney, Australia

Department of Electrical Engineering and Information Technology, University of Applied Sciences, Wiesenstr. 14,

D-35390 Giessen, Germany

Keywords:

Huber-Braun, Neuronal Network, FPGA, VHDL.

Abstract:

The Hodgkin-Huxley model (HH) describes the initiation and propagation of action potentials in neurons

closed to the biological conditions, but it is not well suited for large scale simulation of neuronal networks. In

this paper, an implementation of the Huber-Braun model is presented. It is a simpliﬁed HH-type model and

able to reproduce a wide variety of spiking patterns. An FPGA is selected as a reconﬁgurable hardware imple-

mentation platform to simulate the network functionality of the neurons. The 32-bit ﬂoating-point format and

computation techniques (i.e. CORDIC) instead of LUTs are used to avoid loss of physiological information.

We validated our design with a C++ program and report the synthesis result based on Xilinx Virtex 6 FPGA.

1 INTRODUCTION

In physiological research computer simulations play

an important role in analyzing the neuronal informa-

tion processing in the central nervous system. Ba-

sic elements are mathematical descriptions of neurons

and synapses with different complexity. Hodgkin-

Huxley-type neuron models generate action potentials

by voltage-gated ion channels, therefore, they closely

follow the biological concept. The original approach

has four nonlinear differential equations and postu-

lates three gating variables to model the dynamics of a

sodium and potassium channel (Hodgkin and Huxley,

1952). Its solution requires a great deal of computing

power and is thus not well suited for larger neuronal

networks. That’s why several simpliﬁed models with

reduced computing effort have been developed in the

past, and their use depends on each speciﬁc problem

(Izhikevich, 2004).

For example, the Hindmarsh-Rose model has

three nonlinear differential equations and can be used

to investigate the spiking-bursting behavior of two

electrically coupled neurons (Xia and Qi-Shao, 2005).

The FitzHugh-Nagumo model approximates the HH

system by only two differential equations (FitzHugh,

1961), but it doesn’t generate bursts, which can be

important for neuronal transmission (Izhikevich et al.,

2003). One of the simplest models of a neuron’s elec-

trical properties is the Integrate-and-Fire model. It

is based on a threshold approach instead of generat-

ing action potentials and allows large network simu-

lations, but the model is unrealistic from a physiolog-

ical point of view (Gerstner et al., 2014). In this pa-

per, we have chosen the Huber-Braun neuron model

which is also a simpliﬁed HH-type model. With tonic,

bursting, and chaotic spike patterns it can reproduce

a large amount of neuronal activity. In contrast to the

Hindmarsh-Rose or FitzHugh-Nagumo model, each

parameter has a clearly deﬁned biological correlate.

In general, analog and digital approaches can be

used to implement neuron models. The latter are more

popular as they have the advantage of higher accuracy,

lower noise sensitivity, better testability, higher ﬂex-

ibility, etc. (Muthuramalingam et al., 2008). In this

context, an analog circuit of a Huber-Braun neuron

has problems with the ﬁrst period-doubling bifurca-

tion (Hermida et al., 2012).

Target hardware for digital implementations can

be conventional CPUs, GPUs, ASICs, and FPGAs.

Conventional CPU-based execution is much slower

in comparison to specialized hardware because of its

serial nature. GPUs can exploit the parallelism of

neuronal networks better and can be a powerful alter-

native to general purpose processors. However, they

may not be able to meet real-time requirements due to

high rates of data exchange between the neurons (Du

Nguyen, 2013). ASICs provide the best performance

regarding chip area and clock frequency, but they are

expensive and their functionality cannot be changed

after chip manufacturing. Although FPGAs are not

Beuler M., Krum A., Bonath W. and Hillmer H.

FPGA Implementation of the Huber-Braun Neuron Model.

DOI: 10.5220/0006499102470254

In Proceedings of the 9th International Joint Conference on Computational Intelligence (IJCCI 2017), pages 247-254

ISBN: 978-989-758-274-5

as powerful as ASICs, they have the great beneﬁt of

reconﬁgurability during prototyping.

Several FPGA implementations of the HH neuron

model have been implemented so far (Graas et al.,

2004); (Zhang et al., 2009); (Bonabi et al., 2014). In

this paper we present an FPGA-based processor archi-

tecture for the Huber-Braun neuron model. It is pro-

grammed in VHDL and can calculate up to 1600 neu-

rons including electrical coupling in real-time on the

Xilinx ML605 development board at 200MHz clock

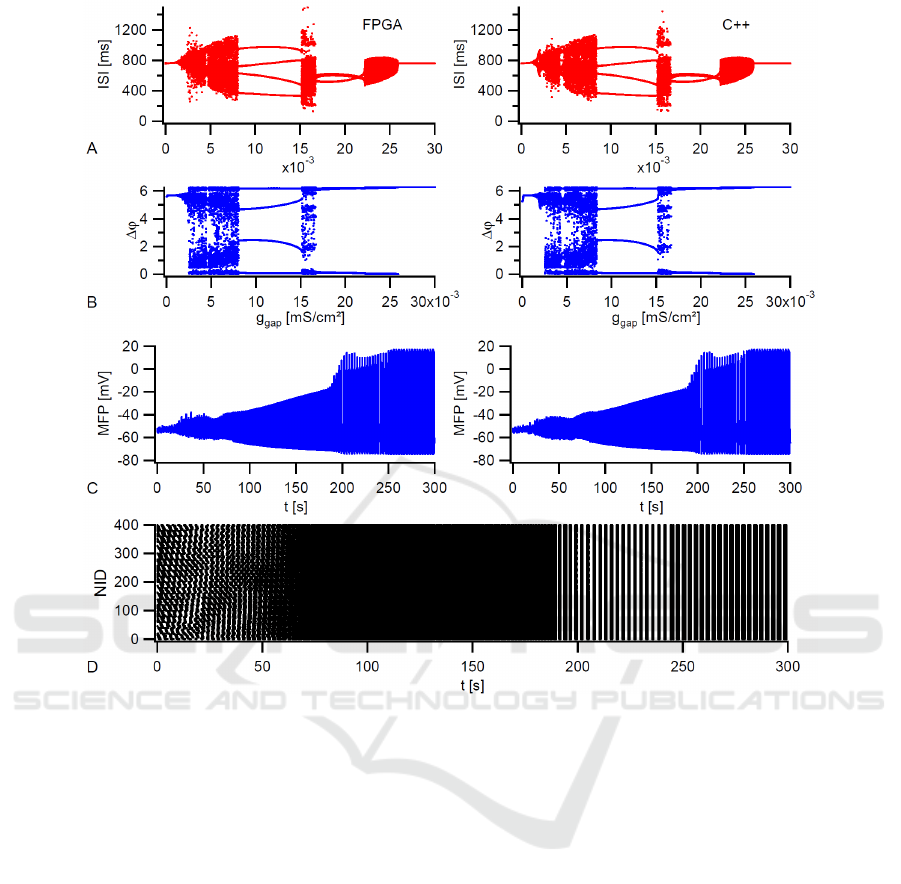

frequency. To validate the design, two coupled neu-

rons as well as a 20x20 network are tuned to different

synchronization states, and these results are compared

with a C++ simulation.

2 NEURON MODEL

The four-dimensional HH equations with transfer

rates can be converted in a simpliﬁed HH model with-

out the need for a power function and, ﬁnally, in a

two-dimensional system as shown in (Postnova et al.,

2012). These simpliﬁcations are acceptable, because

the exact form of an action potential is less important

than the modulation of the ﬁre rate and impulse pat-

terns. To consider subthreshold membrane potential

oscillations which operate independently of the spike

generation, the two-dimensional system is extended

by two additional ion channels.

Within the model, spike generation is done by an

HH-type component with a fast depolarizing sodium

ion current (index d) and a fast repolarizing potas-

sium ion current (index r) with voltage- and time-

dependent conductances g

and g

. A slow depo-

larizing sodium ion current (index sd) and a slow

repolarizing potassium ion current (index sr) with

voltage- and time-dependent conductances g

and

are responsible for subthreshold oscillations. Fi-

nally, a leakage current (index l) already known from

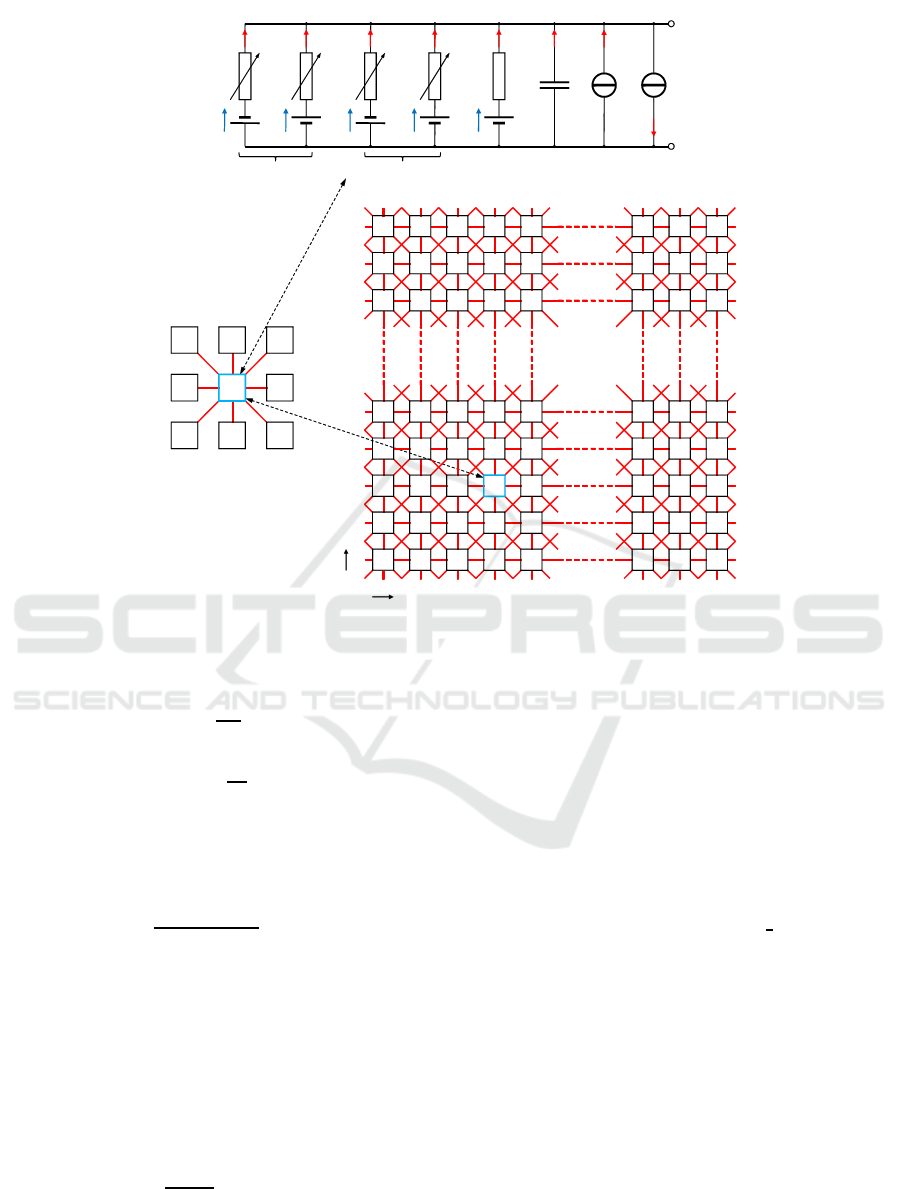

Hodgkin-Huxley is included. Figure 1 (A) shows the

equivalent circuit diagram of the neuron model with

all ion currents as well as two current sources for an

additional noise level J

noise

and the synaptic process

ext

. The latter one consists of a current injected ex-

ternally in the cell (J

inj

) and a gap-junction current

gap

) which is explained further on.

A positive hyperpolarizing current J

ext

> 0 de-

creases the ﬁre rate, since the membrane potential gets

more negative. With the current-voltage-relation of

the membrane capacity and Kirchhoff’s Law we get

Eq. (1). Leakage current and non-linear currents are

modeled as Eq. (4) and Eq. (5), with g

the conduc-

tances, a

the voltage- and time-dependent activation

variables, and V

the related Nernst potentials.

= −

∑

− J

ext

{z }

f(V)

noise

(1)

∑

= J

+ J

(2)

ext

= J

inj

+ J

gap

(3)

= g

(V −V

) (4)

= g

(V −V

) i = {d,r,sd,sr} (5)

Similar to the HH gating mechanism, the activation

variables of the ion channels are described by differ-

ential equations ﬁrst order. Steady-states are modeled

by a sigmoid curve and time constants replace the

voltage-dependent delay functions. The fast sodium

channel J

is instantaneous active, so a

= a

d∞

can be

estimated. Furthermore, J

is directly coupled with

in Eq. (9) and the related steady-state activation

sr∞

is omitted. Both factors ρ and ϕ are responsible

for temperature scaling of conductances g

and time

constants τ

with T

the reference temperature in

◦

i∞

1+ exp[−s

(V −V

)]

i = {d,r,sd} (6)

= a

d∞

(7)

i∞

− a

i = {r,sd} (8)

−η· J

− k· a

(9)

= g

ρ = g

· 1.3

(T−T

)/10

◦

(10)

3.0

(T−T

)/10

◦

(11)

Network simulations are performed by bidirectional

gap-junction coupling via J

gap

with g

gap

the coupling

strength, V

i, j

the membrane potential of an individ-

ual neuron at the position (i, j) in Figure 1 (B), and

i+n, j+m

the membrane potentials of neighboring neu-

rons. The summation is taken over all pairs (m,n)

with m,n ∈ {−1, 0, 1} (Postnova et al., 2009):

gap

i, j

∑

m,n

gap

i, j

−V

i+n, j+m

) (12)

Normally, border neurons are coupled with neurons

from the opposite border to get a torus-like network:

i+ n = −1

i+ n = 40

→

i+ n = 39

i+ n = 0

j + m = −1

j + m = 40

→

j + m = 39

j + m = 0

All differential equations are solved numerically by

using the Euler integration method with ∆t = 0.1ms:

i=0

j=0

i=3

j=2

i=39

j=39

0 1

2 3 4 37 38 39

i-1

j+1

i+1

j+1

i+1

j-1

i-1

j+1

i-1

j-1

8 neighboring neurons

ext

extracellular

intracellular

spike-generation oscillations

noise

i=3

j=2

Figure 1: Simulated neuronal network. A) Equivalent circuit diagram of a single cell. B) Gap-junction coupling in a 40× 40

network.

(t+∆t)

= V

(t)

∆t

f(V

(t)

) + g

(13)

(t+∆t)

= a

(t)

+ ϕ

∆t

(t)

i∞

− a

(t)

) (14)

In Eq. (13), g

is a white Gaussian noise pro-

cess given by the Box-Mueller transform (Fox et al.,

1988), where a and b are two uniformly distributed

random numbers in the interval [0,1]. The noise in-

tensity can be adjusted with the parameter d.

−4d ∆tln(a) · cos(2πb) (15)

Analyzing the distribution of phase differences be-

tween spike times enables us to distinguish between

different states of synchronization in a system of es-

pecially two coupled neurons (Postnova et al., 2007).

A spike time is taken when the membrane potential

exceeds a −35mV threshold. The phase difference is

calculated by Eq. (16), wheret

and t

are the times of

subsequent spikes of the ﬁrst neuron and τ is the spike

time of the second neuron (Pikovsky et al., 2001):

∆ϕ = 2π

τ−t

− t

< τ ≤ t

(16)

Typical values of the parameter in the above equations

can be taken from (Postnova et al., 2009).

3 PROCESSOR ARCHITECTURE

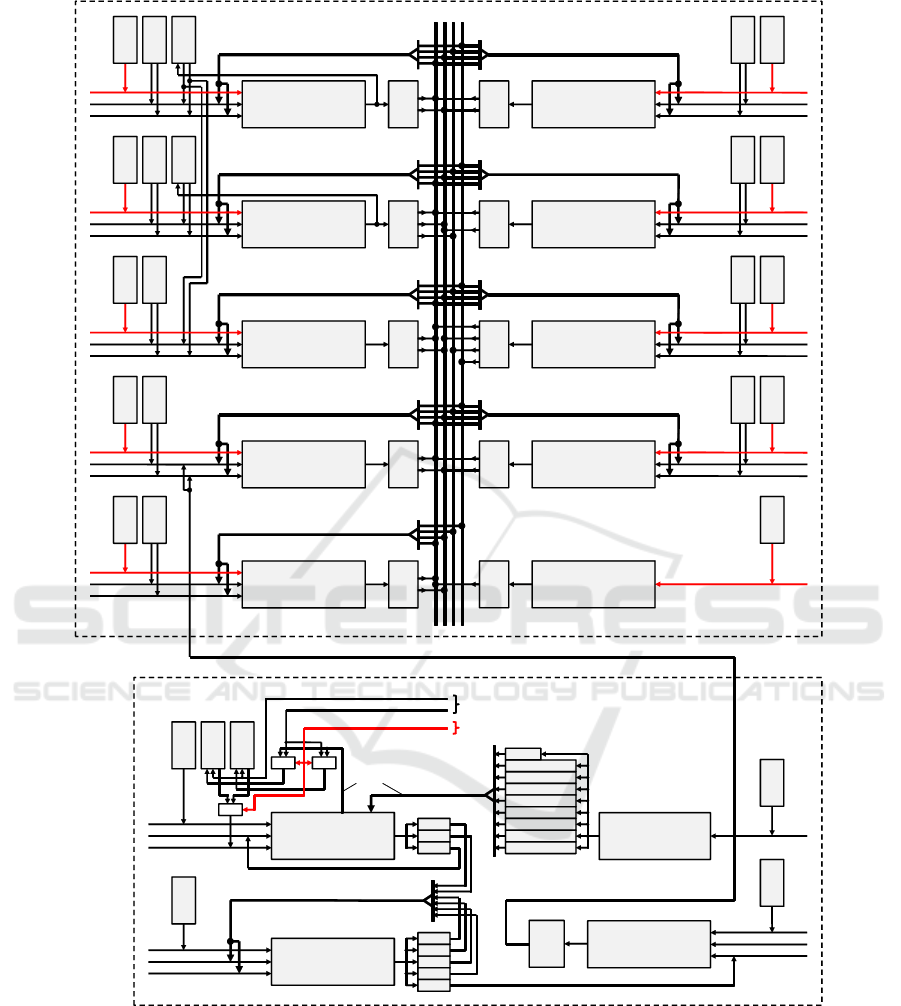

Figure 2 shows the basic design of the imple-

mented architecture with two separated modules for

the Huber-Braun model equations and the electrical

synapses. It contains all necessary hardware to com-

pute 1600 neurons including gap-junction coupling

in real-time at 200MHz clock rate. Operations of

the Huber-Braun model are allocated to 9 pipelined

arithmetic units (AUs), where “ADD

SUB” is a com-

bined 12-stage adder/subtractor and “MULT” an 11-

stage multiplier. All the functions (ln, cos, sqrt, and

exp) and, in contrast to (Bonabi et al., 2014; Zhang

et al., 2009), the divisions are calculated by the it-

erative CORDIC algorithm (Walther, 1971). The re-

maining arithmetic is designed to ensure an optimum

utilization of the 50-stage CORDIC pipeline. To solve

the limited convergence domain problem of the algo-

rithm we use a uniﬁed division-free argument reduc-

tion method proposed in (Hahn et al., 1994).

Each AU processes 32-bit ﬂoating-point values

to avoid undeﬁned effects due to signiﬁcant loss of

physiological information (Zhang et al., 2009). It

has an own program memory for individually pro-

gramming of the operations, up to four FIFOs to

store the computed results and a ROM (a RAM used

as ROM after initialization) to access model-speciﬁc

parameters like g

and V

. Two adders/subtractors

also have a RAM for the temporary storage of model

variables. These variables are the membrane poten-

tial V

(t)

(RAM of ADD

SUB A) and three activa-

tion values a

(t)

(RAM of ADD

SUB B), see Fig-

ure 2. OPA and OPB represent both operands for

each AU selectable by the machine instructions. To

ensure an efﬁcient programming, the RAM content

of ADD

SUB A is provided simultaneously to a sec-

ond ADD

SUB module. FIFOs can store calculated

results in cases where a subsequent operation on the

same or another AU cannot be started immediately.

First of all, each stored FIFO result is available as an

operand for the own AU as well as all the others. Af-

ter the arithmetic operations are allocated to the indi-

vidual AUs, this wiring complexity is reduced to the

required connections in order to meet the timing spec-

iﬁcation. “PRNG” generates pseudo random numbers

via linear feedback shift registers. Here, a program

memory determines how many random numbers are

generated per time interval.

At 200 MHz clock rate, the step size of 0.1 ms is

divided into 20 identical subneuron cycles with 1000

clocks in each case. Furthermore, all subneuron cy-

cles are divided into 2 blocks with 500 clocks as the

basic execution time, i.e. all program memories with

a size of 2

= 512 cells can store up to 500 executable

instructions. In such a block the operations of 40

neurons are allocated to the existing hardware com-

ponents. During a neuron cycle each program mem-

ory is run through forty times with actualized index-

registers to access variables, so that 40· 2· 20 = 1600

neurons per core are computable in real-time.

Before a simulation can start, a host software has

to generate the machine instructions for each AU as

well as the ROM contents and initial states for all vari-

ables by means of the user settings. This enables us

to test different neuron models without changing the

FPGA conﬁguration. All generated data will then be

transferred to the processor during the initialization

sequence.

Electrical Synapses. A neuron at the position (i, j)

receives 8 partial gap-junction currents from neigh-

boring neurons with J

gap

i, j

the total current. In con-

trast to Eq. (12), not each potential difference is

weighted by the coupling strength g

gap

, but only

its summation. During a block calculation of 40

neurons all synaptic operations are allocated to two

ADD

SUB modules and a multiplier. Because of

direct further processing, both ADD

SUB modules

store their results in registers. The synaptic process is

independent of the neuron model and doesn’t change,

so the related program memories have a ﬁxed content

and cannot be modiﬁed after the FPGA is conﬁgured.

Membrane potentials are stored in two RAMs hav-

ing the same content as the ADD

SUB A-RAM of

the model equations when the initialization sequence

has ﬁnished. In each new neuron cycle, both RAMs

operate alternately by a toggle-bit, that means while

one RAM provides the membrane potentials for the

gap-junctions, the other stores the updated potentials

of the current neuron cycle parallel to ADD

SUB A-

RAM of the model equations and vice versa.

The module SET

ADDR determines the RAM

addresses of the actual neuron (Addr0) as well as

all neighboring neurons (Addr1 to Addr8) which are

identical to the neuron identiﬁcation numbers (NIDs,

0···1599). These addresses are then used in the

ADD

SUB A module to select the membrane poten-

tials V

i, j

and V

i+n, j+m

with m,n ∈ {−1,0, 1}. V

i, j

stored in the register RegV as operand A during a

separate load instruction and the other potentials rep-

resent operand B, see Figure 2. Due to the additional

load instruction, both RAMs can be implemented as

single-port memories. The size of the neuronal net-

work can easily be adjusted by the user settings from

1× 1 to 40× 40. Eight ﬂags deﬁne whether the po-

sitions of the neighboring neurons are located inside

the network borders and they’ve to be taken into ac-

count or not. All gap-junction currents are stored in

FIFO FGAP. Finally, these values can be accessed as

operands by the ADD

SUB D module of the model

equations.

Main-Controller. The processor has a main-

controller as higher level control which analyzes in-

coming initialization data from the host and relays

them to the related memories and registers. The

packet-based data transfer with the host is realized

by a USB 3.0 connection. A FIFO-Management-Unit

(FMU) with own buffers in both communication di-

rections controls all packet transfers between main-

controller and peripheral USB controller. Processor-

generated packets always have a length of 512 bytes

and are called PPackets to distinguish them from USB

packets (UPackets) which can have a length of 512

or 1024 bytes depending on a high-speed and super-

speed connection, respectively.

Because the processor is a 32-bit system, a 4-byte

word is processed per clock cycle. A PPacket al-

ways consists of 4 header and 124 data words. The

header contains information such as “Packet Type”

and “Packet Number”. For example, the ﬁeld “Packet

Type” indicates if a certain program memory has to

be initialized or the simulation has ﬁnished. User set-

tings for core registers are summarized in a SETUP

ROM

RAM

F1A

F1B

CODE

OPA

OPB

ROM

RAM

F2A

F2B

F2C

CODE

OPA

OPB

ROM

F3A

F3B

CODE

OPA

OPB

ROM

F4A

F4B

CODE

OPA

OPB

ROM

F9A

F9B

CODE

OPA

OPB

F5A

F5B

ROM

CODE

OPA

OPB

F6A

F6B

ROM

CODE

OPA

OPB

F7A

F7B

F7C

F7D

ROM

CODE

OPA

OPB

F8A

F8B

ROM

CODE

OPA

OPB

F10

CODE

A B C D

CODE

ADD_SUB_A

ADD_SUB_B

ADD_SUB_C

CODE

ADD_SUB_D

CODE

CORDIC

CODECODECODECODECODE

PRNG

MULT_D

MULT_C

MULT_B

MULT_A

RegA

CODE

OPA

OPB

CODE

OPA

OPB

CODE

FGAP

CODE

OPA (ggap)

OPB

CODE CODE

ADD_SUB_A

ADD_SUB_B

CODE

MULT_A

SET_ADDR

RegB

RAM

RegE

RegD

RegC

RegF

RegG

updated membrane potential

Addr2/Flag2

Addr3/Flag3

Addr4/Flag4

Addr5/Flag5

Addr6/Flag6

Addr1/Flag1

Addr0

Addr7/Flag7

Addr8/Flag8

related RAM address

RegV

ADD_SUB_A (ModelEquations)

addresses of

neighbour neurons

and current neuron

MUX MUX

MUX

toggle

Core-Controller

Electrical Synapses

Model Equations

Figure 2: Block diagram of the main arithmetic components with two modules for the actual equations and the electrical

synapses. In contrast to the synapses, all program memories for the Huber-Braun equations are programmable by means of

user settings. A main-controller as higher level control and the core-controller to generate data packets for the host are not

shown.

packet. It mainly includes the mode, the selected neu-

ron model, the gap-junction networking (torus / no

torus), the network size, the threshold for spike de-

tection, as well as initial values for the ramp func-

tion g

gap

, T, and J

inj

. During run-time, each ramp

function enables an automatic incrementation of its

parameter until maximum is reached. The param-

eter interval is divided into 1000 steps, this means

∆P = (P

max

− P

init

)/1000 with P ∈ {g

gap

,T,J

inj

} and

max

≥ P

init

. All ramp functions determine important

tuning parameters for network analysis.

Core-Controller. During run-time, the core-

Buffer

FlagRd

Buffer

Control

Main

Controller

FMU

Control Unit

FIFO_OUT

FlagWr

TrigWr

WrAck

Data

USB

Device

Core

Controller

Model

Equations

Electrical

Synapses

ctrl

gap

FIFO_OUT

Neuron Core

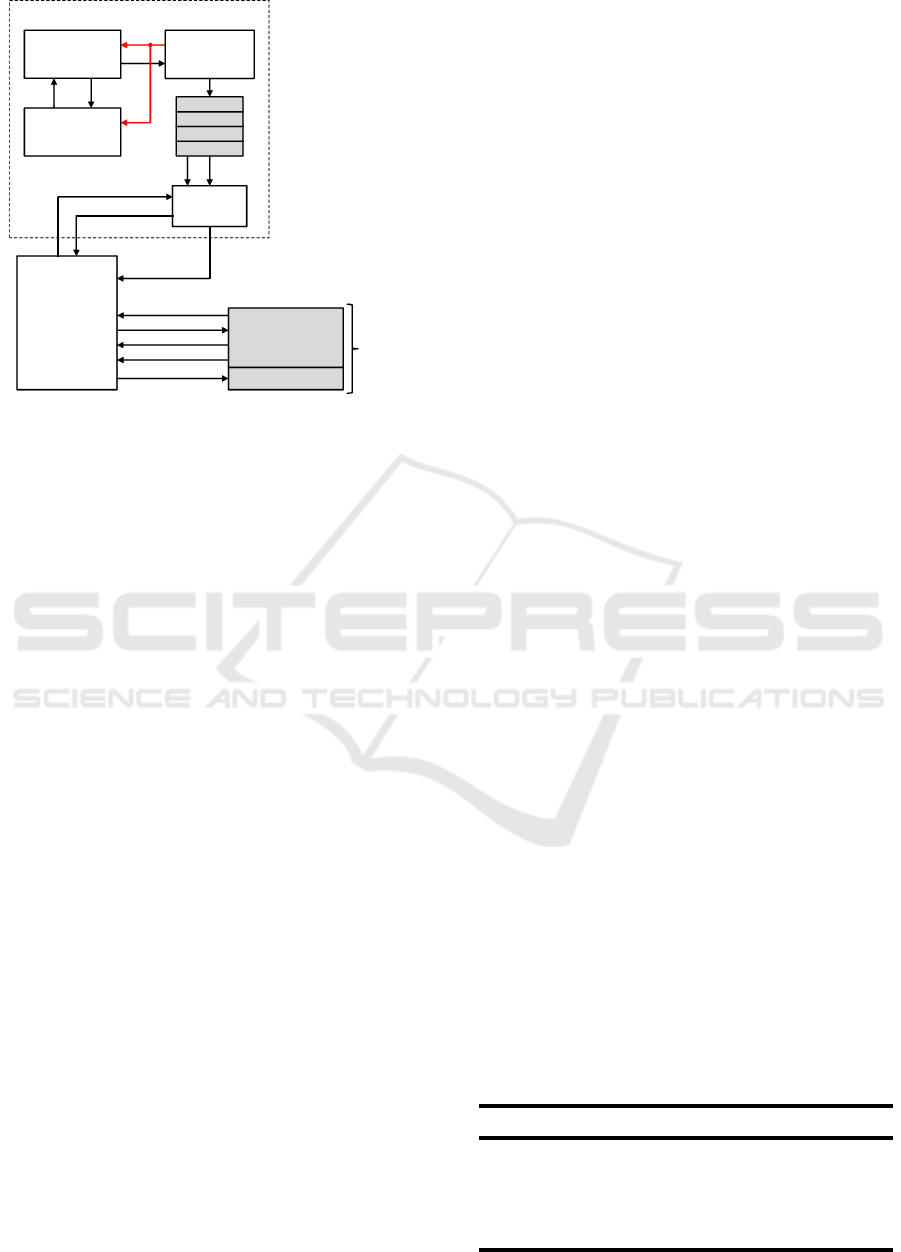

Figure 3: Block diagram of the processor architecture. All

arithmetic components and the core-controller are summa-

rized to a neuron core.

controller increments the program counters of all

AUs, updates the ramp functions, alternates the RAM

access for gap-junctions via a toggle-bit, and com-

poses all PPackets to be transferred to the host in a

small buffer which can be read by the main-controller,

see Figure 3. Here, both modules for the actual equa-

tions and the electrical synapses as well as the core-

controller are summarized to a neuron core. Such a

core includes all necessary hardware for 1600 neu-

rons and supports several modes deﬁning how the

calculated results are further processed in the core-

controller. In this paper, we mostly use an event-

driven mode called Preselected-Neuron-Spike-Time

(PNST). It contains the spike time and the related

NIDs of up to 124 individually selectable neurons.

With these spike times the host software can deter-

mine interspike intervals (ISI) and phase differences

according to Eq. (16), since the necessary comput-

ing power is limited. The mode Preselected-Network-

Integer (PNI) includes, among other things, the mean

membrane potential of all interconnected neurons

(mean ﬁeld potential, MFP) as an indicator for syn-

chronization. Finally, the ﬁre state of all neurons

at any time is composed in the mode Full-Network-

Spike-Time (FNST). This mode is used to plot the

dotted spike times of the entire network.

4 RESULTS

The presented architecture is written in VHDL and

synthesized on the Xilinx ML605 development board.

Buffer registers of memory outputs can be absorbed

by the related RAM during the synthesis process

with high logic delay of approximately 2ns. In

cases where the timing failed, this absorbtion can

be avoided by the keep attribute in the VHDL code.

Together with a minimum reset path we are able to

meet the timing constraints with a minimum period of

4.996ns. The synthesis results in Tab. 1 show that the

processor with one implemented neuron core takes

16 % of all LUT resources including the FMU. There-

fore, the used FPGA has enough resources for further

development like chemical synapses and multi-core

operation.

Due to the block-wise calculation of always 40

neurons, a neuron core is optimized for network sizes

of 40x40 in real-time and 20x20 in quadruple speed.

However, the simulation of two coupled neurons is

not efﬁcient and should be done software-based, since

the results of the remaining neurons are rejected and

the high parallelism is left unexploited. For such cases

we have expanded our hardware to include a speedup

option which only works in PNST mode and deﬁnes

the number of calculated blocks per neuron cycle.

This is still worse than a software-based solution, but

it helps us in the evaluation period to reduce the real

simulation time for interspike intervals(ISI) from sev-

eral hours to less than 10 minutes.

To validate our design, the FPGA results are com-

pared with a C++ simulation. Figure 4 summarizes

the results of two electrically coupled neurons as well

as a 20x20 network at T = 6

◦

C. All simulations use

the coupling strength as tuning parameter from 0 to

its maximum value. The two neuron system is well

suited to study transitions between asynchronous and

different types of synchronous states. Figure 4 (A)

and (B) illustrate the interspike interval and the corre-

sponding phase difference with J

inj

= 0.045µA/cm

and g

gap,max

= 0.03mS/cm

for the FPGA in PNST

mode (left) and the C++ program (right). A compari-

son of these plots shows a good agreement between

both implementations. The injection current is se-

lected in a way that uncoupled neurons are closed to

the ﬁrst period-doubling. This is the region where the

greatest variety of synchronous activity can be seen

for coupled neurons (Postnova et al., 2007). At ﬁrst,

the neurons are in an out-of-phase synchronization

state with a constant phase difference (∆ϕ 6= 0,2π)

Table 1: Device utilization summary.

Slice Logic Used Available Utilization

Slice Registers 19,676 301,440 6 %

Slice LUTs 24,253 150,720 16%

Occupied Slices 8,720 37,680 23%

RAMB36E1 58 416 13%

RAMB18E1 42 832 5%

Figure 4: Simulation of two electrically coupled neurons as well as a 20×20 network at T = 6

◦

C and tuning g

gap

. A-B) FPGA

(left) and C++ (right) results for interspike intervals (ISI) and phase differences of two coupled neurons. Both simulations run

20000 s with J

inj

= 0.045µA/cm

and g

gap,max

= 0.03mS/cm

. C) FPGA (left) and C++ (right) result for the MFP of the

network with J

inj

= 0.65µA/cm

and g

gap,max

= 0.15mS/cm

. D) Dotted spike times of the FPGA network.

and a regular tonic activity. An increasing coupling

strength leads to an abruptly asynchronous behavior

with an irregular interspike interval distribution and

then to an out-of-phase state of period 4. The latter

means four lines in both diagrams. If the coupling

strength in further increased, two additional regions

with an asynchronous behavior can be seen until the

neurons go into in-phase synchronization. In general,

the simulated transitions are identical to (Postnova

et al., 2007), where more information on physiolog-

ical details can be found.

Figure 4 (C) shows, for the FPGA in PNI mode

(left) and the C++ program (right), the mean ﬁeld po-

tential of a 20× 20 network with J

inj

= 0.65µA/ cm

and g

gap,max

= 0.15mS/cm

. At this injection cur-

rent, the uncoupled neurons are in the bursting

regime. Here, an increasing coupling strength leads

to a two step-like transition from the unsynchro-

nized to the fully synchronized state with a MFP

plateau at an almost synchronized state between 0.1

and 0.125mS/cm

. This transition was already pub-

lished for a 10× 10 network in (Postnova et al., 2009)

and makes clear that the processor works accurately.

At the end, the dotted spike times of the FPGA net-

work taken in FNST mode with synchronized bursts

at t = 250s are illustrated in Figure 4 (D).

Finally, we have compared the real simulation

time of our processor for the 20x20 network with

an Intel Core i7 (6500U) with 3.0GHz clock rate, 2

CPU-cores, and full utilization. The CPU-based sim-

ulation takes about 2.9 times longer.

5 CONCLUSIONS

We have presented a new processor architecture for

the Huber-Braun neuron model, a simpliﬁed HH-type

model. It is optimized for network sizes of 40x40

in real-time and 20x20 in quadruple speed. Synaptic

connections are realized by bidirectional gap-junction

coupling. The synthesized design runs on the Xilinx

ML605 development board at 200MHz clock fre-

quency and takes 16 % of all LUT resources. A

comparison with C++ simulations under physiologi-

cal conditions shows that the processor works accu-

rately. Furthermore, it is about 2.9 times faster than

an Intel core i7 with 2 CPU-cores. Our hierarchical

structure with a main-controller as higher level con-

trol and a neuron core with all arithmetic components

including a core-controller allows the implementation

of physiologically more relevant chemical synapses

in a special module and can easily be extended to a

multi-core architecture. This will drastically increase

the computing power and is one of the next targets of

this research.

REFERENCES

Bonabi, S., Asgharian, H., Safari, S., and Ahmadabadi, M.

(2014). FPGA implementation of a biological neural

network based on the Hodgkin-Huxley neuron model.

Frontiers in Neuroscience, 8.

Du Nguyen, H. (2013). GPU-based simulation of brain neu-

ron models. Master’s thesis, Delft Technical Univer-

sity.

FitzHugh, R. (1961). Impulses and physiological states in

theoretical models of nerve membrane. Biophysical

Journal, 1:445–466.

Fox, R., Gatland, I., Roy, R., and Vemuri, G. (1988). Fast,

accurate algorithm for numerical simulation of expo-

nentially correlated colored noise. Physical Review A,

38(11):5938–5940.

Gerstner, W., Kistler, W., Naud, R., and Paninski, L. (2014).

Neuronal dynamics - from single neurons to networks

and models of cognition. Cambridge University Press.

Graas, E., Brown, E., and Lee, R. (2004). An FPGA-based

approach to high-speed simulation of conductance-

based neuron models. Neuroinformatics, 2:417–435.

Hahn, H., Timmermann, D., Hosticka, B., and Rix, B.

(1994). A uniﬁed and division-free CORDIC argu-

ment reduction method with unlimited convergence

domain including inverse hyperbolic functions. IEEE

Transactions on Computers, 43:1339–1344.

Hermida, R., Patrone, M., Piju´an, M., Monz´on, P., Oreg-

gioni, J., and Braun, H. (2012). An analog circuit

implementation of a Huber-Braun cold receptor neu-

ron model. Conference of the IEEE Engineering in

Medicine and Biology Society, pages 3376–3379.

Hodgkin, A. and Huxley, A. (1952). A quantitative descrip-

tion of membrane current and its application to con-

ductance and excitation in nerve. Journal of Physiol-

ogy, 117:500–544.

Izhikevich, E. (2004). Which model to use for cortical spik-

ing neurons. IEEE Transactions of Neural Networks,

15(5):1063–1070.

Izhikevich, E., Desai, N., Walcott, E., and Hoppensteadt, F.

(2003). Bursts as a unit of neural information: selec-

tive communication via resonance. Trends in Neuro-

sciences, 26(3):161–167.

Muthuramalingam, A., Himavathi, S., and Srinivasan, E.

(2008). Neural network implementation using FPGA:

issues and application. International Journal of Elec-

trical, Computer, Energetic, Elecronic and Communi-

cation Engineering, 2(12):2802–2808.

Pikovsky, A., Rosenblum, M., and Kurths, J. (2001). Syn-

chronization - a universal concept in nonlinear sci-

ences. Cambridge University Press.

Postnova, S., Finke, C., Huber, M., Voigt, K., and Braun,

H. (2012). Conductance-based models for the eval-

uation of brain functions, disorders, and drug ef-

fects. InMosekilde, E., Sosnovtseva, O., and Rostami-

Hodjegan, A., editors, Biosimulation in biomedical re-

search, health care and drug development, chapter 5,

pages 97–132. Springer-Verlag.

Postnova, S., Finke, C., Jin, W., Schneider, H., and Braun,

H. (2009). A computational study of the interde-

pendencies between neuronal impulse pattern, noise

effects and synchronization. Journal of Physiology,

104:176–189.

Postnova, S., Voigt, K., and Braun, H. (2007). Neural syn-

chronization at tonic-to-bursting transitions. Journal

of Biological Physics, 33:129–143.

Walther, J. (1971). A uniﬁed algorithm for elementary func-

tions. Proc. Spring Joint Computer Conference, pages

379–385.

Xia, S. and Qi-Shao, L. (2005). Firing patterns and com-

plete synchronization of coupled Hindmarsh-Rose

neurons. Chinese Physics, 14(1):77–85.

Zhang, Y., Nunez-Yanez, J., McGeehan, J., Regan, E.,

and Kelly, S. (2009). A biophysically accurate

ﬂoating point somatic neuroprocessor. Proceed-

ings of the 2009 International Conference on Field-

Programmable Logic and Applications (FPL), pages

26–31.
