Itemset Hiding under Multiple Sensitive Support Thresholds

Ahmet Cumhur Öztürk and Belgin Ergenç Bostanoğlu

Department of Computer Engineering, Izmir Institute of Technology, 35447, Izmir, Turkey

Keywords: Privacy Preserving Association Rule Mining, Itemset Hiding, Multiple Sensitive Support Thresholds.

Abstract: Itemset mining is the challenging step of association rule mining that aims to extract patterns among items

from transactional databases. In the case of applying itemset mining on the shared data of organizations, each

party needs to hide its sensitive knowledge before extracting global knowledge for mutual benefit. Ensuring

the privacy of the sensitive itemsets is not the only challenge in the itemset hiding process, also the distortion

given to the non-sensitive knowledge and data should be kept at minimum. Most of the previous works related

to itemset hiding allow database owner to assign unique sensitive threshold for each sensitive itemset however

itemsets may have different count and utility. In this paper we propose a new heuristic based hiding algorithm

which 1) allows database owner to assign multiple sensitive threshold values for sensitive itemsets, 2) hides

all user defined sensitive itemsets, 3) uses heuristics that minimizes loss of information and distortion on the

shared database. In order to speed up hiding steps we represent the database as Pseudo Graph and perform

scan operations on this data structure rather than the actual database. Performance evaluation of our algorithm

Pseudo Graph Based Sanitization (PGBS) is conducted on 4 real databases. Distortion given to the non-

sensitive itemsets (information loss), distortion given to the shared data (distance) and execution time in

comparison to three similar algorithms is measured. Experimental results show that PGBS is competitive in

terms of execution time and distortion and achieves reasonable performance in terms of information loss

amongst the other algorithms.

1 INTRODUCTION

Association rule mining uncovers frequent sequence

of items (itemsets) to produce relationships

(association rules) among items in a given

transactional database (Agrawal et al., 1994; Bodon,

2003; Brijs et al., 1999; Han et al., 2000; Pei et al.,

2000; Zheng et al., 2001). The rapid growth in the use

of association rule mining and its challenging step of

itemset mining exposed privacy problems while

sharing data. Although in modern business, shared

data brings mutual benefits in terms of decision

making, itemset mining on the shared data may lead

to malicious usage of private information if the

database is shared without any precautions. Some

itemsets may contain private information or

knowledge; in other words the database owner might

be unwilling to show them. These itemsets are called

sensitive itemsets. Itemset hiding problem focuses on

preventing the disclosure of sensitive itemsets.

The process of converting a database to a new one

which does not comprise any sensitive itemset is

called the sanitization process (Atallah et al., 1999).

During this process, preserving the privacy while

preventing the loss of non-sensitive knowledge and

reducing the distortion on the database must be

considered at the same time. Due to combinatorial

nature of such a problem, there are various proposed

sanitization methodologies; heuristic based

approaches (Amiri, 2007; Keer and Singh, 2012;

Oliveira and Zaiane, 2003; Verykios et al., 2004; Wu

et al., 2007; Yildiz and Ergenc, 2012), border-based

approaches (Moustakides and Verykios, 2008;

Stavropoulos et al., 2016; Sun and Yu, 2004; Sun and

Yu, 2007), reconstruction based approaches (Boora et

al., 2009; Guo, 2007; Lin and Liu, 2007; Mohaisen

et al., 2010) and exact hiding approaches (Ayav and

Ergenc, 2015, Gkoulalas and Verykios, 2006;

Gkoulalas and Verykios, 2008; Gkoulalas and

Verykios, 2009; Menon et al., 2005). All these

algorithms hide sensitive itemsets by decreasing their

supports (number of occurrences of the itemset in the

database) below a sensitive support threshold

(defined by the user).

Most of the proposed algorithms allow user to

define single sensitive support threshold. However

single minimum itemset support threshold is not

UztÃijrk A. and ErgenÃ

g BostanoÄ§lu B.

Itemset Hiding under Multiple Sensitive Support Thresholds.

DOI: 10.5220/0006501502220231

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KMIS 2017), pages 222-231

ISBN: 978-989-758-273-8

adequate since it does not reflect the nature of

different itemsets. During the sanitization process if

supports of all itemsets are decreased below a given

unique sensitive threshold then some itemsets may

redundantly be protected while some may not be

protected. Itemset hiding approach should enable the

user to assign different sensitive thresholds for each

sensitive itemset (Verykios and Divanis, 2004).

In this study we focus on hiding sensitive itemsets

on a given transactional database by decreasing their

supports below user specified multiple sensitive

thresholds. Finding sensitive transactions

(transactions that contain sensitive itemsets),

counting supports of sensitive itemsets are essential

operations in sanitization process. In order to speed

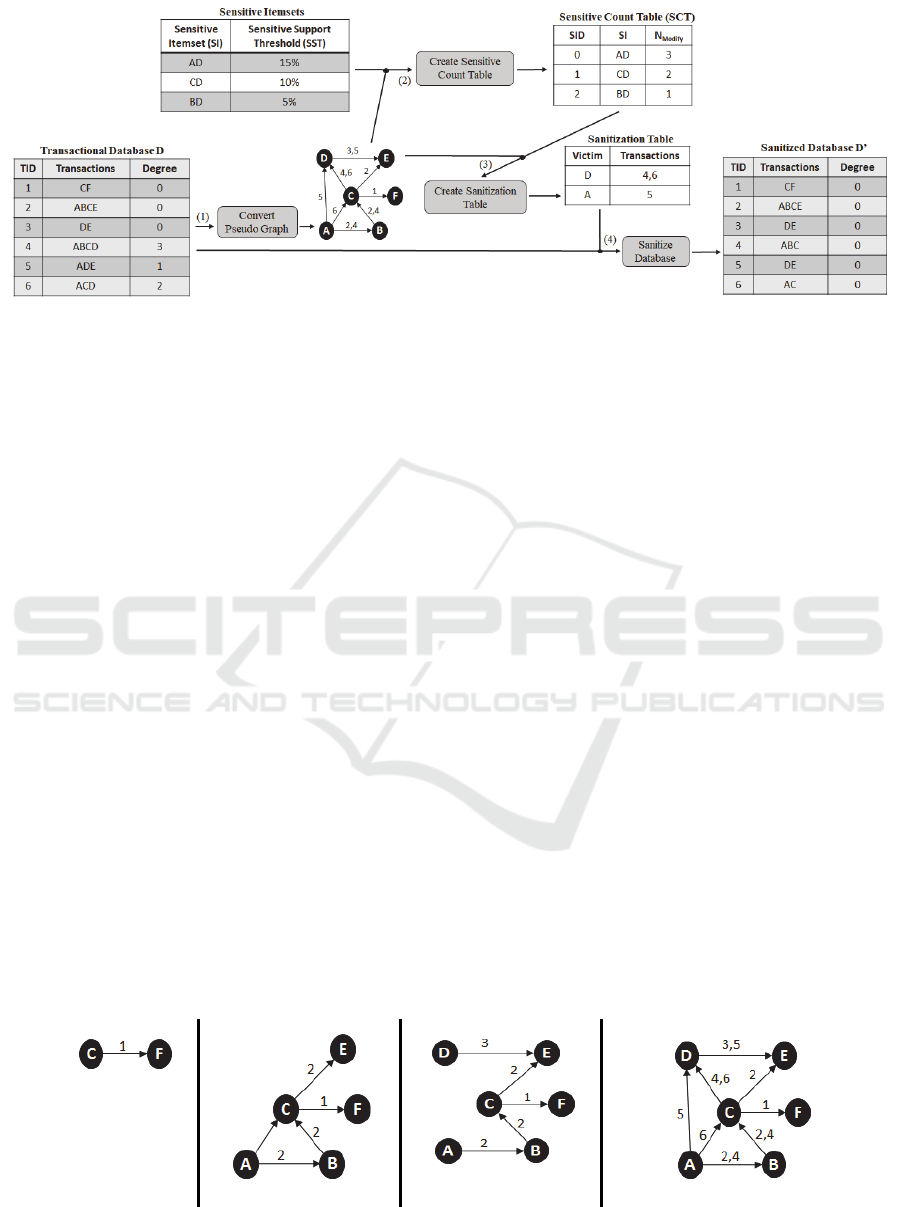

up these operations we first represent the database as

Pseudo Graph since performing scan operations on

Pseudo Graph rather than the actual database or other

data structures like matrix or inverted index provides

significant improvement in terms of execution time.

Our sanitization algorithm; Pseudo Graph Based

Sanitization (PGBS) uses heuristics that minimize the

loss of non-sensitive knowledge and distortion done

on the database. PGBS does not create any artificial

itemsets (itemsets that does not exist in the original

database) during the sanitization process.

We carry on experiments to measure the

execution time and side effect performance of our

algorithm. In our experiments, we compare PGBS

with two recent heuristic based algorithms; Sliding

Window Algorithm (SWA) (Oliveira and Zaiane,

2003)and Template Table Based Sanitization (TTBS)

(Kuo et al., 2008). Execution time and side effect

(distortion and loss of non-sensitive knowledge)

performance of all algorithms are measured on 4 real

life databases with different characteristics in two

scenarios; 1) single support threshold, and 2) multiple

support thresholds. In both scenarios we measure the

performance of the algorithms by varying the number

of sensitive itemsets. Experimental results show that

PGBS is competitive in terms of execution time and

distortion while achieving reasonable performance in

terms of loss of non-sensitive knowledge amongst the

other algorithms especially on dense databases and

with multiple support thresholds. Superiority of

PGBS can better be observed on dense databases.

This paper is organized as follows; in section 2

basic definitions and metrics of frequent itemset

hiding is introduced and a motivating example which

is referred throughout the paper is given. In section 3

the proposed Pseudo Graph Based Saniti-zation

(PGBS) algorithm is given. Section 4 gives

performance evaluation of PGBS in comparison to

other 3 algorithms on 4 real databases. Section 5

presents detailed survey of the related work. Section

6 is dedicated for conclusion remarks.

2 PRELIMINARIES

In this section we define the preliminaries which

should be known in order to understand the problem

of itemset hiding. Preliminaries include the basic

definitions and metrics used in the itemset hiding

process. At the end of the section we give our moti-

vating example used throughout the paper.

2.1 Basic Definitions

Support and Frequent Itemset: Let I = {i

,…i

} be

a set of items, a k-itemset X is a non-empty subset of

I with length k. A transaction is an ordered pair of

items denoted as <TID, X> where TID is the unique

identifier and X is the itemset. A transactional

database is a set of transactions and total number of

transactions in D is denoted as |D|. Support count of

an itemset X is denoted as scount(X) and it is the

number of transactions containing X, the support of

an itemset X is denoted as supp(X) and it is calculated

as scount(X) divided by |D|. An itemset X is frequent

if supp(X) ≥ σ, where σ is the user specified minimum

support threshold.

Sensitive Itemset and Sanitization: If FI is the set of

frequent itemsets in database D and SI (SI ⊂ FI) is

sensitive itemsets (the set of itemset to be hidden), the

sanitization operation transforms the given

transactional database D into D’ where none of the

itemsets in SI can extracted and the data and

knowledge loss from D is kept as minimum as

possible. One of the ways to hide sensitive itemsets

SI from database D is to decrease their supports till

the sensitive itemsets become infrequent. This

process of modifying the transactions to the point

where no sensitive itemset can be discovered is called

the sanitization process (Atallah et al., 1999).

Decreasing the support of sensitive itemsets can be

achieved by deleting items called victim items

(selected for deletion) from a sufficient amount of

transactions called victim transactions (selected for

modification). The support threshold used for hiding

a given sensitive itemset X is the sensitive support

threshold and it is denoted as sst(X).

Cover Degree: An item can be common in more than

one sensitive itemsets. If more than one sensitive

itemsets have a common item then deleting this item

may sanitize more than one sensitive itemset at once

(Pontikakis et al., 2004). Hiding sensitive itemsets at

once reduces the distortion on the modified database.

As an example; assume that XY and YZ are two

sensitive itemsets, removing the common item Y

from a transaction containing XYZ decreases the

support value of both XY and YZ by 1 at the same

time. The cover degree of an item is the number of

sensitive itemsets containing the item, e.g., cover

degree of item Y in this example is 2 since it is

contained by two of the given sensitive itemsets.

2.2 Sanitization Metrics

The main objective of the distortion based

sanitization is hiding all sensitive itemsets while

keeping the side effects at minimum level. Objective

is achieving zero hiding failure.

Hiding Failure (HF) is the metric that defines the

ratio of sensitive itemsets which can still be

discovered with mining techniques after the database

is sanitized. HF = |SI’| / |SI| where |SI| is the number

of sensitive itemsets in the original database D and

|SI’| is the number of sensitive itemsets in the

sanitized database D’.

Side effect in this context is the unintentional loss

of knowledge and data from the original database.

Basic side effects are distance and information loss.

Distance (Dist) is the metric that defines the number

of modifications made on the original database during

the sanitization process. Dist = (total number of items

in D) – (total number of items in D’) where D is the

original database and D’ is the sanitized database.

Information Loss (IL) is the metric showing the

number of non-sensitive frequent itemsets

unintentionally removed during the sanitization

process. IL = ((|FI| - |SI|) - (|FI'| - |SI’|)) / (|FI| - |SI|)

where |FI| is the number of frequent itemsets and |SI|

is the number of sensitive itemsets in the original

atabase D, |FI’| is the number of frequent itemsets in

D’ and |SI’| is the number of sensitive itemsets in the

sanitized database D’.

2.3 Motivating Example

In this paper we refer the transactional database given

in Table 1 as a motivating example. Suppose sensitive

itemsets are defined by the database owner as AD,

CD and BD with 15%,10% and 5% sensitive support

thresholds (sst) respectively. Degree column in Table

1 gives the number of sensitive itemsets contained by

a transaction, e.g., degree of transaction 6 is 2 since it

contains two sensitive itemsets AD and CD.

Table 1: Transactional database.

TID Transactions Degree

1 CF 0

2 ABCE 0

3 DE 0

4 ABCD 3

5 ADE 1

6 ACD 2

3 PGBS ALGORITHM

We propose Pseudo Graph Based Sanitization

(PGBS) algorithm that aims to i) convert given

database D into D’ where no sensitive itemsets

defined by the user initially can be extracted, in other

words Hiding Failure is zero, ii) keep maximum

number of non-sensitive itemsets present in D to

minimize information loss, iii) cause minimum

distortion on D to minimize distance. Conversion or

sanitization is done by reducing the support of

sensitive itemsets below user defined sensitive

thresholds by deleting items from sufficient amount

transactions till all sensitive itemsets in D become

infrequent. Two sub problems arise with this strategy;

first is determining the victim transactions to be

modified and the second is selecting the victim item

to be removed.

Block diagram given in Fig. 1 illustrates

sanitization process of PGBS algorithm with our

motivating example. Transactional Database D and

Sensitive Itemsets Table are main inputs of the PGBS.

Sensitive itemsets (SI) and their sensitive support

thresholds (SST) shown in Sensitive Itemsets Table

are assumed to be defined by the preferences or

privacy policies of the user.

There are 4 sub processes in PGBS; 1) Convert

Pseudo Graph converts the Transactional Database

into a Pseudo Graph (PG), 2) Create Sensitive Count

Table creates the Sensitive Count Table (SCT) that

holds the number of necessary

modifications/distortions for each sensitive itemset

given by the user, 3) Create Sanitization Table is the

main sanitization process that works on PG and

creates Sanitization Table that keeps the necessary

modifications to be applied on the original database,

4) Sanitize Database deletes each victim item in D

from its corresponding transaction in the Sanitization

Table and prepares sanitized database D’.

Figure 1: Block diagram of PGBS algorithm.

In the following sections we explain these

processes in detail.

3.1 Convert Pseudo Graph

We use Pseudo Graph (PG) data structure to represent

all transactions of the given database D. PG provides

an efficient way to identify and modify transactions

without accessing the actual database. A PG is a

directed graph which allows multiple edges and

loops. In this graph each item is represented as vertex

and vertices are connected to each other by edges

where edges are labelled with transaction ids, e.g. if

item X appears with item Y in transaction k then

vertex X is connected with vertex Y with a directed

edge from X to Y with label k. Reflexive edges are

required since the database might contain single

length transactions resulting in loops.

Insertion of transactions to the PG is a simple

process; first transactions in database D are sorted in

lattice order and then each transaction is inserted one

by one. For illustration Fig.2 (a), (b) and (c) shows

the PG after transactions {CF}, {ABCD}, and {DE}

in Table 1 are inserted into PG respectively and

Fig.2(d) shows the PG after the remaining

transactions in Table 1 are inserted into PG.

Counting the support count of a given item X is

performed by counting the total number of distinct

transaction ids on incoming and outgoing edges of

vertex X. Let XY be a 2-itemset and prefix(X) be the

transactions on outgoing edges of vertex X and

postfix(Y) be the transactions on incoming edges of

vertex Y. Support of XY is simply computed as

prefix(X) ∩ postfix(Y). Support of an k-itemset Z

where k>2 is calculated by prefix(item

) ∩

postfix(item

) ∩… ∩ postfix(item

) where item

the item at ith position in Z. As an example in Fig.2

d) transactions containing itemset {ACE} is equal to

({2,4,5,6} ∩ {2,4,6}) ∩ {2,3,5} = {2} so the support

of itemset {ACE} is 1.

The inverted index structure is similar to the PG.

The inverted index is used to store list of transaction

The inverted index is used to store list of

transaction ids containing each item As in PG

transactions of an itemset can be uncovered by

performing intersection operation between inverted

indexes of all items in the given itemset. The iteration

number for uncovering transactions ids of an itemset

using the inverted index is always greater than or

equal to the iteration number for uncovering

transactions ids of an itemset with using PG. PG data

structure considers whether an item is prefix or

postfix in a given itemset and tries to put least number

of transaction ids to the intersection operation.

(a) (b) (c) (d)

Figure 2: PG by adding transaction (a) CF (b) ABCE (c) DE (d) all.

3.2 Create Sensitive Count Table

Create Sensitive Count Table process takes sensitive

itemsets with their sensitive thresholds and pseudo

graph representation of the database as input and then

creates the Sensitive Count Table (SCT) as shown in

Figure 1. SCT has three fields; SID is the unique

identifier, SI is the sensitive itemset and N

Modify

is the

minimum number of transactions that are needed to

be modified for hiding the given sensitive itemset.

Modify

value of a sensitive itemset X is calculated by

the following equation:

Modify

(X) = scount(X) - sst(X) * |D| + 1

(1)

where scount(X) is the number of transactions

containing the itemset X, sst(X) is the sensitive

support threshold that is given by the user for the

itemset X, |D| is the total number of transactions in D.

Records in the Sanitization Table are sorted according

to N

Modify

values of the sensitive itemsets in

descending order.

3.3 Create Sanitization Table

Create Sanitization Table procedure conceals

sensitive itemsets from PG and creates the

Sanitization Table by using the SCT, the steps of this

procedure is given below.

For all the rows of SCT do;

1. Select the victim item: Select the victim item

among items in sensitive itemsets stored in the

first record of SCT having the maximum cover

degree. If there is more than one victim item with

the same cover degree, select the item which has

the maximum support count. If there is still more

than one victim item with the same support count,

select the victim item randomly.

2. Unify sensitive itemsets: Unify all sensitive

itemsets in SCT that contain the victim item

selected in Step 1.

3. Select the sensitive transactions: Find enough

sensitive transactions containing unified sensitive

itemsets in PG (less than or equal N

Modify

value in

the active row of SCT).

4. Delete item: Add victim item and sensitive

transactions id pairs to the Sanitization Table.

Update the PG by deleting victim item from

sensitive transactions. For each sensitive itemset

that is in the unified sensitive itemsets, reduce the

Modify

values of their corresponding rows of

Sanitization Table by the number of sensitive

transactions uncovered. If N

Modify

value of any

record in SCT becomes zero, then remove it from

the SCT and update the cover degree of

each item in remaining sensitive itemsets stored in

SCT.

5. Control: If active N

Modify

value is still greater than

zero and none of the sensitive itemsets in SCT is

deleted, then remove the sensitive itemset that has

the least N

Modify

value from the unified sensitive

itemsets and go back to Step 3, else go back to

Step 1.

3.4 Sanitize Database

This procedure updates the database D by using the

Sanitization Table. Each victim item is deleted from

corresponding transaction ids stored in Sanitization

Table and the resulting database brings out thee

sanitized database.

3.5 Illustrating Example

Suppose we have our motivating example given in

Section 2.3. Our proposed processes work as follows

to hide all sensitive itemsets.

1. Convert Pseudo Graph: The Convert Pseudo

Graph procedure converts the database into PG

form as shown in Fig.2 (d).

2. Create Sensitive Count Table: N

Modify

value of

each sensitive itemset is calculated by using the

equation (1), and then added to the SCT. After

SCT is created it is sorted in descending order of

Modify

value. The resulting SCT for this example

is shown in Figure 1.

3. Create Sanitization Table: The process Create

Sanitization Table first selects the victim item. In

this example there are three sensitive itemsets in

SCT: AD, CD and BD. The sensitive itemset AD

has the highest N

Modify

value, so the victim item is

selected among items in AD. The item “D” (cover

degree = 3) is selected as victim item (Step 1).

Sensitive itemsets in SCT containing “D” are

unified. The unified sensitive itemset is ABCD

and according to Fig.2 (d) only the transaction {4}

contains ABCD (Step 2 - 3).

Item “D” is removed from 4

transaction in

PG, then the pair {D, 4} is added to the

Sanitization Table and N

Modify

value of each

sensitive itemset in SCT is decreased by 1. N

Modify

value of the sensitive itemset BD becomes zero so

this row is removed from the SCT. Since the

Modify

value of AD is still greater than zero and

one of the records is removed from the SCT, the

sensitive itemset BD is discarded from the

unification operation and the new unified

sensitive itemset becomes ACD (Step 4).

The N

Modify

value of AD is 2 so the algorithm tries

to find out 2 sensitive transactions containing

ACD from the PG. For the itemset ACD,

supporting transactions is only {6}, so the victim

item “D” is deleted from this transaction and the

pair {D,6} is added to the Sanitization Table.

After the delete operation the N

Modify

value of CD

becomes zero and AD becomes 1, so CD is

removed from the SCT. The only remaining

sensitive itemset left in SCT is AD, because both

item “A” and “D” has cover degree 1, the item

having the highest support count is selected as

victim item which is “A” (support count of “A” is

4 in PG). Then item “A” is removed from 5

transaction in PG and the pair {A, 5} is added to

the Sanitization Table as shown in Figure 1.

4. Sanitize Database: For this example, the Sanitize

Database procedure deletes each item with

corresponding transactions stored in Sanitization

Table from the original database D given in Table

1. The resulting sanitized database D’ is shown in

Figure 1. As we see item “D” is deleted from

transactions 4 and 6, item “A” is deleted from

transaction 5.

4 PERFORMANCE EVALUATION

We compared our Pseudo Graph Based Sanitization

(PGBS) algorithm with Sliding Window Algorithm

(SWA) (Oliveira and Zaiane, 2003) and Template

Table Based Sanitization (TTBS) (Kuo et al., 2008)

using 4 real databases and these four databases are

sorted in lattice order before processing but we

neglect the sorting time in performance measures.

The main objective of all algorithms is to achieve zero

hiding failure in other words; they hide all sensitive

itemsets by reducing their support below their

sensitive support thresholds. We chose SWA and

TTBS algorithms for performance evaluation because

both focus on overlapping items in sensitive itemsets

and they enable assigning different sensitive

thresholds for each sensitive itemset. We measure

execution time, information loss and distance

performance of all algorithms. All the experiments

are conducted on a computer with Intel core i7-5500

2.4 GHZ processor and 8GB of RAM running on a

Windows 10 operating system. The execution times

include I/O and CPU time.

Table 2: Characteristics of experimental databases.

Database

Name

# of

Transactions

Distinct

Items

Avg.

Trans.

Length

Density

(%)

Chess 3,196 75 37 49.4

Connect 67,557 129 43 33.4

Mushroom 8,124 119 23 19.4

Pumsb 49,047 2,113 75 3.6

4.1 Databases

We conduct our experiments using 4 real databases;

Mushroom, Chess, Connect and Pumsb. The

characteristics of these databases in terms of number

of transactions, number of distinct items, average

transaction length and density (density of a database

is the average transaction length divided by number

of distinct items) are given in Table 2. We indicate

the notion of sparse and dense for each database

because as pointed out in (Bayardo et al., 1999;

Gkoulalas and Divanis, 2010; Han et al., 2000; Pei et

al., 2000) frequent itemsets generated from dense

databases may result in generating long frequent

itemsets at various levels of support. Chess, Connect

and Mushroom databases are obtained from UCI

Repository (Blake and Merz, 1998). Pumbs database

contains census data from PUMS and can be obtained

from http://www.almaden.ibm.com/soft- ware/quest.

Table 3: Support ranges for databases.

Chess Mushroom Connect Pumsb

Bin Support

Range

Support

Range

Support

Range

Support

Range

1 (0.6001,

0.6136]

(0.1100,

0.1218]

(0.85,

0.8575]

(0.85,

0.8575]

2 (0.6136,

0.6308]

(0.1218,

0.1388]

(0.8575,

0.8672]

(0.8575,

0.8672]

3 (0.6308,

0.6555]

(0.1388,

0.1540]

(0.8672,

0.8792]

(0.8672,

0.8792]

4 (0.6555,

0.6974]

(0.1540,

0.2053]

(0.8792,

0.8985]

(0.8792,

0.8985]

5 (0.6974,

0.9962]

(0.2053,

(0.8985,

0.9987]

(0.8985,

0.9987]

4.2 Results with Multiple Sensitive

Support Thresholds

In this section we compare our PGBS algorithm with

SWA and TTBS algorithms using 4 real databases by

assigning multiple sensitive thresholds. PGBS, TTBS

and SWA algorithms allow user to define different

sensitive thresholds for each sensitive itemset

however RS algorithm does not. Because of this, we

do not use the RS algorithm for performance

evaluation. We partition the Chess, Connect,

Mushroom and Pumsb databases into 5 bins, and then

we randomly select 2 itemsets from each bin and

assign the minimum support threshold as the

minimum support given in the support range. Support

ranges of the bins for each database are shown in

Table 3.

The results of SWA, TTBS and PGBS are given

in Table 4 where time is CPU execution time in

seconds, information loss is in percentage and

distance is in percentage. We underline each best

performance result among 4 algorithms for execution

time, information loss and distance for better

readability.

Last row of the table shows the number of best

results achieved by the algorithm corresponding to

execution time, information loss and distance. If we

analyse the algorithms with their best result

summaries; we see that SWA [0, 11, 5], TTBS [3, 0,

4] and PGBS [9, 1, 6]. In other words, PGBS achieves

best execution time in 9 out of 12 cases, best

information loss in 1 out of 12 and best distance 6 out

of 12 cases. SWA achieves best information loss in

most of the cases with a very high cost of execution

time. PGBS is better than others in terms of execution

time and distance especially on dense databases like

Chess and Mushroom.

5 RELATED WORK

Privacy preserving association rule hiding problem

was first introduced in (Atallah et al., 1999).

The authors proposed heuristic algorithms and

gave the proof of NP-Hardness of optimal

sanitization. Since then, many approaches have been

proposed to preserve privacy for sensitive patterns or

sensitive association rules in database. Most common

categorizations of rule or itemset hiding approaches

can be done according to the nature of the base

algorithm and following classes appear; border based

approaches (Moustakides and Verykios, 2008; Sun

and Yu, 2004; Sun and Yu, 2007), exact approaches

(Ayav and Ergenç, 2015; Gkoulalas and

Verykios,

2006

; Gkoulalas and Verykios, 2008; Gkoulalas and

Verykios, 2009; Menon et al., 2005), reconstruction

based approaches (Bodon, 2003; Guo, 2007; Lin and

Liu, 2007; 26. Mohaisen et al., 2010) and heuristic

Table 4: Comparison with multiple support thresholds.

SWA TTBS PGBS

Database

|SI|

Time (sec)

Information

Loss (%)

Distance (%)

Time (sec)

Information

Loss(%)

Distance(%)

Time (sec)

Information

Loss (%)

Distance (%)

Chess

10 4.72 49.89 0.79 0.39 68.30 0.41 0.22 49.91 0.80

20 8.80 62.24 0.94 0.56 78.67 0.92 0.25 63.29 0.95

30 13.08 62.84 0.96 0.82 75.41 0.81 0.35 63.29 0.97

Mushroom

10 26.79

45.29 3.34 0.88 72.67 6.92 0.37 49.87 3.34

47.50 45.32 3.34 1.72 86.97 10.84 0.50 49.99 3.35

66.17 49.52 3.42 2.28 88.28 11.59 0.55 54.32 3.42

Connect

10 804.21 54.31 0.25 5.18 86.44 0.68 7.18 55.28 0.25

20 1935.28 63.40 0.33 10.44 84.93 0.68 17.55 65.03 0.3

30 2771.64 60.81 0.30 9.83 84.93 0.68 18.23 60.25 0.29

Pumsb

1362.31 49.32 0.23 7.72 94.96 0.72 6.45 77.63 0.42

2359.06 54.98 0.24 8.75 91.48 0.21 7.44 55.91 0.24

2899.27 57.76 0.26 14.44 91.24 0.73 9.86 58.51 0.25

# of Best

Results

- 11 5 3 - 4 9 1 6

approaches (Amiri, 2007; Keer and Singh, 2012;

Oliveira and Zaiane, 2002; Yildiz and Ergenc,

2012; Oliveira and Zaiane, 2003; Verykios et al.,

2004; Wu et al.,2007).

Heuristic approaches rely on some heuristics

for database sanitization, they may produce side

effects such as loss of non-sensitive rules/itemsets

in the sanitized database and generation of

rules/itemsets that are not truly exists in the

original database and the distortion done on the

data. Despite their side effects majority of the

research is based on heuristic approaches

(Verykios and Divanis, 2004) because they are

efficient and have good response time. In Table 5,

we summarize and compare existing heuristic

based sanitization algorithms based on their

important characteristics.

First column of the table gives the name of the

algorithm; second column indicates the focus of

sanitization; some algorithms try to hide sensitive

“itemsets” whereas some of them hide sensitive

“rules”. Second column shows whether the

algorithm is designed for association rule

(“Rules”) or itemset (“Itemset”) hiding. The third

column shows whether the algorithm enables

assigning different sensitive thresholds to each

sensitive itemset or rule. Fourth column is

dedicated to show the capability of the algorithm

to hide single or multiple itemsets in a single run.

Column 5 of Table 5 gives information about

the approach of the algorithm in selecting the

victim transaction for sanitization; “Length”

indicates that the algorithm selects the transaction

according to its length amongst the candidate

sensitive transactions; “Degree” indicates that the

selection is done according to the existence of the

number of sensitive itemsets in the transaction,

“Greedy” indicates that the selection is done

according to trial and error.

Column 6 shows the victim item selection

criteria of the algorithm; “Cover” is the number

of presences of the item in different sensitive

Table 5: Summary of existing heuristic based algorithms.

Algorithm

Hiding

Multiple

Support

Thresholds

Multiple

Rule Hiding

Victim

Transaction

Selection

Victim Item

Selection

Year

1 2 3 4 5 6 7

IGA (Oliveira and Zaiane, 2002) Itemsets ✔ Degree Cover

2002

Naïve (Oliveira and Zaiane, 2002) Rules Degree All

MaxFIA (Oliveira and Zaiane, 2002) Itemsets Degree Support

MinFIA (Oliveira and Zaiane, 2002) Itemsets Degree Support

SWA (Oliveira and Zaiane, 2003) Itemsets ✔ ✔ Length Support 2003

DSA (Oliveira et al., 2004) Itemsets --- ---

2004

Algorithm 2.b (Verykios et al.,2004) Itemsets Length Support

Algorithm 2.c (Verykios et al., 2004) Itemsets Length All

PDA (Pontikakis et al., 2004) Rules Weight Greedy

WDA (Pontikakis et al., 2004) Rules Weight All

Aggregate (Amiri, 2007) Itemsets ✔ Greedy All

2007

Disaggregate (Amiri, 2007) Itemsets ✔ Greedy Greedy

Hybrid (Amiri, 2007) Itemsets ✔ Greedy Greedy

MICF (Li et al., 2007) Itemsets ✔ Degree Cover

TTBS (Kuo et al., 2008) Itemsets ✔ ✔ Degree Cover

2008

FHSAR (Weng et al., 2008) Rules ✔ Weight Cover

SIF-IDF (Hong et al., 2013) Itemsets Weight Support 2013

RelevanceSorting (Cheng et al., 2016) Rules Weight Support

2016

HSARWI (Sakenian and Naderi, 2016) Rules ✔ Weight Weight

itemsets, “Support” shows the selection of the item is

done depending on its support,” Greedy” shows the

selection of the item is done in trial and error,” All”

shows the whole sensitive itemset in sensitive

transaction is deleted rather than deleting a victim.

Last column shows the year of the related research.

When we analyse the existing heuristic

sanitization algorithms we see that i) they use

different heuristics targeting to reduce the execution

time, distance, information loss while maintaining

minimum hiding failure, ii) there are few heuristic

based approaches that focus on sanitization under

multiple support thresholds.

6 CONCLUSIONS

In the case of applying itemset mining on the shared

data of organizations, each party needs to hide its

sensitive knowledge before extracting global

knowledge for mutual benefit. In this study we focus

on privacy preserving itemset hiding under multiple

support thresholds. Our algorithm (PGBS) utilizes

pseudo graph data structure that is used to store the

given transactional database to prevent multiple scans

of the given database and allow effective sanitization

process. We validate execution time and side effect

performances of our algorithm, Pseudo Graph Based

Sanitization (PGBS) in contrast to two recent

algorithms on 4 real databases varying number of

sensitive itemsets and sensitive thresholds.

Experimental results show that PGBS is competitive

in terms of execution time and distance especially on

dense datasets amongst the other algorithms. For

future work, we want to propose dynamic version of

our algorithm that is able to sanitize the updated

databases.

ACKNOWLEDGEMENTS

This work is partially supported by the Scientific and

Technological Research Council of Turkey

(TUBITAK) under ARDEB 3501 Project No:

114E779

REFERENCES

Agrawal, R., Srikant, R., 1994. Fast algorithms for mining

association rules in large databases. In: 20th

International Conference on Very Large Databases, pp.

487-499.

Amiri, A., 2007. Dare to share: Protecting sensitive

knowledge with data sanitization. Decision Support

Systems 43(1), pp. 181-191.

Atallah, M., Bertino, E., Elmagarmid, A., Ibrahim, M.,

Verykios, VS., 1999. Disclosure limitation of sensitive

rules. In: Workshop on Knowledge and Data

Engineering Exchange, pp. 45-52.

Ayav, T., Ergenç, B., 2015. Full Exact approach for itemset

hiding. International Journal of Data Warehousing and

Mining. 11(4).

Bayardo, R J., Agrawal, R., Gunopulos, D., 1999.

Constraint based rule mining on large, dense data sets.

Data Mining and Knowledge Discovery, vol. 4, pp. 217-

240.

Blake, CL., Merz, CJ., 1998. UCI Repository of Machine

Learning Databases. University of California, Irvine,

Dept. of Information and Computer Sciences.

Bodon, F., 2003. A fast APRIORI implementation.

Workshop Frequent Itemset Mining Implementations

(FIMI’03), vol. 90, pp. 56-65.

Boora, RK., Shukla, R., Misra, A., 2009. An improved

approach to high level privacy preserving itemset

mining. International Journal of Computer Science and

Information Security, 6(3), pp. 216-223.

Brijs, T., Swinnen, G., Vanhoof, K., Wets, G., 1999. Using

association rules for product assortment decisions: a

case study. In Knowledge Discovery and Data Mining,

pp. 254–260.

Cheng, P., Roddick, J.F., Chu, S.C..et al., 2016. Privacy

preservation through a greedy, distortion-based rule

hiding method. Applied Intelligence, pp. 44-295.

Gkoulalas-Divanis, A., Verykios, VS., 2006. An integer

programming approach for frequent itemset hiding.

ACM International Conference on Information and

Knowledge Management.

Gkoulalas-Divanis, A., Verykios, VS., 2008. A

parallelization framework for exact knowledge hiding

in transactional databases. IFIP International

Federation for Information Processing, vol. 278, pp.

349-363.

Gkoulalas-Divanis, A., Verykios, VS., 2009. Hiding

sensitive knowledge without side effects. Knowledge

and Information Systems, 20(3), pp. 263-299.

Gkoulalas-Divanis, A., Verykios VS., 2010. Association

rule hiding for data mining. Springer.

Guo, Y., 2007. Reconstruction-based association rule

hiding. SIGMOD Ph.D. Workshop on Innovative

Database Research.

Han J., Pei J., Yin, Y., 2000. Mining frequent patterns

without candidate generation. In ACM SIGMOD

International Conference on Management of Data, pp.

1-12.

Hong, T-P., Lin, C-W., Yang, K-T., Wang, S-L., 2013.

Using tf-idf to hide sensitive itemsets. Appl Intell,

38(4), pp. 502–510.

Keer, S., Singh, A., 2012. Hiding sensitive association rule

using clusters of sensitive association rule.

International Journal of Computer Science and

Network, 1(3).

Kuo, Y., Lin, PY., Dai, BR., 2008. Hiding frequent patterns

under multiple sensitive thresholds. Database and

Expert Systems Applications Lecture Notes in

Computer Science, 5181, pp. 5-18.

Lin, J., Liu, JYC., 2007. Privacy preserving itemset mining

through fake transactions. 22nd ACM Symposium on

Applied Computing, pp. 375-379.

Li, YC., Yeh, JS., Chang, CC., 2007. MICF: An effective

sanitization algorithm for hiding sensitive patterns on

data mining. Advanced Engineering Informatics, 21,

pp. 269–280.

Menon, S., Sarkar, S., Mukherjee, S., 2005. Maximizing

accuracy of shared databases when concealing sensitive

patterns. Information Systems Research 16(3), pp. 256-

270.

Mohaisen, A., Jho, N., Hong, D., Nyang, D., 2010. Privacy

preserving association rule mining revisited: Privacy

enchancement and resource effcieny. IEICE

Transactions on Information and Systems 93(2), pp.

315-325.

Moustakides, GV., Verykios, VS., 2008. A maxmin

approach for hiding frequent itemsets. Data and

Knowledge Engineering 65(1), pp. 75-89.

Oliveira, SRM., Zaiane, OR., 2002. Privacy preserving

frequent itemset mining. International Conference on

Data Mining, pp. 43-54.

Oliveira, SRM., Zaiane, OR., 2003. Algorithms for

balancing privacy and knowledge discovery in

association rule mining. Seventh International

Database Engineering & Applications Symposium, pp.

54-63.

Oliveira, SRM., Zaiane OR., Saygin, Y., 2004. Secure

association rule sharing. Advances in knowledge

discovery and data mining, 8th Pacific-Asia

Conference, pp. 74–85.

Pei, J., Han, J., Mao, R., 2000. CLOSET: An efficient

algorithm for mining frequent closed itemsets. ACM-

SIGMOD Int. Workshop Data Mining and Knowledge

Discovery, pp. 11–20.

Pontikakis, ED., Tsitsonis, AA., Verykios, VS., 2004. An

experimental study of distortion-based techniques for

association rule hiding. 18th Conference on Database

Security, pp. 325–339.

Sakenian Dehkordi, M., Naderi Dehkordi, M., 2016.

Introducing an algorithm for use to hide sensitive

association rules through perturbation technique.

Journal of AI and Data Mining.

Stavropoulos, E.C., Verykios, V.S., Kagklis, V., 2016. A

transversal hypergraph approach for the frequent

itemset hiding problem. Knowledge and Information

Systems, pp. 625-645.

Sun, X., Yu, PS., 2004. A border-based approach for hiding

sensitive frequent itemsets. 5th IEEE International

Conference on Data Mining, pp. 426-433.

Sun, X., Yu, PS., 2007. Hiding sensitive frequent itemsets

by a border-based approach. Computing Science and

Engineering 1(1), pp. 74-94.

Verykios, VS., Emagarmid, AK., Bertino, E., Saygin, Y.,

Dasseni, E., 2004. Association rule hiding. IEEE

Transactions on Knowledge and Data Engineering,

16(4), pp. 434-447.

Verykios, V.S., Divanis, A.G., 2004. A survey of

association rule hiding methods for privacy. Advances

in Knowledge Discovery and Data Mining: 8th Pacific-

Asia Conference.

Weng, C., Chen, S., Che Lo, H., 2008. A novel algorithm

for completely hiding sensitive association rules.

Eighth International Conference on Intelligent Systems

Design and Applications IEEE.

Wu, YH., Chiang, CM., Chen, A., 2007. Hiding sensitive

association rules with limited side effects. IEEE

Transactions on Knowledge and Data Engineering,

19(1), pp. 29-42.

Yildiz, B., Ergenc, B., 2012. Integrated approach for

privacy preserving itemset mining. Lecture Notes in

Electrical Engineering Volume 110, pp. 247-260.

Zheng, Z., Kohavi, R., Mason, L., 2001. Real world

performance of association rule algorithm. Proceedings

of 7th ACM-SIGKDD International Conference on

Knowledge Discovery and Data Mining, pp. 401–406.
