LABAS-TS

A System for Assisting Labeling of Training Sets for Text Classification

Alejandro Sierra-Múnera

1,2

, Alexandra Pomares-Quimbaya

, Rafael Andrés González Rivera

Julián Camilo Daza Rodríguez

, Oscar Mauricio Muñoz Velandia

1,2

and Angel Alberto Garcia Peña

1,2

Pontificia Universidad Javeriana, Cra. 7 #40-62, Bogotá, Colombia

Hospital Universitario San Ignacio, Cra. 7 #40-62, Bogotá, Colombia

Keywords: Text Classification, Training Set, Labeling.

Abstract: Most text classification techniques rely on the existence of training data sets that are required to build models.

However, in many text classification projects, the availability of previously labeled texts is not frequent due

to differences in language (e.g. Spanish), domain (e.g. healthcare) and regional or institutional written culture

(e.g. specific hospital). In order to contribute to dealing with this problem, this paper presents LABAS-TS, a

web-enabled system for assisting the open, collaborative labeling of training sets for text classification.

LABAS-TS is framed within a named entity recognition approach that identifies important entities from a

domain-specific corpus, based on gazetteers, and uses a language specific sentence analyzer that extracts the

portions of text that should be annotated. LABAS-TS was evaluated in the generation of training data sets to

classify whether an electronic health record text contains a diagnosis, a test or a procedure, and demonstrated

its utility in reducing the required time for building a reliable training set, with an average of eleven seconds

between two labels.

1 INTRODUCTION

In this paper, we propose a web-enabled system for

assisting the open, collaborative labeling of training

sets for text classification. This stems from an

increasing interest and use of text mining and natural

language processing tools and techniques which aid

in finding patterns, clusters or classifications within a

diverse corpus of texts (Aggarwal & Zhai, 2012; Naik

et. al., 2015). Specifically, machine learning is being

increasingly used to generate models that can

automatically process texts to recognize entities of

interest. Machine learning most often requires an

initial data set for training the model with known

cases. Each case consists of an input object and an

output variable (also called class or objective

variable). It follows that in order to build high quality

models, training sets must have sufficient cases for

each one of the possible values of the output variable.

Specifically, for text mining classification, input

objects are documents and the output variable

contains the observed values, such as sentiment,

opinion or category. Although the ideal case is to

have the training data set available in advance, that is

not the usual scenario in text mining due to language

and/or domain dependence of texts. For instance, if

you want to create a model based on medical notes, it

must be taken into consideration that they may have

different patterns according to the specialty,

experience, institution and country of the writers.

Even if texts share the same language, an effective

global training set for a categorization problem (e.g.

emotion analysis) is not viable.

In particular, the LABAS-TS system stems from

the need to advance the use of text mining in

supporting automatic classification of electronic

health records (EHRs). Such records contain a variety

of both structured and unstructured fields that can

later be analyzed in order to aid with diagnosis, to

detect population patterns, to predict possible

outcomes, to calculate adherence to medical

guidelines, or to extract valuable hospital

administration analytics, among others.

However, medical texts are often created under

time-pressure, with a variety of both highly codified

as well as informal, contextualized terms. In addition,

the meaning of the texts can be riddled with

ambiguity when a medical professional records

suspicions, potential diagnosis, discarded conditions,

family history, among others (

Dehghan, 2013).

Sierra MÃžnera A., Pomares Quimbaya A., AndrÃl’s GonzÃ ˛alez Rivera R., Daza RodrÃ guez J., MuÃ

soz Velandia O. and Garcia PeÃ

sa A.

LABAS-TS - A System for Assisting Labeling of Training Sets for Text Classiﬁcation.

DOI: 10.5220/0006504901740180

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KMIS 2017), pages 174-180

ISBN: 978-989-758-273-8

Moreover, when EHRs are in Spanish, the existence

of previously validated training sets for machine

learning is much less developed or extensive (

Pomares

et. al., 2016).

In order to deal with the aforementioned

challenges associated with the necessity of building

formal training sets that contain language (e.g.

Spanish), domain (e.g. healthcare) and organization

(e.g. specific hospital) specific patterns this paper

proposes LABAS-TS, a web-enabled system for

assisting the open, collaborative labeling of training

sets for text classification. To do so, we present

related works in Section II. We then go on to present

the proposed system in Section III. Section IV

presents the implementation and use of LABAS-TS

in the healthcare domain. Subsequently, Section V

discusses the main results of the system, and finally,

Section VI presents some conclusions and suggests

avenues for future work.

2 RELATED WORKS

With the large volume of data that is stored in

healthcare records, the challenge of utilizing these

large datasets efficiently depends upon the adequate

processing of both structured and unstructured text.

Particularly, the large amount of unstructured text

that resides in an EHR, like clinical notes, infirmary

notes, or individual medical attention reports, cannot

be used directly by machine learning models.

However, those unstructured texts can be used with

machine learning models as labeled training data,

product of manual annotation by medical experts.

Crowd control (Cocos, 2017) proposes a

crowdsourcing alternative to the expert annotation

task for radiology reports. The crowdsourced

annotations can provide the same performance in

classification as the manual experts. A manual

experts label process is a time-consuming task and

expensive, and with the large amount of EHR data

that is generated much faster than the expert can label

an impractical task. With the fact that an individual

crowdsourced worker may be less reliable than an

expert, the crowdsourced training data contains more

correctly labeled data in a mayor size of labeled text

than expert training data.

Crowdsourcing

for medical image classification (de

Herrera, 2014) uses the same approach of

crowdsourcing techniques for label training data for

medical image classification. The crowdsourced team

consist of eight experts from a medical image domain

using a label platform (Crowdflower, 2017). Using a

small team of crowdsourced workers increases the

training dataset size and improves the quality of

automatic classification, crowdsourced platform

increases the number of people participating for a low

cost.

Event Based Emotion Classification for News

Articles (Li, 2016) built an emotion linked corpus

product of crowdsourcing process that is used in

document emotion classification as a whole text using

Conditional Random Fields CRF classification. One

of the problems in emotions analysis is the lack of

training data. Annotated emotion corpus is relatively

rare in comparison with other NLP tasks. To surpass

the lack of annotated data they used crowdsourcing to

obtain annotated reliable data.

Brat (

Stenetorp, 2012) introduces an annotation

tool for the manually created gold standard

annotations for textual data. As annotations are the

most time consuming in NLP tasks, they proposed an

intuitive annotations web interface that can reduce the

annotations time. It could be used in different

annotation projects with types of corpus data i.e.

Medical, biomedical.

The works mentioned before evidence the fact

that medical structured and unstructured data is

continuously generated over time, making expert

manual labeling tasks a never-ending process for

machine learning. Assisted and crowdsourced

approaches demonstrate that those tasks can be

achieved in less time and for larger volumes of

information. Despite the nature of structured and

unstructured data in many different fields, those

crowdsourcing strategies can expand the training

dataset dramatically in less time in comparison to a

manual expert labeling task. However, training

datasets particularly of medical texts contains

ambiguity that can be interpreted differently among

different types of medical specialists. There is an

opportunity to create a formal training dataset that

groups the domain, organizational specific patterns

and language using the assisted crowdsourced task

approach.

3 LABAS-TS OVERVIEW

As Section II illustrates, for the expansion of machine

learning projects, it is necessary to have available

training sets that can feed analytical models.

Improving and assisting the construction of these

training sets is the main objective of LABAS-TS

system, which begins with two inputs and then

follows a process of finding sentences to classify, by

presenting them to experts in charge of the annotation

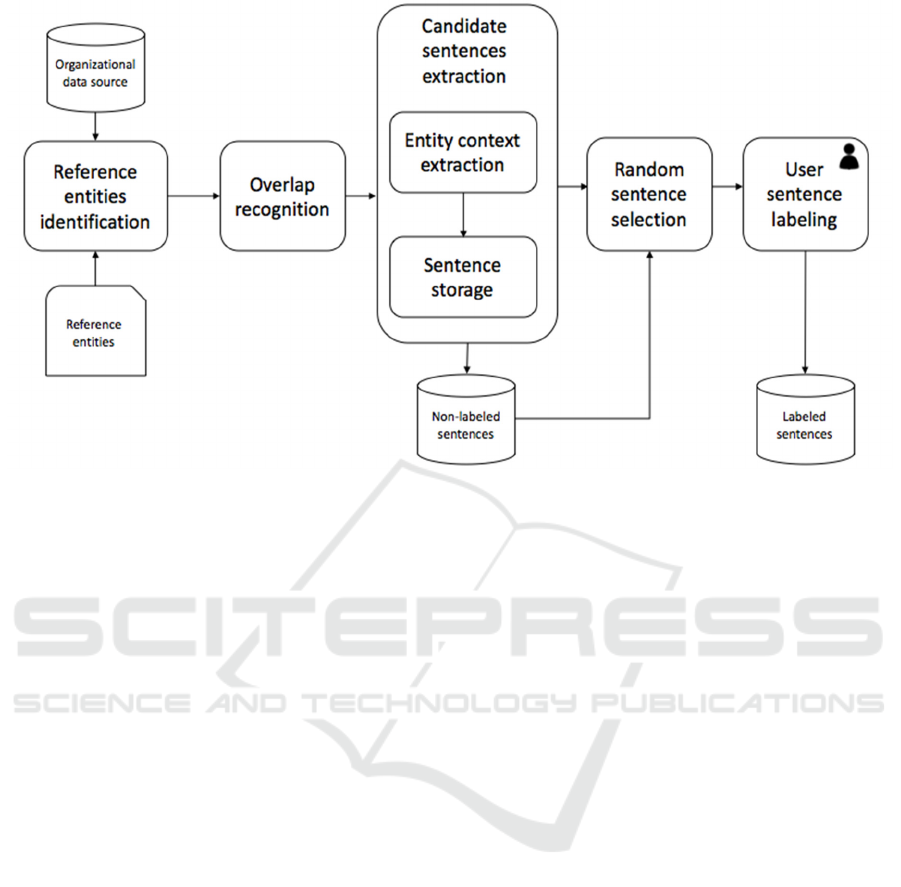

process. Figure 1 presents the general process of the

Figure 1: LABAS-TS general process.

system. The first task receives two inputs: the

organizational data sources that contain the narrative

texts and the lists of reference entities. These entities

include the concepts of interest for the machine

learning model. For instance, if a model is aimed at

identifying opinions or sentiments about a firm, the

reference entities should include names of firms or

their related brands. The objective of the first task is

to recognize these entities within the original

organizational data sources. This recognition is not a

straightforward activity considering that the words

may contain typos or may be expressed using

different endings. To deal with this problem, we

apply a combined approach for named entity

recognition that takes into account these types of

cases (Pomares et. al., 2016). The output of the first

task is the text annotated with the type of reference

entities recognized. Once the system generates the

annotations it checks for overlaps between them. If it

finds overlap, it selects the most specific annotation,

which corresponds to the longest, containing more

information. For instance, two entities could be

“diabetes” and “type 2 diabetes” and the second one

overlaps with the first one, but finding the longest

suggest a more specific concept, thus we consider that

one.

The next task reads each one of the annotation

detected and proceeds to extract candidate sentences

surrounding them. For example, the first task found

these two entities in a portion of a text. “...John Doe

is a 67 year-old diabetic white male with a history of

[COPD], and [hypertension]. Mr. Doe was

hospitalized 20 days ago at San Ignacio Hospital for

[pneumonia] resulting from [influezna] ...’”. In this

text four entities were found. From those entities, the

following four sentences are extracted:

● John Doe is a 67 year-old diabetic white

male with a history of [COPD], and

hypertension.

● John Doe is a 67 year-old diabetic white

male with a history of COPD, and

[hypertension].

● Mr. Doe was hospitalized 20 days ago at San

Ignacio Hospital for [pneumonia] resulting

from influezna.

● Mr. Doe was hospitalized 20 days ago at San

Ignacio Hospital for pneumonia resulting

from [influezna]

Each sentence represents the context of the

highlighted term and therefore could have a different

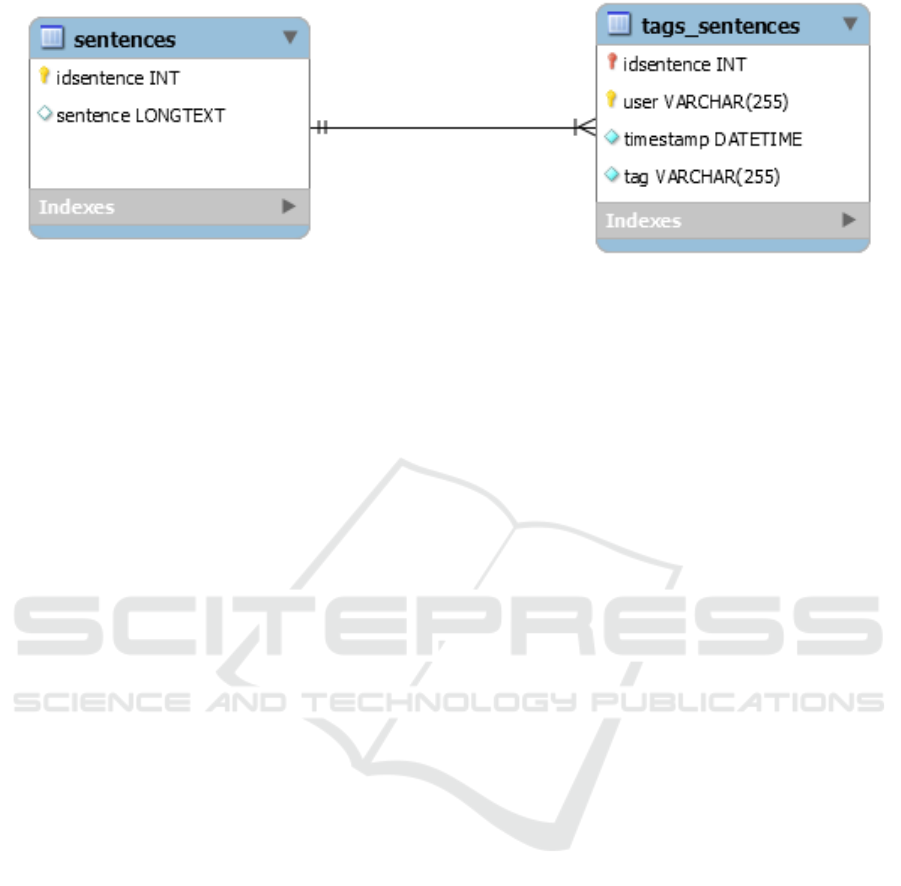

class. All the sentences are stored in a repository used

by the next task.

Finally, the system selects sentences randomly

from the repository of non-labeled sentences and

presents them to the expert users who label them

using one of the classes required for the machine

learning model.

Figure 2: Database Diagram.

In our example those classes could be: confirmed,

negated, speculative, pending, patient antecedent or

family antecedent. Such classes are highly dependent

on the upcoming classification task.

4 IMPLEMENTATION

The first step for labeling a set of sentences

corresponds to the process of gathering all the

candidate sentences from a corpus. Candidate

sentences are those containing reference entities.

These entities could be listed from a controlled

dictionary or gazetteer, which should contain the

different labels related to the list of reference

concepts. (Gate.ac.uk, 2017) includes a tool for such

activity called “ANNIE Gazetteer”. This process has

some parameters: if it finds one annotation within

another, the behavior should be defined beforehand

and defining whether annotations inside tokens are

admitted. For instance, the dictionary might contain

“Type 1 diabetes” as well as “diabetes”. If the first is

found, also the second is found, but the parameter

longestMatchOnly set to true prevents the smaller

annotation to prevail. Partial word annotations are

discarded. In order to achieve good results in this step

it is very important to include openly available

gazetteers or ontologies, like the ones available for

diagnosis. These sources of information allow direct

recognition in the text of the entities whose context is

going to be analyzed in the next step. If the

organization that is going to use Labas-TS does not

have an available gazetteer, it can be built it

automatically (

Kozareva, 2006) using a corpus of

documents that may contain entities, for instance a

corpus of non-labeled medical records.

After this step, it finds annotations to all the

instances in the corpus of terms within the dictionary

we need to extract a context for such annotation. The

context is a portion of text containing the annotation

and this portion corresponds to all the text a user will

be able to read to add the label to the annotation. The

context was defined as the sentence containing the

annotation. The Spanish Sentence Splitter

(Santamaría, 2016) was used to define sentence

boundaries. It defines regular expression specific to

the Spanish language, which splits the text into

sentences. Those should be language specific because

a lot of rule exceptions could apply. For instance, a

dot is a sentence splitter, but some abbreviation like

“hnos.” meaning “hermanos” (siblings) should not

split a sentence.

Having the annotations and the sentence

boundaries we extract all the sentences containing at

least one annotation from the gazetteer. If a sentence

contains several annotations it is extracted multiple

times, one for each annotation contained. This is

because one sentence can serve as a different context

for several terms, each with a different class.

The sentences are stored in a table (see Figure 2)

and each sentence-annotation combination gets an

identifier. The remaining process treats them as

independent sentences, despite the fact that they

might come from the same sentence in the corpus.

Given the new table of sentences, a web

application queries the table to get a random sentence

to tag. The sentence is shown to the user with a set of

buttons, each corresponding to one class (see Figure

3). Right after a user clicks one of the class buttons,

the tag is stored in a separate table tags_sentences (see

Figure 2).

We mentioned that the sentence was extracted

randomly from the sentences table, but it is important

pointing out that sentences previously labeled

(contained in the tags_sentences table) are ignored,

thus only new sentences are shown to the user.

After a significant number of sentences have been

labeled we can build a machine learning model. First

the tags and sentences tables are retrieved and for

each sentence a GATE document is created. The

whole text is annotated as one sentence and a feature

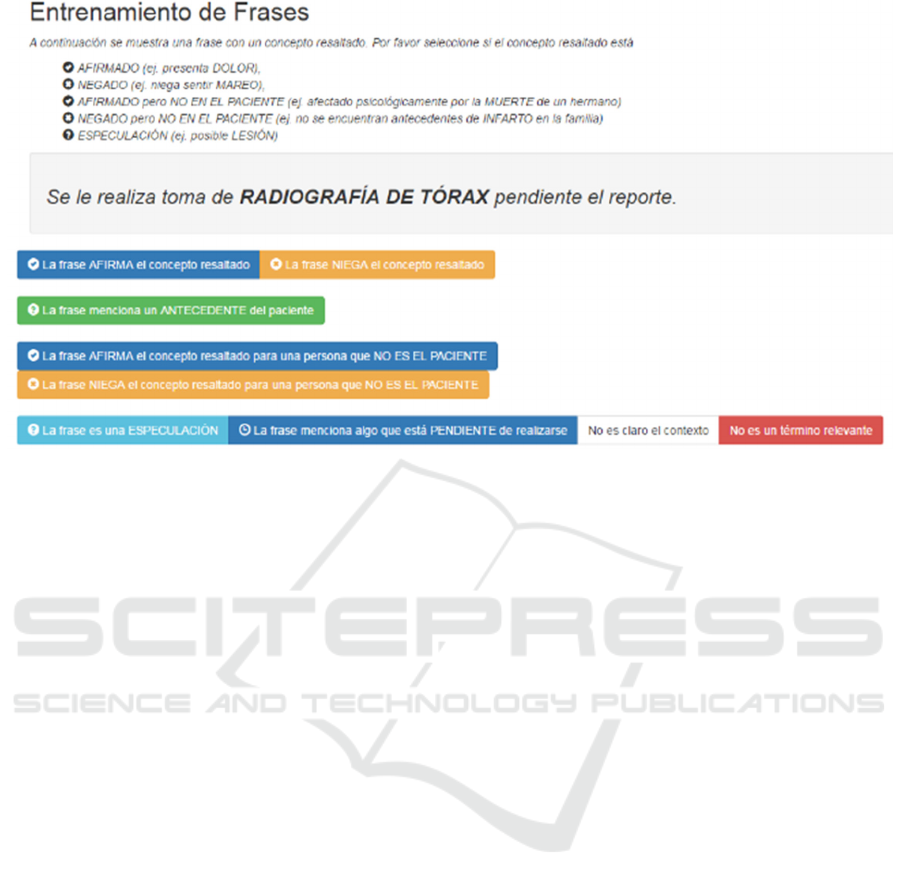

Figure 3: Screenshot capturing the page presented to user in which a sentence must be classified.

corresponding to the label assigned by the user is

added to the sentence annotation. The implementation

of this process was coded as a Java program and all

of the GATE documents are stored in xml files.

Next, a GATE Corpus is created from the xml

documents and the machine learning algorithm is

trained through the Batch Learning PR, containing

several classification algorithms such as PAUM,

SVM, KNN, Naïve Bayesian Classifier and C4.5. The

Batch Learning PR is used in two different moments,

training and application. The TRAINING mode, uses

the previously created corpus and creates all the files

specific for the model. Such model could be exploited

in a different moment using the APPLICATION

mode, in order to predict the class of an unlabeled

sentence.

An important aspect for a training set in machine

learning classification problems is having a big

number of examples. Therefore, the application is

web-enabled in order to reduce the amount of time

needed to label and therefore boost the number of

labels. The layout of the page presenting the sentence

is streamlined, consisting only of the basic

instructions of the program, the sentence to be

classified and a set of buttons corresponding to the

classes (see Figure 3). The sentence is displayed in a

bigger font with respect to the other elements and the

term of interest is emphasized.

5 RESULTS AND DISCUSSION

As an initial proof of concept of LABAS-TS, the

implementation was used as part of a larger project

aimed at automatically calculating adherence to

medical guidelines in a general hospital. For example,

in order to verify whether a procedure has been

performed or an exam interpreted, the EHRs for a

given set of patients (those corresponding to a

specific treatment guideline) must be examined to

find significant terms and the potential ambiguity of

such terms must be resolved, in our case, through a

machine learning text classification model.

Aware of the aforementioned weaknesses in

Spanish trained sets, as well as the context-dependent

use of a certain amount of terms in the regional and

even hospital level, we deployed LABAS-TS for

expert medical personnel from our hospital case, by

invitation.

The reference terms used in the study case were

taken from UMLS Metathesaurus (

Bodenreider, 2004

The gazetteer conformed with those terms is the first

input of LABAS-TS and controls which entities need

to be found to construct the repository of sentences.

The other input is the corpus of text from which the

sentences are going to be extracted and we used one

month of notes from the EHR system used by the

hospital. A total of 99,865 sentences where extracted

from the text inside the EHRs of the hospital for a

given month referencing the entities in the gazetteer.

All the sentences were included in the repository.

From those sentences, a total of 1,709 were

classified by medical personnel. The time of the

experts was limited and one of the goals was to use it

in a productive manner and get as many annotations

as possible, which means reducing the time spent for

each annotation to the minimum. The classes used in

our case were Confirmed, Negated, Speculative,

Pending, Patient Antecedent and Familiar Antecedent

each having a distinct button to facilitate the labeling

process. In the instructions section of the user

interface, examples were given to clarify the meaning

of each class.

After this initial cycle, we gathered comments

from the experts involved in the experiment in order

to improve user experience and also we analyzed the

labels produced, particularly the timestamp data in

order to analyze the time it took for them to perform

the task.

The users perceived the tool in general as easy to

use, the process was quick, and in general the

evaluation of each sentence did not take more than

one minute. However, it was evident that some

characteristics must be guaranteed to facilitate the

use. The sentences must be long enough to let the

evaluator understand the context adequately.

Normally the sentence must be presented with the

whole paragraph where it was taken from.

Additionally, the simplicity in classifying the

sentences depends upon the section of the electronic

health record used to extract them. Normally it was

easier for the evaluators to make a decision if the

sentence came from the analysis sections, and harder

if the information was taken from the sections

describing the symptoms and antecedents. Finally, it

was easier and quicker to classify affirmative

sentences (Confirmed class) or negations (Negated

class), and harder to define if a diagnosis was a

speculation or a familiar antecedent. In those cases,

the context information had to be more complete.

Measuring the time spent in between two tags we

could check how fast a user can put labels on the

sentences. In our measures, the median of the gap

between 2 labels is 7 seconds. The average is 11.1

seconds, taking into account just the gaps under 5

min. Some gaps are bigger, but are not taken into

account for the average because they correspond to

long time periods when the users stopped labeling

without logging out.

Our results show that randomly choosing the

sentence to be labeled from the candidate sentences,

results in an imbalanced dataset, favoring the most

popular classes with more examples than the minority

classes. Machine learning classifiers could perform

better with a more balanced dataset. Therefore, we

present strategies that could balance the resulting

dataset.

The field of Information Retrieval provides tools

for ranking documents according to queries. Ad-hoc

retrieval finds the most relevant documents with

respect to a given query. Usually a vector space

model is used to measure the similarity between the

queries and the documents.

Additionally, relevance feedback (Manning et. al,

2009) considers some documents labeled as relevant

by the user and adjust the query to rank higher the

documents, similarly to the previously relevant

documents. In other words, it learns from the positive

feedback to consider more information in a new

request to improve the results.

In our initial scenario, we want to rank the

unlabeled sentences to favor the most unlabeled

classes, with the intention of presenting those

candidates to the user and balancing the dataset. We

could consider the ranking as an ad-hoc retrieval

problem where we give some feedback using the

already annotated sentences.

The first strategy would use the already labeled

sentences from the less common class as positive

feedback and rank the unlabeled sentences with such

feedback. The results should contain sentences

similar to the feedback, presenting the user sentences

more likely from the minority class. This strategy

requires that at least one sentence is labeled as the

minority class and in some cases, that could take

enough random annotations that the dataset is already

very imbalanced. Sometimes the minority classes

could have a known pattern. For instance, if we a

considering the class “speculation” we don’t need

training to know that sentences containing the word

suspicion of are good candidates. Using those known

patterns in the first rounds of labeling could guarantee

that minority classes have some labeled sentences.

Another strategy involves using the majority

classes labeled sentences as negative feedback.

Consequently, the ranked sentences would differ

from those and belong likely to the minority classes.

Negative feedback is usually harder to implement

with information retrieval software because they

usually provide functionality for positive feedback in

the form of “more like this” queries, but no

functionality for negative feedback.

6 CONCLUSIONS AND FUTURE

WORK

This paper presents a tool for generating classification

datasets to be used mainly by Machine Learning

algorithms, in order to predict classes given a set of

examples. The goal was to build a software which

could allow a group of experts to label a set of

automatically-extracted set of sentences with a given

set of classes. We describe the extraction process as

well as the labeling process, which was designed to

make the task uncomplicated and therefore obtain the

largest dataset possible.

Proof-of-concept results show that the process

was very fast and easy for the user in most cases.

Average label time shows that labeling a big dataset

could be possible with a reasonable size team of

experts.

Some drawbacks were identified in the exercise,

mostly regarding the balancing of the classes, and a

discussion of how this could be resolved using

information retrieval and relevance feedback,

suggesting future work.

In addition, we are going to study length of the

context presented to the user. Some of the experts felt

they needed more context than just a sentence to make

a proper classification and expanding to the paragraph

level could ease even more the labeling task.

Finally, the tool could be expanded to other

annotation tasks like annotating named entities in

sentences or chunk detection to detect the structure of

the text. The entities that sponsor this project hope to

leave LABAS-TS available in its next version for the

community.

ACKNOWLEDGEMENTS

This work is part of the project entitled “Sistema de

análisis de indicadores de adherencia a las guías de

práctica clínica ” funded by Hospital Universitario

San Ignacio and Pontificia Universidad Javeriana.

REFERENCES

Aggarwal, C. C., & Zhai, C. (2012). A survey of text

clustering algorithms. Mining text data (pp. 77-128)

doi:10.1007/978-1-4614-3223-4_4.

Bodenreider, O. (2004). The Unified Medical Language

System (UMLS): integrating biomedical terminology.

Nucleic Acids Research, 32(90001).

Cocos, A., Qian, T., Callison-Burch, C. and Masino, A.J.,

2017. Crowd control: Effectively utilizing unscreened

crowd workers for biomedical data annotation. Journal

of Biomedical Informatics, 69, pp.86-92.

CrowdFlower. 2017. AI for your business. (online)

Available at: https://www.crowdflower.com.(Accessed

12 Jun 2017).

de Herrera, A.G.S., Foncubierta-Rodríguez, A., Markonis,

D., Schaer, R. and Müller, H., 2014. Crowdsourcing for

medical image classification. Swiss Medical

Informatics, 30.

Li, M., Wang, D., Lu, Q. and Long, Y., 2016. Event Based

Emotion Classification for News Articles. PACLIC 30,

p.153.

Dehghan, A., Keane, J.A. and Nenadic, G., 2013, October.

Challenges in clinical named entity recognition for

decision support. In Systems, Man, and Cybernetics

(SMC), 2013 IEEE International Conference on (pp.

947-951). IEEE.

Gate.ac.uk. (2017). GATE.ac.uk. (online) Available at:

https://gate.ac.uk/ (Accessed 12 Jun. 2017)

Manning, C.D., Raghavan, P. and Schütze Hinrich (2009).

Introduction to information retrieval. Cambridge:

Cambridge University Press.

Naik, M. P., Prajapati, H. B., & Dabhi, V. K. (2015). A

survey on semantic document clustering. Paper

presented at the Proceedings of 2015 IEEE

International Conference on Electrical, Computer and

Communication Technologies, ICECCT 2015,

doi:10.1109/ICECCT.2015.7226036.

Pomares, A., Sierra, A., González, R.A., Daza, J.C.,

Muñoz, O.M, García, A.A. and Labbé, C., 2016.

Named Entity Recognition Over Electronic Health

Records Through a Combined Dictionary-based

Approach. Procedia Computer Science, 100, pp.55-61.

Santamaría, V. (2016) Spanish NLP Tools for GATE.

(online) SourceForge. Available at: https://

sourceforge.net/projects/nlptools-es/ (Accessed 12 Jun.

2017).

Stenetorp, P., Pyysalo, S., Topić, G., Ohta, T., Ananiadou,

S. and Tsujii, J.I., 2012, April. BRAT: a web-based tool

for NLP-assisted text annotation. In Proceedings of the

Demonstrations at the 13th Conference of the European

Chapter of the Association for Computational

Linguistics (pp. 102-107). Association for

Computational Linguistics.

Sun, C., Rampalli, N., Yang, F. and Doan, A., 2014.

Chimera: Large-scale classification using machine

learning, rules, and crowdsourcing. Proceedings of the

VLDB Endowment, 7(13), pp.1529-1540.

Kozareva, Z. (2006). Bootstrapping named entity

recognition with automatically generated gazetteer

lists. Proceedings of the Eleventh Conference of the

European Chapter of the Association for

Computational Linguistics: Student Research

Workshop on - EACL '06. doi:10.3115/

1609039.1609041.
