Cybersecurity Ontology for Critical Infrastructures

Sandra Bergner and Ulrike Lechner

Fakultät für Informatik, Universität der Bundeswehr München, Germany

Keywords: Knowledge Engineering, Ontology Engineering, IT-Security, Critical Infrastructure.

Abstract: The number and frequency of hacker attacks on critical infrastructures like waterworks, government institu-

tions, airports increase. The Cybersecurity of critical infrastructure is a complex topic with. A plenthora of

requirements, measures from the BSI and the NIST as well as vulnerabilities that needs to be considered.

This paper describes the ontology for IT-Security of critical infrastructures that combines the aforemen-

tioned requirements to give critical infrastructures a kind of guideline or roadmap for security and safety

measures in order to preventively protect critical infrastructures of hacker attacks.

1 INTRODUCTION

The BMBF research program ‘IT-Security for criti-

cal infrastructures’ has been initiated as part of

“Strategy 2020” of the German Government. Project

VeSiKi ‘Networked IT-Security of critical infra-

structures’ coordinates 13 research projects in the

cooperative research process in the ITS|KRITIS

initiative (www.itskritis.de) and (Bergner 2015a).

Project VeSiKi provides an ontology for IT- Se-

curity for critical infrastructures. The main goal of

this ontology for IT-Security of critical infrastruc-

ture is to define a well-structured knowledge base

for the topic itself and the 13 research projects of

ITS|KRITIS, which design IT-Security technologies

and which each have partners from various critical

infrastructure sectors.

The ontology from Fenz (Fenz and Ekelhart,

2009) is considered state-of-the-art and offers a

common basis with regard to IT-Security. However,

this ontology does not take critical infrastructures

into account. A second IT-Security ontology is the

one of Tsoumas (Tsoumas and Grizalis, 2006).

We build on the seminal ontology of Fenz (Fenz

and Ekelhart, 2009) as the basis Cybersecurity

knowledge base. We enhance the Fenz ontology

with knowledge from the Kaspersky Security list

(Kaspersky, 2016) which includes information of

current threats. We extend the Cybersecurity

knowledge base with concepts derived from re-

quirements from a critical infrastructure comitee like

from the Bundesamt für Sicherheit in der Infor-

mationstechnologie (BSI) (BSI, 2013), vulnerabili-

ties like from the National Vulnerability Database

(NIST, 2016). We use the Miniduke malware as

example for our models.

This paper introduces the ontology cybersecurity

of critical infrastructures in its current development

status. The ontology integrates subontologies in

form of terminological knowledge (TBox concepts)

to build up the models. In this paper we will intro-

duce only parts of our ontology and present only the

most relevant TBox concepts in detail.

Projects contribute assertational knowledge in

form of ABox instances according to the specified

TBox concepts. Thus, the subontologies (TBox and

ABox) together build up a common knowledge base

for the project teams of research institutions and

providers of critical infrastructures. Hence, the main

purpose is to establish an ontology which builds up

the common knowledge base for an underlying dy-

namic knowledge pool for IT-Security of critical

infrastructures.

The ontology is modelled in TopBraid ME

Composer (https://www.topquadrant.com) in the

modelling language OWL. The ontology has 95

classes and 1100 instances.

2 CYBERSECURITY ONTOLOGY

Four subontologies structure the common

knowledge base: IT-Security, Project, Critical Infra-

structure (CRITIS) and Compliance.

2.1 IT-Security Ontology

The IT-Security subontology covers the IT-Security

Bergner S. and Lechner U.

Cybersecurity Ontology for Critical Infrastructures.

DOI: 10.5220/0006510400800085

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KEOD 2017), pages 80-85

ISBN: 978-989-758-272-1

relevant aspects like threats, controls and vulnerabil-

ities. It is linked to the critical infrastructure (CRI-

TIS) subontology and consequently to the appropri-

ate assets of an organization.

2.1.1 IT-Security: TBox Concepts

The TBox concepts of the subontology IT-Security

are based on the National Institute of Standards and

Technology (NIST) NIST computer security hand-

book, NIST information security risk management

guide (Stonebumer, Gary et al., 2002), ISO 27001

(ISO, 2013), German IT Grundschutz Manual BSI,

2013). It extends the Fenz ontology.

Figure 1 provides an overview of the IT-Security

ontology TBox concepts. The TBoxes depicted in

grey come from the Fenz ontology and are enhanced

on the information from the Kaspersky web page

(Kaspersky, 2016) as well as links to the VeSiKi

projects which are TBoxes depicted in blue.

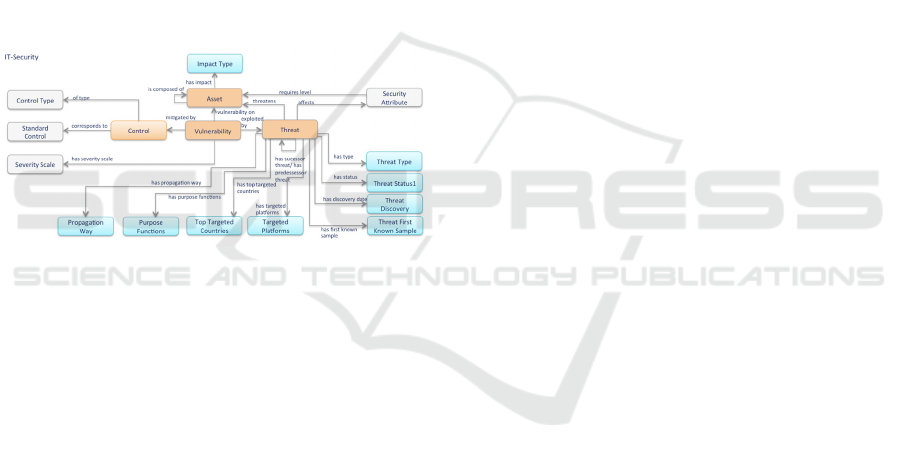

Figure 1: IT-Security Subontology TBox Concepts.

The IT-Security subontology is linked to the Critical

Infrastructure Ontology (CRITIS) subontology and

consequently to the assets of an organization.

The TBox-concepts Asset, Vulnerability, Control

and Threat build up the core concepts of the Cyber-

security subontology and are depicted in orange:

 According to (ENISA, 2016) an Asset is de-

fined as follows: “Anything that has value to

the organization, its business operations and

their continuity, including Information re-

sources that support the organization's mis-

sion”.

 Each Asset concept (IT-Security: Asset ⊑T)

has an impact type(s), like

(1) Allows unauthorized disclosure of infor-

mation,

(2) Allows unauthorized modification,

(3) Allows disruption of service, etc. which

might be again the Target Impact Type of the

concept Threat.

 The concept Security Attribute (e.g. confiden-

tiality, accountability, availability, integrity,

reliability, or safety) defines the required level

of the Asset and which Security Attribute

might be affected by a certain threat accord-

ingly.

 According to ENISA (ENISA, 2016), a vul-

nerability is defined as: „The existence of a

weakness, design, or implementation error that

can lead to an unexpected, undesirable event“.

The Vulnerability concept (IT-Security: Vul-

nerability ⊑T) defines a vulnerability on an

asset, which refers to an infrastructure. Each

individual of the Vulnerability concept can be

exploited by an individual of the concept

threat and can be mitigated by one or more in-

dividuals of the concept control. The severity

scale of the Vulnerability concept is specified

by the concept severity scale, which is defined

as low, medium or high.

 A Threat is described as „Any circumstance of

event with the potential to adversely impact an

asset through unauthorized access, destruc-

tion, disclosure, modification of data, and/or

denial of service“ (ENISA, 2016). An individ-

ual of the concept Threat (IT-Security: Threat

⊑T) might exploit an individual of the con-

cept Vulnerability. The concept Threat Type

covers the name(s) of the Threat Type, e.g.

Trojan Horse, Spyware. The concept Threat

Status might either be active or inactive. The

concept Threat Discovery gives information of

the Threat Discovery Date. Each Threat has a

Threat First Known Sample. Thus this concept

covers the date of the threat first known sam-

ple. The concept Targeted Platforms covers

the name(s) of the Targeted Platforms, e.g.

Windows, Unix. To identify the relevance of a

threat, the concept Top Targeted Countries

covers the name(s) of the top targeted coun-

tries, e.g. Germany, Belgium. The concept

Purpose Function e.g. cyber espionage covers

the intention. The concept propagation way

covers the name(s) of the propagation way,

e.g. Social Engineering.

 The concept Control (IT-Security: control ⊑

T) defines how to mitigate vulnerability. Each

control is specified by the concepts standard

control, e.g. “Update Acrobate Reader” which

is allocated to a control ID. The control ID in-

dicates the ID of the aforementioned standard

control “APSB13-7” and a committee. Further

information of the control is given by the con-

trol type which might be corrective or preven-

tive.

2.1.2 IT-Security: ABox Individuals

The following Figure 2 gives an example of the

individuals for the TBox concepts.

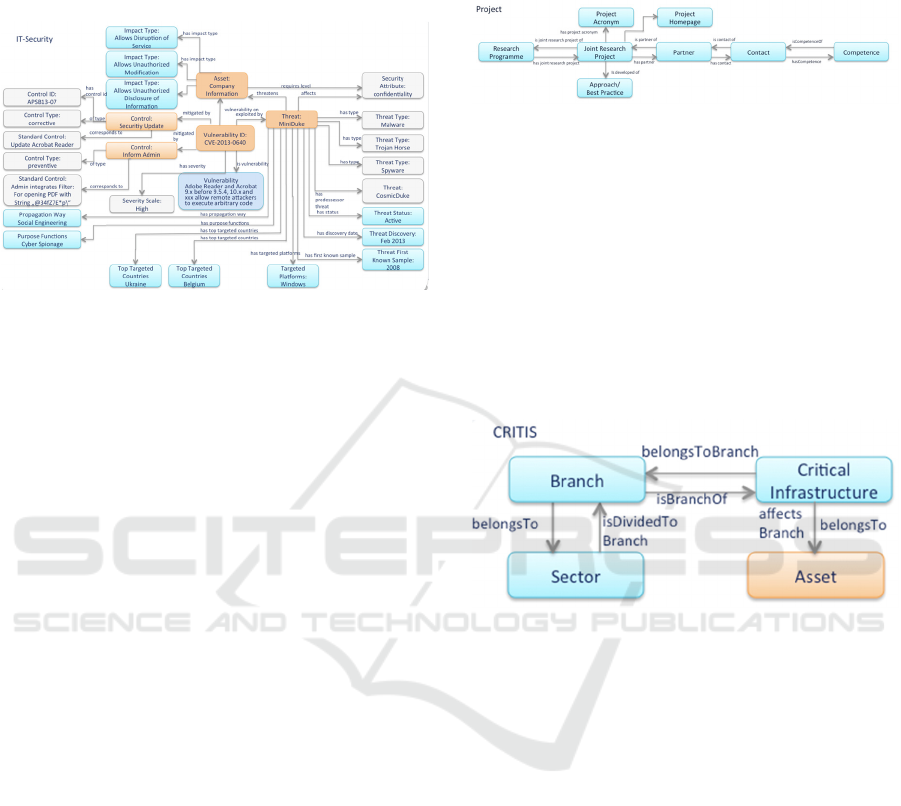

Figure 2: IT-Security Subontology ABox Individuals.

ABox individuals of the core TBox concepts As-

set, Threat, Vulnerability and Control are depicted in

orange. The blue TBox concepts are specific for

critical infrastructures and the grey TBox concepts

that are based on the Fenz ontology.

 Threat: The Threat MiniDuke (Raiu, Costin et

al., 2013) threatens the Asset Company In-

formation.

 Vulnerability: The Threat Miniduke exploits

the Vulnerability ID: CVE-2013-0640 (CVE,

2013) which refers to a gap in the Adobe Ac-

robat Reader.

 Control: The Vulnerability is mitigated by the

Control: Security Update and Inform Admin.

 Impact Type: The Asset Company Infor-

mation has the Impact Type: Allow Disruption

of Service, allows unauthorized modification

and allows unauthorized disclosure of infor-

mation, with potentially fatal consequences

with regard to critical infrastructures.

2.2 Project Ontology

Subontology Project covers a cross sectoral analysis

and classification of project information (for internal

use in our research cluster) and results like project

institution, competence, critical infrastructure and

approach.

2.2.1 Project: TBox Concepts

The Subontology Project covers concepts of the

research projects of the research programme

ITS[KRITIS and information like partners, contacts

and competences depicted in Figure 3. It links the

information from the projects to approach/best prac-

tices. This information is relevant for initiatives that

are part of the cooperative research process of

ITS|KRITIS.

Figure 3: Project Subontology TBox Concepts.

2.3 CRITIS Ontology

2.3.1 CRITIS: TBox Concepts

The subontology CRITIS provides a framework

which enables the presentation of the critical infra-

structure. The subontology links the cross sectoral

classification of the projects with critical infrastruc-

ture relevant aspects as Asset, Organization and

Critical Infrastructure. Figure 4 depicts the concepts

of a critical infrastructure.

Figure 4: CRITIS Subontology TBox Concepts.

 According to (Innern, 2009) a critical infra-

structure is defined as follows: “Critical Infra-

structures are organizations and facilities with

a great importance for the governmental

community. Acting bottlenecks in supply that

have a lasting effect, considerable disorgani-

zation of public security or other dramatic im-

pacts are consequences on their breakdown or

disturbance”. The concept critical infrastruc-

ture (CRITIS:critical infrastructure ⊑T) is

used to model an organization and facility

which is assigned to as Critical Infrastructure.

The relation from the Critical Infrastructure to

its Assets is a core element of this ontology.

 Each Critical Infrastructure belongs to a spe-

cific Branch which is assigned to a Sector. For

example the Branches electricity, mineral oil

and gas are assigned to the Sector energy.

The IT-Security subontology is linked to the

Critical Infrastructure Ontology (CRITIS) subontol-

ogy and consequently to the appropriate assets of a

company.

2.3.2 CRITIS: ABox Individuals

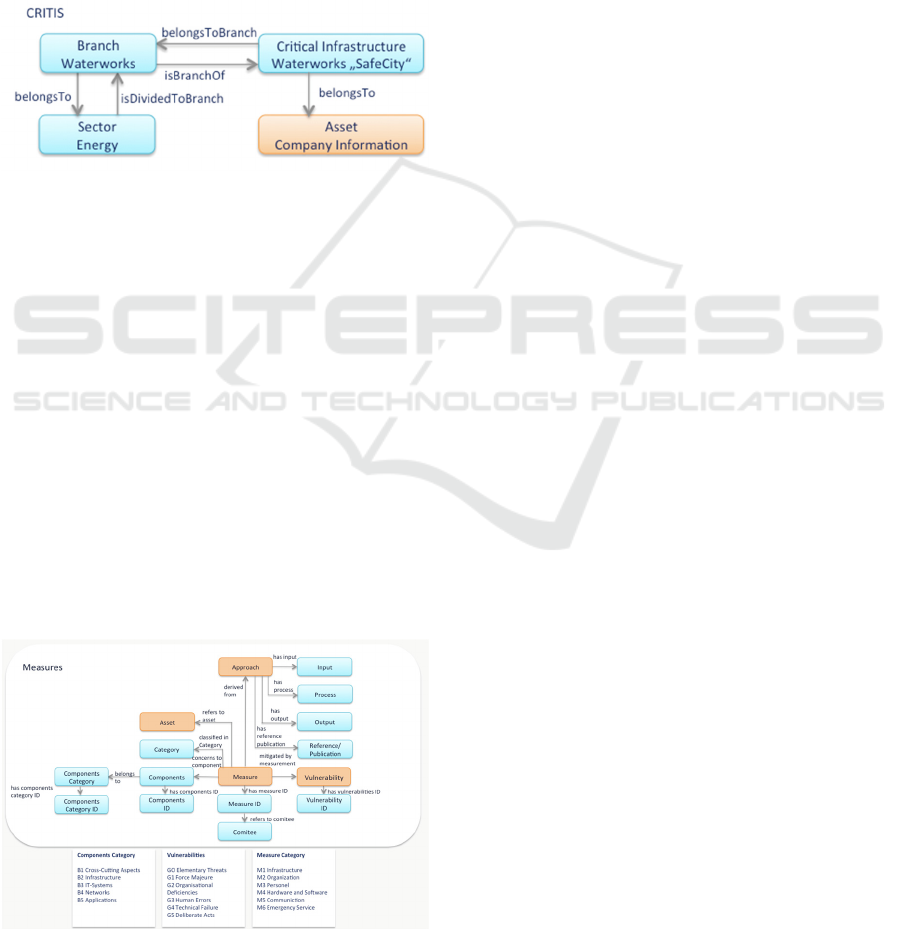

Figure 5 provides examples of individuals for the

TBoxes introduced in Sect 2.3.1. The Critical Infra-

structure waterworks “SafeCity” is a short part of a

“SafeCity” scenario. The Branch is waterworks

which is Branch of the Critical Infrastructure “Safe-

City”. The waterworks “SafeCity” belongs to Asset

company information. The Branch waterworks be-

longs to the Sector Energy.

Figure 5: CRITIS Subontology ABox Individuals.

2.4 Compliance Ontology

The subontology Compliance covers norms and

standards, regulations and applicable laws as well as

measures.

2.4.1 Measures: TBox Concepts

In this paper, we introduce the subontology

Measures as a part of the compliance ontology. The

Measure subontology covers IT-Grundschutz Manu-

al and Project concepts.

The main TBox concept of the ontology Measures is

Measure, which is linked to the TBox concept Vul-

nerability via ‘mitigated by measure’. Each Measure

is linked to a Measure ID via ‘has measure ID’ and

this in turn refers to a Comitee via ‘refers to

comitee’.

Figure 6: Measures Subontology TBox Concepts.

The following concepts are derived from the IT-

Grundschutz Manual (BSI, 2013)

 Components Category (CRITIS:Measure:IT-

Grundschutz Manual components categorie ⊑

T) is linked to a Components Category ID like

B1 Cross-Cutting Aspects, B2 Infrastructure,

B3 IT-Systems, B4 Networks and B5 Applica-

tions.

 Components (CRITIS:Measure:IT-

Grundschutz Manual components ⊑T) is

linked to a Components ID belongs to a com-

ponents category, e.g. “Handling Security Inci-

dents” with the components ID “B 1.8” is

linked to the components category via “belongs

to” the components “Cross Cutting Aspects”.

 Measure (CRITIS:Measure:IT-Grundschutz

Manual measure ⊑T) is linked to a Measure

ID and concerns to a component e.g. “Detec-

tion and Recording of Cyberattacks” concerns

to the component “Handling Security Inci-

dents”. Furthermore, a Measure is linked to a

vulnerability of the IT-Security ontology

(CRITIS:IT-Security vulnerability ⊑T) via

mitigated by vulnerability.

Additionally, our approach covers new measures

that are derived from the approaches of the projects

of the research programme ITS|KRITIS.

The Project subontology of (CRITIS:Project)

provides a framework which represents the ap-

proaches from the project partners:

 The concept Approach (CRITIS:Project – Ap-

proach approach ⊑T) introduces the approach

from the project partner which is either classi-

fied in category as “New Approaches to assess

the IT-Security” or “New Approaches to in-

crease the IT-Security”.

 The concept Approach is linked to the con-

cepts input a defined process and output. Fur-

thermore, links to references and publications

are defined. The concept approach is linked to

the concept Measures.

Another important concept in the subontology

Measures is the link to the Asset of the Critical In-

frastructure via ‘refers to asset’. Thus, in case a

Critical Infrastructure of the same or another Branch

has the same Asset. It might be interesting to be

informed of the Measure and consequently the ap-

propriate Vulnerability.

2.4.2 Measures: ABox Individuals

The following Figure 7 provides an example of the

individuals for the in 2.3.1 introduced concepts.

Figure 7: Measures Subontology ABox Individuals.

The Measure ‘Detecting and Recording of

Cyberattacks’ with the Measure ID 123 refers to the

comitee BSI. The Measure concerns to the compo-

nent ‘Handling Security Incidents’ with the Compo-

nent ID B 1.8, which belongs to the Components

Category ‘Cross Cutting Aspects’ with the Compo-

nents Category ID B 1. The Measure mitigates the

vulnerability CVE-2013-0640.

The Approach Anomaly Detection from one of

the ITS|KRITIS projects gives a further measure.

The Measure is classified in category ‘Recognise

and assess’ and the Asset in this case is the Compa-

ny Information.

3 INTERPLAY OF

CYBERSECURITY

ONTOLOGIES

First, this section provides a short overview of the

interplay of TBox concepts and, second, an example

of the interplay on ABox level in section 3.2.

3.1 TBox Concepts

The following Figure 8 shows the interplay of the

key concepts of the cybersecurity ontologies.

The cybersecurity ontology in this part of the

overall ontology includes the subontologies Project,

CRITIS, Measures (which is one part of the Compli-

ance ontology) and IT-Security.

The Asset is the centre of the Cybersecurity on-

tology. The Asset ‘is Asset of’ a Critical Infrastruc-

ture, which refers to a branch belongs to a sector of

the subontology CRITIS.

Furthermore the Asset affects all of the afore-

mentioned subontologies: Project, CRITIS,

Measures and IT-Security.

The most important interplay build the TBox

concepts: The TBox concept Vulnerability is vulner-

ability on concept Asset. The Vulnerability on the

other hand is exploited by a Threat and a Vulnerabil-

ity is mitigated by a Measure.

As mentioned in the Chapter 2.4.2 the Measure

might either be linked to a Measure ID of a Commit-

tee or to a specific Approach from our project part-

ners.

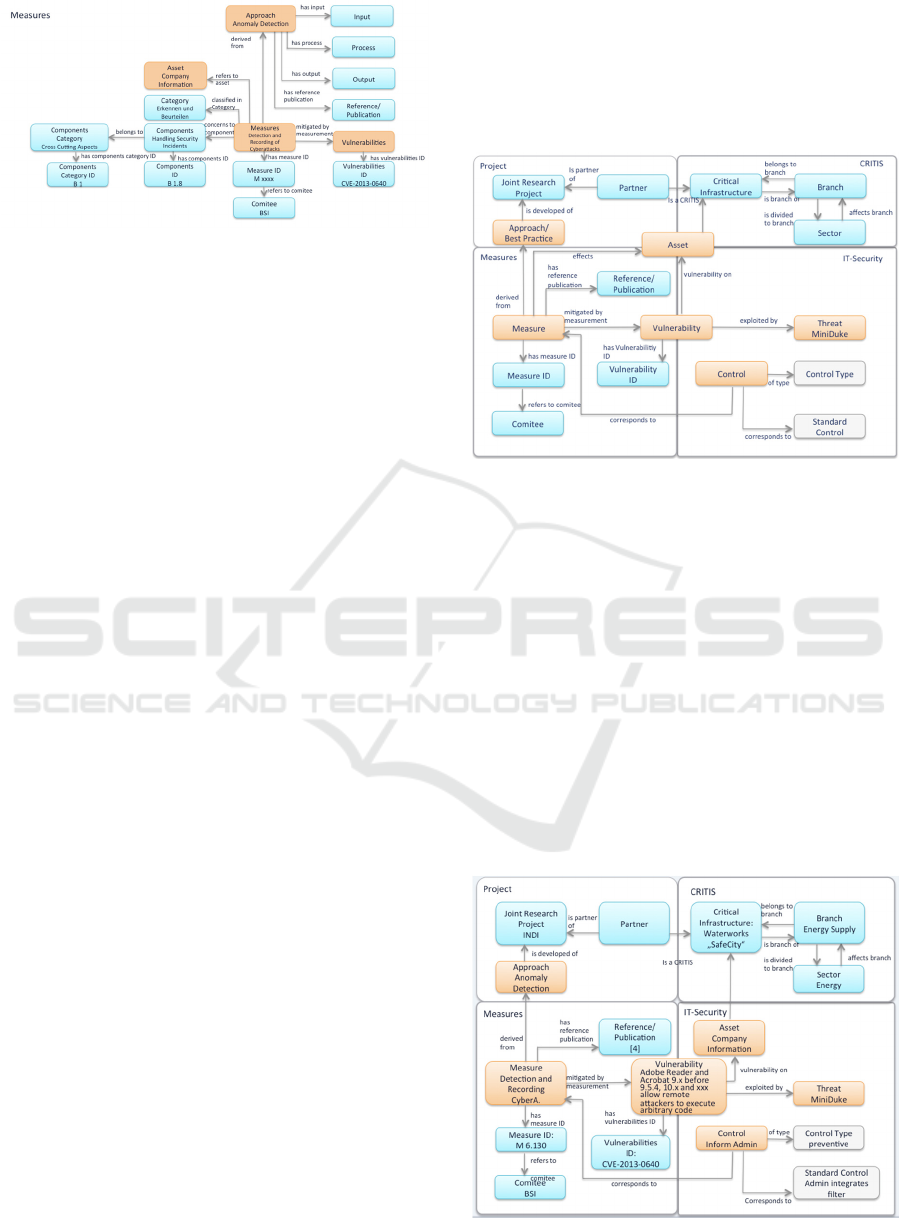

Figure 8: Interplay of TBox Concepts.

3.2 ABox Individuals

The Figure 9 shows the interplay of TBox concepts

introduced in Chapter 3.1 with ABox individuals.

The example is again a scenario relevant for

Miniduke for the waterworks of the city “SafeCity”.

As mentioned in Chapter 3.1 the center of this

ontology is the Asset, which in this example is the

Company Information. The Asset is the asset of the

Critical Infrastructure waterworks, which belongs to

branch Energy Supply, which in turn is assigned to

the Sector energy.

Another important concept and consequently in-

dividual is the Vulnerability, which is a vulnerability

on the Asset. In this example the Vulnerability with

Figure 9: TBox Concepts and ABox Individuals.

the ID CVE-2013-0640 is used, which covers the

Vulnerability “of the Adobe Reader and Acrobat 9.x

before 9.5.4, 10.x before 10.1.6, and 11.x before

11.0.02 allow remote attackers to execute arbitrary

code or cause a denial of service” (CVE, 2013). This

Vulnerability is exploited by the Threat MiniDuke.

The Vulnerability might now be mitigated by the

Measure detection and recording Cyber Attacks. The

Measure has the Measure ID M. 6. 130 and comes

from the Comitee BSI.

What should be done now? The Control ‘Inform

Admin’ of the type control type preventive should

be executed. This control corresponds to the stand-

ard control ‘admin integrates filter’.

Thus, the waterworks is aware of the aforemen-

tioned vulnerability in the Acrobat Reader.

4 CONCLUSION AND FUTURE

WORK

We have introduced the subontologies that are used

for the Cybersecurity ontology. Additionally, we

have introduced TBox concepts and ABox concepts

for the subontologies. Furthermore, we have intro-

duced the interplay of the Cybersecurity subontolo-

gies on both TBox level and ABox level.

In future we will work on ABox individuals with

the results from the research projects of ITS|KRITIS.

For this step we will define an interactive process

to interact with the research projects of ITS|KRITIS.

We will define a process to validate and release this

ontology with roles.

Furthermore, we investigate in intelligent Securi-

ty Level forms which might be based on (Bergner,

2015b) and (Bartelt et al., 2016). The ontology will

be integrated in the common project platform

www.itskritis.de.

ACKNOWLEDGEMENTS

We acknowledge the funding of VeSiKi by the

BMBF (FKZ:16KISO213) and the VeSiKi team

fruitful discussions.

REFERENCES

Bartelt, C., Bergner, S., Bergner, K., Rausch, A., 2016.

Methodology for an Ontology-Driven Product Config-

uration Process. Ilmenau.

Bergner, S., 2015a. VeSiKi-Project: Ontologies for IT-

Security in Critical Infrastructures. Presentation at the

IC3K, Lissabon.

Bergner, S., 2015b. Towards Automated Integrity Con-

straints Modelling and Validation: A Survey and Ap-

proach. Presented at the KEOD, Lissabon.

ISO, 2013. ISO 27001.

CVE, 2013. Common Vulnerabilities and Exposures for

the Vulnerability: CVE-2013-0640.

ENISA, 2016. ENISA European Union Agency for Net-

work and Information Security.

Fenz, S., Ekelhart, A., 2009. Formalizing information

security knowledge, in: Proceedings of the 4th Interna-

tional Symposium on Information. Presented at the

ACM, ACM, Sydney, Australia, pp. 183–194.

Innern, B. des, 2009. Nationale Strategie zum Schutz

Kritischer Infrastrukturen (KRITIS-Strategie) 20.

BSI, 2013. IT-Grundschutz Catalogues.

Kaspersky, 2016. Kaspersky Security List.

NIST, 2016. National Vulnerability Database.

Raiu, Costin, Soumenkov, I., Baumgartner, K., Kamluk,

V., 2013. The MiniDuke Mystery: PDF 0-day Gov-

ernment Spy Assembler 0x29A Micro Backdoor.

Stonebumer, Gary, Goguen, Alice, Feringa, Alexis, 2002.

NIST information security risk management guide,

NIST Special Publication 800-30. NIST National Insti-

tute of Standards and Technology.

Tsoumas, B., Grizalis, D., 2006. Towards an Ontology-

based Security Management. IEEE, Austria, Vienna.

doi:10.1109/AINA.2006.329.
