Web Oriented Architectural Styles for Integrating

Service e-Marketplace Systems

Robert Kutera and Wiesława Gryncewicz

Department of Information Systems, Wroclaw University of Economics, Wroclaw, Poland

{robert.kutera, wieslawa.gryncewicz}@ue.wroc.pl

Keywords: Service e-Marketplace, Web-Oriented Architecture, Web Services, REST, Integration.

Abstract: e-Marketplaces for services have faced many challenges in the last few years. Many factors, including user

expectations, service specificity or technological development, influence the scope of requirements for

integrated solutions on that market. Such an integration can help in creating the place in the cyberspace, where

any user obtain an access to any service he or she actually needs. However, the integration isn’t an easy task,

especially in such a diversified environment. That is why there is a need to find a suitable way of integrating

the service e-marketplaces. Using loose coupling and WOA principles can make this task easier, what was

proved during the real-life experiment, using the “consortium research” method. In the paper authors proposed

the concept of integration of service e-marketplaces that bases on three foundations: user interface, data &

business logic and security. In that context authors described the integration procedure which takes into

account not only the classic software lifecycle, but also agile development principles. Having such

foundations, verification of this procedure on the example from ActGo-Gate research project was performed.

The high-level architecture of the project IT solution was presented and the way of integration of the offer

synchronization process was described.

1 INTRODUCTION

The technological progress and, most of all, the IT

revolution have significantly affected the operation of

the service markets. Many services have gained their

electronic form, while others – which are difficult or

impossible to provide remotely – have been given a

broad range of visual and interactive solutions

(including communication and transaction ones).

Thanks to them the consumer can become familiar

with the description of a given service, engage in a

discussion with the service provider’s representative

or other customers of the company, place an order and

pay online (Łysik et al., 2015).

e-Marketplaces are more and more fragmented,

customized and personalized (Maciaszek et al.,

2017). There are three most important factors

determining the development of service e-

marketplaces:

 user expectations and behaviours,

 service specificity,

 technological development.

Nowadays users have very simple access to different

information. Thanks to the Internet and ICT

technologies they have very good market recognition.

On the other hand people don't have much time, so

they expect to receive personalized offers in one

place, effortless and immediately.

Services are very differentiated and varied. Some

of them require coordination of appointments (one-

time services), the others use recruitment and

evaluation process (recurrent or long-term services)

(Maciaszek at al., 2017).

There are many service providers which offer

different services. They need efficient, quick and

effective technology solutions, especially in case of

increased traffic on web pages. That is why design

patterns are implemented. The main elements of

design patterns are typical and effective development

solutions which relate to one or more regularly

occurring problems (Fowler, 2003). The key feature

of design patterns is that they are rooted in practical

experience. They provide advices for developers how

to proceed in such cases to work more efficient,

transparent and orderly. Design patterns are often not

original ideas, but rather an attempt to systematize

observations of what is routinely used in practice.

They consist of many implemented functions that can

be called with one command (Gamma et al., 2008).

In order to streamline and optimize the web

applications development process, design patterns are

also reflected in web frameworks like Laravel,

Symphony (PHP), Spring (Java), Django, Flask

(Python) or AngularJS, ReactJS (JavaScript). The

web framework consists of a collection of software

components that help developers create and execute

web-based user interfaces (Vosloo and Kourie, 2008).

The framework manages the content displayed on the

web interface, the pages that are to be displayed, and

what actions are available to the user of the page.

They also standardize the ways of communication

between web applications.

Taking into consideration all these three factors:

very personalized and precisely defined user

expectations; different kinds of services and various

types of available programming patterns and

technologies - there is a need of a specific kind of

integration in the service e-marketplace area.

This integration should take into account a set of

requirements:

 viewing and managing of data in one place,

 ease of access to data (Single Sign On),

 safety,

 consistency of data presentation,

 a user-friendly interface,

 keeping current information and reminding about

any user events.

The above-presented list of requirements has been

established on the basis of analysis related to the

feedback from scientific and research projects

conducted by the authors and the development of web

applications.

The aim of this paper is to present a concept of

integration of service e-marketplace systems using

web oriented architectural styles. The paper is a part

of the ActGo-Gate project funded by the AAL

Agency awarded on the basis of the agreement

number AAL6/1/2015.

2 RELATED WORK

There are different types of integration. Among them

the most common are (Hohpe and Woolf, 2004):

 information portals,

 data replication,

 shared business functions,

 service-oriented architectures,

 distributed business processes,

 business-to-business integration.

It is not a complete classification, it illustrates the

kind of solutions that integration architects build.

Information portals aggregate information from

different systems into a single display. User may

happen when many business systems require access

to the same data. When a user change something in

one system, all the other systems need to change this

element. To avoid redundant functionalities

developers can use a shared business function that is

implemented once and available as a service to other

systems. Service-oriented architecture (SOA) is

applied when enterprise gathers a collection of useful

services and managing them becomes a critical

function. Remote services provided by other

applications ae integrated as distributed business

processes. A business-to-business integration

manages the execution of a business function across

multiple existing systems.

The paper is based on the experience from ActGo-

Gate project. In this project developers have used a

few types of integration simultaneously: information

portals, shared business functions, but mostly SOA. It

provides the basis of distributed application

frameworks in which software components are

delivered as modular and reusable services. The

benefits of a SOA approach are evident in the

flexibility of business processes involving loosely

coupled services and resulting potential cost decrease,

reduced complexity, reusability, and high flexibility

(Thies and Vossen, 2009).

A software architecture style which extends SOA

to web-based applications is called Web-oriented

architecture (WOA). This architecture emphasizes

generality of user interfaces and Application

Programming Interfaces (APIs) to achieve global

network effects.

Pautasso (2014) draws attention also to the

Representational State Transfer (REST) architecture.

This architectural style emphasizes the scalability of

component interactions and promotes the reuse and

generality of interfaces. It decreases also coupling

between components. The basic principle of loose

coupling is to reduce the assumption that two parties

(components, applications, services, programs, users)

exchange information with one another (Fowler,

2003). Although REST is usually chosen to build

simple CRUD (create, retrieve, update and delete)

services, there is a possibility to develop REST web

services offering complex services and stateful

behavior (Rauf, 2013). REST comes with 4 basic

principles like: using HTTP methods explicitly, being

stateless, exposing directory structure-like URIs and

transferring XML, JavaScript Object Notation

(JSON), or both (Fielding, 2000).

In practice, the web service typically provides an

object-oriented web-based interface to a database

server, utilized for example by another web server, or

Web Oriented Architectural Styles for Integrating Service e-Marketplace Systems

by a mobile application, that provides a user interface

to the end user.

3 RESEARCH METHOD

During the research process two main research

methods were used. First of them was literature

review, that included both research and professional

books and articles from the area of software

engineering and project management that helps to

build a scientific foundation for the paper.

The applied part of the article is based on the

Consortium Research method (Österle and Otto,

2010a) (Österle and Otto, 2010b). It is the method of

developing research artefacts which applicable in

real-life environments. It is an extension of the

Design Science research method (Österle et al, 2011)

(Myers and Venable, 2014), which is widely used in

IT & business-related research projects. It bases on

the cooperation of practitioners and researchers in

order to develop artefacts possible to be applied in

real-life use cases.

The obtained results are coming from such a

cooperation within a multinational consortium

consisted of research and business partners.

Business partners are supporting the research and

testing the developed research artefacts in the real-life

use cases of service e-marketplace within local

communities, while researchers, beside the creation

process, analyse the feedback and improve the

previous results. The result from the research are real-

life pilot implementations in three cities in Germany

and Switzerland, which support their users by

offering them different occupational opportunities.

4 THE CONCEPT OF WOA

INTEGRATION FOR SERVICE

E-MARKETPLACE

With the evolution of the consumer behaviours in the

Internet, service e-marketplaces gain more and more

popularity. Analyzing the previously identified

requirements there seems to be a strong need for

contributing solutions, which are integrating different

service providers at one place, with convenient and

secure access by the user. Such a solution should take

into account the differentiation of the essence of

particular services and their processing. It influences

on the extent to which the particular processes could

be integrated. The conclusions obtained during the

realization of the research project help in determining

the foundations of the integration of service e-

marketplace.

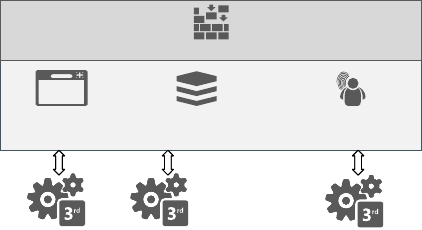

The conceptual illustration is presented in Fig.1.

Figure 1: The high-level concept of integration of the

service e-marketplace.

That concept indicates three main foundations for

integration of service e-marketplaces (clients) under

one system – the integrator (Maciaszek et al, 2017):

 User interface – assuring, by the frontend part of

the application, the rich and seamless user

experience when using an integrator. It should

make the impression of using single and compact

application, not only the gate for different 3

party services / clients.

 Data & business logic – utilizing basic data flows,

like messaging or asset (category, offer) data

retrieved from connected 3

party services /

clients in common data views.

 Security – securing the communication (e.g. with

reliable token-based solutions and using safe SSL

channel) and managing user identity centrally,

where a user can log in once and have access to

all services (incl. clients) of the platform (Single

Sign On). It should utilize popular and reliable

mechanisms of user authentication and manage

permissions within the whole ecosystem.

While the first foundation is related only to front-end

adaptations within a particular system in compliance

with the given standard, the two deeper ones depend

strongly on data exchange and communication

between clients and the integrator (Maciaszek et al,

2017).

The communication integrator – 3

party service

within data and security integration should be based

on WOA principles and loose coupling paradigm,

which meet the marketplace requirements in the most

complete way. In fact, dependent on the function

analyzed, the communication could be initiated with

a particular request by both sides.

User interface

Data & business

logic (API)

Security

…

party

service

(client #1)

party

service

(client #2)

party

service

(client #n)

Integrator

User interface

Data & business

logic (API)

Security

…

party

service

(client #1)

party

service

(client #2)

party

service

(client #n)

Integrator

Seventh International Symposium on Business Modeling and Software Design

The basic communication schema is presented in

Figure 2:

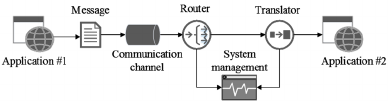

Figure 2: The communication between application within

the integrated solution (Hohpe, 2004).

The communication process that occurs between

two applications within the integrated system, begins

with construction of the message. It should be

possible to understand by both sides in the given

context and needs to be transported via common

communication channel, which is HTTP in case of

REST web services. REST uses HTTP standard

methods (GET, POST, PUT, DELETE, OPTIONS) to

call for resources. Combination of the method, the

Uniform Resource Identifier (URI) and some

additional parameters (required or optional) sent via

HTTP causes that the particular operation (explicitly

indicated by the chosen method) is performed and the

response message is sent with requested resource in

various formats: Text, JSON or XML (JSON is the

most widely used). Router in that process could be

responsible for redirecting messages to the correct

places. On the other hand, the translator’s role is to

decode the message, validate it and convert it to the

form acceptable by the other application. System

monitoring is a supportive actor in the process and is

responsible for overseeing the data flow, verifying the

status of all participants of the process, logging and

reporting errors.

Service e-marketplaces require a set of endpoints

within two last foundations previously mentioned:

data & business logic as well as security. The first one

involves mostly endpoints for each objective entity

(like category or offer, where operations are defined

by particular HTTP methods), while the second one –

user endpoint and all supportive entities which help

to authenticate him and grant proper privileges.

Among those entities common structural elements

should be defined and they should be treated as the

basis for the integration. When, for example, the

integrator is allowed to call directly the 3

party’s

web service of creating a new instance of the entity (a

concrete object) with the set of common data, this

web service will be responsible for filling the missing

specific data for that 3

party application. It can do it

automatically, or ask user for necessary additional

information. The data & business logic foundation in

more homogenous environments could also handle

with integration of transactional entities (like

appointment, order, recruitment, event, project etc.),

however in general those entities are fundamentally

diversified (as mentioned in the introduction) and

there is a real challenge to find the commonly

accepted solution for that problem. That is why in

such systems it is allowed to let some processes to be

performed only in 3

party services (and use the

information portal integration type for displaying 3

party’s view within the integrator view), which are

fully specialized in such processes.

5 THE CONCEPT OF THE

INTEGRATION PROCEDURE

The process of software integration is very similar to

every other software development process, however

usually involves more actors as well as requires more

arrangements and iterations caused by unexpected

problems on 3

party side. That is why common

understanding on all sides is very important factor for

the final success of the integration. It can be achieved

via preparing good documentation and using popular

web standards and design patterns in the

implementation.

Classic software development lifecycles are

usually performed in compliance with architecture-

first design paradigm (Booch, 2007). Initial

architecture should provide fundamental concepts or

properties of a system and usually consists of elicited

elements, relationships, and the principles of its

design and evolution (IEEE/AWG, 2017): However,

the rapid expansion of agile software development

techniques in recent years caused that the initial

concepts are changing during the project. The short

development cycles in agile (Agilemanifesto.org,

2001) and lean techniques (Poppendieck and

Poppendieck, 2003) are bringing new functions / new

versions of the application which can be quickly

implemented, deployed and validated each time by

real users or project collaborators. The input from

real-world tests provides architects and developers

with new requirements (remarks to the way of

satisfying already known needs as well as new needs

which are emerging). Those new requirements can

change the initial concept significantly from the

original version. That is why some agile techniques

diminish the importance of the rich architectural

documentation and limit it to the minimum. However,

still the architecture is the most important way of

getting the common clear understanding how the

system works for all stakeholders, even non-technical

ones.

Web Oriented Architectural Styles for Integrating Service e-Marketplace Systems

Some agile techniques, like Agile Model-Driven

Development (Eliasson et al., 2014) (Kulkarni et al

(2011) has successfully combined agile with the

approach of defining the abstract specification, which

finally will be transformed into the implementation in

compliance with the given architecture. Taking their

experiences as well as the concept of WOA-oriented

architecture modelling proposed by Thies and Vossen

(2009) a procedure of developing an integrated

system is proposed (Fig. 3).

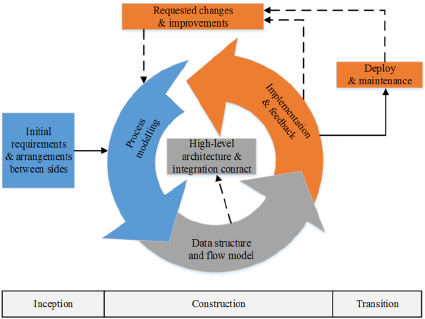

Figure 3: The procedure of developing an integrated system

in Agile approach.

The proposed concept is based on Disciplined

Agile Delivery (DAD) framework (DAD, 2014) It is

a three-phase lifecycle, where a consumable solution

is built over time. The process of integration begins

with the inception phase, where the first requirements

are gathered. In the meantime first arrangements

between integration sides are made. Usually those

arrangements are the basis for the integration

contract, which finally will include basic parameters

and uniquely identifies the access interface.

Having such a starting point the first iteration of

construction phase can be started where the integrated

business processes are modelled, usually in

commonly understandable notation like BPMN

(Business Process Modelling Notation). The involved

systems and business roles should be identified and

the detailed processes should be constructed. That

step will show the complexity of the particular

processes and help to identify all parties involved.

In the second step the basic data structures and

flows are designed. The achievements of this step,

together with the high-concept architecture schema,

constitute the architectural documentation of the

integrated system. All tasks within the flows, which

require communication of at least two parties, should

be described in a way that was arranged in the

inception phase by all parties. The WOA concept is

promoting an easy way of documenting APIs and

therefore the WADL (Web Application Describing

Language) gains popularity. The well-structured

documentation in commonly-understood notation is

an important factor for the better performance of the

whole project. There are also many tools that enable

the automation of the API documentation (like

Swagger, Apiary, Apigee, Sphinx and so on), which

could be useful especially in large-scale projects..

Third step is the implementation of the previously

documented APIs by all sides involved and

consequently bringing the WOA to life. The API

owner implements proper web services and binds

them to the process while other parties are

implementing the necessary changes on their side,

which make it possible to consume API. When the

process is completed a series of tests should be

performed to indicate possible errors in the

communication between parties or in the data

processing. The results from tests should be gathered

and requested changes and improvements in

particular processes should be reported. That will

constitute the foundation for performing the next

iteration within the construction phase. First iteration

usually covers the most important processes and

structures, while further ones introduce next features.

The third phase, the transition, includes the

deployment and maintenance of the developed

system. In a result the integrated system is available

to its stakeholders who are allowed to use it in

practice. According to lean software development

technique, this phase should be initiated as soon as

possible with a minimum viable product (MVP).

MVP usually offers basic processes and is usable in

its narrow scope. Then users can provide feedback

from real-life usage. Their remarks could lead to

important decisions about changes. New

requirements are then provided to the construction

phase which run the iteration with taking into account

the new setup. If there are any changes affecting the

high-level architecture, it also should be adapted to

the new requirements to keep the architectural

documentation up-to-date, what is extremely

important for assuring the quality of the continuous

development.

Seventh International Symposium on Business Modeling and Software Design

6 IMPLEMENTATION – AN

INTEGRATED SERVICE E-

MARKETPLACE FOR

OCCUPATIONAL

OPPORTUNITIES

Service e-marketplaces and their integrations

generate many challenges for software architects and

developers. This chapter contains the demonstration

how the practical problem was solved in the particular

service e-marketplace, using WOA architectural

style. The essence of the e-marketplace, which is

taken into consideration, is to provide occupational

opportunities to elderly people. Specific offers are

provided to them by separate specialized services:

appointment coordination system (processing such

types of offers as services and demands, developed in

Python) and recruiting service (processing voluntary

jobs, developed in Java). Users should be able to

browse occupational offers as well as create their own

offers and manage them. They should also be able to

perform transactions (request for appointment, apply

for job) and receive notifications about particular

actions within the system. The application provides

Single Sign On feature to users. More about this topic

was discussed in (Kutera, 2016). The integrating

application is built mainly on top of Laravel (PHP)

and AngularJS (JavaScript) frameworks. The high-

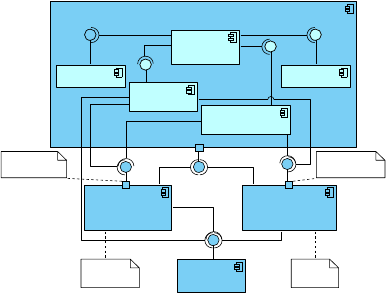

level architecture of the integrated solution is

presented in Figure 4.

Figure 4: The high-level architecture of the integrated

solution.

Because of the scale of the project for

demonstration purposes one representative endpoint

was chosen. The endpoint for offer synchronization is

most important from utilitarian point of view. It

allows for gathering offers from different sources and

enables them to be displayed in a convenient form for

users. It also allows for keeping the offer data

structure consistent.

The previously described procedure for building

the integrated solution for service e-marketplace

begins with eliciting initial requirements for the

integration process in the inception phase. For

demonstration purposes they have been limited only

to those connected with offer endpoints:

 Client applications repository,

 Adding an entity of neighborhood with its

mapping with client neighborhoods,

 Central categorization of offers with category

mapping from client categories,

 Support for registration of new offering,

 Support for management/editing of offerings via

the Gate application,

 Search for offers with advanced tools,

 Browsing the catalogue with available filters,

 Presence of the common map view,

 Availability of news feed.

Not all of them are affecting the direct process of

offers synchronization so they will be omitted in

further discussion.

The most important business rules for the offer

entity are following:

 offer has to be assigned to at least one

neighborhood and category,

 offer has to be mapped with client offer index,

 offer has to be owned by one or more users;

 offer is obliged to have geographical coordinates

set for displaying it on map,

 offer which don’t have any active owner or

assignment to an active category or

neighbourhood has to be softly deleted.

Next, there is a basis for running the first iteration of

the construction process. First, the business process is

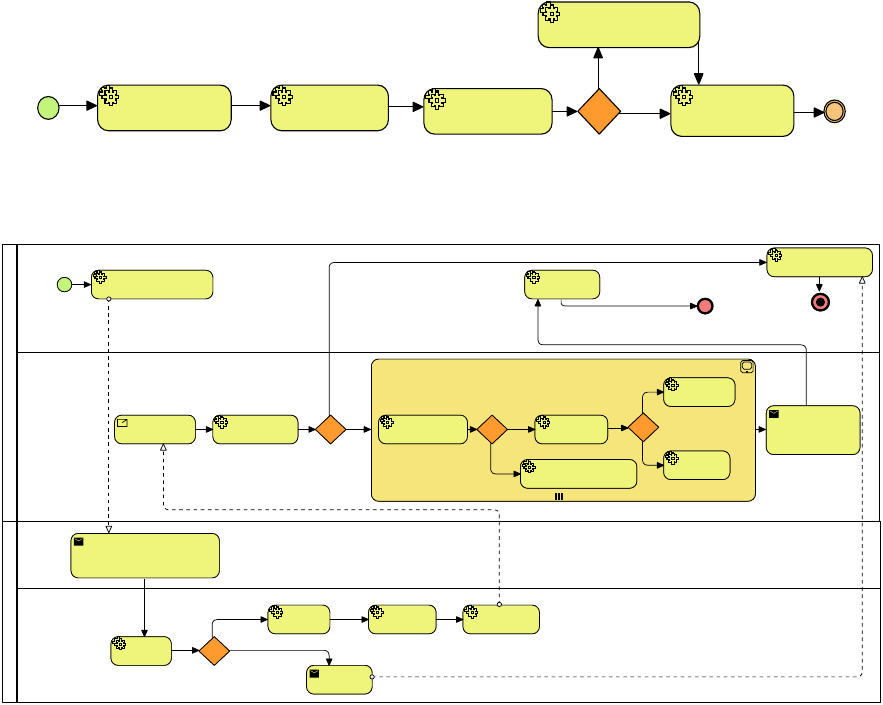

being modelled (Fig. 5 and Fig. 6). The most

important is the fact, that before the direct request for

offer is sent, neighborhoods and categories are

synchronized (Figure 5). The synchronization process

is invoked automatically with using CRON

mechanism at a certain frequency. One of the

assumptions, arranged in the integration contract, is

the focus on the transmission of the small pieces of

information frequently to keep the consistency of the

data within all systems. That is why the data flows

contain only information about recent changes (added

as well as modified or deleted offers).

<<component>>

INTEGRATOR

<<component>>

CORE

APPLICATION

<<component>>

CMS VENDOR

<<component>>

USER VENDOR

<<component>>

SYNCHRONI ZATION

VENDOR

<<component>>

DATA VENDOR

<<component>>

CORE

APPLICATION

<<component>>

CMS VENDOR

<<component>>

USER VENDOR

<<component>>

SYNCHRONI ZATION

VENDOR

<<component>>

DATA VENDOR

<<component>>

CLIENT #1

<<component>>

CLIENT #2

<<component>>

SSO AUTH

SYSTEM

Appointment

Coordination

stem

Recruiting

System

synchronization

and user endpoints

synchronization

and user enpoints

Web Oriented Architectural Styles for Integrating Service e-Marketplace Systems

Figure 5: The high-level process of overall synchronization task.

Figure 6: The low-level process of offer synchronization task.

The request for the offer synchronization (Fig. 6)

is invoked automatically by CRON server tool (from

CRONtab entry). The request is sent to the router

(discovery API). It redirects it to the proper URI and

the procedure of building the collection of offers and

converting it to the JSON format is performed. As the

web service get the parameter “FROM::” each offer

is checked whether timestamp of last update

operation fits the requested period (if the parameter is

missing, all offers are added to the collection – this

path is allowed for special maintenance purposes). If

the collection is ready, it is being sent to the

synchronization endpoint of the integrator. It

validates the request for syntax (expected structure

and data types) and verifies dependencies

(neighborhood, category, user). If any dependency is

returning errors (e.g. doesn’t exist, aren’t mapped),

the offer is omitted and it is recorded in log files. If

validation is successful the offer is being processed:

the offer is being subjected to decoration (conversion

to the form, in which data could be stored into the

integrator’s database). Decorator is also adjusting the

timestamps and checking the availability status of the

offer. If the offer already exists in the database (was

only updated in the client), it is updated in the

integrator’s database. If the offer doesn’t exist, it is

added. Log counters are also updated. All offers from

the collections are checked within a multiinstance

loop and if it ends the synchronization result is

logged. If any error occurs the respective status in

logger database is set and the counter is updated. If

the counter reach a limit value, the problem with

synchronization is reported to the administrator.

In the next step of the process the four services

(that were recognized before as necessary to be

implemented in clients) were designed and described

in REST/JSON notation. They are: neighborhood

endpoint, category endpoint, offer endpoint and offer

IDs endpoint. Due to the capacity limitations of the

paper, only the offer endpoint will be discussed. The

request and response are taking the form of:

CRON task

invoked

Synchronize

neighborhoods

Synchronize

categories

Synchronize

offers

Log the status of

synchronization

Synchronization

finished

Does client have

a hard deletion

method?

Synchronize deleted

offers

Integrator

synchronization

vendor

Receive the

response

Validate the

response

Is the

response

vaild?

Items processing

Check item

dependencies

Are all

dependencies

correct?

Log the

dependency error

Decorate

item data

Does the

item exist?

Update

the entry

Create

new entry

Send

synchronization

result

core application

CRON

task invoked

Request for offer

synchronization

Log the error

Log the

result

Synchronization

session completed

Synchronization

terminated

synchronization

vendor

Receive the

response

Validate the

response

Is the

response

vaild?

Items processing

Check item

dependencies

Are all

dependencies

correct?

Log the

dependency error

Decorate

item data

Does the

item exist?

Update

the entry

Create

new entry

Send

synchronization

result

client

router

Redirect the request to the

synchronization endpoint

synchronization

endpoint

Decorate

data

Build the

response

Collect

offers

Is the request

vaild?

Validate

request

Report

error

router

Redirect the request to the

synchronization endpoint

Redirect the request to the

synchronization endpoint

Receive the

response

Validate the

response

Is the

response

vaild?

synchronization

endpoint

Decorate

data

Build the

response

Collect

offers

Is the request

vaild?

Validate

request

Report

error

Decorate

data

Build the

response

Collect

offers

Is the request

vaild?

Validate

request

core application

CRON

task invoked

Request for offer

synchronization

Log the error

Log the

result

Synchronization

session completed

Synchronization

terminated

CRON

task invoked

Items processing

Check item

dependencies

Are all

dependencies

correct?

Log the

dependency error

Decorate

item data

Does the

item exist?

Update

the entry

Create

new entry

Request for offer

synchronization

Log the error

Check item

dependencies

Are all

dependencies

correct?

Log the

dependency error

Decorate

item data

Does the

item exist?

Update

the entry

Create

new entry

Send

synchronization

result

Log the

result

Report

error

Synchronization

session completed

Synchronization

terminated

Seventh International Symposium on Business Modeling and Software Design

The request:

GET http://clientapplication.com/

<AGG_API>/<API_VERSION>/offers[?fr

om=<TIMESTAMP>]

The response:

Content-Type: application/json [{

"client_offer_id": 455,

"client_users": [33],

"client_categories": [12,15],

"client_neighborhoods" : [5,6],

"is_recommended" : 0,

"is_active": 1,

"name": "Lorem ipsum dolor sit",

"type": "JOB",

"description": "Etiam malesua … ",

"image_url": "image_url",

"localization": {

"latitude": 47.427438,

"longitude": 9.376254,

"apartment_no": "33/5",

"street": "Kolorowa",

"city": "Warszawa",

"zip_code": "22-001",

"country": "Poland",

"language": "en-GB",

"created_at": 1456733752,

"updated_at": 1456733752,

"expired_at": 1456733752,

"deleted_at": 1456733752,

}]

The integrator is waiting for HTTP response and

only the code 200 is treated as a success. All other

answers are logged. Also the detailed restrictions for

the particular fields are described (i.e. the expected

data types, the policy of using null value, enum.

values etc.).

Both sides (development teams of the integrator

and the client) owning complete documentation, have

to implement the code to handle these operations on

such structures. The integration is performed using

Laravel framework and vendor-based architecture. So

the synchronization middleware takes the form of a

vendor which collaborates directly with integrator’s

database via Eloquent ORM. The previously

mentioned mapping of neighborhoods and categories

could be performed in the administration panel using

simple drag&drop feature. The mapping of users is

being done automatically after the registration.

It is very important to setup of all participants (the

integrator as well as clients) in the proper way.

The integrator offers a client repository where

basic configuration data is stored (i.e. the URI of

discovery API, URL’s dynamic patterns

(parametrized) for CRUD operations on particular

types of offers, information about deletion policy,

etc). That all makes the communication process easy

to configure and helps in avoiding problems in

synchronization.

7 CONCLUSIONS

The integration using WOA principles is very

efficient and lightweight. Clear structure of requests

and responses, explicit usage of HTTP methods and

the independence from any programming language

make this concept very pragmatic for developments

teams.

The paper discussed process of building the

integrated solution for service e-marketplace. The

applied consortium research method has shown that

there are many challenges that need to be overcome.

The proposed loosely coupled integration based on

three foundations: UI, data&business logic and

security can provide users with rich and seamless

experiences. It makes feeling of using one application

instead of working with several systems. Thanks to

Single Sign On authentication mechanism

(OpenIDConnect) they do not have to put their

credentials several times. The offers are gathered in

one place, may be compared, added or managed on

one window. The users can be informed about any

operation on their account immediately via three

parallel channels: the application notifications, SMS

and e-mail. From the business point of view

integration of service e-marketplaces can also bring

profits to professional service providers, as they are

able to reach much more potential customers.

Further research in the area of using WOA-based

integration will concentrate on ways of securing the

communication as well as sharing permissions

between the integrated systems. Authors will also

verify the current concept in the next real-life

implementations and will adapt it in order to reach a

satisfying level of its universality.

REFERENCES

Agilemanifesto.org, 2001. Principles behind the Agile

Manifesto, http://agilemanifesto.org/principles.html.

Booch, G., 2007. The Economics of Architecture-First,

IEEE Software, Sept./Oct., pp.18-20.

DAD, 2014. Disciplined Agile 2.X,

http://www.disciplinedagiledelivery.com/lifecycle/.

Eliasson U., Heldal R., Lantz J., Berger C.,2014. Agile

Model-Driven Engineering in Mechatronic Systems -

An Industrial Case Study. In: Dingel J., Schulte W.,

Ramos I., Abrahão S., Insfran E. (eds) Model-Driven

Engineering Languages and Systems. MODELS 2014.

LNCS, vol 8767. Springer.

Web Oriented Architectural Styles for Integrating Service e-Marketplace Systems

Fielding, R. T.,2000. Architectural styles and the design of

network-based software architectures (Doctoral

dissertation), University of California, Irvine.

Fowler, M., 2003. Patterns of Enterprise Application

Architecture, Pearson Education Inc.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 2008.

Inżynieria oprogramowania: Wzorce projektowe. Sec.

ed. Warszawa, WNT.

Hohpe, G., Woolf, B., 2004. Enterprise Integration

Patterns, Addison-Wesley.

IEEE/AWG, 2017. ISO/IEC/IEEE 42010:2011, Systems

and software engineering — Architecture description

http://www.iso-architecture.org/ieee-1471/defining-

architecture.html

Kulkarni, V., Barat, S., Ramteerthkar, U., 2011. Early

experience with agile methodology in a model-driven

approach. In: Whittle, J., Clark, T., Kuhne, T. (eds.).

MODELS 2011. LNCS, vol. 6981, pp. 578–590.

Springer, Heidelberg.

Kutera R., Gryncewicz W., 2016. Single sign on as an

effective way of managing user identity in distributed

web systems. The ActGo-Gate project case study. In:

Business Informatics (in print).

Łysik, Ł., Kutera, R., Machura, P., 2015. Social

Collaboration Solutions as a Catalyst of Consumer

Trust in Service Management Platforms - A Research

Study. In: Abramowicz, W.(ed.). Business Information

Systems, LNBIP, Springer International Publishing

Switzerland, pp. 220-232

Maciaszek, L., Gryncewicz, W., Kutera, R., 2017.

Integrated Service E-Marketplace for Independent and

Assisted Living – Business and Software Engineering

Challenges. In: Shishkov B. (ed.): Business Modeling

and Software Design. Revised Selected Papers, LNBIP,

vol. 275, 2017, Springer.

Myers, M. D., Venable, J. R., 2014. A set of ethical

principles for design science research in information

systems. Information & Management, 51(6), pp. 801-

809.

Österle, H., Otto, B., 2010a. Consortium Research.

Business & Information Systems Engineering. 2(5)

283-293.

Österle, H., Otto, B., 2010b. Relevance through Consortium

Research? Findings from an Expert Interview Study. In:

Winter, R., Zhao, J.L., Aier, S. (eds.). Global

Perspectives on Design Science Research pp. 16-30.

Österle, H., Becker, J., Frank, U., Hess, T., Karagiannis, D.,

Krcmar, H., Loos, P., Mertens, P., Oberweis, A., Sinz,

E. J., 2011. Memorandum on design-oriented

information systems research. European Journal of

Information Systems. 20(1), pp. 7-10.

Pautasso, C., 2014. RESTfulWeb Services: Principles,

Patterns, Emerging Technologies. In Bouguettaya, A. et

al. (eds.) Web Services Foundations, Springer

Science+Business Media, pp. 31-50.

Poppendieck, M.; Poppendieck, T., 2003. Lean Software

Development: An Agile Toolkit. Addison-Wesley.

Rauf, I., Siavashi, F., Truscan, D., Porres, I., 2013. An

Integrated Approach to Design and Validate REST Web

Service Compositions. Technical Report 1097.

Thies, G., Vossen, G., 2009. Modelling web-oriented

architectures. In:

Proceedings of the Sixth Asia-Pacific

Conference on Conceptual Modeling-Volume 96 (pp.

97-106). Australian Computer Society, Inc..

Vosloo, I., Kourie, D. G., 2008. Server-centric Web

frameworks: An overview. Computing Surveys

(CSUR), 40(2).

Seventh International Symposium on Business Modeling and Software Design
