An Approach for Transforming IT-Network Diagrams into

Enterprise Architecture Models

Daniel Maciejewski and Nicolas Mayer

Luxembourg Institute of Science and Technology, Esch-sur-Alzette, Luxembourg

maciejewski.dani@gmail.com, nicolas.mayer@list.lu

Keywords: Network Diagram, Enterprise Architecture Model, ArchiMate, Model Transformation, CISCO.

Abstract: Enterprise Architecture (EA) models propose to capture the activities of an organization, going from its

business aspects to its IT infrastructure. Such an approach is promising to support reasoning on specific

concerns, especially those relying on the business-to-IT stack, such as enterprise transformation, security, IT

investment, etc. However, most of the organizations do not have existing EA models, and are reluctant to

establish them, especially from scratch, mainly due to the length and complexity to do so. Our insight is that

we can leverage on network diagrams, one of the most common kind of models available in organizations, to

generate part of EA models. In this paper, we propose an approach to transform network diagrams into EA

models. In this context, we focus on CISCO as the reference for network concepts, and ArchiMate as the

standard modelling language for EA.

1 INTRODUCTION

Enterprise Architecture Management (EAM) has

shown to be a valuable and engaging instrument to

face enterprise complexity and the necessary

enterprise transformation (Saha, 2013; Zachman,

1987). It offers means to govern enterprises and make

informed decisions: description of an existing

situation, investigation and expression of strategic

direction, analysis of gaps, planning at the tactical and

operational level, selection of solutions, and

architecture design (Op’t Land et al., 2008). As part

of a global EAM adoption, describing Enterprise

Architecture (EA) with a suited language (i.e. EA

modelling) is considered as a key activity (Lankhorst,

2005) and the scope of our paper is focused on this

concern.

However, the current problem is that most

organisations pay few attention to the modelling of

their structure. Among the current limitations to a

broader adoption of EA modelling, we particularly

noticed (Lankhorst, 2005):

 EA modelling is a complex task and requires

specific skills

 EA modelling is a time consuming task, especially

when started from scratch

 There are numerous and disregarded modelling

tools that can be used

To deal with these issues, our main assumption is

that the reuse of existing material (i.e. existing

models) would help in the development and adoption

of EA models and also reduce their development

length. In this context, IT network diagrams are usual

existing material in the structure of an organization,

and appear to be a good basis to EA modelling.

Indeed, each structure needs network models in order

to support infrastructure design and most of them

have them available.

In this paper, our aim is to propose an approach to

use IT network diagrams to generate (part of) EA

models. Our insight is that it is a relevant and realistic

beginning to develop EA models, allowing saving

time by accelerating part of the EA modelling tasks.

It is worth to note we consider that such an approach

would never produce complete and satisfactory EA

models, but we see it as an interesting trigger to start

the design of such models. In order to limit the scope

of this project, we will focus on ArchiMate (The

Open Group, 2013) as the exploited EA Modelling

Language (EAML), but we are aware that others

could be relevant too (BPMN (Object Management

Group, 2011), UML (Fowler, 2003), etc.).

This paper is structured as follows. In the

subsequent section, we provide some background

knowledge about the main literature we use: CISCO

as a de facto standard for Network Architecture

Design and the ArchiMate Language, especially its

186

technology layer. Section 3 describes the first step of

our research method that is the definition of a network

concept classification, followed, in Section 4, by the

integration of these concepts into ArchiMate. We

finish with concluding remarks and future work.

2 BACKGROUND

2.1 CISCO as a de facto Standard for

Network Architecture Design

Network architecture design is the science to design

good networks, making them safe and available

(Stewart et al., 2008). IT Network concepts are

numerous, especially because of the number of

different technologies, products, companies, etc. We

found a lot of information in uncertified articles or

unprofessional tutorial to design a network diagram.

However, to the best of our knowledge, there is a lack

of standard or reference model depicting the concepts

at stake, and in our context, it is a major issue. The

current state-of-practice is actually the use of

technology-specific terms and concepts. By

reviewing major modelling software proposing

network architecture modelling features (VISIO,

Gliffy…), our conclusion is that CISCO is considered

as a de facto standard. Hence, we decided to focus on

CISCO concepts, expecting to cover a major

proportion of existing concepts. The survey of

literature for network architecture is consequently

focused on CISCO. We distinguish three main

sources of reference material related to CISCO:

 CISCO documentation: a set of documents

listing main CISCO network concepts (e.g.

Technology, protocol, or product). In this

category, we identified the following documents:

CISCO Iconography (Cisco Systems Inc., 2014),

CISCO Product Quick Reference Guide (Cisco

Systems Inc., 2013).

 CISCO Website: the CISCO website is a field-

based source. It is the first interface between

CISCO up-to-date products and clients.

 Modelling Software: most of modelling software

uses modelling set of objects called “stencils”, one

among the available ones being generally based

on CISCO concepts. We have only used those for

which the CISCO stencil was sufficiently

developed and specified, and we have set apart the

others (e.g. Microsoft VISIO). The analysed

modelling software are:

o Gliffy (Gliffy, 2017): Gliffy is a cloud-based

diagramming web application founded in

2005, allowing collaborative work. In our

work, we focus specifically on the library

concerning CISCO objects.

o CISCO Packet Tracer (Cisco Systems Inc.,

2017): Packet Tracer is a simulation program

allows users to create network topologies and

reproduce nowadays computer networks.

2.2 ArchiMate Technological Layer

Enterprise Architecture (EA) is defined as a coherent

whole of principles, methods, and models that are

used in the design and realisation of an enterprise’s

organisational structure, business processes,

information systems, and infrastructure (Lankhorst,

2005). To provide a uniform representation for

diagrams that describe EA, the ArchiMate modelling

language (The Open Group, 2013) has been produced

by The Open Group, an industry consortium

developing standards. It offers an integrated

architectural approach to describe and visualize the

different architecture domains and their underlying

relations and dependencies. The role of the

ArchiMate standard is to provide a graphical

language for the representation of EA over time, as

well as their motivation and rationale. It is today a

widely accepted open standard for modelling EA

(Vernadat, 2014), with a large user base and a variety

of modelling tools that support it.

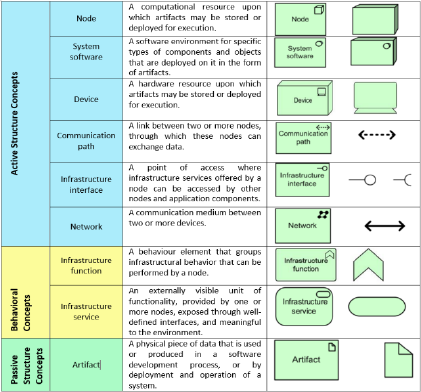

Figure 1: Definitions and visual representation of concepts

of the ArchiMate technology layer.

ArchiMate proposes a 3-layered architecture for

structuring its core concepts: the Business Layer,

Application Layer, and Technology Layer. In our

perspective focused on the modelling of network

An Approach for Transforming IT-Network Diagrams into Enterprise Architecture Models

187

infrastructure, we will particularly analyse the

Technology Layer that provides infrastructural

services needed to support business. Figure 1,

extracted from the ArchiMate 2.1 Specifications (The

Open Group, 2013), gives an overview of the

Technology Layer concepts, including definition and

visual representation for each concept.

3 ALIGNMENT AND

INTEGRATION BETWEEN

CISCO AND NETWORK

CONCEPTS

Alignment between CISCO and network concepts is

the first phase of our contribution. First, for each

analysed literature reference, we need to determine

concept classes (i.e. a concept classification for each

literature reference). Each class can be seen as a set

of modelling objects (or instances of generic

concepts) and the set of classes creates a taxonomy of

network concepts of a given literature reference.

Then, we need to map the defined taxonomies

together thanks to a classification methodology. The

objective of this alignment is to propose a

consolidated list of network generic classes. The

classification methodology uses refinement cycles

based on criteria to do the most relevant arrangement

between network classes. Thus, each chosen

classification pass through each criterion cycle, which

correspond to different levels of details and analysis:

 Syntax: the first level is the semantic analysis of

the class i.e. name’s similarities or spelling

syntax. For example, a grouping called “Routing”,

can easily be associated to another grouping

called “Routers”.

 Network subdomains: the second level of

analysis aims at determining, for each instance of

the class, to which network fields it belongs. For

example, “Connecting Safety and Security” gather

physical security concepts (doors, cameras, etc.)

and IT security concepts (firewall, guards, etc.). It

helps us to exclude concepts which are out of our

scope (in that case Physical Security concepts).

 Functionality: To remove any ambiguity, a

detailed analysis of each instance functionalities

is required. In fact, an instance can belong at a

time to different classes (or to different network

subdomains). There is a need to analyse

objectively to which class each instance belongs

the most. For example, a wireless router can

belong to the “Wireless class” and to the “Router

class”. Thanks to the predominant functionality,

we can say that a wireless router is a router and

effectively belong to the “Router class”.

We mainly focus on the most relevant sources of our

survey, in order to make these “instance’s groups” the

most significant towards the network engineering

field. First, we focus on the CISCO Documentation

(Cisco Systems Inc., 2014, 2013), also including the

CISCO website. Then, we chose Gliffy Online

Platform (Gliffy, 2017), and finally, the simulation

software CISCO Packet Tracer (Cisco Systems Inc.,

2017). Then, we applied the classification

methodology described previous1y on each

reference, to refine the network classification. The

output of the process creates a classification for our

instances. We’re getting the so-called “Network

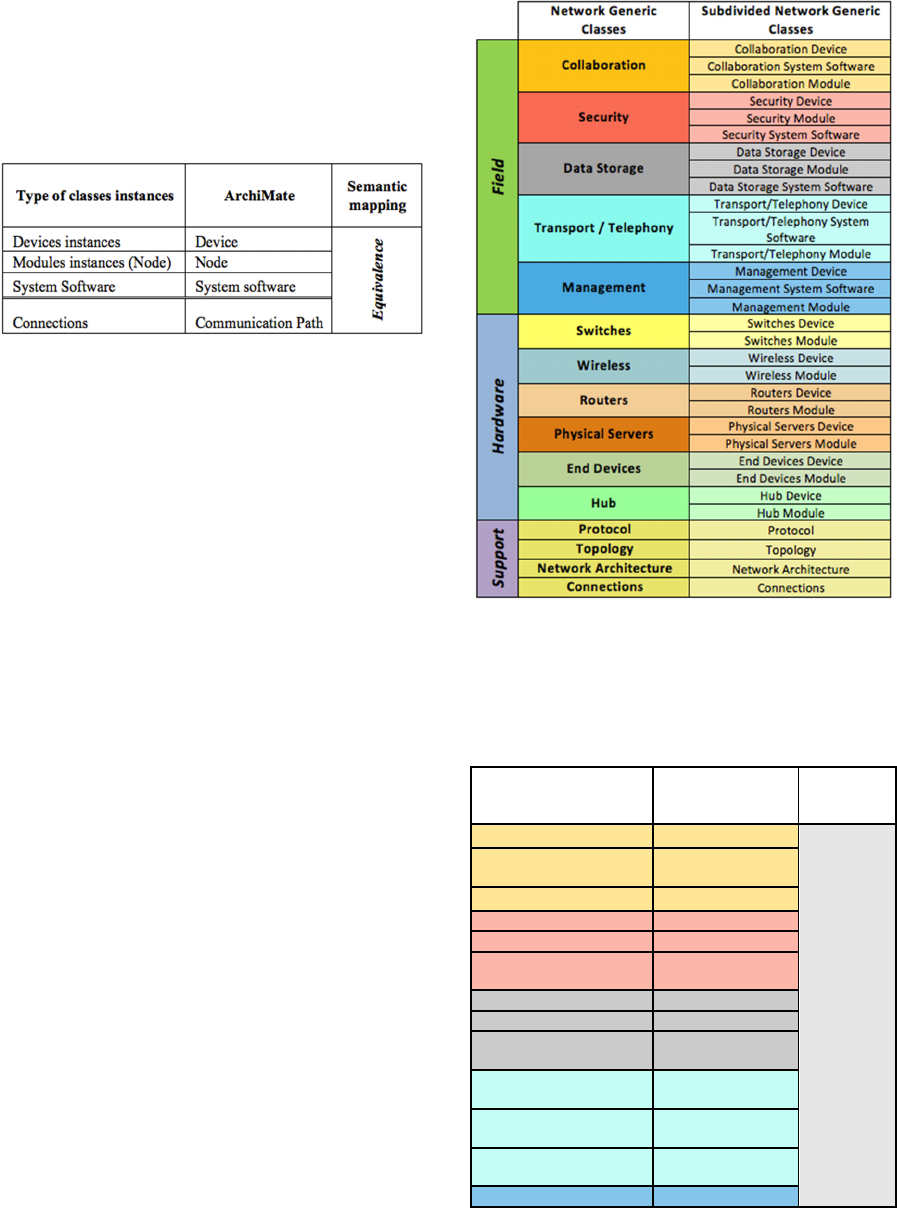

concepts classification”, presented below.

This consolidated list expresses main CISCO-

based generic network concepts. By using this

classification, we will be able for instance to classify

other concept’s instances coming from other brand

models. We use a granularity generic enough, which

allows us to have a viable classification on time. We

give a description for each class of our network

concepts classification and examples of what we find

in each of them:

Collaboration: It regroups all instances that aim with

the teamwork. We find conferencing devices, IP

phones, communicating software, etc.

Security: This class regroups all security products

including physical security and IT security. Thus, we

have devices such as monitoring cameras, firewalls,

etc. Also, we can find some security software

products (e.g. IOS Firewall).

Switch: The class gather all different types of

switches that exist in some various forms depending

on the technology used or the functionalities

incorporated (e.g. Multilayer Switch, etc.).

Router: The class regroups the various types of

routers (e.g. Router with Firewall, NetFlow Router,

etc.).

Wireless: Collection of wireless devices, or wireless

modules (e.g. access points, WLAN controller, etc.)

Software: This is a class which gather different type

of software solutions, mainly from CISCO. We

especially find system software, like OS.

Transport/Telephony: This class gather all devices

that concern the physical devices of telephony and

transport. We find mainly devices that deals with the

first layer of the OSI model like modems, DSLAM,

etc.

End Device: It concerns end devices like personal

computers, TVs, printers, etc.

Seventh International Symposium on Business Modeling and Software Design

188

Physical Server: It regroups the different types of

existing servers like Web servers, certificates servers,

file servers, etc.

Data Storage: This class is derived from the physical

servers’ class. Indeed, because of the huge number of

existing data storage types’ instances (storage

module, data monitoring software, etc.) it is essential

to distinguish it from the physical devices.

Management: It is a field’s class that gathers

management devices, modules and software. In big

networks, it is crucial to consider management

devices, or management software to access, control,

or monitor devices.

Hub: Similarly, to the Router class or the Switch

class, it regroups hub concepts and instances. This

type of devices is tending to disappear because of the

technological advancement. However, we have to

take into account old networks that could still have

this type of devices.

Protocol: This class is particular because in general,

protocols cannot be depicted in an architecture, apart

from writing the name besides a device or a

connections. However, CISCO has created protocols’

concepts like IP protocols, or FDDI Ring that allow

representing some kind of protocols.

Topology: Such as the protocol class, it is possible to

represent the topology of a network.

Connections: In a network diagram, connections are

represented in different manners. For example, in

CISCO Packet Tracer, we are able to recognize

optical link, wireless communication, etc. This class

collects all type of connections that can be

materialized in a network diagram.

Network Architecture: It represents different types

of network architectures like Cloud, CISCO layered

architecture, etc. In diagrams that use modularization,

it is possible to represent a network architecture

through a dedicated icon representing this concept.

4 CONSTRUCTION OF A

NETWORK-ARCHIMATE

METAMODEL

4.1 Conceptual Alignment

After having analysed CISCO concepts with their

instances, we have created the network concepts

classification following our methodology, as depicted

in the previous section. As a reminder, the goal of our

research work is to use network diagrams so as to

generate a basis of EA models. Therefore, this second

step aims at creating a relationship between our

network concepts classification and ArchiMate

Technology Layer concepts. Thus, in order to

integrate these global concepts (i.e. classes) into the

ArchiMate metamodel, we need to respect the

ArchiMate structure (i.e. rules and concepts) and use

the ArchiMate metamodel as an input. We called this

relationship the “integration step”.

In order to do this, it is necessary to add network

generic classes to the ArchiMate Technology Layer

metamodel. Consequently, we will be able to

represent a network diagram with the ArchiMate

Technology Layer concepts, thanks to the metamodel

rules (i.e. links between concepts of the metamodel).

To allow this conceptual alignment, we use

relationships inspired from the approach of semantic

correspondence between concepts from Zivkovic et

al. (Zivkovic et al., 2007). Themselves inspired by

UML relationships (Fowler, 2003), we explain these

relationships below:

 Equivalence: concept A is semantically

equivalent to concept B;

 Generalisation: concept A is a generalisation of

concept B, i.e. concept B is a specific class of

concept A;

 Specialisation: concept A is a specialisation of

concept B, i.e. concept B is a generic class of

concept A;

 Aggregation: concept A is composed of concept

B, i.e. concept B is a part of concept A;

 Composition: concept A is composed of concept

B (with strong ownership), i.e. concept B is a part

of concept A and does only exist as part of concept

 Association:

concept A is linked to concept B

By confronting each instance (of network generic

classes) with ArchiMate, we realize that we can affect

to each instance one of the Active Structure concepts

of the ArchiMate Technology Layer, i.e. Node,

System software, Device, Communication path,

Infrastructure interface and Network. Actually, the

ArchiMate framework can represent its own network

diagrams, as CISCO, that’s the reason there are some

similarities between our created network generic

classes and Active Structure concepts. Table 1 show

these equivalences we identified. Table 1 presents

two types of equivalences:

 First, we have equivalences between some

instances of (network generic classes) and leaf’s

concepts of the ArchiMate metamodel (Device,

Node, System Software). These latter are the most

used concepts for network diagram conception in

the EA context.

An Approach for Transforming IT-Network Diagrams into Enterprise Architecture Models

189

 Secondly, we noticed that some classes can be

mapped as is to ArchiMate main concepts. For

example, instances of our Connections class are in

some way equivalent to the ArchiMate

Communication Path class instances.

Table 1: Equivalence between type of instances and

ArchiMate concepts.

To use Network generic classes as concepts of

ArchiMate, we have to add our concepts to the

ArchiMate metamodel without modifying its

structure. In fact, we can only improve the metamodel

by specializing ArchiMate concepts or finding

equivalence between both types of concepts. Thus,

there is two relevant relations from Zivkovic et al. we

can use: specializations and equivalences.

Specialization is a type of semantic mapping used

for concepts that are a part of ArchiMate concepts

(see Figure 1). For example, physical router devices

of our Router class are specializations of the

ArchiMate Device concept. Thus, there is a need to

split our network generic classes in order to make

possible the addition of instances to the ArchiMate

metamodel, and thus to be compliant with ArchiMate.

Table 2 expresses the different partitions we had

to make in order to be able to specialize the

ArchiMate metamodel with our concepts. Table 2

presents three main type of classes:

 Network generic classes that are enough generic

to propose Device instances, System Software

instances and Module instances, which are the

most used ArchiMate concepts for network

diagramming in EA context. We called these

classes “Field” because of their huge number of

different type of instances.

 Some network generic classes are specifically

concerning hardware instances. In the ArchiMate

context, it concerns only physical type of

instances (Physical router, End devices, etc.)

 Remaining network classes can’t be divided,

because of too specific instances, such as specific

topologies, or protocol. In that context, it is

irrelevant to subdivide these network generic

classes. We called them the “Support” classes.

Table 2: Partition of network generic classes.

Then, we create a detailed alignment table

between previously subdivided network generic

classes and ArchiMate concepts. Table 3 presents the

semantic mapping:

Table 3: Detailed alignment table.

Subdivided Network

Generic Classes

ArchiMate

Semantic

mapping

type

Collaboration Device Device

Specialization

Collaboration System

Software

System Software

Collaboration Module Module

Security Device Device

Security Module Module

Security System

Software

System Software

Data Storage Device Device

Data Storage Module Module

Data Storage System

Software

System Software

Transport/Telephony

Device

Transport/Telephony

System Software

Transport/Telephony

Module

Management Device Device

Seventh International Symposium on Business Modeling and Software Design

190

Table 3: Detailed alignment table. (cont.)

Subdivided Network

Generic Classes

ArchiMate

Semantic

mapping

type

Management System

Software

System Software

Specialization

Management Module Module

Switches Device Device

Switches Module Module

Wireless Device Device

Wireless Module Module

Routers Device Device

Routers Module Module

Physical Servers Device Device

Physical Servers

Module

End Devices Device Device

End Devices Module Module

Hub Device Device

Hub Module Module

Protocol Interface

Topolog

Network

Network Architecture Network

Connections

Communication

Path

Equi.

4.2 Proposed Network-ArchiMate

Metamodel

Based on the alignment performed, we need to inte-

grate the classes of our network classification into the

existing ArchiMate metamodel, following and

complying with the existing structure and associated

rules. The mapping table permits us to integrate the

concepts into the ArchiMate metamodel. Thanks to

the semantic rules, we are able to propose the

integrated Network-ArchiMate metamodel, as

represented in Figure 2. We give also the example of

Firewall instances, which we scattered into

corresponding type of concept (i.e. Device, System

Software, Module).

5 CONCLUDING REMARKS

The approach presented in this paper aims at

proposing a way to transform network diagrams into

EA models. First, we had to suggest a network

concepts taxonomy that allows us to classify each

network concept and its instances in these generic

classes. Then, by aligning these classes with

ArchiMate concepts, we proposed a metamodel

which allows us to integrate network-specific

concepts with ArchiMate.

The approach presented here, and especially the

integrated metamodel, have been used in a fictitious

case to experiment the transformation from network

diagram to an ArchiMate model. This experiment, not

described here for sake of brevity, has shown that our

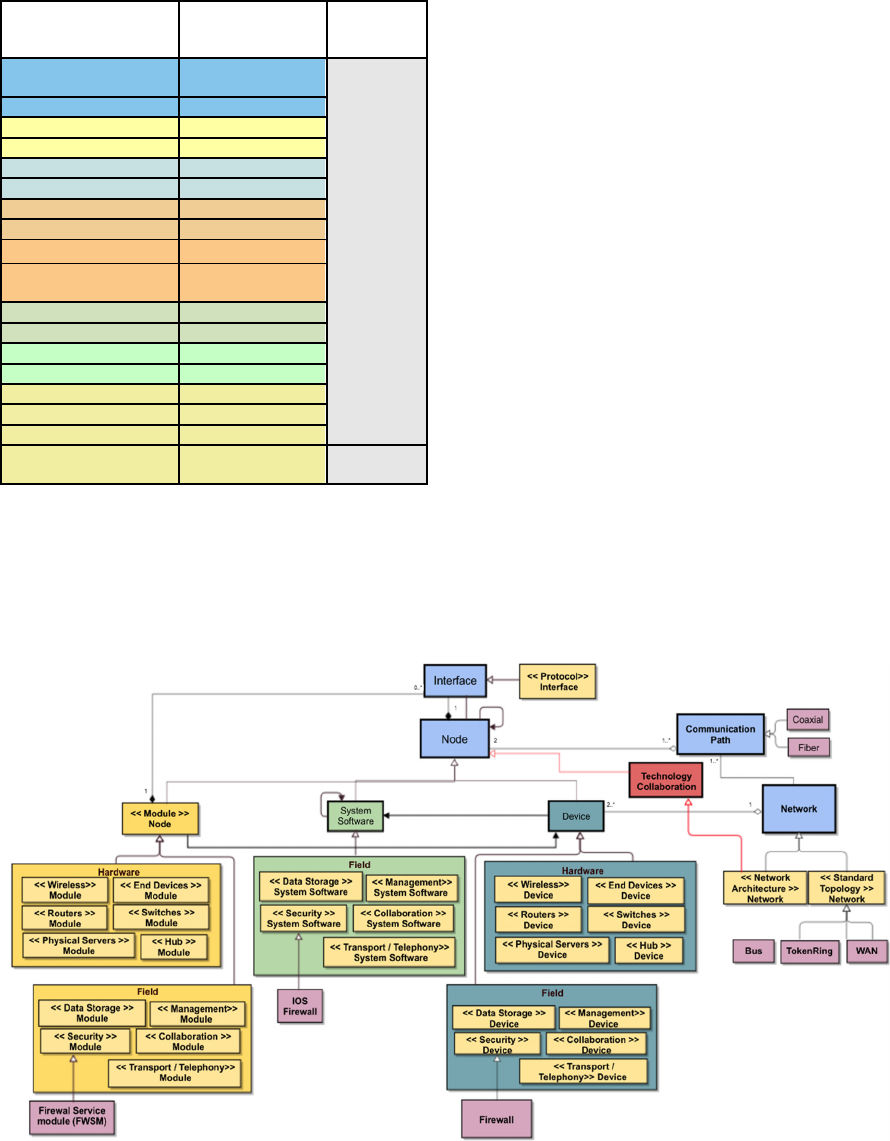

Figure 2: Proposed Network-ArchiMate metamodel.

An Approach for Transforming IT-Network Diagrams into Enterprise Architecture Models

191

approach is applicable. It has also shown some ways

of improvement, such as the introduction of

additional specifications (e.g. a color code) in the

ArchiMate language in order to keep trace of the

original network class, this information being lost in

the transformation proposed. However, no conclusion

can be drawn from this experiment at the level of

soundness and usefulness of our approach in a real-

world context and further validation work is deemed

as necessary to consider our approach as valid.

Regarding future work, we first need to

experiment our approach on a wider and real world

case. Then, it is necessary to assess with users the

relevance of the approach especially at the level of the

soundness of the EA models obtained compared to

the initial network models, as well as their usefulness

as a starting point to design complete EA models.

ACKNOWLEDGEMENTS

Supported by the National Research Fund,

Luxembourg, and financed by the ENTRI project

(C14/IS/8329158).

REFERENCES

Cisco Systems Inc., 2013. Cisco Product Quick Reference

Guide.

Cisco Systems Inc., 2014. Cisco Iconography.

Cisco Systems Inc., 2017. Packet Tracer.

Fowler, M., 2003. UML Distilled: A Brief Guide to the

Standard Object Modeling Language. Addison-Wesley

Longman Publishing Co., Inc., Boston, MA, USA.

Gliffy, 2017. Gliffy Online User Manual.

Lankhorst, M. (Ed.), 2005. Enterprise Architecture at

Work: Modelling, Communication And Analysis.

Springer.

Object Management Group, 2011. Business Process Model

and Notation (BPMN) 2.0.

Op’t Land, M., Proper, H.A., Waage, M., Cloo, J., Steghuis,

C., 2008. Enterprise Architecture - Creating Value by

Informed Governance, Enterprise Engineering.

Springer Berlin Heidelberg.

Saha, P. (Ed.), 2013. A Systemic Perspective to Managing

Complexity with Enterprise Architecture: IGI Global.

Stewart, K., Adams, A., Reid, A., Lorenz, J., 2008.

Designing and Supporting Computer Networks, CCNA

Discovery Learning Guide, 1st ed. Cisco Press,

Indianapolis, Ind.

The Open Group, 2013. ArchiMate® 2.1 Specification (

No. Open Group Standard (C13L)).

Vernadat, F., 2014. Enterprise Modeling in the context of

Enterprise Engineering: State of the art and outlook.

International Journal of Production Management and

Engineering 2, 57.

Zachman, J.A., 1987. A framework for information systems

architecture. IBM Systems Journal 26, 276–292.

Zivkovic, S., Kuhn, H., Karagiannis, D., 2007. Facilitate

Modelling Using Method Integration: An Approach

Using Mappings and Integration Rules. In: Proceedings

of the 15th European Conference on Information

Systems (ECIS 2007).

Seventh International Symposium on Business Modeling and Software Design

192
