Software Interestingness Trigger by Social Network Automation

Iaakov Exman, Avihu Harush and Yakir Winograd

Software Engineering Department, The Jerusalem College of Engineering – JCE – Azrieli, Jerusalem, Israel

Keywords: Software, Interestingness, Trigger, Social Networking, Automation, Randomization, Keywords, Application

Ontology, Knowledge Discovery, Message Frequency, Analytics, Marketing.

Abstract: Social Networking software is perceived as a fast way to engage people with potential interest in a certain

activity. However, interestingness has been defined as a product of a domain relevance – arbitrarily

determined by a person’s tastes – and a surprise – determined by how unexpected is an activity relative to

average activities in the domain. Therefore, one must manage two unknowns to trigger the desired

interestingness: the person tags and the activity description. The person tags are obtained from an application

ontology characterizing the chosen domain. The activity description tries to generate surprises by sharpening

what differentiates it from conventional activities. This paper describes a software tool based upon a social

networking infra-structure and illustrates its quasi-automated usage with inputs of the relevant tags and the

surprising activity for a specific domain, viz. marketing of an Event within a conference. Preliminary results

are analysed and discussed at length.

1 INTRODUCTION

A Social Network is thought to be a rapid medium to

provide information to all its participants, and

selectively engage only those with a potential interest

in a certain activity. Thus, it can select sub-sets of

participants, say for marketing of the referred activity.

In order to effectively use a social network for these

purposes, we make two assumptions.

A first assumption is that one should have a model

of interestingness. Indeed, such a model has been

proposed and tested in a previously published work.

This will be succinctly described in sub-section 1.1.

A second assumption is that one must automate

the social network usage to the maximal possible

extent by means of an infra-structure embodied into a

suitable software tool. One should leave only a few

domain dependent unknowns to be entered as input to

the software tool. These include the characterization

of the human participants with a potential interest in

the desired domain of activity and a description of the

designated activity in which we are focusing.

The overall purpose of this work is to test the

validity of these assumptions, by means of building a

social network software tool, running it on case

studies and demonstrating the plausibility of the

results.

1.1 An Interestingness Model

In previous work (Exman, 2009) we have defined

interestingness as a product – or more generally a

composition – of two functions: relevance and

surprise, the latter being then referred to as

unexpectedness.

Relevance is a measure of the fitness of a specific

item to the characterization of a domain. For instance,

“football” is an entertaining physical activity fitting

the “sport” domain. On the other hand, “chess-

playing” while an entertaining activity, is not

considered a “sport”, essentially because it does not

involve physical efforts.

Surprise is a measure of the distance of a specific

item from the average item in a domain. For instance,

many “sport” activities involve usage of a “ball”, say

football, basketball, tennis, ping-pong, etc. But,

“Badminton” which is certainly a sport, even with

some similarities to tennis, has the unexpected

property that it uses a “shuttlecock” instead of a ball.

Probably the reader is unaware that a shuttlecock has

a crown of feathers!

Formally, the definition of interestingness is

expressed in the following generic equation:

Interestingness Relevance Surprise=∗

)

Exman I., Harush A. and Winograd Y.

Software Interestingness Trigger by Social Network Automation.

DOI: 10.5220/0006591803260333

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KDIR 2017), pages 326-333

ISBN: 978-989-758-271-4

For a better understanding of the interestingness

idea, we mention particular implementations of the

functions used to actually calculate interestingness.

These functions have two sets of keywords as inputs:

one set C characterizes the current activity, the other

set D characterizes the Domain of interest, say by its

average activity.

Relevance can be implemented as a match

function, in which one compares the sets C and D.

The simplest match function outputs a Boolean

variable: its value is 1 if at least one keyword is found

in both C and D, otherwise it is zero valued. More

sophisticated match functions are possible.

Surprise can be implemented as a mismatch

function, say by the symmetric difference

of the

referred sets, calculated as the union

 of the

relative complements of these sets:

()()

Mismatch C D

CD DC

=Δ

=− −

(2)

Thus, this particular interestingness is formulated as:

atch Mismatch

Interestingness

NormF

∗

(3)

The Normalization Factor NormF compensates for

eventual differences of total number of keywords in

the union set

()CD

The definition (1) is suitably adapted to the needs

of the specific application of this paper, as seen in

section 2.

1.2 Social Network Automation

In the original application of the interestingness

definition (Exman, 2009) the arbitrary domain D was

fixed for a given person, whose tastes were known,

say to be interested in basketball. Therefore there was

a single unknown, represented by the variable item C.

The outcome of the calculation was a best fitting of C

to the given D.

In the current application of marketing by means

of a social network there are two simultaneous

unknowns, turning it into a particularly challenging

problem of knowledge discovery. One unknown is

the person which one wishes to interest in a certain

activity. We don't know the different tastes of the

variety of participants in the social network. Thus, the

arbitrary domain D for each person may be slightly

different.

If our application is marketing of e.g. a

Conference event, an industry oriented person may be

attracted by technological state of the art lectures to

keep him up-to-date, while an academic oriented

person may be attracted to the same Conference as an

opportunity to publish a paper. Furthermore, an

academic oriented person may be in his or her early

career stages looking for a doctoral symposium or be

a known professor in later career stages, with

different interests.

The second unknown is the characterization of the

specific activity C. In a same conference one may

have research lectures, doctoral symposium,

industrial keynotes, posters, and commercial exhibits.

Having simultaneously two kinds of unknowns

implies that a software tool to perform marketing in a

social network environment should have in its design

an automation mechanism. An important capability of

this mechanism is to cause random variations among

diverse types of potential participants and diverse

characterizations of the offered activities. The

purpose of these variations is to maximize the

interestingness value, i.e. to maximize the product of

the relevance and surprise functions.

1.3 Paper Organization

In the remaining of the paper we refer to related work

(section 2) introduce the software architecture of

Netomation, a tool for social network automation

(section 3), describe a Conference Marketing case

study (section 4), provide results of experiments with

the tool for the referred case study (section 5), and

conclude with a discussion (section 6).

2 RELATED WORK

The extensive related literature covers various aspects

of this work. We first mention approaches to

interestingness, then refer to social network software

automation.

Referring to interestingness concepts, a good

review to start reading on this topic is (McGarry,

2005) which refers to measures for knowledge

discovery. Tuzhilin in (Tuzhilin, 2002), in the

invaluable Handbook (Klosgen and Zytkow, 2002),

describes various approaches to interestingness,

whether pragmatic or foundational.

Specifically referring to the unexpectedness

component of interestingness, one finds

Padmanabhan and Tuzhilin in (Padmanabhan, 1999)

and Piatetsky-Shapiro and Matheus in their work on

the Interestingness of Deviations (Piatetsky-Shapiro,

1994).

Exman explicitly formulated Interestingness as a

product of a relevance and a surprise (Exman, 2009).

Together with co-workers they applied it to a few

different applications, such as discovery in the Web

of new chemical structures of interest to

pharmaceutics (Exman and Pinto, 2010), using tools

as described in (Exman, Amar and Shaltiel, 2012).

Regarding social network software automation,

one should be first aware of the ubiquity of bots (short

for software robots) in social networks. This is seen

e.g. in (Boshmaf et al., 2011). See also several

chapters of the book on Twitter and Society (Weller

et al., 2014) in particular the chapter on Twitter

Accounts by (Mowbray, 2014) describing Twitter

bots for marketing.

Shop-bots are internet agents that give buying

advice to online shoppers about products and their

best price. In a sense these are agents somewhat

similar to those which offer marketing suggestions.

An analysis by comparison of three models of shop-

bot use on the web is provided by (Gentry and

Calantone, 2002).

Another issue of importance is the ability to

distinguish bots from humans and make

classifications of bots. Chu and co-workers (Chu et

al., 2010) explicitly ask the question of who is behind

the messaging. The same research group (Gianvechio

et al. 2008) tries to classify participants in chats.

Recent works dealing with bots recognition

include (Gilani et al., 2017) in which an in-depth

characterization of Bots and Humans, finds reliable

classification despite, some surprising behavior

similarities between bots and segments of the human

population. Similar results are found in (Ferrara,

2016).

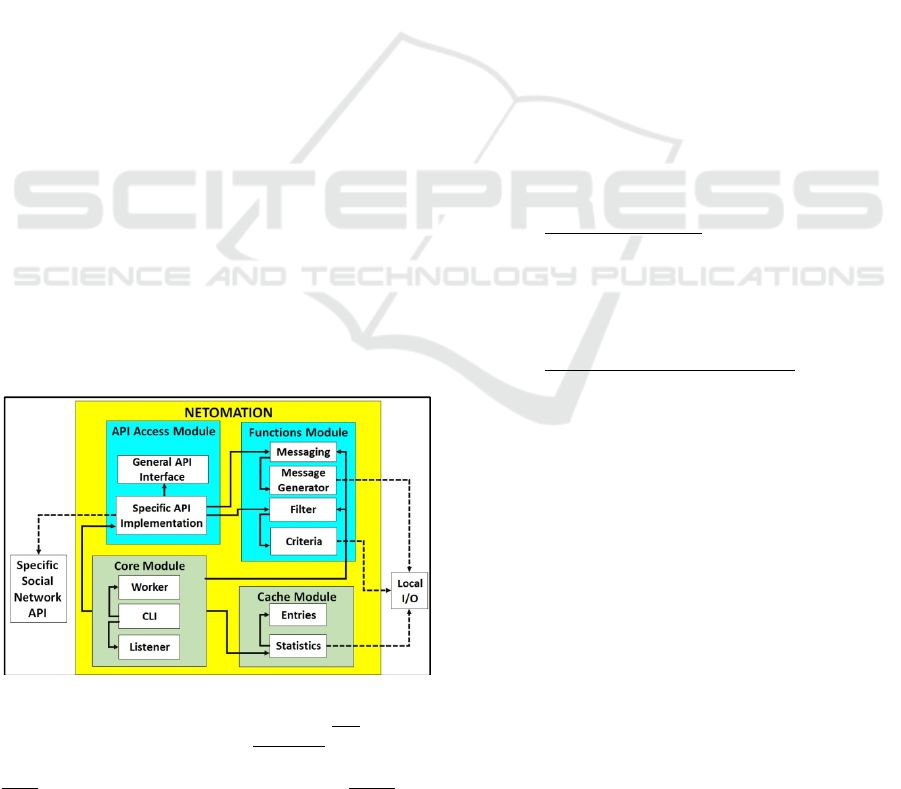

Figure 1: Netomation Schematic Software Architecture –

Important upper modules (in blue) are: a- API: enables

access to social network APIs; b- Functions: message and

filter related. Supporting lower modules (in gray) are: c-

Core: basic interaction with Social Networks. d- Cache: I/O

fast storage. Arrows point to called functions. Dashed

arrows link to external units.

Exman and co-workers made an exploration of the

survivability of a bot within a social network of

humans (Exman, Alfassi, and Cohen, 2012), which is

comparable to a sort of (anti)-Turing test.

In this work we take a pragmatic benign and

utilitarian approach to social network automation.

3 NETOMATION: A SOCIAL

NETWORK AUTOMATION

TOOL

Here we shortly describe the software architecture of

“Netomation”, a social network software tool, and

mention its main modules.

3.1 Netomation Software Architecture

Separation Principle

The main principle behind the Netomation software

architecture is to separate generic mechanisms from

the interactions with any specific social network.

The goal is to make any social network

replaceable by any other one with minimal changes

of Netomation components. This separation principle

is detailed as follows:

1. Generic API access – this is a set of generic

functions common to all social networks,

extracted from their respective APIs and

wrapped to access any social network, in

contrast with API functions specific to a

given social network;

2. Generic Netomation functions – these are

application related message and filter

functions, specialized for Netomation, and

usable with any social network.

3.2 Netomation Modules Design and

Implementation

The Netomation architecture is schematically

displayed in Fig. 1. Its main modules are:

1. API – its functions enable access to social

network APIs, carefully separating generic

from specific functions, according to the

previous software architecture principle;

2. Functions – contains specialized functions

to generate messages, frequency

randomization and filters;

3. Core – it contains basic active (worker) and

passive (listener) ways of interaction with

the underlying social network through its

API;

4. Cache – is the place where input data are

supplied and minimal results are stored for

run-time I/O and fast saving for posterior

data analysis.

Netomation has been implemented in the Java

language. It runs in a client-server environment.

Special attention has been given to the efficiency

of the cache. For instance, instead of saving the whole

information of the messaging target, in real time just

the target’s identification number is stored. This

number can be later used to retrieve additional data

for posterior analysis of the results.

3.3 Automation Mechanism

The automation mechanism is defined by a set of

conditions including:

a- Basic Frequency – messages are sent with a

basic frequency Bf; for instance, Bf may

have a cycle of Bc hours, typically of the

order of 24 hours;

b- Randomization – on top of the basic

frequency there is a randomization R with a

smaller order of magnitude, i.e. the actual

cycle Ac is equal to Bc + R;

c- Message Variation – any message is sent

only once to each target.

4 CASE STUDY: CONFERENCE

EVENT MARKETING

As a case study, to test our assumptions formulated in

the introduction of this paper, and to measure whether

the tool brings practical benefit, we applied the tool

to the marketing of a Conference Event, within a

commercial social network.

Following the ideas of the interestingness model

of sub-section 1.1 we first characterize the people

who are the marketing target and then the Conference

Event activities being marketed.

4.1 Characterization of the Marketing

Target: Application Ontologies

As the Conference Event is science-oriented, the

potential audience is composed from students,

academics, workers in the hi-tech industries and in

research laboratories. The potential audience is not

uniform and variability should be taken into account.

Thus, the application ontology characterizing the

audience, needed to calculate the relevance in

equation (1), is obtained from selected terms from

more than one domain ontology. This is illustrated by

keywords from say three domains:

a- software related engineering disciplines;

b- academic institutions;

c- hi-tech industries;

Two of these partial application ontologies are

displayed in Fig. 2 for software related keywords and

in Fig. 3 for academic institution keywords.

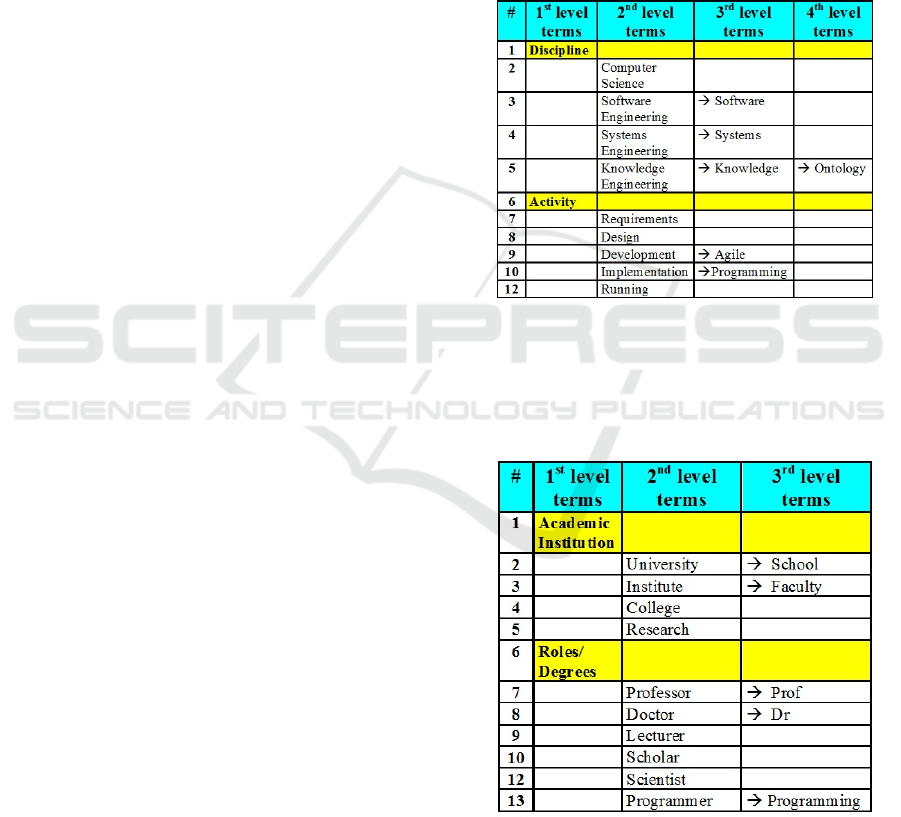

Figure 2: Software Related Keywords – This is a partial

application ontology displayed as a table of terms referring

to software related engineering disciplines and software

development activities. Arrows have the usual meanings as

in ontologies (either subtype or composition), e.g. Agile is

a sub-type of Development.

Figure 3: Academic Institution Keywords – Another partial

application ontology referring to academic institutions and

roles/degrees of people working/studying in these

institutions. Arrows have the usual meanings as in

ontologies (either subtype or composition), e.g. an Institute

may be composed of Faculties.

4.2 Characterization of the Conference

Event Activities: Typical Messages

A pre-defined set of the order of magnitude of 10

messages was formulated as input for our software

tool to use as part of its regular operation. The

relevant URL was appended as an additional

information item.

The characterization of the Conference Event

activities is reflected in the surprising messages sent

to the potential audience. Two examples are as

follows:

Example Message 1:

“Software is Knowledge and Knowledge is Power:

Event-Name, Submit paper by September 4”

Example Message 2:

“Event Name: Concepts are the ‘atoms’ of Software

Knowledge, Submit paper by Sept 4”

Each of the messages have three distinct parts:

a- Event name: The Conference Event;

b- Action to be taken: Submit paper by date;

c- Surprise Sentence: ‘Concepts are atoms…’

The surprise sentence usually links terms in the

application ontology – e.g. Knowledge, concepts –

with a somewhat unrelated term and therefore

contributing to the surprise in equation (1) – e.g.

Power, atoms.

Moreover, each sentence was modified to create a

few variants such that the social network server will

not flag program messages as potential spam.

5 PRELIMINARY EXPERIMENTS

In order to test the assumptions behind our tool and

its effectivity by means of the outcomes, we have

performed a series of experiments. The execution of

the experiments continues in this ongoing project.

Here we display results of preliminary

experiments performed during a series of consecutive

days, just before the paper writing. The experiments

collected data about targets, which our tool followed,

our followers and messages received from some of

the targets. The followers and messages received are

shown both as time-dependent results and as

geographical data.

5.1 Time-Dependent Results

The time-dependent curve showing the number of

followers is displayed in Fig. 4 for 24 consecutive

days, in the dates marked in the horizontal axis of the

figure.

The number of messages received increased

during the initial period of four days with the same

general trend as the followers, but slightly faster.

After this initial period, the rate of messages received

decreased.

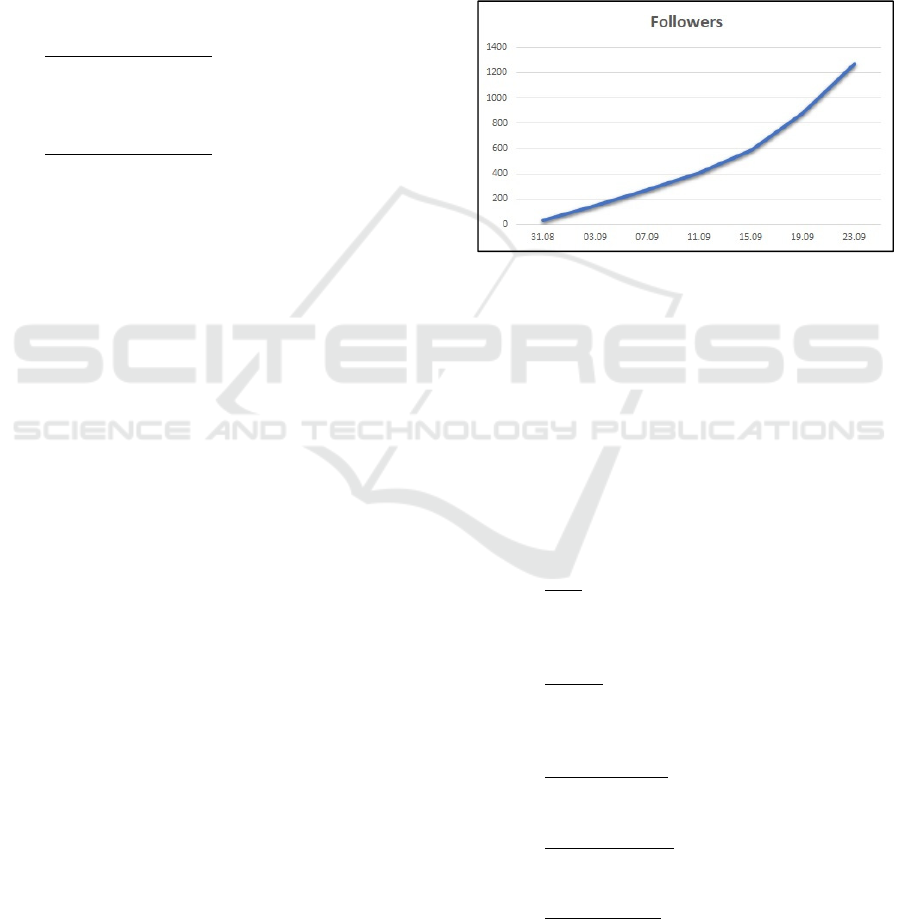

Figure 4: TIME DEPENDENT RESULTS – Cumulative

number of followers during 24 days from August 31, until

September 23, in 2017. The vertical axis is the number of

followers. The horizontal axis shows dates in a numerical

format of “day.month”. The graph is an estimated fitting.

5.2 Geographical Data

The geographical distribution of followers is seen in

Fig. 5. The total number of followers from all

countries in this

24 days period was 1341. The

majority of these results come from the USA and

Great Britain. Other countries include:

• Asia: Bangladesh, China, Hong-Kong,

India, Indonesia, Iran, Israel, Japan, Korea,

Malaysia, Pakistan, Philippines, Saudi

Arabia, Singapore, Turkey, UAE;

• Europe: Belgium, Denmark, Finland,

France, Germany, Greece, Italy, Netherland,

Poland, Portugal, Russia, Slovenia, Spain,

Sweden, Ukraine;

• Other African: Algeria, Congo, Egypt,

Ethiopia, Ghana, Kenya, Nigeria, South

Africa, Uganda, Zambia, Zimbabwe;

• Other American: Argentina, Brazil, Canada,

Chile, Colombia, Mexico, Panama,

Paraguay, Peru, Uruguay, Venezuela;

• Other Oceania: Australia and New Zealand;

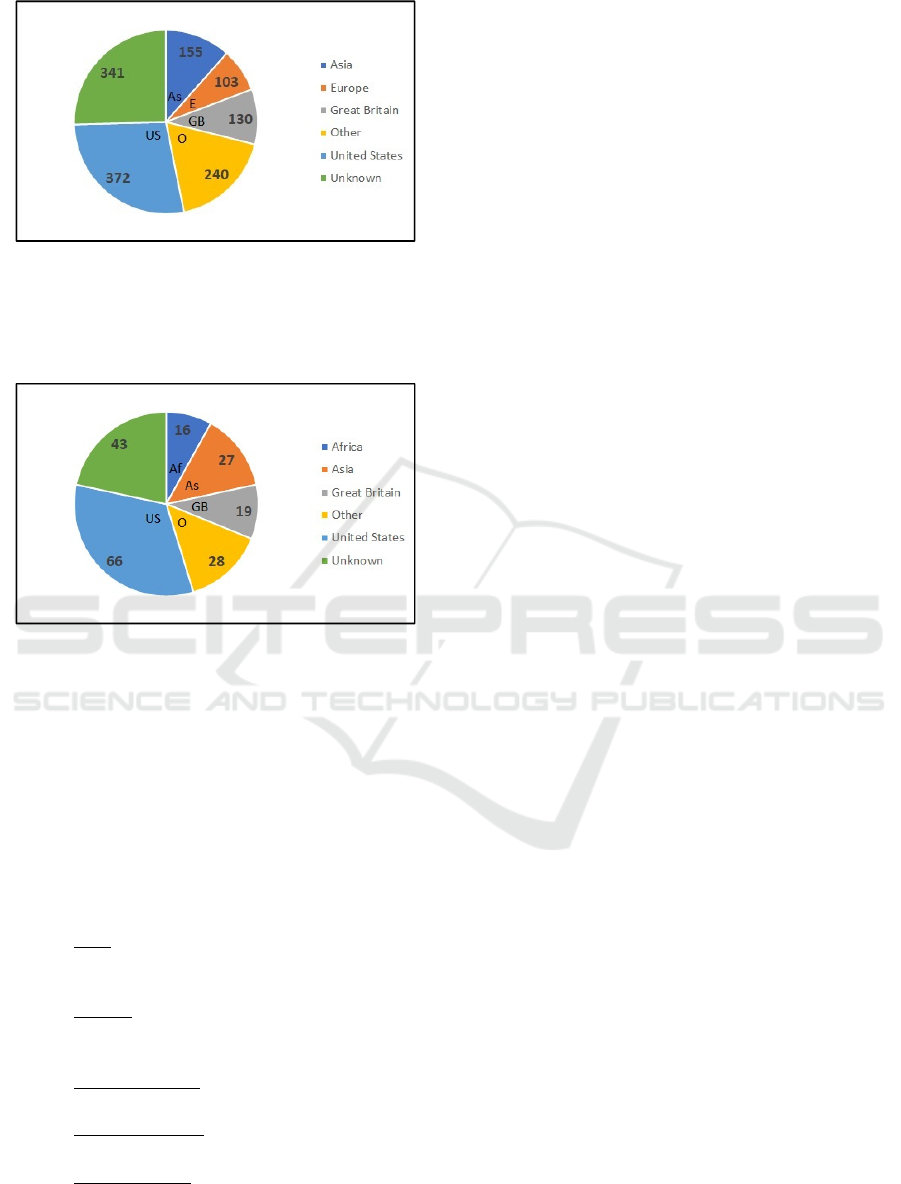

Figure 5: Geographical Distribution of Followers – The

majority of followers are from the US and GB (Great

Britain). The “O = Other” rubric includes countries with

small numbers of followers. “Unknown” means unavailable

country information.

Figure 6: Geographical Distribution of Sources of

Messages Received – It shows that the majority of

messages were received from the USA, GB (Great Britain)

and India (included in Asia). The same conventions are

used as in Fig. 5.

The geographical distribution of sources of

messages received is seen in Fig. 6. The total number

of message sources in this 24 days period is 199. The

overwhelming majority in these results comes from a

few countries, similarly to the followers in Fig. 5.

Other countries include:

• Asia: Bangladesh, China, Hong-Kong,

India, Indonesia, Japan, Mongolia, Pakistan,

Saudi Arabia, Sri Lanka, Thailand

• Europe: Belgium, France, Germany, Italy,

Macedonia, Slovenia, Spain, Sweden,

Ukraine

• Other African: Egypt, Ghana, Kenya,

Nigeria, Tanzania, Zimbabwe

• Other American: Argentina, Brazil, Canada,

Guyana, Mexico, Paraguay, Venezuela,

• Other Oceania: Australia

Please note that there is a significant overlap

between the geographical distributions of the list of

countries of our followers (corresponding to Fig. 5)

and the list of message sources (corresponding to Fig.

6), but these lists are neither identical nor one is a

subset of the other.

6 DISCUSSION

This discussion examines the obtained preliminary

results. Then it deals with foundational issues,

pragmatic considerations and future work. It is

concluded with a short statement of the main

contribution and our wider vision on this work.

6.1 Examination of Preliminary

Results

One could summarize the obtained preliminary

results with respect to its three aspects.

Concerning time-dependence:

a. General Trend – the general trend of

increasing numbers of followers and of

numbers of received messages with time is

reasonable for the initial experimentation

period; much longer periods should be tested

in order to analyse in depth the Netomation

behavior.

b. Slope of Increase with Time – graphs of

followers (shown in Fig. 4) and received

messages increase faster than linearly; the

specific values of graph slopes needs more

experimentation in order to be understood

and to check whether one can exert a

desirable control over it;

Concerning geographic distribution of countries:

a. Bias – there is a clear overall bias towards

English-speaking countries; this deserves

further investigation, since its source is not

absolutely clear; one could perhaps link the

size of some of the countries (USA and

India), but this does not explain the case of

Great Britain; once one formulates an

hypothesis about the source of this bias, it

will be tested, to allow better control of the

automatic application steering;

b. Partial Information – the number of

“Unknown” locations both of followers in

Fig. 5 and sources of received messages in

Fig. 6 is non-negligible (more than 20%); it

is possible to reduce the number of

unknowns and improve the information

obtained by means of a more extensive

investigation, besides the direct data from

this variable provided by the social network.

Concerning randomization:

a. Event Contingencies – it is important to

stress the reasons behind and the

contingencies of the randomized nature of

communicating with a social network

server, as many parameters and environment

variables are unknown. Netomation had to

wait arbitrary numbers of seconds before

every action it performed, since from time to

time the social network server did mark

Netomation operations as “spam”. It forced

the program to either wait for the warning to

fade or to skip to other actions.

b. Human Beings vs. Bots – the undisclosed

nature of human beings, which means

designing an efficient filter to identify

potential target audience – is a given

follower a human being or a bot? – can be

challenging to say the least.

6.2 Foundational Issues

Foundational issues refer first and foremost to the

plausibility of the assumptions made for this work

(stated in the Introduction section of this paper), viz.:

a. Interestingness Model – is the model

adequate for the kind of application

described in this paper?

b. Tool Automation Nature – is the separation

boundary between the generic tool

automation from specific data (referring to a

particular social network and to a particular

application, such as marketing) adequate

with respect to software architecture?

Regarding both of these issues we are in a too

early stage of experimentation within this project, in

order to provide clear-cut and definitive answers.

In order to answer the first question one needs to

explicitly calculate the values of the relevance and

surprise functions from the tool inputs and check their

correlation with output results.

In order to answer the second question one needs

to use the tool with different social networks and

provide success criteria to be checked.

6.3 Pragmatic Considerations

Pragmatic considerations involve a long series of

issues, referring among other things to:

a. Social Network API – the comprehensive

and generous support of the social network

API (Application Programming Interface)

should be of interest for both users and

social networks themselves, as it opens wide

horizons to newer kinds of applications; we

mention here e.g. Rest API and language

specific support;

b. Software Efficiency – is the time and

memory resources utilization efficient in

practice? In particular we mean the storage

of only identification (id) numbers and

posterior off-line retrieval of further data

based on these id numbers to perform

analysis.

c. Application Success – is the approach using

social networks in the proposed general lines

important, necessary but not sufficient or

powerful enough for the chosen kind of

application? Is it useful for other related

applications?

d. Biases and Filters – how easy it is to

automatically steer the software tool, by

means of filters, in order to correct eventual

biases, and to focus, on say specific desired

countries, within marketing applications?

6.4 Future Work

There is still much work to be done in this ongoing

project. Some of the most important open issues are:

a. Explicit Interestingness Calculation – for

given inputs and check their correlation with

application outputs; comparison should be

made between an application with and

without usage of “surprises”;

b. Extensive Data – the preliminary data in this

paper refer to a relatively short time period;

we need to run the tool for longer periods,

while experimenting with different inputs

and filters;

c. Diverse social Networks – in order to test

the actual generality and robustness of

Netomation, one needs to use it with a few

different social networks and compare their

behaviours and results;

d. Receiver Automation – in the current work

we emphasize what we learned from

“sender” automation; it seems that there is

much opportunity of work to be done in the

complementary “receiver” automation.

6.5 Main Contribution

The main immediate contribution of this work is the

separation principle within the software architecture

of social network automation for practical application

purposes. In the long term, it opens horizons for

newer kinds of applications and a wider vision for

social networks.

REFERENCES

Boshmaf, Y., Muslukhov, I. Beznosov, K. and Ripeanu, M.,

2011. “The Socialbot Network: When Bots Socialize

for Fame and Money”, in Proc. ACSAC’11 27

Annual

Computer Security Applications Conf. pp. 93-102.

DOI: 10.1145/2076732.2076746

Chu, Z., Gianvecchio, S., Wang, H. and Jajodia, S., 2010

“Who is Tweeting on Twitter: Human, Bot or

Cyborg?”, in Proc. ACSAC’10, 26

Annual Computer

Security Applications Conf. pp. 21-30. DOI:

10.1145/1920261.1920265

Exman, I.. 2009. “Interestingness – A Unifying Paradigm –

Bipolar Function Composition”, in Proc. KDIR Int.

Conf. on Knowledge Discovery and Information

Retrieval, pp. 196-201, DOI: https://doi.org/10.5220/

0002308401960201

Exman, I. and Pinto, M., 2010. “Lead Discovery in the

Web”, in Proc. KDIR Int. Conf. on Knowledge

Discovery and Information Retrieval, pp. 471-474,

DOI: https://doi.org/10.5220/0003098304710474

Exman, I., Alfassi, N. and Cohen, S., 2012. “Semantics of

Social Network Frequencies for Turing Test

Immunity”, in Proc. SKY’2012 Int. Workshop on

Software Knowledge, pp. 79-84. DOI: 10.5220/

0004181600790084

Exman, I., Amar, G. and Shaltiel, R., 2012. “The

Interestingness Tool for Search in the Web”, in Proc.

SKY’2012 Int. Workshop on Software Knowledge, pp.

54-63. DOI: 10.5220/0004178900540063

Ferrara, E., Varol, O., Davis, C., Menczer, F. and Flammini,

A., 2016. “The rise of social bots”, Comm. ACM, Vol.

59, pp. 96-104. DOI: 10.1145/2818717

Gentry, L. and Calantone, R., 2002. “A comparison of three

models to explain shop-bot use on the web”,

Psychology and Marketing, Vol. 19, pp. 945-956. DOI:

https://doi.org/10.1002/mar.10045

Gianvecchio, S., Xie, M., Wu, Z. and Wang, H., 2008.

“Measurement and classification of humans and bots in

internet chat”, In Proc. 17

USENIX Security

Symposium, San Jose, CA.

Gilani, Z., Farahbakhsh, R., Tyson, G., Wang, L. and

Crowcroft, J., 2017. “An in-depth characterization of

Bots and Humans on Twitter”, https://arxiv.org/pdf/

1704.01508.pdf

Klosgen, W. and Zytkow, J.M. (eds.), 2002. Handbook of

Data Mining and Knowledge Discovery, Oxford

University Press, Oxford, UK.

McGarry, K., 2005. “A survey of interestingness measures

for knowledge discovery”, Knowledge Engineering

Review J., 20 (1), 39-61. DOI: https://doi.org/10.1017

/S0269888905000408

Mowbray, M., 2014. “Automated Twitter Accounts”,

Chapter 14 in ref. (Weller et al., 2014), pp. 183-194.

Padmanabhan, B. and Tuzhilin, A., 1999. “Unexpectedness

as a measure of interestingness in knowledge

discovery”, Decision Support Sys., Vol. 27, (3).

Piatetsky-Shapiro, G. and Matheus, C.J., 1994. “The

Interestingness of Deviations”, KDD-94, AAAI-94

Knowledge Discovery in Databases Workshop.

Tuzhilin, A., 2002. “Usefulness, Novelty, and Integration

of Interestingness Measures”, chapter 19.2.2 in

reference (Klosgen and Zytkow, 2002), pp. 496-508.

Weller, K., Bruns, A., Burgess, J., Mahrt, M. and

Puschmann, C. (eds.), 2014. Twitter and Society, Peter

Lang Publishing, New York, NY, USA.
