AlQuAnS – An Arabic Language Question Answering System

Mohamed Nabil, Ahmed Abdelmegied, Yasmin Ayman, Ahmed Fathy, Ghada Khairy,

Mohammed Yousri, Nagwa El-Makky and Khaled Nagi

Computer and Systems Engineering Department, Faculty of Engineering, Alexandria University, Alexandria, Egypt

Keywords: Arabic Question Answering Systems, Arabic Morphological Analysis, Question Analysis, Question

Classification, Answer Extraction.

Abstract: Building Arabic Question Answering systems is a challenging problem compared to their English counter-

parts due to several limitations inherent in the Arabic language and the scarceness of available Arabic training

datasets. In our proposed Arabic Question Answering system, we combine several previously successful al-

gorithms and add a novel approach to the answer extraction process that has not been used by any Arabic

Question Answering system before. We use the state-of-the-art MADAMIRA Arabic morphological analyser

for preprocessing questions and retrieved passages. We also enhance and extend the question classification

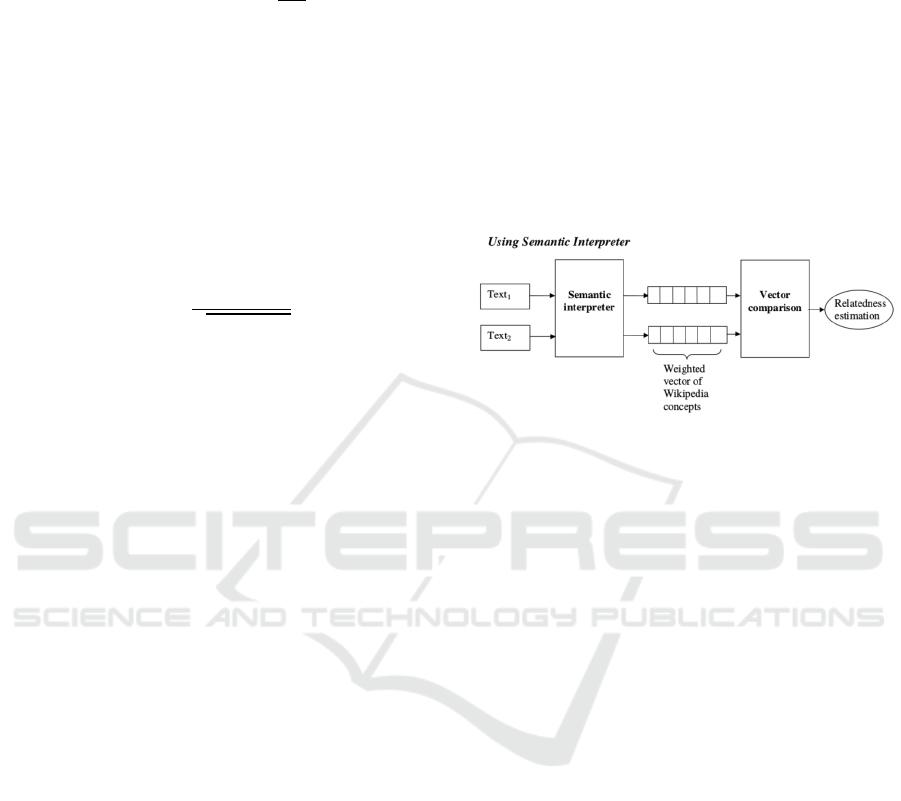

and use the Explicit Semantic Approach (ESA) in the passage retrieval process to rank passages that most

probably contain the correct answer. We also introduce a new answer extraction pattern, which matches the

patterns formed according to the question type with the sentences in the retrieved passages in order to provide

the correct answer. A performance evaluation study shows that our system gives promising results compared

to other existing Arabic Question Answering systems, especially with the newly introduced answer extraction

module.

1 INTRODUCTION

Traditionally, search engines provide users with doc-

uments relevant to their search requests. The request

is usually in the form of a list of keywords. However,

the users must take the trouble of searching for the

exact answer to their question inside each of the re-

trieved documents. Nowadays, a new approach

matches the user needs by analyzing the question

posted in the search field from a linguistic point of

view, attempting to understand what the user really

means and extracting the correct answer to the user

question from the retrieved documents.

Recently, Question Answering (QA) has been one

of the main focal points of research in the area of nat-

ural language processing. Some great efforts were

made to provide reliable QA systems for different

languages. Unfortunately, Arabic QA systems are

still not in the mainstream even though Arabic is one

of the six official languages of the United Nations and

it is the main language of most of the Middle East

countries. In fact, the Arabic language ranks fifth in

the world’s league table of languages, with an esti-

mated 300 million native speakers.

Very few attempts were made to investigate Ara-

bic QA because Arabic is a complex language and is

very hard to be analyzed by language processors. Ar-

abic enjoys a very complex morphology that needs

very intelligent morphological analysis subsystems.

By morphological analysis, it is meant the process of

assigning the morphological features of a word; such

as:

 its root or stem,

 its morphological pattern,

 its part-of-speech (noun, verb or particle)

 its number (singular, dual or plural)

 its case or mood (nominative, accusative, geni-

tive or jussive)

to the word. The root-patterned nonlinear morphol-

ogy of Arabic makes both theoretical and computa-

tional processing for Arabic text extremely hard.

To begin with, Arabic has a completely different

orthography based on standard Arabic script going

from right to left. Each letter has three different

shapes depending on its position within the word.

Each letter has a diacritic sign above or below the let-

ter. Changing the diacritic of one letter may change

the meaning of the whole word. Printed and online

Nabil M., Abdelmegied A., Ayman Y., Fathy A., Khairy G., Yousri M., El-Makky N. and Nagi K.

AlQuAnS â

A ¸S An Arabic Language Question Answering System.

DOI: 10.5220/0006602901440154

In Proceedings of the 9th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (KDIR 2017), pages 144-154

ISBN: 978-989-758-271-4

text come usually without diacritics leaving plenty of

room for word ambiguity.

Arabic is also a highly derivational language. It is

a highly inflectional language as well.

Word = prefix(es) + lemma + suf-

fix(es).

The prefixes can be articles, prepositions or con-

junctions; whereas the suffixes are generally objects

or personal/possessive anaphora. Both prefixes and

suffixes can be combined, and thus a word can have

zero or more affixes. Figure 1 shows an example of

the composition of an Arabic word.

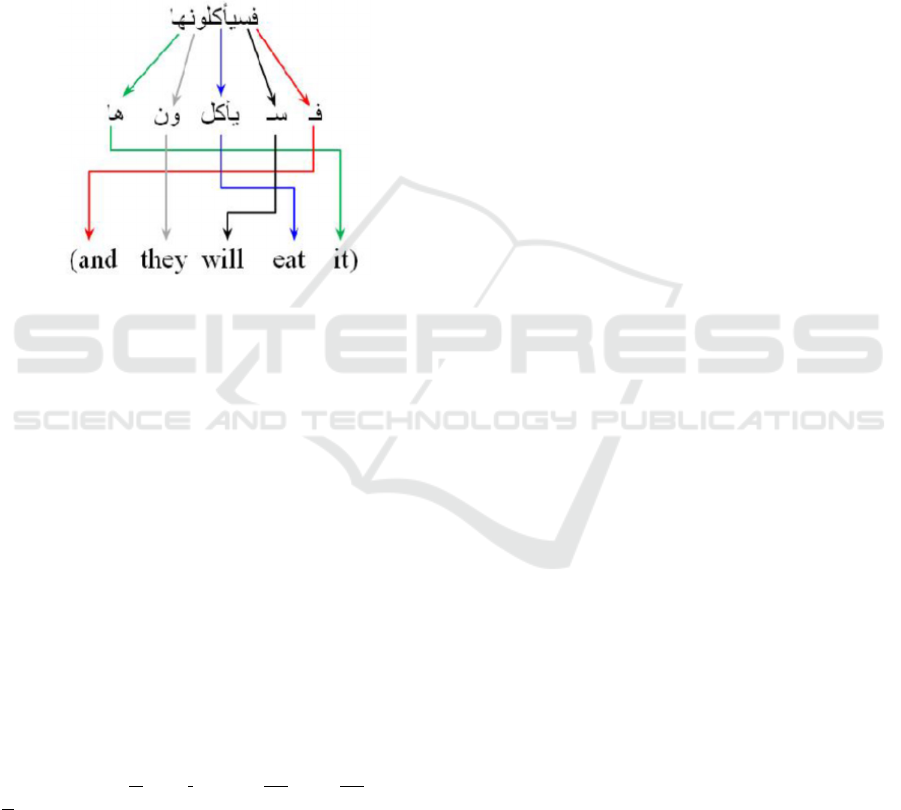

Figure 1: Example Arabic inflection (Benajiba and Rosso,

2007b).

The absence of capital letters is another challenge

in the Named Entity Recognition (NER) in Arabic

(Benajiba and Rosso, 2007a) and (Benajiba et al.,

2007). Lots of Arabic names are adjectives; such as,

“gameel” (handsame), “zaki” (intelligent), or

“khaled” (immortal).

Last but not least, from a statistical viewpoint, if

Arabic texts are compared to texts written in other

languages which have a less complex morphology,

Arabic texts look much more sparse because of the

inflectional characteristic of the language that we

mentioned above. It is this specific characteristic of

the language which makes it more difficult to tackle

in each of the Natural Language Processing (NLP)

tasks.

The above challenges are enough to motivate us

to develop AlQuAnS, a new system that can extract

an accurate answer to the user’s questions. We pre-

sent a complete Arabic language Question Answering

System, that understands natural Arabic questions

and extracts their answers from the retrieved docu-

ments found on the WWW. The system gives the user

a short precise answer to their question, instead of just

giving them hundreds of documents to search in man-

ually. The main design goals can be summarized in

the following points:

 Pre-processing the question to make the data

retrieval more accurate.

 Building a question classification module us-

ing a suitable classification technique to clas-

sify the input question into a certain type, and

hence produce the expected answer type.

 Building a semantic information retrieval mod-

ule capable of retrieving the related documents.

 Extracting the ranked answers to the input

questions from the retrieved documents with

high accuracy.

The objective of our work is to contribute in the

improvement of Arabic QA systems by enhancing the

passage retrieval process module. We propose two di-

rections for such enhancement: firstly, a semantic

query expansion is used to achieve a high level of

completeness (recall) when the information retrieval

process retrieves passages; then a semantic-based

process (ESA) is used for passage re-ranking in order

to have the expected answer at the top of the candi-

date passages list. Finally, an answer extraction mod-

ule extracts the answer from the top candidate pas-

sages.

The system has to perform well by providing cor-

rect answers. So, we benchmark AlQuAnS against

similar Arabic QA systems found in literature. For

that, we managed to get their same training and

benchmarking datasets. We update these datasets to

adapt the answers since search engines deliver differ-

ent; yet correct; results over time. For example, "How

many Syrian refugees live in Jordan?". The answer

changes each year. Other results are more or less

strict. For example, "Where was Ibn Batota born?"

The expected answer in the datasets used by the re-

searchers is "Tanjier". However, another accepted an-

swer can be "Morocco". For a fair comparison, we

compare the quality of individual system components

and not only the overall quality.

The rest of the paper is organized as follows. In

Section 2, we give a short survey on the related stand-

ard work in the field of Arabic QA systems. Section

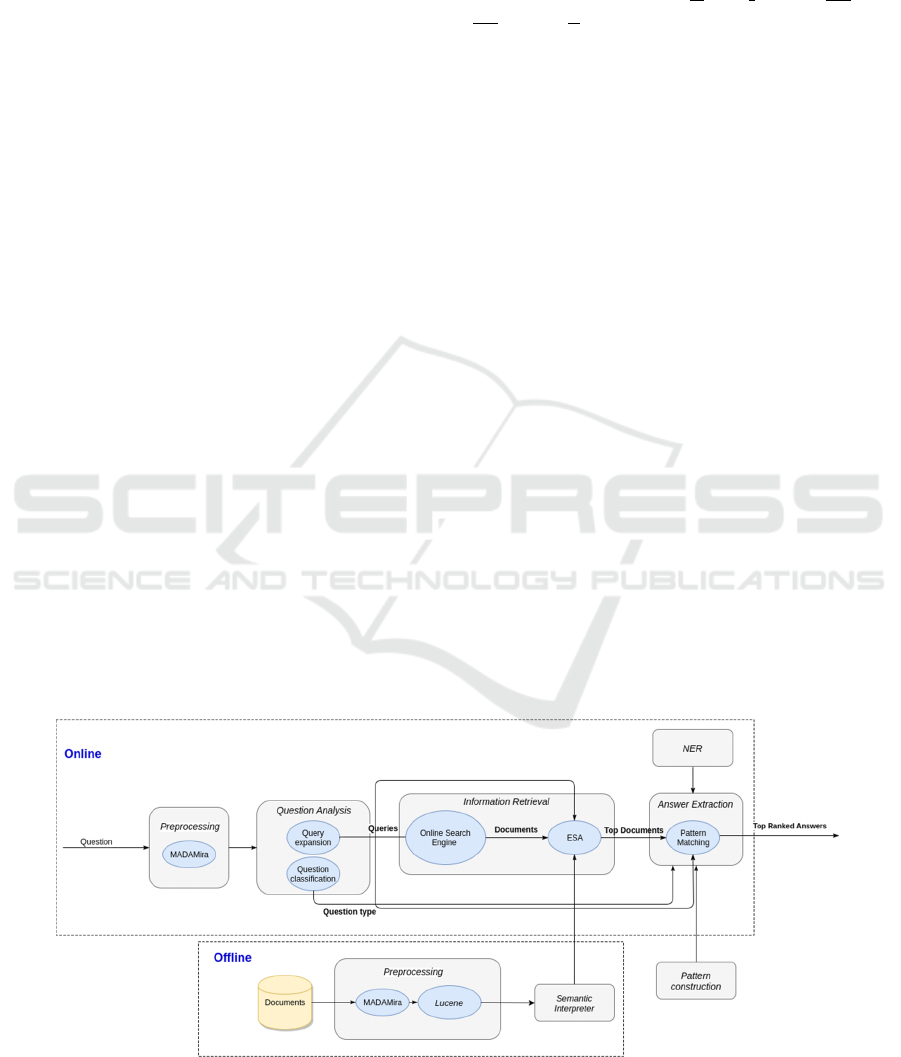

3 contains an overview of the system architecture of

AlQuAnS and detailed description of each system

component. The system evaluation is presented in

Section 4. Section 5 concludes the paper and presents

some ideas for our future work in this area.

2 RELATED WORK

A Question Answering system is a system that takes

an input question from the user, retrieves the related

result sets to the question topic and then extracts an

exact answer to the question to be returned to the user.

A typical state-of-the-art information-retrieval-based

Question Answering system, divides the Question

Answering task into three core components:

 Question Analysis (including Question prepro-

cessing and classification),

 Information Retrieval (or passage retrieval),

 Answer Extraction.

Question classification plays an essential role in

QA systems by classifying the submitted question ac-

cording to its type. Information retrieval is very im-

portant for question answering, because if no correct

answers are present in a document, no further pro-

cessing can be carried out to find the answer. Finally,

answer extraction aims at retrieving the correct pas-

sage containing the answer within the retrieved docu-

ment.

2.1 Arabic QA Systems

QARAB (Hammo, et al. 2002) is a QA system to sup-

port the Arabic language. The system is based on the

three-module generic architecture:

 question analysis,

 passage retrieval, and

 answer extraction.

It extracts the answer from a collection of Arabic

newspaper text. For that, it uses a keyword matching

strategy along with matching simple structures ex-

tracted from both the question and the candidate doc-

uments selected by the information retrieval module

using an existing tagger to identify proper names and

other crucial lexical items. The system builds lexical

entries for them on the fly. For system validation, four

native Arabic speakers with university education pre-

sented 113 questions to the system and judged

whether the answers of the system are correct or not.

The Arabic language was introduced for the first

time in 2012 in the QA4MRE lab at CLEF (Trigui et

al., 2012). The intension of the research is to ask ques-

tions which require a deep knowledge of individual

short texts and in which systems are required to

choose one answer from multiple answer choices.

The work uses shallow information retrieval methods.

Unfortunately, the overall accuracy of the system is

0.19 and the questions proposed by CLEF are suitable

only for modern Arabic language.

ALQASIM (Ezzeldin et al., 2013) is an Arabic

QA selection and validation system that answers mul-

tiple choice questions of QA4MRE @ CLEF 2013

test-set. It can be used as a part of the answer valida-

tion module of any ordinary Arabic QA system. It

comes up with a new approach like the one used by

human beings in reading tests. A person would nor-

mally read and understand a document thoroughly,

and then begins to tackle the questions. So, the sug-

gested approach divides the QA4MRE process into

three phases:

 document analysis,

 locating questions and answers,

 answer selection.

ArabiQA (Benajiba and Rosso, 2007b) is a QA

system that is fully oriented to the modern Arabic lan-

guage. ArabiQA is obeying to the general norms re-

ported at the CLEF conference. However, the system

is not complete yet. The following points is a part of

the researchers’ investigation, as listed in their work:

 The adaptation of the JIRS passage retrieval

system to retrieve passages from Arabic text.

 The development of the annotated ANERcorp

to train the Named Entity Recognition (NER)

system.

 The development of the ANERsys Named En-

tity Recognition system for modern Arabic text

based on the maximum entropy approach.

 The development of an Answer Extraction

module for Arabic text for factoid questions

(Who, where and when questions).

DefArabicQA (Trigui et al., 2010) presents a def-

initional QA system for the Arabic language. The sys-

tem outperforms the use of web searching by two cri-

teria. It permits the user to ask an ordinary question

(e.g.,"What is X?") instead of typing in a keyword-

based query. It then attempts to return an accurate an-

swer instead of mining the web results for the ex-

pected information. The question topic is identified

by using two lexical question patterns and the answer

type expected is deduced from the interrogative pro-

noun of the question. Definition ranking is performed

according to three scores: a pattern weight criterion,

a snippet position criterion, and a word frequency cri-

terion.

The IDRAAQ (Abouenour, 2012) system is an-

other Arabic QA system based on query expansion

and passage retrieval. It aims at enhancing the quality

of retrieved passages with respect to a given question.

In this system, a question analysis and classification

module to extract the keywords, identify the structure

of the expected answer and form the query to be

passed to the Passage Retrieval (PR) module. The PR

extracts a list of passages from an Information Re-

trieval process. Thereafter, this module performs a

ranking process to improve the relevance of the can-

didate passages. Finally, the Answer Validation (AV)

module validates an answer from a list of candidate

answers.

Al-Bayan (Abdelnasser, 2014) is a domain spe-

cific Arabic QA system for the Holy Quran. It takes

an Arabic question as input and retrieves semantically

relevant verses as candidate passages. Then, an an-

swer extraction module extracts the answer from

verses obtained accompanied by their Tafseer (stand-

ard explanations of Quran). The system has four func-

tionalities:

 It merges two Quranic ontologies and uses two

Tafseer books.

 It applies a semantic search technique for infor-

mation retrieval.

 It applies a state-of-the-art technique (SVM)

for question classification.

 It builds Quranic-based training data sets for

classification and Named Entities Recognition

(NER).

2.2 The Need to Extend Related Work

From the above presentation of related work in Ara-

bic QA systems, it appears to us that no single re-

search provides a solution that is applicable for open

domain, provides a good query expansion functional-

ity and extracts answers from document snippets with

relatively high accuracy.

3 SYSTEM ARCHITECTURE

3.1 Overview

Our proposed system is an Arabic language Question

Answering System that requires no specific for do-

main knowledge. Figure 2 shows our system architec-

ture consisting of an offline and an online part.

The semantic interpreter (Gabrilovich and Mar-

kovitch, 2007) is built during the offline phase, where

11,000 Arabic Wikipedia documents are first pre-pro-

cessed by MADAMIRA (Pasha et al., 2014) and then

a weighted inverted index is built for them using Lu-

cene (McCandless et al., 2010). The built semantic in-

terpreter is used by the Passage Retrieval (PR) mod-

ule in the online phase to rank retrieved passages.

In the online part, the input question passes

through a pre-processing module, which is built on

MADAMIRA (Pasha et al., 2014) as well. Then, the

processed question is fed to the Question Analysis

module; which is composed of a Query Expansion

(QE) part and a Question Classification (QC) part.

The QE submodule is responsible for expanding the

query to include its other morphological forms. The

QC submodule is responsible for classifying ques-

tions into types, e.g., who, when, where. In the Infor-

mation Retrieval module, the semantically relevant

documents are retrieved using the Online Search En-

gine and ranked by the Explicit Semantic Analysis

(ESA) approach. Finally, an Answer Extraction (AE)

module extracts the correct answer from the docu-

ments obtained according to the patterns provided by

the pattern construction module; which builds its pat-

terns from the training dataset using a set of features

shown in section 3.5.

Figure 2: Overall system architecture.

3.2 Pre-Processing Operations

Text Preprocessing is done by applying morphologi-

cal analysis software to identify the structure of the

text. Typical operations include:

 normalization,

 stemming,

 Part-Of-Speech (POS) tagging, and

 stop words removal.

Morphologically, the Arabic language is one of

the most complex and rich languages. Thus, morpho-

logical analysis of the Arabic language is one of the

complex tasks that has been popular in recent re-

search. In this module, we rely heavily on MAD-

AMIRA (Pasha et al., 2014). MADAMIRA combines

the best aspects of two previously commonly used

systems for Arabic pre-processing, MADA found in

(Habash et al., 2009) and AMIRA found (Diab,

2009).

MADA is a system for Morphological Analysis

and Disambiguation for Arabic. The primary purpose

of MADA is to, given raw Arabic text, derive as much

linguistic information as possible about each word in

the text, thereby reducing or eliminating any ambigu-

ity surrounding the word. MADA also includes TO-

KAN, a general tokenizer for MADA-disambiguated

text (Habash et al., 2009). TOKAN uses the infor-

mation generated by the MADA component to to-

kenize each word according to a highly- customizable

scheme.

AMIRA is a system for tokenization, part-of-

speech tagging, Base Phrase Chunking (BPC) and

Named Entity Recognition (NER).

3.3 Question Analysis

The Question Analysis module consists of two sub-

modules: Query Expansion (QE) and Question Clas-

sification (QC).

3.3.1 Query Expansion

This submodule is based on the Query Expansion

module of (Abouenour et al., 2010). In this submod-

ule, the content and the semantic relations of the Ar-

abic WordNet (AWN) ontology (Elkateb et al., 2016)

are used. The AWN ontology is a free resource for

modern standard Arabic. It is based on the design and

the content of Princeton WordNet (PWN) (Fellbaum,

2005). It has a structure similar to WordNets existing

for approximately 40 languages. It is also connected

to the Super Upper Merged Ontology (SUMO) (Niles

and Pease, 2003). SUMO is an upper level ontology

which provides definitions for general purpose terms

and acts as a foundation for more specific domain on-

tologies. It contains about 2,000 concepts. The AWN

data is divided into four entities, as shown in Figure

 Items are conceptual entities, including synsets,

ontology classes and instances.

 Word entity is a word sense, where the citation

form of the word is associated with an item.

 A Form is a special form that is considered dic-

tionary information. The forms of Arabic

words that go in this entity are the root and/or

the broken plural form, where applicable.

 A link relates two items, and has a type such as

equivalence, subsuming, etc. Links connect

sense items to other sense items, e.g. a PWN

synset to an AWN synset; a synset to a SUMO

concept, etc.

The current release of AWN contains 11,270 Ar-

abic synsets (versus 115,000 synsets for English

WordNet), 23,496 Arabic words (versus 200,000

words for English WordNet). It contains also entries

that are named entities (1,142 synsets and 1,648

words) (Abouenour et al., 2010). The AWN ontology

contains different relations between its items such as

hyperonymy/hyponymy (supertypes or subtypes rela-

tions), synonymy, meronymy/holonymy (part/whole

relations).

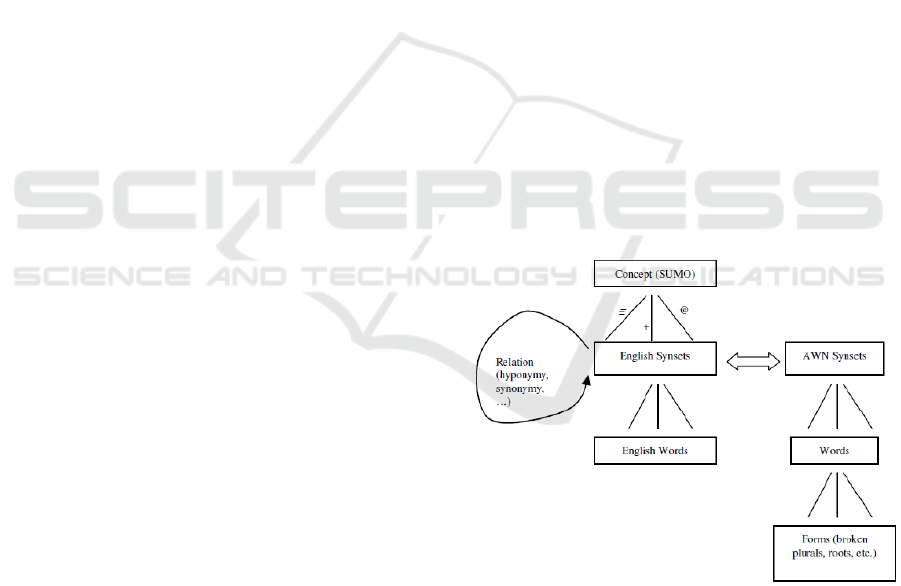

Figure 3: The AWN data structure.

Our semantic QE approach uses four semantic re-

lations among those existing between AWN synsets

(items), words and forms. Therefore, the approach de-

fines four sub-processes for the query expansion:

 QE by synonyms,

 QE by definitions,

 QE by subtypes, and

 QE by supertypes.

Unlike QE by subtypes and supertypes, the QE by

synonyms and definitions apply our semantic expan-

sion in a way to have new terms related to the consid-

ered keyword. After that, we re-rank the passages to

have in the first ranks those containing both the ques-

tion keywords and the new generated terms close

each to another. Our QE process is applied only for

keywords which are not stopwords, namely: 

(what),  (he) and  (that).

3.3.2 Question Classification

In this stage, we classify the question to the antici-

pated type of the answer. For example, the ques-

tion    (who founded Google?) should be

classified into the type human individual. This infor-

mation would narrow down the search space to iden-

tify the correct answer. Additionally, this information

implies different strategies to search and verify the

candidate answer. The derivation of expected answer

types is often carried out by means of machine learn-

ing approaches. This task relies on three parts:

 taxonomy of answer types into which questions

are to be classified,

 a corpus of questions prepared with the correct

answer type classification, and

 an algorithm that learns to make the actual pre-

dictions given this corpus.

In our system, we use the Support Vector Ma-

chines (SVM) classifier since it has shown to produce

the best results during our experiments. Question

classification needs a taxonomy to classify question

types. We base our classification on the work of Li

and Roth (Li and Roth, 2002). Their work provides a

hierarchical classifier, taxonomy and data to be used

in English question classification. Since 2002, their

work has been used by all researchers who are inter-

ested in building QA systems. They propose a two-

layered question taxonomy which contains six coarse

grained categories:

 Abbreviation

 Description

 Entity

 Human

 Location

 Numeric value

and 50 fine grained categories.

We use the same coarse taxonomy (ABB, EXP,

HUM, ENT, LOC, NUM) and build a classifier model

to test input questions against that model. However,

due to the limitation in the Answer Extraction module

(AE), we have to limit the taxonomy to LocationCity,

LocationCountry, HumanIndividual, NumericDate).

With these four sub-categories, we focus more on a

QA system that can answer questions that ask for cit-

ies, countries, humans individuals and different kinds

of dates (birthdays, event dates, etc.). The system

yields good results in this classification.

For testing and training, we use a data set that con-

sists of 230 classified questions divided into 180

questions used for training and 50 questions used for

testing. The data does not contain all types of ques-

tions. The set includes the Arabic questions: where,

who, what (followed by verb), how much, and where

but does not include: what (followed by pronoun),

why and how. However, adding these types of ques-

tions to the classifier only requires adding them to the

training dataset.

3.4 Information Retrieval

The Information Retrieval module consists of two

sub-modules: the Online Search Engine and the Pas-

sage Retrieval submodules.

Our system is designed to interface with com-

monly available search engine modules. However, in

our implementation, we choose the Yahoo API to be

numerically comparable to previous systems using

the same API, e.g., (Abouenour et al., 2010).

For the Passage Retrieval submodule to function,

we construct a general Semantic Interpreter (SI) that

can represent text meaning. we use Wikipedia as a re-

pository of basic concepts. Logically, we choose

Wikipedia for several reasons including the follow-

ing.

 It includes concepts in a large variety of topics.

 It is constantly maintained and extended by a

huge community.

 Since the goal is to interpret natural language,

we like the concepts to be natural, i.e, can be

recognized and used by human beings.

 Each concept C

has an associated docu-

ment d

, so that we can easily determine

the strength of its affinity with each term

in the language.

3.4.1 Building the Semantic Interpreter

We use the Explicit Semantic Analysis (ESA) ap-

proach proposed in (Gabrilovich and Markovitch,

2007). Given a set of concepts, C

, ..., C

, and a set of

associated documents, d

, ..., d

, we build a sparse ta-

ble T where each of the n columns corresponds to a

concept, and each of the rows corresponds to a word

that occurs in U

i=1...n

. An entry T [i, j] in the table

corresponds to the term frequency–inverse document

frequency (tf-idf) value of term t

in document d





,



=



,



.log









(1)

where term frequency is defined as:





,





=

1+log



,



 



,



0

0

(2)

and d f

= |{d

: t

∈

}| is the number of documents in

the collection that contains the term t

(document fre-

quency). Finally, cosine normalization is applied to

each row to discard differences in document length:





,



←





,





∑





,







(3)

where r is the number of terms.

The semantic interpretation of a word t

is ob-

tained as a row i of table T. In other words, the mean-

ing of a word is given by a vector of concepts paired

with their tf-idf scores, which reflects the relevance

of each concept with respect to the word. The seman-

tic interpretation of a text fragment, ⟨t

, ..., t

⟩, is the

centroid of the vectors representing the individual

words. This definition allows us to partially perform

word sense disambiguation. Consider, for example,

the interpretation vector for the term “mouse”. It has

two sets of strong components, which correspond to

two possible meanings: “mouse (rodent)” and “mouse

(computing)”. Similarly, the interpretation vector of

the word “screen” has strong components associated

with “window screen” and “computer screen”. In a

text fragment such as “I purchased a mouse and a

screen”, summing the two interpretation vectors will

boost the computer-related components, effectively

disambiguating both words. Table T can also be

viewed as an inverted index, which maps each word

to a list of concepts where it appears. Inverted index

provides a very efficient computation of distance be-

tween interpretation vectors.

3.4.2 Using Semantic Interpreter

Explicit Semantic Analysis represents text as inter-

pretation vectors in the high-dimensional space of

concepts. With this representation, computing seman-

tic relatedness of texts simply amounts to compare

their vectors. Vectors could be compared using a va-

riety of metrics; we use the cosine similarity metric

for computing semantic relatedness throughout our

performance evaluation.

3.4.3 Computing the Semantic Relatedness

In order to determine the semantic relatedness be-

tween the question and the retrieved snippets, we

compute the question vector and the vectors of snip-

pets using the Semantic Interpreter (SI) obtained.

Then, we compute the cosine similarity between the

question concept vector and the concept vector of

each snippet i. The result scores are used to select the

top-scoring snippets that are relevant to the question.

The more similar the snippet vector to the query vec-

tor is, the more likely it is to be related to the query as

illustrated in Figure 4.

Figure 4: The semantic relatedness between the query and

the document (Gabrilovich and Markovitch, 2009).

3.5 Answer Extraction

The purpose of the Answer Extraction (AE) module

is to search for candidate answers within the relevant

passages and extract the most likely answers. Using

certain patterns for each type of question is the main

approach. In general, patterns can be written by peo-

ple or learnt from a training dataset. The type of the

expected answers is always taken into consideration.

That's why, we use a Named Entity Recognition

(NER) system with the patterns extracted for each

question type to adapt the approach proposed in (Rav-

ichandran and Hovy, 2002).

Our Answer Extraction module is composed of

three phases. The first and second phases are based

on the approach in (Ravichandran and Hovy, 2002).

The first phase is to use the web documents retrieved

by the Passage Retrieval module to construct a table

of patterns for each question type. The second phase

is to rank these patterns by calculating their corre-

sponding precision. The third phase is to find the an-

swer using the extracted answer patterns then filter

the answers using the MADAMIRA NER.

3.5.1 Constructing a Table of Patterns

In this phase, we select an example for a given ques-

tion type having question and answer terms. Then, we

submit the question and the answer terms as queries

to the search engine. After downloading the top m

web documents, we only retain those sentences that

contain both the question and the answer terms. Then,

we tokenize the input text, smooth variations in white

space characters, and remove

html and other tags and

pass the sentences through the suffix tree to get the

longest matching substrings containing answer and

question term. Finally, we replace question and an-

swer terms with tags and store them as patterns.

3.5.2 Calculating the Precision for Each

Pattern

In this phase, we query the search engine by using

only the question term. We download the top m web

documents and segment their documents into individ-

ual sentences. We retain only those sentences that

contain the question term. For each pattern obtained

from the previous phase, we check the presence of the

pattern in the sentence and calculate the F-measure of

each pattern where,

= 2

x

(+)

(4)

Where Precision of each pattern = C

and Recall

of each pattern = C

/(C

+ C

); in which:

 C

= total number of patterns with the answer

term present.

 C

= total number of patterns present with an-

swer term replaced by any word.

 C

= total number of patterns present with an-

swer term and not having question term.

Finally, we sort the patterns according to their F-

measures.

3.5.3 Finding Answers

In this last stage, we determine the question type of

the new question using the Question Analysis mod-

ule. We create a query from the question term and

pass it to Information Retrieval module. We segment

the documents obtained into sentences and smooth

out white space variations and

html and other tags,

as we did before. Then, we replace the question term

in each sentence by the question tag. Using the pattern

table developed for that particular question type, we

search for the presence of each pattern. We select

words matching the tag <answer> and sort these an-

swers by their pattern precision scores. Finally, we

use the MADAMIRA system to recognize the words

which would contain the answer in the pattern having

the same type of the wanted answer.

3.5.4 Using Suffix Trees

The purpose of the past three phases is to extract the

matching answer passage. For that purpose, we use

suffix trees for extracting substrings of optimal length

that contain the question and the answer terms as sub-

strings in it. Suffix Tree is very useful in numerous

string processing and computational biology prob-

lems. A suffix tree T for an m-character string S is a

rooted directed tree with exactly m leaves numbered

1 to m. A suffix tree has the following characteristics.

 The root can have zero, one or more children.

 Each internal node has at least two children.

 Each edge is labeled with a nonempty substring

of S.

 No two edges coming out of the node can have

edge-labels beginning with the same character.

Concatenation of the edge-labels on the path from

the root to leaf i gives the suffix of S that starts at po-

sition i, i.e., S [i...m]. For example, Figure 5 is the suf-

fix tree for the string xabxac. The last character has to

be unique so the tree is explicit.

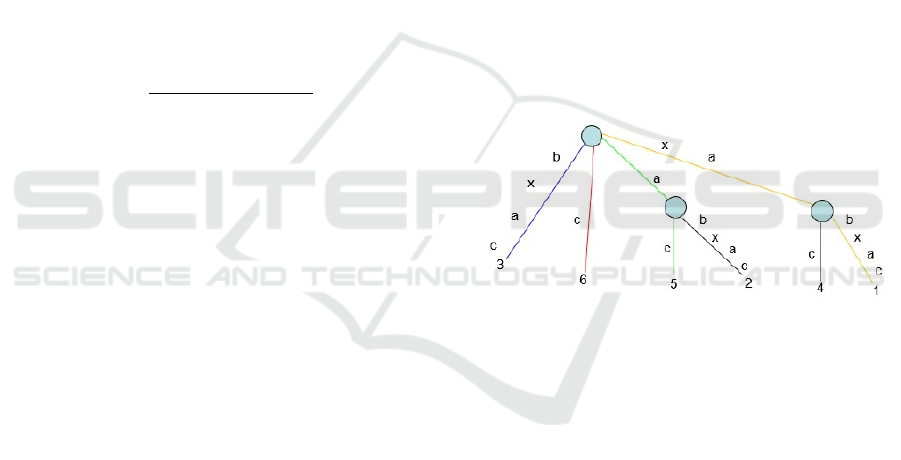

Figure 5: Suffix tree of the string xabxac.

In our implementation, we employ an algorithm

which is adapted from the famous Ukkonen’s algo-

rithm (Ukkonen, E., 1995). Taking an abstract view,

the algorithm constructs an implicit suffix tree T

for

each prefix S [l..i] of S of length m. It first builds T

using 1

character, then T

using 2

character, then

using 3

character, . . . , T

using m

character.

Implicit suffix tree T

i+1

is built on top of implicit suf-

fix tree T

. Each phase i+1 is further divided into i+1

extensions, one for each of the i+1 suffixes of

S [1...i+1]. In extension j of phase i+1, the algorithm

first finds the end of the path from the root labeled

with substring S [j…i]. It then extends the substring

by adding the character S (i+1) to its end.

Sometimes, the resulting answers are found to

have irrelevant words like propositions since the An-

swer Extraction module finds the matching patterns

regardless of the answer word type. Pattern <name>

<answer> may give answer "In Pyramids" and con-

sider "In" proposition to be an answer. Using the NER

of MADAMIRA, we check on the answers because

we restrict ourselves to four types of questions: Loca-

tionCountry, LocationCity, HumanIndividual and

NumericDate. MADAMIRA can find the NER of

words belonging to the three major categories: LOC,

PER and ORG. Other words that do not belong to

these categories will not be added to the dictionary

made for the word types. The answers of Loca-

tionCountry and LocationCity questions are expected

to be a location. So, the system checks the words in

the dictionary to make sure that these words are rec-

ognized to be entities. MADAMIRA sometimes fails

in identifying location words and identifies them as

person words. Our best approach is to check if these

words are considered to be entities or not to be ac-

cepted as answer. In HumanIndividual questions, the

answers are expected to be a person making it easy to

check the words in the dictionary built to find out if it

is a PER of not. The NumericDate question type is

validated by checking if the word is a number or a

month name.

In the proposed system, the top five answers are

returned expecting the correct answer to be in one of

them.

4 SYSTEM EVALUATION

We compare our work with previously established

Arabic question answering systems, such as

(Abouenour et al., 2010) and (Benajiba and Rosso,

2007b). However, each of these works have its own

dataset and evaluation methods. Therefore, we build

two versions of our system. The main difference be-

tween them is the Passage Retrieval module. The first

system is referred to as the online version of the sys-

tem, where Yahoo API is used for passage retrieval.

The other version is referred to as the offline version,

where the Explicit Semantic Analysis (ESA) ap-

proach is used for ranking passages retrieved from

Yahoo API.

We use the standard metrics for QA evaluation,

namely, Accuracy, Mean Reciprocal Rank (MRR)

and Answered Questions (AQ). The definitions of

these metrics are given below.

 =







,

∈

(5)

 =

∈

(



,





)

(6)

 =





(

,

)

∈

(7)

Where 

,

equals 1 if the answer to question k is

found in the passage having the rank j, 0 otherwise.

4.1 Evaluation of the Online Version

In this version, all the proposed components of our

system are used except for the module implementing

the ESA. We compare the online version of our sys-

tem with the system of (Abouenour et al., 2010).

Their dataset of questions and answers are available.

However, their obtained snippets (using Yahoo API

at 2010) are not available. So, we obtain our snippets

using the current version of Yahoo API. Our pro-

posed system outperforms the work of (Abouenour et

al., 2010) as shown in Table 1. For a fair comparison,

given the improvements that should have been intro-

duced to Yahoo API in the last few years, we also

compare the quality of individual system components

and not only the overall quality.

Table 1: System evaluation of the online version.

Accuracy MRR AQ

Abouenour et al.,

2010

20.20% 9.22 26.74%

Online system 26.15% 12.57 45.97%

In Table 2, the corresponding percentage of an-

swered questions of (Abouenour et al., 2010) are

listed. We choose the question types of the greatest

number of questions to use for the training and test-

ing, these types are Location, Person and Time. More-

over, these types have given the highest answered

questions percentage at the work in (Abouenour et al.,

2010).

Table 2: Abouenour et al. Answer Extraction Module Re-

sults.

Type AQ

Abbreviation 0.33%

Count 0.56%

Location 4.26%

Measure 0.14%

Object 0.08%

Organization 0.33%

Other 5.24%

Person 4.83%

Time 2.33%

Using CLEF and TREC datasets, we divide the

datasets into training and testing sets. Together, they

are of 2,242 questions that pass through the Answer

Extraction (AE) module. The results are shown in Ta-

ble 3. They show that our AE module has a great role

in improving the proposed QA system.

Table 3: Answer Extraction Evaluation for both systems.

Abouenour

et al., 2010

Online

Version

Answered Questions (AQ) 15.30% 50.49%

4.2 Evaluation of the Offline Version

In this version, all the proposed components of the

system are used including the ESA component. Due

to time limitations, we compared our system to the

work in (Abouenour et al., 2010) using only a sample

of the data set, namely 200 questions and answers.

The results are shown in Table 4.

Table 4: System evaluation of the offline version.

Accu-

racy

MRR AQ

Abouenour et al.,

2010

20.20% 9.22 26.74%

Offline system 22.20% 8.16 47.66%

4.3 Evaluation of the Question

Classifier Module

Table 5 shows the precision, recall, and F-Measure of

the Li and Roth (Li and Roth, 2002) taxonomy when

applied on Clef and Trec datasets (Abouenour et al.,

2010). Table 6 shows the results of our question clas-

sifier module. Finally, Table 7 shows a comparison

between Li and Roth taxonomy and our taxonomy.

Table 5: Precision, Recall and F-measure for the Li and

Roth coarse classification.

Preci-

sion

Recall F-measure

Abbreviation 0.0% 0.0% 0.0%

Description 0.0% 0.0% 0.0%

Entity 26.7% 22.2% 24.2%

Human 70.8% 86.3% 77.8%

Location 78.1% 71.4% 74.6%

Number 97.8% 84.6% 90.7%

Table 6: Precision, Recall and F-measure for the proposed

question classification.

Preci-

sion

Recall F-measure

Number Date 100.0% 100.0% 100.0%

Location Country 85.7% 68.6% 76.2%

Location City 74.4% 91.4% 82.1%

Human Individual 100.0% 97.1% 98.5%

Table 7: Classification results.

% of

Li and

Roth

Our pro-

posed

classifier

correctly classified instances 75.1% 89.2%

incorrectly classified instances 24.8% 10.7%

5 CONCLUSIONS AND FUTURE

WORK

Question Answering systems started to be a standard

built-in feature in most of the search engines. How-

ever, Arabic QA systems still lag behind despite the

large population of Arabic speakers. Even the latest

research in this domain does not bring highly accurate

results. Our aim is to increase this accuracy. A classi-

cal QA system architecture is adopted, starting with a

question analysis module that mainly classifies the

question and generates proper queries, adding to it a

query expansion module for improving the recall of

the passage retrieval module. The passage retrieval

and ranking module takes a query as an input and out-

puts the most relevant documents to that query. Alt-

hough implementing the ESA for this specific NLP

problem was previously applied in (Abdelnasser et al,

2014), scaling it to fit generic questions is the chal-

lenge that we took. Our contribution shows that the

ESA with proper work and computational power is

giving promising results. We use a new answer ex-

traction method that was not implemented for Arabic

QA systems before. We used an NER system in the

Answer Extraction module that was found to be giv-

ing much better results. The results show that; with

enough data, we would produce much more pattern

types giving a very acceptable output.

In the future, we want to extend our Answer Ex-

traction module to take more question types. Moreo-

ver, we started to extend the used NER system our

own named entity recognizer, as this directly affects

the results returning from the answer extraction mod-

ule. Finally, we are planning to create our own Arabic

testbed. As opposed to Latin NLP, we do not have a

single unified testbed. Finally, we would like to apply

deep learning techniques and measure their contribu-

tion to the overall performance.

REFERENCES

Abdelnasser, H., Mohamed, R., Ragab, M., Mohamed, A.,

Farouk, B., El-Makky, N., Torki, M., 2014. Al-bayan:

an Arabic question answering system for the holy

Quran. In Arabic Natural Language Processing Work-

shop, page 57, Qatar.

Abouenour, L., Bouzouba, K., Rosso, P., 2010. An evalu-

ated semantic query expansion and structure-based ap-

proach for enhancing Arabic question/answering. In In-

ternational Journal on Information and Communica-

tion Technologies, 3(3):37–51.

Abouenour, L., Bouzoubaa, K., Rosso, P., 2012. IDRAAQ:

New Arabic question answering system based on query

expansion and passage retrieval. In CLEF (Online

Working Notes/Labs/Workshop).

Benajiba, Y., Rosso, P., 2007a. Anersys 2.0: Conquering

the NER task for the Arabic language by combining the

maximum entropy with pos-tag information. In Proc.

Of Workshop on Natural Language-Independent Engi-

neering, IICAI-2007.

Benajiba, Y., Rosso, P., 2007b. Arabic question answering.

Diploma of advanced studies. Technical University of

Valencia, Spain.

Benajiba, Y., Rosso, P., and Benedíruiz, J. M., 2007. An-

ersys: An Arabic named entity recognition system

based on maximum entropy. In Computational Linguis-

tics and Intelligent Text Processing, pages 143–153.

Springer.

Diab, M., 2009. Second generation AMIRA tools for Ara-

bic processing: Fast and robust tokenization, POS tag-

ging, and base phrase chunking. In 2

International

Conference on Arabic Language Resources and Tools

(Vol. 110).

Elkateb, S., Black, W., Vossen, P., Farwell, D., Rodríguez,

H., Pease, A., Alkhalifa, M., 2006. Arabic wordnet and

the challenges of Arabic. In Proceedings of Arabic

NLP/MT Conference, London, UK.

Ezzeldin, A. M., Kholief, M. H., El-Sonbaty, Y., 2013.

Alqasim: Arabic language question answer selection in

machines. In International Conference of the Cross-

Language Evaluation Forum for European Languages,

pages 100–103. Springer.

Fellbaum, C., 2005. WordNet and wordnets. In: Brown,

Keith et al. (eds.) Encyclopedia of Language and Lin-

guistics, Second Edition, pp. 665--670. Elsevier, Ox-

ford.

Gabrilovich, E., Markovitch, S., 2007. Computing semantic

relatedness using wikipedia-based explicit semantic

analysis. In Proceedings of the 20th international joint

conference on artificial intelligence, volume 6, page 12.

Gabrilovich, E., Markovitch, S., 2009. Wikipedia-based se-

mantic interpretation for natural language processing.

In Journal of Artificial Intelligence Research, 34:443–

498.

Habash, N., Rambow, O. and Roth, R., 2009, April.

MADA+ TOKAN: A toolkit for Arabic tokenization,

diacritization, morphological disambiguation, POS tag-

ging, stemming and lemmatization. In Proceedings of

the 2nd international conference on Arabic language

resources and tools (MEDAR), Cairo, Egypt (Vol. 41,

p. 62).

Hammo, B., Abu-Salem, H., Lytinen, S., 2002. QARAB: a

question answering system to support the Arabic lan-

guage. In Proceedings of the ACL-02 workshop on

Computational approaches to semitic languages, SE-

MITIC ’02, pages 1–11. Stroudsburg, PA, USA. Asso-

ciation for Computational Linguistics.

Li, X., Roth, D., 2002. Learning question classifiers. In

Proceedings of the 19

International Conference on

Computational Linguistics-Volume 1, pages 1–7. Asso-

ciation for Computational Linguistics.

Martin, A. I., Franz, M., Roukos, S., 2001. IBM’s statistical

question answering system-trec-10. In Proceedings of

the 10

Text Retrieval Conference. TREC-10.

McCandless, M., Hatcher, E., Gospodneti, O., 2010. Lu-

cene in Action, Manning, 2

Edition.

Niles, I., Pease, A., 2003. Mapping wordnet to the sumo

ontology. In Proceedings of the IEEE International

Knowledge Engineering Conference, pages 23–26.

Pasha, A., Al-Badrashiny, M., Diab, M. T., El Kholy, A.,

Eskander, R., Habash, N., Pooleery, M., Rambow, O.,

Roth, R., 2014. MADAMIRA: A fast, comprehensive

tool for morphological analysis and disambiguation of

arabic. In LREC, volume 14, pages 1094–1101.

Ravichandran, D., Hovy, E., 2002. Learning surface text

patterns for a question answering system. In Proceed-

ings of the 40

annual meeting on Association for Com-

putational Linguistics, pages 41–47. Association for

Computational Linguistics.

Trigui, O., Belguith, H., Rosso, P., 2010. DefArabicQA:

Arabic definition question answering system. In Work-

shop on Language Resources and Human Language

Technologies for Semitic Languages, 7

LREC, pages

40–45. Valletta, Malta.

Trigui, O., Belguith, L. H., Rosso, P., Amor, H. B.,

Gafsaoui, B., 2012. Arabic qa4mre at clef 2012: Arabic

question answering for machine reading evaluation. In

CLEF (Online Working Notes/Labs/Workshop).

Ukkonen, E., 1995. On-line construction of suffix trees. In

Algorithmica, 14(3):249–260.
