The CPSwarm Project: Swarm Modelling in

Self-organization and Swarm Intelligence in Cyber

Physical Systems

Alessandra Bagnato, Etienne Brosse, and Alexandre Beaufays

Softeam Research & Development, 21 avenue Victor Hugo, 75016 Paris, France

{alessandra.bagnato,etienne.brosse}@softeam.fr

Abstract. The paper describes the Swarm Modelling in the context of the

CPSwarm project, The project proposes a new science of system integration and

tools to support engineering of CPS swarms.CPSwarm tools will ease develop-

ment and integration of complex herds of heterogeneous CPS that collaborate

based on local policies and that exhibit a collective behavior capable of solving

complex, industrial-driven, real-world problems.

Keywords: System modeling · Design exploration

Herds of heterogeneous CPS

1 Introduction

CPSwarm is a 36-months Research and Innovation Action (RIA) funded under H2020

call ICT-01-2016. The project aims at defining a complete toolchain, enabling the de-

signer to:

● Set-up collaborative autonomous CPSs;

● Test the swarm performance with respect to the design goal and

● Massively deploy solutions of “reconfigurable” CPS devices and CPSoS.

Within the project Softeam developed a dedicated CPSwarm modelling language on

top of System Modeling Language (SysML) standard. SysML is a general-purpose vis-

ual modelling language for systems engineering applications defined as a profile of the

Unified Modeling Language (UML) standard. It supports the specification, analysis,

design, verification and validation of a broad range of systems and systems-of-systems.

These systems may include hardware, software, information, processes, personnel, and

facilities.

Within the CPSwarm modelling language we used SysML concepts to fulfill the

CPSwarm end user modeling needs. A dedicated CPSwarm UML2 Profile has been

defined which includes UML/SysML customizations, and specific graphical notations

[1].

The following paragraphs provide a quick description of CPSwarm project and also

CPSwarm Modelling language definition.

Bagnato, A., Brosse, E. and Beaufays, A.

The CPSwarm Project - Swarm Modelling in Self-organization and Swarm Intelligence in Cyber Physical Systems.

DOI: 10.5220/0008862200910099

In OPPORTUNITIES AND CHALLENGES for European Projects (EPS Portugal 2017/2018 2017), pages 91-99

ISBN: 978-989-758-361-2

2 The CPSwarm Project

2.1 CPSwarm Project Overview

Driven by industrial needs, which are expressed through industrial use cases cf. Section

2.2, the CPSwarm project aims to:

1. Drastically Improve support to design of complex, autonomous CPS

2. Provide a self-contained, yet extensible library of re-usable models for de-

scribing Cyber Physical Systems

3. Enabling a sensible reduction in complexity and time of CPS development

workflow by automating deployment

4. Define a complete library of swarm and evolutionary algorithms for CPS de-

sign

5. Establish reference patterns and tools for integration of CPS artefacts

6. Address real industrial needs in CPS design, with a particular focus on the

autonomous robotic vehicles, freight vehicles and smart

A set of requirements has been defined according to the project goals defined earlier.

These requirements will be evaluated in the context of three case studies described be-

low.

2.2 CPSwarm Case Studies

CPSwarm results will be applied and evaluated on the following case studies:

Swarm Drones

Heterogeneous swarms of ground robots/ rovers and UAVs to conduct certain missions

in surveillance of critical infrastructures like, e.g., industrial or power plants. These

missions includes:

● Intrusion detection (detection of unauthorized persons entering the plant area),

● Monitoring of actions of unauthorized persons in the plant areas.

Search and Rescue tasks can also be fulfilled by these heterogeneous swarms. These

tacks might include:

● Generating a situation overview of the disaster scene in case of an industrial

plant accident including real-time images (VIS, IR), toxic and explosive gas

leakage detection,

● Finding of human casualties or persons trapped in the disaster area.

Automotive CPS

Applications for collective driving with a focus on autonomous driving vehicles in-

tended for freight transportation independent vehicles could join or leave a swarm at

any point during the journey. The leading vehicle has autonomous driving capability

and prescribes the actions and decisions for the follow-up vehicles. The follow-up ve-

hicles have also autonomous driving capability and follow, if possible, the leading ve-

hicle’s actions.

EPS Portugal 2017/2018 2017 - OPPORTUNITIES AND CHALLENGES for European Projects

Swarm Logistic Assistant

Focus on robots and rovers designed to assist humans in logistics domain, in this case

the CPS swarm will be able to:

● Scan the entire area of the warehouse and share the acquired information;

● Collect information about the maps of the entire area;

● Collect additional information implicitly e.g. room temperature, presence of

humans, detection of in-path obstacles etc.

● Join forces to move a heavy obstacle from one place to another.

3 CPSwarm Modelling

The CPSwarm modelling tool is built on top of Modelio open source modelling envi-

ronment https://www.modelio.org/. CPS Swarm modelling activity can be succinctly

described as the creation and population of several diagrams or views. Each of these

view has a specific and particular purpose. The following sections describe how to

model a simple but complete swarm.

3.1 CPSwarm Model Template

Modelling is always a difficult task especially when it is carried out from scratch. In

this case, guidance is helpful. The main goal of the CPSwarm template generation is to

help the Modeler to create a simple CPS swarm model with all minimum concepts. As

depicted in the following figure (Figure 1), the model generation using the CPS Swarm

template can be easily be done just by right clicking on the root model package.

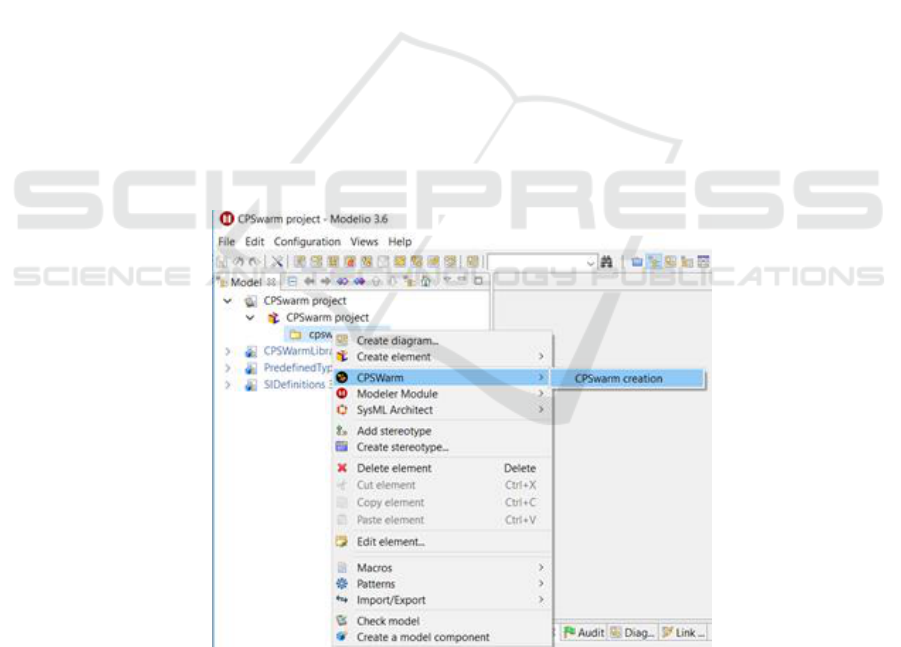

Fig. 1. Creating a new swarm modelling.

The CPSwarm Project - Swarm Modelling in Self-organization and Swarm Intelligence in Cyber Physical Systems

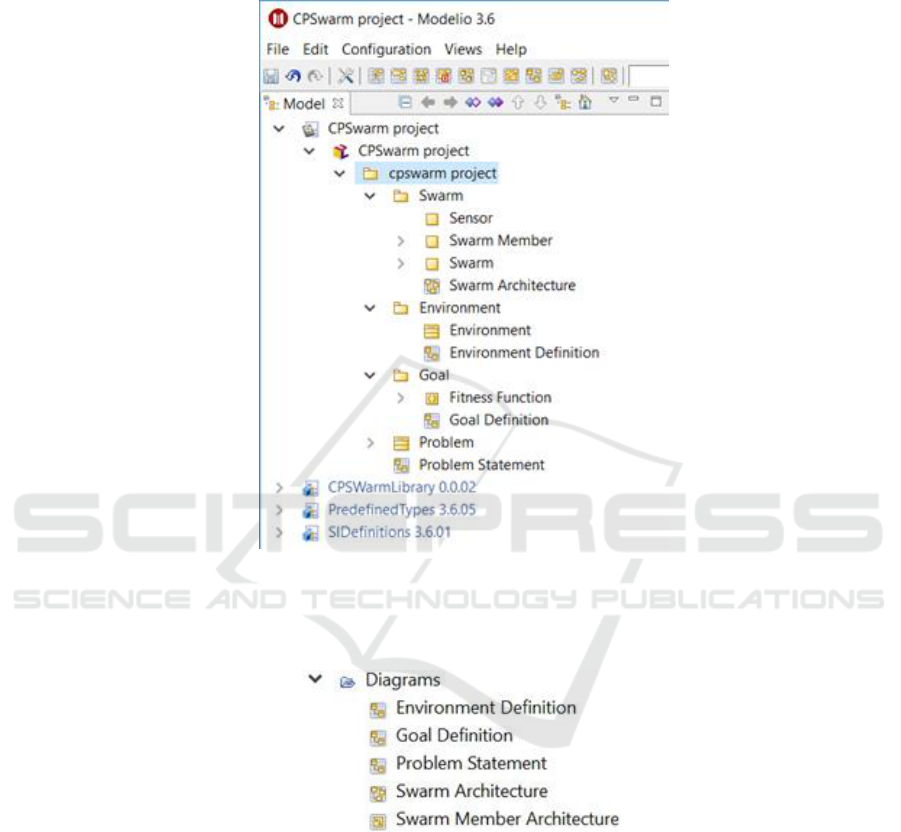

Figure 2 shows the result of the CPS swarm template generation in terms of created

model elements.

Fig. 2. New swarm result.

The swarm template generator produces a set of initial diagrams (as shown in Figure

3) that have been identified as necessary to completely model a CPS swarm.

Fig. 3. CPSwarm predefined diagrams.

Then the CPSwarm modeler can modify the initial content following the needs of

the specific case study he/she is modelling. The CPSwarm modeler will find on the

right part of each of the diagrams (namely Environment Definition, Goal Definition,

Problem Statement, Swarm Architecture, and Swarm member architecture) the prede-

fined selection of the modelling elements he/she can specifically use for that specific

diagram context.

EPS Portugal 2017/2018 2017 - OPPORTUNITIES AND CHALLENGES for European Projects

Three main concepts compose a CPSwarm model:

1. CPS Swarm itself which is composed of several type ofCPS.

2. CPS architecture which is composed Hardware component as Sensor, Con-

troller or Actuator.

3. CPS behavior which is described as a UML state machine.

A more detailed description of these three main concept are given in the following

sections. Note that these notions not the only one available on a CPSwarm model. In

CPSwarm project context, a CPS Swarm might evolve inside one or many physical

environment for a specific goal. These two notion of Environment and Goal are also

part of the CPSwarm model but are not detailed here.

3.2 CPSwarm Architecture Modelling

A swarm is composed of one to many type of CPS aka Swarm Member. To model this

relation, you must use the UML composition relation from the Swarm block to one or

many Swarm Member block. The multiplicity at the end of the relation indicates the

number of Swarm Member instance. Figure 4 depicts a simple Swarm composed of one

unique Swarm Member.

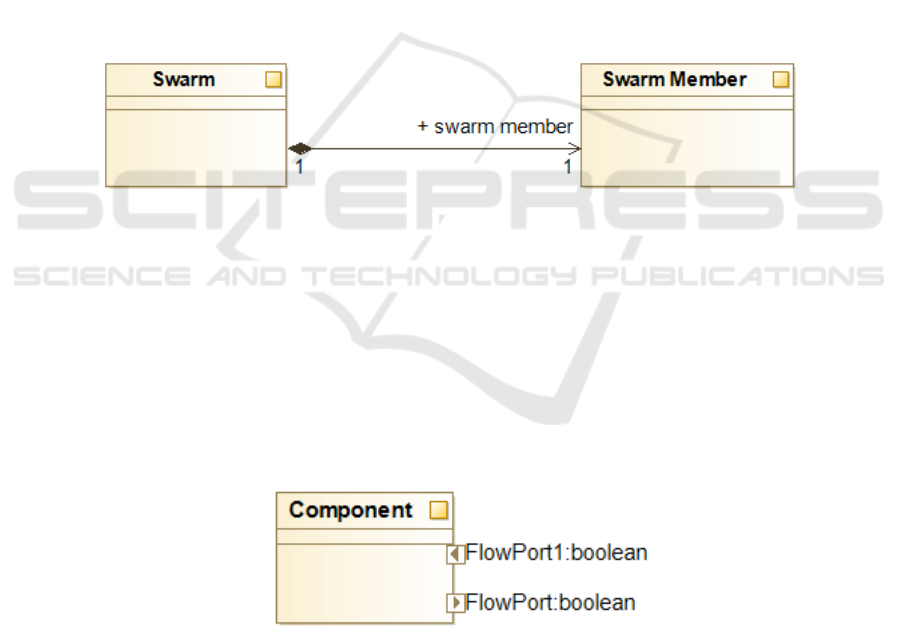

Fig. 4. Swarm Architecture Modelling Elements.

3.3 Swarm Member Architecture Modelling

Another aspect of Swarm Modelling is the specification of each Swarm Member inter-

nal architecture. This specification is made in two times. First, the list of internal com-

ponents (which can be a controller, a sensor, or an actuator component) must be defined.

Each of this internal component must expose the data it provides or requires. Figure 5

represents a simple component having two ports respectively named FlowPort and

FlowPort1. FlowPort expresses the fact that the component provides a Boolean value

at contrary FlowPort1 expresses the fact that the component requires a Boolean

Fig. 5. Simple sub Component example.

The CPSwarm Project - Swarm Modelling in Self-organization and Swarm Intelligence in Cyber Physical Systems

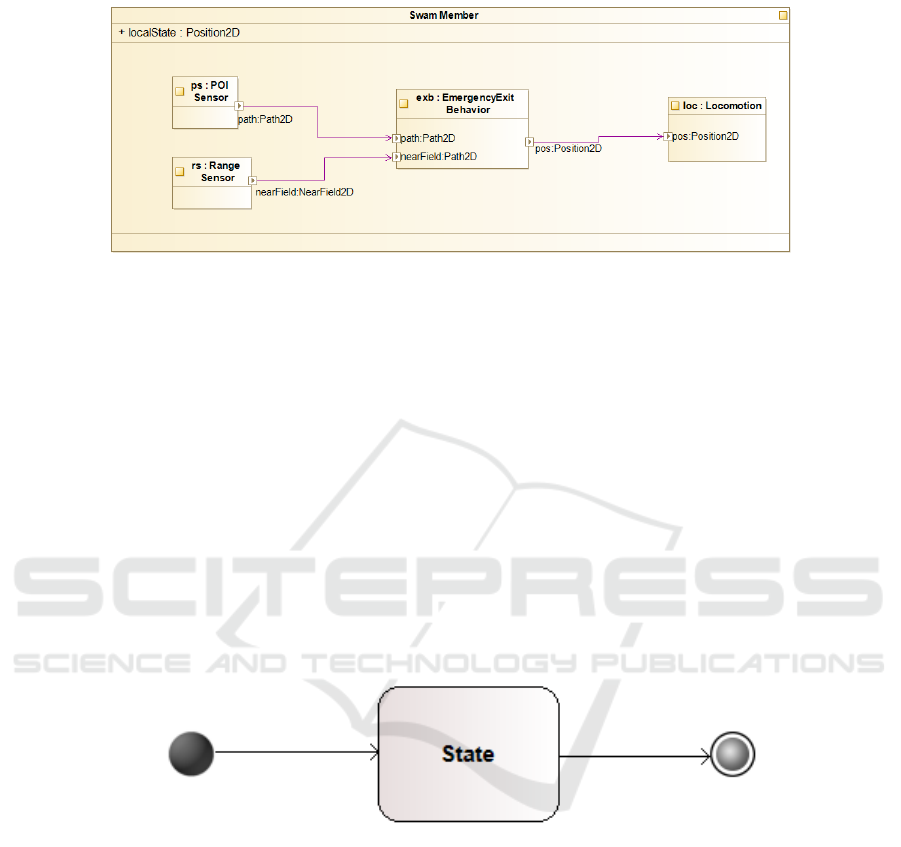

Fig. 6. Swarm Member Architecture Example.

The Figure 6 depicts the internal architecture of a Swarm Member. This diagram

shows a “localState” attribute but also four internal components (parts) respectively

named “ps”, “rs”, “exb”, and “loc”. These four parts are connected through specific

point (port) named “path, nearfield, or “pos”. The data going through the connection is

model thanks to interface (not shown in this diagram) but named “Path2D”, “Near-

Field2D”, and “Position2D”.

3.4 Swarm Member Behaviour Modelling

The internal architecture of a Swarm Member is a key aspect of its definition. The sec-

ond key aspect is its internal behavior. UML state machines are used to model Swarm

Member behavior. Figure 7 depicts the simplest possible Swarm Member behavior.

This latter is simply composed of a State named State. Both Initial and Final state are

mandatory to all State Machine. The two transitions respectively connect the initial

State to the State state and the State state to the Final state

Fig. 7. Simple Swarm Member Behaviour.

Of course, a real behavior will be more complex. Figure 8 for example represents

two states - aka State1 and State 2 – executed in parallel.

EPS Portugal 2017/2018 2017 - OPPORTUNITIES AND CHALLENGES for European Projects

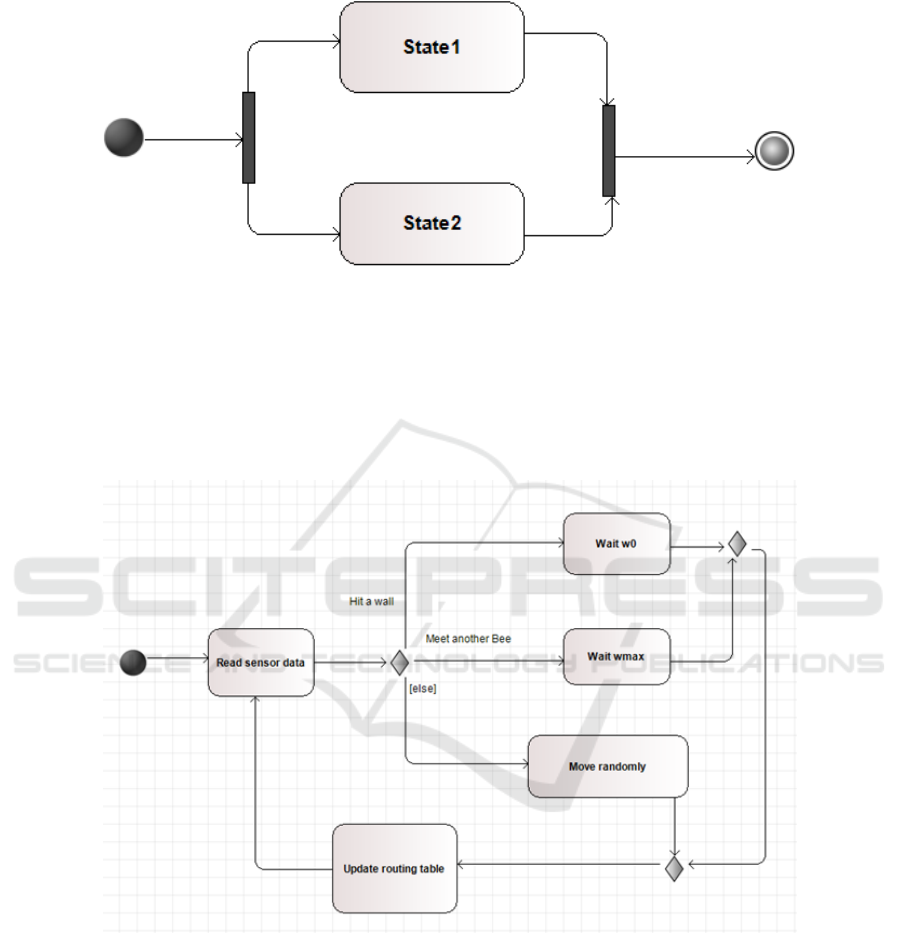

Fig. 8. Swarm Member Behaviour.

So the Swarm Member behaviour, shown in Figure 9, depicts with five states “Read

sensor data”, “Update routing table”, “Wait w0”, “Wait wmax”, and “Move randomly”.

The first state reached is the “Read sensor data”. According to the data collected the

CPS/Swarm Member waits for a specified time w0, for another one, called wmax, or

moves randomly. In any case, he updates its routing table and then reads again sensor

data.

Fig. 9. CPS behaviour example.

To handle the complexity of these state machine it is possible to extract part of them

inside another state machine and then refer this extracted content as a sub state machine.

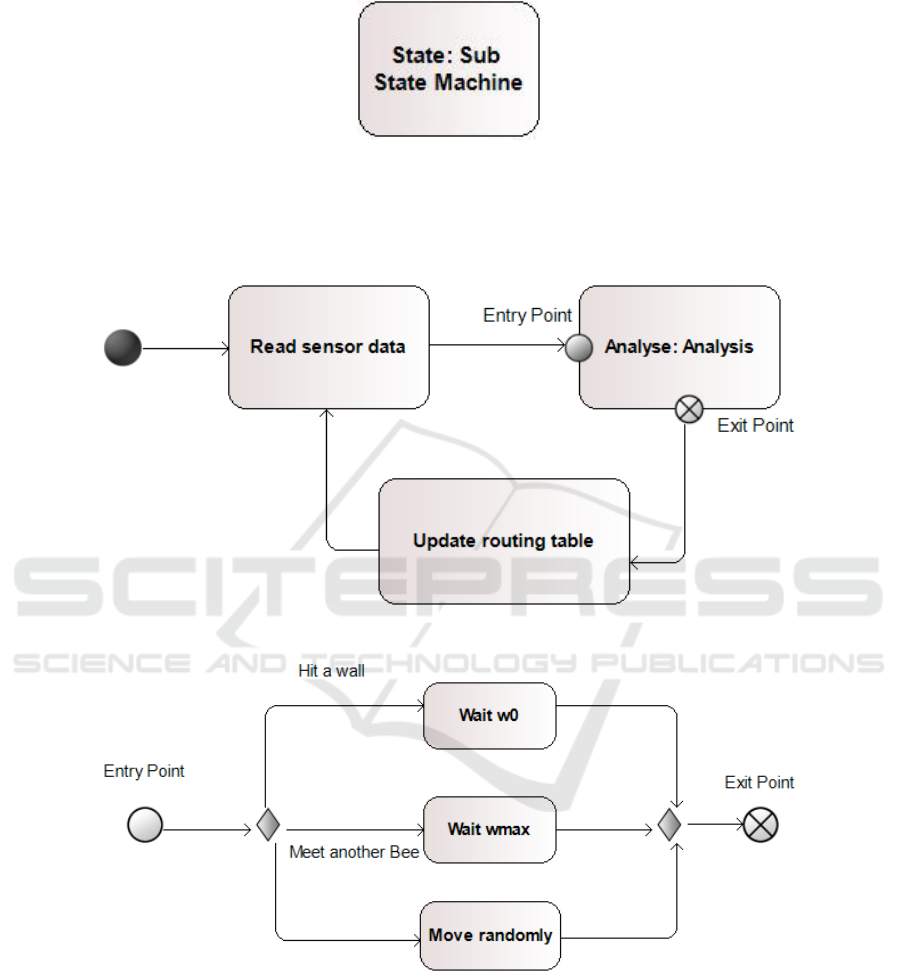

Figure 10 shows the call of a sub state machine by a particular State.

The CPSwarm Project - Swarm Modelling in Self-organization and Swarm Intelligence in Cyber Physical Systems

Fig. 10. Hierarchical State.

Figures 11 and 12 represent the behaviour depicted in Figure 9 but using a hierar-

chical state name “Analysis” in order to clarify and allow re usage of the CPS behav-

ioural modelling.

Fig. 11. Top state machine example

Fig. 12. Low state machine example.

EPS Portugal 2017/2018 2017 - OPPORTUNITIES AND CHALLENGES for European Projects

4 Conclusions

The book chapter describes the CPSwarm project as it has been presented during the

European Project Space Workshop within MODELSWARD 2018 in Madeira and con-

centrates on the swarm modeling part of the project managed by Softeam.

Acknowledgments. The research presented in this book chapter is funded by the H2020

Project CPSwarm started on 1

January 2017 and running till 31

December 2019.

References

1. Etienne, B, Beaufays, A and Bagnato, A. (2018). Modelio Forge CPSwarm Module.

https://forge.modelio.org/projects/cpswarm. Last accessed on 2018-07-18.
