Privacy Compliant Multi-biometric Authentication

on Smartphones

Alexandre Ninassi, Sylvain Vernois and Christophe Rosenberger

Normandie Univ., UNICAEN, ENSICAEN, CNRS, GREYC, 14000 Caen, France

Keywords:

Authentication, Multi-biometrics, Biometric Template Protection.

Abstract:

Smartphones are more and more used by Internet users for different services such as social networks, e-

commerce or email. User authentication with passwords on such devices is not user-friendly and does not

offer a high security level for this task. Biometrics is becoming one popular solution to achieve this goal with

the embedding of ﬁngerprint scanners in smartphones. In this paper, we propose a new protocol combining

ﬁngerprint and behavioral biometrics to enhance the security of user authentication while preserving usability

and privacy. The behavior when entering a pattern based authentication on the smartphone touch screen is

considered as a fast and usable solution for users. We think the proposed multi-biometric solution offers great

advantages for many applications such as e-payment in terms of security, usability and privacy. We show

through experimental results the efﬁciency of the proposed method.

1 INTRODUCTION

User authentication with smartphones is more and

more envisaged for applications on the Internet and

electronic transactions. A recent survey in 2016

(Sukhraj, 2016) showed that over 50% of smartphone

users grab it immediately after waking up. As a smart-

phone embeds more and more personal information

(contacts, mail content, media . . . ) and is used as

preferred device to access distant services, a strong

authentication is necessary for logical access control.

PIN code authentication is a common solution on

smartphones. Even if this solution is simple, it does

not constitute a strong identity proof as anybody look-

ing at the user typing it could use it.

In order to solve this problem, biometrics is more

and more used to increase the level of conﬁdence of

user authentication. Nevertheless, biometric data is

sensitive and requires a particular attention in terms

of security and privacy. Biometric data protection

should be realized during all the life cycle of the

data including the storage and the handling. Stan-

dard cryptography as symmetric encryption (or hash

functions) does not ensure the data protection dur-

ing the comparison step because two biometric data

from the same individual are not exactly identical.

Consequently, the comparison cannot be realized on

the encrypted/hashed domain. Several ways are pro-

posed to achieve the protection of biometric data, in-

cluding adapted cryptographic schemes (fuzzy com-

mitment, homomorphic encryption) (Juels and Wat-

tenberg, 1999; Barni et al., 2010) feature transfor-

mations (including the Biohashing algorithm) (Teoh

et al., 2004; Nagar et al., 2010). All these schemes

should ensure security, diversity and revocability of

the biometric data. We do not intend in this paper to

propose a new scheme for biometric template protec-

tion. For more details on these schemes, we refer the

reader to the detailed survey (Rathgeb and Uhl, 2011).

A biometric authentication is realized in two

steps: the enrollment and the veriﬁcation phases. The

ﬁrst one consists in generating the biometric reference

template of one user and to store it for further com-

parison. During veriﬁcation, a query biometric tem-

plate is compared to the reference one for decision.

In order to enhance security of user authentication, it

is required in general to combine different authenti-

cation factors. This can be realized by using differ-

ent biometric data to deﬁne a multi-biometric system.

Note that Multi-Factor Authentication (MFA) Market

is expected to reach USD 9.60 Billion by 2020 (Mar,

2016).

The ﬁrst contribution of this paper is to pro-

pose an efﬁcient and usable multi-biometric system

to enhance the security of user authentication on

smartphones. We combine two biometric modalities

namely ﬁngerprint and behavioral biometrics. We as-

sume in this work the used smartphone has a ﬁnger-

Ninassi, A., Vernois, S. and Rosenberger, C.

Privacy Compliant Multi-biometric Authentication on Smartphones.

DOI: 10.5220/0006534601730181

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 173-181

ISBN: 978-989-758-282-0

173

print scanner. This hypothesis is realistic as a recent

survey estimates that 67% of smartphones in 2018

will have a ﬁngerprint scanner (Statista, 2016). The

reference ﬁngerprint template in such smartphones

is stored in a secure element to ensure its protec-

tion. Second, we use a behavioral biometric modality

with a template protection scheme: biometric pattern

drawn on a touch screen. This solution has the ad-

vantage to be very simple to use and very quick. The

biometric reference is stored in the smartphone as a

BioCode that can be canceled in case of attack. Ex-

periments are carried out on a home made chimeric

(own made) benchmark dataset with 34 users (ﬁnger-

print and biometric pattern) and show the beneﬁt of

the proposed solution face to the literature.

This paper is organized as follows. Section 2 pro-

vides a literature review on existing solutions for user

authentication on smartphone. The proposed method

is described in Section 3. We present its general prin-

ciple of user, the concept of feature transformation

template protection schemes and the Biohashing al-

gorithm. The computation of biometric features from

pattern drawing is also described. Section 4 illustrates

through experimental results the beneﬁt of the pro-

posed solution. Finally, we conclude and give some

perspectives in Section 5.

2 RELATED WORKS

Biometric based mobile authentication is an emerg-

ing issue, with increasing references in the literature.

The NIST report (Orandi and McCabe, 2009) de-

tails some recommendations concerning portable bio-

metric acquisition station and considers the following

modalities: ﬁngerprint, face and iris. Most of papers

in the literature are devoted to a particular modality.

Researchers considered morphological modalities to

solve this issue. Face recognition is dealt with in the

paper (Hadid et al., 2007), along with eye detection,

or in (Choi et al., 2011), where a real time training

algorithm is developed for mobile devices. The au-

thors propose to extract local face features using some

local random bases and then to incrementally train a

neural network. Image processing also concerns hand

biometrics on mobile as in the reference (de Santos-

Sierra et al., 2011), where hand images are acquired

by a mobile device without any constraint in orienta-

tion, distance to camera or illumination. Other papers

(Clarke and Furnell, 2007; Changa et al., 2012) con-

sider keystroke dynamics based recognition. The ﬁrst

paper makes a study about user identiﬁcation using

keystroke dynamics-based authentication (KDA) on

mobile devices, relying on 11-digit telephone num-

bers and text messages as well as 4-digit PINs to clas-

sify users. Many papers propose to use touch screen

to capture biometric data (Sae-Bae et al., 2012). Most

of these studies use methods used for keystroke or sig-

nature dynamics. As for example, the notion of Tap-

Print has been proposed by Miluzzo et al. (Miluzzo

et al., 2012) where the concept of keystroke dynamics

is generalized to touch screen. The proposed method

is based on the location of the tap on the key asso-

ciated to a letter or by analyzing gyroscope informa-

tion. The system has been tested on 10 volunteers

with a total number of 40000 taps. The recognition

efﬁciency is between 80% and 90%. The work done

by Luca et al. (Luca et al., 2012) is very interesting

because it combines pattern based password and bio-

metrics. They proposed a system and test it with 34

users. Authors obtained a performance of 19% for

the FRR value (False Rejection Rate) and 21% for the

FAR (False Acceptance Rate). In 2013, a method has

been proposed (Beton et al., 2013) combining mul-

tiple information compared with the Pearson Corre-

lation and the Dynamic Time warping (DTW) meth-

ods. The equal error rate (EER) is near 17% which

is the best result for this biometric modality. Apart

from the literature dedicated to biometric solutions for

mobile authentication related to a speciﬁc modality,

some recent papers propose to use more than one bio-

metric modality (Alzubaidi and Kalita, 2016; Buriro,

2017). The work proposed in (Vildjiounaite et al.,

2006) combines the voice and accelerometer infor-

mation from the mobile phone. They obtain a low

performance with an EER value equals to 9%. An-

other work combined different behaviors of the user

to authenticate him/her with an EER equals to 9.2%

(Saevanee et al., 2014). An interesting work done by

galdi et al. (Galdi et al., 2016) combined iris recog-

nition and information on the camera (sensor ﬁnger-

printing) with an excellent EER value (i.e. 0.05%),

unfortunately, none protection of biometric templates

is provided. A recent paper (Stokkenes et al., 2016),

combined face and eyes images for user authentica-

tion. The obtained performance in the best case (with-

out any attack of the protection scheme) equals 1.8%.

We can see that many works have been done to

propose biometric systems for user authentication on

mobile devices. Based on this literature review, we

propose in the next section a new authentication solu-

tion combining ﬁngerprint and biometric pattern. The

ﬁrst modality is present in most smartphones and the

biometric reference template is safely stored in a se-

cure element (SIM card or the one associated to the

ﬁngerprint sensor). Using the biometric pattern al-

lows to enhance the security level while providing a

practical authentication solution (fast interaction) and

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

174

a good protection of the biometric data by applying a

template protection scheme.

3 PROPOSED METHOD

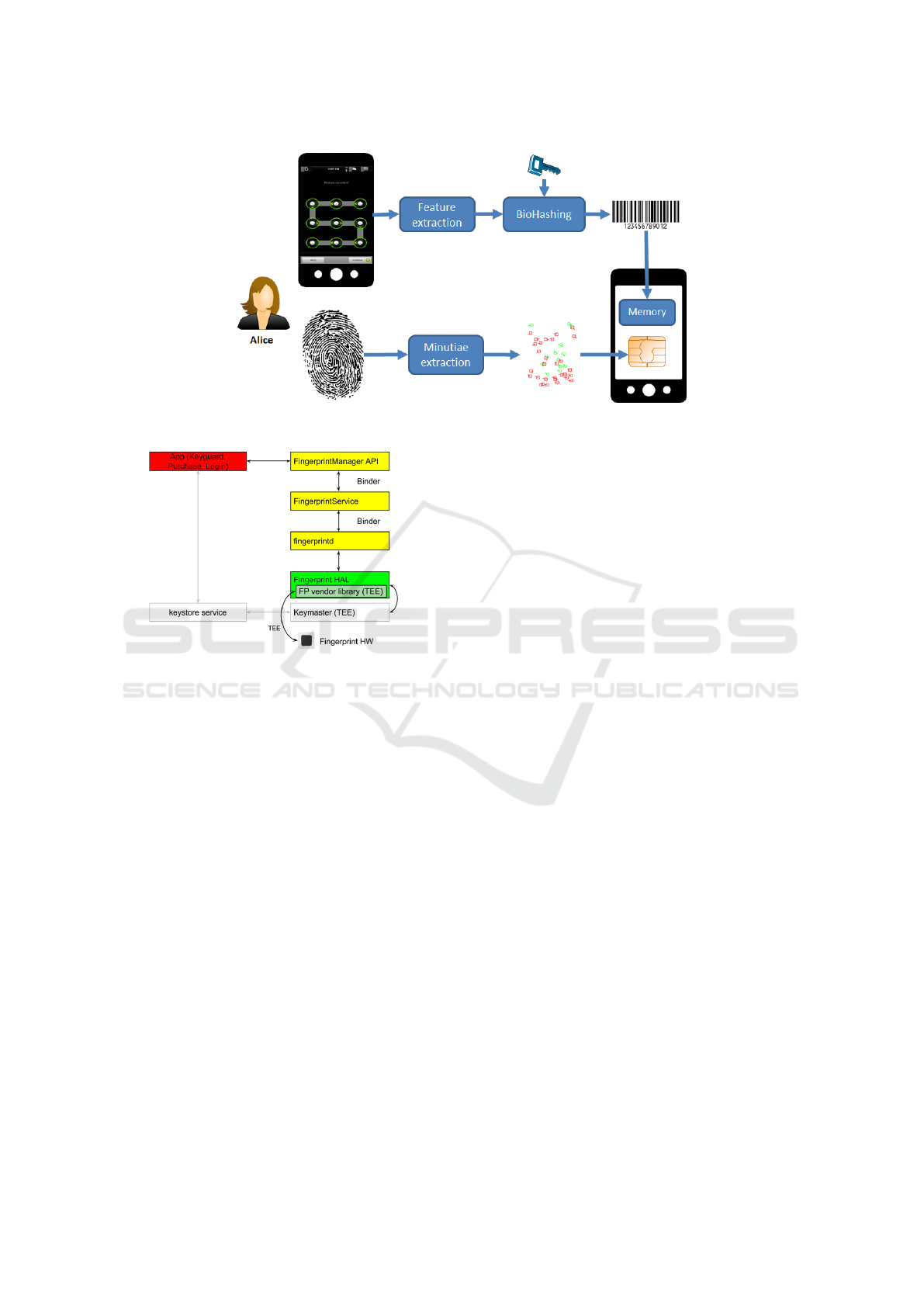

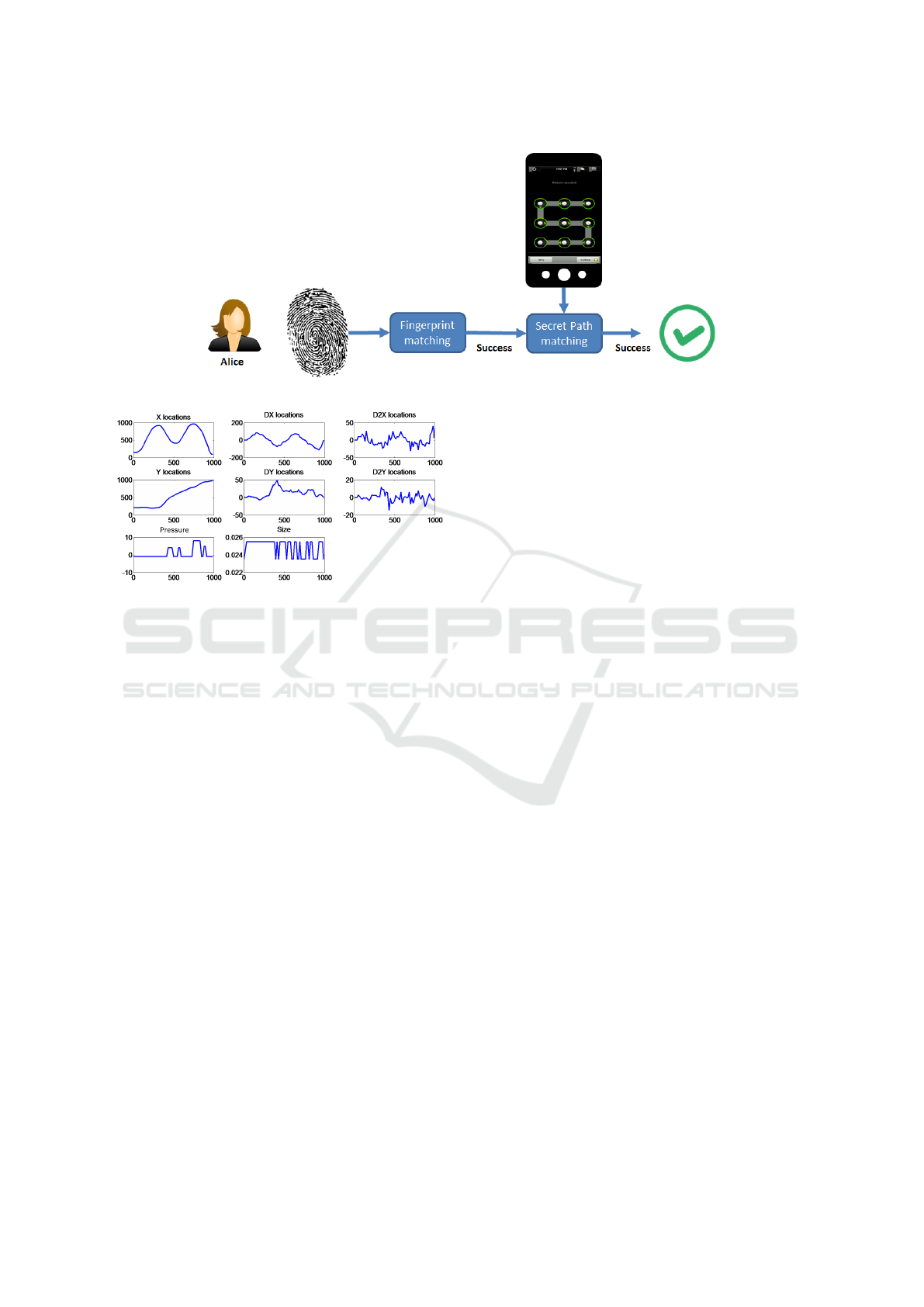

The general principle of the proposed method is given

by Figures 1 and 3. During enrollment phase, Al-

ice has to provide her ﬁngerprint to the smartphone

scanner to generate her reference ﬁngerprint. The ex-

tracted minutiae template is stored on a dedicated se-

cure element to protect it. She has also to enter a pat-

tern on the touch screen. The application computes

many features based on her behavior. We present in

the next section the details on the computation of be-

havioral parameters. We apply then the BioHashing

algorithm in order to protect this template, this algo-

rithm is presented in the following sections. For this

algorithm, we need a secret key in order to be able to

revoke it in case of attack. This secret key could be

a password, a random value, a binary representation

of the pattern. . . This secret can also be concatenated

with other information such as: IMEI number ( Inter-

national Mobile Equipment Identity), Alice’s name,

random value. . . During the veriﬁcation phase, Alice

has to provide her ﬁngerprint to authenticate herself.

The captured ﬁngerprint is compared with Alice’s ref-

erence in the secure element. If her identity is veri-

ﬁed, she has to enter the pattern on the touch screen.

A capture BioCode is computed and compared to Al-

ice’s Reference BioCode in the smartphone. If both

biometric systems accept Alice’s proof, she is authen-

ticated.

3.1 Fingerprint Authentication

We propose to use in this paper the ﬁngerprint as ﬁrst

biometric modality. Most of smartphones embed a

ﬁngerprint sensor. Alice has to enroll herself by pro-

viding one or more ﬁngerprint captures. The refer-

ence ﬁngerprint template (a set of minutiae) is stored

in a secure element (SE) associated to the smartphone

or the ﬁngerprint sensor hardware. Figure 2 illustrates

the architecture on Android smartphones embedding

a ﬁngerprint sensor. The matching between a ﬁnger-

print template and Alice’s reference template is also

realized in the SE and a decision value is provided

(the score is not available for security reasons).

Considering privacy, this solution is suitable as the

ﬁngerprint reference is stored in the SE. In terms of

security, the solution is interesting even if the enroll-

ment process is realized by the user without any con-

trol. We can expect a smartphone is a personal object,

the enrollment process should be done by the propri-

etary of the smartphone (Alice in this case). Concern-

ing performance, it is described by the False Accep-

tance Rate (FAR) value corresponding of the percent-

age of successful attacks by an impostor. For smart-

phones, the targeted level of the FAR is lower than

0.005% (Burr et al., 2013), corresponding to the secu-

rity level 3. It is difﬁcult to verify this value without

the score provided by the matching algorithm. The

associated False Rejection Rate (FRR) corresponding

to problems to recognize legitimate users is supposed

to be under 2%. No study exists in the state of the art

on the evaluation of commercial ﬁngerprint sensors

on smartphones, indeed, the number of users should

be very important to provide signiﬁcant results.

3.2 Biometric Pattern

The biometric system we propose to use in this work

intends to increase security for a quick authentication

on the mobile device. It corresponds to a two fac-

tor approach. We intend to ﬁrst recognize the user by

the knowledge of a password represented by a pattern.

We use the classical pattern based unlock screen ap-

proach. This way of entering a password is quicker

and is more user-friendly on a mobile device. Sec-

ond, the user behavior while drawing the pattern is

analyzed. Many information could be collected dur-

ing the capture process:

• X position: the horizontal position of the ﬁnger on

the touch screen is recorded during the capture,

• Y position: the vertical position of the ﬁnger on

the touch screen is also recorded,

• Pressure: the pressure of the ﬁnger on the touch

screen is captured (provided by the Android OS),

• Touch size: ratio of pixels where the ﬁnger is in

contact with the touch screen,

• Tilt: orientation information from the accelerom-

eter sensor,

• Accelerometers: three angles corresponding to

the orientation of the smartphone.

As the time needed to draw the same pattern can be

different for each capture, signals are undersampled

to a ﬁxed length. A constant size description is nec-

essary to use this template as input of the BioHashing

algorithm that we detail in the next section.

3.3 BioHashing

A feature transformation is a function F using a key

K (that is typically a random seed or a password), ap-

plied to a biometric template T . The transformed tem-

plate F

(T ) is stored in a database or in a personal

Privacy Compliant Multi-biometric Authentication on Smartphones

175

Figure 1: Enrollment.

Figure 2: High-level data ﬂow for ﬁngerprint authentication

on Android smartphones (source (Project, 2016)).

device. The Biohashing algorithm, described below,

belongs to this class of transformation. During the au-

thentication step, the same transformation is applied

to the query template T

with the same key K and

a comparison is realized between F

(T ) and F

It is generally considered that, given the transformed

template F

(T ) and the key K, it is not possible to

recover the original template T (or a close approxi-

mation) as presented in (Nagar et al., 2010) (mainly

because the transformation is not invertible). The

key constitutes an important secret. The performance

of the authentication system is generally estimated

with FMR (False Match Rate computing the ratio of

false positive veriﬁcation) FNMR (False Non Match

Rate calculating the ratio of false negative veriﬁca-

tion) rates and the feature transformation should not

decline the performance of the system. In fact, this

approach tends to improve the performance of the bio-

metric system without any protection (but the key K is

necessary). Indeed, the projection of similar biomet-

ric templates from two distinct individuals with two

different keys is in general very different. The Bio-

hashing algorithm is applied to biometric templates,

represented by real-valued vector of ﬁxed length (the

metric used to evaluate the similarity between two

biometric features is the Euclidean distance) and gen-

erates binary templates of length lower or equal to the

original length (the metric used to evaluate the simi-

larity between two transformed templates is the Ham-

ming distance). This algorithm has been originally

proposed for face and ﬁngerprints by Teoh et al. in

(Teoh et al., 2004). The Biohashing algorithm gener-

ates a binary template called BioCode. At the end of

the enrollement phase, the biometric raw data is dis-

carded and the BioCode (with the associated seed) is

stored. The biohashing algorithm can be applied on

any biometric modalities, that can be represented by

a real values vector of ﬁxed length.

The Biohashing algorithm transforms the biomet-

ric template T = (T

, . . . T

) in a binary template B =

, . . . B

), with m ≤ n, as follows:

1. m pseudorandom orthonormal vectors V

, . . . ,V

of length n are generated from the random seed K

typically with the Gram Schmidt algorithm.

2. For i = 1, . . . , m, compute the scalar product x

T,V

3. Compute the binary template B = (B

, . . . , B

)

with the quantization process:



0 if x

< τ

1 if x

≥ τ,

where τ is a given threshold, generally equal to 0.

The performance of this algorithm is ensured by

the scalar products with the orthonormal vectors, as

detailed in (Teoh et al., 2008). The quantization pro-

cess of the last step ensures the non-invertibility of the

data (even if n = m, because each coordinate of the in-

put T is a real value, whereas the coordinates of the

output B is a single bit). Finally, the random seed K

guaranties the diversity and revocability properties.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

176

Figure 3: Veriﬁcation.

Figure 4: Pattern drawing biometric features: captured sig-

nals when drawing a pattern.

3.4 Implementation

The traditional approach to Android development is

to use the native SDK published by Google. If this

is an efﬁcient approach at ﬁrst sight, it does not al-

low further reuse for a different mobile platform from

Android because the code is tightly connected to this

SDK. As we may want to be able to later evaluate the

authentication performance on any platforms the pro-

posed application is developed using Xamarin frame-

work.

Android touch screen raises touch events every 10

to 30ms based on the gestures. Each event deﬁnes

raw values such as horizontal X and vertical Y coor-

dinates, pressure and size of the touch on the screen,

an orientation indicator dedicated to stylus use and a

time stamp. These values highly depend on mobile

model used during the acquisition process:

• (X,Y ) position depend on screen resolution when

the velocity vector (X

) also depend on screen

size.

• Pressure and size depend on screen resolution but

also on screen capabilities.

• No guaranties are given by Android concerning

the frequency of events.

Each Android raised event also makes available some

historical events that occurred since the last raised

event, allowing a higher sampling. Concrete tests

show an increase of available events of up to 4 times

when drawing a pattern. These values also depend on

the operating system: iOS mobiles (such as iPhone

and iPad), raise events deﬁning similar but not iden-

tical raw values and furthermore the pressure data

availability depends on iOS version. The frequency

of events is similar to the one observed with Android

mobiles but no additional history is available. The im-

plementation is based only on actually raised events,

Android historical events being unused. Raw data se-

quence is then re-sampled to get the desired input data

length to feed the BioHashing algorithm. The random

seed K used to generate the pseudo random orthonor-

mal vectors is in fact the result of the combination of

a random seed chosen at the time of enrollment that is

stored on the device for further use and a value gener-

ated by the drawing of the pattern. For this last value,

each dot used as crossing point is given as a string

value. A pattern string is then created by aggregating

the value of each dot encountered during the drawing

and ﬁnally hashed when ﬁnished. The seed is then the

result of the XOR of the random device value and the

hash. This choice is to allow the concrete seed not to

be fully stored on the device.

4 EXPERIMENTAL RESULTS

In this section, we present the experimental results we

realized for the validation of the proposed system.

4.1 Protocol

In this work, we ﬁrst used a biometric dataset of data

captured when users draw a single pattern:

Privacy Compliant Multi-biometric Authentication on Smartphones

177

• Data have been collected on a Nexus 4 mobile

phone with a touch screen having a resolution of

800 x 1280 pixels,

• The pattern was the same for all users and is de-

ﬁned by the following pattern code ”1235987”.

This experimental setup can be considered as the

worst case where an attacker knows the pattern to

draw. 34 users participated to this experiment,

• Each user provided 15 samples described by 4 sig-

nals undersampled to 200 values (time normaliza-

tion). Four more signals have been computed by

cnsidering the ﬁrst and second derivative of X and

Y signals. We also added the total time to draw

the secret path as additional parameter. Figure 4

presents the data of the ﬁrst sample for user 1. The

x-axis corresponds to the time and the y-axis to

feature value. So, the template size is 1601 (by

concatenating all undersampled signals) and the

single time value,

In total, we have a subset of 34 × 15 = 510 bio-

metric templates of size 1601 real values for biomet-

ric pattern. Considering the BioHashing setup, we set

the parameter values as following:

• Template size: n=1601,

• BioCode size: m=750 for the Reference BioCode

and Capture BioCode,

• As the pattern is the same for all users, in the com-

putation of the Reference BioCode, the secret K

for all users is randomly drawn,

• Matching algorithm: Hamming distance.

Concerning ﬁngerprint, we extract a subset of well

known datasets namely FVC2002 DB2, FVC2004

DB1 and FVC2004DB3 (FVC, 2002). We can see

that ﬁngerprints are quite different and representa-

tive of the different types of ﬁngerprint (acquired with

sensors using different technologies). These datasets

have ﬁngerprints from 100 individuals with 8 sam-

ples per individual. In order to constitute a chimeric

multi-biometric dataset (synthetic database), we took

into account the ﬁngerprints from the 34 ﬁrst individ-

uals. For each FVC dataset, we use so 34 × 8 = 272

ﬁngerprint samples. In order to evaluate the perfor-

mance of the proposed method, we use the following

methodology:

• We use the ﬁrst sample of each user as reference

template, for the biometric pattern, we use this

data to compute the Reference BioCode,

• As we do not have access to the ﬁngerprint sensor

hardware (i.e. the value of the matching score)

on a mobile phone, we simulate the result of the

matching score by considering the Bozorth3 algo-

rithm provided by the NIST. This algorithm does

not provide as good results as commercial on card

comparison (OCC) algorithms, it can be consid-

ered as an estimate of the worst performance,

• We compute genuine scores as follows. We con-

sider all reference ﬁngerprints and we compare

them with each available samples belonging to

the same individual. We consider two times these

scores because biometric pattern has 14 samples.

For biometric pattern, we compare the Reference

Biocode with all other BioCodes from the same

individuals. We obtain 14 × 34 = 476 ﬁngerprint

and biometric pattern genuine scores for each

FVC dataset.

• We have a similar process to simulate impostor at-

tack by considering all biometric samples belong-

ing to another user. We obtain 14 × 34 × 33 =

15708 ﬁngerprint and biometric pattern impostor

scores for each FVC dataset,

• Given these two sets of scores, we can compute

their distribution in order to estimate in which

measure impostor scores are different than legit-

imate ones. Second, we compute the Equal Error

Rate (EER) value that is a well known metric in

biometrics that measures the behavior of the bio-

metric system when the decision threshold is set

to have the same number of false rejected users

and false accepted ones.

4.2 Results

First, we try to estimate the efﬁciency of each biomet-

ric system we combine. The EER value is between

5.2% and 8%. We could expect by using a commer-

cial OCC a much better performance, this value es-

timates an upper bound of error. We compute the

performance of the system based on biometric pat-

tern. We consider 200 threshold values for estimat-

ing False Acceptance Rate (FAR) and False Rejection

Rate (FRR) in all scenarios. First, use the Euclidean

distance as matching score. In this case, we see many

errors as the associated EER value is 27.4%. This

value is very high but we use the BioHashing algo-

rithm to enhance this performance. When applying

the BioHashing algorithm in the best case (secret only

known by the legitimate user), we obtain a perfect

recognition with an EER value of 0%. The worst case

scenario (the secret is known by the impostor) with

a performance similar to raw features performance.

This error could be considered as too high but with-

out using the biometric pattern, impostors would be

able to enter the system knowing the pattern (used as

password). We limit this attack by considering bio-

metric features. Figure 5 provides the score distribu-

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

178

Table 1: Comparison with existing multi-biometric systems for mobile phones.

authors biometric modalities protection EER

(Vildjiounaite et al., 2006) voice and accelerometer no 9%

(Saevanee et al., 2014) behaviors no 9.2%

(Stokkenes et al., 2016) eyes and face yes - best case 1.8%

(Galdi et al., 2016) iris and sensor ﬁngerprinting no 0.05%

Contribution ﬁngerprint and biometric pattern yes - best case 0%

Contribution ﬁngerprint and biometric pattern yes - worst case 2.3%

Figure 5: Distribution of scores for the multi-biometric sys-

tem while using a ﬁngerprint database.

tion by combining the ﬁngerprint and biometric secret

path in the best case scenario (where the secret used in

the BioHashing algorithm is unknown by impostors).

We obtain for each a perfect recognition for all ﬁnger-

print databases. This is of course an excellent result

and improves results given by applying only the ﬁn-

gerprint system.

Now, we have to consider the worst case scenario

when the impostor obtained the secret K associated

to the BioHashing algorithm. We assume here the

threshold set for the ﬁngerprint system is the one as-

sociated to the EER value (it could be more strict). As

for example, for the FVC2004DB1, we obtain a FAR

equals to 8%. We assume to set the threshold value

for the biometric secret path following the same ap-

proach at the EER value. We computed the FAR in the

worst case scenario and it is 28.7%. That means if the

impostor knows the secret, he has 28.7% chances to

break the system. By considering the multi-biometric

system, he has 8% chances to break the ﬁngerprint

system (on FVC2004DB1) and 28.7% to break the se-

cret path one. As these events are independent, we can

estimate the FAR of the multi-biometric system by us-

ing ﬁngerprints from FVC2004DB1 to 8%×28.7% =

2.3%. For all ﬁngerprint datasets, the FAR is between

1.5% to 2.3% for the multi-biometric system if the im-

postor knows the secret K associated to the BioHash-

ing algorithm. Once again, this is an upper bound

estimate of the proposed method as the performance

of the ﬁngerprint comparison would be much better.

Nevertheless, we can consider this result as very low

considering all the information needed by the impos-

tor.

4.3 Comparisons

Table 1 presents the performance of some multi-

biometric systems for mobile phones in the literature.

Most methods do not provide any protection of bio-

metric templates. This is an important issue as mobile

phones are vulnerable to attacks with malwares. The

proposed contribution provides an excellent result in

the best case and a good result in the worst case (when

the BioHashing key is known by the impostor).

5 CONCLUSION AND

PERSPECTIVES

In this paper, we propose a multi-biometric system for

mobile devices by combining the ﬁngerprint recogni-

tion using its embedded sensor and a behavioral bio-

metric system. The proposed system is very fast (a

few seconds for the capture and about 200 milisec-

onds for comparison) and practical for users as all

these veriﬁcation systems are commonly used. The

combination of ﬁngerprint recognition and biomet-

ric pattern allows to limit the possible attack and in-

crease the security of user authentication. The privacy

protection of biometric templates is ensured by us-

ing at the same time a secure element and template

protection schemes. In the best case, we obtain a

perfect recognition on our own made database and a

FAR lower than 2.3% in the worst case (the impos-

tor needs the mobile devices, knows the secret path

and the secret key K associated to the BioHashing

algorithm). We intend in the future to embed other

biometric systems such as face and voice recognition

systems. We also work on embedding the template

protection scheme in the secure element.

ACKNOWLEDGMENTS

Authors would like to thank the United Biometrics

company for ﬁnancial support of this work.

Privacy Compliant Multi-biometric Authentication on Smartphones

179

REFERENCES

(2002). Fingerprint veriﬁcation competition databases.

(2016). Multi-factor authentication (mfa) market. Technical

report, MarketsandMarkets.

Alzubaidi, A. and Kalita, J. (2016). Authentication of

smartphone users using behavioral biometrics. IEEE

Communications Surveys & Tutorials, 18(3):1998–

2026.

Barni, M., Bianchi, T., Catalano, D., Raimondo, M. D., La-

bati, R. D., Failla, P., Fiore, D., Lazzeretti, R., Pi-

uri, V., Piva, A., and Scotti, F. (2010). A privacy-

compliant ﬁngerprint recognition system based on ho-

momorphic encryption and ﬁngercode templates. In

BTAS 2010.

Beton, M., Marie, V., and Rosenberger, C. (2013). Bio-

metric secret path for mobile user authentication: A

preliminary study. In Computer and Information Tech-

nology (WCCIT), 2013 World Congress on, pages 1–6.

IEEE.

Buriro, A. (2017). Behavioral Biometrics for Smartphone

User Authentication. PhD thesis, University of Trento.

Burr, W. E., Dodson, D. F., Newton, E. M., Perlner, R. A.,

Polk, W. T., Gupta, S., and Nabbus, E. A. (2013). Nist

special publication 800-63-2: Electronic authentica-

tion guideline. Technical report, NIST.

Chabanne, H., Bringer, J., Cohen, G., Kindarji, B., and Ze-

mor, G. (2007). Optimal iris fuzzy sketches. In IEEE

ﬁrst conference on biometrics BTAS.

Changa, T.-Y., Tsaib, C.-J., and Lina, J.-H. (2012). A

graphical-based password keystroke dynamic authen-

tication system for touch screen handheld mobile

devices. The Journal of Systems and Software,

85:1157?1165.

Choi, K., Toh, K.-A., and Byun, H. (2011). Realtime train-

ing on mobile devices for face recognition applica-

tions. Pattern Recognition, 44:386?400.

Clarke, N. and Furnell, S. (2007). Advanced user authen-

tication for mobile devices. Computers & Security,

26:109–119.

de Santos-Sierra, A., Sanchez-Avila, C., Guerra-Casanova,

J., and Mendaza-Ormaza, A. (2011). Hand Bio-

metrics in Mobile Devices, chapter Advanced

Biometric Technologies. InTech. Available

from: http://www.intechopen.com/books/advanced-

biometric-technologies/hand-biometrics-in-mobile-

devices1.

Galdi, C., Nappi, M., and Dugelay, J.-L. (2016). Multi-

modal authentication on smartphones: Combining iris

and sensor recognition for a double check of user iden-

tity. Pattern Recognition Letters, 82:144–153.

Hadid, A., Heikkila, J. Y., Silven, O., and Pietikainen, M.

(2007). Face and eye detection for person authentica-

tion in mobile phones. In 1st ACM/IEEE International

Conference on Distributed Smart Cameras.

Hwang, S., Cho, S., and Park, S. (2009). Keystroke

dynamics-based authentication for mobile devices.

Computer & Security, 28:85–93.

Juels, A. and Wattenberg, M. (1999). A fuzzy commitment

scheme. In ACM Conference on Computer and Com-

munications Security, pages 28–36.

Kang, J.-S. (2010). Mobile iris recognition systems: An

emerging biometric technology. In International Con-

ference on Computational Science (ICCS).

Kounoudes, A., Antonakoudi, A., Kekatos, V., and Peleties,

P. (2006). Combined speech recognition and speaker

veriﬁcation over the ﬁxed and mobile telephone net-

works. In Proceedings of the 24th IASTED Inter-

national Conference on Signal processing, Pattern

Recognition, and Applications, pages 228–233.

Luca, A. D., Hang, A., Brudy, F., Lindner, C., and Huss-

mann, H. (2012). Touch me once and i know it’s you!:

implicit authentication based on touch screen patterns.

In Proceedings of the 2012 ACM annual conference

on Human Factors in Computing Systems.

Mahbub, U., Sarkar, S., Patel, V. M., and Chellappa, R.

(2016). Active user authentication for smartphones: A

challenge data set and benchmark results. In Biomet-

rics Theory, Applications and Systems (BTAS), 2016

IEEE 8th International Conference on, pages 1–8.

IEEE.

Miluzzo, E., Varshavsky, A., Balakrishnan, S., and Choud-

hury, R. (2012). Tapprints: your ﬁnger taps have ﬁn-

gerprints. In Proceedings of the 10th international

conference on Mobile systems, applications, and ser-

vices.

Nagar, A., Nandakumar, K., and Jain, A. K. (2010). Bio-

metric template transformation: A security analy-

sis. Proceedings of SPIE, Electronic Imaging, Media

Forensics and Security XII.

Orandi, S. and McCabe, R. M. (2009). Mobile id

device. best practice recommendation. NIST

Special Publication 500-280. Available from:

http://www.nist.gov/itl/iad/ig/upload/MobileID-

BPRS-20090825-V100.pdf.

Project, A. O. S. (2016). Fingerprint hal.

Rathgeb, C. and Uhl, A. (2011). A survey on biometric

cryptosystems and cancelable biometrics. EURASIP

J. on Information Security, 3.

Roy, A., Magimai.-Doss, M., and Marcel, S. (2012). A

fast parts-based approach to speaker veriﬁcation using

boosted slice classiﬁers. IEEE Trans. on Information

Forensics and Security, 7:241–254.

Sae-Bae, N., Memon, N., and Isbister, K. (2012). Investigat-

ing multi-touch gestures as a novel biometric modal-

ity. In IEEE Fifth International Conference on Bio-

metrics: Theory, Applications and Systems (BTAS).

Saevanee, H., Clarke, N., Furnell, S., and Biscione, V.

(2014). Text-based active authentication for mobile

devices. In IFIP International Information Security

Conference, pages 99–112. Springer.

Safa, N. A., Safavi-Naini, R., and Shahandashti, S. F.

(2014). Privacy-preserving implicit authentication. In

IFIP International Information Security Conference,

pages 471–484. Springer.

Statista (2016). Penetration of smartphones with ﬁngerprint

sensors worldwide from 2014 to 2018.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

180

Stokkenes, M., Ramachandra, R., Sigaard, M. K., Raja, K.,

Gomez-Barrero, M., and Busch, C. (2016). Multi-

biometric template protectiona security analysis of bi-

narized statistical features for bloom ﬁlters on smart-

phones. In Image Processing Theory Tools and Ap-

plications (IPTA), 2016 6th International Conference

on, pages 1–6. IEEE.

Sukhraj, R. (2016). 31 mobile marketing statistics to help

you plan for 2017.

Teoh, A., Ngo, D., and Goh, A. (2004). Biohashing: two

factor authentication featuring ﬁngerprint data and to-

kenised random number. Pattern recognition, 40.

Teoh, A. B., Kuan, Y. W., and Lee, S. (2008). Can-

cellable biometrics and annotations on biohash. Pat-

tern Recognition, 41:2034–2044.

Vildjiounaite, E., M

akel

a, S.-M., Lindholm, M., Riihim

aki,

R., Kyll

onen, V., M

antyj

arvi, J., and Ailisto, H.

(2006). Unobtrusive multimodal biometrics for ensur-

ing privacy and information security with personal de-

vices. In International Conference on Pervasive Com-

puting, pages 187–201. Springer.

Privacy Compliant Multi-biometric Authentication on Smartphones

181
