A Model Compilation Approach for Optimized Implementations of

Signal-processing Systems

Andrea Enrici

, Julien Lallet

, Imran Latif

, Ludovic Apvrille

, Renaud Pacalet

and Adrien Canuel

Nokia Bell Labs France, Centre de Villarceaux, 91620 Nozay, France

LTCI, T

ecom ParisTech, Universit

e Paris-Saclay, 75013 Paris, France

Keywords:

Domain-speciﬁc Modeling, Model Transformation, Model-driven Architecture.

Abstract:

To meet the computational and ﬂexibility requirements of future 5G networks, the signal-processing functions

of baseband stations and user equipments will be accelerated onto programmable, conﬁgurable and hard-

wired components (e.g., CPUs, FPGAs, hardware accelerators). Such mixed architectures urge the need to

automatically generate efﬁcient implementations from high-level models. Existing model-based approaches

can generate executable implementations of Systems-on-Chip (SoCs) by translating models into multiple SoC-

programming languages (e.g., C/C++, OpenCL, Verilog/VHDL). However, these translations do not typically

consider the optimization of non-functional properties (e.g., memory footprint, scheduling). This paper pro-

poses a novel approach where system-level models are optimized and compiled into multiple implementa-

tions for different SoC architectures. We show the effectiveness of our approach with the compilation of

UML/SysML models of a 5G decoder. Our solution generates both a software implementation for a Digital

Signal Processor platform and a hardware-software implementation for a platform based on hardware Intel-

lectual Property (IP) blocks. Overall, we achieve a memory footprint reduction of 80.07% in the ﬁrst case and

88.93% in the second case.

1 INTRODUCTION

Future 5G networks are expected to provide higher

data-rates (10x with respect to 4G) to support use

cases such as the Internet of Things (IoT) and cloud

computing (e.g., Cloud Radio Access Networks).

The equipment of current baseband stations is de-

signed with mixed architectures that contain both pro-

grammable (CPUs, Digital Signal Processors - DSPs)

and conﬁgurable (Field Programmable Gate Arrays -

FPGAs) components. To meet the computational re-

quirements of the above 5G use cases, the functions

(e.g., signal-processing operations) executed by both

components will change over time instead of being

statically allocated. This raises the need for uniﬁed

solutions capable to efﬁciently prototype designs of

5G mixed architectures.

Model-Driven Engineering (MDE) (Schmidt, 2006)

is widely accepted in the signal-processing domain

as the most promising design paradigm to cope with

these issues. MDE combines domain-speciﬁc model-

ing languages to abstract the structure, behavior and

requirements of a system under design, with transfor-

mation engines and generators. The latter analyze

models and produce artifacts such as source code,

simulation, veriﬁcation inputs or alternative model

representations.

In the context of MDE for 5G Systems-on-Chip, an

important research problem is the efﬁcient transla-

tion of system-level models — that abstract imple-

mentation details — into executable implementations.

Challenges arise from the desire to generate exe-

cutable code for different architectures (e.g., General-

Purpose Control Processors, FPGAs), implementa-

tions (i.e., software, hardware and mixed hardware-

software) and execution units (e.g., DSPs, CPUs,

Hardware Accelerators).

This paper proposes a compilation approach for

model-based speciﬁcations of SoCs, regardless of

their ﬁnal realization technology (e.g., FPGA, Ap-

plication Speciﬁc Integrated Circuit - ASIC). Mod-

els are given as input to a model compiler that op-

timizes the system’s memory footprint and generates

ANSI C code for the memory allocation and schedul-

ing of signal-processing operations. As a practical

case study we propose the model-based design of a

5G datalink-layer decoder. The program compiled

from the decoder’s models is transformed into exe-

Enrici, A., Lallet, J., Latif, I., Apvrille, L., Pacalet, R. and Canuel, A.

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems.

DOI: 10.5220/0006534800250035

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 25-35

ISBN: 978-989-758-283-7

cutable implementations for (i) a DSP-based platform

(software executable ﬁle) and (ii) a hardware IP-based

platform (FPGA bitstream) by a traditional software

compiler and a SoC design tool.

The rest of the paper is organized as follows. Sec-

tion 2 positions our work with respect to related con-

tributions. The structure of the compiler and its im-

plementation are respectively described in Section 3

and Section 4. Section 5 describes the model-based

design and compilation of the UML/SysML diagrams

for the 5G decoder. Section 6 concludes this paper

and discusses our future work.

2 RELATED WORK

In the context of UML-based MDE, code generation

for SoCs is based on a direct translation of UML

modeling assets into constructs of a target language

(e.g., a UML block becomes a C function), accord-

ing to precise translation rules (Vanderperren et al.,

2012). Many works propose one-to-one translation

rules for SoC languages such as C (Nicolas et al.,

2014), C++ (Ciccozzi et al., 2012), Verilog (Bazydlo

et al., 2014), VHDL (Moreira et al., 2010) and Sys-

temC (Mischkalla et al., 2010; Xi et al., 2005; Tan

et al., 2004). A representative work that uses one-

to-many translation rules is Gaspard2 (Graphical Ar-

ray Speciﬁcation for Parallel and Distributed Comput-

ing) (Gamatie et al., 2008; DaRTteam, 2009), a MDE

SoC co-design framework based on MARTE (OMG,

2017). Thanks to the notion of Deployment, in Gas-

pard2 an Elementary Component (a resource or a

functionality in a MARTE model) is related to im-

plementation code that speciﬁes low-level behavioral

or structural details in a usual programming language

(e.g., C/C++) for formal veriﬁcation, simulation, soft-

ware execution and hardware synthesis.

Executable UML (xUML) or executable and translat-

able UML (xtUML) (Mellor and Balcer, 2003; Mel-

lor and Balcer, 2002) deﬁnes both a software devel-

opment methodology and a highly abstract software

language that combines a subset of UML’s graphical

notation with executable semantics and timing rules.

When ”programming” in xUML, a system’s applica-

tion is captured in the metamodel. The model com-

piler comprises some library code and a set of rules

that are interpreted against the metamodel to produce

text for a target SoC (e.g., C++ classes, C structs;

VHDL speciﬁcations for hardware registers). How-

ever, the overall architecture of the generated SoC is

deﬁned by the model compiler itself (i.e., its trans-

lation rules). As opposed to our approach, xUML

considers a platform-independent model as only in-

put. To the best of our knowledge, no work exists that

attempts to optimize the performance of code gener-

ated from the xUML subset.

The Foundational Subset for Executable UML Mod-

els (fUML) (fUML, 2016) and the Action Language

for fUML (Alf) (Alf, 2017) standard were created to

make xUML models detailed enough and well spec-

iﬁed for detailed programming and machine execu-

tion. The goal of fUML is to go beyond xUML in

specifying a reasonable subset of UML with a precise

semantics, in order not to be speciﬁc to any executable

modeling methodology. The syntax of Alf is bor-

rowed from Java, C, C++ and C# to specify the behav-

ior and computation (concurrent data-ﬂow semantics)

of graphical fUML models. xUML, fUML and Alf

are essentially focused on specifying a semantics suit-

able to generate executable code from UML graphi-

cal models. With respect to this, our work goes one

step further. Our model compiler demonstrates that

non-functional properties of a system denoted with

UML/SysML diagrams can be improved before code

generation, with a signiﬁcant impact on the perfor-

mance of the ﬁnal executable (e.g., memory footprint

reduction).

In the 2011 edition of MODELS, the work in (Floch

et al., 2011) illustrated how MDE techniques (e.g.,

meta-metamodels, meta-tools, Domain Speciﬁc Lan-

guages) can be applied to help in solving or simpli-

fying issues such as code maintainability and sustain-

ability, interfacing with external tools, semantics pre-

serving of the Intermediate Representation transfor-

mations and code generation. While (Floch et al.,

2011) tries to bridge the gap between model-based

optimizations and abstract representations of pure

software systems, our work transforms system-level

models that also include hardware components (e.g.,

on-Chip RAM memories).

The landscape of industrial tools that generate SoC

implementations of signal-processing applications

from models is also very rich, e.g., National In-

struments LabVIEW Communications System De-

sign (Labview, 2017), MATLAB (MAtrix LABora-

tory) (Mathworks, 2017), GNU Radio (GNURadio,

2017). While our compilation approach targets multi-

processor architectures, these tools translate models

that describe the functionality of a system to be exe-

cuted onto single-processor architectures where data

are processed onto a single unit.

3 THE COMPILER STRUCTURE

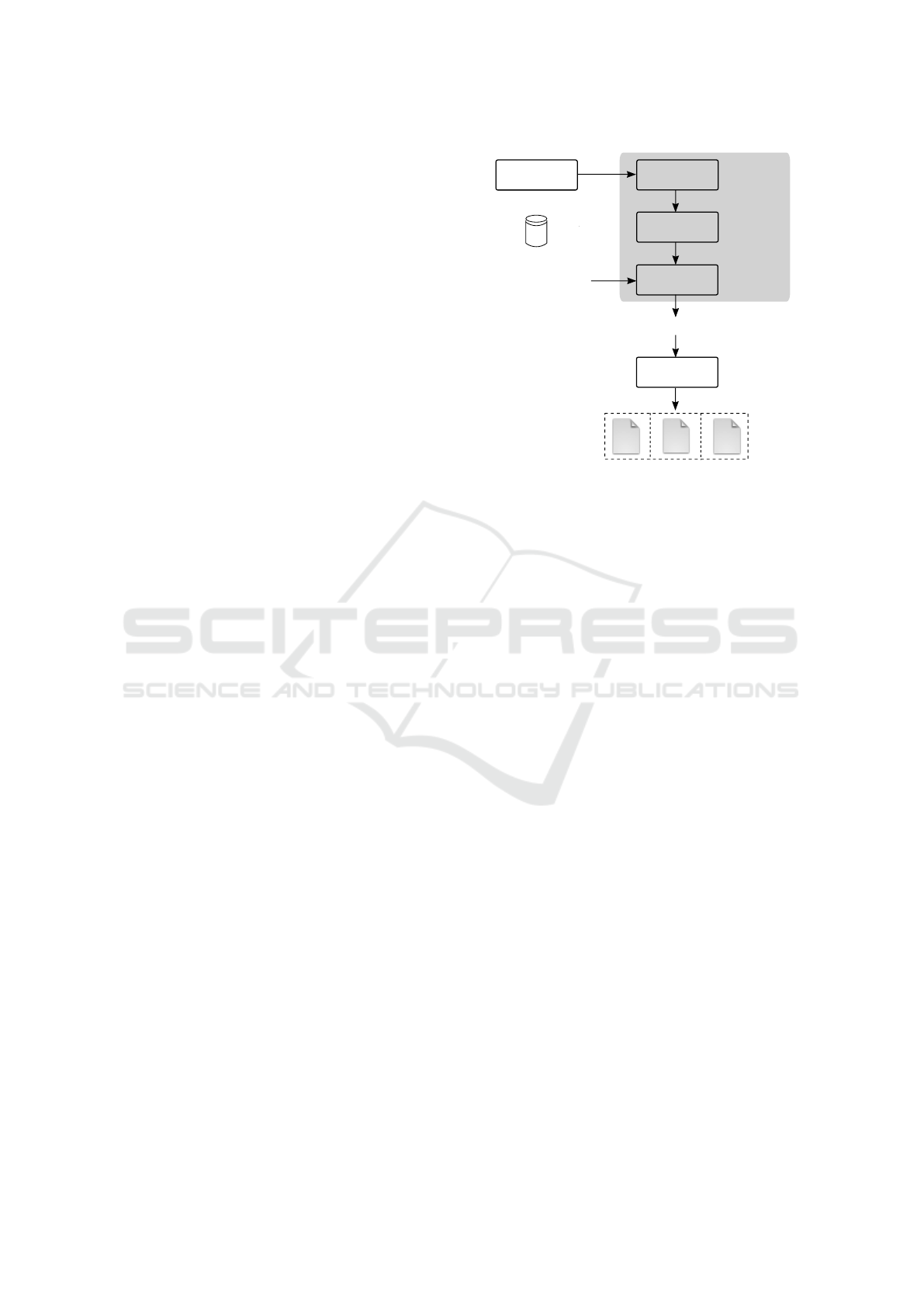

The model compiler that we present in Fig. 1 takes as

input model-based speciﬁcations (a Platform-Speciﬁc

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Model - PSM - and a Platform Independent Model -

PIM) from a MDE design environment and produces

an optimized program (Target program in Fig. 1).

Prominent examples of MDE environments used in

the signal-processing domain are described in (Ger-

stlauer et al., 2009). In these environments, a target

system is ﬁrst modeled, then design alternatives

(PSMs) are explored until a solution that satisﬁes

the desired requirements (e.g., latency, throughput)

is found to be realized. It is this solution that our

compiler takes as input.

Our compiler in Fig. 1 is inspired by those for

traditional programming languages (Torczon and

Cooper, 2007). However, it differs from the latter in

mainly two aspects. First, it has two inputs: a pair

PIM-PSM and a library of implementation-speciﬁc

functions of the computation and communication

operations that are allocated in the PSM. Second,

our compiler operates at a higher abstraction level,

known as system-level (Gerstlauer and Gajski,

2002). The scale at which the compiler performs

optimizations is the one of an entire system (e.g.,

a Multi-Processor System-on-Chip) with multiple

computation, communication and storage units that

can be shared, distributed or both; rather than a

single processor (e.g., CPU, DSP). In analogy with

traditional compilers whose middle-end attempts

to optimize the allocation of CPU registers, our

system-level model compiler attempts to optimize the

allocation of buffers that store arrays of data in the

memories of signal-processing units.

The front-end is dedicated to “understanding” –

with scanning and parsing techniques – the PIM

and PSM denoted in a speciﬁc modeling lan-

guage (e.g., UML/SysML/MARTE (Gomaa, 2016),

AADL (Feiler and Gluch, 2012)) and to encode this

knowledge (e.g., topology of the target platform,

dependencies between functions, scheduling and

memory allocation constraints imposed by hardware

and software units onto the allocated functions)

into an Intermediate Representation (e.g., a directed

graph) IR1 in Fig. 1. IR1 must be independent of

the language used to denote the models. It must also

preserve their behavior.

The purpose of the middle-end is to attempt to

rewrite IR1 in a way that is more convenient to opti-

mize the performance of the ﬁnal implementation in

terms of memory management, power consumption,

throughput, etc. Such a rewriting results in a second

intermediate representation (IR2) that must respect

the static allocation of functions deﬁned in the PSM

(i.e., if function A has been allocated to unit U1, it

cannot migrate to another unit at run-time) and must

Scanner,

Parser

System-level

MDE design tool

System-level

optimizations

Front End

Middle End

Back End

Library of

implementation-speciﬁc

functions of

computation and

communication

operations

Code

generator

Target program

translator

Target program

Executable

hardware

implementation

IR2

IR1

Model

compiler

Executable

software

implementation

Executable

hardware-software

implementation

PIM,

PSM

Figure 1: The model compilation approach.

preserve the behavior present in IR1. Examples of

optimizations that can be performed at this stage are:

optimizations that reduce the memory occupancy of

storage units, scheduling optimizations that minimize

the workload of processing and communication units.

In Fig. 1, the back-end is a code generator that

translates IR2 into a target program written in a

high-level programming language (e.g., C/C++).

This program schedules the execution of computation

and communication operations and also manages the

allocation of the physical memory regions where data

are stored. The program is generated by including

a library of implementation-speciﬁc functions of

computation and communication operations. The

ﬁnal target program must be behaviorally equivalent

to IR2, IR1 and the PIM-PSM.

The target program translator produces an exe-

cutable implementation. This can be a pure software

implementation (e.g., an application that runs on

top of an Operating System onto a general-purpose

control processor) or a pure hardware implementa-

tion (e.g., a hardware IP-based design) or a mixed

hardware-software implementation (e.g., some func-

tionalities are executed by a general-purpose control

processor and some are accelerated in hardware).

In the case of implementations that require some

functionality to be realized in hardware, the translator

is a Computer Aided Design (CAD) toolsuite (e.g.,

Xilinx Vivado High Level Synthesis). In case of

pure software implementations, the translator can be

a traditional programming-language compiler (e.g.,

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems

GNU/gcc/g++, clang, TurboC). The lower part of

Fig. 1 (dotted boxes) represents all of these possible

implementation types.

The compiler proposed in Fig. 1 essentially performs

a series of model transformations: model-to-model

in the front-end and middle-end, model-to-text in

the back-end. These transformations should be

formally described in order to guarantee that the

output model/text of the transformation retains the

semantics of the input model. However, these formal

descriptions depend not only on the formalism of

the input PIM-PSM and on the language of the

output target program. They also depend on the

formalism of the Intermediate Representations. As

stated in (Floch et al., 2011): ”Since compiler IRs are

abstractions used to represent programs, they are by

essence models (an instance of IR is an abstraction of

the given source code). In this context, the grammar

of the source language, or more often the structure of

IR, becomes the metamodel”.

An implementation of the compiler architecture

shown in Fig. 1 results in a tool that can be used

to target, at the same time, different implementation

types for multiple architectures. Given the pair PIM-

PSM and a library of implementation-speciﬁc func-

tions, an implementation to be executed in software

(e.g., for execution on a control processor, for em-

ulation purposes) is obtained by using a traditional

compiler (e.g., GNU/gcc) for software languages. By

changing the translator to a CAD tool, the same sys-

tem can be realized in terms of both hardware and

software components (e.g., executable ﬁle and FPGA

bitstream). By changing the input models only, the

same tool-chain (i.e., input MDE environment, model

compiler, target program translator) and library of

implementation-speciﬁc functions can target different

signal-processing applications.

4 COMPILER

IMPLEMENTATION

In this section, we describe an implementation of

the model compilation approach in Fig. 1 that tar-

gets multi-processor Systems-on-Chip implementa-

tions for signal-processing applications.

4.1 Implementation Overview

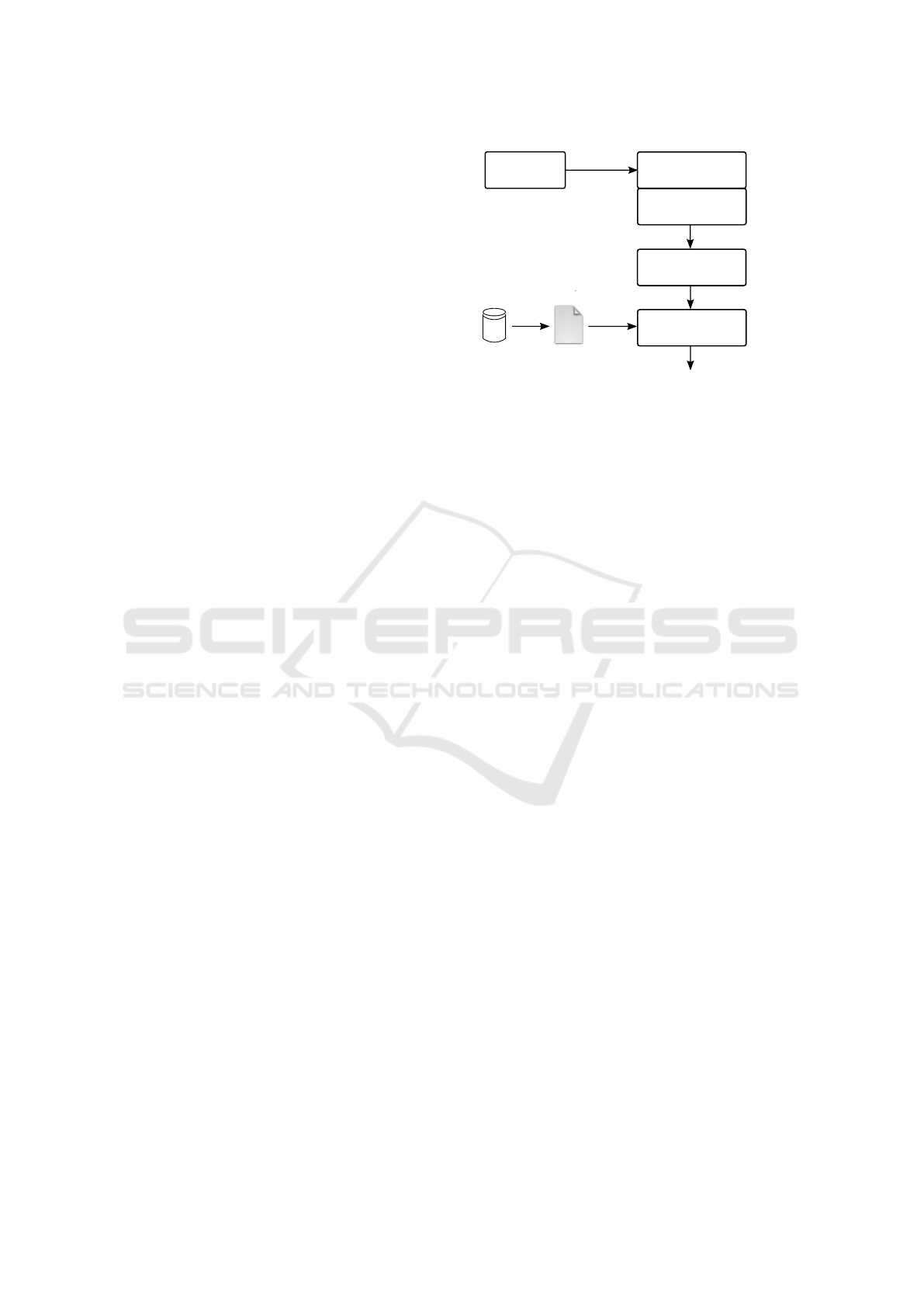

The implementation of our compiler is shown in

Fig. 2. It is inspired by the code generation engine

Graph generator

TTool/

DIPLODOCUS

Memory

optimizer

Front End

Middle End

Back End

Conﬁguration

ﬁle .hal

G = (A,E)

C program

generator

G' = (A',E')

MDE-to-compiler

scanner and parser

Target C program

UML-SysML

PIM, PSM

Library of

implementation

speciﬁc

functions

Figure 2: The implementation of the approach in Fig. 1.

in (Enrici et al., 2017), where the middle-end is ex-

tended with memory allocation optimizations.

4.2 Front-end

The front-end in Fig. 2 converts an input pair PIM-

PSM model into a ﬁrst intermediate representa-

tion G = (A, E): a Synchronous Data Flow (SDF)

graph (Lee and Parks, 1995) annotated with map-

ping information. The models are parsed and scanned

by a MDE-to-compiler plugin that allows the com-

piler to be independent of the speciﬁc modeling

language used by the input MDE. In this paper,

the PIM-PSM is taken from the open-source MDE

framework TTool/DIPLODOCUS (Apvrille et al.,

2006; Apvrille, 2008). The plugin scans and

parses a PIM-PSM described in .xml format by

TTool/DIPLODOCUS and passes this description to

the Graph generator (Fig. 2).

In a SDF graph, nodes (actors) represent processing

entities interconnected by a set of First-In First-Out

(FIFO) data queues. An actor starts execution (ﬁr-

ing) when its incoming FIFO(s) contains enough to-

kens, it cannot be preempted and produces tokens

onto its outgoing FIFO(s). The number of tokens con-

sumed/produced by each ﬁring is a ﬁxed scalar that

is annotated with the graph edges. As actors have

no state in the SDF Model of Computation (MoC), if

enough tokens are available, an actor can start several

executions in parallel. For this reason, SDF graphs

naturally express the parallelism of signal-processing

applications and can be statically analyzed during

compilation for memory allocation optimizations.

A PIM in DIPLODOCUS is a SysML Block Def-

inition diagram that captures the computation of a

signal-processing system as well as their data and

control dependencies. The internal behavior of each

operation is further described by a SysML Activity

diagram. At the highest level of abstraction, a SysML

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Block Deﬁnition diagram can be seen as a graph

whose nodes are the SysML Blocks and the edges are

the SysML relations. Similarly, also a SysML Activ-

ity diagram can be seen as a graph where activies and

activity edges are equivalent to the graph’s nodes and

edges, respectively. As we are interested in optimiz-

ing the memory footprint of a signal-processing sys-

tem, we only consider blocks in the PIM that are con-

nected by data relations. Therefore, the IR generator

in Fig. 2 translates each SysML block that represents

a data-processing operation and each SysML data re-

lation into a SDF actor and edge, respectively. The

number of tokens associated to SDF edges is given by

the SysML Activity diagram that describes the inter-

nal behavior of SysML Blocks. Each actor in the re-

sulting SDF graph G is annotated with the execution

unit where is has been mapped in the PSM. A PSM

in TTool/DIPLODOCUS is a UML Deployment di-

agram that speciﬁes a platform’s topology, its units

(e.g., CPU, Direct Memory Access - DMA, mem-

ory) and each unit’s performance characteristics (e.g.,

number of cores for a CPU, number of channels for a

DMA). UML artifacts map operations onto the plat-

form’s units.

4.3 Middle-end

In this version of the compiler’s middle-end, we

propose a system-level memory optimizer that min-

imizes the footprint of the logical buffers associated

with the data channels among computations in a

SysML PIM from DIPLODOCUS. In this work, we

differentiate between logical and physical buffers. A

physical buffer deﬁnes a range of memory addresses

of a physical memory device (e.g., a Random Access

Memory - RAM). A logical buffer, instead, is a

virtual address space that can be mapped onto one or

multiple physical buffers.

Our optimizer implements a variant of the allocation

techniques presented in (Desnos et al., 2014) that

we adapted to allow the sharing of input and output

buffers of actors, similar to one of the memory

reuse techniques presented in (Desnos et al., 2016).

Essentially, the optimizer performs a series of graph

transformations to deduce a lower bound for the

physical buffers that must be allocated for the PIM’s

logical buffers.

The SDF graph G in Fig. 2 is transformed ﬁrst into a

single-rate SDF, where the production and consump-

tion rates on each FIFO are made equal. The single-

rate SDF is transformed into a Direct Acyclic Graph

(DAG) by isolating one iteration of the single-rate

SDF and by ignoring FIFOs with initial tokens. The

DAG graph contains two types of memory objects:

• Communication buffers that are used to transfer

tokens between consecutive actors.

• Feedback/pipeline buffers that store feedback FI-

FOs, i.e., buffers corresponding to (feedback)

edges whose input and output port are associated

with the same actor.

Our work differs from (Desnos et al., 2014) as, in

the latter, a DAG also expresses an estimation of

an actor’s internal memory (e.g., the stack space

of a task allocated by an Operating System). In

the context of our research, as 5G applications are

accelerated by hardware IP blocks, there is no need to

express the internal working memory of DAG actors.

From the DAG, a Memory Exclusion Graph (MEG)

is derived. Nodes in the MEG represent logical

memory objects: FIFO buffers whose size is equal to

the number of tokens in the single-rate SDF. Edges

in the MEG link logical FIFO buffers that cannot

be allocated to overlapping physical buffers. The

MEG is then updated with mapping information

from the PSM that speciﬁes the execution constraints

(scheduling) for each signal-processing operation.

This allows to remove edges (exclusion relations)

between nodes in the MEG. The purpose of this

operation is to merge logical buffers so that physical

buffers in the executable code can share common

memory regions, thus reducing the total footprint of

an application.

At this point, the heuristics proposed in (Desnos et al.,

2014) is applied to compute a lower bound for the

memory of the physical buffers. This bound is deﬁned

in (Fabri, 1979) as the weight of a Maximum Weight

Clique (MWC). A clique is a subgraph of MEG ver-

tices within which each pair of vertices is linked with

an edge. As the memory objects of a clique cannot

share memory space because they mutually exclude

each other, the weight of a clique gives a lower bound

to the amount of memory that must be allocated for

all of the clique’s buffers. This amount is equal to the

sum of the sizes of all clique’s buffers. The pseudo-

code of the heuristics proposed in (Desnos et al.,

2014) is shown in Algorithm 1.

In each iteration of the main loop (lines 6-13) in

Algorithm 1, minimum cost vertices v

∗

are removed

from C (line 8). If multiple vertices have the same

cost, the vertex v with the lowest number of neigh-

bors |N(v)| is removed. If the number of neighbors is

equal, then the vertex v with the smallest weight w(v)

is removed. If there are still multiple vertices with

equal properties, a random vertex v

random

is selected.

The loop iterates until the vertices in C form a clique.

This condition is veriﬁed, line 6, by comparing the

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems

Algorithm 1: The MWC heuristics.

/* C = the clique */

/* nb

edges

= number of edges in C */

/* cost(·) = cost function of C */

/* v = generic vertex in C */

/* w(v) = weight of vertex v */

/* N(v) = neighbor vertices of v */

/* |N(v)| = lowest number of v’s

neighbors */

1 C ← V

2 nb

edges

← |E|

3 foreach v ∈ C do

4 cost(v) ← w(x) +

∑

∈N(v)

w(v

)

5 end

6 while |C| > 1 and

2·nb

edges

|C|·(|C|−1)

< 1.0 do

7 Select v

∗

f rom V that minimizes cost(·)

8 C ← C\{v

∗

}

9 nb

edges

← nb

edges

− |N(v

∗

) ∩C|

10 foreach v ∈ {N(v

∗

) ∩C} do

11 cost(v) ← cost(v) − w(v

∗

)

12 end

13 end

14 Select a vertex v

random

∈ C

15 foreach v ∈ {N(v

random

)\C} do

16 if C ⊂ N(v) then

17 C ← C ∪ {v}

18 end

19 end

edge density of a clique with the edge density of the

MEG subgraph formed by the remaining vertices in C.

The edge density of a clique is deﬁned as the ratio be-

tween existing exclusions and all possible exclusions.

Such density is equal to 1.0 in the case of the complete

MEG. The number of edges, nb

edges

, is decremented

at line 9 by the number of edges in L that link the re-

moved vertex v

∗

to vertices in C. Lines 10-12 update

the costs of the remaining vertices for the next itera-

tion. The complexity of the heuristic algorithm is of

the order of magnitude of O(|V |

), where |V | is the

number of vertices of the MEG subgraph.

The lower bound computed with Algorithm 1 is anno-

tated to edges in G, resulting into graph G

, Fig. 2. It

provides an exact value for the size of physical buffers

that are allocated in the ﬁnal executable. This is op-

posed to (Desnos et al., 2014), where the bound is

a theoretical value that depends on the estimation of

the internal working memory of DAGs’ actors. Con-

sequently, the MWC value in (Desnos et al., 2014)

must be veriﬁed before being used to allocate physi-

cal memory.

4.4 Back-end

The back-end in Fig. 2 translates G

into a C pro-

gram. Each actor (operation) in G

is translated into

3 C routines for initialization, scheduling and clean-

up purposes (Fig. 2). Initialization and clean-up rou-

tines are called once, when the program starts and ter-

minates, respectively. These routines manipulate the

software data structures that are needed by processing

units in the target platform to prepare and clean up the

execution of an actor in G

. Scheduling routines are

called to test the eligibility to run an operation

. Exe-

cution routines (implementation-speciﬁc functions in

Fig. 2) are added to each actor from an external li-

brary. They trigger the execution of an operation on

the hardware. The memory bound determined by Al-

gorithm 1 is used by the back-end to allocate shared

physical buffers for operations mapped to the same

execution unit.

In the current implementation of the compiler, the ex-

ecution routines must be manually written by a user

and are included in the ﬁnal source code via a ded-

icated conﬁguration ﬁle (.hal, hardware abstraction

layer ﬁle in Fig. 2). These execution routines spec-

ify, at a lower level of abstraction, the implementation

details (e.g., data structures) of the signal-processing

algorithms that are described, at system-level, by the

PIMS’s UML/SysML diagrams. Given the real-time

nature of the systems that we aim to program, it is

mandatory to specify these algorithms with a less ab-

stract language (i.e., C ) that offers constructs which

match more closely the characteristics of the underly-

ing hardware execution platform (e.g., memory align-

ment of struct ﬁelds to accelerate DMA transfers). In

analogy with the traditional programming of signal-

processing systems, where C programs embed as-

sembly code for functionalities that are time-critical

at instruction-level of abstraction, our UML/SysML

programs embed C code for functionalities that are

time-critical at system-level of abstraction.

4.5 Discussion

In this version of the model compiler, we did not in-

clude any environment for the analysis of the IRs’

metamodels as this goes out of the scope of our cur-

rent research interests. As described in (Floch et al.,

2011), techniques such as generative approaches,

model mapping, Domain Speciﬁc Languages and

metamodel instrumentation exist to guarantee the cor-

rectness and maintainability of IR transformations.

The target C program in Fig. 2 schedules operations

according to the availability of input data, coherently to the

SDF MoC.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

However, due to scalability reasons, their use is dif-

ﬁcult to apply to research compilers. It is, however, a

practically surmountable problem that can be solved

by developing additional features to the model com-

piler. In the context of the case study of Section 5,

we manually veriﬁed the equivalence between (i) the

data-ﬂow relations in graphs G, G

, (ii) the data-ﬂow

scheduling of operations in the target C program and

(iii) the data-ﬂow dependencies in the input PIM.

4.5.1 Portability

This implementation of the model compiler addresses

platforms where the scheduling of operations is cen-

trally executed by a single general-purpose control

processor. The latter conﬁgures and dispatches the ex-

ecution of operations to a set of physically distributed

units (e.g., DSPs, DMAs, IPs), according to events

generated upon the consumption/production of data

by computation and communication operations. For

each platform, a dedicated library of implementation-

speciﬁc functions must be provided by re-using those

from other projects as templates. To target designs

where the control code of an application is frag-

mented into separate executables that each run onto

different CPUs, the compiler must be extended (e.g.,

produce multiple executables, include synchroniza-

tion primitives among multiple units).

In order to use this implementation of the compiler

with a design tool other than TTool/DIPLODOCUS,

the user needs to write a new plug-in for the front-

end. The existing plug-in can be used as a template to

reduce development efforts.

4.5.2 Debugging

In our compiler, debugging is done at different loca-

tions: in the front-end MDE tool, in the C target pro-

gram and the implementation-speciﬁc functions (e.g.,

Valgrind, gdb). Transformations of the Intermediate

Representations can be manually debugged by com-

paring the data-ﬂow relations among SDF actors in G,

and those between SysML blocks in the input PIM.

Also, simulation and formal veriﬁcation techniques in

the input MDE tool can be used to guarantee the cor-

rectness of the PIM and PSM with respect to design

requirements.

5 CASE STUDY

We used the model compiler described in this paper

to produce executable code for two target platforms,

from the UML/SysML model of a 5G decoder that

we designed in DIPLODOCUS for the uplink (SC-

FDMA), single antenna case, Physical Uplink Shared

channel (xPUSCH), based on (Verizon, 2015).

The algorithm of the signal-processing operations

(application) that compose the 5G decoder is shown

in Fig. 3. We captured this application in a

TTool/DIPLODOCUS’ PIM with a SysML Block

Deﬁnition diagram containing 11 SysML Composite

Components (1 for each signal-processing operation

in Fig. 3 as well as 1 source and sink components).

Each Composite Component contains 2 SysML Prim-

itive Components that model the conﬁguration and

the data-processing of a given operation. By way

of example, Fig. 4 shows the TTool/DIPLODOCUS

SysML Composite and Activity diagrams for oper-

ation 64QAM Demodulation. Table 1 lists the data

produced and consumed by operations in Fig. 3, given

an input subframe (14 OFDM symbols and 41 LDPC

code blocks).

Table 1: Input/Output data of the decoder operations.

Operation Input Output

Remove CP 30720 samples 2048 samples

DFT 2048 samples

2048 samples

Sub-carrier

demapping

2048 samples

1200 samples

IDFT 1200 samples

1200 samples

Demodulation 1200 resource

elements

7200 soft bits

Descrambling 7200 soft bits

7200 soft bits

LDPC decoder 1944 soft bits

1620 hard bits

Code Block

Concatenation

1620 hard bits

66416 hard

bits

Remove CRC 66416 hard

bits

66392 hard

bits

In this case study we use two target platforms.

One is Embb (Embb, 2017), a generic baseband

architecture dedicated to signal-processing appli-

cations. Embb is composed of a Digital Signal

Processing (DSP) part and a general purpose con-

trol part. The DSP part is composed of a set of

Digital Signal Processing Units interconnected

by a crossbar. Each DSP unit is equipped with a

Processing Sub-System (PSS) as computational unit,

a Direct Memory Access controller (DMA) and a

local memory called the Memory Sub-System, MSS.

These DSPUs can be seen as programmable IPs that

are more ﬂexible than traditional fully hard-wired

accelerators. The general purpose control part is

composed of a RAM memory and of a CPU that

Per OFDM symbol; samples are stored on 32 bits.

Per frame; resource elements and soft bits are stored on

8 bits.

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems

Descrambling

64QAM

Demodulation

Sub-carrier

demapping

N-point

DFT

LDPC

decoder

M-point

IDFT

Remove

Cyclic

Preﬁx (CP)

Code

Block

Concatenation

Check and

remove

CRC

RX transport

block

41 code blocks

14 OFDM symbols

from

RF/ADC

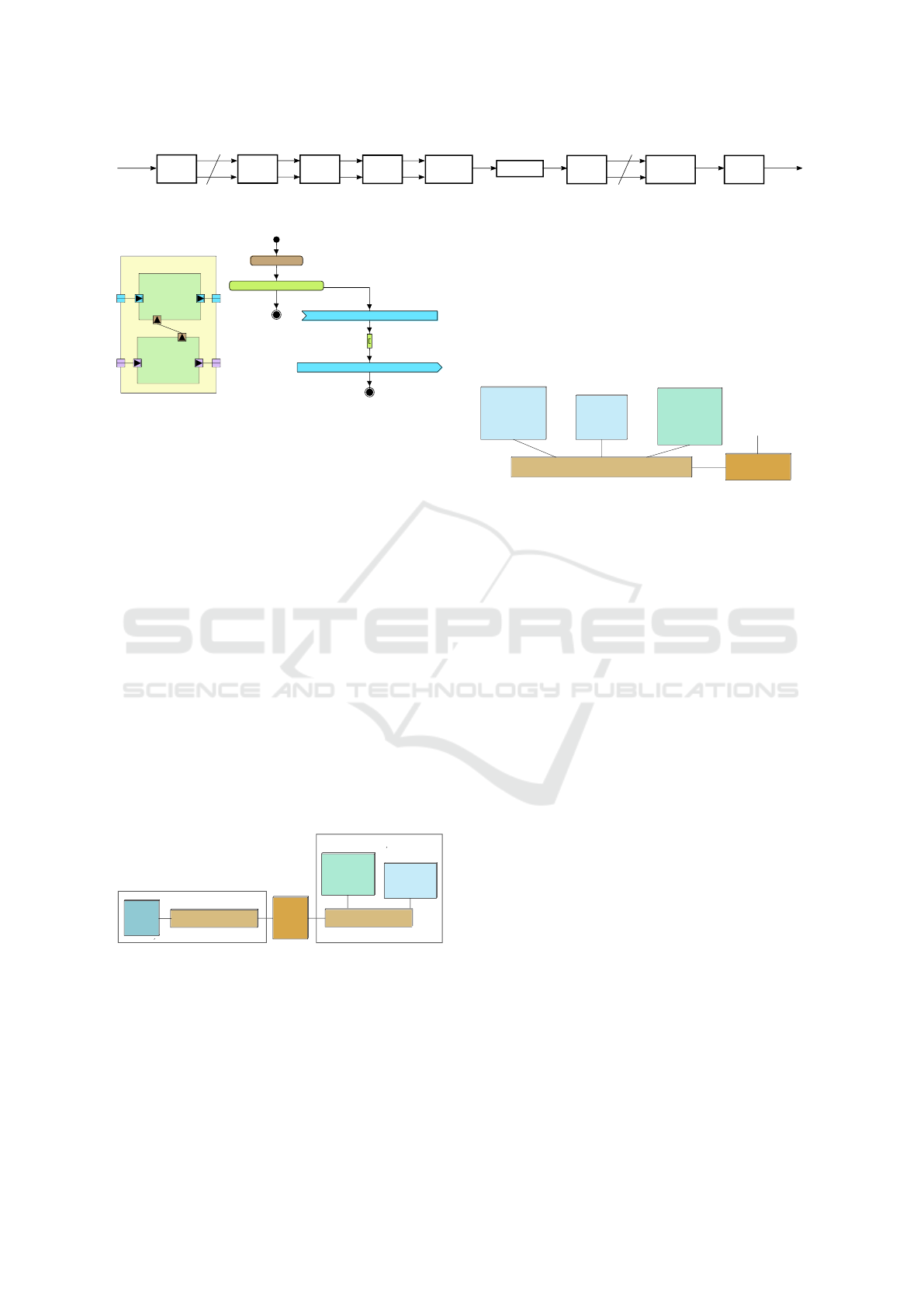

Figure 3: The block diagram of the 5G decoder designed in this case study.

QAMDemod

X_QAMDemod

F_QAMDemod

getReqArg (size)

SubCarrierDemap_ChOut(numBitsPerSymbolOUT)

SubCarrierDemap_ChIn(numBitsPerSymbolIN)

for(i=0;i<num_symbols;i = i+1)

inside loop

exit loop

numBitsPerSymbolIN

(a) (b)

Figure 4: The SysML Composite (a) and Activity (b) dia-

grams for operation 64QAM Demodulation.

conﬁgures and controls the processing operations

performed by the DSPUs and the data transfers.

The architecture of the second target platform, a

hardware IP-based platform is composed of a

programmable and of a conﬁgurable subsystem. The

programmable subsystem executes control func-

tions as well as signal-processing operations whose

performance are not time critical. It is composed

of a CPU and a RAM memory. The conﬁgurable

subsystem accelerates performance-critical opera-

tions onto dedicated hardware IP blocks that can

be selected by Xilinx SDx (Xilinx, 2017) from

the target program produced by our compiler. An

IP block includes a processing core, a local mem-

ory and a DMA engine, similarly to a DSPU in Embb.

Thanks to the similarities in the structure of the two

target platforms, we captured their architecture in the

UML Deployment diagram of TTool/DIPLODOCUS

of Fig. 5.

<<CPU>>

Main CPU

<<MEMORY>>

Main Memory

<<BRIDGE>>

<<BUS>>

Main Bus

Digital Signal Processing part

General-Purpose Control Part

<<BUS>>

Crossbar

<<HWA>>

IP[1..*]

Main

Bridge

Figure 5: The UML Deployment Diagram of a generic in-

stance of Embb and of the hardware IP-based platform.

In Fig. 5, the left-hand part describes the subsys-

tem where the processing of data is accelerated. Here,

a PE (Processing Element) block models the architec-

ture of a DSPU in Embb or a hardware IP block. The

TTool/DIPLODOCUS model of a PE’s internal archi-

tecture is depicted in Fig. 6. The right-hand side of

Fig. 5 captures the control part of our two target plat-

forms: a CPU and a memory units interconnected by

a bus unit.

To compile executable code, we instantiated, in

TTool/DIPLODOCUS, a PSM model such as the one

in Fig. 5 that contains two Processing Elements for

Embb and one Processing Element for the IP-based

platform. The mapping information corresponding to

these PSMs is illustrated in Fig. 7.

<<BUS-RR>>

IP_Internal_Interconnect

<<BRIDGE>>

IPBridge

<<MEMORY>>

IP_Local_Memory

<<DMA>>

IP_DMA

<<CPURR>>

Processing_Core

to global interconnect

Figure 6: The UML Deployment Diagram for the generic

architecture of a PE in Fig. 5.

5.1 The Model Compilation

The optimization techniques used by our model com-

piler reduce the memory footprint by sharing the

physical buffers among operations that are mapped to

a given execution unit. To understand this optimiza-

tion, Fig. 7 shows one of the intermediate representa-

tions used by our compiler: the SDF graph of the 5G

decoder in Fig. 3. Nodes in Fig. 7 represent the op-

erations in Fig. 3 and edges represent logical memory

buffers. The size of each logical buffer is given by the

production and consumption rates (tokens) of input

and output edges. For instance, for node B (operation

DFT), the size of its input logical buffer B

is 8192

bytes and the size of its output logical buffer B

out

8192 bytes. In the case of Embb, based on the map-

ping information indicated below nodes in Fig. 7, we

identify 3 sets of logical buffers, B

, B

, that

are associated to operations mapped onto the same ex-

ecution unit. For the Main CPU the logical buffers are

= {A

out

, F

out

, H

out

, I

}. For unit

FEP DSPU, the buffers are B

= {B

, B

out

, C

out

, D

out

, E

out

}. For unit LDPC DSPU

the buffers are B

= {G

, G

out

The target C program produced by the back-end is

based on a library of 371 implementation-speciﬁc

functions.

For the IP-based platform, based on Fig. 7, we iden-

tify 2 sets of logical buffers, B

, B

, that are as-

sociated to operations mapped onto the same execu-

tion unit. For the Main CPU the logical buffers are

= {A

out

, B

out

, C

out

, D

out

, E

out

, F

out

, H

out

, I

}. For the

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Remove CP

Main CPU FEP DSPU FEP DSPU FEP DSPU FEP DSPU Main CPU LDPC DSPU Main CPU Main CPU

DFT Demapping IDFT Demodulation Descrambling LDPC Code Block Remove CRC

Main CPU Main CPU Main CPU Main CPU Main CPU IP core Main CPU Main CPUMain CPU

IP-based platform mappingEmbb mapping

8192

4800

7200

1944

203

8302

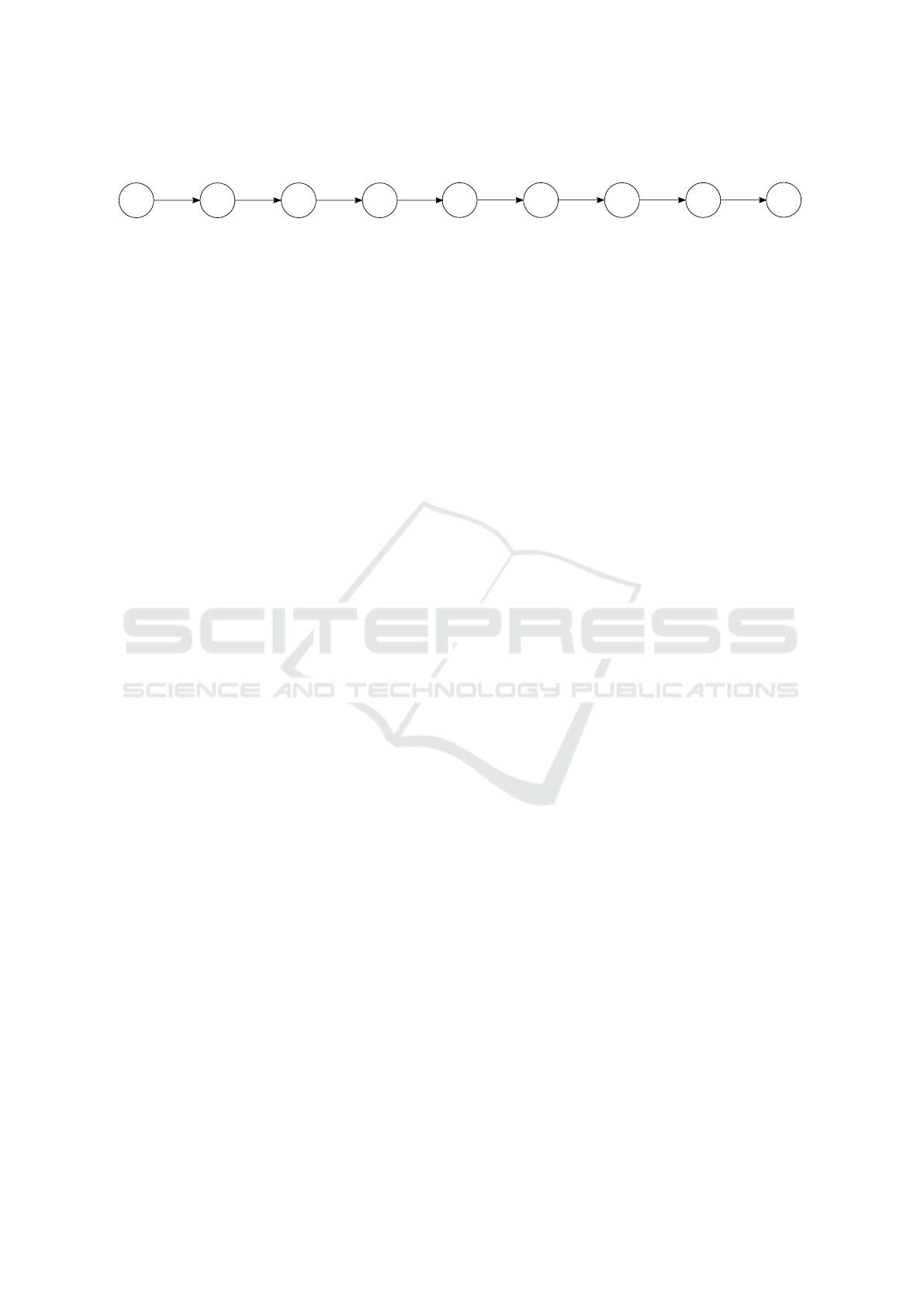

Figure 7: The SDF graph of the 5G decoder in Fig. 3 with mapping information. Tokens are expressed in bytes.

IP core, the logical buffers are B

= {G

, G

out

The back-end composes a target program by linking

a library of 33 implementation-speciﬁc functions for

each operation in Fig. 3.

In terms of memory footprint, each set of logical

buffers is transformed by the compiler’s middle-end

into a shared physical buffer, whose size is equal to

the set’s largest logical buffer. This corresponds to

out

for B

, to B

out

for B

, to G

for B

, to H

out

for

and to G

for B

5.2 The Target Program Translation

In the case of Embb, the target C program is trans-

lated into an executable with GNU/gcc v.5.4.0 cross-

compiled onto Ubuntu v.16.04.4. This executable (a

pure software implementation of the input models)

runs on the main CPU in Fig. 5 as a user-space ap-

plication for Linux v.4.4.0-xilinx.

In the case of the IP-based platform, we translate

the target C program with Xilinx SDx (Xilinx, 2017)

into a mixed hardware-software implementation. The

output of the Xilinx SDx translation process are a

Linux image and an .elf ﬁle for the software part of

the implementation, to be executed by the CPU of

the programmable subsystem. The executable for the

hardware part of the implementation is a FPGA bit-

stream. The latter is loaded into the target FPGA’s

conﬁgurable fabric by a Linux image that runs onto

the FPGA’s control processor (not represented in our

models).

5.3 Evaluation

In the case of Embb, the middle-end allocates 8192

bytes for B

to the local memories of the FEP DSPU,

which is equal to the size of B

. It allocates 1944

bytes for B

to the local memory of the LDPC DSPU,

which is equal to the size of G

, and 8302 bytes

for B

to the Main CPU memory, which is equal

to the size of H

out

. Assigning separate I/O FIFO

buffers to each of the 5G decoder operations would

have allocated 50976 bytes to the FEP local memory

(the size of all logical buffers in B

), 2147 bytes

to the LDPC processor’s local memory (the size of

all logical buffers in B

) and 39399 bytes to the

main CPU memory (the size of B

). Compilation

reduces the memory footprint of 83.88%, 9.46% and

78.93% for each of these three units, respectively.

Overall, it reduces by 80.07% the memory used

by the ﬁnal executable code, with respect to pure

translation-based approaches.

For the IP-based platform, the middle-end allocates

8302 bytes for B

to the main CPU memory (the

programmable system), which is the size of H

out

and 1944 bytes for B

to the hardware IP-core

memory (conﬁgurable system), which is the size of

. A pure translation-based approach that allocates

separate I/O FIFO buffers to each operation would

have reserved 90375 bytes (the size of B

) and 2147

bytes (the size of B

) to the main CPU and the

hardware IP-core memories, respectively. Our com-

pilation achieves a memory footprint reduction equal

to 90.81% and 9.46%, respectively, for these two

units. Overall, this reduces by 88.93% the memory

used in the mixed hardware-software implementation.

The middle-end of our compiler optimizes an appli-

cation’s memory footprint by accounting for the map-

ping information of SDF actors onto a platform’s exe-

cution units. This scheduling update does not impact

the overall timing properties of the ﬁnal executable.

Speciﬁcally to this 5G decoder, its real-time proper-

ties are limited by two factors. First, by the lack of

parallelism between operations that is inherent to the

application in Fig. 3. Secondly, by the absence in the

target platforms of multiple units capable to process

different OFDM symbols in parallel. Because of the

limited size of the FPGAs onto which we prototyped

our platforms, it was only possible to instantiate one

Front-End Processor unit and one LDPC processor in

Embb as well as one hardware IP-block in the sec-

ond platform. For instance, in Embb, the availability

of only one FEP unit does not allow to pipeline the

execution of operations DFT, Demapping, IDFT and

Demodulation for consecutive OFDM symbols.

6 CONCLUSION

This paper proposes a compilation approach of

system-level models for SoC implementations of

signal-processing applications. With respect to

the translation-based approaches discussed in Sec-

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems

tion 2, we showed that optimizing (compiling) the

non-functional properties (i.e., memory footprint) of

model-based speciﬁcations can result in signiﬁcant

performance improvement without impacts on the se-

mantics of the system begin modeled. In the domain

of MDE for SoCs, we believe that this further reduces

the gap between traditional programming approaches

based on C/C++ and model-based programming tech-

niques.

In future work, we will extend our case study with the

complete design of an encoder chain and we will inte-

grate other optimizations (e.g., power consumption).

ACKNOWLEDGEMENTS

The authors would like to thank Karol Desnos from

INSA Rennes for his precious advice on data-ﬂow

MoCs and the memory reduction techniques (Desnos

et al., 2014; Desnos et al., 2016).

REFERENCES

Alf (2017). Action language for foundational uml (alf).

http://www.omg.org/spec/ALF/.

Apvrille, L. (2008). Ttool for diplodocus: An environ-

ment for design space exploration. In NOTERE, pages

28:1–28:4.

Apvrille, L., Muhammad, W., Ameur-Boulifa, R., Coudert,

S., and Pacalet, R. (2006). A uml-based environment

for system design space exploration. In ICECS, pages

1272–1275.

Bazydlo, G., Adamski, M., and Stefanowicz, L. (2014).

Translation uml diagrams into verilog. In HSI, pages

267–271.

Ciccozzi, F., Cicchetti, A., and Sjodin, M. (2012). Full code

generation from uml models for complex embedded

systems. In STEW.

DaRTteam (2009). Graphical array speciﬁcation for

parallel and distributed computing (gaspard2).

http://www.gaspard2.org/.

Desnos, K., Pelcat, M., Nezan, J., and Aridhi, S. (2014).

Memory analysis and optimized allocation of dataﬂow

applications on shared-memory mpsocs. Journal of

VLSI Signal Processing Systems for Signal, Image,

and Video Technology, pages 1–19.

Desnos, K., Pelcat, M., Nezan, J., and Aridhi, S. (2016). On

memory reuse between inputs and outputs of dataﬂow

actors. ACM Transactions on Embedded Computing

Systems, pages 30:1–30:25.

Embb (2017). http://embb.telecom-paristech.fr/.

Enrici, A., Apvrille, L., and Pacalet, R. (2017). A model-

driven engineering methodology to design parallel

and distributed embedded systems. ACM TODAES,

22(2):34:1–34:25.

Fabri, J. (1979). Automatic storage optimization. Courant

Institute of Mathematical Sciences, New York Univer-

sity.

Feiler, P. and Gluch, D. (2012). Model-Based Engineering

with AADL: An Introduction to the SAE Architecture

Analysis & Design Language. Addison-Wesley Pro-

fessional.

Floch, A., Yuki, T., Guy, C., Derrien, S., Combemale, B.,

Rajopadhye, S., and France, R. B. (2011). Model-

driven engineering and optimizing compilers: A

bridge too far? In MODELS, pages 608–622.

fUML (2016). http://www.omg.org/spec/FUML/1.2.1/.

Gamatie, A., Beux, S. L., Piel, E., Etien, A., Atitallah, R. B.,

Marquet, P., and Dekeyser, J. L. (2008). A model

driven design framework for high performance em-

bedded systems. http://hal.inria.fr/inria-00311115/en.

Gerstlauer, A. and Gajski, D. D. (2002). System-level ab-

straction semantics. In 15th International Symposium

on System Synthesis, pages 231–236.

Gerstlauer, A., Haubelt, C., Pimentel, A. D., Stefanov, T. P.,

Gajski, D. D., and Teich, J. (2009). Electronic system-

level synthesis methodologies. IEEE Transactions

on Computer-Aided Design of Integrated Circuits and

Systems, 28(10):1517–1530.

GNURadio (2017). Gnu radio. http://gnuradio.org/.

Gomaa, H. (2016). Overview of UML, SysML, and MARTE,

pages 12–31. Cambridge University Press.

Labview (2017). Labview communications system design.

http://www.ni.com/labview-communications/.

Lee, E. A. and Parks, T. M. (1995). Dataﬂow procees net-

work. Proceedings of the IEEE, 83(5):1235–1245.

Mathworks, T. (2017). https://www.mathworks.com/soluti

ons/model-based-design.html.

Mellor, S. J. and Balcer, L. (2002). Executable UML: A

Foundation for Model-Driven Architecture. Addison

Wesley.

Mellor, S. J. and Balcer, M. J. (2003). Executable

and translatable uml. http://www.omg.org/news/meet

ings/workshops/

UML 2003 Manual/Tutorial4-Balcer.

Mischkalla, F., He, D., and Mueller, W. (2010). Closing

the gap between uml-based modeling, simulation and

synthesis of combined hw/sw designs. In DATE, pages

1201–1206.

Moreira, T. G., Wehrmeister, M. A., Pereira, C. E., Petin,

G. F., and Levrat, E. (2010). Automatic code gener-

ation for embedded systems: From uml speciﬁcations

to vhdl code. In International Conference on Indus-

trial Informatics, pages 1085–1090.

Nicolas, A., Penil, P., Posadas, H., and Villar, E.

(2014). Automatic synthesis over multiple apis from

uml/marte models for easy platform mapping and

reuse. In Euromicro DSD, pages 443–450.

OMG (2017). Uml proﬁle for marte: Model-

ing and analysis of real-time embedded systems.

http://www.omg.org/omgmarte/.

Schmidt, D. C. (2006). Model-driven engineering. Com-

puter, 39(2):25–31.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Tan, W. H., Thiagarajan, P. S., Wong, W. F., Zhu, Y., and

Pilakkat, S. K. (2004). Synthesizable systemc code

from uml models.

Torczon, L. and Cooper, K. (2007). Engineering a Com-

piler. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA, 2nd edition.

Vanderperren, Y., Mueller, W., He, D., Mischkalla, F., and

Dehaene, W. (2012). Extending uml for electronic

systems design: A code generation perspective. In

Design Technology for Heterogeneous Embedded Sys-

tems, pages 13–39.

Verizon (2015). 5g speciﬁcations. http://www.5gtf.org/.

Xi, C., JianHua, L., Zucheng, Z., and Yaohui, S. (2005).

Modeling systemc design in uml and automatic code

generation. In ASP-DAC, pages 932–935.

Xilinx (2017). Sdx development environment. https://www.

xilinx.com/products/design-tools/

all-programmable-abstractions.html.

A Model Compilation Approach for Optimized Implementations of Signal-processing Systems
