Predicting the Perceived Modularity of MOF-based Metamodels

Georg Hinkel

and Misha Strittmatter

Software Engineering Division, FZI Research Center of Information Technologies, Karlsruhe, Germany

Software Design & Quality Group, Karlsruhe Institute of Technology, Karlsruhe, Germany

Keywords:

Metamodel, Modularity, Metric.

Abstract:

As model-driven engineering (MDE) gets applied for the development of larger systems, the quality assurance

of model-driven artifacts becomes more important. Here, metamodels are particularly important as many

other artifacts depend on them. However, existing metrics have been rarely validated for metamodels or,

even more, evaluation results disproved a correlation between these existing metrics and perceived metamodel

modularity. In this paper, we present a new entropy-based metric to capture the perception of metamodel

modularity and evaluate the metric in multiple case studies. In the case studies, we correlate the metric results

of 32 metamodels across three different domains with 164 responses of a quality assessment questionnaire

for which we collected responses in two empirical experiments. The results show signiﬁcant and strong

correlations in all three domains between the metric results and the perceived metamodel modularity.

1 INTRODUCTION

Metamodels are a central artifact of model-driven en-

gineering (Schmidt, 2006) as many other artifacts de-

pend on them. If a metamodel contains design ﬂaws,

then presumably all other artifacts have to compen-

sate for them (Di Ruscio et al., 2012). It is therefore

very important to detect such design ﬂaws as early as

possible to avoid unnecessary development efforts in

dependent artifacts.

In the Neurorobotics-platform developed in the

scope of the Human Brain Project (HBP), these de-

pendent artifacts include not only editors, but also

an entire simulation platform where the connection

between robots and neural networks is described in

models (Hinkel et al., 2015; Hinkel et al., 2016a). As

the HBP is designed for a total duration of ten years,

it is likely that the metamodel will degrade unless ex-

tra effort is spent for its refactorings (Lehman, 1974;

Lehman et al., 1997). For such refactorings, we aim to

measure their success and potentially automate them.

In object-oriented programming, several ap-

proaches exist to detect design ﬂaws, which can be

categorized into patterns and metrics. Patterns are

commonly used, for example to describe and detect

code smells. If a pattern can be found in the code,

there is a high defect probability and the smell may

be avoidable through better design. On the other

hand, metrics have been established to monitor the

complexity of object-oriented design not captured by

smells, such as the depth of inheritance or lines of

code.

Many metamodels nowadays are speciﬁed in im-

plementations of the Meta Object Facility (MOF, (Ob-

ject Management Group (OMG), 2015)), especially in

the EMOF speciﬁcation of this standard and its imple-

mentation Ecore.

In prior work (Hinkel et al., 2016b), we have iden-

tiﬁed modularity as a quality attribute of Ecore meta-

models that has a signiﬁcant inﬂuence on the per-

ception of metamodel quality, among correctness and

completeness. While the latter are hard to measure,

metrics exist to measure modularity in object-oriented

design.

Metamodels essentially describe type systems just

as UML class diagrams do. In fact, the differences

between usual class diagrams and formal metamodels

lies mostly in the degree of formalization and how the

resulting models are used. Whereas UML models of

object-oriented design are often used only for docu-

mentation or to generate code skeletons, metamodels

are usually used for a multitude of artifacts such as

editors, analyses and transformations. Like class dia-

grams, metamodels can be structured in packages to

enforce modules, which makes it appealing to apply

class diagram modularity metrics onto metamodels.

Given the similarity of metamodels to object-

oriented design, we have tried to adapt metrics

Hinkel, G. and Strittmatter, M.

Predicting the Perceived Modularity of MOF-based Metamodels.

DOI: 10.5220/0006539300480058

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 48-58

ISBN: 978-989-758-283-7

for object-oriented design such as the metrics from

Sarkar (Sarkar et al., 2008). We validated these met-

rics against human perception of metamodel modular-

ity: In absence of an accepted metric for metamodel

modularity, we analyzed to what degree metamodels

with a higher metric score are perceived as more mod-

ular. The rationale here is that if we ﬁnd a metric that

has a very strong correlation with perceived modu-

larity, then this metric can be used to automate and

objectify the assessment of metamodels.

However, the results for the metrics by Sarkar

(Hinkel and Strittmatter, 2017) were discouraging be-

cause the metric values did not correlate with per-

ceived metamodel modularity. In particular, we could

statistically disprove even a slight positive correlation

between metric values and perceived modularity in

some cases.

If it is not the quality in terms of the Sarkar met-

rics, this raises the question how modelers perceive

the modularity of a metamodel. To answer this, we

concentrated more on the characteristics that are eas-

ier to perceive, tried to bundle these characteristics in

a metric and evaluated the metric in three case stud-

ies. In particular, we aim to quantitatively measure

how classes are distributed to packages, rather than

answering the question whether this distribution is

reasonable.

In the paper, we propose a metric to measure to

which degree classes are contained in different pack-

ages and validate the correlation of this metric to the

perceived metamodel modularity in two experiments

and three domains. We further apply the metric to dif-

ferent versions of existing metamodels in the domain

of software architecture description to check whether

the ranges of metric values obtained in the experi-

ments match the metric values of realistic metamod-

els.

The remainder of this paper is structured as fol-

lows: Section 2 explains our new metric to measure

to what degree a metamodel is modular. Section 3

presents the setup of the empirical experiments that

we use to validate this metric. Section 4 presents the

results from these experiments. Section 5 discusses

threats to validity of the results. Section 6 applies our

proposed metric to existing metamodels. Finally, Sec-

tion 7 discusses related work before Section 8 con-

cludes the paper.

2 THE DEGREE OF

MODULARIZATION

The goal of the proposed metric is to measure the de-

gree to which a metamodel employs a package struc-

ture. From a good package structure, we expect to

know the purpose of a class to a certain degree only

based on the package that contains the class.

Assuming that each class has a unique purpose,

this can be encoded into the question, how much in-

formation we have about a class based only on its

package.

The answer can be given using an entropy, bor-

rowed from stochastics. The entropy H[X] of a dis-

cretely distributed random variable X with probability

mass function P is given by:

H[X] = −

∑

i=1

P(x

)log

P(x

) = E[I[X]].

Here, b denotes the base of the used logarithm.

The term −log

P(x

) is also called the information of

, expressing informally how special the occurence

of x

is. The entropy is a lower bound on encodings,

i.e., the value of X cannot be described with less than

H[X] b-ary numbers. The entropy is 0 if and only if

there is only one event x

that always happens (P(x

) =

1). However, the entropy of a random variable can be

arbitrarily high, depending on how many events there

are.

Mapping entropies to metamodel metrics, our

events are that a class is encapsulated in a given pack-

age, i.e., x

means that a randomly chosen class is con-

tained in package p

. Thus,

P(x

) =

|C (p

|C |

where C (p) denotes the classes in package p and C

denotes the set of all classes.

The entropy of the package pointer is 0 if and only

if all classes reside in the same package. The more

classes are scattered among packages, the higher is

the entropy. It can even be shown that for a ﬁxed num-

ber of packages, the entropy is highest if the classes

are distributed evenly across the packages.

At the same time, the entropy also takes the total

number of classes into account, much better than just

an average number of classes per package. In particu-

lar, creating some packages with few classes does not

help to improve the metric as long as there are still

huge packages left that encapsulate a signiﬁcant part

of the classes.

However, we still have the problem that the en-

tropy can get arbitrarily high and the developer does

not necessarily have an idea what value is sufﬁcient.

In the spirit of Sarkar et al. (Sarkar et al., 2008),

we would like to obtain a metric with ﬁxed bounds.

Therefore, we scale the entropy with the maximum

entropy that can be achieved with the given number

Predicting the Perceived Modularity of MOF-based Metamodels

of classes. This maximum entropy is given if each

class is encapsulated in its own package. The entropy

in this case is exactly log

|C |, where again C is the

set of classes.

A further advantage of this approach is that the

base b cancels out, such that we do not even have to

analyze its effects when calculating the metric.

Hence, the degree of modularization (DM) is de-

ﬁned as follows (we suppressed the base b because its

value does not matter):

DM = −

log|C |

∑

p∈P

|C(p)|

|C |

log

|C(p)|

|C |

For any metamodel, the values of this metric must

range between 0 and 1. The value is 0 if and only if

all classes reside in a single package. The value is 1

if and only if all classes reside in their own packages.

Because the metric divides by the logarithmic number

of all classes, the DM metric formula is only well-

deﬁned for any metamodel that contains at least two

classes. Metamodels with fewer classes are assigned

a DM-metric of 1.

To get a better understanding of the values that the

DM-metric assigns to metamodels, consider a meta-

model with a

classes for some a ∈ N

and some

k ∈ N. Let the classes be evenly distributed across a

packages for some m ∈ N with m ≤ k. This means,

each package contains a

k−m

classes. In this case, we

have that P(x

) = a

−m

for each package. Thus, we

arrive at

DM = −

k log a

∑

i=1

−m

(−m)loga =

Thus, if the metamodel with n classes contains

roughly

√

n packages with evenly distributed pack-

ages, this gives a DM value of

. If the classes are not

evenly distributed across the packages, the DM value

is lower.

In most cases, it is not useful to encapsulate ev-

ery class into its own package. Therefore, the value

range of this metric has to be taken into account care-

fully. Furthermore, the metric does not tell us any-

thing about whether the purpose of the classes in

a package can easily be generalized, i.e., whether

it makes sense to group these classes in a package.

However, the metric may provide hints whether the

package structure should be reﬁned.

3 EXPERIMENT SETUP

To validate the correlation of the DM metric to per-

ceived metamodel modularity, we ﬁrst used the data

collected from a previous controlled experiment on

metamodel quality perception (Hinkel et al., 2016b).

In this experiment, participants were asked to man-

ually assess the quality of metamodels created by

peers. The material – domain descriptions, assess-

ments and created metamodels – are publicly avail-

able online

. Due to space limitations, we therefore

only replicate a very short description of the experi-

ment.

The 24 participants created metamodels for two

domains. Each domain was described in a text and

the participants were asked to design a metamodel

according to it. The participants consisted of profes-

sional researchers as well as students from a practi-

cal course on MDE. They were randomly assigned

to the domains, ensuring a balance between the do-

mains. Each participant was asked to assess the qual-

ity of several metamodels using a questionnaire. We

collected 89 responses, equally distributed among the

domains.

The ﬁrst domain regards user interfaces of mo-

bile applications. Participants were asked to create

a metamodel that would be able to capture designs

of the user interface of mobile applications so that

these user interface descriptions could later be used

platform-independently. The participants created the

metamodel according to a domain description in nat-

ural language from scratch. We refer to creating the

metamodel of this mobile applications domain as the

Mobiles scenario.

The second domain was business process model-

ing. Here, the participants were given a truncated

metamodel of the Business Process Modeling Lan-

guage and Notation (BPMN) (The Object Manage-

ment Group, 2011) where the packages containing

conversations and collaborations had been removed.

The task for the participants was to reproduce the

missing part of the metamodel according to a textual

description of the requirements for the collaborations

and conversations. We refer to this evolution task as

the BPMN scenario in the remainder of this paper.

To conﬁrm the results in yet another domain, we

also apply the metric to student solutions to a mod-

eling task that had to be done in several editions of a

practical course on model-driven engineering. In this

task, students had to create a metamodel based on a

textual domain description and were allowed to work

in pairs. Over the three years, we have collected 19

metamodels. In the controlled setting, we collected 75

responses evaluating the quality of these metamodels.

The meta-modeling task was creating a meta-

model for component-based software architectures,

inspired by the Palladio Component Model (Becker

https://sdqweb.ipd.kit.edu/wiki/Metamodel_Quality

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

et al., 2009). However, in contrast to PCM that also

models the resource demands of service calls, the

domain description only contained modeling entities

to describe component types, the architecture of a

component-based system through instances of these

components and the description of a deployment. Un-

like the original PCM with more than 200 classes, the

resulting metamodels had between 21 and 45 classes.

We refer to this task as the CBSE scenario in the re-

mainder of this paper.

We asked the students of the most recent year to

manually assess the quality of these metamodels, ran-

domly assigning students to metamodels. The manual

assessment was done in a controlled setting and af-

ter the students submitted their own metamodel. We

made sure that nobody assessed their own metamodel

by rolling new assignments until this constraint was

met. However, students were allowed to discuss the

metamodels with peers assigned to review the same

metamodels. Like in the previous experiments, we

used a six-level Likert scale to encode the degree of

modularity from very bad (-5) to very good (5).

To ease the comparison between this third domain

and the other ones, we have used the same question-

naire to collect the metamodel quality assessments

as we used in the original experiment (Hinkel et al.,

2016b).

We correlated the metric results with the manual

modularity assessments and applied a t-test to test

and reject the null-hypothesis that the metric values

are uncorrelated with perceived metamodel modular-

ity. Additionally, we also use the available data to de-

pict the correlations of DM to other quality attributes.

The statistical tests assume a normal distribution. To

reason whether this assumption is reasonable, we plot

the sample distributions against the theoretical quan-

tiles of a normal distribution. If the quantiles are in a

line, the normal distribution assumption is justiﬁed.

4 RESULTS

We correlated the manual quality assessments with

the metric results for the metamodels created by the

experiment participants. The discussion of the results

is split into three sections, one for each of the scenar-

ios and a fourth for discussion.

We have plotted the results for the ﬁrst two sce-

narios in Figure 1. Both graphs show a correlation be-

tween the metric results and the perceived modularity,

though the metric values were generally higher in the

BPMN scenario. This is due to the fact that the par-

ticipants only evaluated the user extension from other

participants, while the remaining metamodel showed

●

0.0 0.1 0.2 0.3 0.4 0.5

−4 −2 0 2 4

Modularity

(a) Mobiles scenario

●

●●

0.550 0.560 0.570

−4 −2 0 2 4

Modularity

(b) BPMN scenario

Figure 1: Metric results for Degree of Modularization DM

in Mobiles and BPMN scenario.

●

●●

●

0.0 0.1 0.2 0.3 0.4 0.5

−4 −2 0 2 4

Modularity

Figure 2: Results for the DM metric in the CBSE scenario.

already a good modularization.

Further, we plotted the results for CBSE against

the perceived modularity in Figure 2.

4.1 Mobiles

The assumption of a normal distribution is reasonable

for the modularity as the quantiles appear on a line in

Figure 3b. The QQ-plot for the DM metric appears as

a step-function (cf. Figure 3a), because many meta-

models only received a DM-value of 0, as they did not

use any package structure. Therefore, correlations in

this scenario may not be as reliable as in the other

scenarios.

●●●

●

●●●●

●

●●

●

●●

●

●●●●

●

●●

●

●●●●

●

●●

●

●●●●●●●●●●●●●●

●

●●

●

●●●●

●

● ●

●

●●

●

●●●●

●

●●

●

−2 −1 0 1 2

0.0 0.4 0.8

Normal QQ−Plot (DM)

Theoretical Quantiles

Sample Quantiles

(a) DM-metric

●

−1.5 −0.5 0.5 1.0 1.5

−2 0 2

Normal QQ−Plot (Modularity)

Theoretical Quantiles

Sample Quantiles

(b) Modularity

Figure 3: Normal QQ-Plots in the Mobiles scenario.

The results correlating the metric results against

manually assessed metamodel quality perceptions are

Predicting the Perceived Modularity of MOF-based Metamodels

depicted in Table 1. To get a quicker overview, we

have printed strong correlations (|ρ| > 0.5) in bold.

In this domain, many of the resulting metamod-

els consisted of a single package that constantly were

evaluated with a DM of 0. The modularity of these

metamodels is perceived rather differently. We can

see metamodels assessed as having a bad (-3) mod-

ularity and ones that have a good modularity (+3),

where the latter case is rather an exception (cf. Figure

1a). However, all of the metamodels that employ a

package structure all have a good modularity, which

in the end results in quite a good correlation coefﬁ-

cient of ρ = 0.74.

As we have 14 different metamodels, the t-Test

leads to a p-value of 0.0012. Therefore, we can reject

the null-hypothesis that the values of DM are uncor-

related with perceived metamodel modularity in this

scenario at 99% conﬁdence.

4.2 BPMN

In the BPMN scenario, the quantiles of the DM met-

ric are more in a line, with the exception of two meta-

models that have received the highest modularities,

see Figure 4a. In the QQ-plot of the modularity, the

points are also roughly on a line (cf. Figure 4b).

●

−1 0 1

0.550 0.565

Normal QQ−Plot (DM)

Theoretical Quantiles

Sample Quantiles

(a) DM-metric

●

● ●

−1.5 −0.5 0.5 1.5

0 1 2 3

Normal QQ−Plot (Modularity)

Theoretical Quantiles

Sample Quantiles

(b) Modularity

Figure 4: Normal QQ-Plots in the BPMN scenario.

The correlations we observed are depicted in Ta-

ble 2. Despite the participants had only evaluated

the manual extensions, the metric results were taken

from the complete metamodels, also taking into ac-

count the larger part of the metamodel that had not

been changed. While this means that the metric val-

ues are not comparable across scenarios, it does not

have an inﬂuence on correlations within the scenario.

Furthermore, we do think that this better represents an

evolution scenario which is more common than creat-

ing a metamodel from scratch.

In the BPMN scenario, we also observe a strong

correlation of DM values to perceived modularity

with a correlation coefﬁcient of 0.68. As the en-

tire metamodel was measured and already the exist-

ing metamodel employed a detailed package struc-

ture, there are no metamodels with a DM value of 0.

Further, the metric values are much closer together,

since the majority of the metamodel is still the same.

However, we can see in Figure 1 that the metamodel

with the highest DM-metric, also has the best per-

ceived modularity.

As we again have 14 different metamodels, this

leads to a p-value of 0.0063 in the t-Test. Thus, we

can again reject the hypothesis that the values of DM

are uncorrelated with perceived metamodel modular-

ity at the 99% conﬁdence level.

4.3 CBSE

In the CBSE scenario, the quantiles of the DM-metric

and for modularity are well on a line, see Figures 5a

and 5b. The only exception is the metamodel that only

used a single package and therefore was perceived as

least modular. However, the remaining data quantiles

ﬁt very well on a line, which is why we rely on this

scenario most.

●

−2 −1 0 1 2

0.0 0.2 0.4

Normal QQ−Plot (DM)

Theoretical Quantiles

Sample Quantiles

(a) DM-metric

●

●●

●

−2 −1 0 1 2

−4 0 4

Normal QQ−Plot (Modularity)

Theoretical Quantiles

Sample Quantiles

(b) Modularity

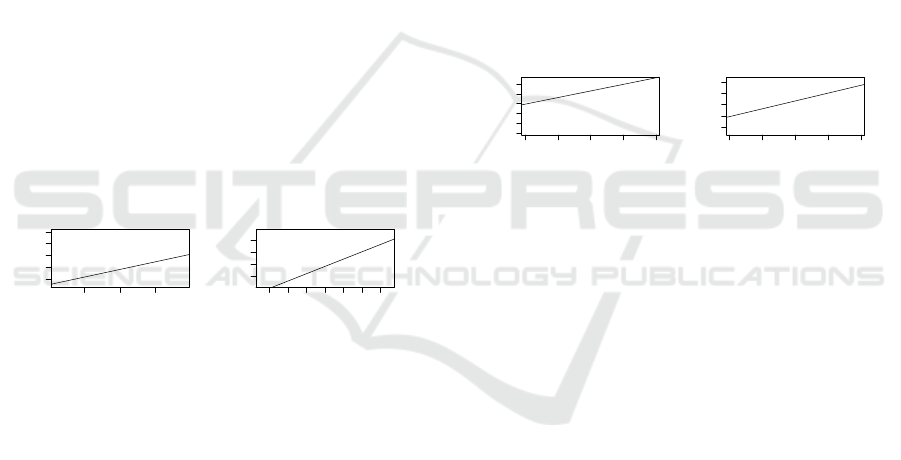

Figure 5: Normal QQ-Plots in the CBSE scenario.

The observed correlations for DM in the CBSE

scenario are depicted in Table 3. Again, we can see

a strong correlation of DM to modularity, while the

correlation to any of the other quality attributes is not

signiﬁcant. For modularity, the t-Test to reject the hy-

pothesis that DM is uncorrelated with perceived mod-

ularity can be rejected with a p-value of 0.011, so we

can be sure at least at a 95% conﬁdence level.

This correlation is due to the fact that solutions

that did not divide their classes into packages were

perceived to have a very bad modularity. On the other

hand, we can see that metamodels that did divide their

classes into packages received quite different scores

in the perceived modularity, though they have a simi-

lar DM score.

4.4 Estimated Inﬂuence

To reason on the inﬂuence of the DM metric, we ﬁtted

a linear regression model. We chose linear regression

because the scatter plots in Figures 1 and 2 indicate

this kind of connection. Because the evaluation of

the perceived quality was only assessed for the user

extension in the BPMN scenario, we only took the

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Table 1: Correlations of metric results to quality attribute assessments in the Mobiles scenario. Strong correlations (|ρ|> 0.5)

are printed in bold.

Quality

Complexity

Understandability

Conciseness

Modularity

Consistency

Completeness

Correctness

Changability

Instance Creation

Transformation

DM 0.18 -0.08 0.28 0.17 0.74 0.19 0.04 0.03 0.56 0.24 0.57

Table 2: Correlations of metric results to quality attribute assessments in the BPMN scenario. Strong correlations (|ρ| > 0.5)

are printed in bold.

Quality

Complexity

Understandability

Conciseness

Modularity

Consistency

Completeness

Correctness

Changability

Instance Creation

Transformation

DM 0.29 0.26 0.21 0.41 0.68 0.32 0.41 0.35 0.49 0.10 -0.05

Table 3: Correlations of metric results to quality attribute assessments in the CBSE scenario. Strong correlations (|ρ| > 0.5)

are printed in bold.

Quality

Complexity

Understandability

Conciseness

Modularity

Consistency

Completeness

Correctness

Changability

Instance Creation

Transformation

DM 0.26 -0.30 0.21 -0.25 0.52 0.19 0.26 0.08 0.21 0.17 0.12

observations from the other two case studies into ac-

count.

We ﬁtted the following linear model:

Modularity ∼a ·DM + b.

The results for this linear regression model are de-

picted in Table 4.

For this linear model, 3 responses had to be ig-

nored due to missing values. The linear model is sig-

niﬁcant at the 95% conﬁdence level with a p-value of

0.0218. According to the linear regression model, the

DM metric has an estimated inﬂuence of 0.56·4.04 =

2.25, which is more than one Likert-level but on the

other hand not much more than that.

On the contrary, the metamodel with the worst

average score of modularity has an assessment of -5

while the metamodel with the best score has an aver-

age modularity of 4.5, making up a total range of 9.5.

Very roughly, the DM metric only measures about

one fourth of the perceived modularity. The residuals

range from -4.48 to 3.52. Thus, the linear model also

suggests that there are other factors to consider and

that the DM metric alone is not a very well predictor

of perceived modularity, though with 95% conﬁdence

a better predictor than no predictor.

To get a better understanding of the inﬂuence of

other factors, as a ﬁrst approach, we have taken the

scenario as another indicator of modularity. Thus, we

assume that there is a characteristic of the modeling

scenario that also has an inﬂuence to the perceived

modularity, though we do not know it. This also bal-

ances the difference in the assessments: While the as-

sessment of metamodels in the Mobiles domain was

conducted by a mixed group of students and profes-

sionals, the assessment in the CBSE domain was done

only by students.

Modularity ∼a ·DM + b ·Scenario + c.

For this, we encoded the scenario with a 0 for the

Mobiles scenario and a 1 for the CBSE scenario. The

Predicting the Perceived Modularity of MOF-based Metamodels

Table 4: Results of ﬁtting a Linear Regression Model for Modularity ∼ a ·DM + b.

Estimate Std. Error t-Value p-value

Intercept (b) -0.52 0.61 -0.85 0.40

DM (a) 4.04 1.66 2.43 0.0218 *

Table 5: Results of ﬁtting a Linear Regression Model for Modularity ∼ a ·DM + b ·Scenario + c.

Estimate Std. Error t-Value p-value

Intercept (c) -0.23 0.54 -0.43 0.67

DM (a) 8.70 2.14 4.07 3.71 ·10

−4

***

Scenario (b) -2.69 0.90 -2.99 5.83 ·10

−3

resulting test results are shown in Table 5.

The linear model is signiﬁcant with an F-statistic

of 8.272 on 2 and 27 degrees of freedom and a result-

ing p-value of 1.58 ·10

−3

. We face minimum residu-

als of -2.37 and maximum residuals of 3.69 such that

we have to assume that there are other inﬂuence fac-

tors.

From the inﬂuence factors considered, the results

indicate a very strong inﬂuence of the DM metric.

In particular, the linear model suggests that a differ-

ence of 0.23 in the DM metric is equivalent to one of

the Likert levels that we used to encode the perceived

modularity.

On the other hand, the DM metric only ranged

from 0 to 0.56 in the questionnaires taken into consid-

eration. This explains a span of the perceived modu-

larity of 0.56 ·8.70 = 4.84 meanwhile the actual span

is 9.5. Therefore, it is not only the package struc-

ture that was assessed by the study participants but

roughly half of the modularity assessment can be pre-

dicted using the DM metric and the scenario indicator.

4.5 Discussion

Due to the fact that participants of the experiment

had to evaluate the entire metamodel in the Mobiles

and CBSE scenario but only a small part of it in the

BPMN scenario, we performed our correlation anal-

ysis for each scenario separately. The ﬁndings may

thus be depending on the domain. In this section, we

try to overcome this problem by discussing how the

results from all scenarios ﬁt together.

The DM metric showed a very strong and signif-

icant correlation with modularity in both scenarios,

unlike previous experiments with adapted versions of

the Sarkar metrics (Hinkel and Strittmatter, 2017).

However, the metric DM alone is not sufﬁcient. We

can see for example in both sides of Figure 1 that

there is still a quite different perception of modularity

among equally modularized metamodels (in terms of

DM). Furthermore, when thinking about auto-tuning,

the DM metric can be easily optimized for by isolat-

ing every class into its own package.

The fact that the results for DM were so good

in comparison to IC (inheritance-based coupling)

and AC (association-based coupling) in earlier work

(Hinkel and Strittmatter, 2017) may result from the

degree of modularization being very easy to perceive.

In the corner cases (when DM is very high over low),

one can directly see that a metamodel employs a mod-

ule structure or not. On the contrary, the couplings

measured by e.g. IC and AC are more subtle. For ex-

ample, the Palladio Component Model (Becker et al.,

2009) contains multiple cycles of inheritance cou-

plings between packages that remained undetected for

a long time, though the model was actively developed.

These are problems that the DM metric simply cannot

detect, as it does not take inheritance or references

into account.

The results from the inﬂuence of this metric to the

overall modularity match this observation: While the

analysis indicates that the inﬂuence of DM is signiﬁ-

cant when predicting the modularity, we also see that

DM is not enough and has to be combined with other

metrics for an accurate prediction of perceived modu-

larity.

Thus, we see a high potential in combining our

newly introduced DM metric with the coupling met-

rics IC and AC introduced in earlier work (Hinkel and

Strittmatter, 2017). How exactly these metrics should

be combined will be subject of further research. Our

sample size is too low to make a good recommen-

dation. For AC, we propose, supported by the data,

that better results can be achieved by restricting the

associations under review to containments and con-

tainer references or opposite references. However, for

this decision, our study did not consist of sufﬁciently

many data points so that we must also shift this open

question to future work.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

5 THREATS TO VALIDITY

The internal threats to validity described in the origi-

nal experiment description (Hinkel et al., 2016b) also

apply to the Mobiles and BPMN scenarios when us-

ing the collected data to validate metamodel metrics.

We do not repeat them here due to space limitations.

As we are performing post-mortem analysis, we can

exclude any subject effect.

In the CBSE scenario metamodels were not cre-

ated in a controlled environment, but uncontrolled as

a homework assignment. However, we think this is

a more realistic case and after all, the CBSE domain

was also slightly more complex than the Mobiles and

BPMN domain. However, we can also exclude a sub-

ject effect as the students did not know the DM-metric

when assessing the metamodels.

We are correlating the metrics results with per-

ceived modularity in order to utilize the wisdom of

our study participants. However, metrics are most

valuable if they ﬁnd the subtle ﬂaws that humans do

not perceive in order to raise awareness that there

might be something wrong. Furthermore, the expe-

rience of our experiment participants, especially the

students, may be insufﬁcient.

From a statistics point of view, the assumption of

a normal distribution is often a difﬁcult one. The per-

ceived modularity we are working with is a mean per-

ception of a few experiment participants: To keep the

effort of study participants reasonable, every partici-

pant only reviewed between one and two metamodels

in each the Mobiles and BPMN domain or seven meta-

models in the CBSE domain. Therefore, the modular-

ity perception is not necessarily normally distributed.

Although we brieﬂy discussed the assumption of a

normal distribution for each scenario, one may want

to have more evidence or a stricter compliance to a

normal distribution.

The conclusions on correlations are only valid in

the range of metric values that we have observed.

In particular, we do not know whether a DM value

greater than approximately 0.6 would improve the

modularity further. In fact, we doubt that. Especially

the corner case of DM = 1, a metamodel where each

class is separated in its own package, is not a sign of

good modularization. Therefore, we check the val-

ues of DM for realistic metamodels in the following

section.

Lastly, correlation does not imply causality and

thus, we do not know whether the metric is of any

value, if modelers are forced to meet a certain thresh-

old.

6 APPLICATION TO EXISTING

METAMODELS

We applied the DM-metric on different versions of

metamodels for software systems. We automati-

cally obtained versions of these metamodels from on-

line repositories and performed measurement series

for representative versions in order to have a better

overview of the measurement results. The inspected

metamodels are:

• Knowledge Discovery Metamodel (KDM) (Pérez-

Castillo et al., 2011): an OMG standard for

the modernization of legacy systems. We ob-

tained four versions of this metamodel from the

MoDisco plugin (Bruneliere et al., 2010) for the

Eclipse Modeling Framework (EMF).

• Palladio Component Model (PCM) (Reussner

et al., 2016): a metamodel for performance and

reliability predictions of component-based archi-

tectures with the Palladio Simulator. We selected

seven representative versions from all 97 versions

between 2007 and 2012.

• Descartes Metamodel (DMM) (Kounev et al.,

2010): a metamodel for self-aware runtime man-

agement of component systems inspired by PCM.

We inspected one version.

• SOFA 2 (Bureš et al., 2006): a metamodel for

hierarchically composed, dynamic component ar-

chitectures and behaviour speciﬁcations. We ob-

tained six versions.

• Kevoree (Fouquet et al., 2014): a metamodel for

the design and implementation of distributed re-

conﬁgurable systems with component architec-

ture. We selected seven revisions.

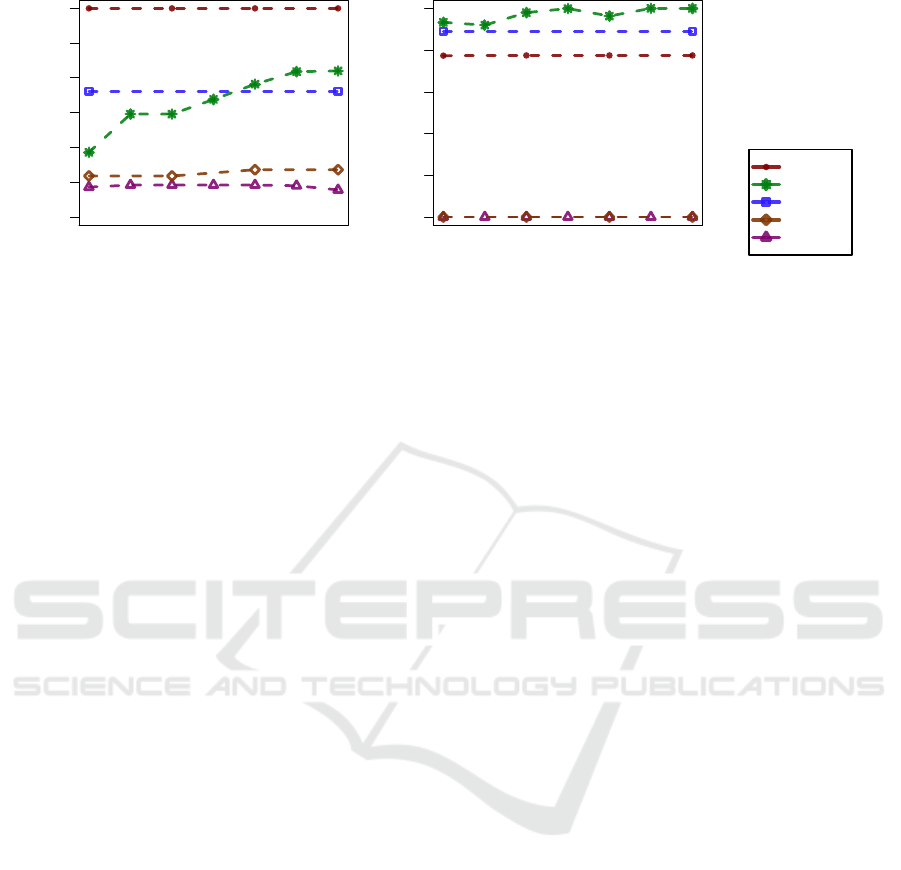

For each metamodel, the measurements of the dif-

ferent versions are plotted in their chronological or-

der. For the PCM, the number of classiﬁers more than

doubled, while the others remained constant in size.

This is also due to the fact that the versions span over

ﬁve years for the PCM and over much shorter periods

of time for all other metamodels.

The graph for the DM metric clearly shows the

lack of any package structure in the Kevoree and

SOFA 2 metamodels. The other metamodels have

roughly similar DM values. For PCM and Descartes,

this is reasonable since Descartes was inspired by

PCM, though adjusted to model the runtime of

component-based systems. The KDM metamodel has

a slightly lower DM value, simply because the 300

classes are distributed only to 12 packages.

In the evolution of PCM, we can also see that the

degree of modularization has roughly stayed the same

Predicting the Perceived Modularity of MOF-based Metamodels

0 50 100 200 300

Total Number of Classifiers

Time

0.0 0.1 0.2 0.3 0.4 0.5

Degree of Modularization

Time

KDM

PCM

DMM

SOFA 2

Kevoree

Figure 6: Size metrics results for different versions of component-based metamodels.

during a long evolution process. Therefore, we think

that the observed DM-values of up to 0.5 are realistic.

7 RELATED WORK

Our paper on the usage of Sarkar metrics to evaluate

the modularity of metamodels presents an alternative

approach to obtain a quantitative quality assessment

of metamodels (Hinkel and Strittmatter, 2017). How-

ever, the results were not as good as the DM metric

based on the same experiment data.

Related work in the context of metamodel quality

consists mostly of adoptions of metrics for UML class

diagrams and object-oriented design. However, to the

best of our knowledge, the characterization of meta-

model quality has not yet been approached through

the perception of modeling experts.

Bertoa et al. (Bertoa and Vallecillo, 2010) present

a rich collection of quality attributes for metamodels.

However, as it is not the scope of their work, they

do not give any information how to quantify the at-

tributes.

Ma et al. (Ma et al., 2013) present a quality

model for metamodels. By transferring metrics from

object-oriented models and weighting them, they pro-

vide composite metrics to quantify quality properties.

They calculate these metrics for several versions of

the UML metamodel. However, they do not provide a

correlation between their metrics and quality.

López et al. propose a tool and language to check

for properties of metamodels (López-Fernández et al.,

2014). In their paper, they also provide a catalog

of negative properties, categorized in design ﬂaws,

best practices, naming conventions and metrics. They

check for breaches of ﬁxed thresholds for some met-

rics, but both their catalog and also these thresholds

stem from conventions and experience and are not

empirically validated.

Vépa et al. present a repository for metamodels,

models, and transformations (Vépa et al., 2006). The

authors apply metrics that were originally designed

for class diagrams onto the metamodels of the repos-

itory. They give a rationale on how to relate some of

the metrics to metamodel quality. However, no vali-

dation is given.

Williams et al. applied a variety of size metrics

onto a big collection of metamodels (Williams et al.,

2013). However, they did not draw any conclusions

with regards to quality.

Di Rocco et al. also applied metrics onto a large

set of metamodels (Di Rocco et al., 2014). Besides

size metrics, they also feature the number of isolated

metaclasses and the number of concrete immediately

featureless metaclasses. Further, they searched for

correlations of the metrics among each other. E.g.,

they found that the number of metaclasses with super

class is positively correlated with the number of meta-

classes without features. Based on the characteristics

they draw conclusions about general characteristics of

metamodels. However, to the best of our knowledge,

they did not correlate the metric results to any quality

attributes.

Gomez et al. propose an approach which aims

at evaluating the correctness and expressiveness of a

metamodel (Gómez et al., 2012). A metamodel is

considered correct, if it only allows valid instances.

Expressiveness is the degree to which it is able to ex-

press the instances it is supposed to. Their approach

automatically generates a (preferably small) set of in-

stances to evaluate these two criteria.

Garcia et al. developed a set of domain-speciﬁc

metamodel quality metrics for multi-agent systems

modeling languages (García-Magariño et al., 2009).

They propose three metrics: availability, speciﬁcity

and expressiveness. These metrics take domain

knowledge into account, e.g., the “number of nec-

essary concepts” or the “number of model elements

necessary for modelling the system of the problem

domain”.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

Leitner et al. propose complexity metrics for do-

main models of the software product line ﬁeld as well

as feature models (Leitner et al., 2012). However,

domain models are not as constrained by their meta-

models as it is the case with feature models. The

authors argue, that the complexity of both, feature

and domain models, inﬂuences the overall quality of

the model, but especially usability and maintainabil-

ity. They show the applicability of their metrics, but

do not validate the inﬂuence between the metrics and

quality.

Vanderfeesten et al. investigated quality and de-

signed metrics for business process models (Vander-

feesten et al., 2007). Some of them can be applied to

metamodels or even graphs in general. The metrics

are validated by assessing the relation between metric

results and error occurrences and manual quality as-

sessments (Mendling and Neumann, 2007; Mendling

et al., 2007; Sánchez-González et al., 2010; Vander-

feesten et al., 2008). For example, their separabil-

ity metric measures the amount of nodes which are

the only connection between two cohesive clusters of

nodes. They ﬁnd, that size, separability and struc-

turedness are good indicators for errors, as they inﬂu-

ence models complexity and thus understandability.

However, it is subject of further research to investi-

gate how these metrics can be adapted to metamodels.

8 CONCLUSION AND OUTLOOK

The proposed metric DM based on entropies of the

package structure strongly correlates with perceived

metamodel modularity, at least in the domains we

have analyzed. This is good, because this insight

helps to understand how modelers perceive the qual-

ity of metamodels. It is also a bad signal, because ap-

parently, at least the participants of our experiments

did not care about more subtle factors that inﬂuence

modularity, such as coupling. We suspect that this

is caused by the tooling, which puts focus on where

classes are placed in the package structure and what

kind of features they have, but puts no emphasis on

where relations point to with regard to the package

structure.

To obtain a meaningful quantitative analysis on

the quality of modularization for a given metamodel,

the DM-metric therefore has to be combined. In par-

ticular, the results from ﬁtting linear regression mod-

els suggest that the DM metric makes up very roughly

a quarter of what is taken into consideration for the

perception of modularity.

The combination of this new metric DM with

slightly altered versions of the inheritance-based and

association-based coupling indices IC and AC we

presented earlier (Hinkel and Strittmatter, 2017) is

promising as these metrics may compensate each oth-

ers weaknesses. Both of these metrics favor different

extremes such that metamodels with a good modular-

ization may be detected, if both metrics are balanced.

Based on these results, we are hoping to con-

ﬁrm our results in larger applications. If this can

be done successfully, we are striving to integrate the

automated evaluation of metamodels into the meta-

model design process and into automated refactorings

of metamodels to improve the modularization.

ACKNOWLEDGEMENTS

This research has received funding from the European

Union Horizon 2020 Future and Emerging Technolo-

gies Programme (H2020-EU.1.2.FET) under grant

agreement no. 720270 (Human Brain Project SGA-I)

and the Helmholtz Association of German Research

Centers.

REFERENCES

Becker, S., Koziolek, H., and Reussner, R. (2009). The Pal-

ladio component model for model-driven performance

prediction. Journal of Systems and Software, 82:3–22.

Bertoa, M. F. and Vallecillo, A. (2010). Quality attributes

for software metamodels. In Proceedings of the

13th TOOLS Workshop on Quantitative Approaches

in Object-Oriented Software Engineering (QAOOSE

2010).

Bruneliere, H., Cabot, J., Jouault, F., and Madiot, F. (2010).

Modisco: a generic and extensible framework for

model driven reverse engineering. In Proceedings

of the IEEE/ACM international conference on Auto-

mated software engineering, ASE ’10, pages 173–

174, New York, NY, USA. ACM.

Bureš, T., Hnetynka, P., and Plášil, F. (2006). Sofa 2.0:

Balancing advanced features in a hierarchical compo-

nent model. In Proceedings of the fourth International

Conference on Software Engineering Research, Man-

agement and Applications, pages 40–48. IEEE.

Di Rocco, J., Di Ruscio, D., Iovino, L., and Pierantonio,

A. (2014). Mining metrics for understanding meta-

model characteristics. In Proceedings of the 6th In-

ternational Workshop on Modeling in Software Engi-

neering, MiSE 2014, pages 55–60, New York, NY,

USA. ACM.

Di Ruscio, D., Iovino, L., and Pierantonio, A. (2012). Evo-

lutionary togetherness: how to manage coupled evo-

lution in metamodeling ecosystems. In International

Conference on Graph Transformation, pages 20–37.

Springer.

Predicting the Perceived Modularity of MOF-based Metamodels

Fouquet, F., Nain, G., Morin, B., Daubert, E., Barais, O.,

Plouzeau, N., and Jézéquel, J.-M. (2014). Kevoree

Modeling Framework (KMF): Efﬁcient modeling

techniques for runtime use. Technical report, SnT-

University of Luxembourg.

García-Magariño, I., Gómez-Sanz, J., and Fuentes-

Fernández, R. (2009). An evaluation framework for

mas modeling languages based on metamodel metrics.

Agent-Oriented Software Engineering IX, pages 101–

115.

Gómez, J. J. C., Baudry, B., and Sahraoui, H. (2012).

Searching the boundaries of a modeling space to test

metamodels. Software Testing, Veriﬁcation, and Vali-

dation, 2008 International Conference on, 0:131–140.

Hinkel, G., Groenda, H., Krach, S., Vannucci, L., Den-

ninger, O., Cauli, N., Ulbrich, S., Roennau, A.,

Falotico, E., Gewaltig, M.-O., Knoll, A., Dillmann,

R., Laschi, C., and Reussner, R. (2016a). A Frame-

work for Coupled Simulations of Robots and Spiking

Neuronal Networks. Journal of Intelligent & Robotics

Systems.

Hinkel, G., Groenda, H., Vannucci, L., Denninger, O.,

Cauli, N., and Ulbrich, S. (2015). A Domain-Speciﬁc

Language (DSL) for Integrating Neuronal Networks

in Robot Control. In 2015 Joint MORSE/VAO Work-

shop on Model-Driven Robot Software Engineering

and View-based Software-Engineering.

Hinkel, G., Kramer, M., Burger, E., Strittmatter, M., and

Happe, L. (2016b). An Empirical Study on the Per-

ception of Metamodel Quality. In Proceedings of

the 4th International Conference on Model-driven

Engineering and Software Development (MODEL-

SWARD). Scitepress.

Hinkel, G. and Strittmatter, M. (2017). On Using Sarkar

Metrics to Evaluate the Modularity of Metamodels.

In Proceedings of the 5th International Conference

on Model-Driven Engineering and Software Develop-

ment.

Kounev, S., Brosig, F., Huber, N., and Reussner, R. (2010).

Towards self-aware performance and resource man-

agement in modern service-oriented systems. In Pro-

ceedings of the IEEE International Conference on

Services Computing (SCC), pages 621–624. IEEE.

Lehman, M., Ramil, J., Wernick, P., Perry, D., and Turski,

W. (1997). Metrics and laws of software evolution-the

nineties view. In Software Metrics Symposium, 1997.

Proceedings., Fourth International, pages 20–32.

Lehman, M. M. (1974). Programs, cities, students: Limits

to growth? (Inaugural lecture - Imperial College of

Science and Technology ; 1974). Imperial College of

Science and Technology, University of London.

Leitner, A., Weiß, R., and Kreiner, C. (2012). Analyzing

the complexity of domain model representations. In

Proceedings of the 19th International Conference and

Workshops on Engineering of Computer Based Sys-

tems (ECBS), pages 242–248.

López-Fernández, J. J., Guerra, E., and de Lara, J. (2014).

Assessing the quality of meta-models. In Proceedings

of the 11th Workshop on Model Driven Engineering,

Veriﬁcation and Validation (MoDeVVa), page 3.

Ma, Z., He, X., and Liu, C. (2013). Assessing the qual-

ity of metamodels. Frontiers of Computer Science,

7(4):558–570.

Mendling, J. and Neumann, G. (2007). Error metrics for

business process models. In Proceedings of the 19th

International Conference on Advanced Information

Systems Engineering, pages 53–56.

Mendling, J., Neumann, G., and Van Der Aalst, W. (2007).

Understanding the occurrence of errors in process

models based on metrics. In On the Move to Meaning-

ful Internet Systems 2007: CoopIS, DOA, ODBASE,

GADA, and IS, pages 113–130. Springer.

Object Management Group (OMG) (2015). MOF 2.5 Core

Speciﬁcation (formal/2015-06-05).

Pérez-Castillo, R., De Guzman, I., and Piattini, M. (2011).

Knowledge discovery metamodel-iso/iec 19506: A

standard to modernize legacy systems. Computer

Standards & Interfaces, 33(6):519–532.

Reussner, R. H., Becker, S., Happe, J., Heinrich, R., Kozi-

olek, A., Koziolek, H., Kramer, M., and Krogmann,

K. (2016). Modeling and Simulating Software Archi-

tectures – The Palladio Approach. MIT Press, Cam-

bridge, MA.

Sánchez-González, L., García, F., Mendling, J., Ruiz, F.,

and Piattini, M. (2010). Prediction of business process

model quality based on structural metrics. In Concep-

tual Modeling–ER 2010, pages 458–463. Springer.

Sarkar, S., Kak, A. C., and Rama, G. M. (2008). Metrics

for measuring the quality of modularization of large-

scale object-oriented software. Software Engineering,

IEEE Transactions on, 34(5):700–720.

Schmidt, D. C. (2006). Model-driven engineering. IEEE

Computer, 39(2):25.

The Object Management Group (2011). Business process

model and notation 2.0. http://www.bpmn.org/.

Vanderfeesten, I., Cardoso, J., Mendling, J., Reijers, H. A.,

and van der Aalst, W. (2007). Quality metrics for busi-

ness process models. BPM and Workﬂow handbook,

144.

Vanderfeesten, I., Reijers, H. A., Mendling, J., van der

Aalst, W. M., and Cardoso, J. (2008). On a quest for

good process models: the cross-connectivity metric.

In Advanced Information Systems Engineering, pages

480–494. Springer.

Vépa, E., Bézivin, J., Brunelière, H., and Jouault, F. (2006).

Measuring model repositories. In Proceedings of the

1st Workshop on Model Size Metrics.

Williams, J. R., Zolotas, A., Matragkas, N. D., Rose, L. M.,

Kolovos, D. S., Paige, R. F., and Polack, F. A. (2013).

What do metamodels really look like? In Proceedings

of the ﬁrst international Workshop on Experiences and

Empirical Studies in Software Modelling (EESSMod),

pages 55–60.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
