Automated Detection of the Early Stages of Cyber Kill Chain
Ian Herwono and Fadi Ali El-Moussa
Security Futures Practice, Research & Innovation, BT, Ipswich IP5 3RE, U.K.
Keywords: Cyber Security, Kill Chain, Security Events Monitoring, Attack Detection Plan, Automated Process.
Abstract: Early detection of cyber threats is critical for proactive network defence and protection against data,
financial and reputation loss that could be caused by large-scale security breach. Continuous monitoring and
in-depth analysis of related system and network events are required to achieve the objective. However cyber
threat hunting activities are both time-consuming and labour-intensive; the prospect of being able to
automate them effectively is thus worth exploring. In this paper we introduce the prototype of our attack
detection tool for automating the process of discovering and correlating security events towards early threat
detection. Its main objective is to facilitate continuous event monitoring and to alert security analysts
whenever a series of detected events and activities may indicate early stages of a cyber kill chain. The
process automation will reduce the load of human analysts and spare them valuable time to investigate more
sophisticated, unknown attacks. We provide two use cases which describe the chain of tasks a security
analyst would have to perform when investigating cyber incidents and trying to identify the systems targeted
by potential attack. We then show how to create attack detection plans for those use cases and apply them
on relevant datasets. We present the results produced by the tool and discuss our future work on context-
aware classification of security events which aims to make the detection process more efficient.
1 INTRODUCTION
Today’s cyber attackers will try to find any method
to subvert the computer network and system of
companies and government agencies with the main
intents of collecting confidential and private data,
disrupting critical Internet services, or denying
access to user data. With the modern complexity of
such attacks the only way to be reliably alerted if a
system has been compromised is by reviewing both
the system and network events and correlating them
across those two layers to develop a thorough view
into a potential attack. The problem gets even worse
as every system in the network has the ability to log
events, and in a busy network the network traffic per
day could be very large. Hence the volume of log
data generated by the end systems and network
devices will be so large that it is impractical for
system administrators and security analysts to
review every data record in the log and correlate
those events at system and network level to detect a
potential attack.
Security solutions such as the Security
Information and Event Management (SIEM) tools
try to make the analyst’s life easier by collecting the
events from various systems and network devices
into one place, grouping them into categories, and
providing the analyst with easy, centralised access
interface to any of the alerts or logs. SIEM solution
usually provides an interactive dashboard to help
analysts drill down into the data and correlate series
of system and network events in order to make sense
if they indicate a potential security breach. The
analysts should have cyber threat hunting skill and
experience in order to be able to spot (malicious)
activities and discover connections between
seemingly unrelated events that may have been seen
in the network over long period of time but could be
part of a cyber kill chain with high-impact security
breach. The analyst’s task basically comprises
actions of discovering the footprints left behind by
the attacker on systems all over the network, tracing
relevant network traffic, and trying to figure out the
attacker’s intent, i.e. to know where the attacker is
heading over time and which service or data is being
targeted. Being able to detect threats earlier in the
kill chain is essential to defend the network
proactively and prevent against data, financial and
reputation loss caused by large-scale security breach.
This means that continuous monitoring and in-depth
182
Herwono, I. and El-Moussa, F.
Automated Detection of the Early Stages of Cyber Kill Chain.
DOI: 10.5220/0006543301820189
In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 182-189
ISBN: 978-989-758-282-0
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
analysis of relevant system and network events are
required to achieve the objective.
Cyber threat hunting activities are both time-
consuming and labour-intensive when carried out
manually; the prospect of being able to automate
them effectively is thus worth exploring. In this
paper we introduce the prototype of our attack
detection tool to automate the process of observing
and correlating security events towards early threat
detection. The objective is to allow continuous event
monitoring and alert the analysts whenever a series
of events that were spread over time may indicate
early stages of a known attack pattern. Such
automation will reduce the load of human analysts
and spare them valuable time to investigate more
sophisticated, unknown attacks.
The remainder of this paper is structured as
follows. Section 2 presents some related works in
the area of attack patterns and multi-stage attack
detections. In Section 3 we introduce two example
use cases that will later be applied to our attack
detection tool. Section 4 briefly describes the tool. In
Section 5 we show how to use the tool and specify
the parameters for automating the detection and
correlation process described in the use cases.
Section 6 discusses our future work on context-
aware classification of security events in order to
improve the automated detection process. Finally we
conclude our work in Section 7.
2 RELATED WORK
(Bhatt et al., 2014) presented the design principles of
a framework that model multi-stage attacks in a way
that both describes the attack methods as well as the
anticipated effects of attacks. Their foundation to
model behaviours is by combining the Intrusion Kill
Chain attack model (Hutchins et al., 2011) and
defence patterns, i.e. a hypothesis-based approach of
known patterns. (Barnum, 2007) introduced the
concept of attack patterns as a mechanism to capture
and communicate the attacker’s perspective. He
described a typical process for generating the attack
patterns and using them at different phases of
software development. The work was related to the
Common Attack Pattern Enumeration and
Classification (CAPEC) initiative of the U.S.
Department of Homeland Security (DHS) on
providing a publicly available catalogue of attack
patterns with a comprehensive schema and
classification taxonomy created to assist in the
building of secure software (https://capec.mitre.org).
(Scarabeo et al., 2015) developed a data mining
framework that employs text mining techniques to
dynamically relate the information between the
security-related events and CAPEC attack patterns.
It aims to reduce analysis time and increase the
quality of attack reports, as well as to automatically
build correlated scenarios.
3 USE CASES
This section presents the two use cases for our attack
detection tool (Herwono et al., 2017). They describe
the typical time-consuming tasks human analysts
need to perform when analysing large amount of
logs to investigate specific type of attacks. Both use
cases are based on cyber incident analysis using a
dataset that contains one day of Snort IDS alert logs
with over two million records (MACCDC, 2012).
Table 1 lists the top 10 names of alert classification
with the most numbers of detected events/alerts in
the dataset along with the number of associated alert
signatures.
Table 1: Snort alert classification names with the most
detected events (Top 10).
Alert Classification
# events
# signatures
Web Application Attack
1,345,864
517
Attempted Information Leak
244,334
232
Misc activity
226,245
51
Potential Corporate Privacy
Violation
141,403
27
Unsuccessful User Privilege Gain
32,431
5
Generic Protocol Command Decode
26,129
41
Access to a Potentially Vulnerable
Web Application
25,898
340
Potentially Bad Traffic
24,312
43
Misc Attack
12,189
17
Attempted Administrator Privilege
Gain
9,777
44
3.1 Use Case 1: Identify Compromised
Web Server
In this use case an Internet company has a number of
web services running on its network and its Security
Operations Centre (SOC) team needs to be aware if
one or more of their web servers has been targeted
by an attacker or worse it has been compromised.
Their Snort IDS system has produced a huge number
of alert logs which need to be examined to
differentiate between real threats and false positives.
A typical scenario, using the SIEM’s interactive
dashboard a SOC analyst will first isolate all the
alerts that were classified as Web Application Attack
(i.e. 1,345,864 events). Then he/she will check how
Automated Detection of the Early Stages of Cyber Kill Chain
183
many destination hosts (i.e. destination IP addresses)
were involved under that alert category (i.e. 30
hosts).
As the analyst has now found out that there is
potential web attack traffic targeting some of the
company’s web services, the next step would be to
narrow down the search and verify if any of the web
servers has been successfully compromised. To do
this the analyst searches for Access to a Potentially
Vulnerable Web Application alerts among those 30
destination IP addresses. Eventually, by carefully
examining the search result (i.e. 1,672 events in
total) the analyst found that a Cybercop Scan
activity (i.e. 2 events) was detected for a particular
destination IP address; the analyst has now
successfully identified the web server that has been
potentially compromised.
3.2 Use Case 2: Determine Type of
Attack
In the second use case the SOC analyst wants to
determine the actual type of attack or security breach
on web servers that he/she suspected may have been
compromised. This is important in order to assess
the damage that could have been caused by
successful attack and to allow the administrators
take suitable mitigation actions such as blocking
inbound web traffic or shutting down the server
completely.
The analyst will first look for all Snort IDS alerts
that relate to Detection of a Network Scan
classification (i.e. 694 events). This query results in
a list of matching alerts with different attack
signature names, one of which catches the analyst’s
attention, i.e. WEB_SERVER IIS 8.3 Filename With
Wildcard (Possible File/Dir Bruteforce) with 22
events. The analyst then retrieves the list of
destination IP addresses reported with that attack
signature which indicates directory traversal activity
(i.e. 16 IP addresses).
The analyst now needs to know if the attacker
was able to successfully compromise any of the IIS
(Internet Information Services) web servers
deployed in the network. He/she starts looking for
alerts classified as Web Application Attack and spots
a set of alerts with signature name WEB-IIS
Directory Traversal Attempt (i.e. 874 events). The
analyst collects the involved 29 destination IP
addresses and checks them against the list of
destination IP addresses obtained earlier (i.e. for
WEB_SERVER IIS 8.3 Filename With Wildcard) in
order to determine the actual servers that have been
targeted by the attacker.
This is a typical scenario, where the analyst has
to compare alerts collected from one event possibly
at network level with events at host level to verify
that the network scanning activity detected as attacks
towards web server’s directory traversal matches the
attack at host with directory traversal attempt.
Following the comparison the analyst identifies 15
destination IP addresses that were involved in both
attack signatures which may lead to root access to
the web server using the Directory Traversal
method. To narrow down the search further, the
analyst may need to investigate the system logs to
check who managed to log into the system and
compare the login time with the collected Snort
alerts and gather more evidence of successful attack.
4 ATTACK DETECTION TOOL
4.1 Introduction
Our attack detection tool allows cyber-defence
analysts to automate the process of correlating
specific security, system and network events that
may have been logged at different places in the
network over short or long period of time. In order
to correlate two separate events correctly an analyst
normally needs to verify whether the same machine
or device is involved in both events. For example, if
there are some IDS alerts involving a device with
particular IP address, the analyst may then want to
check whether there is any suspicious outbound
traffic coming from that device in subsequent
periods of time. Regular checks with DHCP
(Dynamic Host Configuration Protocol) records are
thus needed to make sure that the IP address still
matches the same device. The tool helps automate
this type of checks and correlates past events with
subsequent series of new events to save analyst a lot
of time in monitoring the progress of potential
attacks.
4.2 Attack Detection Plan
Attack detection plans are used for triggering and
automating the process of detecting various types of
cyber-attacks. Each plan indicates a series of events
that collectively may form logical steps and phases
of cyber kill chain; the plan sets the conditions under
which the events could be correlated with each
other, leading to certain conclusions, e.g. preparation
for implanting a backdoor within the target system.
Essentially the plan represents the step-by-step
process of investigating cyber incidents that
ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
184
otherwise a human analyst would have to go through
in order to verify the attack and narrow down the
search for the intent of the malicious activities.
5 AUTOMATED ATTACK
DETECTION
In this section we will show how we can utilise our
attack detection tool to automate the sequence of
tasks an analyst would have to perform based on the
use cases described earlier in Section 3. The benefits
of such automation are summarised as follows:
• The analyst can redo the same type of analysis
on either different set of data gathered from
different network, or same type of data
collected at different periods of time without
having to keep repeating the same tasks every
single time.
• The attack detection plans can be shared with
other analysts to be used for analysing different
set of data in their own network.
• Members of the analyst team can validate each
other’s finding in an automated way.
• Different security analysts can add or edit the
automated detection steps to cover other type
of attack or more complex attack pattern.
For each use case we will create its
corresponding attack detection plan by specifying
the set of events to be detected along with their
correlation parameters. Then we will show the
results produced by the tool using the Snort IDS
dataset described in Section 3.
5.1 Use Case 1: Identify Compromised
Web Server
5.1.1 Detection Plan
In this use case the analyst’s task is to identify any
company’s web server that has been compromised.
We can split this task into two sub-tasks, i.e. Detect
potential attack on web applications, and Verify
scan activities on web server. The sub-tasks are then
connected to each other to form the attack detection
plan, as shown in Figure 1.
The next step is to specify which events to be
monitored or actions to be taken within each sub-
task. Figure 2 shows the details for the first sub-task.
Its objective is to gather alerts classified as Web
Application Attack within one-hour time interval and
then group them either by the source or destination
IP address. It will trigger the next sub-task once any
of such alerts has been detected from the logs, i.e.
threshold is set to 1.

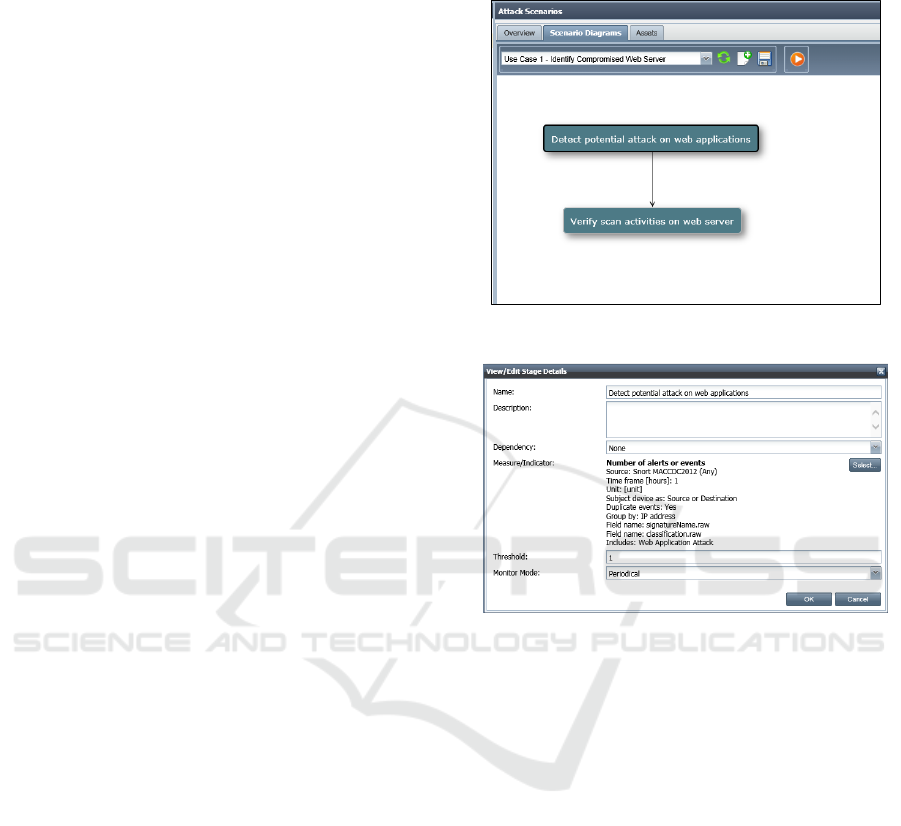

Figure 1: Attack detection plan for Use Case 1.
Figure 2: Details of the first sub-task.
The second sub-task should verify if any of the
destination IP addresses identified in the first sub-
task has also been involved in other Snort alerts
categorised as Access to a Potentially Vulnerable
Web Application and if some malicious scan
activities have been detected on those affected
machines. Figure 3 shows how the second sub-task
is configured where the dependency field is now set
to Dependent of the data from previous stage and
Destination IP is selected as input data. Also note
that only alerts with signature name containing the
word “scan” will be considered (see the
corresponding Includes field).
Automated Detection of the Early Stages of Cyber Kill Chain
185
Figure 3: Details of the second sub-task.
5.1.2 Result
The tool provides a capability to ‘replay’ the
detection plan over relevant datasets stored in a
database-like system. This can either be used to
verify the detection and correlation tasks on known
datasets, or to discover evidence of attack activities
in historical logs during forensic analysis. Our
prototype implementation makes use of the
Elasticsearch system for alert logs storage.
Before the replay can go ahead the user analyst
may add or modify some details regarding the time
interval and specific time period of the logs. The
time interval should normally be aligned with the
time frame configured for each sub-task, e.g. hourly,
daily, etc. For our particular use case the time period
is set between “16 March 2012 at 00:00 UTC” and
“17 March 2012 at 00:00 UTC”.
Once the replay has started, the analyst can
follow the progress of each sub-task in detecting and
correlating the events within the time period via the
tool’s visualisation interface. As depicted in Figure 4
the vertical lines (or bars) indicate the occurrence of
events matching the filter parameters of the
corresponding sub-task at particular time point and
the line length represents the (maximum) examined
value, e.g. maximum number of detected alerts per
destination IP address. Each time the threshold in the
first sub-task is exceeded, the second sub-task is
triggered and provided with the list of identified
destination IP addresses, i.e. the first time already
happened on “16 March 2012 at 08:00 UTC”. While
the second sub-task now starts its own detection
activity, the first sub-task resumes. This process
goes on until it reaches the end of the time period.
Figure 4 shows that the second sub-task has
detected related events on “16 March 2012 at 14:00
UTC”. The analyst can then drill-down into the data
and see the details of the matching events. As shown
in Figure 5 a server with the IP address
“192.168.229.101” has been targeted by attack with
the signature WEB-MISC cybercop scan.
The whole detection process took about 10
seconds to complete. The processing time should
however be seen as indicative only as there is a
number of factors affecting the system performance
such as type of operating system, server
configuration, CPU utilisation, network load,
software optimisation, etc. We deployed our attack
detection tool using Apache Tomcat application

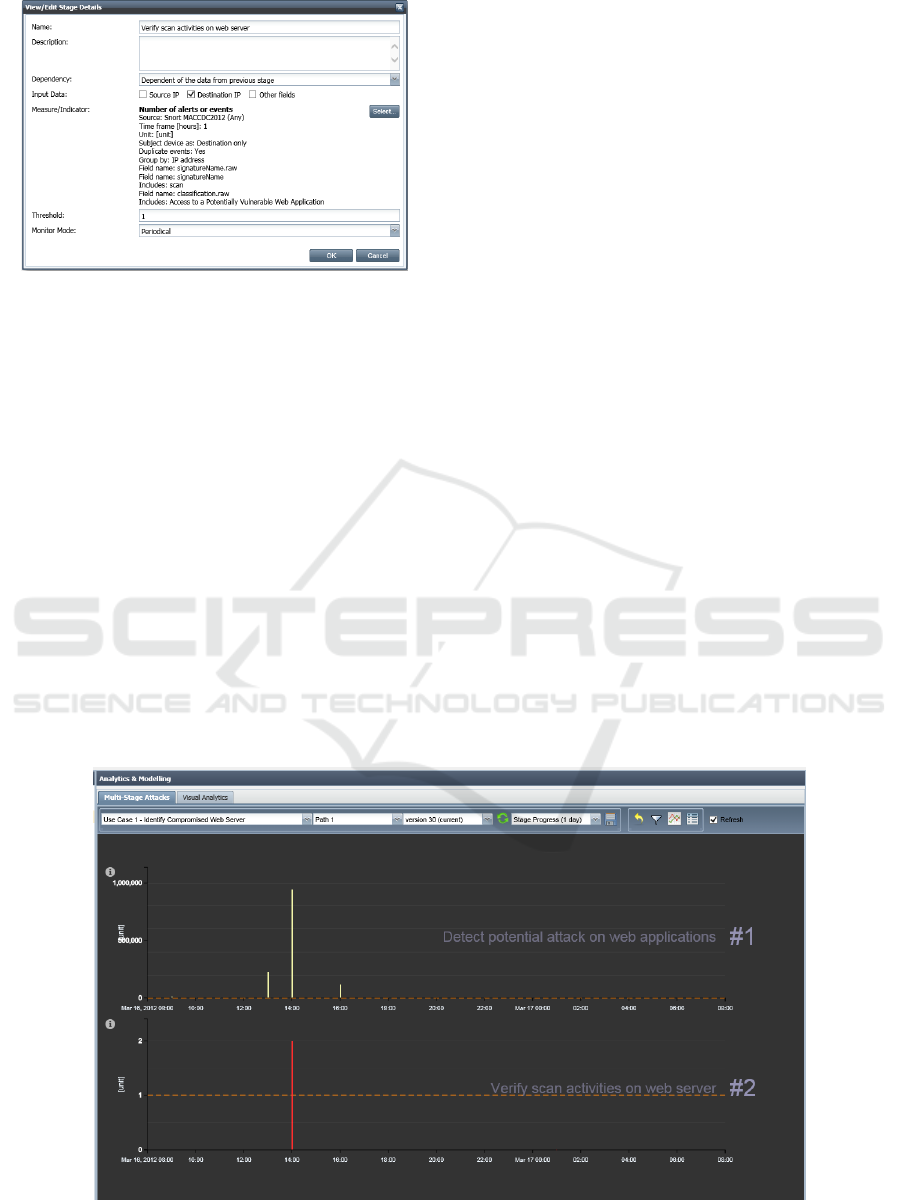

Figure 4: Visualisation of detected events in Use Case 1.
ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
186
server running on a Windows 2012 server with
32GB RAM. The Elasticsearch server application
also runs on the same machine.
Figure 5: Detected events in the second sub-task.
5.2 Use Case 2: Determine Type of
Attack
In the second use case the aim is to automate
detection of directory traversal attack and to identify
the servers that have been targeted. Figure 6 shows
the corresponding detection plan which consists of
three sub-tasks, i.e., Detect network scan activities,
Identify scan with directory brute force, and Verify
directory traversal attempts on web servers. Table 2
summarises the detection parameters for each sub-
task.

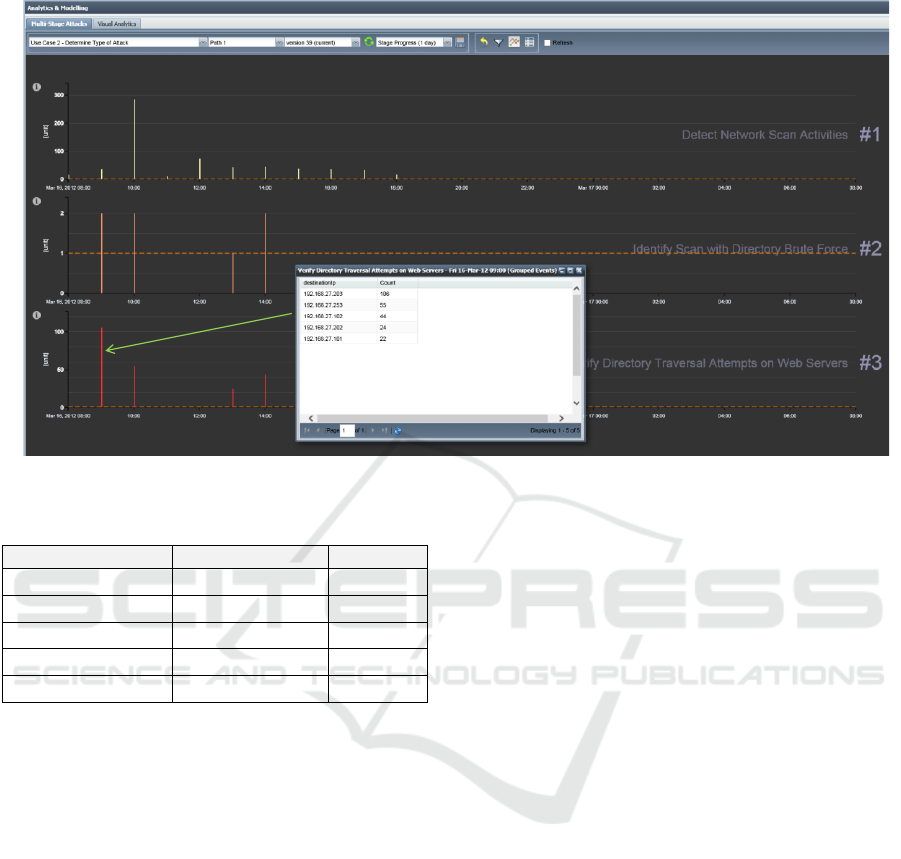

After replaying the detection plan over historical
logs as we did on the first use case, our tool
produced the results shown in Figure 7. The
directory traversal attempts were detected four times
during the day (split in one-hour intervals) on “16
March 2012” between “08:00 UTC” and “14:00
UTC”. Figure 7 also shows that on “16 March 2012
at 09:00 UTC” five destination IP addresses were
involved in the detected events. In total 15 servers
were identified by the detection plan. The detection
process took around 10 seconds to complete.

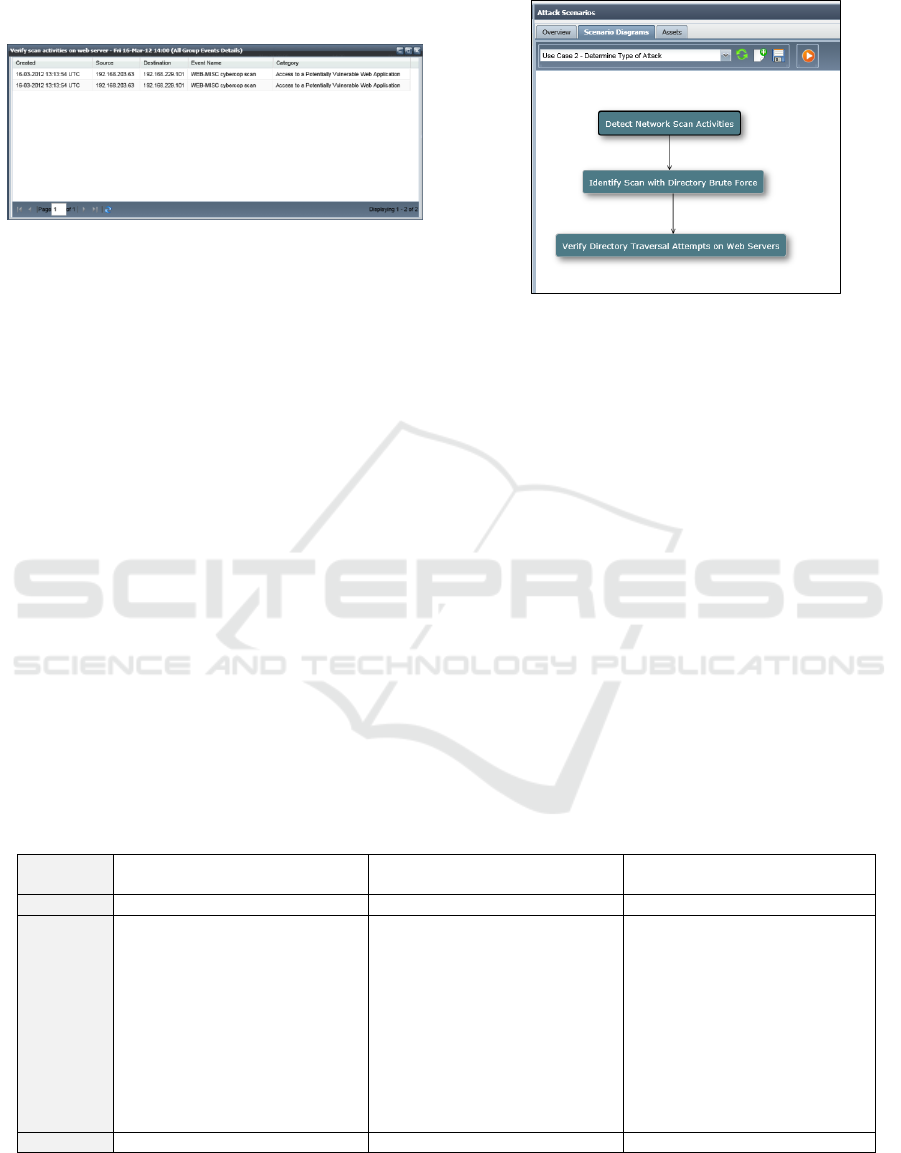

Figure 6: Attack detection plan for Use Case 2.
6 FUTURE WORKS
Basically the previous set of uses cases have been
achieved on security events gathered from the same
security system, i.e. Snort IDS. Large enterprises
may have a number of different security systems
deployed in their network supplied by multiple
vendors such as McAfee, Trend, FortiGate, etc. Each
of these systems will be reporting security events
based on the vendor’s own naming and classification

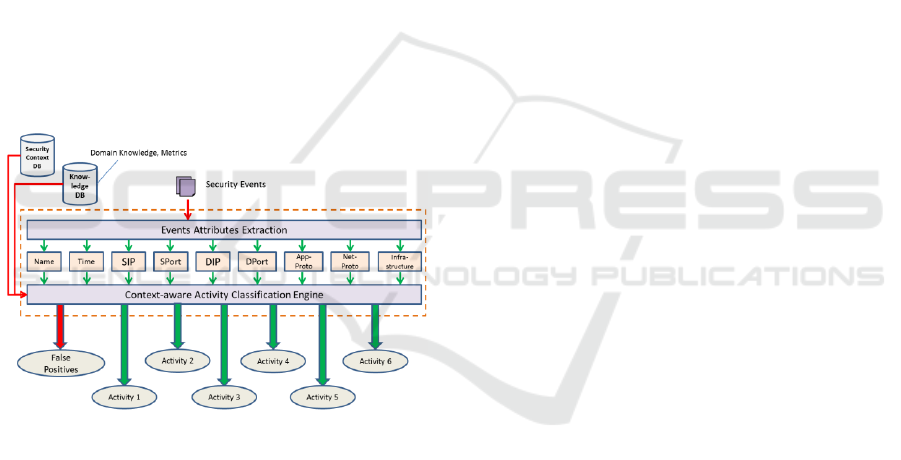

system. For example, as we see in Table 3 a number
of reported events are showing different names and
the SIEM’s security context database may group
them into different categories. However many of
them actually belong to the same malicious activity,
e.g. port scanning.
Table 2: Sub-task detection parameters (Use Case 2).
Sub-task
Detect Network Scan Activities
Identify Scan with Directory Brute Force
Input Data
N/A
Destination IP
Measure
Number of alerts or events
Source: Snort MACCDC2012 (Any)
Time frame [hours]: 1
Subject devices as: Source or Destination
Duplicate events: Yes
Group by: destinationIp
Field name: classification.raw
Includes: Detection of a Network Scan
Number of alerts or events
Source: Snort MACCDC2012 (Any)
Time frame [hours]: 1
Subject devices as: Source or Destination
Duplicate events: Yes
Group by: destinationIp
Field name: classification.raw
Includes: Detection of a Network Scan
Field name: signatureName
Includes: Bruteforce
Threshold
1
1
Automated Detection of the Early Stages of Cyber Kill Chain
187
Table 3: Vendor-specific event classification.
Events
Classification
Vendor
TCP: SYN Port Scan
Denial of Service (DOS)
McAfee
UDP: Port Scan
Scan
McAfee
icmp_flood
ICMP Flood Attack
FortiGate
TCP.Invalid.Packet.Size
Spoofing
FortiGate
tcp_port_scan
Scan
FortiGate
It is therefore important that our detection tool
can be vendor-agnostic so that the same attack
detection plans can be used irrespective of which
security system was used to generate the security
events. Such flexibility would further boost the
advantage of having such automation tool since a
security analyst does not need to be familiar with
different vendor’s naming and classification systems
in order to identify particular type of attack.
In order to achieve this objective we currently
work on context-aware activity classification
component for grouping security events from
different vendors based on their semantics. This is
due to the fact that vendor’s classification system is
rather static and usually does not take the
surrounding context of the event into account, such
as the source/destination IP address or the type of
infrastructure being targeted. Depending on the
context, a security event with specific signature may
indicate different types of activity. On the other hand
two or more security events with different signatures
may indicate the same type of activity.
The context-aware activity classification
component may later be integrated with our attack
detection tool. We envisage the following input data:
• Security event or alert data
• Security context data which contains
information about the classification assigned
by the system vendor to particular event/alert
(e.g. see Table 3)
• Domain knowledge data which contains some
pre-defined knowledge and metrics to be used
for the classification process
The context-aware classification process will be
executed as follows:
1. First we build baseline models for the normal
protocol (TCP, UDP, ICMP, etc.), services
(Web server, database, etc.) and infrastructure
(DNS, DHCP, etc.) behaviours. The models
become part of domain knowledge data and
will be used later to compare the reported
security events with the baseline and determine
how far away the security events are from the
baseline and assign a weight to the distance.
2. We then extract the relevant information from
the security events. As shown in Figure 8 the
Events Attributes Extraction sub-component
will first extract the following event attributes:
• Event or alert name (this is normally the
signature name given by the vendor)
• Date and time when the event was
detected
Figure 7: Visualisation of detected events in Use Case 2.
ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy
188
• Source and destination IP addresses and
port numbers
• Application and network protocols (e.g.
HTTP, TCP, UDP, etc.)
• Infrastructure or device type of the source
or destination (e.g. web server, database
server, authentication server, etc.)
3. We then combine the extracted attributes and
process them together with security context
data, domain knowledge and metrics (i.e.
baseline behaviours) in order to determine the
context of the event, and eventually to decide
whether an event/alert is classified as false
positive or into one of pre-defined (malicious)
activities, e.g.:
• Port scanning
• Denial of service
• Code injection
• Gaining access
• Probing
• Privilege escalation
• Code execution
• Data exfiltration
Figure 8: Context-aware activity classification.
Table 3 already showed an example of context-
aware activity classification outcome where all the
listed events may be classified as Port Scanning
activity.
7 CONCLUSIONS
We have explored the possibility of automating the
process of monitoring and correlating security
events to help analysts detect potential attacks earlier
in the kill chain. Our approach was to run pre-
defined attack detection plans over data logs that
have been produced by various systems and devices
in the network over different periods of time. This
way an analyst does not have to keep repeating the
same steps and tasks every time he/she wants to
perform similar analysis on different datasets.
Nevertheless an in-depth knowledge of the format
and security context of each data log is critical to
create effective detection plans in order to achieve
the full benefits of such automation. We thus believe
that our future work on context-aware activity
classification can well improve the efficiency and
effectiveness of the proposed detection approach.
ACKNOWLEDGMENT
This work was partially supported by the H2020 EU
funded project C3ISP [GA #700294]. The views
expressed in this paper are solely those of the
authors and do not necessarily represent the views of
their employers, the C3ISP project, or the
Commission of the European Union.
REFERENCES
Bhatt, P., Yano, E. T., Gustavsson, P. M. 2014. Towards a
Framework to Detect Multi-Stage Advanced Persistent
Threats Attacks. In Proceedings of the IEEE 8
th
International Symposium on Service Oriented System
Engineering (Oxford, UK, Apr 2014). SOSE 2014.
Hutchins, E., Cloppert, M., Amin, R. 2011. Intelligence-
Driven Computer Network Defense Informed by
Analysis of Adversary Campaigns and Intrusion Kill
Chains. In Proceedings of the 6
th
International
Conference on Information Warfare and Security
(Washington, DC, Mar 2011).
Barnum, S. 2007. An Introduction to Attack Patterns as a
Software Assurance Knowledge Resource. In OMG
Software Assurance Workshop (Fairfax, VA, Mar
2007).
Scarabeo, N., Fung, B. C. M., Khokhar, R. H. 2015.
Mining known attack patterns from security-related
events. PeerJ Computer Science 1:e25.
Herwono, I., El-Moussa, F. 2017. A Collaborative Tool
for Modelling Multi-Stage Attacks. In Proceedings of
the 3
rd
International Conference on Information
Systems Security and Privacy (Porto, Portugal,
February 2017).
MACCDC. 2012. Capture files from Mid-Atlantic CCDC
(Collegiate Cyber Defense Competition). URL:
https://www.netresec.com/?page=MACCDC.
Automated Detection of the Early Stages of Cyber Kill Chain
189
