Modular Platform for Customer-Side Detection of BGP Redirection

Attacks

Marco Silva, Ant

onio Nogueira and Paulo Salvador

Instituto de Telecomunicac¸

oes, DETI, University of Aveiro, Aveiro, Portugal

Keywords:

BGP Attack Detection, Internet-scale Trafﬁc Redirection, BGP Routes Hijacking, At Distance Man-in-the-

Middle Attacks.

Abstract:

Border Gateway Protocol (BGP) enables world-wide Internet connectivity and its inherent non-secure cha-

racteristics, together with the nonexistence of a trustable identity that correlates IP network preﬁxes with the

Autonomous Systems (AS) allowed to announce them, opens the way to attacks or misconﬁguration on a

world-wide scale. Since corporate customers do not have access to the whole routing information used by

Internet Service Providers (ISP), they can not act against these kind of attacks and must only rely on the ISP

to promptly detect and take measures to mitigate them. This paper presents a world-wide distributed probing

platform, with a simple and very low cost implementation, that can be used to detect trafﬁc routing variations.

Upon detection, the corporate customer can locally deploy security policies while notifying its network service

provider(s) and requesting for further actions.

1 INTRODUCTION

Pilosov & Kapela (Pilosov and Kapela, 2008) propo-

sed an exploit of the BGP vulnerabilities to implement

BGP routing redirection attacks. In recent years se-

veral reports (Cowie, 2013; Madory, 2015a; Madory,

2015b) describe evidences of active trafﬁc redirection

attacks.

Several works have been dedicated to the de-

tection and analysis of BGP trafﬁc redirection and

routes hijacking. Zhang et al. (Zhang et al., 2010)

and Yujing et al. (Liu et al., 2013) proposed met-

hodologies to identify and characterize BGP route

changes by periodically analyzing BGP RIBs (Rou-

ting Information Bases), which is very demanding

from a computational point of view. Biersack et al.

(Biersack et al., 2012) presented a survey of visu-

alization methods for BGP monitoring, but they re-

quire an updated, complete and trustable collection of

BGP route announcements, which is quite difﬁcult to

obtain (Roughan et al., 2011). Chang et al. (Chang

et al., 2013) proposes an AS reputation and alert ser-

vice that detects anomalous BGP updates, but it requi-

res a distributed monitoring of BGP announcements.

Such methodologies to detect this type of attacks can

only be deployed by service providers, which have

access to BGP updates and BGP RIBs (Routing In-

formation Bases), and because of that are impossible

to be implemented on customer networks. Customer

network managers are completely impotent to deal

with these threats, since they are not able to detect

attacks by relying only on their local resources and,

even upon detection, they can only request appropri-

ate and prompt actions from their ISP and implement

temporary local security policies.

In order to help managers of customer networks,

we propose a distributed platform to monitor, detect

and take measures in real-time, on the consumer side,

against BGP hijacking attacks. The framework is ba-

sed on the methodology proposed in (Salvador and

Nogueira, 2014). A set of probes spread worldwide

periodically measures the Round-Trip Time (RTT)

and perform trace routes to target hosts/routers loca-

ted in the networks being monitored, and report their

measurements to a central location. By correlating the

obtained measurements, consistent end-to-end RTT

deviations (from past values) in multiple probes to can

be considered as a clear sign of trafﬁc redirection. The

different probes should be located in a set of widely

spread places, since relevant deviations can only be

observed if probes are located relatively far from the

monitored network and/or attack point.

Silva, M., Nogueira, A. and Salvador, P.

Modular Platform for Customer-Side Detection of BGP Redirection Attacks.

DOI: 10.5220/0006543601990206

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 199-206

ISBN: 978-989-758-282-0

199

2 TECHNOLOGIES

The proposed platform has been implemented using

four main technologies: Python (Python, 1991),

Flask-Python framework (Ronacher, 2010), Mon-

goDB (Inc., 2009) and Docker (Ronacher, 2013).

Python being an interpreted, interactive and object-

oriented programming language as well as portable

(it runs on multiple Unix variants, macOS, Windows

2000 and above) allows for fast development and por-

tability, and as such was the language of choice for

developing this platform and modules associated with

it. Since there is a need to build and deploy web servi-

ces for this platform, and since Python was the chosen

language to do so, Flask-Python framework is used

as the tool to create and deploy them since it is light-

weight and easy to use. MongoDB is a non-relational,

open-source database and it has been chosen due to

the amount of data this platform may store and the

low level of relationships between data. In order for

deployment to be as smooth as possible and not prone

to failure due to different Unix systems conﬁgurati-

ons, Docker was chosen to be used as a container.

A container allows this platform to be deployed wit-

hout concerns about dependencies, libraries or other

issues that could arise from different conﬁgurations;

by wrapping every needed component in a container,

which takes care of communication with the operative

system’s kernel, one can mitigate the effects of run-

ning the platform on different systems. Docker makes

it so that it’s possible to simply transfer the preconﬁ-

gured container to the desired machine, and have it up

and running in a matter of minutes.

3 DESIGN & IMPLEMENTATION

3.1 Overview

The system relies on a set of Probes, widely spread

around the globe, and a central unit (Mainframe).

Probes are able to perform multiple monitoring tasks

to a speciﬁc destination/target, pre-process data and

relay results to the Mainframe. Routing anomalies are

detected at the Mainframe by comparing/correlating

new data with data that was previously acquired. Fi-

gure 1 depicts the platform elements and relations. A

probe resides in a Virtual Private Server or Cloud Ser-

ver (VPS/CS) with minimum computational require-

ments and consequently low cost. Each probe runs the

Central Probe Module (CPM) which is responsible

to manage all the modular monitor modules running

under that probe supervision, collect and pre-process

data and relaying it to the Mainframe.

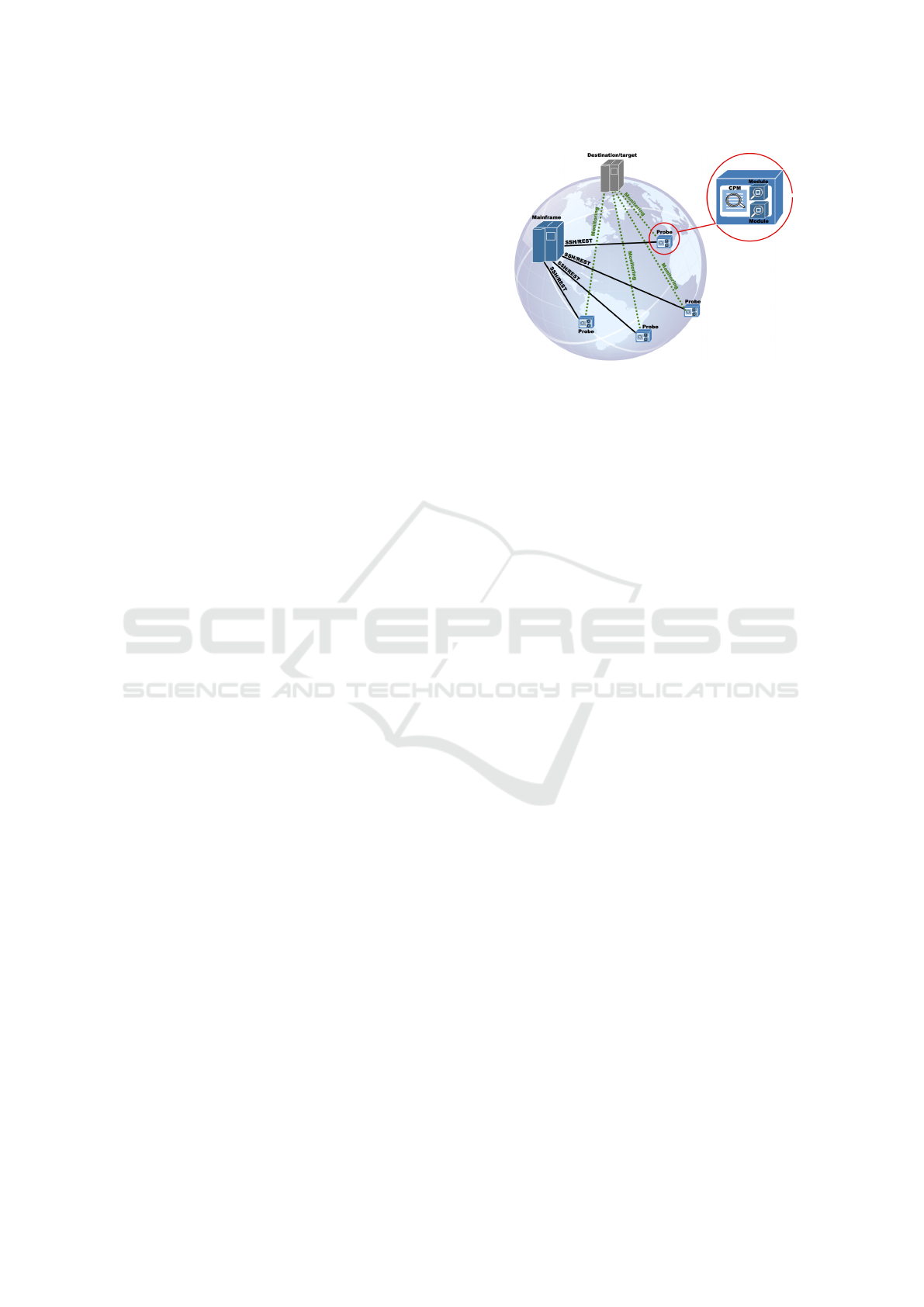

Figure 1: Platform elements.

CPM deploys a web-server, using Flask-Python,

to which monitoring modules can be attached. Mul-

tiple monitoring modules can be added and individu-

ally assigned to perform monitoring tasks to speci-

ﬁed targets. The modules can be developed in py-

thon, or in any compatible language other than py-

thon and integrated by means of a python wrapper

(see sub-section 3.4). Currently, the active modules

are RTT Monitor and Traceroute/HopRTT Moni-

tor developed natively in python. The former per-

forms periodic RTT measures to predeﬁned destinati-

ons (network preﬁxes being monitored) deﬁned at the

Mainframe. The latter performs trace route to the des-

tinations, also deﬁned at the Mainframe, and records

the path hops and respective RTT to each one. Note

that monitoring destinations may be different for dif-

ferent monitoring modules.

The Mainframe deploys a web-service, using

Flask-Python, and a non-relational database (Mon-

goDB). It is responsible for probe initialization, con-

trol, monitoring, data collection as well as data ana-

lysis, alarms, countermeasures and for the graphical

user interface (GUI).

The desired VPS/CS minimum requirements for

the Mainframe are: 8GB RAM, Quadcore 2.4GHz+,

500GB disk space, Linux 64-bit (Ubuntu 16.04+,

CentOS6+, Debian7+), Python 3.X, PIP, MongoDB.

And for the PCM, are: 1GB RAM, Single core

1.4GHz+, 10GB disk space, Linux 64-bit (Ubuntu

16.04+, CentOS6+, Debian7+).

3.2 Control and Communication

The Mainframe performs installation and control

tasks remotely on Probes using Secure Shell (SSH)

and Secure Copy (SCP) for ﬁle transfers both to and

from the Probes. For that to be possible, the plat-

form’s users, when setting up a new Probe on the plat-

form, are required to provide a user name with root

privileges and it’s respective password for the new

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

200

Figure 2: REST message general format.

Probe.

From the Mainframe, it is possible to setup,

start, restart and stop any given probe that is under

the Mainframe’s control. These actions are car-

ried by using SSH and, as such, require that the

remote server has a user with root privileges that

is known to the Mainframe. On setup, a RSA key

pair is generated on the CPM and it’s public key

transferred to the Mainframe (via SCP), as well as

the Mainframe’s public key is sent to the CPM, set

into the authorized key ﬁles for SSH and stored in

a ﬁle to be accessed by the Probe when receiving

or sending messages to and from the Mainframe.

The Probes public keys are stored in the Mainframe,

under the ’ProbesRSA’ folder, as ’ProbeID.pub’; e.g.:

’Q5UYY1ZIBZ6KV5H204HDZF8TTSNLNTV7.pub’.

As referenced above, the user must submit a root

privileged user name and password for this setup to

be possible. After the setup is done, the password is

discarded, as to not pose a security risk if it were to

be stored in plain text. During the setup the docker

image containing the CPM code is transferred and

conﬁgured in the Probe.

The Mainframe also keeps track of which Probes

are running. In order for that to be possible, all active

Probes send an HTTP POST request to the Mainframe

every 15 seconds. If a Probe fails to communicate

with the Mainframe for over 3 attempts (45 seconds),

the Mainframe will attempt to attempt to restart the

Probe’s services; if it cannot, it’ll check for a backup

Probe that was assigned to the former, if any, and start

it. In both cases, an alert will be issued.

Data is relayed to the respective web-services

using REST with JSON formatted messages, namely,

from monitoring modules to the CPM and from the

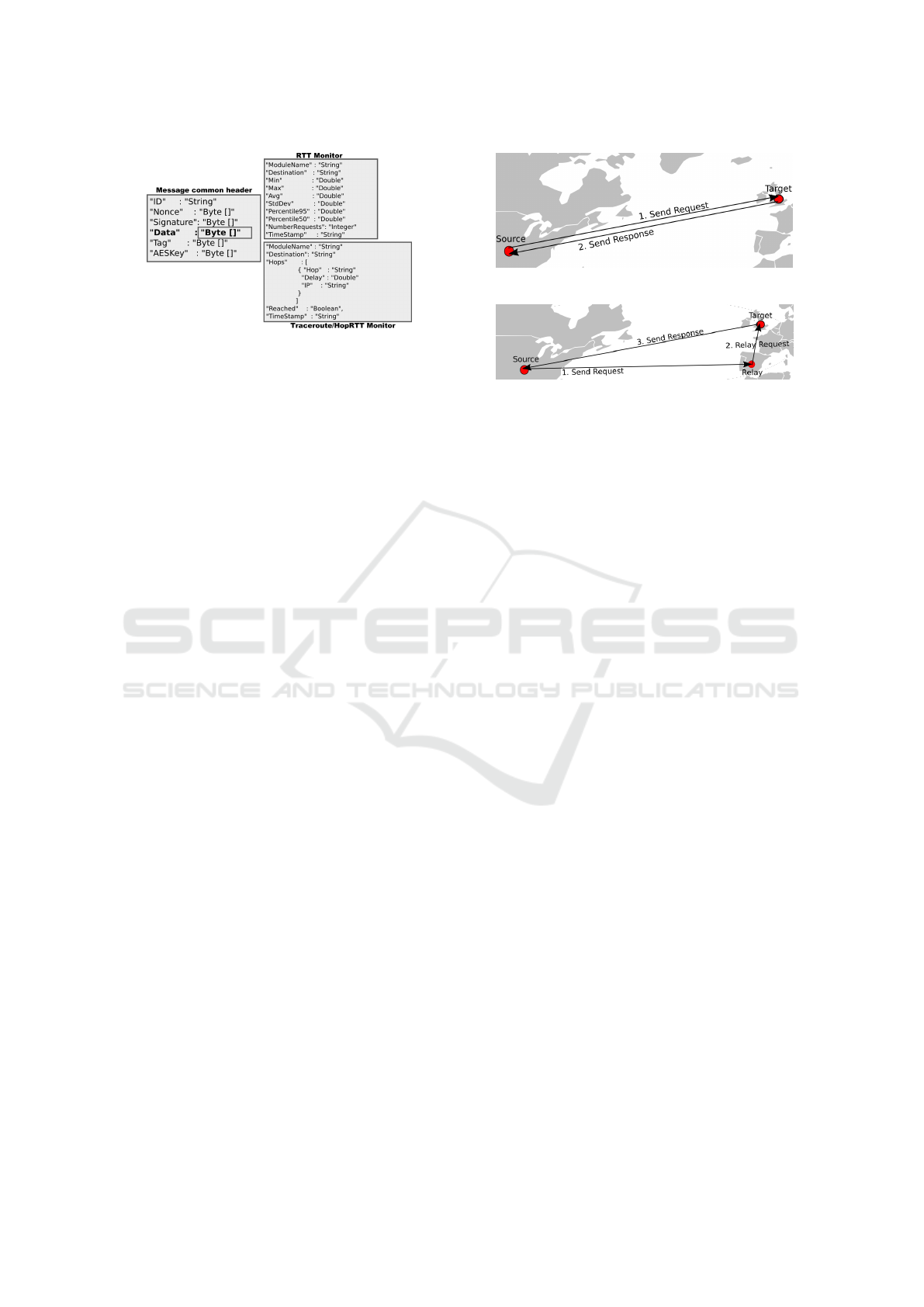

CPM to the Mainframe. Figure 2 depicts the con-

tent of the JSON/REST messages. All messages have

a common header which contains a Data ﬁeld that

transports monitoring modules speciﬁc data, inclu-

ding the module’s name.

Figure 3: Normal trafﬁc ﬂow.

Figure 4: Simulated anomalous trafﬁc ﬂow.

REST communications between the CPM and

Mainframe deploy AES encryption and RSA signa-

ture for sensible ﬁelds. A new AES key is gene-

rated for each new message from the CPM to the

Mainframe, and that key is used to encrypt every-

thing on the ’Data’ ﬁeld of the message (Figure 2).

The AES key is then encrypted with the receiver’s

(Mainframe) RSA public key, and it’s ﬁnally signed

with the sender’s RSA private key. Using an AES cip-

her provides data security, as it cannot be easily read

by an unauthorized third party and the RSA signature

provides authentication, to verify if the message came

from a valid source.

3.3 Data Gathering & Analysis

Probes gather data by using one or more modules.

Two of the already implemented modules gather the

data depicted in Figure 2. This data is then transfer-

red to the Mainframe and stored in the database to be

used by the analysis modules.

For testing and validation purposes, Python scripts

have been created to conﬁgure Probes in order for

them to be able to simulate the results of a BGP re-

direction attacks. The way used to achieve that goal

was to create IPv4 GRE tunnels between groups of

three VPS’s, and respective iptables rules to redirect

trafﬁc from the ’normal’ path, through a middle node

which we’ll call a relay. An example of normal trafﬁc

ﬂow (Figure 3) is:

1. Probe A (Source) sends packet to Probe B (Tar-

get);

2. Probe B receives the packet and sends a response

to Probe A;

3. Probe A receives the response and calculates the

time it took for the packet to complete it’s path

(RTT).

Modular Platform for Customer-Side Detection of BGP Redirection Attacks

201

Figure 5: RTT data with and without simulated routing at-

tacks, from Chicago to London.

While a routing redirection attack (Figure 4) is simu-

lated as follows:

1. Probe A (Source) sends packet to Probe B (Tar-

get);

2. Iptables capture the packet on OUTPUT chain and

redirect it to Probe C (Relay);

3. Probe C iptables check the packet on PREROU-

TING chain and redirect it through a tunnel to

Probe B;

4. Probe B receives the packet and sends the re-

sponse to Probe A;

5. Probe A receives the response and calculates the

time it took for the packet to complete it’s path

(RTT).

By doing this routing redirect depending on the Tar-

get:Port combination, one can, simultaneously, obtain

both the ’normal’ path and the ’attack’ path RTT.

A sample of the obtained RTT results can be visu-

alized in Figure 5, which shows the data collection of

RTT values from Chicago to London with three dif-

ferent relays: S

ao Paulo, Madrid, and Los Angeles).

The ’No Relay’ is the ’normal’ path.

The abnormal spikes on all samples may be due to

intermittent and instantaneous issues on the VPS/CS

or the internal network itself. This data can then be

used to test and validate the algorithms used to detect

anomalies. Currently, the algorithm being used con-

templates only the RTT values from Probe X to Target

Y, as depicted in (Salvador and Nogueira, 2014).

Figure 6 depicts a map with the location of the

currently active 20 probes; in Europe (including

Moscow), North and South America, South Africa,

Israel and China. Note that some geographical locati-

ons have more than one active probe, for CPM redun-

dancy.

Figure 6: Currently active probes.

Figure 7: New module insert JSON ﬁle.

3.4 Modularity

The platform was designed with modularity in mind,

for both the CPM and the Mainframe. This platform

allows for two distinct types of modules: data gather-

ing and data analysis. Data gathering modules are to

be used in the CPM. Modules written in python or

with a python wrapper are supported. All modules

that wish to have the data sent to the Mainframe must

obey the following rules:

• Load the conﬁgurations, if any, from a ﬁle named

’moduleName.json’.

• Send data, JSON formatted, via HTTP POST

request to ’localhost:port/receiveData’ with the

mandatory ﬁelds depicted in Figure 2.

• Contain a time stamp on each message.

When a new module for CPM is added in the

Mainframe, a new entry will be added to the database,

containing the path to the Python ﬁle in question, the

execution parameters and the output ﬁelds (data) as

well as the module’s name. When doing so, a new

Python class and method will be created in order to

be able to represent the data and insert it in the data-

base. Because Python does not allow imports in run-

time, a restart will be required before the new module

can be deployed. In order for a module to be validated

and accepted by the mainframe, a JSON ﬁle must be

uploaded, together with the Python ﬁle, upon module

insertion. The JSON ﬁle has the required ﬁelds stated

in Figure 7 and those are mandatory. Any attempt to

upload a new module that does not respect the manda-

tory ﬁelds will be rejected and an error message dis-

played.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

202

Time stamp 1 Field 1 Time stamp 2 Field 2 Time stamp 3 Field 3

1501155649 121 1501155621 5 1501155630 12.1

1501155679 132 1501155661 6 1501155640 14.2

1501155709 98 1501155701 5 1501155650 9.8

... ... ... ... ... ...

Figure 8: Input data ﬁle sample for analysis modules.

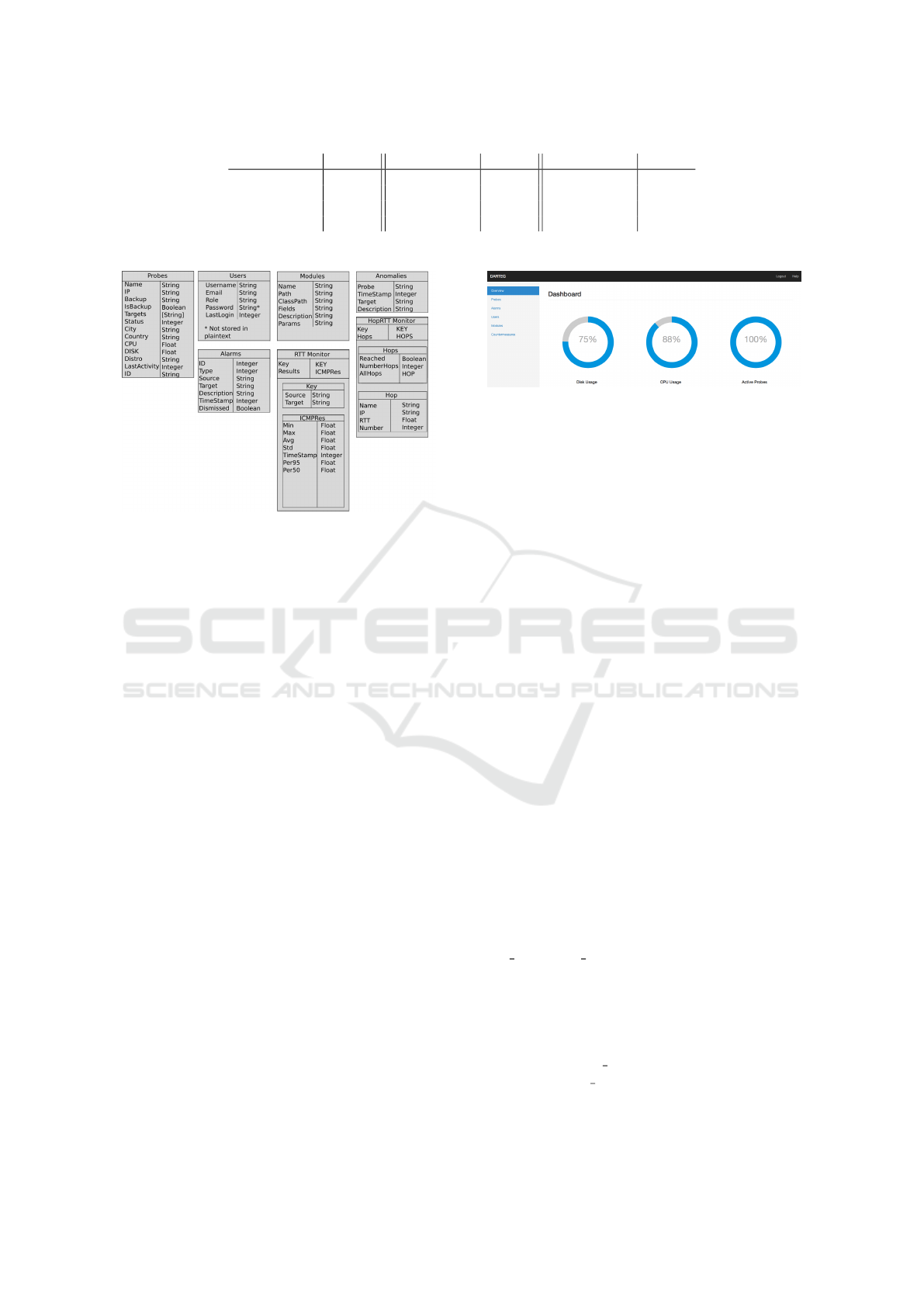

Figure 9: Database Collections.

When a module is successfully inserted, an admi-

nistrator can then assigning it to selected Probe/Target

pairs, and activate the new module. All the needed ﬁ-

les and conﬁgurations will be sent to the Probes in

question and conﬁguration changes will be made so

that it’ll use the new module upon restarting (which is

done automatically). Unless stated otherwise, the pa-

rameters used for the module will be the default ones

(deﬁned when uploading a new module).

Data analysis modules will be used by the

Mainframe to process the gathered data and create

new metrics and/or return an anomaly detection re-

sult. As is the case for the data gathering modules,

these must also be written in Python or with a Python

wrapper. When inserting a new analysis module, it’ll

be stored, identically as the data gathering module, in

the database. The administrator must then select the

wanted ﬁelds from the database collections, at what

interval it should be ran, and assigning it to the desi-

red destination/targets.

The module is responsible for correct handling of

the data that it’ll receive via a tab separated values

(.tsv) ﬁle, passed as an argument (e.g., ’python ana-

lyticModule.py -f dataFile.tsv’). The ﬁle containing

the requested data will have the format present in Fi-

gure 8. Each Field will have an associated timestamp

relative to when it was acquired. The analysis module

is responsible to order and select the data for a spe-

ciﬁc time window. The output must be a JSON for-

matted string with the following mandatory elements:

’Anomaly’ : Boolean and ’Description’: String. In

the event of the ’Anomaly’ ﬁeld being True, a new

Figure 10: Platform GUI.

alarm will be raised and a notiﬁcation sent to the ad-

ministrator(s).

It is also possible to upload scripts, again Python

or Python wrapped ones, to act as countermeasures.

Countermeasure scripts will be ran at certain events,

which can be deﬁned by an administrator. For exam-

ple, an administrator may decide to activate a counter-

measure whenever two anomalies have been detected

to a chosen target by one or more Probes. The coun-

termeasure may be as simple as disconnecting and re-

jecting all existing and further connections for a cer-

tain amount of time, or increasing encryption levels

on communications. In order to allow some customi-

zation of these scripts the Target IP of the alarm will

be passed as arguments to the script whenever it is

executed.

4 DATA STORAGE

Storing the data received from the Probes is of pa-

ramount importance, because without such storage,

there’s no use for the platform. As referred in

section 2, the platform makes use of a non-relational

database (MongoDB). It was preferred over relational

databases due to the volume of data that it can receive,

and also due to low relationships between data. The

database was organized in several different collecti-

ons: Users, Probes, Modules, Anomalies, Alarms,

Mod RTT, Mod Trace. The Users collection stores

the information regarding the user accounts and roles;

Probes collection stores the information regarding all

Probes in the platform; Modules store the information

regarding the added modules; Anomalies store the de-

tected anomalies; Alarms store the alarms raised by

the anomalies; Mod

RTT store the data from the RTT

Monitor and Mod Trace store the data from HopRTT

Monitor. Custom modules, added via the platform,

will also have a collection created for them on in-

Modular Platform for Customer-Side Detection of BGP Redirection Attacks

203

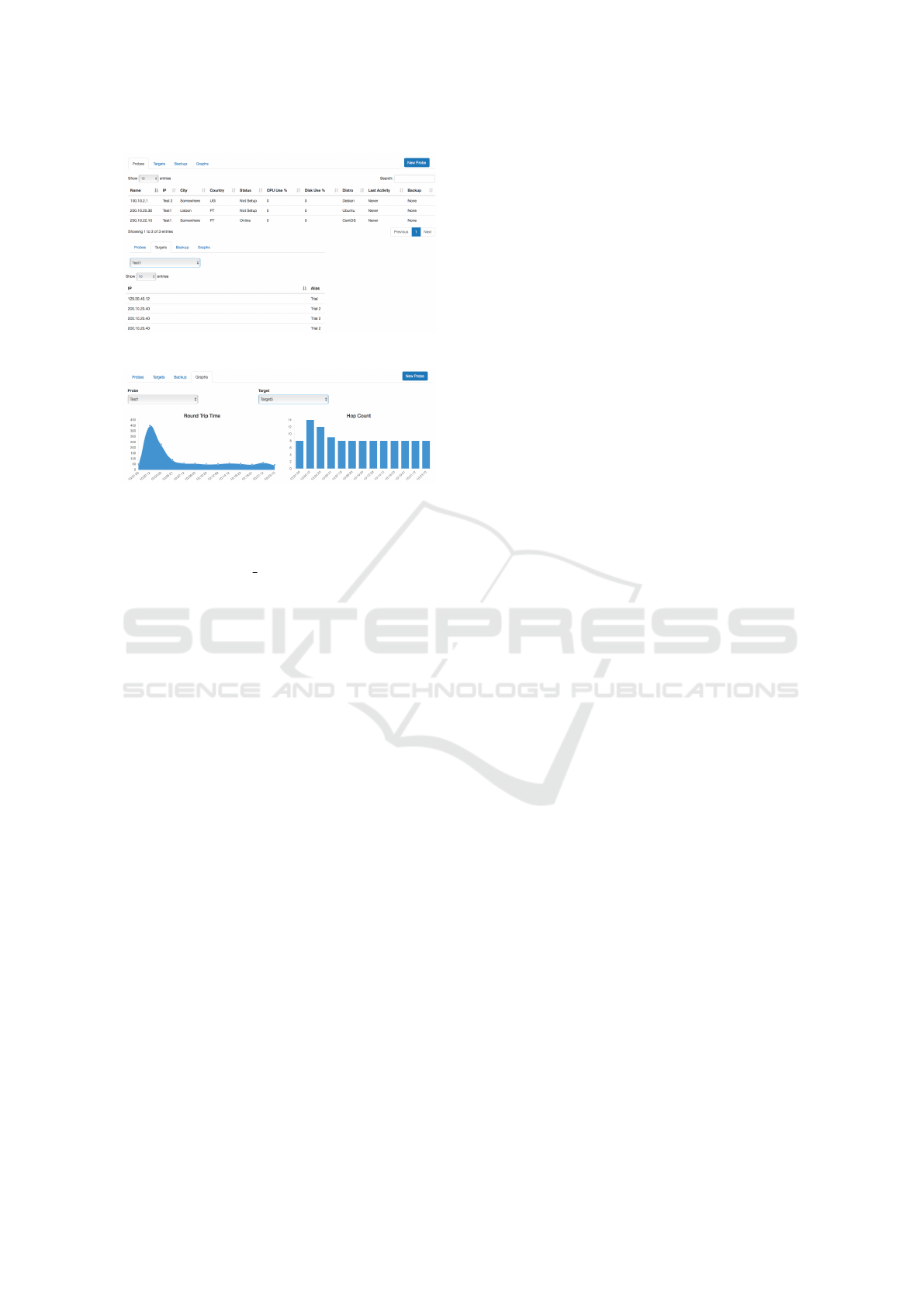

Figure 11: Probe section of GUI.

Figure 12: RTT and Hop count graphics.

sert, which will contain the ﬁelds declared on the mo-

dule’s JSON ﬁle; the collection will be named after

the module’s: ’ModA ModuleName’. Details about

each collection can be seen in Figure 9.

5 USER INTERFACE

A GUI Dashboard is available on the Mainframe,

which controls the whole platform. There it is pos-

sible to take actions regarding probes, targets, users,

visualize data and alarms. Regarding the Probes, it is

possible to:

• Add, delete, edit;

• Setup, start, restart, stop;

• Add/Remove targets and activate/deactivate mo-

dules.

As for users, it is possible to add, edit or remove

users, as long as done so from an Administrator ac-

count. Data from pair Probe-Target can be visualized

as graphics, showing the RTT and Hop Count mea-

surements. Access to the dashboard is dependent on

an user account. There are three different user ac-

counts: Administrator, Tech, and Standard. The Ad-

ministrator user can perform every action, such as

add, remove, setup, start, restart and stop probes; ma-

nage users; visualize data and alarms; upload data gat-

hering and data analysis modules; activate/deactivate

modules on Probes. As for the Tech user, it can per-

form every action except removing/stopping probes

and add/edit/remove users. For the last user type,

Standard, no actions are permitted, but visualization

of data is permitted.

6 VALIDATION RESULTS

Using the data gathering methodology, as described

in subsection 4, it was measured the RTT from twelve

probes spread over the world to a London based

server between June 8

2017 and June 12

2017.

The twelve probes used were located in: Sweden,

Amsterdam/Netherlands, Milan/Italy, Iceland, Israel,

Chile, two in South Africa (SouthAfrica1 and South-

Africa2), S

ao Paulo/Brazil, Los Angeles/USA (LA2),

Chicago/USA (Chicago2), Germany (Ger2). During

the day of June 10

2017 all trafﬁc was diverted via

Moscow to simulate a world-wide BGP routing at-

tack. Each probe performed an average RTT measu-

rement, with 10 packets every 60 seconds, to the Lon-

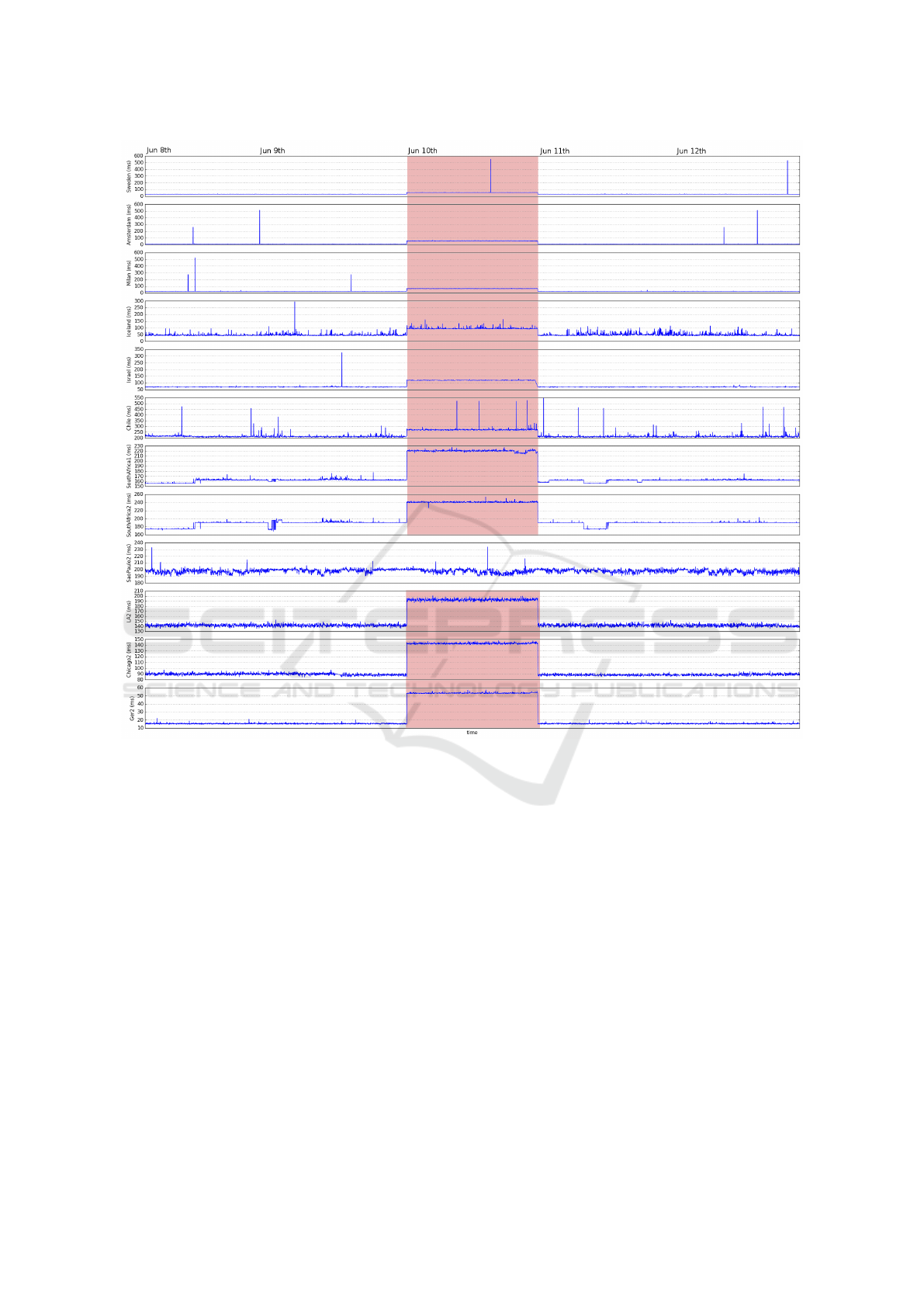

don server. Figure 13 depicts the obtain results. The

anomaly detection module was conﬁgured to signal a

global routing anomaly when 50% of the probes re-

ported an anomaly. A probe reports an anomaly when

the measured RTT for 10 consecutive measurements

were 20% above the average of the observe values in

the last hour.

From the twelve probes, eleven reported an ano-

maly 10 measurements after the trafﬁc simulated

attack has started. The exception was the S

Paulo/Brazil probe which just register a small vari-

ation on the RTT (∼2%) above the values observed

before. This can be explain by two factors: (i) the

long distance and non-shortest path from Brazil to Eu-

rope and, (ii) the highly unstable network connection

to and from the Brazilian data center. Note, that the

Chilean probe was able to report the anomaly and the-

refore this is not a constrain general to all South Ame-

rica. Nevertheless, the global routing anomaly was

detected and signaled to the platform administrator,

since 91.6% of the probes reported an anomaly, and

this is well above the pre-deﬁned threshold of 50%.

The simulated anomaly was global, however, real rou-

ting attacks may be contained within a geographic re-

gion, and because of that, the pre-deﬁned percentage

of probes reporting anomalies must be 50% or even

less to detect routing anomalies in small geographic

regions.

7 CONCLUSION

This paper proposed a new modular platform, in

which it is possible to, as a customer, detect trafﬁc

routing variations at an Internet-scale as proposed in

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

204

Figure 13: RTT measurements from 12 probes to a London based server from June 8

to June 12

2017. A routing anomaly

was introduced at June 10

, relaying all trafﬁc via Moscow.

(Salvador and Nogueira, 2014). The modularity ena-

bles for customization and improvements for whome-

ver decides to deploy this platform. The existence of

pre-made modules makes it so that there’s no actual

need to implement any more code than the one alre-

ady provided, and allows for an almost plug & play

experience. We believe this platform will give the

much needed ability for corporations or single entities

to, at least, be able to detect what is happening to their

trafﬁc on a global scale, and help them make decisi-

ons, or set up measurements, to mitigate such effects

such as terminating all sensible communications, in-

crease encryption levels and other security policies. It

can be further improved by creating new data analy-

sis methods and modules, as well as monitoring ones,

which can then be added to the platform.

ACKNOWLEDGMENTS

This work was supported by the Fundac¸

ao para

encia e Tecnologia (FCT) through UID/EEA/

50008/2013 and PTDC/EEI-TEL/5708/2014.

REFERENCES

Biersack, E., Jacquemart, Q., Fischer, F., Fuchs, J., Thon-

nard, O., Theodoridis, G., Tzovaras, D., and Ver-

vier, P. (2012). Visual analytics for BGP monitoring

and preﬁx hijacking identiﬁcation. IEEE Network,

26(6):33–39.

Chang, J., Venkatasubramanian, K., West, A., Kannan, S.,

Lee, I., Loo, B. T., and Sokolsky, O. (2013). AS-

CRED: Reputation and Alert Service for Interdomain

Routing. IEEE Systems Journal, 7(3):396–409.

Modular Platform for Customer-Side Detection of BGP Redirection Attacks

205

Cowie, J. (2013). The New Threat: Targeted Internet Trafﬁc

Misdirection. Dyn Blog.

Inc., M. (2009). Mongodb. [Online; accessed 27-July-2017

Liu, Y., Luo, X., Chang, R., and Su, J. (2013). Characteri-

zing Inter-Domain Rerouting by Betweenness Centra-

lity after Disruptive Events. IEEE Journal on Selected

Areas in Communications, 31(6):1147–1157.

Madory, D. (2015a). On-going BGP Hijack Targets Palesti-

nian ISP. Dyn Blog.

Madory, D. (2015b). UK trafﬁc diverted through Ukraine.

Dyn Blog.

Pilosov, A. and Kapela, T. (2008). Stealing The Internet

- An Internet-Scale Man In The Middle Attack. In

DEFCON16.

Python (1991). Python language. [Online; accessed 27-

July-2017 ].

Ronacher, A. (2010). Python-ﬂask web framework. [On-

line; accessed 27-July-2017 ].

Ronacher, A. (2013). Docker. [Online; accessed 27-July-

2017 ].

Roughan, M., Willinger, W., Maennel, O., Perouli, D., and

Bush, R. (2011). 10 Lessons from 10 Years of Mea-

suring and Modeling the Internet’s Autonomous Sys-

tems. IEEE Journal on Selected Areas in Communi-

cations, 29(9):1810–1821.

Salvador, P. and Nogueira, A. (2014). Customer-side de-

tection of internet-scale trafﬁc redirection. In 16th

International Telecommunications Network Strategy

and Planning Symposium (NETWORKS 2014).

Zhang, Z., Zhang, Y., Hu, Y. C., Mao, Z. M., and Bush, R.

(2010). iSPY: Detecting IP Preﬁx Hijacking on My

Own. IEEE/ACM Trans. Netw., 18(6):1815–1828.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

206
