Studio2Shop: From Studio Photo Shoots to Fashion Articles

Julia Lasserre

∗

, Katharina Rasch

∗

and Roland Vollgraf

Zalando Research, Muehlenstr. 25, 10243 Berlin, Germany

Keywords:

Computer Vision, Deep Learning, Fashion, Item Recognition, Street-to-shop.

Abstract:

Fashion is an increasingly important topic in computer vision, in particular the so-called street-to-shop task

of matching street images with shop images containing similar fashion items. Solving this problem promises

new means of making fashion searchable and helping shoppers ﬁnd the articles they are looking for. This

paper focuses on ﬁnding pieces of clothing worn by a person in full-body or half-body images with neutral

backgrounds. Such images are ubiquitous on the web and in fashion blogs, and are typically studio photos, we

refer to this setting as studio-to-shop. Recent advances in computational fashion include the development of

domain-speciﬁc numerical representations. Our model Studio2Shop builds on top of such representations and

uses a deep convolutional network trained to match a query image to the numerical feature vectors of all the

articles annotated in this image. Top-k retrieval evaluation on test query images shows that the correct items

are most often found within a range that is sufﬁciently small for building realistic visual search engines for the

studio-to-shop setting.

1 INTRODUCTION

Online fashion is a fast growing ﬁeld which gene-

rates massive amounts of (largely unexplored) data.

The last ﬁve years have seen an increasing number

of academic studies speciﬁc to fashion in top confe-

rences, and particularly in the computer vision com-

munity, with topics as varied as article tagging (Chen

et al., 2012; Bossard et al., 2013; Chen et al., 2015),

clothing parsing (Wang and Haizhou, 2011; Yamagu-

chi et al., 2012; Dong et al., 2013; Yamaguchi et al.,

2013; Liu et al., 2014), article recognition (Wang and

Zhang, 2011; Fu et al., 2013; Liu et al., 2012b; Ka-

lantidis et al., 2013; Huang et al., 2015; Liu et al.,

2016b), style recommenders (magic mirrors or clo-

sets) (Liu et al., 2012a; Di et al., 2013; Kiapour et al.,

2014; Jagadeesh et al., 2014; Vittayakorn et al., 2015;

Yamaguchi et al., 2015), and fashion-speciﬁc feature

representations (Bracher et al., 2016; Simo-Serra and

Ishikawa, 2016). Our company Zalando is Europe’s

leading online fashion platform and, like other big

players on the market, beneﬁts from large datasets and

has a strong interest in taking part in this effort.

Street-to-shop (Liu et al., 2012b) is the task of re-

trieving articles from a given assortment that are si-

milar to articles in a query picture from an unknown

∗

These authors contributed equally.

This paper is best viewed in colour.

(a) Full-body

with occlusion

(b) Full-body (c) Half-body

(d) Detail (e) Title

Figure 1: Examples of images in our dataset. Image types

(a-d) are query images featuring models, image type (e) re-

presents the articles we retrieve from.

source (a photo taken on the street, a selﬁe, a professi-

onal photo). In this study, we follow the exact-street-

to-shop variant (Kiapour et al., 2015), where query

images are related to the assortment and therefore the

exact-matching article should be retrieved. In particu-

lar, we focus on a setting we call studio-to-shop where

the query picture is a photo shoot image of a model

Lasserre, J., Rasch, K. and Vollgraf, R.

Studio2Shop: From Studio Photo Shoots to Fashion Articles.

DOI: 10.5220/0006544500370048

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 37-48

ISBN: 978-989-758-276-9

Table 1: Overview of street-to-shop studies. CV stands for classical computer vision, CNN for convolutional neural network.

domain 1 domain 2

dataset focus background assumptions focus background assumptions method

Street-To-Shop (Liu et al., 2012b) Street-To-Shop half + full yes body-part detector half + full no body-part detector CV

upper vs lower upper vs lower

Where-To-Buy-It (Kiapour et al., 2015) Exact-Street-To-Shop half + full yes category of item half + full + title no CV

bounding box

DARN (Huang et al., 2015) DARN dataset half, frontal view yes upper clothing half + title, frontal view yes+no upper clothing siamese CNN

frontal view frontal view

clothing detector to crop clothing detector to crop

Wang et al (Wang et al., 2016) Exact-Street-To-Shop half + full yes none half + full + title no none siamese CNN

AliBaba shared lower layers

DeepFashion (Liu et al., 2016a) In-Shop half + full + title no landmark (training) same as domain 1 single CNN

DeepFashion (Liu et al., 2016a) Consumer-To-Shop half + full + title yes landmark (training) same as domain 1 single CNN

Studio2Shop Zalando half + full no none title no none siamese CNN

second input as features

wearing one or several fashion items in a controlled

setting with a neutral background, and where the tar-

get is an article of our assortment. Such images are

ubiquitous on the web, for example in fashion maga-

zines or on online shopping websites, and solving our

task would allow our customers to search for products

more easily. In addition, this setting can have many

internal applications such as helping trend scouts ma-

tch blog images with our products, or annotating all

our catalogue images with all contained articles auto-

matically.

Recognising fashion articles is a challenging task.

Clothing items are not rigid and usually undergo

strong deformations in images, they may also be par-

tially occluded. They vary in most of their physical

attributes (for example colour, texture, pattern), even

within the same category, and can contain details of

importance such as a small logo, so that recovering a

few basic attributes may not always be enough. Our

query images contain a wide variety of positions and

views, with full-body and half-body model images, as

well as images of details (see Figures 1(a-d)).

In the literature, street-to-shop is typically ap-

proached as an isolated problem, taking pairs of

query/target images together with optional article

meta-data as input. So far, both query and target

inputs have had the same form, namely a feature

vector or an image. By putting forward our model

Studio2Shop, we propose instead to build on exis-

ting feature representations of fashion articles, and

to use images for queries and static feature vectors

for targets. Indeed, many online shops, including Za-

lando, already have a well-tuned feature representa-

tion of their articles that can be used across a wide

array of applications, including recommender sys-

tems and visual search. Moreover, such features are

also publicly available (e.g. AlexNet’s fc6 (Krizhev-

sky et al., 2012), VGG16’s fc14 (Simonyan and Zis-

serman, 2014), fashion in 128 ﬂoats (Simo-Serra and

Ishikawa, 2016)).

Breaking the symmetry between query and target

allows us to use more complete feature representa-

tions, since static features have usually been trained

on massive datasets. The representation we use in

this study was trained on hundreds of thousands of

articles, including categories of articles that are not

directly relevant to our task, and on more attributes

than we could process with an end-to-end framework.

Note that only title images were used during training,

i.e. images of the article without any background as

shown in Figure 1(e), and no model images were seen.

The contribution of our work is three-fold:

• We naturally handle all categories at hand and

make no assumptions about the format of the mo-

del image (full body, half body, detail), nor do

we require additional information such as the ca-

tegory, a bounding box or landmarks.

• We show that in our setting, end-to-end approa-

ches are not necessary, and that using a static fea-

ture representation for the target side is effective,

especially when combining it with a non-linear

query-article matching model.

• We show that we can achieve reasonable results

on an extra (publicly available) dataset with simi-

lar properties, without even ﬁne-tuning our model.

The remainder of this paper is organised as fol-

lows: we review the related work in Section 2, des-

cribe our dataset and approach in detail in Sections 3

and 4, and evaluate our approach in Section 5.

2 RELATED WORK

Data. The street-to-shop task was deﬁned in (Liu

et al., 2012b) and formulated as a domain transfer pro-

blem. Since then, many groups have contributed their

own dataset with their own set of assumptions. There

is a lot of variation in the literature regarding types of

street (query) and shop (target) images. In order to

reduce background, street images are often assumed

to be cropped around the article (Kiapour et al., 2015;

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

query-article-matching

(a) siamese

query-article-matching

(b) static

query-article-matching

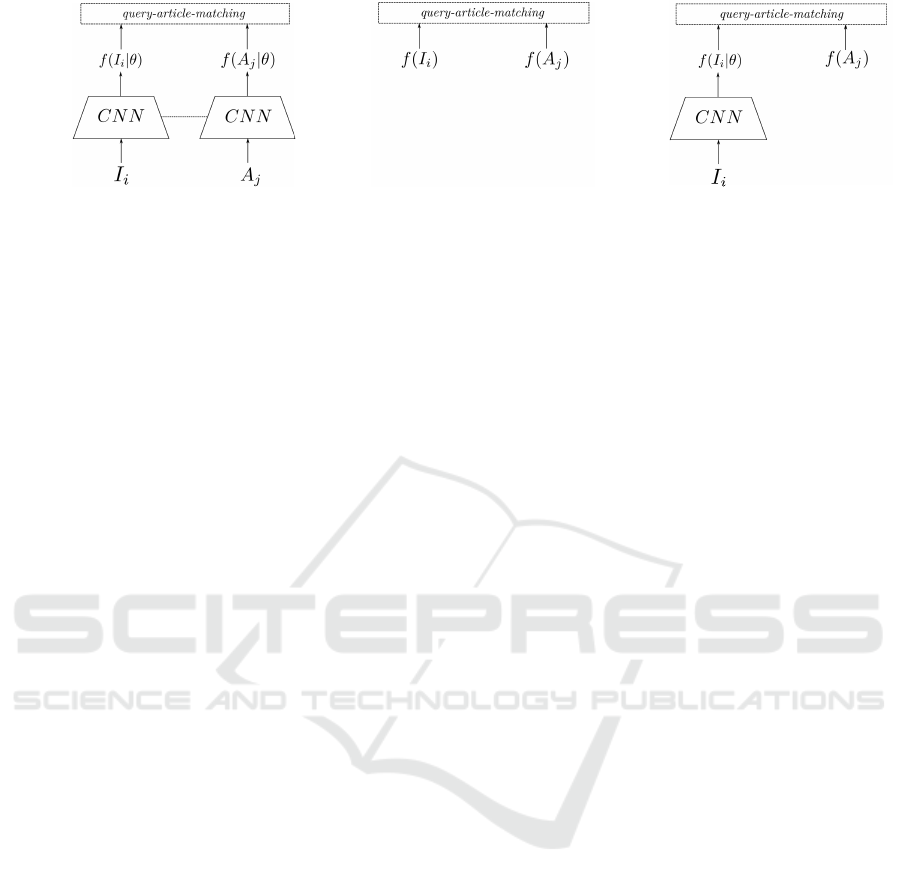

Figure 2: Variations of street-to-shop architectures in the literature. θ represents the joint set of parameters of the two legs. (a)

The most common architecture in recent studies, based on image pairs. (b) Only static features, as found in (Kiapour et al.,

2015). (c) Our approach.

Huang et al., 2015) and sometimes come with the in-

formation of the category of the article (Kiapour et al.,

2015). Shop images vary across and within datasets,

often mixing full-body model images, half-body mo-

del images and title images. In some works, shop ima-

ges resemble high quality street images (Huang et al.,

2015; Liu et al., 2016a). We classify the state-of-

the-art in Table 1 following the types of images used

in both domains according to three factors: focus of

the image (full-body model image, half-body model

image and title image), background (yes/no), and the

assumptions made. Note that images from domain 2

are typically professional, while images from domain

1 that contain background can be amateur shots.

Approaches. Early works on street-to-shop or more

generally article retrieval (Wang and Zhang, 2011; Fu

et al., 2013; Liu et al., 2012b; Kalantidis et al., 2013;

Yamaguchi et al., 2013) are based on classical compu-

ter vision: body part detection and/or segmentation,

and hand-crafted features. For example, (Liu et al.,

2012b) locate 20 upper and 10 lower body parts and

extract HOG (Dalal and Triggs, 2005), LBP (Ojala

et al., 2002) and colour features for each body part,

while (Yamaguchi et al., 2013) use clothes parsing to

segment their images. In recent years, attention in the

fashion-recognition domain has shifted towards using

deep learning methods. Multiple recent studies fol-

low a similar paradigm: the feature representation of

both types of images is learnt via attribute classiﬁca-

tion, while the domain transfer is performed via a ran-

king loss which pushes matching pairs to have higher

scores than non-matching pairs (Huang et al., 2015;

Wang et al., 2016; Liu et al., 2016a; Simo-Serra and

Ishikawa, 2016). In this context, siamese architectu-

res seem quite natural and have given promising re-

sults (Huang et al., 2015; Wang et al., 2016). When

no domain transfer is needed, i.e. when query images

and assortment images are of the same kind, a single

network for the two branches performs just as well

(Liu et al., 2016a).

3 DATA

Images. Our dataset contains images of articles

from the categories ”dress”, ”jacket”, ”pullover”,

”shirt”, ”skirt”, ”t-shirt/top” and ”trouser” that were

sold roughly between 2012 and 2016. The distribu-

tion of categories is 35% t-shirts/tops, 20% trousers,

14% pullovers, 14% dresses, 12% shirts, 3% skirts

and 2% jackets. Note that our data is restricted to the

categories aforementioned not because of limitations

of our approach, but because the selected categories

contain the most samples and are likely to be visible.

As an example, most of our shoes and socks have no

dedicated model images and socks are not visible on

other model images.

We have approximately 1.15 million query ima-

ges in size 224x155 pixels with neutral backgrounds

of the type shown in Figures 1(a-d). About 250.000

of those are annotated with several articles, while the

others are annotated with one article only, even if se-

veral articles can be seen. In addition to these query

images, our dataset contains approximately 300000

title images in size 224x155 pixels (see Figure 1(e)).

These 300000 images represent the assortment we

want to retrieve from.

FashionDNA. FashionDNA (fDNA) is Zalando’s

feature representation for fashion articles. These fe-

atures are obtained by extracting the activations of a

hidden fully connected layer in a static deep convolu-

tional neural network that was trained using title ima-

ges and article attributes. In our case, these activations

are of size 1536, which we reduce to 128 using PCA

to decrease the number of parameters in our model.

fDNA is not within the scope of this study, but full

details about the architecture of the network and the

attributes used are given in Appendix.

Because our article features are based on title

images, we are slightly different to the other papers

which allow model images in their shop images. Our

task involves complete domain transfer, while their

Studio2Shop: From Studio Photo Shoots to Fashion Articles

Table 2: Variations of the main architecture, the features used, and the matching method in our evaluation.

global architecture features query-article-matching loss inspiration

static-fc14-linear static fc14 linear none

static-fc14-non-linear static fc14 non-linear cross-entropy (Kiapour et al., 2015)

fc14-non-linear ours fc14 non-linear cross-entropy

fDNA-linear ours fDNA linear cross-entropy

fDNA-ranking-loss ours fDNA linear triplet ranking

all-in-two-nets siamese learnt linear triplet ranking (Huang et al., 2015; ?)

+ attributes cross-entropy

Studio2Shop ours fDNA non-linear cross-entropy

task is more related to image similarity, especially in

the case of (Liu et al., 2016a). This makes compari-

sons rather difﬁcult. Nevertheless, it was possible to

isolate title images in two external datasets which we

used as additional test sets.

Attributes. The siamese method implemented in

this study requires article attributes. We used category

(7 values, available for 100% of articles), main colour

(82 values, 100% coverage), pattern (19 values, 53%

coverage), clothing length (12 values, 50% coverage),

sleeve length (9 values, 32% coverage), shirt collar

(27 values, 30% coverage), neckline (12 values, 23%

coverage), material construction (14 values, 20% co-

verage), trouser rise (3 values, 14% coverage).

4 MATCHING STUDIO PHOTOS

TO FASHION ARTICLES OF A

GIVEN ASSORTMENT

4.1 Studio2Shop

Building on Existing Feature Representations.

Most recent deep learning approaches to street-to-

shop (Huang et al., 2015; Wang et al., 2016; Liu et al.,

2016a) can be summarised by Figure 2a. In a forward

pass, the left leg of the network processes query ima-

ges I

(query-feature module), the right leg processes

target images A

(target-feature module), and a query-

article-matching submodel matches the two feature

vectors produced. Both inputs are images, and the

two legs are trained with varying amounts of weights

shared between them (0% sharing for (Huang et al.,

2015), 100% for (Liu et al., 2016a)). On the other

end of the spectrum, (Kiapour et al., 2015) use static

features on both sides, as sketched in Figure 2b.

In contrast, Studio2Shop builds on top of existing

feature representations of fashion articles, for exam-

ple fDNA. This means that the right leg of the net-

work, as shown in Figure 2c, takes as input the pre-

computed features of the articles given their title ima-

ges.

Non-linear Matching of Query Features to Arti-

cle Features. Most street-to-shop methods relying

on an architecture of the type shown in Figure 2a use

a triplet ranking loss directly on the feature vectors

produced (Huang et al., 2015; Wang et al., 2016; Liu

et al., 2016a).

In contrast, Studio2Shop follows (Kiapour et al.,

2015) and uses a more sophisticated submodel. We

concatenate the two feature vectors, add on top a ba-

tch normalisation layer followed by two fully con-

nected layers with 256 nodes and ReLU activations

and one logistic regression layer. We have not come

across this combination of a feature learning module

and a deep matching module in the literature.

Details of the Query-feature Submodel. In the left

leg of our network, for the CNN denoted in Figure 2c,

we use as a basis the publicly available VGG16 (Si-

monyan and Zisserman, 2014) pre-trained on Image-

Net ILSVRC-2014 (Russakovsky et al., 2015), but

only keep the 13 convolutional layers. On top of these

layers we add two fully connected layers with 2048

nodes and ReLU activations, each followed by a 50%

dropout. We ﬁnally add a fully connected layer of

size 128 which outputs the fDNA of the input query

image. All details are given in Appendix.

Backward Pass. Approaches of the type shown in

Figure 2a (Huang et al., 2015; Wang et al., 2016; Liu

et al., 2016a) use article meta-data or attributes on

each side of the two-legged network. θ denotes the

joint set of parameters of the two legs. On top of the

layer generating the feature vector f (.|θ) sits, for each

attribute, a sub-network ending with softmax activati-

ons. A categorical cross-entropy loss is used for each

attribute-speciﬁc branch. Finally a triplet ranking loss

joins the two feature representations.

In contrast, we disregard attributes and use a

cross-entropy loss for our query-article-matching sub-

model. The loss is given in Equation 1, where N is

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

the number of query images, M the number of arti-

cles, p

i j

the output of the model given the input query

image I

and target article A

, and y

i j

is the ground

truth label: 1 if the target article A

belongs to the

query model image I

, 0 otherwise. Note that the loss

is back-propagated to all layers of the network, even

to layers that were pretrained on ImageNet.

L =

∑

i=1

∑

j=1

i j

log p

i j

+ (1 − y

i j

)log(1 − p

i j

) (1)

For practical reasons, we split our query images

in mini-batches of size 64, and compare them with 50

articles only. These 50 articles contain the (at least 1)

annotated matching articles and (at most 49) articles

drawn randomly without replacement and temporarily

labelled as negative matches. The negative articles are

constantly resampled (for each query image in the ba-

tch, for each batch, and for each epoch), which en-

forces diversity. Our images are not fully annotated

and some of the data supplied might be erroneously

labelled as negative, however with so many articles

available and so few articles actually present in query

images, the probability that such an incorrect nega-

tive label occurs is relatively low. The loss over a

mini-batch is shown in Equation 2, where c(i) is the

query image in the batch, and c(i, j) the j

article

for this image in the batch.

L =

∑

i=1

∑

j=1

c(i)c(i, j)

log p

c(i)c(i, j)



1 − y

c(i)c(i, j)



log



1 − p

c(i)c(i, j)



(2)

4.2 Other Approaches

We compare ourselves with several alternatives, some

of which are inspired by the literature.

• As an alternative to fDNA, we also use features

extracted from layer fc14 of a VGG16 network

pre-trained on ImageNet with their dimensiona-

lity reduced to 128 by PCA for comparability (de-

noted fc14), and from (Simo-Serra and Ishikawa,

2016) (denoted 128ﬂoats).

• We implement the architecture variations mentio-

ned in Figure 2.

• We implement several alternative query-article-

matching and loss strategies. The various com-

binations are listed in Table 2.

In this study, the triplet ranking loss is given by

i jk

= σ



f (I

|θ)

( f (A

|γ) − f (A

|γ))



where I

is a

query image, A

an article present in I

, A

an article

which is not known to be present in I

, θ the set of

parameters of the model, γ is θ for a siamese model

and empty otherwise, f (.|.) the feature vector of an

image given parameters and σ the sigmoid function.

For each query image of each batch, one positive arti-

cle is sampled as A

, and 50 negative articles are sam-

pled as A

, giving 50 triplets at a time. The 50 losses

are summed, as shown in Equation 3, where c(i) is the

query image in the batch, c(i, +) the sampled posi-

tive article for this image, and c(i, j) the j

negative

article.

L =

∑

i=1

∑

j=1

c(i)c(i,+)c(i, j)

(3)

In our all-in-two-nets model, the right leg has

the same architecture as the left leg described in

Section 4.1 and is also pretrained on ImageNet, but

no parameters are shared between the two legs, as in

(Huang et al., 2015). All layers are trainable, even the

pretrained ones.

5 RESULTS

5.1 Retrieval on Test Query Images

Experimental Set-up. We randomly split the data-

set into training and test set, with 80% of query ima-

ges and articles being kept for training. Many of our

full-body images are annotated with several articles

that may be shared across images, making a clean

split of articles impossible. To avoid using training

articles at test time, we discard them from the retrie-

val set, and discard query images that were annotated

with such articles. As a result, our pool of test queries

is slightly biased towards half-body images.

We run tests on 20000 randomly sampled test

query images against 50000 test articles, which is

roughly the number of articles of the selected cate-

gories at a given time in Zalando’s assortment. For

each test query image, all 50000 possible (image, ar-

ticle) pairs are submitted to the model and are ranked

according to their score.

Retrieval Performance. Table 3 shows the perfor-

mance of the various models (a plot of these results

can also be found in Figure 8 in Appendix). We use as

performance measure top-k retrieval, which gives the

proportion of query images for which the correct arti-

cle was found at position k or below. We add a top-1%

measure which here means top-500, so that research

groups with a different number of articles may com-

pare their results to ours more easily. Average refers

Studio2Shop: From Studio Photo Shoots to Fashion Articles

Table 3: Results of the retrieval test using 20000 query images against 50000 Zalando articles. Top-k indicates the proportion

of query images for which the correct article was found at position k or below. Average and median refer respectively to the

average and median position at which an article is retrieved. The best performance is shown in bold. A plot of these results

can also be found in Figure 8 in Appendix.

top-1 top-5 top-10 top-20 top-50 top-1% average median

static-fc14-linear 0.005 0.015 0.022 0.033 0.054 0.166 13502 8139

static-fc14-non-linear 0.030 0.083 0.121 0.176 0.271 0.609 1672 258

fc14-non-linear 0.131 0.317 0.423 0.539 0.684 0.926 230 15

128ﬂoats-non-linear 0.132 0.319 0.426 0.540 0.677 0.909 274 15

fDNA-ranking-loss 0.091 0.263 0.372 0.494 0.660 0.933 177 20

fDNA-linear 0.121 0.314 0.423 0.547 0.700 0.936 178 15

all-in-two-nets 0.033 0.115 0.181 0.277 0.438 0.838 620 69

Studio2Shop 0.238 0.496 0.613 0.722 0.834 0.970 89 5

Figure 3: Random examples of the retrieval test using 20000 queries against 50000 Zalando articles. Query images are in

the left-most column. Each query image is next to two rows displaying the top 50 retrieved articles, from left to right, top to

bottom. Green boxes show exact hits.

to the average position (or rank) at which an article is

retrieved. We expect the distribution of retrieval po-

sitions to be heavy-tailed, so we include the median

position as a more robust measure. All our models

are assessed on the exact same (query, article) pairs.

Studio2Shop outperforms the other models, with

a median article position of 5, mostly because of the

non-linear matching module. In general, fc14 with

our architecture performs surprisingly well with a me-

dian index of 15 and would already be suited for

practical applications, which supports our one-leg ap-

proach. It is surpassed however by fDNA, indica-

ting that having a fashion-speciﬁc representation does

help. 128ﬂoats is pretrained on ImageNet and ﬁnetu-

ned using a fashion dataset, but this dataset seems too

limited in size to make a difference with fc14 on this

task.

A second observation is that learning our feature

representation from scratch does not perform as well

as a pre-trained feature representation. The reason is

two-fold. Firstly, fDNA was trained on many more ar-

ticles than we have in this study, including articles of

other categories such as shoes for example, or swim-

ming suits. Secondly, having a pre-trained feature

representation heavily reduces the model complexity,

which is desirable in terms of computational time, but

also in the presence of limited datasets. Extensive ar-

chitecture exploration may lead to a siamese architec-

ture that outperforms Studio2Shop. We do not con-

clude that siamese architectures are not performant,

only that a one-leg architecture is a viable alternative.

A third observation is that a ranking loss does not

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

Table 4: Results of the retrieval test on DeepFashion In-Shop-Retrieval (Liu et al., 2016a) using 2922 query images against 683

articles, and on LookBook (Yoo et al., 2016) using 68820 query images against 8726 articles. Top-k indicates the proportion

of query images for which the correct article was found at position k or below. Average and median refer respectively to the

average and median position at which an article is retrieved.

top-1 top-5 top-10 top-20 top-50 top-1% average median

DeepFashion fc14-non-linear 0.159 0.439 0.565 0.689 0.838 0.475 32 6

Studio2Shop 0.258 0.578 0.712 0.818 0.919 0.619 17 3

LookBook fc14-non-linear 0.009 0.031 0.050 0.078 0.134 0.181 1657 797

Studio2Shop 0.013 0.044 0.070 0.107 0.182 0.241 1266 466

seem necessary. In our case, it performed worse than

the cross-entropy loss. It is also slower to train as it

requires triplets of images instead of pairs and, be-

cause it is trained to rank and not to predict a match,

the scores produced are meaningless.

The total time needed for (naive) retrieval using

Studio2Shop is given in Figure 9 in Appendix. While

features generated by the query-feature submodel

can be pre-computed for efﬁciency, the query-article-

matching submodel still needs to be run and its non-

linearity could be a limitation in a realistic scenario. A

possibility could be to use fDNA-linear (which achie-

ves the second-best performance and is extremely fast

since only a dot product is needed) to identify a subset

of candidate articles on which it is worth running the

non-linear match of Studio2Shop.

Article Retrieval. Figure 3 shows randomly se-

lected examples of retrievals, with the query image

shown on the left, followed by the top 50 articles.

Even if the article is not retrieved at the top position,

style is conserved, suggesting that the model has in-

deed generalised beyond simple attributes. Moreover,

we are able to ﬁnd more than one category when they

are sufﬁciently visible, for example similar trousers

are also found early in the upper two images, and in

the top image t-shirts also appear, though there seems

to be some degree of confusion as to which colour

belongs to which garment.

5.2 Results on External Datasets

The Datasets. To assess the usability of our model,

we run tests on two external datasets, namely Deep-

Fashion In-Shop-Retrieval (Liu et al., 2016a), which

is the closest to ours and contains 683 title images

and 2922 matching shop images, and LookBook (Yoo

et al., 2016), which contains 8726 title images and

68820 matching shop images with backgrounds. For

both datasets, the background is different to ours, and

the aspect ratio of the people in query images may

also vary due to image resizing. As a result, the

image distributions deviate from ours, both for que-

ries and for targets. Note that publicly available da-

tasets such as Exact-Street-To-Shop (Kiapour et al.,

2015) or DeepFashion (Liu et al., 2016a) have a mix-

ture of image types as targets and can therefore not

be used directly. Nevertheless, for DeepFashion In-

Shop-Retrieval and Lookbook, it was easily possible

to isolate title images and to restructure the dataset for

our needs.

LookBook was originally not meant for street-to-

shop, many articles have more than one ID and are

treated as different so we are not rewarded for ﬁnding

them with the wrong ID. The images are very diffe-

rent from ours and we do not really expect any good

results, but we use it to test the boundaries of DeepAr-

ticleFinder.

Retrieval Test. We compute the static features of

the title images using the pre-existing feature repre-

sentation of interest (fc14 or fDNA) and simply ap-

ply our model to their query images. It is criti-

cal to note here that our model is not ﬁne-tuned to

this new data. The results are shown in Table 4.

Figures 4 and 5 show the retrieval outcomes for 5

randomly selected query images from DeepFashion

In-Shop-Retrieval and LookBook respectively. Note

that, in DeepFashion In-Shop-Retrieval, where full

bodies can be seen, more than one category can be

retrieved. LookBook has the added difﬁculty of con-

taining backgrounds. However, when these remain

understated, our model can ﬁnd adequate suggestions.

Finding Similar Articles in Zalando’s Assortment.

While the previous tests allow us to assess perfor-

mance, in practice we would like to suggest articles

from our own assortment. We run qualitative tests on

query images from DeepFashion In-Shop-Retrieval

and LookBook using our own test articles as retrieval

set. Figures 6 and 7 show the retrieval outcomes for 5

randomly selected query images from DeepFashion

In-Shop-Retrieval and LookBook respectively, and

indicate that our model can make very appropriate

Studio2Shop: From Studio Photo Shoots to Fashion Articles

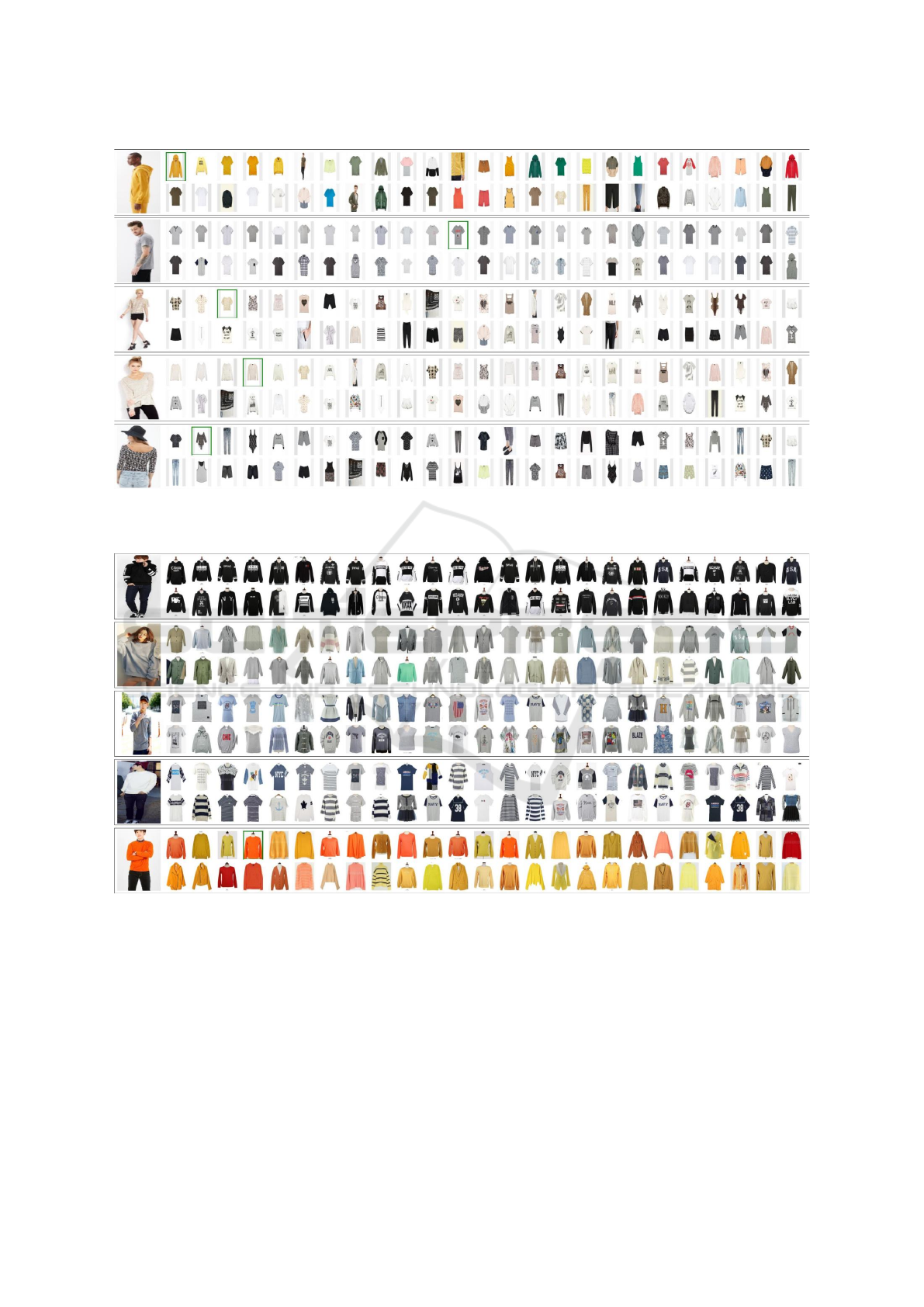

Figure 4: Random examples of outcomes of the retrieval test on query images from DeepFashion In-Shop-Retrieval (Liu

et al., 2016a). Query images are in the left-most column. Each query image is next to two rows displaying the top 50 retrieved

articles, from left to right, top to bottom. Green boxes show exact hits.

Figure 5: Random examples of outcomes of the retrieval test on query images from LookBook (Yoo et al., 2016). Query

images are in the left-most column. Each query image is next to two rows displaying the top 50 retrieved articles, from left to

right, top to bottom. Green boxes show exact hits.

suggestions for DeepFashion In-Shop-Retrieval, and

to a certain extent for LookBook when background is

understated.

6 CONCLUSION

We have presented Studio2Shop, a model for arti-

cle recognition in fashion images with neutral back-

grounds. Instead of solving the problem from scra-

tch as most recent studies have done, Studio2Shop

builds on top of existing feature representations for

fashion articles, and projects query images onto this

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

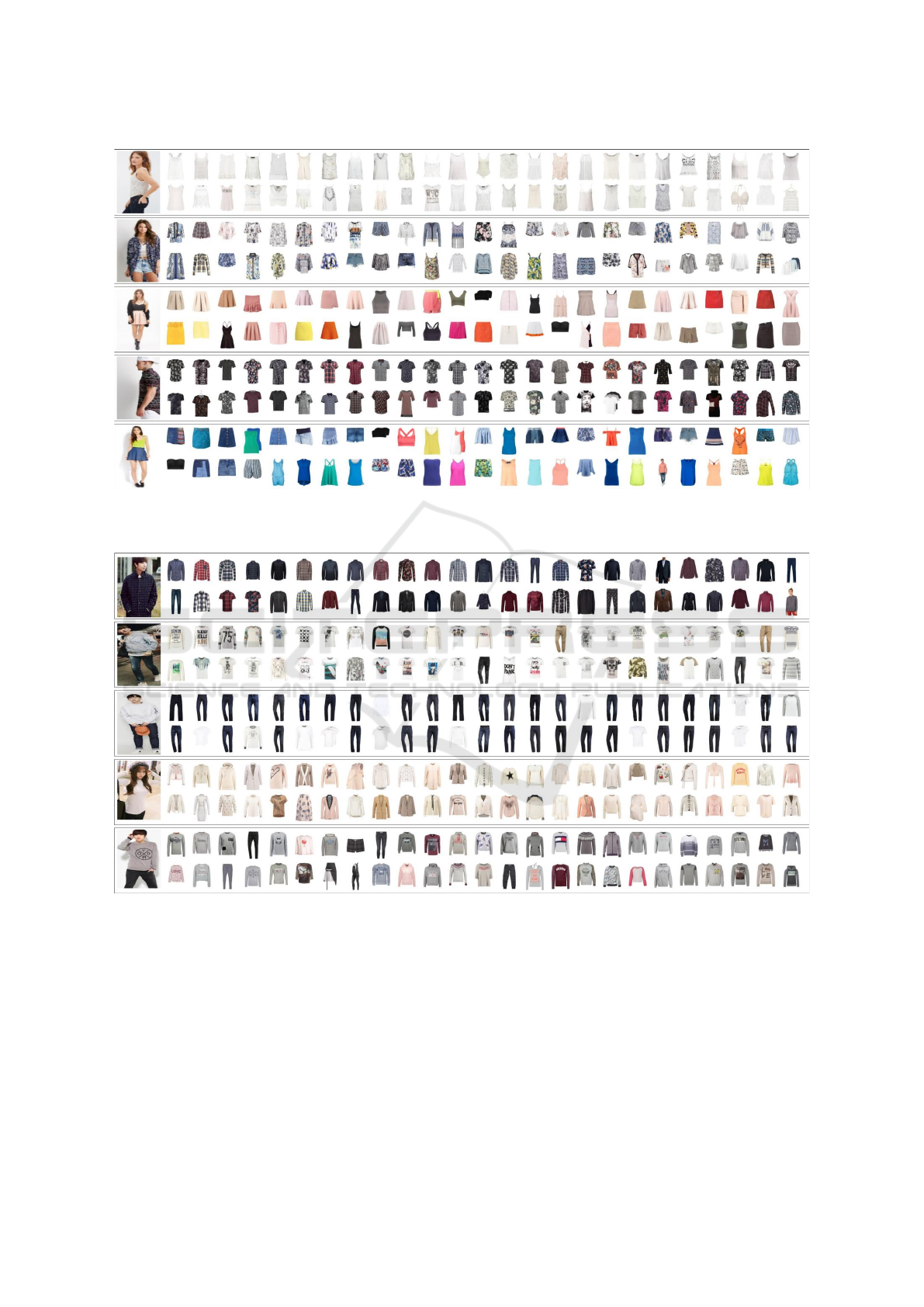

Figure 6: Random examples of outcomes of the retrieval test on query images from DeepFashion In-Shop-Retrieval (Liu et al.,

2016a) against 50000 Zalando articles. Query images are in the left-most columns. Each query image is next to two rows

showing the top 50 retrieved articles, from left to right, top to bottom.

Figure 7: Random examples of outcomes of the retrieval test on query images from LookBook (Yoo et al., 2016) against

50000 Zalando articles. Query images are in the left-most columns. Each query image is next to two rows showing the top 50

retrieved articles, from left to right, top to bottom.

ﬁxed feature space using a deep convolutional neu-

ral network. We show that our approach is most of-

ten able to ﬁnd correct articles within a range that is

sufﬁciently small for building realistic visual search

engines in the studio-to-shop setting.

Our method is easy to implement and only requi-

res article features and matches between query ima-

ges and articles. We ﬁnd that we achieve satisfactory

results without having to use additional meta-data for

our query images or articles, and that, in the absence

of speciﬁc features such as FashionDNA, the publicly

available features fc14 or 128ﬂoats are already quite

powerful.

While our dataset does not contain street images,

many of the obstacles in computer vision for fashion

such as occlusion and deformation remain, yet our re-

sults are very promising. We are currently working on

extending our approach to street images, making use

Studio2Shop: From Studio Photo Shoots to Fashion Articles

of state-of-the-art image segmentation techniques and

external datasets.

ACKNOWLEDGEMENTS

The authors would like to thank Sebastian Heinz and

Christian Bracher for their help with FashionDNA.

REFERENCES

Bossard, L., Dantone, M., Leistner, C., Wengert, C., Quack,

T., and Van Gool, L. (2013). Apparel classiﬁca-

tion with style. In Proceedings of the 11th Asian

Conference on Computer Vision - Volume Part IV,

ACCV’12, pages 321–335.

Bracher, C., Heinz, S., and Vollgraf, R. (2016). Fashion

DNA: merging content and sales data for recommen-

dation and article mapping. CoRR, abs/1609.02489.

Chen, H., Gallagher, A., and Girod, B. (2012). Describing

clothing by semantic attributes. In Proceedings of the

12th European Conference on Computer Vision - Vo-

lume Part III, ECCV’12, pages 609–623.

Chen, Q., Huang, J., Feris, R., Brown, L. M., Dong, J., and

Yan, S. (2015). Deep domain adaptation for descri-

bing people based on ﬁne-grained clothing attributes.

In The IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR).

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In Proceedings of the

2005 IEEE Computer Society Conference on Compu-

ter Vision and Pattern Recognition (CVPR’05) - Vo-

lume 1 - Volume 01, CVPR ’05, pages 886–893, Wa-

shington, DC, USA. IEEE Computer Society.

Di, W., Wah, C., Bhardwaj, A., Piramuthu, R., and Sunda-

resan, N. (2013). Style ﬁnder: Fine-grained clothing

style detection and retrieval. In The IEEE Conference

on Computer Vision and Pattern Recognition (CVPR)

Workshops.

Dong, J., Chen, Q., Xia, W., Huang, Z., and Yan, S. (2013).

A deformable mixture parsing model with parselets.

In ICCV, pages 3408–3415.

Fu, J., Wang, J., Li, Z., Xu, M., and Lu, H. (2013). Efﬁ-

cient Clothing Retrieval with Semantic-Preserving Vi-

sual Phrases, pages 420–431.

Huang, J., Feris, R. S., Chen, Q., and Yan, S. (2015). Cross-

domain image retrieval with a dual attribute-aware

ranking network. In 2015 IEEE International Con-

ference on Computer Vision, ICCV 2015, Santiago,

Chile, December 7-13, 2015, pages 1062–1070.

Jagadeesh, V., Piramuthu, R., Bhardwaj, A., Di, W., and

Sundaresan, N. (2014). Large scale visual recommen-

dations from street fashion images. In Proceedings

of the 20th ACM SIGKDD International Conference

on Knowledge Discovery and Data Mining, KDD ’14,

pages 1925–1934.

Kalantidis, Y., Kennedy, L., and Li, L.-J. (2013). Getting

the look: Clothing recognition and segmentation for

automatic product suggestions in everyday photos. In

Proceedings of the 3rd ACM Conference on Internati-

onal Conference on Multimedia Retrieval, ICMR ’13,

pages 105–112.

Kiapour, M. H., Han, X., Lazebnik, S., Berg, A. C., and

Berg, T. L. (2015). Where to buy it: Matching street

clothing photos in online shops. In 2015 IEEE In-

ternational Conference on Computer Vision (ICCV),

pages 3343–3351.

Kiapour, M. H., Yamaguchi, K., Berg, A. C., and Berg,

T. L. (2014). Hipster Wars: Discovering Elements of

Fashion Styles, pages 472–488.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Advances in Neural Information Pro-

cessing Systems 25, pages 1097–1105.

Liu, S., Feng, J., Domokos, C., Xu, H., Huang, J., Hu, Z.,

and Yan, S. (2014). Fashion parsing with weak color-

category labels. IEEE Trans. Multimedia, 16(1):253–

265.

Liu, S., Feng, J., Song, Z., Zhang, T., Lu, H., Xu, C., and

Yan, S. (2012a). Hi, magic closet, tell me what to

wear! In Proceedings of the 20th ACM International

Conference on Multimedia, MM ’12, pages 619–628.

Liu, S., Song, Z., Liu, G., Xu, C., Lu, H., and Yan, S.

(2012b). Street-to-shop: Cross-scenario clothing re-

trieval via parts alignment and auxiliary set. In Com-

puter Vision and Pattern Recognition (CVPR), 2012

IEEE Conference on, pages 3330–3337.

Liu, Z., Luo, P., Qiu, S., Wang, X., and Tang, X. (2016a).

Deepfashion: Powering robust clothes recognition and

retrieval with rich annotations. In Proceedings of

IEEE Conference on Computer Vision and Pattern Re-

cognition (CVPR).

Liu, Z., Yan, S., Luo, P., Wang, X., and Tang, X. (2016b).

Fashion landmark detection in the wild. In European

Conference on Computer Vision (ECCV).

Ojala, T., Pietik

ainen, M., and M

aenp

a, T. (2002). Mul-

tiresolution gray-scale and rotation invariant texture

classiﬁcation with local binary patterns. IEEE Trans.

Pattern Anal. Mach. Intell., 24(7):971–987.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh,

S., Ma, S., Huang, Z., Karpathy, A., Khosla, A.,

Bernstein, M., Berg, A. C., and Fei-Fei, L. (2015).

ImageNet Large Scale Visual Recognition Challenge.

International Journal of Computer Vision (IJCV),

115(3):211–252.

Simo-Serra, E. and Ishikawa, H. (2016). Fashion Style

in 128 Floats: Joint Ranking and Classiﬁcation using

Weak Data for Feature Extraction. In Proceedings of

the Conference on Computer Vision and Pattern Re-

cognition (CVPR).

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

CoRR, abs/1409.1556.

Vittayakorn, S., Yamaguchi, K., Berg, A. C., and Berg,

T. L. (2015). Runway to realway: Visual analysis of

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

fashion. In 2015 IEEE Winter Conference on Applica-

tions of Computer Vision, pages 951–958.

Wang, N. and Haizhou, A. (2011). Who blocks who: Si-

multaneous clothing segmentation for grouping ima-

ges. In Proceedings of the International Conference

on Computer Vision, ICCV’11.

Wang, X., Sun, Z., Zhang, W., Zhou, Y., and Jiang, Y.-G.

(2016). Matching user photos to online products with

robust deep features. In Proceedings of the 2016 ACM

on International Conference on Multimedia Retrieval,

ICMR ’16, pages 7–14.

Wang, X. and Zhang, T. (2011). Clothes search in consu-

mer photos via color matching and attribute learning.

In Proceedings of the 19th ACM International Confe-

rence on Multimedia, MM ’11, pages 1353–1356.

Yamaguchi, K., Kiapour, M. H., and Berg, T. L. (2013). Pa-

per doll parsing: Retrieving similar styles to parse clo-

thing items. In 2013 IEEE International Conference

on Computer Vision, pages 3519–3526.

Yamaguchi, K., Kiapour, M. H., Ortiz, L., and Berg, T.

(2012). Parsing clothing in fashion photographs. In

Proceedings of the 2012 IEEE Conference on Com-

puter Vision and Pattern Recognition (CVPR), CVPR

’12, pages 3570–3577.

Yamaguchi, K., Okatani, T., Sudo, K., Murasaki, K., and

Taniguchi, Y. (2015). Mix and match: Joint model for

clothing and attribute recognition. In Proceedings of

the British Machine Vision Conference (BMVC), pa-

ges 51.1–51.12.

Yoo, D., Kim, N., Park, S., Paek, A. S., and Kweon,

I. (2016). Pixel-level domain transfer. CoRR,

abs/1603.07442.

APPENDIX

FashionDNA: Implementation Details

fDNA features are extracted from the deep convoluti-

onal neural network described in Table 5. This net is

trained on title images to predict a number of article

attributes, summarised in Table 6. Training is done

via multiple categorical cross-entropy losses, one for

each attribute.

Table 5: Architecture of the network used for the fDNA

features of title images.

name type kernel activation output size # params

InputLayer 256x177x3 0

Conv2D 11x11 ReLU 62x42x96 34.944

MaxPooling2D 31x21x96 0

LRN 31x21x96 0

Conv2D 5x5 ReLU 31x21x256 614.656

MaxPooling2D 15x10x256 0

LRN 15x10x256 0

Conv2D 3x3 ReLU 15x10x384 885.120

Conv2D 3x3 ReLU 15x10x384 1.327.488

Conv2D 3x3 ReLU 15x10x256 884.992

MaxPooling2D 7x5x256 0

Flatten 8960 0

fDNA Dense ReLU 1536 13.764.096

Dense ReLU 1024 1.573.888

commodity Dense softmax 1448 1.484.200

Dense ReLU 890 1.367.930

article number Dense softmax 445 396.495

Dense ReLU 160 245.920

silhouette Dense softmax 80 12.880

Dense ReLU 1024 1.573.888

brand Dense softmax 3719 3.811.975

Dense ReLU 306 470.322

target group Dense softmax 153 46.971

Dense ReLU 40 61.480

pattern Dense softmax 19 779

Dense ReLU 72 110.664

material Dense softmax 36 2.628

Dense ReLU 244 375.028

main colour Dense softmax 122 29.890

Dense ReLU 140 215.180

second colour Dense softmax 70 9870

29.301.284

Table 6: Attributes used for training FashionDNA. Com-

modity group, statistical article number and silhouette all

describe article categories on different levels of granula-

rity. The target group attribute describes combinations of

age and gender.

attribute # values coverage [%]

commodity group 1448 100

statistical article number 445 76

silhouette 80 100

brand 3719 98

target group 153 100

pattern 19 1

material 36 1

main colour 122 100

second colour 70 7

Studio2Shop: From Studio Photo Shoots to Fashion Articles

Architecture of Studio2Shop

Table 7: Architecture of Studio2Shop.

name type activation output size # params

query-feature submodule

query input InputLayer 224x155x3 0

VGG16 7x4x512 14,714,688

Flatten 14436 0

Dense ReLU 2048 29,362,176

Dropout(0.5) 2048 0

Dense ReLU 2048 4,196,352

Dropout(0.5) 2048 0

query

fDNA Dense 128 262,272

query-article-matching submodule

article fDNA InputLayer 128 0

query fDNA InputLayer 128 0

Concatenate 256 0

BatchNorm 256 512

Dense ReLU 256 65792

Dense sigmoid 1 257

48,667,841

Top-k Retrieval Results

Figure 8: Top-k results of the retrieval test using 20000

query images against 50000 Zalando articles. The top-k

metric gives the proportion of query images for which the

correct article was found at position k or below.

Timings

Figure 9 shows the time needed, both for a CPU (Intel

Xeon processor with 3.5 GHz) and for a GPU (Nvi-

dia K80), to test query images against 50000 articles

with a ﬁxed batch size of 64, which is rather small

but common. First, the features of a query image

are extracted using the query-feature submodel, then

the query-article-matching submodel is applied to all

images against all the articles, using 50 articles at a

time. These two steps (query-feature + query-article-

matching) are part of the calculation, however model

loading and image resizing are not. These numbers

are rough but are averaged over 10 repetitions and are

meant to give an order of magnitude.

Figure 9: Time needed to test query images against 50000

articles with a ﬁxed batch size of 64 and using 50 articles

at a time. Model loading is not part of the time calculation.

The experiments are run from scratch (apart from model

loading) for each number of images and averaged over 10

repetitions. To process only one image, it takes about 5s on

a CPU and 8s on a GPU.

To process only one image, it takes about ﬁve se-

conds on a CPU, 8 on a GPU (the difference is ex-

plained by the overhead inherent to GPU calculations

that becomes very quickly negligible as the number

of images increases). Note that our implementation is

not optimised for speed. For example, there is no pa-

rallelisation. Moreover, we use the exact same archi-

tecture as for training and therefore only test against

50 articles at a time. For production, retrieval time

could be substantially decreased by testing instead

against hundreds of articles at a time. Further speed-

ups could be achieved by increasing the batch size

when running on a GPU.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods
