Face Anti-spoofing based on Deep Stack Generalization Networks

Xin Ning

1,2

, Weijun Li

1,2

, Meili Wei

, Linjun Sun

1,2

and Xiaoli Dong

1,2

Institute of Semiconductors, Chinese Academy of Sciences, 100083, Beijing, China

Cognitive Computing Technology Wave Joint Lab, 100083, Beijing, China

Keywords: Face Anti-spoofing, Convolutional Neural Networks, Stacked Generalized Approach, Intra-class Variations.

Abstract: Thanks for the recent development of Convolutional Neural Networks (CNNs), the performance of face

anti-spoofing methods has been improved by extracting more distinguishing features between genuine and

fake faces than the hand-crafted texture features. As known, the way of fraud is diverse, thus the fake class

has large intra-class variations, so training as a binary classification problem is hard to learn the

distinguishing features. In this work, our contribution is a novel model fusion approach for face anti-

spoofing, which can reduce the intra-class variations. According to the type of fraud, we firstly train

different models for face anti-spoofing problem by CNN, thus the intra-class variations of fake class has

reduced during training each model. Distinguishing features can be learned more easily. Then the stacked

generalized method is used for combining the lower models to achieve better predictive accuracy. For

perfecting the generalized accuracy, the stacked generalized approach changes the weight of each model's

prediction, so that the model after fusion can predict precisely whether the face image is fake or genuine.

Meanwhile, the experimental results indicate our method can obtain excellent results compared to the state-

of-the-art methods.

1 INTRODUCTION

Face recognition has achieved great success during

the past decades, and has been widely applied in

access control system, login system and so on.

However, a high security requirement for face

authentication is urgent, because only a photo, video

replay, or 3D-mask of valid user can easily spoof a

face recognition system to access secure information

illegally. With the popularity of electronic devices,

people can easily get photos and videos belonging to

others through the network, which caused a lot of

face recognition system for security risks. Therefore,

anti-spoofing problem for face biometric system has

gained great attention to the scholars and companies.

The fragility of face recognition systems to face

spoof attacks has motivated a number of studies on

face anti-spoofing, such as LBP (Maatta et al.,

2011), HOG (Komulainen et al., 2013), LBP-TOP

(Pereira, 2012), Image quality assessment (Wen et

al., 2015), CNN (Yang et al., 2014), etc.

However, published studies are limited in their

scope, because these methods are more to train a

common model to prevent attack from photo, video

or 3D-mask. Because of the diversity of fraud, a

general model cannot be learned in such

complexities, may not work when facing specific

fraud. Besides, these methods regard face anti-

spoofing as a binary classification problem, that is to

say the all kinds of fake face is one class, and the

real face is another class. As we all know, the fake

face can be a photo, a video replay, or a 3D-mask.

Due to different ways of fraud, the fake class has

large intra-class variations. These existing classifiers

in identifying sample work individually, as is well

known, when making critical decisions, wise people

often take into account the opinions from several

experts rather than only one. In this paper, we do not

address 3D-mask attacks, which are more costly to

launch, we focus on photo and replayed video

attacks. We learn a CNN model for each type of

fraud, then the stacked generalization method will be

use to integrate the two models, which will decide

whether the input face image is real or not. Stacked

generalization is a general method of using a high-

level model to combine lower-level models to

achieve greater predictive accuracy.

The remainder of the paper is organized as

follows: Section 2 briefly reviews the relevant work

on face anti-spoofing. Section 3 presents our

Ning, X., Li, W., Wei, M., Sun, L. and Dong, X.

Face Anti-spooﬁng based on Deep Stack Generalization Networks.

DOI: 10.5220/0006568103170323

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 317-323

ISBN: 978-989-758-276-9

317

approach. The experimental setup and results are

discussed in Section 4. Finally, in Section 5 we

summarize this work highlighting its main

contributions.

2 RELATED WORK

Because of the diversity of spoofing attacks, existing

traditional face anti-spoofing approaches can be

mainly categorized into four categories: (i) motion

based methods, (ii) texture based methods, (iii)

method based on image quality analysis, and (iv)

methods based on other cues. The motion based

methods was designed primarily to counter printed

photo attacks. Eye blinking (Pan et al., 2007) or lip

movement (Kollreider et al., 2007) are used for face

anti-spoofing. Given that motion is a relative feature

across video frames, these methods are expected to

have better generalization ability than the texture

based methods. However, motion based methods

need a relatively long time to accumulate stable

vitality features for face spoof detection. The texture

based methods include LBP (Maatta et al., 2011),

HOG (Komulainen et al., 2013), etc. Pereira et al.

(2012) used LBP-TOP to extract spatial and time

domain features from three orthogonal planes.

Unlike motion based methods, texture based

methods need only a single image to detect a spoof.

However, the generalization ability of many texture

based methods has been found to be poor. A recent

work (Galbally et al., 2014) proposed a biometric

liveness detection method for iris, fingerprint and

face images using 25 image quality measures,

including 21 full-reference measures and 4 non-

reference measures.

Different from traditional methods, CNNs can

extract distinguishing end-to-end features directly

from raw data, and has been proved efficient in

many other vision fields. Yang et al., (2014) extract

features by CNN, then feeding them to a SVM

classifier. Xu et al., (2016) proposed LSTM-CNN

architecture to learn the temporal structure from

videos.

Those works consider the face anti-spoofing as a

binary classification problem, all real face is one

class, and the other is all kinds of fake face. Because

of the variety of fake face, photo attacks and video

attacks will be different on the texture, reflect

illumination, resolution, etc., thus the large intra-

variance will increase the difficulty of classification.

Each model is heterogeneous and has strong

classification ability, therefore, the integration model

with stacked generalization method will make full

use of the advantages of different models,

complement each other, thus will achieve better

predictive accuracy.

3 PROPOSED METHOD

For reducing the intra-class variations, we train

different models according to the type of fraud face.

Each model can learn the deep and distinguishing

feature for classifying fake or real. The stacked

generalization method takes full advantage of each

model's prediction and change the weights of each

prediction. Then a wiser decision would be made for

maximizing generalize accuracy. With the stacked

generalized method, the training difficulty of anti-

spoofing problem is decreased than training a

general model. Besides, the model can converge

more easily.

3.1 Stacked Generalization

Stacked generalization (Wolpert, 1992; Ting and

Witten, 1997) is a general method of using a high-

level model to combine lower-level models to

achieve greater predictive accuracy. It's a scheme for

minimizing the generalization error rate of one or

more classifiers, and works by reducing the biases of

the classifiers with respect to a provided learning set.

When fusing the multiple classifiers, stacked

generalization exploited a strategy more

sophisticated for combining the individual

classifiers. Stacked generalization tries to learn

which classifiers are reliable ones, and use a higher-

level learning algorithm, the so-called "meta-

classifier", to discover the best way of how to

combine the outputs of the base classifiers. As

shown in Figure 1, there are two kinds of classifiers:

several base classifiers (leavel-0 classifiers) and one

meta-classifier (level-1 classifier). The output class

probabilities generated by level-0 models are used to

form level-1 data. Then a multivariable linear

regression model (MLR) is adapted for classification

tasks for level-1 classifier.

3.1.1 Level-0 Generalizers

As shown before (Krizhevsky et al., 2012; Simonyan

and Zisserman, 2014; He et al., 2016), deeper and

better pre-training networks lead to better

performance. ResNet (He et al., 2016) won the 1st

place on the ILSVRC 2015 classification task. The

depth of representations is of central importance for

many visual recognition tasks, especially in face

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

318

anti-spoofing. In the task of face anti-spoofing, the

intra-class variations are large, and are mainly

caused by the appearance of different people, the

different ways of fraud, and the different resolutions

of faces images captured by different camera, such

as the photo attacks can be printed on different types

of paper, the video attacks can be played on different

electronic equipment and so on. Therefore, the

deeper networks can extract more useful and

distinguishing features. In this paper, we use a

ResNet50 (He et al., 2016) model as the level-0

generalizers.

Given two training data sets

 

 

Q y , , 1,...,

x n N

and

 

 

, , 1,...,

P y x n N

， where

is the class

value and

represents the attribute values of the ss

instance,

defines the set of real face and video

attack face, and

defines the set of real face and

photo attack face. The specific type of fraud is

included in each dataset, causing the small intra-

class variations and large inter-class variations. So

the training difficulty can be decreased. Then

randomly split the data sets into two parts

,QP

and

,QP

. Define

 

 

, , 1,...,

Q y x n N M  

 

 

, , 1,...,

P y x n N M



  

and

 

 

, , 1,...,

Q y x n M

 

 

, , 1,...,

P y x n N M



  

to be the training

and validation sets. The

and

datasets are used

for training level-0 data, and the

and

datasets

are used for forming the level-1 data. Given

ResNet50 called level-0 generalizers, training on the

data in the training set

and

to induce a model,

for

1,...,kK

, which are called level-0 models. The

level-1 data assembled from the outputs of the

models is

 

 

2 11 1 1 1

, ,..., ,..., ,..., ,..., ,..., , 1,...,

n n In k n kIn K n KIn

Q y z z z z z z n M

 

 

2 11 1 1 1

, ,..., ,..., ,..., ,..., ,..., , 1,...,

n n In k n kIn K n KIn

P y z z z z z z n M





where

 

kin ki n

z P x

is the prediction from the level-

0 models, and

 

ki n

denote the probability of the

thi

output class, and in the ResNet50,

 

ki n

is the

class probability of the Softmax layer's output, and

 

ki n





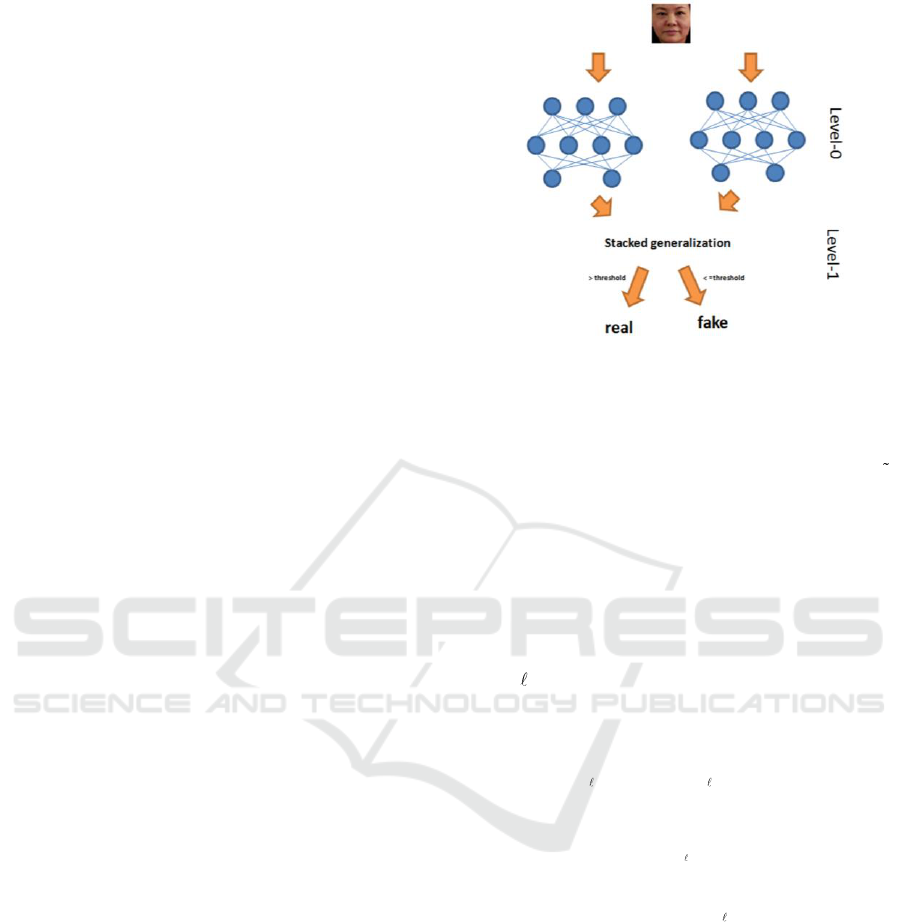

Figure 1: The illustration of stacked generalization.

3.1.2 Level-1 Generalizers

After obtaining the level-1 data, we use MLR

(Breiman, 1996) to derive from this data a model



in this work. MLR which Breiman (Breiman, 1996)

used in regression settings, is an adaptation of a

least-square linear regression algorithm. If the

classification problem is with real-valued attributes,

it can be transformed into a multi-response

regression problem. In the face anti-spoofing task,

they are two classes, they can be converted into two

separate regression problems, where the problem for

class has instances with responses equal to 1 when

they have class 1 and 0 otherwise.

The linear regression for class 1 is simply:

   

ki ki

LR z P z







(1)

We solve this problem to choose the linear

regression coefficients

 



to minimize:

 

n ki ki n

j k i

y z Q

y P z













  

(2)

where

is equal to 1 when the instance's label is

corresponding with the class 1,s and 0 otherwise.

These regression coefficients can be the weight of

each level-0 model's prediction probability. In the

test phase, after the fusion, the probability of each

sample predicting fake or real is readjusted, so that

according to the probability, the sample is

classifying correctly. In the experimental stage, we

compare the accuracy with the AND rule. As shown

in Table 2, our method is better than the AND rule

with a large margin. According the AND rule, if

both the two model's prediction is real, then the final

prediction is real, otherwise is fake. We believe the

Face Anti-spooﬁng based on Deep Stack Generalization Networks

319

reason is that our method learns which model is

more reliable and which not. Because each level-0

model is heterogeneous, for each specific sample,

the classification accuracy rates of these models are

quite different. Therefore, the weights can adjust the

predictions so that the more wisdom decision can be

given.

When classifying a new instance

, compute

 

LR x

for the two classes, and assign the instance

to class real which has the greatest value. That is to

say, if

   

real fake

LR x LR x

, then we believe the

sample is a real face, otherwise fake face.

Figure 2: Examples of real access and spoofing attempts in

the CASIA-FASD database. The first row is low-quality,

the second row is middle-quality and the last row is high-

quality. The first column is genuine, and the others form

left to right are warp-photo, cut-photo and video fraud.

Figure 3: Examples of real access and spoofing attempts in

the REPLAY-ATTACK database. The four rows from top

to down are real video, print fraud video, mobile fraud

video and high-definition fraud video. And the first

column is adverse environment and the second column is

controlled.

Figure 4: Examples of real access and spoofing attempts in

our database. The five rows are captured by different

cameras, from top to down are Phone Low Resolution

front camera, Pad front camera, Phone Normal Resolution

front camera, USB Low Resolution and USB High

Resolution. The four columns are different type of fraud,

from left to right are warp A4 photo fraud, cut eye A4

photo, warp copper photo and video replay fraud.

4 EXPERIMENTS

Our proposed method is successful on the face anti-

spoofing data sets. We evaluated it in this section on

two different datasets, including CASIA (Zhang et

al., 2012), and Replay-attack (Chingovska et al.,

2012).

4.1 Implementation Details

In this work, during the training, we first separate

the video attacks and photo attacks into different

sets. For each video, we selected one frame every

three frames, thus forming the training, validation

and test sample sets. For each frame, the face can be

detected by using Viola-Jones algorithm. To provide

precise face locations, we implement the face

alignment algorithm proposed in Sun et al., (2014)

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

320

after a common Viola-Jones face detection. After

obtaining the landmarks, their bounding box is

regarded as the final face location. According to

Yang et al. (2014), beyond the conventional face

region, the backgrounds are helpful for the

classification as well. Therefore, we enlarge the

original ones with re-scaling ratio 1.8. Finally, all

input images are resized to 224*224. For the CNN,

we use Caffe toolbox and adopt a commonly used

structure ResNet50, which was ever used in He et al.

(2016). In the training of the ResNet50 for video

attack face and photo attack face, the learning rate is

0.0001; decay rate is 0.001; and the momentum is

0.9. Before fed into the ResNet50, the data are first

centralized by the mean of training data.

4.2 Datasets

4.2.1 CASIA-FASD Database

The database collects 600 short videos from 50

clients (Zhang et al., 2012). For each subject, there

different quality videos are captured by different

resolution camera. For each camera, one real video

and corresponding three different kinds of attacks

were recorded. The three kinds of attacks are warped

photo attack, cut photo attack and electronic screen

attack. Therefore, each subject has 12 sequences (3

genuine and 9 fake ones). Three different imaging

quality conditions were recorded using an imaging

device of (1) High-quality, (2) Middle-quality, and

(3) Low-quality. Example frames from genuine and

fake videos are shown in Figure 2. For evaluation,

the total set of videos is divided into two non-

overlapping subsets for training and testing.

4.2.2 REPLAY-ATTACK Database

This database contains 1200 short videos from 50

subjects (Chingovska et al., 2012), including both

real accesses and face spoofing attacks. Each person

in the database was recorded the videos in two

illumination conditions: controlled and adverse. A

high resolution pictures and videos were taken for

each subject under the same condition. There are

three attacks: print attacks, mobile attacks and high-

definition attacks. And the videos were divided into

hand based attacks and fixed based attacks. Example

frames from genuine and fake videos are shown in

Figure 3.For evaluation, the total set of videos is

divided into three non-overlapping subsets for

training, development and testing.

4.2.3 Our Database

The database contains 1500 short videos from 100

subjects, including both real accesses and face

spoofing attacks. For each subject, there different

quality videos are captured by different resolution

camera. For each camera, one real video and

corresponding three different kinds of attacks were

recorded. The three kinds of attacks are warped

photo attack, cut photo attack and electronic screen

attack. Example frames from genuine and fake

videos are shown in Figure 4. Therefore, each

subject has 15 sequences (1 genuine and 14 fake

ones). For evaluation, the total set of videos is

divided into two non-overlapping subsets for

training.

4.3 Experimental Results

The performance of the proposed stack generalized

based face anti-spoofing approach was evaluated on

the three databases. All these results are given in

Table 1. For a performance comparison, the results

of the state-of-the-art countermeasures and the

baseline algorithms in databases to face spoofing

attacks are listed in Table 1. On the CASIA-FASD

database, best performance in previous work was

achieved by the LBPs form three orthogonal planes

(LBP-TOP) method, exploring the spatial and

temporal LBP distributions simultaneously. Our

method achieved an EER of 3.42%, which is better

than the LBP-TOP method. On the REPLAY-

ATTACK, our method achieved an EER of 0.13%

and HTER of 0.63% respectively, both of which are

superior to the others.

Besides, the performance of our method was

compared with the AND rule method on the

REPLAY-ATTACK, CASIA-FASD and our

database. The results are listed in Table 2.From the

results, the proposed stacked generalized method

achieved a huge performance improvement in

liveness detection compared with the AND rule

method.

On the REPLAY-ATTACK, CASIA-FASD and

our database, our method achieved a huge

performance improvement in face anti-spoofing

problem. These results illustrate the effectiveness of

the proposed stacked generalized face liveness

detection approach.

Face Anti-spooﬁng based on Deep Stack Generalization Networks

321

Table 1: Comparison between the proposed

countermeasure and state-of-the-art methods based on the

REPLAY-ATTACK, CASIA-FASD database.

Approach

Replay-

attack-

dev(EER)%

Replay-

attack-

test(HTER)%

CASIA-

FASD-test-

EER (%)

IQA based

(Galbally and

Marcel, 2014)

---

32.40

Motion (Pereira et

al., 2013 )

11.60

11.70

26.60

LBP + SVM

(Yang et al., 2013)

8.55

11.75

18.50

LBP-TOP + SVM

(Pereira et al.,

2012)

7.88

7.60

10.00

SBIQF+NN

(Feng et al., 2016 )

3.83

6.13

15.5

YCbCr + HSV +

LBP (Boulkenafet

et al., 2015)

0.4

2.9

6.2

LSTM

(Xu et al., 2016)

---

5.17

Our Method

0.13

0.63

3.42

Table 2: Comparison between the proposed

countermeasure and the AND rule method based on the

REPLAY-ATTACK, CASIA-FASD database.

Approach

Replay-attack-

dev(EER)%

Replay-attack-

test(HTER)%

CASIA-FASD-

test(EER)%

AND Rule

0.38

2.63

5.83

Our Method

0.13

0.63

3.42

5 CONCLUSIONS

With the rapid development of face anti-spoofing

techniques, the threats of spoofing attacks will also

increase in the diversity. It's hard to learn a model to

detect all types of fraud. Hence, the integration of

several countermeasures is a promising approach.

The proposed method is a way of combination. And

our method can be easily combined with other

algorithms, as long as these algorithms are helpful

for liveness detection. In future work, other advance

neural networks will be investigated to improve face

anti-spoofing performance, such as the long short-

term memory (LSTM) network, which may be more

effective in learning face liveness features.

ACKNOWLEDGEMENTS

This work was supported by the National Nature

Science Foundation of China (No. 61572458), and

the China Scholarship Council (Grant

No.201404910237).

REFERENCES

Maatta J, Hadid A, Pietikainen M., 2011. Face spoofing

detection from single images using micro-texture

analysis[C]// International Joint Conference on

Biometrics. IEEE.

Komulainen J, Hadid A, Pietikainen M., 2013. Context

based face anti-spoofing[C]// IEEE Sixth International

Conference on Biometrics: Theory, Applications and

Systems. IEEE.

Pereira T D F, Anjos A, Martino J M D, et al., 2012.

LBP − TOP Based Countermeasure against Face

Spoofing Attacks [J].

Wen D, Han H, Jain A K., 2015. Face Spoof Detection

with Image Distortion Analysis [J]. IEEE Transactions

on Information Forensics & Security.

Yang J, Lei Z, Li S Z., 2014. Learn Convolutional Neural

Network for Face Anti-Spoofing [J]. Computer

Science.

Pan G, Sun L, Wu Z, et al., 2007. Eyeblink-based Anti-

Spoofing in Face Recognition from a Generic

Webcamera[C]// IEEE, International Conference on

Computer Vision.

Kollreider K, Fronthaler H, Faraj M I, et al., 2007. Real-

Time Face Detection and Motion Analysis with

Application in “Liveness” Assessment [J]. Information

Forssssensics & Security IEEE Transactions on.

Galbally J, Marcel S, Fierrez J., 2014. Image Quality

Assessment for Fake Biometric Detection: Application

to Iris, Fingerprint, and Face Recognition [J]. IEEE

Transactions on Image Processing a Publication of

the IEEE Signal Processing Society.

Xu Z, Li S, Deng W., 2016 Learning temporal features

using LSTM-CNN architecture for face anti-

spoofing[C]// Pattern Recognition. IEEE.

Wolpert D H., 1992. Original Contribution: Stacked

generalization [J]. Neural Netw.

Ting K M, Witten I H., 1997. Stacked generalization:

when does it work? [C]// Fifteenth International Joint

Conference on Artificial Intelligence. Morgan

Kaufmann Publishers Inc.

Krizhevsky A, Sutskever I, Hinton G E., 2012. ImageNet

classification with deep convolutional neural

networks[C]// International Conference on Neural

Information Processing Systems. Curran Associates

Inc.

Simonyan K, Zisserman A., 2014 Very Deep

Convolutional Networks for Large-Scale Image

Recognition [J]. Computer Science.

He K, Zhang X, Ren S, et al., 2016. Deep Residual

Learning for Image Recognition[C]// Computer Vision

and Pattern Recognition. IEEE.

Breiman L., 1996. Stacked regressions [J]. Machine

Learning.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

322

Chingovska I, Anjos A, Marcel S., 2012. On the

effectiveness of local binary patterns in face anti-

spoofing[C]// Biometrics Special Interest Group.

IEEE.

Zhang Z, Yan J, Liu S, et al., 2012. A face ant spoofing

database with diverse attacks[C]// Iapr International

Conference on Biometrics.

Galbally J, Marcel S., 2014. Face Anti-spoofing Based on

General Image Quality Assessment[C]// International

Conference on Pattern Recognition. IEEE Computer

Society.

Pereira T D F, Anjos A, Martino J M D, et al., 2013. Can

face anti-spoofing countermeasures work in a real

world scenario? [C]// International Conference on

Biometrics. IEEE.

Yang J, Lei Z, Liao S, et al., 2013. Face liveness detection

with component dependent descriptor[C]//

International Conference on Biometrics. IEEE.

Pereira T D F, Anjos A, Martino J M D, et al., 2012. LBP

− TOP, Based Countermeasure against Face Spoofing

Attacks[C]// International Conference on Computer

Vision.

Feng L, Po L M, Li Y, et al., 2016. Integration of image

quality and motion cues for face anti-spoofing [J].

Journal of Visual Communication & Image

Representation.

Boulkenafet, Zinelabidine, Jukka Komulainen, and

Abdenour Hadid., 2015 "Face anti-spoofing based on

color texture analysis." Image Processing (ICIP), 2015

IEEE International Conference on. IEEE.

Xu Z, Li S, Deng W., 2016. Learning temporal features

using LSTM-CNN architecture for face anti-

spoofing[C]// Pattern Recognition. IEEE.

Sun J, Wen F, Wei Y, et al., 2014. Face alignment by

Explicit Shape Regression [J]. International Journal of

Computer Vision.

Face Anti-spooﬁng based on Deep Stack Generalization Networks

323
