Veriﬁable Parameterised Behaviour Models

For Robotic and Embedded Systems

Vladimir Estivill-Castro and Ren

e Hexel

School of Information and Communication Technology, Grifﬁth University, Nathan, QLD, Australia

Keywords:

Model-driven Engineering, Formal Methods, Robotic and Embedded Systems, Middleware.

Abstract:

Logic-labeled Finite-State Machines (LLFSMs) are Communicating Extended Finite State Machines that exe-

cute concurrently but with a predeﬁned sequential schedule. This capacity has enabled effective formal veriﬁ-

cation. Moreover, LLFSMs are very powerful tools for Model-Driven Software Engineering of the behaviour

of robotic and embedded systems. Although existing schedulers are capable of executing several instances of

the same model, the challenge is to provide mechanisms for creating parameterised models akin to function

calls. Since recent task planning algorithms can synthesise behaviours as LLFSMs with parameters and re-

cursion, it becomes necessary to have a useful operational tool that produces compiled executables for such

behaviours. Moreover, parameterisation allows replication of generic system components, reducing overall

design complexity. We produce safe mechanisms to set actual and formal parameters for multiple, concur-

rent instances of the same behaviour. We achieve the parameterisation of behaviour models analogous to a

procedural abstraction and discuss its advantages and disadvantages on formal veriﬁcation.

1 INTRODUCTION

The prominent role of Model-driven software engi-

neering (MDSE) for robotics derives from industry

proﬁting from the promise of combining soft and

physical robots with emerging technologies and plat-

forms, e.g., for the Internet of Things (IoT), the Inter-

net of Services (IoS), and the Internet of Data (IoD);

and is propelled further by the promises of ubiquity

and scalability of Cloud Computing. The challenge,

thus, is to apply the power of abstract behaviour mod-

els in a systematic, reliable, and scalable form. More-

over, this kind of scalability has prompted modular

robots (Arney et al., 2010), that is, a robot that can

be composed of several physical parts. In such a sys-

tem, the number of copies or parts of the same kind

can be ﬂexibly adjusted, not only prior to deployment,

but even during operation. Therefore, it is natural

to consider that the speciﬁed behaviour of modular

components should also be modular and would utilise

MDSE (Arney et al., 2010).

Logic-labeled ﬁnite-state machines (LLFSMs) are

a comprehensive mechanisms for modelling be-

haviour in robotics and embedded systems. LLF-

SMs can be considered to be inspired by the Timed

Finite-State Machines (t-fsms) that work as building

blocks of Brooks’ subsumption architecture (Brooks,

1986) as they can very well represent the LISP-

based textual language in which t-fsms were de-

scribed (Mataric, 1992; Brooks, 1990). A simi-

lar type of robotic behaviour description has been

presented for Teleo-reactive systems (Nilsson, 2001)

and Situated Automata (Rosenschein and Kaelbling,

1995). LLFSM concurrent execution offers deter-

ministic scheduling and allows the design of time-

triggered systems (Kopetz, 1993). Such determinism

has several advantages. In particular, the behaviour

of a system composed of LLFSMs is much more pre-

dictable, ensuring reliability. In fact, the predictive

schedule reduces the state explosion of uncontrolled

concurrency enabling formal veriﬁcation and model

checking. It also enhances the conﬁdence in any val-

idation performed. Therefore, LLFSMs can naturally

be incorporated into a test-driven-development frame-

work, making test failures signiﬁcantly more repro-

ducible. Moreover, this sequential execution liber-

ates the designer of challenges related to concurrency,

such as race conditions, as at any given point in time,

only one LLFSM in the arrangement is executing,

making the execution of its ringlet atomic. The al-

ternative to LLFSMs are event-driven statecharts de-

rived from Harel’s State Charts (Harel and Naamad,

1996; Harel and Politi, 1998). This were incorporated

into OMT and later into UML. In these even-driven

364

Estivill-Castro, V. and Hexel, R.

Veriﬁable Parameterised Behaviour Models - For Robotic and Embedded Systems.

DOI: 10.5220/0006573903640371

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 364-371

ISBN: 978-989-758-283-7

ﬁnite-state models transitions are labeled by events.

We note that an event-driven system is typically based

on a software architecture built around stimuli-driven

call-backs or interrupts, a subscribe mechanism and

listeners that enact such call-backs. Reacting to

stimuli in this way implies uncontrolled concurrency

(e.g. using separate threads or event queues). Lam-

port (Lamport, 1984) provided fundamental proofs

of the limitations of event-driven systems. Reactive-

systems are responsive systems without much pro-

cessing, as opposed to deliberative systems (which

reason, plan, learn). Real-time systems are required to

meet time-deadlines in response to stimuli and time-

triggered systems have been shown very effective for

this (Kopetz, 1993). Therefore, although closely re-

lated, these terms are not the same, our preference for

LLFSMs is supported by the work of Lamport (Lam-

port, 1984) that provides solid reasons why real-time

systems may be better served by time-triggered sys-

tems and pre-determined schedules, rather than the

unbounded delays that may occur in event-driven sys-

tems.

The clfsm

scheduler executes an arrangement

of compiled LLFSMs, with the capacity to upload

and suspend LLFSM that represent behaviours dur-

ing runtime (Estivill-Castro and Hexel, 2016). The

clfsm scheduler offers very efﬁcient, in-memory,

data-centric communication between different be-

haviour modules. This works very well if the num-

ber of listeners for a message are known well before

compile-time, but does not work so well if the role of

consumer and producers is to be decided at run-time.

Task planning technology has advanced signif-

icantly. Now, generic plans that solve generic

task planning problems can be synthesised as logic-

labeled ﬁnite-state machines with parameters and re-

cursion (Segovia-Aguas et al., 2016). This poses

the challenge of executing these behaviours as com-

piled routines on board a robot, even where several

instances are deployed recursively. Parameterisation

brings the challenge that the middleware cannot stati-

cally determine senders and receivers. Moreover, the

number of LLFSMs in an arrangement can dynam-

ically vary, e.g., through recursive invocation. The

missing link to improve communication, is that invo-

cation of a behaviour (modelled by a LLFSMs) should

be similar to a procedure or function call.

This paper provides such a model, demonstrated

ﬁrst with the original that clfsm provides and then

proposing the semantics that parameterised LLFSM

invocations should have.

Available at http://mipal.net.au/downloads.php

2 INSTANTIATING SUSPENDED

MACHINES

An arrangement of parameterised LLFSMs can be de-

ﬁned dynamically. LLFSMs can be loaded and un-

loaded by request from another machine. This mech-

anism is similar to the suspend/restart mechanism.

However, in the case of unload, the machine is re-

moved from the arrangement, while the load mecha-

nism adds the named LLFSM to the arrangement. We

introduce a variant we name load suspended. The se-

mantics of this new command is similar to the previ-

ous load command with the exception that rather than

loading a LLFSM that executes from the initial state,

with load suspended the child machine is set with its

suspended state as the current state.

Because a LLFSM can be loaded more than once,

LLFSM instances can be logically replicated in an ar-

rangement to execute concurrently, but, as we men-

tioned earlier, this facility was limited to communi-

cation patterns where the total number of LLFSM

was predictable at compilation time to create con-

trol/status communication messages.

We introduce the concept of setting parameters for

a loaded LLFSMs from a caller LLFSM. With this fa-

cility, we can now treat LLFSMs as a function call or

procedure invocation, precisely suitable to enact the

Hierarchical Finite State Controllers inferable with

task planning (Segovia-Aguas et al., 2016).

To demonstrate this facility and illustrate its se-

mantics, we present an example where we recursively

compute the factorial (Fig. 1). The Initial state of

this recursive LLFSM has two transitions. If the

value of its parameter (the variable value) is zero, the

returned value will be set to 1 (state END), and no

further recursion will occur (the machine will pause

in its RETURN state until its caller collects the return

value and such caller unloads the machine).

More interestingly, when the value of the in-

put parameter is greater than zero, the LLFSM

will use the loadSuspended command to load a

new instance of itself (in the OnEntry section

of the LOAD MYSELF SUSPENDED state). The

SET INPUTS state obtains a reference to the recently

loaded and, importantly, suspended machine and sets

the parameter to one less than the current value

(OnEntry section). The caller then requests that the

child resumes (Internal section) and once the child is

running (is running() predicate of the transition), it

will transition to the state MONITOR STATE.

The state MONITOR STATE retrieves the current

state of the child machine, exiting if the child is in

the RETURN state. Once that happens, the caller re-

trieves the returned value from the local variable of

Veriﬁable Parameterised Behaviour Models - For Robotic and Embedded Systems

365

Initial

returned_value =1;

On Entry

On Exit

Internal

END

RETURN

machine = loadSuspended(M_RECURSIVE);

On Entry

On Exit

Internal

LOAD_MYSELF_SUSPENDED

using namespace FSM;

using namespace CLM;

child = machine_at_index(static_cast<unsigned>(machine));

next_machine = static_cast<Factorial *>(child);

next_machine->value=value-1; return_state_reached=false;

On Entry

On Exit

resume_at(machine);

Internal

SET_INPUTS

child_name = name_of_machine_at_index(machine);

current_sate= current_state_of_machine(child);

std::string child_at(current_sate->name());

return_state_reached = (0== child_at.compare("RETURN"));

On Entry

On Exit

current_sate= current_state_of_machine(child);

std::string child_at(current_sate->name());

return_state_reached = (0== child_at.compare("RETURN"));

Internal

MONITOR_STATE

returned_value=value* next_machine-> returned_value;

On Entry

On Exit

Internal

RECORD_VALUE

unloadMachine(machine);

On Entry

On Exit

machine = index_of_machine_named(child_name);

Internal

UNLOAD

0==value

value>0

true

is_running_at(machine)

retur n_state_ reache d

true

machine<0

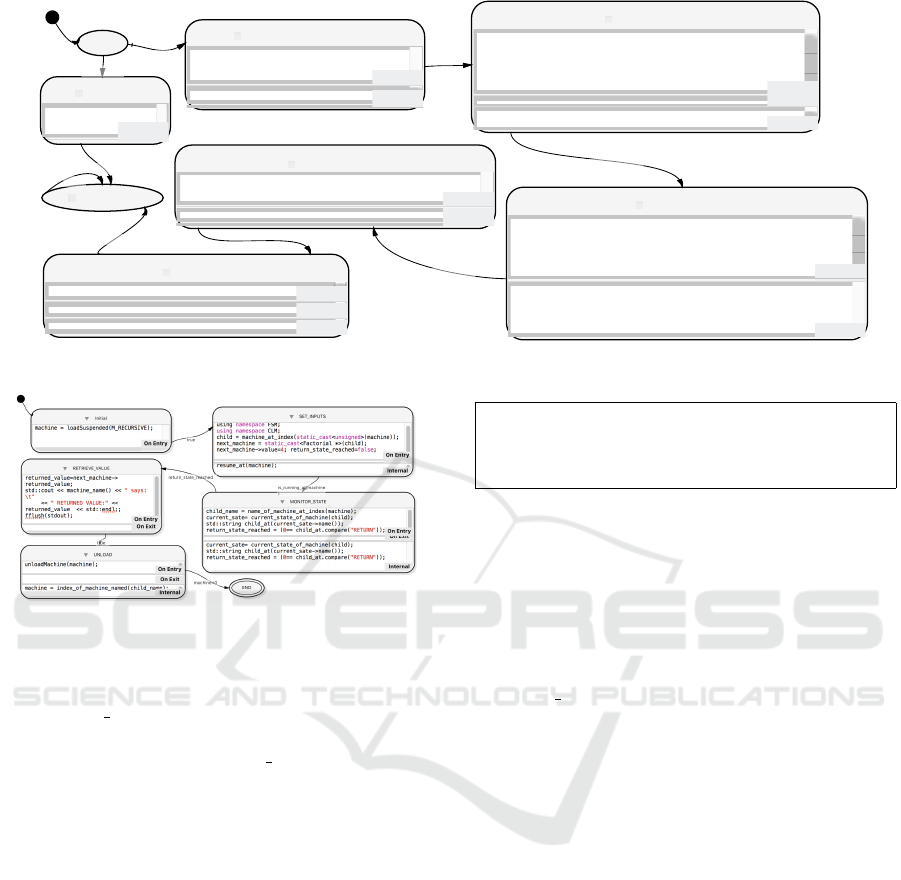

Figure 1: Recursive LLFSM for computing the factorial function f (n) = n!.

Figure 2: The LLFSMs that invokes the recursive LLFSM

from Fig. 1.

the child LLFSM (accessible trough the LLFSM ref-

erence next machine). In the case of the factorial

function, the value this instance returns is the prod-

uct of value with the returned value of the callee

LLFSM. The subsequent state is the state UNLOAD

where the child LLFSMs is removed from the ar-

rangement. Once this succeeds, this invocation itself

parks in its RETURN state.

The top-level LLFSM that makes the invoca-

tion is presented in Fig. 2 and its simpler but illus-

trates the particular steps of calling another LLFSM

as a procedure or recursive function using the new

loadSuspended. While the child is suspended, the

formal parameters are ﬁlled with values. This was not

possible previously, as the child machine would run

concurrently after load with uninitialised parameters.

Correctness of the recursive factorial function can

be established by induction (Wand, 1980). Estab-

lishing formally that the LLFSM model (Fig. 1) is a

correct executable model can be achieved with tech-

niques to verify recursive programs (Huang et al.,

2009). Our tool does not currently implement control-

ﬂow graphs but produces the corresponding Kripke

structure for the LLFSM except the loadSuspended

LTLSPEC

G(pc=OnEntry(Initial) & M0value=0 -> X( pc=OnEntry(END) )

| X( X( pc=OnEntry(END) ) )

| X( X( X( pc=OnEntry(END) ) ) )

)

Figure 3: NuSMV coding of the property that, when

value=0, the next state after Initial is state END.

instruction. Nevertheless, for this example, formal

veriﬁcation can proceed as we can establish LTL and

CTL properties for the LLFSM in Fig. 1.

Property 1 If the input value is zero, then all

paths lead to the RETURN state and the variable

returned value is 1 for all future states.

We can establish that, in this case (value=0), all

paths only use END once and followed by the state

RETURN, and they do not use any other state. For

a small illustration, Fig 3 shows the LTL formula

we used in NuSMV to verify that in no more than 3

Kripke states, the LLFSM of Fig. 1 reaches the state

END from the Initial state. Similarly, with our current

compiler that generates Kripke structures, we can use

NuSMV to establish that if the input value is greater

than zero, then the states executed are those on the

path and in the path’s sequence shown by the model.

However, the new loadSuspended offers a non-

blocking execution, much more general than the

vanilla invocation of a sub-routine with the semantics

for recursion of an invocation stack. In traditional,

imperative languages, the invocation of a subroutine

blocks the calling code at the point of invocation un-

til the subroutine terminates and returns. We demon-

strate the additional versatility of a non-blocking call

in the following examples.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

366

Initial

VrepHexapodMotion a_motion = hexapod_motion->get();

VrepHexapodLegMotion legMotion =

VrepHexapodLegMotion(V_REP_HEXAPOD_RAISE);

a_motion.set_theLegMotions(legMotion , I_am );

hexapod_motion->post(a_motion);

On Entry

On Exit

Internal

RAISE_LEG

VrepHexapodMotion a_motion = hexapod_motion->get();

VrepHexapodLegMotion legMotion =

VrepHexapodLegMotion(V_REP_HEXAPOD_LEVEL);

a_motion.set_theLegMotions(legMotion , I_am );

hexapod_motion->post(a_motion);

On Entry

On Exit

Internal

LEVEL_LEG

VrepHexapodMotion a_motion = hexapod_motion->get();

VRepHexapodMotionCommand a_move =

(V_REP_HEXAPOD_WALK== spin_vs_walk) ?

reverse_move(I_am,direction) :

((V_REP_HEXAPOD_SPIN_BODY_COUNTER_CLOCKWISE== spin_vs_walk) ?

V_REP_HEXAPOD_CLOCKWISE : V_REP_HEXAPOD_COUNTER_CLOCKWISE );

VrepHexapodLegMotion legMotion = VrepHexapodLegMotion(a_move);

a_motion.set_theLegMotions(legMotion , I_am );

hexapod_motion->post(a_motion);

On Entry

On Exit

Internal

PUSH_OPPOSITE_DIRECTION

after_ms(FREQUENCY)&&0!=I_am%2

after_ms(FREQUENCY)&&0==I_am%2

after_ms(FREQUENCY)

VrepHexapodMotion a_motion = hexapod_motion->get();

VRepHexapodMotionCommand a_move =

(V_REP_HEXAPOD_WALK== spin_vs_walk)?

move(I_am,direction):

((V_REP_HEXAPOD_SPIN_BODY_COUNTER_CLOCKWISE== spin_vs_walk) ?

V_REP_HEXAPOD_COUNTER_CLOCKWISE :

V_REP_HEXAPOD_CLOCKWISE);

VrepHexapodLegMotion legMotion = VrepHexapodLegMotion(a_move);

a_motion.set_theLegMotions(legMotion , I_am );

hexapod_motion->post(a_motion);

On Entry

On Exit

Internal

SPIN_INTO_DIRECTION_OF_MOVEMENT

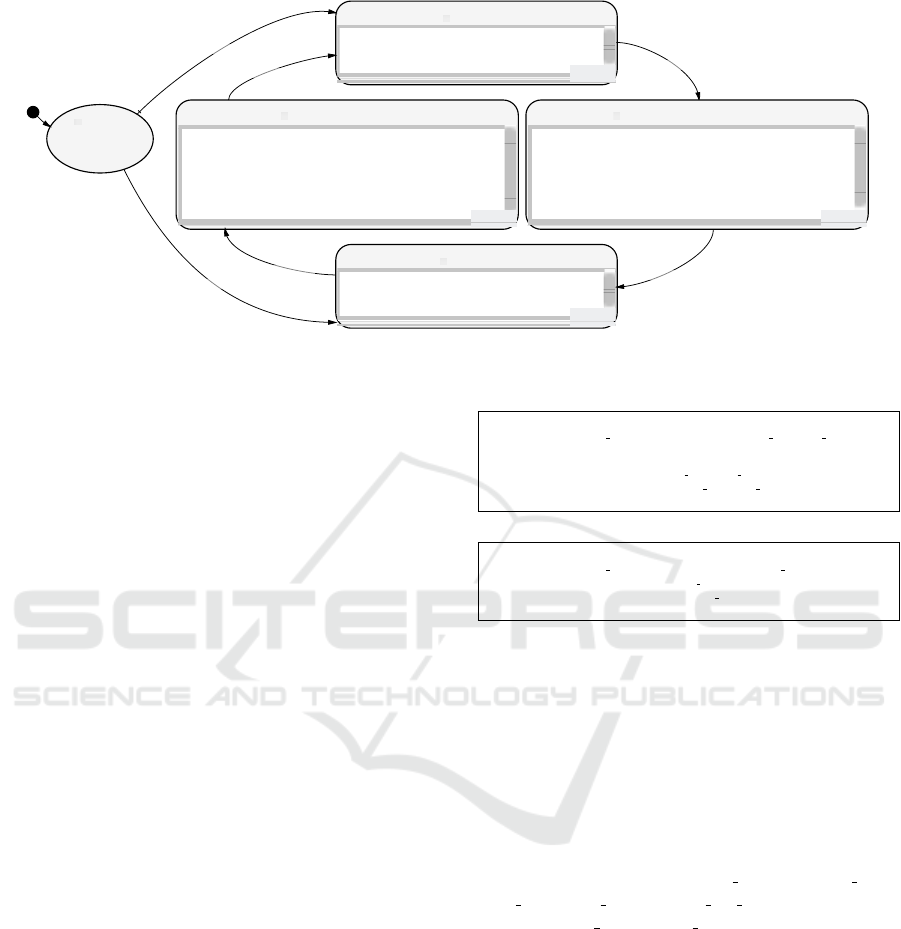

Figure 4: Executable model (as a parameterised LLFSM) for each leg of an n-legged robots. We can compose the walking

gait at any direction and also the spinning (clockwise or counter-clockwise) gait.

2.1 Hexapod Walk

We alluded earlier to the capacity to achieve scalabil-

ity using MDSE on modular robots. The gaits’ rhyth-

mic motion for an hexapod is a good example of the

generality of the behaviour model for legs. Although

our illustrations are for 6 legs, but they are applica-

ble to an arbitrary number of n legs placed around the

center of mass of the robot. In particular, when all

the legs are placed equidistant from the center of the

robot as if they were on a regular n-gon, it is easy to

imagine the gait that spins the robot clockwise. First,

the even numbered legs raise In the second stage, odd

legs use their body joint to push the robot clockwise

as they actually do a counter-clockwise turn of the

body joint. Simultaneously, the even legs are raised

and turn clockwise, advancing in the direction of the

spin. The third phase lowers the even legs while rais-

ing the odd legs and roles are reversed between these

groups of legs. In the fourth phase, it is now the legs

on the ground (the even legs) that push the body by

rotating counter-clockwise, while the raised ones (the

odd ones) rotate clockwise. An equivalent gait for

counter-clockwise rotation would simply reverse the

direction of joint rotations.

How does the robot walk in a particular orienta-

tion? Once more, the fundamental movement uses

the same four-stage leg movement. But, as opposed

to spinning, legs are now partitioned into two sides.

Those on the left will be performing motions to spin

clockwise, while those on the right of the center line

of motion will spin counter-clockwise. The robot will

walk because odd legs and even legs will have a phase

shift of two stages. So the robot will ‘row’ in the di-

rection of motion with even legs pushing back on the

ground, while the odd legs are raised and move for-

LTLSPEC

G(pc=OnEntry(LEVEL LEG) -> X( pc=OnEntry(PUSH OPPOSITE DIRECTION)

)

| X( X( pc=OnEntry(PUSH OPPOSITE DIRECTION) ) )

| X( X( X( pc=OnEntry(PUSH OPPOSITE DIRECTION) ) ) )

)

(a) NuSMV for state that follows.

LTLSPEC

G(pc=OnEntry(LEVEL LEG) -> X( pc!=OnEntry(RAISE LEG) )

| X( X( pc!=OnEntry(RAISE LEG) ) )

| X( X( X( pc!=OnEntry(RAISE LEG) ) ) )

)

(b) NuSMV for a section of a state that does not follow.

Figure 5: NuSMV coding of Property 2 and of Property 3 for

the executable LLFSM in Fig. 4.

ward, again, with the odd group of legs replaced by

the even in their role of pushing or advancing.

There are many more possible gaits. The point

we are illustrating is that linear and rotational leg

movements can be modelled as the fundamental

parameterised motion. Fig. 4 shows the fundamental

four states of a leg, RAISE LEG, LEVEL LEG,

SPIN AGAINST DIRECTION OF MOVEMENT, as

well as PUSH OPPOSITE DIRECTION. However,

deciding what is a push motion when the leg is down

or what is rotating back the leg when the leg is up

depends on three factors: (1) whether the hexapod is

walking or spinning, (2) whether this particular leg

is to the left or right of the direction of movement;

and (3) if we are spinning, then whether the motion

is a clockwise or counter-clockwise spin. Finally,

the phase of a leg motion depends on whether it

is an odd numbered leg or an even numbered leg.

Fig. 4 shows the parameterised executable LLFSM

for the motion of a leg. The motion starts raising

a leg or levelling a leg according to the group of

the leg (even or odd). From there on, all legs loop

through the same four states, and adjust the move

Veriﬁable Parameterised Behaviour Models - For Robotic and Embedded Systems

367

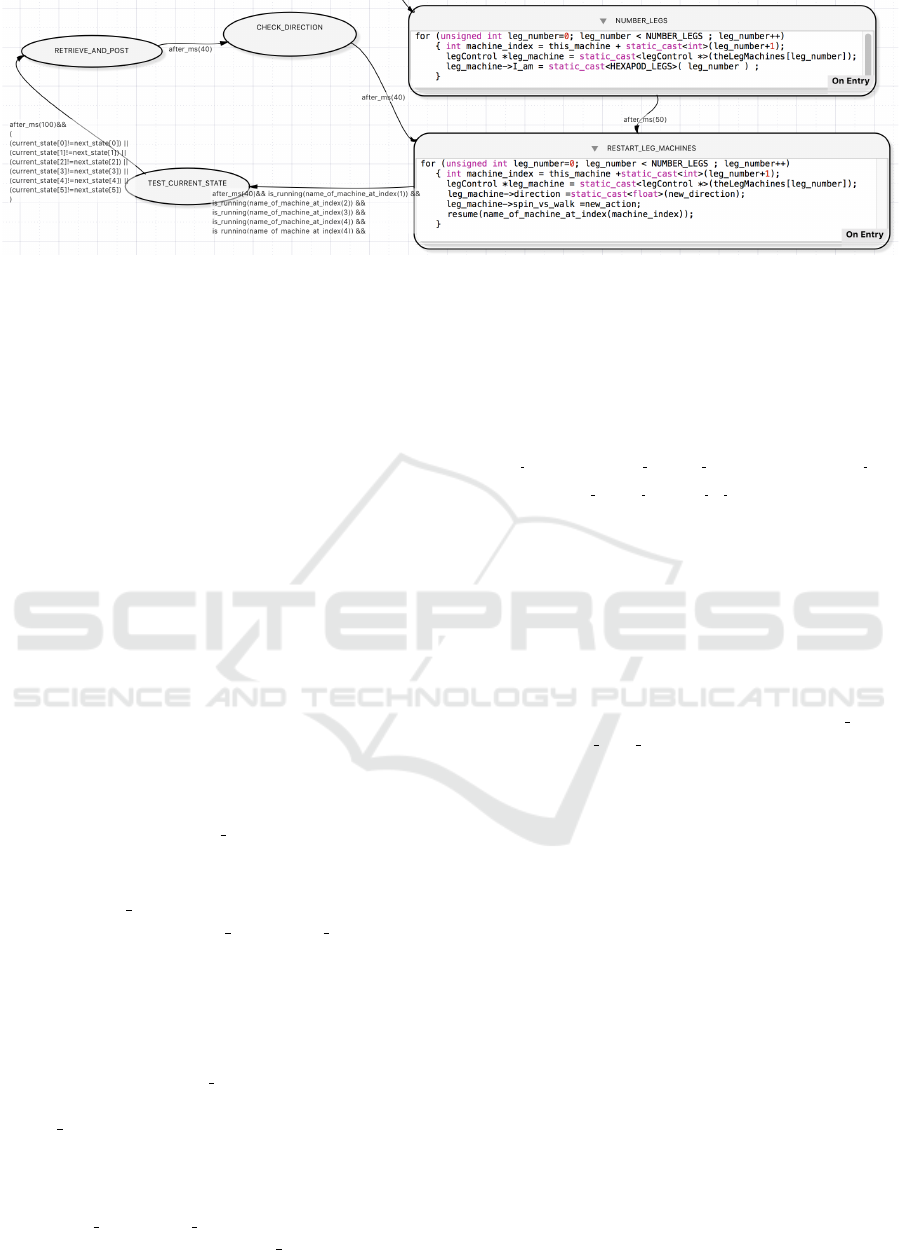

Figure 6: Section of the LLFSM that numbers the legs and sets the parameters based on the new action (and new direction)

the driver of the hexapod wants to take. All LLFSMs are then invoked concurrently (non-blocking).

when the leg is down or up according to the described

calculation. A video of a hexapod driven around

an area with spinning and walking can be seen at

https://youtu.be/60FgjRvZqsc. The parame-

terised LLFSM in Fig. 4 are launched as concurrent,

non-blocking calls with the corresponding parame-

ters. That is, the behaviour that conforms to the gait

in the case of the Hexapod invokes six instances of

Fig. 4 with the appropriate parameters.

2.2 Formal Veriﬁcation of the

Executable Model

Formal veriﬁcation of the behaviour for all legs in

Fig. 4 (which is an executable model) can be per-

formed with standard tools. Recall that the LLFSM

compiler derives the Kripke structure from the exe-

cutable model (Estivill-Castro and Hexel, 2013) as in-

put to NuSMV. We can readily verify that each state

is necessarily followed by the corresponding state

shown in Fig.4 and no other state before that. For ex-

ample, for the state LEVEL LEG, Fig. 5(a) shows the

LTL expression for the following property.

Property 2 It is globally true that, after the OnEntry

of state LEVEL LEG, in the next 3 Kripke states the

OnEntry of the state PUSH OPPOSITE DIRECTION

is executed.

Also, we need to show that no other part of any

other state is executed. A particular case is the fol-

lowing property.

Property 3 It is globally true that, after the

OnEntry of state LEVEL LEG happens, none of the

next 3 Kripke states are the OnEntry of the state

RAISE LEG.

Fig. 5(b) shows the NuSMV for Property 3. To com-

pletely verify the model, we would need a similar

property for every section of every other state besides

state PUSH OPPOSITE DIRECTION. And, of course,

for every state other than LEVEL LEG, the exercise

would require an analogue to Property 2, and all the

analogous LTL expressions to Property 3. However,

the point is that, with our tools, we can formally ver-

ify that, after initialisation, the states of the executable

LLFSM in Fig. 4 belong to the regular language

(LEVEL LEG PUSH OPPOSITE DITECTION RAISE LEG

SPIN AGAINST DIRECTION OF MOVEMENT)

2.3 Run-time Veriﬁcation of the

Executable Model

As the purpose of this example was to show the ﬂex-

ible non-blocking invocation of parameterised LLF-

SMs, we only show the most relevant states of the

controller LLFSMs that enable driving around of the

hexapod as illustrated in the video mentioned earlier.

Setting of parameters is shown in NUMBER LEGS

and RESTART LEG MACHINES, where the former

state assigns a number to each invoked LLFSM

(Fig. 6) and the latter actually performs the non-

blocking invocation.

However, since each LLFSM for the legs is

launched separately, there is a need to ensure syn-

chronisation. That is, the driver LLFSM needs to

check that all launched LLFSMs are running and then

synchronise them, before reading a new action (and

new direction) from the driver. For example, all even

legs (and similarly, all odd legs) must be in the same

state. This veriﬁcation is rather different from the

veriﬁcation performed with NuSMV earlier. In theory,

one could write the corresponding temporal logic for-

mula, but this would be particularly laborious. There-

fore, we illustrate the virtue by presenting an LLFSM

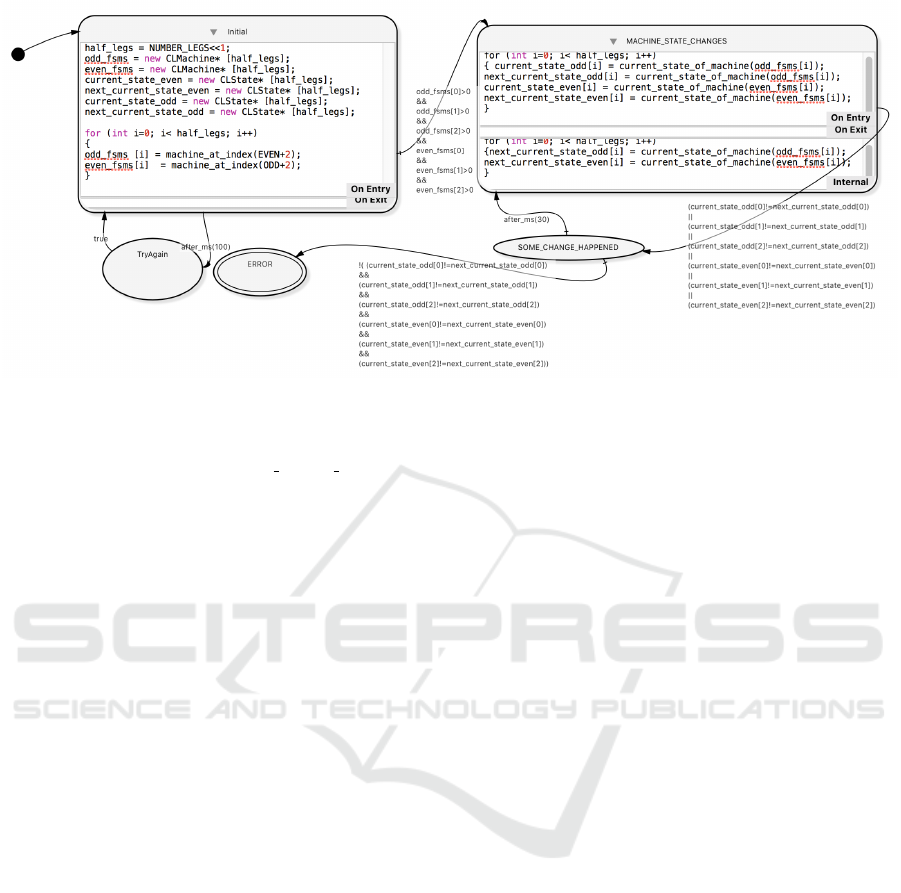

that veriﬁes this aspect at run-time. The new mon-

itoring LLFSM will watch the state changes of the

six instances of LLFSMs for the hexapod. Recall that

all these are instances of the LLFSMof Fig 4, with

common parameters for the action (walking vs spin-

ning), but with a different leg number. The monitor-

ing LLFSM (different from the controlling LLFSM)

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

368

Figure 7: A monitoring LLFSM that inspects the states of the instances in Fig. 4 and checks the leg groups.

is shown in Fig. 7. The important aspect to notice is

that the transition from MACHINE STATE CHANGES

happens if any of the six LLFSMs has a state change

(the transition is whether the ﬁrst, second, or third

odd-labelled leg LLFSM has a state change or the

ﬁrst, second, or third even-labelled LLFSM has a state

change). In case not all machines involved had a state

change, the transition to the ERROR state ﬁres. This

is also the virtue of LLFSMs’ deterministic sched-

ule, as all LLFSMs in the arrangement are guaran-

teed to receive the execution token before the moni-

toring LLFSM in Fig. 7 executes again. All LLFSMs

are executing concurrently, and despite non-blocking

calls that re-launched the leg controllers, synchroni-

sation is achieved without requiring explicit coordina-

tion (as required with open concurrency, e.g., through

semaphores, monitors, or other explicit synchronisa-

tion mechanisms that often render formal veriﬁcation

impossible (Estivill-Castro and Hexel, 2013)). The

monitoring LLFSM in Fig. 7 is not necessary to con-

trol the hexapod. We use it for validation and in-

corporate it as part of a suitable software architec-

ture (Estivill-Castro and Hexel, 2016).

3 FUNCTIONAL

DECOMPOSITION

Functional decomposition is a major technique in

software design (Aggarwal and Simgh, 2008). Al-

gorithmic decomposition is a necessary part of

object-oriented analysis and design (Booch, 1994).

Functional decomposition is naturally used for

algorithmic-based system, where a problem is decom-

posed, broken into subproblems, whose solution is

then integrated into a ﬁnal solution. This approach

to problem-solving and algorithm creation is exempli-

ﬁed by divide and conquer (Cormen et al., 2009). Any

algorithm is fundamentally built from sequencing, se-

lection, and iteration of earlier deﬁned algorithms (re-

call Structured Diagrams from Jackson’s Structured

Programming). The process of building abstractions

as subroutines is regularly practiced to build even

more sophisticated functions. We now illustrate that

our proposed parameterised behaviours act as build-

ing blocks of more sophisticated behaviour.

The example we chose is from the RoboCup Stan-

dard Platform League (http://spl.robocup.org), in par-

ticular, the entire soccer player behaviour, follow-

ing a top-down design. The behaviour must, at the

top level, maintain a few states, named Initial, Set,

Ready, Play, and Penalised. Sufﬁce it to say that

the top behaviour therefore implements these states

as an LLFSM with corresponding transitions reacting

to the stimuli (e.g, UDP messages, a whistle, or even

buttons on the robot being pushed). Here, we focus

on the state of Ready, where a robot must reach a

legal position (usually its own half of the ﬁeld) be-

fore game resumes (after a goal has been scored or

the ﬁrst commencement of a period of play – see

https://youtu.be/6bzyf5fhTAQ). Thus, the state

of Ready is again broken down into sub-behaviours,

namely, to ﬁnd a landmark (a goal), and identify-

ing whether that landmark is in the opponent’s or the

player’s half. Finding a goal (if not visible) corre-

sponds to scanning using the head, and if that is not

enough, to spin the whole robot around a bit (on the

spot). However, if the goal is visible, we need two

sub-behaviours, one to track the visible object with

the head, and one to align the body to the object.

Behaviour models are naturally designed using

Veriﬁable Parameterised Behaviour Models - For Robotic and Embedded Systems

369

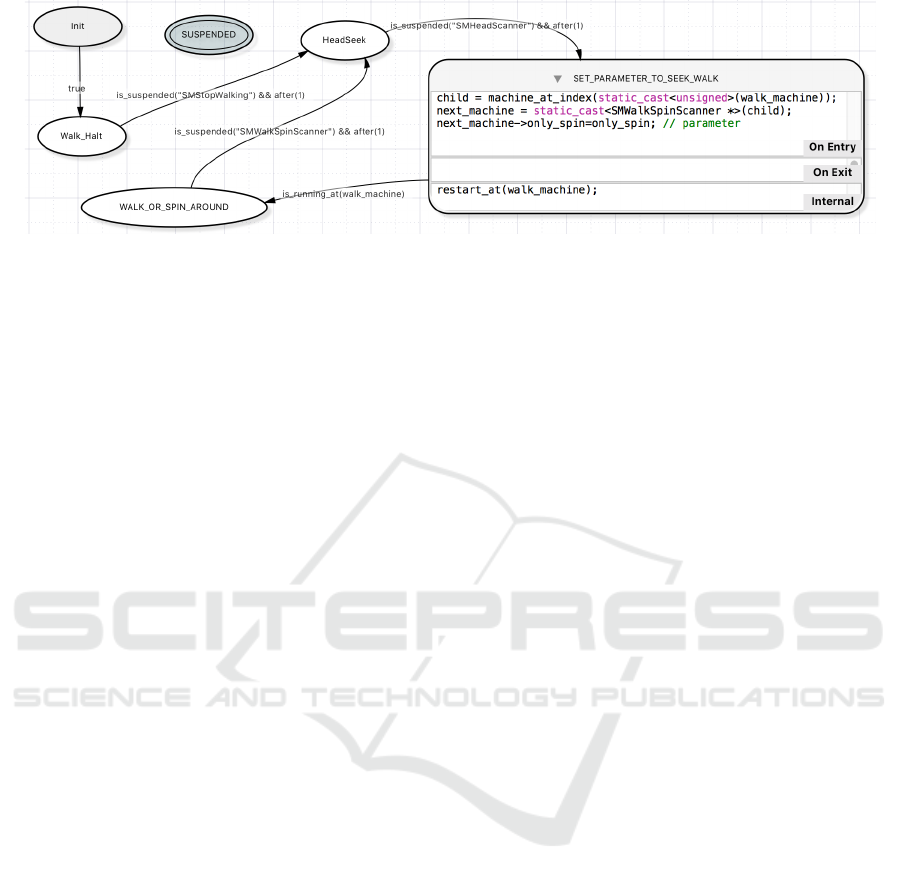

Figure 8: Behaviour searching for an object. A Boolean (formal) parameter controls whether to only spin on the spot or to

interleave a short walk. That parameter is passed along to a sub-behaviour to walk and/or spin.

functional decomposition. Figure 8 shows the land-

mark seeker LLFSM that was part of the behaviours

used by the MiPal team at RoboCup 2017 (Nagoya

Japan). Although functional decompositions are usu-

ally associated with Nassi-Shneiderman (NS) dia-

grams, or ﬂowcharts or an activity diagram in UML,

LLFSM models are entirely suitable, particularly be-

cause they form executable models.

Importantly, Figure 8 demonstrates a parame-

terised model. The behaviour to search for a land-

mark uses 3 sub-machines, one to halt the walk, one

to scan using the head, and one to walk about, try-

ing to identify an object. The latter can be invoked

using a parameter. When ﬁnding landmarks for the

super-behaviour for Ready, it is only suitable to spin

on the spot (the designated starting position for the

robot). However, when ﬁnding the ball during Play,

it is important to alternate with walking backwards or

forwards to avoid missing the ball in a “dead spot”.

Thus, Figure 8’s behaviour invokes its sub-behaviour,

with a Boolean parameter to only spin or not.

This illustrates that parameterisation enables re-

factoring of behaviours, enabling their re-use for ini-

tially distinct sub-tasks in the hierarchy of decom-

position. That is the Seek behaviour becomes a re-

usable structure. Re-factoring improves the quality

of the implementation (Fowler, 1999), ensuring that

the generality of the code is extracted, and thus regu-

larly used in all cases, leading to fewer potential faults

(e.g., through cut-and-paste). Moreover, a generic be-

haviour needs to be formally veriﬁed only once.

The other aspect we illustrate with this example

is the ﬂexibility of behaviour invocation as a non-

blocking call. Figure 9 shows the caller for Fig-

ure 8 that requests to focus on a goal. In fact, the

Seek behaviour generic, taking a parameter as to

what it is seeking for (a post, a ball, a goal, etc.).

This behaviour uses several sub-behaviours in addi-

tion to Seek. When the landmark is visible, two sub-

behaviours form what are essentially feedback-loop

controllers. The ﬁrst is a behaviour tracks the object

with the neck of the robot, keeping the target object

centred as much as possible in the camera’s ﬁeld of

view. The second sub-behaviour is a walk or spin,

that keeps the torso of the robot aligned with the ob-

ject (at the equilibrium point, the neck is centred look-

ing straight and the torso is also facing the target ob-

ject). The non-blocking nature of the invocation is ex-

ploited by the LLFSM in Figure 9 to abort the Seek

behaviour as soon as the landmark (or ball) becomes

visible. Similarly, if the landmark becomes invisible,

the sub-behaviours to track and follow the landmark

are aborted accordingly.

The SPL example illustrates the power of param-

eterised executable behaviours as LLFSMs. Sophis-

ticated, complex behaviours can be build bottom-up,

decoupled from an initial top-down design, thus al-

lowing re-factoring. While LLFSMs have a white-

board middleware as their default communication

mechanism, it is overkill to create communication

channels for every caller-callee pair, as that would re-

sult in many communication classes (or whiteboard

identiﬁers), specially if the same message is being

posted between several sender-receiver LLFSMs or

multiple instances of the same LLFSM. The white-

board is more suitable for a broadcast or knowledge

repository between individual components.

4 CONCLUSION

We showed the use of the loadSuspended capabil-

ity to create LLFSMs that can be invoked with pa-

rameters and enabling the construction of LLFSM-

sas recursive functions. As such, we believe we

have the only compiler for plans produced from new,

generic task planners. Moreover, we can generate

mechanisms for formal veriﬁcation for all aspects of

the LLFSM semantics, including the loadSuspended

function. Also, our LLFSMs can themselves be used

to build monitoring LLFSMs for runtime veriﬁcation.

This enables the generation of high level, executable

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

370

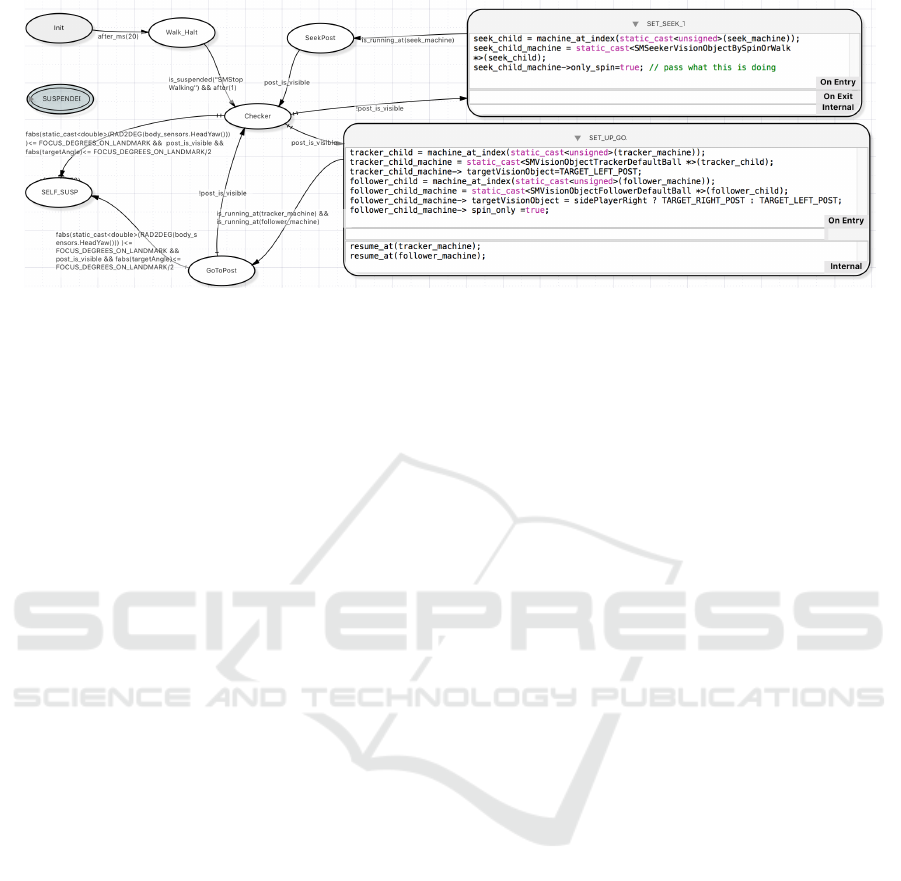

Figure 9: Behaviour as an LLFSM that follows and object, using Figure 8 when the object becomes invisible and two

sub-behaviours (invoked with suitable actual parameters) to track a visible object with the head and body.

behaviour models for robotic and embedded systems

that are modular and encapsulate design complexity.

REFERENCES

Aggarwal, K. K. and Simgh, Y. (2008). Software Engineer-

ing. New Age International, 3rd edition.

Arney, D., Fischmeister, S., Lee, I., Takashima, Y.,

and Yim, M. (2010). Model-based programming

of modular robots. 2010 13th IEEE Int. Symp.

Object/Component/Service-Oriented Real-Time Dis-

tributed Computing, p. 66–74.

Booch, G. (1994). Object-oriented Analysis and Design.

Benjamin/Cummings, Redwood Cita, CA, 2nd ed.

Brooks, R. (1986). A robust layered control system for

a mobile robot. IEEE J. Robotics and Automation,

2(1):14–23.

Brooks, R. (1990). The behavior language; user’s guide.

Tech. Rep. AIM-1227, MIT, AI Lab Pubs, Dep. of

Electronics and Computer Science.

Cormen, T. H., Leiserson, C. E., Rivest, R. L., and Stein, C.

(2009). Introduction to Algorithms. MIT Press.

Estivill-Castro, V. and Hexel, R. (2013). Arrangements

of ﬁnite-state machines semantics, simulation, and

model checking. Int. Conf. Model-Driven Engi-

neering and Software Development MODELSWARD,

p. 182–189, Barcelona, SciTePress.

Estivill-Castro, V. and Hexel, R. (2013). Module isola-

tion for efﬁcient model checking and its application to

FMEA in model-driven engineering. ENASE 2013 -

8th Int. Conf. Evaluation of Novel Approaches to Soft-

ware Engineering, p. 218–225. SciTePress.

Estivill-Castro, V. and Hexel, R. (2016). Run-time veri-

ﬁcation of regularly expressed behavioral properties

in robotic systems with logic-labeled ﬁnite state ma-

chines. 2016 IEEE 5th Int. Conf. on Simulation, Mod-

eling, and Programming for Autonomous Robots -

SIMPAR, p. 281–288.

Fowler, M. (1999). Refactoring: Improving the Design of

Existing Code. Addison-Wesley, Boston, MA, USA.

Harel, D. and Naamad, A. (1996). The STATEMATE se-

mantics of statecharts. ACM T. Software Engineering

Methodology, 5(4):293–333.

Harel, D. and Politi, M. (1998). Modeling Reactive Sys-

tems with Statecharts: The STATEMATE Approach.

McGraw-Hill.

Huang, G.-D., Cai, L.-Z., and Wang, F. (2009). LTL model

checking for recursive programs. Automated Technol-

ogy for Veriﬁcation and Analysis: 7th International

Symposium, ATVA, p. 382–396, Berlin. Springer.

Kopetz, H. (1993). Should responsive systems be event-

triggered or time-triggered? IEICE T. Information and

Systems, 76(11):1325.

Lamport, L. (1984). Using time instead of timeout for fault-

tolerant distributed systems. ACM Trans. Program.

Lang. Syst., 6(2):254–280.

Mataric, M. (1992). Integration of representation into goal-

driven behavior-based robots. IEEE T. Robotics and

Automation, 8(3):304 –312.

Nilsson, N. J. (2001). Teleo-reactive programs and the

triple-tower architecture. Electron. Trans. Artif. In-

tell., 5(B):99–110.

Rosenschein, S. J. and Kaelbling, L. P. (1995). A situated

view of representation and control. Artif. Intell., 73(1-

2):149–173.

Segovia-Aguas, J., Jim

enez, S., and Jonsson, A. (2016). Hi-

erarchical ﬁnite state controllers for generalized plan-

ning. 25th Int. Joint Conference on Artiﬁcial Intelli-

gence, IJCAI’16, p. 3235–3241. AAAI Press.

Wand, M. (1980). Induction, Recursion and Programming.

Elsevier Science, NY, USA.

Veriﬁable Parameterised Behaviour Models - For Robotic and Embedded Systems

371
