How to Break CaptchaStar

Thomas Gougeon and Patrick Lacharme

Normandie Universite, ENSICAEN-UNICAEN-CNRS, GREYC UMR 6072, France

Keywords:

CAPTCHA.

Abstract:

Most of web sites adopt a Captcha system to distinguish malicious software from humans. This paper proposes

an attack on a recent interactive image-based Captcha scheme, called CaptchaStar. The CaptchaStar was

designed to be more secure and user friendly than existing solutions, however, as we show in this paper, it fails

to meet these goals Nevertheless, the presented attack is very efﬁcient, with a success rate for the attacker of

96% on the on-line version proposed by the authors. Moreover, the modiﬁcation of CaptchaStar parameters

(as noise addition) does not prevent our attack.

1 INTRODUCTION

CAPTCHAs

(Completely Automated Public Turing

test to tell Computers and Humans Aparts) are sys-

tems used on the Internet to differentiate between hu-

man and software (von Ahn et al., 2003) (the term

Turing Test comes from (Turing, 1950)). These tests

should be easily implementable, easy to solve for a

human and hard for a computer program. Captchas

are well known to the general public because most of

Internet giants, as Google, Microsoft or Amazon, use

them for the creation of a free account, as protective

measure against malicious bot systems. In all cases,

users are asked to provide some response to a chal-

lenge proposed by the web site, in order to access the

service. Captchas have considerably changed over the

years, because most of these schemes were proved not

secure, in the sense that it was possible for a software

to solve the proposed challenge (a lot of techniques

have also been developed to break these Captchas).

Nevertheless, even if most of Captcha schemes are

broken, these systems are still considered to be rel-

evant, useful and continue to be used in practice by a

lot of service providers (Thomas et al., 2013).

The design of Captcha systems should take into

account several parameters, particularly the success

rate and the usability. In this paper the success rate

is considered by default from the attacker’s perspec-

tive, as the proportion of Captchas that an automatic

method is able to answer correctly. For example, a

rate of 0.01% is suggested as acceptable in (Chel-

lapilla et al., 2005; Yan and Ahmad, 2007b), but an

higher rate between 0.6% and 1% is considered as

For readability reasons, this acronym will be now writ-

ten in lowercase.

more realistic in (Zhu et al., 2010; Bursztein et al.,

2011b). This rate is obviously linked to the success

rate of a genuine human, proposed at 90% in (Chel-

lapilla et al., 2005; Yan and Ahmad, 2007b). Nev-

ertheless, in most case this last rate is often hard

to reach, particularly in the case of audio Captcha

(Bursztein et al., 2010) (but this aspect is not related

to this paper). A second parameter is the time to solve

the Captcha: the attack should not be slower than a

human response. In (Rui and Liu, 2004; Bursztein

et al., 2011b), it is suggested that human should be

able to provide a response within 30s.

CaptchaStar is a new image-based Captcha (shape

discovery) proposed at ACNS 2016 by M. Conti, C.

Guarisco and R. Spolaor in (Conti et al., 2016a). Each

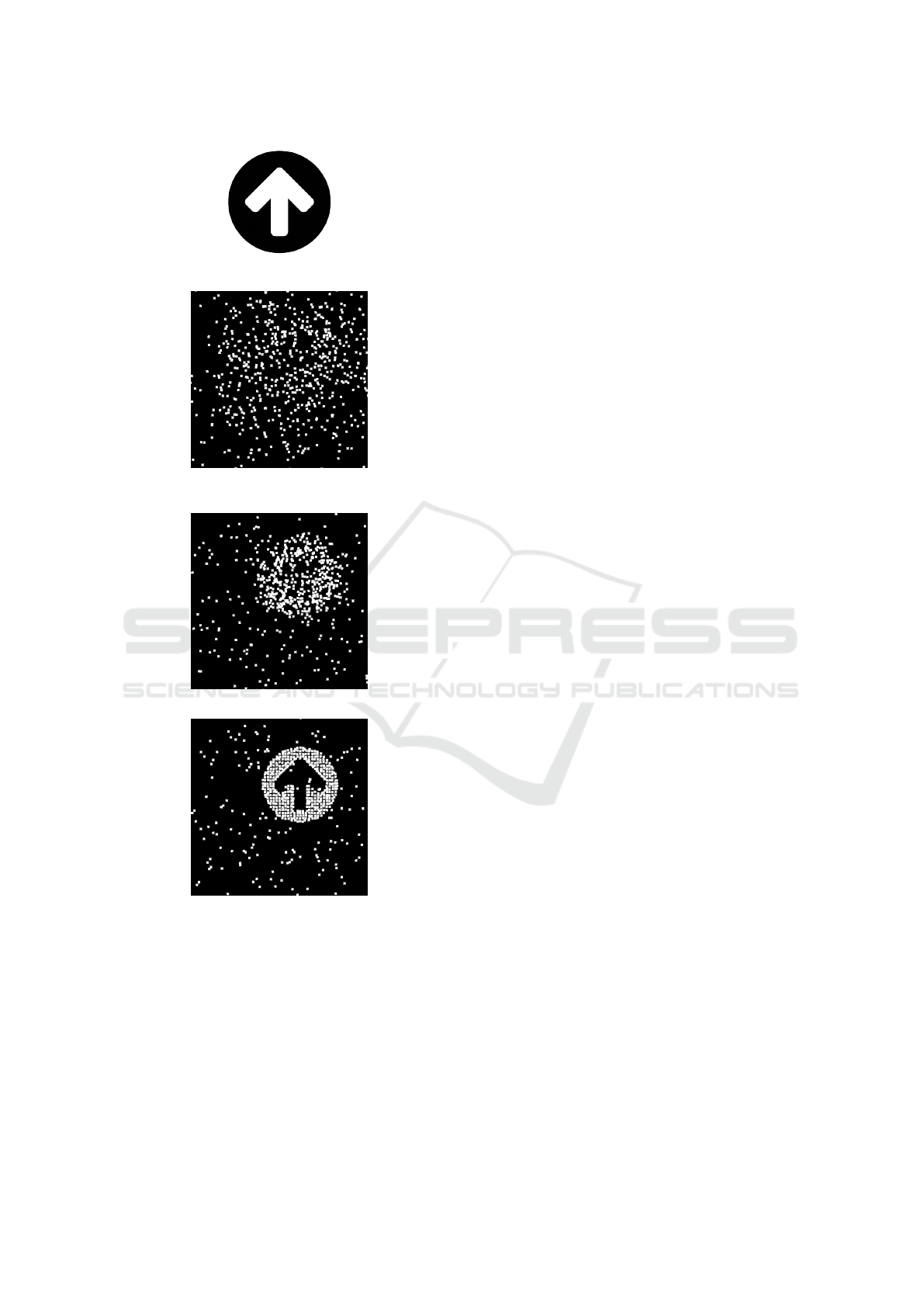

image of this Captcha is composed of stars, that are

small groups of white pixels. At the beginning a win-

dow with random stars is generated, then these stars

are moved in interaction with the mouse of the user. A

shape (formed of most of stars) appears on the screen

if the mouse is close to the correct place. In this

case the user is asked to click and the position of the

mouse is sent to the server. A demo is available on the

web site of CaptchaStar: (Conti et al., 2016b). This

Captcha is presented by the authors as user-friendly,

secure and suitable for mobile applications.

CaptchaStar is clearly a novel and elegant type of

Captcha, but the security of the scheme is not as ro-

bust as presented by authors. This paper presents an

extremely efﬁcient attack on the proposed implemen-

tation of CaptchaStar, with a success rate of 96%. The

proposed attack is only based on the concentration of

pixels during the formation of the image. Simulat-

ing different positions of the mouse on the screen,

it automatically determines an approximation of the

Gougeon, T. and Lacharme, P.

How to Break CaptchaStar.

DOI: 10.5220/0006577600410051

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 41-51

ISBN: 978-989-758-282-0

solution. Improvements, limits, and corrections of

CaptchaStar (with modiﬁed parameters) are discussed

at the end of the paper.

This paper is organised as follows, Section 2

presents the state of the art on previous attacks re-

alised on various types of Captcha. Section 3 presents

the new system CaptchaStar and Section 4 describes

the attack on this system. Finally, Section 5 proposes

a discussion on possible improvements in this type of

Captcha (with modiﬁed parameters).

2 STATE OF THE ART ON

CAPTCHAS

There exist several types of Captcha, from the classi-

cal text-based system where an user is asked to read a

distorted word (originally embedded in a 2D image)

to other various systems, based for example on im-

age recognition, combined with some questions. If

these distorted text-images are sophisticated, they are

not easily recognisable by a machine, but an human

should be able to read them, without much effort.

2.1 Text-based Captchas

Text-based Captchas are simple to understand for a

large public and are used in most of applications since

ﬁfteen years (Baird et al., 2003). They are easily

implementable, with various designs, as for exam-

ple the old Yahoo’s Captcha Gimpy and Ez-Gimpy

described in (Mori and Malik, 2003). One of the

most used text-based captcha system, is reCaptcha

(von Ahn et al., 2008), where users are asked to

read scanned words from books (helping to digitise

old printed material), combined with a second sim-

ply distorted word. This system was later acquired by

Google (in 2009) (von Ahn, 2009) (with several at-

tacks as in (Goodfellow et al., 2013)) and was recently

replaced by new mechanisms (including noCaptcha),

as described and recently attacked in (Sivakorn et al.,

2016). More sophisticated text-based Captchas have

been proposed, as for example hollow Captchas, 3D

text-based Captchas or animated text-based Captchas

(as NuCaptcha (Xu et al., 2012)).

The ﬁrst attack on text-based Captchas was pro-

posed by Mori and Malik in 2003 (Mori and Ma-

lik, 2003). This attack works with matching using

shape context of characters and a database of image

of known objects. The success rate was 92% on EZ-

Gimpy (a single word) and 33% on Gimpy (three

words in an image). The following year, Chellapilla

and Simard use machine learning techniques (and

segmentation) to break six other text-based Captchas

(Chellapilla and Simard, 2004). It includes Captchas

used by Ticketmaster, Yahoo V2 and Google/Gmail,

with success rates of 45.7% for Yahoo V2 and 4.9%

for Google.

Yan and El Ahmad broke a large set of text-based

Captchas using very simple techniques (as the pixel

count by letters), or more evaluated techniques in sev-

eral papers (Yan and Ahmad, 2007a; Yan and Ah-

mad, 2007b; Yan and Ahmad, 2009; Ahmad et al.,

2011). For example, success rates on (old) Microsoft

Captcha, Megaupload or reCaptcha are between 33%

and 90%. This last work improved the success rate of

previous attacks on Recaptcha, where the success rate

was between 10% and 31% (Wilkins, 2009). More re-

cent contributions on text-based Captchas attacks in-

clude the attack of Bursztein et al. (based on SVM

and KNN classiﬁers) on several Captcha systems with

variable success rates (from 0% to 93%) (Bursztein

et al., 2014a), the attack of Gao et al. on hollow

Captchas with success rates between 36% and 89%

(Gao et al., 2013). Finally, an attack on text-based

Captchas, using Gabor ﬁlters, has been recently pro-

posed in (Gao et al., 2016), with a success rate be-

tween 5% and 77% in less of 15 second on a standard

computer on various Captchas as the new version of

reCaptcha (described in (Bursztein et al., 2014b) and

currently widely used by Facebook, Google, Youtube,

Linkedin and Twitter).

An alternative to simple text-based Captchas are

3D text-based Captchas, but these systems are also

vulnerable to attacks (Nguyen et al., 2012; Nguyen

et al., 2014). Finally, the robustness of animated text-

based Captchas, as proposed in (Kluever and Zanibbi,

2009; Cui et al., 2010) is investigated in (Xu et al.,

2012). All the mentioned attacks are not described

because the Captcha system attacked in this paper

is not a text-based Captcha and consequently, there

are no direct links between them and the following

of this paper. A good survey on these Captchas can

be found in (Basso and Bergadano, 2010; Bursztein

et al., 2011b).

2.2 Image-based Captchas and Variants

The failure of secure text-based Captchas encouraged

the design of other types of Captcha, as proposed by

(Chew and Tygar, 2004) in 2004. In this case, the user

is asked to link a word with an image (with variations

in different schemes). Nevertheless, most of them

were not more secure than previous schemes. One of

most known image-based scheme is Asirra (Animal

Species Image Recognition for Restricting Access),

described in (Elson et al., 2007) and also deﬁned as an

HIP (Human Interactive Proof). In this system, users

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

are asked to identify dogs and cats in a set of random

images. Nevertheless, the system was not secure and

Asirra has been closed by Microsoft in 2014. The im-

age database should be (very) large and the number of

possible responses, related to the image(s) should be

sufﬁciently high, in order to avoid a random response.

Most of the ﬁrst generation of image-based

Captchas were simply vulnerable to random guess-

ing attacks, because there was only a limited num-

ber of possible response to the challenge. In 2008,

Golle proposed an attack on the image-based Captcha

Asirra, using a machine learning technique (more pre-

cisely a SVM classiﬁcation) with a success rate of

10% (Golle, 2008) (an other study on cat head de-

tection provides success rates of 90% (Zhang et al.,

2008)). Others image-based Captchas were proposed

as Imagination (Datta et al., 2005) and ARTiFACIAL

(Rui and Liu, 2004), but they were attacked in (Zhu

et al., 2010) with other image-based Captchas. Au-

thors propose a new scheme, called CORTCHA, ro-

bust to their attacks, but the generation of the chal-

lenge takes 122 seconds on a standard PC. Two

new (and independent) schemes, both called Deep-

Captcha, are proposed in (Nejati et al., 2014; Osad-

chy et al., 2016) using deep learning (there are no di-

rect link between these schemes). To the best of our

knowledge, there are no attacks against the two last

schemes. Finally a recent attack on the image-based

reCaptcha and the image-based Facebook Captcha

gives success rates of 70 and 83% respectively.

Audio Captchas have been proposed as (Shirali-

Shahreza and Shirali-Shahreza, 2008), because they

are useful for people visually impaired. However,

they are difﬁcult for a non-English speaker. Attacks

on audio Captcha can be found in (Tam et al., 2008;

Bursztein and Bethard, 2009; Bursztein et al., 2011a),

where the conclusion is a total failure of these sys-

tems. Game Captchas are analysed in depth in (Mo-

hamed et al., 2014b). Finally another scheme, called

Captcha as graphical passwords (CaGP), is proposed

in (Zhu et al., 2014). All these systems are also far off

the analysed Captcha of this paper.

These alternatives are useful, because classical

text-based Captcha seems not entirely adapted to

smartphone applications (for usability reasons as the

screen size or environmental conditions). For exam-

ple the NuCaptcha scheme provides better success

rates for smarpthone users in the evaluation of (Rey-

naga and Chiasson, 2013).

Another type of attack, called relay attacks (or in-

direct attacks), requires an external human to solve

the Captcha. Relay attacks are possible on many

type of Captcha and are completely different to the

previous automated attacks. These attacks are not

negligible because some service providers propose to

solve a large number of Captcha for very low price

(Motoyama et al., 2010). The objective of interac-

tive Captcha is the mitigation (and/or the detection)

of these attacks, as presented in the case of a game

Captcha in (Mohamed et al., 2014a). This scheme

is based on a drag-and-drop system between two

sets of objects. Finally, a text-based Captcha, called

icaptcha (Truong et al., 2011), was also designed to

mitigate relay attacks with a timing analysis between

interactions, based on a sequence of mouse clicks.

3 CAPTCHASTAR

This section presents CaptchaStar (Conti et al.,

2016a), a recent image-based Captcha that relies on

user interaction. A demo of the Captcha is available

online (Conti et al., 2016b). CaptchaStar authors ar-

gued that their solution is better than other Captchas

from the literature in terms of resiliency against auto-

mated attacks and usability.

The challenge presented by CaptchaStar is a pixel

grid 300 × 300 with a black background containing

randomly positioned stars. A star corresponds to a

white square 5 × 5. Moving the mouse cursor changes

the position of the stars. In order to solve the chal-

lenge, the user has to move the cursor until he is able

to recognise a shape. Only one position of the cursor

leads to reconstruct perfectly the shape, this position

is kept secret from the user and it is the solution of

the challenge. When the cursor is far away from the

solution, the stars seem to be displayed randomly, but

approaching the solution, the stars aggregate. Once

the user is conﬁdent that its cursor is correctly po-

sitioned, he clicks to submit its answer. Then, the

server compares the submitted cursor position to the

solution, and if they are close enough the user is con-

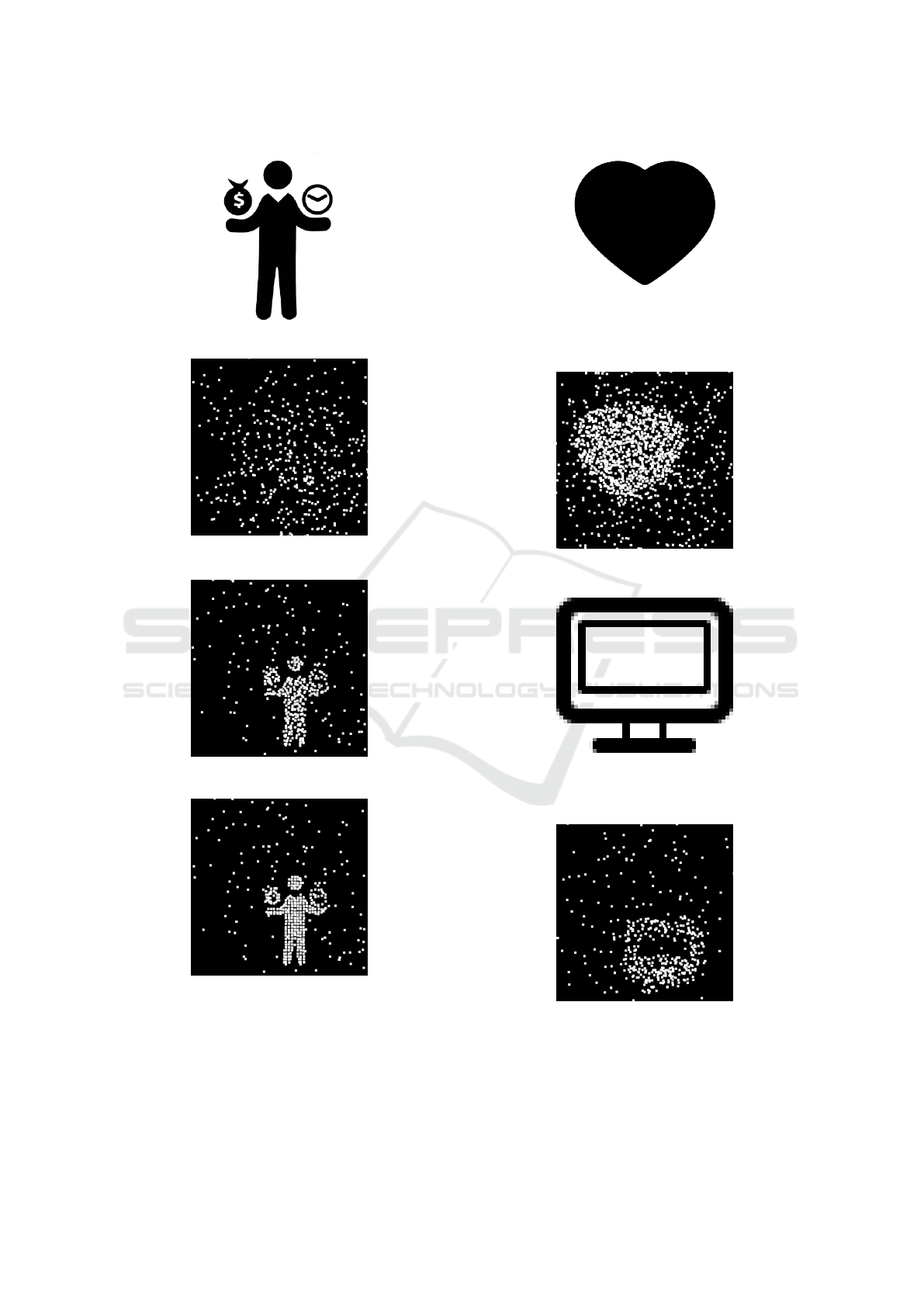

sidered as a human. Figure 1 presents the process of

solving a CaptchaStar challenge. Figure 1(a) is not

known by the user, it is used by the server to generate

the challenge.

The shape is created with a randomly picked

image from a pool using a sampling algorithm.

CaptchaStar authors use a pool of 5, 000 2-color

icons. The sampling algorithm decomposes the im-

age into stars. The generated stars are then randomly

positioned to be displayed on the grid. In addition to

the stars generated by the sampling algorithm, some

noisy stars are randomly added to prevent automated

attacks. The usability and the security of the chal-

lenge can be tuned adjusting some parameters values.

These parameters include the noise (ψ) deﬁning the

percentage of added stars, the sensitivity(δ) represent-

How to Break CaptchaStar

(a) A random starting picture.

(b) A sample unsolved chal-

lenge.

(d) A correctly solved chal-

lenge.

Figure 1: The process of solving a CaptchaStar challenge.

ing the relationship between the cursor movement and

the movement of each star, the number of possible so-

lutions (NSol) representing the number of shapes hid-

den in the Captcha, the rotation indicates whether the

picture is rotated by a random degree or not, and the

usability tolerance α representing the maximum dis-

tance allowed between the answer and the solution to

be considered as a human.

After picking randomly a picture, the sampling

algorithm generates a set of n stars from the ﬁgure,

S =



,1 ≤ i ≤ n



. Each star s

is deﬁned by a pair of

coordinates





. The sampling also generates the

original coordinates P





for each star s

. In

addition to the stars belonging to the shape, there are

ψ × n noisy stars that are generated with random co-

ordinates. The solution of the challenge is deﬁned by

a pair of coordinates sol = (sol

,sol

) where each co-

ordinate is picked randomly in the range [5,295], thus

the solution is never too close of the edges of the grid.

Moreover, the coordinates solution are generated in-

dependently to the ﬁgure. Two challenges generated

with the same ﬁgure, will have a different solution.

The position (i.e. coordinates) of s

changes with

the cursor position (cur = (cur

,cur

)). It is com-

puted using P

, cur, and some coefﬁcients picked ran-

domly for each star. The exact computation of the

trajectory of stars is not detailed here because it is not

directly used in our attack (it depends also of the sen-

sitivity parameter). When the user clicks on the grid,

the current cursor position, ans = (ans

,ans

), is sub-

mitted to the system. Then, the server computes the

euclidean distance ∆ between the answer and the solu-

tion. The distance ∆ is then compared to a threshold α

representing the usability tolerance. When ∆ is lower

(resp. greater) than α the challenge is solved (resp.

failed). The value α = 5 is proposed in the original

paper.

3.1 Resiliency to Automated Attacks

CaptchaStar authors claimed that their solution

showed promising results against all the studied at-

tacks, comparable or even better than the state of the

art.

CaptchaStar defeats classic attacks as indirect at-

tacks, database exhaustion or leak of database, ran-

dom choice, and pure relay attacks. Only the stream

relay attacks that is the more powerful one, is a real

threat to this Captcha, but it is difﬁcult to set up

The authors also investigated the resiliency of

their Captcha against machine learning. The best pa-

rameters for their machine learning technique lead to

a success rate of 78.1% with a computation time of

421 seconds.

CaptchaStar authors also proposed some heuris-

tics to automatically solve the Captcha, e.g. looking

at the dispersion of the stars or the distance between

the most distant stars. The faster heuristic leads to less

than 1% of success rate with a computing time greater

than 60 seconds, and the best heuristic in term of suc-

cess rate is 1.92% with a computing time of 1, 500

seconds.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

Recalling that a human solves the challenge in an

average time of 23.1 seconds with a success rate of

91.0%.

4 A NEW AUTOMATED ATTACK

AGAINST CAPTCHASTAR

This section presents the proposed ad-hoc attack

against CaptchaStar. First, the heuristic of the attack

is described. Second, the attack principle is detailed.

Then, experiments together with the results are given.

Finally, some information about the implementation

are mentioned.

4.1 Heuristic of the Attack

MaxConcentration: Looking at the Figure 1, one

can remark that, when the challenge is unsolved the

stars are dispersed on the whole grid. When the cursor

is near the solution the stars aggregate and when the

cursor is at the coordinates of the solution, the stars

are totally aggregated to reform the shape. At this

position, the only dispersed stars represent the noise

(because NSol = 1 in this ﬁgure). As a consequence,

the proposed attack looks at the stars concentration

in given areas. The heuristic aims to maximise the

concentration of the stars into a part of the grid.

More precisely, given a state S

, the grid is sepa-

rated in a set T

of squared tiles of `× ` pixels. In this

case, the pixels of each tile t are deﬁned by t

i, j

with

1 ≤ i, j ≤ ` and they assume 0 and 1 values for black

and white colors. For each tile t

belonging to T

, a

score is computed. This score represents the number

of white pixels of the tile, and is computed as follows:

score(t

) =

∑

i=0

∑

j=0

i, j

Then, let

be a vector containing all the scores

score(t

) for t

in T

sorted with descending order.

Then, the ﬁnal score of the state S

is computed by

summing up the n

max

ﬁrst values of

, as follows:

maxConcentration(k) =

max

∑

i=0

Parameters value of ` and n

max

are discussed in

the next section. For example, given a state, using

parameters value ` = 10 and n

max

= 20, the heuristic

computes the number of white pixels in each 10 × 10

tiles of the grid, and the heuristic adds the 20 largest

scores.

4.2 The Attack

The proposed attack uses the previous heuristic as fol-

lows. First, the different states of the challenge are ob-

tained by moving the cursor position. Then, for each

state, a score is computed using an heuristic. Finally,

the position that leads to the best score is submitted as

the solution of the challenge.

More precisely, the attack is composed of two

steps, the ﬁrst phase determines an approximate po-

sition for the solution by looking at a sub-part of the

possible states. The second phase, looking at all the

states around the approximate solution, aims to de-

termine the exact position of the solution. The two

phases use the heuristic maxConcentration to com-

pute the scores. The objective of this separation in

two steps is the reduction of the execution time.

During the ﬁrst phase, the scores are not computed

for all the 84, 100 possible states but only for n

them, with n

< 84, 100. More precisely, the grid is

split in a set of n

squared tiles and each tile center is

used as coordinates k to generate the n

states S

. The

ﬁrst part of the attack returns the coordinates c

the state S

leading to the maximum score among the

states. It represents an approximation of the chal-

lenge solution. Then, the second phase considers the

coordinates c

as a the center of a tile of size `

× `

A score is computed using the heuristic maxConcen-

tration for all the states generated by the `

× `

co-

ordinates of the tile. Table 1 presents the parameters

value used for the attack, their choice is discussed in

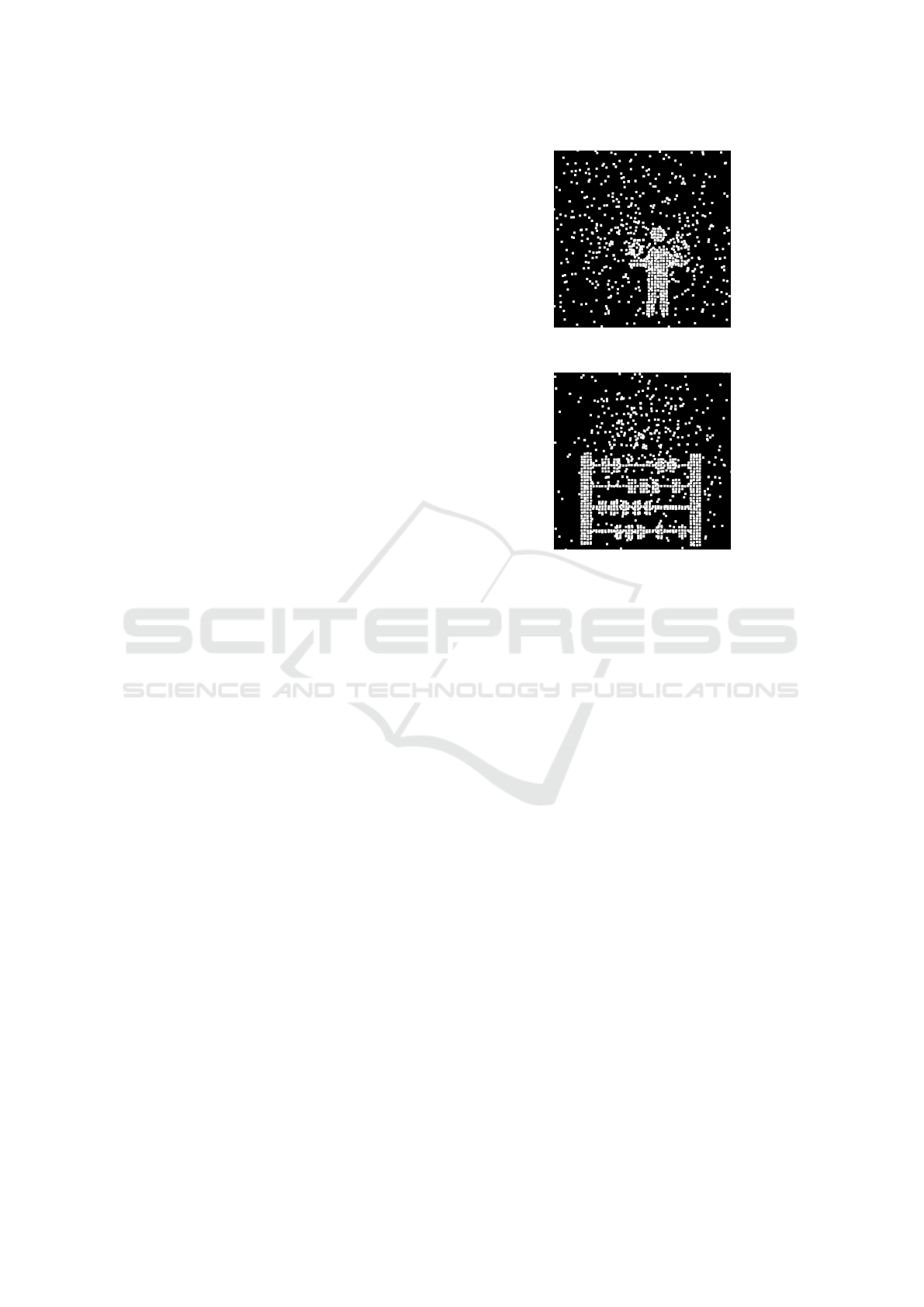

the next section. Figure 2 shows the result after the

ﬁrst phase and after the second phase on one exam-

ple.

Table 1: Parameters value of the attack.

Parameters ` n

max

Value 10 20 2,500 20

4.3 Experiments

CaptchaStar authors propose 6 sets of parameters, as

presented in Table 2.

In the demo version, we expected the parameters

value for the noise, the sensitivity, the number of pos-

sible solutions, and rotation used to be those of T

, but

it seems that the rotation is not implemented. Actu-

ally, there are two versions of the paper, (Conti et al.,

2016a) and another available on arxiv (Conti et al.,

2015). (Conti et al., 2016a) obtains better success

rate for T

parameters and the one available on arxiv

obtains better success rate for T

parameters. The

only difference between T

and T

is the use of the

How to Break CaptchaStar

Table 2: Parameters proposed by the authors.

Test T

ψ 0% 70% 70% 10% 0% 250%

δ 5 7 7 7 10 5

NSol 1 1 1 2 3 1

Rate (%) 77.0 87.1 91.0 46.4 82.7 75.5

Time (s) 15.0 18.8 23.1 59.5 32.8 31.1

rotation. As a consequence, we suppose that on the

demo version the parameters used are T

Applying the proposed attack on the CaptchaS-

tar demo website proposed by the authors, leads to

a success rate of 96% with an execution time lower

than 12 seconds per Captcha. These results are ob-

tained by executing the JavaScript code of the attack

with Chromium 51.0.2704.79 on Ubuntu 14.04 (64-

bit). The attack was executed on 1,000 challenges.

Recalling that, having more than 1% of success rate

is sufﬁcient to consider a Captcha as broken. One

can note that, the obtained success rate by the auto-

mated attack is greater than the one obtained by the

user study (91%), and the execution time of the attack

is lower than the solving time of a human (≈ 20s) for

The few challenges resisting to the proposed at-

tack are those containing ﬁgure with an important

amount of stars or ﬁgures with a blank zone. Only

few cases of these ﬁgures lead to a failure. Figure 3

shows two challenges resisting to the proposed attack.

The solution found by the attack is near from the so-

lution of the challenge. We assume that, optimising

the parameters, the attack will be successful against

these challenges.

4.4 Attack Implementation

The grid uses a Canvas, an HTML5 object, from this

object it is easy to extract the RGBA values for each

pixel using JavaScript. Pixels are black or white, so

using the RGBA values it is easy to transform it into

a matrix of 0 and 1. When the cursor moves, the

stars position are updated on the client side, with a

JavaScript code. Therefore, it is possible to move the

stars with a program using JavaScript calls. The chal-

lenge generation and veriﬁcation are done with a PHP

script on the server side.

There is no guarantee that the parameters (`, n

max

, and `

) used for our attack are optimal. It is ex-

plained by two reasons. First, for a sake of simplicity,

we have run our experiments using JavaScript but the

execution time is not optimal with this language. In-

creasing the value of `

and n

increases the accuracy

of the attack, and so the success rate, but also the ex-

ecution time. Using another programming language,

as the C language, and make the computation of the

scores in parallel, can strongly reduce the execution

time. There exists, some solution as Selenium driver,

to interact between JavaScript and other languages.

Second, tuning the parameters gives only the best suc-

cess rate for one implementation of CaptchaStar. Op-

timal parameters of the attack clearly depend on pa-

rameters of CaptchaStar implementation. The objec-

tive is to demonstrate that CaptchaStar is not ready

for real use, by establishing a proof of concept of the

attack.

Finally, in an optimal version of the attack, the

parameters could be chosen dynamically depending

the number of stars of the challenge.

5 DISCUSSION ON SECURITY

The discussion is divided in two parts, the ﬁrst one

discusses about the parameters of the implementation

of CaptchaStar, the second one discusses about other

countermeasures that can be added to the Captcha

scheme.

5.1 Modifying Parameters of

CaptchaStar

The success rate of 96% of the previous section has

been achieved on the implementation of CaptchaS-

tar available on the website of the authors of (Conti

et al., 2016a). Nevertheless, ﬁve parameters are pro-

posed by the authors: the noise (ψ, percentage of

noisy stars), the sensitivity (δ, relationship between

the mouse cursor and the stars movement), the num-

ber of possible solutions (NSol), and the rotation (a

random degree of rotation). This section investigates

the security of this Captcha scheme, independently to

the proposed implementation. Clearly, the proposed

attack is not affected by the rotation.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

(a) A random starting picture.

(b) A sample unsolved chal-

lenge.

the attack.

(d) State after the second phase

of the attack.

Figure 2: The process of attacking a CaptchaStar challenge.

5.1.1 Noise

Addition of noise is not really problematic for the

proposed attack. Figure 4(a) shows the attack re-

(a) Figure not recognised by

the attack, containing an impor-

tant amount of pixels.

(b) Wrong solution found by

the attack.

the attack, containing a blank

area.

(d) Wrong solution found by

the attack.

Figure 3: The process of attacking a CaptchaStar challenge.

sult on the same original image than the Figure 2,

but with a noise of 200%. Tests T

and T

have the

How to Break CaptchaStar

same parameters, excepted a noise percentage of 70%

against 250% and a lower sensitivity. T

provides a

lower success rate for the user than T

(75.5% against

87.1%) but the difference is not really high (see Ta-

ble 2). We have run the attack on 100 samples on the

demo version of CaptchaStar, adding noisy stars up to

200% to each challenge. The obtained success rate is

91%, it is lower than the success rate obtained with

70% noise, but only 5% lower. As discussed previ-

ously, the attack parameters could be tuned to obtain

a better success rate. Nevertheless, 91% is still a high

success rate.

We remarked that the generated stars representing

the noise are not always displayed on the grid, due to

their coordinates when moving the cursor. A modiﬁ-

cation of the noise generation can increase the difﬁ-

culty by generating only visible stars. This modiﬁca-

tion also increases the difﬁculty for a human.

5.1.2 Sensitivity

Increasing the sensitivity increases the movement am-

plitude of the stars when moving the mouse cursor.

We assume that it does not inﬂuence a lot our heuris-

tic because it does not change the number of stars dis-

played on the grid. It modiﬁes the concentration of

pixels when the cursor is near the solution because

the stars will aggregate faster or slower depending the

value of the sensitivity. Nevertheless, we assume that

by optimising the parameters value of the attack, the

sensitivity does not reduce a lot the success rate of the

attack.

5.1.3 Number of Possible Solutions

Hiding several ﬁgures into the Captcha is not re-

ally problematic for the proposed attack. Figure 4(b)

shows the attack result on a challenge containing 2

hidden ﬁgures. One ﬁgure is correctly retrieved even

if there are two ﬁgures hidden in the challenge. We

have run the attack on 100 samples on the demo ver-

sion of CaptchaStar hiding a second ﬁgure in each

challenge. We deﬁne a success when one of the two

ﬁgures is retrieved by the attack. The obtained suc-

cess rate is 94%, it is only 2% lower than the success

rate with one ﬁgure. As we have run the experiments

with only 100 samples, the obtained success rate is

less accurate. Nevertheless, hiding a second ﬁgure

does not prevent the attack.

Once the ﬁrst ﬁgure is retrieved by the attack, the

second ﬁgure can be retrieved by ignoring the position

near the ﬁrst solution, and so on if there are more than

two hidden ﬁgures. For a genuine user, increasing the

number of hidden ﬁgures, reduces the success rate and

increases signiﬁcantly the solving time. For example,

(a) Implementation with

ψ = 200%.

(b) Implementation with

NSol = 2 and ψ = 70%.

Figure 4: Executing CaptchaStar attack with other parame-

ters.

the success rate falls from 90% to 50% between tests

and T

with the same parameters excepted a lower

noise and a second image hidden in T

(see Table 2).

5.2 Other Countermeasures

5.2.1 Solver Behaviour

As mentioned by the CaptchaStar authors, an auto-

mated attack can be detected by analysing the move-

ment of the mouse cursor during the challenge solv-

ing. Nevertheless, it seems that this countermeasure

is difﬁcult to set up. Characterising the human solv-

ing is such a hard task because each human will solve

differently the challenge by creating its own heuristic.

The proposed attack needs only n

states for the

ﬁrst phase, the attack can simulate mouse cursor

movements on the whole grid, capturing only the

states that are needed for the attack. Execution time

increases when a score is computed for a state, not

when the cursor moves. Moreover, the order of cap-

turing the states can be randomised, and random cur-

sor movements can be added not to be systematic.

The captured states, can be near the center of the tiles

in order not to be detected by systematically reach

the center tiles, and the parameters values of the at-

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

tack can vary a little between each attack to not be

detected.

The second phase needs `

× `

states that are near

the approximate solution, found by the ﬁrst phase.

Random movements can be simulated around this ap-

proximate solution, and only needed states can be

captured to compute the scores. Another possible be-

haviour can be to artiﬁcially draw ellipses, circles or

squares, etc. with the simulated cursor around the ap-

proximate solution. We assume that these behaviours

are not far away from a human behaviour when a gen-

uine user is near the solution.

5.2.2 Recognise the Shape

The proposed attack is only able to detect that there

is a shape. As a consequence, CaptchaStar can hide

more than one image in the Captcha, for example a

human and a dog. Then, the Captcha asks the user

to retrieve the image representing a human. If the

user retrieves the dog, he must not click. The pro-

posed attack is not able to detect if the shape is a

dog or a human, then it will submit the ﬁrst shape

discovered. Nevertheless, this countermeasure leads

to a success rate of 50% by always selecting the ﬁrst

shape detected (assuming that solving CaptchaStar is

near 100% success rate). Moreover, machine learning

obtains good results on image recognition (Simonyan

and Zisserman, 2014) and can be used to defeat this

countermeasure.

6 CONCLUSION

This paper presents an automated ad-hoc attack

against CaptchaStar, a recent image-based Captcha.

Although CaptchaStar seemed to be promising in

terms of usability and resiliency the proposed attack

defeats it completely. The proposed attack reaches

a success rate of 96%, in less than 12 seconds per

Captcha. Consequently, it solves the Captcha better

than a human according to success rate and computa-

tion time.

Establishing countermeasures in order to prevent

this attack seems to be a difﬁcult task. The Captcha

needs to profoundly change as the attack targets its

core. A possible countermeasure would be a combi-

nation of CaptchaStar with an entirely different sec-

ond system.

REFERENCES

Ahmad, A. S. E., Yan, J., and Tayara, M. (2011). The ro-

bustness of google captchas. Technical Report.

Baird, H. S., Coates, A. L., and Fateman, R. J. (2003). Pes-

simalprint: a reverse turing test. International Journal

on Document Analysis and Recognition, 5(2-3):158–

163.

Basso, A. and Bergadano, F. (2010). Anti-bot strategies

based on human interactive proofs. In Handbook of

Information and Communication Security, pages 273–

291.

Bursztein, E., Aigrain, J., Moscicki, A., and Mitchell, J. C.

(2014a). The end is nigh: Generic solving of text-

based captchas. In USENIX Workshop on Offensive

Technologies (WOOT).

Bursztein, E., Beauxis, R., Paskov, H. S., Perito, D., Fabry,

C., and Mitchell, J. C. (2011a). The failure of noise-

based non-continuous audio captchas. In IEEE Sym-

posium on Security and Privacy (S&P), pages 19–31.

Bursztein, E. and Bethard, S. (2009). Decaptcha: breaking

75% of ebay audio captchas. In USENIX Coference

on Offensive Technologies.

Bursztein, E., Bethard, S., Fabry, C., Mitchell, J. C., and

Jurafsky, D. (2010). How good are humans at solving

captchas? a large scale evaluation. In IEEE Sympo-

sium on Security and Privacy (S&P), pages 399–413.

Bursztein, E., Martin, M., and Mitchell, J. (2011b). Text-

based captcha strengths and weaknesses. In ACM

Conference on Computer and Communications Secu-

rity (CCS), pages 125–138.

Bursztein, E., Moscicki, A., Fabry, C., Bethard, S.,

Mitchell, J. C., and Jurafsky, D. (2014b). Easy does it:

more usable captchas. In Conference on Human Fac-

tors in Computing Systems (CHI), pages 2637–2646.

Chellapilla, K., Larson, K., Simard, P. Y., and Czerwin-

ski, M. (2005). Building segmentation based human-

friendly human interaction proofs (hips). In Workshop

on Human Interactive Proofs (HIP), pages 1–26.

Chellapilla, K. and Simard, P. Y. (2004). Using machine

learning to break visual human interaction proofs

(hips). In Neural Information Processing Systems

(NIPS), pages 265–272.

Chew, M. and Tygar, J. D. (2004). Image recognition

captchas. In International Information Security Con-

ference (ISC), pages 268–279.

Conti, M., Guarisco, C., and Spolaor, R. (2015). Captchas-

tar! a novel captcha based on interactive shape discov-

ery. arXiv preprint arXiv:1503.00561.

Conti, M., Guarisco, C., and Spolaor, R. (2016a). Captchas-

tar! a novel captcha based on interactive shape discov-

ery. In Applied Cryptography and Network Security

(ACNS), pages 611–628.

Conti, M., Guarisco, C., and Spolaor, R. (2016b). Captchas-

tar demo. http://captchastar.math.unipd.it/demo.php.

Cui, J.-S., Mei, J.-T., Zhang, W.-Z., Wang, X., and Zhang,

D. (2010). A captcha implementation based on mov-

ing objects recognition problem. In IEEE Interna-

tional Conference on E-Business and E-Government

(ICEE), pages 1277–1280.

How to Break CaptchaStar

Datta, R., Li, J., and Wang, J. Z. (2005). Imagination: a ro-

bust image-based captcha generation system. In ACM

International Conference on Multimedia, pages 331–

334.

Elson, J., Douceur, J. R., Howell, J., and Saul, J. (2007).

Asirra: a captcha that exploits interest-aligned manual

image categorization. In ACM Conference on Com-

puter and Communications Security (CCS), pages

366–374.

Gao, H., Wang, W., Qi, J., Wang, X., Liu, X., and Yan, J.

(2013). The robustness of hollow captchas. In ACM

Conference on Computer and Communications Secu-

rity (CCS), pages 1075–1086.

Gao, H., Yan, J., Cao, F., Zhang, Z., Lei, L., Tang, M.,

Zhang, P., Zhou, X., Wang, X., and Li, J. (2016). A

simple generic attack on text captchas. In Network

and Distributed System Security Symposium, (NDSS).

Golle, P. (2008). Machine learning attacks against the asirra

captcha. In ACM Conference on Computer and com-

munications security (CCS), pages 535–542.

Goodfellow, I. J., Bulatov, Y., Ibarz, J., Arnoud, S., and

Shet, V. D. (2013). Multi-digit number recognition

from street view imagery using deep convolutional

neural networks. CoRR abs/1312.6082.

Kluever, K. A. and Zanibbi, R. (2009). Balancing usability

and security in a video captcha. In ACM Symposium

on Usable Privacy and Security (SOUPS).

Mohamed, M., Gao, S., Saxena, N., and Zhang, C. (2014a).

Dynamic cognitive game captcha usability and detec-

tion of streaming-based farming. In Workshop NDSS

on Usable Security (USEC).

Mohamed, M., Sachdeva, N., Georgescu, M., Gao, S., Sax-

ena, N., Zhang, C., Kumaraguru, P., van Oorschot,

P. C., and Chen, W.-B. (2014b). A three-way inves-

tigation of a game-captcha: automated attacks, relay

attacks and usability. In ACM Symposium on Informa-

tion, Computer and Communications Security (ASI-

ACCS), pages 195–206.

Mori, G. and Malik, J. (2003). Recognizing objects in ad-

versarial clutter: Breaking a visual captcha. In Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 133–144.

Motoyama, M., Levchenko, K., Kanich, C., McCoy, D.,

Voelker, G. M., and Savage, S. (2010). Re: Captchas-

understanding captcha-solving services in an eco-

nomic context. In USENIX Security Symposium, vol-

ume 10, pages 435–462.

Nejati, H., Cheung, N.-M., Sosa, R., and Koh, D. C.-I.

(2014). Deepcaptcha: an image captcha based on

depth perception. In ACM Multimedia Systems Con-

ference (MMSys), pages 81–90.

Nguyen, V. D., Chow, Y.-W., and Susilo, W. (2012). Break-

ing an animated captcha scheme. In Applied Cryptog-

raphy and Network Security (ACNS), pages 12–29.

Nguyen, V. D., Chow, Y.-W., and Susilo, W. (2014). On

the security of text-based 3d captchas. Computers &

Security, 45:84–99.

Osadchy, M., Hernandez-Castro, J., Gibson, S., Dunkel-

man, O., and Perez-Cabo, D. (2016). No bot expects

the deepcaptcha! introducing immutable adversarial

examples with applications to captcha. IACR Cryp-

tology ePrint Archive.

Reynaga, G. and Chiasson, S. (2013). The usability

of captchas on smartphones. In International Con-

ference on Security and Cryptography (SECRYPT),

pages 427–434.

Rui, Y. and Liu, Z. (2004). Artifacial: Automated reverse

turing test using facial features. Multimedia Systems,

9(6):493–502.

Shirali-Shahreza, S. and Shirali-Shahreza, M. (2008).

Captcha for children. In IEEE International Confer-

ence on System of Systems Engineering (SoSE), pages

1–6.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Sivakorn, S., Polakis, I., and Keromytis, A. D. (2016). I

am robot: (deep) learning to break semantic image

captchas. In IEEE European Symposium on Security

and Privacy (EuroS&P), pages 388–403.

Tam, J., Simsa, J., Hyde, S., and von Ahn, L. (2008). Break-

ing audio captchas. In Advances in Neural Informa-

tion Processing Systems (NIPS), pages 1625–1632.

Thomas, K., McCoy, D., Grier, C., Kolcz, A., and Paxson,

V. (2013). Trafﬁcking fraudulent accounts: the role of

the underground market in twitter spam and abuse. In

USENIX Security Symposium, pages 195–210.

Truong, H. D., Turner, C. F., and Zou, C. C. (2011).

icaptcha: The next generation of captcha designed

to defend against 3rd party human attacks. In IEEE

International Conference on Communications (ICC),

pages 1–6.

Turing, A. M. (1950). Computing machinery and intelli-

gence. Mind, 59(236):433–460.

von Ahn, L. (2009). Teaching computers to read: Google

acquires recaptcha. googleblogspot.

von Ahn, L., Blum, M., Hopper, N. J., and Langford, J.

(2003). Captcha: Using hard ai problems for security.

In International Conference on the Theory and Appli-

cations of Cryptographic Techniques (EUROCRYPT),

pages 294–311.

von Ahn, L., Maurer, B., McMillen, C., Abraham, D., and

Blum, M. (2008). recaptcha : Human-based character

recognition via web security measures. Science, 321.

Wilkins, J. (2009). Strong captcha guidelines. Technical

Report (v1.2).

Xu, Y., Reynaga, G., Chiasson, S., Frahm, J. M., Monrose,

F., and van Oorschot, P. C. (2012). Security and us-

ability challenges of moving-object captchas: Decod-

ing codewords in motion. In USENIX Security Sym-

posium, pages 49–64.

Yan, J. and Ahmad, A. S. E. (2007a). Breaking visual

captchas with naive pattern recognition algorithms. In

Annual Computer Security Applications Conference

(ACSAC), pages 279–291.

Yan, J. and Ahmad, A. S. E. (2007b). A low-cost attack on a

microsoft captcha. In ACM Conference on Computer

and communications security (CCS), pages 543–554.

Yan, J. and Ahmad, A. S. E. (2009). Captcha security: A

case study. IEEE Security & Privacy, 7(4):22–28.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

Zhang, W., Sun, J., and Tang, X. (2008). Cat head detection

- how to effectively exploit shape and texture features.

In ECCV, pages 802–816.

Zhu, B. B., Yan, J., Bao, G., Yang, M., and Xu, N. (2014).

Captcha as graphical passwords - a new security prim-

itive based on hard ai problems. IEEE Transactions on

Information Forensics and Security, 9(6):891–904.

Zhu, B. B., Yan, J., Li, Q., Yang, C., Liu, J., Xu, N.,

Yi, M., and Cai, K. (2010). Attacks and design

of image recognition captchas. In ACM Conference

on Computer and Communications Security (CCS),

pages 187–200.

How to Break CaptchaStar
