People Counting based on Kinect Depth Data

Rabah Iguernaissi, Djamal Merad and Pierre Drap

Aix-Marseille University, LSIS - UMR CNRS 7296, 163 Avenue of Luminy, 13288 Cedex 9, Marseille, France

Keywords:

People Counting, Depth Data, Intelligent Sensor, People Detection.

Abstract:

The people’s counting is one of the most important parts in the design of any system for behavioral analysis. It

is used to measure and manage people’s ﬂow within zones with restricted attendance. In this work, we propose

a counting strategy for counting the number of people entering and leaving a given closed area. Our counting

method is based on the use of depth map obtained from a Kinect sensor installed in a zenithal position with

respect to the motion direction. It is used to count the number of people crossing a virtual line of interest (LOI).

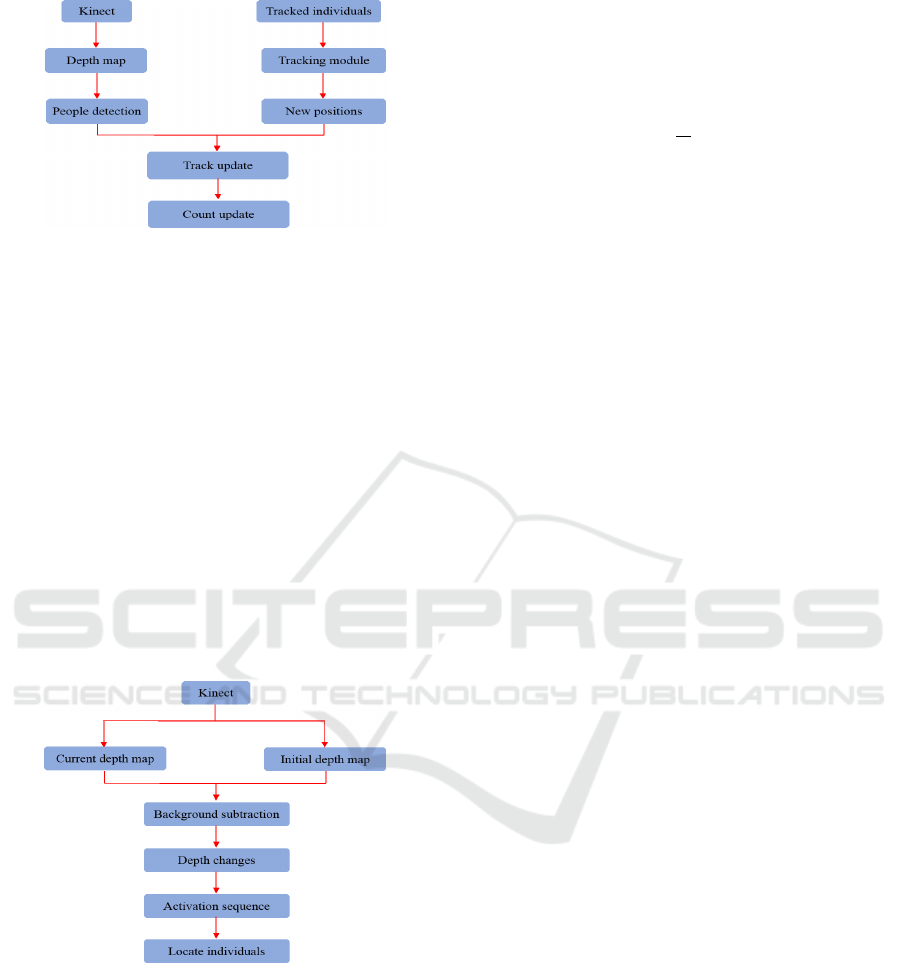

The proposed method is based on the use of two main modules a people detection module that is used to detect

individuals crossing the LOI and a tracking module that is used to track detected individuals to determine the

direction of their motions. The people detection is based on the design of a smart sensor that is used with both

the grayscale image that represents depth changes and the binary image that represents foreground objects

within the depth map to detect and localize individuals. Then, these individuals are tracked by the second

module to determine the direction of their motions.

1 INTRODUCTION

The study of people’s behavior is one of the most im-

portant purposes in the design of several computer vi-

sion applications. The design of such systems is gen-

erally motivated by either the automatization or the

improvement of some procedures that relay on human

operators. One of the most studied aspects is the de-

sign of automatic counting systems that are able to

either count the number of individuals present within

a region of interest (ROI systems) or the number of

individuals crossing a line of interest (LOI systems).

People’s counting systems are used to obtain in-

formation about people ﬂow in closed areas such as

stores, metros, and malls. These information may be

used for several purposes either statistical to improve

the monitoring of some areas such as stores by adapt-

ing the stuff during peak hours or for safety purpose

in surfaces with limited number of attendance by pro-

ducing a count that gives an alert whenever the maxi-

mal permitted number of individuals is reached.

In the last few years, many applications that in-

tegrate computer vision techniques were proposed to

realize an automatic counting system that is able to

count the number of individuals crossing a line of in-

terest based on the use of either classical RGB cam-

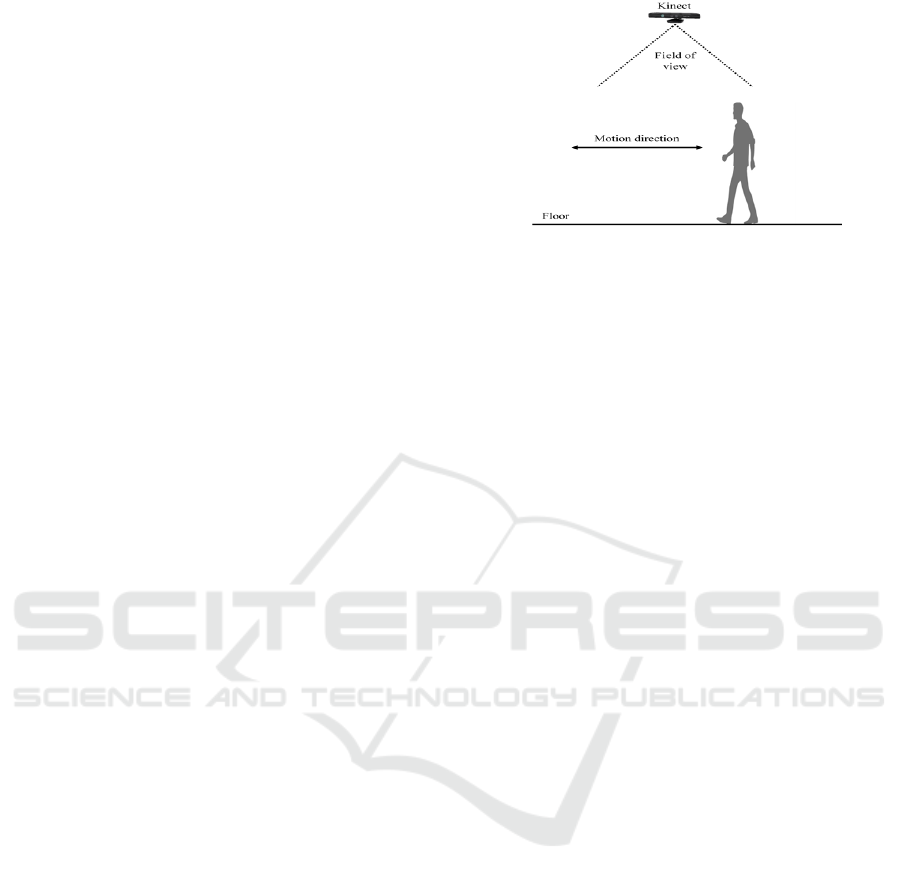

eras or depth sensors. In most works, the sensors are

installed in a zenithal position with respect to the mo-

tion direction to reduce the occurrence of occlusions.

In this work, our objective is the design of a count-

ing system that may be used to determine the num-

ber of customers entering or leaving a sale area. For

this, we proposed a system that uses depth map from

a Kinect sensor to count the number of individuals

crossing a virtual line of interest within the Kinect

ﬁeld of view and determine the direction of their mo-

tion to decide whether detected individuals are enter-

ing or leaving the store.

The rest of this paper is organized in three main

parts. The ﬁrst part is dedicated to the study of some

related works that were published in this ﬁeld. In the

second part, our counting strategy is presented and the

last section is dedicated to the presentation of some

results. This paper ends up with a conclusion.

2 RELATED WORKS

The counting of people is the basic part of any sys-

tem that is designed for crowd monitoring and atten-

dance control either for statistical, marketing, or secu-

rity purposes. Due to its importance many researches

were done in this ﬁeld. The main objective for all

these works is the proposal of algorithms that enable

the automatic counting of people either crossing a vir-

tual line or determining the number of people who are

present in the studied scene at given time.

364

Iguernaissi, R., Merad, D. and Drap, P.

People Counting based on Kinect Depth Data.

DOI: 10.5220/0006585703640370

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 364-370

ISBN: 978-989-758-276-9

Most proposed methods for pedestrians counting

are based on two main steps. The ﬁrst step is gener-

ally the people detection step which consists in detect-

ing moving objects and separating them into single

persons. This is done based on classical algorithms

for motion detection such as background subtraction

and a convenient segmentation strategy such as con-

nected component analysis, K means,.... The second

step is the tracking step in which detected individuals

are tracked either to determine the direction of motion

(entering or leaving a given surface) or just to avoid

recounting the same individual several time while he

is moving within the studied scene.

Depending on the counting objective the proposed

methods for people counting can be classiﬁed into

two main categories: The LOI counting methods and

the ROI counting methods. The LOI methods are

designed to estimate the number of people crossing

a virtual Line Of Interest (LOI) within the studied

scene. For this category we can mention (Ma and

Chan, 2013), (Del Pizzo et al., 2016), and (Cong et al.,

2009). The second category which are the ROI meth-

ods are designed for crowd estimation to estimate the

number of people present within a Region Of Interest

(ROI) in the studied scene at given time. For meth-

ods adopting this approach we may cite (Anti

c et al.,

2009), (Bondi et al., 2014).

One of the most used approaches for people’s

counting is based on motion analysis across a virtual

LOI to detect and count persons. In this approach, for

counting the number of people crossing a virtual LOI

in video stream Ma and Chan (Ma and Chan, 2013)

proposed a method that is based on integer program-

ming. The algorithm is designed to estimate the in-

stantaneous people’s count using local-level features

and regression. The proposed method is based on

constructing an image slice from the temporal slice

image where each column in the slice image corre-

sponds to the line of interest at given time t. Then, the

resulting region of interest is studied to detect blobs

that corresponds to crowd segment crossing the LOI

using local HOG features. Finally, the count of people

in each crowd segment is estimated by Bayesian Pois-

son regression. In contrast to this Cong et al. (Cong

et al., 2009) designed a method that is based on ﬂow

velocity ﬁeld estimation. In this algorithm the ﬁrst

step consists in detecting the velocity ﬁeld on the LOI

which is segmented according to the moving direc-

tion. Then, a dynamic mosaic is used to construct

blobs that in their turn will be used to estimate the

number of people based on regression on their area

and number of edges.

Another common approach consists in detecting

moving individuals or a part of their bodies (generally

heads) in either classical RGB cameras or depth sen-

sors. Then, tracking these individuals to count peo-

ple crossing a virtual LOI or people present within a

ROI. Most of methods in this category starts by de-

tecting moving objects in the studied scene based on

classical methods used for motion detection such as

the background subtraction (Anti

c et al., 2009) and

(Bondi et al., 2014) or the frame differencing in (Chen

et al., 2012). The second step consists in segmenting

the detected blobs to detected individual (Anti

c et al.,

2009) and (Chen et al., 2012) or their heads such as

in (Fu et al., 2014), (Bondi et al., 2014), (Van Ooster-

hout et al., 2011), and (Zhang et al., 2012).

In this context, Antic et al. (Anti

c et al., 2009)

proposed a counting method in video stream. This

method is based on three basic steps. The ﬁrst step

consists in the detection of foreground object using a

classical background subtraction method. In the sec-

ond step, the foreground is clustered by K-means into

the maximum possible number of clusters which is

supposed to be the number of persons who are present

in the studied ROI. The third and last step consists

in the tracking of detected individuals from the pre-

vious step based on a greedy solution to a dynamic

assignment problem between clusters in consecutive

frames. Then, the end points of tracks are used to

increment the entrance or the exit counter. In the

same manner, Chen et al. (Chen et al., 2012) pro-

posed a method in which the motion detection is done

by frame differencing and the blobs segmentation to

single individuals is done by connected component

analysis. Then, tracking is done by bounding boxes

intersection-check technique by supposing that peo-

ple in crowd are moving slowly.

For the same purpose many methods were pro-

posed to detect heads of individuals who are present

in the studied ROI. Most of these algorithms exploit

the fact that a head is the closest part of human body to

a ceiling depth sensor that is installed in a zenithal po-

sition with respect to the studied scene. Among these

methods, we may mention Zhang et al. (Zhang et al.,

2012) who proposed a method based on a water ﬁll-

ing algorithm. The proposed method consists in the

detection of local minimums of water drops needed to

ﬁll a depth map which is obtained by a Kinect sensor.

These local minimums are supposed to be heads as

they are the closest parts to the Kinect sensor which

is installed in a zenithal position with respect to the

ROI. In the same context, Bondi et al. (Bondi et al.,

2014) used depth data from a stereo system to localize

heads in the studied scene by localizing the local min-

imum in each detected blob representing a foreground

object. These foreground blobs are obtained by as-

sociating a classical background subtraction method

People Counting based on Kinect Depth Data

365

with a simple edge detection. The association of this

head detection technique with a simple tracking strat-

egy allow the counting of people who are present in

the ROI.

Another category of methods that are dealing with

the problem of pedestrian’s counting are methods

based on the design of smart sensor that interprets

data from an RGB camera or depth sensor to count

people within a ROI. For this category, Del Pizzo et

al. (Del Pizzo et al., 2015) proposed a method for

people counting that is based on two main steps. The

ﬁrst step consists in simple background subtraction

method that is used to detect foreground objects in the

studied scene. Then, the second step consist in people

counting based on the use of smart sensor that is able

to interpret the results of foreground detection. The

used sensor has a rectangular shape which is divided

into several cells that are activated whenever the num-

ber of foreground pixels within the cell is larger than

a threshold. The evaluation of the activation sequence

allows the detection and the counting of people mov-

ing within the ROI. In (Del Pizzo et al., 2016), the

same basic idea of using rectangular sensor that is di-

vided into several cells was adopted to detect people.

This basic idea is associated to a method similar to

the working of incremental rotary encodes (Billings-

ley et al., 2008) to detect the motion direction. The

evaluation of the activation sequence associated to the

direction of motion enables the counting of people

crossing a virtual LOI. In the same context, Baran-

diaran et al. (Barandiaran et al., 2008) proposed a

method that is based on the use of a ﬁxed number of

equidistant virtual lines that are placed orthogonally

to the expected motion direction in the ROI. Then,

the people counting for each virtual line is done by

detecting the non-zero intervals in the difference im-

age between current and previous frame at the level of

the virtual line.

The study of the state of the art gave us a gen-

eral idea about the methods adopted for counting peo-

ple either crossing a LOI or present within a ROI

at a given time. Most recent methods are exploiting

data from either an RGB camera or depth sensor that

are installed in a zenithal position with respect to the

studied scene. This tendency is due to the fact that

the zenithal position of the used sensor reduces dras-

tically the recurrence of occlusions which is one of

the major issues in the ﬁeld. But, in the other hand,

the segmentation and tracking problems persist as the

zenithal position of camera reduces the data that may

be used to differentiate different individuals.

In this paper, we adopted a method that is based

on exploiting depth data from a Kinect sensor that is

installed in a zenithal position with respect to the stud-

Figure 1: Sensor positioning.

ied scene. The use of Kinect in zenithal position re-

duces the recurrence of occlusion and the use of depth

data for people detection improve the segmentation.

The main contributions of this work are:

• The use of Kinect’s depth data with a smart sensor

to detect individuals crossing the LOI.

• The use of depth data from a kinect that is in-

stalled in zenithal position to construct both a bi-

nary and a grayscale images to facilitate the de-

tection and tracking processes.

3 PROPOSED METHOD

The objective of this work is the proposal of a solution

that allows counting the number of people entering

and leaving a closed area. To achieve this objective,

we proposed a method for counting individuals cross-

ing a LOI based on the use of depth map obtained

from a Kinect sensor. This counting approach is pro-

posed in the context of behavioral marketing analysis

to measure the ﬂux of customers in a store.

As said previously, the people counting problem

was addressed in different ways either based on clas-

sical RGB cameras or depth sensors. Most proposed

methods are dealing with the same major issues which

are occlusions, crowd management, and segmentation

problems.

In order to deal with all these issues, we pro-

posed a counting strategy that is based on exploiting

depth data obtained from a Kinect sensor placed in

a zenithal position with respect to the motion direc-

tion as shown in Figure 1. The zenithal position of

the sensor reduces drastically the recurrence of occlu-

sions even in dense crowds and the use of depth data

improves segmentation in case of crowded scenes.

The proposed counting method is composed of

two main modules. The ﬁrst module is the people

detection module which is based on exploiting depth

data from a Kinect sensor to detect individuals cross-

ing the virtual line of interest. The second module is

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

366

Figure 2: General diagram of the proposed method.

the tracking module that is based on the use of dedi-

cated particle ﬁlters to track detected individuals from

the ﬁrst module in order to both determine the direc-

tion of their motions and avoid recounting the same

individual several times while he is moving within the

Kinect ﬁeld of view. The proposed algorithm is illus-

trated in Figure 2.

3.1 People Detection Module

As said previously, the ﬁrst part in our counting strat-

egy consists in people detection based on the use of

depth map obtained from a ceiling Kinect sensor. The

people detection is done in several steps as illustrated

in the diagram of Figure 3.

Figure 3: People detection.

The ﬁrst step in this people detection scheme is

the detection of depth changes that represent the fore-

ground or the moving parts within the studied scene.

For this, we used a method of background subtrac-

tion with depth data obtained from the Kinect. The

background subtraction is done by frame differenc-

ing between the smoothed current and initial depth

maps. The initial depth map is obtained by esti-

mating the distance between the sensor and the non-

moving objects in the scene. This initial depth map

is used as background for background subtraction. In

our method the background is estimated and updated

based the use of running average over a patch of N

frames using equation 1.

background =

∑

i=1

depthMap

. (1)

Where: depthMap

is the depth map at frame i

and N is the total number of frames.

Ones the background estimated, both the back-

ground and the current depth maps are smoothed by

applying a Gaussian ﬁlter to reduce the noise within

the depth maps. The use of an adequate ﬁlter allows

both removing noise and conserving the general shape

of data. The resulting depth maps are used to estimate

both a grayscale image D

and a binary image B

. The

image represents depth changes at time t and B

image represents the foreground parts of the scene at

the same instant t. These images are estimated from

the difference image di f f

that corresponds to the dif-

ference between the current and initial depth maps.

The di f f

is calculated based on equation 2.

di f f

= |depthMap

− background|. (2)

Where: depthMap

and background are the cur-

rent and initial depth maps respectively.

Ones the di f f

image is calculated, it is used to

create both the D

by considering that each centime-

ter in the depth corresponds to a gray level in the D

image (this assumption is based on the fact that the

height of a person doesn’t exceed 255cm) and the B

image that represents foreground objects. This image

is created by supposing that depth values in di f f

im-

age that are within a certain range (th

min

and th

max

)

are part of the foreground. These two images are cre-

ated based on equations 3 and 4.

(x, y) =



di f f

(x, y) i f di f f

(x, y) < 256

0 otherwise

(3)

(x, y) =



1 i f th

min

< di f f

(x, y) < th

max

0 otherwise

(4)

The next step consists on the design of a smart

sensor that will be used to detect and segment fore-

ground objects to both separate foreground blobs into

different individuals and localize the heads of these

individuals. The proposed smart sensor is designed

as a rectangle that is placed over the LOI as shown in

Figure 4. This rectangle has a width that corresponds

to twice the estimated average of the width of the sur-

face occupied by a single individual in the scene and

People Counting based on Kinect Depth Data

367

the length of the sensor corresponds to the size of the

image. This rectangle is divided into several square

cells with a width that corresponds to one third the

estimated average width of the surface occupied by a

single individual in the scene.

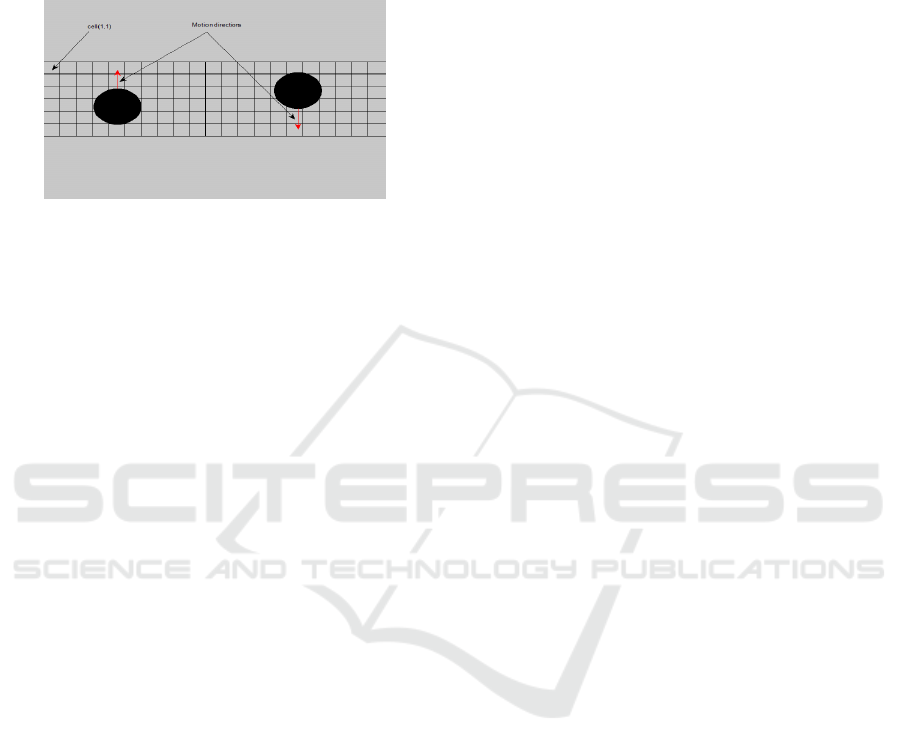

Figure 4: Design of the smart sensor.

Ones the smart sensor is designed, the next step

consists in ﬁnding the activation sequence that will

be used to detect and localize individuals within the

scene. The recovery of the activation sequence is done

in two steps. In the ﬁrst step, the foreground image B

is used to detect active cells based on the number of

foreground pixels within each cell. Then if the num-

ber of foreground pixels is greater than a threshold τ

the cell is active (equation 5).

cell

i j



1 (active) i f N > τ

0 (notactive) otherwise

(5)

This step allows the detection of signiﬁcant fore-

ground parts that may present either a single or a

group of individuals. Ones individuals and group of

individuals are detected, the second step consists in

using the grayscale image D

to localize individuals

and segment group of individuals into single individu-

als. This is done by detecting local maximums within

the active cells. The detection of local maximums is

done by summing up all pixels within each active cell

based on the use of equation 6.

cell(i, j) =



∑

cell

i j

i f cell

i j

active

0 otherwise

(6)

Then a cell is considered to be a local maximum if

the value cell(i, j) is greater than all surrounding cells

(cell(i − 1, j − 1), cell(i − 1, j), ...cell(i + 1, j + 1)).

The detected maximums are considered to be heads

and the number of these maximums corresponds to

the number of individuals crossing the LOI at time t.

3.2 Tracking Module

The second part of our counting strategy consists in

the integration of a tracking module that enable track-

ing individuals detected in the ﬁrst module to both

determine the motion direction and avoid recounting

the same individual several times while he is moving

within the Kinect ﬁeld of view.

For this, we used a tracking strategy based on the

use of a dedicated particle ﬁlter similar to the one used

in (Nummiaro et al., 2002) for each detected individ-

ual. The tracking is performed in the grayscale im-

age D

that represents depth changes. Then, each de-

tected individual is represented by a square centered

at the point (x, y) with width w and the new position

for each individual is estimated based on the motion

model represented by equations 7 and 8.

(x, y)

= (x, y)

(t−1)

+ (u, v)

(t−1)

• ∆t (7)

(u, v)

= (u, v)

(t−1)

(8)

where: (x, y) and (u, v) are the position and veloc-

ity of tracked individual along the x-y axis.

Then, these new particles are weighted based on

the difference between their intensity histogram and

the intensity histogram of the tracked individual. The

new position of the individual is determined from the

position of the weighted particles according to equa-

tion 9.





∑

n=1

(n)





(n)

(9)

Where:(x, y) is the estimated position for the

tracked individual, w

(n)

is the weight of the particle

located at position (x, y)

(n)

, and N corresponds to the

number of particles used in our particle ﬁlter.

This module allow the recovery of the trajectory

of tracked individuals within the Kinect ﬁeld of view.

These trajectories indicate the direction of motion for

each individual (entering or leaving).

4 EVALUATION

For evaluating our counting strategy, we used a Kinect

for windows version 1 that was installed in zenithal

position with respect to the motion direction. The

experiment was done in a lab. During experiment 5

individuals were recorded while moving through the

Kinect ﬁeld of view. These individuals were recorded

in different scenarios such as ”walking” and ”cross-

ing”. In the ﬁrst scenario ”walking” the individuals

were moving either close or far from each other in the

same direction whereas in the second scenario ”cross-

ing” the individuals were moving in different direc-

tions (some entering and the others leaving the room).

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

368

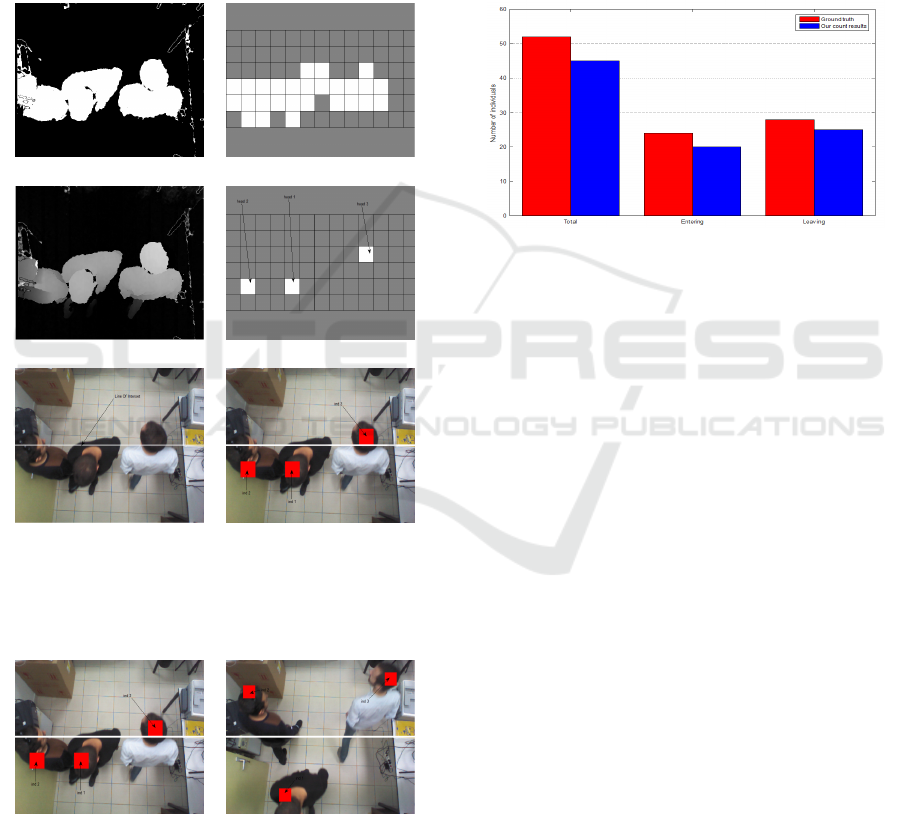

These data were ﬁrst used to evaluate our peo-

ple detection method. For this, we start by estimat-

ing the background based on the use of the ﬁrst 100

frames. Then, this background is used to estimate the

grayscale images D

and the binary images B

by tak-

ing (th

min

= 50 and th

max

= 255). These images are

used with a sensor with a cell width of 50 pixels. The

results of this detection method are illustrated in Fig-

ure 5. Then, detections are used as initialization for

the tracking module and the tracking results are illus-

trated in Figure 6.

(a) (b)

(e) (f)

Figure 5: Detection results: (a) binary image, (b) activation

sequence, (c) grayscale image , (d) people localization, (e)

corresponding RGB image, (f) detected individuals.

(a) (b)

Figure 6: Tracking results: (a) Frame 726, (b) frame 740.

From the above ﬁgures, we notice that our detec-

tion methods is able to detect individuals and segment

group of individuals into single individuals even when

people are close to each others. This is due to the use

of depth data with a smart sensor that enable a simple

detection for local maximums that represents individ-

ual’s heads. Then, the use of the tracking module en-

able the detection of the motion direction as shown in

the Figure 6.

The use of both the detection and the tracking

modules allows the count of people entering and leav-

ing the given closed area. The counting results based

on the motion direction compared to the ground truth

of the above experiment are shown in the diagram of

Figure 7.

Figure 7: Counting results.

5 CONCLUSION

In this paper, we proposed a method for counting the

number of people entering and leaving a closed area.

The proposed strategy is based on exploiting depth

data obtained from a Kinect sensor. The sensor is in-

stalled in zenithal position with respect to the motion

direction in order to reduce the occurrence of occlu-

sions.

The proposed method is based on the design of

two main modules. The ﬁrst module is the people

detection module which is based on the use of smart

sensor in both a grayscale image D

that represents

depth changes within the studied scene and a binary

image B

that represents foreground objects. The use

of a smart sensor in these two images allows a good

segmentation of crowds and a good localization of in-

dividuals. Ones people are detected, the second mod-

ule which is the tracking module is used to track these

individuals in the D

image. The tracking module is

based on the use of dedicated particle ﬁlter for each

individual. The use of this module allows both de-

termining the direction of motion (entering or leaving

the store) and reducing the redundancy of count by

avoiding the recount of the same individual several

times while he is moving within the Kinect ﬁeld of

view.

People Counting based on Kinect Depth Data

369

REFERENCES

Anti

c, B., Leti

c, D.,

Culibrk, D., and Crnojevi

c, V. (2009).

K-means based segmentation for real-time zenithal

people counting. In Image Processing (ICIP), 2009

16th IEEE International Conference on, pages 2565–

2568. IEEE.

Barandiaran, J., Murguia, B., and Boto, F. (2008). Real-

time people counting using multiple lines. In Image

Analysis for Multimedia Interactive Services, 2008.

WIAMIS’08. Ninth International Workshop on, pages

159–162. IEEE.

Billingsley, J., Ellin, A., and Dolsak, G. (2008). The design

and application of rotary encoders. Sensor Review,

28(2):150–158.

Bondi, E., Seidenari, L., Bagdanov, A. D., and Del Bimbo,

A. (2014). Real-time people counting from depth im-

agery of crowded environments. In Advanced Video

and Signal Based Surveillance (AVSS), 2014 11th

IEEE International Conference on, pages 337–342.

IEEE.

Chen, C.-H., Chen, T.-Y., Wang, D.-J., and Chen, T.-J.

(2012). A cost-effective people-counter for a crowd

of moving people based on two-stage segmentation.

Journal of Information Hiding and Multimedia Signal

Processing, 3(1):12–25.

Cong, Y., Gong, H., Zhu, S.-C., and Tang, Y. (2009). Flow

mosaicking: Real-time pedestrian counting without

scene-speciﬁc learning. In Computer Vision and Pat-

tern Recognition, 2009. CVPR 2009. IEEE Confer-

ence on, pages 1093–1100. IEEE.

Del Pizzo, L., Foggia, P., Greco, A., Percannella, G., and

Vento, M. (2015). A versatile and effective method for

counting people on either rgb or depth overhead cam-

eras. In Multimedia & Expo Workshops (ICMEW),

2015 IEEE International Conference on, pages 1–6.

IEEE.

Del Pizzo, L., Foggia, P., Greco, A., Percannella, G.,

and Vento, M. (2016). Counting people by rgb or

depth overhead cameras. Pattern Recognition Letters,

81:41–50.

Fu, H., Ma, H., and Xiao, H. (2014). Scene-adaptive ac-

curate and fast vertical crowd counting via joint using

depth and color information. Multimedia tools and

applications, 73(1):273–289.

Ma, Z. and Chan, A. B. (2013). Crossing the line: Crowd

counting by integer programming with local features.

In Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 2539–2546.

Nummiaro, K., Koller-Meier, E., and Van Gool, L. (2002).

Object tracking with an adaptive color-based particle

ﬁlter. In Joint Pattern Recognition Symposium, pages

353–360. Springer.

Van Oosterhout, T., Bakkes, S., Kr

ose, B. J., et al. (2011).

Head detection in stereo data for people counting and

segmentation. In VISAPP, pages 620–625.

Zhang, X., Yan, J., Feng, S., Lei, Z., Yi, D., and Li, S. Z.

(2012). Water ﬁlling: Unsupervised people count-

ing via vertical kinect sensor. In Advanced Video and

Signal-Based Surveillance (AVSS), 2012 IEEE Ninth

International Conference on, pages 215–220. IEEE.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

370
