GeoMantis: Inferring the Geographic Focus of Text

using Knowledge Bases

Christos T. Rodosthenous and Loizos Michael

Open University of Cyprus, P.O. Box 12794, Nicosia, Latsia, Cyprus

Keywords:

Information Retrieval, Geographic Focus Identiﬁcation, Knowledge Bases, Natural Language Processing,

Geographic Information Systems.

Abstract:

We consider the problem of identifying the geographic focus of a document. Unlike some previous work on

this problem, we do not expect the document to explicitly mention the target region, making our problem one

of inference or prediction, rather than one of identiﬁcation. Further, we seek to tackle the problem without ap-

pealing to specialized geographic information resources like gazetteers or atlases, but employ general-purpose

knowledge bases and ontologies like ConceptNet and YAGO. We propose certain natural strategies towards

addressing the problem, and show that the GeoMantis system that implements these strategies outperforms an

existing state-of-the-art system, when compared on documents whose target region (country, in particular) is

not explicitly mentioned or is obscured. Our results give evidence that using general-purpose knowledge bases

and ontologies can, in certain cases, outperform even specialized tools.

1 INTRODUCTION

One of the many tasks humans can perform, is to read

a document and identify its geographic focus (Tver-

sky, 1993). This task is more evident in stories where

human readers can identify the location where the

story takes place, along with other properties (Bower,

1976). For the same task, a machine needs to pro-

cess the document, identify location mentions from

text and then try to identify its geographic focus. Re-

levant research in this direction has led to methods

and systems that rely on gazetteers, atlases and dicti-

onaries with geographic-related content, that identify

the geographic focus of text. In this work, we inves-

tigate whether generic pre-existing knowledge bases

or ontologies can be exploited for tackling this pro-

blem with a special focus on cases where no explicit

mention of the target country exists in the document.

We present GeoMantis, a system developed to

infer the country-level focus of a text document or

a web page using knowledge from general-purpose

knowledge bases and ontologies. In particular, the

system takes as input any type of document, it pro-

cesses it and it stores the contents of the document

in a database. Independently of the previous process,

the system retrieves facts from knowledge bases about

countries, processes each fact, ﬁlters it using its inter-

nal mechanisms and stores it in a database. Moving

further in this pipeline, a full-text search algorithm is

in place for running each search text of the document

against the search text of each fact in the country’s

knowledge base set. A number of ﬁltering options are

also available during this process. This search returns

the set of country facts that are activated by the docu-

ment text.

The outcome of the reasoning process is a list of

countries in order of conﬁdence. The ordering of this

list is performed using one of the four supported by

the system strategies, presented in detail later in this

work.

This work concludes with an evaluation of the Ge-

oMantis system strategies, a comparison against ot-

her approaches, a presentation of current work on the

GeoMantis system and discussion of future directions

and possible extensions.

2 RELEVANT BACKGROUND

The research in the area of geographic focus identi-

ﬁcation (Andogah et al., 2012) led to the develop-

ment of systems that perform such a task. Most sy-

stems share a common feature: they rely on geo-

parsers, i.e., systems for extracting places from text

(Leidner and Lieberman, 2011; Melo and Martins,

2016), for identifying locations, disambiguating them

Rodosthenous, C. and Michael, L.

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases.

DOI: 10.5220/0006588501110121

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 111-121

ISBN: 978-989-758-275-2

111

and ﬁnally identifying the geographic focus of the

text. This approach performs well when documents

include place mentions for geoparsers to work, but le-

aves open the case of documents that have none or

very few place mentions. A document could also con-

tain references to geographic locations in the form of

historical dates, monuments, ethnicity, typical food,

traditional dances and others (Monteiro et al., 2016).

There are several general-purpose knowledge ba-

ses and ontologies (e.g., ConceptNet, YAGO, Wiki-

data) available that can be used to infer the geographic

focus of text since they contain broad knowledge rela-

ted to geographic locations. We recognize the fact that

these knowledge bases could also include geographi-

cal knowledge, but this knowledge is not inserted in

any specialized form like the one entered by experts

in gazetteers or atlases, and is crowd-contributed.

2.1 Existing Systems

Work on geographic focus identiﬁcation goes back

in the 90’s with a system called GIPSY (Woodruff

and Plaunt, 1994) for automatic geo-referencing of

text. In the 00’s, the Web-a-Where system (Ami-

tay et al., 2004) was introduced, which can identify

a place name in a document, disambiguate it and de-

termine its geographic focus. The authors report that

their system detects a geographic focus in 75% of the

documents and report a score of 91% accuracy in de-

tecting the correct country.

A more recent attempt, is the geo-referencing sy-

stem developed within the MyMose project frame-

work (Zubizarreta et al., 2009). This system, per-

forms a city-level focus identiﬁcation using dictionary

search and a multistage method for assigning a geo-

graphic focus to web pages, using several heuristics

for toponym disambiguation and a scoring function

for focus determination. The authors report an accu-

racy of over 70% with a city-level resolution in Eng-

lish and Spanish web pages.

A similar to the Web-a-Where system workﬂow

was used in the CLIFF-CLAVIN system (D’Ignazio

et al., 2014), which identiﬁes the geographic focus on

news stories. This system uses a three step workﬂow

to identify the geographic focus. First it recognizes

toponyms in each story, then it disambiguates each

toponym and ﬁnally it determines the focus using the

“most mentioned toponym” strategy. This system

relies on “CLAVIN”

, an opensource geoparser that

was modiﬁed to facilitate the speciﬁc needs of news

story focus detection. The authors report an accuracy

of 90-95% for detecting the geographic focus, when

https://clavin.bericotechnologies.com/

tested on various datasets. This system is freely avai-

lable under an opensource license. It is also integrated

in the MediaMeter

suite of tools for quantitative text

analysis of media coverage.

Related to this line of research, is the work on

SPIRIT (Purves et al., 2007), a spatially aware search

engine which is capable of accepting queries in the

form of <theme><spatial relationship><location>.

Relevant research is also found in the work of Yu (Yu,

2016) on how the geographic focus of a named entity

can be resolved at a location (e.g. city or country).

Furthermore, work done on a system called

“Newstand” (Teitler et al., 2008), monitors RSS

feeds from online news sources, retrieves the articles

in realtime and then extracts geographic content using

a geotagger. These articles are grouped into story

clusters and are presented on a map interface, where

users can retrieve stories based on both topical signi-

ﬁcance and geographic region.

More relevant work, mainly concentrated in using

knowledge bases extracted from Wikipedia, is presen-

ted in work of de Alencar and Davis Jr, and Quentin

et al. (de Alencar and Davis Jr, 2011; Quercini et al.,

2010). de Alencar and Davis presented a strategy for

tagging documents with place names according to the

geographical context of their textual content by using

a topic indexing technique that considers Wikipedia

articles as a controlled vocabulary. Quercini et al. dis-

cussed techniques to automatically generate the local

lexicon of a location by using the link structure of Wi-

kipedia.

2.2 Knowledge Sources

Currently, a large amount of general-purpose kno-

wledge is gathered from various sources using hu-

man workers, players and volunteers. This know-

ledge is stored in the form of facts or rules in con-

ceptual knowledge bases like ConceptNet (Speer and

Havasi, 2013) and YAGO (Hoffart et al., 2011; Su-

chanek et al., 2007; Suchanek et al., 2008). A brief

overview of these knowledge bases is presented in the

following paragraphs.

ConceptNet is a freely-available semantic net-

work that contains data from a number of sources

like crowdsourcing projects, Games With A Pur-

pose (GWAPs) (von Ahn and Dabbish, 2008), on-

line dictionaries and manually coded rules. In Con-

ceptNet, data are stored in the form of edges or

assertions. An edge is the basic unit of know-

ledge in ConceptNet and contains a relation bet-

ween two nodes (or terms). Nodes represent words

http://mediameter.org/

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

112

or short natural language phrases. Currently Con-

ceptNet (version 5) includes more than 25 relati-

ons like “AtLocation”, “isA”, “PartOf”, “Causes”

etc. The following are examples of edges available

in ConceptNet: <dog> <CapableOf> <bark>,

<mount olympus> <AtLocation> <greece>.

An earlier version of ConceptNet (version 4) was

evaluated for its ability to answer IQ questions using

simple test-answering algorithms. The results of this

evaluation showed that the system has the Verbal

IQ of an average four-year-old child (Ohlsson et al.,

2013).

YAGO (Yet Another Great Ontology) is a seman-

tic knowledge base, built from sources like Wiki-

pedia, WordNet (Fellbaum, 2010) and GeoNames

More speciﬁcally, information from Wikipedia is ex-

tracted from categories, redirects and infoboxes avai-

lable in each wikipedia page. Also, there are a num-

ber of relations between facts that are described in

detail in the work of Hoffart et al. (Hoffart et al.,

2011). Currently, YAGO contains 447 million facts

and about 9,800,000 entities. Facts in YAGO were

evaluated by humans, reporting an accuracy of 95%.

Moreover, YAGO has a number of spatial relati-

ons that place an object in a speciﬁc location (i.e.,

country, city, administrative region, etc.). For ex-

ample, these relations wasBornIn, diedIn, worksAt

place an entity of type Person in a location, e.g.,

<LeonardCohen> <wasBornIn> <Montreal>.

3 THE GeoMantis SYSTEM

GeoMantis (from the Greek words Geo that means

earth and Mantis, that means oracle or guesser) is a

web application designed for inferring the geographic

focus of documents and web pages at a country-level.

First, users select a document and upload it to the

system. The document enters the processing pipeline,

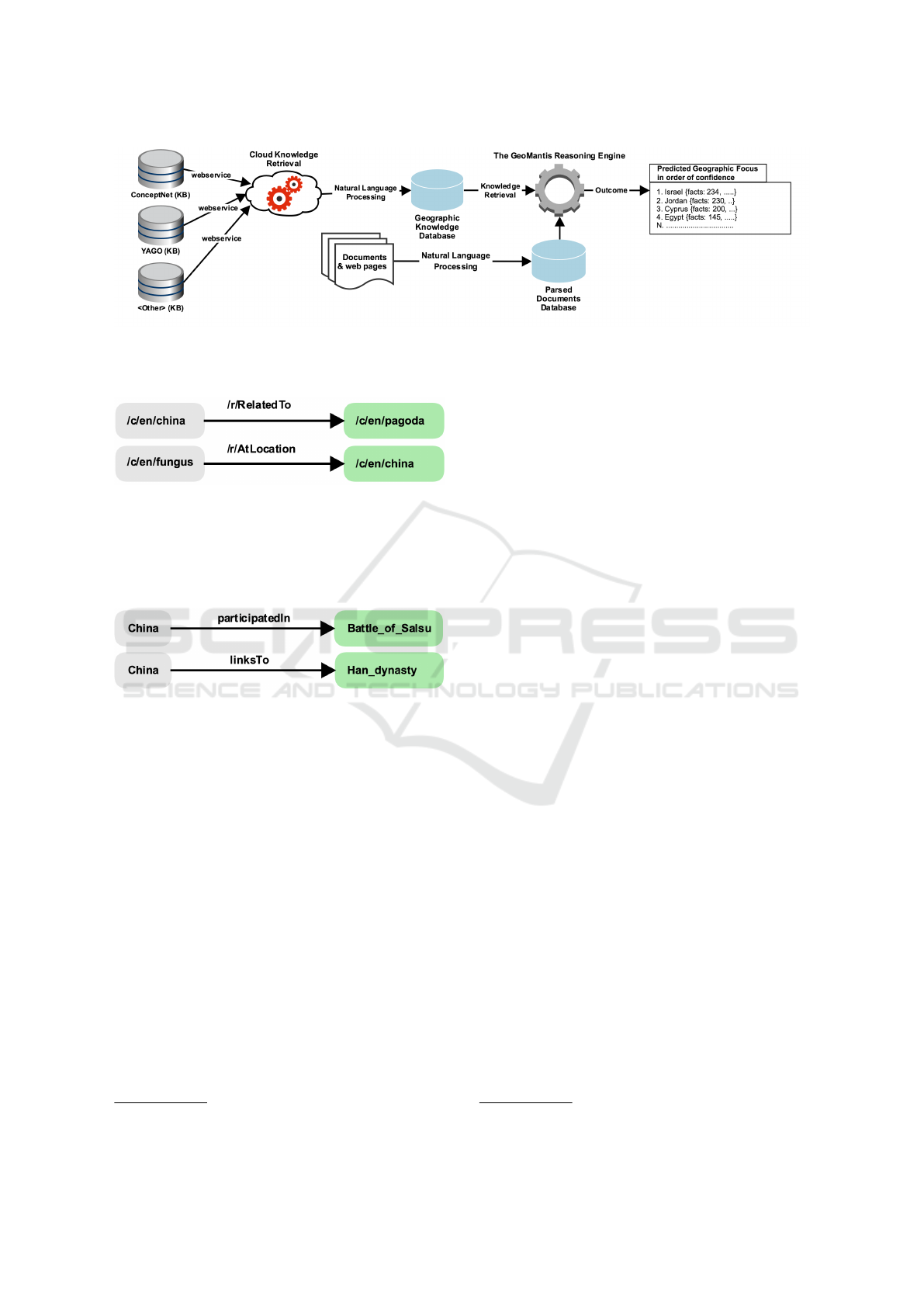

depicted in Figure 1, and gets processed.

The system uses general-purpose knowledge in

the form of facts retrieved from knowledge bases.

The GeoMantis knowledge database is populated with

facts from ConceptNet and YAGO. These facts, are

stored locally in the system’s geographic knowledge

database. This database can be updated at any time by

querying the corresponding knowledge source online.

Retrieved facts from the knowledge bases are used

for searching in each document and generate the pre-

dicted geographic focus. Instead of returning only

one prediction for the target country, the system re-

turns a list of countries in order of conﬁdence for each

http://www.geonames.org

prediction. Countries in the ﬁrst places have a higher

conﬁdence score.

3.1 Document Input and Processing

The uploaded document is cleaned from HTML tags,

wiki speciﬁc format and then it is parsed using a Natu-

ral Language Processing (NLP) system, the Stanford

CoreNLP (Manning et al., 2014). Extracted lemmas,

part of speech and named-entity labels extracted by

the Named Entities Recognition (NER) process, are

stored and indexed in the system’s database.

3.2 Knowledge Retrieval

The knowledge retrieval process starts by identifying

each country’s ofﬁcial name and alternate names

from the GeoNames database. Both ConceptNet and

YAGO allow knowledge retrieval directly, without the

need to download and deploy data locally. Concept-

Net 5.5 uses a web accessible API and YAGO 2 can

be queried using SPARQL, a query language for RDF

(Quilitz and Leser, 2008). The GeoMantis system is

capable of integrating with any knowledge base as

long as an accessible API is available for retrieving

facts.

ConceptNet: For each country name, the Con-

ceptNet API is queried for returning the proper Uni-

form Resource Identiﬁer (URI) in the database. In

ConceptNet, each URI includes the language (e.g.,

“en”) and the term. When the term includes spaces

(e.g., “United Kingdom”), these are substituted by un-

derscores.

For each URI, all facts are retrieved in the form

of triplets <Arg1> <Relation> <Arg2> and are

stored in the GeoMantis geographic knowledge da-

tabase. In ConceptNet, the country name can appear

either in <Arg1> or <Arg2> and an additional check

is needed to capture the appropriate search string. For

example, when a search for “China” is performed,

facts like the ones presented in Figure 2 are returned,

which after processing (see Algorithm 1) result to the

search strings: pagoda and fungus.

YAGO: YAGO follows a similar format to repre-

sent triples e.g., <Arg1> <Relation> <Arg2>

and includes both “semantic” (e.g., “wasBornOn-

Date”, “locatedIn” and “hasPopulation”) and “techni-

cal” relations (e.g., “hasWikipediaAnchorText”, “has-

CitationTitle”).

A similar search for “China” in YAGO returns

facts like the ones presented in Figure 3.

The ﬁnal step in the retrieval workﬂow, is the pro-

cessing of facts using the CoreNLP system. Facts are

tokenized and lemmatized and common stop words

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases

113

Figure 1: The GeoMantis system processing workﬂow. The workﬂow includes the Knowledge Retrieval and Processing

mechanism, the Document Processing mechanism and the Reasoning Engine. The outcome of the system appears on the

right.

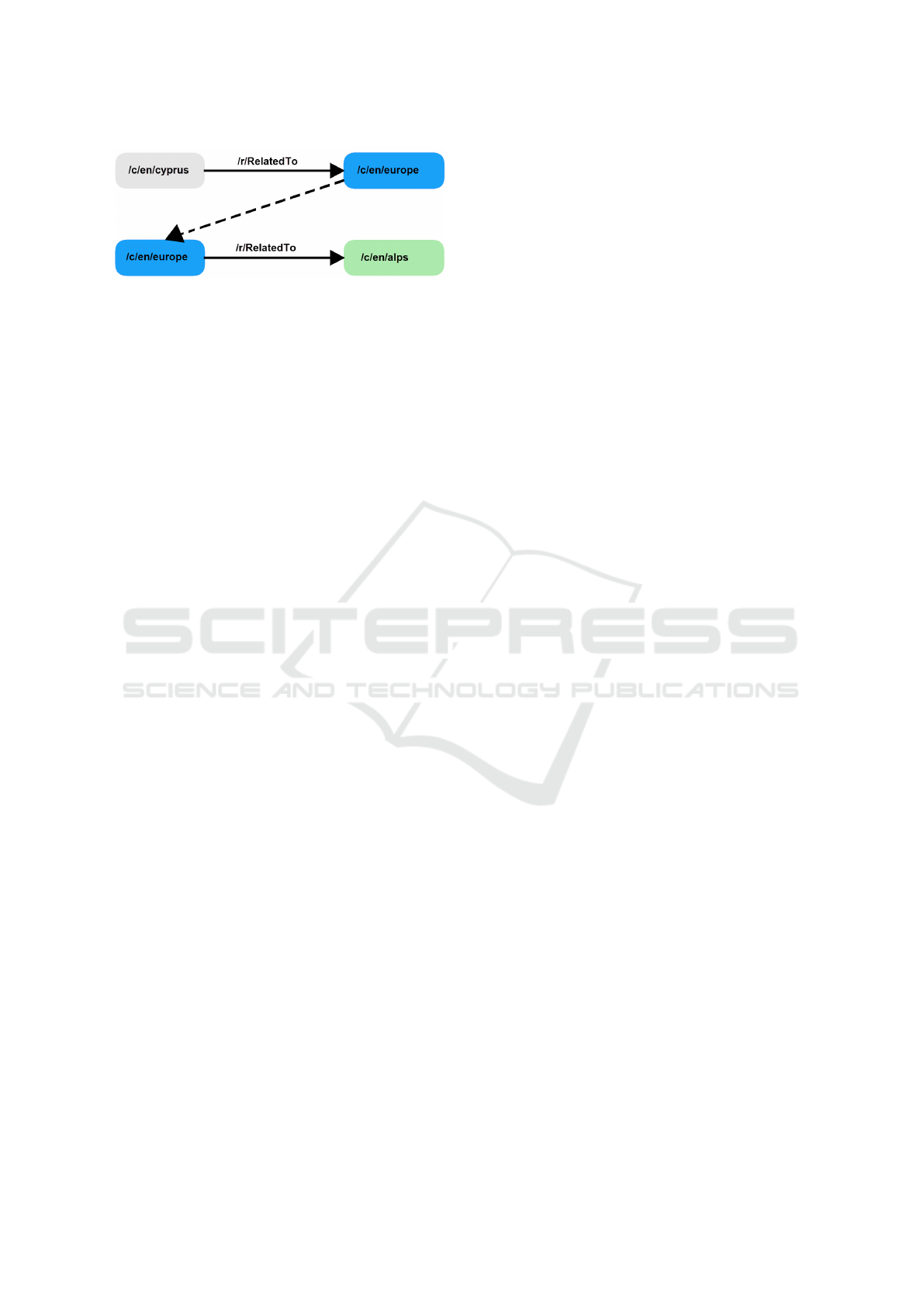

Figure 2: Examples of facts retrieved from ConceptNet

using the search term “China”.

are removed. For each fact in the system’s geographic

knowledge base, a search string is created with lem-

matized words.

Figure 3: Examples of facts retrieved from YAGO using the

search term “China”.

3.3 The Reasoning Engine

For each country, a case-insensitive full-text search

is executed for each unique word in the document

against the search text of each fact in the country’s

knowledge base. A fact is activated by the text if any

of the document’s words matches any of the fact’s se-

arch text words (excluding common stopwords). For

example, a document containing the text “They had

a really nice dish with halloumi” should activate the

rule <halloumi> <RelatedTo> <Cyprus>. To

maximize the search capabilities, the GeoMantis sy-

stem uses lemmatized words. Full-text searching ta-

kes advantage of the MariaDB’s

search functionality,

using full-text indexing for better search performance.

The ﬁnal step in the reasoning process, involves

the ordering of the list of countries and the generation

of the predicted geographic focus. Ordering is

performed using one of the following strategies:

https://mariadb.org/

Percentage of Facts Applied (PERCR): List

of countries is ordered according to the fraction of

each country’s total number of activated facts over

the total number of facts for that country that exist in

the geographic knowledge bases, in descending order.

Number of Facts Applied (NUMR): List of

countries is ordered according to each country’s total

number of activated facts, in descending order.

Term Frequency - Inverse Document Frequency

(TFIDF): List of countries is ordered according to

the TF - IDF algorithm (Manning et al., 2008) which

is applied as follows:

is a document created by taking the facts of a

country c

T F

= (Number of times term t appears in D

) / (Total

number of terms in D

)

IDF

= log

(Total number of D

/ Number of D

with

term t in it).

Most Facts per Country Ordering (ORDR):

List of countries is ordered according to the num-

ber of facts that are retrieved for each country, in

descending order.

3.4 Technical Implementation

The GeoMantis system is built using the PHP web

scripting language and the MariaDB database for sto-

ring data. The system is designed using an extendable

architecture that allows the addition of new functiona-

lity.

The system, exposes a number of its services

using a REST API, based on JavaScript Object

Notation (JSON)

for data interchange and integra-

tion with other systems. Knowledge can be updated at

http://www.json.org/

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

114

Algorithm 1: Knowledge retrieval from knowledge bases.

1: procedure RETRIEVEKNOWLEDGE(KB)

// Use the ISO two-letter country code

2: for each countryCode do

3: countryNames ← RetrieveNames(countryCode)

4: for each countryName do

5: if (KB = ConceptNet) then

6: uri ← RetrieveURI(countryName)

7: facts ← RetrieveFacts(uri)

8: for each fact do

9: arg1 ← GetPart(arg1,fact)

10: relation ← GetPart(relation,fact)

11: arg2 ← GetPart(arg2,fact)

12: if (arg1 = countryName) then

13: searchText ← arg2

14: else

15: searchText ← arg1

16: end if

17: end for

18: else if (KB = YAGO) then

19: searchStr ← ValidString(countryName)

20: facts ← RetrieveFacts(searchStr)

21: for each fact do

22: arg1 ← GetPart(arg1,fact)

23: relation ← GetPart(relation,fact)

24: arg2 ← GetPart(arg2,fact)

25: searchText ← arg2

26: end for

27: end if

// Use NLP to tokenize and lemmatize

28: searchText ← NLP(searchText)

// Use a common stopwords list

29: searchText ← ClearStopWords(searchText)

30: end for

31: end for

32: return SaveGeoDatabase(searchText)

33: end procedure

any time by querying the corresponding knowledge

source online.

Furthermore, the system has a separate module for

producing statistics on documents, datasets, facts and

visualizing them using a powerful graph library based

on Chart.js library

. For each document processed, a

detailed log of activated facts is kept for debugging

purposes and better understanding of the reasoning

process.

http://www.chartjs.org/

4 EXPERIMENTAL EVALUATION

A two phase evaluation was conducted: phase one

measured the system’s accuracy for each of the stra-

tegies in identifying the geographic focus of a do-

cument at a country-level, and phase two compared

the GeoMantis system using the prevailing strategy

from phase one with a freely available opensource sy-

stem and two common baseline metrics. For these ex-

periments, general-purpose knowledge was retrieved

for countries that are members of the United Nations

(UN)

Phase one evaluation was conducted using three

http://www.un.org

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases

115

datasets that were created and used to select the pre-

vailing strategy. For phase two, a fourth independent

dataset (see Section 4.4) was used comprising previ-

ously unseen documents from the same sources used

for phase one.

4.1 Evaluation Datasets

First, pre-tagged document corpora were selected,

with metadata of each document’s target location.

Since all available corpora had explicit mentions of

the tagged country, the Reuters Corpus Volume 1 (Le-

wis et al., 2004) and the New York Times Annotated

Corpus (Sandhaus, 2008) were selected and the target

country from each document was obscured. Also a

smaller dataset with crowd-contributed travel guides

was created. In each of the selected datasets, docu-

ments were selected from the pool of countries that

are members of the UN (193 countries).

The selected datasets (Reuters and New York Ti-

mes) were chosen because they are among the prevai-

ling datasets for conducting experiments in this line of

research. Each story is tagged with location metadata.

Moreover, they contain a plethora of stories for expe-

rimentation. To the best of our knowledge, there is no

dataset that guarantees that there is no mention of the

tagged country inside the document. For that reason,

we constructed such a dataset to evaluate GeoMantis.

4.1.1 WikiTravel Dataset (WiTr)

This dataset comprises 193 articles about each UN

country, retrieved from the Wikitravel website

25/11/2016. This website uses crowd contributions

for building a travel guide for each country. Currently,

the site hosts 109,820 pages in English, showcasing

numerous places for traveling. All articles were in-

cluded in the WiTr dataset.

4.1.2 Reuters Corpus Volume 1 (RCV1)

This corpus comprises 810,000 Reuters, English lan-

guage news stories that were made available in 2000

by Reuters Ltd. Each news story is in English and

contains stories from 20/08/1996 to 19/08/1997, tag-

ged with information on where it is geographically

located (Lewis et al., 2004). 1000 news stories were

chosen at random to create the RCV1 dataset.

4.1.3 The New York Times Annotated Corpus

(NYT)

The New York Times Annotated Corpus contains over

1,800,000 articles, written and published by the New

http://wikitravel.org

York Times between 1987 and 2007. Most articles

are tagged with location metadata (Sandhaus, 2008).

1000 news stories from the “Top/News/World/ Coun-

tries and Territories/” category with a single country

tag were randomly selected to create the NYT dataset.

NYT categorization allows a news story to be tagged

with more than one locations, but only news stories

with a single tag were selected in this case.

Table 1: Characteristics of the three datasets, including

number of documents, number of tagged countries, total and

average number of words and NER labels.

Corpus WiTr RCV1 NYT

# of documents 193 1000 1000

# of countries 193 110 171

# of words 1,164,783 187,551 378,701

AVG # of words

per document

6035 188 379

Named Entities 23.14% 31.61% 25.02%

[location] 8.74% 4.03% 4.84%

[organization] 2.47% 5.92% 3.55%

[money] 0.42% 0.98% 0.37%

[person] 1.31% 6.28% 5.36%

4.2 Evaluation Metrics

For evaluation purposes, two metrics were introdu-

ced: the accuracy and the average position. The

Accuracy(A

) of the system is deﬁned as A

where i ∈ {1, 2, 3, ..., M} and M is the number of

countries in the dataset, N

denotes the number of cor-

rect assignments of the target country when the target

country’s position is ≤ i in the ordered list of countries

and C denotes the number of available documents in

the dataset.

The average position (

P) denotes the position of

the target country in the ordered list of countries over

the number of countries available in the dataset. For

comparison purposes, this number is converted to a

percentage.

4.3 Evaluation of the GeoMantis

System Strategies

In this section the results of the ﬁrst phase of experi-

ments are presented per dataset. Tables 2,3,4 depict

the chosen knowledge base (KB), the strategy follo-

wed (see Section 3.3), and the applied ﬁltering. Mo-

reover, in Figures 4, 5, 6 we provide a graphical repre-

sentation of the experiment results. Each graph shows

the values of i on the x-axis moving from 1 to 7 and

the values on the y-axis, presenting A

, that is the per-

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

116

cent of the correct assignments of the target country

in the ﬁrst i responses of the system.

Filtering options include the use of all words in the

document (excluding stopwords) or only words that

were labeled as location, person, organization, money

by the NER process.

Comparing the results in terms of knowledge base

used, knowledge from YAGO presents better results

than that of ConceptNet. Further analysis of the two

knowledge bases shows a huge gap in the amount of

facts retrieved for each country. In particular, YAGO

includes 587,458 facts against 99,051 facts in Con-

ceptNet.

The results indicate that the prevailing strategy for

all three datasets is PERCR when the YAGO kno-

wledge base is used. Furthermore, the experiments

show that when only named-entity labeled words are

used (NER ﬁlter), the results are better than when

not. Although not reported here, the application of

the NER ﬁlter also signiﬁcantly reduces the proces-

sing time.

In Tables 2,3,4, rows highlighted in light blue

identify the best performing experiments in terms of

minimum value for

4.4 Prevailing Strategy Against Other

Approaches

In phase two of the evaluation, the GeoMantis sy-

stem, using the prevailing strategy identiﬁed in the

ﬁrst phase of the evaluation (i.e., YAGO, PERCR,

NER), is compared with a freely available opensource

system, CLIFF-CLAVIN and two common baseline

metrics. These metrics include the random selection

of countries (RAND) and the ordering of countries

based on their frequency of appearance in the dataset

(ORDC) for ordering the list of countries.

The comparison was made on a new dataset

(EVAL) to avoid possible biases with the datasets

used for identifying the prevailing strategy. This da-

taset comprises 1000 never used before documents,

chosen at random from the RCV1 and NYT corpora.

In particular, 500 documents where chosen from the

RCV1 corpus and 500 from the NYT corpus. For

uniformity, from each of the two corpora, two docu-

ments were retrieved (if available) for each UN mem-

ber country at random. The remaining documents

were chosen at random from the whole pool of do-

cuments.

For conducting the comparison, the CLIFF-

CLAVIN geolocation service was set up and a script

was used to read the “places/focus/countries” array of

the JSON results. Each document in the EVAL da-

taset was processed as is and with the target country

obscured. In particular, the country name was substi-

tuted with the word “Unknown”, so that the text struc-

ture was maintained. For CLIFF-CLAVIN, a new

metric U (unanswered) was introduced that denotes

the percentage of the number of documents processed

without CLIFF-CLAVIN returning a result.

Results returned from the CLIFF-CLAVIN system

are not ordered, so for comparison reasons with the

GeoMantis system, the A

and A

metrics are used

where A

is the accuracy of the system when only one

result is returned and it is the correct target country as-

signment and A

is the accuracy of the system when

up to 7 results are returned. 7 was chosen as it cor-

responds to the maximum number of predicted coun-

tries CLIFF-CLAVIN returns when executed on the

EVAL dataset and the target country is identiﬁed by

any one of them.

Results from the second phase evaluation for the

GeoMantis system are comparable to that of CLIFF-

CLAVIN and that of the two baseline metrics. In ca-

ses where the target country is obscured, the GeoMan-

tis system outperforms CLIFF-CLAVIN.

In Table 5, the row highlighted in light green iden-

tiﬁes the best results in terms of A

and A

when the

country is obscured. In Figure 7 these results are pre-

sented graphically, illustrating all phase two evalua-

tion experiments. By comparing E1 against E2 one

can see that the GeoMantis system matches the accu-

racy of CLIFF-CLAVIN in A

eventhough CLIFF-

CLAVIN beneﬁts from the visibility of the country

in the documents in this experiment.

5 DISCUSSION

Recent advances in Artiﬁcial Intelligence bring great

promises in the ﬁeld of text comprehension (Hermann

et al., 2015). One of the concerns though, is that arti-

ﬁcial intelligence algorithms should provide transpa-

rency (Dignum, 2017) on their methods, results and

explanations, instead of just leading to opaque black

boxes. Following this direction, we focused on desig-

ning a system that can be tuned to provide explanati-

ons on why a speciﬁc geographic focus of a document

was chosen, by listing the knowledge facts that led to

this result and allowing users to investigate further the

reasoning process of the algorithm. This is important

for highlighting the explanatory role played by such

systems, with respect to the target natural cognitive

systems they take as source of inspiration (Lieto and

Radicioni, 2016).

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases

117

Table 2: Results from evaluating the GeoMantis system

strategies, KB and ﬁltering options using the WiTr dataset.

# KB Strategy Filter A

W1 YAGO PERCR NER 71.50 90.67 1

W2 YAGO PERCR none 56.99 74.09 3

W3 YAGO NUMR NER 2.59 9.33 12

W4 YAGO NUMR none 0.52 1.55 24

W5 YAGO TFIDF NER 58.55 82.90 1

W6 YAGO TFIDF none 58.55 76.68 2

W7 YAGO ORDR - 0.52 1.04 50

W8 ConceptNet PERCR NER 5.70 8.81 12

W9 ConceptNet PERCR none 1.55 5.18 14

W10 ConceptNet NUMR NER 0.52 2.07 29

W11 ConceptNet NUMR none 0.52 1.04 37

W12 ConceptNet TFIDF NER 29.02 44.04 4

W13 ConceptNet TFIDF none 18.65 27.46 5

W14 ConceptNet ORDR - 0.52 1.04 50

Table 3: Results from evaluating the GeoMantis system

strategies, KB and ﬁltering options using the RCV1 data-

set.

# KB Strategy Filter A

R1 YAGO PERCR NER 61.80 73.60 4

R2 YAGO PERCR none 44.70 55.90 8

R3 YAGO NUMR NER 59.20 74.20 4

R4 YAGO NUMR none 38.40 49.70 8

R5 YAGO TFIDF NER 46.00 59.60 7

R6 YAGO TFIDF none 31.10 47.00 7

R7 YAGO ORDR - 17.60 21.50 23

R8 ConceptNet PERCR NER 28.00 39.40 10

R9 ConceptNet PERCR none 14.60 21.50 14

R10 ConceptNet NUMR NER 30.30 47.80 8

R11 ConceptNet NUMR none 21.00 33.80 13

R12 ConceptNet TFIDF NER 26.40 37.00 14

R13 ConceptNet TFIDF none 14.50 25.10 17

R14 ConceptNet ORDR - 17.60 27.90 24

Table 4: Results from evaluating the GeoMantis system

strategies, KB and ﬁltering options using the NYT dataset.

# KB Strategy Filter A

N1 YAGO PERCR NER 37.40 58.40 7

N2 YAGO PERCR none 24.30 36.30 13

N3 YAGO NUMR NER 15.20 29.90 12

N4 YAGO NUMR none 3.30 7.80 23

N5 YAGO TFIDF NER 41.30 59.30 7

N6 YAGO TFIDF none 22.20 39.50 7

N7 YAGO ORDR - 2.20 3.90 37

N8 ConceptNet PERCR NER 8.70 14.70 14

N9 ConceptNet PERCR none 3.80 6.10 20

N10 ConceptNet NUMR NER 2.40 8.10 20

N11 ConceptNet NUMR none 0.60 4.10 29

N12 ConceptNet TFIDF NER 15.60 25.80 15

N13 ConceptNet TFIDF none 9.40 15.10 15

N14 ConceptNet ORDR - 0.50 1.60 44

Figure 4: Graphical representation of the results when the

WiTr dataset is used. On the x-axis, i gets values from 1 to

7 and the values on the y-axis present A

, that is the percent

of the correct assignments of the target country in the ﬁrst i

responses of the system.

Figure 5: Graphical representation of the results when the

RCV1 dataset is used. On the x-axis, i gets values from 1 to

7 and the values on the y-axis present A

, that is the percent

of the correct assignments of the target country in the ﬁrst i

responses of the system.

Figure 6: Graphical representation of the results when the

NYT dataset is used. On the x-axis, i gets values from 1 to

7 and the values on the y-axis present A

, that is the percent

of the correct assignments of the target country in the ﬁrst i

responses of the system.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

118

Table 5: Comparison of the GeoMantis system with CLIFF-

CLAVIN and the Baseline. Rows in bold text identify the

results that are comparable.

# Options A

(%) A

(%) U (%)

GeoMantis

YAGO,

PERCR,

NER

40.80 60.90 79.20 0

CLIFF-CLAVIN

country

visible

72.00 - 80.80 5.60

country

obscured

34.40 - 42.30 13.70

Baseline

E4 RAND 0.50 1.40 3.40 0

E5 ORDC 3.40 5.70 13.60 0

Results from the experimental evaluations sug-

gest that the proposed methodology, i.e., using gene-

ral purpose knowledge bases, is well suited for the

problem of inferring geographic focus of documents

that do not explicitly mention the target country. The

strategy that presents better results is the ordering

of the list of countries according to the fraction of

each country’s total number of activated facts over

the total number of facts for that country that exist in

the geographic knowledge bases, in descending order

(PERCR). Moreover, the usage of the YAGO know-

ledge base results in greater accuracy than when using

the ConceptNet knowledge base.

Despite the existence of other systems for iden-

tifying geographic focus (cf. Section 2.1), these sys-

tems rely on a geoparser to work and hence the ex-

istence of place mentions. This is clearly presented

in the experimental evaluation of the CLIFF-CLAVIN

system, which in 13.7% of the documents tested did

not return a result when the country was obscured.

This limitation is waived in GeoMantis that does not

rely on place mentions. Comparisons with the ot-

her systems were not possible as they were not freely

available for local deployment and testing.

GeoMantis is currently able to identify country-

level geographic focus, but it can be expanded to

handle other levels (e.g., administrative area, city) as

long as the relevant knowledge facts exist in the se-

lected knowledge base. Similar techniques used for

news stories could also apply to other types of docu-

ments like novels, myths, legal documents, etc. This

line of research can also ﬁnd applications for do-

cument classiﬁcation and geographic knowledge ex-

traction from text. Moreover, it can be used with

techniques for linking image and text-based contents

together for document management tasks (Cristani

and Tomazzoli, 2016).

Figure 7: Accuracy comparison graphs between the Geo-

Mantis system, CLIFF-CLAVIN and two baseline metrics.

On the x-axis, i gets values from 1 to 7 and the values on

the y-axis present A

, that is the percent of the correct as-

signments of the target country in the ﬁrst i responses of the

system.

6 CONCLUSION AND FUTURE

WORK

This work considered the problem of identifying the

geographic focus of text that does not explicitly men-

tion the target country, making our problem one of in-

ference or prediction, rather than one of identiﬁcation.

We used general-purpose knowledge bases, instead of

gazetteers, atlases or other purposed built geographic

bases, to tackle this problem. More speciﬁcally, we

demonstrated a methodology that retrieves general-

purpose knowledge, processes it and infers the geo-

graphic focus of a document. This methodology and

the GeoMantis system were evaluated in various sce-

narios using “gold standard” annotated datasets and

metrics, and results showed that the GeoMantis sy-

stem outperforms the other system tested and the two

baseline metrics.

Currently, we are considering extending GeoMan-

tis to utilize paths of various lengths between a geo-

graphical entity (e.g., country) and other entities. Fi-

gure 8 depicts an example of a length 2 relation path.

In such a scenario, if a document contains the word

“alps”, facts related to Cyprus will be activated. Re-

sults from this approach will be compared with re-

sults from using direct connections between the enti-

ties (length 1 relation path). Early experiments sug-

gest that this will decrease the performance of the sy-

stem as it ends up connecting countries to entities that

are conceptually remote (see Figure 8). Safe conclu-

sions can be drawn only after the completion of a sy-

stematic experimental evaluation.

Future versions of the system could also beneﬁt

from crowdsourcing approaches like GWAPs or hy-

brid solutions (Rodosthenous and Michael, 2016) for

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases

119

Figure 8: An example of a length 2 relation path from Con-

ceptNet.

fact disambiguation. The integration of other know-

ledge bases with GeoMantis, like the one generated

from the Never Ending Language Learner (Mitchell

et al., 2015), DBpedia (Lehmann et al., 2015), Wiki-

data (Erxleben et al., 2014) or their combination could

also be explored.

We believe that the GeoMantis system can be used

in several application scenarios, like document sear-

ching and tagging, games (e.g., taboo game challen-

ges) and news categorization. Its extendable architec-

ture enables the addition of new functionality and new

sources of knowledge and also the integration with

other systems. GeoMantis could also be used in con-

junction with other systems (like CLIFF-CLAVIN) to

return results in cases where the other systems are not

able to return any.

REFERENCES

Amitay, E., Har’El, N., Sivan, R., and Soffer, A. (2004).

Web-a-Where: Geotagging Web Content. In Procee-

dings of the 27th Annual International ACM SIGIR

Conference on Research and Development in Infor-

mation Retrieval, pages 273–280.

Andogah, G., Bouma, G., and Nerbonne, J. (2012). Every

Document has a Geographical Scope. Data and Kno-

wledge Engineering, 81-82:1–20.

Bower, G. H. (1976). Experiments on Story Understanding

and Recall. Quarterly Journal of Experimental Psy-

chology, 28(4):511–534.

Cristani, M. and Tomazzoli, C. (2016). A Multimodal Ap-

proach to Relevance and Pertinence of Documents,

pages 157–168. Springer International Publishing,

Cham.

de Alencar, R. O. and Davis Jr, C. A. (2011). Geotag-

ging Aided by Topic Detection with Wikipedia. In

Geertman, S., Reinhardt, W., and Toppen, F., editors,

Advancing Geoinformation Science for a Changing

World, pages 461–477. Springer Berlin Heidelberg,

Berlin, Heidelberg.

D’Ignazio, C., Bhargava, R., Zuckerman, E., and Beck,

L. (2014). CLIFF-CLAVIN: Determining Geographic

Focus for News Articles. In Proceedings of the New-

sKDD: Data Science for News Publishing.

Dignum, V. (2017). Responsible Autonomy. In Proceedings

of the Twenty -Sixth International Joint Conference on

Artiﬁcial Intelligence (IJCAI2017), pages 4698–4704.

Erxleben, F., G

unther, M., Kr

otzsch, M., Mendez, J., and

Vrande

c, D. (2014). Introducing Wikidata to the

Linked Data Web. In Proceedings of the 13th Interna-

tional Semantic Web Conference, pages 50–65, Cham.

Springer International Publishing.

Fellbaum, C. (2010). WordNet. In Poli, R., Healy, M.,

and Kameas, A., editors, Theory and Applications of

Ontology: Computer Applications, pages 231–243.

Springer Netherlands.

Hermann, K. M., Ko

cisk

y, T., Grefenstette, E., Espeholt, L.,

Kay, W., Suleyman, M., and Blunsom, P. (2015). Tea-

ching Machines to Read and Comprehend. In Procee-

dings of the Neural Information Processing Systems

(NIPS 2015), pages 1–13.

Hoffart, J., Suchanek, F. M., Berberich, K., Lewis-kelham,

E., Melo, G. D., and Weikum, G. (2011). YAGO2

: Exploring and Querying World Knowledge in Time,

Space, Context, and Many Languages. In Proceedings

of the 20th International Conference on World Wide

Web, pages 229–232.

Lehmann, J., Isele, R., Jakob, M., Jentzsch, A., Konto-

kostas, D., Mendes, P. N., Hellmann, S., Morsey, M.,

Van Kleef, P., Auer, S., and Others (2015). DBpedia–

A Large-scale, Multilingual Knowledge Base Extrac-

ted from Wikipedia. Semantic Web, 6(2):167–195.

Leidner, J. L. and Lieberman, M. D. (2011). Detecting Geo-

graphical References in the Form of Place Names and

Associated Spatial Natural Language. SIGSPATIAL

Special, 3:5–11.

Lewis, D. D., Yang, Y., Rose, T. G., and Li, F. (2004).

RCV1: A New Benchmark Collection for Text Ca-

tegorization Research. Journal of Machine Learning

Research, 5:361–397.

Lieto, A. and Radicioni, D. P. (2016). From Human to Arti-

ﬁcial Cognition and Back: New Perspectives on Cog-

nitively Inspired AI Systems. Cognitive Systems Re-

search, 39:1–3.

Manning, C. D., Bauer, J., Finkel, J., Bethard, S. J., Sur-

deanu, M., and McClosky, D. (2014). The Stanford

CoreNLP Natural Language Processing Toolkit. In

Proceedings of the 52nd Annual Meeting of the As-

sociation for Computational Linguistics: System De-

monstrations, pages 55–60.

Manning, C. D., Raghavan, P., and Sch

utze, H. (2008).

An Introduction to Information Retrieval, volume 1.

Cambridge University Press.

Melo, F. and Martins, B. (2016). Automated Geocoding of

Textual Documents: A Survey of Current Approaches.

Transactions in GIS, 21(1):3–38.

Mitchell, T., Cohen, W., Hruschka, E., Talukdar, P., Bet-

teridge, J., Carlson, A., Mishra, B. D., Gardner, M.,

Kisiel, B., Krishnamurthy, J., Lao, N., Mazaitis, K.,

Mohamed, T., Nakashole, N., Platanios, E., Ritter, A.,

Samadi, M., Settles, B., Wang, R., Wijaya, D., Gupta,

A., Chen, X., Saparov, A., Greaves, M., and Welling,

J. (2015). Never-Ending Learning. In Proceedings of

the AAAI Conference on Artiﬁcial Intelligence, pages

2302–2310.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

120

Monteiro, B. R., Davis, C. A., and Fonseca, F. (2016).

A survey on the Geographic Scope of Textual Docu-

ments. Computers and Geosciences, 96:23–34.

Ohlsson, S., Sloan, R. H., Tur

an, G., and Urasky, A. (2013).

Verbal IQ of a Four-Year Old Achieved by an AI Sy-

stem. In Proceedings of the 17th AAAI Conference on

Late-Breaking Developments in the Field of Artiﬁcial

Intelligence, pages 89–91.

Purves, R. S., Clough, P., Jones, C. B., Arampatzis, A., Bu-

cher, B., Finch, D., Fu, G., Joho, H., Syed, A. K., Vaid,

S., and Yang, B. (2007). The Design and Implemen-

tation of SPIRIT: A Spatially Aware Search Engine

for Information Retrieval on the Internet. Interna-

tional Journal of Geographical Information Science,

21(7):717–745.

Quercini, G., Samet, H., Sankaranarayanan, J., and Lie-

berman, M. D. (2010). Determining the Spatial Re-

ader Scopes of News Sources Using Local Lexicons.

In Proceedings of the 18th SIGSPATIAL International

Conference on Advances in Geographic Information

Systems - GIS ’10, pages 43–52.

Quilitz, B. and Leser, U. (2008). Querying Distributed RDF

Data Sources with SPARQL. In Proceedings of the

5th European Semantic Web Conference, The Seman-

tic Web: Research and Applications, pages 524–538,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Rodosthenous, C. and Michael, L. (2016). A Hybrid Ap-

proach to Commonsense Knowledge Acquisition. In

Proceedings of the 8th European Starting AI Resear-

cher Symposium, pages 111–122.

Sandhaus, E. (2008). The New York Times Annotated Cor-

pus LDC2008T19. DVD. Linguistic Data Consor-

tium, Philadelphia.

Speer, R. and Havasi, C. (2013). ConceptNet 5: A Large Se-

mantic Network for Relational Knowledge. In Gure-

vych, I. and Kim, J., editors, The People’s Web Meets

NLP: Collaboratively Constructed Language Resour-

ces, pages 161–176. Springer Berlin Heidelberg, Ber-

lin, Heidelberg.

Suchanek, F. M., Kasneci, G., and Weikum, G. (2007).

Yago: A Core of Semantic Knowledge. In Procee-

dings of the 16th International Conference on World

Wide Web, pages 697–706.

Suchanek, F. M., Kasneci, G., and Weikum, G. (2008).

YAGO: A Large Ontology from Wikipedia and Word-

Net. Web Semantics: Science, Services and Agents on

the World Wide Web, 6(3):203–217.

Teitler, B. E., Lieberman, M. D., Panozzo, D., Sankarana-

rayanan, J., Samet, H., and Sperling, J. (2008). News-

Stand: A New View on News. In Proceedings of the

16th ACM SIGSPATIAL International Conference on

Advances in Geographic Information Systems, pages

1–18.

Tversky, B. (1993). Cognitive Maps, Cognitive Collages,

and Spatial Mental Models, pages 14–24. Springer

Berlin Heidelberg, Berlin, Heidelberg.

von Ahn, L. and Dabbish, L. (2008). Designing Ga-

mes With a Purpose. Communications of the ACM,

51(8):57.

Woodruff, A. G. and Plaunt, C. (1994). GIPSY: Georeferen-

ced Information Processing SYstem. Journal of the

American Society for Information Science, 45:645–

655.

Yu, J. (2016). Geotagging Named Entities in News and

Online Documents. In Proceedings of the 25th ACM

International Conference on Information and Know-

ledge Management, pages 1321–1330.

Zubizarreta,

A., de La, Cantera, J., Arias, M., Cabrero, J.,

Garc

ıa, G., Llamas, C., Vegas, J., and Garc, G. (2009).

Extracting Geographic Context from the Web: Geo-

Referencing in MyMoSe. Advances in Information

Retrieval, pages 554–561.

GeoMantis: Inferring the Geographic Focus of Text using Knowledge Bases

121
