Factors Affecting Accuracy in Image Translation

based on Generative Adversarial Network

Fumiya Yamashita, Ryohei Orihara, Yuichi Sei, Yasuyuki Tahara and Akihiko Ohsuga

Graduate School of Informatics and Engineering, University of Electro-Communications,

1-5-1 Chofugaoka, Chofu-shi, Tokyo, Japan

Keywords:

Deep Learning, Domain Transfer, Generative Adversarial Network, Unsupervised Learning.

Abstract:

With the development of deep learning, image translation has made it possible to output more realistic and

highly accurate images. Especially, with the advent of Generative Adversarial Network (GAN), it became pos-

sible to perform general purpose learning in various image translation tasks such as “drawings to paintings”,

“male to female” and “day to night”. In recent works, several models have been proposed that can do unsuper-

vised learning which does not require an explicit pair of source domain image and target domain image, which

is conventionally required for image translation. Two models called “CycleGAN” and “DiscoGAN” have ap-

peared as state-of-the-art models in unsupervised learning-based image translation and succeeded in creating

more realistic and highly accurate images. These models share the same network architecture, although there

are differences in detailed parameter settings and learning algorithms. (in this paper we will collectively refer

to them as “learning techniques”) Both models can do similar translation tasks, but it turned out that there is

a large difference in translation accuracy between particular image domains. In this study, we analyzed dif-

ferences in learning techniques of these models and investigated which learning techniques affect translation

accuracy. As a result, it was found that the difference in the size of the feature map, which is the input for the

image creation, affects the accuracy.

1 INTRODUCTION

Humans can easily perform analogies between two

different domains in photographs, images, and the

like. For example, you can easily imagine what sce-

nery the landscape you saw during the day will be in

the evening. As described above, in this paper, we call

“image translation” to convert to another form and

style while holding semantic information of the image

before conversion between two image domains

A Study which becomes the root of image trans-

lation was done from around 2001(Hertzmann et al.,

2001). Especially since the approach using Convo-

lutional Neural Networks in Deep Learning has ap-

peared, we succeeded in creating more accurate ima-

ges(Gatys et al., 2016; Johnson et al., 2016; Yoo et al.,

2016). In recent years, approaches using Genera-

tive Adversarial Network (GAN) have appeared, and

more advanced image translation has become pos-

sible. “pix2pix”(Isola et al., 2016) allows general-

purpose learning in arbitrary pairs, such as aerial pho-

tographs to maps, monochrome images to color ima-

Sometimes called “Domain Transfer”.

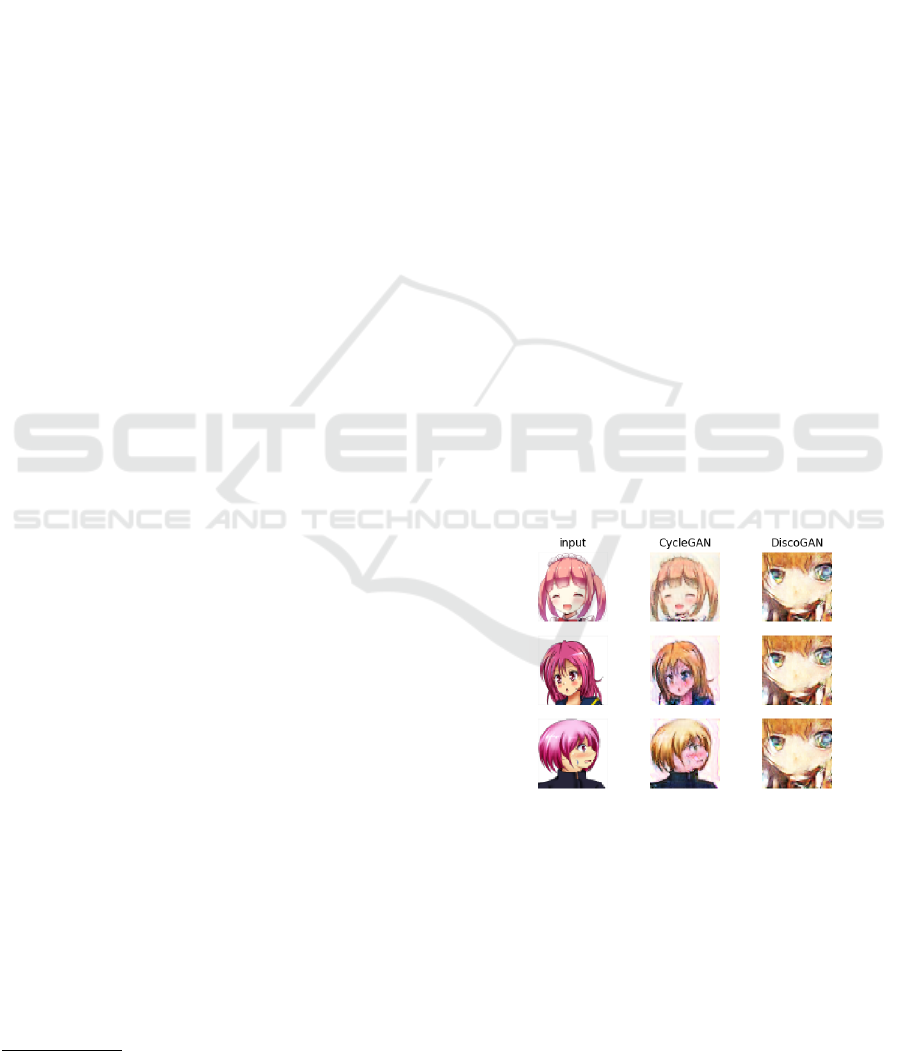

Figure 1: Result of pink hair to blond hair(64 × 64).

ges, by using any two image domain data sets expli-

citly paired together. Therefore, more realistic and

highly accurate images can be created.

By contrast, there is also a GAN approach that

allows image translation with unsupervised learning

that does not require explicit pairs of images (Taig-

man et al., 2016; Kim et al., 2017; Zhu et al., 2017).

“DiscoGAN”(Kim et al., 2017) has appeared as a

state-of-the-art unsupervised learning model capable

of performing highly accurate image translation. It

446

Yamashita, F., Orihara, R., Sei, Y., Tahara, Y. and Ohsuga, A.

Factors Affecting Accuracy in Image Translation based on Generative Adversarial Network.

DOI: 10.5220/0006591204460453

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 446-453

ISBN: 978-989-758-275-2

does not require an explicit pair of images and you

only have to prepare arbitrary image domains. “Cy-

cleGAN”(Zhu et al., 2017) does not require explicit

pairs as well, and translation can be done with high

accuracy between various image domains. Regar-

ding the above two models, except for differences in

detailed learning techniques, the networks share the

same architecture. Both can perform high-precision

translation among arbitrary image domains, however

it was found that there is a large difference in transla-

tion accuracy among certain image domains.

Therefore, in this study, we investigate factors af-

fecting translation accuracy by using the two models

and consider ways to improve a model for a particular

domain.

2 PRELIMINARY EXPERIMENT

Figure 1 shows the output results of two models in the

task of translating from the source domain (pink hair)

to the target domain (blond hair), using illustration for

both domains. As can be seen from the results, Cycle-

GAN is translated into blond hair while maintaining

semantic information of the input image (in this case,

the shape of the illustration). On the other hand, in the

case of DiscoGAN, images with completely different

shapes from the input image were output. Further-

more, the same image is output in all three results.

This phenomenon is called “mode collapse”, which

means that it generates only images similar to a parti-

cular image for any input, which is a serious problem

in the GAN(Goodfellow, 2016).

In this way, when illustration was targeted for

image domain translation, it was found that there was

a difference in the results of DiscoGAN and Cycle-

GAN. Despite the same network architecture, why did

the result change so much? We will conduct experi-

ments and identify the cause in Section 5.

3 RELATED WORK

3.1 Generative Adversarial

Network(GAN)

Generative Adversarial Network (GAN)(Goodfellow

et al., 2014) is a generative model of unsupervised

learning proposed by Goodfellow et al. Particularly

in image generation, GAN can generate a realistic and

highly accurate image.

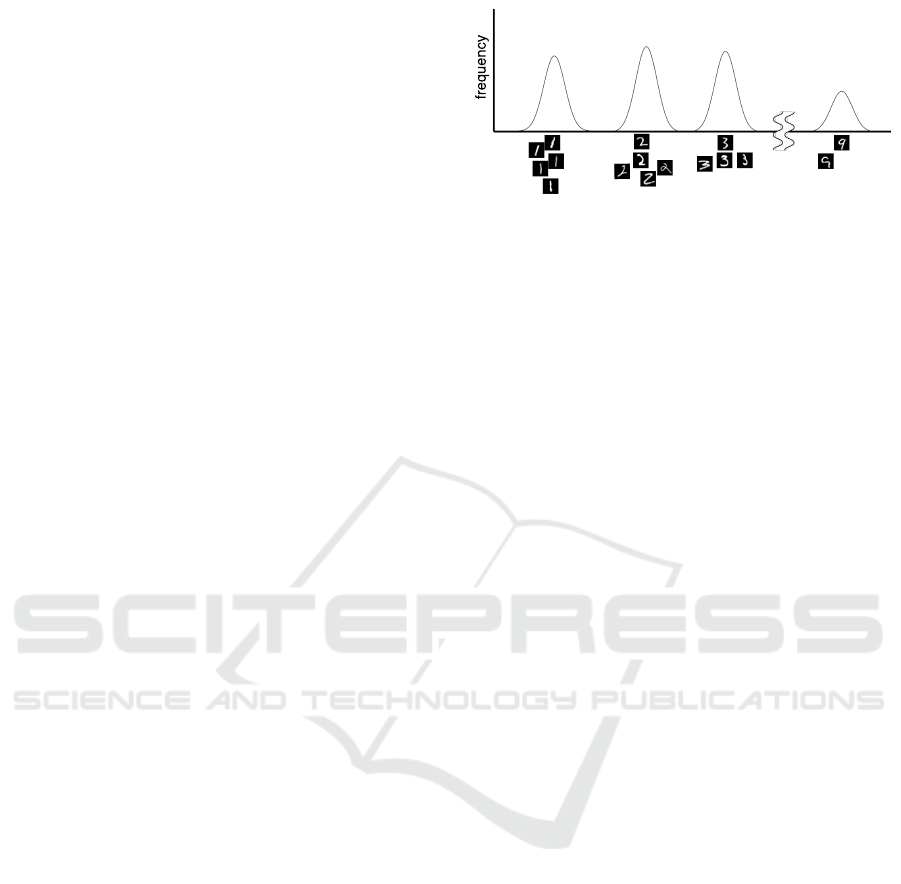

Figure 2: Two-dimensional graphed MNIST dataset.

There are two main networks in the GAN, and

these are conﬁgured as “Adversarial Network” which

optimize in conﬂict.

One is a generator G, and the goal of this network

is to learn the distribution p

(x) for the training data

x. The generator randomly samples the vector z from

the prior distribution p

(z) such as uniform distribu-

tion and Gaussian distribution. Then, the generator

outputs G(z) and maps it to the generation distribu-

tion p

(G(z)).

The other is a discriminator D, which is a function

aimed at discriminating whether the input data is

training data (real) or data generated by a generator

(fake).

Given the fact that GAN is “Adversarial Net-

work”, the goal of the two networks can be paraphra-

sed as that the generator optimizes so as to generate

data which makes the discriminator mistakenly recog-

nize what it has generated as “real”. Then, the discri-

minator optimizes to be able to distinguish “real” and

“fake” clearly.

Therefore, the objective function can be formula-

ted as the following minimax optimization.

min

max

V (D, G) = E

x∼p

[logD(x

x)]

+ E

z∼p

[log(1 − D(G(z

z))]

For the input data, the discriminator derives the pro-

bability that it is training data (real). From Equation

1, the discriminator is aimed at maximization. There-

fore, D(x

x) becomes large and (1 − D(G(z

z))) also be-

comes large when the discriminator can be well dis-

criminated. On the other hand, if the generator can

successfully fool the discriminator, D(G(z

z)) gets big-

ger so (1 − D(G(z

z))) gets smaller.

GAN can be useful in various aspects such as ge-

nerating an image matching the context of the input

text, repairing a missing part of the image, and pre-

dicting the scene a few seconds after an input image.

In addition, although the original GAN(Goodfellow

et al., 2014) is made up of perceptrons, a model cal-

led Deep Convolutional Generative Adversarial Net-

works(DCGAN)(Radford et al., 2015) that adopts

CNN for the GAN network has been proposed to furt-

Factors Affecting Accuracy in Image Translation based on Generative Adversarial Network

447

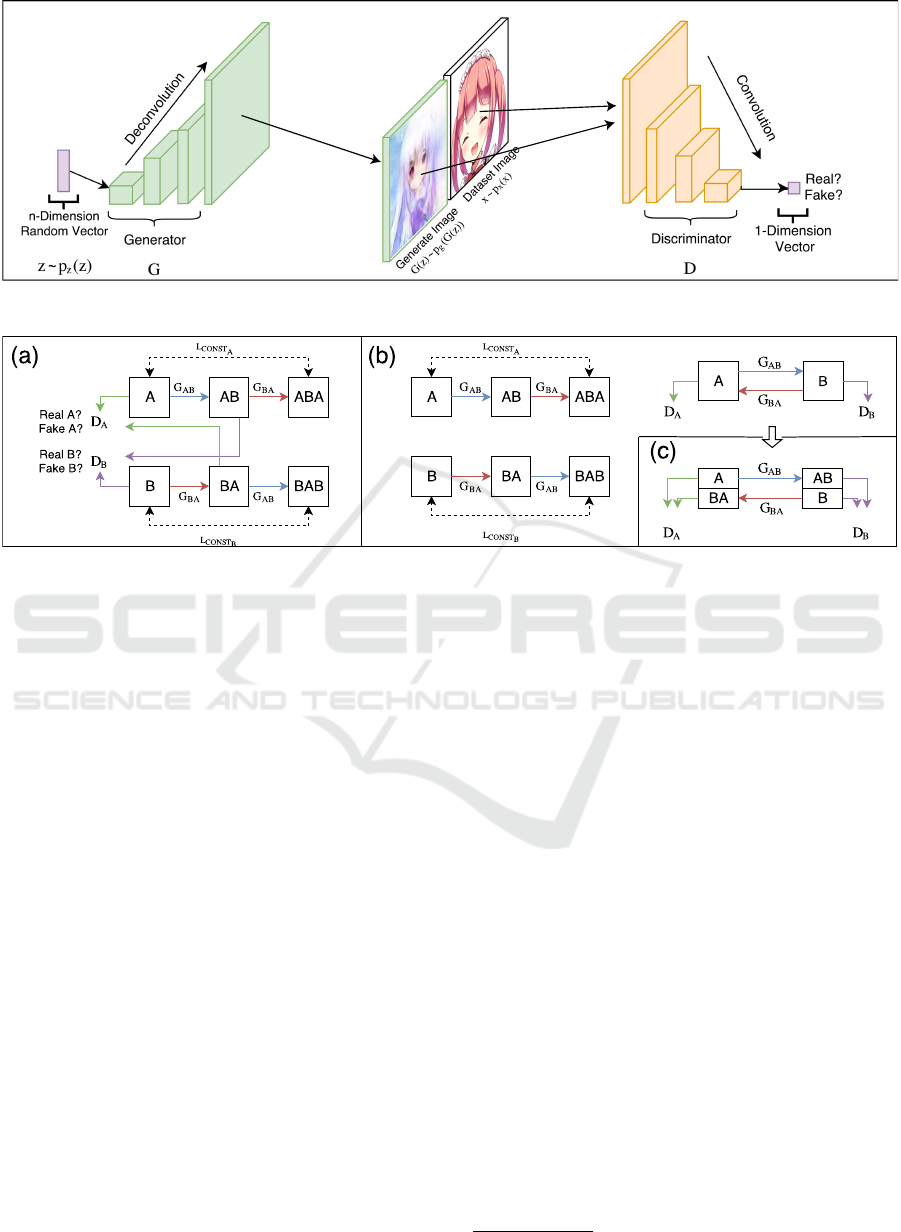

her enhance learning efﬁciency and generation accu-

racy of GAN (Figure 3).

We can assume various categories over each trai-

ning data. For example, in the case of MNIST

(handwritten digits) image data set (LeCun and Cor-

tes, 2010), the digits correspond to the category.

When a set of training data is represented by a two-

dimensional graph as shown in Figure 2, it is assu-

med to be composed of mixed distributions formed by

“peaks” of multiple distributions where each category

concentrates. In the previous study, the range of the

horizontal axis corresponding to each peak is deﬁned

as “mode”(Goodfellow, 2016). The generator learns

so that the distribution p

(G(z)) approaches the shape

of the distribution p

(x) for each mode. If the genera-

tor relies on a mode that can reliably deceive the dis-

criminator, the “mode collapse” described in section

2 will occur. In order to the avoid this, it should gene-

rate data in each mode as p

(x). In addition, because

we can assume various categories with the complex

structure on a real world dataset, it is much more com-

plicated than MNIST. Mode collapse is a major is-

sue in GAN, and recent studies have proposed several

methods to solve the problem.

3.2 Image Translation

The study which becomes the roots of the image

translation began when “Image Analogy”(Hertzmann

et al., 2001) appeared. This is a nonparametric met-

hod, which learns the ﬁlter that is applied to the con-

verted image from the pair of images before and af-

ter conversion and applies the same ﬁlter to any other

image. In recent years, studies based on CNN appro-

ach have been actively conducted(Gatys et al., 2016).

3.3 Image Translation using GAN

3.3.1 Supervised Learning

In this paper, “supervised learning” refers to lear-

ning using training data explicitly paired in two image

domains.

Yoo et al. proposed a GAN-based model that

can generate an image of clothes worn by a per-

son(target domain) from a model image wearing the

clothes(source domain) using paired training data.

“pix2pix”(Isola et al., 2016) can perform general

translation learning between various image domains if

the target image can be speciﬁed for any source image

as paired training data.

3.3.2 Unsupervised Learning

In contrast, several studies have been proposed that

take approaches in unsupervised learning. “Disco-

GAN”(Kim et al., 2017) does not require paired trai-

ning data. They proposed a model that allows image

translation between two image domains only by de-

ﬁning them. CycleGAN (Zhu et al., 2017) proposed

simultaneously can do the same thing.

DiscoGAN and CycleGAN share the same archi-

tecture although they have differences in detailed le-

arning technics. In this study, in order to investigate

the two models, we will describe the details of the

network algorithm in Section 4.

4 ANALYSIS OF DIFFERENCE

BETWEEN DISCOGAN AND

CYCLEGAN

4.1 Algorithm

As described in Section 1 and 3, the network architec-

ture of DiscoGAN and CycleGAN are identical (Fi-

gure 4). Therefore, we will explain the details of the

algorithm using DiscoGAN. Let us call two arbitrary

domains domain A and domain B respectively.

First, let us deﬁne the generator G

that takes an

image x

of domain A and convert it to one of domain

B. In image translation, it is important to ﬁnd a me-

aningful relationship (semantic information) between

both domains and to convert an element of the source

domain to the target domain while keeping the relati-

onship. In order to ﬁnd the relationship, DiscoGAN

constrains the relation of each mode between domains

to bijection. Therefore, it is necessary to deﬁne G

the inverse translation with which the mapping from

domain B to domain A can be performed. G

cal-

culates its output x

ABA

= G

) using the image

generated by G

. Finally, we derive the loss

function L

CONST

of the difference between x

and

ABA

using arbitrary distance function (mean square

error, cosine distance, etc.). As a result, we can iden-

tify the corresponding element in domain B given an

element in domain A. Next, we need to build the dis-

criminator D

of domain B to check the appropriate-

ness of the translation. D

is supposed to discriminate

whether an image is a training example x

taken from

the domain B (real) or a generated image x

(fake)

using G

and a training example x

drawn from the

domain A. In discrimination, the D

learns the feature

of the domain B and increases discrimination ability.

Therefore, G

learns to generate x

which is indis-

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

448

Figure 3: DCGAN network(when handling images).

Figure 4: DiscoGAN(a) and CycleGAN(b) network(Kim et al., 2017)(Zhu et al., 2017). The part of the discriminator seems to

be a different structure. However, interpreting (b) as (c), we can understand that the two networks share the same architecture.

tinguishable from the real image x

. Therefore, the

objective functions of generators G

and discrimina-

tor D

are as follows.

= −E

∼p

[logD

))]

+ L

CONST

(1)

= −E

∼p

[logD

)]

− E

∼p

[log(1 − D

)))]

(2)

Regarding the formulation, it is also necessary to

impose constraints for translation from domain B to

domain A in addition to the above formula. The rea-

son is that this formulation alone does not satisfy the

bijection condition. Figure 5(b) shows an example

in the case of performing image translation with the

original GAN. This suggests that multiple modes of

Domain A may map to a single mode of Domain B if

there are no constraints. This is a phenomenon called

“mode collapse” mentioned in Section 2. It is a phe-

nomenon that the generator depends on a “mode” by

which discriminator easy to be fooled, and any inputs

yield in the output similar to a particular image. Fi-

gure 5(c) is the result of posing L

CONST

. As a result,

we can identify the corresponding element in domain

B given an element in domain A. However, we have

not solved the mapping from multiple modes to single

mode. That is, the mode collapse has not been solved.

Therefore, formulation on translation from domain B

to domain A must be considered. The following is the

ﬁnal objective function.

= L

+ L

(3)

= L

+ L

(4)

The parameters to be learned are G

, G

, D

When these conditions are satisﬁed, the mapping

must be a bijection, and it becomes possible to have

correspondence between the domains.

From Figure 4, CycleGAN also has the same for-

mula as DiscoGAN. Only the name of the recon-

struction loss has changed

4.2 Elements of Models

In the following, we will describe the ﬁve learning

techniques which stand out as clear differences bet-

ween the two models from our analysis.

4.2.1 LSGAN

LSGAN (Mao et al., 2016) is a method for improving

learning stability and generation accuracy for GAN.

Regarding the objective function, the log likelihood

Zhu et al. named this a cycle-consistency loss.

Factors Affecting Accuracy in Image Translation based on Generative Adversarial Network

449

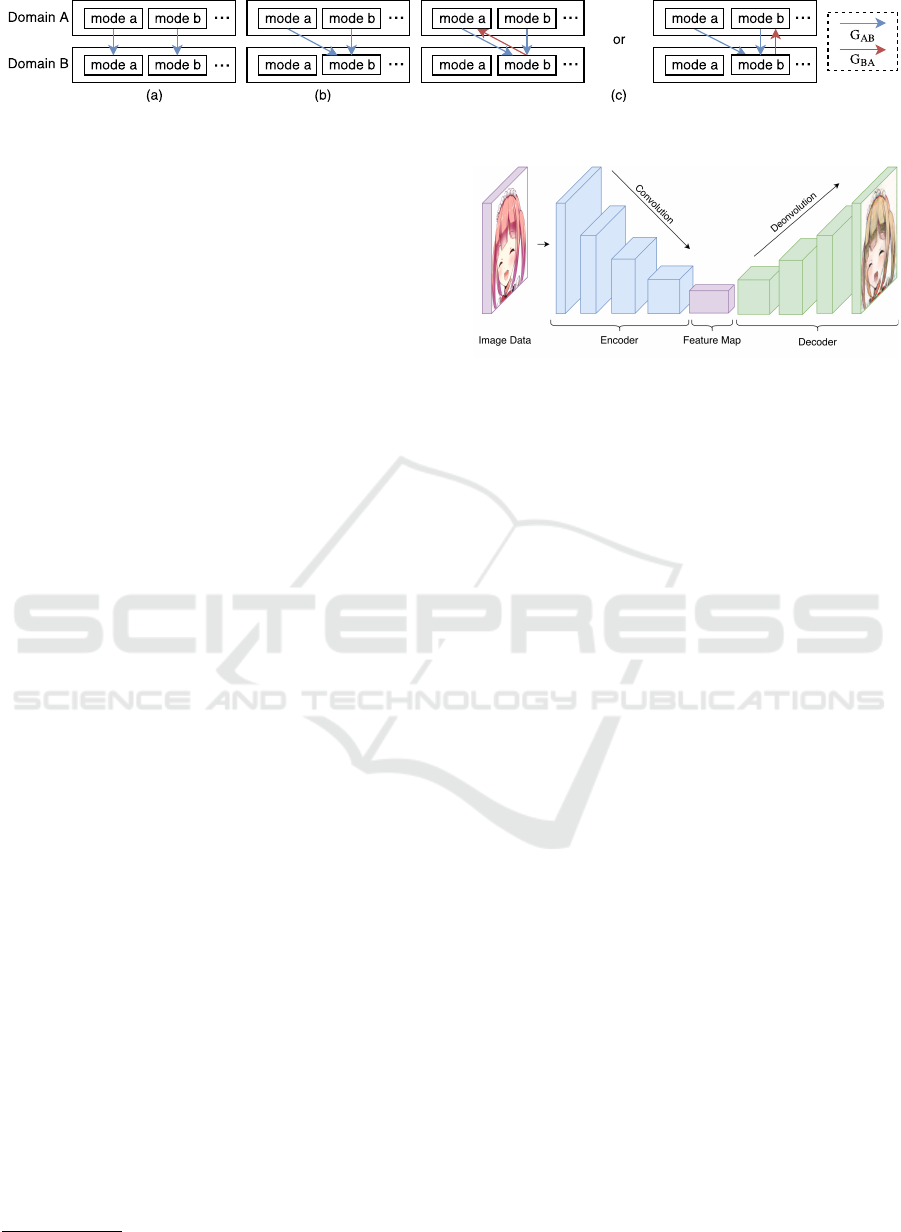

Figure 5: Mode-to-mode mappings of our models. (a): ideal result, (b): a possible result when using original GAN, (c):

possible results when using L

CONST

(Kim et al., 2017).

is originally used, whereas the method of Mao et al.

uses the least squared error.

4.2.2 PatchGAN

PatchGAN (Isola et al., 2016) is a technique used for

improving learning efﬁciency and stabilizing image

translation by supervised

learning. With this techni-

que, the discriminator is not given the whole image

but N ×N patches to judge it as genuine or fake. Since

the normal discriminator is given the whole area of the

image, the number of the learning parameter becomes

large depending on the image size. Since PatchGAN

is given an image locally, the number of the learning

parameters can be kept low, and the discriminator is

strengthened by increasing the learning efﬁciency.

4.2.3 Buffer

SimGAN (Shrivastava et al., 2016) is a model that

can convert a synthetic image created for training data

into a more realistic image. In order to cope with lack

of training data, they used a simulator to create synt-

hetic images. However, there was a risk that the synt-

hetic images were not realistic enough, resulting un-

stable learning. SimGAN was proposed to mitigate its

risk. Buffer is used as a method of improving accu-

racy in this model. When giving an image to the dis-

criminator, it uses not only a newly generated image

but also an image generated in past (buffer) with a

certain probability.

4.2.4 Deﬁnition of L

CONST

In DiscoGAN, L

CONST

is shown as an arbitrary dis-

tance function. For its implementation, mean square

error was used. On the other hand, CycleGAN uses

the L1 norm.

4.2.5 ResNet

In image recognition, it is said that the deeper the

layer of CNN becomes, the higher the recognition

accuracy will be. However, there was a problem that

recognition error increases if the layer is made too

deep. Deep Residual Learning (ResNet) (He et al.,

Learning by explicit pairing of training data

Figure 6: Generator used in this study.

2016) is a method for constructing a deep network of

layers. Learning the residual between the outputs and

inputs of that layer rather than learning the optimal

output at a layer eliminates the need to use unneces-

sary weights. By doing this, it becomes possible to

extend the limit of the depth of the layer and to stabi-

lize learning.

5 EXPERIMENTS

5.1 Experimental Setups

In this study, we examine the inﬂuence of the presence

or absence of the ﬁve learning techniques on the ge-

neration accuracy in image translation. Using Disco-

GAN as a baseline model, experiments are conducted

with a total of 32 cases that deﬁned by presence or

absence of learning techniques. For the data set, we

used 5000 pink hair portrait illustration images in the

source domain and 5000 blond ones in the target dom-

ain. The image size was 64 × 64 resolution.

Regarding the architecture of the generator and

discriminator, it is composed of multiple convoluti-

onal layers based on DCGAN(Radford et al., 2015).

Originally, the generator adopts a random vector for

input. In image translation, an encoder composed of a

convolution layer is built in order to handle an image

as input. Next, the vector output from the encoder

is taken as input and handled as a feature on the input

image. Then, by entering the vector to a decoder com-

posed of deconvolution, an image is generated. The

conﬁgurations of encoder and decoder are often col-

lectively called a generator (Figure 6). On the other

hand, the discriminator is composed of a convolution

layer in the same way as the original GAN.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

450

Table 1: Architecture of DiscoGAN and CycleGAN.

DiscoGAN CycleGAN

Net Layer C F S P BN A Net Layer C F S P BN A

c1 64 4 2 1 leaky

c1 32 7 1 3 ReLU

c2 128 4 2 1 leaky c2 64 4 2 1 ReLU

c3 256 4 2 1 leaky c3 128 4 2 1 ReLU

c4 512 4 2 1 leaky RN4 128 3 1 1 ReLU

dc5 256 4 2 1 ReLU RN5 128 3 1 1 ReLU

dc6 128 4 2 1 ReLU RN6 128 3 1 1 ReLU

dc7 64 4 2 1 ReLU RN7 128 3 1 1 ReLU

dc8 3 4 2 1 tanh RN8 128 3 1 1 ReLU

c1 512 4 2 1 leaky RN9 128 3 1 1 ReLU

c2 256 4 2 1 leaky RN10 128 3 1 1 ReLU

c3 128 4 2 1 leaky RN11 128 3 1 1 ReLU

c4 64 4 2 1 leaky RN12 128 3 1 1 ReLU

c5 1 4 1 0 identity unp13 64 2 2 0 identity

c13 64 3 1 1 ReLU

c convolution(down convolution) unp14 32 2 2 0 identity

dc deconvolution(up convolution) c14 32 3 1 1 ReLU

leaky leaky ReLU c15 3 7 1 3 tanh

identity identity mapping

c1 64 4 2 1 leaky

RN ResNet c2 128 4 2 1 leaky

unp unpooling c3 256 4 2 1 leaky

C...Channel, F...Filter Size, S...Stride, P...Padding,

BN... Batch Normalization, A...Activation Function

c4 512 4 2 1 leaky

c5 1 3 1 1 identity

Table 2: Shape evaluation result. For each list of digits, set

the method to be applied to “1” and those not apply “0”.

From the left “PatchGAN, LSGAN, L

CONST

, ResNet, Buf-

fer”. We will use this notation hereafter.

Failure Success

00000 00101 01100 10101 01010 10011 11110

00001 00110 01101 11000 01011 10110 11111

00010 00111 10000 11001 01110 10111

00011 01000 10001 11100 01111 11010

00100 01001 10100 11101 10010 11011

Table 1 shows the details of each CNN structure.

For PatchGAN and ResNet, use DiscoGAN network

when not used, and use CycleGAN network when

used.

5.2 Experimental Result

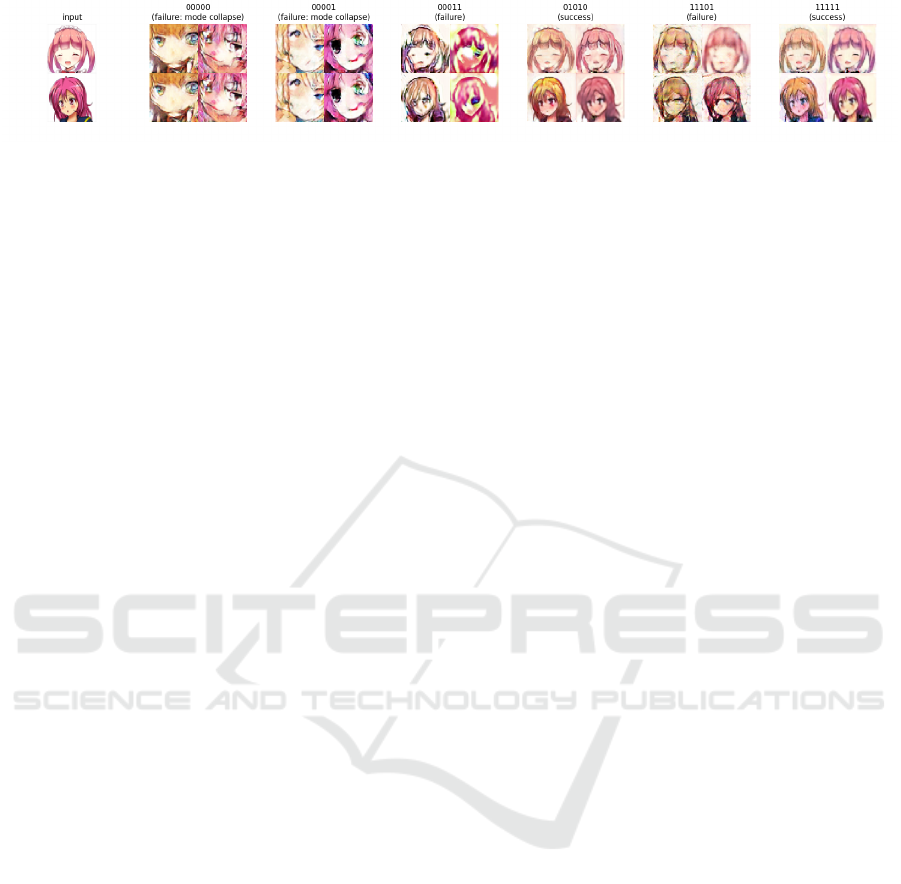

Several representative examples out of 32 experimen-

tal results are shown in Figure 7.

Models are compared with each other by checking

whether x

ABA

holds the form of the original input x

after application of G

and G

. We call the met-

hod “shape evaluation”. We have visually evaluated

whether the shape of the original input x

is maintai-

ned at x

ABA

from the Figure 7. It is assumed to be

“success” when the face outline, eyes, mouth were

reconstructed along the original input. On the other

hand, it is evaluated as “failure” when the mode col-

lapse occurs, when the shape of the face is malformed

or when a part of the part is missing. The results are

shown in Table 2.

Boldface items show failed patterns despite using

three or more learning techniques and successful pat-

terns despite using two or less learning techniques.

From these results, PatchGAN, LSGAN, ResNet can

be cited as methods having an important role in shape

reconstruction.

The condition for success can be summarized as

the following. In the case where PatchGAN is not

used, shape reconstruction will succeed if both LS-

GAN and ResNet are used. In the case where Pat-

chGAN is used, shape reconstruction is successful if

Table 3: Details of failure pattern.

Mode collapse No mode collapse

00000(0) 00110(1) 01101(1) 00011(1) 11100(2)

00001(0) 00111(1) 10000(1) 10001(1) 11101(2)

00010(1) 01000(1) 10100(1) 10101(1)

00100(0) 01001(1) 11000(2)

00101(0) 01100(1) 11001(2)

ResNet is used. All other cases failed. From these

results, it turns out that the most important learning

technique among the ﬁve techniques is ResNet.

From the above results, it seems that Buffer and

CONST

have no particular effect. As for L

CONST

, it

has no particular impact in this experiment, just as

Kim et al. stated that an arbitrary distance function

could be used. However, the effect of Buffer is unex-

plainable from the above result. We have found an

evidence that Buffer could contribute to avoid the

mode collapse, after classifying the failure patterns

based on the presence or absence of the mode col-

lapse. In this experiment, it is judged that mode col-

lapse occurs when an image similar to a particular

image is generated for two different input images.

The result is shown in Table 3.

In this table, the numbers in parentheses indicate

the number of techniques used in a model among

three techniques (PatchGAN, LSGAN, ResNet) that

are considered important. From the results, it can

be seen that mode collapse occurs if only one main

technique is used or not used at all. On the other

hand, when both PatchGAN and LSGAN are used,

mode collapse has not occurred. Buffer + ResNet

pattern and Buffer + PatchGAN pattern also did not

cause mode collapse, and the inﬂuence of Buffer on

major techniques was observed. However, as for Buf-

fer + ResNet, since the mode collapse pattern (00111)

also exists, it was found from this result that the ef-

fect of mode collapse prevention by combination of

PatchGAN and Buffer is signiﬁcant.

6 DISCUSSION

Experimental results show that PatchGAN and LS-

GAN and ResNet are three important methods.

Among them, ResNet has an important role in both

shape reconstruction, and it is considered to be the

most important method among the ﬁve.

Although GAN originally uses random noise of

about 100 dimensions for input, this time we use ima-

ges for input. As seen in Figure 6, the input image is

compressed by the convolution layer (encoder), and

it is used as the input of the generator in the form of

a feature map. In this experiment, the training exam-

ples are 64 × 64 resolution images. When we use the

Factors Affecting Accuracy in Image Translation based on Generative Adversarial Network

451

Figure 7: Results. Top left: x

. Top right: x

ABA

. Bottom left: x

(another input). Bottom right: x

ABA

(another input).

DiscoGAN network, we will downsample them to a

very small feature map of 4 × 4. Therefore, the di-

mension of the input space of the generator becomes

much lower than the training data distribution. That

makes mode collapse more likely and leads to genera-

tion failure. On the other hand, since CycleGAN with

ResNet employs a 16x16 feature map, mode collapse

is unlikely and the shape becomes stable.

From the above, we make one hypothesis. That

is, by increasing the size of the feature map output

by the encoder, shape reconstruction succsessful rate

may be improved. In order to verify these, two additi-

onal experiments are carried out. First, by using ima-

ges of 256 × 256 resolution as the input of DiscoGAN

(00000), we examine the inﬂuence of the image size

on the quality of the generated image (Figure 8(c)).

Next, by using images of 64 × 64 resolution as the

input of DiscoGAN (00000), we examine the inﬂu-

ence of the number of convolution layers on the qua-

lity of the generated image (Figure 8(d)). The encoder

parts of both DiscoGAN and CycleGAN are compo-

sed only of convolution layers that perform downsam-

pling, and the size of the feature map is determined

by the image size and the number of layers. In other

words, the two additional experiments are common in

that the feature map is extended rather than the ordi-

nary DiscoGAN. When the result of image translation

by additional experiment is better than that of origi-

nal DiscoGAN, it is understood that the difference in

accuracy between DiscoGAN and CycleGAN is attri-

buted to the size of the feature map used as input to

the decoder. The results are shown in Figure 9.

From the results, with 256 × 256 resolution ima-

ges, the results were as good as CycleGAN. Although

the quality is poor as the result of reducing the layer,

the shape is stable without mode collapse. This result

is a category of “success” in this experiment. As a re-

sult, we can attribute the improvement to the size of

the feature map as stated in the hypothesis.

Also, from the Table 2, it turns out that the result

with ResNet alone is a failure (00010). This is be-

cause the ﬁlter size for convolution in Conv 1 of Table

1(CycleGAN) is large, which caused the loss of infor-

mation. In this regard, however, it will be successful if

only PatchGAN or LSGAN is added to ResNet. The-

refore it can be seen once again that these two are

largely attributed to image quality improvement.

As for the mode collapse, Table 3 shows that there

is an inﬂuence by buffer. In particular, the combina-

tion of PatchGAN and Buffer improves mode collapse

despite the small feature map, which shows that it is

an important technique.

The mode collapse is caused by imperfect nature

of the discriminator. Learning of discriminators can

be tricky. Suppose there are two modes, one in which

the discriminator can accurately discriminate real or

fake, and another in which the discriminator performs

poorly. The generator learns to rely on the second

mode to reliably fool the discriminator and thereafter

the distribution of generated data only includes the se-

cond mode.

Both PatchGAN and Buffer are approaches to dis-

criminators and are used as important learning techni-

ques to improve discriminator’s performance. Howe-

ver, as for Buffer, when two or more major techniques

were used, the quality was improved regardless of its

presence. PatchGAN is more important for quality

improvement.

7 CONCLUSION

In this study, we examined learning techniques that

are responsible to the difference in the image genera-

tion accuracy in a particular domain for the two image

translation models. Among them, ResNet was used

as the most inﬂuential one. It turned out that the fe-

ature map size is an important parameter. As for the

mode collapse, it was found that it can be improved by

using two or more major techniques or by combining

PatchGAN + Buffer.

CycleGAN is a model that is good at texture/style

translation. However, it performed poorly in tasks that

change shape and were cited as future tasks. Meanw-

hile, in DiscoGAN, there is a successful example of

a task to change shape, leaving very precise results.

However, the images belonging to the domain are re-

latively similar to each other, and DiscoGAN has not

succeeded in the case where there are various images

in the domain. For example, this model has succee-

ded tasks that change shapes, such as facial expressi-

ons and gender. Both of these use human faces and

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

452

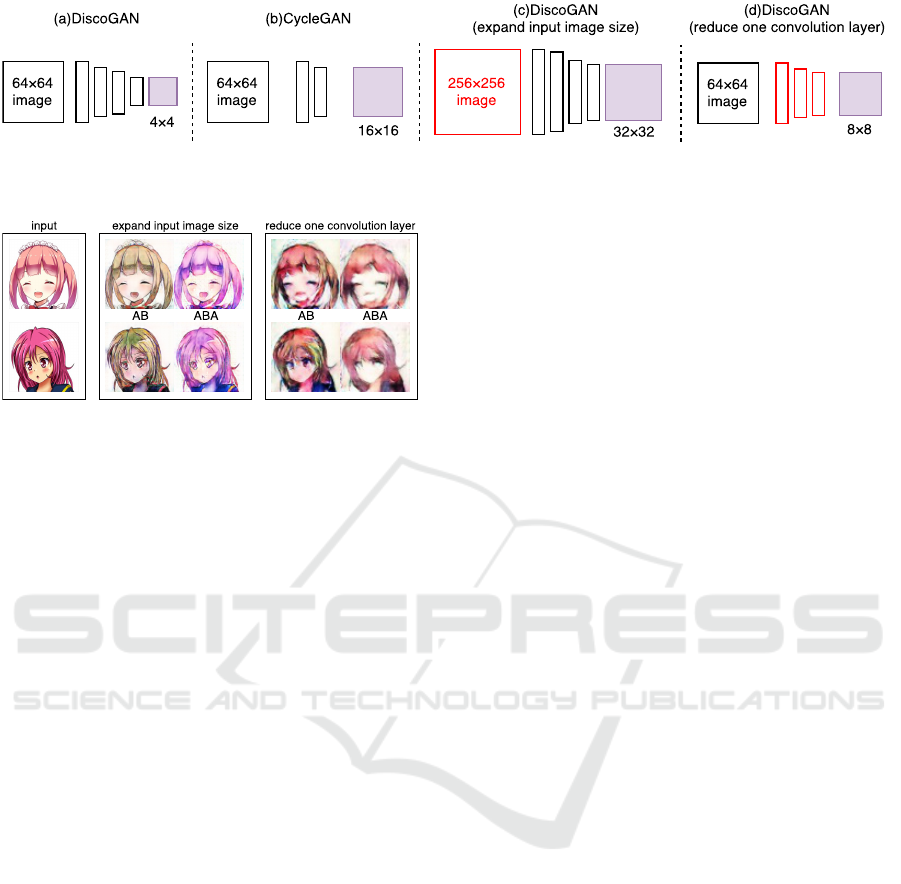

Figure 8: Feature map size output from encoder. In the additional experiments (c) and (d), the feature map size is larger than

that of the ordinary DiscoGAN(a).

Figure 9: Additional experiment results.

are relatively similar. As can be seen from these, we

consider that ﬁve learning techniques need to be ad-

justed not only by the generation accuracy but also

by the image domain to be handled. In this study we

conducted experimental veriﬁcation focused on shape

evaluation, but we did not consider domain translation

accuracy (in this paper, it is an indicator whether it is

translated into blond hair or not). The indicator is dif-

ﬁcult for this domain translation and we will treat it

as a future work.

Based on the result of the domain handled in this

study, we will try targeting illustrations in the future

and try to realize socially useful agents for creators

who deal with them.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Numbers JP16K12411, JP17H04705.

REFERENCES

Gatys, L. A., Ecker, A. S., and Bethge, M. (2016). Image

style transfer using convolutional neural networks. In

Proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition(CVPR), pages 2414–

2423.

Goodfellow, I. (2016). Nips 2016 tutorial: Generative ad-

versarial networks. arXiv preprint arXiv:1612.07828.

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B.,

Warde-Farley, D., Ozair, S., Courville, A., and Ben-

gio, Y. (2014). Generative adversarial nets. In Advan-

ces in Neural Information Processing Systems(NIPS),

pages 2672–2680.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resi-

dual learning for image recognition. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition(CVPR), pages 770–778.

Hertzmann, A., Jacobs, C. E., Oliver, N., Curless, B., and

Salesin, D. H. (2001). Image analogies. In Pro-

ceedings of the 28th annual conference on Computer

graphics and interactive techniques(SIGGRAPH), pa-

ges 327–340. ACM.

Isola, P., Zhu, J.-Y., Zhou, T., and Efros, A. A. (2016).

Image-to-image translation with conditional adversa-

rial networks. arXiv preprint arXiv:1611.07004.

Johnson, J., Alahi, A., and Fei-Fei, L. (2016). Perceptual

losses for real-time style transfer and super-resolution.

In European Conference on Computer Vision(ECCV),

pages 694–711. Springer.

Kim, T., Cha, M., Kim, H., Lee, J., and Kim, J.

(2017). Learning to discover cross-domain relations

with generative adversarial networks. arXiv preprint

arXiv:1703.05192.

LeCun, Y. and Cortes, C. (2010). MNIST handwritten digit

database. http://yann.lecun.com/exdb/mnist/.

Mao, X., Li, Q., Xie, H., Lau, R. Y., Wang, Z., and Smol-

ley, S. P. (2016). Least squares generative adversarial

networks. arXiv preprint arXiv:1611.04076.

Radford, A., Metz, L., and Chintala, S. (2015). Unsuper-

vised representation learning with deep convolutio-

nal generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Shrivastava, A., Pﬁster, T., Tuzel, O., Susskind, J., Wang,

W., and Webb, R. (2016). Learning from simulated

and unsupervised images through adversarial training.

arXiv preprint arXiv:1612.07828.

Taigman, Y., Polyak, A., and Wolf, L. (2016). Unsuper-

vised cross-domain image generation. arXiv preprint

arXiv:1611.02200.

Yoo, D., Kim, N., Park, S., Paek, A. S., and Kweon, I. S.

(2016). Pixel-level domain transfer. In European Con-

ference on Computer Vision(ECCV), pages 517–532.

Springer.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. arXiv preprint

arXiv:1703.10593.

Factors Affecting Accuracy in Image Translation based on Generative Adversarial Network

453
