Sentence and Word Embedding Employed in Open Question-Answering

Marek Medved’ and Aleš Horák

Natural Language Processing Centre, Faculty of Informatics, Masaryk University,

Botanická 68a, 602 00, Brno, Czech Republic

Keywords:

Question Answering, Word Embedding, Word2vec, AQA, Simple Question Answering Database, SQAD.

Abstract:

The Automatic Question Answering, or AQA, system is a representative of open domain QA systems, where

the answer selection process leans on syntactic and semantic similarities between the question and the an-

swering text snippets. Such approach is speciﬁcally oriented to languages with ﬁne grained syntactic and

morphologic features that help to guide the correct QA match. In this paper, we present the latest results

of the AQA system with new word embedding criteria implementation. All AQA processing steps (question

processing, answer selection and answer extraction) are syntax-based with advanced scoring obtained by a

combination of several similarity criteria (TF-IDF, tree distance, ...). Adding the word embedding parameters

helped to resolve the QA match in cases, where the answer is expressed by semantically near equivalents. We

describe the design and implementation of the whole QA process and provide a new evaluation of the AQA

system with the word embedding criteria measured with an expanded version of Simple Question-Answering

Database, or SQAD, with more than 3,000 question-answer pairs extracted from the Czech Wikipedia.

1 INTRODUCTION

Open domain question answering (QA) systems do

not pose any limit on the content of the question, they

rather aim to serve as “next generation” search sys-

tems (Etzioni, 2011). The capabilities of QA sys-

tems are, of course, limited by their actual informa-

tion source – either a (form of a) knowledge base or

a (set of) text document(s)/corpora. A knowledge

base is formed by structured data that contain ad-

ditional information which is added by either man-

ual or automatic annotation. Known representatives

of this group are Knowledge Graph (Singhal, 2012),

DBpedia (Lehmann et al., 2015) and WikiQA (Yang

et al., 2015). A QA text corpus comprises generally

plain text data (possibly with linguistic annotations

of words) separated to questions and answers (see

e.g. SQuAD (Rajpurkar et al., 2016)). Such text cor-

pus usually ﬁrst needs to be processed by text mining

techniques to obtain all available information from the

text to be able to build an underlying (structured) data

source containing all candidate answers.

Most of the recent QA systems in both cate-

gories (Fader et al., 2014; Sun et al., 2015; Yih et al.,

2014; Xiong et al., 2017; Wang et al., 2017) are

based on data resources related to the mainstream lan-

guages, usually English. They offer the best coverage

of questioned topics – either in the form of large cu-

rated knowledge bases or huge corpora (Pomikálek

et al., 2012) offering invaluable statistics on multi-

word contexts and computational semantics models.

However, the dependence on such resources means

that the system capabilities are not fully transferable

to less-resourced languages without a substantial de-

crease in the ﬁnal system accuracy.

In the following text, we present the details of

a new version of question answering system named

AQA (Automatic Question Answering) (Medved’ and

Horák, 2016), which was designed for languages that

have the advantage (in this case) of rich ﬂectional

and morphological structures providing extra guid-

ance for question-answer selection. AQA introduces

new techniques that aim to improve QA over these

less-resourced languages. The system is developed

currently for the Czech language, but the employed

syntax-based techniques apply to many other mor-

phologically rich languages, e.g. most languages from

the Slavonic language family.

In this paper, we describe the design and imple-

mentation of the whole QA process of the AQA sys-

tem and provide an evaluation of applying new crite-

ria for the answer selection and extraction based on

word embeddings. We also present a new version

of QA evaluation database SQAD (Simple Question-

Answering Database (Horák and Medved’, 2014))

486

Medved’, M. and Horák, A.

Sentence and Word Embedding Employed in Open Question-Answering.

DOI: 10.5220/0006595904860492

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 486-492

ISBN: 978-989-758-275-2

word/token lemma tag

<s>

Jak jak k6eAd1

se sebe k3xPyFc4

jmenuje jmenovat k5eAaImIp3nS

etov

e sv

etov

e k6eAd1

nejrozší

ren

ejší rozší

rený k2eAgFnSc1d3

hra hra k1gFnSc1

na na k7c4

hrdiny hrdina k1gMnPc4

<g/>

? ? kIx.

</s>

b) Dungeons & Dragons

c) Nejrozší

ren

ejší sv

etov

e hranou RPG hrou na hrdiny pak je Dungeons & Dragons.

d) https://cs.wikipedia.org/wiki/Hra_na_hrdiny

Figure 1: SQAD Q/A example: a) the analyzed question of “Jak se jmenuje svˇetovˇe nejrozšíˇrenˇejší hra na hrdiny? ” (What

is the name of the world’s most spread role-playing game?), b) the answer, c) the answer sentence of “Nejrozšíˇrenˇejší svˇetovˇe

hranou RPG hrou na hrdiny pak je Dungeons & Dragons. (The world’s most widely played RPG role-playing game is then

Dungeons & Dragons.), and d) the Wikipedia document containing the answer.

with more than 3,000 question-answer pairs extracted

from the Czech Wikipedia. In this version, the under-

lying texts were expanded to full texts of the respec-

tive Wikipedia articles reaching 6 million tokens. The

previous version contained reduced answer contexts

with about 280,000 tokens. The expanded SQAD

dataset is then used for evaluation of the new AQA

features.

2 THE AQA

QUESTION-ANSWERING

SYSTEM

In the following text we describe the AQA system

modules that are employed in extracting a concrete

answer to a given question. We mainly focus on the

Answer selection module where the word and sen-

tence embedding features are exploited.

2.1 Question Processor

The ﬁrst phase in the QA processing by the AQA sys-

tem is denoted as the Question processor (see Fig-

ure 2). First, the input texts (both the question and

candidate answers) are processed by the Czech mor-

phological analyser Majka (Šmerk, 2009; Jakubí

cek

et al., 2011) and disambiguated by the DESAMB tag-

ger (Šmerk, 2010). An example of a question en-

riched by lexical and morphological information is

presented in Figure 1.

In further processing, several question features are

extracted from the text – the question syntactic tree

(using the SET parser (Ková

r et al., 2011)), the ques-

tion type, the question main verb/subject, named en-

tities, birth/death dates and birth/death places

(fol-

lowing the structure of the question syntactic tree, see

Figure 3).

The SET parsing process is based on pattern

matching rules for link extraction with probabilistic

tree construction. For the purposes of the AQA sys-

tem, the original SET grammar was supplemented by

special rules for question type recognition.

The question processor of the AQA system recog-

nizes these question types:

• Functional word questions are all non Wh*

questions that usually start with verb.

• When questions focus on an exact time or a time

span.

• Where questions focus on a place.

• Which questions where the focus lies on the noun

phrase following the "Which" word.

• Who questions ask about some entity.

• Why questions want to ﬁnd out the reason or ex-

planation.

• How questions ask for explanation or number

(“how much/many”).

Birth/death date and birth/death place are features of

speciﬁc sentences where the birth/death date and birth/death

place are present in the text just after a personal name, usu-

ally in parentheses.

See e.g. (Li and Roth, 2002) for detailed discussion on

question classiﬁcation.

Sentence and Word Embedding Employed in Open Question-Answering

487

Database

Phrases

Named entities

Question type, subject and verb

extraction

Question syntactic tree

Question reformulation

Question processor

Tree similarity weighted score

Word2vec weighted score

Answer selection

Rules

Answer extraction

Syntactic tree

Question

Answer

TF-IDF weighted score

Document selection

Figure 2: The AQA system modules.

• What questions for general questions.

The answer scoring methods employ named entity

recognition (NER) to be able to match the respective

questioned entity types with factual data in the under-

lying texts. The AQA system recognizes three named

entity types: a place, an agent and an art work. In the

current version, AQA uses the Stanford Named Entity

Recognizer (Finkel et al., 2005) with a model trained

on the Czech Named Entity Corpus 1.1 (Šev

cíková

et al., 2014) and the Czech DBpedia data.

These features are essential in the answer selec-

tion and extraction parts.

2.2 Answer Selection

In this section, we describe the exploitation of the

word and sentence embeddings approach used to ex-

tract a correct sentence(s) from the knowledge base.

The decision process uses a list of sentences ordered

by the resulting conﬁdence score denoting the prob-

ability of a successful match between the question

and the sentence answer. The score is computed as

a weighted sum of attribute similarities between the

question and the answer.

The extraction of a possible answer sentence is di-

vided into two steps:

• Document Selection: after the system has ob-

tained all the possible pieces of information about

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

488

question type: What

subject: otec

main verb: jmenuje

phrases: Jiˇrího Mouchy (noun phrase, genitive, singular, masculine, capitalized)

spisovatele Jiˇrího Mouchy (noun phrase, genitive, singular, masculine)

otec spisovatele Jiˇrího Mouchy (noun phrase, nominative, singular, masculine)

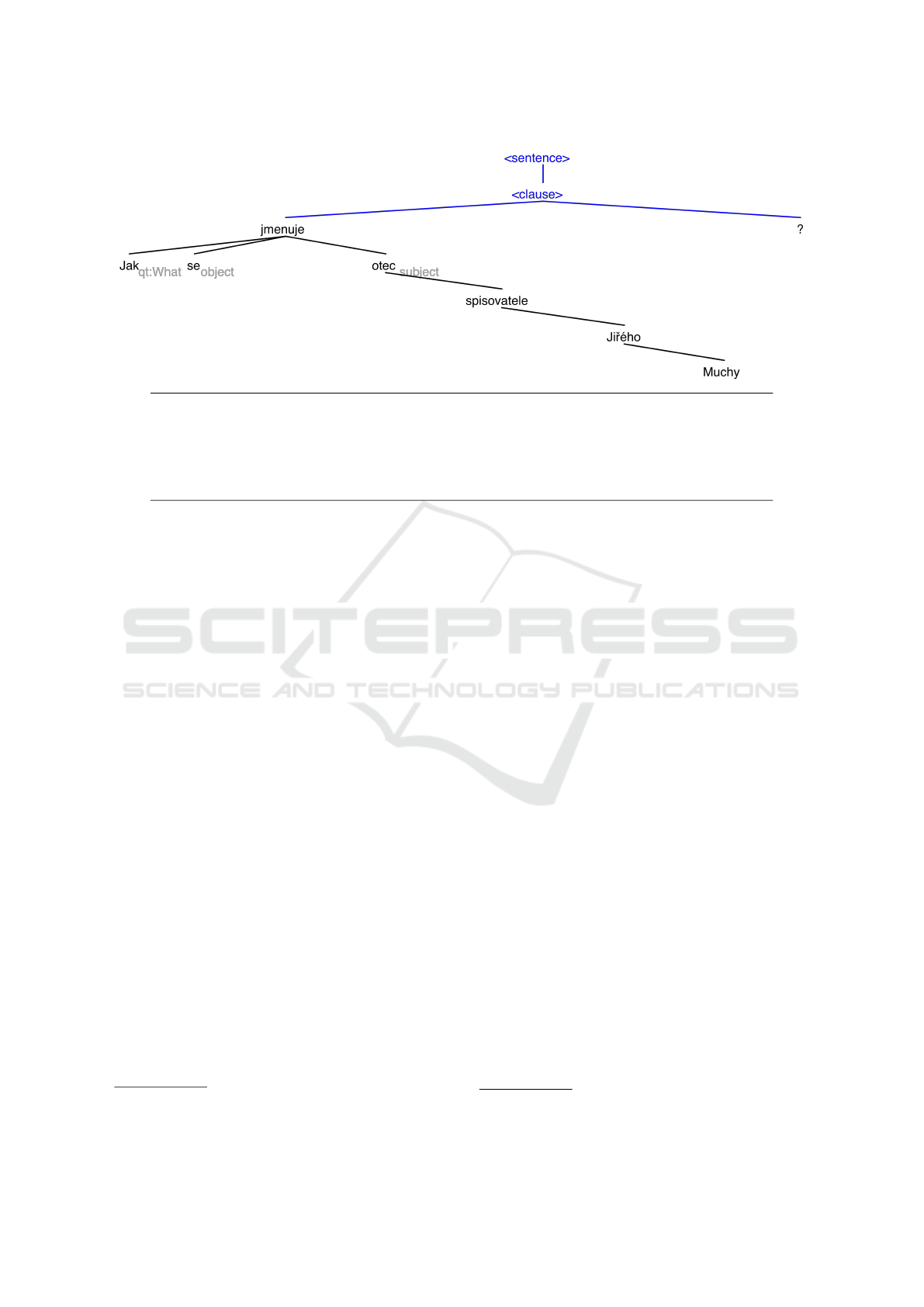

Figure 3: Syntactic tree of the sentence “Jak se jmenuje otec spisovatele Ji

rího Mouchy?”(What is the name of the father of

rí Moucha, the writer?) with the question type, the question main verb/subject, named entities and phrases.

the question, it can focus on the selection of the

best answering document among all the docu-

ments in the database. For this process, we em-

ploy the TF-IDF implementation from the gensim

library (

Reh˚u

rek and Sojka, 2010). The system

creates a similarity matrix among all documents

in the database (document term matrix). The most

promising document is then selected by cosine

distance between the question and the best doc-

ument from the similarity matrix.

• Answer Sentence Selection: for this subtask, we

have implemented two sentence similarity scor-

ing computation methods based on the gensim

modules of the word embedding Word2Vec tech-

nique (Mikolov et al., 2013) and the phrase em-

bedding Doc2Vec technique (Le and Mikolov,

2014). The sentence similarity scoring distances

then help to order all possible answer sentences.

Doc2Vec (document/sentence embeddings) mod-

iﬁes the word2vec algorithm to unsupervised

learning of continuous representations for larger

blocks of text, such as sentences, paragraphs or

entire documents.

The Doc2Vec module was used to train a model

of sentence vector space where each sentence is

represented by one vector. Before the training,

the sentences are lemmatized (each word is sub-

stituted by its base form) and stop-words

are re-

moved.

The stop-word list was extracted from a large corpus

of Czech, cztenten (Jakubí

cek et al., 2013), and is used to

The ﬁnal Doc2Vec module compares the embed-

ding vector of the question (also lemmatized and

ﬁltered by the stop-word list) to all candidate sen-

tence embedding vectors to identify the best an-

swer sentence. However, according to the evalu-

ation results, this method was not the most accu-

rate.

The second method is based on a combination of

individual word embeddings (by Word2Vec) based

on syntactic structure of the respective sentence.

The vector space model in this case is trained with

all words in the documents except stop-words.

These sentence scores are then computed by the

following steps:

a) for each phrase in the sentence and the question

create a phrase vector by sum of its word-vector

representations (example in Figure 4),

b) for each question phrase calculate the cosine

similarity with each answer phrase and ﬁnd the

maximal cosine similarity value (illustration in

Figure 5),

c) the average of the maximal cosine similarities

between question and answer phrases forms the

ﬁnal sentence score.

In the ﬁnal step, the sentence similarity score is

combined with tree distance score which com-

putes tree distance mappings between each words

pair in question-answer noun phrases. The system

remove the most frequent words, which are not important

for semantic representation of a sentence.

Sentence and Word Embedding Employed in Open Question-Answering

489

sentence Jak se jmenuje otec spisovatele Jiˇrího Mouchy?

word word vector

otec 0 0 0 1 0 0 0

spisovatele 0 0 0 0 1 0 0

rího 0 0 0 0 0 1 0

Mouchy 0 0 0 0 0 0 1

phrase phrase vector

rího Mouchy 0 0 0 0 0 1 1

spisovatele Ji

rího Mouchy 0 0 0 0 1 1 1

otec spisovatele Ji

rího Mouchy 0 0 0 1 1 1 1

Figure 4: Phrase vectors of the sentence “Jak se jmenuje otec spisovatele Ji

rího Mouchy?”(What is Ji

rí Moucha father’s

name?).

Question

Phrase

Sentence

1..k

Phrase

Max

Figure 5: Maximal cosine similarity value between the

question and a candidate sentence.

resulting score identiﬁes the best scored sentence

as the most probable sentence containing the an-

swer.

To the best of our knowledge this approach

of transformation of word vectors and syntactic

structure into a phrase vector representation has

never been introduced in previous work.

According to the evaluation (see Section 3), this

method outperforms the Doc2Vec approach.

2.3 The Answer Extraction Module

The ﬁnal step of the AQA processing is accomplished

by the Answer extraction module where a particular

part of each sentence is extracted and declared as the

ﬁnal answer. This part of the system works on the best

scored candidate answer sentences that were picked

up by the Answer selection module.

The ﬁnal answer for the asked question is ex-

tracted according to the following three factors:

• Answer Named Entities: within the knowledge

base creation process, AQA extracts the supported

named entities of three types, i.e. Place, Agent

and ArtWork. The Answer extraction module then

maps the question focus to the extracted answer

named entities. In this process, AQA also ex-

cludes named entities that are present in the ques-

tion to avoid an incorrect answer. This is the ﬁrst

attempt to get a concrete answer.

• Answer Numeric Quantity: as a special case of

named entity, numeric quantities are identiﬁed in

the answer texts and serve as the extracted an-

swer for question classes that require (or allow)

numeric result.

• Answer Noun Phrases: in case the previous step

fails to ﬁnd an answer, the system selects one

phrase from the phrase list as the answer accord-

ing to the Question focus.

3 EVALUATION

Within the evaluation process, we have used both the

SQAD v1.0 database (Horák and Medved’, 2014) and

its new expanded version, denoted as SQAD v1.1.

Both SQAD versions contain the same number of

3,301 entries of a question, the answer to this ques-

tion and the answer text. The previous version used

a rather small set of answer sentences as the knowl-

edge database for the answer selection process, the

answer sentences were chosen as the minimal con-

text from which the answer can be derived. The

current expanded version v1.1 uses the whole set of

Wikipedia documents used in the SQAD preparation

phase rather than just the closest-context paragraphs

that have been used in SQAD v1.0. The SQAD

knowledge database, which is searched in the answer

selection process, has thus been substantially enlarged

– see the statistics of sentence and token numbers in

Table 3.

In the evaluation, the AQA knowledge database

was built from all the answer texts from SQAD, and

all 3,301 questions were answered by the AQA sys-

tem. There are three possible types of a match be-

tween the AQA answer and the expected answer:

At the beginning, each question is classiﬁed by a ques-

tion type according to the sentence structure and the words

present in the question. The question type then determines

what is the actual focus of the question in terms of expected

entity type.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

490

Table 1: Evaluation of the AQA system on the expanded SQAD v1.1 database.

a) syntax oriented Word2Vec sentence representation

Answer extraction

in %

Match 1,257 38.08 %

Partial match 270 8.18 %

Mismatch 1,774 53.74 %

Total 3,301 100.00 %

b) gensim Doc2Vec trained on sentences

Answer extraction

in %

Match 875 26.51 %

Partial match 184 5.57 %

Mismatch 2,242 67.92 %

Total 3,301 100.00 %

Table 2: Evaluation of the AQA system on the SQAD v1.0

database (syntax oriented Word2Vec sentence representa-

tion).

Answer extraction

in %

Match 1,645 49.83 %

Partial match 322 9.75 %

Mismatch 1,334 40.41 %

Total 3,301 100.00 %

• a (full) Match – the ﬁrst provided answer is equal

to the expected answer;

• a Partial match – the provided answer is not an ex-

act phrase match, some words are either missing

or redundant;

• a Mismatch – incorrect or no answer produced.

For the results on the original SQAD v1.0 database

see Table 2, for the results on expanded SQAD v1.1

database see Table 1a). The SQAD v1.0 results are

presented for a comparison with the best evaluation

published in (Medved’ and Horák, 2016). The num-

ber of correct answers using the current method has

increased by 9.63 %. In the evaluation of the ex-

panded SQAD 1.1, the system has to identify the an-

swer sentence in a much larger number of sentences

(60× more), which is the main reason for a lower pro-

portion of correct answers (38 %) in this case.

The presented best results are based on the sec-

ond method using sentence scores obtained by syn-

tax motivated combinations of word embeddings (see

Section 2.2). As a comparison, the Table 1b) shows

the same evaluation of the system using the Doc2Vec

method. We can see that in same settings our syn-

tax motivated approach outperforms the Doc2Vec ap-

Table 3: Numbers of sentences and tokens (words and

punctuation) in SQAD v1.0 and the expanded version

SQAD v1.1.

database SQAD v1.0 exp. SQAD v1.1

Sentences 4,442 279,921

Tokens 97,461 6,185,697

proach by 11.57 % in the full match category.

4 CONCLUSIONS AND FUTURE

DIRECTIONS

In this paper, we have presented the latest devel-

opment of the AQA syntax-based question answer-

ing system which introduces new techniques for less-

resourced languages based on rich ﬂectional and mor-

phological structures.

We have performed an evaluation of two ap-

proaches to exploitation of sentence vector represen-

tations, or sentence embeddings, within the answer

selection part of the QA process.

The results show that our syntax motivated ap-

proach using Word2Vec phrasal combinations out-

performs the general Doc2Vec model by 11.6 % and

show that the embeddings based on syntax knowledge

are more adequate for syntactically rich languages.

We have also presented a new expanded version

of the Simple Question-Answering Database (SQAD

v1.1), which now includes 6 million tokens of un-

derlying texts formed by full Wikipedia documents

related to the set of questions. The current version

of AQA is evaluated both with the SQAD v1.0 and

the expanded SQAD v1.1 for comparison showing an

expected but not radical decrease from 49 % to 38 %

while searching through 60× larger knowledge base.

For future work, we plan to incorporate more tech-

niques for ﬂectional and morphologically rich lan-

guages into AQA to improve question-answer selec-

tion.

ACKNOWLEDGEMENTS

This work has been partly supported by the Grant

Agency of CR within the project 15-13277S.

Sentence and Word Embedding Employed in Open Question-Answering

491

REFERENCES

Etzioni, O. (2011). Search needs a shake-up. Nature,

476(7358):25–26.

Fader, A., Zettlemoyer, L., and Etzioni, O. (2014). Open

question answering over curated and extracted knowl-

edge bases. In Proceedings of the 20th ACM SIGKDD

international conference on Knowledge discovery and

data mining, pages 1156–1165. ACM.

Finkel, J. R., Grenager, T., and Manning, C. (2005). Incor-

porating non-local information into information ex-

traction systems by gibbs sampling. In Proceedings of

the 43rd Annual Meeting on Association for Computa-

tional Linguistics, ACL ’05, pages 363–370, Strouds-

burg, PA, USA. Association for Computational Lin-

guistics.

Horák, A. and Medved’, M. (2014). SQAD: Simple ques-

tion answering database. In Eighth Workshop on Re-

cent Advances in Slavonic Natural Language Process-

ing, pages 121–128, Brno. Tribun EU.

Jakubí

cek, M., Kilgarriff, A., Ková

r, V., Rychlý, P., and Su-

chomel, V. (2013). The tenten corpus family. In 7th

International Corpus Linguistics Conference, pages

125–127.

Jakubí

cek, M., Ková

r, V., and Šmerk, P. (2011). Czech Mor-

phological Tagset Revisited. Proceedings of Recent

Advances in Slavonic Natural Language Processing

2011, pages 29–42.

Ková

r, V., Horák, A., and Jakubí

cek, M. (2011). Syn-

tactic Analysis Using Finite Patterns: A New Pars-

ing System for Czech. In Human Language Technol-

ogy. Challenges for Computer Science and Linguis-

tics, pages 161–171, Berlin/Heidelberg.

Le, Q. V. and Mikolov, T. (2014). Distributed represen-

tations of sentences and documents. In ICML, vol-

ume 14, pages 1188–1196.

Lehmann, J., Isele, R., Jakob, M., Jentzsch, A., Kon-

tokostas, D., Mendes, P. N., Hellmann, S., Morsey,

M., Van Kleef, P., Auer, S., et al. (2015). DBpedia –

a large-scale, multilingual knowledge base extracted

from Wikipedia. Semantic Web, 6(2):167–195.

Li, X. and Roth, D. (2002). Learning question classiﬁers.

In Proceedings of the 19th international conference on

Computational linguistics-Volume 1, pages 1–7. Asso-

ciation for Computational Linguistics.

Medved’, M. and Horák, A. (2016). AQA: Automatic Ques-

tion Answering System for Czech. In International

Conference on Text, Speech, and Dialogue, pages

270–278. Springer.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vec-

tor space. In Proceedings of Workshop at the In-

ternational Conference on Learning Repre- sentation,

Scottsdale, USA.

Pomikálek, J., Jakubí

cek, M., and Rychlý, P. (2012).

Building a 70 billion word corpus of English from

ClueWeb. In LREC, pages 502–506.

Rajpurkar, P., Zhang, J., Lopyrev, K., and Liang, P. (2016).

Squad: 100, 000+ questions for machine comprehen-

sion of text. CoRR, abs/1606.05250.

Reh˚u

rek, R. and Sojka, P. (2010). Software Framework

for Topic Modelling with Large Corpora. In Proceed-

ings of the LREC 2010 Workshop on New Challenges

for NLP Frameworks, pages 45–50, Valletta, Malta.

ELRA.

Šev

cíková, M., Žabokrtský, Z., Straková, J., and Straka, M.

(2014). Czech named entity corpus 1.1.

Singhal, A. (2012). Introducing the knowledge graph:

things, not strings.

Šmerk, P. (2009). Fast Morphological Analysis of Czech.

In Proceedings of 3rd Workshop on Recent Advances

in Slavonic Natural Language Processing, RASLAN

2009, Brno.

Šmerk, P. (2010). Towards Computational Morphological

Analysis of Czech. PhD thesis, Masaryk University,

Brno, Czech Republic.

Sun, H., Ma, H., Yih, W.-t., Tsai, C.-T., Liu, J., and Chang,

M.-W. (2015). Open domain question answering via

semantic enrichment. In Proceedings of the 24th In-

ternational Conference on World Wide Web, pages

1045–1055. ACM.

Wang, W., Yang, N., Wei, F., Chang, B., and Zhou, M.

(2017). Gated self-matching networks for reading

comprehension and question answering. In Proceed-

ings of the 55th Annual Meeting of the Association for

Computational Linguistics (Volume 1: Long Papers),

volume 1, pages 189–198.

Xiong, C., Zhong, V., and Socher, R. (2017). Dynamic

coattention networks for question answering. In-

ternational Conference on Learning Representations,

abs/1611.01604.

Yang, Y., Yih, W.-t., and Meek, C. (2015). WikiQA: A

challenge dataset for open-domain question answer-

ing. In Proceedings of the Conference on Empirical

Methods for Natural Language Processing, EMNLP

2015, pages pp.2013–2018.

Yih, W.-t., He, X., and Meek, C. (2014). Semantic parsing

for single-relation question answering. In ACL (2),

pages 643–648. The Association for Computational

Linguistics.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

492
