Anomaly Detection in Industrial Software Systems

Using Variational Autoencoders

Tharindu Kumarage, Nadun De Silva, Malsha Ranawaka,

Chamal Kuruppu and Surangika Ranathunga

Department of Computer Science and Engineering, University of Moratuwa, Katubedda, Sri Lanka

Keywords:

Anomaly Detection, Industrial Software Systems, Variational Autoencoder, VAE, DBSCAN.

Abstract:

Industrial software systems are known to be used for performing critical tasks in numerous ﬁelds. Faulty con-

ditions in such systems can cause system outages that could lead to losses. In order to prevent potential system

faults, it is important that anomalous conditions that lead to these faults are detected effectively. Nevertheless,

the high complexity of the system components makes anomaly detection a high dimensional machine learning

problem. This paper presents the application of a deep learning neural network known as Variational Au-

toencoder (VAE), as the solution to this problem. We show that, when used in an unsupervised manner, VAE

outperforms the well-known clustering technique DBSCAN. Moreover, this paper shows that higher recall can

be achieved using the semi-supervised one class learning of VAE, which uses only the normal data to train the

model. Additionally, we show that one class learning of VAE outperforms semi-supervised one class SVM

when training data consist of only a very small amount of anomalous samples. When a tree based ensemble

technique is adopted for feature selection, the obtained results evidently demonstrate that the performance of

the VAE is highly positively correlated with the selected feature set.

1 INTRODUCTION

Software systems are becoming increasingly common

in industrial applications, being utilized for solving

various complicated problems. Most of the applica-

tions of industrial software systems are in critical sce-

narios where any failure would result in huge losses.

An industrial software system is a combination of

multiple components, each consisting of a large num-

ber of attributes. Each attribute in a component is a

statistical measure of a certain aspect of the compo-

nent. For example, queue size of requests received by

a component is an indication of the network connec-

tion to the component, as well as the memory usage of

the component. Monitoring these attributes manually

or using a rule based system for anomaly detection is

not feasible or maintainable in the long run. Hence,

automated mechanisms for anomaly detection are re-

quired.

One widely incorporated approach for detecting

faults automatically in industrial software systems is

based on machine learning techniques. The tech-

niques that have been discovered over the years can

be divided into supervised, semi-supervised, and un-

supervised (Agrawal and Agrawal, 2015).

Among them, supervised and semi-supervised

methods have proven to be the best performing

anomaly detection techniques. However, in order

to apply a supervised technique for an industrial

software system in a production environment, large

datasets containing system statistics need to be la-

beled as anomalous and non-anomalous before the

training phase (Ranaweera et al., 2017). Moreover,

new datasets would require being labeled periodically

to ensure that the models used for detecting anomalies

are relevant to the current conditions.

Thus, unsupervised techniques are the most prac-

tical solution that can be used for anomaly detection

in industrial software systems. Most of the unsuper-

vised clustering and deep learning techniques intro-

duced over the years have been used for anomaly de-

tection in general (Willsky, 1976; Tan et al., 2012;

Schneider et al., 2015). Out of the unsupervised

deep learning techniques, Autoencoders are the most

known method for anomaly detection in many do-

mains (Sakurada and Yairi, 2014). However, these

novel deep learning techniques have not been used for

anomaly detection in the industrial software systems

domain.

This paper presents a machine learning framework

440

Kumarage, T., Silva, N., Ranawaka, M., Kuruppu, C. and Ranathunga, S.

Anomaly Detection in Industr ial Software Systems - Using Variational Autoencoders.

DOI: 10.5220/0006600304400447

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 440-447

ISBN: 978-989-758-276-9

based on Variational Autoencoders (VAE) for detect-

ing anomalies in industrial software systems. VAE

shares the same decoder and encoder structure of a

normal Autoencoder. However, here the encoder acts

as a variational inference network, which makes the

VAE outperform normal Autoencoders (Kingma and

Welling, 2014; An and Cho, 2015).

The industrial software system we use is a com-

mercial stock trading platform. We show that VAE

outperforms DBSCAN (Density Based Spatial Clus-

tering of Applications with Noise), which is a density

based clustering method popularly used in anomaly

detection. Moreover, this paper presents the applica-

tion of one class learning method to improve the recall

of the VAE. According to this method, VAE is trained

only using the normal data and then used to detect

previously unseen anomalous data points. This semi-

supervised VAE outperforms the semi-supervised one

class SVM classiﬁcation technique when the anomaly

ratio of the training data is trivial. Furthermore, pre-

vious research that employed Autoencoders has not

exploited any feature selection since Autoencoders

are said to be usable in high dimensional problems

(Sakurada and Yairi, 2014; Aygun and Yavuz, 2017).

However, in contrary, our research demonstrates how

the performance of the VAE can be extensively in-

creased by selecting discriminative features, which

supports modeling the latent variables more accu-

rately.

The rest of the paper is organized as follows.

Section 2 describes the related work corresponding

to anomaly detection in industrial software systems,

and section 3 describes the industrial software sys-

tem used for the experiments. Anomaly detection is

outlined in section 4, and section 5 discusses the im-

portance of feature selection for the VAE. Section 6

presents the evaluation, followed by the conclusion in

Section 7.

2 RELATED WORK

2.1 Anomaly Detection

Traditional methods for anomaly detection involved

probabilistic (Guo et al., 2006), and statistical mod-

els (Id´e and Kashima, 2004). Although these meth-

ods exhibited agreeable results, they were not scalable

due to the increasing complexity of the systems con-

cerned.

With the breakthrough of machine learning tech-

niques used in various domains, new supervised,

semi-supervised and unsupervised anomaly detection

techniques for detecting anomalies were also intro-

duced. Supervised classiﬁcation techniques such as

Decision trees, K-nearest neighbors algorithm, Ran-

dom Forest algorithms (Alonso et al., 2011), Naive

Bayes and Support Vector Machines (Hu et al., 2003)

have been used for anomaly detection. All these

supervised techniques have been proven to be quite

powerful in detecting anomalies.

Many semi-supervised learning techniques have

also been used for detecting anomalies in several do-

mains. Among these techniques, one class SVM and

Autoencoders with one class learning have shown

promising results (Eskin et al., 2002; Heller et al.,

2003; An and Cho, 2015). One class SVM uses only

the normal data and within a given ratio, anomalies

are predicted. This method has been successfully

adopted in intrusion detection systems (Wang et al.,

2004), as well as in high dimensional and large scale

anomaly detection problems (Erfani et al., 2016).

However, due to the practical problem of label-

ing data for supervised anomaly detection, unsuper-

vised methods such as clustering and deep learning

neural networks came into use (Amer and Abdennad-

her, 2011; Dean et al., 2012). However these methods

highly depend on the features relevant to the domain

of execution.

2.2 Anomaly Detection in Industrial

Software Systems

Anomaly detection in industrial software system do-

main has been conducted using both supervised and

unsupervised machine learning techniques. When

considering the supervised techniques, SVM clas-

siﬁcation based anomaly detection has displayed

good results on an industrial trading software sys-

tem (Ranaweera et al., 2017).

Moreover, there is some research on machine

learning based approaches for unsupervised anomaly

detection in industrial software systems such as Tree

Augmented Naive Bayesian networks (Willsky, 1976;

Tan et al., 2012), Hidden Markov models (Willsky,

1976; Alonso et al., 2011), and restricted Boltzmann

machines (Schneider et al., 2015).

2.3 Variational Autoencoders for

Anomaly Detection

Among the unsupervised learning techniques, deep

learning neural network based techniques are cur-

rently gaining the momentum (Xu et al., 2017). Au-

toencoder neural networks are one of the most promi-

nent deep learning based anomaly detection technique

Anomaly Detection in Industrial Software Systems - Using Variational Autoencoders

441

that had been used in applications such as network in-

trusion detection, medical diagnosis, and credit card

fraud detection (Sakurada and Yairi, 2014; Aygun and

Yavuz, 2017). One of the most important features

of the Autoencoder is that it can employ nonlinear

dimensionality reduction while learning features. It

is shown that Autoencoders perform better than the

traditional principal component analysis (PCA) ap-

proach for anomaly detection using dimensionality

reduction (Sakurada and Yairi, 2014).

There had been different variations of Autoen-

coders introduced over the years. VAE (Kingma

and Welling, 2014) is one variation that had shown

promising results in anomaly detection. The advan-

tage of a VAE over the traditional Autoencoder is that

it uses theoretically sound variance inference for gen-

erating stochastic latent variables rather than deter-

ministic latent variables as in Autoencoders (An and

Cho, 2015; Walker et al., 2016; Doersch, 2016).

3 INDUSTRIAL SOFTWARE

SYSTEM

The anomaly detection approach of this research uses

the data corresponding to an industrial trading soft-

ware system, in which three predeﬁned components

are used. Namely, the components incorporated are

Native Gateway (NG), Sequencer, and Matching En-

gine (ME). The Native Gateway component handles

the communication between external parties and the

trading software system, while Sequencer controls

and manages the sequence of the multiple inputs pro-

vided by the Native Gateway and passes them to the

Matching Engine. Matching Engine is the component

that is responsible for matching the input orders with

the stocks. Hence, ME handles a larger part of the

computing process within the trading system. More-

over, due to the complex functionality of these com-

ponents, each of these consists of a large number of

attributes and parameters as shown in Table 1. These

three components work together in the trading sys-

tem, to perform the necessary calculations required

for the use cases of the trading system. Moreover,

these components work together to achieve the tasks

by communicating over a network.

Table 1: Main components and dimensionality.

Component Dimension

Native Gateway 78

Sequencer 110

Matching Engine 357

4 METHODOLOGY

4.1 System Overview

We present an extension of a previous anomaly detec-

tion work done on the same industrial trading soft-

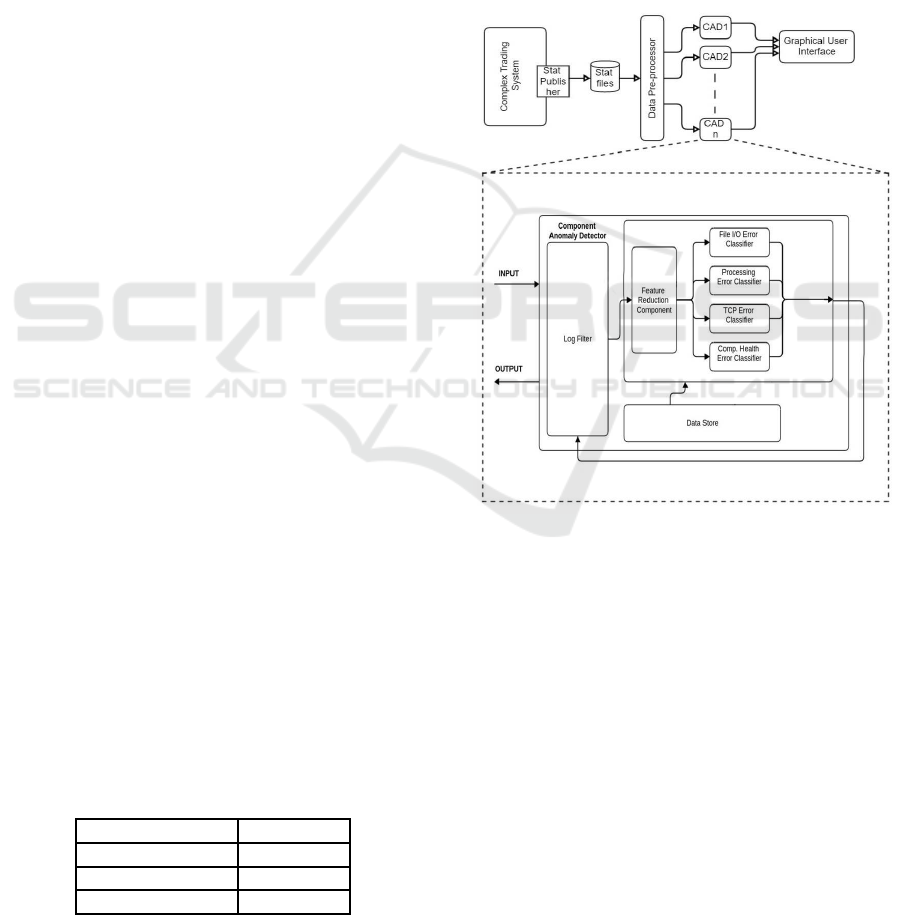

ware system (Ranaweera et al., 2017). Figure 1

demonstrates the architecture used in the previous

research, and we are exploiting the same architec-

ture with the modiﬁcation of replacing the supervised

SVM algorithm used in different classiﬁers in the

component anomaly detector (CAD) with unsuper-

vised DBSCAN and VAE anomaly detectors.

Figure 1: Architecture of the anomaly detection framework

(Source: (Ranaweera et al., 2017)).

4.2 Variational Autoencoder (VAE)

4.2.1 Structure of the VAE

VAE has the structure of a normal Autoencoder

and consists of three main components (Kingma and

Welling, 2014; An and Cho, 2015).

1. Encoder neural network (Recognition model) -

This network maps the given data instances x onto

latent variable distribution z, given parameters φ.

This is achieved by modeling the parameters of

the approximate posterior q(z|x,Φ).

2. Decoder neural network (Generative model) -

This network maps the randomly sampled latent

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

442

variable z onto a distribution of x, given parame-

ters θ. This is achieved by modeling the parame-

ters of the probabilistic graphical model p(x|z,θ),

which implies the the likelihood of the data x

given the latent variable z.

3. Loss function as given in equation 1.

L(i) = E

(z)

[ln(p(x|z, θ)) ] − KL(q

(z|x)||p

(z))

(1)

Here, the ﬁrst term in equation 1 helps in min-

imizing the error between reconstructed output and

the original input, as in a normal Autoencoder. The

second term, by taking the Kullback-Leibler (KL)

divergence, forces the approximate posterior q

(z|x)

and prior distribution p

(z) to become similar values,

which prevents the stochastic hidden variables from

being deterministic as in the normal Autoencoder.

4.2.2 Anomaly Detection Procedure of the VAE

Basic training procedure of the VAE is that, given

the training data X:{x(1), x(2), ..., x(m)} where x(i)

ε R

, network tries to regenerate the given input at

the output

X:{ˆx(1), ˆx(2), ..., ˆx(m)} by identifying the

latent variables Z that correspond to the data. If it

is assumed that there exists a signiﬁcant difference

between the normal samples and anomalous sam-

ples, the error in reconstructing anomalous samples

is higher than that of the normal samples (Sakurada

and Yairi, 2014). Due to this reason, after training

the VAE using the training dataset, and while testing

the model on test dataset, anomalous data tend to give

a higher reconstruction error, which is calculated ac-

cording to the equation 2. Moreover, by deﬁning a

threshold value for the reconstruction error, anoma-

lous data can be identiﬁed as the data points that have

a reconstruction error above the deﬁned threshold.

E(i) =

∑

j=0

(i) − ˆx

(i))

(2)

4.2.3 Semi-supervised One Class Learning

According to equation 2, data instances that tend to

give a higher reconstruction error are classiﬁed as

anomalies and the reason for higher reconstruction er-

ror is that the VAE is unable to reconstruct those given

instances correctly. In order to exploit this charac-

teristic of the VAE, we adopted a one class learning

technique.

In this one class learning technique, all the

datasets corresponding to the three components were

divided into normal and anomalous based on the la-

bels, and only the normal proportion of data was used

for unsupervised training of the VAE.

4.3 Density based Spatial Clustering of

Applications with Noise (DBSCAN)

Density based techniques had been best at identify-

ing clusters of arbitrary shapes and therefore they are

the best performing algorithms for detecting local out-

liers. Moreover, density based techniques are quite

robust in the presence of noise. This makes density

based techniques the best clustering based technique

for anomaly detection (Kotsiantis and Pintelas, 2004).

DBSCAN had been one of the most used density

based algorithms and had performed well over the

years (Loh and Park, 2014; Shekhawat and Sharma,

2017). There had been many variants of DBSCAN

that performed well in different domains. However,

the key underlying concept of anomalies had been the

same in all of these techniques.

In DBSCAN, a data point is clustered based on

whether the number of data points that exist within

a predeﬁned radius is higher than a predeﬁned num-

ber of data points (Yang et al., 2014). This marks the

data point clusters that have less number of data points

than the required amount within the deﬁned radius, as

anomalous data points.

4.3.1 Anomaly Detection Procedure of DBSCAN

When classifying new data points as anomalous or

not, the number of data points within the predeﬁned

radius from the new data point is counted, and if the

number of data points is higher than the predeﬁned

number of data points, the new data point is labeled

as non-anomalous, and vice versa.

4.4 Dealing with High Dimensionality

The industrial software system components used in

this research consist of a large number of features as

shown in Table 1, which makes the anomaly detection

procedure quite complex.

In order to overcome this problem, according to

a previous research executed on the same industrial

trading software system (Ranaweera et al., 2017), a

tree ensemble method based on randomized decision

trees was utilized to select the most suitable features

that correspond to each component.

As shown in Table 2, we obtained a reduced fea-

ture set by using the tree based ensemble.

Anomaly Detection in Industrial Software Systems - Using Variational Autoencoders

443

Table 2: Dimensionality of the reduced feature set.

Component Dimension

Native Gateway 5

Sequencer 10

Matching Engine 10

5 VAE WITH FEATURE

SELECTION

Latent variables inferred by the VAE hold a great im-

portance in the anomaly detection procedure, since

these latent variables are the building blocks of the

generative model. If the inferred latent variable dis-

tribution is capable of identifying the different classes

within the data, differentiating anomalous from nor-

mal data evidently becomes more accurate. Most

of the supervised machine learning techniques try to

achieve this using labeled data. When the latent vari-

able distribution becomes accurate, result from unsu-

pervised anomaly detection tends to become as accu-

rate as in supervised learning algorithms.

According to the literature, VAE has shown good

performance for many domains and high dimensional

benchmarking datasets (An and Cho, 2015). How-

ever, we argue that the performance of the VAE can

be improved by identifying the best features in the

dataset, which would lead to a more expressive la-

tent model of the data. Hence, a feature selection is

adopted to extract the most suitable set of features,

which leads to a higher information gain while max-

imizing the posterior probability of P(X|z, θ). As a

result, the recognition model of the VAE tends to dis-

cover the best approximation of the latent variable

distribution, and consequently probability of each

data instance X of the training dataset, as shown in

equation 3 gets maximized. This is mainly due to

the accuracy increases of the generative model with

respect to the high expressiveness of the latent vari-

ables, which results in increased likelihood of the data

X given latent variable z. Thus, a VAE that has a high

performinggenerativemodel can be designed with the

support of feature selection, leading to a higher ac-

curacy of detecting anomalies in industrial software

systems.

In next section, we empirically show that VAE

does perform better with a reduced feature set.

P(X) =

P(X|z, θ)P(z)dz (3)

6 EVALUATION

6.1 Dataset Generation

The datasets used in the experiments were generated

in a controlled environment using an industrial soft-

ware system that is used by a company in the trad-

ing systems domain. As mentioned earlier, controlled

environment contained three main components run-

ning to generate the required datasets; Native Gate-

way, Sequencer, and Matching Engine. Datasets for

each component were separated into training and test

datasets. The test datasets were labeled so that they

can be used for evaluating the anomaly detection tech-

niques. The dataset that was generated is identical to

the datasets used in the experiments done for the re-

search conducted on a supervised approach for detect-

ing anomalies (Ranaweera et al., 2017). Dataset cor-

responding to each component contains 20000 data

samples on average.

6.2 Experimental Results

Results were obtained for the three components sep-

arately. The training sets were used for training the

VAE and DBSCAN models, after which both models

were evaluated using the test datasets.

A ZeroR classiﬁer was used as a baseline classi-

ﬁer (assigning normal tag to all the data entries) in

order to mark a lower bound for the accuracy. Results

obtained from the experiments were analyzed based

on the Recall, Precision, F1 Score, and the Accuracy.

For each component, the scores were compared, un-

der these different experiments. The experiment pro-

cedure of this research is as below.

• Tested both multi-class learning (noted as M-c in

the table) and one class learning (noted as as O-c

in the table) of the VAE with respect to the dataset.

Performance evaluation of the two learning meth-

ods can be found in Table 3. Moreover, one class

and multi-class VAE were tested upon the selected

features from the tree based ensemble. This eval-

uation also can be found in Table 3.

• Tested both multi-class VAE and DBSCAN with

and without feature selection(FS). Evaluation of

the obtained performance can be found in Table

• Tested a similar semi-supervised anomaly detec-

tion technique known as one class SVM against

the one class learning of VAE in order to evalu-

ate the usability in a practical environment. This

experiment was done with and without feature se-

lection. Results are shown in Table 5.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

444

Table 3: Performance evaluation of Variational Autoencoder

Comp Desc

Recall Precision F1 Accuracy

M-c O-c M-c O-c M-c O-c M-c O-c Base

Without

0.35 0.77 0.66 0.42 0.46 0.55 0.35 0.77 0.71

With

0.96 0.97 0.96 0.92 0.94 0.94 0.97 0.97 0.71

SEQ

Without

0.59 0.74 0.56 0.63 0.57 0.68 0.59 0.74 0.72

With

0.99 1.00 0.85 0.85 0.91 0.92 0.99 0.99 0.72

Without

0.81 0.83 0.32 0.33 0.46 0.48 0.92 0.92 0.70

With

0.97 0.98 0.39 0.39 0.56 0.56 0.93 0.93 0.70

Table 4: Variational Autoencoder and DBSCAN Comparison.

Comp Desc

Recall Precision F1 Accuracy

VAE DBSCAN VAE DBSCAN VAE DBSCAN VAE DBSCAN Base

Without

0.35 0.39 0.65 0.45 0.46 0.42 0.35 0.40 0.71

With

0.96 0.95 0.91 0.91 0.93 0.93 0.97 0.95 0.71

SEQ

Without

0.59 0.55 0.55 0.51 0.57 0.53 0.58 0.54 0.72

With

0.99 0.99 0.85 0.80 0.91 0.89 0.99 0.99 0.72

Without

0.81 0.62 0.32 0.04 0.46 0.08 0.91 0.92 0.70

With

0.97 0.81 0.38 0.05 0.55 0.09 0.92 0.52 0.70

Table 5: One class learning of Variational Autoencoder and one class SVM Comparison.

Comp Desc

Recall Precision F1 Accuracy

VAE SVM VAE SVM VAE SVM VAE SVM Base

Without

0.77 0.32 0.42 0.23 0.54 0.27 0.77 0.33 0.72

With

0.97 0.97 0.92 0.50 0.94 0.66 0.97 0.97 0.72

SEQ

Without

0.74 0.72 0.63 0.36 0.68 0.48 0.74 0.71 0.72

With

1.00 0.99 0.85 0.22 0.92 0.36 0.99 0.99 0.72

Without

0.83 0.99 0.33 0.24 0.48 0.39 0.92 0.92 0.70

With

0.98 1.00 0.39 0.23 0.56 0.38 0.93 0.95 0.70

6.2.1 Result Analysis

Recall is the most important score in anomaly detec-

tion, since even a slight fault in an industrial software

system would result in massive losses. However, pre-

cision is also important as many false positives would

result in a huge wastage of resources in reacting to the

anomaly alerts.

Anomaly Detection in Industrial Software Systems - Using Variational Autoencoders

445

When comparing the scores from the experiments

performed using the multi-class VAE and DBSCAN,

the VAE outperforms, or is quite close to DBSCAN in

all the components of the industrial software system.

This shows that the VAE is better than or equal to

DBSCAN, which is an established technique.

When comparing the scores from the experiments

performed using the VAE one class learning, the VAE

has shown to give higher recall values than that of

the multi-class model. Moreover, one class learning

VAE outperformed the well known semi-supervised

anomaly detection technique, one class SVM with

a high margin. Hence one class learning of VAE

provides a suitable semi-supervised anomaly detec-

tion framework for industrial software system do-

main. However, VAE could not outperform the su-

pervised SVM classiﬁcation based anomaly detection

technique executed in the previous research on the

same dataset (Ranaweera et al., 2017).

When comparing the impact of the feature selec-

tion technique on the scores of the VAE, we can ob-

serve that the performance of all techniques had im-

proved when feature selection was performed. Previ-

ous research that employed Autoencoders has not ex-

ploited any feature selection, since Autoencoders are

said to be usable in high dimensional problems (Saku-

rada and Yairi, 2014; Aygun and Yavuz, 2017). How-

ever, according to the results obtained from the fea-

ture selection, we show that feature selection can im-

prove the performance of VAE substantially. More-

over, the experiments support the claims that had been

made in previous research that DBSCAN does not

perform well in high dimensional datasets (Berkhin

et al., 2006).

However, when comparing the overall results of

the three components, Native Gateway has lower re-

sults than the other two components. When analyzing

the dataset, We found that compared to Sequencer and

Matching Engine, data points have a sparse distribu-

tion in density wise, which can cause recognition net-

work of the VAE to identify normal points as anoma-

lous due to the high reconstruction error.

7 CONCLUSION

This paper presented the use of a deep learning neu-

ral network known as Variational Autoencoder (VAE)

to detect anomalies in an industrial software system

containing components with a large number of fea-

tures. Since the anomaly detection framework was

designed for industrial software systems with criti-

cal executions, higher recall is expected. Accord-

ing to the experiments executed, higher recall values

were obtained and these results were shown to im-

prove extensively with the feature selection mecha-

nism adopted in the research. Moreover, performance

of VAE is shown to outperform DBSCAN, which

is a well-established clustering based technique for

anomaly detection. Furthermore, the semi-supervised

one class learning based VAE outperforms the one

class SVM, and consequently proves that it is better

suited for a production environment.

One of the main characteristics of the VAE is that

it can be improvised for high dimensional anomaly

detection problems. However, this paper emphasized

the importance of identifying discriminative features

before utilizing the VAE, which leads to improved

generative power and accuracy in detecting anoma-

lies.

As future work, we intend to experiment with

unsupervised feature selection techniques such as

Joint Embedding Learning and Sparse Regression

(JELSR), Robust Joint Graph Sparse Coding, and Ex-

emplar Convolutional Neural Networks, instead of the

currently used supervised feature selection technique

tree based ensemble. This way, multi-class VAE can

be successfully used as a fully unsupervised anomaly

detection technique in industrial software systems.

ACKNOWLEDGEMENTS

The authors thank MillenniumIT Software (Private)

Ltd. for providing the datasets for industrial system

evaluation.

REFERENCES

Agrawal, S. and Agrawal, J. (2015). Survey on anomaly de-

tection using data mining techniques. Procedia Com-

puter Science, 60:708–713.

Alonso, J., Belanche, L., and Avresky, D. R. (2011). Pre-

dicting software anomalies using machine learning

techniques. In Proceedings of the 10th IEEE Inter-

national Symposium on Network Computing and Ap-

plications, pages 163–170. IEEE.

Amer, M. and Abdennadher, S. (2011). Comparison of

unsupervised anomaly detection techniques. Ger-

man Research Center for Artiﬁcial Intelligence (DFKI

GmbH).

An, J. and Cho, S. (2015). Variational autoencoder based

anomaly detection using reconstruction probability.

SNU Data Mining Center.

Aygun, R. C. and Yavuz, A. G. (2017). Network anomaly

detection with stochastically improved autoencoder

based models. In 4th International Conference on Cy-

ber Security and Cloud Computing (CSCloud), pages

193–198. IEEE.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

446

Berkhin, P. et al. (2006). A survey of clustering data mining

techniques. Grouping multidimensional data, 25:71.

Dean, D. J., Nguyen, H., and Gu, X. (2012). Ubl: Unsu-

pervised behavior learning for predicting performance

anomalies in virtualized cloud systems. In Proceed-

ings of the 9th international conference on Autonomic

computing, pages 191–200. ACM.

Doersch, C. (2016). Tutorial on variational autoencoders.

arXiv preprint arXiv:1606.05908.

Erfani, S. M., Rajasegarar, S., Karunasekera, S., and Leckie,

C. (2016). High-dimensional and large-scale anomaly

detection using a linear one-class svm with deep learn-

ing. Pattern Recognition, 58:121–134.

Eskin, E., Arnold, A., Prerau, M., Portnoy, L., and Stolfo,

S. (2002). A geometric framework for unsupervised

anomaly detection: Detecting intrusions in unlabeled

data. Applications of data mining in computer secu-

rity, 6:77–102.

Guo, Z., Jiang, G., Chen, H., and Yoshihira, K. (2006).

Tracking probabilistic correlation of monitoring data

for fault detection in complex systems. In Depend-

able Systems and Networks, 2006. DSN 2006, pages

259–268. IEEE.

Heller, K. A., Svore, K. M., Keromytis, A. D., and Stolfo,

S. J. (2003). One class support vector machines for de-

tecting anomalous windows registry accesses. In Pro-

ceedings of the workshop on Data Mining for Com-

puter Security, volume 9.

Hu, W., Liao, Y., and Vemuri, V. R. (2003). Robust support

vector machines for anomaly detection in computer

security. In ICMLA, pages 168–174.

Id´e, T. and Kashima, H. (2004). Eigenspace-based anomaly

detection in computer systems. In Proceedings of

the 10th ACM SIGKDD international conference on

Knowledge discovery and data mining, pages 440–

449. ACM.

Kingma, D. P. and Welling, M. (2014). Auto-encoding vari-

ational bayes. Proceedings of the International Con-

ference on Learning Representations (ICLR).

Kotsiantis, S. and Pintelas, P. (2004). Recent advances in

clustering: A brief survey. WSEAS Transactions on

Information Science and Applications, 1(1):73–81.

Loh, W.-K. and Park, Y.-H. (2014). A survey on density-

based clustering algorithms. In Ubiquitous Informa-

tion Technologies and Applications, pages 775–780.

Springer.

Ranaweera, L., Vithanage, R., Dissanayake, A., Prabodha,

C., and Ranathunga, S. (2017). Anomaly detection

in complex trading systems. In Engineering Research

Conference (MERCon), 2017 Moratuwa, pages 437–

442. IEEE.

Sakurada, M. and Yairi, T. (2014). Anomaly detection

using autoencoders with nonlinear dimensionality re-

duction. In Proceedings of the 2nd Workshop on Ma-

chine Learning for Sensory Data Analysis (MLSDA),

page 4. ACM.

Schneider, C., Barker, A., and Dobson, S. (2015). Au-

tonomous fault detection in self-healing systems using

restricted boltzmann machines.

Shekhawat, M. and Sharma, I. (2017). Density based met-

rics for clustering–a comprehensive survey. Interna-

tional Journal for Women Researchers in Engineering,

Science and Management, 1:6–9.

Tan, Y., Nguyen, H., Shen, Z., Gu, X., Venkatramani, C.,

and Rajan, D. (2012). Prepare: Predictive perfor-

mance anomaly prevention for virtualized cloud sys-

tems. In IEEE 32nd International Conference on

Distributed Computing Systems (ICDCS), pages 285–

294. IEEE.

Walker, J., Doersch, C., Gupta, A., and Hebert, M. (2016).

An uncertain future: Forecasting from static images

using variational autoencoders. In European Confer-

ence on Computer Vision, pages 835–851. Springer.

Wang, Y., Wong, J., and Miner, A. (2004). Anomaly intru-

sion detection using one class svm. In Fifth Annual

IEEE Information Assurance Workshop, pages 358–

364. IEEE.

Willsky, A. S. (1976). A survey of design methods for

failure detection in dynamic systems. Automatica,

12(6):601–611.

Xu, D., Yan, Y., Ricci, E., and Sebe, N. (2017). Detecting

anomalous events in videos by learning deep represen-

tations of appearance and motion. Computer Vision

and Image Understanding, 156:117–127.

Yang, Y., Lian, B., Li, L., Chen, C., and Li, P. (2014).

Dbscan clustering algorithm applied to identify sus-

picious ﬁnancial transactions. In International Con-

ference on Cyber-Enabled Distributed Computing and

Knowledge Discovery (CyberC), pages 60–65. IEEE.

Anomaly Detection in Industrial Software Systems - Using Variational Autoencoders

447
