Translating Multi-device Task Models to State Machines

Andreas Wagner

and Christian Prehofer

itestra GmbH, M

unchen, Germany

∗

fortiss GmbH, M

unchen, Germany

Keywords:

Task Models, Multi-device UI, Cross-device UI, Model-based Development, Multi-device Applications.

Abstract:

This paper presents an approach for translating multi-device task models to a distributed execution model

based on state machines. We consider an expressive extension to ConcurTaskTrees, called multi-device Con-

curTaskTrees (MCTTs) as a modeling language for distributed multi-device applications. We use the device

labeling operators Any and All, which specify if user interactions at runtime shall take place on one or all of

a set of devices and extend the translation algorithm for “classical” CTT operators with translation rules for

these multi-device operators in a distributed setting. Our algorithm exploits concurrent and hierarchical state

machines for the execution and the concept of partial state machines during the translation.

1 INTRODUCTION

With the increasing number of hardware and software

platforms, model-driven software-engineering meth-

ods have become a widely used tool in systems devel-

opment. In this paper, we focus on the model-driven

design of applications which offer users interaction

possibilities with multiple devices in a distributed set-

ting. A common tool for model-based design of inter-

active applications are ConcurTaskTrees (CTTs) (Pa-

tern

o, 2000), which model how activities can be per-

formed in an interactive application and describe re-

lations between the distinct tasks on an abstract level.

CTTs as such however do not cover distributed exe-

cution of tasks, only annotations of devices to tasks

are possible in some implementations, see e.g. (Pa-

tern

o et al., 2010). Several researchers have consid-

ered such “multi-device applications”, which connect

multiple devices to work collaboratively at the same

time, e.g. (Chmielewski, 2014; R

adle et al., 2015).

One approach which also considers dynamic task al-

location at runtime is Multi-Device ConcurTaskTrees

(MCTT) (Prehofer et al., 2016). MCTTs introduce

new tree operators Any and All, which specify how

tasks can be mapped to devices. Furthermore, they

specify user interactions which might occur on several

devices during runtime in a ﬂexible way. With Any, a

(complex) interaction can take place at one of multi-

ple devices, while All requires an interaction to take

∗

Research carried out at Technische Universit

unchen, Germany

place at all speciﬁed devices. The All operator is of-

ten used for output actions which shall take on all de-

vices, while Any can be used to select an input device

at runtime. Clearly, this requires a signiﬁcant amount

of runtime coordination among devices as each sub-

tree of a MCTT can be labeled in this way.

It has been shown that CTTs can be translated

into efﬁciently executable state machines (Wagner

and Prehofer, 2016; Wagner, 2015), which preserve

the deﬁned semantics of the CTT operators (Wag-

ner and Prehofer, 2016). In this paper, we extend

this translation to the multi-device case by introduc-

ing translation rules for the MCTT operators. These

state machines might be used to control (distributed)

user interfaces or even whole devices.

2 MULTI-DEVICE TASK

MODELS

Multi-Device CTTs (Prehofer et al., 2016) extend

classical CTTs by means of two new operators,

namely Any and All, which are called device labeling

operators and are used for specifying devices within a

MCTT. These operators primarily attach a list of de-

vice identiﬁers to a CTT, a subtree within a CTT or a

single task. A device in this context may be a physical

or logical entity, with input and/or output capabilities

and the ability to execute some kind of logic.

While the original CTT operators (e.g. En-

420

Wagner, A. and Prehofer, C.

Translating Multi-device Task Models to State Machines.

DOI: 10.5220/0006604704200428

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 420-428

ISBN: 978-989-758-283-7

Table 1: Overview of CTT operators and the MCTT exten-

sions.

Operator Symbol Deﬁnition

Ch(α

,α

) [] Choice: One of the two

choices is taken at run time.

Co(α

,α

) ||| Concurrent: CTTs α

and

are performed concur-

rently, with any interleav-

ing of sub-tasks.

Di(α

,α

) [> Disabling: The CTT α

executed and can be inter-

rupted at any time by α

Execution continues in α

En(α

,α

) >> Enabling: The CTT α

starts after the CTT α

MCTT Extension

Any

,...,c

(α) Any(...) Any: The CTT α is exe-

cuted on one of the devices

,...,c

All

,...,c

(α) All(...) All: The CTT α is exe-

cuted on all of the devices

,...,c

abling, Disabling or Choice) describe a set of pos-

sible sequences of basic tasks to achieve the overall

goal (Br

uning et al., 2008), device labeling operators

introduce a spatial domain into the task model (Pre-

hofer et al., 2016). This is achieved due to dynamic

assignment of tasks to an arbitrary subset of devices

at runtime. The operators Any and All hereby deﬁne

the execution semantics, i.e. if a task or task conﬁg-

uration should be executed mutually exclusive on one

device (Any) or in parallel on several devices (All).

MCTTs are best suited for distributed scenarios

where a set of tasks should be executed on a multi-

tude of devices. A unique characteristic of the MCTT

notation is that it treats device labeling operators just

like regular CTT operators. Thus, they can be placed

arbitrarily within the task tree. In particular, this also

allows for nesting these operators. This is especially

useful in cases where arbitrary devices can be selected

for the execution of a complex task set, but one or

more sub task(s) must always be mapped on a spe-

ciﬁc device (this is then called a device labeling ex-

ception (Prehofer et al., 2016)).

The MCTT notation preserves the task types of

CTTs as introduced in (Patern

o, 2000). It supports

User tasks, which are cognitive/perceptive and don’t

require interaction with the system, Interaction tasks,

which describe any kind of user interaction, e.g. pro-

viding inputs or clicking a button and Application or

System tasks, which the system performs without any

additional user interaction. Abstract tasks are sup-

ported as well.

Table 1 shows the CTT operators used through-

out this work as well as the device-labeling operators.

Any

mi,mo

I setHour >>

I setMinute >>

I setSeconds [>

I con f irmTime I resetTime

Figure 1: Example of a simple (binary) MCTT for conﬁg-

uring a timer.

For the purpose of this paper, we only use the shown

subset of the CTT notation.

An example of a MCTT can be found in Figure

1. It describes how a user would conﬁgure an alarm

clock, e.g. for a microwave with an additional remote

device like a smartphone app. The surrounding Any

operator deﬁnes two devices mi (microwave) and mo

(mobile device). According to the semantics of Any,

the conﬁguration process can either be started on mi

or mo, but once started on one device, it must also be

ﬁnished on the selected device.

3 TRANSLATION TO STATE

MACHINES

The translation of MCTTs into state machines is

based on the recursive algorithm for CTT translation

presented in (Wagner and Prehofer, 2016). This al-

gorithm is based on so-called Partial State Machines

(PSMs). These are captured as Connectables and a

connect operator to compose them. We use translation

rules for the “classical” CTT operators to correspond-

ing PSMs as detailed in (Wagner, 2015). For instance,

an Enabling operator is deﬁned as a concatenation of

the corresponding partial state machines for its sub-

trees α

and α

. Contrarily, a Choice operator is de-

ﬁned as the union of its subtrees’ PSMs. Disabling

and Concurrent operators are basically mapped to hi-

erarchical and concurrent (parallel) states which in

turn will be used for subsequent transformations. For

a detailed and formal deﬁnition of these concepts we

refer to (Wagner and Prehofer, 2016) and (Wagner,

2015).

The novelty in this work is the distributed device

setting, which requires coordination and synchroniza-

tion among devices. Therefore, we assume a model

where all devices are fully synchronized and aware

of the status of other devices. For this purpuse, we

Translating Multi-device Task Models to State Machines

421

Device 1

Statechart

Device 2

Statechart

Device n

Statechart

Device 3

Statechart

System

Event x

occured

Event x

Coordinator

Event x

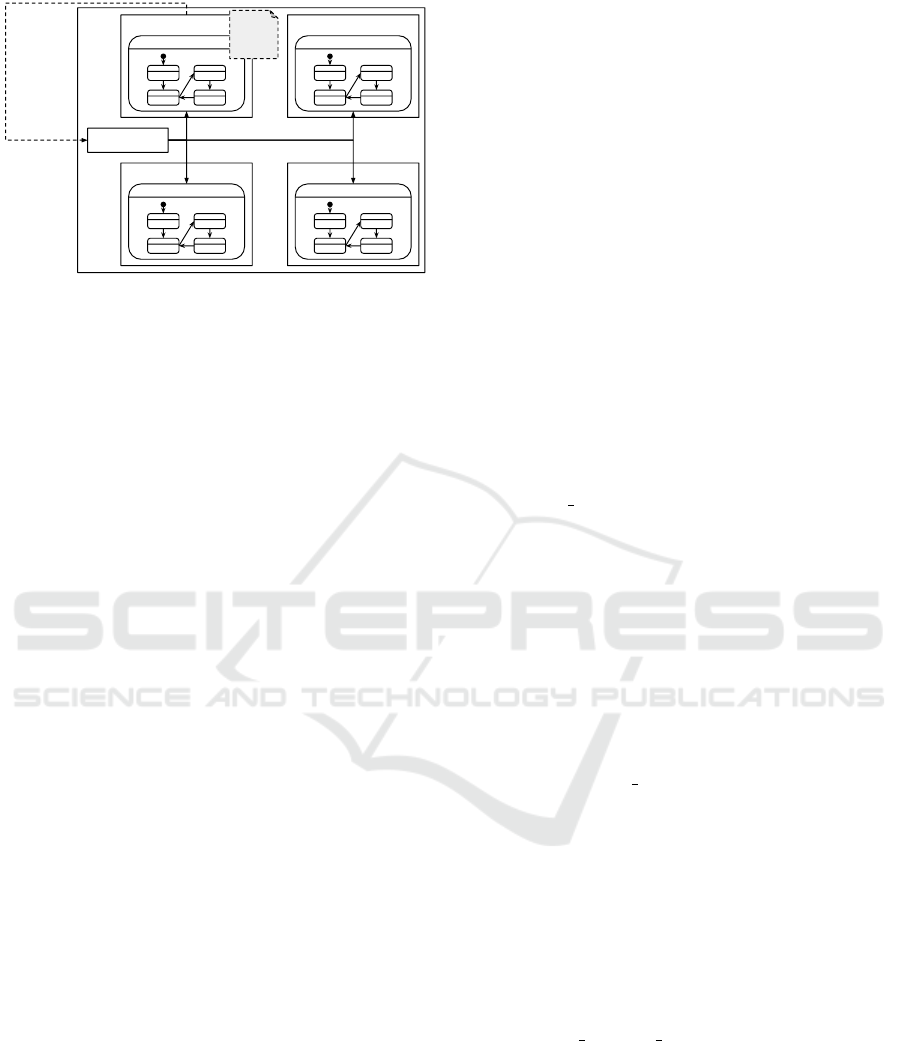

Figure 2: The global system execution model which is as-

sumed for the state machine generation.

generate a state machine for each device which re-

ﬂects the global system state. This means that the

state machine for a speciﬁc device also includes states

and transitions for all the other devices in the sys-

tem. These “shadow devices” are used for coordi-

nation during a local device’s idle phase while other

devices are active.

Due to our distributed execution, the implementa-

tion of Any and All needs to use and generate implicit

information about required notiﬁcations. A notiﬁca-

tion is basically implemented as a state transition in

the generated state machines and its concept is based

on a global execution model which is depicted in Fig-

ure 2. The basic idea is, that the state machine of each

device whose label is present in the label set of an Any

or All operator, also is aware of and follows all states

and transitions which are actually executed on other

devices. This implies that all events that might occur

on any of the deﬁned devices result in state changes

on all involved state machines.

Further, we assume a central coordinator where all

communication between devices is routed over. If an

event is generated on a device (e.g. because the user

executes an interaction task), the device forwards the

event to the coordinator. The coordinator broadcasts

the event to all other state machines in the system. If

two devices emit events simultaneously, the coordi-

nator decides about the event to be broadcasted. Con-

sequently, an event will lead to a state transition in

every state machine and the Any and All operators are

executed synchronously on all involved devices.

In the formalization below, the translation will

have the two new parameters physical target and vir-

tual target. The physical target is the device we ac-

tually want to create the state machine for. Conse-

quently, this parameter won’t change during the trans-

lation run for an actual device. Contrarily, virtual tar-

get reﬂects the aforementioned “shadow devices” and

might change during the translation (e.g. if the al-

gorithm handles subtrees which are deﬁned to be ex-

ecuted on remote devices). Initially, physical target

and virtual target are equal.

For simple tasks, we reuse the translation rules

described in (Wagner and Prehofer, 2016). Conse-

quently, an application task will always be translated

into a basic state with a so-called notiﬁcation tran-

sition appended. Accordingly, interaction tasks will

always be translated into transitions.

However, because of the semantics of Any and All

operators, we can no longer assume one-to-one re-

lationship between the task and the generated state

machine element as it is in a non-distributed envi-

ronment. Thus, in order to make states and transi-

tions uniquely identifyable, we add a device label to

the transition or state. For transitions, we always ap-

pend the virtual target to the transition’s event name.

For instance, if we want to translate an interaction

task “pushButton” which should be executed on a de-

vice x (because the task was labeled with e.g. Any

the resulting transition would have the event name

pushButton

x. The actual value of “virtual target”

is determined by the translation rules for the device

labeling operators Any and All, which we will show

later in this section.

The translation of application tasks must be mod-

iﬁed as well. The main issue here is that we have to

distinguish whether or not the task is available on the

current device. In any case, we have to create a ba-

sic state with a notiﬁcation transitition attached. The

state name itself depends on the current virtual target.

If it is equal to the physical target, we know that the

task must be executed locally and thus create a state

called “< taskname virtualtarget >”.

If the virtual target is different from the physical

target, we know that the current device has to wait

for the completion of the task on a remote device. We

therefore have to put the state machine in an idle state.

We call these idle states nop states, which indicates

that these states do not execute tasks (“no operation”).

We know that when the state machine of a device is in

nop states, at least one other (remote) device performs

a task at the same time. In order to be able to leave

the nop state, we attach a notiﬁcation transition named

“< taskname f inished virtualtarget >”. If this event

occurs, the local device knows that the remote device

has ﬁnished task execution and its local state machine

can move on.

As an example, consider an application task

“senseTemperature” which should be executed on de-

vice x (e.g. the task was labeled with Any

, so x

is the current virtual target). The state machine is

created for x, which makes x the current physical

target. Consequently, the generated state has the

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

422

form “senseTemperature x” with an outgoing transi-

tion “senseTemperature ﬁnished x”.

If we create the state machine for device y (which

would then be the physical target), the resulting

state would be “nop y” with an outgoing transition

“senseTemperature ﬁnished x”. Note that this trans-

lation schema might lead to many nop states within a

state machine. In order to avoid naming conﬂicts, we

add additional unique IDs to each nop state’s name.

3.1 Translation of Device Labeling

Operators

The device labeling operators provide information on

which devices tasks are to be executed. The Any oper-

ator followed by a task subtree α is deﬁned to execute

the subtree on one and only one of the given devices.

If the subtree was entered by one of the deﬁned de-

vices (e.g. device x), the other devices deﬁned within

the context of the operator are not allowed to perform

tasks until the subtree was fully executed by x, or un-

til another device (e.g. y) must be activated due to a

labeling exception deﬁned for y.

From a semantical point of view, Any is similar

to a Choice, but with an arbitrary number of alter-

natives (i.e. the number of labels Any is annotated

with). As an example, consider Figure 3. A MCTT

consisting of three tasks which are connected via En-

abling operators is labeled with Any

x,y

. This leads to

two possible execution paths. Either “clickButton”

is executed on device x, then, “timerCountdown” and

“alarm” must also be executed on device x and de-

vice y must not perform any of the tasks. Option

two requires “clickButton” to be executed on device

y. Then, “timerCountdown” and “alarm” must also be

executed on device y, but device x must not perform

any of the tasks. Considering device x, the MCTT in

Figure 3 thus acts as a Choice. Either “clickButton” is

executed locally, which implies that subsequent tasks

must also be executed locally, or “clickButton” is ex-

ecuted by device y, which implies that x must neither

execute “clickButton” nor any of the other subsequent

tasks.

However, one has to decide what device x is ex-

pected to do when “clickButton” occurs on device y.

One possible solution (which is also employed by our

translation rule) is, that x simply follows the execution

of y but does not execute tasks locally. Instead, it en-

ters representational states (nop states) and performs

representational transitions which correspond to the

actual execution on device y. Figure 5(a) and Figure

5(b) show this behavior for the MCTT in Figure 3 by

means of partial state machines. One can recognize

that states and transitions for both x and y are always

Any

x,y

I clickButton >>

A timerCountdown A alarm

Figure 3: MCTT representing an Any operator without la-

beling exceptions.

Any

x,y

I clickButton >>

A timerCountdown Any

A alarm

Figure 4: MCTT representing an Any operator with labeling

exceptions.

part of both devices. However, events and state names

depend on the selected execution path. For example,

if “clickButton” was chosen on device x, x follows the

gray colored path, whereas y follows the white col-

ored path. White states on y are only nop states, as y

must not execute task-related functions.

Similarly, we can treat labeling exceptions in

a MCTT. For example, let’s assume that the task

“alarm” must always be executed on device y, even

if previous tasks were executed on device x, i.e. the

MCTT has a subtree Any

(alarm) (Figure 4). Again,

we have two possible execution paths. Option one

requires “clickButton” to be executed on device x.

Then, “timerCountdown” must also be executed on

device x but “alarm” must be executed on device y.

Option two implies that “clickButton” is executed on

device y. Then, “timerCountdown” and “alarm” must

also be executed on device y.

The resulting partial state machines are shown in

Figure 5(c) and Figure 5(d). In this case, the PSM for

device x does not have a state with name “alarm x”

but only a nop state. This ensures that the task “alarm”

is never executed on x. Instead, the PSM for y has the

state “alarm y” in both of its execution paths. This

ensures that the task’s associated implementation is

always executed on y, even if “clickButton” was ini-

tially performed on device x. Note that both devices

communicate by the exact same events.

The formal steps of translating an Any operator

are shown by algorithm 1. Note that we reuse exist-

ing translation rules for simple tasks and CTT trans-

lators. The Any translation orchestrates this by gener-

Translating Multi-device Task Models to State Machines

423

timerCountdown_x

alarm_x

clickButton_x

timerCountdown_finished_x

nop_1_y

nop_2_y

timerCountdown_finished_y

clickButton_y

alarm_finished_yalarm_finished_x

(a) Device x without labeling exception.

nop_1_x

nop_2_x

clickButton_x

timerCountdown_finished_x

timerCountdown_y

alarm_y

timerCountdown_finished_y

clickButton_y

alarm_finished_x

alarm_finished_y

(b) Device y without labeling exception.

timerCountdown_x

nop_1_x

clickButton_x

timerCountdown_finished_x

nop_1_y

nop_2_y

timerCountdown_finished_y

clickButton_y

alarm_finished_yalarm_finished_y

nop_1_x

alarm_y

clickButton_x

timerCountdown_finished_x

timerCountdown_y

alarm_y

timerCountdown_finished_y

clickButton_y

alarm_finished_y

(d) Device y with labeling exception.

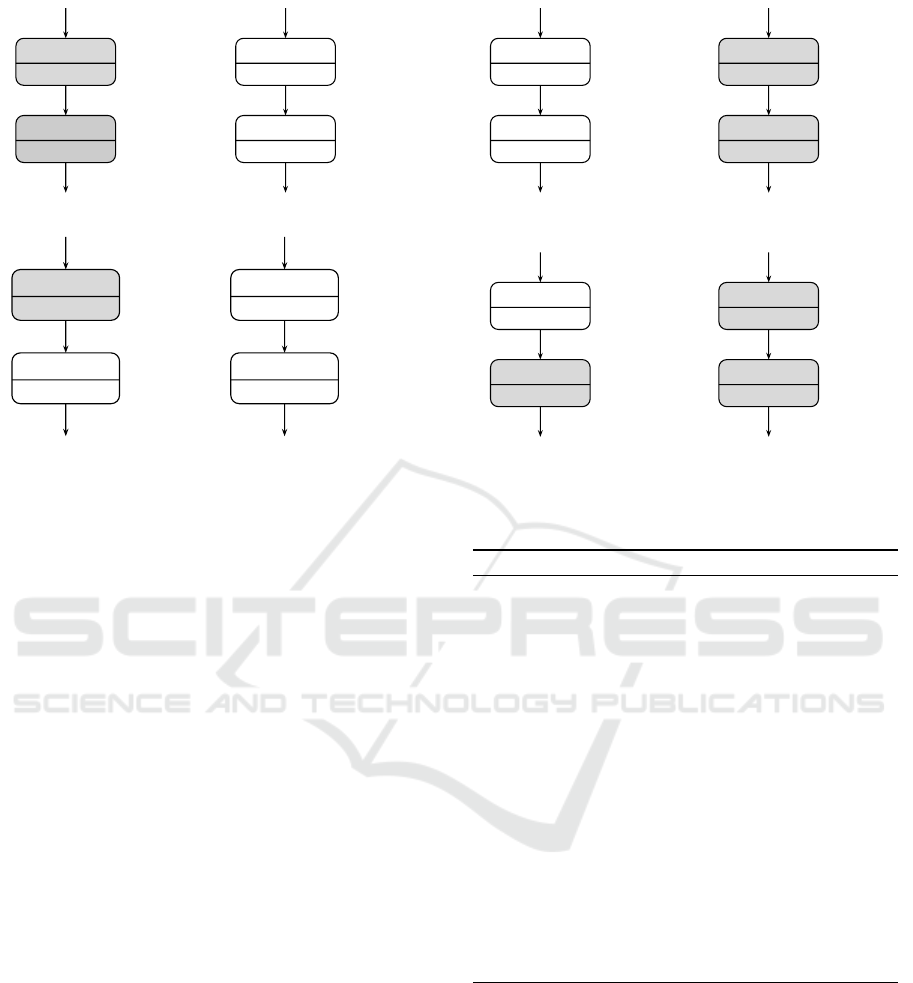

Figure 5: Concept of “nop” states in partial state machines. White states are never actually executed on the local device.

Instead, they act as synchronization points during state machine execution.

ating distinct PSMs for each of its deﬁned labels and

returning a merged PSM as result. Lines 8 to 13 it-

erate over all deﬁned labels of the Any operator and

generate a PSM for the current label by applying the

translation function f to the subtree α. During this

step, the virtual target parameter is set to the device

label belonging to the current iteration. The algorithm

then knows whether tasks must be executed locally or

will be executed remotely. Consequently, it can gen-

erate correctly annotated (nop) states and transitions.

Finally, a container PSM

Any

must be created (lines

14 to 18), which explicitly speciﬁes the input and

ouput events of the PSM (see (Wagner, 2015) for de-

tails). The in set, out set and states set of PSM

Any

consist of their merged counterparts of all generated

PSM

3.1.1 All Operator (All

,...,c

(α))

The All operator enforces execution of the subtree α

on all deﬁned labels/devices. This requires synchro-

nization at the end of α, so it may only be fully ex-

ecuted if all involved devices reach one of the tasks

contained in last(α).

The All operator is translated similar to the Con-

current operator (see (Wagner and Prehofer, 2016)).

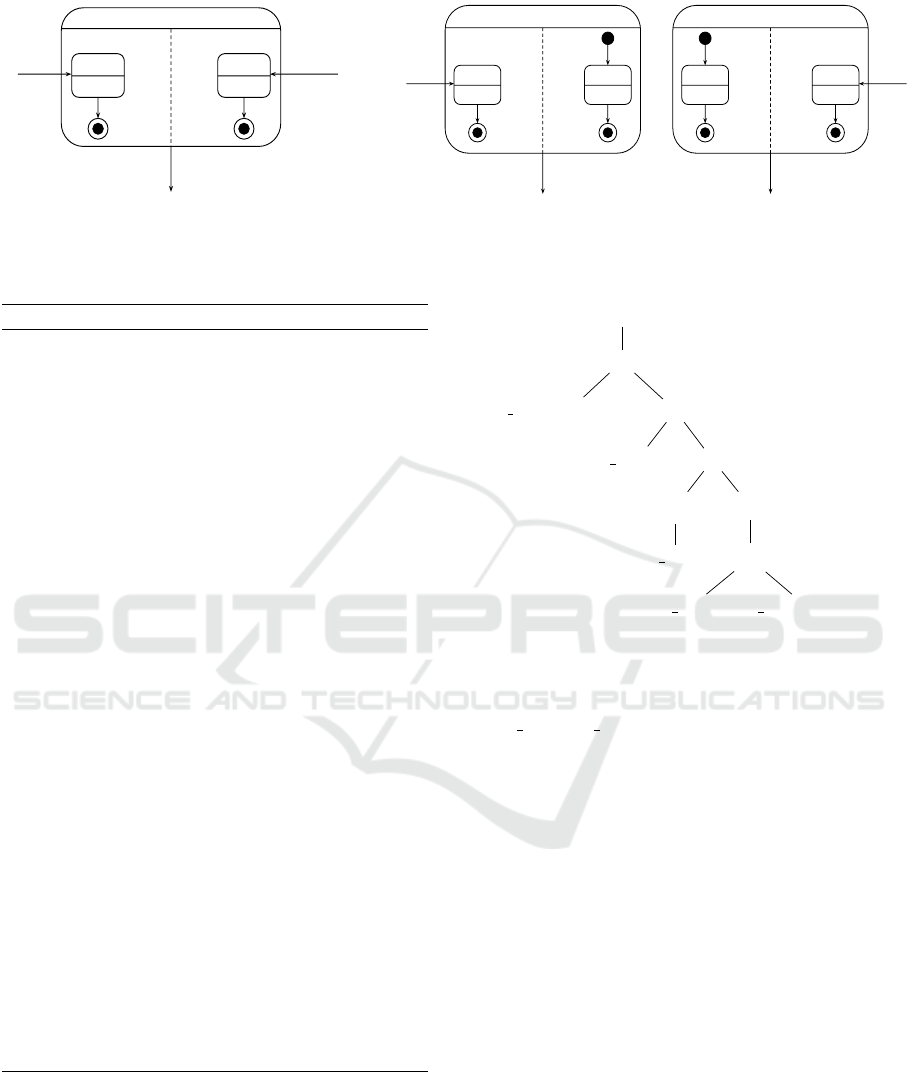

The basic idea is that the All operator is translated

into a concurrent state with a (hierarchical) substate

for each label deﬁned in the label set L of the operator.

One of these substates represents the actual execution

on the current device, the other ones are acting as

Algorithm 1: Translation of the Any Operator.

1: function F(mctt, virtual target, physical target)

2: if mctt is Any(α) then

3: // initialize sets for result PSM container

4: inConnectables, allStates, outStates ←

5: allStates ←

6: outStates ←

7: // Build PSM for α for each label

8: for all l ∈ labels(mctt) do

9: PSM

← F(α, l, physical target)

10: inConnectables ← inConnectables ∪ in(PSM

)

11: allStates ← allStates ∪ states(PSM

)

12: outStates ← outStates ∪ out(PSM

)

13: end for

14: create PSM container PSM

Any

15: in(PSM

Any

) ← inConnectables

16: out(PSM

Any

) ← outStates

17: states(PSM

Any

) ← allStates

18: return PSM

Any

19: end if

20: end function

“shadow devices” (or proxy machines) for the remote

execution. These proxies perform only nop states

(just like for the Any operator, but concurrently and

not mutually exclusive). We use these proxies, be-

cause the concurrent state representing the execution

of All may only be in its own ﬁnal state if all remote

state machines have reached one of their ﬁnal states as

well, i.e. they executed a task of the last set of α. Due

to our execution model, we can recognize such remote

events and advance the local proxy state machines ac-

cordingly. Thus, every concurrent proxy substate is

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

424

aware of the global system state.

In order to be able to detect every single event in

the ﬁrst set of α, the algorithm must create a state con-

ﬁguration for each possible way of entering α. Sim-

ilar to the translation of the Concurrent operator, we

achieve that by creating several concurrent states (one

for each label), where each of the concurrent states

in turn contains a hierarchical (proxy) state for each

label. Altogether, this leads to a total number of n

hierarchical states, where n = |labels(All)|.

We explain the necessity of generating n

hierar-

chical states by means of an example. Let’s assume

a simple conﬁguration with two tasks ”TaskA“ (inter-

action task) and ”TaskB“ (application task) which are

connected with an Enabling operator. The whole tree

is labeled with All

x,y

. According to the semantics of

All, both “TaskA” and “TaskB” must be executed by

device x and device y concurrently.

Intuitively, we would generate only one concur-

rent state with n hierarchical sub states - one for x and

one y. However, Figure 6(a) shows a problem (i.e.

a race condition) which will occur during runtime.

Let’s assume we observe device x during execution

and “TaskA y” is the ﬁrst event that is detected by x.

Then, the PSM of x will enter the concurrent state via

transition “TaskA y”. Now “TaskA x” cannot be rec-

ognized anymore and the execution semantics of All

is violated.

The solution for this problem is to generate n

hierarchical states instead, which is depicted in Fig-

ure 6(b). Because there are two concurrent states

which have unique ingoing transitions, both events

“TaskA x” and “TaskB y” can be processed indepen-

dently. For example, if event “TaskA x” was sensed

by device x ﬁrst, the state machine enters Parallel

From there it is still possible to process the event

“TaskA y” and we preserve the semantics of All.

The formal translation steps of the All operator are

shown by algorithm 2. To create concurrent states

with hierarchical proxy states for each label, the algo-

rithm performs a nested loop over the labels of the All

operator (lines 6 and 9). Within the nested loop, the

algorithm creates partial state machines PSM

sublabel

by means of the translation function f . Thus, we reuse

already existing translation rules for basic tasks and

CTT operators (and also nested Any operators). Note

that PSMs are always created for the current label of

the inner loop (line 10). This ensures that states and

transitions are created with the right labels (i.e. vir-

tual targets), so that they represent the corresponding

device correctly.

In the next step, the algorithm decides if the en-

tering transitions must be extracted or encapsulated

in a hierarchical state. The decision is based on the

label variables of the outer and inner loop (line 11).

If the labels are equal, the entering transitions will

be extracted and later used as ingoing transitions for

the concurrent state. For this purpose, PSM

sublabel

equipped with ﬁnal states, resulting in PSM

sublabel

f inal

From PSM

sublabel

f inal

, all transitions of the in set are

extracted. The rest of PSM

sublabel

f inal

is wrapped into

a hierarchical state and saved together with the ingo-

ing transitions (lines 13 to 17).

If the labels are not equal, the entering transi-

tions will not be extracted but encapsulated in a hi-

erarchical state. This results in a new state machine

PSM

sublabel

exec

. PSM

sublabel

exec

is then wrapped into a

hierarchical state and saved (lines 18 to 22).

When all labels of the inner loop are processed, a

concurrent state P is created, which contains all hier-

archical states built during the inner loop. P is then

equipped with a completion transition (i.e. a tran-

sition which we expect to be called by the runtime

as soon as all hierarchical states have reached a ﬁnal

state) and saved together with ingoing transitions of

its hierarchical states (lines 25 to 30).

The result of the outer loop is a set of concurrent

states, with each concurrent state having a set of in-

going transitions. These concurrent states, their in-

going transitions and their completion transitions are

returned as resulting PSM

All

(lines 32 to 35).

3.2 Example

We show the applicability of the presented approach

by a simple alarm system. It can be conﬁgured by

both a hardware appliance (in the following denoted

as hw) and a smartphone (in the following denoted

as sp). The hardware device takes care about all the

sensing and surveillence. If it detects anything ma-

licious, an alarm should be raised on all devices, i.e.

both the hardware device and the smartphone. The

alarm must then be conﬁrmed on all devices.

The MCTT for this application is shown in Figure

7. It presents the basic structure of the system, in-

cluding all the possible tasks and their relations. The

whole conﬁguration is annotated with an Any opera-

tor to indicate that the setup can be started by either

the smartphone or the appliance. However, only the

appliance can perform the sensing part, thus we an-

notate the task with a labeling exception Any

. If the

sensing task is ﬁnished

, the system should execute

an alarm task. We assume the alarm task to be inﬁ-

nite, so we wrap it into a Disabled operator to be able

to cancel the task. The whole alarm subtree is labeled

We don’t provide any details here on when or how the

sensing task is ﬁnished. This remains for to the actual im-

plementation.

Translating Multi-device Task Models to State Machines

425

Parallel_x

TaskA_x

TaskB_x

TaskB_finished_y

done.state.Parallel_x

nop_y

TaskB_finished_x

TaskA_y

(a)

Parallel

TaskA_x

TaskB_x

TaskB_finished_y

done.state.Parallel

nop_y

TaskB_finished_x

TaskA_y

Parallel

TaskA_y

TaskB_x

TaskB_finished_y

done.state.Parallel

nop_y

TaskB_finished_x

TaskA_x

(b)

Figure 6: In order to preserve the execution semantics of All, n

hierarchical (sub) states must be created, where n is the

number of labels All is annotated with (PSMs were created for device x).

Algorithm 2: Translation of the All Operator.

1: function F(mctt, virtual target, physical target)

2: if mctt is All(α) then

3: inConnectables, allStates, outConnectables ←

5: // Build a separate parallel state for each label

6: for all label ∈ labels(mctt) do

7: inTransitions, compounds ←

8: // Build proxy compound states

9: for all sublabel ∈ labels(mctt) do  Build PSM for α

10: PSM

sublabel

← F(α, sublabel, physical target)

11: if label = sublabel then

12: // Extract ingoing transitions

13: PSM

sublabel

f inal

← CreateFinalStates(PSM

sublabel

)

14: transitions

sublabel

← transitions of in(PSM

sublabel

f inal

)

15: C ← Compound(states(PSM

sublabel

f inal

), sublabel)

16: compounds ← compounds ∪ {C}

17: inTransitions ← inTransitions ∪ transitions

sublabel

18: else

19: // Pack into compound state with ingoing transitions

20: PSM

sublabel

exec

← CreateExecutionClosure(PSM

sublabel

)

21: C ← Compound(states(PSM

sublabel

exec

), sublabel)

22: compounds ← compounds ∪ {C}

23: end if

24: end for

25: P ← ParallelState(parname, compounds, physical target)

26: t

completion

← Transition(“done.state. < parname >”, physical target)

27: P

connect

−→ t

completion

28: allStates ← allStates ∪ {P}

29: outConnectables ← outConnectables ∪ {t

completion

}

30: inConnectables ← inConnectables ∪ inTransitions

31: end for

32: create PSM container PSM

All

33: out(PSM

All

) ← outConnectables

34: states(PSM

All

) ← allStates

35: return PSM

All

36: end if

37: end function

with All

sp,hw

in order to indicate that both the alarm

and the conﬁrmation must occur on all devices.

The resulting state machines for both devices sp

and hw are depicted in Figure 8. One can observe that

the state machine for device sp includes nop states

for the labeling exception Any

(sense). Thus, sp

Any

sp,hw

I setupParameters >>

I activate >>

Any

A sense

All

sp,hw

A alarm A con f irmAlarm

Figure 7: The MCTT of the alarm system example.

is in an idle state while device hw is in the sense

state. sp will wake up as soon as it detects the event

sense f inished hw. Note that it doesn’t matter if the

setupParameter and activate tasks were executed on

sp or hw - the wakeup of sp is guaranteed in any case.

Another aspect of the translation which we want

to explain in more detail is the result of the subtree

labeled with All

sp,hw

. For both devices, our algorithm

generates two concurrent states (one for each possible

execution paths). Within a concurrent state, we have

a hierarchical state for each device in the device set

of the All operator. Depending on the actual device

we created the state machine for, we have different

nop state combinations. For example, the hierarchical

states on device sp have nop states for alarm states

of device hw and vice versa. In principle, sp is only

interested in notiﬁcation events from hw in order to

synchronize the state transitions.

This example clearly presents the essence of our

approach: The state machines of all involved devices

are executed in a completely synchronized manner.

Thus we can achieve a distributed, but coordinated ex-

ecution of the desired system behavior, which in turn

preserves the deﬁned semantices of both CTT and la-

beling operators.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

426

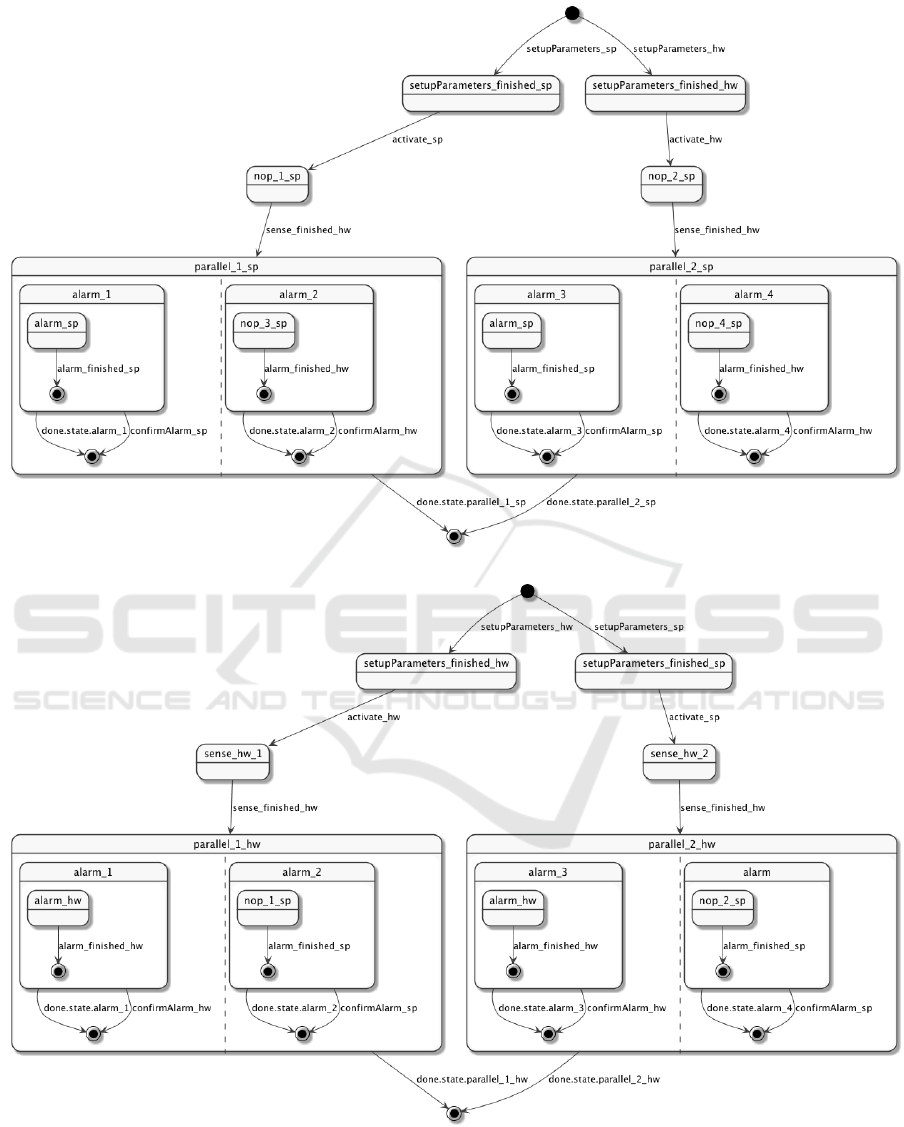

(a) State machine for device sp.

(b) State machine for device hw.

Figure 8: Generated state machines for the alarm system example.

Translating Multi-device Task Models to State Machines

427

4 RELATED WORK

Task models are often used for model-based user in-

terface development (MBUID), and many researchers

have investigated how task models support multi-

device applications development in ambient intelli-

gence environments. E.g. the work in (Patern

o et al.,

2010) exploits the web service annotation for model

transformations at various abstract levels. However,

designers have to create a distinct CTT for each de-

vice to connect them with the web services in order to

develop different versions of the same application on

multiple devices.

Luyten and Clerckx develop an algorithm for

transforming a CTT to executable state machines

(Luyten and Clerckx, 2003). This is similar to the

state machines used here, but does not consider multi-

device environments. More recent work like (Popp

et al., 2013) considers code generation for multi-

device UIs, but does not consider ﬂexible constructs

like our Any or All operators.

In summary, we are not aware of any work sim-

ilar to this approach. Usually, all these existing ap-

proaches handle distribution issues in more concrete

models after deﬁning the task models. In our opin-

ion, it is however natural to consider the distribution

to devices in task models directly. Instead of adding

rules for executing tasks across multiple devices at the

concrete model level, our introduced device labeling

mechanism enables designers to deﬁne execution of

tasks at the early stage.

5 CONCLUSION

In this paper, we have presented a ﬁrst approach

to translate multi-device task models into distributed

state machines. The main novelty of this work is

an algorithm for the MCTT device labeling operators

Any and All, which creates distributed, coordinated

state machines in a multi-device setting. To achieve

this, we generate speciﬁc state machines for each in-

volved device which include states and transitions for

both tasks and necessary coordination overhead. We

build upon an already existing translation algorithm,

that translates ordinary CTT tasks and operators into

state machines. Our approach therefore extends the

translation of basic tasks and integrates the distributed

characteristics of device labeling operators into the

translation rules for CTTs. Overall, our paper shows

that MCTTs are a valid tool to build distributed, coor-

dinated systems with a mulitude of devices.

ACKNOWLEDGEMENTS

This work has been partly funded by German Min-

istry of Education and Research (BMBF) in the CrESt

project under grant number 01Is16043A.

REFERENCES

uning, J., Dittmar, A., Forbrig, P., and Reichart, D.

(2008). Getting SW engineers on board: Task mod-

elling with activity diagrams. Lecture Notes in Com-

puter Science (including subseries Lecture Notes in

Artiﬁcial Intelligence and Lecture Notes in Bioinfor-

matics), 4940 LNCS:175–192.

Chmielewski, J. (2014). Device-independent architecture

for ubiquitous applications. Personal and Ubiquitous

Computing, 18(2):481–488.

Luyten, K. and Clerckx, T. (2003). Derivation of a dialog

model from a task model by activity chain extraction.

Interactive Systems. Design . . . , pages 203–217.

Patern

o, F. (2000). Model-Based Design and Evaluation of

Interactive Applications. Springer-Verlag London.

Patern

o, F., Santoro, C., Spano, L. D., and CNR-ISTI, H.

(2010). User task-based development of multi-device

service-oriented applications. In AVI, page 407.

Popp, R., Raneburger, D., and Kaindl, H. (2013). Tool sup-

port for automated multi-device gui generation from

discourse-based communication models. In Proceed-

ings of the 5th ACM SIGCHI Symposium on Engineer-

ing Interactive Computing Systems, EICS ’13, pages

145–150, New York, NY, USA. ACM.

Prehofer, C., Wagner, A., and Jin, Y. (2016). A model-based

approach for multi-device user interactions. In Pro-

ceedings of the ACM/IEEE 19th International Con-

ference on Model Driven Engineering Languages and

Systems, pages 13–23. ACM.

adle, R., Jetter, H.-C., Schreiner, M., Lu, Z., Reit-

erer, H., and Rogers, Y. (2015). Spatially-aware or

spatially-agnostic? elicitation and evaluation of user-

deﬁned cross-device interactions. In Proceedings of

the SIGCHI Conference on Human Factors in Com-

puting Systems.

Wagner, A. (2015). Multi-device extensions for ctt dia-

grams and their use in a model-based tool chain for

the internet of things. Master’s thesis, TU M

unchen,

Germany.

Wagner, A. and Prehofer, C. (2016). Translating task mod-

els to state machines. In Proceedings of the 4th In-

ternational Conference on Model-Driven Engineering

and Software Development, pages 201–208.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

428
