BroncoVote: Secure Voting System using Ethereum’s Blockchain

Gaby G. Dagher

, Praneeth Babu Marella

, Matea Milojkovic

and Jordan Mohler

Boise State University, Boise, Idaho, U.S.A.

Winthrop University, Rock Hill, South Carolina, U.S.A.

University of Denver, Denver, Colorado, U.S.A.

Keywords:

Blockchain, Ethereum, Smart Contracts, Voting, Privacy.

Abstract:

Voting is a fundamental part of democratic systems; it gives individuals in a community the faculty to voice

their opinion. In recent years, voter turnout has diminished while concerns regarding integrity, security, and

accessibility of current voting systems have escalated. E-voting was introduced to address those concerns;

however, it is not cost-effective and still requires full supervision by a central authority. The blockchain is an

emerging, decentralized, and distributed technology that promises to enhance different aspects of many indus-

tries. Expanding e-voting into blockchain technology could be the solution to alleviate the present concerns in

e-voting. In this paper, we propose a blockchain-based voting system, named BroncoVote, that preserves voter

privacy and increases accessibility, while keeping the voting system transparent, secure, and cost-effective.

BroncoVote implements a university-scaled voting framework that utilizes Ethereum’s blockchain and smart

contracts to achieve voter administration and auditable voting records. In addition, BroncoVote utilizes a few

cryptographic techniques, including homomorphic encryption, to promote voter privacy. Our implementation

was deployed on Ethereum’s Testnet to demonstrate usability, scalability, and efﬁciency.

1 INTRODUCTION

The United States of America was founded upon be-

liefs in individual rights. The right to vote is in-

herent in the American way of life and, with im-

provements in technology and concepts such as smart

cities becoming a reality, it could be assumed voting

has become easily accessible for all individuals and

votes are protected. However, even at the university

level, voter fraud has been a continual adversary. A

scam in 2016 at Kennesaw State University brought

the issues of voter registration fraud to the forefront:

individuals carried voter registration forms around

the university’s campus. Students believed they had

signed up to vote in the 2016 Presidential Election

without knowing their registration forms were simply

trashed–until the day of the election when they were

unable to cast a vote

. The same year city ofﬁcials in

Green Bay, Wisconsin refused to allow early voting

on the University of Wisconsin’s satellite campus. In-

stead, the nearest early voting location was a ﬁfteen-

minute drive from campus and was only open during

http://bettergeorgia.org/2016/09/11/a-different-kind-

of-voter-fraud-one-to-actually-be-worried-about/

regular business hours

. The difﬁculty of accessing

a voting site excluded many students from having a

voice in the 2016 Presidential Election. To add to this

frustration, many locations across the country will not

accept student identiﬁcation cards as suitable IDs for

voting. Voter registration fraud and lack of access to

voting sites for university students are important is-

sues that must be addressed.

Secure and privacy preserving voting systems are

necessary for university-scale elections. For instance,

at many universities, one of the major objectives of

the student government organization Associated Stu-

dents (AS) is to “advocate for the interests of students

at the University”. In order to achieve this purpose,

students must have easy access to voting polls and

the reassurance that their votes will not be tampered

with or revealed. E-voting protocols have recently

increased in popularity; these systems attempt to

address the previously mentioned needs. One such

system, TIVI, uses digital authentication of voters

https://www.thenation.com/article/city-clerk-opposed-

early-voting-site-at-uw-green-bay-because-students-lean-

more-toward-the-democrats/

Dagher, G., Marella, P., Milojkovic, M. and Mohler, J.

BroncoVote: Secure Voting System using Ethereum’s Blockchain.

DOI: 10.5220/0006609700960107

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 96-107

ISBN: 978-989-758-282-0

through facial biometrics: speciﬁcally, selﬁes

. Al-

though TIVI solves the accessibility issue previously

mentioned, it does not completely stop fraudulent ac-

tivity. Using public photos and 3-D rendering, mali-

cious users are able to break into accounts

. Helios

is the ﬁrst online, open-audit voting protocol. Helios’

ﬁrst priority is data integrity; then it addresses voter

privacy. To ensure data integrity, any observer may

audit the election process at any time during the elec-

tion. Although an individual’s name is initially posted

along with the individual’s encrypted vote, after the

election closes, the votes are shufﬂed and then the

result is computed. Helios claims to be the optimal

voting system for small groups where coercion is un-

likely but private voting is necessary (Adida, 2008).

Although Helios maintains data integrity, voter pri-

vacy is not preserved to the utmost. Another major

limitation associated with current e-voting systems is

voting fraud in the form of database/platform manip-

ulation (Tarasov and Tewari, ). Current e-voting pro-

tocols are prone to vote manipulation due to their cen-

tralized nature. Our solution to the security concerns

of current e-voting systems uses the blockchain. Vot-

ing systems using the blockchain do not have a cen-

tral point of failure due to blockchain being a dis-

tributed system (Atzori, 2015). Therefore, through

the blockchain, users can conﬁrm none of the votes

were tampered with and the ﬁnal count is valid (FMV,

2016).

The blockchain is a public ledger that operates

without a central authority. To ensure data integrity,

all the nodes on the blockchain verify and store ev-

ery transaction. Users create transactions which are

then gathered into blocks by “miners.” In order for

a miner to append his block to the blockchain, he

must complete a proof such as a Proof-of-Work or

Proof-of-Stake. Due to the append-only structure of

the blockchain and the computational power needed

to add a block to the chain, the majority of the

computational power on the network (at least 51%)

would need to collude in order to rewrite a part of

the blockchain. Because of these properties, the

blockchain is considered an immutable, secure data

structure. The Ethereum Blockchain expands this

functionality by implementing smart contracts (Bu-

terin et al., 2013).

Smart contracts are blocks of code that are stored

on the blockchain. Smart contracts consists of func-

tions or events that allow contracts to interact with

each other and users. Since these smart contracts

https://eandt.theiet.org/content/articles/2016/10/voting-

online-made-possible-with-selﬁe-recognition-technology/

https://www.wired.com/2016/08/hackers-trick-facial-

recognition-logins-photos-facebook-thanks-zuck/

are stored on the blockchain, the code is not modiﬁ-

able and is available for use by nodes connected to

the blockchain. To protect the system against ma-

licious users and compensate miners for computa-

tional power usage, the execution of every transac-

tion includes a transaction fee, referred to as “gas”

in Ethereum. Gas is the unit of measure for the

amount of work that is accomplished for an opera-

tion and the gas price is measured in terms of ether

in Etherem (Buterin et al., 2013). Smart contracts

also extend the use of private blockchains; as op-

posed to public blockchains, private blockchains are

only accessible by one organization. While this sac-

riﬁces part of the blockchain’s decentralization prop-

erty, it enhances the privacy of the blockchain (Bu-

terin, 2015). Our system for handling university vot-

ing, BroncoVote, implements a private blockchain.

We believe a private blockchain is suitable based on

the needs for the integrity and privacy of ballots.

Our proposed system uses similar concepts as

(McCorry et al., 2017), (Andrew Barnes and Perry,

2016), and (Ernest, 2014), speciﬁcally in the areas

of privacy and smart contracts. All three of the sys-

tems in these articles encrypt ballots stored on the

blockchain to ensure voter privacy. The systems

also utilize hashing to ensure strong data integrity.

In (McCorry et al., 2017), the voting system may

have an optional round in which voters hash and post

their encrypted vote to the blockchain. Transactions

consisting of votes are hashed before being stored

on the blockchain in the system described in (An-

drew Barnes and Perry, 2016). Furthermore, (Mc-

Corry et al., 2017) employs smart contracts to ease

the voting process: one to oversee the election pro-

cess and one to aid in the cryptography process.

1.1 Contributions

Our implemented system, BroncoVote, provides a se-

cure and private e-voting system that is also easily ac-

cessible. BroncoVote is a university scale voting sys-

tem that utilizes smart contracts in Ethereum and Pail-

lier Homomorphic Encryption to achieve our goals.

Our system also allows for different types of ballots:

users have the freedom to create polls or elections as

well as have the option to choose who can vote on

their ballot. BroncoVote provides voter privacy on

all our ballots by encrypting every vote, homomor-

phically tallying, and revealing the vote count using

Paillier cryptosystem decryption process. To main-

tain data integrity, all ballot and voting data is publicly

available as part of the smart contracts or blockchain

in our system. Congruent to the goals of smart cities,

this implementation of a blockchain-based voting sys-

BroncoVote: Secure Voting System using Ethereum’s Blockchain

tem further integrates technology into the daily lives

of individuals.

2 PRELIMINARIES

2.1 Blockchain Mining

To reach consensus on the state of the blockchain

in a trust-less network, a concept known as ‘min-

ing’ is employed (Nakamoto, 2008). The role of a

miner node is to verify transactions, group transac-

tions into blocks, and append them to the blockchain.

To append a new block to the blockchain, the hash

of the block must begin with a certain number of ze-

ros. To achieve this, a number called a ‘nonce’ is in-

cluded in each block; each time miners hash the block

without solving the computational problem, they in-

crement the nonce and rehash the block (Nakamoto,

2008). The difﬁculty of solving the hashing problem

is described as ‘Proof of Work,’ signifying the com-

putational power and difﬁculty needed to append a

new block to the blockchain (Nakamoto, 2008). Be-

cause of the computational power needed to mine the

blockchain, miners are rewarded: for instance, in Bit-

Coin, when miners successfully append new blocks

to the blockchain, they are rewarded with the current

payout rate in bitcoins (Nakamoto, 2008).

2.2 Eth.calls

Every valid transaction executed is stored on the

blockchain (Buterin et al., 2013). Due to this,

blockchains can suffer from scalability issues. Valid

transactions sent to smart contracts in the Ethereum

blockchain are considered state changeable calls and

consume gas. To reduce gas consumption and

the number of transactions on the blockchain, the

Ethereum blockchain allows eth.calls to be utilized in

addition to transactions. Eth.calls allow nodes to send

messages to other nodes or smart contracts to retrieve

its current state without storing the message on the

blockchain

. Therefore, eth.calls are similar to simu-

lations of transactions. By executing eth.calls to send

notiﬁcations/messages or to retrieve current states, the

size of the blockchain can be greatly reduced.

2.3 Paillier Encryption

Full homomorphic encryption enables users to per-

form computations on encrypted data that can be de-

crypted and yield the same result as if the compu-

https://github.com/ethereum/wiki/wiki/JSON-RPC

tation had been originally performed on decrypted

data (Xun Yi, 2014). However, doing fully modu-

lar multiplication in fully homomorphic encryption

is computationally intensive and very slow (Wang

et al., 2015). Nonetheless, because of the advan-

tages of homomorphic encryption, partial homomor-

phic encryption is a prominent encryption scheme.

One such scheme is Paillier Encryption. This prob-

abilistic public-key encryption method supports addi-

tion and multiplication (Xun Yi, 2014). Paillier sys-

tem can homomorphically add two ciphertexts but it

can only multiply a ciphertext with a plaintext inte-

ger. Since the Paillier system cannot homomorphi-

cally multiply two ciphertexts, it is considered par-

tially homomorphic. The process of encryption is

not completely intuitive: multiplying ciphertexts is

equivalent to adding the plaintexts and raising a ci-

phertext to the power of another ciphertext is equiv-

alent to multiplying the plaintexts (OKeeffe, 2008).

To achieve the advantages of homomorphic encryp-

tion without the substantial reduction in processing

speed, Paillier Encryption is one of the ideal encryp-

tion schemes.

2.4 MetaMask

MetaMask was created to increase the accessibility

of the Ethereum blockchain to the average user. A

plug-in for Chrome, MetaMask acts as an Ethereum

browser, allowing users to manage their Ethereum

wallet and interact with decentralized applications

and smart contracts without running a full node.

Through MetaMask, users are able to manage mul-

tiple accounts and easily switch between different

networks

. In order to allow users the ﬂexibil-

ity of using the Ethereum blockchain without run-

ning a full node, MetaMask relies on trusted nodes

to broadcast the transactions of MetaMask users in

order to be mined. Since transactions are signed us-

ing the sender’s private key, which is stored locally

on the user’s machine, MetaMask cannot imperson-

ate the user and send transactions on the user’s be-

half. Acting as an intermediary between Chrome and

the Ethereum blockchain, MetaMask allows users the

convenience and security of the blockchain within a

popular browser.

https://github.com/MetaMask/metamask-extension

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

Creator Contract

Voting ContractRegistrar Contract

Voting Contract

Ballot ID

Voting Contract Addr.

Ballot ID Option

Ballot Title

Ballot Type

Ballot Vote Limit

Ballot Time Limit

Whitelisted Voters

Option Hash

Choice Encrypted

Vote Count

Voter Eth. Addr.

Vote Attempts

Whitelisted Domains

Voter Eth. Addr.

Voter ID

Ballot ID

Voter Email

Voter Perm.

Voting Contract Addr.

Figure 1: Memory ﬁeld structure of smart contracts in BroncoVote, where lines between ﬁelds represent relational data.

3 PROPOSED SOLUTION:

BroncoVote

3.1 Overview

Preceding the introduction to our voting system, it

merits mentioning that the Ethereum protocol utilized

as part of our system has not been modiﬁed in any

way. Our system, BroncoVote, uses existing function-

ality and features provided by Ethereum to provide

the ability for creating and voting on ballots. Our im-

plementation consists of three smart contracts coded

in Ethereum’s Solidity language, two scripts written

in JavaScript, and one HTML page. BroncoVote is

an open source project and the entirety of the code is

available for public use

We assume the administrator, creators, and vot-

ers have the MetaMask plugin downloaded in their

browser or running an Ethereum node to create and

manage Ethereum accounts as well as interact with

our system. We utilize Ethereum’s Web3 frame-

work internally, this allows our users to easily man-

age signed transactions and interactions with the

Ethereum blockchain. Using MetaMask and Web3

eliminates the need for users to download full or even

partial Ethereum blockchains on their local machines

in order to broadcast transactions. The only action

required of users when registering, voting, or creat-

ing ballots is to use their passwords to unlock their

Ethereum accounts in the MetaMask plugin and se-

curely interact with the blockchain. If the user de-

cides not to utilize the Metamask plugin then they are

responsible for running a node on their local machine

and syncing it with the blockchain to interact with our

system using Web3.

A brief description of all the user parts of Bron-

coVote follows:

• Administrator is responsible for deploying the

initial Registrar and Creator smart contracts. The

https://goo.gl/nqBpzM

administrator also has the ability to grant or re-

voke ballot creation permission for registered vot-

ers/creators.

• Voter registers in our system with a valid stu-

dent/employee ID and e-mail address to vote on

given ballot ID numbers.

• Creator is a voter with ballot creation permission.

A brief description of the front/back-end pages

implemented in BroncoVote follows:

• VoteUI.html page is the user interface for our

users. This page allows users to enter necessary

information for each of the different use cases.

Once the user enters the necessary information,

the corresponding click buttons will invoke func-

tions in App.js.

• VotingApp.js gathers information from Vo-

teUI.html and interacts with Crypto.js and the

Ethereum Blockchain. For each corresponding

request from VoteUI.html, it utilizes eth.calls,

Crypto.js server calls, and Ethereum transactions

to verify, encrypt/decrypt votes, and store bal-

lot/vote information.

• Crypto.js acts as a cryptographic server. All votes

are encrypted, homomorphically added, and de-

crypted using the Paillier homomorphic encryp-

tion system key pair in this server.

A brief overview of the smart contracts imple-

mented in BroncoVote follows:

• Registrar.sol acts as the record and gate keeper.

It keeps track of all registered voters and cre-

ators, ballot IDs, voting contract addresses, and

whitelisted e-mail domains. As we can see in Fig-

ure 1, information regarding the voter and differ-

ent ballots are linked together in the contract. This

allows the contract to perform voter veriﬁcation,

permission modiﬁcation, and Voting.sol address

retrieval. The owner of this contract is the admin-

istrator.

• Creator.sol acts as a spawner for different Vot-

ing.sol contracts. The Creator deﬁnes the voting

BroncoVote: Secure Voting System using Ethereum’s Blockchain

Voter/Creator enters their student/

employee ID, e-mail address, and

optional request for ballot creation in

UI and that info is sent to JS

JS sends eth.calls to the Registrar

Contract to verify Voter/Creator

information

If the verification is successful, JS

sends a transaction to the Registrar

Contract to register a new Voter/

Creator

Voter/Creator

1 1

Registrar

Contract

Figure 2: The process for registering a voter in BroncoVote, where black dotted line represent eth.calls and solid line represent

transactions to the blockchain.

contract’s details when ﬁlling out the required in-

formation in VoteUI.html. The owner of this con-

tract is the administrator.

• Voting.sol acts as a virtual ballot and regulates the

voting on the ballot. Another set of voter veriﬁca-

tion, that includes vote attempts and ballot time

limit, is also conducted in this contract. As we

can see in Figure 1, ballot title and the choice en-

crypted votes are also stored here so that we can

retrieve at later stages. The owner of this contract

is the contract’s creator.

3.2 Initial Setup

The administrator is responsible for the initial deploy-

ment of both the Registrar and Creator contracts to

activate the system and enable users to start register-

ing, voting, and creating new voting contracts. When

deploying the Registrar Contract, the administrator is

also responsible for whitelisting a set of e-mail do-

mains that are allowed to register to be part of the

voting system.

3.3 Register Voter

BroncoVote was created for a university setting.

Therefore, anyone with a student/employee ID num-

ber and an e-mail with the whitelisted domain is al-

lowed to register as a voter. When the voter com-

pletes the ID and e-mail ﬁeld in VoteUI.html, then the

information is sent to VotingApp.js. As we can see in

Figure 2, the VotingApp.js makes eth.calls to the reg-

istrar contract to verify the domain provided is part of

the whitelist and if the user has previously registered.

If those checks are passed, then VotingApp.js sends a

transaction to the registrar contract to store the new

voter information, including the voter’s ID, Ethereum

address, and e-mail. It links the user’s Ethereum ad-

dress and e-mail address so that they cannot double

ballots during the registration process; these requests

are planned to be manually processed by the adminis-

trator but currently are granted automatically.

3.4 Create Ballot

If the user has permissions to create a ballot, the user

is able to spawn a new voting contract by entering the

required information in VoteUI.html. In order to cre-

ate a ballot, the creator must provide their registered

e-mail address then decide whether to create an elec-

tion or poll, determine the title of the ballot, voting

options, and number of votes allowed per voter. Dur-

ing this process, the creator can also elect to have a

whitelisted ballot. If a whitelisted ballot is chosen,

the creator enters the list of e-mail addresses allowed

to vote on their ballot. If the creator chooses to not

make a whitelisted ballot, everyone with a e-mail ad-

dress that has the whitelisted domain will be allowed

to vote. Lastly, the creator sets the end date and time

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

100

Creator enters ballot info in UI and

that info is sent to JS

JS sends a eth.call to the Registrar

Contract to verify Creator

If creator passes verification, a

transaction is sent to the Creator

Contract requesting to create a new

Voting Contract with the ballot info

Creator Contract sends a

transaction to create a new Voting

Contract

JS sends a eth.call to the Creator

Contract to retrieve the new Voting

Contract address

JS sends a transaction to the

Registrar Contract with the ballot

ID and contract address to register

the new ballot

Voting

Contract

Registrar

Contract

Creator

Conract

Creator

1 1

Figure 3: The process for creating a ballot as a creator in BroncoVote, where black dotted lines represent eth.calls and solid

lines represent transactions to the blockchain.

of the election or poll.

After submitting this information, VotingApp.js

utilizes three eth.calls to verify the Creator and they

are condensed into one step in Figure 3. VotingApp.js

sends the ﬁrst two eth.calls to the Registrar Contract

to verify the creator by checking if their e-mail ad-

dress is registered and if the request originates from

the registered Ethereum address. If those two checks

are passed, then VotingApp.js sends the third eth.call

to determine if the user has permission to create a bal-

lot. Afterwards, if it was determined the user was al-

lowed to create the ballot, VotingApp.js gathers the

input data along with a randomly generated ballot ID

number and sends a transaction to the Creator Con-

tract with a request to create a new Voting Contract

with the provided information. Once the new Voting

Contract has been deployed, the contract’s address is

returned to the Creator Contract.

VotingApp.js then sends another eth.call to the

Creator Contract to retrieve the new Voting contract

address and sends it as a transaction to the Registrar

Contract to store the new ballot ID and contract ad-

dress. The ballot ID is then displayed afterwards and

the creator must write down this ballot ID and pass it

along to all the voters in order to let voters vote on the

ballot.

3.5 Load Ballot

Using the ballot ID provided by the Creator of the Vot-

ing Contract, a voter can check the results or vote on

the ballot, provided the voting period has not passed.

Once the voter enters the ballot ID in VoteUI.html,

VotingApp.js sends an eth.call to the Registrar Con-

tract to determine the validity of the ballot ID. If the

ballot ID is valid, the voting options, title, and en-

crypted vote count for each choice if the voting pe-

riod has ended unless it is a poll. If the ballot type

was a poll then the results are displayed live. Before

the vote count can be displayed, there is another step

involved, which can be seen in Figure 4 as step 4,

that involves sending the encrypted vote count to the

Crypto.js server so that we can display the tallied vote

for each choice on VoteUI.html.

3.6 Vote

Once the ballot has been loaded, the user can vote for

a particular choice on the ballot with his/her registered

e-mail address. When the voter clicks vote, Votin-

gApp.js receives the information and sends eth.calls

to the Registrar Contract to verify the voter, it checks

the voter registration and Ethereum address. If the

voter is veriﬁed, an eth.call is sent to the Voting Con-

tract to check whether the ballot is whitelisted or not.

BroncoVote: Secure Voting System using Ethereum’s Blockchain

101

Voter enters ballot ID in UI and that is

sent to JS

JS sends eth.calls to the Registrar

Contract to retrieve the Voting

Contract address associated with the

ballot ID

JS sends a eth.call to the Voting

Contract associated with the

address and retrieves the choices

and encrypted vote count for each

choice

JS sends a request to the server to

decrypt the vote count

Server

Voter

1 1

Registrar

Contract

Voting

Contract

Figure 4: The process for loading a ballot as a voter in BroncoVote, where black dotted lines represent eth.calls to the

blockchain and red dotted line represents decryption calls to the server.

If it is whitelisted ballot, then it will check to see if

the voter’s e-mail is part of the whitelisted voter list.

Afterwards, the voting choice is veriﬁed and the num-

ber of vote attempts made by the voter as well as time

limit on the ballot, which is checked by comparing

the end time with the current block timestamp, are

checked; if the user has not met the limit and the bal-

lot voting period has not ended, then the vote is passed

in as a 1 for the chosen vote option chosen and 0s for

the rest of the voting options. As we can see in Fig-

ure 5, the current vote is encrypted ﬁrst so that we

can retrieve the encrypted vote count from the Voting

Contract and homomorphically add them to get the

new total vote count. So the vote is sent to Crypto.js

server to be encrypted using the previously generated

public key in Crypto.js server. Once all the votes have

been encrypted, the previously encrypted vote count

for every choice is retrieved using an eth.call. Then

the current encrypted votes and previously retrieved

vote count are sent to the Crypto.js server to be homo-

morphically added together. Then the new encrypted

vote count for every choice is then sent as an array in

a transaction to the Voting Contract.

3.7 Get Votes

getVotes acts as a data retrieval function. Whenever a

user loads the ballot or successfully votes on a ballot,

getVotes is invoked in VotingApp.js. getVotes sends

an eth.call with the hashed choices to get the current

total encrypted votes. Depending on the timelimit and

election type, it would either decrypt the votes and

display them or display the time when users can check

back for the results. To decrypt the votes, getVotes

sends the encrypted vote count to the Crypto.js server

to be decrypted by the private key.

4 TESTNET EXPERIMENT

ANALYSIS

Our implementation was deployed on the Ropsten

Ethereum testnet to collect data on gas and time costs

for each use case in our system. Though we envi-

sion our system to be part of a private blockchain, we

chose to do the experiments on the testnet to simulate

a mature blockchain. We focused on gathering gas

costs for each process since it can be translated into

performance data. This allows us to get estimated

performance data in the later stages of our system

deployment. We conducted experiments on varying

styles of ballots and speciﬁed the gas and time costs

for every user, including Administrator (A), Creator

(C), and Voter (V), involved in our system.

The Administrator deploys the Registrar and Cre-

ator contracts as part of the initialization step and their

deployment gas costs are shown in Table 6. Registrar

Contract gas cost can vary depending on the size of

the whitelisted domain list chosen by the Administra-

tor.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

102

Voter enters the choice they want to

vote for and his/her e-mail address in

UI and that info is sent to JS

JS sends eth.calls to the Registrar

Contract to verify Voter

If the voter passes verification, JS

sends eth.calls to the Voting Contract

to check voter status and ballot time

limit

If the voter passes the checks, his/her

vote choice is sent to the server to be

encrypted

JS sends a eth.call to the voting

Contract to retrieve the current

encrypted vote count

JS sends the current encrypted

vote count and voters encrypted

vote to the server to be added

together

JS sends a transaction to the Voting

Contract to store the new

encrypted vote count

Server

Voting

Contract

Registrar

Contract

Voter

1 1

Figure 5: The process for voting on a ballot as a voter in BroncoVote, where black dotted lines represent eth.calls, black solid

lines represent transactions to the blockchain, and red dotted lines represent encryption calls to the server.

Figure 6: Gas costs for initial contract deployment to the

blockchain for system activation.

Following the initialization step, our next phase in

experimentation was creating, loading, and voting on

different types of ballots with varying sizes of vot-

ing options and whitelisted voters. All the ballots cre-

ated in our experiments are elections but there isn’t

a noticeable difference present in cost for choosing

polls. The gas costs for those tests can be viewed in

Table 7. The number of ASCII characters in the data

being passed into the contracts has a noticeable effect

on the gas cost so we used an average ASCII char-

acter length of 10 for ID numbers, 12 for voting op-

tions, and 25 for e-mail addresses. Registering a voter

is not dependent on the ballot; therefore, the cost only

ﬂuctuates slightly based on the length of the e-mail

address as well as the student/employee ID. In the Ta-

ble, we did not disclose the cost for registering a cre-

ator but we did gather the costs of being a creator,

and it is approximately 10,000 gas with the same cost

variation depending on the length of the e-mail ad-

dress used. As can be seen in the Table 7, an increase

in the number of voting options by two increases the

cost for creating a non-whitelisted ballot by approxi-

mately 200,000 gas and the cost for voting increases

by 10,000 gas per additional voting option.

We created a graph (Figure 8) to show the increase

in gas cost for creating and voting on the ballot as vot-

ing options on the ballot increase. We used the calcu-

lated rate of change in cost as voting options increased

to plot the graph and spot checked the calculated re-

sults at different voting option counts to verify that the

results were close to the expected results. Currently

the Ropsten Ethereum testnet has a block gas limit of

4,700,000 gas so we were able to achieve a ballot with

max ballot options of 32 without whitelisted voters. If

this system was deployed on a private blockchain with

modiﬁed block gas limit then we could have larger

ballots.

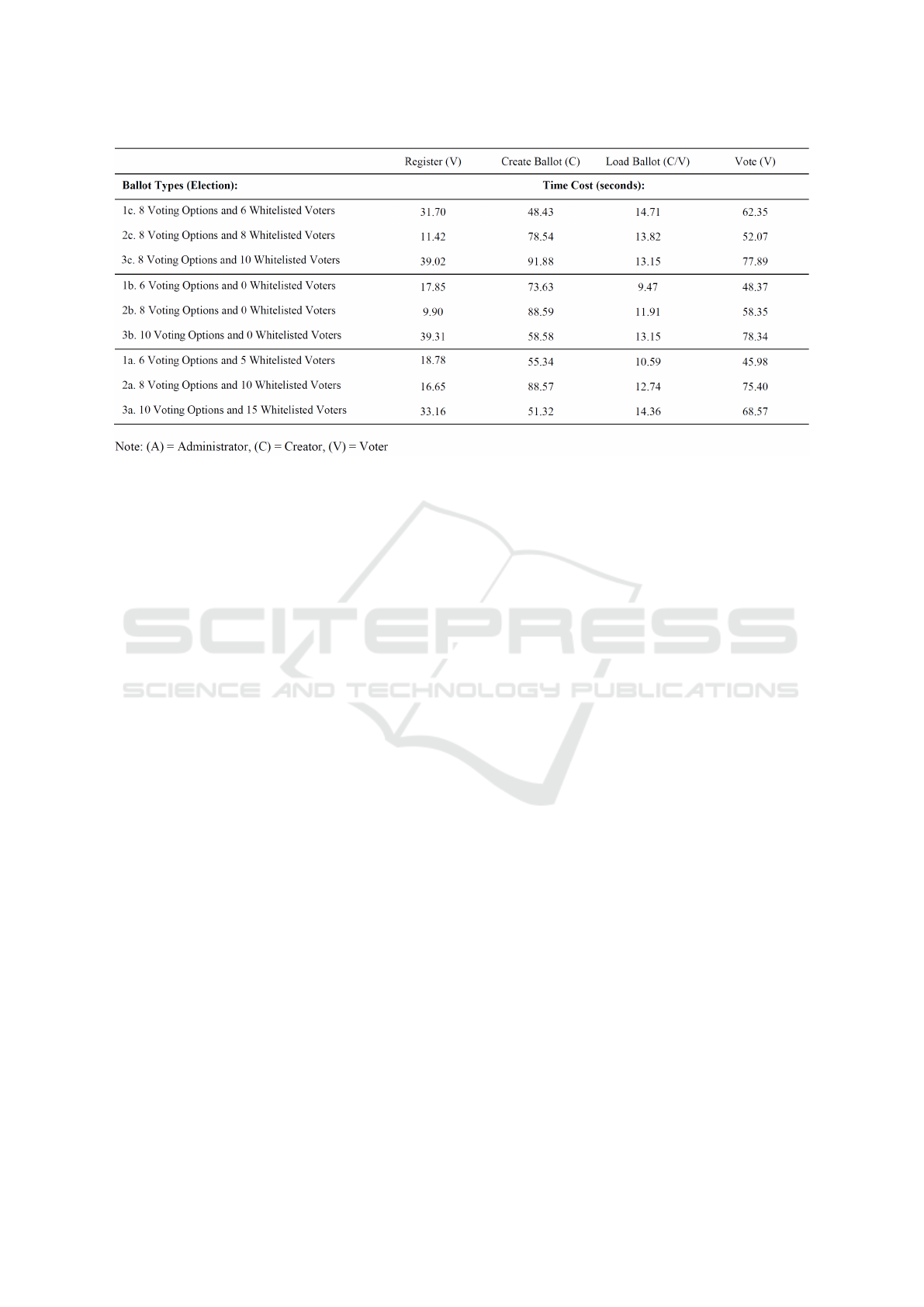

We also conducted a time cost analysis on how

long, in seconds, each use case would take and the

BroncoVote: Secure Voting System using Ethereum’s Blockchain

103

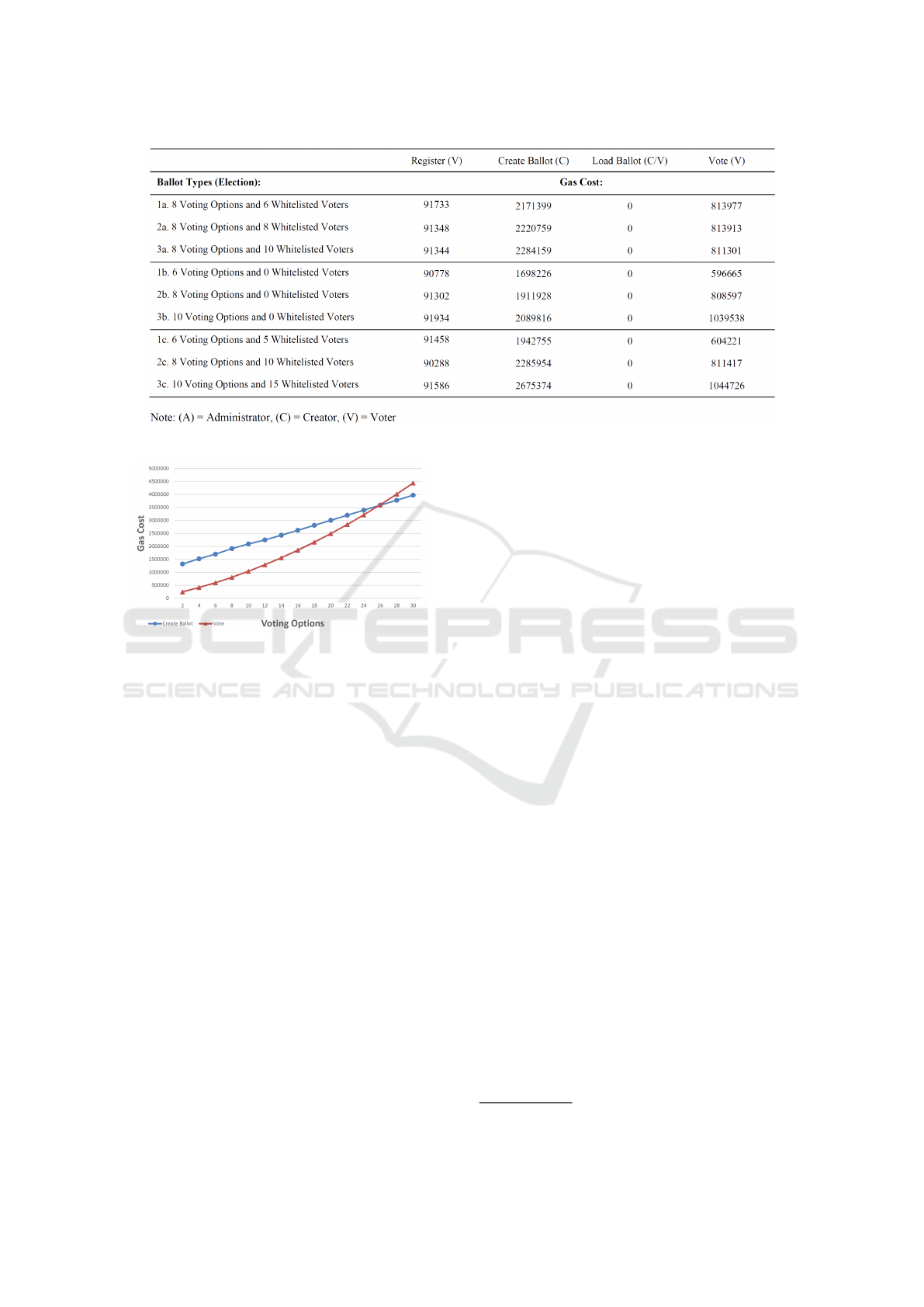

Figure 7: Gas costs collected from the conducted experiments on the testnet with varying types of ballots.

Figure 8: The average change in gas cost based on the num-

ber of voting options on the ballot.

results for that are shown in Table 3. We computed

the time from when the initial button was clicked un-

til the transaction was mined and veriﬁed. We con-

ducted time analysis on the same set of ballots that

we created for our gas cost analysis so we could get

accurate estimated time costs. The results do vary sig-

niﬁcantly on each of the use cases that require sending

transactions and requires mining due to the mining

process. During the mining process the miners can

choose which transactions to pick up and the block

conﬁrmation time may also vary depending on the

hardware used for the mining process. As we can

see from the results, the Load Ballot takes the least

amount time due to it only using eth.calls to retrieve

ballot information and not going through the mining

process where as Create Ballot takes the longest on

average since it requires sending a few transactions to

the smart contracts to create and setup ballots.

5 TECHNICAL DIFFICULTIES

Due to the nature of the Solidity programming lan-

guage, the implementation of BroncoVote encoun-

tered a few technical difﬁculties. One such difﬁculty

is support for cryptography: the maximum data value

in Solidity is unsigned int of 256 bit. The major-

ity of encryption protocols require much larger inte-

ger numbers than are supported in Solidity. There-

fore, BroncoVote’ cryptography is completed through

a server, which may adds a vulnerability. However,

for our purposes, we assumed the server is secure and

not compromised. Solidity also lacks proper debug-

ging tools. In order to debug smart contracts, we uti-

lize Remix, an integrated development environment

for Solidity

. To debug a transaction, Remix uses ei-

ther the transaction’s hash or the transaction’s block

number and index. From there, Remix provides de-

tails regarding the transaction’s execution, including

local and state variables, storage changes, and return

values

. Allowing a user to go through each step of

the contract’s execution expedites the process of de-

bugging and, therefore, the completion of the contract

and system.

6 RELATED WORKS

Correctness and privacy has been a predominant con-

cern in election processes. McCorry et. al (Mc-

Corry et al., 2017), Zyskind et al. (Zyskind et al.,

2015), Barnes et al. (Andrew Barnes and Perry, 2016),

Ernest (Ernest, 2014), and Varshneya (A.J. Varsh-

neya, 2015) discuss various methods to utilize the

blockchain to ensure data integrity. In (McCorry

et al., 2017) zero knowledge proof is implemented to

protect data privacy and authenticate users before de-

termining the result of the election. (Andrew Barnes

and Perry, 2016) and (Ernest, 2014) apply symmet-

https://media.readthedocs.org/pdf/remix/latest/remix.pdf

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

104

Figure 9: Time costs (in seconds) collected from the conducted experiments on the testnet with varying types of ballots.

ric encryption to data; additionally, data is segmented

on the blockchain in (Andrew Barnes and Perry,

2016). (A.J. Varshneya, 2015) analyzes two separate

voting systems, Follow My Vote and BitCongress.

Although the Follow My Vote protocol has not yet

been integrated with the blockchain, this online vot-

ing platform encrypts data with symmetric encryp-

tion. In Follow My Vote, users are only identiﬁable

on the blockchain through addresses and are there-

fore essentially anonymous; however, central authori-

ties such as the government are able to identify users.

BitCongress relies on proof of work and proof of tally

to maintain data integrity. To authenticate a voter,

users sign their votes with their digital signatures be-

fore encrypting the vote with their candidate’s public

key. BitCongress’s Whitepaper (Rockwell, 2015) de-

tails the system’s privacy features. For instance, al-

though the action of sending a vote to a candidate is

public, other nodes in the system are not able to trace

the vote or election to any particular node. New key

pairs are also generated for each election to increase

the difﬁculty of data forensics. BroncoVote applies

partial homomorphic encryption to secure the privacy

of voters and their votes on the blockchain.

(Zyskind et al., 2015) introduces a peer-to-peer

network called Enigma. This network connects to

the blockchain and retrieves private and computation-

ally intensive data from the blockchain and stores

these records off-chain. A system utilizing Enigma

has three decentralized databases: the blockchain’s

public ledger, a distributed hash table to store off-

chain encrypted data, and multi-party computation

that distributes randomly partitioned data among ran-

dom nodes. Secure multi-party computation is ap-

plied to create data queries without revealing raw data

to nodes in the network. In a multi-party computation,

data is randomly split among a random set of nodes in

the system and these nodes process their piece of data

without sharing information among each other. Data

integrity and privacy is enhanced by the Enigma net-

work and its multi-party computations by dividing the

processing of data among a random subset of nodes in

the system, safeguarding access to the complete, raw

information. In order for an information leak to occur,

collusion among the majority of the nodes selected to

process the data would be required (Zyskind et al.,

2015). The private blockchain employed by BroncoV-

ote establishes a closed voting system to protect vot-

ers from outside privacy breaches. The homomorphic

encryption mentioned above safeguards voter privacy

from attacks within the system.

Smart contracts automate the voting process

in (McCorry et al., 2017) and (Zyskind et al., 2015).

Two smart contracts are implemented in (McCorry

et al., 2017): a Cryptography Contract and a Vot-

ing Contract. The Cryptography Contract creates the

code necessary for zero knowledge proofs while the

Voting Contract manages the election process and the

veriﬁcation of the zero knowledge proofs. Because

every node in the system runs each smart contract to

reach an agreement on the contract’s output, voters

can rely on this consensus to achieve data integrity

instead of executing the code themselves. Similar to

smart contracts, private contracts in (Zyskind et al.,

2015) are applied to enhance the system’s scalability.

These contracts are designed to process the system’s

private information. Three smart contracts are utilized

in BroncoVote: a Creation Contract, Voting Contract,

and Registration Contract. The Creation Contract es-

tablishes the poll or election; once this contract is de-

BroncoVote: Secure Voting System using Ethereum’s Blockchain

105

ployed, it can be used to create multiple, different bal-

lots. The Registration Contract lists the eligible vot-

ers; and the Voting Contract allows eligible voters to

vote for a candidate.

User interfaces ease a voter’s experience. For

instance, (McCorry et al., 2017) created three po-

tential HTML5/JavaScript pages voters can access

through a browser. This ease of use and access in-

creases the system’s probability of adoption. Bit-

Congress (A.J. Varshneya, 2015) utilizes an applica-

tion called Axiomity as the graphical user interface

through which users create elections and vote; Ax-

iomity also keeps a voting record history for users to

review on demand. Similarly, voters in the BroncoV-

ote system cast their ballots through an HTML web-

site.

The voting processes in (McCorry et al.,

2017), (Rockwell, 2015), (Andrew Barnes and Perry,

2016), (Ernest, 2014), and (A.J. Varshneya, 2015)

are described below. The system in (McCorry et al.,

2017) executes in ﬁve stages. In the ﬁrst stage, the

election administrator creates a list of eligible vot-

ers and creates the election, including setting the

election’s applicable timers, registration deposit, and

the optional commit stage. Next, voters register for

the election. The next stage is the optional commit

stage, where voters store a hash of their vote onto the

blockchain before progressing to the stage where they

publish their vote and a zero proof of knowledge onto

the blockchain. Lastly, the result of the election is

computed and revealed. It is important to note that

in this system, voters can only vote for two options,

typically “yes” or “no” (McCorry et al., 2017).

A similar process is followed in Bit-

Congress (Rockwell, 2015). In BitCongress,

every “yes” or “no” token and candidate has an

address. Voters send their tokens to a candidate’s

address; once the election ends and the results are

tallied, the tokens are returned to the voters. The

system outlined in (Andrew Barnes and Perry, 2016)

supports on-line and off-line voting; this system uses

two separate blockchains: one to store registered

voters and one to store the actual votes. By using

two separate blockchains, (Andrew Barnes and

Perry, 2016) ensures voter privacy and anonymity.

Regardless of how a voter registers (whether on- or

off-line), the same information is required such as

their social security number and mailing address.

Assuming the voter decides to vote on-line, the

voter’s registration is stored on the blockchain for

government miners to verify the voter. Once veriﬁed,

the voter is sent a ballot card and password to

submit a vote, which is stored on the blockchain as

a transaction. In both (Ernest, 2014) and Follow

My Vote discussed in (A.J. Varshneya, 2015), voters

can access and update their vote until the end of the

election. Additionally, in Follow My Vote, voters

can vote for multiple candidates. An election in

BroncoVote is established when an administrator in

the system deploys the Creation Contract in order to

set up the ballot; this include deﬁning the candidates

of the election and the election timer. Next, the

administrator deﬁnes within the Registrar Contract

who is eligible to register. Lastly, the voters cast their

ballots through the Voting Contract, which encrypts

each ballot to provide security and privacy to the

voters. Unlike the systems in (McCorry et al., 2017)

and (Rockwell, 2015), BroncoVote allows users to

vote for multiple candidates.

BroncoVote is currently a university-scaled voting

system employed on the Ethereum Blockchain. Voter

privacy is handled by homomorphic encryption; in-

tegrity of votes is ensured through passwords. To

guarantee voter accessibility, voters cast their votes

on an HTML website that can be accessed anywhere

with Internet access. BroncoVote also has the abil-

ity to be used to conduct polls: similar to elections,

polls allow individuals to voice opinions on matters.

However, individuals are able to view poll statistics

in real-time. BroncoVote is a secure, economical vot-

ing system with the potential to be expanded from a

university scale to a larger scale.

7 CONCLUSIONS AND FURTHER

WORK

In this paper, we have presented a proof of con-

cept system for BroncoVote that utilized the Ethereum

blockchain and Paillier homomorphic encryption.

Our implementation was tested on the Ethereum test-

net network with different types and sizes of bal-

lots. BroncoVote used the smart contracts in Ethereum

blockchain to keep a record of every user in our sys-

tem as well as all the ballots and the information re-

garding them. We also utilized the smart contracts to

achieve access control. We integrated Paillier homo-

morphic encryption into our system to preserve voter

privacy. With the deployment of our system on the

testnet for experiments we showed that our system

can easily be deployed and setup to use as a voting

system for universities or other similar settings.

In future work, we will investigate the possibility

of implementing Paillier cryptosystem as a library in

Solidity. With the system we currently have, moving

the cryptography to a library in Solidity could largely

improve our individual ballot veriﬁability. Having the

Paillier library in Solidity would help us generate a

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

106

new private and public key for each ballot. This will

help us achieve individual voter audit on different bal-

lots without compromising the other ballots. To in-

crease user accessibility, we will also look into in-

tegrating the Ethereum Lightwallet into our system

will allow users to unlock their accounts in our UI

without needing to run a node or plugin. Finally, to

help with voter veriﬁcation, we will try to integrate

an API/process that will allow us to check the validity

of all e-mails used to register into our system.

This research was supported by the US National Sci-

ence Foundation (NSF) under grant CNS 1461133

and the Information Security, Privacy, and Mining

(ISPM) Research Lab.

REFERENCES

(2016). Blockchain technology in online voting. Web.

Adida, B. (2008). Helios: Web-based open-audit voting. In

USENIX security symposium, volume 17, pages 335–

348.

A.J. Varshneya, Sugat Poudel, X. V. (2015). Blockchain

voting.

Andrew Barnes, C. B. and Perry, T. (2016). Digital voting

with the use of blockchain technology.

Atzori, M. (2015). Blockchain technology and decentral-

ized governance: Is the state still necessary?

Buterin, V. (2015). On public and private blockchains.

Ethereum Blog, 7.

Buterin, V. et al. (2013). Ethereum white paper.

Ernest, A. K. (2014). The key to unlocking the black box:

Why the world needs a transparent voting dac.

McCorry, P., Shahandashti, S. F., and Hao, F. (2017).

A smart contract for boardroom voting with maxi-

mum voter privacy. IACR Cryptology ePrint Archive,

2017:110.

Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic

cash system.

OKeeffe, M. (2008). The paillier cryptosystem: a look into

the cryptosystem and its potential application. College

of New Jersey.

Rockwell, M. (2015). Bitcongress whitepaper.

Tarasov, P. and Tewari, H. Internet voting using zcash.

Wang, W., Hu, Y., Chen, L., Huang, X., and Sunar, B.

(2015). Exploring the feasibility of fully homomor-

phic encryption. IEEE Transactions on Computers,

64(3):698–706.

Xun Yi, Russell Paulet, E. B. (2014). Homomorphic En-

cryption and Applications. Springer International

Publishing.

Zyskind, G., Nathan, O., and Pentland, A. (2015). Enigma:

Decentralized computation platform with guaranteed

privacy. arXiv preprint arXiv:1506.03471.

BroncoVote: Secure Voting System using Ethereum’s Blockchain

107
