A New Approach for Reﬂection of Code Modiﬁcations to Model in

Synchronization of Architecture Design Model and Code

Van Cam Pham, Ansgar Radermacher and Sébastien Gérard

CEA, LIST, Laboratory of Model Driven Engineering for Embedded Systems, P.C. 174, Gif-sur-Yvette, 91191, France

Keywords:

UML State Machine, Code Generation, Change Reﬂection, Programmers, Software Architects, C++, Java

Annotation Processing, Programming Language, Component-based Design, Source Code Organization,

Incremental Reverse.

Abstract:

Model-Driven Engineering (MDE) increases the abstraction level, thus facilitates the design of complex sys-

tems. It is possible to create an executable system from a model enriched with detailed behavior speciﬁcations.

But the graphical modeling of some system aspects is likely less efﬁcient compared to writing code in a pro-

gramming language. For method signatures, textual editing includes a few lines of text, whereas modeling

requires the separate addition of methods along with their parameters. Therefore, we propose to develop sys-

tems by combining the strength of graphical modeling with programming languages by allowing a developer

to make changes in either notation and synchronize the result with the other one, respectively. Synchroniza-

tion between model and code is already supported by existing tools, but often restricted to structural elements

that have a 1-1 mapping. The synchronization of additional modeling aspects from the code, notably compo-

nent based modeling in UML and behavior in form of state-machines, is not supported by the state-of-the-art.

In order to enable this synchronization, it is important to reduce the abstraction gap and assure a 1-1 map-

ping if possible. Our proposition is to perform the synchronization with an extended programming language

that provides additional language elements for some UML elements, notably those that do not already exist

in object-oriented programming languages. This extension uses built-in language facilities, in case of C++

templates and preprocessor macros, and a design pattern that adds a shadow implementation.

1 INTRODUCTION

Model-Driven Engineering (MDE) (Selic, 2012) pro-

motes the use of graphical modeling languages to

describe software architectures in an abstract way.

Abstract models provide an efﬁcient way to manage

complexity of large systems. A number of existing

approaches in the context of MDE allow to automat-

ically produce implementations from software archi-

tecture models.

However, graphical modeling is not always the

most efﬁcient way to create a detailed model (Jolak

et al. 2017). For some elements such as method signa-

tures, textual editing is much easier. Thus, modeling

can become more efﬁcient if there is a mechanism that

allows to seamlessly switch between graphical and

textual representations, notable code. Furthermore,

complex system development often involves differ-

ent actors who prefer to use various tools to modify

model and code. Modiﬁcations raise the problem of

synchronization of model and code. The synchroniza-

tion requires to reﬂect changes in code back to the

model.

Reﬂection of code modiﬁcations is relatively easy

if there is a direct mapping between modeling ele-

ments and associated code fragments. This is the case

for UML structural aspects such as attributes, but not

for behavior aspects. The reﬂection becomes in par-

ticular difﬁcult, if a model-to-model (M2M) transfor-

mation is executed before code generation. For exam-

ple, the process of producing code from UML state

machines consists of a M2M transformation and a ba-

sic code generation in case of our tools. The term ba-

sic code generation means to generate object-oriented

code from an object-oriented UML design in which

bodies of class operations are provided as blocks of

texts.

In the context of UML-based MDE for reac-

tive systems, we use UML composite structures and

state machines to describe software architecture. We

identify two issues related to the reﬂection of code

changes to the software architecture model. The

496

Pham, V., Radermacher, A. and Gérard, S.

A New Approach for Reﬂection of Code Modiﬁcations to Model in Synchronization of Architecture Design Model and Code.

DOI: 10.5220/0006610904960503

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 496-503

ISBN: 978-989-758-283-7

ﬁrst issue is how to organize code for modeling el-

ements of UML state machines and composite struc-

tures since a model element often results in multiple

lines of code in different places. The second issue is

how to identify code modiﬁcations, map and reﬂect

them to appropriate model elements. Both issues are

related, since a better organization of the code facil-

itates the identiﬁcation of the associated model ele-

ments. The main cause of the two issues is that there

is a signiﬁcant abstraction gap between the model el-

ements and code.

In this paper, we extend an existing program-

ming language by adding additional programming

constructs for modeling elements that have no repre-

sentation in code. The additional constructs provide a

way for efﬁciently organizing source code and iden-

tifying modiﬁed code elements related to modeling

elements. Source code using the additional constructs

is written in a descriptive way. Furthermore, we pro-

vide an in-place text-to-text transformation that acts

as a preprocessing step to make the additional con-

structs executable. Then, we deﬁne a reverse engi-

neering process that allows to reﬂect modiﬁed code

elements back to model elements.

The remaining of this paper is organized as fol-

lows: Section 2 describes a motivating example. Sec-

tion 3 presents the additional programming constructs

and how generated code is organized based on the

constructs. Section 4 proposes an incremental reverse

engineering to propagate code modiﬁcations back to

model. An evaluation of the approach based on a case

study is presented in Section 5. Section 6 discusses

related work. The conclusion and future work are pre-

sented in Section 7.

2 MOTIVATING EXAMPLE

In this section, a motivating example is presented. We

consider a producer-consumer example, whose archi-

tecture model is shown in Fig. 1. This example is ﬁc-

titiously created for illustration purposes only and it

might not ﬁt to realistic usages. The p producer sends

data items to a ﬁrst-in ﬁrst-out component FIFO stor-

ing data. The FIFO queue has a limited size, the num-

ber of currently stored items (numberOfItems) and the

isQueueFull operation for checking whether it is full.

The pPush port of the producer with IPush as required

interface is connected to the pPush port of FIFO that

provides the IPush interface. The producer and FIFO

can interact with each other through their respective

port. FIFO also provides the IPull interface for the

consumer to get data items.

The behavior of FIFO is described by a UML state

System

p :

Producer

c :

Consumer

fifo:

FIFO

IPush

IPull

pPush

pPull pPull

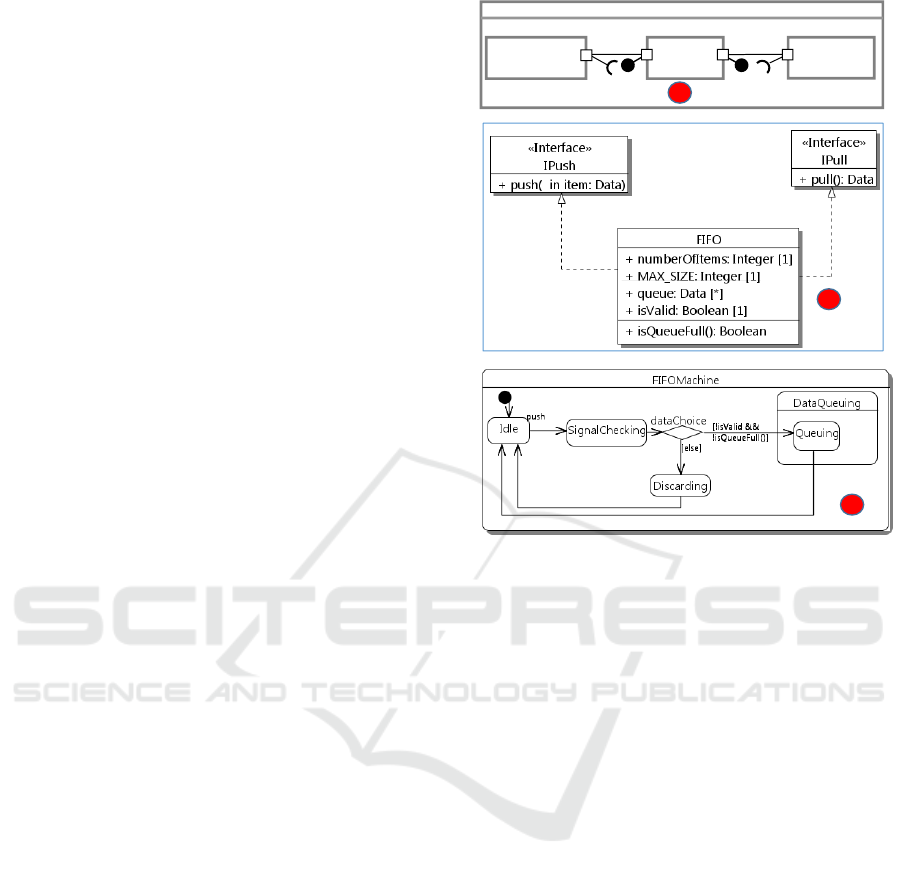

Figure 1: Architecture model and generated extended code.

machine as shown in Fig. 1 (c). Initially, the Idle

state is active. The state machine then waits for an

item to arrive at the ﬁfo part (through the pPush port).

The item is then checked for its validity before either

adding it to the queue or discarding it (if the queue is

full).

Ideally, code can be generated from the architec-

ture model by using a tool such as IBM Rhapsody

(IBM, 2016). Fine-grained behavior of operations

such as isQueueFull is embedded directly into the

model. However, if there are some bugs in the ﬁne-

grained code, programmers might ﬁx them by directly

debugging and modifying the generated code. Fur-

thermore, programmers might want to create methods

while writing ﬁne-grained code within the generated

code for algorithms, for example. For those cases,

existing approaches cannot propagate code modiﬁca-

tions such as creation of methods or attributes back

to the model because these modiﬁcations are outside

of modiﬁable areas. The separation of generated code

from user-code based on specialized comments is not

designed to propagate code modiﬁcations back to the

model. The separation mechanism relies on a code

generator that is specialized to recognize the special-

ized comments and keep the source code segment be-

tween them intact (Kelly and Tolvanen, 2007).

A New Approach for Reﬂection of Code Modiﬁcations to Model in Synchronization of Architecture Design Model and Code

497

3 BIDIRECTIONAL MAPPING

AND ORGANIZATION OF

GENERATED CODE

This section describes a new approach for organiz-

ing generated code in a way intended to support code

modiﬁcations. The approach is based the idea of ex-

tending an existing standard programming language

by adding programming constructs for modeling ele-

ments that have no direct representation in the code.

Notably, in the context of component-based design

and the use of UML state machines for describing be-

haviors of reactive system components, constructs for

port, connector, and state machine elements are intro-

duced. The programming language that contains the

additional programming constructs is called extended

language. This latter term has been ﬁrst presented

in our preliminary work (Pham et al., 2017a). The

focus of this paper is on how the extended language

organizes the generated code in a way that is easy for

programmers to manage and for tools to identify code

modiﬁcations. Then, the code modiﬁcations are prop-

agated back to the model by an incremental reverse

engineering. The extended language contains all pro-

gramming constructs of the standard language plus

the additional programming constructs. Code con-

forming to the extended language is termed extended

code.

Fig. 1 shows an example of the extended code cor-

responding to the UML model from Fig. 1. The code

deﬁnes higher level elements such as states (line 33)

and ports (line 19). But it is not a new language. The

extensions are realized with the standard program-

ming language features, notably templates and pre-

processing macros. Therefore, the extended code is

actually written in a standard programming language

ﬁle, e.g. .h ﬁles for C++ headers and .cpp ﬁles for

C++ source ﬁles. We will later present the additional

constructs in more detail along with the example and

show how the organization of the extended code en-

ables code modiﬁcation identiﬁcation and propaga-

tion.

Port. A UML port does not have an equivalent el-

ement in standard code. In the extended language,

we propose programming constructs based on tem-

plate mechanisms of the standard language corre-

sponding to UML ports. RequiredPort<T> and Pro-

videdPort<T> are equivalent to UML uni-directional

ports, which have only one required or one provided

interface. The T template parameter is bound to the

interface required/provided by a UML port. Bidirec-

tionalPort<R,P> maps to UML bidirectional ports,

which have one R required and one P provided inter-

face. A UML port is then transformed into an attribute

typed by one of the port templates above.

The constructs enable a code parser to recognize

an attribute as a port so that a change propagation

mechanism can reﬂect the port attribute to the model.

It means that, the constructs are a means for explicitly

relating a code element to an equivalent element at the

model level. Existing tools such as Papyrus-RT trans-

form a UML port with a required interface into an

attribute typed by the interface. Unless using special-

ized comments for this transformed attribute, a code

parser cannot unambiguously understand it as a port.

The ambiguity leads to potential differences between

the original model used for code generation and the

model recovered from the code. Furthermore, these

constructs allow programmers to easily differentiate

between ports and actual class attributes.

At the modeling level, the creation of a port re-

quires two steps: (1) create a port and (2) specify the

required or provided interface. At the programming

level with the extended code, the effort for creating a

port is likely less compared to the graphical modeling

since a programmer only needs to create an attribute

in an object oriented programming language.

The purpose of adding new programming con-

structs is to: (1) provide a bidirectional mapping be-

tween model and code; (2) allow programmers to bet-

ter manage the code; and (3) allow programmers to

write ﬁne-grained behavior of components using the

constructs: programmers can write code to call the

methods of a required and/or provided interface of a

port. To do it, the port type exposes one or two pub-

lic attributes: a requiredIntf attribute (a class attribute

in Java or a pointer attribute in C++, e.g.) typed by

the required interface of the required or bidirectional

port and a providedIntf attribute typed by the pro-

vided interface of the provided or bidirectional port.

For example, to call the push method implemented by

the FIFO from the producer, a programmer can write

pPush.requiredIntf->push(data) in ﬁne-grained code

of the producer.

Binding. A binding connects ports on two parts. It is

equivalent to a UML connector that can connect two

UML ports. A method call to our predeﬁned method

bindPorts connects two ports. A call of bindPorts

takes as input two parameters that are port references

corresponding to UML ports. For example, lines 7-

8 in Fig. 2 show two invocations of bindPorts for

two connectors. Each of the invocation takes as in-

put two ports (the two ports of the producer and the

ﬁfo, for example). Each code class associated with a

UML component contains a single conﬁguration (as a

method in lines 6-9) having invocations of bindPorts.

The conﬁguration method is restricted to have only

invocations of bindPorts for easing change propaga-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

498

1. class System {

2. public:

3. Producer p;

4. Consumer c;

5. FIFO fifo;

6. void configuration(){

7. bindPorts(p.pPush, fifo.pPush);

8. bindPorts(c.pPull, fifo.pPull);

9. }

10.}

11.class IPull {

12.public: virtual Data* pull() = 0;

13.}

14.class IPush {

15.public:

16. virtual void push(Data& data) = 0;

17.}

18.class Producer {

19.public: RequiredPort<IPush> pPush;

20.};

21.class Consumer {

22.public: RequiredPort<IPull> pPull;

23.};

24.class FIFO : public IPush, IPull {

25.public:

26. ProvidedPort<IPush> pPush;

27. ProvidedPort<IPull> pPull;

28. Data* pull(){//fine-grained code}

29. void push(Data& data){//..}

30. //attributes + methods…

31.Statemachine FIFOMachine {

32. InitialState Idle{};

33. State SignalChecking {

34. StateEntry entryCheck();

35. StateExit exitCheck();

36. };

37. State DataQueuing {

38. StateEntry entryQueue();

39. State Queuing();

40. };

31.State Discarding{};

32. PseudoChoice dataChoice{};

33. CallEvent(push(Data&)) DataPushEvent{};

34. TransitionTable {

35. ExT(Idle,SignalChecking,

36. DataPushEvent,NULL,signalCheck);

37. ExT(SignalChecking,dataChoice,

38. NULL,NULL,NULL);

39. ExT(dataChoice,Queuing,NULL,valid,NULL)

40. }

41.};

42.void entryCheck(){//fine-grained code}

43.void exitCheck(){//fine-grained code}

44.void entryError(){//fine-grained code}

45.void signalCheck(Data& item) {

46.//trans effect from Idle to SignalChecking

47.}

48.bool valid(){return isValid&&isQueueFull()}

49.}

Figure 2: Generated extended code for the producer-consumer example.

tion. Statements other than invocations of bindPorts

in the conﬁguration method should not be used and

not synchronized back to the model.

Most of existing tools transform a connector into

multiple code elements at multiple places: a set-

ter method for the required port, a getter method

for the provided port, and a statement calling these

methods to assign the required interface attribute

of the required port to the appropriate implemen-

tation. In these tools, the connector between

the pPush ports of the p producer and the ﬁfo

channel is transformed into two methods, namely

get_pPush and set_pPush, within the Producer and

Consumer classes, respectively. Furthermore, a state-

ment p.set_pPush(ﬁfo.get_pPush()) is called within a

method of the FIFO class. These elements are famil-

iar to programmers but changing them is not intuitive.

In addition, it is not trivial for a code parser to eas-

ily recognize this statement as code elements trans-

formed from a connector.

In contrast, using the bindPorts method, program-

mers only need to manage invocations of this method.

A code parser can easily reﬂect the method calls as

connectors at the model level.

Other elements in the UML class diagram in Fig.

1 are mapped to corresponding code elements as they

are in industrial tools such as IBM Rhapsody (IBM,

2016). UML parts of a class, e.g. p, ﬁfo, c, are

mapped to composite attributes of the corresponding

class at the code level, e.g. the System class; the

UML operations and properties are mapped to the

class methods and attributes, respectively; the UML

interfaces (IPush and IPull) are mapped to interfaces

in code, e.g. classes with pure virtual methods in C++

at lines 11-17 in Fig. 1.

State Machine. Behavioral programming constructs

are proposed corresponding to the UML state ma-

chine concepts at the modeling level. The model

elements of a UML state machine are transformed

into instances of these constructs. As shown in Fig.

2, these behavioral constructs are grouped into three

parts: topology, events, and transition table in the ex-

tended code.

A topology contains the constructs to describe the

state machine hierarchy. The root of the topology is

speciﬁed via the StateMachine as in Fig. 2. There-

fore, a state machine written in this style is easier to

maintain and manage than imperative code generated

by existing tools such as Papyrus-RT and IBM Rhap-

sody (IBM, 2016). A StateMachine contains vertexes.

Similarly to the concepts of vertexes in UML state

machines, a vertex can be either a state, which can in

turn contain one or more regions, or a pseudo state. A

state can have actions such as entry, exit, and doAc-

tivity. Those methods are declared within the state

and implemented in the class containing the state ma-

chine. For example, the entryCheck and exitCheck ac-

tions at lines 34-35 in Fig. 2 are implemented in the

FIFO class at lines 52-53. For modiﬁcation reﬂec-

tion, a method implemented within a class is checked

whether its declaration appears within the state ma-

chine of the class. If so, the method is understood as

an action of the state that declares the method. Using

this strategy, the state actions in code can be unam-

biguously reﬂected to appropriate model elements.

Each state machine can deﬁne multiple events

that are processed by it. There are four event types,

namely call event, signal event, time event and change

event. They are described by the UML speciﬁcation

and out of scope of this paper. Those events are unam-

biguously mapped to code in a bidirectional way. For

example, line 43 in Listing 2 shows a call event that

an instance of it is emitted if the associated method

push of FIFO is called.

A transition table consists of declarations of tran-

sitions of the state machine. Lines 45-49 in Fig. 2

show three transitions. Each transition is identiﬁed

by a source, a target vertex, an event that triggers it,

a guard method and a transition effect. The organi-

zation of code for the guard and effect methods are

similar to that of state actions: they are declared in

the transitions of the transition table and implemented

A New Approach for Reﬂection of Code Modiﬁcations to Model in Synchronization of Architecture Design Model and Code

499

within the class of the state machine. By this way, the

code reﬂection process can identify which methods of

the class of the state machine are part of transitions.

Transformation as Preprocessing. The additional

constructs are created by means of built-in features,

such as macros and annotations, of the standard pro-

gramming language. Therefore, the extended code is

syntactically valid to the standard language and thus

compilable by standard compilers such as GCC. How-

ever, it is in general not possible to expand the ad-

ditional constructs to executable code by using these

features, e.g. expand some macros for executable

code of state machine. In fact, a text-to-text trans-

formation that acts as a preprocessing step takes the

extended code into account to produce an additional

code, namely delegatee code. The delegatee code and

the extended code are then compiled together to cre-

ate an executable.

Let’s explain more clearly why there is a need to

have the transformation. The extended code and the

transformation act exactly similar to annotated Java

code and a Java annotation processing (Pawlak et al.,

2016) in case of Java at compile time. In Java, an-

notations are means used for embedding metadata in

program code and are used as markers for altering the

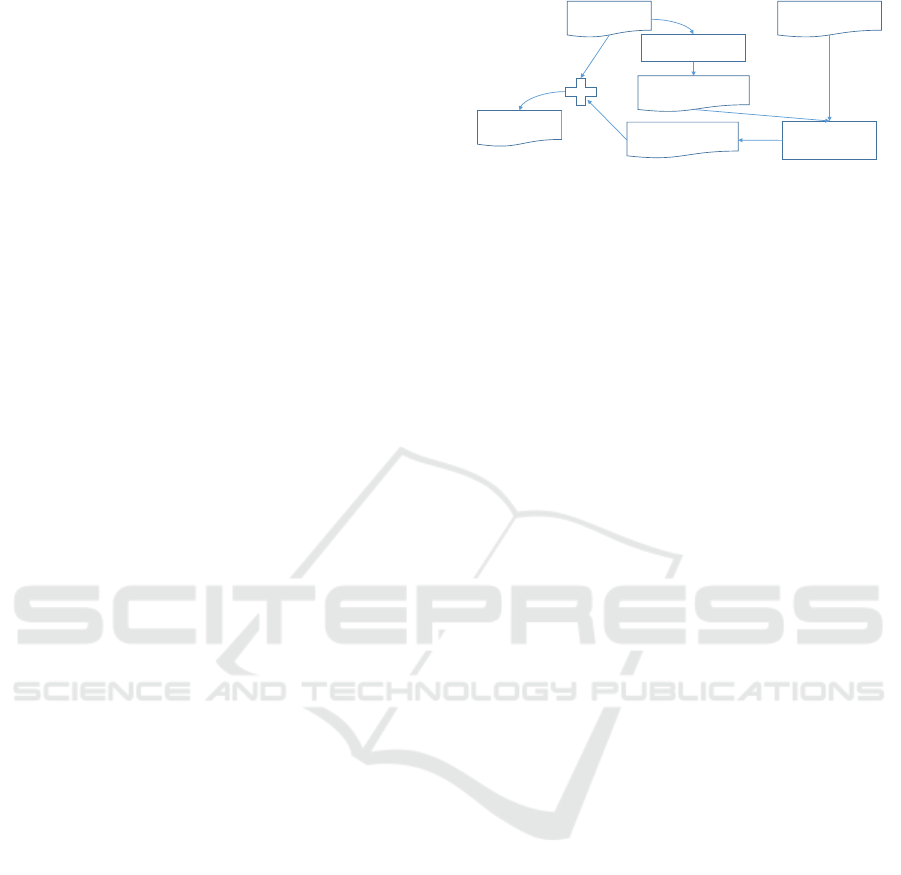

behavior of the annotated program code. Fig. 3 shows

how the alteration is realized by generating additional

source code based on a set of code generation tem-

plates and the semantics of the annotations (Deors,

2011). First, annotated Java source code is parsed for

extracting a semantics model of the annotations in the

code. Secondly, the annotation processing takes the

semantics model and the code generation templates

to produce a set of newly generated classes. The ﬁnal

program is composed of the annotated Java code and

the generated classes.

Projecting the extended code and the transforma-

tion in the paper into the Java annotation process-

ing, the extended code, model semantics, text-to-text

transformation and delegatee code correspond to the

annotated Java code, the annotation semantics model,

the annotation processing and the generated classes,

respectively. The difference is that the model ele-

ments in the paper have their own semantics and use a

set of UML code generation templates for producing

the delegatee code.

For state machine elements, we use the set of pat-

terns presented in our previous work (Pham et al.,

2017b) because it provides efﬁcient code generation

from all state machine elements. For ports and con-

nectors, we reuse the getter and setter-based patterns

of IBM Rhapsody. Thus, the extended code is exe-

cutable from developer perspectives similarly to the

execution of an annotated Java program.

Annotated

Java code

Code generation

templates

Annotation

semantics model

Annotation parser

Annotation

processing

Generated classes

Final program

Figure 3: Annotation processing in Java.

In the next section, we show how modiﬁcations in

the extended code are propagated by an incremental

reverse engineering.

4 INCREMENTAL REVERSE

ENGINEERING

Modiﬁcations in code should be automatically prop-

agated back to the model. This section presents our

proposition for dealing with it. Speciﬁcally, we pro-

pose an incremental reverse engineering (Pham et al.,

2016). Incremental reverse engineering is similar to

change-driven transformation (Ráth et al., 2009). The

latter listens to changes made in a model and uses pre-

deﬁned rules to propagate the changes back to another

model. However, change-driven transformation can-

not be applied directly to propagate changes in code

back to the model because the detection of changes

in code is non-trivial. In our approach, we use a File

Tracker to detect which code ﬁles are changed by de-

velopers. The details of our approach are shown in

Fig. 4.

The ﬁle tracker monitors all extended code ﬁles

generated from the model. After modiﬁcations have

been made in the extended code, the tracker returns

a list of modiﬁed ﬁles. We do not allow renam-

ing or deleting a class because doing these modiﬁ-

cations at the code level requires doing some addi-

tional re-factorings. For example, deleting a class re-

quires re-typing class attributes typed by this deleted

class. We believe that working at the model level

is more suitable for these modiﬁcations because the

re-factorings can be done through code re-generation

from the modiﬁed model.

The modiﬁed ﬁles and the model are then used

as input for reverse engineering to update the model.

For each modiﬁed ﬁle, the incremental reverse engi-

neering for each code element in the ﬁle follows a

Update-Create-Delete strategy described in the fol-

lowing list.

• Update: Find a model element matching the code ele-

ment by using name and type of the code element. If

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

500

Architecture

model

Extended Code

Modified extended Code

Modified Non-modified

File

tracker

Code generation + In-place transformation

Monitoring

File

categorization

Incremental reverse

engineering

Input

Updated

model

Incremental

reversing

Modification

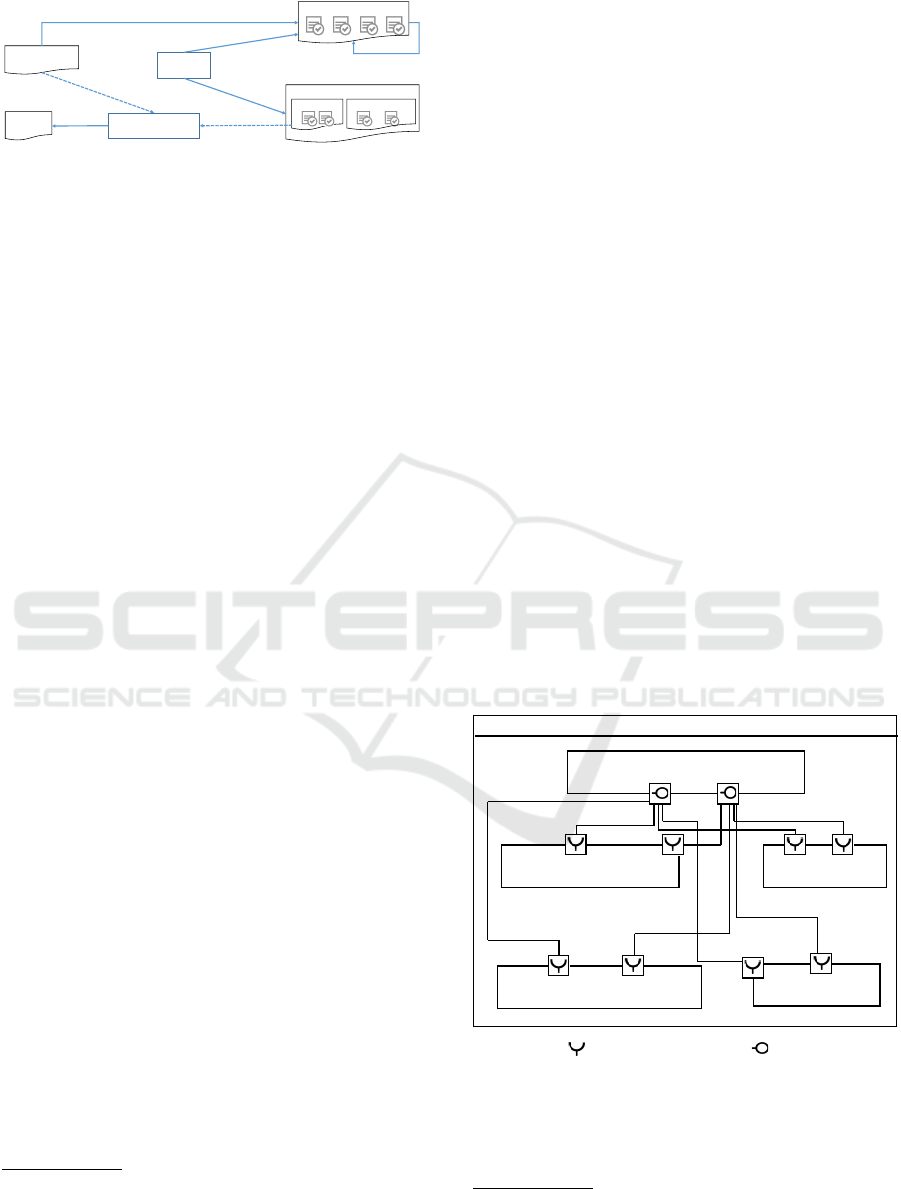

Figure 4: Incremental reverse engineering with ﬁle tracker

it exists, use the information of the code element to up-

date the model element. That is, every code element

that has its associated model element is considered as

updated element regardless of whether it is really mod-

iﬁed at the code level. For example, if we modify the

entryCheck method body in Fig. 2, the incremental re-

verse engineering will propagate the changed body to

the architecture model as a block of text.

• Create: If no matching model element is found, create a

model element corresponding to the code element. For

example, if a programmer adds a state to the state ma-

chine example in Fig. 2, a UML state will be created in

the model.

• Delete: UML elements (attributes, ports, connectors,

methods, state machines, and events), which are not

updated or created by the Update and Create actions

during the incremental reverse engineering, are deleted.

Because it implies that these elements are removed by

programmers during code modiﬁcation (since the Up-

date step does not ﬁnd these elements)

It is worth noting that a renaming in code will be

considered as an addition followed by a deletion at the

model level. This detection of renaming is pretty bad

since modeling relies on unique references. There-

fore, we develop an additional code change listener.

This listener only detects renaming of code elements

including classes, attributes, methods, and state ma-

chine elements. If one of these elements is renamed,

the incremental reverse engineering simply updates

the corresponding element in the model with the new

name. The propagation of rename modiﬁcations is

executed before the Update-Create-Delete strategy

to avoid the detection of renaming changes as above.

If an element is renamed at the code level, its cor-

responding model element is updated with the new

name ﬁrst. Then, in the Update-Create-Delete strat-

egy, the Update action ﬁnds the updated model ele-

ment and the Create and Delete do not have an effect

on this element.

In the next section, we describe the evaluation of

the approach based on a case study.

We reﬂect code modiﬁcations to the model to keep it

consistent with the code. If a model elements is neither up-

dated nor created from a code elements, it is not consistent

with the code, thus should be removed from the model.

5 CASE STUDY: LEGO CAR

This section presents the application of the approach

to the development of a realistic case study. The ob-

jective is to evaluate the feasibility of the approach

and the correctness of the reﬂection of code modi-

ﬁcations. Speciﬁcally, if generated code in the new

code organization approach is modiﬁed, can the code

modiﬁcations be propagated back to the model by the

incremental reverse engineering?

The case study is an embedded software for

LEGO. The LEGO car factory consists of small

LEGO cars used for simulating a real industrial pro-

cess (CEA LIST, 2016). It is chosen for the evalua-

tion because it is a real world embedded system with

enough complexity.

A LEGO car is composed of four modules: chas-

sis, front, back, and roof. Each module consists

of ﬁve components: bluetooth communication con-

troller, conveyor, robotic arm, press, and shelf. The

behavior of each component is described by a UML

state machine. The components communicate with

each other through ports. To adopt a fully component-

based approach, in the design model, we use service

ports and ﬂow ports

to connect (call APIs and send

signals) the components within a module. Fig. 5

shows the UML composite structure diagram for the

front module without showing detailed structures of

each of its components. For simpliﬁcation, only some

service ports are shown in the ﬁgure.

FrontModuleSystem

+ convoyer: FrontConveyor [1]

+ controller : FrontControlComponent [1]

+ pLCD: ILCD [1]

+ pModule: IModule [1]

+ roboticArm: FrontRoboticArm [1]

+ shelf: SlaveShelf [1]

+ press: SlavePress [1]

Legend Required port Provided port

Figure 5: Composite structure diagram of the front module

for ﬂow ports.

In the experimentation, for each code generated

from the module design, we added class attributes

Ports that are used speciﬁcally for exchange data/sig-

nals between components. The details of these ports are not

presented here due to space limitation.

A New Approach for Reﬂection of Code Modiﬁcations to Model in Synchronization of Architecture Design Model and Code

501

and ﬁne-grained code to each component. Speciﬁ-

cally, state actions, transition effects, and class meth-

ods are created following the rules described in Sec-

tion 3. Furthermore, API invocations and exchange

of messages/signals between components are realized

through the use of service and ﬂow ports and invoca-

tions through the required interface of the ports. For

example, Fig. 5 shows that the controller provides

two interfaces: ILCD and IModule for other compo-

nents to interact with. Note that, there are other con-

nectors connecting other ports of the components that

are not shown in the ﬁgure due to space limitation and

for simpliﬁcation.

We generated code from the design and enriched

the generated code with ﬁne-grained behavior of

methods, state actions and transition effects. We then

automatically propagated the code modiﬁcations back

to the corresponding model by using incremental re-

verse engineering. We then manually checked the

model for updates as follows:

• Are UML properties created in the model corre-

sponding to the class attributes in the code?

• Are UML state actions and transition effects cre-

ated within the model? Has each a block of text

containing the ﬁne-grained code ﬁlled in the ex-

tended code?

• Are UML operations created in the model corre-

sponding to the class methods in the code?

All of the model elements corresponding in the

modiﬁed elements in the code were found in the up-

dated model. The resulting compilable code contains

on average 12000 lines of code: 11193 for chassis,

12246 for front, 12232 for roof, and 12245 for back.

More information about the code is not presented here

due to space limitation and can be found at (Pham,

2017). This result assesses that our approach and its

implementation can propagate modiﬁcations in code

back to model.

6 RELATED WORK

Several tools such as Enterprise Architect (SparxSys-

tems, 2016) and IBM Rhapsody (IBM, 2016) support

code generation from UML class and state machine

diagrams, and reverse engineering from code to UML

classes. Reverse engineering support in these tools is

not applicable to code generated from UML compos-

ite structures and state machines. A few approaches

(Chardigny et al., 2008) are able to recover compo-

nents from object-oriented code, based on heuristic

algorithms. However, the recovered models in these

approaches are often different from the original mod-

els.

Some techniques use specialized comments

(Steinberg et al., 2008) such as @generated NOT to

preserve code modiﬁed by programmers from gener-

ated code. However, this approach assures that code

modiﬁcations are not overwritten during code regen-

eration, but it is not possible to synchronize model-

code. Furthermore, if accidental changes happen to

the special comments, modiﬁed code cannot be pre-

served.

Textual modeling languages (TMLs) such as

Umple (Badreddin et al., 2014) unify modeling and

programming. They provide bidirectional mapping

to certain UML elements. The difference to our ap-

proach is that the extended code in our approach is

valid to programming language code and can be pro-

cessed by standard compilers such as GCC for C++

while the TMLs are not. In our approach, program-

mers can use their favorite IDEs while the use of

TMLs forces programmers to change their working

environment. In (Maro et al., 2015), the authors in-

tegrate graphical and textual editors for UML proﬁles

to allow developers to work in both of the representa-

tions. However, this approach depends on EMF and

embeds all modeling concepts, including classes and

attributes, to textual editors while our approach only

introduces necessary concepts in order to enable pro-

grammers to use their favorite programming language

in an MDE context.

The idea of adding more constructs for object-

oriented languages is similar to ArchJava (Aldrich

et al., 2002). This latter adds structural concepts such

as parts and ports to Java to support the co-evolution

of architecture structure and Java implementation.

However, ArchJava does not provide a mapping be-

tween architecture behavior and code. Furthermore,

ArchJava is not standard Java and not executed with

standard Java Virtual Machine, and facilities of IDEs

such as auto-completion are not compatible.

Our approach is inspired by the research challenge

proposed by Woods in (Woods and Rozanski, 2010).

The author of the latter argues that current practices

have a lack of architectural information in the imple-

mentation. This lack leads to a series of problems

related to software architecture such as outdated ar-

chitecture description or undesired recovered archi-

tecture from code. The author proposes to integrate

explicit architectural information into the implemen-

tation. A number of beneﬁts of this integration are

discussed: (1) keeping implementation aligned with

architecture; (2) recovering an intended architecture

from its implementation; and (3) reducing the drift

between architecture and implementation.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

502

7 CONCLUSION

The development of complex systems involves dif-

ferent actors. The latter use various tools to mod-

ify development artifacts, model and code in particu-

lar. Modiﬁcations of the artifacts raise the problem of

synchronizing model and code. Synchronization re-

quires to reﬂect modiﬁcations in code back to model.

The paper presented an approach for dealing with this

problem in the context of synchronization of software

architecture models speciﬁed by UML state machines

and component-based concepts and code.

The contributions allow programmers to efﬁ-

ciently organize source code, modify it, identify code

modiﬁcations and automatically propagate it back to

the model. The approach is based on additional pro-

gramming constructs added to an existing program-

ming language and an incremental reverse engineer-

ing. The additional constructs allow to unambigu-

ously map code elements back to model elements.

The additional constructs are made executable by a

text-to-text transformation-based preprocessing step.

The evaluation of the approach is based on a Lego

Car Factory as case study. We evaluate the correct-

ness of the incremental reverse engineering if code is

modiﬁed. The results show that modiﬁcations in code

can be propagated back to the model. Therefore, de-

velopers do not need to manually update model from

code.

In future work, we will evaluate how programmers

react to the new organized code. We intend to con-

duct an empirical study and assess the perception of

programmers of the additional constructs.

REFERENCES

Aldrich, J., Chambers, C., and Notkin, D. (2002). Arch-

Java: Connecting Software Architecture to Implemen-

tation. In Software Engineering, 2002. ICSE 2002,

pages 187–197. IEEE.

Badreddin, O., Lethbridge, T. C., Forward, A., Elasaar, M.,

and Aljamaan, H. (2014). Enhanced Code Generation

from UML Composite State Machines. Modelsward

2014, pages 1–11.

CEA LIST (2016). LEGO Car Factory.

http://robotics.benedettelli.com/lego-car-factory/.

[Online; Accessed 22-Mar-2017].

Chardigny, S., Seriai, A., Oussalah, M., and Tamzalit, D.

(2008). Extraction of Component-Based Architecture

from Object-Oriented Systems. In Software Architec-

ture, 2008. WICSA 2008. Seventh Working IEEE/IFIP

Conference on, pages 285–288. IEEE.

Deors (2011). Code Generation using Annotation Proces-

sors in the Java language part 3: Generating Source

Code. [Online; accessed 06-Sept-2017].

IBM (2016). IBM Rhapsody. http://www.ibm.com/develop

erworks/downloads/r/rhapsodydeveloper/. [Online;

accessed 04-July-2016].

Kelly, S. and Tolvanen, J. P. (2007). Domain-Speciﬁc Mod-

eling: Enabling Full Code Generation.

Maro, S., Steghöfer, J.-P., Anjorin, A., Tichy, M., and Gelin,

L. (2015). On Integrating Graphical and Textual Ed-

itors for a UML Proﬁle Based Domain Speciﬁc Lan-

guage: An Industrial Experience. In Proceedings of

the 2015 ACM SIGPLAN SLE, pages 1–12. ACM.

Pawlak, R., Monperrus, M., Petitprez, N., Noguera, C.,

and Seinturier, L. (2016). Spoon: A library for

implementing analyses and transformations of java

source code. Software: Practice and Experience,

46(9):1155–1179.

Pham, V. C. (2017). Github Test Lego Car. https://github.

com/phamvancam2104/test-lego-car. [Online; ac-

cessed 09-Aug-2016].

Pham, V. C., Li, S., Radermacher, A., and Gérard, S. (2016).

Foster Software Architect and Programmer Collabora-

tion. In 21th International Conference on Engineering

of Complex Computer Systems, ICECCS 2016, pages

1–10, Dubai, United Arab Emirates.

Pham, V. C., Radermacher, A., Gerard, S., and Li, S.

(2017a). Bidirectional mapping between architecture

model and code for synchronization. In Software Ar-

chitecture (ICSA), 2017 IEEE International Confer-

ence on, pages 239–242. IEEE.

Pham, V. C., Radermacher, A., Gérard, S., and Li, S.

(2017b). Complete code generation from uml state

machine. In MODELSWARD, pages 208–219.

Ráth, I., Varró, G., and Varró, D. (2009). Change-Driven

Model Transformations. In International Conference

on Model Driven Engineering Languages and Sys-

tems, pages 342–356. Springer.

Jolak, R., Umuhoza, E., Ho-Quang, T., Chaudron, M.R.V.

and Brambilla, M. (2017). Dissecting design effort

and drawing effort in UML modeling. In 2017 43rd

Euromicro Conference on Software Engineering and

Advanced Applications (SEAA) (pp. 384-391). IEEE.

Selic, B. (2012). What Will It Take? A View on Adop-

tion of Model-Based Methods in Practice. Software &

Systems Modeling, 11(4):513–526.

SparxSystems (2016). Enterprise Architect. http://www.

sparxsystems.eu/start/home/. [Online; accessed 20-

Nov-2016].

Steinberg, D., Budinsky, F., Merks, E., and Paternostro, M.

(2008). EMF: Eclipse Modeling Framework. Pearson

Education.

Woods, E. and Rozanski, N. (2010). Unifying Software

Architecture with Its Implementation. Proceedings

of the Fourth ECSA Companion Volume - ECSA ’10,

page 55.

A New Approach for Reﬂection of Code Modiﬁcations to Model in Synchronization of Architecture Design Model and Code

503
