Perception Enhancement for Bionic Vision

Preliminary Study on Object Classiﬁcation with Subretinal Implants

Johannes Steffen

, Jonathan Napp

, Stefan Pollmann

2, 3

and Klaus T

onnies

Department of Simulation and Graphics, Otto-von-Guericke University, Magdeburg, Germany

Department of Experimental Psychology, Otto-von-Guericke University, Magdeburg, Germany

Center for Brain and Behavioral Sciences, Otto-von-Guericke University, Magdeburg, Germany

Keywords:

Bionic Vision, Retinal Implants, Artiﬁcial Neural Networks, Object Classiﬁcation.

Abstract:

The restored vision by using subretinal implants of patients suffering from a loss of photoreceptors, e.g., in

retinitis pigmentosa and age-related macular degeneration, is, compared to healthy subjects, very limited.

Therefore, we investigated, whether it is possible to enhance the perception of such patients by transforming

the input images in a systematic manner. To this end, we propose a new image transformation network that is

capable to learn plausible image transformations in an end-to-end fashion in order to enhance the perception

of (virtual) patients with simulated subretinal implants. As a proof of concept, we test our method on an

object classiﬁcation task with three classes. Our results are promising. Compared to a baseline model, the

overall object classiﬁcation accuracy increased signiﬁcantly from 67.4% to 81.1%. Furthermore, we discuss

implications and limitations of our proof of concept and outline aspects of our work that can be improved and

need to be subject of further research.

1 INTRODUCTION

Degenerative retinal diseases are one of the main

causes of vision loss. Particularly, age-related mac-

ular degeneration (AMD), is the most common cause

of vision impairment in the United States and the

fourth most common cause globally (Vos et al., 2015;

The Eye Diseases Prevalence Research Group, 2004).

Moreover, retinitis pigmentosa (RP) is another de-

generative disease of the retina that typically affects

younger patients and, in contrast to AMD, leads to a

loss of peripheral vision ﬁrst and may, however, lead

to complete blindness over the course of the disease

due to the degeneration of the photoreceptors within

the retina (Busskamp et al., 2010) (see Figure 1b).

Although, both of the aforementioned diseases have

different pathologies they will lead to non-functional

photoreceptors that, subsequently, hamper the signal

processing within the retina and cause different but

signiﬁcant loss of vision.

1.1 Vision Restoration

During the last decade, efforts were made to par-

tially restore the loss of vision of patients suffer-

ing from blindness due to RP and, potentially, also

AMD. Speciﬁcally, retinal implants were introduced

to stimulate the still intact neurons within the retina.

For retinal implants, a microchip with an electrode

array is implanted in the eye to replace the non-

functional photoreceptors, that were formerly respon-

sible to convert light into electrical current for further

signal processing. This is possible, because in most

degenerative retinal diseases only the photoreceptors

are dysfunctional and the subsequent processing lay-

ers of the retina are still (partially) intact. Thus, the

general goal is to feed the remaining functional neu-

rons with electrical stimuli to partially restore vision.

The normal, non-pathological vision processing

pipeline in humans begins with the transduction of in-

coming light into electrochemical signals through the

photoreceptors inside the retina. After transduction,

the signal is passed through various processing lay-

ers inside the retina. These layers consist of different

types of cells, e.g., bipolar-, amacrine-, horizontal-,

and ganglion cells, where the axons of the latter form

the optical nerve. Afterwards, the information is fur-

ther processed inside the brain.

However, the signal processing for AMD and RP

patients is severely deﬁcient. Starting at the inner lay-

ers of the retina, photoreceptors, bipolar cells, and

ganglion cells can be degenerated to a great extent

leading to either complete or partial loss of vision. For

a successful restoration of vision it would be beneﬁ-

cial to feed signals into the remaining bipolar cells,

thus, bypassing the degenerated photoreceptors by

Steffen, J., Napp, J., Pollmann, S. and Tönnies, K.

Perception Enhancement for Bionic Vision - Preliminary Study on Object Classiﬁcation with Subretinal Implants.

DOI: 10.5220/0006648901690177

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 169-177

ISBN: 978-989-758-276-9

169

Sclera

Choroid

Retina

Optical Nerve

Lens

Pupil

Iris

Ganglion Cell

Bipolar Cell Rod

Cone

Choroid

Degenerated

Photoreceptors

with

Subretinal

Implant

Optic Fiber Layer

Inner Nuclear Layer

Retinal Pigment Epithelium

b)a)

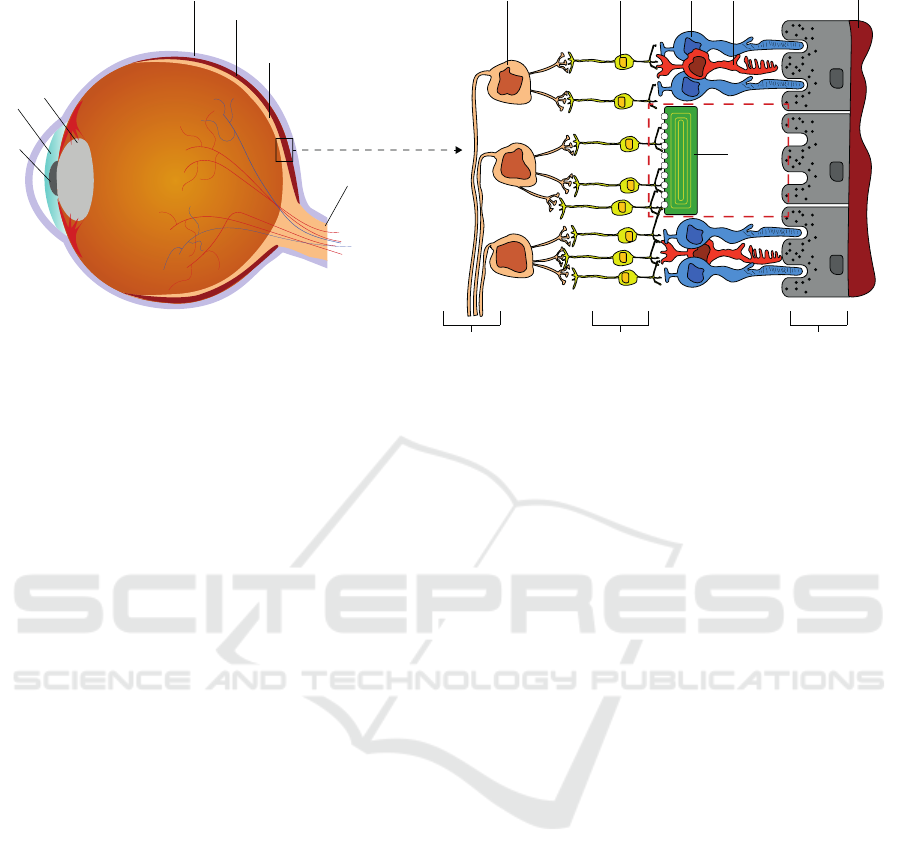

Figure 1: a) Simpliﬁed cross section of a human eyeball. The light hits the retina, where photoreceptors convert it into

electrochemical signals that are further processed in subsequent layers of the retina. b) Magniﬁed and simpliﬁed version of a

small section of the retina. The most outer part consists of the retinal pigment epithelium, where the photoreceptors (rods and

cones) lie on. The information is then forwarded through the inner nuclear layer consisting of (among others) bipolar cells

for further feature extraction. The ganglion cells forward the signal through their axons (optic ﬁber layer) into the optical

nerve. Due to the dense neuronal network built by the bipolar-, amacrine-, and horizontal cells inside the inner nuclear layer,

the implant cannot be placed on top of the retina (epiretinal) but is placed inside the area of degenerated photoreceptors (red

dashed box) stimulating the connected bipolar cells instead.

converting light inside a microchip and forwarding a

signal to the next cells in the retina, thereby, using the

computations carried out in the retina (Beyeler et al.,

2017). To achieve this, the electrode array has to be

implanted below the retina, at the physiological loca-

tion (subretinal) of the photoreceptors (Figure 1b).

It has to be noted, that there also exists another

type of retinal implant, i.e., an epiretinal implant. In

contrast to its subretinal counterpart, it is placed on

top of the retina inside the vitreous of the eye. The

implant is used to directly stimulate ganglion cells ly-

ing in the upper retinal layer (please refer to Figure

1). Thus, epiretinal implants are capable of effec-

tively bypassing all previous processing neurons and

directly feed their signal through the ganglion cells to

the optical nerve, omitting the retinal circuitry. This,

theoretically, could help to restore vision of patients

with severe damages in all previous layers. How-

ever, compared to the subretinal implant described be-

low, epiretinal implants like the Argus II system (Hu-

mayun et al., 2012) currently suffer from three ma-

jor disadvantages. First, it does not contain photo-

diodes but instead uses a camera mounted to special

glasses and, thus, patients cannot use eye movements

but need to move their head in order to search their en-

vironment. Second, the epiretinal electrodes will not

only directly stimulate ganglion cells but also axons

from other ganglion cells, which traverse the top of

the retina (Beyeler et al., 2017), and, third, the spatial

resolution of 6 × 10 electrodes is very limited.

We restrict ourselves to the case of subretinal im-

plants. The reason for this is twofold. First, we do not

expect signiﬁcant enhancements when using epireti-

nal implants due to their low spatial resolution (i.e.,

the Argus II with 6 × 10 electrodes) and, second, we

do not need to model axonal streaks and the subse-

quent distortion of the perceived image due to the

placement of epiretinal implants.

1.2 Subretinal Implants

An example of a subretinal implant is the Alpha IMS

system (Stingl et al., 2013), that consists of a chip

with photodiodes and electrodes, so that it can di-

rectly stimulate still functional bipolar cells (Beyeler

et al., 2017). Bipolar cells are the ﬁrst cells that nor-

mally receive input from the photoreceptors, so that

subretinal implants can use the computations inside

the retina, as long as the retinal cells are still intact.

Apart from this, the Alpha IMS has two more im-

portant advantages. First, eye movements are still

possible and, second, there are no distortions due to

axonal stimulations as in the case of epiretinal im-

plants (cf. (Humayun et al., 2012)). Furthermore, the

chip houses 1500 photodiode/electrode-pairs yielding

a potentially higher spatial resolution w.r.t. the afore-

mentioned epiretinal implant.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

170

1.3 Restoration and the Virtual

Patient’s Perception

Retinal implants, like the Alpha IMS can only con-

vey very limited information compared to normal vi-

sion. Among other reasons, this is due to the dra-

matically decreased spatial sampling and due to dif-

ferent kinds of artefacts. Thus, predicting the per-

ceived image of a patient with an implanted retinal

prosthesis is challenging and inﬂuenced by numer-

ous parameters, such as the type and the position of

the implant and its components, the progress of the

patient’s disease, and the amount and position of re-

maining functional neurons. Therefore, Beyeler et al.

proposed the pulse2percept

framework for simulat-

ing bionic vision upto the perceived image (Beyeler

et al., 2017). Speciﬁcally, they have modelled the sig-

nal processing of the inner nuclear layer (limited to

bipolar cells as depicted in Figure 1), the ganglion

cells, and the optic ﬁber layer. Their results where

validated by psychophysical and behavioural exper-

iments with patients (please refer to (Beyeler et al.,

2017) for more details). Following Beyeler et al. the

phrase virtual patient’s perception refers to virtually

perceived images that are based on a simulation.

Figure 2 shows two exemplary images and their

corresponding simulation results of a virtual patient’s

perception when vision is restored using a subretinal

implant. Here, the loss of information w.r.t. the orig-

inal images is clearly visible and the task of discrimi-

nating the two objects is challenging.

1.4 Motivation and Outline

Looking at the examples provided in Figure 2 it be-

comes apparent, that the quality of the restored bionic

vision is likely to be insufﬁcient for everyday visual

tasks. Therefore, the question arises, whether it is

possible to enhance the perceived image of a virtual

patient in order to solve a visual task better than be-

fore. Since we do assume that we cannot directly alter

the signal processing by the implant itself (although

this might become possible in the future) the only way

to achieve potentially better perceptual images is to

transform the input image such that its processed ver-

sion is more useful to fulﬁl a speciﬁc task. However,

ﬁnding a good transformation of the original input im-

age is challenging. While it is a reasonable thought to

apply simple image manipulation, e.g., local contrast

enhancement and edge detection, it is hard to justify

the choice for such transformation.

https://github.com/uwescience/pulse2percept (Beyeler

et al., 2017)

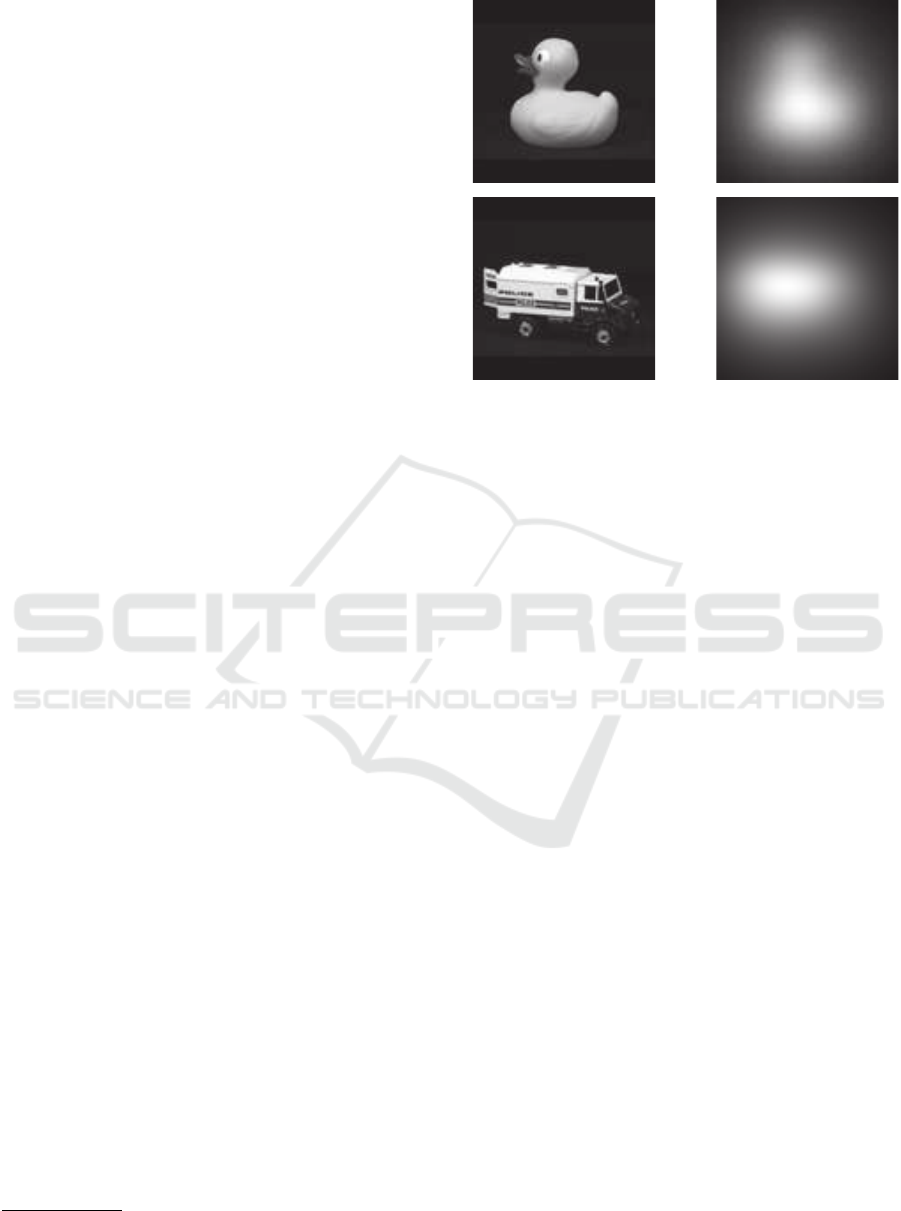

Figure 2: Examples of simulated perceived images. Left

column: Original images taken from the ALOI data set

(Geusebroek et al., 2005). Right column: Simulation re-

sults of a virtual patient’s perception with a subretinal im-

plant like the Alpha IMS. The simulation results were ob-

tained by using pulse2percept.

1.5 An Extended Virtual Patient for

Object Classiﬁcation

To overcome this limitation, we propose a new im-

age transformation neural network that is capable to

learn plausible image transformations in an end-to-

end fashion. Therefore, as a proof of concept, we

replace the pulse2percept simulation by a simple and

differentiable neural network, that enables us to opti-

mize arbitrary objective functions.

Since this work comprises a preliminary study, we

restrict ourself to a common object classiﬁcation task.

Speciﬁcally, we are interested in whether it is possi-

ble to automatically learn an image transformation of

the original image such that the perceptual image of

the virtual patient provides better grounds for a sub-

sequent object classiﬁcation task. Thereby, we limit

ourselves to the classiﬁcation of three different object

classes to evaluate the general applicability of the pro-

posed approach.

To this end, we extend the virtual patient as intro-

duced in (Beyeler et al., 2017) by an artiﬁcial observ-

ing unit, which performs object classiﬁcation based

on the virtual patient’s perceived images. Further-

more, we restrict ourselves to simulate the subretinal

Alpha IMS implant.

Perception Enhancement for Bionic Vision - Preliminary Study on Object Classiﬁcation with Subretinal Implants

171

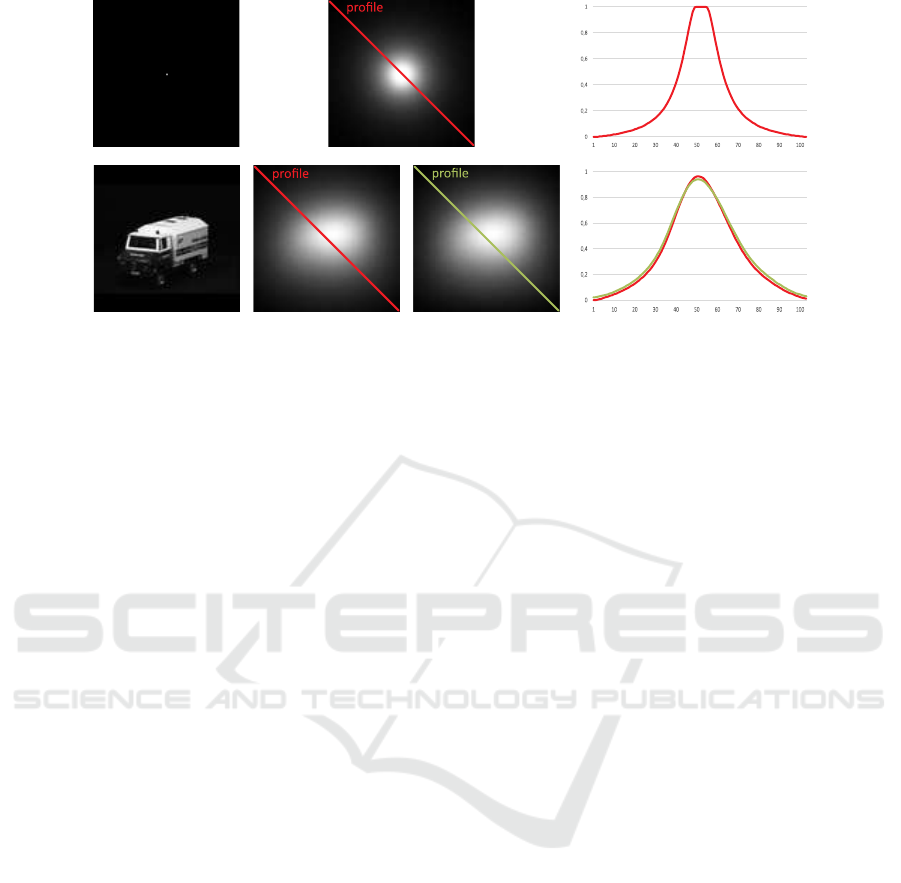

Figure 3: Top row: A black image with a white dot placed in the middle (left column) used to estimate a PSF out of the

simulation framework pulse2percept (middle column) and an exemplary intensity proﬁle along its diagonal (right column).

Bottom row: An input image (ﬁrst column), its simulated perceptual version from pulse2percept (second column), its sim-

ulated perceptual version as a result from convolving it with the estimated PSF (third column), and a comparison of the two

resulting intensity proﬁles along the respective diagonals (fourth column).

2 METHODS

As a proof of concept, we consider the retinal simu-

lation as a black box. The underlying function that

transforms an input image into a virtual patient’s per-

ceived image is, thus, unknown. However, our goal is

to develop an architecture that is capable to perform

end-to-end learning on various tasks - including ob-

ject classiﬁcation. Therefore, we propose to model

the extended virtual patient as a neural network al-

lowing us to use iterative optimization methods, i.e.,

gradient descent, for arbitrary objective functions.

2.1 Replacement of the Retina

Simulator

To this end, instead of re-engineering the publicly

available software pulse2percept to be fully differen-

tiable and capable to be integrated inside a neural net-

work, we approximated the output of the simulation

by a simple point-spread-function (PSF) estimation.

It has to be noted, that this approximation is only valid

for a ﬁxed set of parameters, namely, the position of

the subretinal implant inside the retina, the amount

of electrodes on the implant’s microchip, the size of

the electrodes, and their spacing. We set this param-

eters according to the speciﬁcation of the Alpha IMS

subretinal implant (Koitschev et al., 2015) although

the authors assume, that any other plausible settings

could have been used to show the general applicabil-

ity of this approach. Using pulse2percept we simu-

lated the virtual patient’s perception of a single dot

for calculating the point-spread-function.

Figure 3 shows the estimated PSF (top row) with

an exemplary intensity proﬁle along the diagonal of

the input image as well as an image (bottom row,

left) of which the perceived image is simulated by

pulse2percept (bottom row, second column), the re-

sult by replacing the simulation software by a simple

PSF (bottom row, third column), and a comparison of

exemplary intensity proﬁles (bottom row, forth col-

umn). While certainly not all details can be described

by a simple PSF the results indicate a sufﬁcient ap-

proximation of the simulation and, thus, can be used

for a proof of concept.

2.2 Network Architecture

Extended Virtual Patient Network

Due to the fact that we are now able to replace the

perceptual simulation of the virtual patient by a sim-

ple convolution with a PSF it is now possible to model

the extended virtual patient as a neural network. Since

our virtual patient shall be capable of object classiﬁ-

cation we extent the virtual patient with an artiﬁcial

observing unit, that, similar to the human brain, clas-

siﬁes simulated perceptual images into object cate-

gories. Hence, the extended virtual patient’s neural

network consists of two parts. The ﬁrst part simulates

the transformation of an input image into the percep-

tual image by a simple convolution with the PSF. The

weights of this convolution are ﬁxed and no bias term

is used to retain a simulation of the retinal processing.

The output of this convolution is then forwarded to the

artiﬁcial observing unit, which is modelled as a neu-

ral network consisting of a convolutional sub network

and a subsequent multilayer perceptron as a classiﬁer.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

172

Image Transformation Network

MLPCNNCNN CNN

Extended Virtual Patient

Input Image

(104,104,1)

(104,104,32)

(104,104,1)

(104,104,1) FIXED - PSF

(104,104,32)

(52,52,64)

(26,26,128)

Max-Pooling

128

Kernel size: 5x5 Kernel size: 3x3

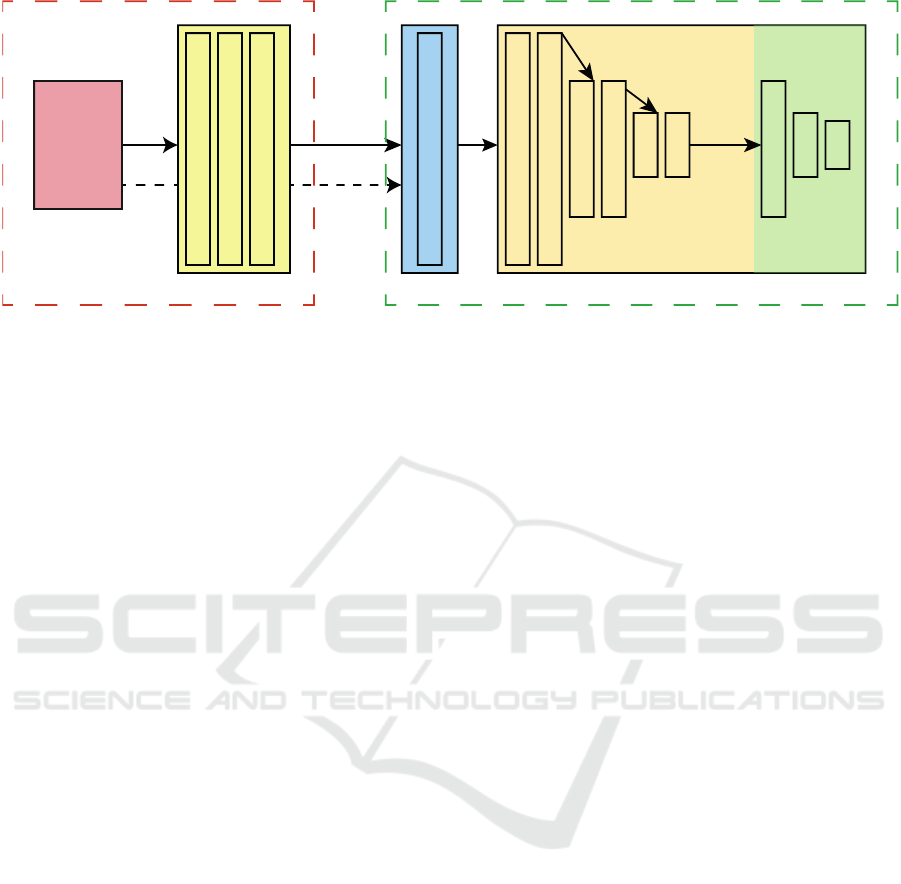

Figure 4: Overview of the used network architecture(s). An input image (red box) is fed to a convolutional neural network

performing a learned image transformation (yellow box). The transformed image is then fed to the extended virtual patient,

where a perceptual version of the transformed image is approximated by a PSF and then passed to an artiﬁcial observing unit

that classiﬁes the image into one of the three object categories. The information ﬂow of the baseline model is indicated by the

dashed arrow from the input image to the extended virtual patient, effectively bypassing the transformation CNN.

The convolutional sub network of the extended

virtual patient has three blocks, where each block con-

sists of two convolutional layers followed by a max-

pooling layer of stride 2 in both spatial dimensions.

The number of kernels per block is doubled after each

block starting at 32 kernels, the kernel sizes are ﬁxed

at 3× 3 px, and ReLUs are used as activation functions

after each convolutional layer.

The output of the convolutional sub network is

then embedded into the one-dimensional space and

forwarded to a MLP consisting of three fully con-

nected layers with 128, 64, and 3 nodes, respectively.

For the ﬁrst two fully connected layers ReLUs are

used as activation functions and a softmax activation

is applied on the last output to obtain the class mem-

bership of a given input. The green dashed box of

Figure 4 summarizes the used architecture.

Image Transformation Network

The input of the image transformation network is the

original image, of which its transformed version is

perceived and then classiﬁed by the extended virtual

patient. Under the assumption, that we seek for a

transformation based on local intensities and not on

global and semantically inferred information, the ar-

chitecture of this network was designed rather simple

and shallow. Speciﬁcally, it consists of three convo-

lutional layers, where the ﬁrst two have 32 kernels

of size 5 × 5 each and the third having only 1 ﬁlter

as its output is the transformed gray-valued image.

Again, ReLUs are used as activation functions. The

red dashed box of Figure 4 summarizes the used im-

age transformation architecture.

2.3 End-To-End Network and Training

By combining the two aforementioned networks into

one model it is possible to learn image transformation

parameters in an end-to-end fashion that improve the

object classiﬁcation quality of the artiﬁcial observer.

Thus, the image transformation parameters and the

weights of the artiﬁcial observer can be learned by

using standard error backpropagation. Moreover, ar-

bitrarily chosen differentiable objective functions can

be used to solve a variety of visual tasks.

3 EVALUATION

To test the proposed model, that combines an image

transformation network and the introduced extended

virtual patient, we perform a standard object classiﬁ-

cation task with a small number of classes.

Datasets: The dataset comprises images of three

object classes, namely, airplanes, cars, and bicy-

cles. Images were obtained through a Google image

search. Images containing objects on homogeneous

backgrounds were removed, since we want to prevent

the artiﬁcial observer to exclusively learn object’s sil-

houettes, potentially contradicting real life sceneries.

The ﬁnal dataset consists of 1250 gray-valued im-

ages per class. The images were resized to 104 × 104

px to assure, that the whole image can be projected

onto the subretinal implant’s microchip without any

further subsampling.

Perception Enhancement for Bionic Vision - Preliminary Study on Object Classiﬁcation with Subretinal Implants

173

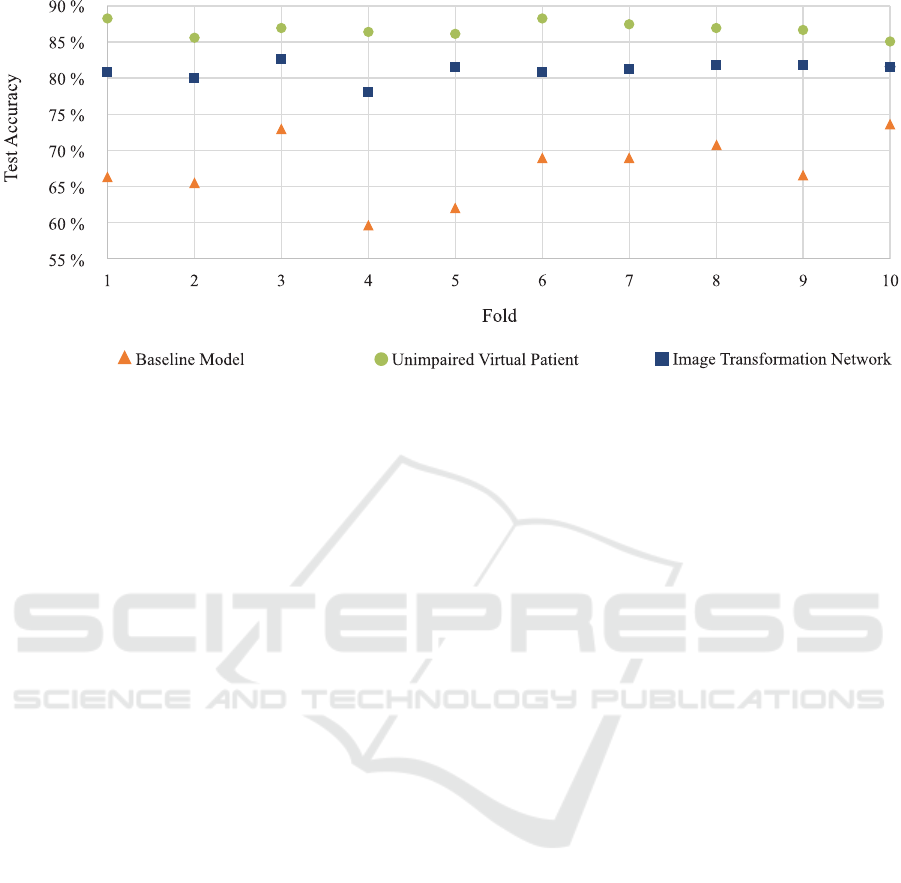

Figure 5: Test set accuracy across all folds for the three evaluated models. Please refer to the text in Subsection 3.1 for more

details.

Baseline Model: Our baseline model consists of the

extended virtual patient that receives the unaltered im-

ages. We test this model to ensure, that the power of

the artiﬁcial observing unit (the convolutional neural

network and its subsequent multilayer perceptron) is

factually limited and, thus, does not solve the task at

hand - i.e., no image transformation is needed at all

(see Figure 4 for an overview).

Unimpaired Virtual Patient For comparability, we

also evaluate the object classiﬁcation quality of the

artiﬁcial observing unit when no impairment, thus, no

implant is present. This is done to show the general

classiﬁcation capabilities of the observing unit.

Training: Our ﬁnal model depicted in Figure 4,

the baseline model, and the unimpaired virtual pa-

tient model are trained in an end-to-end learning fash-

ion using stochastic gradient descent with a starting

learning rate of 0.01, momentum of 0.9, and a learn-

ing rate decay of 0.00008. Training is done for 125

epochs and a dropout (Hinton et al., 2012) of 50%

is applied after the ﬁrst two fully connected layers of

the classiﬁcation network (MLP). Categorical cross-

entropy is used as the objective function assessing the

loss of the object classiﬁcation.

To evaluate the robustness of the proposed

method, we applied 10-fold cross-validation. There-

fore, the data set was split 10 times into a training and

testing set (90%/1125 training images, 10%/125 test-

ing images) and trained as described above.

3.1 Results and Discussion

The object classiﬁcation quality of the testing set for

each of the 10 folds is depicted in Figure 5. As ex-

pected, the unimpaired virtual patient network, where

the artiﬁcial observing unit is trained on the original

input images performs best with an averaged test set

accuracy of 86.8%. This indicates the general appli-

cability of our described architecture of the artiﬁcial

observing unit. For the baseline model, the artiﬁcial

observing unit is trained with the approximated per-

ceived image of the virtual patient. As can be seen,

the overall quality of the classiﬁcation degenerates

drastically resulting in an averaged test set accuracy

of 67.4%. Finally, when the image transformation

network is plugged into the network and the origi-

nal input images are transformed before they stimu-

late the implant of the virtual patient, the averaged

test set accuracy across the 10 folds signiﬁcantly in-

creased to 81.1%. The results are promising w.r.t.

our restricted scenario and the overall accuracy gain

is 13.7%. Speciﬁcally, the results indicate that it is

possible to enhance a virtual patient’s perception by

a simple transformation of the retinal implant’s input

and, thus, before the retinal circuitry and without al-

tering the signal processing inside the microchip.

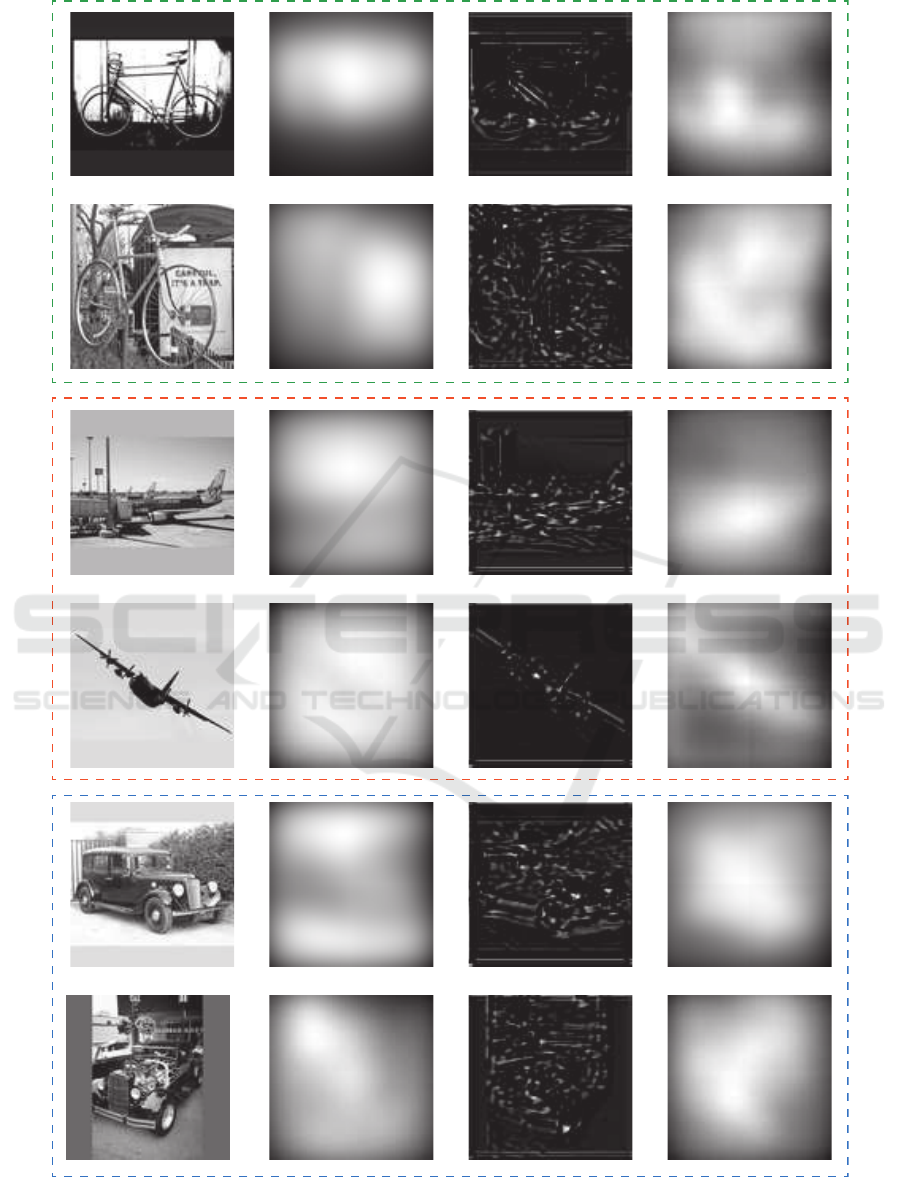

As can be seen in Figure 6 (third column), the im-

age transformation network learns to enhance edges

and blob-like structures of the original image. This

ampliﬁcation of edges and local regions inside the

image seems to further improve local contrast in the

resulting perceptual images making them to appear

more detailed than their unaltered counterparts. The

transformation unit was constructed for providing lo-

cal feature transformations only since the result is fed

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

174

as a spatially distributed input signal into the implant

simulator. Edges and blobs are considered important

local features for object recognition and, thus, the net-

work seems to deduce appropriate features directly

from the global classiﬁcation task. The results of the

classiﬁer also indicate that the learned transformation

seems to be adequate for the task.

However, we do note that our approach has se-

vere limitations and restrictions regarding the techni-

cal side as well as in its expressiveness of the results.

Regarding the former, we made the implicit under-

lying assumption that the simulation of the percep-

tual image that is used in our virtual patient is cor-

rect and sufﬁcient for further investigations. How-

ever, it is likely that the underlying processing of

pulse2percept, on which we base our estimation of the

PSF, will be subject to changes. Furthermore, we have

to stress, that the approximation of the signal process-

ing by using a PSF is restricting and does certainly not

capture all important steps in simulating a perceived

image. Moreover, the results presented indicate a sig-

niﬁcant quality gain in an object classiﬁcation task for

a virtual patient but, to this end, we cannot directly

implicate that this is also true for real patients.

4 CONCLUSION

We motivated the idea of bionic vision enhancement

w.r.t. subretinal implants in a virtual patient. We pro-

posed to model the signal processing from an input

image to a perceptual image as a neural network al-

lowing us to learn a suitable image transformation

for arbitrary differentiable objective functions. As a

proof of concept, we demonstrated the general ap-

plicability of our approach on an object classiﬁca-

tion task, where a virtual patient is extended by an

artiﬁcial observing unit that decides on an object’s

class membership. Comparing our results to a base-

line model in which no image transformation is ap-

plied, the overall classiﬁcation accuracy is increased

by 13.7% indicating great potential to enhance ob-

ject classiﬁcation of visually impaired virtual patients.

Furthermore, since the virtual patient as well as the

image transformation are modelled in a neural net-

work, our approach is not limited to the visual task

of object classiﬁcation but can be extended to other

objectives as well.

4.1 Limitations and Future Work

Our approach has limitations. First, since this is a pre-

liminary study on whether it is, in theory, possible to

enhance the perceived image of an impaired virtual

patient, we restricted ourselves to approximate the

processing of the perceived image by using a simple

PSF. This approximation certainly lacks details and is,

as already stated above, subject to a speciﬁc set of pa-

rameters regarding the implant and its actual position

inside the retina. However, every implant is likely to

be placed differently throughout the surgical implan-

tation and, thus, the perceived image will change w.r.t.

its placement. Moreover, there are different types and

stages of retinal diseases, so it is adequate so assume,

that the perceived image is likely to be different for

each treated patient.

Therefore, it is necessary to model the perceptual

simulation of pulse2percept and its underlying theo-

retical models (e.g., (Nanduri et al., 2012)) in greater

detail while maintaining differentiability for gradient

descent optimization as well as making them param-

eterizable for different kinds of implants, positions,

and so forth. Although, this task is very challenging,

the authors do believe, that this will promote further

efforts and advances in this research area.

Modelling the artiﬁcial observing unit as a classi-

ﬁer refers to just one of many possible visual tasks.

Distance estimation or tracking of objects are exam-

ples of further tasks that may be of importance when

enhancing the input. Furthermore, we will research

possible dependencies of optimal input transforma-

tions for different recognition scenarios, such as the

ones listed above, to identify generally applicable po-

tential transformations for perception enhancement.

Finally, we cannot infer any direct proposition re-

garding the enhancement of real patient’s visual per-

ception. Therefore, extensive studies on real visu-

ally impaired and healthy subjects need to be done.

Speciﬁcally, w.r.t. this work it will be beneﬁcial to

study, how healthy subjects perform on the object

classiﬁcation task given the original and enhanced

perceptual images in order to see, whether the results

provided in this work are reasonable and usable for

real subjects.

REFERENCES

Beyeler, M., Boynton, G. M., Fine, I., and Rokem, A.

(2017). pulse2percept: A python-based simulation

framework for bionic vision. bioRxiv.

Busskamp, V., Duebel, J., Balya, D., Fradot, M., Viney,

T. J., Siegert, S., Groner, A. C., Cabuy, E., Forster,

V., Seeliger, M., Biel, M., Humphries, P., Paques,

M., Mohand-Said, S., Trono, D., Deisseroth, K.,

Sahel, J. A., Picaud, S., and Roska, B. (2010).

Genetic reactivation of cone photoreceptors restores

visual responses in retinitis pigmentosa. Science,

329(5990):413–417.

Perception Enhancement for Bionic Vision - Preliminary Study on Object Classiﬁcation with Subretinal Implants

175

Geusebroek, J.-M., Burghouts, G. J., and Smeulders, A. W.

(2005). The amsterdam library of object images. In-

ternational Journal of Computer Vision, 61(1):103–

112.

Hinton, G. E., Srivastava, N., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. R. (2012). Improving neural

networks by preventing co-adaptation of feature de-

tectors. arXiv preprint arXiv:1207.0580.

Humayun, M. S., Dorn, J. D., Da Cruz, L., Dagnelie, G.,

Sahel, J.-A., Stanga, P. E., Cideciyan, A. V., Duncan,

J. L., Eliott, D., Filley, E., et al. (2012). Interim re-

sults from the international trial of second sight’s vi-

sual prosthesis. Ophthalmology, 119(4):779–788.

Koitschev, A., Stingl, K., Bartz-Schmidt, K. U., Braun,

A., Gekeler, F., Greppmaier, U., Sachs, H., Peters,

T., Wilhelm, B., Zrenner, E., et al. (2015). Ex-

traocular surgical approach for placement of subreti-

nal implants in blind patients: lessons from cochlear-

implants. Journal of ophthalmology, 2015.

Nanduri, D., Fine, I., Horsager, A., Boynton, G. M., Hu-

mayun, M. S., Greenberg, R. J., and Weiland, J. D.

(2012). Frequency and amplitude modulation have

different effects on the percepts elicited by retinal

stimulation. Investigative Ophthalmology & Visual

Science, 53(1):205–214.

Stingl, K., Bartz-Schmidt, K. U., Besch, D., Braun, A.,

Bruckmann, A., Gekeler, F., Greppmaier, U., Hipp, S.,

ortd

orfer, G., Kernstock, C., et al. (2013). Artiﬁcial

vision with wirelessly powered subretinal electronic

implant alpha-ims. In Proc. R. Soc. B, volume 280,

page 20130077. The Royal Society.

The Eye Diseases Prevalence Research Group (2004).

Prevalence of age-related macular degeneration in

the united states. Archives of Ophthalmology,

122(4):564–572.

Vos, T., Barber, R. M., Bell, B., Bertozzi-Villa, A.,

Biryukov, S., Bolliger, I., Charlson, F., Davis, A., De-

genhardt, L., ..., and Murray, C. J. (2015). Global, re-

gional, and national incidence, prevalence, and years

lived with disability for 301 acute and chronic diseases

and injuries in 188 countries, 19902013: a systematic

analysis for the global burden of disease study 2013.

The Lancet, 386(9995):743 – 800.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

176

Figure 6: Exemplary results of the enhanced perceptual images of the virtual patient and unaltered virtually perceived images

for the three object classes bicycle (dashed green box), airplane (red dashed box), and car (blue dashed box). From left

to right: Original input image, perceived image without any previously applied image transformation, transformed image,

perceived image of the transformed input.

Perception Enhancement for Bionic Vision - Preliminary Study on Object Classiﬁcation with Subretinal Implants

177
