Querying Encrypted Graph Databases

Nahla Aburawi, Alexei Lisitsa and Frans Coenen

Department of Computer Science, University of Liverpool, U.K.

Keywords:

Graph Databases, Database Security, CryptDB, Encryption.

Abstract:

We present an approach to execution of queries on encrypted graph databases. The approach is inspired

by CryptDB system for relational DBs (R. A. Popa et al). Before processing a graph query is translated

into encrypted form which then executed on a server without decrypting any data; the encrypted results are

sent back to a client where they are ﬁnally decrypted. In this way data privacy is protected at the server

side. We present the design of the system and empirical data obtained by experimentation with a prototype,

implemented for Neo4j graph DBMS and Cypher query language, utilizing Java API. We report the efﬁciency

of query execution for various types of queries on encrypted and non-encrypted Neo4j graph databases.

1 INTRODUCTION

Recently proposed CryptDB approach (Popa et al.,

2011) provides a powerful and elegant mechanism

for security protection of data against server based at-

tacks. The key idea of CryptDB is that by choosing

an appropriate encryption scheme, the data stored on

the database server in an encrypted form never need

to be decrypted at the server side, not even during the

execution of the queries. In this way, neither a curious

database administrator, nor an attacker having full ac-

cess to the server can learn sensitive data. To some ex-

tent such a mechanism allows the alleviation security

concerns of outsourced computations, such as those in

cloud environments. Another advantage of CryptDB

approach is that it does not require any changes in the

server software. All functionality is implemented in a

front-end component which intercepts users’ queries

in transit, rewrites them and passes to the server for

execution.

The original CryptDB system (Popa et al., 2011)

was designed for relational data model and database

management systems. It demonstrated good per-

formance by imposing reasonable overhead on the

server and bringing querying over encrypted data

into the realm of practical applications. This could

be compared favourably with the generic computa-

tions over encrypted data, which, despite the remark-

able recent progress in fully homomorphic encryp-

tion schemes remain computationally expensive and

practically challenging. The good performance of

CryptDB has been achieved by utilizing a collection

of SQL-aware encryption schemes, which is allowed

to reveal only the necessary information to execute

the various types of SQL-queries, still keeping data

itself hidden. One particular challenge was to sup-

port Join operations and this required introduction of

a new cryptographic primitive.

In this paper, we address the development of

CryptDB-like mechanism for graph databases, which

have recently become very popular. The graph data

model with nodes and links bearing data elements

and labels allows for more natural and straightforward

data modeling in many contexts. Furthermore graph

querying mechanisms could be considerably more ef-

ﬁcient than relational ones for some types of queries.

There are several popular implementations of

Graph DBMS available (Robinson et al., 2013;

Vukotic et al., 2014; tit, ). In a work reported here we

have used Neo4j, version 2.3.9, by Neo Technology

Inc. Neo4j database management system comes with

the graph query language Cypher. Cypher is a declar-

ative language with a syntax gives a natural way to

express the patterns of nodes and relationships in the

graph to be matched during the query execution. It

is not require to describe how we can do the select,

insert, update or delete from our graph data.

In this paper, we aim to take CryptDB principles

as they are implemented for relational databases and

transfer them to graph databases. We ﬁrst elabo-

rate requirements for CryptGraphDB component for

Cypher query languages and Neo4j database system.

It has turned out that SQL-aware encryption schemes

can be seamlessly re-used as Cypher-aware schemes,

Aburawi, N., Lisitsa, A. and Coenen, F.

Querying Encrypted Graph Databases.

DOI: 10.5220/0006660004470451

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 447-451

ISBN: 978-989-758-282-0

447

at the same time preserving the performance advan-

tages of traversal graph queries over equivalent rela-

tional ones.

In the rest of the paper, we present the design

of the system and empirical data obtained by exper-

imentation with a prototype, implemented for Neo4j

graph DBMS and Cypher query language, utilizing

Java API. We report the efﬁciency of query execution

for various types of queries on encrypted and non-

encrypted Neo4j graph databases.

2 PROPOSED DESIGN

In our project we aim to take CryptDB principles as

they are implemented in relational databases and ap-

ply them to graph databases. We ﬁrst elaborate re-

quirements for the proposed CryptGraphDB compo-

nent of Cypher query language and Neo4j database

system.

2.1 CryptGraphDB

CryptGraphDB works by enabling the execution of

Cypher queries over encrypted data. We adopt

three ideas originally proposed in CryptDB for re-

lational DBMS: a Cypher-aware encryption strategy,

adjustable query-based encryption, and onion encryp-

tion.

2.1.1 Cypher-aware Encryption Strategy

CryptGraphDB should enable the applications of dif-

ferent encryption schemes depending on the queries

to be executed, so it maps Cypher queries to the en-

cryption schemes to be used.

2.1.2 Adjustable Query-based Encryption

The adjustable query-based encryption is the main

feature of CryptGraphDB. Some queries do not re-

quire any checking or comparison, so the nodes prop-

erties will be encrypted with RND (random level of

encryption not revealing any information; different

instances of equal plain texts are likely mapped to dif-

ferent encrypted texts). For the nodes properties that

are required to be checked for equality during query

execution, DET, that is deterministic level of encryp-

tion mapping equal plain texts to equal encrypted

texts, is used. As a result, we need to allow Crypt-

GraphDB to adjust the encryption level of each data

item based on user queries. This could be done ei-

ther in advance, if a set of queries is ﬁxed in advance,

or during run time, in which case an adjustable onion

layered encryption should be used.

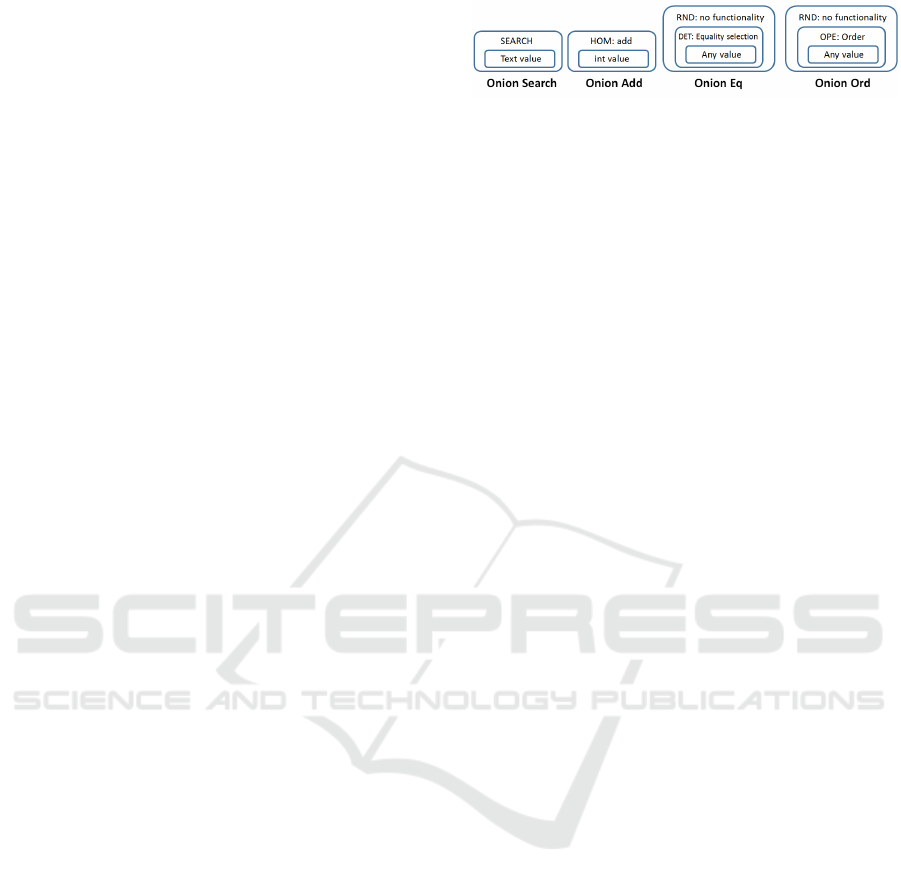

Figure 1: Onion layers of encryption.

2.1.3 Onion Layers of Encryptions

Onion Layers of Encryption allow changes to data en-

cryption levels in an efﬁcient way. To implement ad-

justable query-based encryption, the onion of encryp-

tion allows the encryption of each data item. Each

layer of each onion enables some kinds of functional-

ity. As an example, outermost layers such as RND

and HOM give maximum security, while the inner

layers such as OPE provide more functionality. So,

the adjustable query-based encryption dynamically

adapts the layer of encryption on the DBMS server

as illustrated in Figure 1.

Different cryptographic systems are available to

be cascaded into onions layers (here we follow the

original CryptDB design):

• Random (RND). RND provides the maximum

privacy, it was designed to address, that two equal

values will be planned to different ciphertexts.

RND does not allow any efﬁcient computation to

be executed on the ciphertext.

• Homomorphic Encryption (HOM). HOM is an

encryption scheme that allows the server to per-

form computations on encrypted data to be secure.

• Word search (SEARCH). SEARCH allows the

implementation of a cryptographic protocol for

keyword searches on encrypted text. SEARCH

allows the server to detect repeating words in a

given node.

• Deterministic (DET). DET only leaks which en-

crypted values match to the same data value, and

no more. DET was implemented to let the equal-

ity checks to be performed.

• Order-preserving Encryption (OPE). OPE al-

lows to establish order relations and perform com-

parisons between data values based on their en-

crypted versions.

2.1.4 Graph vs Relational CryptDB

The main requirement for encryption adjustment is

that it has to select an appropriate encryption layer

which would 1) reveal enough information about en-

crypted data for query execution; and 2) do not reveal

more information than necessary. It has been noticed

in (Popa et al., 2011) that the application of DET layer

for execution of SQL queries involving Join operator

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

448

may lead to unnecessary leaks of information, such

as cross-column equalities. In order to address the

issue (Popa et al., 2011) proposed a new Join-aware

encryption scheme. We notice that graph database

querying does not require Join operator and it is ab-

sent in the Cypher query language. Nevertheless, un-

der the natural translation of relational databases to

graph databases, such as by work ﬂow proposed by

Neo4j manual (export relational database instance to

CSV ﬁle and upload it to Neo4j as a graph DB in-

stance), one may show that the issue of unnecessary

leaks remains. Furthermore the original Join-aware

encryption scheme can be used as a “property-aware”

encryption scheme for Cypher query execution. Re-

lated strategies of encryption adjustment are a subject

of our ongoing work.

Further improvement in security protection in

CryptGraphDB will come from the development of

traversal-aware encryption adjustment applied dy-

namically during the execution of graph traversal

queries. The development of such schemata and

studying the related trade-offs between efﬁciency and

security protection is another topic of our ongoing re-

search.

2.2 CryptGraphDB Principles

The required steps to process the query by Crypt-

GraphDB are illustrated in Figure 2. Processing a

query in CryptGraphDB involves the following steps:

1. The application creates a query, which the proxy

intercepts by anonymizing [Label, Nodes, Proper-

ties] and encrypt the constants.

2. Proxy checks if the DBMS needs to adjust encryp-

tion level, if yes, issue an update query to adjust

the layer.

3. Proxy sends the encrypted query to the DBMS

server, to execute it using standard Cypher and re-

turn the encrypted results.

4. Proxy decrypts the query results, and sends them

back to the application.

In order to rewrite the query in encrypted format.

The syntactical structure of the query remains the

same, but its syntactical components are encrypted/

replaced as follows:

• Property Names: (encrypted/renamed).

• Property Values: (comes from the current layer

encryption value).

• Node Names: (encrypted/renamed).

• Relationship Names: (encrypted/renamed).

• Relationship Values: (comes from the current

layer encryption value).

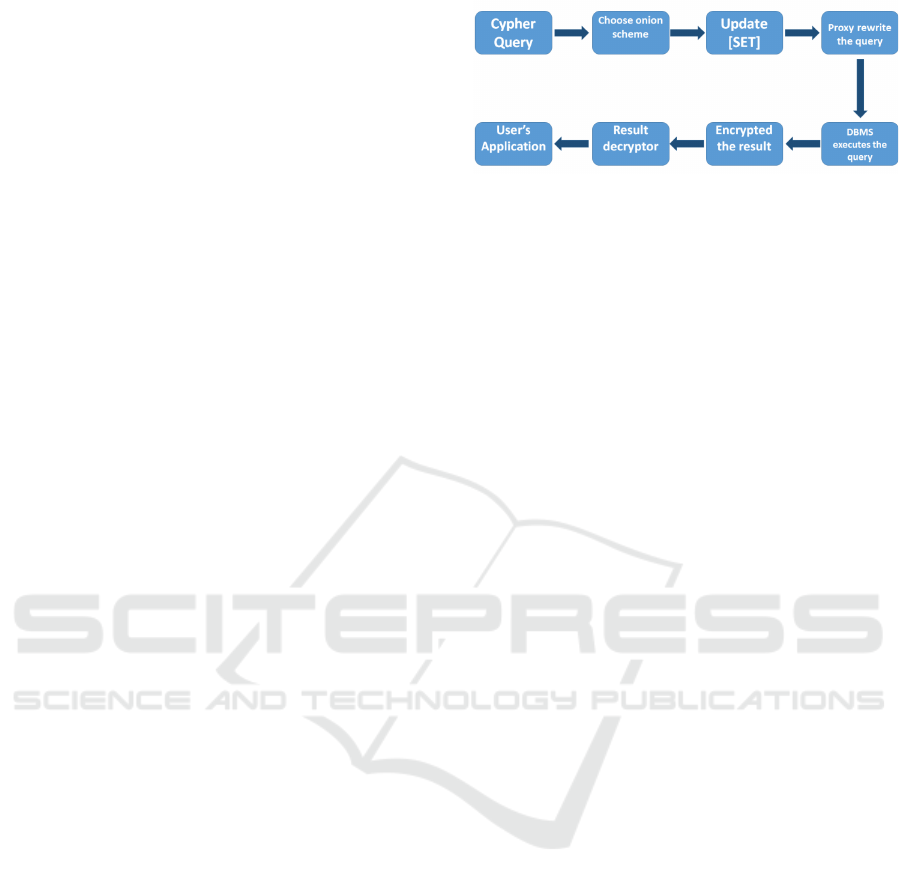

Figure 2: The CryptGraphDB Design.

2.3 Implemented Prototype

The ﬁrst prototype of a fragment of the above Crypt-

GraphDB design is implemented using Java API.

The main focus here is to evaluate the efﬁciency of

execution of Cypher queries over encrypted Neo4j

database.

Several ways for integration Neo4j with client ap-

plications have been proposed. These include Neo4j

Server REST extension, using Neo4j server with

JDBC, using Neo4j’s Embedded Java API().

Embedded Java API provides with the tight inte-

gration of the client Java program with Neo4j server,

that is embedding a server into an application. So

it does not allow for the actual separation of Crypt-

GraphDB component and the server, as assumed by

the design. However, it allows for quick prototyping,

where the client, the proxy and the server are all parts

of the same application, and experimenting with the

execution of the queries on the encrypted store.

For the ﬁrst prototype only one encryption layer,

that is DET has been implemented. To this end, we

have used an implementation of AES (Advanced En-

cryption Standard) algorithm available in Java Cryp-

tographic Architecture (JCA) package.

Neo4j Native Java API is used to create a Neo4j

database in the chosen path, as shown here:

GraphDatabaseFactory dbFactory = new

GraphDatabaseFactory();

GraphDatabaseService db=

dbFactory.newEmbeddedDatabase("C:/Neo4j");

Note that you will need to include this transaction:

try (Transaction tx =

graphDb.beginTx());tx.success();

in order to start Neo4j database transaction.

To execute the Cypher query we need to call the

function execute, as shown in the following exam-

ple:

ExecutionResult execResult =

execEngine.execute("MATCH (n) WHERE not(

(n)-[ ]-( ) ) RETURN n");

Querying Encrypted Graph Databases

449

In order to illustrate the procedure that required

to implement CryptGraphDB principles on the query,

we have a simple Cypher query:

MATCH (A:PEOPLE)-[:KNOWS]-(B:PEOPLE)

WHERE A.name= "John"

RETURN B.name;

The prototype of CryptGraphDB performs a set of

procedures:

1. Proxy informs DBMS to update the properties,

DBMS decrypts them to DET layer.

2. Proxy encrypts ”John” to its EQ onion, DET

layer encryption, then the proxy generates query

and sends it to DBMS:

MATCH (AA:PEOPLE1)-[:KNOWS1]-(BB:PEOPLE1)

WHERE AA.name1="c9Yz1Og1PdfVKBrVnOk46Q"

RETURN BB.name1;

3. Proxy receives the encrypted result, then decrypts

it. ﬁnally sends it back to the application user.

2.4 Experimental Setup

We have used the implemented prototype system to

conduct the experiments and to study the efﬁciency

of Cypher queries executed on an encrypted graph

database.

For the ﬁrst group of the experiments we have

manually created an instance of a graph database with

250 nodes and 200 relationships. Some nodes were

intentionally left orphan, meaning they have neither

incoming, nor outgoing edges. Several types of rela-

tionships were used and the variety of paths lengths

were used from a binary relationship to a path of up

to the lengths of ten was available.

2.5 Queries

The set of queries was designed to test some of the

common types of queries. For example, traversals

are important to deﬁne data objects (nodes) originate

from or affected by some starting object or node.

Another popular operation is searching for particular

values within a speciﬁc property. The queries were

divided into two types: structural and data queries.

The structural queries:

• S0: Find all orphan nodes. Which means, ﬁnd all

nodes in the graph with no incoming edges and no

outgoing edges.

• S1: Traverse all nodes, transitive closure/ regular

expression.

• S2: Traverse all the nodes in the graph.

• S3: Find all nodes with the incoming relationship,

and count them.

• S4: Find all nodes with the outgoing relationship,

and count them.

• S5: Find all nodes with the incoming relationship

and outgoing relationship, and count them.

• S6: Traverse Nodes depends on their ID.

The data queries:

• C1: Count the number of nodes whose data is

equal to speciﬁc property.

• C2: Get the nodes with a path according to spe-

ciﬁc relationships.

• C3: Count the number of nodes in the graph.

2.6 Results/ Analysis

Each query was run 12 times on the database and ex-

ecution times were collected. All times are in mil-

liseconds (ms). We have dropped the longest times

and the shortest times, the remaining ten times were

averaged. We have done this to make sure that the

caching does not affect the timing. The data values

were chosen randomly and in advanced all the same

values were implemented for both the non-encrypted

databases and the encrypted databases.

A summary information on the execution time for

both non-encrypted and encrypted instances of the

same database have been tabulated in table 1. For

the structure queries, S0, S1, S2, S3, S4, S5, and S6,

non-encrypted database was slightly faster, as shown

in table 1 (upper part). On the other hand, there was

also a small difference in the execution time in the

data queries, C1, C2, and C3. Overall slowdown and

acceleration, demonstrated for some of the queries,

were insigniﬁcant.

For the sake of comparison, we have executed the

same sets of queries, again over encrypted a non-

encrypted instances using the native Neo4j interface.

The results can be seen in Table 1 (lower part) . Un-

like the case of the Java API, where the wall time was

measured using Java methods, here processor time re-

ported by Neo4j is shown. That explains one or two

orders of magnitude difference between the tables.

While slowdown is reported for S0 and S2 queries run

over encrypted instance, other queries were in fact ac-

celerated.

The results look encouraging for using CryptDB-

like approach for graph databases. We need more em-

pirical evidence, though on the larger databases.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

450

Table 1: Querying Non-encrypted and Encrypted Databases with Java Interface and Neo4j Interfaces, time in ms.

Query S0 S1 S2 S3 S4 S5 S6 C1 C2 C3

Java interface

Non-encrypted DB 5030.8 5115.7 5256.6 5038.1 4931.1 5326 5455.5 5491.2 5248.8 5216.8

Encrypted DB 5058.4 5092.5 5252.1 5081.8 4881.2 5338.3 5471.9 5478.2 5287.1 5510.4

Slowdown 0.54% -0.45% -0.085% 0.86% -1.012% 0.23% 0.3% -0.24% 0.72% -5.33%

Neo4j interface

Non-encrypted DB 278.5 49 76.3 64.3 68.4 89.1 94.8 63.8 71.8 79.2

Encrypted DB 360.7 46.1 80.3 75.1 41 63 85.2 59.5 40.7 53.8

Slowdown 22.78% -5.92% 4.98% 14.38% -40.6% -29.29% -10.13% -6.74% -43.31% -32.07%

3 RELATED WORK

Security is an important issue in database manage-

ment systems and the data in a database management

system need to be protected from unauthorized ac-

cess. In this paper we have proposed CryptGraphDB

mechanism inspired by CryptDB (Popa et al., 2011;

Popa, 2014), which provides as a provable and prac-

tical privacy against any attack on the database server

or curious database administrators. CryptDB works

by implementing SQL queries as they are implement-

ing on the plain database but on encrypted database.

CryptDB does not change the structure of DBMS, in

order to CryptDB consists of two parts, the ﬁrst part

is a trusted client-side front-end, which is responsi-

ble of non-encrypted database and the secret Mas-

ter key. Furthermore, the second part is an untrusted

DBMS server, it follows the schema of the encrypted

database. The database server completely evaluates

queries on encrypted data, then the results are sent

back to the client to decrypt them.

Then in (Xie and Xing, 2014) authors proposed

CryptGraph system, which aims to run graph analyt-

ics on the encrypted graph data structures to keep the

user graph data and the analytic results secure. So

they presented CryptGraph to empower the user of

encrypting their graphs before uploading them to the

cloud, and get the results back after analysis the en-

crypted graph in encrypted form, while only the user

who can decrypt them to extract the plain text form.

They have proposed to query its structure by comput-

ing polynomials. In contrast, in our work we aim to

develop a system using not a specialized graph data

structure and encodings, but rather an extension to ex-

isting general purpose graph databases, more in the

spirit of the original CryptDB system.

Our particular set of queries used in the exper-

iments was inspired by (Batra and Tyagi, 2012) in

which a comparative analysis of relational and graph

database querying is presented.

4 CONCLUSIONS

We have proposed CryptGraphDB system allowing to

execute the queries over encrypted graph databases.

We outlined the design of CryptGraphDB and re-

ported on experiments with an initial prototype sys-

tem implemented with Embedded Java API for Neo4j

graph DBMS. We have shown that as performance

concerned CryptGraphDB demonstrates promising

results which warrant further development of the sys-

tem. We have also outlined the future directions in the

development of the encryption adjustment schemes

speciﬁc for graph databases, such as property-aware

and traversal-aware schemes. The implementation of

these schemes and investigation of related trade-offs

between efﬁciency and security is a topic for our fu-

ture research.

REFERENCES

Titan: Distributed graph database. http://titan.thinkaurelius.

com/.

Batra, S. and Tyagi, C. (2012). Comparative analysis of

relational and graph databases. International Journal

of Soft Computing and Engineering (IJSCE), 2(2).

Popa, R. A. (2014). Building practical systems that com-

pute on encrypted data. PhD thesis, Massachusetts

Institute of Technology, Cambridge, MA, USA.

Popa, R. A., Redﬁeld, C. M. S., Zeldovich, N., and Balakr-

ishnan, H. (2011). Cryptdb: Protecting conﬁdentiality

with encrypted query processing. In Proceedings of

the Twenty-Third ACM Symposium on Operating Sys-

tems Principles, SOSP ’11, pages 85–100, New York,

NY, USA. ACM.

Robinson, I., Webber, J., and Eifrem, E. (2013). Graph

Databases. O’Reilly Media, Inc.

Vukotic, A., Watt, N., Abedrabbo, T., Fox, D., and Partner,

J. (2014). Neo4J in Action. Manning Publications Co.,

Greenwich, CT, USA, 1st edition.

Xie, P. and Xing, E. P. (2014). Cryptgraph: Privacy pre-

serving graph analytics on encrypted graph. CoRR,

abs/1409.5021.

Querying Encrypted Graph Databases

451
