Evaluating the User Acceptance Testing for Multi-tenant Cloud

Applications

Victor Hugo Santiago C. Pinto, Ricardo R. Oliveira, Ricardo F. Vilela and Simone R. S. Souza

Institute of Mathematical and Computer Sciences, University of S

ao Paulo (ICMC-USP)

Keywords:

Multi-tenancy, Cloud Applications, User Acceptance Testing.

Abstract:

SaaS (Software as a Service) is a service delivery model in which an application can be provided on demand

via the Internet. Multi-tenant architecture is essential for SaaS because it enables multiple customers, so-called

tenants, to share the system’s resources in a transparent way to reduce costs and customize the software layer,

resulting in variant applications. Despite the popularity of this model, there have been few cases of evaluation

of software testing in cloud computing. Many researchers argue that traditional software testing may not

be a suitable way of validating cloud applications owing to the high degree of customization, its dynamic

environment and multi-tenancy. User Acceptance Testing (UAT) evaluates the external quality of a product

and complements previous testing activities. The main focus of this paper is on investigating the ability of the

parallel and automated UAT to detect faults with regard to the number of tenants. Thus, our aim is to evaluate

to what extent the ability to detect faults varies if a different number of variant applications is executed. A case

study was designed with a multi-tenant application called iCardapio and a testing framework created through

Selenium and JUnit extensions. The results showed a signiﬁcant difference in terms of detected faults when

test scenarios with a single-tenant and multi-tenant were included.

1 INTRODUCTION

Cloud computing emerged from the application of

several technologies such as parallel computing, dis-

tributed computing and virtualization (Ru and Keung,

2013). This model makes applications, infrastructures

and platforms available as an on-demand service via

the Internet. In the case of applications, SaaS (Soft-

ware as a Service) is the service model that is most

likely to be adopted (Buxton, 2015).

Multi-tenant Architecture (MTA) is a key mecha-

nism for SaaS that allows a single instance of the ap-

plication to be transparently shared among multiple

customers, the so-called tenants, and offers exclusive

conﬁguration according to particular needs in terms

of business rules and interfaces. System resources

such as services, applications, database or hardware

are shared to reduce costs (Kabbedijk et al., 2015).

A single-tenant application requires a dedicated set

of resources to properly address the needs of a par-

ticular organization, while a multi-tenant application

can serve multiple companies from a single shared in-

stance because tenants exploit the beneﬁts of a service

through a virtual isolation of the application and its

data (SalesForce, 2008). In this way, by employing a

multi-tenant SaaS system several variant applications

can be provided for particular tenants.

Despite the growing popularity of multi-tenancy

and its beneﬁts to businesses, there is an increasing

lack of data control and trust in cloud environments

as a result of this architectural pattern, since resource

sharing by a single customer can have an impact on

all the users. It remain unclear what are the key is-

sues in cloud computing for multi-tenant cloud appli-

cations with regard to vulnerability, requirements, se-

curity questions and potential faults (Bai et al., 2011;

Gao et al., 2011; Vashistha and Ahmed, 2012; Ru

et al., 2014). In view of this, security issues in cloud

environments must be addressed to ensure that there

is a secure deployment of cloud applications. In ad-

dition, the testing strategies should be deﬁned so that

the quality of these application can be improved (Sub-

ashini and Kavitha, 2011).

The purpose of software testing is to ensure sys-

tem consistency by detecting any faults in time for

them to be repaired (Ostrand and Balcer, 1988). The

information obtained during the test execution can

help in the debugging activity. In general, the testing

activity must include the following stages: planning

and designing of the test case, execution of the tests

Hugo Santiago C. Pinto, V., R. Oliveira, R., F. Vilela, R. and R. S. Souza, S.

Evaluating the User Acceptance Testing for Multi-tenant Cloud Applications.

DOI: 10.5220/0006664000470056

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 47-56

ISBN: 978-989-758-295-0

and analysis of the results (Myers and Sandler, 2004).

User Acceptance Testing (UAT) is a type of black-box

testing that is carried out to examine an application

from user actions. As the testing procedure can be

very expensive in terms of time and effort spent, and

is often impracticable if undertaken manually, a solu-

tion that is widely adopted is automated testing. For

instance, Selenium

is a suite of tools for automating

web browsers across many platforms.

Although there have been some recent research

studies on software testing in cloud computing, we

found that there is a lack of empirical studies and

guidelines on which techniques and automation tools

to address particular objectives (Pinto et al., 2016).

Since multi-tenant SaaS systems have certain simi-

larities with other models, investigating testing tech-

niques and tools for traditional programs can provide

valuable information. However, we did not ﬁnd any

empirical study involving UAT and multi-tenant cloud

applications in the literature.

This paper presents a case study using a multi-

tenant SaaS system for creating electronic restaurant

menus called “iCardapio” (Manduca et al., 2014).

This system was deployed in a cloud environment

called Heroku

, a Platform as a Service (PaaS) that

enables developers to build, run and operate appli-

cations entirely in cloud. On the basis of this appli-

cation, we applied UAT using parallel testing to de-

tect faults, which included test scenarios with both

a single-tenant and multi-tenant. A fault is found

when the output of a test case is different from the ex-

pected result, in accordance with the speciﬁcation of

the iCardapio. This means that the faults are not con-

trolled, that is, they are real. Variant applications from

iCardapio must be isolated so that the faults can be

detected without external interference. On the other

hand, simulating a real-world multi-tenant scenario

with requests from tenants to single and shared in-

stance of the application, is essential to detect other

types of faults. The aim of the study is to report how

far this approach is able to determine speciﬁc faults

for variant applications and assess their impact when

the user’s operations are carried out simultaneously

with different tenants. The results of this exploratory

study can help developers/testers in determining pos-

sible faults, by employing a tenant identiﬁcation and

persistence strategy.

A testing framework was created with JUnit

ex-

tensions and Selenium to automate parallel tests. In

the context of web applications, parallel testing is

the process of running multiple test cases in multi-

http://www.seleniumhq.org/

https://www.heroku.com/

http://junit.org/junit4/

ple combinations, with OS and browsers at the same

time. Its main advantage is that it allows the testers

and developers to devote their meaningful resources

to serious problems in the interests of cross-platform

compatibility. However, within the scope of our case

study, the reason for carrying out parallel testing is to

simulate simultaneous requests from different tenants

to a single and shared instance of the iCardapio. With

regard to generating test cases, functional testing cri-

teria such as Equivalence Partitioning Criteria (EPC)

(Roper, 1994; Copeland, 2004) and Boundary Value

Analysis (BVA) (Myers and Sandler, 2004) were ap-

plied.

The remainder of the paper is structured as fol-

lows: Section 2 provides an overview of multi-

tenancy, testing activities and other concepts. Sec-

tion 3 examines the case study. Section 4 addresses

the problem of threats to the validity of the study and

Section 5 summarizes the conclusions and makes sug-

gestions for future work.

2 BACKGROUND

This section outlines the main concepts of multi ten-

ancy for cloud applications and software testing.

2.1 Multi-tenancy

SaaS is a cloud delivery model that allows applica-

tions to be provided by a cloud service provider and in

which the customer does not need to monitor or con-

trol the underlying infrastructure, such as the network,

servers, OS and storage or installation of applications

and services (Mell and Grance, 2011). SaaS enables

service providers to share their infrastructure by meet-

ing the needs of a much larger number of customers

simultaneously (Chong and Carraro, 2006). An archi-

tectural pattern known as multi-tenancy must be em-

ployed to maximize the use of resources by the ten-

ants and determine which data belong to which cus-

tomer.

MTA enables software vendors to serve multiple

customers, the so-called tenants, and share the system

resources in a transparent way, such as services, ap-

plications, databases, or hardware, to reduce costs. At

the same time, it is still able to conﬁgure the system

exclusively to the needs of the tenants with variant

applications from a single online product (Kabbedijk

et al., 2015). Thus, both virtualization and resource

sharing must be carried out by the service provider

since these are key aspects of multi-tenancy.

With regard to the application layer, implementa-

tions of multi-tenancy differ signiﬁcantly and, for this

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

reason, appropriate decisions such as (i) identifying

tenants and (ii) adopting a strategy for isolating the

tenant’s data, must take into account the target mar-

kets and requirements of the application.

Finding an approach for identifying the tenants

is important for the implementation of multi-tenancy

(Krebs et al., 2012). In making a multi-tenant aware

application, it is necessary to isolate the tenants in

nearly every part of an application. A “tenant ID”

or the so-called tenant context, is generally used to

identify each tenant and its resources. The follow-

ing three approaches for implementing this identiﬁ-

cation are well-known to the developers: (i) custom

http headers or OAuth

with bearer tokens; (ii) tenant

ID in the URI (http://app.com/tenantid/...) and (iii)

tenant ID in the hostname (http://tenantid.app.com).

In the ﬁrst alternative, the URL may be completely

different for each variant application, whereas in the

second, the tenant ID is included in the main domain.

Finally, in the third choice, the tenant ID is shown at

the beginning of URI.

With regard to the persistence of data, a suitable

implementation model must be chosen for isolating

the tenants’ data. Three models can be highlighted

(Chong and Carraro, 2006): (i) isolated databases -

each tenant has its own database; (ii) isolated schema

- the tenants share a common database where each

tenant has its own schema and (iii) shared schema -

data for all the tenants are stored in the same tables

and identiﬁed through a tenant discriminator column.

The ﬁrst and second choices are probably the least

intrusive, provide the highest level of isolation and do

not vary signiﬁcantly in the way they implement the

application. The third can be more vulnerable several

threats with regard to data privacy, since these same

tables are used for all the tenants, so that if there is an

attack on a variant application, the data from the other

tenants may become visible.

2.2 Software Testing

Software testing is a critical and dynamic activity in

the development of software, since faults may appear

in the software during the process. The application

must be executed with appropriate test data so that

these faults can be detected and the quality assurance

of the software can be improved (Balci, 1994). Al-

though this activity is not able to guarantee that a soft-

ware system is free of defects, it can help to make it

more reliable. Generally, software testing activities

involve running an application with test cases pro-

vided by a tester, observing their results, comparing

them with some expected values and reporting their

https://oauth.net/2/

consequences (Hoffman, 2001; Myers and Sandler,

2004).

As the testing usually cannot take into account all

the possible inputs because the input space is too large

or even inﬁnite, testing criteria must be adopted to de-

cide which test inputs to use and when to stop testing

(Ostrand and Balcer, 1988). Functional testing crite-

ria as equivalence partitioning criteria and boundary

value analysis can be applied to deﬁne suitable test

cases that cover equivalence classes with valid and in-

valid values, including upper and lower limits (Myers

and Sandler, 2004).

User Acceptance Testing is a type of functional

testing technique that involves validating software in

real-world conditions. The goal is not just to check

the requirements but to ensure that the software sat-

isﬁes the customer’s needs. User actions can be sim-

ulated for this to check if the requirements were met

(Pusuluri, 2006). Automating these tests reduces the

effort needed to run a large test suite, as well as as-

sisting regression testing and iterative development.

For instance, Selenium

is a suite of tools designed

to automate web browsers across many platforms and

offers an interface for test classes written with JUnit

Parallel programming has become an increasingly

common practice for cloud applications, insofar as it

ensures the tests can beneﬁt by dividing test activities

into separate and parallel tasks to reduce costs. How-

ever, as the cloud environment changes its state con-

tinuously at runtime in proportion to the number of

virtual machine instances, the effectiveness of hyper-

visor scheduling and load balancing, the testing may

become a complex task because these factors cannot

be fully predicted and controlled even for a single ap-

plication being tested (Bai et al., 2011). Generally, in

the case of conventional web applications, the parallel

execution of test cases takes place to conﬁrm multi-

ple combinations with OS and browsers, support the

regression testing (Garg and Datta, 2013) and solve

problems concerning cross-platform compatibility.

3 THE CASE STUDY

This section describes the case study which was car-

ried out to compare the number of detected faults in-

cluding single-tenant and multi-tenant test scenarios.

The multi-tenant SaaS system chosen was iCardapio

because it is open-source and can address multiple

tenants from a single instance. Thus, variant appli-

cations can be deﬁned and conﬁgured for a simulta-

neous execution of the tests. According to the authors

http://www.seleniumhq.org/projects/webdriver/

http://junit.org/junit5/

Evaluating the User Acceptance Testing for Multi-tenant Cloud Applications

(Manduca et al., 2014), iCardapio was developed with

the aid of the following technologies: Spring

, Spring

Tool Suite

, MySQL, Maven, EclipseLink

and Java.

It should be noted that the source code is available to

download from github

and was designed to allow

any SaaS provider to download and start using it di-

rectly. The application was deployed in Heroku and

is available

Figure 1 shows an entity relationship diagram of

this application. One tenant refers to a particular

restaurant which has a single identiﬁer, i.e., a tenant

ID called “subdomain”. Products have a single cat-

egory, such as: pizza, pasta, drinks or desserts. In

addition, there is only one user who has authenticated

access and can carry out the registration operations

for all the possible tenants.

Category

Product

Restaurant

+id

+name

+id

+name

+description

+price

+id

+name

+subdomain

+slogan

+phone

+address

+city

1 0..* 0..* 1

Figure 1: Entity relationship diagram of iCardapio.

General information about the project structure

and complexity

was assessed by the code quality

management tool SonarQube

and the data are dis-

played in Table 1.

Table 1: Information about iCardapio collected by Sonar-

Qube.

Code lines 1.552

Java 843

CSS 97

JavaScript 9

JavaServer Pages (JSP) 239

XML 166

Complexity 4.900

Complexity/classes 7.0

Complexity/method 2.3

Implementation units 37

Number of classes 20

Number of methods 2.159

Whith regard to the tenant identiﬁcation, the

application has the tenant ID in the hostname

https://spring.io/

https://spring.io/tools/sts

http://www.eclipse.org/eclipselink/

https://github.com/michetti/icardapio/tree/multitenant

https://icardapio.herokuapp.com/

https://docs.sonarqube.org/display/SONAR/Metrics+-

+Complexity

https://www.sonarqube.org/

(http://tenantid.myapplication.com). Owing to the

technical constraints of the cloud provider, the ten-

ant identiﬁcation was changed for the tenant ID in the

URI (http://myapplication.com/tenantid/...). The iso-

lation of the tenants’ data is a key requirement when

providing a multi-tenant application. As implemen-

tation model, iCardapio was developed by means of

a shared schema, in which data for all the tenants are

stored in the same tables and can be identiﬁed through

a tenant discriminator column.

The automated tests were executed locally to en-

sure the test environment was controlled more ef-

fectively and the different types of faults could be

clearly isolated. Thus, the user actions are simulated

from different local instances of the browser. The

test scripts can be executed automatically in the cloud

through a TaaS (Testing as a Service), however, when

using the cloud environment there is a lack of knowl-

edge of how the tests will run. Moreover, the fact

that the cloud environment changes its state contin-

uously and the test execution depend on its runtime

environment (which cannot fully predicted and con-

trolled), means that the results may be distorted (Bai

et al., 2011; Subashini and Kavitha, 2011).

3.1 Planning

The main reason for planning the case study was to

answer the following research questions:

• RQ1: Is there a different number of detected faults

when either a single-tenant or multi-tenant test

scenarios are used? To answer this question,

we gathered and assessed the number of detected

faults when only one variant application from

iCardapio was subjected to the tests and two vari-

ant applications were checked with the same tests

in a parallel way. The purpose of this comparison

is to provide evidence that in a multi-tenant sce-

nario some external factors (such as simultaneous

requests from users for variant applications) can

affect their execution, and result in a larger num-

ber of faults than in a single-tenant scenario.

• RQ2: Is the number of detected faults different

when a multi-tenant test scenario is used and

there is an increasing number of variant appli-

cations? Similarly, when answering this second

question, we analyzed the number of faults by tak-

ing account of the number of variant applications

using parallel tests. In other words, we wanted to

ﬁnd out if an increasing number of variant appli-

cations can affect the number of detected faults.

The planning phase was divided into three parts

that are described in the next subsections.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

3.1.1 Experimental Setup

Conducting the case study included the following

phases:

• Generation of test cases in accordance with EPC

and BVA testing criteria for iCardapio based on

its requirements;

• The Selenium and JUnit tools are used to auto-

mate the execution of these test cases;

• Deployment of iCardapio in Heroku;

• Development of a testing infrastructure that al-

lows the parallel execution of the tests for multiple

variant applications;

• Execution of the test classes for a unique variant

application from single and shared instance of the

iCardapio - single-tenant (ST) test scenario;

• Execution of the test classes in a parallel way

for several variant applications from single and

shared instance of the iCardapio - multi-tenant

(MT) test scenario;

• Collecting, evaluating and reporting the test re-

sults.

There were 10 test executions in both the ST and

MT scenarios, because this value was assumed to be

a sufﬁcient measure for a reliable analysis. With re-

gard to the number of variant application, there was

only one for ST and for parallel executions in the

MT scenario - the numbers were deﬁned as 2, 5 and

10. The execution order between the variant applica-

tions is not pre-deﬁned, which makes a real and non-

deterministic behavior likely.

In the case of the MT test scenario, the average

must be calculated on the basis of the number of vari-

ant applications (n) under test (2, 5 and 10), as ex-

pressed in Equation 1. For instance, from 10 execu-

tions of 2 variant applications (n = 2) carried out in a

parallel way and the detection of their corresponding

faults, the number of identiﬁed faults are added and

divided by n for each execution. Finally, the averages

by execution are added and divided by 10. The same

calculation must be made when n = 5 and n = 10.

∑

z=1

∑

i=1

(1)

Regarding the deﬁned host for test execution, the

settings are as follows: Ubuntu 16.04 64 bits, CPU

Intel Core i5-3210M 2.5 GHz, 16 GB of RAM, 250

GB SSD and AMD Radeon HD 7670M - 1 GB. Fire-

fox was the browser chosen for running the tests. It

should be pointed out that in case of parallel execu-

tions, Selenium was used for running tests in multiple

runtime environments, speciﬁcally when there were

different and isolated instances of the browser at the

same time.

3.1.2 Hypothesis Formulation

The RQ1 was formalized as follows: Null hypothesis,

: There is no difference between the ST and MT

test scenarios in terms of detected faults, that is, the

test scenarios are equivalent.

Alternative hypothesis, H

: There is a difference

between the ST and MT test scenarios in terms of de-

tected faults; this means that the test scenarios are not

equivalent. Hypotheses for the RQ1 can be formal-

ized by Equations 2 and 3:

: µ

= µ

(2)

: µ

6= µ

(3)

Similarly, RQ2 was also formalized in two hy-

pothesis, as follows: Null hypothesis, H

: There is

no signiﬁcant difference in terms of faults found dur-

ing the test execution, since there are a different num-

ber of variant applications (n and p) running at the

same time.

Alternative hypothesis, H

: There is a difference

in the number of faults found during the tests, since

there is a different number of variant applications run-

ning simultaneously. Similarly, the hypotheses for

RQ2 can be formalized by Equations 4 and 5:

: µ

= µ

| n 6= p (4)

: µ

6= µ

| n 6= p (5)

3.1.3 Variable Selection

The dependent variables are (i) the “number of de-

tected faults from the test executions” and (ii) “the

number of variant applications being used simul-

taneously in testing”. The independent variables are:

(i) “iCardapio”, (ii) test scenarios with a single-

tenant and multi-tenant, (iii) testing framework for

parallel execution established with the support of Se-

lenium and JUnit and (iv) a test environment that in-

cludes test cases and scripts for simulating user ac-

tions.

3.2 Operation

Once the case study had been deﬁned and planned, it

was carried out in the following stages: preparation,

execution and data validation.

Evaluating the User Acceptance Testing for Multi-tenant Cloud Applications

3.2.1 Preparation

At this stage, we were concerned with preparing the

material needed, such as data collection forms and

the testing environment variables. iCardapio was de-

ployed in Heroku and a testing infrastructure was de-

ﬁned for a parallel execution of the test classes and

variant applications.

In the ST test scenario, a single thread for running

the tests might be enough, but there are many threads

for MT test scenario that must be executed in parallel

because several variant applications will be testes at

the same time. However, we cannot be sure that all the

submitted tasks will be executed in the same amount

of time or before some event, because this depends on

thread scheduling and it cannot be controlled (on ac-

count of its non-deterministic behavior). Even if we

submit all the tasks at the same time, this does not im-

ply that they will be executed simultaneously. Despite

these limitations, a framework was developed from

JUnit extensions, (such as the Parameterized

run-

ner) so that the tests could be conducted in a parallel

way. Test classes were formed with the aid of Se-

lenium and JUnit to automate and simulate possible

user actions in iCardapio. Additionally, other objects

were taken into account such as the following:

• Documentation of the application: technical guid-

ance documents to assist in the development of

iCardapio and which are useful to deﬁne test

cases;

• Test Case forms: forms to be ﬁlled in with the test

cases in accordance with EPC and BVA criteria;

• Data Collection form: a document with blank

spaces to be ﬁlled in with the number of detected

faults obtained from the test execution and variant

application.

The platform used to conduct the experiment em-

ployed Java as its implementation language and the

Eclipse IDE as the development environment.

3.3 Data Analysis

This section sets out our ﬁndings. The analysis is di-

vided into two areas: (i) descriptive statistics and (ii)

hypothesis testing.

3.3.1 Descriptive Statistics

Descriptive statistics of the gathered data from the

case study are shown in Table 2. The ﬁrst column con-

tains the execution order and the remaining columns,

https://goo.gl/DS6Gkg

the number of faults detected in each variant appli-

cation. A total number of 95 test cases were deﬁned

that followed the requirements of iCardapio and its

possible execution paths, from the users’ perspective.

On the basis of this principle, the number of faults re-

ported in this study refers to failed test cases. It should

be noted that the data are grouped by the number of

variant applications. This led to four groups being

categorized which are as follows: the ﬁrst with only

“t1” represents a single variant application, the sec-

ond contains data from two variant applications (“t1’

and “t2”, n = 2) executed simultaneously and so on.

Table 2: Gathered data from the results of the automated

tests.

Exec. t1 t1 t2 t1 t2 t3 t4 t5

34 37 39 48 47 47 51 47

34 38 40 50 49 49 49 48

34 37 39 47 47 47 48 50

34 40 42 48 48 48 51 49

34 38 40 47 48 49 50 47

34 37 39 47 47 48 50 49

34 38 40 51 49 49 49 48

34 37 42 47 47 47 49 50

34 39 42 48 48 47 50 49

34 38 39 47 47 51 48 51

t1 t2 t3 t4 t5 t6 t7 t8 t9 t10

46 42 46 45 44 43 51 47 42 45

48 46 49 50 42 42 43 49 47 49

46 47 48 42 43 50 51 48 49 48

47 43 47 45 44 44 49 48 49 46

47 43 45 49 51 50 49 48 44 45

47 42 47 46 45 44 51 50 43 46

47 43 47 43 45 47 51 50 45 46

46 42 47 46 45 50 51 48 43 46

47 46 45 44 44 43 52 48 43 46

47 48 48 45 46 50 49 48 49 51

Before applying the statistical methods, we deter-

mined the quality of the input data. Incorrect data

sets may be formed because of systematic errors or

the presence of outliers, which are data values that

are much higher or much lower than expected when

compared with the remaining data. For this reason,

we used box plot as a means of identifying the out-

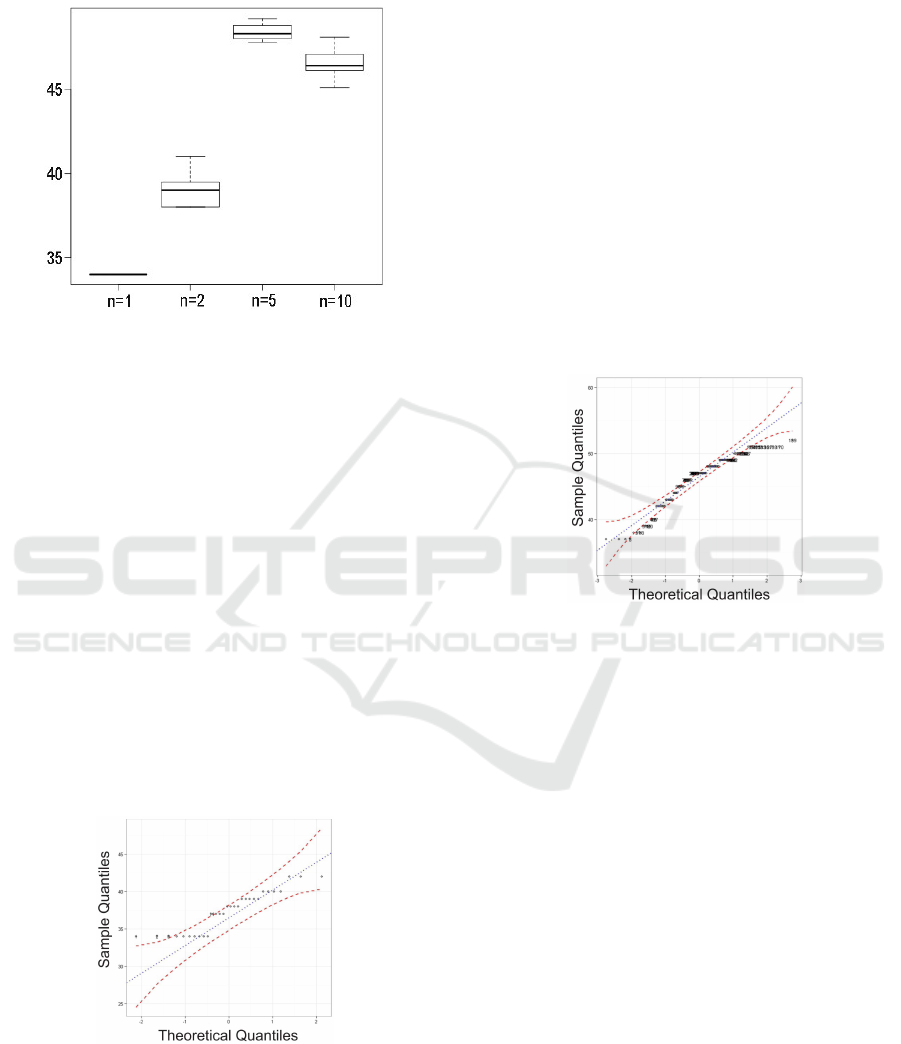

liers. Figure 2 shows the box plot based on the faults

detected in the ST and MT test scenario, where n = 1,

n = 2 (t1...t2), n = 5 (t1...t5) and n = 10 (t1...t10).

Note that in the ST test scenario, the number of faults

found was the same for all the executions. In contrast,

in case of the MT test scenario, the results from Equa-

tion 1 for n = 2, n = 5 and n = 10 were as follows:

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

39.05, 48.44 and 46.49 identiﬁed faults (on average

and including all the executions), respectively.

Figure 2: Box plot for the detected faults with an increasing

number of variant applications.

3.3.2 Hypothesis Testing

In this section, there is a discussion of hypothesis test-

ing for research questions.

RQ1 - Hypothesis Testing: Since some statistical

tests are only valid if there is a normal population dis-

tribution, before choosing a statistical test we exam-

ined whether our gathered data departs from linearity.

This led us to use the Shapiro-Wilk test for the collec-

tion of detected faults. With the data concerning the

t1 and n = 2 (t1..t2), Shapiro-Wilk statistic W was cal-

culated as 0.874, the critical value of W (5% signiﬁ-

cance level) was 0.930 and the p-value was 0.002061,

assuming α = 0.05. Therefore, we reject the null hy-

pothesis that the data are from a normally distributed

population, as calculated W is less than the critical

value of W and p < 0.05. In addition, the test Q-Q

plot was applied, which is plotted in Figure 3.

Figure 3: A normality test for gathered data when a single

application and two variant applications were subjected to

automated testing.

Subsequently, we applied the Wilcoxon-Mann-

Whitney Test, which is a suitable non-parametric test

for two unpaired samples. This statistical test evalu-

ates the existence of signiﬁcant differences in contin-

uous and ordinal-level dependent variables. The al-

ternative hypothesis H

is that the number of detected

faults when running a single variant application (t1)

and running two variant applications simultaneously,

i.e., a MT test scenario with n = 2, are non-identical

populations. As a result, the p-value is 7.186e

−06

;

therefore, at a signiﬁcance level of 0.05, there is a dif-

ference between the samples.

RQ2 - Hypothesis Testing: in a similar way, the

Shapiro-Wilk normality test was used, for the data

concerning n = 2, n = 5 and n = 10. As a result, W is

0.922, critical value of W (5% signiﬁcance level) was

0.984 and p-value was 6.797e

−08

, assuming α = 0.05.

Therefore, we also reject the null hypothesis for RQ2

that the data are from a normally distributed popula-

tion. Figure 4 shows a Q-Q plot for gathered data that

only includes the MT test scenario.

Figure 4: A normality test for gathered data when 2, 5 and

10 variant applications were subjected to automated testing.

Afterwards, we applied the Kruskal-Wallis Test,

which is a non-parametric test that evaluates signif-

icant differences in continuous and ordinal-level de-

pendent variables by a categorical independent vari-

able with two or more unpaired samples. As a result,

the Kruskal-Wallis chi-squared was 68.764, d f = 2,

H was 67.94, critical chi-square was 5.991 and the p-

value was 1,221e

−15

, when α = 0.05. If it is assumed

that p < 0.05 and the critical chi-square is less than

the H statistic, the null hypothesis that the medians

are equal can be rejected. Therefore, there is a sig-

niﬁcant difference between the three samples (n = 2,

n = 5 and n = 10).

As the alternative hypothesis H

assumes that at

least one of the samples comes from a different pop-

ulation than the others, we applied the Bonferoni

method for multiple comparisons, with FWER = 0.05.

This allowed us to conclude that each sample is statis-

tically different. The difference between n = 10 and

n = 2 was 73.025, with upper limit of 50.58 and lower

limit of 95.48. For n = 10 and n = 5, the difference

was −34.14, with an upper limit of −50, 02 and lower

limit of −18, 27. Finally, between n = 2 and n = 5, it

Evaluating the User Acceptance Testing for Multi-tenant Cloud Applications

was −107, 165, with an upper limit of −131.42 and

lower limit of −82.92. With regard to the groupings,

the rankings for n = 5, n = 10 and n = 2 are as fol-

lows: 118.19, 84.05 and 11.025, respectively.

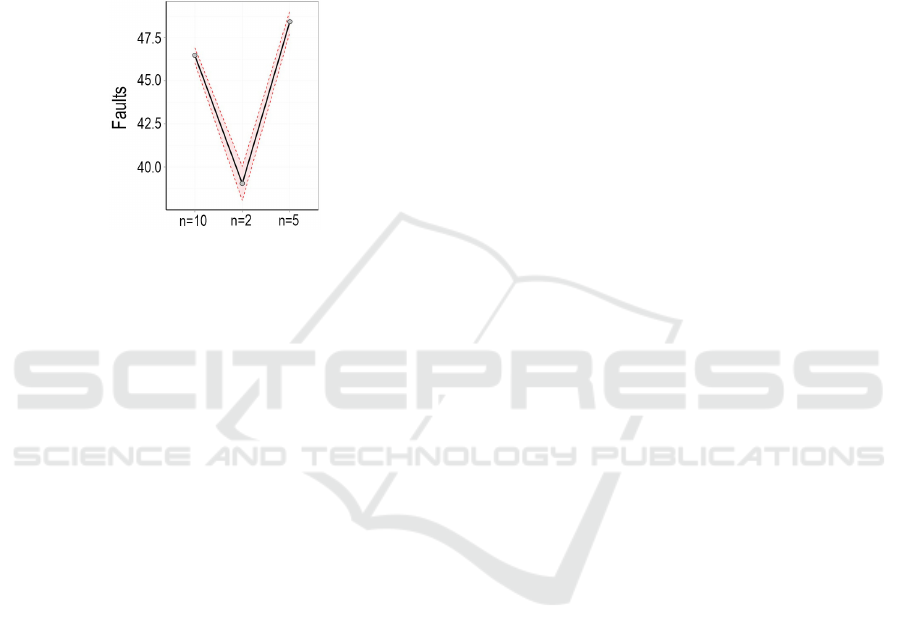

Additionally, an effects plot was deﬁned from the

lower limit, effect and upper limit, by analyzing these

three samples separately, as shown in Figure 5. For

n = 10, the values were as follows: 46.049, 46.49 and

46.931; with n = 2: 38.063, 39.05 and 40.036; and

ﬁnally, for n = 5: 47.815, 48.44 and 49.064.

Figure 5: Effects plot for the MT test scenario.

3.3.3 Discussion on the Nature of the Detected

Faults

A) Single-tenant faults: after analyzing the detected

faults when only a single variant application was de-

termined from the automated tests, we concluded that

all of them are functional and have typical web faults.

61 out of 95 test cases passed, i.e, the behavior of

the application was consistent with its speciﬁcations

in 64% of the tests. The detectability of faults in

the single-tenant test scenario did not require a con-

siderable effort, since the tests are conducted at the

unit level and this enables the faults to be discovered

clearly in the source code from the user actions in

the web pages. It should be noted that there was no

competition with other tenants for the same resources

and it is possible that there are other kinds of faults

with regard to performance, security and data privacy

that were not considered to be within the scope of this

study.

B) Multi-tenant faults: an important question is

how to detect faults, which can only be discovered

during runtime. For this reason, automated and par-

allel UAT can be regarded as a valid approach to ex-

amine these kinds of faults. Within the multi-tenant

context, it is clear that there are problems related to

concurrent behavior in cloud applications that must

be further investigated in the testing activity.

The challenge of detecting a fault in this type of

program, mainly arises from the synchronization pro-

cess (i.e. the threads). The tenants compete for shared

resources that are made available on demand; that

is, a scheduling policy must share and distribute the

resources in an equitable manner. This means that

we cannot control the execution order of the pro-

cesses, i.e., the data dependency and inter-process

synchronization of a program might be affected dur-

ing the scheduling. With this in mind, a program

can carry out different execution sequences, even

with the same test input. Hence, the testing activity

must check whether the possible synchronization se-

quences were executed and if the outputs obtained are

correct. This difﬁculty is well-known among practi-

tioners in the concurrent programming ﬁeld, as being

a non-deterministic kind of behavior. There are sev-

eral problems in testing concurrent applications due

to this characteristic, such as high computational costs

and many false positives (Arora et al., 2016).

Another concept applicable to the multi-thread

context is thread safety. A piece of code is thread-

safe when it can manipulate shared data structures in

such a way that it can ensure a secure execution across

multiple threads at the same time (Lewis and Berg,

1995). Similarly, variant applications can be executed

from a single instance of a multi-tenant SaaS system

that must manipulate shared data structures. Regard-

less of the persistence strategy, each variant applica-

tion must be connected to a speciﬁc database/schema.

To achieve this, the multi-tenant system must identify

the tenant and be able to provide users with the ex-

pected data, interface and features.

The results of the case study demonstrated that

there are differences when running the same test cases

when they include both a single and several variant

applications at the same time. Update Synchroniza-

tion Failure is the most likely reason for the number

of faults in an MT test scenario, because many test ex-

ecutions have led to unexpected ways. For instance,

when users carried out the same actions in different

variant applications, speciﬁc execution paths were af-

fected. This happened when the user logged on and

logged out in a certain variant application. As these

deviations adversely affected the expected execution,

several faults were reported in the test environment.

With regard to faults in tasks carried out concur-

rently by tenants, the parallel execution of the vari-

ant applications has enabled us to identify some faults

that could not be detected because they only included

one isolated application. Figure 6 shows the results

of the parallel execution for a test class that veriﬁes

the ﬁeld “name” of the products. In this execution,

two variant applications were veriﬁed with simulated

requests. It should be pointed out that the number

of detected faults is different in each execution, even

with the same input and features provided by variant

applications.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

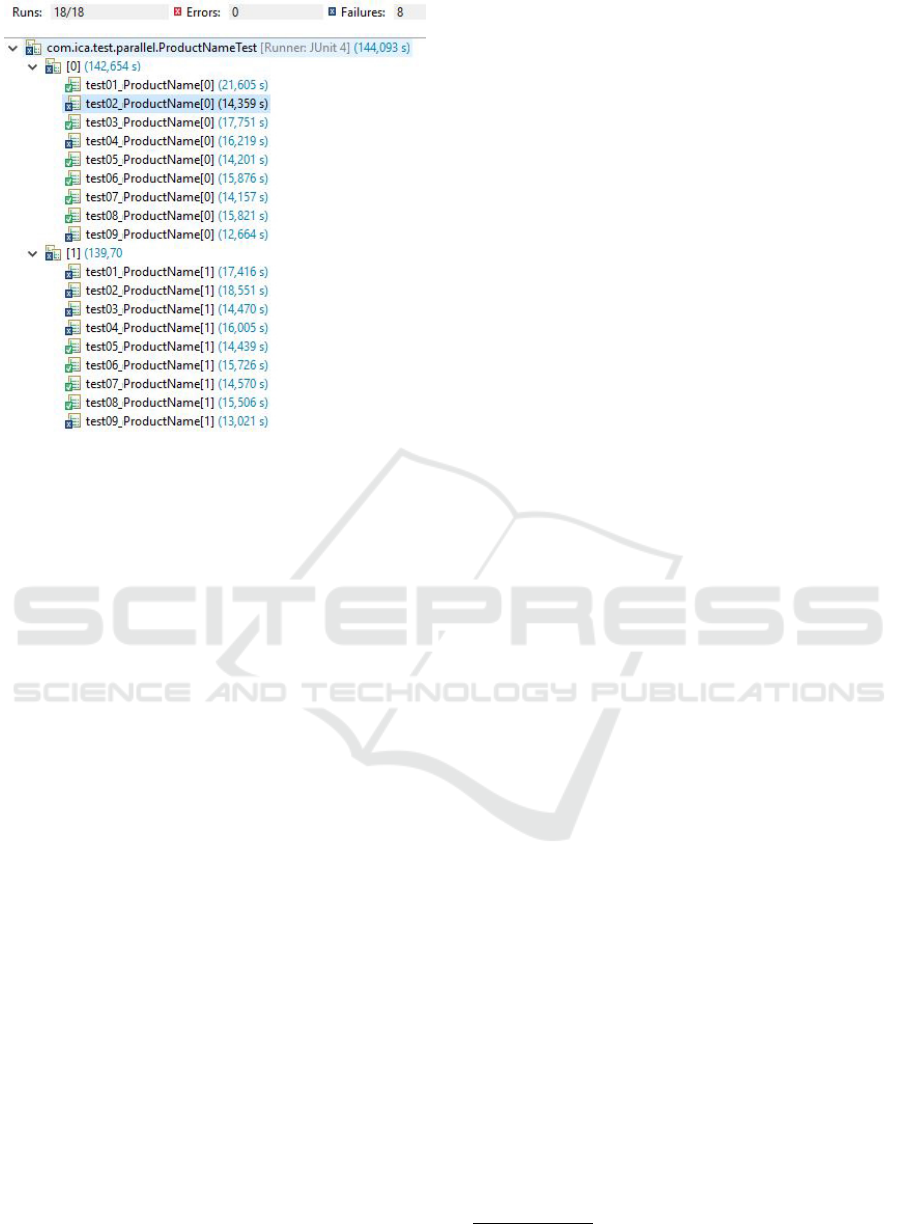

Figure 6: Results of automated and parallel tests of two ap-

plications that verify the product names.

4 THREATS TO VALIDITY

Test executions: the processing capacity of the host

where the tests were conducted and the robustness of

the cloud provider can inﬂuence the test results (Bai

et al., 2011). However, this inﬂuence was not mea-

sured and compared with other settings. To mitigate

this threat, all the tests were conducted in the same

hardware conﬁguration and operating system.

Although we have deﬁned ten executions, there

may be unidentiﬁed faults in the application or false

positives. As the faults examined in this case study

were not seeded (as in a controlled environment with

a predeﬁned set of possible faults), the test cases

were manually deﬁned to explore the execution ﬂows

from the user’s standpoint and in accordance with the

requirements of iCardapio, and for this reason, the

faults were reported from this set of test cases.

Test cases: designing test cases is an important

matter that can affect the collected data and make the

case study less impartial. A test professional who

only had access to the application’s documentation

and GUI, was invited to ensure impartiality, and avoid

bias by not knowing the source code of the applica-

tion.

Interaction between conﬁguration and handling:

it is possible that the exercises carried out in the case

study are not accurate enough for any real-world ap-

plications. However, the main value of this empirical

study is that it has provided evidence that if the test-

ing activity only includes a variant application, it is

unable to detect the main faults owing the external

factors such as the resource sharing and the competi-

tion among variant applications, which can result in

non-deterministic effects.

Assessing the degree of reliability: this refers to

the metrics used to measure the number of faults.

To mitigate this threat we carried out ten executions

which can be regarded as a sufﬁcient measure, since

the number of detected faults was recorded in forms

ﬁlled in after each execution of the variant applica-

tions.

Low statistical power: the ability of a statistical

test to reveal reliable data. We applied two tests,

the Wilcoxon-Mann Whitney test to statistically an-

alyze the differences between two unpaired samples

for RQ1 and the Kruskal-Wallis test to analyze the

number of faults found when a different number of

variant applications were veriﬁed simultaneously, in

answer to RQ2.

5 CONCLUSION

The focal point of this study was to investigate the

parallel and automated UAT for multi-tenant SaaS

systems. A case study was designed using a multi-

tenant application called iCardapio. Test cases were

deﬁned by applying functional criteria and conduct-

ing automated tests with JUnit and Selenium. The aim

of this study was to compare the number of faults by

taking into account test scenarios with single-tenant

and multi-tenants. The main ﬁndings of our experi-

ment showed that, in terms of detected faults, there is

a statistical difference between the samples. In addi-

tion to faults of functional and web nature, there was

evidence of update synchronization failure and faults

arising from a non-deterministic behavior. Although

the results are provisional, given the limitations of the

study, they can demonstrate that these questions must

be included in the testing of multi-tenant cloud appli-

cations.

A package containing the tools, materials and

more details about the experiment steps is available at

https://goo.gl/ESNCGD. In future studies, we intend

to explore the following factors: (i) the feasibility of

low-cost fault injection in multi-tenant SaaS systems

to examine the mechanisms of fault detection; (ii)

deﬁning a tenant-oriented testing process that takes

into account faults and test levels when supporting the

development of high-quality cloud applications, and

(iii) conducting controlled experiments to investigate

the use of a TaaS (e.g., Sauce Labs

) that takes ac-

https://saucelabs.com/

Evaluating the User Acceptance Testing for Multi-tenant Cloud Applications

count an increasing number of variant applications.

Despite the growing popularity of the MTA, there

are still very few empirical studies on the techniques

and testing criteria employed in the cloud domain. We

believe that an essential requirement for more targeted

testing techniques in this ﬁeld, is to evaluate the test-

ing strategies applied in other contexts.

ACKNOWLEDGEMENTS

The authors are grateful to CAPES, ICMC/USP and

Federal Institute of Education, Science and Tecnology

of South of Minas Gerais - IFSULDEMINAS, Poc¸os

de Caldas campus, for supporting this work.

REFERENCES

Arora, V., Bhatia, R., and Singh, M. (2016). A systematic

review of approaches for testing concurrent programs.

Concurr. Comput. : Pract. Exper., 28(5):1572–1611.

Bai, X., Li, M., Chen, B., Tsai, W.-T., and Gao, J. (2011).

Cloud testing tools. In Service Oriented System Engi-

neering (SOSE), 2011 IEEE 6th International Sympo-

sium on, pages 1–12. IEEE.

Balci, O. (1994). Validation, veriﬁcation, and testing tech-

niques throughout the life cycle of a simulation study.

Annals of operations research, 53(1):121–173.

Buxton, A. (2015). The reasons why SaaS will

remain the dominant cloud model - Techradar.

https://tinyurl.com/yc7ktewl. [Online; accessed 10-

April-2017].

Chong, F. and Carraro, G. (2006). Architecture strategies

for catching the long tail. In Microsoft Corporation,

page 910. MSDN Library.

Copeland, L. (2004). A practitioner’s guide to software test

design. Artech House.

Gao, J., Bai, X., and Tsai, W.-T. (2011). Cloud testing-

issues, challenges, needs and practice. Software Engi-

neering: An International Journal, 1(1):9–23.

Garg, D. and Datta, A. (2013). Parallel execution of prior-

itized test cases for regression testing of web applica-

tions. In Proceedings of the Thirty-Sixth Australasian

Computer Science Conference-Volume 135, pages 61–

68. Australian Computer Society, Inc.

Hoffman, D. (2001). Using oracles in test automation.

In Proceedings of Paciﬁc Northwest Software Quality

Conference, pages 90–117.

Kabbedijk, J., Bezemer, C.-P., Jansen, S., and Zaidman, A.

(2015). Deﬁning multi-tenancy: A systematic map-

ping study on the academic and the industrial perspec-

tive. Journal of Systems and Software, 100(0):139 –

148.

Krebs, R., Momm, C., and Kounev, S. (2012). Architectural

concerns in multi-tenant saas applications. CLOSER,

12:426–431.

Lewis, B. and Berg, D. J. (1995). Threads Primer: A Guide

to Multithreaded Programming. Prentice Hall Press,

Upper Saddle River, NJ, USA.

Manduca, A. M., Munson, E. V., Fortes, R. P., and Pimentel,

M. G. C. (2014). A nonintrusive approach for im-

plementing single database, multitenant services from

web applications. In Proc. of the 29th Annual ACM

Symposium on Applied Computing, pages 751–756.

Mell, P. and Grance, T. (2011). The NIST deﬁnition of

cloud computing - recommendations of the national

institute of standards and technology. Technical re-

port, National Institute of Standartization.

Myers, G. J. and Sandler, C. (2004). The Art of Software

Testing. John Wiley & Sons.

Ostrand, T. J. and Balcer, M. J. (1988). The category-

partition method for specifying and generating fuc-

tional tests. Commun. ACM, 31(6):676–686.

Pinto, V. H. S. C., Luz, H. J. F., Oliveira, R. R., Souza, P.

S. L., and Souza, S. R. S. (2016). A Systematic Map-

ping Study on the Multi-tenant Architecture of SaaS

Systems. In 28th Int. Conf. on Software Engineering

& Knowledge Engineering (SEKE), pages 396–401.

Pusuluri, N. R. (2006). Software Testing Concepts And

Tools. Dreamtech Press.

Roper, M. (1994). Software Testing. McGraw-Hill Book

Company Europe.

Ru, J., Grundy, J., and Keung, J. (2014). Software engi-

neering for multi-tenancy computing challenges and

implications. In Proc. of the Int. Workshop on Innova-

tive Software Development Methodologies and Prac-

tices, pages 1–10. ACM.

Ru, J. and Keung, J. (2013). An empirical investiga-

tion on the simulation of priority and shortest-job-ﬁrst

scheduling for cloud-based software systems. In Soft-

ware Engineering Conference (ASWEC), 2013 22nd

Australian, pages 78–87. IEEE.

SalesForce (2008). The Force.com Multitenant Ar-

chitecture - Understanding the Design of Sales-

force.com’s Internet Application Development Plat-

form. https://goo.gl/zxYywi. [Online; accessed 3-

September-2017].

Subashini, S. and Kavitha, V. (2011). A survey on security

issues in service delivery models of cloud comput-

ing. Journal of network and computer applications,

34(1):1–11.

Vashistha, A. and Ahmed, P. (2012). Saas multi-tenancy

isolation testing challenges and issues. International

Journal of Soft Computing and Engineering.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science
