Similarities Building a Network between Researchers based on the

Curriculum Lattes Platform

ergio Antonio de Andrade Freitas

, Edna Dias Canedo

, Edgard Costa Oliveira

and Dionlan Alves de Jesus

Faculty of Gama (FGA), University of Bras

ılia (UnB),

Area Especial de Ind

ustria,

Projec¸

ao A – P.O. Box 8114, Bras

ılia-DF, CEP 72.444-240, Brazil

Department of Computer Science, Edif

ıcio CIC/EST, Campus Darcy Ribeiro, Asa Norte - University of Bras

ılia (UnB),

P.O. Box 4466, Bras

ılia-DF, CEP 70910-900, Brazil

Department of Production Engineering, Technology College, University of Bras

ılia (UnB),

Keywords:

Semantic Web, Curriculum Lattes, Algorithm, Similarity.

Abstract:

Using inference machines is one resource used to assist the decision-making process in data processing and

interpretation, which allows attributing knowledge to a set of information items. In this sense this work

implements a similarity algorithm that calculates the percentage of adherence found amongst academic proﬁles

at the University of Bras

ılia (UnB). The domain base use to provide the data for the work is that of the

Lattes platform. This platform holds data on the scientiﬁc production of registered university scholars. The

calculation provides a rating of the individuals and the approximations between their academic production.

This is achieved by taking into account a base proﬁle which is compared to one or more destination proﬁles.

To run this procedure, the data held in each Curriculum Lattes is extracted, and an ontology of concepts

is created that holds the data on the production to supply the information needed by the comparison task.

These comparisons are made in each term of the name, for all the bibliographical production for both proﬁles

compared. Each term can have a set of synonyms that are also taken into consideration in the comparison. And

at the end the results are compiled and presented in a spreadsheet that holds the summaries for all adherence

percentages that were compared. Applying the algorithm determines which people in a set have more or

less proximity and a semantic link with the academic output when compared to other individuals. And that

produces a similarity percentage.

1 INTRODUCTION

The Web as an entity that is in constant develop-

ment can increasingly attribute sense to information,

through machines and software agents, to organize

knowledge in many areas, with the use of standardi-

zed terminologies, as a means to structure information

to produce knowledge. The data is available in many

formats, namely: Web pages, ﬁles, repositories, and

the Curriculum Lattes database, amongst others.

The Lattes platform http://lattes.cnpq.br/, used a

the source of data in this work, provides the acade-

mic background data on the execution of scientiﬁc

work and the academic output of students, lecturers

and professionals involved in science and technology.

This source of data establishes, percentage-wise,

how much a member is connected and in adherence,

or similar, according to one’s bibliographical pro-

duction when compared to another member, or to a

group of members of the Brazilian academic commu-

nity. This work aims at developing a tool that takes

the information held in the Curriculum Lattes base

into account, on a researcher, to extract the data and

create an ontological model. And, beyond that, to

set up a mathematical model that calculates the si-

milarity percentage that exists between the individu-

als/researchers. To that end, an algorithm was develo-

ped that automatizes this ontological model and that

points, in a quantitative fashion, what the percentage

of adherence is, as found amongst the publications of

the members compared.

According to the bibliography surveyed (Shadbolt

et al., 2006), (Hendler et al., 2002), (Berners-Lee

et al., 2001), (Sudeepthi et al., 2012) and (de Oliveira,

2011), the semantic Web, with the use of its tools,

languages, and frameworks, allows the development

Freitas, S., Dias Canedo, E., Costa Oliveira, E. and Alves de Jesus, D.

Similarities Building a Network between Researchers based on the Curr iculum Lattes Platform.

DOI: 10.5220/0006664102030214

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 203-214

ISBN: 978-989-758-298-1

203

of the ontology of concepts and provides input items

for this domain to be mapped and towards obtaining

the data that is found in each Curriculum Lattes of the

researchers studied.

In the development of the application, already-

existing functionalities were re-used, to extract the

curriculum from the Lattes platform and to create the

ontology. The ontological ﬁle is read and consulted in

order to obtain the bibliographical works considered

in the calculation of the similarity, amongst the indivi-

duals selected. The result is exported on a spreadsheet

that lists the proﬁles under comparison, and displays

a percentage of adherence as found amongst them.

Tests were carried out to verify and validate the ﬁ-

gures obtained. The set of tests was controlled with

the knowledge of the set of proﬁles that would be

compared. The goal was to attest whether the ﬁgures

actually obtained matched that which were observed

in the real world.

In order to better explain the point of this work, it

is structured as follows. Section 2 presents the pro-

posed model, with the basis of the proposal, the pro-

posal in itself, the mathematical formulation, and the

implementation of the algorithm. Section 3 descri-

bes the implementation and the tests that were run. It

also presents the tables, as originated in the execution

of the application, along with the ﬁnal result and the

percentages of similarity for the comparisons. Finally,

Section 4 concludes the work.

2 MODEL FOR SIMILARITY

AMONGST RESEARCHERS

The model proposed is based on the use of the plat-

form found in the Lattes academic record database as

its data source to obtain information on the academic

careers of people, aimed at making comparisons via

an algorithm. In possession of such data, one can con-

solidate inferences as found amongst the individuals

found in the domain that the Lattes database is about.

In the academic community, both the teaching

staff as the students corpus can have their Curriculum

Lattes, as a way to build a portfolio on one’s academic

path, for different ends. The Curriculum Lattes base,

as found in the Web, holds varied information on the

academic career of any of the individuals registered.

Based on this data a strategy was devised to create an

ontology that would represent this model, as expres-

sed in the Lattes database (Galego and Renata, 2013).

This strategy also included a manner for extracting

data that would allow a relationship amongst the indi-

viduals found in the database. Such a drive stemmed

from a few questions we wanted to see answered:

1. Is it possible to establish a link between different

individuals that have not met, based on the life

they lead in the Academy?

2. Is it possible to establish a quantitative approach

through calculation of how much similarity there

is in a comparison made of individuals hitherto

unknown to each other?

3. Is it possible to make this line of thought automa-

tic with the use of an algorithm? That is, there

is a possibility for drawing aspects that are simi-

lar amongst individuals and to have the process

for that running on a machine, to obtain an index

that allows assessing whether a person is similar

or not to another one, considering the aspects of

one’s trajectory in the Academy.

In the analysis of the Lattes database it is possible

to see that several ﬁelds separate the individuals and

characterize them according to a predominance in a

given area of knowledge.

Some ﬁelds found in blocks of items can be con-

sidered for the purposes of individualization, of the

characteristic of each individual.

Amongst these items we can cite: academic

background and titles, supplementary qualiﬁcations,

professional history, research areas pursued, rese-

arch projects, extension projects, development pro-

jects, reviewing work for periodicals, areas of acti-

vity, awards and titles received, work that contains

the bibliographical production, articles published in

periodicals, books published/organized, or editions,

chapters of books published, text published in jour-

nals/magazines as news, full work published n con-

ference proceedings, expanded abstracts published in

conference proceedings, abstracts published in con-

ference proceedings, presentations of technical pro-

duction work with information on assistance and con-

sultancy, technical work, interviews, round tables,

programs and comments in the media and in the item

that covers other types of technical production, and

other work.

The blocks of information have other elements

that hold information that is semantically relevant and

that can be used. The following elements can be men-

tioned as examples: advice in work for degree course

ﬁnal project, advice and supervision completed, ad-

vice for MSC theses, end-of-course work in refres-

her/specialization courses, end-of-course work in de-

gree courses, scientiﬁc introduction courses, advice

of other kinds, development of teaching or instruction

material, interviews, round tables, programs and com-

ments in the media, organization of events, conferen-

ces, exhibitions and fairs, examination boards in jud-

ges committees in public tests, and other participati-

ons.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

204

Faced with this, one can see that the wealth of in-

formation is quite impressive. A constantly updated

Curriculum Lattes of an individual is considered as a

very valuable source of data, for the purpose of sur-

veying and assessing one’s results. And, to materia-

lize the proposal, the presentation of a percentage of

similarity is done through a number of comparisons

with other members registered in the Lattes database.

The goal is not to exhaust all the attributes found

in the Lattes database, but to demonstrate that it is

entirely possible to establish a manner of comparison

between individuals, based on the set of information

items that is laid out in each proﬁle.

As a proposal, we set up a plan to consider the

macro item Production that entails the bibliographi-

cal production, technical output, and other artistic and

cultural productions. The data found in these cha-

racteristics is considered as having great semantic re-

levance when thinking of making comparisons bet-

ween people. Once the inference – or comparison –

is made of this macro item with an acceptable satis-

faction margin and taking into account the computati-

onal analysis versus human analysis, it is possible to

consider relating the others with the same purpose.

At ﬁrst, and considering the block of elements

contained in the Production element, the compari-

son will be made through considering the name of

each title, for each bibliographical production, with

the goal of achieving key terms that have a high se-

mantic load, to allow more efﬁcient comparisons with

other terms, as found in the publications, amongst the

individuals surveyed. The terms will be selected and

submitted to consultations through synonyms, to en-

compass a larger possibility and to render the result

amongst comparisons more concise.

Thus, starting from these considerations of the

analysis of the data, as found in the items of the Lattes

database, and knowing that, from there, it is possible

to make the comparisons, one can formalize the pro-

cess of comparison in a structured algorithmic form.

2.1 Calculation of the Index of

Similarity

Consider a closed set of individuals identiﬁed by their

Curriculum Lattes (equation 1):

CP = {I

, I

, ...I

, ..., I

} (1)

Each individual I

is represented through a set LI

where each one of its elements B

k is the list of all

the activities of I

in one of the large blocks j that

form the Lattes database (e.g., concentration area, pu-

blications in periodicals, publications in proceedings,

advisory work, etc.):

= {B

, B

, ...B

, ..., B

} (2)

Consider now one of the individuals in named

Base Individual I

base

∃I

base

∈ CP (3)

And another individual I

target

in CP different from

base

∃I

target

, I

base

target

∈ CP ∧ I

base

∈ CP ∧ I

target

6= I

base

(4)

The comparison between individuals I

base

and

target

is possible through correlating the activities re-

presented in their Curriculum Lattes and the compa-

rison of the elements of one same block B

as found

both in LI

base

as in LI

target

. Consider an activity E

as belonging to the group of elements that form LI

base

of the Lattes of LI

base

and semantically equivalent to

an activity E

as belonging to the set of activities of

target

∃E

, E

∈ B

base

∧ E

∈ B

target

∧ E

≡ E

(5)

Considering a block of B

any kind, the set of all

the elements E

that verify equation 5 represents the

set of similarities found amongst individuals I

base

and

target

for a given block k:

Sem

= A|E

∈ B

base

∧ E

∈ B

target

∧ E

≡ E

(6)

Where A in equation 6 represents:

A =

max(B

base

)

[

i=0

∧

max(B

target

)

[

j=0

∃E

, E

(7)

In applying equation 6 for each one of the blocks

found in the Lattes database for two individuals and

by merging the results, it is possible to obtain a simi-

larity set between I

base

and I

target

CS = Sem

[

Sem

...Sem

[

...Sem

(8)

Using the cardinality of CS it is possible to esta-

blish an similarity index IS between I

base

and I

target

base

= |CS| (9)

In ﬁxing individual I

base

and doing the calculation

for equation 9, for each one of the individuals of CP

a set is obtained for the similarity indexes CIS

base

be-

tween the base individual and the remainder of the

individuals considered:

CIS

base

= {|IS

base

|, |IS

base

|, ..., |IS

base

|} (10)

The ordained set of CIS

base

establishes the simila-

rity degree between any base individual and the rest

of the set of individuals.

Similarities Building a Network between Researchers based on the Curriculum Lattes Platform

205

2.2 Applying the Algorithm

This section presents the step-by-step process for the

similarity algorithm. The steps followed start with

the reading of the data on the individuals informed

through the identiﬁer element found in the Lattes da-

tabase. Following the reading of all curriculum in the

Lattes database a procedure is carried out that proces-

ses the names in each publication found for both the

base and target individuals. This function removes

the insigniﬁcant terms and standardizes the quantity

of terms that will be compared. After that, for each

word selected a consultation is made to obtain the re-

spective synonyms, should they exist.

The comparison starts when the base individual is

set and all of his/her publications are compared with

all the publications of all the target individuals. That

is, the ﬁrst term in the ﬁrst publication of the base

proﬁle is compared with the ﬁrst term of the biblio-

graphical output of target individual number 1. This

process is iterated until the number of terms and syn-

onyms is exhausted, followed by the volume of one’s

bibliographical production and, lastly, the quantity of

the target individuals themselves.

Equal occurrences that are found are accounted

for and added into the percentage calculation. For the

purposes of calculation, the ﬁgure for the product in

the quantity of the quantities of bibliographical pro-

duction of the individual are needed, with each target

individual, which will be the division number for each

percentage amount.

This ﬁgure is multiplied by 5, as to work with

equal ﬁgures which, in the case of the term or word

itself, number 5 represents the quantity of terms rand-

omly chosen from the name of the bibliographical

output. As dividend, we have the number of equal

occurrences, which is incremented as every new equal

term is found between the base and the target indivi-

duals.

Lastly, in order to have the amount as a percen-

tage, it is multiplied by 100 and a classiﬁcation is

done of the percentages of adherence for the com-

parisons that have been calculated. Similarity algo-

rithm between the bibliographical outputs for selected

members:

• Reads base individual data;

• Reads target individuals’ data;

• Processes the names of the publications;

• Searches synonyms in English and in Portuguese

for each term found in the bibliographical output

items that have been loaded;

• Fixes the base individual and, for each element of

every target: (1). Compares the ﬁrst term of the

base element with that of the target individual; (2)

If they are equal, then: Counts one equal occur-

rence; (3) If not: Does not count anything and

moves to the next term and goes back to the pre-

vious step; (4) Moves to the next target individual

and repeats procedure until the last individual.

• Calculates the similarity percentage;

• Divides the quantity of equal occurrences by

the number of comparison possibilities found

amongst the individuals multiplied by 5;

• Multiplies the total by 100. Classiﬁes the percen-

tage of the comparisons.

3 IMPLEMENTING THE

PROPOSED MODEL

The infrastructure environment that was conﬁgu-

red to support the development, execution and tes-

ting of the system took some software products

as well as non-functional requirements of por-

tability, implementation, and integration into ac-

count. As a requirement for integration, the software

should have a link to the Dynamic Lattes applica-

tion http://www.github.com/efgalego/DynamicLattes

to obtain the ontology ﬁle and thus manage to pro-

cess with the algorithm that calculates the similarity

percentage (Luna et al., 2013) and (da Costa and Ya-

mate, 2009).

Functional requirements of the application:

• Extracting data from the Lattes database;

• Creating the ontology that models the Lattes data-

base;

• Calculating the similarity percentage;

• Taking the title of each publication into account;

• Obtaining synonyms for each English and Portu-

guese term;

• Making comparisons between the terms of each

individual;

• Classifying the adherence percentage.

The architecture of the software constructed is

built by the collaboration from other tools that assist

the calculation of the similarity. The Dynamic Lat-

tes open-source tool, apart from helping the extraction

process, is an element of the Script Lattes, Onto Lat-

tes, and Semantic Lattes tools (da Costa and Yamate,

2009).

Dynamic Lattes does the extraction, creates the

ontology, and builds an OWL format ﬁle (Siddiqui

and Alam, 2011). The goal is to have the software

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

206

developed read, interpret and calculate the similarity

percentage for the proﬁles registered with the Lattes

platform database, and allow the analysis for adhe-

rence of the sets of proﬁles under comparison.

3.1 System Modelling

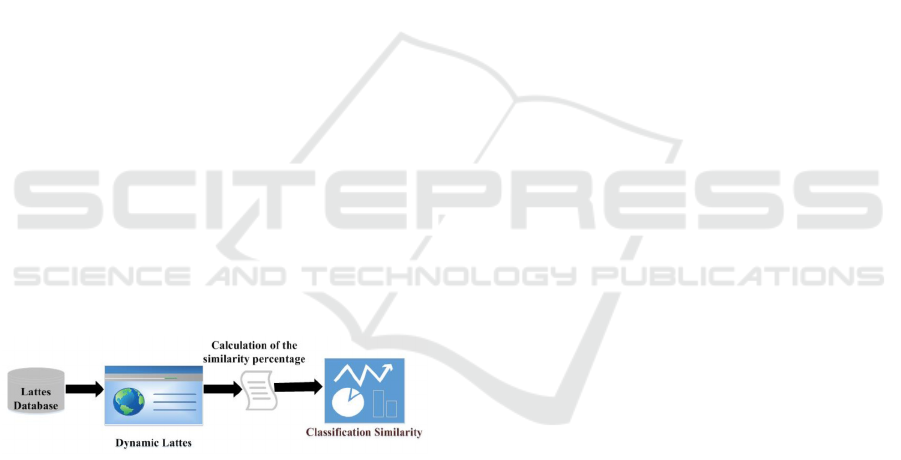

Figure 1 shows the domain of the application on a

business level, which helps to understand the scope of

the architecture developed for the application.

The Lattes Database represents the knowledge

base of the Lattes platform, which currently holds a

little over three million registered curriculum. The

Dynamic Lattes application (Chalco et al., 2009)

is responsible for extracting the Curriculum Lattes

through an identiﬁer element, unique to each indivi-

dual that is fed as a parameter to the tool. It inter-

operates with the Lattes knowledge through a call for

a curriculum in a XML format and does the mapping

of the Lattes domain in a representation of the onto-

logy, to consolidate it via an OWL ﬁle (da Costa and

Yamate, 2009).

The OWL ﬁle holds the meta data and the popu-

lated values for the curriculum that have been fed.

The application developed interprets this information

and makes the conversion of the ontology into objects,

using the Java programming language.

This stage is shown in Figure 1 in a package that

includes the calculation of the similarity percentage.

After that a graph of similarities is shown, pursuant

to the criterion set in the algorithm shown in Section

2.1.

Figure 1: Domain Application.

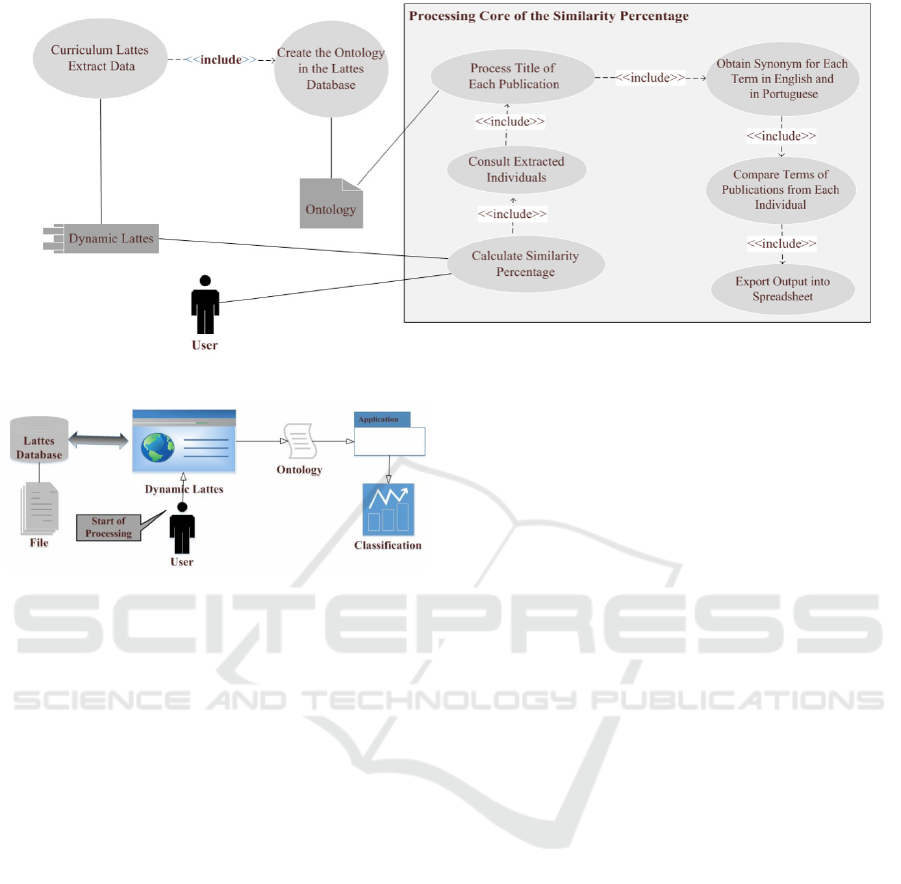

Use case diagram shown in Figure 2 has the in-

teraction of an user that may be the individual that

wishes to ﬁnd what one’s similarity percentage is in

relation to the other members, with the use of the soft-

ware. One interacts with the Calculate Similarity Per-

centage use case.

The use case at ﬁrst interacts with the Dynamic

Lattes to be able to carry out the extraction procedu-

res, contained in the Extract Data use case, from the

Lattes Database, to Create the Ontology in the Lattes

Database. After this interaction, the ontological ﬁle is

created and used by the Consult Extracted Individual

use case, which is when it loads the results from bi-

bliographical output into lists for all people being fed

data. From then on, other use cases are necessarily

executed, as shown in Figure 2 by the <<include>>

notation. Firstly, the Process Title of Each Publica-

tion use case, followed by Obtain Synonym for Each

Term in English and in Portuguese and after that by

the Compare Terms of Publications from Each Indi-

vidual and, lastly, by the Export Output into Spreads-

heet item.

Figure 4 shows The process modeling with the

ﬂow that is executed until a spreadsheet is obtained

that holds the values for the comparisons of similari-

ties as found amongst the individuals.

The process gets under way with the extraction of

the data from the Lattes database that looks up the

curriculum base in the Lattes platform to create the

ontology of concepts (da Costa and Yamate, 2009).

The ontology is a ﬁle that will be later loaded and

interpreted by the application, and also to check the

existence of a record produced by the consultation. If

no records are found the process is terminated and,

if not, the records are loaded into lists that will be

processed to extract terms regarded as non-signiﬁcant

from the standpoint of the application, to then be sub-

jected to a synonym consultation. In the end, the

comparisons are done and a spreadsheet is produced

that holds the percentage results for each comparison,

along with the quantity of terms for each individual

compared, on a per-person basis.

Following the comparison procedure, the ﬁnal cal-

culation is done, added with the percentage value

for similarity formulated by the mathematical relation

(Chalco et al., 2009) shown in the previous chapter

that determines that the similarity percentage is equal

to the number of synonyms (occurrences found), di-

vided by the number of possibilities (Cartesian pro-

duct) found amongst the publications of the two pro-

ﬁles compared.

3.2 View of the Workﬂow

The process for the workﬂow and for information ex-

change amongst the elements that make the proces-

sing of the inference algorithm starts when an user

accesses the Dynamic Lattes entry system, as shown

in Figure 3. The user enters the list of the identiﬁers

for all Curriculum Lattes one wishes to extract from,

including the base individual and all target individu-

als.

The Dynamic Lattes communicates with the da-

tabase of the Lattes platform by itself, advising the

identiﬁers entered by the user to locate the respective

Curriculum Lattes. The extraction then happens,

when the ﬁles for each curriculum are found, and with

the reply for the consultation for processing sent by

Similarities Building a Network between Researchers based on the Curriculum Lattes Platform

207

Figure 2: Use Case Diagram.

Figure 3: Process Workﬂow.

the Dynamic Lattes. Each ﬁle represents a curricu-

lum in the Lattes database.

The internal process of the Dynamic Lattes should

run through the following stages:

1. Obtaining the data from the Lattes Platform

(XML);

2. Managing a list of researchers (called members);

3. Storing data and making it available for consulta-

tion, in an ontology-based database, to allow the

use of inference monitors;

4. The user may ask the system for reports, consoli-

dated as per group of researchers. These reports

should use the data that is found in the database.

The Presentation layer is shown in Figure 5 and is

responsible for the interaction with the user via Web

pages. These Web pages are loaded with the data

found in the Data layer. The Data layer persists and

consults data with the importing of OWL format ﬁle

that was generated on the extraction layer and the se-

arch for information is done through SPARQL (Zhao

et al., 2014) consultations; the inferences on the onto-

logies are also carried out on this layer.

The extraction layer aims at making the data ex-

tractions from the Lattes Platform, as provided for do-

wnload in XML format, and crush this data to gene-

rate the OWL ﬁle that will persist on the data layer.

This layer provides the essential extraction functiona-

lities as well as the creation of the ontology that will

be used in the next processing stages.

Following the creation of the OWL ontology ﬁle,

the application loads the ﬁle and starts the process of

consultation of individuals. A base individual is de-

ﬁned whilst the remaining ones become target indi-

viduals. At this point the processing is done of the

names of the bibliographical output, the synonyms in

English and in Portuguese are obtained, along with

the comparisons and the calculation of the percentage

for similarity.

Finally, a compilation is run of the results from

the comparison into a list, with their classiﬁcation in

percentage terms. With it, it is possible to identify the

target individuals that are most similar and those that

are more aligned with the base individual.

3.3 Implementation

The implementation of the application resorted to Dy-

namic Lattes, which incorporates the Script Lattes,

Onto Lattes, and Semantic Lattes tools (Berners-Lee

et al., 2001), pursuant to the following steps, as nee-

ded to obtain the values for the knowledge base in the

Lattes Platform:

3.3.1 Knowledge Extraction from the Lattes

Database

The Onto Lattes rose with the need to build an on-

tology to represent the data domain for the members

found in the Curriculum Lattes database. It is used for

the extraction of information found in the Curriculum

Lattes, and provided in XML format by the Lattes da-

tabase.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

208

Figure 4: Process Modeling.

Figure 5: Architecture Dynamic Lattes.

The Script Lattes tools extracts data on the te-

aching staff, as registered with the Lattes database.

When it is executed, it runs a download process with

some speciﬁc features such as reports on academic su-

pervisions, maps of collaboration and research maps,

for members of a group.graphs (networks) of joint

authorship amongst members of a group, thesis ad-

visory work reports, reports on research projects and

awards, geo-location maps, and for degrees of colla-

boration.

Semantic Lattes (Sudeepthi et al., 2012) aims at

creating a system that can run consultations on the

Curriculum Lattes. These consultations are done with

natural language. The OWL ontologies were produ-

ced based on questions produced by business specia-

lists.

Based on the functionalities of these tools, the ap-

plication extracts the curriculum in a XML format

from the Lattes knowledge database, creates the re-

presentational ontology for the domain of each curri-

culum, and creates the OWL extension ﬁle. The re-

sult of interest at such initial moment is the OWL ﬁle,

which holds the ontology created and loaded to use

the values in the comparison, to be the entry that trig-

gers the ﬁle read, as well as to run the conversion and

the transformation into objects in the Java program-

ming language.

3.3.2 Importing and Reading the Ontology form

the Curriculum Lattes

The OWL ﬁle is loaded into an application folder and

a conversion or parsing is done of the ontological lan-

guage to Java. After that, the OWL ﬁle is loaded onto

the application and methods are then applied to mani-

pulate the ontology and carry out the conversion into

Java objects. The libraries will deal with the consul-

Similarities Building a Network between Researchers based on the Curriculum Lattes Platform

209

tation written in the SPARQL consultation language

that is used to carry out the selection in the OWL ﬁle.

That is, the OWL ﬁle holds the entire ontology and

the values extracted from the Lattes database. In or-

der to run the similarity comparisons, only a few ﬁelds

are needed and, as a result, SPARQL is used to return

only the values of interest to process the algorithm.

3.3.3 Treatment of Terms Loaded into a List

Treating the Name on a Publication Title. At this

point the name on a publication title is processed. As

each title has terms that are semantically insigniﬁcant

for a comparison, such as prepositions, articles, and

conjunctions, they are removes, as the stopwords that

they are called. The project contains a ﬁle that holds

663 words in English, Portuguese, and Spanish. At

the start of the execution, this ﬁle is opened only once

for each publication name and words included in the

list of ”stopword” are removed from it.

Selecting Words in the Publication Title. After

treating the list of words, a need was detected to stan-

dardize the number of words, to run the comparison.

As it is not possible to determine how many words

will come from each title, an arbitrary ﬁgure of 5 was

then adopted for consideration. That is, should an ar-

ticle have 10 words after the treatment of the names,

a random calculation is done that will select only 5 of

the 10 words. Should it be under 5, the absolute value

smaller than, or equal to, 5 is considered. One advan-

tage of this approach is that it guarantees the balance

between the comparisons, to avoid the possibility of,

for example, comparing a 15-word article with a 3-

word one.

3.3.4 Searching for Synonyms for each Term in

the Publication Title

Once a list of treated and selected words is at hand,

a search is made for the synonyms of each one. The

manner in which it is represented entails two ways.

The search for synonyms in the Internet and the se-

arch for synonyms in ﬁles found in the desktop envi-

ronment.

In the latter case, the desktop environment was im-

plemented due to issues produced by the Web domain

such as, for example, a limitation of the number of

requests made to Web services for synonyms, and an

increase in the processing time of such requests.

This time depends on the web trafﬁc speed, on the

Internet connection and on the availability of the Web

service which many times was overloaded due to the

high number of requests made from a same IP ad-

dress. In the test section the result from the compa-

risons amongst these two environments is tackled in

more detail.

3.3.5 Calculating the Percentage of Adherence

The calculation is done through individual compa-

risons on a per-term basis. Should corresponding

occurrences be found, that is, words that are equal in

the domain of possibilities, a value 1 is attributed, to

account for the quantity of such terms at the end, that

is, the number of synonyms found.

The second element of the equation is the number

of possibilities to be compared between two base in-

dividuals (base and target), as represented by a num-

ber of possibilities. When the algorithm is run, for

both the base and target individuals, a list is loaded

with the quantity of bibliographical outputs, and this

number is multiplied amongst them, to produce the

number of possibilities term.

As the algorithm deﬁnes 5 as the set number for

words to be searched for with their synonyms, it is ne-

cessary to multiply this ﬁgure by the number of pos-

sibilities amongst the individuals. And at the end, in

order to have a percentage value, the ﬁgure is multip-

lied by 100.

The result of this calculation allows the compari-

son with the other individuals that are being compared

with the base list. It also allows the carrying out of a

classiﬁcation amongst them, in order to check which

one has the largest similarity percentage.

3.3.6 Classiﬁcation of Similarity

As the process is ﬁnalized, all comparisons amongst

all the individuals having been loaded for the purpo-

ses of result organization and presentation, there is

the visualization of the ﬁgure for similarity percen-

tage between each comparison, that shows which in-

dividuals had the highest scores, being the most com-

pliant ones with the base individual. Those that had

smaller values move farther from the base individual

and are less compliant.

4 ANALYSIS OF THE RESULTS

This section shows the analysis and the results obtai-

ned from the implementation, execution, and testing

of the similarity algorithm as proposed for a control-

led set of individuals. With such prior knowledge,

one might pinpoint, in a more reliable way, the results

expected, given that the comparisons between human

perception and the computational perception could be

better analyzed. That is, the validation of the tests

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

210

was based on the knowledge of the tester on the pe-

ople about to be compared, with the result calculated

by the similarity algorithm.

The analysis consists of considering aspects rela-

ted to the concentration area each individual dwells

in the academic domain. It was possible to see that

the percentage of similarity in the comparisons had

higher concentrations and increase trends amongst the

individuals that belonged to the same semantic group

of bibliographical outputs.

The result from the application of the algorithm

to 15 target individuals and the distribution of the per-

centage according to one’s adherence to the individual

set as the base one is shown on Table 1. It is possible

to see the relation of one single base individual with

15 target individuals, named Target 1 to Target 15.

The Lattes ID is the identiﬁer element of the in-

dividual as registered with the Curriculum Lattes da-

tabase, the concentration area represents the domain

one is predominant, as related to one bibliographical

production and academic life, based on one’s degree

qualiﬁcation, research lines, master’s degree, docto-

rate, teaching experience, thesis advisory work, exa-

mination boards, etc. Based on such information on

the area do knowledge the individual is inserted in, the

algorithm allows comparing and attributing a score to

those that are the closest within a given concentration

area.

The next column is the number of production

items found and extracted from the Curriculum Lat-

tes for each individual. With this number, a number

for how many comparisons will be made is arrived at,

as the total of comparisons is the Cartesian product

found between the number of bibliographical outputs

of the base individual against those of the target indi-

vidual.

The number of equal terms column is ﬁlled after

the execution of the process, which captures the num-

ber of equal occurrences found between the terms and

their respective synonyms.

The percentage is shown for adherence or simi-

larity for the individuals under comparison. This re-

sult comes from applying the formulation found in the

section on the algorithm formula presentation.

The concentration area of the base individual is

within the scope of the Software are, that is, it en-

tails a domain related to Information Technology (IT)

in general, to include Computer Science, Informa-

tion Science, Software Engineering, Computer Engi-

neering, or any other areas that may relate semanti-

cally with information, with software, and systems,

amongst others.

Table 1 has nine of the ﬁfteen individuals in this

area. In analyzing this, evidence is found that approx-

imate the other individuals characterized in their Soft-

ware knowledge area, as shown in the Table, with the

base individual also belonging to this domain.

This conﬁguration produces a result that tends to

higher values for the respective individuals. This pre-

dominance is explained by the fact that they share in-

formation that covers one same sampling realm, whet-

her the exclusive term comes from the name of the bi-

bliographical output or from a synonym derived from

such original term.

Target individuals 7, 8 and 13 had the highest per-

centages for similarities. As it was to be expected,

these individuals are from the Software domain, as

much as the base individual, and share common ideas;

the algorithm pointed that there is a higher concentra-

tion in similarity than with the other individuals com-

pared.

The remaining target individuals from other con-

centration areas had their percentage within a range

below those individuals from the software area. The

explanation for this lies in the fact that they not have

information in the outputs that are similar or that deal

with the same academic domain set with some degree

of connection between them.

It should be noted here that there is a likelihood

where individuals apparently are part of a completely

opposite area, and have a high similarity percentage.

For example, one case of a research psychologist who

searches for software capable of assisting with the tre-

atment and monitoring of patients. Or still, of a libra-

rian who seeks to innovate on the automation of as-

sets and aims at obtaining or proposing applications

to such an end.

The evidence for these cases is seen should out-

puts be published and should they be added to the

Curriculum Lattes database of such members.

This analysis can be replicated to people or to

groups of people who are unknown to each other, ai-

med at ﬁnding out and measuring similarities based

on the bibliographical production.

It is possible to see that the evidence is satisfac-

tory to allow concluding that: given a set of people,

there is a degree of adherence amongst them, calcula-

ted from their bibliographical production. And such

an adherence may vary according to the area of kno-

wledge an individual is inserted in.

This test was validated, based on the personal kno-

wledge found amongst the individuals compared and,

by attesting that the values found match and are alig-

ned with the reality observed.

Given that the tests pointed to such conclusion, it

can be replicated to a larger number of elements of

the set of individuals, which will display the same re-

sult trend, for people that share the scope of a simi-

Similarities Building a Network between Researchers based on the Curriculum Lattes Platform

211

Table 1: Result from the execution of the algorithm to calculate the similarity percentage amongst individuals ( 1st Scenario).

No. of No. of %

Individuals Lattes ID Concentration Area Production Equal Similarity

Items Terms

Base Individual

Base 0468265522433921 SOFTWARE 20

Target Individuals

Target 1 0395549254894676 SOFTWARE 19 85 4,47

Target 2 8424412648258970 CIVIL 22 4 0,18

Target 3 6753551743147880 ELECTRONICS 18 6 0,33

Target 4 1196380808351110 SOFTWARE 37 75 2,03

Target 5 2105379147123450 SOFTWARE 12 40 3,33

Target 6 7610669796869660 SOFTWARE 53 238 4,49

Target 7 0580891429319047 SOFTWARE 17 191 11,24

Target 8 9950213660160160 SOFTWARE 18 342 19,00

Target 9 1700216932505000 SOFTWARE 11 47 4,27

Target 10 0255998976169051 MEDICINE 99 4 0,04

Target 11 2443108673822680 ELECTRICAL 23 8 0,35

Target 12 7844006017790570 SOFTWARE 13 3 0,23

Target 13 2187680174312042 SOFTWARE 111 1649 14,86

Target 14 0571960641751286 POWER 38 17 0,45

Target 15 8075435338067780 PHYSICS 11 15 1,36

lar knowledge. With the goal of certifying and ma-

king the results reliable, other tests were carried out,

seeking to diversify the control scenario between the

domain of knowledge between the academic proﬁles

at the University of Bras

ılia (UnB).

Table 2 shows another situation, namely the base

individual randomly chosen amongst the lecturers of

the Software Engineering school of the UnB, at the

Gama campus. The other members were also rand-

omly chosen for the purposes of comparison, also at

the Gama campus and at other University of Bras

ılia

departments.

They included 5 proﬁles in the concentration area

of software, 2 from Portuguese language, 2 from the

School of Economics, 2 from Electrical/Electronics

Engineering, 2 from Civil Engineering, 1 from the

Scenic Arts, and 1 from the School of Sociology, as

shown on the said table, totaling 15 target individuals.

Algorithm processing showed that the base indi-

vidual has his best approximation in terms of simila-

rity with target Individual 8, also from the Course of

Software Engineering. Without even going into the

details of one’s bibliographical production, it is pos-

sible to see a link, even in the name of the course, but

the algorithm does not only take that into account but

the context of the academic career between compared

proﬁles, which can yield higher similarity indexes.

As regards the individual who drew the closest to

the base individual, it is possible to pinpoint the lar-

gest concentration of bibliographic production items

included in the same scope of production, of develop-

ment, of study, and of research for both proﬁles.

The second target proﬁle in high similarity with

the base individual was number 10. It is also pos-

sible to see that the said proﬁle is in the sane large

knowledge area of Software and has bibliographical

production items that share the same semantics ex-

changed between them in conversations.

It is possible to see that they deal with different

subjects in their concentration areas and production

items, but the algorithm points that there is a seman-

tics between them. Even if it is just for some terms,

when comparing in the generals sense of all publica-

tions, a higher similarity trend is attributed.

It is important to consider, for the purposes of cal-

culation, that there is a variation, or margin, above or

under the ﬁgure presented. It may vary, according to

the tests, at approximately 3%. This variation is ex-

plained by the random selection of the terms that will

be analyzed with the algorithm. Every execution can

use terms different from the previous one.

Thus, there was the adherence expected amongst

the people with similar concentration areas. It is

worth mentioning that the result allows concluding

that the individuals with a higher percentage have af-

ﬁnities in the bibliographical production, being in a

similar context, though not necessarily equal.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

212

Table 2: Result from the execution of the algorithm to calculate the similarity percentage amongst individuals ( 2nd Scenario).

No. of No. of %

Individuals Lattes ID Concentration Area Production Equal Similarity

Items Terms

Base Individual

Base 5685720614944773 SOFTWARE 11

Target Individuals

Target 1 5176634535321377 SOCIOLOGY 31 34 1,99

Target 2 3594383262391290 PORTUGUESE 54 6 0,20

Target 3 7201356664034110 PORTUGUESE 7 10 2,60

Target 4 4731226594888669 ECONOMICS 7 14 3,64

Target 5 1409988766720310 ECONOMICS 18 0 0,00

Target 6 2831991076751450 SOFTWARE 5 1 0,36

Target 7 9554285834432090 SOFTWARE 21 81 7,01

Target 8 5685720614944773 SOFTWARE 6 135 40,01

Target 9 4739013535126460 ELECTRICAL 35 9 0,47

Target 10 2193972715230641 SOFTWARE 37 478 23,49

Target 11 0716559775355685 SOFTWARE 26 32 2,24

Target 12 1386396456867680 ELECTRONICS 9 19 3,84

Target 13 3770883410480180 CIVIL 73 86 2,14

Target 14 0980291033230862 CIVIL 51 138 4,92

Target 15 2723749173803350 SCENIC ARTS 35 100 5,19

5 CONCLUSION

Based on the foregoing and on the starting hypothe-

sis that it was possible to obtain some percentage of

adherence amongst the proﬁles of the academic com-

munity at the University of Bras

ılia, a process was de-

vised that could prove and validate the initial questi-

ons on the existence of a connection between proﬁles

that were unknown and randomly selected, as well as

demonstrate the quantiﬁcation, comparison and deﬁ-

nition of how similar they are.

The result was obtained from consultations in the

ontology created, based on the structure found in the

Curriculum Lattes database. The ontology is a signiﬁ-

cant step towards the implementation of the Semantic

Web, allowing the making of inferences, adding va-

lue to machine reasoning, to allow them to differenti-

ate people who talk about subjects that are not exactly

equal, but that are similar as they belong to one same

concept domain, as postulated by the Semantic Web.

We took the set of individuals registered with the

knowledge base of the Curriculum Lattes Platform

into consideration, as it contains the blocks of ele-

ments on the bibliographical production and also jus-

tify the origin of the data to be compared. The al-

gorithm developed allows inferring the existence of a

certain degree of relationship and similarity amongst

the bibliographical production items registered by

such members.

This degree can vary, according to the level of si-

milarity found in the individual comparison between

a proﬁle set as base individual whilst the others are

targets. The results lead to the conclusion that the

highest values between two proﬁles are shown to be

the most adherent as regards the lowest values.

Intermediate values are aligned with a relationship

of production in the middle range, containing some si-

milarities, but no conclusion can be made as to whet-

her they are from the same area or not or if they have

big afﬁnities. The lowest values in the scale show that

the academic connections are increasingly farther and

that is directly proportional to the number of similar

terms found, making them more distant from the per-

centage of similarity.

The higher the number of blocks of elements

found in the Curriculum Lattes database that are

considered in the comparisons, which produce equal

occurrences, the greater the potential is for the per-

centage of similarity to increase, allowing one to infer

that the proﬁles compared are aligned in the Univer-

sity.

Having analyzed the test blocks and compared

them with the Curriculum Lattes of the individuals

registered with the Lattes platform, it is possible to

prove that the values pointed by the algorithm pro-

vide a reliability margin between the result presented

and the database consulted, thus validating the initial

perspective of the proposal.

Similarities Building a Network between Researchers based on the Curriculum Lattes Platform

213

As a result, this work has been important for the

academic community as it presents the implementa-

tion of a solution that calculates the similarity percen-

tage amongst individuals, according to one’s career

in the Academy. It contributes to the identiﬁcation

of lecturers who have the highest similarity with one

another and gives margin for the knowledge that ex-

ists between them, even allowing their cooperation in

the same knowledge area.

REFERENCES

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The

semantic web. Scientiﬁc American, pages 35–41.

Chalco, M., Pascual, J., Junior, C., and Marcondes, R.

(2009). Scriptlattes: an open-source knowledge ex-

traction system from the lattes platform. Journal of

the Brazilian Computer Society, 15(4):31–39.

da Costa, A. P. and Yamate, F. S. (2009). Semantic Lattes:

Uma Ferramenta de Consulta de Informaes Acadłmi-

cas da Base Lattes Baseada em Ontologias. Under-

graduate thesis, Escola Politcnica da Universidade de

So Paulo.

de Oliveira, A. V. (2011). Introduo a web semntica, on-

tologia e mquinas de busca. Revista Tecnologias em

Projeto, 2(1):7–10.

Galego, F. E. and Renata, W. (2013). Extrao e Consulta de

Informaes do Currculo Lattes Baseadas em Ontolo-

gias. Master thesis, Universidade de So Paulo (USP).

Hendler, J., Berners-Lee, T., and Miller, E. (2002). In-

tegrating applications on the semantic web. Jour-

nal of the Institute of Electrical Engineers of Japan,

122(10):676–68.

Luna, J., Revoredo, K., and Cozman, F. (2013). Link pre-

diction using a probabilistic description logic. Journal

of the Brazilian Computer Society, 19(4):397–409.

Shadbolt, N., Hall, W., and Berners-Lee, T. (2006). The se-

mantic web revisited. IEEE Intelligent Systems Jour-

nal, 21(3):96–101.

Siddiqui, F. and Alam, M. A. (2011). Web ontology lan-

guage design and related tools: A survey. Journal of

Emerging Technologies in Web Intelligence, 3(1):47–

59.

Sudeepthi, G., Anuradha, G., and Babu, M. S. P. (2012). A

survey on semantic web search engine. IJCSI Interna-

tional Journal of Computer Science Issues, 9(1).

Zhao, Y., Si, H., and Lang, Q. (2014). Knowledge sharing in

virtual community based on rdf triple publication and

retrieving to process spqrql query. Journal of Soft-

ware, 9(7):1941–1951.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

214
