Modeling a Tool for Conducting Systematic Reviews Iteratively

Brice Bigendako and Eugene Syriani

DIRO, Universit

e de Montr

eal, Montr

eal, QC, Canada

Keywords:

Systematic Literature Review, Model-driven Engineering, Automatic Installation.

Abstract:

Conducting systematic reviews (SR) is a time-consuming endeavor that requires several iterations to setup

right. We present ReLiS, a tool to automatically install and conﬁgure SR projects to conduct them collabora-

tively and iteratively on the cloud. ReLiS is engineered following a model-driven development approach. It

features a domain-speciﬁc modeling editor tailored for researchers who perform SR and an architecture that

enables on-the-ﬂy installation and (re)conﬁguration of multiple concurrently running SR projects.

1 INTRODUCTION

Publishing systematic reviews (SR) in areas of sci-

ence and engineering (e.g., software engineering,

medecine, social sciences) is considered essential in

research communities (Thomas et al., 2010). Such

secondary studies must be performed in a system-

atic and repeatable way, as proposed by guidelines

(Kitchenham and Charters, 2007). SR are difﬁcult

and time consuming to conduct. In most cases, re-

searchers perform the process manually, with no tool

support (Imtiaz et al., 2013). A few SR tools exist to-

day (e.g., StArt, Parsifal, and EPPI-Reviewer) to help

manage references, perform screening, collect meta-

data, and report results of the study.

A recent community study identiﬁed a pressing

need for better tool support (Hassler et al., 2016).

One key feature of SR tools is the ability to cope with

the collaborative and iterative process of SR. Hence,

it is crucial that an SR tool can modify the SR pro-

tocol on-the-ﬂy and reconﬁgure itself. Web appli-

cations offer a convenient technological foundation

for such ﬂexibility. However, they mainly lack ﬂex-

ibility on several ends: no iterative process is sup-

ported by piloting SR and they have a rigid conﬁg-

uration of projects that are hard to change (adding

validation phases, advanced data extraction forms).

This is where model-driven development (MDD) can

help by automatically synthesizing applications from

a domain-speciﬁc model (Kelly and Tolvanen, 2008).

In this paper, we follow an MDD approach to au-

tomatically conﬁgure and reconﬁgure an SR tool in

order to reach the desired protocol and adapt to the

needs of the secondary study. We have developed the

framework ReLiS

, which offers an integrated envi-

ronment based on a domain-speciﬁc language (DSL)

for installing and conﬁguring SR projects so that a

group of researchers can conduct a SR collaboratively

using an application customized to their desired re-

search topic. The contribution of ReLiS is the holistic

solution to not only manage the SR process by track-

ing progress and storing related data, but also in its

ﬂexibility to conﬁgure SR projects.

In Section 2, we brieﬂy outline how SR are

conducted and how this is performed in ReLiS. In

Section 3, we explain how we use domain-speciﬁc

modeling and MDD to deﬁne conﬁgurations for SR

projects. Then, in Section 4, we describe the architec-

ture that enables the deployment of online SR projects

in ReLiS. In Section 5, we present a preliminary eval-

uation of ReLiS. We discuss related work in Section 6

and conclude in Section 7.

2 CONDUCTING SYSTEMATIC

REVIEWS

SR is a research strategy used to extract new knowl-

edge from existing studies. It follows a well-deﬁned

process with a rigorous planning and methodological

execution to ensure unbiased results with a repeat-

able and auditable study. An SR can take the form

of a systematic literature review (SLR) to evaluate

and interpret all available studies relevant to a par-

ticular research question, topic area, or phenomenon

of interest (Kitchenham and Charters, 2007). It can

http://relis.iro.umontreal.ca/.

552

Bigendako, B. and Syriani, E.

Modeling a Tool for Conducting Systematic Reviews Iteratively.

DOI: 10.5220/0006664405520559

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 552-559

ISBN: 978-989-758-283-7

studies

Manual by user

Automatic in tool

Report

Validate

data

extraction

Assign

validation

Extract

data

Assign

data

extraction

Validate

Assign

validation

Exclude

low

quality

studies

Assess

Quality

Assign

Validate

screening

Assign

validation

Resolve

conflicts

Detect

conflicts

Screen

studies

Assign

screening

Import

Studies

Generate

SR Project

Define

Protocol

Validate?

[no]

[yes]

[no]

[yes]

Data

synthesis

Planning

phase

Screening phases

QA phase Data extraction phase

Synthesis

Reporting

phase

Screening phase?

Validate? Validate?

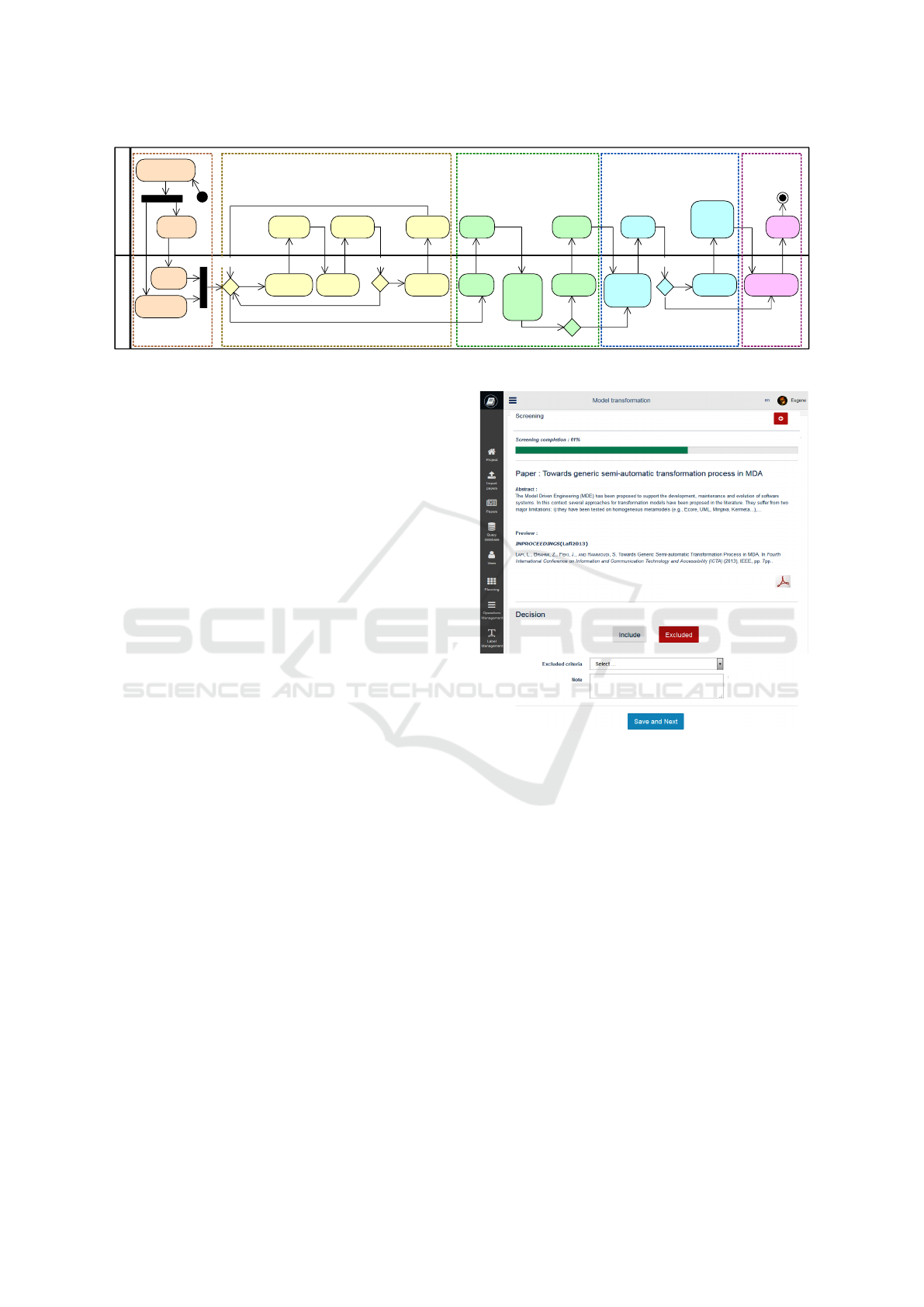

Figure 1: SR process in ReLiS.

also take the form of a systematic mapping studies

(SMS) to provide a wide overview of a research area

by classifying and performing a thematic analysis on

the topic (Petersen et al., 2008). Although these two

types of secondary studies have different intentions,

they share many commonalities in the way they are

conducted. The process of conducting SR is sepa-

rated into three phases consisting of actions to be per-

formed iteratively. The three phases are planning the

study by developping the protocol to follow, conduct-

ing the review by screening primary studies and ex-

tracting the relevant data, and reporting the results of

the analysis of the data.

2.1 SR Process in ReLiS

Figure 1 illustrates a typical workﬂow to use ReLiS

following proposed guidelines. The user starts by

planning the SR and sets up a project in ReLiS. He

creates a SR project by deﬁning a conﬁguration model

(detailed in Section 3) that automatically installs the

project on the cloud: a web application on the web

server and a dedicated database. The model plays

the role of the protocol of the SR and customizes the

steps of how the review will be conducted. As SR are

collaborative endeavors, the user can add participants

who will be conducting the review. Different roles can

be assigned, such as reviewers, validators, or project

managers, giving them increasing access rights.

Researchers search for primary studies outside

ReLiS, by querying digital libraries directly. After ﬁl-

tering them, they can import them in their BibTeX,

EndNote or CSV formats. ReLiS stores the meta-

information of each paper (e.g., title, abstract, author,

venue, year) and a link to the full text. Each imported

study is tagged with its source and search strategy.

As soon as papers are in ReLiS, the participants

can start screening the corpus and decide which paper

to include or exclude, as depicted in Figure 2. Each

paper can be assigned automatically and randomly to

a ﬁxed number of reviewers. ReLiS automatically de-

Figure 2: Screening form.

tects conﬂicting decisions between reviewers of the

same paper, so that they can resolve them according

to the strategy deﬁned in the protocol. ReLiS sup-

ports multiple screening phases that each show spe-

ciﬁc meta-information.

Following the questions and answers deﬁned in

the conﬁguration model for quality assessment (QA),

ReLiS generates forms to assess the quality of in-

cluded studies. Studies are assigned to participants

with the validator role for assessment. ReLiS auto-

matically calculates the score of each study and ﬂags

low quality ones for exclusion.

ReLiS automatically generates the data extraction

forms from the conﬁguration model. Reviewers read

through each paper and ﬁll the online form to clas-

sify or highlight relevant information of each retained

paper, as depicted in Figure 3. Like for screening,

papers can be automatically assigned to reviewers for

data extraction.

From this information, reviewers can explore the

Modeling a Tool for Conducting Systematic Reviews Iteratively

553

Figure 3: Generated data extraction form from Figure 5.

quantitative results in the form of graphs, charts and

tables in ReLiS. All the extracted data can be exported

to a CSV ﬁle to be used in more advanced statistical

tools (e.g., SPSS, Mplus, R, Excel). ReLiS can also

generate a partial report of the protocol: all the steps

effectively conducted during the SR.

If needed, ReLiS allows validators to validate re-

sults of the screening, QA or data extraction. It se-

lects a percentage of the processed papers at the corre-

sponding phase and randomly assigns them to another

reviewer for validation. The tool tracks the progress

and reports basic statistics for each phase, rendered as

tables and plots that can be exported for further anal-

ysis and used to produce the report of the review. Fur-

thermore, ReLiS supports an iterative process: new

papers can be imported at any time, project managers

can disable or re-enable a completed phase, and they

can modify the conﬁguration of the project at any time

(e.g., modifying exclusion criteria or the classiﬁcation

scheme). ReLiS supports the conduction of SLR or

SMS. Screening and QA are optional, for example if

the researcher only wants to collect data from a known

set of studies.

3 FLEXIBLE CONFIGURATION

OF SR PROJECTS

We motivate the use of MDD to conﬁgure SR projects

and present how we applied it in ReLiS.

3.1 MDD for SR Project Conﬁguration

Our goal is to give the ﬂexibility to users to conﬁg-

ure and install projects by themselves without prior

system administration skills. This is particularly use-

ful for SR tools when the SR process is iterative, be-

cause it is often impossible to plan the right proto-

col correctly from the beginning. The protocol needs

to be adapted as special cases are encountered dur-

ing screening and data extraction. First conducting a

pilot study is usually recommended to make sure all

participants have the same understanding of the pro-

tocol (Staples and Niazi, 2007).

Existing tools allow conﬁguration via wizards

which is good for parameterizing but does not offer

ﬂexibility to change the semantic of the project. By

using MDD, the process focuses on what varies in the

general guideline to a particular SR protocol. With

MDD, we can simplify the conﬁguration process of

an SR project, by letting users specify a conﬁguration

model that abstracts the speciﬁcations common to all

SR projects as well as the details related to underly-

ing implementation and infrastructure. Consequently,

users can perform minimal changes to the model to

adapt the conﬁguration, but this may have a signiﬁ-

cant impact on implementation (data base, code and

available functionalities), which remains seemless to

the user thanks to automatic code generation.

For these reasons, we opted for a MDD approach

by deﬁning a DSL, which allows the user to edit how

the components speciﬁc to SR projects shall be con-

ﬁgured. To support this—possibly iterative—process,

users can customize the SR procedure in a controlled

way. The steps common to any SR procedure are

built-in ReLiS, with some level of customization,

such as the way conﬂicts are detected and resolved

during the screening phase. Furthermore, some steps

are speciﬁc to the particular SR project and to the re-

search question or area, e.g., the classiﬁcation scheme

and data extraction form.

3.2 Conﬁguration DSL

In the planning phase, the SR project is conﬁgured in

ReLiS through a DSL. We deﬁne the metamodel of

the DSL presented in the class diagram in Figure 4.

It offers customizations points to the process outlined

in Section 2.1. The central entity is the SR Project

identiﬁed by a unique name. It is composed of four

main elements.

When a Screening step is desired, the user can

conﬁgure how papers are assigned to reviewers, inclu-

sion and exclusion criteria. He can also deﬁne what

happens in case of conﬂict decisions among review-

ers of the same paper. Two types of conﬂicts are

supported: either if one reviewer excludes a paper

that another has included, or if the exclusion criteria

do not match. A screening conﬂict of a paper is re-

solved either by having a unanimous decision among

reviewers or if the majority agree. If the validation

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

554

name : ID

title : string

Project

reviews_per_paper : int = 2

exclusion_criteria : string

inclusion_criteria : string

conflict_type : ConflictType = IncludeExclude

conflict_resolution : ConflictResolution = Unanimous

validation_percentage : int = 20

validation_assignment_mode : AssignmentMode = Normal

Screening

DataExtraction

name : ID

title : string

mandatory : boolean

number_of_values : int = 1

Category

cutt_off_score : int

text : string

Question

value : string

score : int

Answer

1..*

0..1

compare

sub_categories

0..1

1 depends_on

Normal

Veto

Info

<<enumeration>>

AssignmentMode

Majority

Unanimous

<<enumeration>>

ConflictResolution

IncludeExclude

ExclusionCriteria

<<enumeration>>

ConflictType

Title

Abstract

Paper

Author

Field

Number

Text

String

Boolean

Decimal

Date

SimpleType

title : string

description : string

fields : Field [1..*]

Phase

Bar

Pie

Line

<<enumeration>>

ChartType

<<enumeration>>

0..1

1..*

<<enumeration>>

Reference

DependantDynamicCategory

type : SimpleType = String

pattern : string

max_char : int

initial_value : string

FreeCategory

StaticCategory

reference_name : string

IndependantDynamicCategory

value : string

Value

2..*

initial_values

Note

CompareGraph

Synthesis

name : ID

title : string

Chart

chart : ChartType [1..*]

1..*

base

Figure 4: Project conﬁguration metamodel.

of a screening phase is enabled, the user can deﬁne

what proportion of the excluded papers will be vali-

dated randomly. He can also state how the decision

of the validator is to be treated: as another voting re-

viewer, whether his decision overrides all others, or it

is simply used to notify the other reviewers. It is pos-

sible to conﬁgure the screening iteratively into phases

where speciﬁc (meta-)information of each paper will

be available to the reviewer. Screening is optional in

ReLiS to support the use case when the user has al-

ready selected his papers and is only interested in ex-

tracting data from them.

When a QA step is desired, the user has to deﬁne

the questions and the possible answers (associated

with a score) to build the QA check-list for each in-

cluded paper. A cutt off score identiﬁes the mini-

mum score for which papers are considered of accept-

able quality.

The DataExtraction deﬁnes what categories to

collect in the form of each paper. For instance, this

corresponds to the classiﬁcation scheme of a SMS.

The metamodel supports four type of categories. A

FreeCategory allow users to freely enter a value,

subject to a speciﬁc type (text, boolean choice, nu-

merals, etc.) or to some additional constraints (length,

regular expression, etc.). A StaticCategory offers

to choose a value from a predeﬁned list of values,

the list cannot be updated while conducting the re-

view. An IndependantDynamicCategory is like a

StaticCategory, but the list can be updated during

the SR process. A DependantDynamicCategory is

similar to the former, but the allowed values must

come from values entered for another category. Each

category is identiﬁed by it name. It can have a single

or multiple values, and can also be mandatory to ﬁll

in the form. A category be more complex and contain

subcategories, in which case a distinct form will be

generated for it.

Finally, the project may specify a data Synthesis

to deﬁne how the extracted data will be synthesized

into charts. Various chart types are supported. A chart

may render data from a single category or plot the

relation between data from different categories.

3.3 SR Project in ReLiS

Figure 5 shows the online editor in ReLiS of the con-

ﬁguration model that was used to generate the project

for a SMS on model transformation. That model is

an instance of the metamodel presented on Figure 4.

We chose to use a textual concrete syntax because the

conﬁguration follows a linear layout (following each

phase) and to improve editing of the model (e.g., copy,

paste).

In this SMS, the study selection shall be con-

ducted in two screening phases (lines 8–10). A ﬁrst

phase screens papers according to their title only, fol-

lowed by a second phase where the title, abstract and

a link to the full content of the paper is available. Fig-

ure 2 shows the screening form generated for the sec-

ond phase.

There is also a QA phase (lines 12–15) with two

question and three possible answers per question for

each paper. If the sum of the answer values is below

5 for a paper, then it will be considered low quality.

The following section conﬁgures the data extrac-

tion form generated in Figure 3. Line 18 generates

a text ﬁeld to collect the name of a model transfor-

Modeling a Tool for Conducting Systematic Reviews Iteratively

555

PROJECT mt "Model transformation"

SCREENING

Reviews 2

Conflict on Criteria resolved_by Unanimity

Exclusion Criteria = [ "Less than 4 pages","Not using model transformation" ]

Validation 20% Normal

Phases

"Phase 1" "Screen per title"Fields(Title) ,

"Phase 2" "Screen per title and abstract " Fields(Title, Abstract, Paper)

Questions =[ "Does the study have validation?","Are RQs cleary stated?" ]

Answers=[ "Yes":3 , "Partially":1.5 , "No":0 ]

Min_score 5

DATA EXTRACTION

Simple transformation_name "Transformation name"* [1] :string(100)

DynamicList trans_language "Transformation Language"* [1]=["Motif","ATL","Henshing","QVT"]

List scope "Scope" [1] =["Exogenous","Inplace","Outplace"]

Simple bidirectional "Bidirectional" :bool

DynamicList intent "Intent" * [0] = [ "Translation", "Simulation", "Migration" ] {

Simple name_used "Name used by the author" * :string(100)

}

DynamicList intent_relation "Intent relation" * [0] "Relation" = [ "Sequence", "Inverse" ] {

DynamicList intent_1 "Intent 1" * depends_on intent

DynamicList intent_2 "Intent 2" * depends_on

note

}

note

SYNTHESIS

1dChart scope "Scope" on scope charts(Pie, Bar)

2dChart year_scope "Scope per year"on scope per year charts(Line)

bidrectional i i[FreeCategory]

intent ii[IndependentDynamicCategory]

intent_1 i i[DependentDynamicCategory]

intent_relation [IndependentDynamicCategory]

scope i i[StaticField]

trans_language [IndependentDynamicField]

transformation_name g ii[FreeCategory]

Figure 5: Project conﬁguration model in ReLiS in its textual concrete syntax.

mation with at most 100 characters. It is a manda-

tory ﬁeld (with the ‘*’) and can only have a sin-

gle value (‘[1]’). The transformation language ﬁeld

on line 19 is an IndependantDynamicCategory pre-

populated with a list of four language names. Line

20 generates a drop down list (StaticCategory) to

collect the scope of the transformation which must

be one of three choices. The intent relation ﬁeld

has subcategories (between ‘{...}’) (line 25). It is

allows for an arbitrary number of values (‘[0]’).

On line 26, it has a subcategory Intent 1 that is

a DependantDynamicCategory for which the value

must be one of those entered for the Intent ﬁeld on

line 22. ReLiS comes with predeﬁned categories that

can be reused, such as note (line 30).

The data synthesis is speciﬁed in lines 34–36. The

ﬁrst statement will synthesize data extracted for the

scope into a bar chart and a pie chart. The second one

will synthesize data for the scope on the Y-axis per

year on the X-axis.

3.4 Generation of a Conﬁguration

We implemented the DSL with a textual concrete

syntax using Xtext (Bettini, 2013). The model ed-

itor is completely integrated inside ReLiS thanks to

DSLFORGE (Lajmi et al., 2014) which generates on-

line lightweight text editors from an Ecore metamodel

and an Xtext grammar.

To install projects in ReLiS, we developed a

template-based code generator in Xtend (Bettini,

2013) to produce the installation ﬁle from the model,

as illustrated in the bottom part of Figure 6. This pro-

cess initiates the installation of the project in ReLiS.

The presented approach ensures a natural continuum

to the user who can operate the tool for its intended

purpose (i.e., conducting SR), as well as instantly in-

stall new projects or reconﬁgure existing ones.

4 ARCHITECTURE TO

RECONFIGURE PROJECTS

Apart from supporting SR activities, a tool for SR has

to allow collaboration among researchers and manage

tenancy of multiple SR projects.

Common web content management systems

(CMS), e.g., Joomla, follow a Model-View-Controller

(MVC) architecture. However, the traditional MVC

implemented in CMS has two issues. First, as pointed

in (Priefer et al., 2016), this architecture brings a

certain overhead and schematically redundant code

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

556

which requires more effort in manually developing

these extensions. Second, it requires to manually in-

stall the extensions and link them to the CMS. This

means that every time one needs to change a function-

ality that is beyond simple user interface customiza-

tions, the user needs to re-install the extension. To

solve these issues, we implemented a dynamic MVC

architecture, illustrated in Figure 6.

4.1 Dynamic MVC Architecture

Configuration

files

Project

specific

Common

Databases

select + query

generate

read

ReLiS

Project model

Installer

Controller

Installation

file

select + read

select + query

select + bind data

Models

Queries

Views

Page template

Controllers

Dedicated

Entity Manager

Project

specific

Admin

Figure 6: Architecture for dynamic MVC.

On top of models, views and controllers, we added

the concept of entity in ReLiS, which represents the

instances managed by the application (papers, users,

authors, etc.). To ensure reusability and maintainabil-

ity, a particular type of controller is dedicated to man-

aging entities: the entity manager. There is one entity

manager controller for each operation, such as adding,

modifying, removing, listing, or viewing the details of

an entity, parameterized by the entity type. For exam-

ple, a controller is responsible for viewing the details

of the meta-data of a paper (Figure 2), another one for

modifying the classiﬁcation of a paper (Figure 3), and

a last one for listing the results of the classiﬁcation

(e.g., charts). The speciﬁcities of entities are encoded

in entity conﬁguration ﬁles.

An entity conﬁguration speciﬁes the characteris-

tics of an entity. It deﬁnes its attributes (e.g., name, ti-

tle), the models and stored procedures to invoke when

retrieving, adding or updating data, and the way data

will be displayed in web pages with the navigation

logic between entities, i.e., the views.

What makes this MVC architecture dynamic is

that the semantics of controllers is deﬁned in PHP

conﬁguration ﬁles with controllers implemented as

generic PHP classes making them independent from

the entities they operate on: the same controller class

can list all papers and all authors. There are other

controllers dedicated to speciﬁc operations, such as

the installation of projects and user authentication.

The advantage of this architecture is that it allows

to change the application behavior by just using con-

ﬁguration ﬁles. To maximize reuse and modularity,

the architecture of ReLiS contains components com-

mon to all SR projects and components speciﬁc to

individual ones. Common conﬁgurations, which are

built-in ReLiS, include, for example, how papers and

users are conﬁgured. Project-speciﬁc conﬁgurations

include how the data extraction form is conﬁgured.

Although this distinction is useful conceptually, the

architecture does not distinguish them and treats them

alike. This facilitates the integration of new conﬁgu-

rations and databases without having to modify any

of the existing code. Furthermore, the advantage of

using an interpreted language like PHP prevents the

need to re-compile every time a new component is

added.

4.2 On-the-ﬂy Installation of ReLiS

Projects

ReLiS is able to host multiple SR projects operated

concurrently. To add a new SR project in ReLiS, the

user deﬁnes a project conﬁguration model (c.f. Sec-

tion 3) which is automatically generated as an instal-

lation ﬁle. The latter deﬁnes entity types and their

attributes on which entity controllers operate. The

installation ﬁle also describes what information will

be rendered on the screen, constrains the domain of

each attributes, and deﬁnes information relevant to

the database that will store the data of that project.

As depicted in Figure 6, the installer is a controller

that generates the conﬁguration ﬁle corresponding to

the installation ﬁle it reads in. It also creates a new

database for the project, with tables and columns cor-

responding to entities, and the necessary stored pro-

cedures.

ReLiS allows a user to make modiﬁcations to a

project while in operation. The presented architec-

ture makes it relatively easy to add new entities or

attributes (e.g., adding a new category in the data ex-

traction form). However, deletion may corrupt the

data already present in the application. The policy we

adopted for is to only delete elements from a project

if they do not contain any data yet. Otherwise, the

element is deactivated but the data it contains is still

retained in the database. This also allows to revert cer-

tain actions in case of erroneous manipulation. Edi-

tion of elements, such as renaming, are considered

as deletions and additions. Nevertheless, we could

detect changes that do not corrupt the data, such as

augmenting the length of a string in a simple cate-

Modeling a Tool for Conducting Systematic Reviews Iteratively

557

gory. However, performing such detections strongly

couples ReLiS to the underlying database used, which

hampers its portability.

The tool logs all major operations performed by

the user, so he can revert them, e.g., remove a spe-

ciﬁc set of wrongly imported papers or clear the re-

sults of a screening phase, especially when there are a

lot of disagreements in the study selection among the

reviewers.

5 EVALUATION OF RELIS

We have performed a preliminary informal qualita-

tive evaluation of the correctness of the implementa-

tion and the usefulness of the architecture decisions

in ReLiS. In the context of a graduate course on em-

pirical methods in software engineering at our univer-

sity, all students are required to conduct a SMS on

different research topics as part of their project. In the

Fall 2016 edition, there were in total 8 groups of 3

to 4 students with no previous experience in conduct-

ing SR. Students were asked to use ReLiS for their

SMS project. This allowed us to have test subjects

to verify that the tool was functionally correct. This

also gave us the opportunity to assess whether the

category types, to generate the data extraction forms,

built-in ReLiS are sufﬁcient to cover all eight SMS.

All groups used every type of category, but none ap-

plied advanced constraints.

We were also interested in determining how on-

the-ﬂy installation and conﬁguration of projects was

used. For that, we extended ReLiS to log every in-

stallation of projects, while tracking the modiﬁcations

performed in the project-speciﬁc model. We noted

that all re-installations were aimed at improving the

classiﬁcation scheme, since the screening procedure

should be ﬁxed from the beginning and changing it

during the process may bias the SR. Students found

that automatically re-installing their project was very

helpful. This was expected because, during the learn-

ing process, they required several iterations before ar-

riving at the desired classiﬁcation scheme. The most

positive feedback was that they were able to re-install

a modiﬁed project without loosing the information on

papers they had already classiﬁed. However, we noted

a larger amount of deactivated categories than antic-

ipated. We discovered that it was mainly because of

misunderstanding the syntax of the DSL.

6 RELATED WORK

There are several tools designed to support the con-

duction of SR that were surveyed in (Marshall and

Brereton, 2013; Al-Zubidy et al., 2017). Some tools

specialize only in some desirable SR features, such

as reference management and text-mining techniques

to help extract relevant data from papers (Felizardo

et al., 2010). Other tools are more speciﬁc to how

SR are conducted in software engineering and aim to

support the whole SR process. However, they still

have important features not properly supported. Par-

sifal

is the most similar tool to ReLiS. It is an online

tool that allows researchers to conduct only SLR col-

laboratively. However, it only provides simple cat-

egory types for the data extraction forms and does

not support, for instance, dependent lists or subcate-

gories. SLRTOOL (S. Barn et al., 2014) also supports

the whole SR process, but does not allow for multiple

screening phases and requires adding studies manu-

ally. The key difference of all these tools and ReLiS

is the ﬂexibility of modifying the conﬁguration of the

SR procedure on-the-ﬂy, which makes it able to pilot

reviews. It is the only tool that uses MDD to adapt

the tool to a speciﬁc SR by customizing the whole SR

process and to generate the most advanced data ex-

traction forms thanks to that DSL.

(Barat et al., 2017) have used MDD to support SR.

They designed a DSL to represent research literature,

with a metamodel to describe the core concepts of the

review and associated process. However, their DSL is

only used to collect the data of the SR process, not to

generate a tool like ReLiS.

Related to the architecture of our approach, CMS

are very generic frameworks that heavily rely on ex-

tensions developed outside the tool environment, as

discussed in Section 4. ReLiS project conﬁguration

models are designed within ReLiS which requires no

client-side installation of any tool, as it runs com-

pletely in a web browser, and projects are installed

automatically. Base platforms to build web applica-

tions (e.g., Joomla and WordPress) support easy in-

stallation of custom extensions. However, their de-

velopment requires the user to install the appropriate

tooling and programming environment. Also, they are

very generic and provide too many options that are

not used in speciﬁc application domains, such as SR.

The closest work to ours in using MDD for updat-

ing exiting application with on-the-ﬂy installations is

JooMDD (Priefer et al., 2016). It relies on a DSL

where models get automatically generated as Joomla

extensions, in order to raise the level of abstraction

for web extensions development.

https://parsif.al/

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

558

7 CONCLUSION

In this paper, we present ReLiS, a framework to au-

tomatically install and conduct SR projects collabora-

tively on the cloud. Its generic and dynamic architec-

ture allows users to install projects during the process

of a SR without manual intervention. Using MDD, a

web-based modeling editor speciﬁc to SR empowers

users to directly conﬁgure and install their project by

themselves. Compared to other existing tools, ReLiS

covers the most features, but lacks integrated search

of studies, automated text analysis, and keyword ex-

traction. It is freely available to be used online.

Our goal is to make this SR tool accessible to non-

computer science researchers. We therefore plan to

provide a more intuitive syntax for the conﬁguration

DSL and improve the feature coverage of ReLiS.

REFERENCES

Al-Zubidy, A., Carver, J. C., Hale, D. P., and Hassler, E. E.

(2017). Vision for SLR tooling infrastructure: Pri-

oritizing value-added requirements. Information and

Software Technology, 91:72–81.

Barat, S., Clark, T., Barn, B., and Kulkarni, V. (2017).

A model-based approach to systematic review of re-

search literature. In Innovations in Software Engineer-

ing Conference, pages 15–25.

Bettini, L. (2013). Implementing Domain-Speciﬁc Lan-

guages with Xtext and Xtend. Number 2. Packt Pub-

lishing.

Felizardo, K., Nakagawa, E., Feitosa, D., Minghim, R., and

Maldonado, J. C. (2010). An Approach Based on Vi-

sual Text Mining to Support Categorization and Clas-

siﬁcation in the Systematic Mapping. In EASE, pages

34–43. British Computer Society.

Hassler, E., Carver, J. C., Hale, D., and Al-Zubidy, A.

(2016). Identiﬁcation of slr tool needs–results of

a community workshop. Information and Software

Technology, 70:122–129.

Imtiaz, S., Bano, M., Ikram, N., and Niazi, M. (2013). A

tertiary study: Experiences of conducting systematic

literature reviews in software engineering. In EASE,

pages 177–182. ACM.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-Speciﬁc Mod-

eling: Enabling Full Code Generation. John Wiley &

Sons.

Kitchenham, B. and Charters, S. (2007). Guidelines for

performing Systematic Literature Reviews in Soft-

ware Engineering. Technical Report EBSE 2007-001,

Keele University and Durham University Joint Report.

Lajmi, A., Martinez, J., and Ziadi, T. (2014). DSLFORGE:

Textual Modeling on the Web. In Demonstrations at

MODELS, volume 1255. CEUR-WS.org.

Marshall, C. and Brereton, P. (2013). Tools to Support Sys-

tematic Literature Reviews in Software Engineering:

A Mapping Study. In ESEM, pages 296–299. IEEE.

Petersen, K., Feldt, R., Mujtaba, S., and Mattsson, M.

(2008). Systematic Mapping Studies in Software En-

gineering. In EASE, pages 68–77. British Computer

Society.

Priefer, D., Kneisel, P., and Taentzer, G. (2016). JooMDD:

A Model-driven Development Environment for Web

Content Management System Extensions. In ICSE

Companion, pages 633–636. ACM.

S. Barn, B., Raimondi, F., Athappian, L., and Clark, T.

(2014). Slrtool: A tool to support collaborative sys-

tematic literature reviews. In ICEIS, volume 2, pages

440–447. SCITEPRESS.

Staples, M. and Niazi, M. (2007). Experiences using sys-

tematic review guidelines. Journal of Systems and

Software, 80(9):1425–1437.

Thomas, J., Brunton, J., and Graziosi, S. (2010). EPPI-

Reviewer 4.0: software for research synthesis. Tech

report, University of London, EPPI-Centre, Social

Science Research Unit, Institute of Education.

Modeling a Tool for Conducting Systematic Reviews Iteratively

559
