Graphicuss

Temporal Visualisation of Canvas Creation Processes

Tenshi Hara

, Anastasia Iljassova

2, ∗

, Iris Braun

and Felix Kapp

1,2

Faculty of Computer Science, Chair of Computer Networks, Technische Universit

at Dresden, Dresden, Germany

Faculty of Psychology, Chair of Learning and Instruction, Technische Universit

at Dresden, Dresden, Germany

Keywords:

Graphical Discussion, Guided Discussion, Graphicuss, Temporal Information.

Abstract:

The use of graphical models to describe complex topics is very common in teaching, helping students build an

adequate model of knowledge presented. Often, students discuss open questions on-line in forums. Backtrack-

ing of errors conducted during the creation process is hard. The individual steps of developing a solution – the

temporal information – are lost. Graphicuss combines concepts of textual discussion systems and graphical

feedback systems. It fosters better discussions and comprehension through access to the temporal information

of canvases. Especially self-regulated learning beneﬁts from the addition of temporal information; students’

skill acquisition capabilities are ampliﬁed. Yet, an intuitive representation of temporal information is still re-

quired. Based on image and video processing, we investigated existing metaphors for temporal information.

A series of user studies emphasises the differences of the metaphors in varying use-cases and strongly points

at a candidate suitable and feasible for PCs as well as mobile devices.

1 INTRODUCTION

In computer science lectures the use of graphical

models to describe complex algorithms and correla-

tions is very common. It is very important for the stu-

dents to build an adequate model of the knowledge

presented in the lecture. If the students have any

questions after the lecture, they can discuss them in

a forum like auditorium

(Beier et al., 2014), Stack-

Overﬂow

, or others. However, there they can only

use textual descriptions of the problem; they might be

able to quote ﬁgures or pictures in the web, but they

cannot discuss the single steps of developing the ﬁg-

ure or model because they only know the ﬁnal result;

temporal information of the creation process is lost.

Basically, these discussions never recreate the major

advantage of a real-life studying session, namely cre-

ating solutions together step by step, including back-

tracking of errors made in the process.

At CSEdu 2017, we presented our graphical dis-

cussion system Graphicuss (Chen, 2016; Hara et al.,

2017). It combines known concepts of textual dis-

cussion systems and graphical feedback systems into

a single canvas-based application. Treating text and

∗

Student in the CS master’s programme.

https://auditorium.inf.tu-dresden.de

https://stackoverﬂow.com

graphics as mere objects within a canvas allows for

better discussion of concepts through temporal cor-

relation of information in text and graphics. Thus,

it applies known text-based discussion features (e.g.,

quoting) to the graphical level while adding temporal

context. Rather than attaching an invariable image to

a text or to adding new content to an otherwise un-

altered image, Graphicuss enables users to quote up

until any point in time with changes and/or amend-

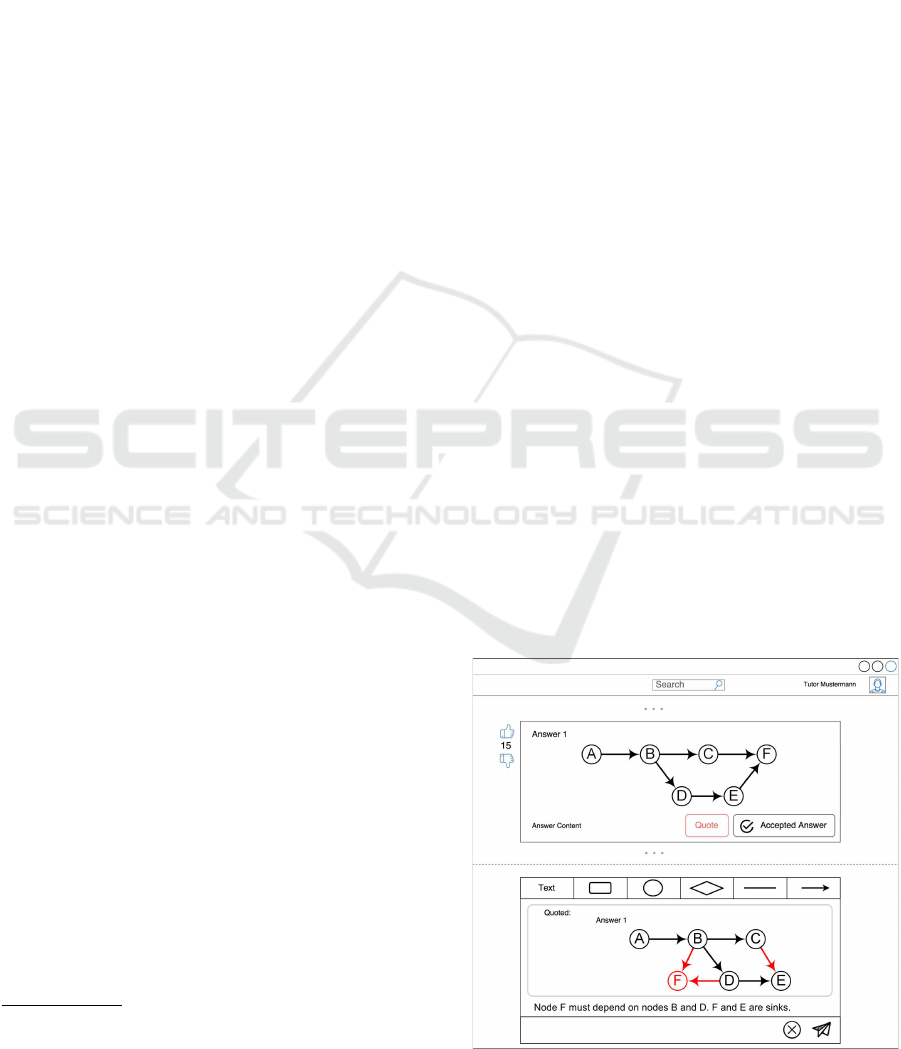

Figure 1: GUI mock-up for Graphicuss.

Hara, T., Iljassova, A., Braun, I. and Kapp, F.

Graphicuss.

DOI: 10.5220/0006680901990204

In Proceedings of the 10th International Conference on Computer Supported Education (CSEDU 2018), pages 199-204

ISBN: 978-989-758-291-2

199

ments thereafter due to the availability of the entire

creation time-line of a canvas. Therefore, Graphi-

cuss provides opportunities for students to give and

receive peer feedback (e.g., (Peters et al., 2017))

on their own or others learning process and learn-

ing products. By combining established didactics

and learning psychology methods with new imple-

mentation concepts, Graphicuss supports students in

mastering self-regulated learning (Zimmerman et al.,

2000). The documentation of the own creation pro-

cess and the ﬁnal representation allows to reﬂect and

self-evaluate ones learning activities and helps correct

misconceptions for subsequent study phases. With re-

gard to peers’ solutions, the addition of temporal in-

formation is of special value for the understanding of

the creation process. Allowing students to compre-

hend a complex canvas step by step by reproducing

the creation process of a peer helps them to create an

adequate mental model themselves.

In (Hara et al., 2017) we focused on prelimin-

ary ﬁndings with respect to basic interface design and

storage requirements; visualisation of temporal infor-

mation was not yet investigated. E.g., Figure 1 depicts

how a temporally partial quotation and amendment of

a canvas can be presented to users after its submis-

sion. However, an intuitive representation of temporal

information is required before and during the quot-

ing process. Thus, based on existing metaphors used

in image and video processing, we investigated can-

didates for temporal representations of progress, edit-

ing state, changes, etc. In this paper we will present

our results of several user studies and propose GUI

guidelines for the representation of temporal creation

information.

2 RELATED WORK

We investigated different representations of temporal

information in the context of text-based discussion

systems (i.e., forums), collaborative editing as well

as visual information hubs (e.g, YouTube

2.1 Forums

Forum systems can be divided into two types: hier-

archical systems (e.g., photo.net Discussions

) and

bulletin systems (a.k.a. ﬂat systems) (e.g., StackOver-

ﬂow

). Both types focus on a speciﬁc representation

of the content. While bulletin systems emphasise the

https://youtube.com

https://www.photo.net/discuss

https://stackoverﬂow.com

(a) Classic

(b) Newest-on-Top

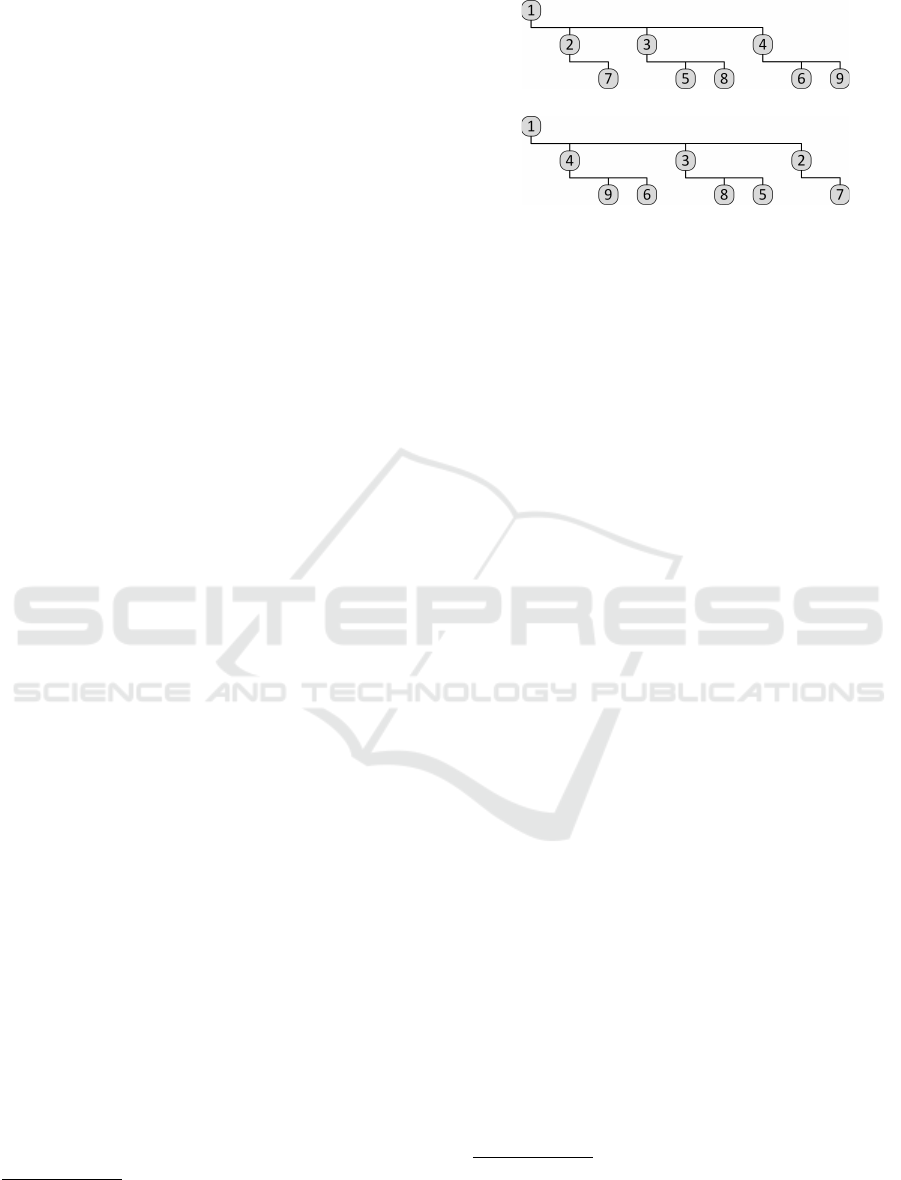

Figure 2: Classic (2(a)) vs newest-on-top threading (2(b)).

importance of topics rather than threads, it is difﬁcult

to extract temporal information with respect to the or-

der of which posting was posted when (of course, the

creation and modiﬁcation time is often displayed, but

the temporal order is not perceivable on a glimpse).

However, associated content is clustered together. In

contrast, hierarchical systems focus on a representa-

tion of the evolution of threads. The real creation his-

tory (time-line, temporal information) is often repres-

ented either as is (cf. 2(a)) or in a highlighted fashion

newest-on-top (cf. 2(b)).

The basic idea behind both types of forum systems

is easily accessible content, be it by topic or within a

time-line. Nevertheless, the granularity of temporal

information is set on a per-submission level. Within

a submission, temporal information is not available in

general. Of course, one may assume, text at the begin-

ning of a submission was written before text at the end

of a submission, but it might just be the opposite, with

the author writing something and then adding further

content ahead of the corresponding paragraph, etc.

2.2 Collaborative Editing

The drawing concept of Graphicuss is similiar to col-

laborative editing systems such as virtual interactive

whiteboards (e.g., AwwApp

, Scribblar

) or shared

document systems (e.g., Google Docs

, Microsoft Of-

ﬁce Online

). However, within these systems the tem-

poral information is provided on an in-submission (in-

document) level and is utilised for local and shared

undo and redo functionality. The current document

composition is shared amongst the collaborators. In

general, edits and submissions are represented by

states and transitions between these states. A state

is deﬁned by sufﬁcient changes to a document or by

editing pauses. E.g., states may be created for each

https://awwapp.com

https://scribblar.com

https://docs.google.com

https://www.ofﬁce.com

CSEDU 2018 - 10th International Conference on Computer Supported Education

200

(a) Traditional undo/redo model.

(b) Selective undo/redo model

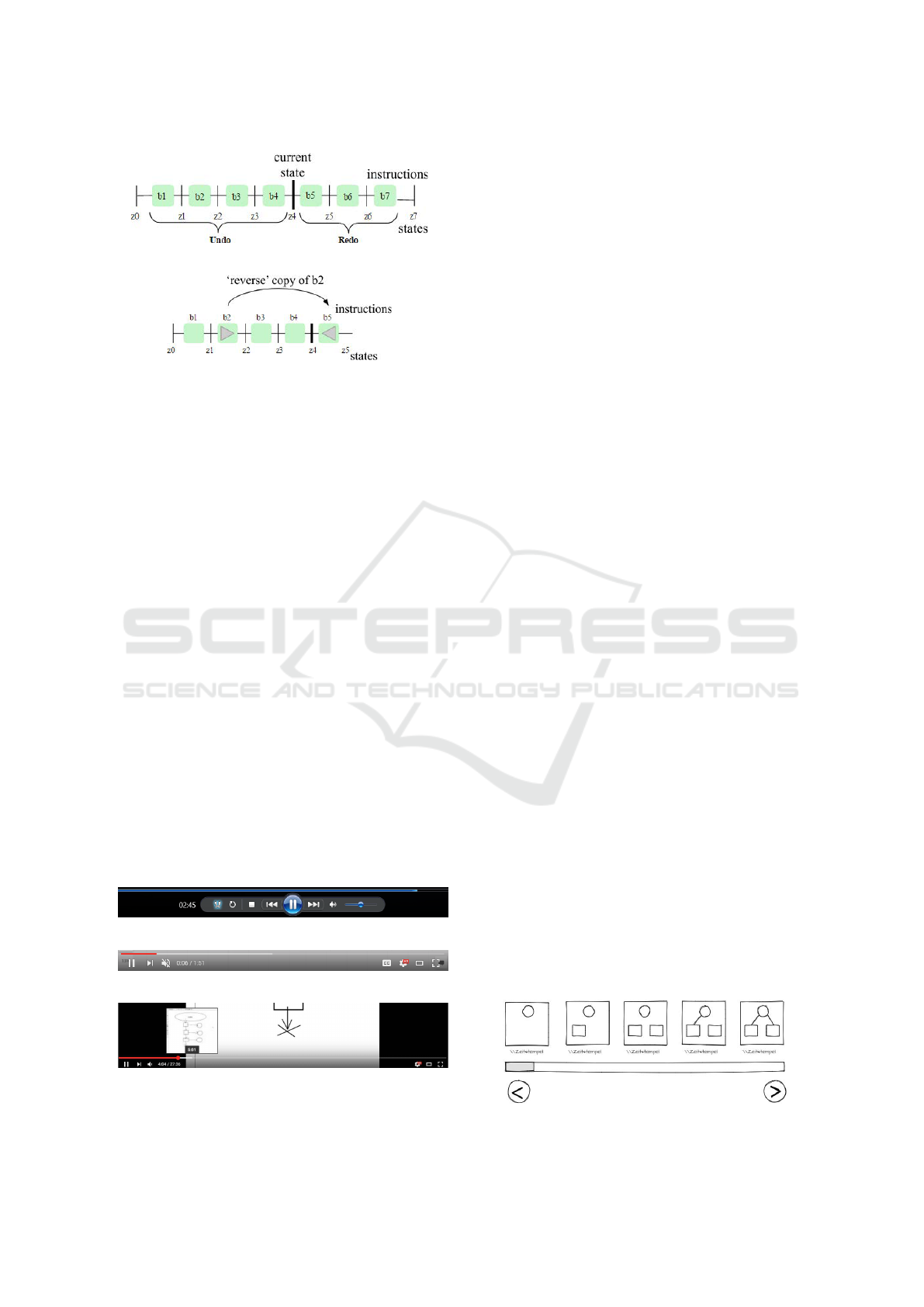

Figure 3: Traditional (3(a)) vs selective (3(b)) undo/redo

models within collaborative editing systems.

new sentence, for each word when typing slower,

or single letters over a longer period of time. Lin-

early traversing along the states leads to a traditional

undo/redo model (cf. 3(a)). Allowing jumps between

states without direct transition leads to a selective

undo/redo model (cf. 3(b)) which requires on-demand

computation of differences between involved states.

Basically, it is a direct implementation of (Berlage,

1994).

2.3 Video Sharing

The best example for the representation of temporal

information is a video. With progression of time the

displayed graphical information changes. A direct

correlation between point in time and visual informa-

tion is given, leading to a direct coupling of time-line

and content. The long history of video media has lead

to established and agreed-upon standards for the rep-

resentation of the time-line.

Typically, a progress bar represents the entirety of

the time-line with the current ﬁll of the progress bar

representing the elapsed time and the current position

within the time-line (cf. Figure 4). Commonly, the

progress bar is accompanied by further control means,

(a) Windows Media Player interface.

(b) YouTube Player interface.

Figure 4: Interfaces of Windows Media Player (4(a)) and

YouTube Player (4(b)) (YouTube Player seek bar in 4(c)).

e.g. a pause/play button. If the progress bar itself

can be utilised to access speciﬁc points in time along

the time-line, it is commonly referred to as a seek bar

(cf. 4(c)). For online video platforms in particular,

the progress/seek bar often also provides information

on the pre-fetching (buffering) future, yet to be dis-

played, video content (cf. grey vs red progress in ﬁg-

ures 4(b) and 4(c)).

3 STATE-BASED METAPHORS

Besides the aspects of temporal information repres-

entation presented in the previous subsections, human

expectations must be considered, too. Information

must be presented in a means easily comprehensible

for humans. Metaphors have proven to be an efﬁcient

means of proving information in well-known con-

cepts to humans (e.g., (Preim and Dachselt, 2015)).

With respect to temporal information, the repres-

entation of all information is not feasible. Time pro-

gresses continuously while computers need to store

the time-line discretely. Hence, a problem is granular-

ity: should a state be created every millisecond, every

second, every ten seconds? The granularity problem

is accompanied by an evident storage requirements

problem. Commonly, a mantra of ‘as often as ne-

cessary and as seldom as possible’ is followed. This

leads to a state-based storing of temporal information,

namely creating snapshots when sufﬁcient changes

have occurred. Of course, this matches the concepts

introduced in subsection 2.2. The interesting question

then is, how these states can be easily visualised. A

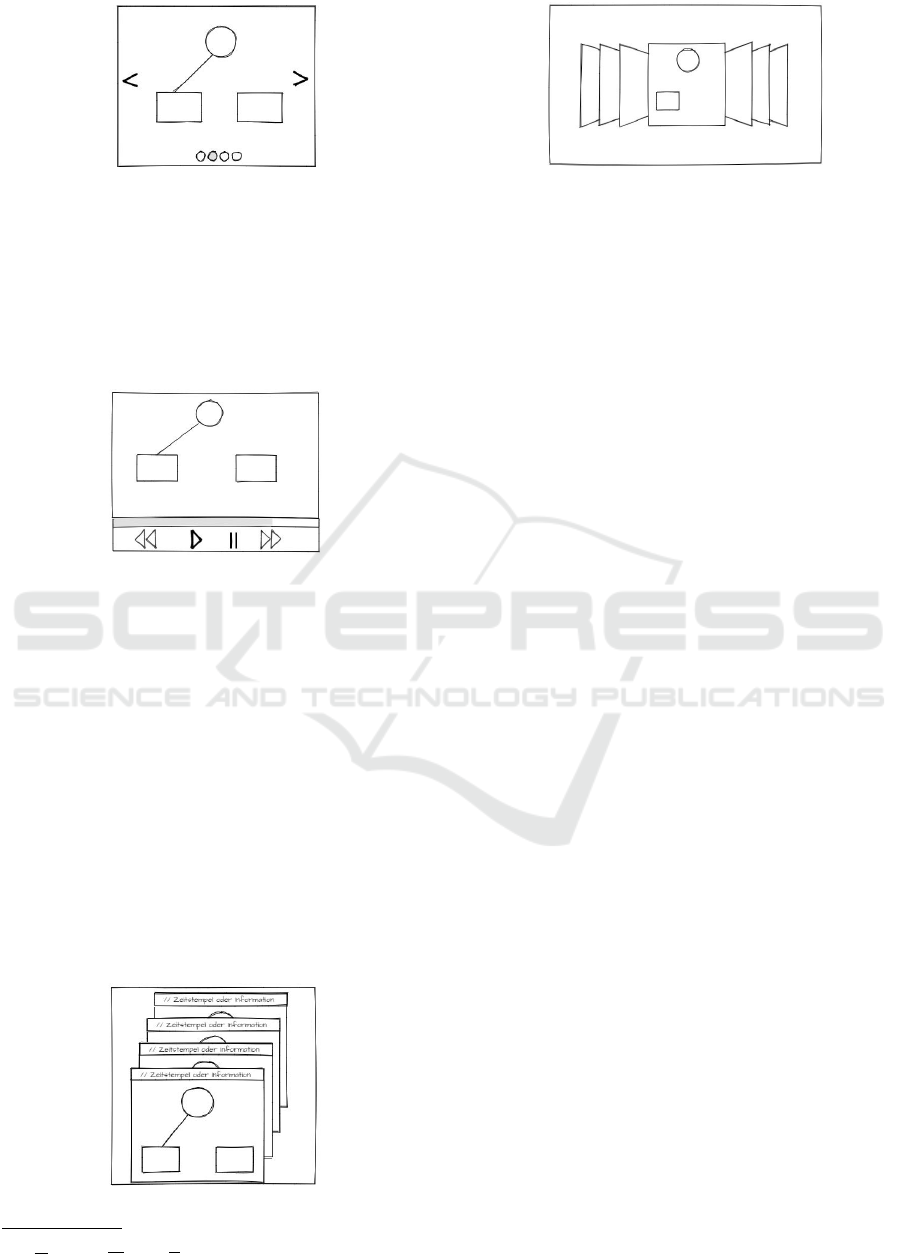

rather simple translation of a time-line into a meta-

phor is depicted in Figure 5 by a slider (a seek bar)

(amended with forward/backward buttons) and in Fig-

ure 6 by a slideshow. The latter metaphor is well es-

tablished in photo and image applications, especially

on devices with touch interfaces such as smartphones.

For interpreting temporal information as a con-

tinuous ﬂow of changes in a document, the obvious

metaphor is a video. Thus, the visualisation concepts

(cf. 2.3) should apply. A simple translation of a time-

line into the video metaphor is depicted in Figure 7.

However, other metaphors may be more suitable,

especially with respect to the expected use-cases of

Figure 5: Slider mock-up.

Graphicuss

201

Figure 6: Slideshow mock-up.

Graphicuss. Assuming most cases are based on the

states, the entire time-line is discrete. For example,

Graphicuss allows easy creation of UML

diagrams

by providing users with a tool box of predeﬁned

shapes (squares, arrows, etc.) for easier drawing.

Each insertion of such a shape can be considered a

new state in the creation time-line of a canvas.

Figure 7: Video mock-up.

On smartphones a state representation with a high-

light on the current state can be a beneﬁciary meta-

phor. Due to multi-tasking support, small picto-

graphs, each representing the current state of an ap-

plication, are arranged within the graphical user in-

terface (GUI). Users can easily select from the run-

ning applications by tapping the corresponding pic-

tograph. This concept has been around for a long

time, especially also within desktop operating sys-

tems (e.g., Flip in Microsoft Windows, Switcher in

Apple MacOS). Translating this concept into the con-

text of Graphicuss leads to two separate metaphors: a

stack (cf. Figure 8) with the current state on top of the

stack and all older states laying below, and a carousel

(cf. Figure 9) with the current state in the centre, older

states to one side, and newer states to the other.

Figure 8: Stack mock-up.

Universal Markup Language

Figure 9: Carousel mock-up.

However, Graphicuss can not only be utilised for

UML diagrams. Therefore, we assumes that different

types of metaphors are suitable for different types of

use-cases. We deﬁned a set of requirements in order

to select the most suitable metaphor for the repres-

entation of temporal information, namely the creation

history of canvases within Graphicuss.

We deﬁned ﬁve mandatory and three optional re-

quirements to be met by the GUI. Therein, it. . .

M1 . . .must use easily comprehensible metaphors;

no explanation of how time is represented,

M2 . . .must support different use-cases,

M3 . . .must visualise the time-line and its direction,

M4 . . .must ensure that the current state is always

accessible within the time-line,

M5 . . .must allow forwarding/rewinding the time-

line in coarse as well as ﬁne steps,

O1 . . .could utilise large and clear icons,

O2 . . .could provide control elements adaptable to

different client devices, and it

O3 . . .could be multi-modal (accept different types

of input methods).

4 USER STUDIES

For the design process of our Graphicuss prototyp is is

very important that the developed systems fulﬁlls all

requirements for the different use cases and contexts.

Therefore, we objectively analysed the suitability of

the different metaphors with respect to fulﬁlment of

our deﬁned requirements before the user studies. We

aggregated our ﬁndings into a table (cf. Table 1). Un-

conditional fulﬁlment of a requirement is symbolised

by a ++ (value of 2), conditional fulﬁlment by a +

(value of 1), and dissatisfaction by a − (value of -1).

The total scores (Σ) are calculated by adding the indi-

vidual values of each row.

Based on these ﬁrst result, one may presume that

the video metaphor is the most suitable. However, the

table actually only proves that all investigated meta-

phors are more or less suitable. There is no single

best metaphor as all metaphors have some conditions

attached to their suitability. Therefore, we decided

to focus on the three higher rated metaphors (Slider,

CSEDU 2018 - 10th International Conference on Computer Supported Education

202

Table 1: Requirements fulﬁlment by metaphor.

Rqmnt

Slider

Slideshow

Video

Stack

Carousel

M1 + + + + +

M2 ++ ++ ++ ++ ++

M3 + + ++ ++ +

M4 + ++ ++ ++ ++

M5 + − − − −

O1 + + + + +

O2 ++ ++ ++ + +

O3 ++ ++ + − −

Σ 11 10 12 6 6

Slideshow, Video) and involve users in order to de-

termine the subjectively best option.

We investigated the metaphors’ suitability by

means of user studies in two iterations within con-

trolled environments. In the ﬁrst iteration (n=5),

thinking aloud as well as blank paper prototype meth-

ods were utilised. This was intentionally conducted

in this manner in order to determine whether users

would come up with the Slider, Slideshow or Video

metaphor on their own. If ‘yes’, it would provide

proof to the suitability of said metaphors. In the

second iteration (n=15), paper-based mock-ups as

well as Wizard-of-Oz low-ﬁdelity prototypes (some

functionality that would be automated in the real sys-

tem were manually conducted by humans) were util-

ised. The goal was to target speciﬁc aspects of the

metaphors and investigate the users’ opinions on us-

ability as well as comprehensibility. In addition to the

two iterations, we conducted interviews, asking about

metaphor suitability, comprehensibility of the time-

line, etc.

The ﬁrst iteration of studies resulted in two intu-

itive metaphors: Slider and Slideshow. When asked

explicitly about it in the interviews, the test subjects

also deemed the Video metaphor as suitable, but they

did not come up with this metaphor during the blank

paper prototyping. Additionally, Video was deemed

suitable only for quasi-continuous or equidistant time

representation. Considering suitability for utilisation

on desktop as well as mobile devices, we interviewed

the test subjects whether they could imagine to util-

ise any of the metaphors on their PC as well as their

smartphone. Overall, the ﬁrst iteration and the inter-

views conducted resulted in the following statements:

• The representation of temporal information was

comprehensible in all three metaphors.

• Most of the icons utilised in the metaphors were

correctly identiﬁed. Icons for coarse rewind-

ing/forwarding could be misinterpreted.

• The direction of the time-line (in general: left-to-

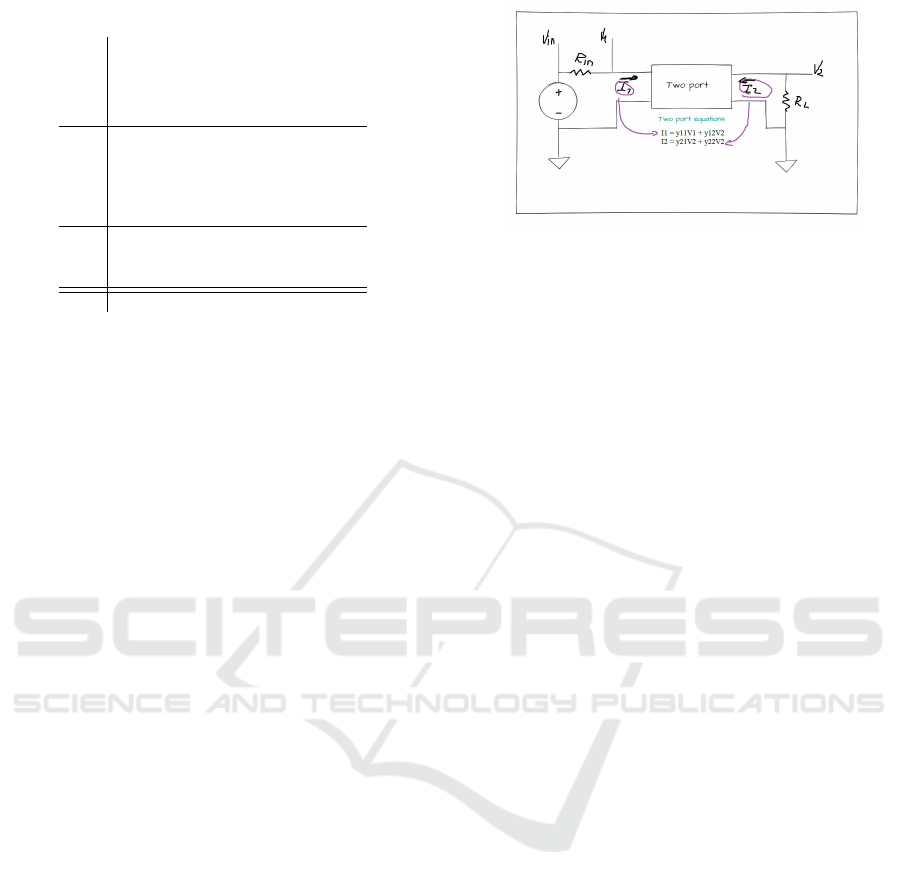

Figure 10: Canvas used in the tests.

right) was easily comprehensible.

• On mobile devices, the Slideshow metaphor is

better suitable than the Slide metaphor.

• The Video metaphor must correlate to the actual

creation time-line exactly.

• Users cannot determine the presentation speed op-

timal for their needs in the Video metaphor.

• Identifying differences between two states be-

comes increasingly complex with more states.

Based on these statements, we decided to drop

the Video metaphor in the second iteration. Storing

the exact timestamp of what happened when in the

time-line is not feasible. It requires a ﬁne granular-

ity of states which is not suitable for low trafﬁc re-

quirements, especially on mobile networks. Also, the

criticism about playback speed had to be considered.

In direct comparison, the Slider and Slideshow meta-

phors allow user to determine when they want to see

a change. In the Video metaphor, they had to con-

stantly use the pause and play controls, which basic-

ally turned the Video into a Slideshow. Therefore,

only the Slider and Slideshow metaphors were invest-

igated in the second iteration. Due to the last state-

ment from the previous iteration, we used a complex

electrical circuit drawing for our tests (cf. Figure 10).

In total, we tested three paper prototypes with

the test subjects: Slider (cf. Figure 11) and two

Slideshows with different controls arrangement (cf.

Figure 12). Our investigations showed that the Slider

metaphor is well suited with larger displays, espe-

cially on desktop or laptop computers. However,

on smaller displays (e.g., smartphones), a full-screen

representation was preferred by the majority of test

subjects. Thus, only the Slideshow metaphor is suit-

able for utilisation on PCs and smartphones.

Our investigations also show that the previous

statement regarding granularity of seeking within the

time-line is important. In some situations users need

to be able to slowly follow the time-line by navig-

ating through it state-by-state (ﬁne granularity), in

other situations users need to be able to skip entire

states within the time-line (coarse granularity). The

Slideshow metaphor can address both situations: in

Graphicuss

203

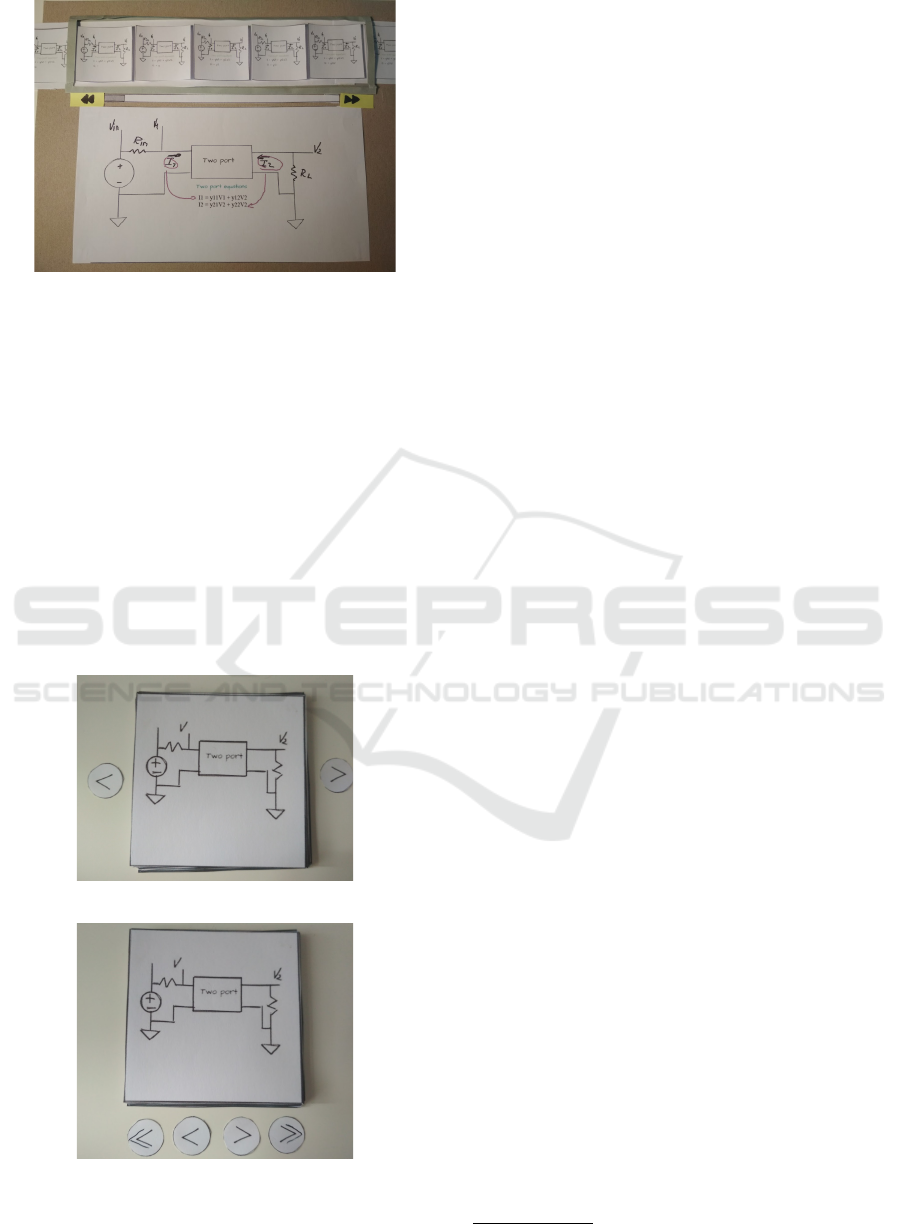

Figure 11: Slider paper prototype.

a touch-controlled environment (e.g., smartphone),

the speed of swipes can determine the speed of state

changes, whereas on point-and-click environments

(desktop PC), different controls for different granu-

larities can be used (cf. 12(b)).

5 CONCLUSION

We conclude that only the Slideshow metaphor is suit-

able for all devices Graphicuss is expected to serve,

namely personal computers as well as smartphones.

However, as the Slider metaphor has clear advant-

ages over the Slideshow metaphor on larger displays,

(a) Slideshow paper prototype, var. 1.

(b) Slideshow paper prototype, var. 2.

Figure 12: Two variants of Slideshow paper prototypes.

Standard controls (12(a)) and extended controls with coarse

rewind/forward controls (12(b)).

it might be beneﬁciary to include implementations of

both metaphors within Graphicuss. Based on the dis-

play size either metaphor can then be delivered.

The results need to be implemented into our

Graphicuss prototype as the ﬁndings are of theor-

etical nature and are entirely based on blank pa-

per prototypes, low-ﬁdelity mock-ups, and user in-

terviews. This is a memium-term goal as Graphicuss

is currently undergoing a complete re-implementation

in order to facilitate better compatibility with our

AMCS

system.

In the future, we wish to further investigate the

suitability of the different metaphors in different use-

cases. With the new prototype, we will be able to

investigate different classroom settings (e.g., lecture,

tutorial) as well as different topic contexts (e.g., com-

puter science (UML diagrams, service sketches, . . .),

physics (TTT curves, radiation patterns, . . .)).

REFERENCES

Beier, L., Braun, I., and Hara, T. (2014). auditorium - Frage,

Diskutiere und Teile Dein Wissen! In GeNeMe 2014

- Gemeinschaften in Neuen Medien. GeNeMe.

Berlage, T. (1994). A selective undo mechanism for graph-

ical user interfaces based on command objects. ACM

Transactions on Computer-Human Interaction, 1(3).

Chen, K. (2016). Graphical Discussion System. Master’s

thesis, Technische Universit

at Dresden.

Hara, T., Chen, K., Braun, I., and Kapp, F. (2017). Graph-

icuss - Proposing Graphical Discussion System. In

Proceedings of the 9th International Conference on

Computer Supported Education (CSEdu 2017).

Peters, O., K

orndle, H., and Narciss, S. (2017). Effects of

a formative assessment script on how vocational stu-

dents generate formative feedback to a peers or their

own performance. European Journal of Psychology of

Education.

Preim, B. and Dachselt, R. (2015). Interaktive Systeme:

Band 2: User Interface Engineering, 3D-Interaktion,

Natural User Interfaces. Springer-Verlag.

Zimmerman, B. J., Boekarts, M., Pintrich, P., and Zeidner,

M. (2000). Attaining self-regulation: a social cognit-

ive perspective. Handbook of self-regulation, 13.

All URLs within this paper were last successfully accessed

on 19 January 2018.

https://amcs.website – cf. CSEdu 2014-2016

CSEDU 2018 - 10th International Conference on Computer Supported Education

204
