Standardized Big Data Processing in Hybrid Clouds

Ingo Simonis

Open Geospatial Consortium, OGC, 236 Gray's Inn Road, London, U.K.

Keywords: Big Data, Standards, Spatial Data Infrastructure, OGC, Cloud, Container, Docker.

Abstract: There is a growing number of easily accessible Big Data repositories hosted on cloud infrastructures that offer

additional sets of cloud-based products such as compute, storage, database, or analytics services. The Sentinel-

2 earth observation satellite data available via Amazon S3 is a good example of a petabyte-sized data

repository in a rich cloud environment. The combination of hosted data and co-located cloud services is a key

enabler for efficient Big Data processing. When the transport of large amounts of data is not feasible or cost

efficient, processes need to be shipped and executed as closely as possible to the actual data. This paper

describes standardization efforts to build an architecture featuring high levels of interoperability for

provisioning, registration, deployment, and execution of arbitrary applications in cloud environments. Based

on virtualization mechanisms and containerization technology, the standardized approach allows to pack any

type of application or multi-application based workflow into a container that can be dynamically deployed on

any type of cloud environment. Consumers can discover these containers, provide the necessary

parameterization and execute them online even easier than on their local machines, because no software

installation, data download, or complex configuration is necessary.

1 INTRODUCTION

Environmental sciences are witnessing a rapid

increase in the amount of available data. They follow

the general trend of data generated and shared by

businesses, public administrations, numerous

industrial and not-to-profit sectors, and scientific

research that has increased immeasurably (Sivarajah

et al, 2016). A large share of these data is the result of

environmental monitoring, either in situ or via remote

sensing (Vitolo et al, 2015). At the same time, Big

Data Analytics is increasingly becoming a trending

practice that many organizations are adopting with

the purpose of constructing valuable information

from Big Data (Sivarajah et al, 2016).

Data providers are looking for new opportunities

to realize revenue with data, or at least to minimize

local data storage and maintenance costs by

outsourcing elementary services such as storage,

cataloguing, or data access to external partners

(Sookhak et al, 2017). These constellations led to new

partnerships with commercial cloud operators serving

earth observation data that was traditionally offered

by e.g. space agencies.

A good example is the Sentinel-2 earth

observation satellite data, a petabyte-sized data

repository. The original data is produced by the

European Space Agency (ESA) as part of the

Copernicus mission, but storage, maintenance, and

access are currently available via Amazon S3

(Amazon, 2018).

There is a growing number of easily accessible

Big Data repositories hosted on cloud infrastructures

that offer additional sets of cloud-based products such

as compute, storage, database, or analytics services.

The combination of hosted data and co-located cloud

services is a key enabler for efficient Big Data

processing. When the transport of large amounts of

data is not feasible or cost efficient, processes need to

be shipped and executed as closely as possible to the

actual data. This paradigm, though postulated earlier,

was a complex endeavour before container

technologies such as Docker became popular. Locally

developed software couldn’t be shipped and executed

reliably when moved from one computing

environment to another.

With the shift from download-and-process-locally

to remote storage and remote processing of data, new

revenue opportunities arise from selling computing

cycles and data analytics services on these cloud

platforms. The first are often realized in the form of

virtual machines and application container

environments combined with data storage, streaming,

messaging, or database services. The latter is an

Simonis, I.

Standardized Big Data Processing in Hybrid Clouds.

DOI: 10.5220/0006681102050210

In Proceedings of the 4th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2018), pages 205-210

ISBN: 978-989-758-294-3

205

emerging field where application developers can

offer additional services on top of data analytics

offered by the cloud provider. These application

developers offer their domain expertise and sell it in

the form of optimized applications that can become

part of externally controlled workflows and

processing routines. Essentially, the necessary

environment is not that different from app stores

commonly used in the mobile phone sector, where a

limited number of vendors offer platforms for

software developers to make their applications

available to the mass market for further deployment

close to the data on various target platforms. Just, the

applications addressed here are deployed on powerful

machines.

A major challenge with the growing number of

Big Data repositories, data sets, and available

processing capacities and capabilities is the level of

interoperability between and among all involved

components. With the criticality of information

technology to today’s science, information standards

are now fundamental to the progress of advancing the

knowledge of our world (Percivall et al, 2015). The

Open Geospatial Consortium (OGC) is an

international not for profit organization committed to

making quality open standards for the global

geospatial community.

This paper describes standardization efforts to

build an architecture featuring high levels of

interoperability for provisioning, registration,

deployment, and execution of arbitrary applications

in cloud environments. Based on virtualization

mechanisms and containerization technology, the

standardized approach allows to pack any type of

application or multi-application based workflow into

a container that can be dynamically deployed on any

type of cloud environment. Consumers can discover

these containers, provide the necessary

parameterization and execute them even easier than

on their local machines, because no software

installation, data download, or complex configuration

is necessary.

2 EO CLOUD PROCESSING

ENVIRONMENT

The work described herein has been executed in

support of the ESA Thematic Exploitation Platforms

(TEP), combined with domain specific requirements

coming from the agriculture, forestry, and fisheries

sectors.

With the goal to leverage the full potential of its

earth observing missions, ESA has started in 2014 the

Earth Observation Exploitation Platforms initiative, a

set of research and development activities that in the

first phase (up to 2017) aimed to create an ecosystem

of interconnected Thematic Exploitation Platforms

for Earth Observation data. In short, an Earth

Observation (EO) exploitation platform is a

collaborative, virtual work environment providing

access to EO data and the relevant information and

communication technologies (ESA, 2017). These

platforms implement three abstract user scenarios:

First, to explore and manipulate the data, second to

deploy new applications that work on that data

(service development), and third the publication of

new results (product development). Here, we

concentrate on the second use case, the provisioning

of new applications. Goal is to allow any TEP user to

develop their own algorithms and workflows on the

their local machines, then to upload it to the TEP for

further testing and optimization, and eventually to

make these algorithms and workflows available to

other users in the form of a software container and its

complementary metadata, the Application Package.

These software containers are then deployed upon

request by the TEP in cloud environments close the

the actual data. All necessary information to deploy

and execute a container is provided by the

Application Package.

3 CONTAINERIZED

APPLICATIONS

An application package (OGC, 2018) needs to

contain all information required to deploy and

execute the package on the cloud. As illustrated in

Figure 1 below, an application package encapsulates

the description of the application itself, i.e. the

application metadata, a reference to the application

software container, metadata about the container

itself and its resource types, deployment, execution,

and mapping instructions of external data to

container-specific locations for input and result data,

and auxiliary information such as Web-based

catalogues for data discovery and selection. The

container itself is located on a Web-accessible hub,

but not part of the Application Package.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

206

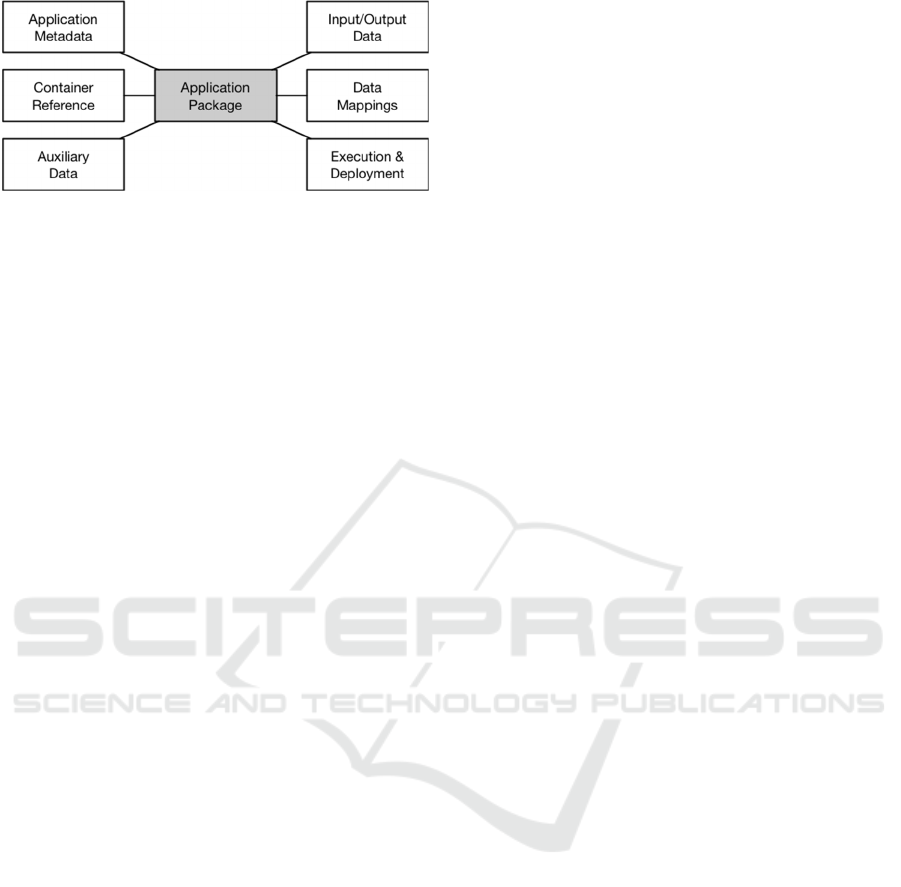

Figure 1: Overview of the Application Package.

The Application Metadata describes the

application that is encapsulated in the container with

sufficient detail, i.e. it provides information about the

application’s purpose, capabilities, and requirements in

terms of input data, parameterization for execution,

and result data. It does not contain any detail about the

encapsulated software as such, i.e. types and versions

of libraries, programming languages, internal

workflows etc. This information is entirely opaque.

The container itself is not part of the application

package, but referenced from herein (Container

Reference). Using state of the art container

technology such as Docker, the reference would point

to a Docker Hub where the container is stored.

The optional Auxiliary Data contains any type of

references, links, or further information that helps

users to execute the application package successfully.

It may, for example, contain links to Web-based

catalogues that provide (Big) process-ready data that

this application can work with.

The Input/Output Data section of the application

package describes the required input data to run an

application, e.g. satellite imagery, reference data,

calibration data, etc. and informs what type of output

the application produces. Given the volatile nature of

many containers, applications will most likely

produce output that is made persistent externally to

the application container itself.

Some elements of the container package serve

administrative purposes only. The Data Mappings

provide instructions to the execution environment how

external data sets need to be mapped and mounted to

the container system, and the Deployment and

Execution instructions provide all information required

to deploy the container in a virtual machine

environment and to start the actual application process.

4 OGC WEB SERVICE

ENVIRONMENT

The information model of the Application Package

and its encoding is ideally matching the service and

information environment it operates in. The Web

service interface standards, information models, and

encodings released by the Open Geospatial

Consortium (OGC) provide a robust and standardized

environment for geospatial data, processing, and

visualization and provide all required base-types for

Application Package definition and serialization.

To exchange information about geospatial resources

and services, the OGC has released the OGC Web

Services Context Document (OWS Context

Document). Initially developed to allow a set of

configured information resources (the so-called

service set) to be passed between applications, OWS

Context is used today for general exchange of

information about geospatial data and services. It

supports OGC Web service instances, arbitrary online

resources, and inline encoded content. A ‘context

document’ specifies a fully configured set which can

be exchanged (with a consistent interpretation)

among clients supporting the standard (OGC, 2017).

In order to achieve maximal interoperability, the core

context document is largely agnostic of any particular

resource type and therefore serves as a solid base for

the Application Package. Specific resource types are

then defined in individual requirement classes that

further specify the handling of that resource offering.

The standardized resources types include Web

service interface types (e.g. to access maps (Web Map

Service, WMS), feature data (Web Feature Service,

WFS), or coverage data (Web Coverage Service,

WCS)), encodings for in-line content (e.g. Geography

Markup Language (GML) or GeoTiff), and storage

for external content. The work described in this paper

has extended this set with the notion of containers and

application parameters to support the deployment of

applications in hybrid cloud environments.

Alternatively to the OWS Context Document based

approach, process descriptions as offered by the Web

Processing Service, WPS, can be used. The WPS is

the second essential component within the OGC Web

service environment necessary for standardized Big

Data processing in hybrid clouds. The service

interface allows to execute any type of software

process in a standardized way. Recursively, any WPS

process can spawn any number of child processes that

again call other WPS or data access or processing

services. The WPS interface standard defines process

descriptions that contain sufficient detail for any type

of parameterization in a similar fine-granular

structure as the OWS Context Document. The service

supports synchronous and asynchronous interaction

patterns, out-of-band parameterization, and can be

extended with publish-subscribe messaging

functionality.

Standardized Big Data Processing in Hybrid Clouds

207

5 STANDARDIZED

ARCHITECTURE

5.1 Application Package

OWS Context Documents provide sufficient

functionality to support all requirements set by the

Application Package definition. It has been used for

the definition of the application package, following

the OGC Context Conceptual Model (OGC, 2014a)

and implementing an ATOM encoding (OGC,

2014b). Experiments with JSON encodings have been

started but are not concluded yet.

The Application Package contains mandatory

metadata elements such as id, title, abstract, author,

and creation date; and a number of optional items that

shall help during the initial discovery process. All

elements have been mapped to Atom elements.

5.2 Application Container

Any application should be executed as a Docker

Container in a Docker environment. The application

developer needs to build the container with all libraries

and other resources required to execute the application.

This includes all data that will not be provided in the

form of a parameter setting at runtime. The Docker

Container Image itself can be built from a Docker

Build Context stored in a repository following the

standard manual or Dockerfile-based scripting

processes. To allow standards-based application

deployment and execution, the application should be

wrapped with a start-up script.

5.3 Standardized Service Environment

The goal of the standardized service and application

package environment is threefold: First to minimize

the overhead for the application developer to make

his work available to others. Second the full

decoupling of the three players application developer,

cloud environment operator, and application user; and

third full flexibility for the application user to process

his own or referenced data. The following

architecture supports these elements by off-loading

application deployment and execution tasks from the

developer to a service environment, by standardized

interfaces between all components, and standards-

based parameterization of applications.

5.3.1 Application Development and

Provisioning

The application developer uses a local development

environment for the application development,

configuration, and description. This includes the

definition of all software components such as

commercial off-the-shelf software, software libraries,

scripts, calibration data etc. Once the application runs

successfully within the local environment, all

elements need to be packed into a Docker container,

which then has to be uploaded to a Docker Hub.

Figure 2 illustrates this first step (1).

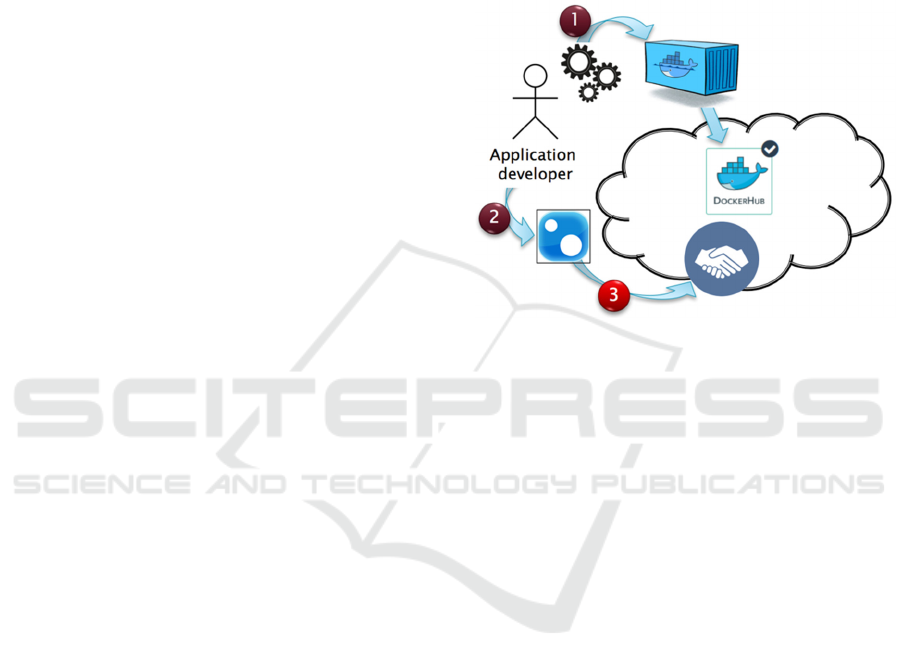

Figure 2: Application developer tasks.

Afterwards, the application package needs to be

described with the necessary detail (2), which

includes some basic description of the application

itself, all required input parameters, the mapping of

external sources to internal mount points, type and

nature of all resulting products and output locations.

In a last step, the application package is made

available to the cloud environment. This can be done

either by executing the corresponding WPS call, or

supported by an application management client web

application that façades the WPS and supports the

developers with the definition of the application

package.

5.3.2 Application Discovery and Usage

The end user discovers the application on the cloud

platform (Figure 3 step (4)). The application package

provides sufficient detail that can be stored in a

catalogue service. If necessary, the user can be

pointed to further data catalogues that allow the

discovery of input data to be processed by this

application (5).

Once all input data references or actual data sets are

available, the user provides all required application

parameters and executes the application (6). Upon

completion of the data, the user can retrieve the final

products.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

208

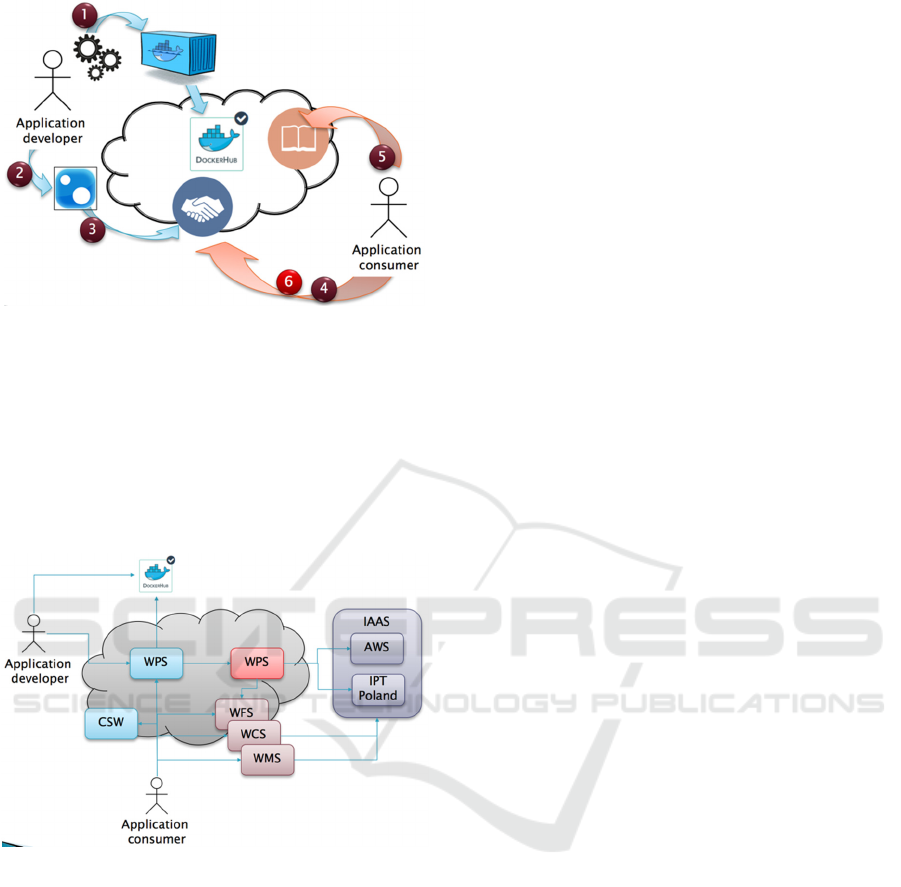

Figure 3: Application user tasks.

5.3.3 Standards based Cloud Environment

The entire workflow, including the provisioning of

the application package, the deployment, parameter-

zation and execution of the Docker container, and the

provisioning of final products are supported by

standardized interfaces. The following diagram

illustrates the setup.

Figure 4: Standards based software architecture.

The application developer makes the application

package available at a Web Processing Service, WPS

(blue, left), which serves as the application

management client. This WPS frontends the actual

Thematic Exploitation Platform as described in

section 2. It interacts with a second WPS to the right

(red), which serves as the Application Deployment

and Execution Service (ADES). In order to accept

new processes as part of its offered processes

portfolio, the application management client WPS

needs to support transactions. If the WPS offers a

dedicated process for transactions, then the

application developer can call this WPS-execute

operation directly and provide the OWS-Context

encoded Application Package as parameter payload.

Alternatively, the OGC WPS Transactional

Extension (OGC, 2014c) can be applied, which offers

dedicated deploy and undeploy operations.

The application package is described using the

ProcessOffering process description mechanism or

the OWS Context Document based implementation.

Both approaches have been successfully tested.

Further research is necessary to identify the ideal

solution for dedicated scenarios. To handle input of

externally stored data and to save results to external

locations, the Application Package defines

Application Parameters using the WPS Process

Descriptions to cover both process input and process

output. Currently, the architecture is limited to pass

simple parameters (named WPS Literal Data in the

WPS standard) only. These parameters are passed

from the Application Deployment and Execution

Service (ADES) to the application using either

command line parameters or environment variables.

Interoperability is assured by re-using parameter

names as defined in the WPS Process Descriptions.

If execution is requested by the client, the ADES

deploys the Docker container on cloud environments

such as Amazon AWS, or, tested here, the EO Cloud

Earth Observation Innovative Platform Testbed

Poland (IPT Poland). Upon completion, the final data

is served back to the client via standardized data

access and visualization interfaces such as Web

Mapping Service (WMS), Web Feature Service

(WFS), or Web Coverage Service (WCS).

6 CONCLUSIONS

The work described herein illustrates results of the

OGC Testbed-13 innovation program initiative. Six

OGC members were challenged in April 2017 to

develop a standards-based integration architecture

that allows standards-compliant provisioning,

deployment, execution and result access of arbitrary

applications in hybrid cloud environments. The

resulting developments combined with technical

interoperability experiments demonstrate the

feasibility of standard-based application handling.

Alternative approaches have been tested, as e.g. for

the definition of mount points and data mappings,

application package definitions based on OWS

Context and WPS process descriptions, or

transactional WPS extensions vs. dedicated

processes. In general, it has been demonstrated that

the current standards portfolio requires only

minimum extension and profiling work in order to

achieve a high level of interoperability. Further

research is necessary to identify best practices and to

Standardized Big Data Processing in Hybrid Clouds

209

further enhance the overall architecture with e.g.

security concepts and additional functionality, such as

application execution quoting and negotiation mecha-

nisms. Dynamic integration of resources and applica-

tions from different cloud environments remains a

research challenge in terms of cloud federation,

security handling, and general performance.

ACKNOWLEDGEMENTS

This paper describes an integration architecture and

elaborates the results of Testbed-13, a recent

innovation initiative conducted by the Open

Geospatial Consortium (OGC). The OGC thanks all

participants for their active contributions. The work

was further co-sponsored by European Union through

the Horizon 2020 research and innovation

programme under grant agreement No 732064,

project DataBio.

REFERENCES

Amazon, 2018. Sentinel-2 on AWS. Website: http://

sentinel-pds.s3-website.eu-central-1.amazonaws.com.

ESA, 2017. About TEP. https://tep.eo.esa.int/about-tep.

OGC, 2014a. OGC OWS Context Conceptual Model. OGC

12-080r2.

OGC, 2014b. OGC OWS Context Atom Encoding

Standard. OGC 12-084r2.

OGC, 2014c. OpenGIS WPS2.0 Transactional Extension

Discussion Paper. OGC 13-071r1.

OGC, 2017. OGC Web Services Context Document (OWS

Context.

http://www.opengeospatial.org/standards/owc.

OGC, 2018. Testbed-13: Application Package Engineering

Report. OGC 17-035.

Percivall, G., Simonis, I., Idol, T., 2015. Scientific

Knowledge from Geospatial Observations. In:

IGARRS 2015.

Sivarajah, U., Kamal, M., Irani, Z., Weerakkody, V. 2017.

Critical analysis of Big Data challenges and analytical

methods. Journal of Business Research 70 (2017) 263–

286.

Sookhak, M., Gani, A., Khan, M., Buyya, R. 2017.

Dynamic remote data auditing for securing big data

storage in cloud computing. Information Science

(2017) 380, 101-116.

Vitolo, C., Elkhatib, Y., Reusser, D., Macleod, C., Buytaert,

W. 2015. Web technologies for environmental Big

Data. Environmental Modelling & Software 63 (2015)

185-198.

GISTAM 2018 - 4th International Conference on Geographical Information Systems Theory, Applications and Management

210
