Towards Multi-cloud SLO Evaluation

Kyriakos Kritikos, Chrysostomos Zeginis, Andreas Paravoliasis and Dimitris Plexousakis

ICS-FORTH, N. Plastira 100, Vasilika Vouton, 70013, Heraklion, Crete, Greece

Keywords:

Complex Event Processing, Event Pattern, Detection, Service.

Abstract:

A modern service-based application (SBA) operates in a cross-cloud, highly dynamic environment while com-

prises various components at different abstraction levels that might fail. To support cross-level SBA adaptation,

a cross-cloud Service Level Objective (SLO) monitoring and evaluation system is required, able to produce

the right events that must trigger suitable adaptation actions. While most research focuses on SBA monitoring,

SLO evaluation is usually restricted in a centralised, single-cloud form, not amenable to heavy workloads that

could incur in a complex SBA system. Thus, a fast and scalable event generation and processing system is

needed, able to scale well to handle such a load. Such a system must address the cross-level event composition,

suitable for detecting complex problematic situations. This paper closes this gap by proposing a novel complex

event processing framework, scalable and distributable across the whole SBA architecture. This framework

can cover any kind of event combination, no matter how complex it is. It also supports event pattern manage-

ment while exploits a publish-subscribe mechanism to: (a) synchronise with the modiﬁcation of adaptation

rules directly involving these event patterns; (b) enable the decoupling from an SBA management system.

1 INTRODUCTION

Modern SBA systems start exploiting the cloud to

beneﬁt from its main advantages, including ﬂexible

pricing and resource management. However, cloud

migration comes with certain challenges. First, the

cloud is out of SBA provider control and offers only

restrictive management actions over the abstracted re-

sources. Second, the cloud is a dynamic environment

in which resources can fail or under-perform, espe-

cially if they are shared among different customers.

In an SBA, the above challenges can be exacer-

bated due to the complexity introduced by the mul-

tiple levels incorporated and their dependencies. Be-

sides, level-speciﬁc adaptation can fail due to the vi-

cious adaptation cycle (Zeginis et al., 2015). As such,

there is a need for a management system able to mon-

itor and adapt the SBA across all levels via the coor-

dinated execution of level-speciﬁc adaptation actions.

As a glue between monitoring and adaptation, an

SLO evaluation framework must evaluate the SLOs

of the SLA between the SBA provider and requester

and generate events that can trigger SBA adaptation.

However, due to the SBA complexity and the speed

in which events occur at the infrastructure level, such

a framework must exhibit fast and scalable event pro-

cessing. Such processing needs to be aligned with

the main SBA adaptation goals to avoid overspend-

ing precious system resources. As such, only those

events or event patterns leading to the need to trigger

adaptation actions should be detected.

The recent advent of sophisticated cross-level

SBA monitoring and adaptation systems can be ob-

served. Such systems, however, exhibit poor event

processing, as they are not scalable to handle an in-

creasingly huge event number. To close this gap,

this paper presents a novel SLO evaluation frame-

work with the following features: (a) scalable and

distributable across the whole SBA architecture; (b) it

relies on a scalable complex event processing engine;

(DSL) supporting multi-cloud SBA management; (d)

it exploits publish-subscribe mechanisms to be decou-

pled from speciﬁcities of other SBA management sys-

tem parts; (e) it supplies an event pattern management

service so as to synchronise with modiﬁcations on the

SBA adaptation behaviour speciﬁcation.

The rest of the paper is structured as follows. Sec-

tion 2 supplies the paper’s running example. Sec-

tion 3 reviews the state-of-the-art. Section 4 explains

CAMEL. Section 5 analyses the proposed framework

architecture. Section 6 explains how event pattern

models are generated from CAMEL adaptation rules.

Finally, Section 7 concludes the paper.

Kritikos, K., Zeginis, C., Paravoliasis, A. and Plexousakis, D.

Towards Multi-cloud SLO Evaluation.

DOI: 10.5220/0006684604090417

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 409-417

ISBN: 978-989-758-295-0

409

2 USE CASE

As a running example, we adopt a use case from

the CloudSocket project

, dealing with Business Pro-

cess (BP) management in the Cloud. This use case

concerns developing and deploying a BP as a ser-

vice (BPaaS), named as “SendInvoice”, supporting

the functionality of invoice generation and sending.

Internally, the “SendInvoice” BPaaS utilises 2

main services: (a) the YMENS CRM external SaaS

focusing on customer relationship management; (b)

the “Invoice Ninja” internal invoice management

component, purchased and deployed in the Amazon

Cloud on a “m1.medium” VM. Both services are

combined into a technical workﬂow, deployed in the

cloud, which incorporates tasks mapping to certain

methods of these services.

The initial cloud deployment of “SendInvoice”

BPaaS maps to a certain (both type & instance-

based level) topology, depicted in Fig.1 and speci-

ﬁed in CAMEL. In this topology, one instance of

the “InvoiceNinja” internal component, named as “In-

voiceNinja inst1” has been deployed on one instance

of the “m1.medium” VM called “m1.medium inst1”.

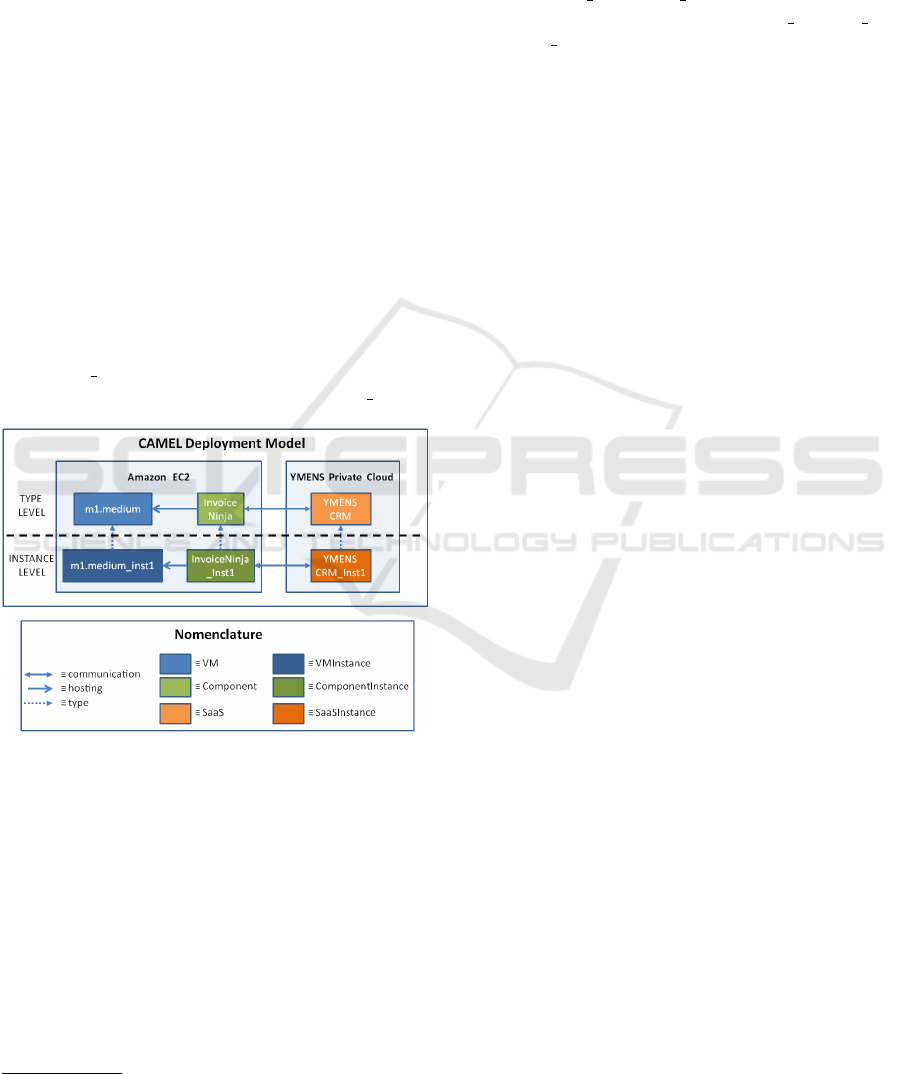

Figure 1: The topology of the “SendInvoice” BPaaS.

Suppose that the organisation, i.e., a Cloud Bro-

ker, offering the BPaaS, must control its provisioning

to sustain a suitable service level offered in the con-

text of an SLA. As the set of customers purchasing

and using the BPaaS can grow, this Broker must also

control the amount of resources dedicated to “Invoice

Ninja” via scaling and be able to replace YMENS

CRM if it is under-performing. Thus, the broker de-

ﬁnes a set of CAMEL adaptation rules shown in Table

1 (abstracted away in restricted form of CAMEL tex-

tual syntax) that scale out “Invoice Ninja” or replace

“YMENS CRM” with another SaaS. These rules are

www.cloudsocket.eu

then supplied as input to the BPaaS Execution Envi-

ronment of the CloudSocket platform which performs

the adaptation actions required, when needed. The

SLO Evaluation framework proposed can belong to

such an environment to enable it to truly sustain a suit-

able service level for SLO evaluation.

where raw

cpu & raw mem are the Raw CPU and

Raw Memory Utilisation metrics, mean rt, mean cpu

and mean avail are the MEAN Response Time, CPU

Utilisation and Availability metrics while IN repre-

sents “Invoice Ninja” and YC “YMENS CRM”.

Rules R

& R

focus on scaling out “Invoice

Ninja”. R

attempts to immediately scale this com-

ponent when one of its instances is severely over-

loaded. R

attempts to replace “YMENS CRM” when

its mean response time is beyond a certain threshold

and its availability drops under a certain level.

3 RELATED WORK

Many research approaches has been proposed target-

ing SLO evaluation in dynamic environments like the

Cloud. (Ludwig et al., 2015) proposes the rSLA SLA

language and management service. rSLA has been

validated using IaaS-related SLOs.

(Wu et al., 2013) proposes a cloud-based SLA

classiﬁcation model which distinguishes SLA param-

eters for each cloud level. An SLA evaluation method

is also introduced, able to produce a ﬁnal cloud ser-

vice score by considering the preferences and require-

ments of both the service provider and consumer.

(Bahga and Madisetti, 2013) proposes a perfor-

mance evaluation approach for complex multi-tier

cloud applications which captures the application

workload via 3 different models: benchmark, work-

load, and architecture. Based on the architecture

model, a certain methodology is proposed to facilitate

selecting the most effective deployment meeting the

application requirements. A comparison of different

deployment architectures is performed to detect sys-

tem bottlenecks and thus lead to right design choices.

The DeSVi single-cloud architecture

(Emeakaroha et al., 2012) supports SLA viola-

tion detection by employing the LoM2His framework

for application monitoring and translating low-level

metrics into high-level SLOs. LoM2His can opti-

mally tune the SLA parameter monitoring interval.

Very few approaches deal with CEP in the

cloud. (Higashino, 2016) proposes CEP as a Service

(CEPaaS) to enable using CEP with the advantages

offered by a service model. (Leitner et al., 2012) pro-

poses another CEP-based event correlation approach

relying on a predeﬁned event hierarchy.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

410

Table 1: The 3 CAMEL adaptation rules.

ID Rule Content

: EVERY (raw cpu (m1.medium) > 85% AND raw mem (m1.medium) > 90%) ⇒ scale − out (IN)

: EVERY(mean rt (YC) > 30 AND mean avail (YC) < 99.5%) ⇒ replace (YC)

: EVERY(mean cpu (m1.medium) > 70% AND mean avail (IN) < 90 ⇒) scale − out (IN)

4 BACKGROUND – CAMEL

OVERVIEW

CAMEL is a multi-DSL, developed in the PaaSage

project for specifying all relevant aspects in multi-

cloud SBA lifecycle, including deployment, require-

ment, metric, and scalability aspects. CAMEL inte-

grates existing aspect-speciﬁc DSLs, like CloudML

(Ferry et al., 2013) (deployment aspect), plus new

ones, like the Scalability Rule Language (Kritikos

et al., 2014) (metric & scalability aspects). As this

paper focuses on SLO evaluation that is also related

to SBA adaptation, only the metric and scalability as-

pects are analysed.

The metric aspect, captured by CAMEL’s metric

package, covers all measurement details needed to

specify a metric, like formulas, measurement sched-

ules and windows. This package enables also to spec-

ify conditions over metrics to be exploited to deﬁne

SLOs and non-functional events in scalability rules.

The scalability aspect has been recently adapted

(Kritikos et al., 2017) in CloudSocket to cover speci-

fying complex adaptation rules and not just scalabil-

ity ones. Such rules can then drive cross-level multi-

cloud SBA adaptation. These rules map single events

or event patterns to an adaptation workﬂow compris-

ing level-speciﬁc adaptation actions.

Due to this paper focus, only the conceptualisa-

tion of events and event patterns (EPs) will be further

analysed for the adaptation aspect. An event can be

single or composite. A single, non-functional event

maps directly to the violation of a metric condition.

A composite event maps to specifying a unary or bi-

nary EP, i.e., an event composition on which a certain

time or logical operator applies. A unary EP applies

an unary operator, like (logical) NOT, over a certain

event. A binary EP applies a binary operator, like the

PRECEDES time-based one over two events. Time-

based operators have been mainly inspired from Es-

per’s Event Pattern Language (EPL)

As a composite event can map to any event kind,

CAMEL can specify a hierarchy of EPs. This enables

it to support specifying any complex problematic sit-

uation. For instance, consider running example’s R

https://paasage.ercim.eu/

http://www.espertech.com/esper/

rule. For this rule, we have the speciﬁcation of a unary

EP EP

that applies the EVERY operator over the EP

EP. The latter is a binary EP that applies in turn the

AND logical operator over two single events mapping

to the two metric conditions in R

, respectively.

5 SLO EVALUATION

FRAMEWORK

5.1 Framework Logical Architecture

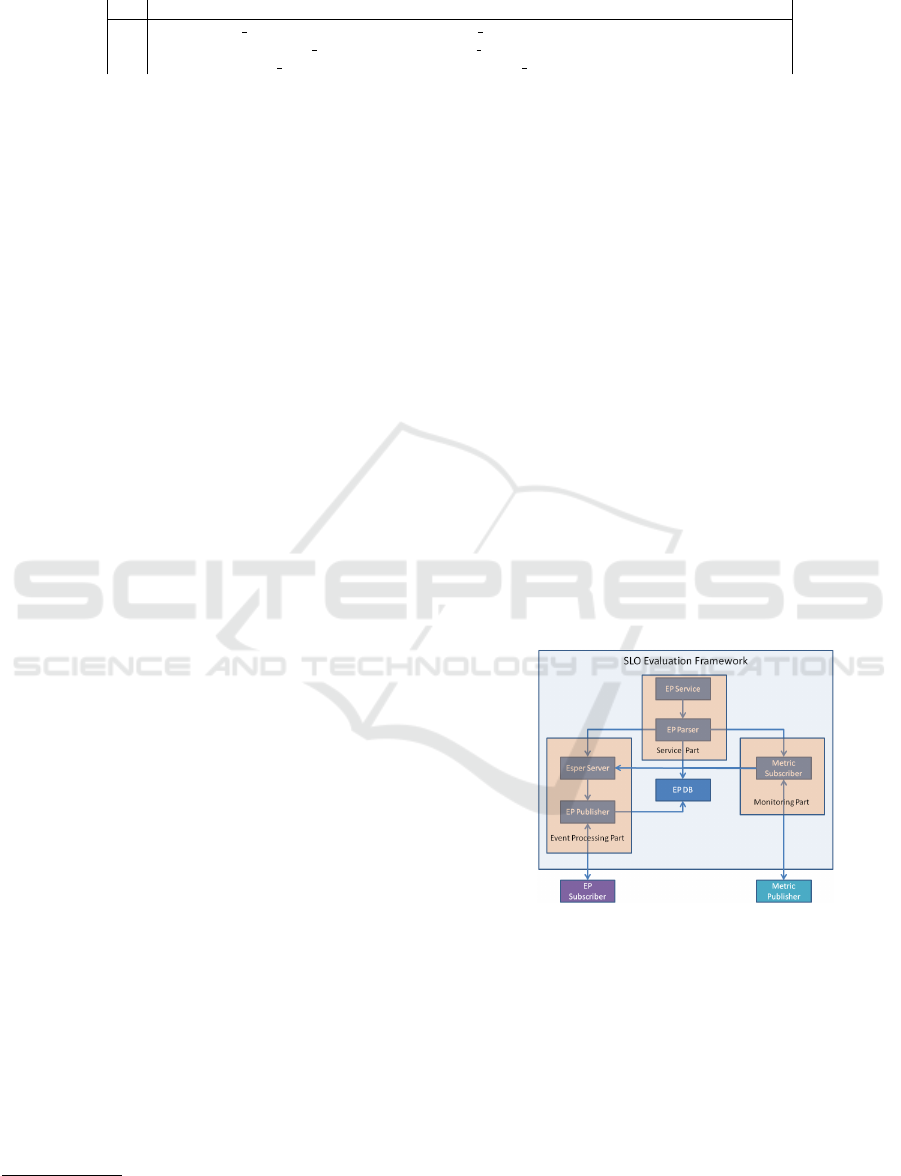

Figure 2 depicts the modular architecture of the pro-

posed SLO Evaluation Framework comprising 3 main

levels: (a) interface; (b) core logic; (c) database (DB).

At the interface level, a REST service wraps the main

actions (add, update, delete) that can be performed

over EPs, by also being able to parse SRL fragments

specifying such EPs. These actions are mapped to un-

derlying calls on other framework components.

Figure 2: The SLO Evaluation Framework architecture.

The core logic level includes EP Parser, able to

process the EPs obtained from the EP Service. De-

pending on the action requested, different interactions

occur between components at this and the DB level.

EP Addition. The EP Parser transforms the

CAMEL model of the EP to be added into a speci-

ﬁcation conforming to the CEP framework’s EP lan-

guage. The produced speciﬁcation is then registered

in that framework’s CEP Server to be immediately de-

tected. The names of metrics directly involved in the

conditions of the EP’s events are also sent to the Met-

ric Subscriber. The latter ﬁrst updates its local metric

Towards Multi-cloud SLO Evaluation

411

list in the EP DB for fault-tolerance and rapid recov-

ery reasons and then subscribes to such metrics, when

they are new, in the Metric Publisher. The latter com-

ponent publishes the values of the metrics monitored

to potential subscribers. Thus, it could well match a

Monitoring Engine of an SBA management system.

Once registration of both the new EP and its met-

rics ﬁnishes, the EP addition is deemed successful.

Thus, the EP Parser can then store the new EP in

the EP DB for recovery reasons but also for gathering

statistics about EPs, when being detected by the Esper

Server. The EP DB takes the form of a model reposi-

tory able to store, query and manipulate CAMEL EP

models along with their statistics.

EP Deletion. For this action, the EP is ﬁrst ob-

tained from EP DB. Then, EP Parser informs in par-

allel both CEP Server and Metric Subscriber about

the EP deletion such that: (a) the CEP Server can

deregister the EP’s EPL speciﬁcation; (b) the Metric

Subscriber, after checking that the EP metrics to be

removed are not exploited in other EPs, can unsub-

scribe to these metrics to reduce system load.

EP Update. Here, the previous EPL statement is

updated with the new one generated by EP Processor.

Metric Subscriber also adds / removes metrics which

are / not needed any more by any EP, respectively.

The EP management actions can be initiated via

either the interaction of the proposed system with an

external agent/user or the use of a publish-subscribe

mechanism. This has the advantage that we can easily

switch from one to another interaction mechanism or

have both available at the same time.

The above analysis covered the interactions in the

context of EP management actions. Apart from this,

some system components continuously run to support

the delivery of the SLO evaluation functionality ex-

pected from the proposed system. The functionality

of these components in explicated in detail below.

While Metric Subscriber subscribes to metrics, it

can also asynchronously receive measurements for

such metrics from Metric Publisher. These mea-

surements are transformed by Metric Subscriber into

events that are fed into the CEP Server. Once the lat-

ter receives all suitable events, it can detect EPs and

subsequently inform the Event Publisher.

The EP Publisher will then publish these events to

interested EP Subscribers, which could take the form

of adaptation engines able to execute the respective

adaptation rule(s) triggered. In parallel to this publi-

cation, the EP Publisher also updates EP DB to mod-

ify the statistics of the EP(s) concerned.

The adoption of publish-subscribe mechanisms

for measurement retrieval and SLO event publishing

not only decouples the proposed framework from any

SBA Management system but also enables such sys-

tem to take any distributed or centralised form, es-

pecially concerning its adaptation part, to balance its

workload. This is achieved by enabling all distributed

system parts to subscribe to the EP Publisher to, e.g.,

manage their own adaptation space part, i.e., speciﬁc

EPs. As next sub-section will show, the presented log-

ical framework architecture has different physical im-

plementation options that could well ﬁt the distributed

form of a SBA management system.

5.2 Physical Framework Architecture

The presented logical architecture can have various

implementation options at the physical level. To

choose the most optimal one, we need ﬁrst to consider

what can be distributed in that architecture and how

the whole management system can be distributed.

For the whole management system, (3) levels can

be involved: (1) the global responsible to manage the

application as a whole; (2) the cloud one where man-

agement is restrained to a single cloud and all appli-

cation components are deployed there; (3) the user

VM level where management applies only on appli-

cation components hosted on that VM. In each level,

we also imagine that there are monitoring and adap-

tation components. Monitoring at the global level en-

ables to assess application and cross-cloud metrics as

well as application reconﬁguration. Cloud-level mon-

itoring enables to assess cloud-speciﬁc metrics plus

perform adaptation actions, usually concerning appli-

cation component scaling. Finally, VM-level moni-

toring enables to assess instance-based metrics plus

adapt the application components hosted.

Our framework has the next distribution options:

(a) it can be distributed as a whole such that different

instances could be installed in different clouds; (b)

only parts incurring the most load can be distributed,

mapping to agglomerating the CEP Server and Event

Publisher. In the latter case, the distribution does not

need to follow any cloud-speciﬁc pattern. We just

scale that agglomeration based on the workload into

a suitable number of instances. The part mapping to

the Metric Subscriber could also be distributed, not

only due to the monitoring load to be faced but also

to reduce latency by following the pattern of distri-

bution of the SBA management system monitoring

part. The two parts that can be distributed are named

as event processing part (EPP) and monitoring part

(MP). The rest of framework components are also par-

titioned into a service part (SP), comprising the REST

service and EP Parser, and the DB part (DP) includ-

ing the EP DB. These parts could also be scaled; such

a scaling would remain at the same level and will be

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

412

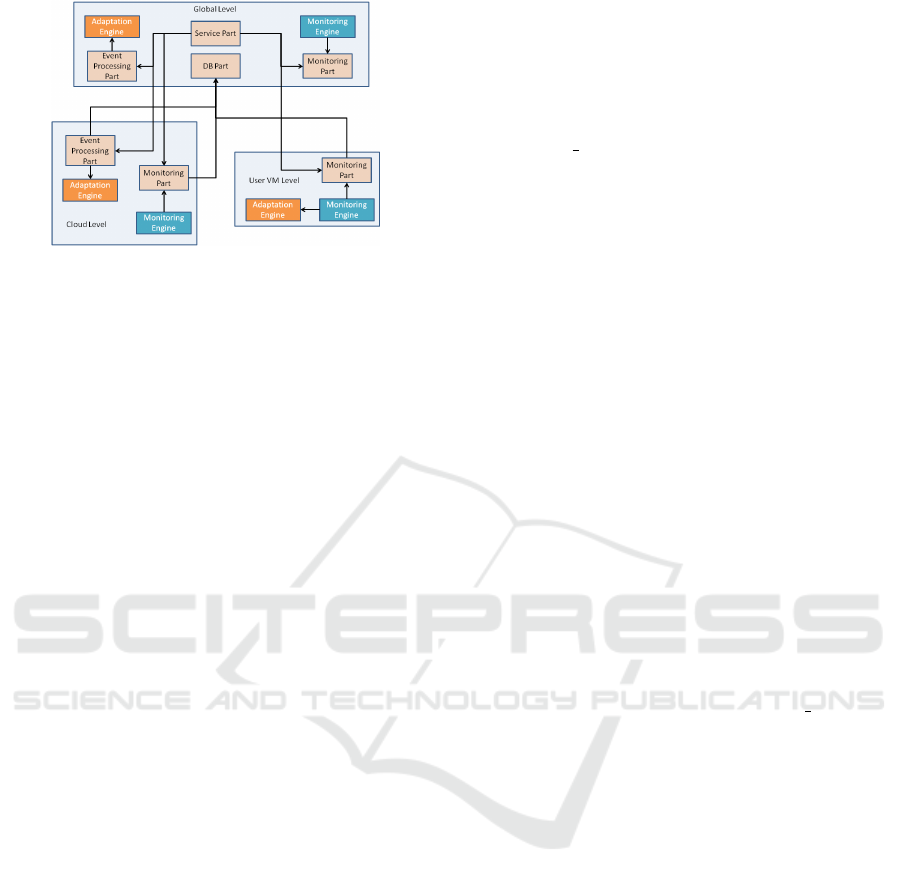

Figure 3: Most suitable physical framework deployment.

less frequent than the other parts. Fig. 2 depicts this

partitioning of the framework architecture.

By considering the distribution options for the

SBA management system and proposed framework,

an optimal architecture is suggested (see Fig. 3) in-

volving the aforementioned 3 levels. Our framework

is mainly positioned at the 2 top levels while only the

monitoring subscription part is distributed at all lev-

els. Further, different framework parts in a certain

level are deployed in different VMs to enable the on-

demand scaling of respective framework components.

At the global level, we have all framework parts

deployed separately in different VMs. We do need the

whole framework functionality, especially as the en-

try points to the whole SBA management system lie at

this level. At the cloud level, only the EPP & monitor-

ing parts should be deployed as focus is more on core

framework functionality. At the VM level, we foresee

only deploying the MP part as precious user resources

would have been stolen by also incorporating the EPP

part in this intrusive monitoring approach. As such,

the event processing could still occur by moving at

the cloud level and would enable reserving as much

resources as possible for this processing.

6 EVENT PATTERN

GENERATION

6.1 CAMEL to EPL Construct

Mapping

As CAMEL is inspired by Esper EPL, all CAMEL

event composition constructs map directly to EPL

constructs. Table 2 shows this mapping via a re-

stricted CAMEL concrete syntax form where speciﬁc

information is ﬁltered out (including the EP name

plus the names of the attributes in this EP deﬁnition).

In this table, A and B represent any event kind,

while T a timer, representing a time interval. The

mapping between timer models in CAMEL and EPL

is straightforward. Three timer kinds are supported:

• WITHIN: indicates a time period within which an

EP should occur. First EP occurrence is enough to

consider that whole event composition is satisﬁed.

• WITHIN MAX: similar to previous timer but im-

poses a bound over the number of times the re-

spective EP should occur. Thus, the whole com-

position is satisﬁed when either the bound is

reached or the time period has been ﬁnished.

• INTERVAL: indicates the time period to pass so as

to proceed with the next event composition part.

For instance, an EP could indicate that we must

see one occurrence of A and then wait until 60

seconds until we consider that the EP is satisﬁed.

6.2 Camel to EPL Mapping

As an EP can be a composition of other EPs, any

kind of composite event expression can be speciﬁed in

CAMEL and then be completely mapped to EPL. The

latter mapping follows a top-down process by con-

sidering an event composition in an EP as a tree that

can be processed from its single root node down to its

leaves. The leaf nodes correspond to single events,

while intermediate or root node map to composite

events with a certain operator applying to them.

The pseudo-code of the transformation algo-

rithm can be found in https://drive.google.com/

open?id=1TPwF64GtgA0iFbz6c3IzJYqE IktspIL.

As it can be seen, the algorithm checks the event type

concerned and then employs speciﬁc event handling

code to process it. Single events are handled by a

function analysed in the next subsection.

For unary EPs, we obtain the String-based EPL

representation of the single event referenced by call-

ing recursively the same algorithm, and then we con-

dition over the operator involved to apply the respec-

tive transformation logic encoded in Table 2 and thus

ﬁnally return the EPL representation of this unary EP.

For composite EPs, the logic is more complicated

as we deal either with 2 events or one event and timer.

In particular, we obtain the String representation of

the left and right EP parts by checking whether they

map to an event or a timer. In case of an event, we call

recursively the algorithm to obtain its EPL represen-

tation. For a timer, we call the processTimer function

to obtain its EPL representation. As the latter trans-

formation is trivial, we omit its presentation. Once we

obtain the EPL representations of both left and right

EP parts, we condition over the binary EP operator to

apply the transformation logic encoded in Table 2 and

thus ﬁnally return the binary EP’s EPL representation.

Towards Multi-cloud SLO Evaluation

413

Table 2: Mapping of CAMEL to Esper EPL Constructs.

CAMEL Construct EPL Construct Explanation

A EVERY every A every occurrence of A

A NOT not A non-occurrence of A

A REPEAT Y [Y] A Y times A has occurred

A WHEN T Y [Y] A until T Y times A has occurred within time period designated by time T

A AND B A and B logical conjunction of A and B

A OR B A or B logical disjunction of A and B

A XOR B (A and not B) or (not A and B) exclusive occurrence of A or B

A PRECEDES B A -> B A followed by B

A REPEAT UNTIL B Y1 Y2 [Y1:Y2] A until B A should occur from Y1 to Y2 times until B occurs

6.3 Event Correlation

Previous sub-section presented the core logic for

transforming a CAMEL EP into an Esper EPL expres-

sion. Intentionally, that presentation did not explain

how single events are transformed into EPL expres-

sions, as events in an EP statement need to be cor-

rectly correlated which then requires a special han-

dling of their transformation. The goal of this sub-

section is to explain how this handling takes place.

Before explaining this, we need to explicitly deter-

mine what an event correlation signiﬁes: it indicates

that the events involved in it should be associated with

either the same measured components or components

connected in the SBA dependency hierarchy. For in-

stance, two events can focus on the same application

component or one event can be related to a compo-

nent and the second event to the VM hosting it. With-

out such correlation, we risk that we react on wrong

EPs. For example, suppose a certain EP includes two

events A and B, both at the level of a single appli-

cation, which could be detected for two different ap-

plications. Suppose further that Esper detects event

A mapping to the ﬁrst application and event B to the

second. Without properly correlating A and B, it will

then be inferred that the EP has occurred and the adap-

tation action mapped to that EP needs to be triggered.

6.3.1 Measurement Representation in EPL

Events

The need to handle correlations impacts the way mea-

surements are represented as information concerning

the measured component should be already present

and copied accordingly in the event’s internal repre-

sentation in Esper. Thus, as our system receives mea-

surements, these measurements must carry informa-

tion supporting us in their mapping to single events to

be then processed by Esper for EP detection purposes.

Based on the above, we assume the following: (a)

Metric Subscriber subscribes only to metrics based on

their name; (b) Metric Publisher publishes measure-

ments for metrics that might be equally named. So,

the published measurement information must be suf-

ﬁcient to enable the framework to identify exactly the

object being measured so as to distinguish between

measurements of the same metric.

Another assumption is that our EP detection

framework is decoupled from the dependency knowl-

edge it should possess at the instance level that would

have to be drawn from the SBA management system

via, e.g., its models@runtime component (Blair et al.,

2009). This enables it to connect without any effort

to different management systems and not to be tightly

coupled with just one. Such a decoupling requires

to encode this dependency information inside every

measurement. As such, we pay the small penalty of

minor duplication of the information being published.

The measurement information published, map-

ping to our internal event representation in Esper, in-

cludes the next information pieces that map to both

the SBA type and instance topology: (f1) the met-

ric’s name (e.g., MeanResponseTime); (f2) the met-

ric’s value; (f3) the measurement timestamp; (f4) the

name of the SBA concerned; (f5) the name of the

component measured; (f6) the name of the component

instance; (f7) the name of the VM measured; (f8) the

name of the VM instance.

Values for ﬁelds f1-f4 must be always supplied,

while, depending on the level and kind of component

measured, only values for some of the other ﬁelds

must be provided based on the following cases map-

ping to the type of measurement:

• C1 – ApplicationMeasurement: as measurement

concerns whole SBA, no extra ﬁelds are needed.

• C2 – VMMeasurement: the measurement con-

cerns one VM. 2 sub-cases can hold: (C2.1) only

ﬁeld f7 must be supplied as the measurement con-

cerns the VM type (e.g., m1.medium) and not its

instance; (C2.2) the measurement concerns the

VM instance (e.g., m1.medium inst1), so we must

provide both ﬁelds f7 & f8 as the type of the VM

instance concerned must be supplied.

• C3 – ComponentMeasurement: it concerns a

certain component. 2 sub-cases can hold: (C3.1)

it concerns the component type (e.g., “InvoiceN-

inja”). So, apart from ﬁeld f5, we must supply

ﬁeld f7 (provide, e.g., the value of “m1.medium”)

to explicate for which component-to-VM de-

ployment the current measurement holds as one

component might be logically deployed into mul-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

414

tiple VMs within the same deployment topology;

(C3.2) the measurement concerns a component

instance (e.g., “InvoiceNinja Inst1”). Thus, all

ﬁelds must be supplied to cover the deployment

of both that component instance at the instance

level and its (component) type at the type level.

As such, in the running use case, the following

measurement ﬁeld values will be supplied:

f5=“InvoiceNinja”, f6=“InvoiceNinja Inst1”,

f7=“m1.medium”, f8=“m1.medium inst1”.

6.3.2 Single Event CAMEL-to-EPL

Transformation

The uniform way we represent events in Esper en-

ables us to map single CAMEL events to a String EPL

representation. Such mapping, however, must con-

sider the correlation between events at the same EP.

This can be achieved by considering both the CAMEL

application topology at the type level and the runtime

information about the instance level for that topology,

obtained from the respective measurements retrieved.

However, for the latter, we need to distinguish be-

tween: (a) measurement evaluation information ex-

amined at event processing time; (b) event correlation

information generated at event speciﬁcation time. In

the second case, we must perform the correlation by

considering that each component or VM will map to

a certain instance, not known at design time but deter-

mined by the ﬁrst event for which the evaluation will

be performed. This is where contextual information

comes into play. In particular, we use a context ob-

ject (see previous pseudo-code) to remember the ﬁrst

event referring to the instance of a component/VM.

Thus, relevant events subsequently processed for the

current EP at hand will be correlated via information

pertaining to that event and captured by that object.

The main logic of the transformation from

CAMEL single events to the developed Mea-

surement class in Esper can be seen in the

pseudo-code available at https://drive.google.com/op

en?id=1LepdhHnSm71r87zUrCzMEAjgtmSL3tDO.

In a nutshell, the algorithm, by also exploiting the

contextual information dynamically created and ex-

panded, attempts ﬁrst to generate the basic EPL event

description part, common across any single event to

be processed, comprising: (a) an identiﬁer to prop-

erly identify the event and be able to correlate it with

the next ones in the processing order; (b) the values of

ﬁelds f1-f4; (c) depending on the type of component

concerned, values of ﬁelds f7 and/or f5. Concerning

the third information piece, we have already indicated

the different cases that might hold at the type level

(see Cases C3.1 and C2.1) with the sole exception that

when we have only the application being measured

(Case C1), none of these 2 ﬁelds must be speciﬁed.

When we face a composite metric concerning the

type level, processing stops. Otherwise, if need to ad-

dress a raw metric concerning the instance level, pro-

cessing continues based on sub-cases C2.2 and C3.2.

For C2.2, we check if the instance of the VM was

already involved in a previously processed event. If

this holds, we get the respective reference from the

context object and expand the internal condition of

the EPL event String to be generated. Otherwise, the

current event is the reference event for this VM in-

stance; we then inform the context object about this

to cater for processing the next events in the same EP.

For C3.2, we similarly check if the component in-

stance has been already stamped in the context ob-

ject. If this holds, we expand the EPL internal event

condition with correlation information. However, this

time we correlate both this component instance and

the VM instance on which it was deployed based on

the respective events of reference in the context ob-

ject. Otherwise, we mark the current event as the

reference event of the component instance. In case

the VM instance has been already referenced, we still

expand the current EPL String with the reference of

the respective event. If not, we also make the current

event as the reference event of this VM instance.

6.4 Use Case Application

We apply our CAMEL-to-EPL transformation algo-

rithm on the running use case. We focus on adaptation

rule R

, the most complicated in terms of handling.

By considering the CAMEL model of R

’s unary

EP, there is a tree with 3 levels where there is one

root node (unary EP) with EVERY composition oper-

ator and one intermediate node (binary EP) with AND

as composition operator. By applying the processEP

transformation method on the top EP, we will ﬁrst

generate the EPL statement for the intermediate node

by calling the same method recursively and then we

will apply the EVERY operator based on the seman-

tics of Table 2 to produce the ﬁnal EPL statement. So,

if intermediate node’s EPL statement is “X”, the ﬁnal

EPL statement would be: “every (X)”. Now, let’s fo-

cus on how the intermediate node will be processed.

We will ﬁrst process the left binary EP part map-

ping to the raw CPU utilisation condition by calling

recursively the emphprocessEP method. As this con-

dition maps to a single event, eventually the processS-

ingleEvent method will be called to construct ﬁrst the

basic EPL event string by including the ﬁelds f1-f4:

ev1=Event(metric=’CPUUtilisation’ and value >= 85 and applica-

tion=’SendInvoice’ and vm=’m1.medium’

We will then discover that Case 2.2 holds such that

Towards Multi-cloud SLO Evaluation

415

we must only handle the instance of ‘m1.medium’

VM. After checking the context object, there is no

previous reference to that instance as this is the ﬁrst

event being processed. So, the context object will

be updated to include a reference to this event (i.e.,

“ev1.vmInstance”) in case we need to refer to the in-

stance of ‘m1.medium’ VM, while the String of the

event EPL speciﬁcation will be ended with ”)”.

Next, we will process the binary EP’s right part

related to the condition on raw memory utilisation by

involving again the same call sequence (processEP

followed by processSingleEvent). The ﬁrst part of this

event will be similar to that of the previous one (only

metric and condition sub-parts differing):

ev2=Event(metric=’MemoryUtilisation’ and value >= 90 and appli-

cation=’SendInvoice’ and vm=’m1.medium’

In this case, we deal with the same VM as in the

previous event by also handling the instance level.

Thus, we will again check the context object and ﬁnd

out that the event of reference for an instance of the

‘m1.medium’ VM will be “ev1.vmInstance”. This

will lead to expanding and subsequently ﬁnalising the

respective EPL statement as follows:

ev2=Event(metric=’MemoryUtilisation’ and value >= 90 and

application=’SendInvoice’ and vm=’m1.medium’ and vmIn-

stance=ev1.vmInstance)

Finally, having the 2 EP parts already determined,

we just need to combine them based on AND oper-

ator semantics in Table 2. This will eventually lead

to producing the ﬁnal EPL statement for the binary

EP which, when enhanced with the application of the

EVERY operator, will take the following ﬁnal form:

every(ev1=Event(metric=’CPUUtilisation’ and value >= 85

and application=’SendInvoice’ and vm=’m1.medium’) and

ev2=Event(metric=’MemoryUtilisation’ and value >= 90 and

application=’SendInvoice’ and vm=’m1.medium’ and vmIn-

stance=ev1.vmInstance))

Due to space restrictions and the simpler complex-

ity in their processing, we will not elaborate on the

rest of the adaptation rules of the running use case.

7 CONCLUSIONS AND FUTURE

WORK

This paper has proposed a novel SLO evaluation

framework for SBAs that is scalable and distributable

across the whole SBA architecture. This framework

relies on a modular architecture with different realisa-

tion options at the physical level. It also encompasses

the well-known Esper CEP engine enabling the scal-

able processing of complex EPs even in a centralised

setting. It also relies on CAMEL’s SRL sub-DSL en-

abling it to: (a) fully specify the event parts of SBA

adaptation rules; (b) be more focused on processing

and detecting only those EPs related to the SBA de-

sired adaptation behaviour; (c) to be synchronised

with the modiﬁcations performed on SBA adaptation

rules. The latter is also supported by introducing a

REST service, encapsulating functionality to manage

the EPs that need to be detected in this framework.

The following research work directions are

planned: (a) thorough SLO evaluation framework as-

sessment including its various physical distribution

alternatives; (b) comparison of Esper with other CEP

engines to assess which engine is more suitable in our

context; (c) possible extension of the framework to be

conﬁgured to exploit any CEP engin via the incorpo-

ration of appropriate abstraction mechanisms.

ACKNOWLEDGEMENTS

This work is supported by the Unicorn project that

has been funded within the European Commissions

H2020 Program under contract number 731846.

REFERENCES

Bahga, A. and Madisetti, V. K. (2013). Performance

evaluation approach for multi-tier cloud applications.

Journal of Software Engineering and Applications,

6(02):74.

Blair, G., Bencomo, N., and France, R. B. (2009). Models@

Run.Time. Computer, 42(10):22–27.

Emeakaroha, V. C., Netto, M. A., Calheiros, R. N., Brandic,

I., Buyya, R., and Rose, C. A. D. (2012). Towards

autonomic detection of sla violations in cloud in-

frastructures. Future Generation Computer Systems,

28(7):1017 – 1029.

Ferry, N., Chauvel, F., Rossini, A., Morin, B., and Sol-

berg, A. (2013). Managing multi-cloud systems with

CloudMF. In NordiCloud, pages 38–45. ACM.

Higashino, W. A. (2016). Complex Event Processing as a

Service in MultiCloud Environments. PhD thesis, The

University of Western Ontario.

Kritikos, K., Domaschka, J., and Rossini, A. (2014). SRL:

A Scalability Rule Language for Multi-cloud Environ-

ments. In CloudCom. IEEE.

Kritikos, K., Zeginis, C., Griesinger, F., Seyold, D., and Do-

maschka, J. (2017). A Cross-Layer BPaaS Adaptation

Framework. In FiCloud. IEEE.

Leitner, P., Inzinger, C., Hummer, W., Satzger, B., and

Dustdar, S. (2012). Application-level performance

monitoring of cloud services based on the complex

event processing paradigm. In SOCA, pages 1–8.

IEEE Computer Society.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

416

Ludwig, H., Stamou, K., Mohamed, M., Mandagere, N.,

Langston, B., Alatorre, G., Nakamura, H., Anya, O.,

and Keller, A. (2015). rSLA: Monitoring SLAs in Dy-

namic Service Environments. In ICSOC, volume 9435

of LNCS, pages 139–153. Springer.

Wu, C., Zhu, Y., and Pan, S. (2013). The sla evaluation

model for cloud computing. In ICCNCE. Atlantis

Press.

Zeginis, C., Kritikos, K., and Plexousakis, D. (2015). Event

pattern discovery in multi-cloud service-based appli-

cations. IJSSOE, 5(4):78–103.

Towards Multi-cloud SLO Evaluation

417
