An Approach for Modeling Polyglot Persistence

Cristofer Zdepski, Tarcizio Alexandre Bini and Simone Nasser Matos

Federal Technological University of Parana, Av Monteiro Lobato, s/n - Km 04, 84016210, Ponta Grossa, Parana, Brazil

Keywords:

NoSQL, Database Design, Polyglot Persistence, Logical Level Design.

Abstract:

The emergence of NoSQL databases has greatly expanded database systems in both storage capacity and

performance. To make use of these capabilities many systems have integrated these new data models into

existing applications, making use of multiple databases at the same time, forming a concept called ”Polyglot

Persistence”. However, the lack of a methodology capable of unifying the design of these integrated data

models makes design a difﬁcult task. To overcome this lack, this paper proposes a modeling methodology

capable of unifying design patterns for these integrated databases, bringing an overview of the system, as well

as a detailed view of each database design.

1 INTRODUCTION

The popularization of Web 2.0 brought an dramati-

cally increase in data generation. Nowadays databa-

ses easily exceed petabytes scale, with daily increase

rates in the terabytes scale. As an example we can

take the Facebook database, which in 2014 had a size

of 300 petabytes, and a daily increase rate of 600 tera-

bytes, according to (Wilfong and Vagata, 2014). Thus

the recent changes, mainly caused by Web 2.0, at the

level of users, infrastructure and applications charac-

teristics has transformed the use of relational model

an increasingly difﬁcult task.

Relational databases have been the market leaders

for the past 40 years due to their great ability to adapt

to most problems. The long time of existence also

gives it a high level of maturity, and is still the most

recommended for many applications, mainly the ones

that need a high level of consistency on data mani-

pulation and storage. One of the main characteris-

tics of relational databases is the implementation of

ACID properties (Atomicity, Consistency, Isolation

and Durability). These properties ensures a strong

consistency and guarantees validity of data even in the

event of errors, like power or network failures.

Despite meeting the needs of many different cur-

rent applications, the relational model begins to show

problems when dealing with very large databases,

mainly with performance problems. The main reason

is in fact that they were not designed to be scaled, es-

pecially when it comes to horizontal scalability. The

inherent need for dynamic schema of Web 2.0 appli-

cations also brings out some weaknesses of the relati-

onal model by working with static schemas.

Inspired by this limitations, NoSQL databases

have emerged as the solution to the growing need

of systems for information. As they expand over

the Internet its data increases even faster. Accor-

ding to (Sadalage and Fowler, 2012) and (Cattell,

2011) the biggest goal of NoSQL databases is their

scalability skills that are required for next genera-

tion web applications. While relational databases rely

on high consistency, provided by ACID properties,

many NoSQL databases works with BASE (Basically

Available, Soft state, Eventually consistent) proper-

ties which aims to provide high levels of availability

and resilience even though this may compromise con-

sistency for a few moments.

There are many different NoSQL databases no-

wadays and their data structures vary from one anot-

her. According to (Sadalage and Fowler, 2012; Has-

hem and Ranc, 2016; Kaur and Rani, 2013; Abra-

mova et al., 2014) NoSQL databases can be classi-

ﬁed into the following data models, grouped by their

main characteristics: (1) Key-value; (2) Document-

Oriented; (3) Column-family; (4) Graph databases.

Even among the different categories, the concept of

”schema-less” is widely used in the NoSQL databa-

ses. Many of them have no schema deﬁnition or data

constraints. Even object creation that is mandatory in

relational databases is often not required in NoSQL

databases as they are created when used.

Database design spends a great deal of time on

developing conceptual, logical, and physical models.

120

Zdepski, C., Bini, T. and Matos, S.

An Approach for Modeling Polyglot Persistence.

DOI: 10.5220/0006684901200126

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 120-126

ISBN: 978-989-758-298-1

The main purpose of these models is to ensure that the

structures needed to store the data will be properly

constructed and will meet the system requirements.

Even so, database design is not commonly applied

to NoSQL databases. The so-called ”schema-less” in

NoSQL databases may give the impression of an at-

tempt to eliminate the need for data modeling, but the

modeling aims more than just the schema deﬁnition.

Database modeling mainly seeks a better understan-

ding and easier visualization of the data structures to

be used.

(Sadalage and Fowler, 2012) mentions that the al-

legation of absence of schema in NoSQL databases

is misleading. Even if the database does not consider

a schema associated with the data being stored, such

a schema must be deﬁned by the application because

data needs to be understood by the application in or-

der to be processed or stored. If the application fails

to parse the data, we have a schema mismatch and

the application could not function. Therefore, even

in ”schema-less” NoSQL databases, it is important to

have a suitable design so that the data can be properly

stored and processed.

The correct use of NoSQL databases have to be al-

ways considered. Despite its current popularity, many

applications do not justify the use of a NoSQL data-

base and, if done, can lead to more losses than gains.

Some systems will require the use of a NoSQL data

model only for part of their data, while the other parts

may be more suitable for another NoSQL or even a

relational data model.

Complex applications can take better advantage of

using different data models for storing and processing

different parts of their data. An e-commerce system

could, for example, be implemented according to Fi-

gure 1. This would bring distinct structures to system

parts, making the best use of the capabilities of each

data model. Still, an uniﬁed view would simplify the

visualization of interactions between the parts, allo-

wing an overview of the system as a whole.

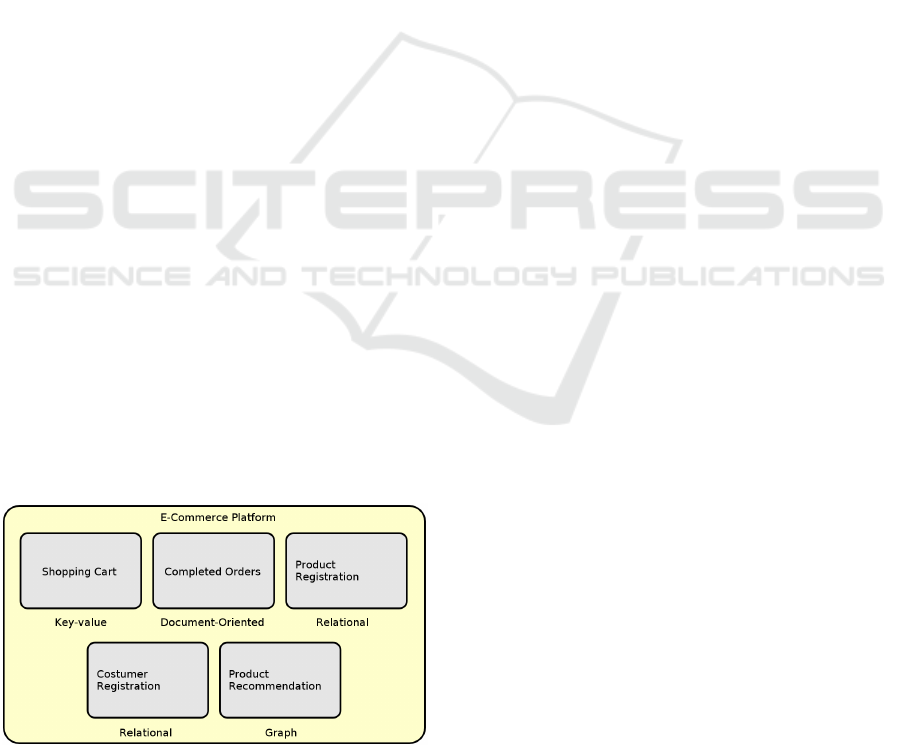

Figure 1: Suggested E-Commerce Platform Database.

These kind of complex applications are the object

of study of this paper. It explores a proposal for mo-

deling systems based on what we can call a ”Polyglot

Database System”, which uses multiple different data

models, each one with their own particular objectives.

This paper aims to propose a modeling methodology

capable of integrating multiple different data models

into a single system, making the best of each one and

maintaining an uniﬁed view of the system as a whole.

This paper is organized as follows. Section 2 pre-

sents some fundamental concepts of database design

and related works. Section 3 presents the suggested

modeling proposal and ﬁnally, Section 4 concludes

and presents future works.

2 BACKGROUND AND RELATED

WORKS

The absence of design methodologies for NoSQL da-

tabases is a topic already explored by several authors

who proposed different solutions. Many of these so-

lutions are limited to speciﬁc data models or steps in

database design and none attempts to explore a met-

hodology that can standardize the complete design of

databases for emerging data models in conjunction

with existing ones. The combination of multiple da-

tabases with different data models in a single system,

called by (Sadalage and Fowler, 2012) of ”Polyglot

Persistence” is also a topic barely explored in data-

base design.

It is a consensus among several authors such as

(Rob and Coronel, 2007; Ramakrishnan and Gehrke,

2000; Martyn, 2000) that the database design is es-

sentially divided into 3 steps: (1) Conceptual Design,

(2) Logical Design and (3) Physical Design. Con-

ceptual design aims to translate the requirements into

a conceptual database schema. According to (Korth

and Silberschatz, 1986), the model developed at this

step provides a detailed overview of the whole system

context. It is well known that the conceptual design is

technology-independent and for this reason it can be

applied to both relational database and NoSQL.

Unlike the conceptual design, the logical design

brings the conceptual model previously developed to

a step much more dependent on the adopted data mo-

del. According to (Rob and Coronel, 2007), the lo-

gical design realizes the translation of the conceptual

model for the internal model of a DBMS (Database

Management System) and for this reason it is depen-

dent on data model to be employed. Many of the spe-

ciﬁcities of each database should be explored, such as

the supported data types and the format the data will

be stored, such as tables, documents or nodes and ed-

ges.

In the physical design step physical peculiarities

An Approach for Modeling Polyglot Persistence

121

of each database software are treated. These pe-

culiarities involve speciﬁc types of data, forms of

storage, partitioning, clustering capabilities among

others. (Martyn, 2000) mentions that the main pur-

pose of physical design is to make the data model

machine efﬁcient. The physical deﬁnition is neces-

sary to ensure a better match of the data to the storage

software. In the same way that the schema deﬁnition

is necessary for the application to function properly,

the physical deﬁnition is necessary to ensure the efﬁ-

ciency of the database.

The challenge for modeling NoSQL databases be-

gins with conversion from the conceptual to logical

model. (Banerjee and Sarkar, 2016) suggests the de-

ﬁnition of a rule-based conversion system capable of

transforming the conceptual model into logical and

later into a physical model compatible with the four

categories of NoSQL databases. However, the model

does not explore the possibility of using multiple da-

tabases and therefore does not deﬁne the boundaries

between them.

The NoSQL Abstract Model (NoAM) is proposed

by (Bugiotti et al., 2013) and explored later by (Bu-

giotti et al., 2014) deﬁning a methodology capable of

creating a model for the aggregate-based databases.

Its methodology proposes that the same model can be

used for the elaboration of the three data models ba-

sed on aggregate and the deﬁnition of which to use

can be done in the physical design step. This could be

a problem due to capabilities of each data model can

change the logical modeling, such as how to obtain

the data. As an example, key-value databases gene-

rally do not have data searching capabilities, and this

could affect the logical design of the database. So de-

ﬁning the data model after the logical design can lead

to erroneous deﬁnitions that would need to be subse-

quently adjusted.

A very relevant point in a design involving

NoSQL databases is the way of querying the data.

Due to many of these databases do not have complex

query structures like joins, they need to be designed

for greater query efﬁciency and simplicity, as descri-

bed in (Li et al., 2014). In a context with multiple

databases a concern with query should be even grea-

ter, since a query that involves several databases can

bring even more complexity to the process.

A ﬁnal concern is the graphical notation capa-

ble of representing the new data structures created

by these databases. While relational databases work

only with tables and rows, NoSQL databases bring

aggregates or graph structures and their representa-

tion clearly in existing logical models can be a dif-

ﬁcult task. In order to solve this deﬁciency, (Jova-

novic and Benson, 2013) suggests a modeling style

that uses IDEF1X to represent the aggregate structu-

res. But graph structures still can not be represented

by this modeling style.

We can therefore note that several efforts exist in

order to elaborate processes capable of assisting in the

design of these NoSQL databases, but generally are

isolated efforts in speciﬁc areas. The absence of a

model capable of unifying the whole process, joining

several data models when necessary and exploring the

best characteristics of each one, motivated us to ela-

borate our proposal.

3 PROPOSAL

Complex database systems can usually be divided

into subsystems that are quite different from each ot-

her. Some subsystems have needs that would be better

met by NoSQL databases due to their need for sca-

lability, availability and performance. However, ot-

her subsystems have needs that would best be met

by classic relational databases because of their con-

sistency and atomicity. Often a single database sy-

stem, being relational or NoSQL, would not be able

to satisfy both the consistency and atomicity scenario

and the scalability, availability and performance re-

quired by these complex database systems given the

wide range of concepts between them. Taking this

as a premise, many of these systems can best be im-

plemented by using multiple integrated databases, in

order to extract the best usage for each one. Our pro-

posal aims to create a methodology for designing po-

lyglot database systems, allowing from an overview

of the entire system to its speciﬁc details.

The main difference between our proposal and the

others presented is the subdivision of the conceptual

model into subsystems. These units represent the pos-

sible divisions between the multiple data models re-

quired to implement the database system. Part of the

modeling has to be the deﬁnition of the target data

model, checking their requirements to ﬁnd the best

option for that subsystem. The basis of this methodo-

logy is the classic database design as cited in section

2 and it follows the three stages deﬁned therein. Our

methodology subdivides the steps of the database de-

in subsystems, as shown in Figure 2.

As the conceptual model is technology-

independent, we propose the use of the entity-

relationship model (ER). It is a widely known and

exploited model and allows a detailed deﬁnition of

the entities and their relationships on the database.

Our proposal does not intend to modify or extend this

step of database design. The proposed modiﬁcations

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

122

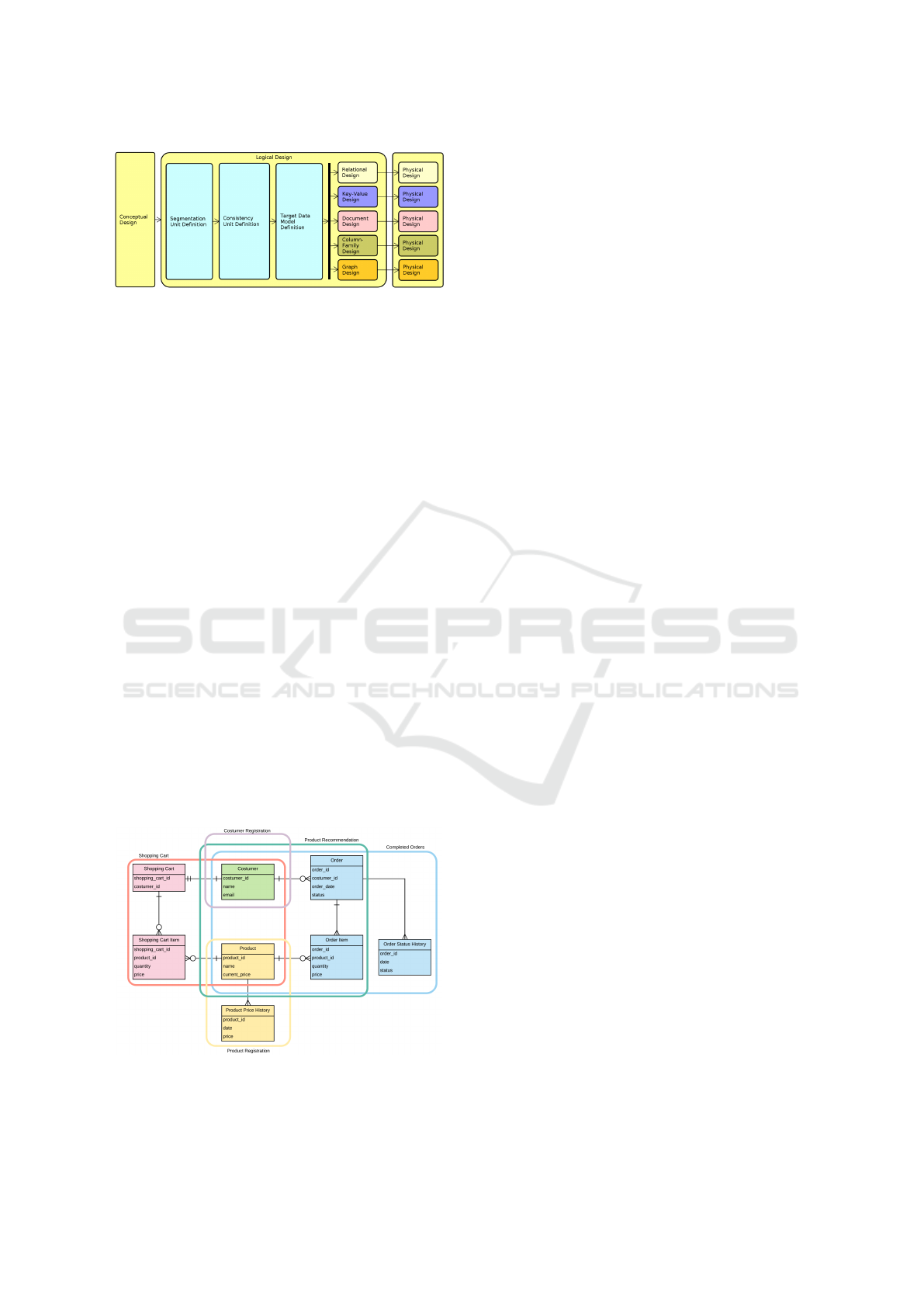

Figure 2: Proposed Design Steps.

begin with the logical design step, as described in the

following sections.

3.1 Segmentation Unit Deﬁnition

As the deﬁnition of a polyglot database system, mul-

tiple databases with multiple data models are used on

their conception. Each data model has to be allocated

to parts of the system where it better suits and taking

full advantage of its features. To make this possible, is

necessary to deﬁne the borders between each subsy-

stem, deﬁning what we will call by segmentation unit.

Segmentation in this context consists on divide the

conceptual model in parts according to main featu-

res to be implemented. Main goal here is to deﬁne

the subsystems that is fully functional units and in-

dependent of other units. This does not means that

units cannot relate to each others, but that a unit can-

not depend on this relation to be functional. To help

us understand the concept, let us consider a simpli-

ﬁed e-commerce system as illustrated in Figure 3. It

illustrates an e-commerce system, consisting of ﬁve

subsystems: (1) Shopping Cart, (2) Costumer Regis-

tration, (3) Product Registration, (4) Completed Or-

ders and (5) Product Recommendation. The entities

for each unit are surrounded by a rounded rectangle.

These units share some entities such as Product, but

all can operate independently.

Figure 3: E-Commerce System Segmentation Units.

Sometimes an entity may be shared by two or

more segmentation units. Examples can be seen in

Figure 3 such as the entity Product. The Shopping

Cart, Completed Orders and Product Recommenda-

tion shares an entity that is owned by the Product Re-

gistration subsystem, the Product. When that hap-

pens, the entities must be replicated between units,

with necessary attributes for each segment. There is

no need for replicas to be exactly equals, but they need

an identiﬁcation that allows them to be interrelated

and synchronized between units. This is also neces-

sary to maintain the functional independence of the

unit.

The main reason for deﬁnition of segmentation

units is the capability of use multiple different data

models at the same system. Segmentation units deﬁne

cut points on the system that can be used to split on

multiple different data models, as necessary. At this

point, we have not yet settled the target database, just

the cut points that will not corrupt the conceptual mo-

del, making possible the division. Once this is done,

it is possible to detach any of the segmentation units

from the model, and work as an independent system.

This deﬁnition does not necessarily means that we

will use different data models on implementation. As

multiple segmentation units can share the same data

model, there is no reason for the implementation on

multiple databases in this case.

3.2 Consistency Unit Deﬁnition

When working with NoSQL databases, one of the

most common features is the so-called eventual con-

sistency, provided by BASE properties. This raises

concerns about the consistency of data sets. While

data does not need to be consistent across the entire

database, some data groups need to be consistent to be

considered valid. These groups are what we called by

Consistency Units. The deﬁnition of such a unit also

allows data fragmentation, common practice to ens-

ure horizontal scalability. In the context of aggregate-

oriented databases, consistency units form the aggre-

gates themselves, since they are the atomic operation

unit of the database.

A practical example is the Completed Orders

subsystem shown in Figure 4. The order data as well

as the order items, product and costumer must com-

pose a consistency unit since they must always be

consistent with each other or the order data will be

invalid. If for the eventual consistency property, in

some situation a query returns the order without all

their items, we have an inconsistency that may cause

a system failure. So they have to be fully consistent.

The same does not happen with the Order Status His-

tory entity. As this a historical query entity, an even-

tual inconsistency will not affect the system. As the

An Approach for Modeling Polyglot Persistence

123

model in Figure 3 is a simpliﬁed example, other seg-

mentation units are formed by only one unit of con-

sistency.

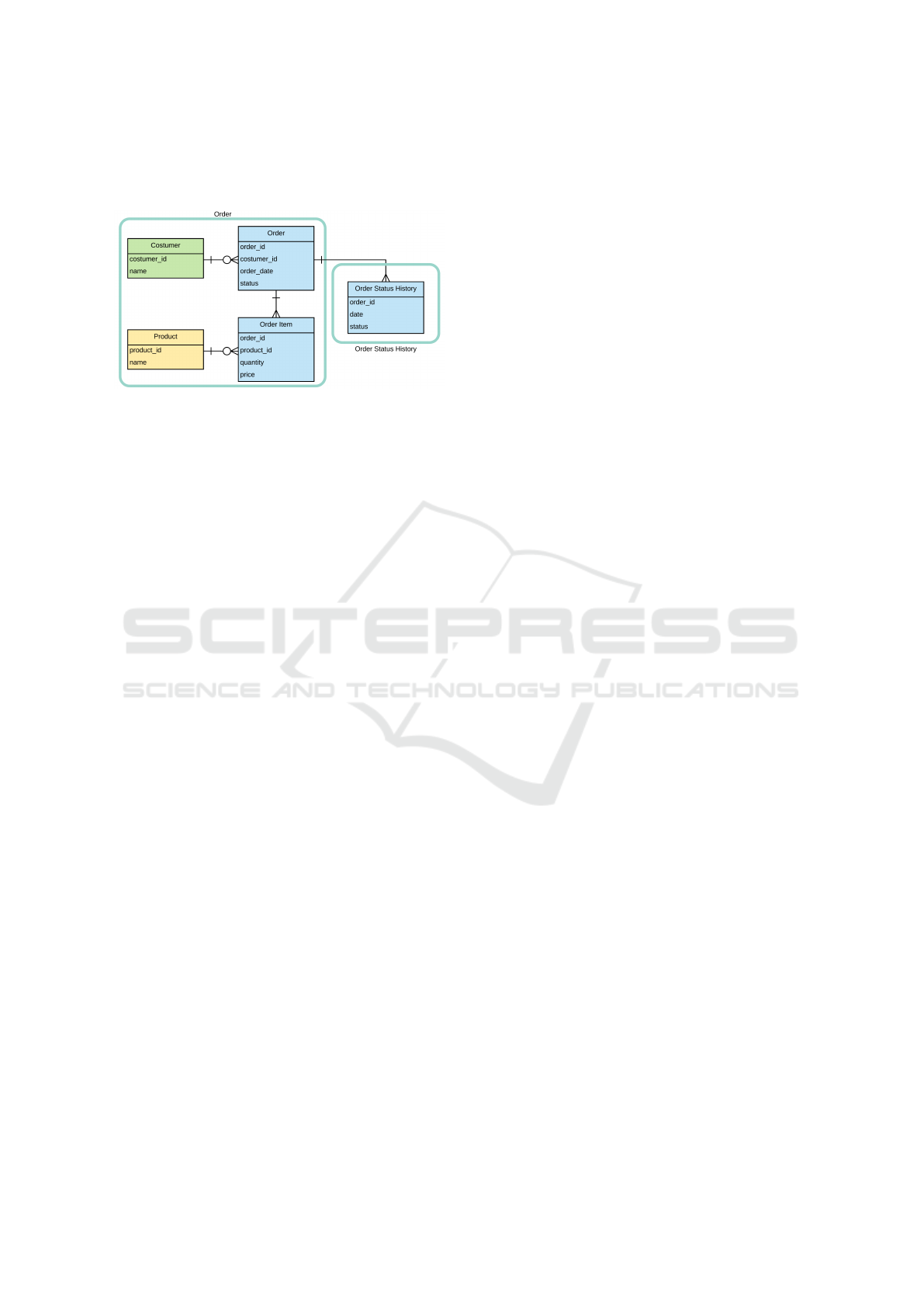

Figure 4: Completed Orders Consistency Units.

This consistency concern does not exist with

ACID databases because it is guaranteed for the en-

tire database, but at this point we do not yet have the

deﬁnition of which data model will be applied to that

segmentation unit. The deﬁnition of these consistency

units will aid in this task by deﬁning the insepara-

ble data units and consistency constraints that may in

some cases lead to change the selected data model.

The deﬁnition of consistency units is also affected

by the way the data is queried. Since some NoSQL

databases do not have complex query structures, such

as joins, data must also be designed to be extracted in

the best way. Many of these databases are only ca-

pable of extracting data from a complete consistency

unit at a time, such as key-value databases. Therefore,

in our case, including historical status data within the

order can increase the amount of unnecessary data re-

ceived by the application, as the historical data is not

always used.

3.3 Target Data Model Deﬁnition

With proper knowledge about the subsystems and

their consistency needs, the next step is to deﬁne the

best data model to be adopted for each segmentation

unit. This can be the classic relational model or any

of the NoSQL database categories described. The de-

ﬁnition requires prior knowledge of features from the

data models to tailor the data to the speciﬁed perfor-

mance, scalability and consistency requirements. The

important thing is to identify which data model better

suits the needs for each subsystem.

To help a better understanding of target data mo-

del deﬁnition, let’s again consider the segmentation

units deﬁned in Figure 3. Since each of the segmenta-

tion units has its own characteristics, it is necessary to

evaluate them individually to determine the best data

model to be adopted.

At the Shopping Cart subsystem, we have only

one unit of consistency, that is the cart with products

and quantities selected by the customer. The product

does not belong directly to this unit, as the costumer,

but they are referenced by it. An important require-

ment to consider in this subsystem is performance and

availability. The unavailability of this system or slo-

wness could cause the loss of a potential customer.

Eventual consistency would also be acceptable as it

would not cause system losses. Therefore, a NoSQL

database would be a good candidate. An important

thing to be considered is the need for searches. Be-

cause the shopping cart is always customer-related, it

can be said that no searches will be required to ﬁnd

the shopping cart. These two factors justify the im-

plementation of this subsystem with a key-value data

model.

The subsystem of Product Registration is respon-

sible for the products and their prices. As it is a sim-

pliﬁed view, we also have only one consistency unit,

composed by the product and its price history. In

this case, searches may be required to ﬁnd products

through their attributes such as name or price. Avai-

lability is also a vital factor as data is accessed by

other subsystems, including the Shopping Cart and

Product Registration. Consistency also needs a little

more consideration because product prices are being

handled, but we can still think about eventual consis-

tency. For this scenario, we can consider a document-

oriented model as a good candidate, since it allows

searches and also high availability. A column-family

can also be used.

In the Completed Order and Costumer Registra-

tion subsystems, consistency is the main factor to be

considered. Availability is always a relevant factor

but in this case consistency is preferred. Once you

place an order, your values and quantities need to be

100% consistent, to avoid problems with payment in-

tegrations. For this reason, a data model with ACID

properties would ﬁt well, so a relational data model

can be used.

The last of the subsystems is the Product Recom-

mendation. This subsystem is based on searches on

the latest purchases related to customers and products,

usually with relationships such as ”Customers who

bought the product X also bought the product Y”.

This type of search is related to navigation between

purchases and customers, in a structure like a graph.

Consistency here is not so necessary, as it is a re-

commendations system only and an eventual incon-

sistency will not cause any losses. By performance

characteristics and query model, a graph data model is

recommended. They are especially designed for this

kind of situation. As graph databases are normally

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

124

ACID compliant, consistency will not be a problem.

As we can see, the deﬁnition of the data model that

is most appropriate to each subsystem requires a kno-

wledge of the subsystem itself and the data models,

in order to discover the most relevant characteristics

in each case. Our example is merely illustrative and a

more detailed scenario may lead to decisions different

from those described here.

3.4 Logical Data Model Design

The last step in the logical design of our proposal

deals with the individual logical design of each of

the previously selected data models. It is beyond the

scope of this paper the detailing of this process that

must be individualized for each of the data models to

be adopted. The goal here is to outline the objectives

to be achieved with this process.

As the objective of the conceptual design step is

the translation of the conceptual model into the in-

ternal model of a DBMS (Rob and Coronel, 2007)

the previous steps just prepared the template for this

translation, deﬁning the target data model and the

consistency units. This translation consists in trans-

form the consistency units and its entities and attri-

butes into the data structures of the target data model.

On a document-oriented data model, this means trans-

form the consistency unit in an aggregate, as this is

the atomic unit of this data model, and deﬁne its col-

lection. On a key-value data model, the consistency

unit is also the aggregate, but the key have to be deﬁ-

ned.

The deﬁnitions of each of the data models must be

treated in a speciﬁc way due to the particularities of

each one. Even between aggregate-oriented databa-

ses, features such as search capabilities, data storage

format, and others can determine essential differences

in data models.

4 CONCLUSION AND FUTURE

WORKS

NoSQL databases have emerged to improve the soft-

ware capabilities of storage and performance, provi-

ding ways to work with the so-called ”Big Data”. Ho-

wever, the use of these data models is still largely ba-

sed on best practices and examples and there are few

initiatives to standardize the documentation and met-

hodologies for modeling such databases. Most of the

related works presented on this paper are based on

speciﬁc data models, notations or starts an entirely

new modeling process, without taking advantage of

existing knowledge about database design.

Our solution aims to bring a design standardiza-

tion, providing a uniﬁed methodology capable of wor-

king with several data models integrated into a single

system. The concept is to extend the existing database

design by adding the steps required to model complex

systems with multiple integrated data models. To ex-

plore this methodology we have described a simpli-

ﬁed example, but with deﬁnitions compatible with a

complex system.

This work is the initial phase of a larger work see-

king for a complete modeling strategy for database

systems that use the so-called ”Polyglot Persistence”.

Future works can explore the logical and physical de-

sign steps of each of existing data models, such as

aggregate-oriented and graph data models. A graphi-

cal notation for represent the segmentation and con-

sistency units is also a necessity for bringing more vi-

sual understanding to the design diagrams. This need

for a graphical notation is also a necessity for the lo-

gical design of the data models, as described by (Jo-

vanovic and Benson, 2013) about aggregate-oriented

data models, but also applies to graphs.

REFERENCES

Abramova, V., Bernardino, J., and Furtado, P. (2014).

Which nosql database? a performance overview.

Open Journal of Databases (OJDB), 1(2):17–24.

Banerjee, S. and Sarkar, A. (2016). Logical level design of

nosql databases. In 2016 IEEE Region 10 Conference

(TENCON), pages 2360–2365.

Bugiotti, F., Cabibbo, L., Atzeni, P., and Torlone, R. (2013).

A logical approach to nosql databases.

Bugiotti, F., Cabibbo, L., Atzeni, P., and Torlone, R. (2014).

Database design for nosql systems. In International

Conference on Conceptual Modeling, pages 223–231.

Springer.

Cattell, R. (2011). Scalable sql and nosql data stores. Acm

Sigmod Record, 39(4):12–27.

Hashem, H. and Ranc, D. (2016). Evaluating nosql docu-

ment oriented data model. In Future Internet of Things

and Cloud Workshops (FiCloudW), IEEE Internatio-

nal Conference on, pages 51–56. IEEE.

Jovanovic, V. and Benson, S. (2013). Aggregate data mo-

deling style. SAIS 2013, pages 70–75.

Kaur, K. and Rani, R. (2013). Modeling and querying data

in nosql databases. In 2013 IEEE International Con-

ference on Big Data, pages 1–7.

Korth, H. F. and Silberschatz, A. (1986). Database System

Concepts. McGraw-Hill, Inc., New York, NY, USA.

Li, X., Ma, Z., and Chen, H. (2014). Qodm: A query-

oriented data modeling approach for nosql databases.

In 2014 IEEE Workshop on Advanced Research and

Technology in Industry Applications (WARTIA), pages

338–345.

An Approach for Modeling Polyglot Persistence

125

Martyn, T. (2000). Implementation design for databases:

the ‘forgotten’ step. IT Professional, 2(2):42–49.

Ramakrishnan, R. and Gehrke, J. (2000). Database mana-

gement systems. McGraw Hill.

Rob, P. and Coronel, C. (2007). Database Systems: Design,

Implementation, and Management. Course Techno-

logy Press, Boston, MA, United States, 8th edition.

Sadalage, P. J. and Fowler, M. (2012). NoSQL Distilled: A

Brief Guide to the Emerging World of Polyglot Persis-

tence. Addison-Wesley Professional, 1st edition.

Wilfong, K. and Vagata, P. (2014). Scaling the facebook

data warehouse to 300 pb. Accessed: 2017-09-10.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

126
